Product Type	Mini-GBIC Transceiver Module
Model	MGB-LX
Speed	1000 Mbps (Gigabit Ethernet)
Connector Interface	LC duplex
Fiber Mode	Single Mode
Maximum Distance	10 km
Wavelength	1310 nm
Operating Temperature	0 °C to 60 °C
Laser Safety	Class 1 Laser Product (Complies with FDA 21 CFR 1040.10 and 1040.11)
Compliance	FCC Class A, CE Mark, WEEE
Included Items	SFP Module x1, User Manual x1
Installation	Hot-swappable, plug-and-play
Compatibility	PLANET switches with 1000BASE-X SFP interface
Maintenance	Clean with isopropyl alcohol and lint-free cloth
Security	Avoid direct eye exposure to laser

Frequently Asked Questions - MGB-LX Planet

What devices is the MGB-LX compatible with?

The MGB-LX is compatible with PLANET switches that feature a 1000BASE-X SFP interface. It can be installed into any standard SFP slot supporting gigabit Ethernet.

How do I install the MGB-LX module?

Insert the module into the SFP slot and slide it in until it stops. Press firmly until you hear a click. Do not force, twist, or bend the module. The switch will automatically detect it.

What is the maximum transmission distance of the MGB-LX?

The MGB-LX supports a maximum distance of 10 km over single-mode fiber (9/125 μm). For shorter distances, an in-line optical attenuator may be needed to avoid overloading the receiver.

What type of fiber cable is required?

The MGB-LX requires single-mode fiber optic cable with 9/125 μm core/cladding diameter, terminated with LC connectors.

Is the MGB-LX hot-swappable?

Yes, the MGB-LX supports hot-swapping. You can insert or remove the module without powering off the switch, but always ensure no network activity before removal.

How should I clean the optical connectors?

Use a fiber optic cleaning kit with isopropyl alcohol and a lint-free cloth or a specialized cleaning tool. Gently wipe the connector end face to avoid scratches or contamination.

What is the operating temperature range?

The MGB-LX operates from 0 °C to 60 °C. Extended temperature variants (MGB-TLX) are available for -40 °C to 75 °C.

Is the MGB-LX a Class 1 laser product?

Yes, it is a Class 1 laser product that complies with FDA regulations. It emits invisible radiation but is safe under normal use. Avoid direct eye exposure.

What is included in the package?

The package includes one MGB-LX SFP module and a user manual. If any item is missing, contact your dealer.

How do I remove the MGB-LX module?

First, ensure no network activity. Gently remove the fiber optic cable. Turn the module handle to the horizontal level, then pull the module out smoothly using the handle. Do not pull directly on the module body.

USER MANUAL MGB-LX Planet

PLANET Fiber Transceiver

Copyright © PLANET Technology Corp. 2015

Contents are subject to revision without prior notice.

PLANET is a registered trademark of PLANET Technology Corp.

All other trademarks belong to their respective owners.

Disclaimer

PLANET Technology does not warrant that the hardware will work properly in all environments and applications, and makes no warranty and representation, either implied or expressed, with respect to the quality, performance, merchantability, or fitness for a particular purpose.

PLANET has made every effort to ensure that this User's Manual is accurate; PLANET disclaims liability for any inaccuracies or omissions that may have occurred.

Information in this User's Manual is subject to change without notice and does not represent a commitment on the part of PLANET. PLANET assumes no responsibility for any inaccuracies that may be contained in this User's Manual. PLANET makes no commitment to update or keep current the

information in this User's Manual, and reserves the right to make improvements to this User's Manual and/or to the products described in this User's Manual, at any time without notice.

If you find information in this manual that is incorrect, misleading, or incomplete, we would appreciate your comments and suggestions.

FCC Warning

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the Instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

CE Mark Warning

This is a Class A product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures.

WEEE Warning

To avoid the potential effects on the environment and human health as a result of the presence of hazardous substances in electrical and electronic equipment, end users of electrical and electronic equipment should understand the meaning of the crossed-out wheeled bin symbol. Do not dispose of WEEE as unsorted municipal waste and have to collect such WEEE separately.

Revision

User's Manual of PLANET SFP / SFP+ / XFP Mini-GBIC Transceiver

For Models: MFB-SERIES / MGB-SERIES / MTB-SERIES

Rev: 1.10 (June 2015)

Part No: 2010-AG0220-008

Table of Contents

1. Overview 6
2. Checklist....7
3. Introduction and Model List....8
   3-1 The MFB-Series Mini-GBIC Transceiver Module List 8
   3-2 The MGB-Series Mini-GBIC Transceiver Module List....12
   3-3 The MTB-Series Mini-GBIC Transceiver Module List 17
4. Installing SFP / SFP+ / XFP Transceiver Module....20
   4-1 Install the SFP / SFP+ Mini-GBIC Transceiver Module 20
   4-2 Install the 10GBASE-LR / SR XFP Fiber Optic Module MTB-XSR / MTB-XLR 21
   4-3 Remove the SFP / SFP+ / XFP Transceiver Module 22
   Appendix A....23
   A.1 Fiber Optic Cable Connection Parameters....23
   Safety Notice 24

1. Overview

Thank you for purchasing PLANET SFP / SFP+ / XFP Mini-GBIC Transceiver which includes the Ethernet module of the MFB / MGB and MTB families.

The MFB family Fast Ethernet SFP module can be installed into PLANET Switch products with 100BASE-FX SFP interface. The distance can be extended from 2km (Multi-mode, LC) up to 120 kilometers (Single-mode, LC).

The MGB family Gigabit Ethernet SFP module can be installed into PLANET Switch products with 1000BASE-SX/LX SFP interface. The distance can be extended from 100 meters (TP), and 550 meters (Multi-mode, LC), up to 120 kilometers (Single-mode, LC).

The MTB family 10G Ethernet SFP+ / XFP module can be installed into PLANET products with 10G SFP+ / XFP interface. The XFP transceivers can be extended from 300 meters (Multi-mode, LC), up to 60 kilometers (Single-mode, LC) distance long. The SFP+ transceivers can be extended from 300 meters (Multi-mode, LC), up to 60 kilometers (Single-mode, LC) distance long.

2. Checklist

Your SFP / SFP+ / XFP Package should contain the following items:

● The SFP / SFP+ / XFP Transceiver Module x 1
- The User's Manual x 1

If any item is missing or damaged, please consult the dealer from whom you purchased your SFP / SFP+ / XFP Mini-GBIC Ethernet transceiver module.

3. Introduction and Model List

3-1 The MFB-Series Mini-GBIC Transceiver Module List

Fast Ethernet Transceiver (100BASE-X SFP)

Model	Speed (Mbps)	Connector Interface	Fiber Mode	Distance	Wavelength (nm)	Operating Temp.
MFB-FX 100 LC Multi-Mode	2km 1310nm 0 ~ 60 °C
MFB-F20	100	LC	Single Mode	20km	1310nm	0 ~ 60 °C
MFB-F40	100	LC	Single Mode	40km	1310nm	0 ~ 60 °C
MFB-F60	100	LC	Single Mode	60km	1310nm	0 ~ 60 °C
MFB-F120	100	LC	Single Mode	120km	1550nm	0 ~ 60 °C
MFB-TFX	100	LC	Multi-Mode	2km	1310nm	-40 ~ 75 °C
MFB-TF20	100	LC	Single Mode	20km	1550nm	-40 ~ 75 °C

Fast Ethernet Transceiver (100BASE-BX, Single Fiber Bi-Directional SFP)

Model	Speed (Mbps)	Connector Interface	Fiber Mode	Distance Wavelength (TX)	Wavelength (RX)	Operating Temp.
MFB-FA20	100 WDM (LC)	Single Mode	20km 1310nm	1550nm 0	~ 60 °C
MFB-FB20	100 WDM (LC)	Single Mode	20km 1550nm	1310nm 0	~ 60 °C
MFB-TFA20	100 WDM (LC)	Single Mode	20km 1310nm	1550nm -40~75 °C
MFB-TFB20	100 WDM (LC)	Single Mode	20km 1550nm	1310nm -40~75 °C
MFB-TFA40	100 WDM (LC)	Single Mode	40km 1310nm	1550nm -40~75 °C
MFB-TFB40	100 WDM (LC)	Single Mode	40km 1550nm	1310nm -40~75 °C

Warning symbol: white triangle with exclamation mark (no text or numbers)

1. When shorter distance of single mode fiber cables is used, you might need to insert an in-line optical attenuator in the link to avoid overloading the receiver: Follow the I-TUT G652 document to imitate the fiber cable length.
2. The attenuation coefficient that mentioned in the following chapters is for reference only.

Attenuation coefficient	Wavelength region Typical link value
	1260nm-1360nm 0.5 dB/km
	1530nm-1565nm 0.4 dB/km

SFP ModelPhysicalFiber Cable Length “n” km	MFB-F20MFB-TF20	MFB-F40 MFB-F60 MFB-F120
10 < n < 20 2 dB 4-6 dB 8-10 dB	25-27 dB
20 < n < 40 -- 2-4 dB 6-8 dB 23-25 dB
40 < n < 60 -- 2-4 dB 18-20 dB

SFP ModelPhysicalFiber Cable Length “n” km	MFB-TFA10MFB-TFB10	MFB-FA20 / MFB-FB20MFB-TFA20 / MFB-TFB20	MFB-TFA40MFB-TFB40
10 < n < 20 -- 2 dB 4-6 dB
20 < n < 40 -- --	2-4 dB
40 < n < 60 -- -- --

3-2 The MGB-Series Mini-GBIC Transceiver Module List Gigabit Ethernet Transceiver (1000BASE-X SFP)

Model	Speed (Mbps)	Connector Interface	Fiber Mode	Distance	Wavelength (nm)	Operating Temp.
MGB-GT 1000 Copper -- 100m -- 0 ~ 60 °C
MGB-SX	1000	LC	Multi-Mode	550m	850nm	0 ~ 60 °C
MGB-SX2	1000	LC	Multi-Mode	2km	1310nm	0 ~ 60 °C
MGB-LX	1000	LC	Single Mode	10km	1310nm	0 ~ 60 °C
MGB-L30	1000	LC	Single Mode	30km	1310nm	0 ~ 60 °C
MGB-L40	1000	LC	Single Mode	40km	1550nm	0 ~ 60 °C
MGB-L50	1000	LC	Single Mode	50km	1550nm	0 ~ 60 °C
MGB-L70 1000 LC Single Mode 70km 1550nm 0 ~ 60 °C
MGB-L120 1000 LC Single Mode 120km 1550nm 0 ~ 60 °C
MGB-TSX 1000 LC Multi-Mode 550m 850nm -40 ~ 75 °C
MGB-TLX 1000 LC Single Mode 10km 1310nm -40 ~ 75 °C
MGB-TL30 1000 LC Single Mode 30km 1310nm -40 ~ 75 °C
MGB-TL70 1000 LC Single Mode 70km 1550nm -40 ~ 75 °C

Gigabit Ethernet Transceiver (1000BASE-BX, Single Fiber Bi-Directional SFP)

Model	Speed (Mbps)	Connector Interface	Fiber Mode	Distance	Wavelength (TX)	Wavelength (RX)	Operating Temp.
MGB-LA10	1000	WDM (LC)	Single Mode	10km	1310nm	1550nm	0 ~ 60 °C

MGB-LB10 1000 WDM (LC) Single Mode 10km 1550nm 1310nm 0 ~ 60 °C
MGB-LA20 1000 WDM (LC) Single Mode 20km 1310nm 1550nm 0 ~ 60 °C
MGB-LB20 1000 WDM (LC) Single Mode 20km 1550nm 1310nm 0 ~ 60 °C
MGB-LA40 1000 WDM (LC) Single Mode 40km 1310nm 1550nm 0 ~ 60 °C
MGB-LB40 1000 WDM (LC) Single Mode 40km 1550nm 1310nm 0 ~ 60 °C
MGB-LA60 1000 WDM (LC) Single Mode 60km 1310nm 1550nm 0 ~ 60 °C
MGB-LB60 1000 WDM (LC) Single Mode 60km 1550nm 1310nm 0 ~ 60 °C
MGB-TLA10 1000 WDM (LC) Single Mode 10km 1310nm 1550nm -40 ~ 75 °C
MGB-TLB10 1000 WDM (LC) Single Mode 10km 1550nm 1310nm -40 ~ 75 °C
MGB-TLA20 1000 WDM (LC) Single Mode 20km 1310nm 1550nm -40 ~ 75 °C
MGB-TLB20 1000 WDM (LC) Single Mode 20km 1550nm 1310nm -40 ~ 75 °C

MGB-TLA40 1	000 WDM (LC)	Single Mode 40km	1310nm	1550nm	-40 ~	75 °C
MGB-TLB40 1	000 WDM (LC)	Single Mode 40km	1550nm	1310nm	-40 ~	75 °C
MGB-TLA60 1	000 WDM (LC)	Single Mode 60km	1310nm	1550nm	-40 ~	75 °C
MGB-TLB60 1	000 WDM (LC)	Single Mode 60km	1550nm	1310nm	-40 ~	75 °C

SFP ModelPhysicalFiber Cable Length “n” km	MGB-LX MGB-L30 MGB-L40 MGB-L70 MGB-L120
10 < n < 20 -- 2-4 dB 5-7 dB 13-15 dB 25-27 dB
20 < n < 40 -- 2 dB 3-5 dB 10-12 dB 23-25 dB
40 < n < 60 -- -- 5-7 dB 18-20 dB

SFP ModelPhysicalFiber Cable Length “n” km	MGB-TLX MGB-TL30 MGB-TL70
10 < n < 20 -- 2-4 dB 13-15 dB
20 < n < 40 -- 2 dB 10-12 dB
40 < n < 60 -- -- 5-7 dB

SFP ModelPhysical FiberCable Length “n” km	MGB-LA10MGB-LB10MGB-TLA10MGB-TLB10	MGB-LA20MGB-LB20MGB-TLA20MGB-TLB20	MGB-LA40MGB-LB40MGB-TLA40MGB-TLB40	MGB-LA60MGB-LB60MGB-TLA60MGB-TLB60
10 < n < 20 -- 2 dB 4-6 dB 8-10 dB
20 < n < 40 -- -- 2-4 dB 6-8 dB
40 < n < 60 -- -- -- 2-4 dB

3-3 The MTB-Series Mini-GBIC Transceiver Module List

10Gbps XFP (10G Ethernet/10GBASE)

Model Speed (Mbps)	Connector Interface	Fiber Mode Distance	Wavelength (nm)	Operating Temp.
MTB-XSR 10G LC Multi-Mode	Up to 300m 850nm	0 ~ 60 °C
MTB-XLR 10G LC Single Mode	10km 1310nm	0 ~ 60 °C

10Gbps SFP+ (10G Ethernet/10GBASE)

Model Speed (Mbps)	Connector Interface	Fiber Mode Distance	Wavelength (nm)	Operating Temp.
MTB-SR 10G LC Multi-Mode Up to 300m 850nm 0 ~ 60 °C
MTB-LR 10G LC Single Mode 10km 1310nm 0 ~ 60 °C

10Gigabit Ethernet Transceiver (10GBASE-BX, Single Fiber Bi-Directional SFP)

Model	Speed (Mbps)	Connector Interface	Fiber Mode Distance	Wavelength (TX)	Wavelength (RX)	Operating Temp.
MTB-LA20 MTB-LB20	10G WDM (LC) Single Mode 20km 1270nm 1330nm 0 ~ 60 °C
	10G WDM (LC) Single Mode 20km 1330nm 1270nm 0 ~ 60 °C
MTB-LA40 MTB-LB40	10G WDM (LC) Single Mode 40km 1270nm 1330nm 0 ~ 60 °C
	10G WDM (LC) Single Mode 40km 1330nm 1270nm 0 ~ 60 °C
MTB-LA60 MTB-LB60	10G WDM (LC) Single Mode 60km 1270nm 1330nm 0 ~ 60 °C
	10G WDM (LC) Single Mode 60km 1330nm 1270nm 0 ~ 60 °C
SFP ModelPhysicalFiber Cable Length “n” km	MTB-LA20MTB-LB20	MTB-LA40MTB-LB40	MTB-LA60MTB-LB60
10 < n < 20 2 dB 4-6 dB 8-10 dB
20 < n < 40 -- 2-4 dB 6-8 dB
40 < n < 60 -- -- 2-4 dB

4. Installing SFP / SFP+ / XFP Transceiver Module

4-1 Install the SFP / SFP+ Mini-GBIC Transceiver Module

Please follow these steps to install the SFP / SFP+ Mini-GBIC module:

1. Power on the Switch and place the Switch on a flat surface. Install the new SFP / SFP+ Mini-GBIC module by inserting it into the slot and sliding it in until it stops (See Figure 1). Press it firmly until you hear the module snap into place. Never force, twist or bend the SFP / SFP+ Mini-GBIC module. The SFP / SFP+ Mini-GBIC module slides in smoothly and the Switch will automatically detect the new module.

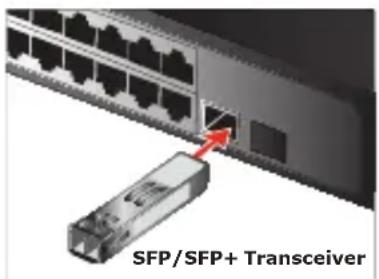

Figure 1: Insert the SFP/SFP+ Mini-GBIC Module

1. After the TP / Fiber connection is made successfully, check the LEDs to verify that if there is a link and a proper connection at the port.

Please refer to the user's manual for more about the Switch or module's management.

4-2 Install the 10GBASE-LR / SR XFP Fiber Optic Module MTB-XSR / MTB-XLR

The 10GBase-LR / SR Fiber Optic module can be installed into Planet products with 10G XFP interface.

Please refer to the following steps to install the 10GBASE-LR / SR Fiber Optic module:

1. Install the XGS3-M24GX or XGS3-S4XG module into the XGS3-42000R; its 10G XFP slot supports hot swappable feature.

2. Power on the XGS3-42000R L3 Switch and place the Switch on a flat surface. Install the new 10GBASE-LR / SR Fiber Optic module by inserting it into the slot and sliding it in until it stops (See Figure 2). Press it firmly until you hear the module snap into place. Never force, twist or bend the 10GBASE-LR / SR Fiber Optic module. The 10GBASE-LR / SR Fiber Optic module slides in smoothly and the XGS3-42000R L3 Switch will automatically detect the new module.

Illustration of a hand holding a device inside a rack or cabinet (no text or symbols visible)

Figure 2: Insert the 10GBASE-LR / SR Fiber Optic Module

1. After the 10GBASE-LR / SR Fiber connection is made successfully, check the LNK/ACT LED to verify that if there is a link and a proper connection at the port.

Please refer to the Switch's user's manual for more about Switch or module's management.

4-3 Remove the SFP / SFP+ / XFP Transceiver Module

1. Make sure there is no network activity by consulting or checking with the network administrator.
2. Remove the Fiber Optic Cable gently.
3. Turn the handle of the SFP / SFP+ / XFP Transceiver module to the horizontal level.
4. Pull out the SFP / SFP+ / XFP Transceiver module gently through the handle.

Illustration of a hand inserting a component into a rack (no text or symbols visible)

Never pull out the SFP / SFP+ / XFP Transceiver module without pulling the handle or the push bolts on the module. Directly pulling out the SFP / SFP+ / XFP Transceiver module would damage the SFP / SFP+ / XFP Transceiver module of the device.

Appendix A

A.1 Fiber Optic Cable Connection Parameters

The wiring details are shown below:

■ Fiber Optic Patch Cables:

Standard Fiber Type	Cable Specifications
100BASE-FX Multi-mode 50/125μm or 62.5/125μm
100BASE-FX Single mode 9/125μm
1000BASE-SX Multi-mode 50/125μm or 62.5/125μm
1000BASE-LX Single mode 9/125μm
1000BASE-BX Single mode 9/125μm
10GBASE-SR Multi-mode 50/125μm or 62.5/125μm
10GBASE-LR Single mode 9/125μm
10GBASE-BX Single mode 9/125μm

Safety Notice

Fiber-optic SFP modules are equipped with a Class 1 laser, which emits invisible radiation. Read the following safety warning carefully.

Note

Class 1 Laser Product

Complies with FDA Regulation 21 CFR 1040.10 and 1040.11

Warning

Class 1 radiation is present when the device or system is powered up.

Warning

Only trained and qualified personnel should be allowed to install or replace these modules.
