Product Type	Air-to-Water Heat Pump (Reversible)
Model	Aura
Brand	Thermia
Dimensions (H x W x D)	Outdoor unit: 950 × 750 × 330 mm
Weight	Outdoor unit: 65 kg
Power Supply	230V / 50Hz, single phase
Cooling Capacity	7.0 kW
Heating Capacity	8.0 kW
COP (Heating)	3.8 (at A2/W35)
EER (Cooling)	3.5 (at A35/W7)
Refrigerant	R410A
Sound Level (Outdoor)	55 dB(A)
Sound Level (Indoor)	< 30 dB(A)
Operating Temperature Range	-20°C to 45°C
Functions	Cooling, Heating, Domestic Hot Water
Filter Type	Washable mesh filter
Maintenance	Clean filter every 3 months; annual professional inspection
Safety Features	High-pressure switch, anti-freeze protection, overload protection
Spare Parts Availability	Yes, via authorized Thermia service centers
Warranty	2 years parts and labor
Smart Control	Optional Wi-Fi module for app control
Installation	Requires certified HVAC technician

Frequently Asked Questions - Aura Thermia

How do I set the desired room temperature on the Thermia Aura?

Use the control panel to adjust the setpoint temperature. Press the + or - buttons to increase or decrease the temperature in 0.5°C increments.

Why is my Thermia Aura not cooling properly?

Check if the air filter is dirty and clean it if necessary. Also ensure that the outdoor unit is not obstructed and that the temperature setpoint is lower than the room temperature. If the problem persists, contact a qualified technician.

What is the recommended maintenance schedule for the Aura heat pump?

Clean the air filter every 3 months. Schedule a professional inspection annually to check refrigerant levels, electrical connections, and overall system performance.

Can I control the Thermia Aura with my smartphone?

Yes, if you install the optional Wi-Fi module. Then download the Thermia Smart app to control heating, cooling, and hot water remotely.

What should I do if the display shows an error code?

Refer to the error code table in the manual. Common codes: E1 (high pressure), E3 (anti-freeze). Try resetting the unit by turning it off for 5 minutes. If the error persists, call service.

How do I switch between cooling and heating modes?

Press the Mode button on the remote or control panel until you see the snowflake (cool) or sun (heat) icon. The unit will automatically adjust the reversing valve.

Is the Thermia Aura suitable for cold climates?

Yes, it operates down to -20°C outdoor temperature. However, heating capacity may decrease at very low temperatures. Ensure proper defrost cycles are enabled.

Can I install the Aura myself?

No, installation must be done by a certified HVAC technician due to refrigerant handling and electrical requirements. Improper installation voids warranty.

What type of refrigerant does the Aura use?

It uses R410A refrigerant. For servicing or recharging, only qualified personnel should handle it.

How do I clean the air filter?

Open the front panel, remove the filter, and vacuum or wash it with mild soap and water. Let it dry completely before reinstalling. Do not operate without the filter.

USER MANUAL Aura Thermia

Line drawing of a 3D rectangular prism with rounded ends and a flat top (no text or symbols)

SPLIT TYPE

ROOM AIR / AIR HEAT PUMP

OPERATION MANUAL

SPLITT-TYPE

ROM LUFT/LUFT VARMEPUMPE

BRUKERMANUAL

JAETTU

ILMALÄMPÖPUMPPU

KÄYTTÖOPAS

LUFT/LUFTVÄRMEPUMP

BRUKSANVISNING

Uses Refrigerant R410A

INDOOR UNIT INNEND∅RSENHET SISÄYKSIKKÖ INOMHUSENHET

12 ZP-TI

OUTDOOR UNIT UTEND∅RSENHET ULKOYKSIKKÖ UTOMHUSENHET

12 ZP-TO

Attention: Your product is marked with this symbol. It means that used electrical and electronic products should not be mixed with general household waste. There is a separate collection system for these products.

A. Information on Disposal for Users (private households)

1. In the European Union

Attention: Do not dispose of this equipment with ordinary household waste!

Used electrical and electronic equipment must be treated separately and in accordance with legislation that requires proper treatment, recovery and recycling of used electrical and electronic equipment.

Following the implementation by member states, private households within the EU states may return their used electrical and electronic equipment to designated collection facilities free of charge*. In some countries* your local retailer may also take back your old product free of charge if you purchase a similar new one.

*) Please contact your local authority for further details.

If your used electrical or electronic equipment has batteries or accumulators, please dispose of these separately beforehand according to local requirements.

By disposing of this product correctly you will help ensure that the waste undergoes the necessary treatment, recovery and recycling and thus prevent potential negative effects on the environment and human health which could otherwise arise due to inappropriate waste handling.

2. In other Countries outside the EU

If you wish to discard this product, please contact your local authorities and ask for the correct method of disposal.

For Switzerland: Used electrical or electronic equipment can be returned free of charge to the dealer, even if you don't purchase a new product. Further collection facilities are listed on the homepage of www.swico.ch or www.sens.ch.

B. Information on Disposal for Business Users.

1. In the European Union

If the product is used for business purposes and you want to discard it: Please contact your installer who will inform you about the take-back of the product. You might be charged for the costs arising from take-back and recycling. Small products (and small amounts) might be taken back by your local collection facilities.

For Spain: Please contact the established collection system or your local authority for take-back of your used products.

2. In other Countries outside the EU

If you wish to discard of this product, please contact your local authorities and ask for the correct method of disposal.

Pb

The battery supplied with this product contains traces of Lead.

For EU: The crossed-out wheeled bin implies that used batteries should not be put to the general household waste! There is a separate collection system for used batteries, to allow proper treatment and recycling in accordance with legislation. Please contact your local authority for details on the collection and recycling schemes.

For Switzerland: The used battery is to be returned to the selling point.

For other non-EU countries: Please contact your local authority for correct method of disposal of the used battery.

Contains fluorinated greenhouse gases covered by the Kyoto Protocol R410A (Global warming potential 1975)

ENGLISH

Please read this manual carefully before using the product. This manual should be kept in a safe place for handy reference.

CONTENTS

• SAFETY PRECAUTIONS......GB-1
- PART NAMES......GB-2
• USING THE REMOTE CONTROL......GB-4
• TIPS ON SAVING ENERGY ...... GB-5
- AUXILIARY MODE ...... GB-5
- BASIC OPERATION ...... GB-6
- ADJUSTING THE AIR FLOW DIRECTION ..... GB-7
• COANDA AIRFLOW......GB-7

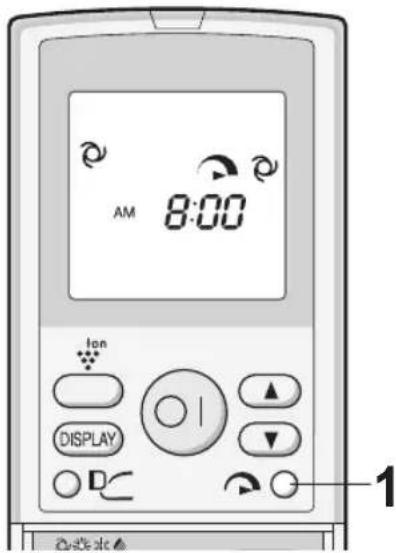

- FULL POWER OPERATION......GB-8
- PLASMACLUSTER OPERATION....GB-8
- SELF CLEAN OPERATION....GB-9
• 1-HOUR OFF TIMER......GB-9
• TIMER OPERATION......GB-10
- MAINTENANCE FUNCTION OPERATION ......GB-11

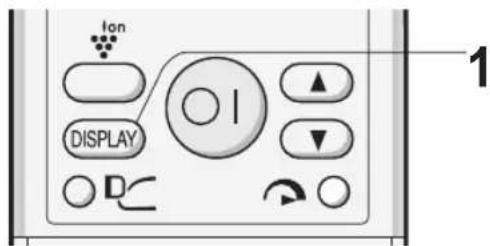

- DISPLAY BUTTON GB-12
• NOTES ON OPERATION ...... GB-12

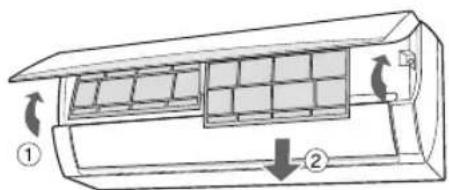

- MAINTENANCE....GB-13
- BEFORE CALLING FOR SERVICE ...... GB-14

SAFETY PRECAUTIONS

WARNING

• Do not pull or deform the power supply cord. Pulling and misuse of the power supply cord can result in damage to the unit and cause electrical shock.
• Be careful not to expose your body directly to the outlet air for a long time. It may affect your physical conditions.
• When using the air/air heatpump for infants, children, elderly, bedridden, or disabled people make sure the room temperature is suitable for those in the room.
• Never insert objects into the unit. Inserting objects can result in injury due to the high speed rotation of internal fans.
• Ground the air/air heatpump without fail. Do not connect the grounding wire to gas pipe, water pipe, lightning rod or telephone grounding wire. Incomplete grounding may cause electric shock.
• If anything is abnormal with the air/air heatpump (ex. a burning smell), stop the operation immediately and turn the circuit breaker OFF.
• The appliance shall be installed in accordance with national wiring regulations. Improper cable connection can cause the power supply cord, plug and the electrical outlet to overheat and cause fire.

• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard. Use only the manufacture-specified power cord for replacement.

• Do not splash or pour water directly on the unit. Water can cause electrical shock or equipment damage.

• Do not attempt to install/remove/repair the unit by yourself. Incorrect work will cause electric shock, water leak, fire etc. Consult your dealer or other qualified service personnel for the installation/removal/repair of the unit.

CAUTION

• Open a window or door periodically to ventilate the room, especially when using gas appliances. Insufficient ventilation may cause oxygen shortage.
• Do not operate the buttons with wet hand. It may cause electric shock.
• For safety, turn the circuit breaker off when not using the unit for an extended period of time.
• Check the outdoor unit mounting rack periodically for wear and to make sure it is firmly in place.
• Do not put anything on the outdoor unit nor step on it. The object or the person may fall down or drop, causing injury.
• This unit is designed for residential use. Do not use for other applications such as in a kennel or greenhouse to raise animals or grow plants.
• Do not place a vessel with water on the unit. If water penetrates into the unit, electrical insulations may deteriorate and cause electric shock.
• Do not block the air inlets nor outlets of the unit. It may cause insufficient performance or troubles.
• Be sure to stop the operation and turn the circuit breaker off before performing any maintenance or cleaning. A fan is rotating inside the unit and you may get injured.
• This appliance is not intended for use by young children or infirm persons without supervision. Young children should be supervised to ensure that they do not play with the appliance.
• Make sure to connect the air/air heatpump to power supply of the rated voltage and frequency. Use of a power supply with improper voltage and frequency can result in equipment damage and possible fire.
• Do not install the unit in a place where inflammable gas may leak. It may cause fire. Install the unit in a place with minimal dust, fumes and moisture in the air.
• Arrange the drain hose to ensure smooth drainage. Insufficient drainage may cause wetting of the room, furniture etc.
• Make sure a leak breaker or a circuit breaker is installed, depending on the installation location, to avoid electrical shock.

PART NAMES

INDOOR UNIT

1 Air inlet

2 Open Panel

3 Air Filter

4 Aux Button

5 Receiver Window

6 Power Supply Cord

7 Vertical Adjustment Louvre

8 Horizontal Adjustment Louvre

9 Air outlet

10 Remote Control

11 PLASMACLUSTER Lamp (blue 🌐)

12 OPERATION Lamp (green ☐)

13 TIMER Lamp (orange ⏻)

14 FULL POWER Lamp (green 📋)

15 SELF CLEAN Lamp (green C)

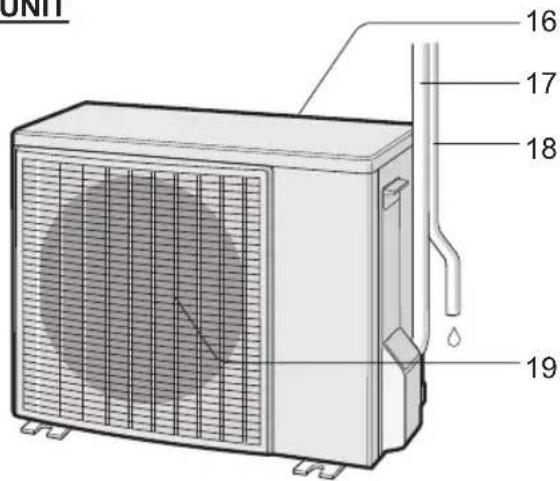

OUTDOOR UNIT

16 Air inlet

17 Refrigerant Tube and Interconnecting Cord

18 Drainage Hose

19 Air outlet

NOTE:

Actual units might vary slightly from those shown above.

GB-2

REMOTE CONTROL

DISPLAY

1 TRANSMITTER

2 DISPLAY (Liquid Crystal Display)

3 PLASMACLUSTER Button

4 DISPLAY Button

5 ON/OFF Button

6 THERMOSTAT Button

7 FULL POWER Button

8 COANDA AIRFLOW Button

9 MODE Button

10 TIMER ON Button (for setting the timer)

11 TIMER OFF Button (for setting the timer)

12 1-HOUR OFF TIMER Button

13 TIME ADVANCE Button

14 TIME REVERSE Button

15 SELF CLEAN Button

16 TIMER SET/CANCEL Button

17 MAINTENANCE +10° Button

18 CLOCK Button

19 FAN Button

20 SWING Button

21 Indicates battery compartment is below this mark

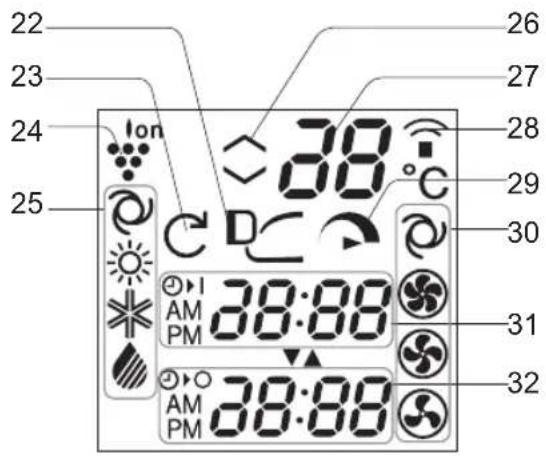

22 COANDAAIRFLOW Symbol

23 SELF CLEAN Symbol

24 PLASMACLUSTER Symbol

25 MODE Symbols

: AUTO ※: COOL

: HEA : DEHUMIDIFY

26 Thermostat setting for AUTO and DE-HUMIDIFY modes

27 TEMPERATURE Indicator

28 TRANSMITTING Symbol

29 FULL POWER Symbol

30 FAN SPEED Symbols

: AUTO : LOW

: HIGH : SOFT

31 TIMER ON Indicator/CLOCK

Indicates the on timer preset time or current time.

32 TIMER OFF Indicator

Indicates the preset time for off timer or 1-hour off timer.

USING THE REMOTE CONTROL

LOADING BATTERIES

Use two size-AAA (R03) batteries.

1 Remove the remote control cover.

2 Insert batteries. Make sure the (

- Make sure the (+) and (−) polarities are correctlyaligned.

- The display indicates "AM 6:00" when batteries are properly installed.

3 Reinstall the cover.

NOTE:

• The battery life is approximately 1 year in normal use.
- When replacing the batteries, always change both and use the same type.
- If the remote control does not operate properly after replacing the batteries, take out the batteries and reinstall them again after 30 seconds.
- If you will not be using the unit for a long time, remove the batteries from the remote control.

USING THE REMOTE CONTROL

Point the remote control towards the receiver window and press the desired button. The unit generates a beep when it receives the signal.

• Make sure nothing, such as curtains, block the signal receiver window.
  • The signal effective distance is 7 m.

CAUTION:

• Do not allow the signal receiver window to receive strong direct sunlight, since it can adversely affect its operation. If the signal receiver window is exposed to direct sunlight, close a curtain to block the light.
• Using a fluorescent lamp with a quick starter in the same room may interfere with transmission of the signal.
• The unit can be affected by signals transmitted from the remote control of a television, VCR or other equipment used in the same room.
• Do not leave the remote control in direct sunlight or near a heater. Also, protect the unit and remote control from moisture and shock which can discolour or damage them.

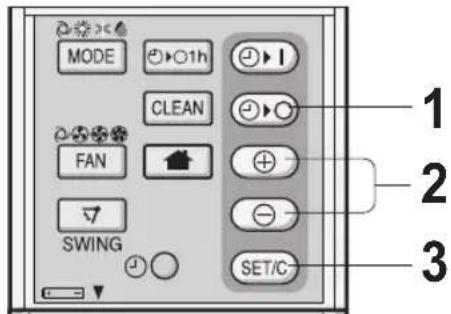

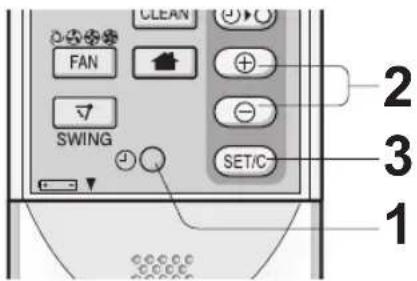

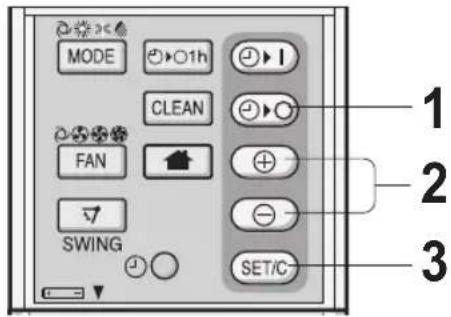

SETTING THE CURRENT TIME

There are two clock modes: 12-hour mode and 24-hour mode.

1 To set to the 12-hour mode, press the CLOCK button once.

To set to the 24-hour mode, press the CLOCK button twice.

2 Press the TIME ADVANCE or REVERSE button to set the current time.

- Hold down the button to advance or reverse the time display quickly.

2 Press the SET/C button.

• The colon (:) blinks.

NOTE:

- The current time cannot be set when the timer is operating.

TIPS ON SAVING ENERGY

Below are some simple ways to save energy when you use your air/air heatpump.

Set the proper temperature

- Setting the temperature to higher or lower than necessary will result in increased power consumption.

Block direct sunlight and prevent drafts

• Blocking direct sunlight during cooling operation will reduce power consumption.
• Close the windows and doors during cooling and heating operations.

Keep filter clean to ensure the most efficient operation

Turn off the circuit breaker when the unit is not used for an extended period of time

- The indoor unit still consumes a small amount of power when it is not operating.

AUXILIARY MODE

Use this mode when the remote control is not available.

TO TURN ON

Lift the open panel of the indoor unit and press the AUX button.

• The green OPERATION lamp ( ☐) on the unit will light and the unit will start operating in the AUTO mode.
• The fan speed and temperature setting are set to AUTO.

TO TURN OFF

Press the AUX button again.

- The green OPERATION lamp (☐) on the unit will turn off.

NOTE:

- If the AUX button is pressed during normal operation, the unit will turn off.

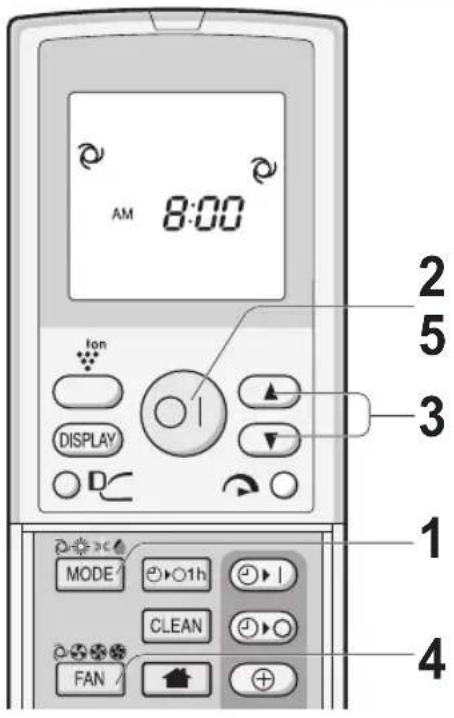

BASIC OPERATION

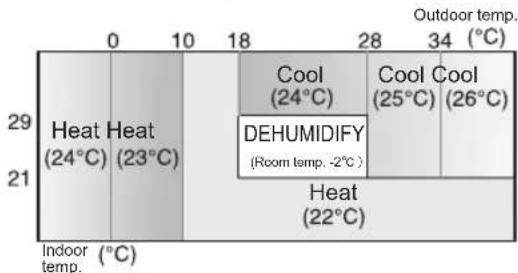

TIPS ABOUT AUTO MODE

In the AUTO mode, the temperature setting and mode are automatically selected according to the room temperature and outdoor temperature when the unit is turned on.

Modes and Temperature Settings

The figures in ( ) are temperature settings

During operation, if the outdoor temperature changes, the temperature settings will automatically slide as shown in the chart.

AUTO CHANGEOVER

During seasons when you need COOLING at daytime and HEATING at night, or if the room temperature should become extremely higher than the temperature setting, due to supplementary heating equipment, the mode will automatically switch between HEAT and COOL mode to keep the comfortable room temperature.

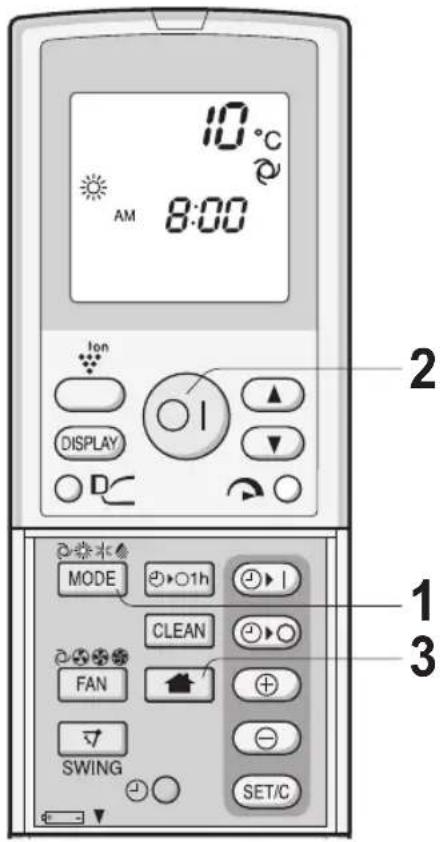

1 Press the MODE button to select the operation mode.

2 Press the ON/OFF button to start operation.

- The green OPERATION lamp (☐) on the unit will light.

3 Press the THERMOSTAT button to set the desired temperature.

- The temperature can be changed up to an additional ± 2^ from the automatically set of temperature.

(Example: 1°C higher)

(Example: 2^ C lower)

COOL/HEAT MODE

• The temperature setting range:18-32 °C.

4 Press the FAN button to set the desired fan speed.

AUTO SOFT LOW HIGH

- In the DEHUMIDIFY mode, the fan speed is preset to AUTO and cannot be changed.

5 To turn off the unit, press the ON/OFF button again.

- The green OPERATION lamp (☐) on the unit will turn off.

ADJUSTING THE AIR FLOW DIRECTION

VERTICAL AIR FLOW DIRECTION

1 Press the SWING button( )

• The vertical adjustment louvre will swing.

2 Press the SWING button(→) again to stop at the desired position.

Adjustment range

COOL and DEHU-HEAT mode MIDIFY modes

CAUTION:

Never attempt to adjust the vertical airflow louvre manually.

• Manual adjustment of the vertical airflow louvre can cause the unit to malfunction.
• When the vertical adjustment louvre is positioned at the lowest position in the COOL or DEHUMIDIFY mode for an extended period of time, condensation may result.

HORIZONTAL AIR FLOW DIRECTION

Adjust the horizontal air flow direction with the louvre lever.

Louvre levers

COANDA AIRFLOW

In cool or dehumidify mode, vertical airflow louvre is set obliquely upward to deliver cool air to the ceiling in order to avoid direct airflow. In heat mode, vertical airflow louvre is set downward to deliver the warm air down to the floor.

1 During operation, press the COANDA AIRFLOW button.

• The remote control will display

TO CANCEL

Press the COANDA AIRFLOW button again.

NOTE:

• The COANDA AIRFLOW setting is cancelled when you press FULL POWER button while COANDA AIRFLOW is set.
• If you want COANDA AIRFLOW operation in FULL POWER mode, press COANDA AIRFLOW button during FULL POWER operation.

In this operation, the air/air heat pump works at the maximum power to make the room cool or warm rapidly.

1 During operation, press the FULL POWER button.

• The remote control will display “”.
  • The temperature display will go off.
• The green FULL POWER lamp ( ) on the unit will light up.

TO CANCEL

Press the FULL POWER button again.

• The FULL POWER operation will also be cancelled when the operation mode is changed, or when the unit is turned off.
• The green FULL POWER lamp ( ) on the unit will turn off.

NOTE:

• The air/air heat pump will operate at "Extra HIGH" fan speed for 15 minutes, and then shift to "HIGH" fan speed.
• You can not set the temperature or fan speed during the FULL POWER operation.
• To turn off the FULL POWER lamp, press the DISPLAY button.

PLASMACLUSTER OPERATION

Active air purification mode with plasmacluster ions. Actively reduces airborne mold.

1 Press the PLASMACLUSTER button during operation.

• The remote control will display "".
• The blue PLASMACLUSTER lamp on the unit will light up.

2 If you pressed the button while unit is not in operation, Plasmacluster operation starts in fan only mode.

TO CANCEL

Press the PLASMACLUSTER button again.

- The blue PLASMACLUSTER lamp on the unit will turn off.

NOTE:

• Use of the PLASMACLUSTER operation will be memorized, and it will be activated the next time you turn on the air/air heat pump.
  • To turn off the PLASMACLUSTER lamp, press the DISPLAY button.

SELF CLEAN OPERATION 1-HO

SELF CLEAN operation will reduce the growth mold fungus with Plasmacluster ions, and dry inside of the air/air heat pump unit. Utilize the operation at seasonal change over terms.

1 Press the SELF CLEAN button when the unit is not operating.

• The remote control displays “”. C

- The green OPERATION lamp (☐), the green SELF CLEAN lamp (☐) and the blue PLASMACLUSTER lamp on the unit will light up.

- The unit will stop operation after forty minutes.

TO CANCEL

Press the SELF CLEAN button.

Alternatively, turn the unit off by pressing the ON/OFF button.

- The green OPERATION lamp (☐), the green SELF CLEAN lamp (○) and the blue PLASMACLUSTER lamp on the unit will turn off.

NOTE:

- You cannot set the temperature, fan speed, air flow direction or timer setting during the SELF CLEAN operation.

- Mold fungus already grown can not be eliminated by this operation.

OFF TIMER

When the 1-HOUR OFF TIMER is set, the unit will automatically turn off after one hour.

1 Press the 1-HOUR OFF TIMER button.

- The remote control displays “”. ⏻○‖ - The orange TIMER lamp ( ) on the unit will light up.

TO CANCEL

Press the TIMER CANCEL button.

- The orange TIMER lamp ( ⏻ on the unit will turn off.

NOTE:

• The 1-HOUR OFF TIMER operation has priority over TIMER ON and TIMER OFF operations.
• If the 1-HOUR OFF TIMER is set while the unit is not operating, the unit will operate for an hour at the formerly set condition.
• If you wish to operate the unit for another hour before the 1-HOUR OFF TIMER is activated, press the 1-HOUR OFF TIMER button again during operation.
• If TIMER ON and/or TIMER OFF are set, TIMER CANCEL button cancels every setting.

TIMER OPERATION

Before setting the timer, make sure the clock is properly set with the current time.

TIMER OFF

1 Press the TIMER OFF button.

• The TIMER OFF indicator will blink.

2 Press the TIME ADVANCE or REVERSE button to set the desired time.

• The time can be set in 10-minute increments.

Press the SET/C button.

- The orange TIMER lamp ( ⏻ on the unit will light.

TIMER ON

1 Press the TIMER ON button.

• The TIMER ON indicator will blink.

2 Press the TIME ADVANCE or RE- VERSE button to set the desired time.

- The time can be set in 10-minute increments.

Press the SET/C button.

- The orange TIMER lamp (💡) on the unit will light.

4 Select the operation condition.

NOTE:

When the TIMER OFF mode is set, the temperature setting is automatically adjusted to prevent the room from be coming excessively hot or too cold while you sleep. (Auto Sleep function) The Auto Sleep function will not activate during the AUTO mode.

COOL/DEHUMIDIFY MODE:

One hour after the timer is set, the temperature setting rises by 1^ C.

HEAT MODE:

One hour after the timer is set, the temperature setting drops 3^ C.

NOTE:

- The unit will turn on prior to the set time to allow the room to reach the desired temperature by the programmed time. (Awaking function)

TO CANCEL TIMER MODE

Press the SET/C button.

• The orange TIMER lamp ( ⏻ on the unit will turn off.
• The current time will be displayed on the remote control.

NOTE:

- If any TIMER ON, TIMER OFF and ONE-HOUR OFF TIMER are set, the TIMER CANCEL button cancels all settings.

TO CHANGE TIME SETTING

Cancel the TIMER setting first, then set it again.

TO COMBINE TIMER ON AND TIMER OFF

Set the TIMER OFF and TIMER ON.

Example:

(Current time: 9:00 p.m)

OFF TIMER at 11:00 p.m.

ON TIMER at 7:00 a.m.

- The arrow (▼or ▲) between the TIMER ON indicator and the TIMER OFF indicator shows which timer will activate first.

NOTE:

• You cannot program the ON-TIMER and OFF-TIMER to operate the unit at different temperatures or other settings.
• Either timer can be programmed to activate prior to the other.

A maintenance temperature of 10^ C eliminates moisture and extreme cold, reducing the risk of mold and frost damage.

1 Press the MODE button and select HEAT mode.

2 Press the ON/OFF button to start HEAT operation.

3 Press the MAINTENANCE button.

- The remote control will display "10°C".

TO CANCEL

Press the MAINTENANCE +10° button again.

- MAINTENANCE FUNCTION operation will also be cancelled when the operation mode is changed, or when the unit is turned off.

NOTE:

- MAINTENANCE FUNCTION operation will not be available during AUTO mode operation.

Press the DISPLAY button when the lamps on the unit are too bright. (The green OPERATION lamp and the orange TIMER lamp can not be turned off.)

1 During operation, press the DISPLAY button.

- The blue PLASMACLUSTER lamp ( ♡ ) and/or the green FULL POWER lamp ( ♡ ) will turn off.

TO LIGHT UP

Press the DISPLAY button again.

• The built-in protective device may prevent the unit from operating when used out of this range.
• Condensation may form on the air outlet if the unit operates continuously in the COOL or DEHUMIDIFY mode when humidity is over 80 percent.

WHEN POWER FAILURE OCCURS

- This air/air heat pump has a memory function to store settings when a power failure occurs.

After power recovery, the unit will automatically restart in the same settings which were active before the power failure, except for timer settings.

- If a power failure occurs while the timer is set, the timer setting will be cancelled and will not be retrieved even after the power is restored.

- When frost forms on the outdoor unit during heating operation, the unit will perform automatic defrosting for about 5 to 10 minutes to remove the frost. During defrosting, the inside and outside fans stop operating.

HEATING EFFICIENCY

• The unit employs a heat pump that draws heat from the outside air and releases it into the room. The outside temperature therefore greatly affects the heating efficiency.
• If the heating efficiency is reduced due to low outside temperatures, use an additional heater.

MAINTENANCE

Be sure to stop the operation and turn off the circuit breaker before performing any maintenance.

CLEANING THE FILTERS

The air filters should be cleaned every two weeks.

1 Turn off the unit.
2 Remove the filters.

1 Lift the open panel.

2 Pull the air filters down to remove them.

3 (If using optional air purifying filters: PART CODE CFIL-A124JBKZ) Take off the air purifying filters from the air filters.
4 Clean the filters.

Use a vacuum cleaner to remove dust. If the filters are dirty, wash them with warm water and a mild detergent. Dry filters in the shade before reinstalling.

5 (If using optional air purifying filters) Reinstall the air purifying filters.
6 Reinstall the filters and close the open panel.

CLEANING THE UNIT AND THE REMOTE CONTROL

• Wipe them with a soft cloth.
• Do not directly splash or pour water on them. It can cause electrical shock or equipment damage.
• Do not use hot water, thinner, abrasive powders or strong solvents.

MAINTENANCE AFTER AIR/AIR HEAT PUMP SEASON

1 Operate the unit in the SELF CLEAN operation to thoroughly dry inside the unit.
2 Stop the operation and turn off the circuit breaker.
3 Clean the filters, then reinstall them.

MAINTENANCE BEFORE AIR/AIR HEAT PUMP SEASON

1 Make sure that the air filters are not dirty.
2 Make sure that nothing obstructs the air inlet or outlet.

BEFORE CALLING FOR SERVICE

The following conditions do not denote equipment malfunctions

UNIT DOES NOT OPERATE

- The unit will not operate if it is turned on immediately after it is turned off. The unit will not operate immediately after the mode is changed. This is to protect the internal mechanisms. Wait 3 minutes before operating the unit.

UNIT DOES NOT SEND OUT WARM AIR

- In heating operation, the indoor fan may not start for 2 to 5 minutes after the unit is turned on to prevent cold air from blowing out of the unit.

- The unit is defrosting. Wait for 5 to 10 minutes.

ODORS

- Carpet and furniture odors that entered into the unit may be sent out from the unit.

CRACKING NOISE

- The unit may produce a cracking noise. This sound is generated by the friction of the front panel and other components expanding or connecting due to a temperature change.

A LOW BUZZING NOISE EMITTED

- This is a sound emitted when the unit is generating Plasmacluster ions.

SWISHING NOISE

- The soft, swishing noise is the sound of the refrigerant flowing inside the unit.

MIST SEEN AT INDOOR AIR OUTLET

- In cooling operation, this is caused by the difference between the room air temperature and the air discharged.

WATER VAPOUR

- In the HEAT operation, water vapour may flow out of the outdoor unit during de-icing.

THE OUTDOOR UNIT DOES NOT STOP

• After stopping the operation, the outdoor unit will rotate its fan for about a minute to cool down the unit.

ODOR EMITTED FROM THE PLASMA-CLUSTER AIR OUTLET

- This is the smell of ozone generated from the Plasmacluster Ion generator. The ozone concentration is very small, posing no adverse effect on your health. The ozone discharged into the air rapidly decomposes, and its density in the room will not increase.

If the unit appears to be malfunctioning, check the following points before calling for service.

IF THE UNIT FAILS TO OPERATE

Check to see if the circuit breaker has tripped or the fuse has blown.

IF THE UNIT FAILS TO COOL (OR HEAT) THE ROOM EFFECTIVELY

• Check the filters. If dirty, clean them.
• Check the outdoor unit to make sure nothing is blocking the air inlet or outlet.
• Check the thermostat is proper setting.
• Make sure windows and doors are closed tightly.
• A large number of people in the room can prevent the unit from achieving the desired temperature.
• Check whether any heat-generating appliances are operating in the room.

IF THE UNIT FAILS TO RECEIVE THE REMOTE CONTROL SIGNAL

• Check whether the remote control batteries have become old and weak.
• Try to send the signal again with the remote control pointed properly towards the unit's signal receiver window.
• Check whether the remote control batteries are installed properly.

Please call for service when OPERATION lamp, TIMER lamp and/or PLASMACLUSTER lamp on the unit blink.

1 Luftinntak

2 Åpent panel

3 Luftfilter

4 AUX-knapp

5 Mottaksvindu

6 Strømledning

DISPLAY

1 SENDER
2 DISPLAY (Liquid Crystal Display)
3 PLASMACLUSTER-knapp
4 DISPLAY-knapp
5 PÅ/AV-knapp
6 TERMOSTAT-knapp
7 FULL EFFEKT-knapp
8 COANDA AIRFLOW-knapp
9 DRIFTSMODUS (MODE)-knapp
10 TIDSUR PÅ-knapp
(for programmering av tidsuret)
11 TIDSUR AV-knapp
(for programmering av tidsuret)
12 TIDSUR SLÅS AV ETTER 1 TIME-knapp
13 TID FREMOVER-knapp
14 TID BAKOVER-knapp
15 SELVRENGJ∅RING-knapp
16 Knapp for å ENDRE/AVBRYTE TIDSUR
17 Vedlikeholdsvarme +10°-knapp
18 KLOKKE-knapp
19 VIFTE-knapp
20 SVING-knapp
21 Viser at batteriorommet er under dette merket

22 COANDA AIRFLOW-symbol

23 SELVRENGJ∅RING-symbol

24 PLASMACLUSTER-symbol

25 MODUS-symboler

: AUTO

*: KALD

:VAR

: T∅RR

26 Termostatinnstilling for AUTO og T∅RR modus

27 TEMPERATUR-indikator

28 SENDINGS-symbol

29 FULL EFFEKT-symbol

30 VIFTEHASTIGHET-symboler

: AUTO

: LAV

: H∅Y

: MYK

31 Indikator for TIDSUR PÅ / KLOKKE

TTIPS OM AUTOMODUS

Justeringsområde

Technical line drawing of a wall-mounted air conditioner unit with mounting holes and airflow indicators (no text or symbols)

Luftspjeldspaker

COANDA AIRFLOW

FOR Å AVBRYTE

FOR Å AVBRYTE

FOR Å AVBRYTE

FOR Å AVBRYTE

Trykk på knappen SET/C (bekreft/angre tidsinnstilling).

TIDSUR PÅ

OBS:

OBS:

FOR Å AVBRYTE

NOTE OM DRIFTENDISPLAY-K

DRIFTSTEMPERATUROMRÅDE

		INNETEM-PERATUR	UTETEM-PERATUR
KJ∅LING	øvre grense	32°C 43	C
	nedre grense	21°C -10	°C
VARMING	øvre grense	27°C 24	C
	nedre grense	-	-

NOTE OM OPPVARMINGSDRIFT AVRIMINGS-FUNKSJON

3 (Hvis det brukes luftrensefilter (ekstrautstyr): DELENUMMER CFIL-A124JBKZ)

RENGJ∅RING AV ENHETEN OG FJERNKONTROLLEN

• Tørk av med en myk klut.
- Ikke sprut eller hell vann direkte på delene. Vann kan forårsake elektrisk støt eller skade på utstyret.
- Ikke bruk varmt vann, tynner, slipemidler eller sterke løsemidler.

VEDLIKEHOLD AV VARMEPUM-PEN ETTER SESONGEN

LUKT KOMMER UT AV PLASMACLUSTER-LUFTAVL∅PET

1 Ilmanotto

2 Avoin paneeli

3 Ilmansuodatin

4 Aux-painike

5 Vastaanottoikkuna

6 Virtajohto

VINKKEJÄ AUTOMAATTISEN TI- LAN KÄYTTÖÖN

Säleikön vivut

COANDA-ILMANKIERTO

PERUUTTAMINEN

PERUUTTAMINEN

PERUUTTAMINEN

PERUUTTAMINEN

Paina ITSEPUHDISTUS-painiketta.

PERUUTTAMINEN

Paina AJASTIMEN PERUUTUS -painiketta.

HUOMAA:

HUOMAA:

PERUUTTAMINEN

LISÄTIETOJA KÄYTÖSTÄNÄY

KÄYTTÖLÄMPÖTILA-ALUE

		SISÄLÄMPÖ-TILA	ULKOLÄMPÖ-TILA
JÄÄHDYTYS	yläraja	32°C 43°C
	alaraja	21°C -10°C
LÄMMITYS	yläraja	27°C 24°C
	alaraja	-	-

YKSIKÖN JA KAUKOSÄÄTIMEN PUHDISTAMINEN

DISPLAY

24 PLASMACLUSTER symbol

WARNING:

OBS:

TIPS OM AUTO LÄGE

Justeringsområde

Technical line drawing of a car air conditioner unit with cooling fins and airflow indicators (no text or symbols)

Gallerspakar

COANDA LUFTFLÖDE

FÖR ATT AVBRYTA

FÖR ATT AVBRYTA

FÖR ATT AVBRYTA

FÖR ATT AVBRYTA

Tryck på knappen TIMER AVBRYT.

OBS:

OBS:

OBS:

ANMÄRKNING OM DRIFTDISPI

DRIFTTEMPERATUROMRÅDE

3 (Om du använder extra luftre- ningsfilter: RESERVDELSKOD CFIL-A124JBKZ)

RENGÖRING AV ENHETEN OCH FJÄRRKONTROLLEN

INNAN DU RINGER EFTER SERVICE

Address: Box 950, 671 29 Arvika, Sweden

Email: [e-mail]

Telephone: +46 570 - 813 00
