HRS 8580 - Receiver XORO - Free user manual and instructions

Product Type	High Definition DVB-S Satellite Receiver
Model	HRS 8580
Brand	Xoro
Dimensions (W x H x D)	113 x 31 x 110 mm
Weight	0.37 kg
Power Supply	AC 100-240V, 50/60Hz; DC 12V via supplied adapter
Power Consumption	Less than 25 W (operation), less than 1 W (standby)
Video Output	HDMI (up to 1080i), also supports 576i, 576p, 720p
Audio Output	HDMI with PCM or RAW (AC3) digital audio
Tuner	Frequency 950–2150 MHz, QPSK, Symbol rate 2–45 Mbps
LNB Support	13/18V, max 400mA, DiSEqC 1.0/1.1/1.2/1.3
USB Port	USB 2.0 High Speed, supports FAT32 and NTFS
PVR Function	Record DVB-S broadcasts to USB storage; Time Shift function
Multimedia Playback	Video: 3GP, AVI, MKV, MP4, MOV, MPG, TS, M2TS, DAT, VOB; Audio: MP3, WAV, WMA; Image: BMP, JPG, PNG
EPG (Electronic Program Guide)	Yes, with 7-day schedule and timer programming
Teletext	Supported via DVB-ETS300472
Remote Control	Infrared, range up to 5 meters, 60° angle
Operating Temperature	0°C to 40°C
Humidity	5% to 90% (non-condensing)
Accessories Included	Remote control, IR receiver, HDMI cable (0.5m), power supply unit, user manual
Safety Certifications	CE, FCC Part 15 compliant
Warranty	Limited warranty – see manual for details

Frequently Asked Questions - HRS 8580 XORO

How do I connect the HRS 8580 to my satellite dish and TV?

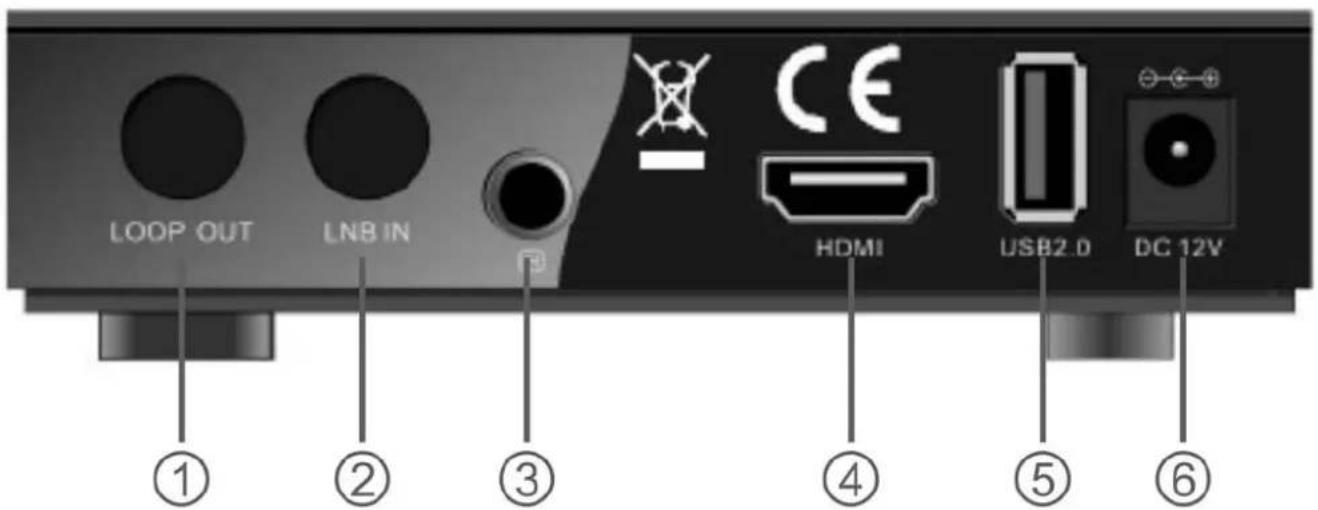

Connect the satellite cable from your dish to the LNB IN port on the rear panel. Then connect the HDMI output to your TV. Plug in the power supply and switch on. Ensure the TV input is set to the correct HDMI source.

Can I record TV programs with this receiver?

Yes, the HRS 8580 is PVR Ready. Connect a USB flash drive (FAT32 or NTFS) to the USB port. Press the ● (record) button on the remote to start recording the current program. Use the timer function to schedule recordings via the EPG.

Why is there no signal or picture freezing?

Check the dish alignment and ensure it is pointed correctly at the satellite. Verify the LNB type and settings in Dish Setup. A dish size of at least 80 cm is recommended for stable reception. Also ensure the cable connections are tight.

How do I perform a channel search?

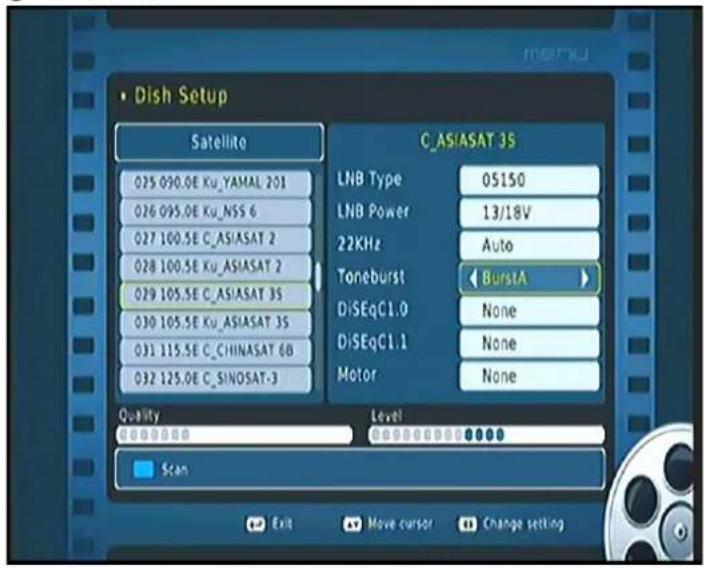

Go to Installation > Dish Setup and select your satellite. Set the appropriate LNB parameters, then press the BLUE button to start a scan. Choose Blind Scan for best results. After scanning, channels are saved automatically.

What USB file systems are supported?

The USB port supports FAT32 and NTFS file systems. Other formats like exFAT may not be recognized. Always format your USB stick to one of these systems before using for recording or playback.

How can I use the Time Shift function?

Connect a USB storage, then press the || (pause) button during live TV. The program will pause and be buffered to the USB. Press ▶ to resume from where you paused. Press ■ to stop Time Shift.

What video and audio formats can I play via USB?

Supported video containers include AVI, MKV, MP4, TS, VOB and more. Audio: MP3, WMA, AAC, AC3. Image: JPEG, BMP, PNG. Not all codecs may work due to variations.

How do I set up multiple satellites (e.g., Astra and Hotbird)?

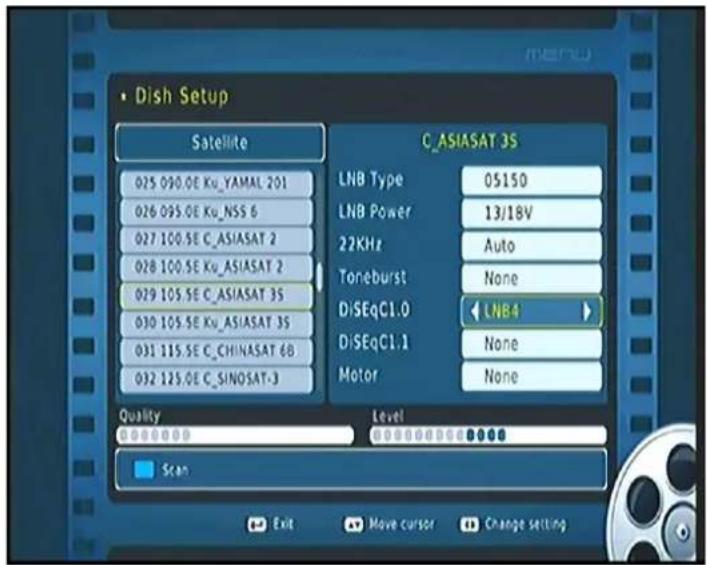

Use DiSEqC 1.0 or higher. In Dish Setup, assign each satellite to a different DiSEqC port (LNB1, LNB2, etc.). Connect your dish switch accordingly. Then run a channel search for each satellite.

How to reset the receiver to factory defaults?

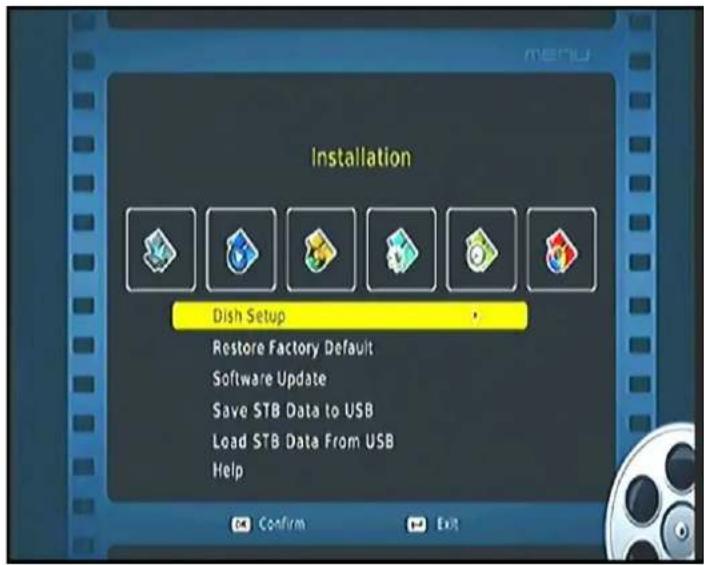

Go to Installation > Restore Factory Default. You can choose to delete all channels or only specific lists. The default password is 000000. Note that this will erase all your settings.

The remote control is not working. What should I do?

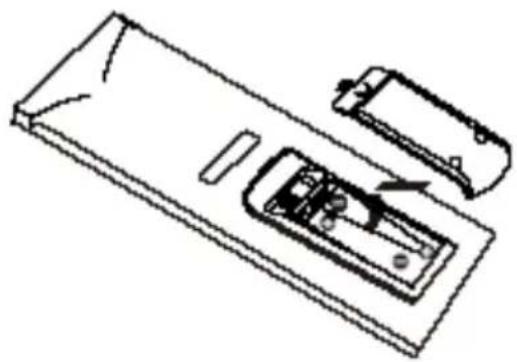

First, replace the batteries (type AAA). Ensure the remote is within 5 meters and pointed at the IR receiver on the front panel. Remove any obstacles. If still not working, check if the IR receiver is connected properly.

USER MANUAL HRS 8580 XORO

FREE TO CHOOSE INNOVATIONS

XORO®

Mini DVB-52 Receiver

HR5 8580

Illustration showing a no-smoking symbol, a hand holding a smoke, and a computer monitor (no text or symbols present)

Illustration of a cable being compressed onto a computer monitor with a lightning bolt (no text or symbols)

USB Anschluss

Illustration showing a person using a device with no signage, a chair, and a monitor (no text or symbols present)

Verwendung

Manufactured under license from Dolby Laboratories. "Dolby" and the double-D symbol are trademarks of Dolby Laboratories. Confidential Unpublished works. 1992-1997 Dolby Laboratories, Inc. All rights reserved.

Servicefall

Cartoon illustration of a man sitting at a desk watching TV (no text or symbols visible)

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or labels)

Recycling symbol with four arrows forming a triangle (no text or labels)

Circular icon with two curved arrows, resembling a refresh or cycle symbol (no text or symbols)

Batterien

Solid black horizontal bar with a small dotted diagonal stripe on the right edge (no text or symbols)

Technical line drawing of a rectangular electronic device with internal components (no text or symbols)

Technical line drawing of a device casing with internal components (no text or symbols)

ACHTUNG!

Close-up of a white cylindrical object with a dark end, resting on a textured surface (no text or symbols visible)

Hinweise:

EPG

• MPEG-4: AC3, MP3, AAC, AC3
• MPEG-1/2: MP2 / MPA, AC3

Hinweis:

Bewegen mit ▲/▼

Standard MPEG 2 up to level (MP@ML) and (MP@HL) MPEG 4 (H.264) up to

High Profile Level 4

USB USB 2.0 High Speed (Supports FAT32 and NTFS)

Andere IR In

Betriebsbedingungen

Temperatur 0 - 40°C

Luftfeuchtigkeit 5 - 90% (non condensing)

Hinweis:

FREE TO CHOOSE INNOVATIONS

XORO®

Mini DVB3-52 Receiver

HR 8580

User Manual

Table of Content

S

a

f

e

t

y

l

n

f

o

r

m

a

t

i

o

n

N

o

t

e

s

8

C

o

n

t

r

o

l

E

l

e

m

e

n

t

s

1

R

e

m

o

t

e

C

o

n

t

r

o

l

1

2

C

o

n

n

e

c

t

i

o

n

1

4

F

i

r

s

t

S

t

e

p

s

1

7

Functions

24

R

e

c

o

r

d

e

r

2

8

Multimedia Player

30

Settings

I

n

s

t

a

l

l

a

t

i

o

n

3

6

Service Organisation

38

O

u

t

p

u

t

4

1

T

i

m

e

r

4

2

U

S

B

4

4

Troubleshooting

47

S

p

e

c

i

f

i

c

a

t

i

o

n

4

8

L

i

m

i

t

e

d

W

a

r

r

a

n

t

y

4

9

The lightning flash with an arrowhead symbol within an equilateral triangle is intended to alert the user of the presence of un-insulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user of the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED. INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.

User Manual

1. All the safety and operating instructions should be read before the product is operated.
2. Retain Instructions - The safety and operating instructions should be retained for future reference.
3. All warnings on the product and the operating instructions should be adhered to.
4. All operating and use instructions should be followed.

Satellite dish

The DVB-S receiver is connected to a satellite dish.

1. If you want to connect or disconnect the satellite dish and the receiver please switch off the device and unplug it. Otherwise back coupling and damaging the device is possible.
2. If you use this device with a satellite dish, assure yourself that it is grounded.

If problems occur to you, please try the following:

• Position or align the dish differently
• Increase the separation between the equipment and faulty equipment.
• Insert the plug of the receiver into another outlet as the disturbed device.
• Please contact the dealer or a radio / TV technician.

The reception conditions can affect some extent. Frequent indicator of poor reception, for example, a frozen picture or the message "No Signal". You have several options to improve the reception.

• Note the diameter of the dish. If this is too small, then it can come in bad weather disturbances. With a larger dish (80 cm) you can also have stronger signals even in bad weather
  ● Make sure to align the dish to the satellite.

Note:

In ASTRA or other operators you can take the necessary positions and orientation for your location. With the angle and azimuth values Evaluation set up the dish.

Power Supply

1. Never touch the plug with wet hands.
2. Do not stand vases etc. on the appliance. Water could seep into the appliance.
3. Keep the appliance away from rain and any moisture.
4. If you want to pull the plug out of the plug socket, always pull directly on the plug. Never pull on the cable as it could tear.
5. Make sure that the power cable is not bent, caught or run over and that it does not come into contact with heat sources.
6. Make sure that the power cable is not wound around the device while in operation.
7. Never place the machine on the power cable while it is being operated.
8. Only use extension cables that are designed for the power consumption level of the machine.
9. Only operate the machine if the electrical voltage stated on the type plate beneath the machine agrees with the voltage on your plug socket. The wrong voltage can destroy the machine.
10. Do not open the appliance.
11. Pull out the main plug if the appliance is not to be used over a longer period of time.
12. Take care that nobody can trip over the power supply cable.

USB port

1. Due to legal requirements of CE-conformity, the customer is asked to only connect USB-Sticks to the USB port.
2. Due to the many different USB-Sticks and the built-in electronic components, a support of all USB-Sticks can not be guaranteed.
3. Please format the USB-Sticks only with FAT 32 of NTFS file system. Other file systems can not be supported and can not be recognized by the USB port.
4. Save all data from the USB memory before you connect to the device.
5. The device can format the storage and all data will lose. Please backup all data from the USB storage before you want to format them.

Position

1. Do not connect accessories to the receiver which are not defined by the manufacturer.
2. Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product may fall, causing serious injury to children or adult and serious damage to the product. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the product. Any mounting of the product should follow the manufacturer's instructions, and should use a mounting accessory recommended by the manufacturer.
3. A product and carton combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and carton combination to overturn
4. The device is able to show a still image on the TV screen or monitor over an unlimited period of time. This can cause damage to the screen. It is therefore advisable to activate the screen saver. Or switch the player off, if the device is not in use.
5. Do not use the device permanently in the 4:3 mode. This can cause damage to the TV screen.
6. Do not increase the volume when the player is just playing very quiet sections. This could damage the speaker if very loud passages start all of a sudden after the quiet section.
7. Switch the player off by the Off/On switch if it is not going to be used for a longer period of time.
8. Disconnect the main plug during thunderstorms.
9. Slots and openings in the cabinet are provided for ventilation and in order to ensure reliable operation of the product and protect it from overheating, these openings must not be blocked or covered.
10. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface.
11. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer's instructions have been adhered to.
12. Protect the device against weather influences, moistures and high temperature.
13. Never spill liquid of any kind on the product.
14. Do not expose the device and the remote control to direct sunlight.

Operation

1. Reception of digital broadcast in SD or HD by satellite.
2. Recording of DVB-S in SD or HD on USB storage.
3. Playback of own recorded files from USB storage.
4. Using the Time Shift function with a connected USB storage
5. Playback of supported video, audio and picture files from USB storage.
6. No other use are not allowed.

Dolby

Manufactured under license from Dolby Laboratories. "Dolby" and the double-D symbol are trademarks of Dolby Laboratories. Confidential Unpublished works. 1992-1997 Dolby Laboratories, Inc. All rights reserved.

Defect

1. Servicing - Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

2. Damage Requiring Service - Unplug this product from the wall outlet and refer servicing to qualified servic personnel under the following conditions:

Cartoon illustration of a person sitting at a desk pointing to a television (no text or symbols present)

a. When the power-supply cord or plug is damaged.
b. If liquid has been spilled, or objects have fallen into the product.
c. If the product has been exposed to rain or water.
d. If the product does not operate normally by following the operating instructions.

Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation.

e. If the product has been dropped or damaged in any way, and

1. When the product exhibits a distinct change in performance this indicates a need for service.
2. When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.
3. Nicotine can damage the electronic components. In case of service regarding too much nicotine, then the warranty/guarantee expired.

4. Please read in the section Troubleshooting our service address and phone number. However, this is no guarantee that these problems can never occur. If these problems occur to you, please try the following:

5. Position or align the dish differently.

6. Increase the separation between the equipment and faulty equipment.
7. Insert the plug of the receiver into another outlet as the disturbed device.
8. Please try again to re-scan.
9. Please control the USB storage
10. Please control the multimedia files, if they are supported
11. Please contact the dealer or a radio / TV technician. The reception conditions can affect some extent. Frequent indicator of poor reception, for example, a frozen picture or the message "No Signal". You have several options to improve the reception.
12. Note the diameter of the dish. If this is too small, then it can come in bad weather disturbances. With a larger dish (80 cm) you can also have stronger signal even in bad weather.
    ● Make sure to align the dish to the satellite.

Note:

In ASTRA or other operators you can take the necessary positions and orientation for your location.

With the angle and azimuth values Evaluation set up the dish.

Recycling Information

Recycling of electronic devices

This product is designed and manufactured with high quality materials and components which can be recycled and reused. This symbol means that electrical and electronic equipment, at their end-of-life, should be disposed of separately from your household waste. Please, dispose of this equipment at your local community waste collection/recycling centre. In the European Union there are separate collection systems for used electrical and electronic product. Please, help us to conserve the environment we live in!

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Recycling of paper and carton

The material recycling symbol on the carton and user manual denotes that they are recyclable. Dispose them not with the normal household waste.

Recycling of plastic parts

The material recycling symbol on the plastic parts denotes that they are recyclable. Dispose them not with the normal household waste.

Green Dot

1. The batteries can be returned free of charge after use in the shop or in their immediate vicinity.

2. The consumer is legally obliged to return of used batteries.

3. The icons on batteries are with one of the two following characters, consisting of a strikethrough trashcan and the chemical symbol of heavy metals decisive for classi contaminant-laden.

4. Both symbols have the same meaning.

5. Batteries that contain pollutants are characterised by chemical symbols: Pb = battery contains lead, Cd = battery containing cadmium, Hg = battery contains mercury.

Two identical line drawings of a trash bin with no text or symbols, one crossed with a 'X' and the other without it.

Every consumer is legally obliged to make these batteries with a collection of his church or in the trade so that they can be conveyed to an environmentally sound disposal. We discard used batteries for you free of charge and environmentally. Simply return them to us.

Accessories

When opening the package of this set top box please make sure that the following accessories are included:

HRS 8580

- Remote Control

- IR Receiver

- User Manual

● Power Supply Unit

● HMDI Cable (0,5m(

Notes:

• If any item should be damaged or missing, please contact your dealer without delay.
• Keep the packaging materials, you may need them to transport your player in the future.
  ● Always transport or send the player in its original packing.
• Do not change or modify any components of the device or accessories.

Features

● High Definition DVB-S Receiver
● HDMI port (Resolution up to 1080i)
● Electronic program guide (EPG) and videotext
- USB 2.0 High Speed connection
● PVR Ready - records DVB-S broadcast on USB storage
● Time Shift Function with a connected USB storage
● Playback of video-, music- and picture files

Default settings

OSD language: German

Aspect ratio: Auto

HDMI out: 720p, 50Hz

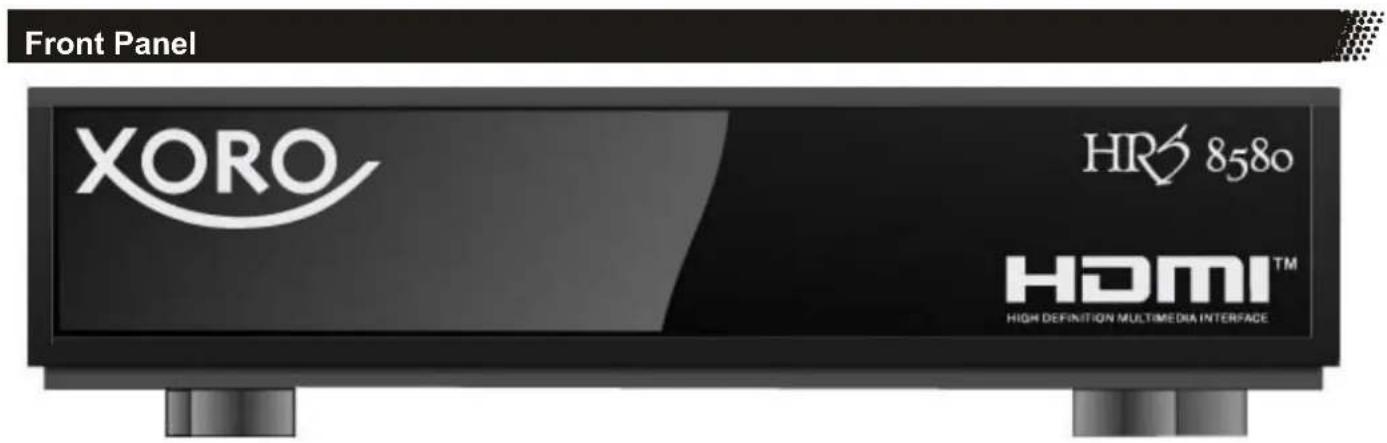

Top Cover

Description of the elements

1. Power Light.

Note:

The unit is automatically ready to work as soon as the power supply is applied.

Rear Panel

Description of the elements:

1. Loop Out Aerial output
2. Aerial Input (13V/18V, max. 400mA)
3. Infrared Receiver
4. HDMI Output

5. USB 2.0 Port

6. Power input (12V DC, only for use with the supplied Power Supply Unit!)

Note:

Make sure when installing the antenna cable that the device is disconnected from the power.

Insert batteries and operation radius

• Insert the battery (type AAA) into the receptacle of the remote.
• Close the battery cover

Technical line drawing of a mechanical assembly with two components (no text or symbols)

Technical line drawing of a device with internal components and a separate housing (no text or symbols)

• For the best results, aim the remote towards at the player. Stay within 5 meters and angles of 60 degrees or less.
• Remove battery during storage or when you are not using the device for a long time.

Notes:

1. Remove and exchange old batteries. Leaking out battery acid can damage your health and the remote control.
2. Clean leaking out battery acid with a cloth
3. In case of skin contact immediately wash the affected area.
4. Please contact a medic after swallowing the battery or battery acid immediately
5. Seek medical advice if battery acid has been swallowed. In case of contact with your eyes wash out the eyes and seek medical advice.

Buttons

Buttons of the remote control

1. POWER : Switch the receiver on or set it to standby mode.
2. MUTE : Turn the sound On/Off.
3. TV/R : Switch between TV and RADIO.
4. SAT: Switch satellite
5. EPG (Electronic Program Guide) :

Show the TV/Radio program guide.

1. MENU: Activate main menu or exit to live channel.
2. CH +/CH- (UP/DOWN): Change program.
3. VOL+/VOL-(RIGHT/LEFT) : Change volume in viewing mode.
4. OK: Confirm the highlighted menu item.

Open the program list.

1. FAV: To get favorite channel list you set before.
2. EXIT: Exit current menu step by step.
3. AUDIO: Select or change the Audio.
4. HDMI: Switch the HDMI display mode.
5. PAGE +/-: Page up/down on menu.
6. RECALL: Move to the previous viewed channel.
7. MODE: Switch 4:3 & 16:9 Screen Formats.
8. TIMER: Open the timer list.
9. F1 INFO: Show the information of the current channel. Press EXIT button to exit this menu.
10. F2 SUB: Showing Subtitle information if the channels contains.
11. F3 GOTO: Activate Quick Find menu.

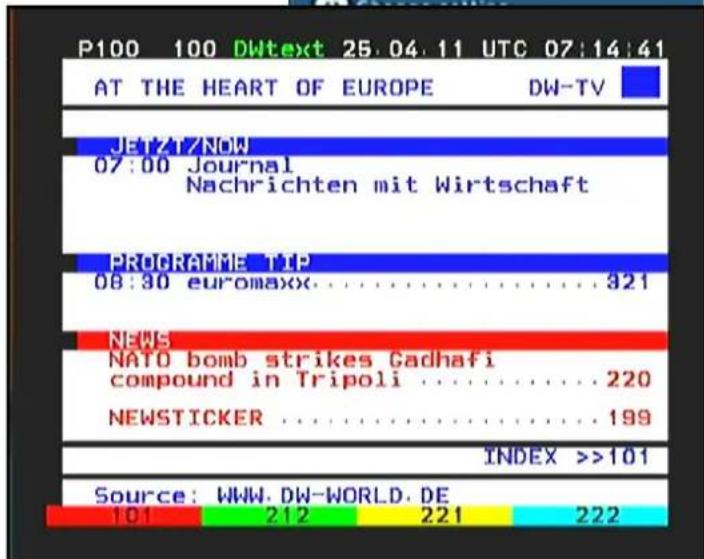

12. TXT: Show the teletext content if teletext is transmitted.
13. ◀◀: Fast backward
14. ▶▶: Fast forward.
15. ▶: Start playing / Release pause.
16. ■/USB : Stop recording/enter USB.
17. I ◀◀: Play previous item.
18. ▶▶▶ I: Play next item.
19. II: Pause.
20. ●: Start recording.

Connecting to the dish and TV

General information

Assure that the device is switched off and unplugged.

Read the manual of your TV and attend to the safety instructions.

Please establish an accurate connection.

Please check the video output settings.

● The schematic picture shows the connection of the HRS 8580 to the satellite dish and the TV.

Connecting to the dish and TV

Installation Guide

1. Connect the aerial cable to the aerial input (LNB IN) of the HRS 8580. Screw the plug to the input.
2. Connect the power cable and the plug to the wall outlet.
3. Switch on your DVB-S receiver and the TV set.
4. Choose the correct input (HDMI) at your TV.

Note:

By using the loop through connector you can connect for example a second DVB-S Receiver.

USB Port

Connect the USB flash drive carefully on to the USB port.

Remove the USB stick only when you are back in Live DVB-S program, otherwise the drive could be damaged.

Metallic cylindrical object with black edges, possibly a battery or connector (no visible text or symbols)

Notes:

1. Due to legal requirements of CE-conformity, the customer is asked to only connect USB Sticks to the USB port.
2. Due to the many different USB-Sticks and the built-in electronic components a support of all USB-Sticks can not guaranteed.
3. Please format the USB-Sticks with FAT 32 and NTFS file system. Other file systems are not supported and can not be recognized by the USB port.
4. Save all data from the USB memory before you connect to the device.

Channel Search

After all connections have been made properly, switch on TV and make sure the receiver is connected to the Main Power. Press Power button to switch receiver on.

If you are using the receiver for the first time or restoring to Factory Default, the Main Menu will appear on your TV screen.

1. OSD Language
2. Load pre-programmed channels

Navigate with the arrow keys CH+ and CH- or VOL- and VOL+. OK activates an option and EXIT leaves a setup menu.

NOTE: The default password is "000000".

OSD Language

Choose a language.

Load pre-programmed channels

If you select Yes, the receiver will load the pre-programmed channels into the channel list. Otherwise, you will get the Dist Setup menu.

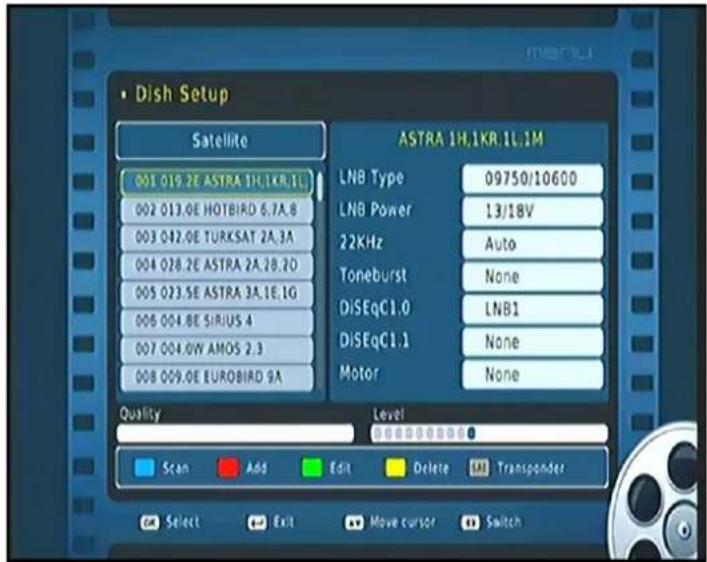

Dish SETUP

Before beginning the setup you should get straight about your satellite system. There are many different options.

The menu is structured in a satellite list (Left) and further options (Right).

1. Simple connection of satellite and receiver (from page 18)
2. Direct connection of satellite dish and receiver by using Tone burst (from page 20)
3. Using multiple satellites via DiSEqC 1.0 (from page 20)
4. Using multiple satellites via DiSEqC 1.0 and Tone burst (from page 21)
5. Using multiple satellites via DiSEqC 1.1 (from page 21)
6. Using multiple satellites via DiSEqC 1.2 (from page 22)
7. Using multiple satellites via DiSEqC 1.3 (from page 23)

Channel Search

1. Single connection of dish and receiver

The satellite dish is aligned to a special satellite and you use one LNB. The LNB is directly connected to the satellite receiver.

After choosing the satellite make sure that only following parameters are defined:

LNB Type: 09750/10/600

LNB voltage: 13/18V

22 KHz: AUTO

Tonebust: None

DiSEqC 1.0: None

DiSEqC 1.2: None

Motor: None

LNB voltage

The LNB for digital programs is usually supplied with 13 and 18V. The option is automatically 13/18V.

The voltage can be changed manually. This directly influences the search results. Possible options are: OFF, 13V, 18V and 13/18V. If the option OFF is activated the LNB is not supplied with power any more which inflicts that no programs can be received any more.

22 kHz

By using the 22 kHz signal combined with a universal LNB it is possible to receive the whole ASTRA-satellite system (analog & digital) with a single 60cm satellite dish. For receiving digital TV and radio only a Set-Top-Box is needed. The digital TV programs are all arranged in the higher frequency band -> use the option AUTO

The remaining options are explained in the following configuration steps.

Press the BLUE key to start the program search run.

A new menu appears asking for more parameters. Define them as follows

Scan mode: TP List, Blind, Network

Crypted: All channels, Free channels

Service Type: All, TV, Radio

Channel Search

Scan mode

You can choose between TP-List, Blind and Network.

• TP List: Deposes a transponder list to every satellite. Searching is done on the basis of this list.
  ● Blind Scan: Allows to search in all frequencies, independent from the transponder list.
• Network: Includes information like Name, Type of transmission system as well as technical data e.g. frequency and fault protection.

Recommendation: Blind Scan

Crypted

Choose if you want to search only for free programs or include the encrypted programs in the search. Encrypted programs need special "Smartcards" and a reading device. The HRS 8580 and FTA (free to air) device therefore it has no card reader.

Recommendation: Free programs

Service Type

Choose if you want to search for TV, Radio or all programs. If you never use the radio you can choose the option TV.

Note:

1. Usually the standard-option is adequate. However, there are changes in the transponder list. If a program can not be found, change to the blind-option.
2. It is not possible to watch encrypted programs with the HRS 8580. For a better overview only use the only-free-programs-option.

After setting all parameters press OK for starting the search. The received programs are shown in the according lists and are saved when the search is finished.

Channel Search

2. Direct connection of satellite dish and receiver by using Tone burst

Tone burst is an additional feature of receivers. This signal does not include digital commands, but it can nevertheless be evaluated by most of the switches for position switching.

1. Choose a satellite. Switch to the right side of the menu (RIGHT) and define "Burst A".
2. Change back to the left menu (EXIT), choose a second satellite and apply the settings with OK
3. Change back to the right menu and define "Burst B"

Press BLUE to start searching.

A new menu appears asking for more parameters. After setting all parameters press OK for starting the search. The received programs are shown in the according lists and are saved when the search is finished.

3. Using multiple satellites via DiSEqC 1.0

The distribution of analogue and digital signals from the Astra and Eutelsat is using DiSEqC™ (Digital Satellite Equipment Control) is possible if only one cable to be laid to the satellite receiver. This new tax system complements the conventional switching criteria, 14/18 Volt or 22 kHz, and removes the restrictions on maximum 4 switching states. The simplest version of DiSEqC™ is used between two universal LNB switch to. The 22 kHz switching circuit is used for the lower and upper frequency band LNB. DiSEqC 1.0 controls up to four LNB with the command position A / B and Option A / B. DiSEqC 1.1 controls up to 64 LNB, it will switch in several levels of government. For 16 LNB, take for example four 4 / 1 DiSEqC 1.0 switch, whose outputs are then placed on the inputs of a 4 / 1 DiSEqC 1.1 switch.

1. Choose a satellite and define in the menu on the right "LNB1" for DiSEqC1.0.
2. Press EXIT to change to the left side.
3. Now choose a second satellite on the left menu and define the DiSEqC1.0 parameter to "LNB2".
4. And so on

You have the possibility to choose up to four satellites.

Press BLUE to start searching. A new menu

appears asking for more parameters. After setting all parameters press OK for starting the search.

The received programs are shown in the according lists and are saved when the search is finished.

Channel Search

4. Using multiple satellites via DiSEqC 1.0 and Tone burst

The combination of DiSEqC1.0/1.1 and Tone burst allows you to choose up to eight satellites. That means that for every

LNB two satellites are defined.

1. Choose a satellite and define "Burst A" for Tone burst and "LNB1 for DiSEqC1.0.
2. Choose a second satellite and confirm with the OK button.
3. Change to the right side and define "Burst A" for Tone burst.
4. Move by using the arrow button DOWN to DiSEqC1.0 and choose the option LNB2.
5. And so on

You have the possibility to choose up to eight satellites.

Press BLUE to start searching. A new menu appears asking for more parameters. After setting all parameters press OK for starting the search.

The received programs are shown in the according lists and are saved when the search is finished.

5. Using multiple satellites via DiSEqC 1.1

The distribution of analogue and digital signals from the Astra and Eutelsat is using DiSEqC™ (Digital Satellite Equipment Control) is possible if only one cable to be laid to the satellite receiver. This new tax system complements the conventional switching criteria, 14/18 Volt or 22 kHz, and removes the restrictions on maximum 4 switching states. The simplest version of DiSEqC™ is used between two universal LNB switch to. The 22 kHz switching circuit is used for the lower and upper frequency band LNB.

DiSEqC 1.0 controls up to four LNB with the command position A / B and Option A / B. DiSEqC 1.1 controls up to 64 LNB, it will switch in several levels of government. For 16 LNB, take for example four 4 / 1 DiSEqC 1.0 switch, whose outputs are then placed on the inputs of a 4 / 1 DiSEqC 1.1 switch.

1. Choose a satellite and define in the menu on the right "LNB1" for DiSEqC1.1
2. Press EXIT to change to the left side.
3. Choose a second satellite and confirm with the OK button.
4. Change to the right side and define the setting DiSEqC1.1 with the option LNB2.
5. And so on...

You have the possibility to choose up to 16 satellites. Press BLUE to start searching. A new menu appears asking for more parameters. After setting all parameters press OK for starting the search. The received programs are shown in the according lists and are saved when the search is finished.

Channel Search

6. Using multiple satellites via DiSEqC 1.2

DiSEqC 1.2 provides additional control of three plants by DiSEqC commands, via a single coaxial cable. Of the motor's staff was also a record producer (rod USALS) defined which is to find the satellite position is particularly simple. With the appropriate receiver is sufficient to enter the geographical position and the satellites are found automatically - provided that the curved path of the rotary engine has been correctly set mechanically. Define "DiSEqC1.2" for Motor. Press OK to configure the rotating parameters.

Following options appear:

• Move Auto
• Move Continue
• Move Step
• Store Position
• Goto Position
  Goto Reference

Move Auto

Press LEFT or RIGHT to rotate the dish west or east. The movement stops automatically.

Move Continue

Press LEFT or RIGHT to rotate the dish west or east. The movement stops automatically.

Move Step

Press LEFT or RIGHT to rotate the dish west or east step by step.

Store Position

Saves the current position of the dish.

Goto Position

Press LEFT or RIGHT to go to a saved position.

Goto Reference

Any other positions.

Now define the satellites as you like and start the search. A new menu appears asking for more parameters. After setting all parameters press OK for starting the search. The received programs are shown in the according lists and are saved when the search is finished.

Channel Search

7. Using multiple satellites via DiSEqC 1.3

DiSEqC 1.2 provides additional control of three plants by DiSEqC commands, via a single coaxial cable. Of the motor's staff a record producer (rod USALS) was also defined which is to find the satellite position and is particularly simple. The appropriate receiver is sufficient to enter the

geographical position and the satellites are found automatically - provided that the curved path of the rotary engine has been correctly set mechanically. Define "DiSEqC1.3" for Motor.

Press GREEN to set the geographical location.

Set the degree of latitude and degree of longitude and save with OK.

Press OK to configure the rotating parameters.

• Move Auto
• Move Continue
• Move Step
• Store Position
• Goto Position
• Goto Reference

Move Auto

Press LEFT or RIGHT to rotate the dish west or east. The movement stops automatically.

Continue Move

Press LEFT or RIGHT to rotate the dish west or east. The movement stops automatically.

Move Step

Press LEFT or RIGHT to rotate the dish west or east step by step.

Store Position

Saves the current position of the dish.

Goto Position

Press LEFT or RIGHT to go to a saved position.

Goto Reference

Any other positions.

Now define the satellites as you like and start the search. A new menu appears asking for more parameters. After setting all parameters press OK for starting the search. The received programs are shown in the according lists and are saved when the search is finished.

Important keys and functions

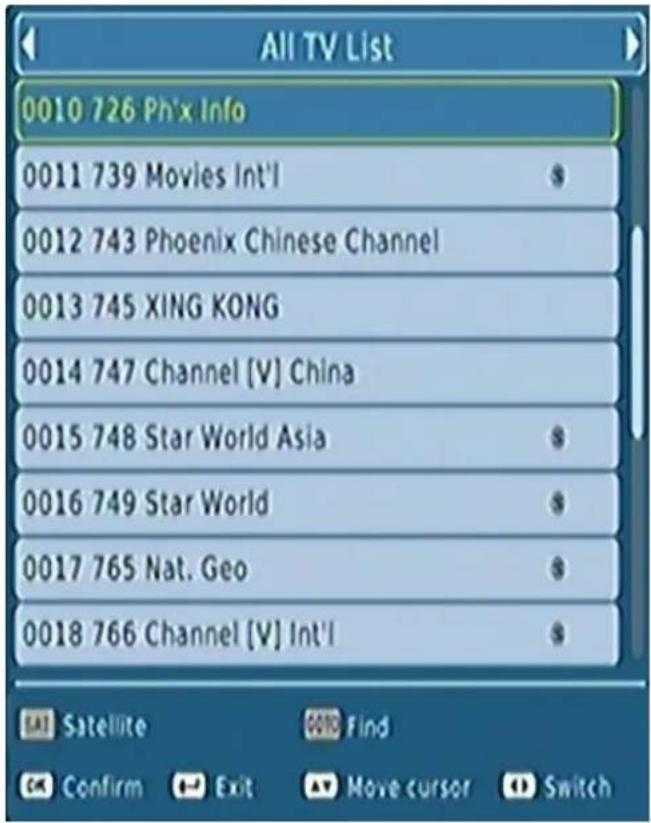

Channel List

Retrieve the Channel Listt by pressing OK

SAT Choose a satellite/show all programs

GOTO Search program from the channel list

OK Activating the chosen

EXIT Exit the program list

▲/▼ Next/previous program

◄/► List All/FTA/Scramble channels program

NOTE:

TV and Radio list are very similar to handle.

Searching programs

There are many programs transmitted via satellites. If you want to search for a certain program press GOTO and type in the program name. OK starts the search.

Switch Channel

To switch program please press the ▲/▼ (Up/Down) button.

Switch TV/Radio

During the channel searching the device can also receive Radio channels. To switch from TV to Radio Channel, press the TV/RADIO button.

Favourite

If you define and sort the channels into favourites, than you can access these list by pressing the FAV button.

OK Starting chosen TV program

▲/▼ Next/previous program

◀/▶ Next/previous page of favourites

EXIT Exit favourites list

FAV Changes favourites list

Important keys and functions

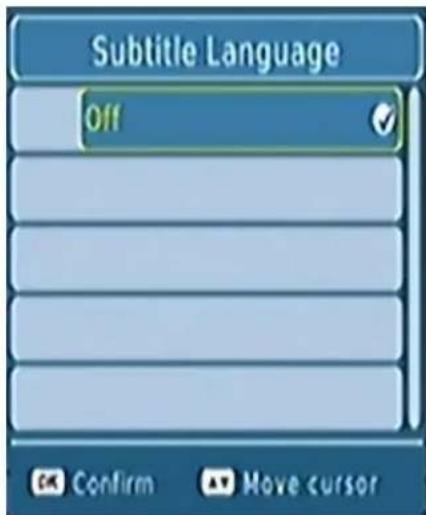

Subtitles

Pressing SUBTITLE enables subtitles. If subtitles are available for this program you can enable them with OK

Audio settings of TV programs

Access the audio settings by pressing AUDIO. Change language (only certain programs), choose another audio track (if available) or choose between the audio settings (left/right channel, stereo).

Teletext

The teletext is activated via the TTX button.

Navigation:

● Numeric for entering teletext sites
- ◀/▶ Next/previous page
● RED, GREEN, BLUE and YELLOW for the shown sites
- EXIT for closing teletext

Change Volume

To increase or decrease the volume, press the ◀/▶ button.

Mute

Press the MUTE button to switch off the volume. To un-mute, press again the MUTE button.

Resolution

You can change the video output resolution directly in the live image without seeking the appropriate option in the setup menu. Press the Yellow button on the remote control and the resolution changes with each press as 1080i to 576i, 576p or 720p.

Aspect ratio

When viewing live pictures you have the possibility to change the aspect ratio directly via the remote control. For changing aspect ratio press Green. The available modes are AUTO, 16:9 Wide Screen, 4:3 Full, 4:3 Pan&Scan and 4:3 Letterbox.

Information

Pressing INFO shows a lot of information. By pressing the INFO button the first time the overview shows up: TV program name, active TV programs, availability of teletext, etc.

Pressing it twice shows the EPG information of the current program. Aside is information about satellites, transponders, frequencies of the TV programs and signal quality.

Navigate in settings

To navigate into setup setting please press ◀/▶/ ▲/▼ buttons.

EPG

The EPG is activated with the EPG button. The following picture appears on the screen.

The EPG window is divided as follows:

Left Side Channel list

Right Top Actually date and time

Right Side Short EPG information of the marked program

Bottom Notes to help by navigation

Navigation in the space of the EPG window:

Red/Yellow View the previous/next day's EPG

OK Show detail information of EPG

Green Show the timer schedule

Blue Add a timer of the program you select

Timer Programming by EPG

By pressing the Blue button (special broadcast selected) in the EPG menu all information's are saved in the Timer.

It is advisable to set the starting and stopping time of recording some minutes before/after the broadcast because they never begin in time. Other options are Repeat and Mode. Repeat defines if the broadcast is recorded once or continuous. Mode has to be set to Record if you want to record a broadcast. The programmed broadcast show up in the timer program list.

Note

Recordings assume connected USB media!

Recording

If you want to record the current TV program simply and quickly, first connect a USB memory to the

USB port and then press the ● button. The recording starts immediately. You can stop the

recording by pressing the ■ button. Confirm the safety query with the OK button.

Time Shift Function

In order to use the Time Shift function, you must first connect a USB memory to the HRS 8580.

Press during the live image the || (Pause) button on the remote control. The live picture pause and the other program is stored on the USB memory. You can continue after you pause the show:

1. PLAY/PAUSE

button to playback the Time Shift

1. ▶▶▶/◀◀

button to use fast forward or fast rewind

Quitting Time-Shift

Press ■ button to stop the Time Shift function. You will now be asked

whether you want to end the function. Press the OK button on the Yes box and the Time-Shift is stopped.

Record programming

You have the ability to program the live image from a picture. Press the BLUE button and the program appears on the screen.

Press the RED button and then a setting window will appear with all relevant options (see previous page).

Recording List

Press the ▶ button to show all recorded broadcasts.

The navigation into this list occurs with the following buttons:

OK Starting chosen recording in preview window

▲/▼ Next/previous recording

Blue Switch full screen/preview

RECALL Changes layer

YELLOW Delete recording

Green Rename recording

EXIT Exit recording list

Playback of a file

If you want to playback a file from the list, please highlight them by using the navigation button ▲/▼. To start the file, press the PLAY button on the remote control. The video shows in Full Screen mode. Additional buttons are available:

▶▶ Fast forward

◀ Fast rewind

|| Pause, pressing || again continues playing

EXIT/STOP Exit playing, changing back to recording list

The device can perform some file operations like rename or delete.

Rename recordings

Choose a recording from the list and press Green button. An OSD keyboard appears on the screen. Choose by using the navigation button the character and confirm every character with the OK button.

Enter the new name and finish renaming by navigating to OK field and press OK. The file is renamed.

Deleting recordings

Choose a recording from the list and press YELLOW. Now the recording is marked with a checkmark and OK will finally delete the recording on the USB media.

USB Port

You can connect USB Flash drives via the USB Port.

Supported file formats

● Supporting multiple video-containers (*.3GP, *.AVI, *.MKV, *.MP4, *.MOV, *.MPG, *.TS, *.M2TS, *.DAT, *.VOB)
● Supporting multiple audio-containers (*.mp3, *.wav and *.wma)
● Supporting image-containers (*.bmp, *.jpg, and *.png)

If you want to play music, videos or pictures on USB media connect the USB media, press MENU and choose USB with ◀/▶. Enter the USB menu with OK.

Now choose Multimedia with ▲/▼ and enter with OK.

The media-player starts with the screen on the right. Possible menu items are:

Music


Movie

PVR

Choose between these items with ◀/▶ and enter with OK.

Photos

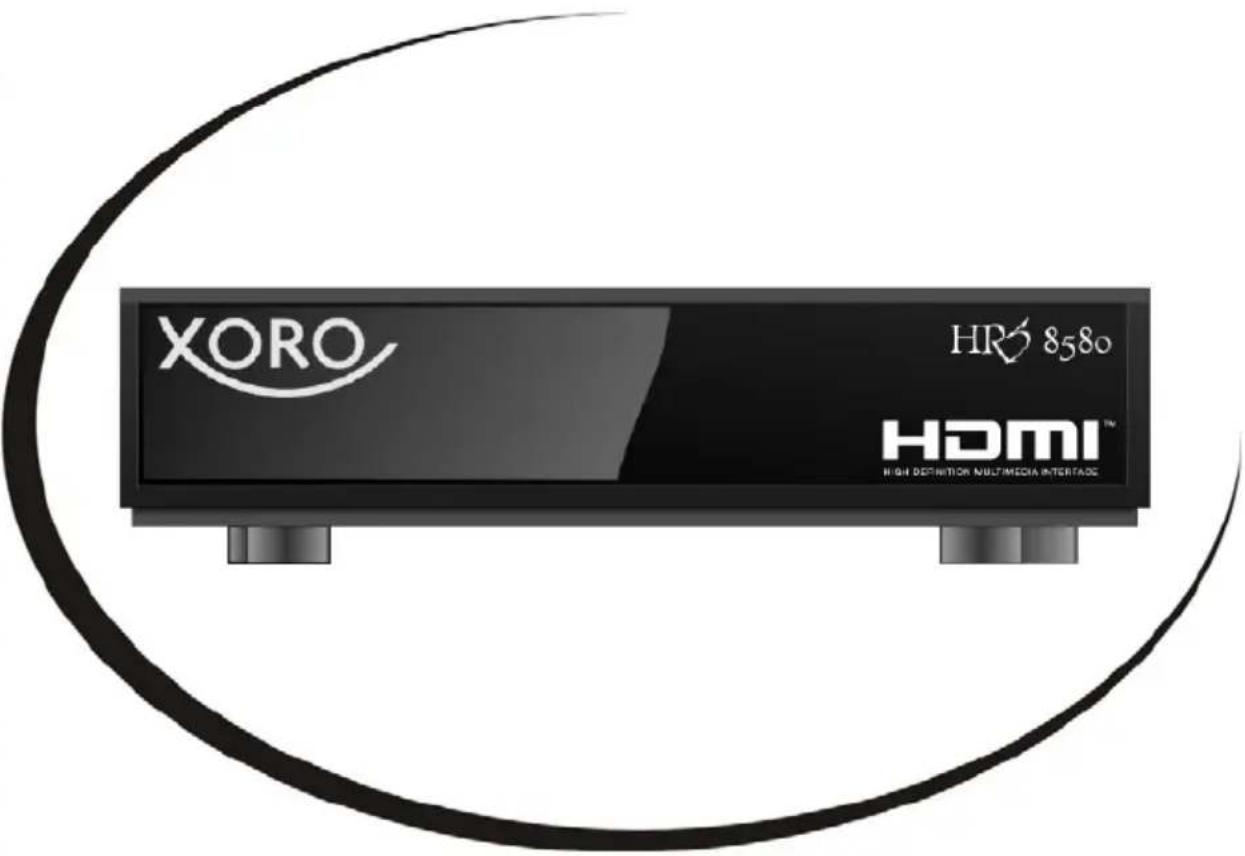

For viewing photos with the HRS 8580 connect the USB media and enter the menu item Photo.

After initialising the USB media the directory structure is shown. Choose the directory with ▲/▼ and enter with OK.

If there are pictures in this directory they are listed in the file browser and a preview is shown on the right.

It is possible to play music while browsing in the pictures.

Choose a music file before you go to the picture browser.

Navigation in the file browser

OK Show picture in full screen

Play (▶) Start slide show (all pictures in the directory)

GOTO Show pictures in small previews

▲/▼ Next/Previous picture

RECALL Previous directory

EXIT Exit to multimedia menu

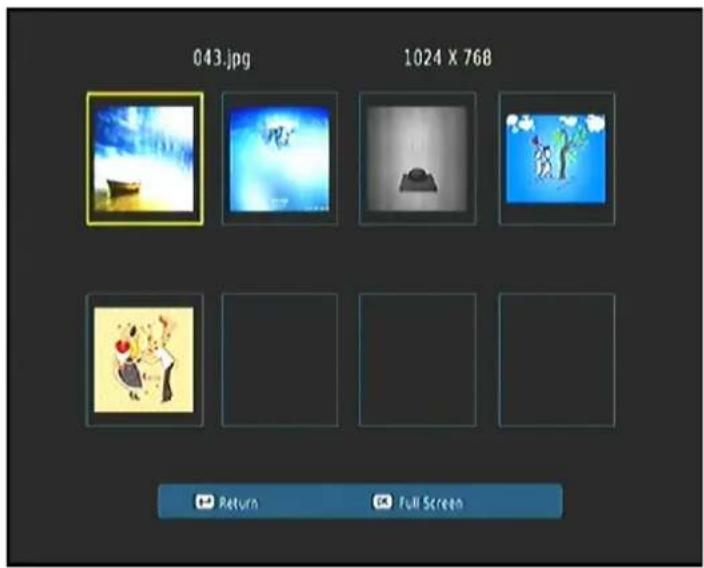

Preview Window

In the thumbnail overview, you have a function similar manner as in the file browser:

▲/▼ Next/Previous picture

I ◀ ◀ ◀ ◀ ◀ Next/Previous picture

OK Show picture in full screen

Slide show

Start the slide show with PLAY or OK. The slide show will proceed according to the settings in the USB menu.

▶▶ I Next picture

Previous picture

RED Zoom picture (Normal -> x2 -> x4 -> x8 -> Normal -> x1/4 -> x1/2)

GREEN Rotate picture 90° in counter clockwise direction

YELLOW Rotate picture 90° in clockwise direction

INFO Show information of the picture like file name, resolution and file size

RECALL Exit to file browser

EXIT Exit to file browser

It is possible to play music while browsing in the pictures. Choose a music file before you go to the picture browser.

Supported formats

The supported picture formats are:

JPEG
BMP
PNG

Music

After initialising the USB media the directory structure is shown. Choose the directory with ▲/▼ and enter with OK.

If there are music files in this directory they are listed in the file browser.

OK / ▶	Play
■	Stop
▶▶ I	Next track
I◀◀	Previous track
||	Pause
GOTO	JUMP to the time which you input
EXIT	Exit to multimedia menu

Fast Forward

If you press while playing music the ▶▶button, then you start the fast forward. Each press the ▶▶button increases the speed. Switch to normal speed with▶▶ or ◀◀ The zooms change as follows:

$$ x 1 \longrightarrow x 2 \longrightarrow x 3 \longrightarrow x 4 \longrightarrow x 8 \longrightarrow x 1 6 \longrightarrow x 3 2 \longrightarrow x 1 $$

Supported audio formats

MP3
WMA
AAC

ID Tag Information

The ID Tag information is displayed on the screen.

Increase/Decrease volume

To change the volume, please press the ◀/▶ buttons.

Movies

For playing movies with the HRS 8580 connect the USB media and enter the menu item Movies. Please note:

The table shows the supported container, codec's, maximal resolution, maximal bit rate and the code related files.

Supported codex: Should be created with established standards. MPEG-2 with ISO/IEC13818 standard and MPEG-4 with ISO/IEC 14496 standards

Supported transport streams: MPG, TS, TRP

More than one audio stream is supported in some video containers.

Supported subtitles: Subrip (SRT), Micro-DVD (SUB). Internal subtitles are not supported

Supported audio formats in MPEG-4 files: AC3, MP3, AAC MPEG-2: MP2/MPA, AC3

File Extension	Container	Video	Codec	SPEC	Bit rate	Profile
dat, mpg, mpeg	MPG, MPEG	Mpeg1,2	1920x1080 @ 30P		20 Mbps	Main
ts, trp, tp, m2ts	MPEG2 -TS H264-TS	MPEG2 ,H.264		1920 x 1080 @ 30p	20 Mbps	Main
vob	MPEG2	-PS MPEG2		1920 x 1080@30p	20 Mbps	Main
MP4 AVI, MP4	MPEG4, Divx	4.12, Divx 5.x, Divx 6, Xvid 1.00, Xvid 1.01, Xvid 1.02, Xvid 1.03, Xvid 1.10-beta1/2 H.264		1920 x 1080 @30p	20 Mbps	H264: Main Profile and High Profile @Level 4.0 MPEG4: Simple Profile and Advanced Simple Profile @Level 5
mkv	MKV	H.264, MPEG1,2,4		1920 x 1080@ 30p	20 Mbps	H264: Main Profile and High Profile @ Level 4.0 MPEG4: Simple Profile and Advanced Simple Profile @Level 5
divx, avi AVI(	1.0, 2.0), DMF0,1,2	MPEG2,MPEG4, Divx 4.Divx 5, Divx 6, Xvid 1.00, Xvid 1.01, Xvid 1.02, Xvid 1.03, Xvid 1.10-beta1/2 H.264		1920 x 1080 @ 30p	20 Mbps	MPEG2: Main Profile MPEG4: Simple Profile and Advanced Simple Profile @Level 5

Movies

Notes:

The variety of different video codes, audio codes, video container and PC programs, it is possible that some video files are not supported. Although each part considered individually (eg, H.264, AC3, MP4) which can lead to a combination of non-playable files.

After initialising the USB media the directory structure is shown. Choose the directory with ▲/▼ and enter with OK. If there are movie files in this directory they are listed in the file browser.

Navigating in the file browser

▲/▼ Next/Previous file
OK Play / Open directory
RECALL Previous directory
BLUE Preview / Full screen
EXIT Exit to multimedia menu

Navigating while playing

If you press OK the movie is shown in the preview window on the right. Switch to full screen with BLUE. Press PLAY for playing in preview screen.

OK/▶ Play in preview window

BLUE Switch preview / full screen

INFO Show information like play time (current

and over all) file name etc

AUDIO Switch audio track

SUBTITLE Switch (off) Subtitles

MENU Exit to file browser (the movie continues in preview window)

RECALL Exit to file browser (the movie continues in preview window)

GOTO Jump to a certain (self defined) time

◀◀/▶▶ Fast forward/backward

Previous movie

▶▶ I Next movie

|| Pause

■ Stop

Fast forward/backward

Movies

It is possible to speed up and down the playback with ◀◀/▶▶. The velocities change as follows

$$ x 1 \longrightarrow x 2 \longrightarrow x 4 \longrightarrow x 8 \longrightarrow x 1 6 \longrightarrow x 3 2 \longrightarrow x 1 $$

GOTO function

Press GOTO to type a time of the movie and OK to jump to this time.

Installation

Press MENU for the main menu. The submenus are:

• Installation
  • Service Organization

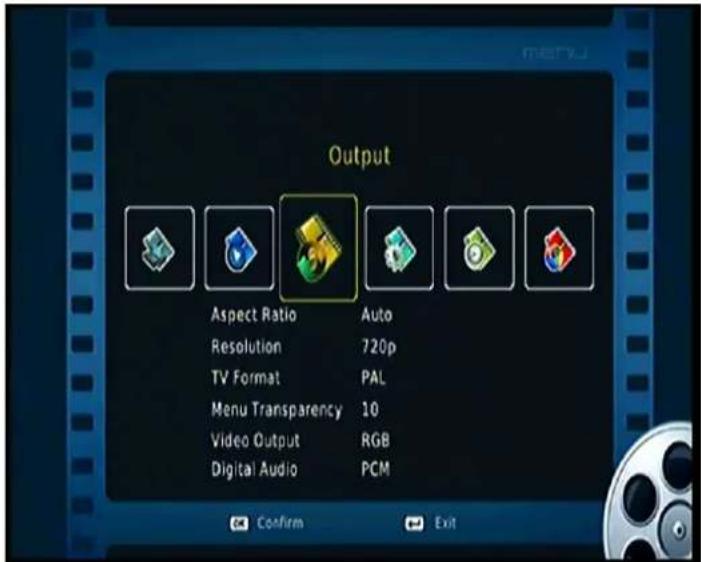

  Output
• System

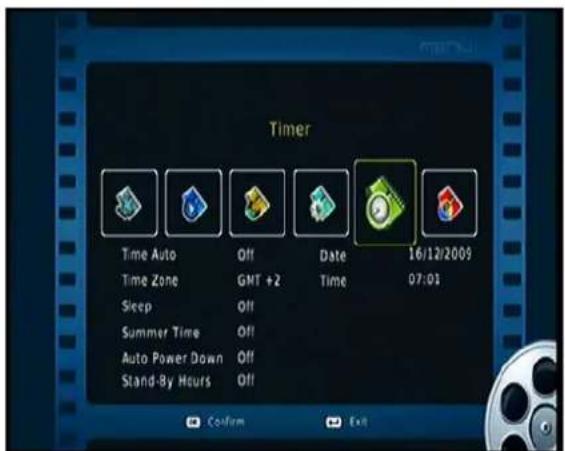

• Timer

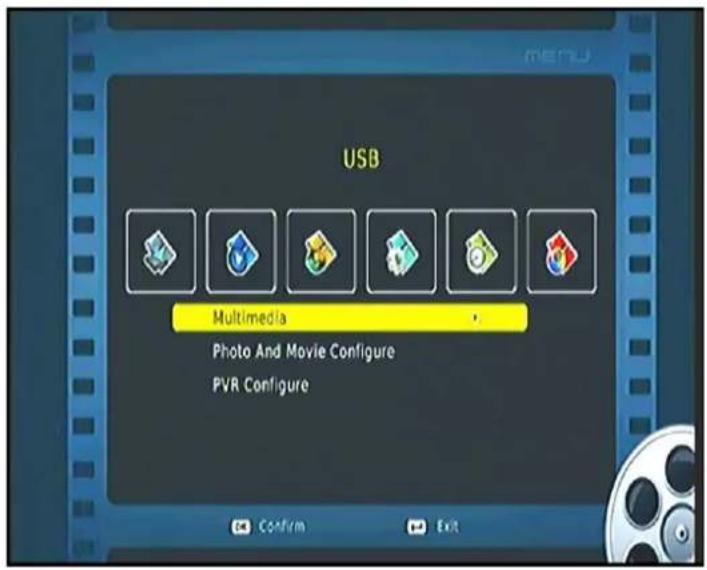

  USB

Installation

The submenus are Dish Setup, Restore Factory Default, Software Update, Save STB Data to USB, Load STB Data From USB and Help.

NOTE: The default password is "000000".

Dish Setup

Please refer the detailed description from page 18.

Restore settings to factory defaults.

All

All data and settings will be deleted. The previous setting will be erased, such as parental code, favorite channel etc...

Channel List Only

All channels' data will be deleted.

Radio Channel Only

All radio channels' data will be deleted.

Scramble Channel Only

All scramble channels' data will be deleted.

Software Update

Update your STB software from USB.

Note: Please ensure the software is settled in the root directory of USB.

Save STB Data to USB

With this option you can save firmware, channel lists and all settings on a USB storage. You need only to set up one HRS 8580 and can “clone” it to every other HRS 8580.

Installation

Here you can store firmware, all channels and your preferred favourite list to USB storage. Press the OK button and the list will be saved on the storage. After successful operation you can see a short message on the screen.

Press the EXIT button to close them.

1. Plug the USB storage to the device
2. Press MENU button
3. Direct to Installation menu
4. Select the option Save STB Data to USB and press the OK button to enter

Load STB Data From USB

Now you can re-install your STB data you saved to a USB storage. You can also install different channel list. Select the list and press the OK button. After a successful installation a short message appears on the screen.

Press the EXIT button to close them.

Warning! Don't turn off the Power while loading STB-Data! Turning off the power may damage your HRS 8580!

Service Organization

The submenus are Program Edit, Recall List, Sort and Save&Load Channel List.

Program Edit

You have the possibility to sort / edit the channels as you wish. You need a password for access (0 0 0 0 0 0).

Following tools are available in Program Edit:

• Move
• Skip
• Lock
• Delete
• Fav Menu
  Fav
• Satellite
• Rename
  Swap
• Move to

When you exit the program editing, then the changes are saved.

Move Channels

Now choose the channel you want to move with ▲/▼. If you wish to move a channel press RED. The chosen channel is highlighted now. Move the channel to the new position with ▲/▼ and press OK. The channel is dropped on this position. It is possible to mark more then one channel using the RED button.

Skip Channels

If you wish skip a channel, please choose channel you want to skip with ▲/▼ and press GREEN. The chosen channel is highlighted now with a skip symbol now

Lock channels

If you wish to lock a channel, please choose the channel you want to lock with ▲/▼ and press BLUE. The chosen channel is highlighted with a lock symbol now.

If you want to watch to a locked channel you have to type the password after choosing the channel (0 0 0 0 0 0).

Delete Channels

If you wish to delete a channel, choose channel you want to delete with ▲/▼, press YELLOW and press OK. A security query appears if you really want to delete the channel or not. To confirm press OK, to decline press EXIT.

After confirming the channel is deleted instantly.

Service Organization

Fav Menu

If you want to define the favorite type, you can press MENU. Using ▲/▼ to highlight the category and press OK to select it.

Fav

If you wish to define a channel as favourite, choose channel you want to add to favourites with ▲/▼ and press FAV .The channel is now highlighted with a favourite symbol.

Satelitte

If you want to switch the satellite, please press SAT. The satellite list window will come out, you highlight the different satellite with ▲/▼ and press OK to switch. Then you edit the channel list for each satellite.

Rename Channels

If you wish to rename a channel, choose channel you want to rename with ▲/▼ and press INFO. Now type in the new name and navigate to the OK field and confirm with OK.

Swap

If you wish to swap the channel with another, choose channel you want to swap with ▲/▼ and press F2. Now type the number of the channel you want to swap with, and then press OK.

Move to

If you want to move the channel to another place, please choose channel you want to move with ▲/▼ and press F3. Now type the number of the place you want the channel to move to.

RECALL LIST

You can turn Recall List on or off. If you set ON, when you press RECALL button you can get the recall list. If you set OFF, when you press Recall button you can go back to the last program you have selected.

Sort

This option sorts the channels according to the specifications (Default, Encrypt, Frequency, Service name and User).

Save&Load Channel List

You can save and load your channel list at this submenu.

To USB

Saves a copy of your channel list to USB device.

To Flash

Saves a copy of your channel list to Flash (The internal Memory of the Receiver)

From USB

Load your channel list from USB device.

Service Organization

From Flash

Load your channel list from flash.

Output

Following settings are available in Output:

• Aspect Ratio
• Resolution
• TV Format
• Menu Transparency
• Video Output
• Digital Audio

Aspect Ratio

With this menu you set the type of your TV. Please mind your aspect ratio of your TV.

Auto
4:3 Full
4:3 Pan&Scan
4:3 Letterbox
● 16:9 Wide screen

Resolution

Define the HDMI output resolution

576i (PAL) / 480i (NTSC)

576p (PAL) / 480p (NTSC)

720p

1080i

TV format

Setup the TV Type on PAL (50Hz)/NTSC (60Hz)/Auto state

Menu Transparency

Set the transparency of all menus.

HDMI Audio

PCM: Stereo Output. This Audio Format is compatible with all HDMI-TV.

RAW: Bit Stream Output. If a TV-Channel has AC3-Audio, then AC3-Audio is transferred to HDMI-Device. (Compatible TV or Home Cinema System is required!)

Timer

Following settings are available in System:

• OSD Language
• Subtitle Language
• Audio Language
• Banner Time
• Set Password
  Information

OSD Language

Define the OSD language.

Subtitle Language

Define the preferred subtitle language.

Banner Time

Define the display time of information's (1-10 sec.).

Audio Language

Set the preferred audio language.

Set Password

Change your password. At first you have to confirm the old password (standard 0 0 0 0 0 0). After confirming the old password type in the new password and repeat it. If all data was correct the new password is active.

Information

Show information about soft- and hardware.

Timer

Following settings are available in Time:

• Time Zone
  Date
  Time
• Sleep
• Summer Time
  ● Auto Power Down

Time Zone

Define the time zone you are in.

Timer

Date / Time

These two options are disabled when Time Auto is enabled. Otherwise you can define date and time here manually.

Sleep

Define when the HRS 8580 is due to switch off.

Summer Time

If your region needs summer time to correct the current time please make it ON.

Auto Power Down

Set the time that you want the receiver auto power down.

USB

Following settings are available in USB:

• Multimedia
  ● Photo And Movie Configure
• PVR Configure

Multimedia

Opens the multimedia Player (Page 30).

Photo And Movie Configure

Configure the playback and Slideshow of picture files.

Slide Time

Define Photo And Movie settings.

Aspect Ratio

Choose whether the aspect ratio of your pictures should be original or changed to full screen (DISCARD). DISCARD can cause deformations of the pictures.

Notes:

We recommend following settings:

Slide Time: 8 secs

Aspect Ratio: Keep

USB

Subtitle Specific

Define the size of subtitles

Subtitle BG

Choose between transparent and coloured background

Subtitle FontColor

Define the colour of the subtitle letters

PVR Configure

Information about USB media is shown here. You can also format your USB media.

Furthermore, you can decide which partition to store the PVR.

Important Note:

Due to the legal requirements of CE-conformity, the customer is asked to only connect USB-Sticks to the USB port.

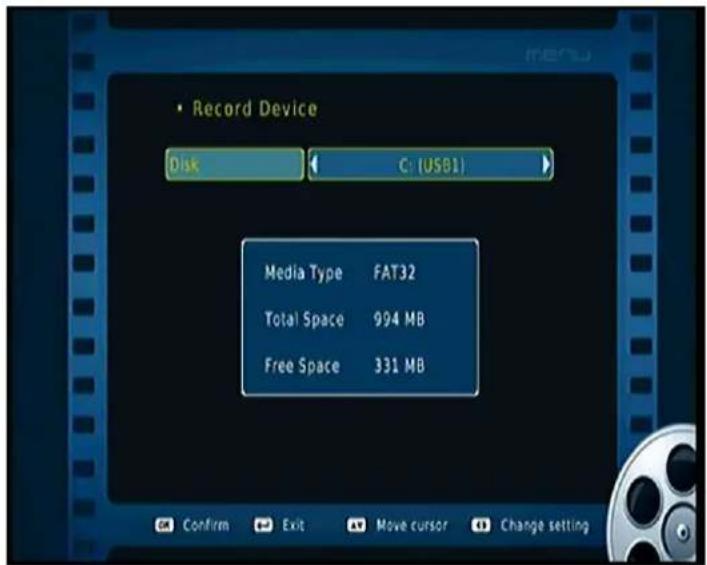

Record Device

You can press ◀/▶ to define the partition to store the PVR Information about the recorder

● Type of media (FAT32 or NTFS)
- Entire memory
- Free memory

Format

You have the possibility to format you USB media. FAT32 and NTFS are supported.

Formatting deletes ALL files that are stored on the USB Memory!

Check the following guide for the possible cause of a problem before contacting service.

● Technical Support of Xoro/MAS:
- Tel.: [phone]
● Fax: [phone]
- Internet: www.xoro.de/support

Symptom	Correction
No DVB-S reception / serious distortion by mosaics or artefacts/ freeze pictures	No DVB-S reception in your region. Realign the dish. Please pay attention to the direction of the satellite. Please use a bigger dish. Retry the Auto Scan.
No power Plug the power cord into the outlet tightly and turn on the power.
Can not scan programs Adjust the dish Refer settings for searching
No picture / no coloured pictures	Control the connection to the TV set. Control the video output mode in the setup. TV channel or program is scrambled
Remote control does not work Change the batteries. Operate within normal range (max. 5 meters, 30°) The sensor is pointed to by bright light.
No sound	Cancel Mute. Press MUTE button Increase volume. Press VOL+ button Pay attention to connection to TV set or amplifier.
Audio / Subtitle without function or can no choose	Change audio track (press AUDIO button) Change subtitle track (press SUB button) Other audio track is not supported Subtitles are not supported by broadcaster
No Recording No USB memory is connected. No free space on the storage.
Recording has jerkings or other mal functions	The connected storage is too slow. Please use only USB-Sticks with 8 GB or higher. Please control the reception quality of the dish and align them for getting better quality.

High Frequency Tuner

Input Frequency:	950 – 2150 MHz
LNB Feed :	13 / 18 V max. 400mA
Impedance:	75Ω
Wave form:	QPSK
Symbol rate:	2 – 45 Mbps

Video, Audio Decoding

Video Standard:	ISO/IEC13818-2 MPEG2 (MP@ML) und (MP@HL)
	MPEG-4 (H.264) High Profile Level 4
Video Resolution:	1080i, 576i (480i), 576p (480p), 720p
Aspect Ratio :	4:3 PS & LB, 16:9
Teletext:	Support DVB-ETS300472
Audio Standard:	ISO/IEC 11172 Layer I & II, MP3, AC3
Audio Sample rate:	32, 44.1, 48 KHz

Power

Input:	AC 100—240 Volt, 50/60 Hz
Consumption:	< 25 Watt
Consumption in Stand-By:	< 1 Watt

Ambient condition

Temperature:	0—40°Celsius
Humidity:	90%

Connector

USB Port:	USB 2.0
Video:	HDMI

Device

Weight:	0.37 Kg
Dimensions:	113 x 31 x 110 mm

Note:

Weight and dimensions are not absolutely exact values. Specifications are subject to change

Limited Warranty

In case the products delivered are not free from defects in material or workmanship, MAS Elektronik AG has the right to either repair or replace the defective product at its choice. MAS Elektronik AG manufactures and repairs goods using components which are new or equivalent to new in accordance with industry standards and practice. The warranty for wearing parts (e.g. rechargeable batteries) is limited to 6 months.

In case the device is equipped with internal data storage (e.g. hard disc drive, Flash drive), the customer is responsible to backup his data before sending the device. MAS Elektronik AG is not liable for any data loss on returned devices. MAS Elektronik AG reserves the right to reset returned devices to factory defaults. Please note your personal settings for this reason.

MAS Elektronik AG is not liable for any accessories not belonging to original package content such as DVDs, hard disc drives, Flash storage devices, batteries, etc.

This limited warranty covers the warranty requirements set by authorities in your country. This limited warranty only is valid in the country the product was purchased.

This limited warranty does not cover finishes, accessories or batteries, nor does it cover damage resulting from accident, misuse, abuse, dirt, water, battery leakage, tampering, servicing performed or attempted by unauthorized service agencies. This limited warranty does not cover damages resulting from firmware upgrades. Only in case of firmware upgrades needed to add functions promised at time of purchase, such damages are covered by this limited warranty. For a correct and frictionless completion of warranty or repairs you need a RMA No. You may obtain a RMA on the internet at www.mas.de/FAQ or by telephone.

Please send the device in its original packing material, all standard accessories and a copy of the invoice, a description of defect and the RMA No. to following address. Please note the RMA number clear and in large numbers on the outer package.

MAS Elektronik AG

Pollhornbogen 19

21107 Hamburg

Germany

Support

e-mail: [e-mail]

Hotline: +49 (0) 40 - 77 11 09 - 17

Fax: +49 (0) 40 - 76 73 35 - 15

FREE TO CHOOSE INNOVATIONS

XORO by MAS Elektronik AG

Pollhornbogen 19

21107 Hamburg

Deutschland

Tel: [phone]

Fax: [phone]

[e-mail]

www.xoro.de
