Brand	VDiGi
Model	32LEDS992
Product Type	Television
Screen Size	32 inches (80 cm)
Resolution	1920 x 1080 (Full HD)
Display Technology	LED
Dimensions (with stand)	73.5 x 46.0 x 18.0 cm
Weight (with stand)	3.9 kg
Power Consumption	50 W (typical)
Standby Power	<0.5 W
Inputs	2 x HDMI, 1 x USB, 1 x VGA, 1 x AV, 1 x RF Input
Outputs	1 x Headphone jack
Audio	2 x 8W built-in speakers
Remote Control	Included (batteries not included)
Wall Mount	VESA 200 x 200 mm
Power Supply	AC 110-240V, 50/60Hz
Cleaning	Use a soft, dry cloth. Avoid liquid cleaners.
Safety	Keep away from heat sources and moisture. Do not block ventilation.
Spare Parts	Contact VDiGi support for parts (remote, stand, etc.)
Repairability	Repairs should be done by qualified technicians.
General Info	User manual available for download at notice-facile.com

Frequently Asked Questions - 32LEDS992 VDiGi

How do I connect my TV to a Wi-Fi network?

This model does not have built-in Wi-Fi. Use an external streaming device connected via HDMI, or connect a wired Ethernet adapter via the USB port (if supported). Check your manual for details.

What is the recommended wall mount for this TV?

Use a VESA 200 x 200 mm compatible wall mount. Ensure the mount can support a TV weight of at least 4 kg. Follow the instructions provided with the mount.

How do I reset the TV to factory settings?

Press the Menu button on the remote, go to Settings > System > Reset to Factory Defaults. Confirm with OK. You may need to enter a PIN (default is 0000).

Why is there no sound from the TV?

Check that the volume is not muted and is turned up. Verify that the audio output is set to 'TV Speakers' in the Audio menu. If using external speakers, ensure they are properly connected and powered.

How do I connect a USB device to play media?

Insert a USB flash drive formatted as FAT32 or NTFS into the USB port. Press the Source button on the remote and select USB. Use the media player to browse and play photos, music, or videos.

What should I do if the remote control is not working?

First, replace the batteries with fresh ones. Ensure there are no obstructions between the remote and the TV's IR sensor. If still not working, clean the remote's IR emitter and try again.

Can I use the TV as a computer monitor?

Yes, connect your computer via HDMI or VGA. Use the Source button to select the appropriate input. Adjust the screen resolution on your computer to 1920x1080 for best results.

How do I update the TV firmware?

This TV does not support online updates. If a firmware update is available, it must be downloaded from the VDiGi website onto a USB drive and installed via the TV's Service Menu. Contact support for assistance.

What is the power consumption in standby mode?

The standby power consumption is less than 0.5 watts, which helps save energy when the TV is turned off.

How do I clean the TV screen safely?

Turn off the TV and let it cool. Use a soft, dry microfiber cloth to gently wipe the screen in a circular motion. Do not use water, alcohol, or any liquid cleaners, as they can damage the screen.

USER MANUAL 32LEDS992 VDiGi

Front view of a black horizontal computer monitor with a teal base (no visible text or symbols on the screen)

32LEDS992

使用手册

User Manual

目錄

目錄....1

安全資訊....2

注意事項....4

底座安装....5

遙控器....6

面板功能描述....7

後置端子及功能描述....8

基本操作及選單操作....9

頻道....10

影像....12

聲音及時間....13

設定....14

控管....15

EPG及多媒體....16

圖片....17

音樂....17

電影....18

文檔....18

錄影功能....19

技術規格....22

解決問題....23

Table of Contents....25

Safety Information....26

Precautions....28

Stand Installation....30

Remote Control ....31

Functions of the panel....32

Rear Panel and Descriptions....33

Basic Operation ....34

Menu Operation 34

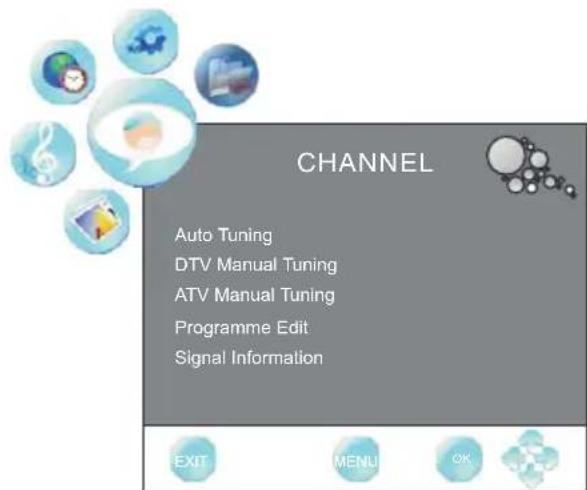

Channel Menu....35

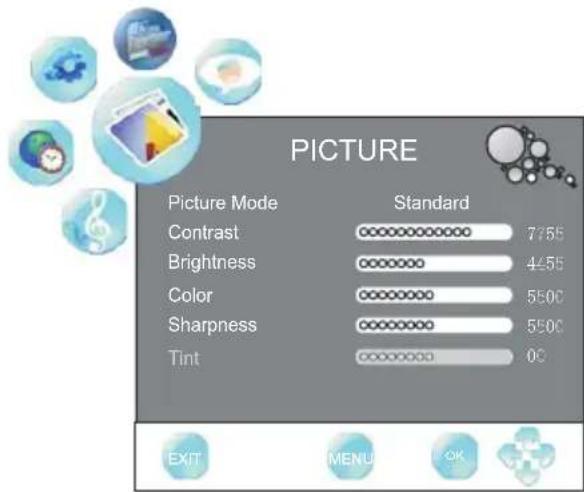

Picture Menu....37

Sound Menu....38

Time Menu....38

Option Menu....39

Lock Menu....40

EPG and Media Menu....41

Photo....42

Music....42

Movie....43

Text....43

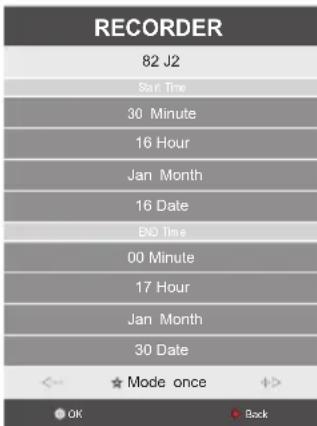

Record....44

Specifications....47

Troubleshooting....48

Before operating the TV, please read “Safety Information” and retain this manual for the future reference.

Safety information

Installation/Set-up

Install and use the TV set in accordance with the instructions below in order to avoid any risk of fire, electrical shock or damage and/or injuries.

Installation

The TV set should be installed near an easily accessible AC power outlet.

Place the TV set on stable, level surface to avoid it form falling down and cause personal injury or damage to the TV.

Only qualified service personnel should carry out wall installations.

For safety reasons, it is strongly recommended that you use V DIGI Accessories.

Transporting

Before transporting the TV set, disconnect all cables.

Two or more people are needed to transport a large TV set

When transport the TV set hand, hold it as shown on the right. Do not put stress on the panel.

When lifting or moving the TV set, hold it firmly from the bottom.

When transporting the TV set, do not subject it to jolts or excessive vibration.

When transporting the TV set for repairs or when moving, pack it using the original carton and packing material.

Ventilation

Never cover the ventilation holes or insert anything in the cabinet.

Leave space around the TV set

To ensure proper ventilation and prevent the collection of dirt or dust.

Do not lay the TV set flat, install upside down, backwards, or sideways.

Do not pace the TV set on a shelf, rug, bed or in a closet.

Do not cover the TV set with a cloth, such as curtains, or item such as newspaper, etc.

AC power cord

Handle the AC power cord and outlet as follows in order to avoid any risk of fire, electrical shock or damage and/or injuries:

Use only V DIGI supplied AC power cords, not those of other brands.

Insert the plug fully into the AC power outlet

Operate the TV set on a 110-240V AC supply only.

When wiring cables, be sure to unplug the AC power cord for your safety and take care not to catch your feet on the cables.

Disconnect the AC power cord form the AC power outlet before working on or moving the TV set.

Keep the AC power cord away form heat sources.

Unplug the AC power plug and clean it regularly. If the plug is covered with dust and it picks up moisture, its insulation may deteriorate, which could result in a fire.

Notes:

Do not use the supplied AC power cord on any other equipment.

Do not pinch, bend, or twist the AC power cord excessively. The core conductors may be exposed or broken.

Do not modify the AC power cord.

Do not put anything heavy on the AC power cord.

Do not pull on the AC power cord itself when disconnecting the AC power cord.

Do not connect too many appliances to the same AC power outlet.

Do not use a poor fitting AC power outlet.

Prohibited Usage

Do not install/use the TV set in locations, environments or situations such as those listed below, or the TV set may malfunction and cause a fire, electrical shock, damage and/or injuries.

Location

Outdoors (in direct sunlight), at the seashore, on a ship or other vessel, inside a vehicle, in medical institutions, unstable locations, near water, rain, moisture or smoke.

Environment

Places that are hot, humid, or excessively dusty; where insects may enter; where it might be exposed to mechanical vibration, near flammable objects (candles, etc). The TV shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the TV.

Situation

Do not use when your hands are wet, with the cabinet removed, or with attachments not recommended by the manufacturer. Disconnect the TV set from AC power outlet and antenna during lightning storms.

Broken pieces

Do not throw anything at the TV set. The screen glass may break by the impact and cause serious injury.

If the surface of the TV set cracks, do not touch it until you have unplugged the AC power cord. Otherwise electric shock may result.

When not in use

If you will not be using the TV set for several days, the TV set should be disconnected from the AC power for environmental and safety reasons.

As the TV set is not disconnected from the AC power when the TV set is just turned off, pull the plug from the AC power outlet to disconnect the TV set completely.

However, some TV set may have features that require the TV set to be left in standby to work correctly.

For children

Do not allow children to climb on the TV set.

Keep small accessories out of the reach of children, so that they are not mistakenly swallowed.

If the following problems occur

Turn off the TV set and unplug the AC power cord immediately if any of the following problems occur. Ask your dealer or V DIGI service centre to have it checked by qualified service personnel.

When:

AC power cord is damaged.

Poor fitting of AC power outlet.

TV set is damaged by being dropped, hit or having something thrown at it.

Any liquid or solid object falls through opening in the cabinet.

Precautions

Viewing the TV

View the TV in moderate light, as viewing the TV in poor light or during long period of time, strains your eyes.

When using headphones, adjust the volume so as to avoid excessive levels, as hearing damage may result.

Screen

Although the LED screen is made with high-precision technology and 99.99% or more of the pixels are effective, black dots may appear or bight points of light (red, blue, or green) may appear constantly on the screen. This is a structural property of the screen and is not a malfunction.

Do not push or scratch the front filter, or place object on top of this TV set. The image may be uneven or the screen may be damaged.

If this TV set is used in a cold place, smear may occur in the picture or the picture may become dark. This does not indicate a failure. These phenomena disappear as the temperature rises.

Ghosting may occur when still pictures are displayed continuously. It may disappear after a few moments.

The screen and cabinet get warm when this TV set is in use. This is not a malfunction.

The screen contains a small amount of liquid crystal. Mercury is sometimes

contained depending on the kind of fluorescent tubes. Follow your local ordinances and regulations for disposal.

Handing and cleaning the screen surface/cabinet of the TV set

Be sure to unplug the AC power cord connected to the TV set form AC power outlet before cleaning.

To avoid material degradation or screen coating degradation, observe the following precautions.

To remove dust form the screen surface/cabinet, wipe gently with a soft cloth of dust is persistent, wipe with a soft cloth slightly moistened with a diluted mild deter

Never use any type of abrasive pad, alkaline/ acid cleaner, scouring powder, or volatile solvent, such as alcohol, benzene, thinner or insecticide. Using such materials or maintaining prolonged contact with rubber or vinyl materials may result in damage to the screen surface and cabinet material.

tilation.

When adjusting the angle of the TV set, move it slowly so as to prevent the TV set form moving or slipping off from its table stand.

Optional Equipment

Keep optional components or any equipment emitting electromagnetic radiation away from the TV set. Otherwise picture distortion and/or noisy sound may occur.

Safety Strap

Caution: Pushing, pulling or climbing on the TV may cause the TV falling. Do not let children climb or hang on the TV. Always place the TV on a sturdy, level, stable surface that can hold the weight of TV. And if possible, secure the TV according to the instruction below (Note: The fastening components such as screws are not supplied with TV).

Step one: Insert the M6 mounting screws into the upper two wall mounting screw holes and fasten them (Figure A).

Step two: Insert anchors to wall and connect the bolts and anchors with ropes or chains(Figure B).

Figure A

Figure B

Your TV is packaged with the TV stand separated from the cabinet. To setup the TV table stand, please carry out the installation according to the instructions below.

Step One

Place the TV faced down on a soft cloth or cushion to prevent the panel from being damaged.

Note:

1. The panel is easy to scratch, so please choose an absolutely flat surface to place the TV, and use soft cloth or cushion to protect the TV panel. Do not put TV on table directly.
2. Always unplug the cord first when installing or removing the stand.

Step Two

Insert the neck into the opening on the bottom of the TV, and then insert the 4 screws into the 4 holes on the neck and tighten them.

Step Three

Take the base. Please align four holes of the base and four screwholes of the neck, insert the base to the neck, and then insert the 3 screws and tighten them.

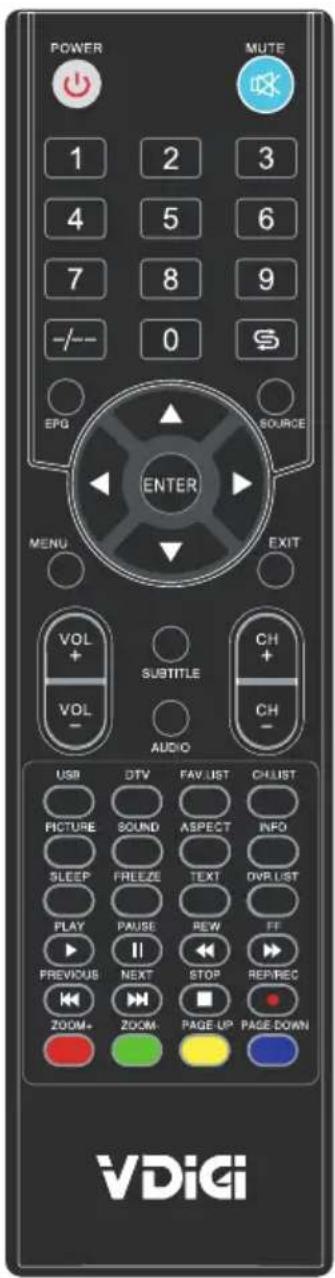

Description of television of remote control

POWER: Switch between working status and standby status

② MUTE: Turn on/off audio

③) 0-9: Press to select channel

4) -/--:Channel digit setup button

5) :Switch to the last channel

6) EPG:Show electronic program guide

7 SOURCE:Input source conversion button

8) MENU:Show the main menu

⑨ EXIT: Exit the OSD menu

10) ENTER: Confirm selection

▲/▼: Navigate on menu

11) VOL+/-: Change sound volume

12) CH+/-: Change channel

13) SUBTITLE: Select language of subtitle

14) AUDIO: Select audio output

15) USB: Select USB source input

16) DTV: Select DTV source input

17) FAV.LIST: Display/Define favorite channel

18) CH.LIST:Show channel list

19) PICTURE: Select the picture mode

20) SOUND: Select the sound mode

21) ASPECT: Adjust image display proportion

22) INFO: Show channel program information

23) SLEEP: Set the timer turn off TV automatically

24) FREEZE: Freeze the picture

25) TEXT: Not available

26) DVR.LIST: Show the Schedule List

27) PLAY/PAUSE/REW/FF/STOP/PREVIOUS/ NEXT: Available in multimedia

28) REP/REC: Personal video record button

29) ZOOM+/-: Zoom the size of screen(multimedia)

32) COLOR BUTTONS: Follow the on-screen instruction

Side Panel Buttons

Line drawing of a monitor and a vertical panel with labeled components (no text or symbols on the main elements)

INPUT: Displays the Source Select List.
MENU: Displays the TV Main Menu.
CH▼: Scans down through the channel list. In the TV menu system, it acts like the down arrow on the remote control and can be used to select menu options.
CH▲: Scans up through the channel list. In the TV menu system, it acts like the up arrow on the remote control and can be used to select menu options.
VOL-: Decreases the volume. In the TV menu system, it acts like the left arrow on the remote control and can be used to select menu options.
VOL+: Increases the volume. In the TV menu system, it acts like the right arrow on the remote control and can be used to select menu options.
POWER (💡): Turns the TV on and off.

Front Panel

Power/Standby Indicator

Power Indicator: Light up in red when the TV is in standby mode. Light up in blue when the TV is on.

Remote control sensor: Receives IR signals from the remote.(Do not put anything over the sensor, otherwise, the sensor may not operate properly.)

Name	Function Description
USB1, USB2	Reserve for external USB device
HDMI1, 2, 3	HDMI input
VGA	VGA input
PC Audio	VGA audio input
YPbPr	Component input
YPbPr L/R	Component audio input
S-Video	S-VIDEO input
COAX	Coaxial output
Video	Composite video input
Audio in L/R	Composite audio input
TV	Antenna input
Earphone	Earphone output

Basic Operation

Power On/Off

1. Connect the TV unit to the wall outlet using power cord.
2. When the power indicator is in red, the TV is in standby mode. Now press the "POWER" button on remote control or "POWER" button on side panel to turn on the TV. The TV work normally when the power indicator is in blue.
3. Switch the TV to standby mode, just press "POWER" button on the remote control or the "POWER" button on side panel. Now the indicator will be in red.
4. If unused for a long time in standby mode, please disconnect the power cord from the wall outlet.

Note: The TV set will display "No signal" while there is no signal input.

Select Viewing Source

Press the "SOURCE" button to display the sources list. Please use the ▲▼ buttons to select desired signal, and press ENTER to confirm.

Input Source

DTV

ATV

YPBPR

PC-RGB

HDMI1

HDMI2

HDMI3

AV

S-Video

DMP

OK

Note:

Please make sure the connection for your choice is available. If the TV cannot find any signal input, you can try to restart the TV.

Adjusting Volume

The volume can be adjusted continuously by pressing VOL+/VOL- on the remote control.

Press MUTE button on the remote control to mute the sound. You can release mute by pressing MUTE or increase the TV's volume.

Menu Operation

If you want to adjust the display settings, please follow the instruction below

Press the "MENU" and ◀▶ buttons to browse the CHANNEL Menu, Picture Menu, Sound Menu, Time Menu, Option Menu, Lock Menu.

Press ▲▼ button to select items and ENTER button to adjust it.

Press MENU button to return to the previous menu.

Press "EXIT" button to exit "MENU" mode.

• When an item in MENU is displayed gray, it means that the item is not available or cannot be adjusted.
  ● Some items in the menus may be hidden depending on modes or signal sources used.

Channel Menu

Press MENU and buttons to select the CHANNEL.

Press ▲▼ button to select the items.

Press ENTER or ▶ button to enter the submenu.

Auto Tuning

Press buttons Autorefacing

Press ENTER button to enter Auto Tuning, the TV will search channels automatically.

All channels will be saved once searching finished.

In the course of auto searching, you can press "EXIT" to stop the searching process.

Channel Tuning
ATV :	0 Programme (s)
DTV :	0 Programme (s)
Radio :	0 Programme (s)
Data :	0 Programme (s)
0%	21DTV
Press [MENU] skip ATV/DTV tuni...Press [EXIT] skip tuning!

DTV Manual Tuning (only available in DTV mode)

You can also set program list again one by one by DTV Manual Tuning function.

Press ◀▶ button to select channel.

Press ENTER button to search.

When a channel is found, the searching process will stop, the channel will be saved with current channel number.

If the program is not your expected one, please press

◀▶ button to continue the searching.

Press EXIT button to exit.

ATV Manual Tuning (only available in ATV mode)

If you find one channel is in poor signal.

you can adjust the frequency of the channel.

It might improve the quality of picture and sound.

Storage To

Press ◀▶ button to select to storage to channel

NO. from 1 to 100.

System

Press ◀▶ button to select Audio System: I, DK, BG.

Current CH

Press ◀▶ button to select current channel.

Search

Press ◀▶ button to search channel.

Fine -Tune

Press ◀▶ button to adjust frequency.

Press ▲▼ button to select items. Press ◀▶ button to adjust it.

Press the red button to save it .Press EXIT button to exit.

Programme Edit

Press button to select items.

Press red button to delete the channel.

Press green button to rename the channel.

Note: Only the ATV channel can be renamed.

Press ◀▶ to select the letter and press ▲▼ to change the letter.

Press yellow button to move the channel.

Note: The list of programs include ATV and DTV.

The programs can be moved only among the same kind.

Press BLUE button to skip the channel. (Skipped

channels cannot be selected with CH+/CH-,

however they can still be accessed using the

Channel Number on the remote control.)

Press FAV. LIST button to set the favorite channel.

Signal Information

Display the DTV signal information.

Picture Menu

Press MENU and buttons to select the PICTURE menu.

Press Button to select the items.

Press ENTER or ▶ button to enter the submenu.

Picture Mode

Press ◀▶ button to select the picture mode: Standard, User, Dynamic,

Mild. (you can adjust the contrast, brightness, color, sharpness, tint in User mode.)

Contrast : Press ◀▶ button to adjust the contrast of the picture.

Brightness : Press ◀▶ button to adjust the brightness of the picture.

Color : Press ◀▶ button to adjust the color saturation.

Sharpness : Press ◀ button to adjust the sharpness level of the picture.

Tint : Press ◀▶ button to adjust the tint of the picture.

Color Temperature

Press ◀▶ button to select: Medium, User, Warm, cool. (you can adjust Red/Green/Blue in User mode.)

Aspect Ratio

Press ◀▶ button to select the ratio of the screen: Auto, 4:3, 16:9, Zoom1,

Zoom2, Panorama.

Noise Reduction

Press ◀▶ button to select the mode: Off, Low, Middle, High, Default.

Screen (only available in VGA mode)

Press ENTER or to enter the submenu, you

can adjust: Horizontal Position, Vertical Position,

Size, Phase, Auto Adjust.

Screen

Auto Adjust

Horizontal Pos. 50

Vertical Pos. 50

Size 46

Phase 34

Sound Menu

Press MENU and buttons to select the SOUND menu.

Press Button to select the items.

Press ENTER or ▶ button to enter the submenu.

Sound Mode

Press ENTER or ▶ button to enter submenu to select sound mode: Standard, Music, Movie, Sport, User. (you can adjust treble, bass in User mode.)

Balance

Press ◀▶ button to adjust the audio output between left and right speakers.

Auto Volume

urn on/off the function of auto volume. Press ◀▶ button to t

Surround Sound

urn on/off the function of surround sound. Press ◀▶ button to t

SPDIF Output

select PCM, Auto. (Only available in DTV) Press ◀▶ button to

Time Menu

Press MENU and buttons to select the TIME menu.

Press ▲▼ button to select the items.

Press ENTER or ▶ button to enter the submenu.

Clock

Automatic reads digital broadcast timing.

Off Time

Set the time to turn off the TV automatically: Off, once, Every Day, Mon.-Fri., Mon.-Sat., Sat.-Sun., Sunday.

On Time

Set the time to turn on the TV automatically: Off, Once, Every Day, Mon.-Fri., Mon.-Sat. Sat.-Sun., Sunday.

Sleep Timer

Press ENTER or button to select the sleep timer: Off, 10, 20, 30, 60, 90, 120, 180, 240(min).

Auto Sleep

If there is no signal, the TV will turn off automatically after a period of time.

Option Menu

Press MENU and buttons to select the OPTION menu.

Press 🔊 to select the items.

Press ENTER or ▶ button to enter the submenu.

OSD Language

Press ◀▶ buttons to select OSD language: English, Traditional Chinese.

Auldanguage

Press ◀▶ buttons to enter submenu to select audio language:

English, Simplified Chinese, Traditional Chinese.

Subtitle Language

Press ◀▶ buttons to enter submenu to select subtitle language:

English, Simplified Chinese, Traditional Chinese.

PVR File System

Press ENTER button to enter the submenu. (See page 43, Record Function)

Press ENTER button to reset the TV system.

Software Update (USB)

Press ENTER button for software update. This function must use official authorized software provided by Shun Hing Electric Service Centre Ltd. with same format, same filename system file. (Note: Please contact Shun Hing Electric Service Centre Ltd. for software update.)

Lock Menu

Press MENU and buttons to select the Lock menu.

Press button to select the items.

Press ENTER or ▶ button to enter the submenu.

Lock System

Turn on or off the locking function. (The original password is 0000)

Set Password

To reset the password of the lock system.

Block Program

To select the programs you want to block.

EPG

EPG ( only available in DTV mode)

Press EPG button in the DTV Mode to display electronic program guide.

Display

Press the GREEN button to show information about the selected program.

Schedule

Press the YELLOW button to display the Reminder List. Press ▲/▼ to select a reminder, press the RED button to delete a reminder.

Remind

Press the BLUE button to display a reminder menu. Press ▲/▼ to select an item and ◀/▶ to change the setting. Press ENTER to add the program to the reminder list. An updated reminder list will be shown.

Record

Press the RED button to display the recorder menu. Setting the schedule for starting, ending and recording mode. After confirmation, programs will start recording to USB device.

NOTE:

1. The display time of EPG is pre-play, and individual program will be 3-5 minutes later than EPG time because of the breaks (for example, news or Advertisement). Please postpone 3 to 5 minutes after finish the recording when you set recording. Please set start and end time of Monday to Friday automatically when using the mode of Monday to Friday in recording mode.
2. If the recorded mode is AUTO, you cannot set the recorded time.

Media Menu

Press SOURCE button, and then use ▲▼ button to select DMP, press ENTER button to confirm. Press ◀▶ button to select PHOTO, MUSIC, MOVIE, TEXT, press ENTER button to confirm. Press ◀▶ button to select the files, press ENTER button to confirm. NOTE: Some USB storage devices or part of USB3.0 may not be supported or operate properly.

Media Interface:

The formats supported

The TV supports the following files including movie, music, photo and text. For PHOTO, it supports file formats among JPEG, BMP, PNG. For MUSIC, it supports MP3, WMA file format. For MOVIE, it supports MP4, MPEG, MKV, AVI, MPG, RMVB file format. For TEXT, it supports TXT. NOTE: The special algorithm documents may not be supported by the USB.


1. Press [◀] / [▶] to select PHOTO. Press [ENTER] to enter.
2. Press [◀] / [▶] / [▲] / [▼] to select the desired folder and press [ENTER] to open the folder; or press [◀] / [▶] / [▲] / [▼] to select the desired picture file and press [▶] to start playing.
3. Press [■] to stop picture playing and return to picture list.
4. Select the return icon to the previous menu.

Photo Control Bar

• Press [ ENTER] to display Photo Control Bar during photo slide show.
• Press [◀] / [▶] to select the desired settings, press ENTER button to confirm.

MUSIC

1. Press [◀] / [▶] to select MUSIC. Press [ENTER] to enter.
2. Press [◀] / [▶] / [▲] / [▼] to select the desired folder and press [ ENTER ] to open the folder; or press [◀] / [▶] / [▲] / [▼] to select the desired music file and press [ ▶ ] to start playing.
3. Press [■] to stop music playing and return to music list.
4. Select the return icon to the previous menu.

Music Control Bar

• Press [ ENTER ] to display Music Control Bar while playing the music.
• Press [◀] / [▶] to select the desired settings, press ENTER button to confirm.

Note:

• This menu only show files with the support file extension.
• Files with other file extensions are not displayed, even if they are saved on the same USB storage device.
• An over-modulated support file may cause some sound distortion during playback.

MOVIE

1. Press [◀] / [▶] to select MOVIE. Press [ENTER] to enter.
2. Press [◀] / [▶] / [▲] / [▼] to select the desired folder and press [ ENTER ] to open the folder; or press [◀] / [▶] / [▲] / [▼] to select the desired movie file and press [ ▶ ] to start playing.
3. Press [■] to stop movie playing and return to movie list.
4. Select the return icon to the previous menu.

Movie Control Bar

    G["Set a loop from A to B"] --> H["Playlist"]
    H --> I["Info.: Current Information"]
    I --> J["Slow Forward"]
    J --> K["Step Forward"]
    K --> L["Goto Time"]
    L --> M["Zoom In"]

    N["Zoom Out"] --> O["Aspect Ratio"]
    O --> P["Move View"]

• Press [ENTER] to display Movie Control Bar while playing the video.
• Press [◀] / [▶] to select the desired settings, press ENTER button to confirm.

TEXT

1. Press [◀] / [▶] to select TEXT. Press [ENTER] to enter.
2. Press [◀] / [▶] / [▲] / [▼] to select the desired folder and press [ ENTER ] to open the folder; or press [◀] / [▶] / [▲] / [▼] to select the desired text file and press [ ▶ ] to start playing.
3. Press [■] to stop text playing and return to text list.
4. Select the return icon to the previous menu.

Text Control Bar

• Press [ ENTER ] to display Text Control Bar while reading the text.
• Press [◀] / [▶] to select the desired settings, press ENTER button to confirm.

Note:

• It supports *.txt files.(English character)
• Please ensure that the text file is saved in an encoding standard. This can ensure the normal display characters.

Record Function (Only in DTV mode)

PVR settings

1) PVR File System

Select Disk	C:
Check PVR File System	Start
USB Disk
Format
Time Shift Size
Speed
Free Record Limit	6Hr.
	Menu

2) Select Disk

Select Disk
USB	0
Disk	C:

3) Check PVR File System:

File System Size
PVR File System Type	FAT32
PVR File System Size	ALL
SD 104 Mins
HD 29 Mins
Menu

4) Format:

Format disk

Do not unplug USB device. Formatting, please wait

5) Time Shift Size

Time Shift Size
Time Shift Disk Size	2GB
SD 52 Mins
HD 15 Mins

Setup the PVR File system before you start recording.

Select Disk: Select the device for the Record files.

Check PVR File System

USB Disk: Display the USB state.

Format: Format the USB device for PVR operating.

Time Shift Size: Display the recording size of the USB device.

(The device has been formatted).

Speed: Display the recording speed of the USB device.

(The device has been formatted.

Free Record Limit: Display the free record limit of USB device. (The device has been formatted).

As follows, default as C.

Choose the disc to store whatever content need record.

NOTE: please format your hard disk before use the PVR function for the first time.

Check storage equipment PVR File System is well established. Press ENTER button to

inspect the USB files system and speed, the processing shows Checking... ;

When USB is not inserted, or inspection failed, it shows FAIL;

When USB is inserted but didn't be formatted, enter

Format menu;

If inspection is normal, it shows SUCCESS.

At Format stage, press ENTER button to start formatting the USB.

PVR File system is being built at this stage, during the USB recognition process, the OSD media reminds user not to plug out the USB.

After Formatting, the PVR File system is built.

When finish Creating PVR file system, it pop out Time Shift Size setting menu, and clients can set the space size for time shift as follows.

Record Start

When you finish the settings above, you could start recording by pressing the REP/REC button on the remote control.

Digital program recording

Insert a U disk, select settings menu under the PVR File System option, and before it you should back up your USB data to prevent any data loss.

Warning: Make sure you have a backup of your external memory data which you use for recording function.

The recording time depends on the USB storage capacity. Select recording program channel in EPG. Press REP/REC to enter the submenu, recording begins when press ENTER button, press the STOP button to stop the recording or it will stop automatically when the storage data is full.

Record buttons

REP/REC: Press to enter the recording mode.

PAUSE: Press to enter the timeshift mode.

DVR.LIST: Press to display the recording list.

■ Stop: Press to stop recording.

Recording menu

When you press REP/REC button, the screen will display the recording menu as below:

Note:

a. You could change the display mode of Recording menu by REP/REC
b. Press STOP button to exit the recording mode.
c. Press PLAY button to play the program you are recording from the beginning.
d. Press DVR.LIST button to display the Recorder list, and you could play the program you selected. Press MENU button to return to the DVR.LIST.
e. After finish to record a program, press DVR.LIST button to display the Recorder list. Press ENTER/PLAY button to play the

program. Press red button to delete the program. Press Green button to display the information.

Timeshift

The function of USB Timeshift means to record the digital TV programs for later watching. By recording the digital TV programs into storage device, the users may temporarily leave the TV set, and come back to watch the program saved in the storage device after a while. At the same time, the program continues to be recorded.

In DTV mode, Press PAUSE button to enter the Timeshift mode.

Note: a. You could change the mode of Timeshift menu by PAUSE button.

b. Press STOP button to exit the Timeshift mode.
c. Press PLAY button to play the program you are recording from the beginning.

Timer Recording

In EPG menu, press red button or REP/REC button to display Recorder menu.

Set the Recording Timer

The TV will record the program automatically according to your settings.

TITLE: Display the name of the recording program.

Start Time: Set the start recording time.

End Time: Set the end recording time.

Mode: select the record mode.

Press ENTER button to save the setting and exit the menu, then TV will display the schedule list.

Schedule List		16:09	21th May	Delete
	Time Date			Programme Title	Channel Name
#	16:14-16:30	Web. 21 May		The Sleepover Club	8 NBN Digital

When timer recording is set, the TV can be placed into standby. The unit will then activate the recording when the time is reached and then return to standby mode when the end time is reached.

RECORDER

82 J2

Start Time

30 Minute

16 Hour

Jan Month

16 Date

END Time

00 Minute

17 Hour

Jan Month

30 Date

Mode once

Note:

1. At least 1G USB capacity should be used.
2. All contents save will be lost after USB formatting, please back up the data before formatting. USB disk with virus contents may cause failure of recognition.
3. PVR function is only available in DTV.
4. If the USB disk contains different drive areas, users can choose to format the specific area for PVR system running.
5. The maximum time period of consecutive recording is 6 hours.
6. USB memory should support USB2.0 high-speed specification.
7. If power is cut off accidentally while the recording is in progress, the recording data will not be saved.

1.YPbPr/HDMI

Resolution	Vert.Freq.(Hz)
480i	60
480p	60
720p	60
1080i	60
1080P	60

2.VGA

Resolution Vert.Freq.(Hz)
1920*1080	60
1360*768	60
1024*768	60
800*600	60

Model	32LEDS992
Panel Size	31.5"
Resolution	1920×1080
Viewing Angle(H, V)	178°,178°
Brightness	200cd/m2
Contrast Ratio(Typ.)	3000:1
Response Time	6.5ms
LED backlight	Direct -Lighting LED backlight
TV System	DMB-TH;PAL
Audio System	BG;DK;I
Amplifiers	2×8W
Power Input	AC 110-240V~50/60Hz
Power Consumption	≤75W
Input Terminal	Tuner In×1
	HDMI×3
	S-Video×1
	YPbPr In×1 L/R×1
	VGA×1
	PC Audio×1
	USB×2
	Video In×1 L/R×1
Output Terminal	COAX×1
	Earphone×1
Accessories	User Manual×1
	Remote Controller×1
	Battery×2
	Warranty Card×1

Note: Particular specifications are subjected to change without prior notice.

Condition	Explanation/Solution
There is no picture (screen is dark) and no sound.	Check the antenna/cable connection.Connect the TV to the AC power, and open the power supply on the TV.If the indicator lights up in red, press Power button.
Ghosting occurs, or double images appear.	Check the antenna/cable connection.Check the antenna/cable location and direction.
Only snow and noise appear on the screen.	Check if the antenna/cable is broken or bent.Check if the antenna/cable has reached the end of its serviceable life (three to five years for normal use, one to two years when used at the seaside).
The picture is distorted (dotted lines or stripes appear).	Keep the TV away from electrical noise sources such as cars, motorcycles, hair-dryers, or optical equipment.When installing optional equipment, leave some space between the optional equipment and the TV.Check the antenna/cable connections.Keep the antenna/cable TV cable away from other connecting cables.
There is picture or sound noise when viewing a TV channel.	Check the antenna/cable connection.
Tiny back points and/or bright points appear on the screen.	The screen is composed of pixels. Tiny black points and/or bright points (pixels) on the screen do not indicate a malfunction.
The picture from equipment connected to different input ports is not displayed in colour, or is displayed in irregular colours.	Check the connection of different input ports and check if the ports are firmly seated in their respective ports.
No picture from the connected equipment appears on the screen.	Turn the connected equipment on.Check the cable connection.Press Source button to display the list inputs, and then select the desired input.operations are not guaranteed for all USB devices. Also, operations is different depends on the features of the USB device and the video being played.
Sound
The picture is good, but there is no sound.	Press Vol +/- or Mute key.Check the audio cable L/R connectionWhen using HDMI input with Super Audio CD or DVD-Audio, DIGITAL AUDIO OUT (COAXIAL) may not be able to output audio signal
Channels
You cannot select your desired channel.	Switch between digital and analogue mode, and select the desired digital/analogue channel.
Some channels are blank.	The channel is for scrambled/subscription service only. Subscribe to a pay TV service.The channel is used only for data (no picture or sound).Contact the broadcaster for transmission details.
You cannot view digital channels.	Contact a local installer to find out if digital transmissions are provided in your area.Check if the antenna/cable is broken or bentUpgrade to a higher gain antenna.
General
The TV turns off automatically (the TV enters standby mode).	Check if the “Sleep off” is activated.
The remote does not function.	Replace the batteries.
HDMI equipment cannot be recognized.	Check that your equipment is compatible with control for HDMI.
Not all channels are tuned for cable.	Contact the related cable broadcaster

弘毅有限公司

Winning Perfect Limited

Unit C, 1 / F, Kam Shing Industrial Building, Nos. 1-11 Kwai Wing Road

Kwai Chung, N.T. Hong Kong

Tel: [phone]

Fax: [phone]

Email: [e-mail]

Web site: http://vdigi.com.hk
