EIFW 60 - Cooker EICO - Free user manual and instructions

Product Type	Freestanding Cooker
Brand	Eico
Model	EIFW 60
Overall Dimensions (H x W x D)	85 x 60 x 60 cm
Weight	Approximately 55 kg
Power Supply	220-240 V ~ 50/60 Hz
Total Power Consumption	Approximately 10 kW
Hob Type	Electric (4 zones)
Oven Type	Electric (conventional + grill)
Oven Capacity	Approximately 65 liters
Oven Functions	Top/Bottom heat, grill, fan-assisted
Cleaning	Manual cleaning; enamel interior
Safety Features	Child lock, automatic shut-off, overheating protection
Spare Parts Availability	Heating elements, knobs, oven door gasket
Repairability Index	High (standard components)
Energy Class	A (estimated)
Included Accessories	Oven grid, drip tray, grill pan

Frequently Asked Questions - EIFW 60 EICO

How do I install the cooker?

Ensure the cooker is placed on a level surface with adequate ventilation. Connect to a dedicated 220-240V power supply. Refer to the manual for detailed electrical connections.

Can I use the oven and hob simultaneously?

Yes, the cooker is designed to operate all heating elements simultaneously, but total power consumption may be high. Avoid using all zones at maximum if other high-power appliances are on the same circuit.

How do I clean the oven interior?

Wipe with a damp cloth and mild detergent after cooling. Avoid abrasive cleaners. For stubborn stains, use a specialized oven cleaner. The enamel coating is easy to clean.

What should I do if the oven does not heat up?

Check the power supply and circuit breaker. Ensure the oven function is selected and temperature is set. If still not heating, the heating element may be faulty; contact a technician.

How do I activate the child lock?

Press and hold the 'Lock' button (if available) for 3 seconds until a lock icon appears on the display. To deactivate, repeat the process.

Can I replace the oven door gasket myself?

Yes, it is a simple DIY task. Remove the old gasket, clean the groove, and press the new gasket into place. Ensure it seals properly.

Why is the hob not heating?

Check that the hob is turned on and the zone is selected. If using a ceramic hob, ensure the cookware is suitable and placed correctly. A faulty heating element may need replacement.

What type of cookware should I use on the hob?

Use flat-bottomed pots and pans with a diameter matching the heating zone. For electric hobs, avoid warped or oversize cookware that may cause uneven heating.

How do I set the timer on the oven?

Turn the timer knob to the desired cooking time. The oven will automatically shut off when the timer reaches zero. Some models have a separate timer function.

Is the cooker energy efficient?

The EIFW 60 has an estimated energy class A. Use the oven with the fan-assisted function for better heat distribution and lower energy consumption. Preheating for too long wastes energy.

USER MANUAL EIFW 60 EICO

Dark image with faint white lines and no discernible text, symbols, or structured content.

Eico 60 IFEic
EIFW 60EIFV

Completely dark image with no visible content or text.

Eico 80 IF
EIFW 80

Four circular gray shapes arranged in a 2x2 grid on a dark background, with a small numeric scale at the bottom (no text or symbols on the shapes themselves)

Eico 60 IF
EIFW 60

Four circular gray shapes arranged in a 2x2 grid on a dark background, with a small numeric display below (no readable text or symbols)

Eico 70 IF
EIFW 70

Four gray circular objects arranged in a triangular pattern on a dark background, with a small numerical scale at the bottom (no readable text or symbols)

Eico 80 IF
EIFW 80

Fig. 4

4 Zone
Land Mains Connection Cable diameter			Cable Protection calibre
	400V~50/60 Hz	2 Ph + N	4 x 1.5 mm ^2	H 05 VV - FH 05 RR - F	16 A*
	230V~50/60 Hz	2 Ph	3 x 2.5 mm ^2	H 05 VV - FH 05 RR - F	25 A*
	230V~50/60 Hz	1 Ph + N	3 x 2.5 mm ^2	H 05 VV - FH 05 RR - F	25 A*

(* ) calculated with the simultaneous factor following the standard EN 60 335-2-6/1990

Fig. 6

A

Fig. 7

DK

A - ON/OFF key > switch the appliance on or off.
B - Cooking zone display > Identification cooking zone activated.
C - Cooking zone display > Slider display power level.
D - Bridge key
E - Booster key
F - Timer display > increase/decrease timer value.

Illustration of a hand holding a pen on a flat surface, labeled 'Fig. 8' (no text or symbols on the diagram itself)

Carefully read this use and maintenance manual, where important information about installation, use and maintenance safety is provided. Keep this manual for future reference. Any installation operation (electric connections) shall be performed by specialized personnel, in compliance with all standards and regulations in force.

SAFETY WARNING

The use of flat-bottomed pots, with a diameter equal to or slightly bigger than the heated area, is recommended. (Fig.6). Do not use pots that have a rough base, in order to prevent the hob thermal surface from being scratched. This appliance is not intended for use by children or infirm people without supervision.

IMPORTANT

• Avoid the overflow of liquids by reducing the heat supply when boiling or warming liquids.
• Do not leave any heating element switched on, if there are no pots, or if the pots are empty.
• Once cooking is completed, turn the concerned heating element off, by using the control shown below.
• This appliance is not intended for use by people (children included) with limited physical, sensorial or mental abilities, or lacking of experience and knowledge, unless they are supervised or well instructed about the use of the appliance, by a person who is responsible for their safety.
• Children should be supervised to assure that they do not play with the appliance.
• If the hob surface is cracked, turn the appliance off and disconnect it from the electric network, so as to avoid the possibility of electric shock.

INSTALLATION INSTRUCTIONS

These installation instructions are intended for a specialized installer and are meant as guidelines for the hob installation, adjustment and maintenance, in compliance with any regulations and standards in force. If a built-in oven or any other appliance generating heat is to be mounted directly under the vitro-ceramic hob, IT IS NECESSARY THAT SUCH AN APPLIANCE (the oven) AND THE VITRO-CERAMIC HOB ARE PROPERLY INSULATED. Failure to comply with this precaution might result in the incorrect operation of the TOUCH CONTROL system.

- Positioning:

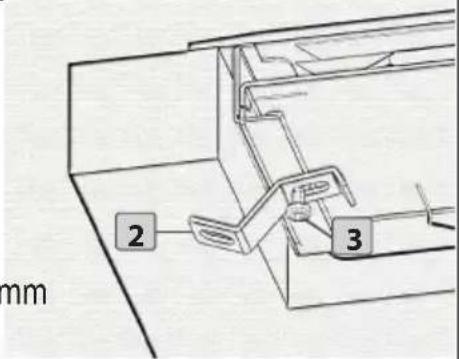

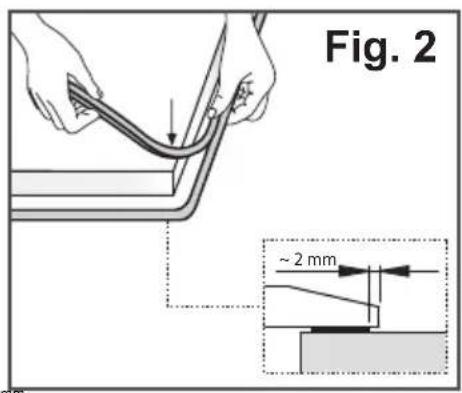

This household appliance has been designed for built-in installation onto a worktop, as shown in the figure (Fig.1). Use sealing material along the whole perimeter (Fig.2) (Cut dimensions- Fig.1). This operation is necessary in order to prevent any liquid from entering inside the hob, being that the flatness of the top, the glass and their coupling cannot be assured. Fix the appliance on the worktop by using the 4 supports, taking the work top thickness into account (Fig.4). If, after installation, the lower part

of the appliance is accessible from the lower part of the cabinet, it will be necessary to mount a spacing panel at the distances given (Fig.3). If the appliance is installed under an oven, this step will not be necessary.

• Electric connections (Fig.5):

• The installation of this appliance and the connection to the electrical network should be entrusted only to an electrician perfectly to the fact of the normative regulations and which respects them scrupulously.
• Protection against the parts under tension must be ensured after the building-in.
• The data of connection necessary are on the stickers place on the hob casing near the connection box.
• The connection to the main must be made using an earthed plug or via an omnipolar circuit breaking device with a contact opening of at least 3 mm.
• The electrical circuit must be separated from the network by adapted devices, for example: circuit breakers, fuses or contactors.
• If the appliance is not fitted with an accessible plug, disconnecting means must be incorporated in the fixed installation, in accordance with the installation regulations.
• The inlet hose must be positioned so that it does not touch any of the hot parts of the hob or even.

Caution!

This appliance has only to be connected to a network 230 V\~ 50/60 Hz.

Connect always the earth wire.

Respect the connection diagram.

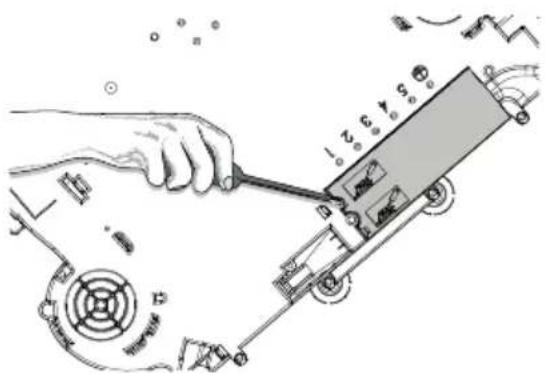

The connection box is located underneath at the back of the hob casing. To open the cover use a medium screwdriver. Place it in the slits and open the cover.

Caution!

Be careful that the cables are correctly engaged and tightenet.

We cannot be held responsible for any incident resulting from incorrect connection or which could arise from the use of an appliance which has not been earthed or has been equipped with a faulty earth connection.

USE AND MAINTENANCE

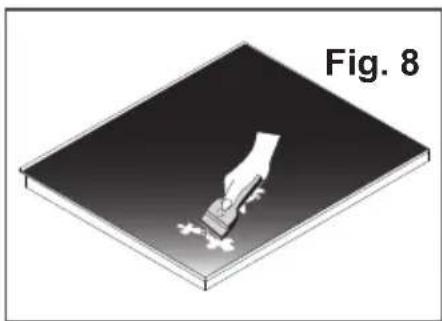

- Maintenance (Fig.8):

Remove any food residue and grease drops from the cooking surface, by using the special scraper provided on request.

Clean the heated area in the best way possible, using suitable products and a paper towel, then rinse with water and wipe away with a clean cloth.

Through the use of the special scraper (optional), promptly remove any pieces of aluminum foil and plastic material, which might have accidentally melted, or sugar or food remains, and/or remains of sugary foods, from the heated surface. In this way, any possible damage to the surface is prevented.

The use of abrasive sponges or irritating chemical cleaners, such as sprays for ovens or cleaning agents is not allowed under any circumstance.

- Use:

Use the touch control system in the corresponding position according to individual cooking needs. Keep in mind that the higher the number, the more heat is produced.

• Function (Fig.7):

A - On/Off key
B - Cooking zone selection key and display
C - Slider key (increase and decrease power level)
D - Keep warm key
E - Booster key
F - Timer key

- Switching the cooking top on:

Press key A (ON/OFF) to switch the top on and on all the display will show the symbol 0 with a led point blinking. The control unit remains active for 10 seconds.

If no cooking zone is selected within this time, the co-oking top switches off automatically.

- Pan detection:

The pan detection ensures a perfect safety, this induction doesn't work if no cookware on the cooking zone. If the cookware is removed, the display shows the symbol 📊 and disappear when the cookware is repositioned on the cooking zone, continuing with the previous settings. After use, always bring power to 0 (do not leave the active 📊 symbol). If the symbol 📊 should appear on one of the cooking area displays, it means that:

1) The recipient being used is not suitable for induction cooking.
2) The diameter of the recipient used is inferior to that allowed by the appliance.
3) No recipient is present.

MODEL POSITION DIAMETER			MINIMUM DIAMETER DETECTION
Eico 60 IF EIFW 60	Front left	180 mm	100 mm
	Rear left	210 mm	110 mm
	Rear right	210 mm	110 mm
	Front right	180 mm	100 mm
Eico 70 IF EIFW 70	Front left	210 mm	110 mm
	Rear left	210 mm	110 mm
	Rear right	210 mm	110 mm
	Front right	210 mm	110 mm
Eico 80 IF EIFW 80	Front left	260 mm	120 mm
	Rear left	180 mm	100 mm
	Rear right	180 mm	100 mm
	Front right	210 mm	110 mm

- Switching the cooking area on:

Press key B (select zone) for select the desired cooking, on the activate zone the display will indicating the activation of the plate and will be given a 0 with the led point fixt.

To select the power with the slider E, slide your finger on the slider zone. You can already have a direct access if you put your finger directly on the chosen leve.

The power of the single cooking zone can be adjusted in 9 different positions and will be shown on the relative luminous display with a number from "1 to 9".

• Control panel lock:

You can lock the controls to prevent the risk of unintentional changes (cleaning, etc.). Switch on the cook top with A key.

Press simultaneously the display B in the lower right corner and the E key, after the beep, press again the display B in the lower right corner. All displays B will show the symbol L.

To temporarily unlock, press simultaneously the dispaly B in the lower right corner and press E key for 3 seconds, wait for the beep, you can now use the hob, turned off and restart the next block will be restored.

To unlock the touch control, press simultaneously the display B in the lower right corner and the E key, after the beep, press the E key again. All displays will show the letter □ and the hob will switch off.

- Residual heat:

If the temperature of the cooking zone is still high (over 50^ ) after it has been switched off, the relative display B will indicate the H signal (residual heat).

The signal will only switch off when the burn risk in no longer present.

- Switching the cooking area off:

To switch a cooking zone off, press simultaneously the C (-) and key D (+) of the relative zone, or press the key C (-) until reaching position □.

- Switching off the hob:

To turn off the appliance entirely hold down the A (On/Off) key.

- Keep warm function:

The hob has two programs with pre-set temperatures for Maten food warm, the first program has a temperature of 42 degrees while the second has a temperature of 70 degrees.

To set this function, select the desired cooking zone with the B button then press D. Setting the program on the display 42 degrees, which is above the D key, the symbol will appear in the display and below a line ,while pressing the D key will be set to 70 degrees and the program will be displayed and a line below .

- Booster function:

The booster function grants a boost of booster to the select cooking zone. Booster is foreseen for example to heat up rapidly big quantities of water and work during 10 minutes.

To activate it select the cooking zone and slide your finger to increase the power level that press the E key and the display will show the symbol P.

• Automatic cooking function:

All the cooking zone are equipped with an automatic Go & Stop cooking device. The cooking zone starts at full power during a certain time, than reduces automatically its power on the preselected level.

Select the required cooking zone and act on the slider

until you get to level 9, by pressing the + button will appear in the letter R. Once inserted the function by acting on the slider you can reduce the evel of power, then you will see alternating on the display of the cooking zone letter R and its set power level.

- Stop & Go function:

This function enables to temporarily stop cooking on each cooking zone and reactivate it with the same amount of power previously selected.

To enable this feature, when you select a cooking zone and set the power level, press the B button on the top left and top right, you will see two symbols // To disable this feature, press the same buttons again.

- Recall function:

If, during operation, you accidentally turn off the cooker, you can recall the last setting. To enable this feature (move quickly), turn the hob using the A button On / Off and then simultaneously press the rear cooking zones.

- Timer :

This feature allows you to set the time (from 1 to 99 minutes) to automatically turn off the cooking zone selected. Activate a cooking area and adjust the power. Enable the timer on the display by pressing F. The display will show the symbol □a and the LED on the selected zone set on one corner of the F display will flash. Scroll bar slider C to set the desired value (eg 3 min.), Press F on the display which will display the scroll bar slider back and set the desired value (eg, 23min.) On the display and confirm by pressing F. If you wish to confirm a time less than 10min timer. (eg 3 min.) Confirm by pressing twice on the display F. The timer will automatically turn off the cooking area and you will hear a beep that can be turned off by pressing any of the commands

- Egg Timer / Reminder:

This feature allows you to set a reminder sound.

To access this feature none of the cooking areas shall be in operation. Turn on the stove using the A button, activate the timer by pressing the display area F and adjust any time between 1 to 99 minutes as described in the previous paragraph TIMER. After confirmation of the memorandum, the LED will remain active on the F key and the display with the time previously set. At this point you can turn back the hob with the A button and adjust the cooking zones. When the timer expires you will hear a beep that can be turned off by pressing any of the commands.

With the reminder you can not access the active timer.

- Safety switch:

The appliance has a safety switch that automatically switches off the cooking zones when they have been operating for a certain amount of time at a given power level.

POWER LEVEL OPERATING TIME LIMIT (hours)
1	10
2 - 3 5
4	4
5	3
6 - 7 - 8 2
9	1

DISPOSAL OF OLD ELECTRICAL APPLIANCES

The European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The crossed-out dustbin symbol on the product reminds you of your obligation regarding separated waste collection. Consumers should contact their local public service or their local dealer for more information on the correct disposal of exhausted household appliances.

THE MANUFACTURER DECLINES ALL RESPONSIBILITY FOR EVENTUAL DAMAGES CAUSED BY BREAKING THE ABOVE WARNINGS. THE WARRANTY IS NOT VALID IN THE CASE OF DAMAGE CAUSED BY FAILURE TO COMPLY WITH THE ABOVE-MENTIONED WARNINGS.
