Product Type	Steam Iron
Brand	Melissa
Model	141003 (also 641-053/641-058/641-060/641-061/641-062)
Power	230V ~ 50Hz
Water Tank Capacity	80 ml (max)
Soleplate Material	Non-stick coated (recommended care)
Steam Settings	Adjustable steam release (on/off continuous steam)
Temperature Settings	Thermostat knob with settings for Nylon, Wool/Silk, Cotton/Linen
Indicator Light	Thermostat light: on when heating, off when ready
Filling Opening	Spout for water filling with max level mark
Dry Ironing Option	Yes, by setting steam knob to position 0
Vertical Steam	Not specified
Anti-Calc System	Not specified (recommend monthly cleaning with vinegar solution)
Auto Shut-Off	Not specified
Cord Length	Approximately 1.8 m (typical for irons)
Weight	Approximately 1.0 kg (typical)
Dimensions (approx)	28 x 12 x 15 cm (L x W x H)
Safety Features	Earthed plug (UK type), thermal fuse, child safety warnings
Guarantee	Standard guarantee subject to terms (Adexi Group)

Frequently Asked Questions - 141003 Melissa

How do I fill the water tank?

Unplug the iron first. Ensure the steam and temperature knobs are at MIN. Open the lid and pour water through the spout up to the max mark (80 ml). Do not exceed.

Can I use any type of water?

Use ordinary tap water. Do not use chemically descaled water or add any additives.

How do I select the correct temperature?

Rotate the thermostat knob to the desired setting: • for Nylon, •• for Wool/Silk, ••• for Cotton/Linen. Wait for the indicator light to go out before ironing.

How do I use the steam function?

Set the temperature to at least •• (high). Press the steam release knob to switch continuous steam on/off. The knob pops up for steam on, down for off.

How do I dry iron without steam?

Set the steam selection knob to position 0. Then set the desired temperature and iron as usual.

What should I do if the iron smokes on first use?

This is normal due to manufacturing oils. Smoke will disappear after a few uses. Test on an old cloth first.

How do I clean the soleplate?

Unplug and let cool. Wipe with a damp cloth and mild detergent. Never use abrasive cleaners or scouring pads.

How often should I clean the iron internally?

We recommend a thorough clean once a month: fill half with water, set to max temperature, heat, then hold horizontally over a sink and press steam button to flush.

Can I leave the iron unattended?

No, never leave it unattended when plugged in. Keep away from children and always stand it upright on a stable surface.

What should I do if the cord is damaged?

Stop using immediately. Have it repaired by an authorized service engineer. Do not attempt to repair yourself due to risk of electric shock.

USER MANUAL 141003 Melissa

Exterior view of a steam iron with a circular button and handle (no text or symbols visible)

141-003/ 641-053/ 641-058/ 641-060/ 641-061/ 641-062

SE Ångstrykjärn 2

DK Dampstrygejern....5

NO Dampstrykejern 8

FI Höyrysilitysrauta 11

UK Steam Iron 14

Fylle vann (for dampstryking)

To get the best out of your new steam iron, please read through these instructions carefully before using it for the first time. We also recommend that you keep the instructions for future reference, so that you can remind yourself of the functions of your steam iron.

SAFETY MEASURES

• Incorrect use of the steam iron may cause personal injury and damage to the kettle.
• Use the steam iron for its intended purpose only. The manufacturer is not responsible for any damage resulting from incorrect use or handling (see also Guarantee Terms).
• The steam iron may only be connected to 230 V, 50 Hz.
• The steam iron or cord must not be submerged in water or any other liquid.
• Never leave the steam iron unattended when in use and keep an eye on children.
• Allow the steam iron to cool down completely before putting it away. Always keep the steam iron out of the reach of children.
• Protect the solepate, and NEVER run it over metal or similar surfaces, as this will damage it.
• This steam iron is not suitable for commercial or outdoor use.
• Always keep the steam iron at a safe distance from combustible objects when in use.
• Never leave the steam iron in a place where the temperature might drop below freezing point.
• Do not cover the steam iron.
• Do not allow the cord to hang over the table edge, and keep it away from hot objects and naked flames.
• Check regularly that neither the cord nor plug is damaged and do not use the steam iron if it is, or if it has been dropped or damaged in any other way.
• If the steam iron, cord or plug is damaged, it must be inspected and, if necessary, repaired by an authorised repair engineer, otherwise there is a risk of electric shock. Never try to repair the appliance yourself.

• Remove the plug from the socket after use, when cleaning, and when filling the water reservoir.

• Avoid pulling the cord when removing the plug from the socket. Instead, hold the plug.

• Make sure that it is not possible to pull or trip over the steam iron cord or any extension cord.
• Do not put more than 80 ml of water in the reservoir. Do not add anything to the water. Ordinary tap water can be used.
• Keep the appliance under constant supervision while in use. Keep an eye on children in the vicinity of the appliance when it is being used. The appliance is not a toy.
• The appliance is not to be used by persons with reduced sensitivity, physical or mental disabilities or persons who are unable to use the appliance, unless supervised or instructed by a person responsible for their safety.
• The iron must not be left unattended while it is connected to the supply mains; The plug must be removed from the socket-outlet before the water reservoir is filled with water.
• The iron must be used and rested on a stable surface;
• When placing the iron on its stand, ensure that the surface on which the stand is placed is stable;
• The iron is not to be used if it has been dropped, if there are visible signs of damage, or if it is leaking;
• Keep the iron and its cord out of reach of children less than 8 years of age when it is energized or cooling down.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

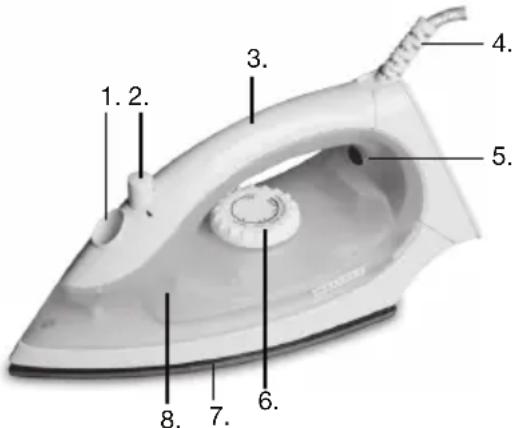

KEY

1. Spout for water filling
2. Knob for selecting the steam setting
3. Handle
4. Cord
5. Indicator light
6. Thermostat knob
7. Soleplate
8. Mark for maximum water level

PRIOR TO FIRST USE

• Remove the protective film from the soleplate (7).
• Some parts of the steam iron were oiled during manufacture and these will therefore smoke slightly when the iron is first used. This is entirely safe, and the smoke will disappear once the steam iron has been used a few times. Test it on a piece of material or similar before using it on clothes.

USE

Filling with water (for steam ironing)

• Make sure that the steam iron is unplugged from the electrical outlet.
- Make sure that the steam button + temperature button is in position MIN before filling with water.
- Fill water in the water tank through the water tank lid, until the water reached the max mark indicated on the side of the iron. Never fill above this mark.
- Pour out the remaining water after use.
- Do not use chemically descaled water.

Setting the temperature

- Select the required iron temperature using the thermostat knob:

Nylon

•• Wool, silk
••• Cotton or linen

- Place the steam iron on its end, so it stands upright. Plug in and switch the power on.

• Do not start ironing until the indicator light (5) goes out. The indicator light switches on and off during ironing, as the thermostat regulates the temperature of the steam iron.
• If you turn the temperature up using the thermostat button, you should not start to iron until the indicator light goes out.

Steam ironing

Steam ironing is only possible at high temperatures. Do not use steam ironing when the thermostat knob is at position

•. If you do, water runs out from the soleplate, because the steam iron is not hot enough to convert all the water to steam.

- Check that there is sufficient water in the reservoir.

- Set the thermostat knob to the required position (at least ••)

- Plug in. Start ironing when the thermostat light goes out.

- When the steam release knob (2) is pressed, it is equivalent to setting the steam ironing function to "off" mode. Then there is no steam released from the sole plate.

- When the steam release knob (2) is pressed again, the knob (2) will bounce back to its original position. This is equivalent to setting the steam ironing function to "on" mode. Then the steam will be continuously released from the sole plate.

Dry ironing

You dry iron in the same way as you steam iron, except the steam setting selection knob must be in position 0.

Tips!

• Always stand the iron upright if you take a break from ironing!
• Always iron synthetic fabrics and silk on the reverse. This avoids shiny spots on the fabric.
- Wool products (100% wool) may be pressed when the steam iron is set to steam position. We recommend using the setting for maximum steam, with a layer of dry fabric between the steam iron and the item to be ironed.

CLEANING

• Remove the plug from the socket before cleaning.
• Pour any excess water from the water reservoir.
• Stand the steam iron upright, and allow it to cool completely.

- Remove starch etc. from the soleplate using a damp cloth with a little detergent. Wipe off with a dry cloth.

- Never use a scouring sponge or abrasive cleaning agents on the soleplate.

• We recommend that you clean the steam iron thoroughly once a month as follows:

o Fill the water reservoir half full and stand the steam iron upright.

o Set the thermostat knob to ron in position •••, plug the i and switch on the power.

o Wait until the indicator light goes off. Unplug the iron and hold it horizontal above a sink.

FOR UNITED KINGDOM ONLY

Plug wiring:

This product is fitted with a BS 1363 13-amp plug. If you have to replace the fuse, only those that are ASTA or BSI approved to BS1362 and with a rated current of 13 amps should be used. If there is a fuse cover fitted, this cover must be refitted after changing the fuse. If the fuse cover is lost or damaged, the plug must not be used. You must also check if the socket outlets in your home fit with the plug of the appliance. If the socket outlet in your home does not fit with the plug, the plug must be removed and disposed of safely as insertion of the plug into the socket is likely to cause electric hazard. A replacement plug should be wired according to following description.

Important

This appliance must be earthed. The wires in the cord set are coloured thus:

BLUE- Neutral, Brown-Live, Green& Yellow-earth

(For detachable plug only)

As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows: The wire that is coloured Green& Yellow must be connected to the terminal in the plug that is marked with the letter E or by the earth symbol, or coloured green & yellow.

The wire that is coloured blue must be connected to the terminal that is marked with the letter N or coloured black.

The wire that is couloured brown must be connected to the terminal that is marked with the letter L or coloured red.

INFORMATION ON THE DISPOSAL AND RECYCLING OF THIS PRODUCT

Please note that your Adexi product is marked with this symbol: ✗

This means that the product should not be mixed with normal household waste, as there are separate collection facilities for Waste Electrical and Electronic Equipment.

The WEEE Directive legislation requires each Member State to provide for the correct collection, recovery, handling and recycling of Waste Electrical and Electronic Equipment. Private households within the EU can return their used equipment to designated collection sites free of charge. In certain member states, if you purchased the equipment through retail or a distributor, you can return your used equipment to them free of charge providing you purchase similar new equipment. Please contact your retailer, distributor or local authority for further details on the handling of Waste Electrical and Electronic Equipment.

GUARANTEE TERMS

The guarantee does not apply:

• if the above instructions are not followed
• if the appliance has been interfered with
• if the appliance has been mishandled, subjected to rough treatment, or has suffered any other form of damage
• if faults have arisen as a result of faults in your electricity supply.

Due to the constant development of our products in terms of function and design, we reserve the right to make changes to the product without prior warning.

IMPORTER

Adexi Group

We cannot be held responsible for any printing errors
