Product Type	Electric Earth Auger (Drill for ground)
Brand	Meec Tools
Model	725-021
Rated Voltage	230 V ~ 50 Hz
Output Power	1,200 W
Auger Diameter	150 mm
Maximum Drill Depth	560 mm
Weight	12.8 kg
Sound Pressure Level (LpA)	90 dB(A), K=1.5 dB(A)
Sound Power Level (LwA)	102 dB(A), K=1.5 dB(A)
Vibration Level	5.5 m/s², K=1.5 m/s²
Intended Use	Drilling holes in earth for fence posts, porch brackets, planting, etc.
Non-intended Uses	Do not use for ice, very rocky soils, or near water/gas/electrical/telephone lines
Safety Features	Start lock, power switch, safety distance 15 m, residual current device recommended
Protection Class	Do not expose to rain; use only in dry conditions
Required Personal Protection	Ear and eye protection, protective gloves, protective shoes, protective clothing
Maintenance	Clean motor housing with mild soapy water; rinse auger with water when detached; store in dry place
Warranty & Service	Service by authorized technician only; Jula service department for problems
Certification	CE marked, complies with Machinery Directive 2006/42/EC, Low Voltage Directive, EMC, Outdoor Noise Directive
Included Items	Earth auger, motor housing with handles, power cord, start lock, switch

Frequently Asked Questions - 725-021 Meec Tools

What is the Meec Tools 725-021 used for?

The 725-021 is an electric earth auger designed for drilling holes in soil for fence posts, porch brackets, planting, and similar tasks. It is intended for vertical drilling only.

What are the key technical specifications?

Rated voltage: 230 V ~ 50 Hz, power: 1,200 W, auger diameter: 150 mm, max drill depth: 560 mm, weight: 12.8 kg, sound power level: 102 dB(A), vibration: 5.5 m/s².

Can I use the earth auger in wet or rainy weather?

No. The tool must not be used in rainy or humid conditions as it is not waterproof. It is marked with a symbol indicating do not expose to rain.

What safety precautions should I take?

Always wear ear and eye protection, protective gloves, shoes, and clothing. Keep a safe distance of at least 15 meters from others. Use both hands, ensure firm footing, and avoid underground utilities. Use a residual current device.

How do I start the auger?

First, push in the start lock (safety button) and then press the power switch simultaneously. Release the start lock after starting; the tool will run while the switch is held.

What maintenance is required?

After use, disconnect from mains. Clean the motor housing with a soft cloth moistened with mild soapy water. Rinse the auger bit with water only when detached from the shaft. Do not use abrasive cleaners, kerosene, or petroleum.

Can I drill into rocky soil or ice?

No. The auger is not intended for drilling in very rocky soil, ice, or areas with buried pipes or cables. It is designed for ordinary earth only.

What should I do if the tool vibrates excessively?

Excessive vibration may indicate a loose part or dull bit. Stop immediately, disconnect from power, and check all nuts and bolts are tight. If problem persists, contact an authorized service technician.

Is the auger suitable for use near power lines?

No. Maintain a minimum distance of 3 meters from electrical cables, telephone lines, and other overhead utilities to avoid electrocution.

How should I store the earth auger when not in use?

Store the tool in a dry, locked room out of reach of children. Keep it away from moisture and extreme temperatures. Ensure the power cord is not damaged.

USER MANUAL 725-021 Meec Tools

Operating Instructions for Electric Earth Auger

725-021

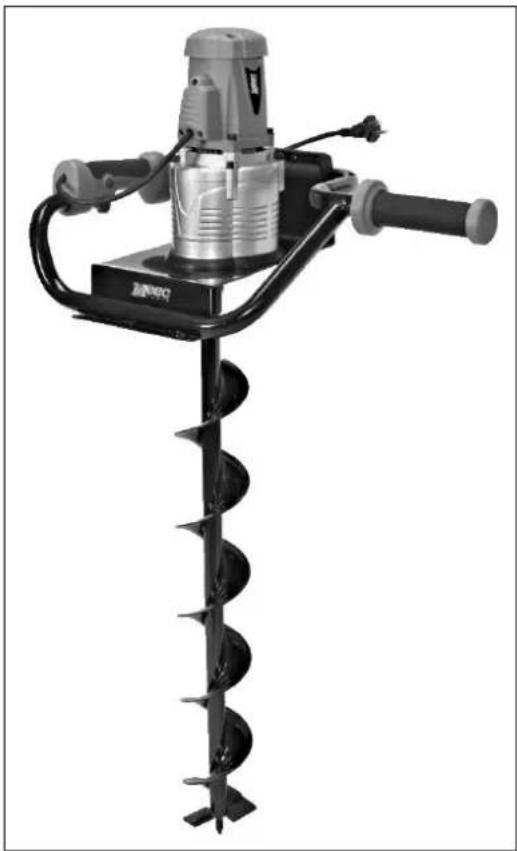

Industrial power drill with needle and motor (no visible text or symbols)

SV Bruksanvisning i original

NO Bruksanvisning i original

EN Operating instructions in original

SVENSKA 3

SÄKERHETSANVISNINGAR....3

Symboler på maskinen 3

TEKNIŠKA DATA 5

BESKRIVNING 5

HANDHAVANDE 5

Avsedd användning 5

Symbols on the tool 15

TECHNICAL DATA....17

DESCRIPTION 17

OPERATION 17

Intended use 17

Non-intended uses.... 17

Other risks.... 17

Before use.... 17

Use....18

MAINTENANCE 18

SÄKERHETSANVISNINGAR

Read the Operating Instructions carefully before use!

• Save these Operating Instructions for future reference.
• Make sure you understand how the tool works before using it.
• Do not use the tool if you are tired.
• Store the tool out of the reach of children.
• The tool may only be used by adults.
• Do not immerse the tool in liquid.
• The tool must not be used in areas where flammable liquids are stored or where flammable fumes/gases can occur.
• Store the tool in a dry place when not in use
• Read through the instructions carefully. Familiarise yourself with all the controls and the right way to use the tool.
• This tool is designed to drill holes in the ground. All other use is prohibited in view of the risk of personal injury.
  • Never allow children or people unfamiliar with these instructions to use the earth auger.
• Never use the tool if there are other people or animals within 5 metres.
• Remember that the operator is responsible for accidents that happen to other people or their property.
• Never use the tool if you are under the influence of drugs, alcohol or medication. Nor when you are tired or ill.
• Do not wear loose-fitting or loose-hanging clothes when using the tool. They can get caught in moving parts.
  • Wear protective shoes and protective clothing when using the tool.
  • Always wear ear and eye protection.
• Replace worn or damaged parts before use.
• Never use if guards are defective or if safety devices are not in place.
  • Always be very careful when using the tool on slopes.
• The tool may not be used if the weather is rainy or humid.
• Keep your hands and feet away from rotating parts.
• Check that all nuts and screws are tight so that the tool is in safe working condition.
  • The tool should be taken to a recycling facility at the end of its useful life.
  • Warning: Risk of personal injury. Keep all parts of the body away from the rotating drill bit.
• Make sure of your footing when using the tool.
  • Always hold the tool with both hands.
• Hold the tool firmly when drilling.
• Do not use the earth auger near electric cables or telephone lines. Make sure that the distance to adjacent lines is at least 3 meters.
• Use a residual current device.
  • Service and repair work must only be performed by an authorised service technician.

Symbols on the tool

Do not expose to rain

Warning

Read the Operating Instructions

Wear ear and eye protection

Sharp tool

Wear protective gloves

Wear protective shoes

Make sure the tool is switched off and disconnected from the mains when adjusting, servicing or repairing

Keep a safe distance of 15 metres

Max. speed

Sound volume

TECHNICAL DATA

Rated voltage 230 V \~ 50 Hz

Output power 1,200 W

Earth auger ∅ 150 mm

Max. drill depth 560 mm

LpA 90 dB(A), K=1.5 dB(A)

LwA 102 dB(A), K=1.5 dB(A)

Vibration 5.5 m/s ^2 , K=1.5 m/s ^2

Weight

12.8

kg

The declared vibration value, which has been measured by a standardised test method, can be used to compare different tools with each other and for a preliminary assessment of exposure.

Warning: The actual vibration level when using power tools may differ from the specified maximum value, depending on how the tool is used. It is therefore necessary to determine which safety precautions are required to protect the user, based on an estimate of exposure in actual operating conditions (taking into account all stages of the work cycle, e.g. the time when the tool is switched off and when it is idling, in addition to the start-up time).

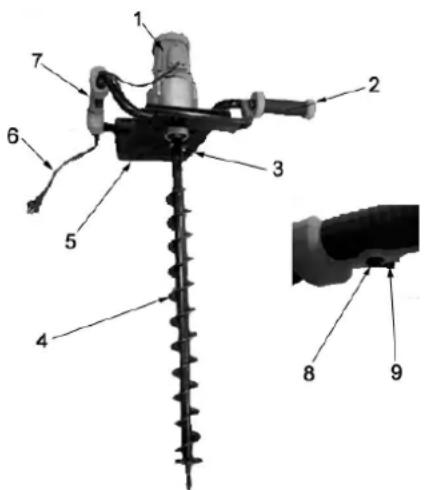

DESCRIPTION

1. Motor housing
2. Left handle
3. Bolts and twistlock for mounting the earth auger
4. Auger
5. Support
6. Power cord
7. Right handle
8. Start lock
9. Power switch

OPERATION

Intended use

The auger is designed for drilling holes in earth for fence posts, porch brackets, planting plants, etc. It must always be used with both hands. The auger may only be used for vertical drilling.

Non-intended uses

The earth auger should not be used for drilling in ice, very rocky soils or in areas where there are water pipes, gas pipes, electrical cables or telephone lines.

Other risks

Even when all safety precautions have been taken, there are risks that cannot be predicted, such as:

• access to the rotating drill bit
• unexpected breakdown can lead to strain on the arms and hands
• material can travel up from the borehole.

Before use

Place the auger on the tool's output shaft. Attach the drill with bolt and nut.

Use

If you use an extension cord, ensure that it is the right size and designed for outdoor use. Also make sure that it is not in the way when drilling.

1. Place the earth auger in a vertical position at the drilling site.
2. Place your feet securely away from the drill.
3. Place your hands on the auger's handles.
4. Push in the start lock and power switch.
5. Apply gentle pressure to the handles to increase the drilling force. Lift the drill bit at regular intervals to ease up the loose soil from the borehole.
6. Do not press too hard on the handles. The earth auger does not work better under hard pressure.

Note:

• Do not use the earth auger to drill ice.
  • Do not use the earth auger to drill in soil that is very rocky.

MAINTENANCE

Note: Make sure the earth auger is disconnected from the mains when carrying out maintenance and service.

• Clean the motor housing with a soft cloth moistened with mild soapy water. Wipe the motor housing dry.
• Rinse off the drill with water. The drill must not be attached to the tool shaft when cleaning as there is a risk that water will enter the motor housing.
  • The motor housing must not be cleaned with ammonia, or chlorine-based or abrasive cleaners.
  • The motor housing must not be cleaned with kerosene, petroleum or similar products either.
  • Store the earth auger in a dry, locked room out of the reach of children.

Jula reserves the right to make changes. In the event of problems, please contact our service department. www.jula.com

Care for the environment!

Must not be discarded with household waste!

This product contains electrical or electronic components that should be recycled.

Leave the product for recycling at the designated station e.g. the local authority's recycling station.

CE

EC DECLARATION OF CONFORMITY

EG FÖRSÄKRAN OM ÖVERENSSTÄMMELSE

EF SAMSVARSERKLÆRING

DEKLARACJA ZGODNOŚCI WE

Jula AB, Box 363, SE-532 24 SKARA, SWEDEN

certify that the design and manufacturing of this product

Machinery Directive 2006/42/EC

Low Voltage Directive 2006/95/EC

EN 60335-1:2002+A11:2004+A1:2004+A12:2006+A2:2006+A13:2008

EN 60335-1:2002/FprAF:2009; EN 62233:2008

Electromagnetic Compatibility 2004/108/EC

EN 55014-1:2006+A1, EN 55014-2:1997+A1:2001+A2:2008

EN 61000-3-2:2006+A1+A2; EN 61000-3-3:2008

Outdoor Noise Directive 2000/14/EC, amended by 2005/88/EC

This product was CE marked in year -10

Name and address of the person

authorised to compile the technical file:

Jonas Backstad

Box 363, SE-532 37 Skara, Sweden

Skara

2012-06-05

Stefan Rundberg

PRODUCT MANAGER
