Product Type	Rotary Hammer Drill
Brand	Meec Tools
Model	001-097
Rated Voltage	230 V / 50 Hz
Power Input	1,050 W
No-Load Speed	480 rpm
Impact Rate	3,780 strokes/min
Drilling Capacity (Wood)	40 mm
Drilling Capacity (Concrete)	38 mm
Drilling Capacity (Steel)	13 mm
Chuck Type	SDS-max
Sound Pressure Level	96 dB(A) (K=3 dB)
Sound Power Level	107 dB(A) (K=3 dB)
Vibration Level (Max)	15 m/s² (K=1.5 m/s²)
Operating Modes	Impact drilling, chiselling, angle adjustment
Safety Features	Internal safety clutch, double insulation, auxiliary handle
Maintenance	Monthly grease replacement, clean after use, lubricate shank
Included Accessories	Auxiliary handle, grease cover
Certifications	CE, RoHS compliant
Warranty	Refer to manufacturer

Frequently Asked Questions - 001-097 Meec Tools

How do I change the drill bit on the Meec Tools 001-097 rotary hammer drill?

First, unplug the tool. Pull back the chuck sleeve, insert the bit fully, and release the sleeve. Ensure it is secure. Always wear gloves and let the bit cool before changing.

What is the correct voltage and power rating for this drill?

The drill operates at 230 V / 50 Hz and has a power rating of 1,050 W.

How do I select the different operating modes?

Press the release button and rotate the mode selector to the desired position: impact drilling, chiselling, or angle adjustment. Ensure the tool is stopped before changing modes.

What safety precautions should I take when using the rotary hammer drill?

Always wear hearing protection, safety goggles, and use the auxiliary handle. Avoid contact with hidden wiring. Keep the work area clean and well-lit. Disconnect power before adjustments.

What is the maximum drilling capacity in concrete?

The maximum drilling capacity in concrete is 38 mm. Use the correct SDS-max bits and apply steady pressure without forcing.

How do I maintain the tool for longevity?

Monthly, open the grease filling cover, clean old grease, and refill. After each use, wipe external surfaces. Lubricate bit shanks before installation. Inspect for damage before each use.

What should I do if the drill bit gets stuck?

Release the trigger immediately to prevent injury. Unplug the tool. Do not hammer the bit. If stuck, try gently twisting the chuck. For persistent jams, consult a qualified technician.

Can I use this drill for chiselling?

Yes, the tool has a chiselling mode. Set the mode selector to chisel, adjust the angle using the angle adjustment mode, then rotate to hammer setting. Always secure the workpiece.

What type of extension cord should I use?

Use a grounded, three-wire extension cord suitable for outdoor use if needed. Ensure the cord gauge is adequate for the distance to avoid voltage drop. Check cord condition regularly.

How do I troubleshoot if the tool won't start?

Check that the cord is plugged in and the outlet is working. The tool may have overheating protection – let it cool. If not resolved, internal damage may require service by a qualified technician.

USER MANUAL 001-097 Meec Tools

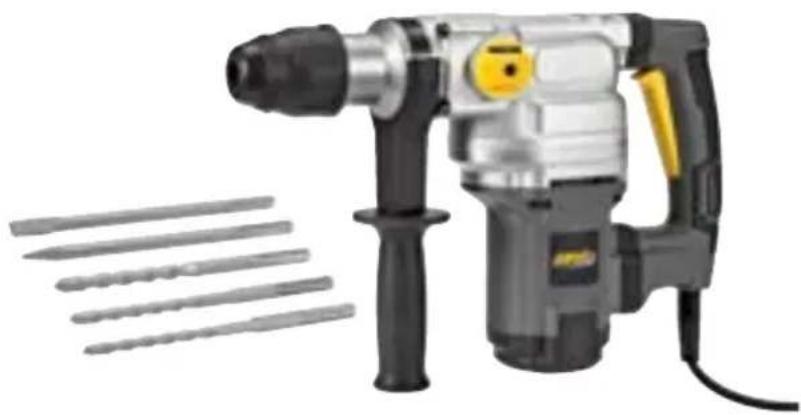

Electric drill put tool with yellow handle and black handle, accompanied by a row of metallic screws (no text or symbols visible)

EN User Instructions for rotary hammer drill

SVENSKA....5

SÄKERHETSANVISNINGAR....5

EN - Operating instructions in original

Date of production: 2014-04-29

© Jula AB

OBSŁUGA ....33

General power tool safety warnings 38

Symbols 42

TECHNICAL DATA 42

DESCRIPTION 43

ASSEMBLY 43

OPERATION....44

Adjusting the different functions of the rotary hammer drill. 44

Preparation of work piece and work area 45

Masonry drilling 45

Chiselling 46

MAINTENANCE 46

TROUBLESHOOTING 47

SÄKERHETSANVISNINGAR

Read the operating instructions carefully before use.

Please retain for future reference.

GENERAL POWER TOOL SAFETY WARNINGS

Work area safety

• Keep work area clean and well lit. Cluttered or dark areas invite accidents.
• Do not operate power tools in explosive atmospheres, such as in the vicinity of flammable liquids or gases or flammable dust. Power tools create sparks which may ignite the dust or fumes.
• Keep children and bystanders at a distance while operating a power tool. Distractions can cause you to lose control of the tool.

Electrical safety

• Power tool plugs must fit the power outlet. Never modify the plug in any way. Never use adapters together with grounded power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
• Avoid body contact with grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is grounded.
• Do not expose power tools to rain or moisture. Water entering a power tool will increase the risk of electric shock.
• Do not abuse the power cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electrocution.
• When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
• If operating a power tool in a damp environment is unavoidable, use a power supply protected with a Ground Fault Circuit Interrupter (GFCI).

Personal safety

• Stay alert, watch what you are doing and use common sense when operating a power tool. Never not use a power tool while under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
• Use personal protective equipment. Always wear eye protection.
• Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

• Prevent unintentional starting. Ensure the switch is in the off-position before connecting to the power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energizing power tools that have the switch in the on-position invites accidents.

• Remove any adjusting key or wrench before turning the power tool on.

• A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
• Do not overreach. Keep a proper footing and balance at all times. This will enable you to have better control of the power tool in unexpected situations.
• Dress properly! Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can get caught in moving parts.
• If equipment is provided for dust extraction and dust collection, makes sure that this is connected and properly used. The use of such devices can reduce dust-related hazards.

Power tool use and care

• Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer when used with the load for which it was designed.
• Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
• Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing the power tool. Such preventive safety measures reduce the risk of accidentally starting the power tool.
• Power tools that are not being used should be stored out of the reach of children. Do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
• Maintain the power tool. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the operation of the power tool. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
• Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
• Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in hazardous situations.

Service

Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that safety of the power tool is maintained.

Rotary Hammer Drill safety warnings

• Wear car protectors when working with rotary hammer drills.
• Exposure to noise can cause hearing loss.
• Use the auxiliary handle supplied with the tool.
• Loss of control can result in personal injury.

ENE

• Hold power tools using the insulated gripping surfaces when performing an operation where the cutting tool may come into contact with hidden wiring or its own cord. Contact with a "live" wire will cause exposed metal parts of the tool to become "live" and shock the operator.
• Let bits cool before touching, changing or adjusting them. Bits heat up dramatically while in use, and can burn you.
• If the drill bit jams, release the trigger immediately; Drill torque can cause personal injury or damage the bit.
• Maintain labels and nameplates on the tool. These carry important safety information.
• If unreadable or missing, contact Harbor Freight Tools for a replacement.
• Avoid unintentional starting.
  • Prepare the job before turning on the tool.
• Do not carry or lay the tool down until it has come to a complete stop. Moving parts can get stuck in the surface and pull the tool out of your control.
• When using a handheld power tool, maintain a firm grip on the tool with both hands to resist starting torque.
• Do not leave the tool unattended when it is plugged into an electrical outlet. Turn off the tool, and unplug it from its electrical outlet before leaving.
  • This product is not a toy.
• Keep it out of the reach of children.
• People with pacemakers should consult their physician(s) before use. Electromagnetic fields in close proximity to a heart pacemaker may cause pacemaker interference or pacemaker failure. In addition, people with pacemakers should:
• Avoid operating the tool alone.
• Not use with power switch locked in the on-position.
• Carefully maintain the tool to avoid electrical shocks.
• All power cords must be properly grounded. Residual current devices should also be used.
• To prevent serious personal injury as a result of accidental operation: Release the trigger and unplug the tool from its electrical outlet before performing any inspection, maintenance, or cleaning procedures.
• Do not use damaged equipment. If abnormal noise or vibration occurs, have the problem corrected before further use.

WARNING! Some dust created by, for example by power sanding, sawing, grinding and drilling contains chemicals known to cause cancer, birth defects or other reproductive disorders. Some examples of such chemicals are:

- Lead from lead-based paints

- Crystalline silica from bricks, cement or other masonry products

- Arsenic and chromium from chemically treated lumber.

- Your risk from exposure to these substances varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in well ventilated areas, and use approved safety equipment, such as dust masks that are specially designed to filter out microscopic particles.

- The warnings, precautions, and instructions discussed in this handbook cannot cover all possible conditions and situations that may occur. Users must understand that common sense and caution are factors which cannot be built into this product, but are factors that users themselves must be responsible for.

Vibrations

This tool vibrates during use. Repeated or long-term exposure to vibrations may cause temporary or permanent physical injury, in particular to the hands, arms and shoulders. Reducing the risk of vibration-related injury:

• Anyone using vibrating tools regularly or for an extended period should initially be examined by a doctor and then have regular medical check-ups to ensure medical problems are not being caused or worsened from use. Pregnant women or people who have impaired blood circulation to the hands, previous hand injuries, nervous system disorders, diabetes, or Raynaud's Disease should not use this tool.
• If you feel any symptoms related to vibration (such as tingling, numbness, and white or blue fingers), seek medical advice as soon as possible.
• Do not smoke during use. Nicotine reduces the supply of blood to the hands and fingers, increasing the risk of vibration-related injuries.
• Wear suitable gloves to reduce the effects of vibration on the user.
• Where there is a choice, use tools with the lowest amount of vibration possible.
• Include vibration-free periods during the work day.
• Grip the tool as lightly as possible (while still keeping safe control of it). Let the tool do the work.
• To reduce vibration, maintain the tool as explained in this manual. If any abnormal vibration occurs, stop use immediately.

Extension cords

• Grounded tools require a three-wire extension cord. Double-insulated tools can use either a two-wire or three-wire extension cord.
• The longer the distance from the power outlet, the heavier the gauge of the extension cord used.
• Using extension cords with an inadequate wire dimension causes a serious drop in voltage, resulting in loss of power and possible tool damage.
• Make sure the extension cord has the correct number of wires and is in good electrical condition. Always replace a damaged extension cord or have it repaired by a qualified electrician before use.
• Protect the extension cords from sharp objects, excessive heat, and damp or wet areas.

SYMBOLS

	Warning!
	Read the operating instructions carefully before use
	Double-insulated
	Volts, alternating current
	Amperes
	Risk for injury to eyes. Wear ANSI-approved safety goggles with side shields.
	Risk of hearing loss. Wear hearing protection.
	Risk of electric shock. Properly connect power cord to appropriate outlet.

TECHNICAL DATA

Rated voltage 230 V / 50 Hz

Power 1,050 W

Unloaded rpm 480 rpm

Impact Rate 3,780 strokes/min

Wood Capacity 40 mm

Concrete Capacity 38 mm

Steel Capacity 13 mm

Chuck SDS-max

Sound pressure level, LpA 96 dB(A), K=3 dB

Sound power level, LwA 107 dB(A), K=3 dB

Maximum vibration level 15 m/s², K=1.5 m/s²

Always use hearing protection!

The declared vibration value, which has been measured in line with a standardised testing method, can be used to compare different tools with each other and for a preliminary assessment of exposure.

Warning! The actual vibration level during the power tool's use can vary from the specified total value depending on how the tool is used. You must therefore identify the safety measures required to protect the user based on an estimate of exposure during normal operating conditions (taking into account all parts of the work cycle as well as the time the tool is switched off and when running idle, as well as start-up time).

DESCRIPTION

1. Auxiliary Handle
2. Cover for filling of grease
3. On/Off Switch
4. Mode selector
5. Chuck

ASSEMBLY

NOTE: To prevent serious personal injury as a result of accidental operation: Release the trigger and unplug the tool from its power outlet before adjusting the tool or installing accessories.

ENE

WARNING! Release the trigger and unplug the tool from its power outlet before adjusting the tool or installing accessories.

Adjusting the auxiliary handle

The auxiliary handle can be placed in a variety of positions. To adjust the auxiliary handle, turn the handle anti/clockwise to loosen the band. Slide the handle to the desired position then turn the handle clockwise to secure it in place.

OPERATION

Note: This tool includes an internal safety clutch that helps prevent tool damage by disengaging the drill function if the drill locks in place.

Adjust the mode selector to the desired function before using the rotary hammer drill. Press the release button and rotate the mode selector until it clicks in place with the desired function at the indicator.

NOTE:

• Only move the mode selector once the rotary hammer drill has stopped. Attempting to move the mode selector while the rotary hammer drill is engaged will result in abrupt tool rotation and can cause property damage.
• When moving the mode selector, make sure it clicks into the desired position. If not actively engaged, the mode selector could slip out of position resulting in tool damage.

ADJUSTING THE DIFFERENT FUNCTIONS OF THE ROTARY HAMMER DRILL

A. Chiselling

B. Lock on button

C. Impact drilling

D. Mode indicator

E. Angle adjustment

Impact drilling

Set the mode selector in impact drilling mode (C).

Chiselling

Set the mode selector in chiselling mode (A).

Adjusting the angle of the chisel

Rotate the mode selector to the angle adjustment mode (E). You can now rotate the chisel to the desired angle for chiselling. When you have finished adjusting the chisel, rotate the mode selector to the hammer setting to begin chiselling.

1. Choose a work area that is clean and well lit. Keep children and pets away from the work area to prevent distraction and injury.
2. Route the power cord along a safe route to reach the work area without creating a tripping hazard or exposing the power cord to possible damage. The power cord must reach the work area with enough extra length to allow free movement while working.
3. Secure loose work pieces using a vice or clamps to prevent movement while working.
4. There must not be any objects, such as water pipes or electricity lines, nearby that will present a hazard while working.

PREPARATION OF WORK PIECE AND WORK AREA

• Choose a work area that is clean and well lit. Keep children and pets away from the work area to prevent distraction and injury.
• Route the power cord along a safe route to reach the work area without creating a tripping hazard or exposing the power cord to possible damage. The power cord must reach the work area with enough extra length to allow free movement while working.
• Secure loose work pieces using a vice or clamps (not included) to prevent movement while working.
• There must not be any objects, such as pipes, nearby that will present a hazard while working.

MASONRY DRILLING

Changing drill bits

NOTE: Wear heavy-duty work gloves to provide protection when inserting and removing drill bits. Drill bits become very hot during use. Do not remove drill bits until the bit has cooled. Do not strike bits that have become stuck with a hammer.

1. Release the chuck.
2. Check that the drill bit is secured in place. You should not be able to pull it out of the chuck.
3. Crease the drill bit shank before installing.
4. Pull back on the chuck and insert the drill bit. Make sure it slides all the way into the opening.
   NOTE: When drilling a hole larger than 11/4" in diameter, use a drill bit with four cutting edges.

Impact drilling

1. Adjust the auxiliary handle as needed.
2. Set the function by adjusting the mode selector to the desired setting.
3. Plug in the power cord.

ENE

1. Squeeze and hold the trigger to turn on the rotary hammer. Do not apply excessive force; allow the tool to do the work.
2. When finished, to prevent accidents, release the trigger and disconnect its power supply after use. Allow the bit to cool then pull back on the chuck and remove the bit from the chuck and wipe off the drill shank. Clean the tool, then store the tool indoors out of the reach of children.

Tips when masonry drilling

• Do not add water to the drill hole.
• Clean the drill regularly while drilling.
• Pull the bit out of the hole often during drilling, especially when drilling deep holes.
• Grease the drill shank and chuck and keep the end of the shank free of dust and dirt.
• Use the shortest bit possible.
• When drilling deep holes, do the work in stages. Use a short bit when you start drilling, and then change to a longer bit.

.

CHISELLING

Changing chisels

1. Grease the shank of the chisel before installing the chisel.
2. Pull the chuck back and insert the bit. Make sure it slides all the way into the opening.
3. Release the chuck. Turn the mode selector to chisel mode. Rotate the bit to the desired angle then rotate the mode selector to the hammer setting.
4. Check that the chisel is secured in place. It should not be possible to pull it out of the chuck.

Using the chisel

1. Where necessary, adjust the auxiliary handle to the desired position.
2. Plug in the power cord.
3. Press the on/off switch to start the rotary hammer.
4. Let the rotary hammer reach full speed before allowing the chisel to come into contact with the work surface.

NOTE: When finished, to prevent accidents, release the trigger and disconnect it from the power supply after use. Pull back on the chuck and then remove the chisel from the chuck. Clean and then store the tool indoors out of the reach of children.

MAINTENANCE

- Before each use, inspect the general condition of the tool. Check for loose hardware, misalignment or binding of moving parts, cracked or broken parts, damaged electrical wiring, and any other condition that may affect its safe operation.

• Each month, open the grease filling cover, clean out any old grease and replace with new grease.
• After use, wipe external surfaces of the tool with a clean cloth.
- Always lubricate the shank of the chisel or bit with grease each time before installing to keep the chuck in good condition.

WARNING! If the power cord of this power tool is damaged, it must be replaced by a qualified service technician.

TROUBLESHOOTING

Problem Possible cause Probable solution
Tool will not start Cord not connected. Check that cord is plugged in.
Tool's overheating protection has been triggered.		Turn off tool and allow to cool.
Internal damage or wear. Have technician service tool.
Tool operates slowly	Extension cord is too long or its diameter too little.	Use an extension cord with the correct diameter for the length and load.
Performance decreases over time	Accessory dull or damaged.	Keep drills and chisels sharp. Replace as needed.
	Carbon brushes worn or damaged.	Have a qualified technician replace brushes.
Excessive noise or rattling	Internal damage or wear. Have technician service tool.
Overheating	Tool forced to work too fast. Do not force the tool.
	Chisel misaligned.	Check for correct alignment of chisel.
	Accessory dull or damaged.	Keep accessories sharp. Replace as needed.
	Blocked valves.	Clean the valves.
	Motor being strained by long or small diameter extension cord.	Use an extension cord with the correct diameter for the length and load.

Jula reserves the right to make changes. In the event of problems, please contact our service department. www.jula.com

Care for the environment!

Must not be discarded with household waste!

This product contains electrical or electronic components that should be recycled.

Leave the product for recycling at the designated station e.g. the clocal authority's recycling station.

CE

EC DECLARATION OF CONFORMITY EG FÖRSÄKRAN OM ÖVERENSSTÄMMELSE EF SAMSVARSERKLÆRING DEKLARACJA ZGODNOŚCI WE

Jula AB, Box 363, SE-532 24 SKARA, SWEDEN

RoHS Directive 2011/65/EU

This product was CE marked in year -14
