DCM1100W - Coffee maker BLACK & DECKER - Free user manual and instructions

Product Type	Drip Coffee Maker
Model	DCM1100W
Brand	Black & Decker
Capacity	12 Cups (60 oz / 1.8 L)
Dimensions (W x D x H)	9.8 x 6.7 x 12.5 inches (approx.)
Weight	3.5 lbs (approx.)
Power Rating	1000 Watts, 120V, 60Hz
Carafe Type	Glass Carafe with Drip-Free Pour Spout
Filter Type	#4 Cone Paper Filters (or Reusable Basket Filter)
Water Reservoir	Removable, Easy-Fill, Clear Water Tank
Brew Pause Feature	Yes – Pause & Serve to grab a cup mid-brew
Auto Shut-Off	2-Hour Auto Shut-Off
Warming Plate	Keep-Warm function for 2 hours
Controls	Simple On/Off Switch
Indicator Light	Power On indicator
Cord Storage	Integrated cord wrap for tidy counter
Cleaning	Wipe exterior with damp cloth; descale regularly with vinegar
Safety Features	Non-slip feet, cool-touch handle, auto shut-off
Spare Parts Available	Carafe, filter basket, decanter lid (contact Black & Decker)
Reparability	No user-serviceable parts; contact customer service
Country of Origin	China
Warranty	2-year limited warranty

Frequently Asked Questions - DCM1100W BLACK & DECKER

How many cups does the DCM1100W make?

It brews up to 12 cups (5 oz each) of coffee.

What type of filter does this coffee maker use?

It uses a #4 cone paper filter. You can also buy a reusable permanent filter basket.

Can I use the coffee maker without a paper filter?

Yes, if you have a reusable gold-tone or mesh filter basket that fits the machine.

How do I clean the DCM1100W coffee maker?

Wipe the outside with a damp cloth. To clean inside, run a cycle with equal parts water and white vinegar, then two cycles with fresh water.

Does it have an auto shut-off feature?

Yes, the warming plate automatically shuts off after 2 hours for safety.

Can I pour a cup mid-brew?

Yes, the Pause & Serve feature lets you grab a cup while brewing.

What is the wattage of the DCM1100W?

It runs on 1000 watts at 120V.

Why is my coffee not hot enough?

Ensure the carafe is on the warming plate. If the plate is not heating, the auto shut-off may have activated.

How often should I descale the coffee maker?

Every 60-90 cycles or every 3 months, depending on water hardness.

Where can I find the user manual?

The manual is available for free download on notice-facile.com in PDF format.

USER MANUAL DCM1100W BLACK & DECKER

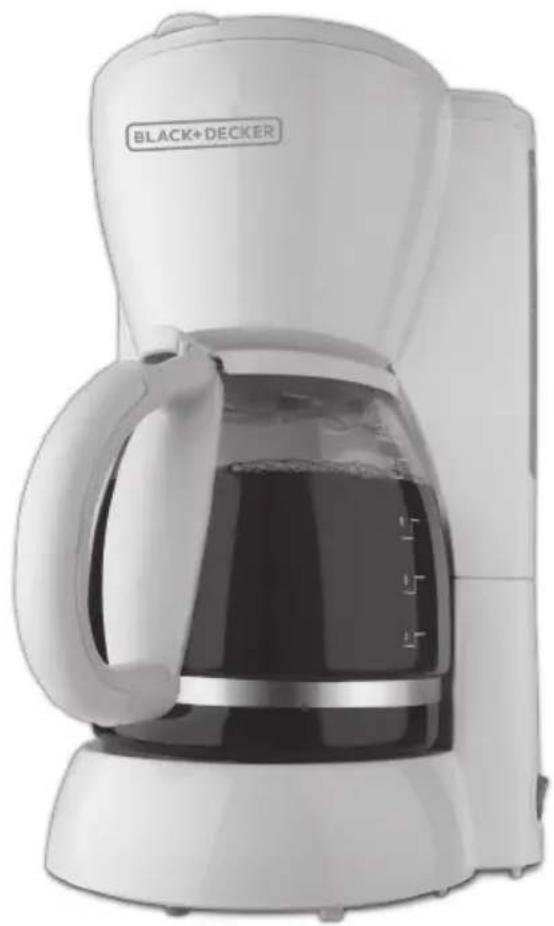

Black and white photo of a black BLACK+DECKER coffee maker with clear glass cover (no visible text or symbols on device body)

White coffee maker with black lid and 'BLACK+DECKER' branding, no visible text or symbols on device body

MODELOS / MODELS

• DCM1100B
• DCM1100W

Close-up of a black metal basket with a handle, next to a leafy plant (no text or symbols visible)

Close-up of a hand pouring liquid into a white cylindrical container (no visible text or symbols)

Close-up of a hand pouring liquid into a white air fryer (no visible text or symbols)

Close-up of a kitchen appliance with a handle and basket (no visible text or symbols)

When using electrical appliances, basic safety precautions should always be followed, including the following:

• Read all instructions.
• Do not touch hot surfaces. Use handles or knobs.
• To protect against fire, electric shock and injury to persons do not immerse cord, plugs or appliance in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning.
• Allow to cool before putting on or taking off parts, and before cleaning the appliance.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner. Contact Consumer Support at the number listed in this manual.
• The use of accessory attachments not recommended by the appliance manufacturer may result in fire, electric shock or injury to persons.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• To disconnect, turn the control to OFF (0) and then remove the plug from the wall outlet.
• Do not use this appliance for other than intended use.
• Keep lid on the carafe when in use.
• Scalding may occur if the lid is removed during the brewing cycles.
• The carafe is designed for use with this appliance. It must never be used on a range top.
• Do not set a hot carafe on a wet or cold surface.
• Do not use a cracked carafe or a carafe having a loose or weakened handle.
• Do not clean carafe with cleansers, steel wool pads or other abrasive material.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.

SAVE THESE INSTRUCTIONS.

This product is for household use only.

POLARIZED PLUG (120V Models Only)

This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way.

TAMPER-RESISTANT SCREW

Warning: This appliance is equipped with a tamper-resistant screw to prevent removal of the outer cover. To reduce the risk of fire or electric shock, do not attempt to remove the outer cover. There are no user-serviceable parts inside. Repair should be done only by authorized service personnel.

ELECTRICAL CORD

a) A short power-supply cord (or detachable power-supply cord) is to be provided to reduce the risk resulting from becoming entangled in or tripping over a longer cord.
b) Longer detachable power-supply cords or extension cords are available and may be used if care is exercised in their use.
c) If a long detachable power-supply cord or extension cord is used,

1) The marked electrical rating of the detachable power-supply cord or extension cord should be at least as great as the electrical rating of the appliance,

2) If the appliance is of the grounded type, the extension cord should be a grounding-type 3-wire cord, and
3) The longer cord should be arranged so that it will not drape over the countertop or tabletop where it can be pulled on by children or tripped over.

Note: If the power supply cord is damaged, it should be replaced by qualified personnel. In Latin America, by an authorized service center.

WARNING

RISK OF FIRE OR ELECTRIC SHOCK. DO NOT OPEN.

The lightning symbol refers to "dangerous voltage"; the exclamation symbol refers to maintenance instructions. See below.

Warning: To reduce the risk of fire or electric shock, do not remove the cover of the coffeemaker. There are no user-serviceable parts inside. Repair should be done by authorized service personnel only.

Product may vary slightly from what is illustrated.

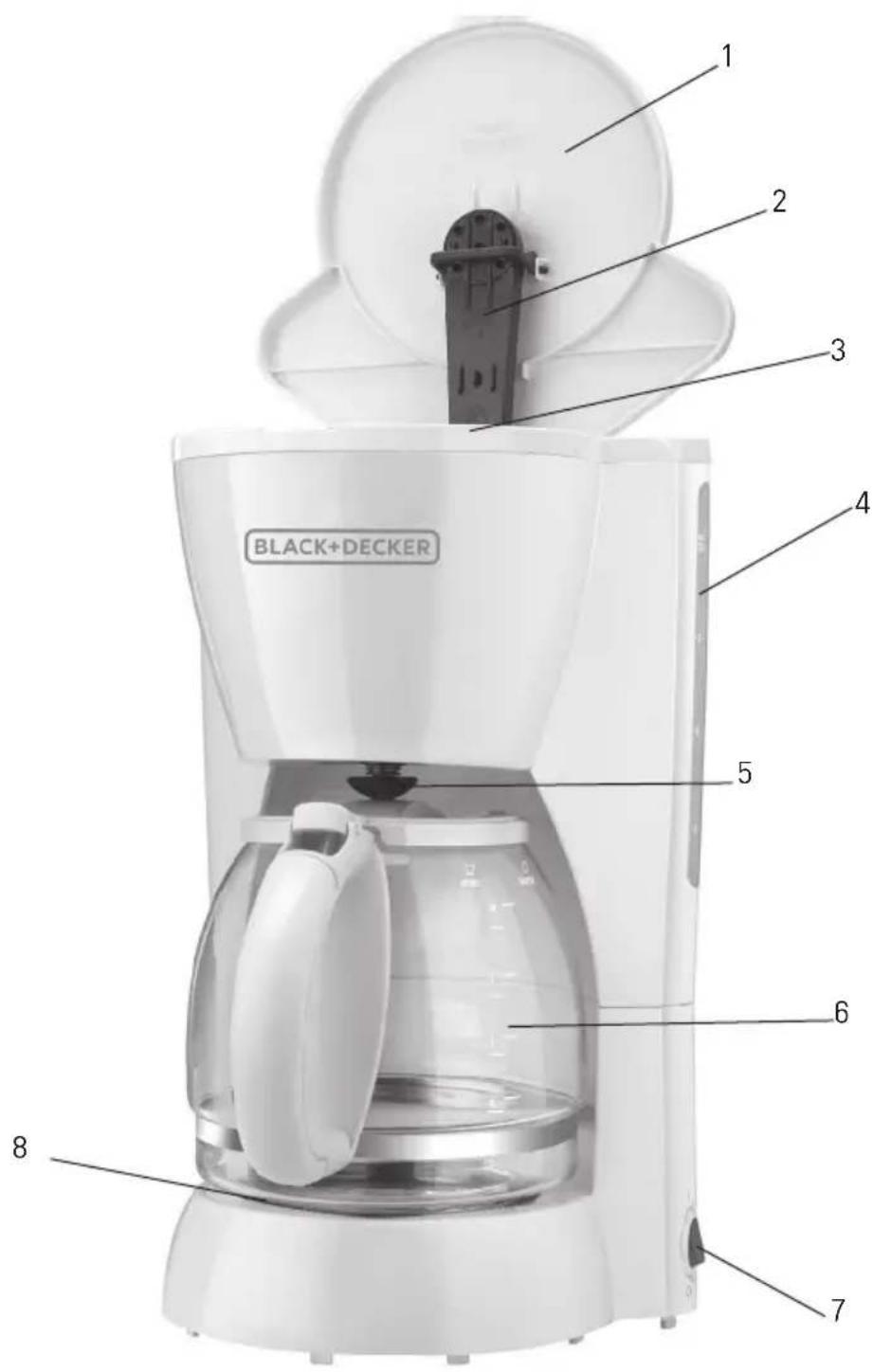

A

1. One-piece cover
2. Showerhead
3. Removable filter basket
4. Water reservoir with cup level markings
5. Sneak-A-Cup® interrupt feature
6. 10-cup/50-oz. (1500 ml) carafe
7. On/Off (I/O) button
8. Nonstick "Keep Hot" carafe plate
9. Permanent filter (no shown)

How to Use

This product is for household use only.

GETTING STARTED

• Remove all packing material, and any stickers from the product.
• Remove and save literature.

- Wash all removable parts as instructed in CARE AND CLEANING section of this manual.

Close-up of a black metal bucket with handle and side arm, no visible text or symbols

- Open one-piece cover and insert permanent filter into removable filter basket (B).

- Pour fresh cold water up to 10-cup level mark into the water reservoir (C).

Close-up of a hand pouring liquid into a container with a dark interior (no visible text or symbols)

• Uncoil power cord and plug into standard electrical outlet.
• Brew water through appliance following the BREWING COFFEE instructions without adding coffee grounds. This removes any dust or residue that may remain in the system during the manufacturing process.
• Discard the water from the carafe and the paper filter from the filter basket.

- Turn off the appliance; unplug it and allow appliance to cool down.

BREWING COFFEE

1. Open the cover of the coffeemaker.
2. Fill carafe with desired amount of cold tap water using water markings on carafe; pour into water reservoir.

Close-up of a hand pouring liquid into a white container with a black handle (no visible text or symbols)

Do not exceed the 10-cup (MAX) level.

1. Insert removable filter basket into filter basket holder.
2. Place permanent filter into the removable filter basket.
3. Add desired amount of ground coffee. We suggest one heaping tablespoon per cup.
4. Close one-piece cover securely.
5. Place carafe on the nonstick "Keep Hot" carafe plate.
6. Plug cord into standard electrical outlet.
7. Press ON/OFF (I/O) switch. The power indicator lights up and brewing begins.
8. To keep coffee hot, replace carafe on the nonstick "Keep Hot" carafe plate when not serving coffee. The coffeemaker will keep coffee warm automatically.

Close-up of a kitchen appliance with a handle and basket (no visible text or symbols)

1. Once coffee grounds have cooled, carefully open cover to remove permanent filter; remove and discard used grounds. Remove permanent filter and wash. Close one-piece cover.

2. Unplug appliance when not in use.

COFFEE BREWING TIPS

- Stir coffee in carafe before serving to evenly distribute the flavor.

- Coffee that is poured during brewing cycle may vary in strength from the finished brew.

This product contains no user serviceable parts. Refer service to qualified service personnel.

CLEANING

1. Be sure the unit is unplugged and has cooled.

2. Open the cover.

3. To remove the permanent filter, grip the handle and lift straight up.

4. Wash the permanent filter, carafe and carafe lid in dishwasher, top-rack or wash by hand in hot, sudsy water.

MINERAL DEPOSITS AND CLOGGING

Mineral deposits left by hard water can clog your coffeemaker. Cleaning is recommended every 3 months.

1. Pour white vinegar into the water reservoir up to the 6-cup level on the water window. Add cold water up to the 10-cup line.
2. Put a paper filter in the filter basket and close the cover. Set the empty carafe on the keep hot carafe plate.
3. Turn on the coffeemaker and let half the cleaning solution brew into the carafe (until water level goes down to around "5"). Turn off the coffeemaker and let it soak for at least 15 minutes to soften the deposits.
4. Turn on the coffeemaker and brew the remaining cleaning solution into the carafe.
5. Turn off the coffeemaker; empty the carafe and discard the paper filter.
6. Fill the reservoir with cold water to the 10-cup line, replace the empty carafe and then turn on the coffeemaker for a complete brew cycle to flush out the remaining cleaning solution. You may have to repeat this to eliminate the vinegar smell/taste.
7. Wash the filter basket and carafe as instructed in CLEANING.

CARAFE CARE

C A •

• Discard the carafe if damaged in any manner. A chip or crack could result in breakage.
• Do not use abrasive scouring pads or cleansers, they will scratch and weaken the glass.
• Do not place the carafe on or near a hot gas or electric burner, in a heated oven or in a microwave oven.
• Avoid rough handling and sharp blows.

TROUBLESHOOTING

PROBLEM POSSIBLE CAUSE SOLUTION
Coffeemaker does not turn on.	Coffeemaker is not plugged in.	Check to be sure appliance is plugged in to a working outlet and the ON/OFF (I/O) button is powered ON.
Coffeemaker is leaking. Water	reservoir may be overfilled.Carafe may not be correctly placed on adjustable keep warm plate.	Make sure water reservoir has not been filled beyond MAX fill line.Make sure carafe is placed correctly on adjustable keep warm carafe plate and is centered under brew basket holder.
Brewing takes too long. Coffeemaker might need cleaning.		Follow procedure in CARE AND CLEANING.
Coffee is not brewing. Water	reservoir might be empty.	Make sure water reservoir has sufficient water to brew desired number of cups of coffee.
Coffeemaker brews clear water.	There may be no coffee grounds in removable brew basket.	Add sufficient amount of coffee grounds to paper or gold tone filter in removable brew basket.
One-piece cover does not close.	Removable filter basket may not be correctly placed.	Remove filter basket and replace correctly into holder.
Filter basket overflows Carafe	may be improperly placed on adjustable keep hot carafe plate.	Remove carafe and insert so that carafe rests comfortably within grooves on keep hot carafe plate.
Grounds in brewed coffee. Filter and/or brew basket are not properly placed.		Insert paper filter into filter basket and insert basket properly into holder.

Póliza de Garantía

For service, repair or any questions regarding your appliance, call the appropriate 800 number on cover of this book. Please DO NOT return the product to the place of purchase. Also, please DO NOT mail product back to manufacturer, nor bring it to a service center. You may also want to consult the website listed on the cover of this manual.

Two-Year Limited Warranty

(Applies only in the United States and Canada)

What does it cover?

- Any defect in material or workmanship provided; however, liability will not exceed the purchase price of product.

For how long?

- Two years from the date of original purchase with proof of such purchase.

What will we do to help you?

- Provide you with a reasonably similar replacement product that is either new or factory refurbished.

How do you get service?

• Save your receipt as proof of date of sale.
• Visit the online service website at www.prodprotect.com/applica, or call toll-free 1-800-231-9786, for general warranty service.
• If you need parts or accessories, please call 1-800-738-0245.

What does your warranty not cover?

• Damage from commercial use
• Damage from misuse, abuse or neglect
• Products that have been modified in any way
- Products used or serviced outside the country of purchase
- Glass parts and other accessory items that are packed with the unit
• Shipping and handling costs associated with the replacement of the unit
- Consequential or incidental damages (Please note, however, that some states do not allow the exclusion or limitation of consequential or incidental damages, so this limitation may not apply to you.)

How does state law relate to this warranty?

- This warranty gives you specific legal rights. You may also have other rights that vary from state to state or province to province.
