Product Type	Refrigerator (Fresh Food Storage)
Model	MUL48W13E
Brand	Matsui
Total Fresh Food Volume	89 L
Energy Rating	A+
Annual Energy Consumption	112 kWh/year
Daily Energy Consumption	0.308 kWh/24h
Climate Class	ST (16°C – 38°C)
Storage Temperature Range	0°C to 8°C (average ≤4°C)
Defrost Type	Auto Defrost
Noise Level	44 dB(A)
Rated Voltage	220-240 V~
Rated Current	0.55 A
Dimensions (W x D x H)	480 x (500 + 50 mm spacer) x 840 mm
Adjustable Glass Shelves	2 included
Salad Bin	1 with cover
Door Shelves	3 (2 upper, 1 lower)
Reversible Door	Yes (left or right opening)
Leveling Feet	2 adjustable at front
Internal Light	10W SES bulb (replaceable)
Spacers (Rear)	2 included (screw to rear)
Minimum Free Space for Installation	Sides: 60 mm, Rear: 100 mm, Top: 40 mm, Door open: 160°
Recommended Thermostat Setting	Position 4 (normal room temperature)
Warranty	Refer to manual (not specified)

Frequently Asked Questions - MUL48W13E MATSUI

What is the correct temperature setting for my Matsui MUL48W13E fridge?

The thermostat controls the internal temperature. Positions range from 0 (off) to 7 (coldest). The recommended setting for normal room temperature (16-38°C) is position 4. Adjust to 1-4 in cooler environments and 5-6 in hotter environments.

Why is my fridge making unusual noises?

Most noises are normal. They are caused by the circulation of refrigerant and the compressor motor. These sounds are more noticeable with CFC-free gases and do not indicate a fault.

How do I defrost the fridge?

The MUL48W13E features auto defrost. Frost on the inner rear surface melts automatically during the compressor's off cycle. Water is drained to a tray above the compressor and evaporates. Ensure the drain hole is checked and cleaned regularly.

Can I reverse the door swing?

Yes, the door can be reversed. The manual provides step-by-step instructions requiring a Phillips screwdriver, flat screwdriver, and hexagonal spanner. We recommend having a qualified technician perform this if you are not experienced.

How do I clean the interior and exterior?

For interior, use a weak solution of bicarbonate soda, rinse with warm water, and dry completely. For exterior, use a damp cloth and then furniture polish, keeping the door closed to avoid polish on the seal. Vacuum the condenser grille at the back with a soft brush.

How do I change the internal light bulb?

First, turn the thermostat to 0 and disconnect the mains. Use a flat screwdriver to gently prise off the light cover. Unscrew the old bulb (anticlockwise) and replace with a new 10W SES bulb. Reattach the cover and reconnect.

What should I do if there is condensation on the outside?

Condensation may appear due to changes in room temperature. Wipe it off. If the problem persists, contact a qualified technician.

What are the installation clearance requirements?

Ensure at least 60 mm free space on each side, 100 mm at the rear, and 40 mm above the unit. The door needs to open fully to 160°. Keep away from heat sources and direct sunlight.

How much energy does this fridge use?

The Matsui MUL48W13E consumes 0.308 kWh per 24 hours (112 kWh per year) based on standard tests. Actual consumption depends on usage and location. It has an A+ energy rating.

How should I dispose of the fridge when it's no longer usable?

Do not dispose with household waste. Follow local regulations for recycling waste electrical and electronic equipment. Ensure refrigerant pipes are not damaged. Remove doors and locks to prevent child entrapment.

USER MANUAL MUL48W13E MATSUI

White refrigerator with closed lid and side legs, no visible text or symbols

Safety Warnings....8

Unpacking....13

Installation....14

Location....14

Levelling the Unit....14

Installing the Spacers ....14

Free Space Requirements ....14

Reversing the Door Swing 15

Cleaning Before Use....18

Before Using Your Unit....18

Product Overview....19

Operation 20

Switching On Your Unit 20

Adjusting the Temperature 20

Noises Inside the Unit! 20

Tips for Keeping Food in the Unit....21

Cleaning 21

Defrosting....21

Cleaning the Interior and the Exterior of the Unit....21

Maintenance 22

Changing the Internal Light....22

Care When Handling....22

Servicing 22

Switching Off for Long Periods of Time 22

Condensation....22

Disposal 22

Specifications....23

For your continued safety and to reduce the risk of injury or electric shock, please follow all the safety precautions listed below.

• Read all instructions carefully before using the unit and keep them for future reference.
• Retain the manual. If you pass the unit onto a third party, make sure to include this manual.
• This appliance is intended for indoor household use and similar applications such as:
  – farm houses and by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments;
  – catering and similar non-retail applications.

- Ensure that the plug is easily accessible to enable disconnection from the mains supply.

- Keep ventilation openings in the unit enclosure clear of obstructions.

- Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

- Do not use electrical appliances inside the food storage compartments of the unit, unless they are of the type recommended by the manufacturer.

- If the mains cable is damaged, it must be replaced by the manufacturer, its service agent or a qualified technician in order to avoid a hazard.

- Choose a location for your unit away from heat sources such as radiators or fires as refrigerant and vesicant are burnable.

- Do not damage the refrigerant circuit (The refrigerant is a very environmentally friendly gas but is also combustible. Take care when transporting or moving the unit to ensure that the refrigeration circuit is not damaged. In the event of damage avoid naked flames or ignition sources and ventilate the room in which the unit is placed for a few minutes.)

- The unit must be manoeuvred by a minimum of 2 persons.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- Children should be supervised to ensure that they do not play with the unit.

- If your unit is fitted with a lock to prevent children being trapped inside, keep the key out of reach and not in the vicinity of the unit.

- Do not store volatile or flammable substances, such as aerosol cans with a flammable propellant, in the unit.

WARNING

IT IS HAZARDOUS FOR ANYONE OTHER THAN AUTHORISED SERVICE PERSONNEL TO CARRY OUT SERVICING OF REPAIRS WHICH INVOLVE THE REMOVAL OF COVERS.

TO AVOID THE RISK OF AN ELECTRICAL SHOCK DO NOT ATTEMPT REPAIRS YOURSELF.

Thank you for purchasing your new Matsui Fridge.

We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers.

Read all the safety instructions carefully before use and keep this instruction manual for future reference.

Unpacking

GB

Remove all items from the packaging. Retain the packaging. If you dispose of it please do so according to local regulations.

The following items are included:

Line drawing of a simple rectangular refrigerator with lid and frontrest (no text or symbols)

The Main Unit

Adjustable Glass Shelf x2

Salad Bin Cover Shelf

Salad Bin

Upper Door Shelf x2

Bottom Door Shelf

Rear Spacer x2

Instruction Manual

Location

When selecting a position for your unit you should make sure the floor is flat and firm, and the room is well ventilated with an average room temperature of between 16^ C and 38^ C. Avoid locating your unit near a heat source, e.g. cooker, boiler or radiator. Also avoid direct sunlight as it may increase the electrical consumption. Extreme cold ambient temperatures may also cause the unit not to perform properly. This unit is not designed for use in a garage or outdoor installation. Do not drape the unit with any covering.

Levelling the Unit

To do this adjust the two levelling feet at the front of the unit. If the unit is not level, the doors and magnetic seal alignments will not be covered properly.

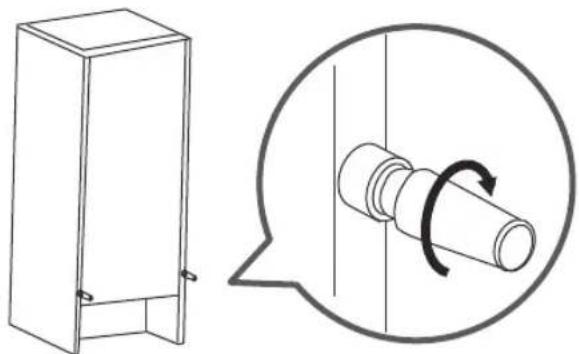

Installing the Spacers

Screw the spacers to the left and right side of the unit's rear part.

Technical line drawing of a cabinet and a mechanical component with rotational motion indicator (no text or symbols)

Free Space Requirements

When installing the unit, ensure that 60 mm of free space is left at both sides, 100 mm at the rear of the unit and 40 mm at the top of the unit. The door can be opened to the right or the left, depending on which best suits the location. Please ensure there is adequate space for the door to fully open to 160°.

Pure mechanical diagram showing a rectangular block with a curved cutout and dimension lines, no text or symbols present.

INSTALLATION

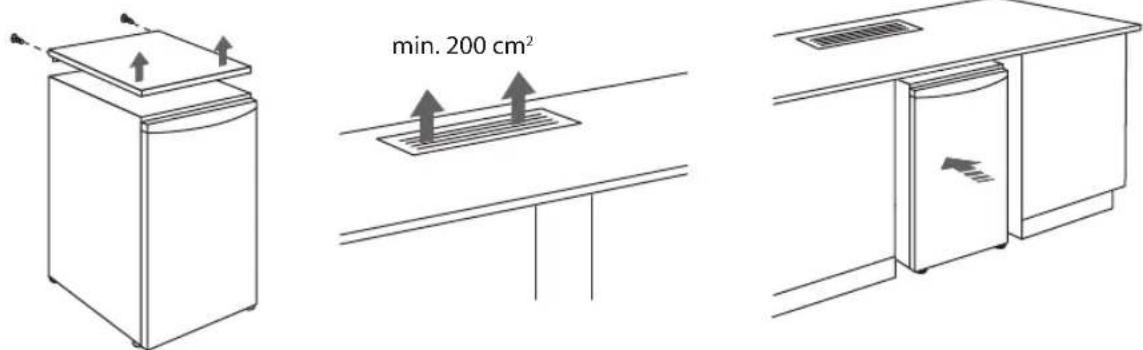

If the appliance is placed under a continuous worktop, the appliance lid (if applicable) may be removed and a ventilation grille of at least 200 cm ^2 (available from DIY shops or specialist retailers) should be installed to the worktop above the rear of the appliance to increase ventilation.

Benefits of increased ventilation:

• Lowered power consumption • Improved cooling performance
• Reduce running costs • Prolong product life span

Reversing the Door Swing

Tools required: Phillips style screwdriver / Flat bladed screwdriver / Hexagonal spanner

• Ensure the unit is unplugged and empty.
  • To take the door off it is necessary to tilt the unit backwards. You should rest the unit on something solid, e.g. a chair just below the top panel.
• All parts removed must be saved to do the reinstallation of the door.
• Do not lay the unit flat as this may damage the coolant system.
  • We recommend that 2 people handle the unit during assembly.

• If you want to have the door swing reversed, we recommend that you contact a qualified technician. You should only try to reverse the door yourself if you believe that you are qualified to do so.

• Remove the top right hinge cover.

Diagram of a tool being adjusted to a bracket, with a screwdriver and downward arrow indicating motion (no text or symbols)

INSTALLATION

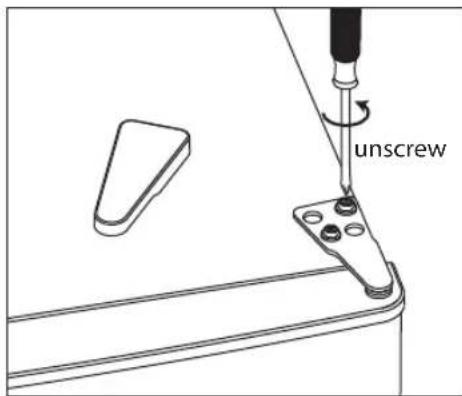

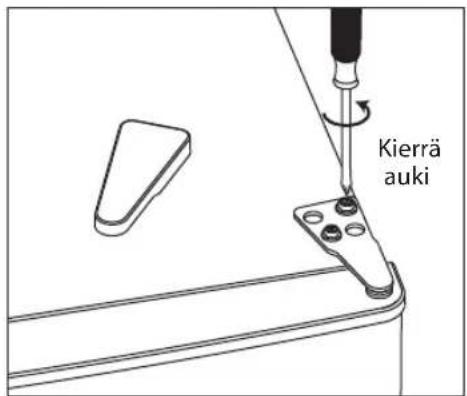

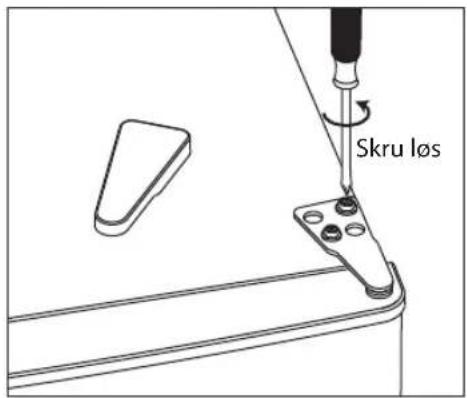

1. Undo the screws. Then remove the hinge bracket.

1. Remove the top left screw cover.

Diagram of a screwdriver holding a tool, with an arrow indicating direction (no text or symbols present)

1. Move the core cover from left side to right side. And then lift the door and place it on a padded surface to prevent it from scratching.

Pure technical line drawing of a mechanical component with dashed curved arrow and circular features (no text or symbols)

1. Remove the screws and bottom hinge. Then remove the adjustable feet from both side.

INSTALLATION

1. Unscrew and remove the bottom hinge pin, turn the bracket over and replace it.

1. Refit the bracket fitting the bottom hinge pin. Replace both adjustable feet. Transfer the door to the proper position.

1. Place the door back on. Ensure the door is aligned horizontally and vertically so that the seals are closed on all sides before finally tightening the top hinge.

2. Insert the hinge bracket and screw it to the top of the unit.

3. Use a spanner to tighten it if necessary.

Technical line drawing of a mechanical assembly with a tool and bracket (no text or symbols)

INSTALLATION

1. Put the hinge cover and the screw cover back.

Line drawing of a flat panel with two downward arrows indicating force or adjustment (no text or symbols)

1. With the door closed, check that the door is aligned horizontally and vertically and that the seal is closed on all sides before finally tightening the bottom hinge. Re-adjust the levelling feet as needed.

Simple line drawing of a rectangular refrigerator (no text or symbols)

Cleaning Before Use

Wipe the inside of the unit with a weak solution of bicarbonate soda. Then rinse with warm water using a 'wrung-out' sponge or cloth. Wipe completely dry before replacing the shelves and salad bin. Clean the exterior of the unit with a damp cloth.

If you require more information refer to the Cleaning section.

• Before Plugging in YOU MUST

Check that you have a socket which is compatible with the plug supplied with the unit.

• Before Turning On!

Do not turn on until two hours after moving the unit. The coolant fluid needs time to settle.

Before Using Your Unit

Before placing any food in your unit, turn it on and wait for 24 hours, to make sure it is working properly and to allow it time to fall to the correct temperature. Your unit should not be overfilled.

Switching On Your Unit

1. Connect the mains cable to the mains socket. The internal temperature of your unit is controlled by a thermostat. There are eight settings, of which position 7 is the coldest and position 0 turns the unit off.
2. Adjust the thermostat control dial to the desired position, bear in mind that the higher the number, the lower the temperature. Position 4 is the recommended setting when operating at normal room temperature (between 16°C and 38°C).
3. The unit may not operate at the correct temperature if it is in a particularly hot or a particularly cold room, or if you open the door often.
4. To ensure that the unit is cool enough to sufficiently chill your food, wait 24 hours before filling it with food.
5. If you are concerned that your unit is not being kept cold enough and wish to check the temperature, you will need a special fridge/freezer thermometer. These are available from most supermarkets and hardware shops.

Place the thermometer in the centre of the unit, where it can be read easily. Leave overnight, the temperature in the unit should be an average of 5^ C.

Adjusting the Temperature

The internal temperature of the unit is controlled by a thermostat. The recommended position is between 1 to 4 for colder working environments (i.e. during winter) and between 5 to 6 for hotter environments. Please adjust according to the environment.

Noises Inside the Unit!

You may notice that your unit makes some unusual noises. Most of these are perfectly normal, but you should be aware of them!

These noises are caused by the circulation of the refrigerant liquid in the cooling system. It has become more pronounced since the introduction of CFC free gases. This is not a fault and will not affect the performance of your unit. This is the compressor motor working, as it pumps the refrigerant around the system.

Tips for Keeping Food in the Unit

• Cooked meats/fishes should always be stored on a shelf above raw meats/fishes to avoid bacterial transfer. Keep raw meats/fishes in a container which is large enough to collect juices and cover it properly. Place the container on the lowest shelf.
• Leave space around your food, to allow air to circulate inside the compartments. Ensure all parts of the unit are kept cool.
• To prevent transfer of flavours and drying out, pack or cover the food separately. Fruit and vegetables do not need to be wrapped.
• Always let pre-cooked food cool down before you put in the unit. This will help to maintain the internal temperature of the unit.
• To prevent cold air escaping from the unit, try to limit the number of times you open the doors. We recommend that you only open the doors when you need to put food in or take food out.

Cleaning

Defrosting

Frost may accumulate on the inner rear surface of the appliance which will automatically defrost during the off cycle of the compressor.

Water is channelled via the drain hole to the collection tray above the compressor where it will evaporate.

Please ensure the drain hole is checked and cleaned on a regular basis so water can exit the storage compartment.

Cleaning the Interior and the Exterior of the Unit

• Remove all the shelves and drawers.
• Wipe the inside of the unit with a weak solution of bicarbonate soda and then rinse with warm water using a sponge or cloth. Wipe completely dry before replacing the shelves and drawers.
• Use a damp cloth to clean the exterior, and then wipe with a standard furniture polish. Make sure that the door is closed to avoid the polish getting on the magnetic door seal or inside the unit.
• The grille of the condenser at the back of the unit and the adjacent components can be vacuumed using a soft brush attachment.

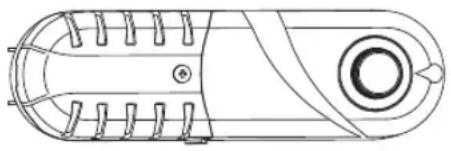

Changing the Internal Light

1. Before carrying out the bulb replacement always adjust the thermostat control dial to Position 0, then disconnect the mains supply.
2. Use a flat bladed screwdriver and gently prise off the light bulb cover.
3. Remove the old bulb by unscrewing in an anticlockwise direction.
4. Replace with a new bulb (10W SES).
5. Refit the light bulb cover and reconnect the unit to the mains supply and switch on by adjusting the thermostat.

Technical line drawing of a mechanical component with no visible text or symbols

Care When Handling

Hold the unit around its sides or base when moving it. Under no circumstances should it be lifted by holding the edges of the top surface.

Servicing

The unit should be serviced by an authorised engineer and only genuine spare parts should be used. Under no circumstances should you attempt to repair the unit yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunction. Contact a qualified technician.

Switching Off for Long Periods of Time

When the unit is not in use for a long period of time, disconnect it from the mains supply, empty all food and clean the appliance, leaving the door ajar to prevent unpleasant smells.

Condensation

Condensation may appear on the outside of the unit. This may be due to a change in room temperature. Wipe off any moisture residue. If the problem continues, please contact a qualified technician for assistance.

Disposal

Old units still have some residual value. An environmentally friendly method of disposal will ensure that valuable raw materials can be recovered and used again. The refrigerant used in the unit and insulation materials require special disposal procedures. Ensure that none of the pipes on the back of the unit are damaged prior to disposal.

Up to date information concerning options of disposing of your old unit and packaging from the new one can be obtained from your local council office.

When disposing of an old unit break off any old locks or latches and remove the doors as a safeguard.

Model MUL48W13E
Storage Volume - Fresh Food Storage Compartment	89L
Storage Temperature 0-8°C, average ≤ 4°C
Energy Consumption 0.308kWh / 24h
Energy consumption 112 kWh per year, based on standard test results for 24 hours. Actual energy consumption will depend on how the appliance is used and where it is located.
Appliances Category Category 1 (Refrigerator)
Energy Grading A+
EU Ecolabel N/A
Defrosting Type Auto Defrost
Climate Class ST
This appliance is intended to be used at an ambient temperature between 16°C and 38°C.
Airborne Acoustical Noise 44dB(A)
Rated Voltage 220-240V~
Rated Current 0.55A
Overall Dimension (W x D x H) 480 x 500 +50mm spacer x 840 mm

Features and specifications are subject to change without prior notice.

Line drawing of a simple rectangular refrigerator with lid and frontrest (no text or symbols)

Hovedenheten

Justerbar glasshylle x2

Hylle over salatskuff

Salatskuff

∅vre dørhylle x2

Nederste dørhylle

Innstallering av avstandsstykker

Technical line drawing of a cabinet and a mechanical component with rotational motion indicator (no text or symbols)

Plassbehov

Pure mechanical diagram showing a rectangular block with a curved cutout and dimension lines, no text or symbols present.

INSTALLASJON

Diagram of a tool interacting with a mechanical component, showing a hammer and screwdriver (no text or symbols)

INSTALLASJON

1. Løsne skruene. Fjern deretter hengselbraketten.

Diagram of a tool being adjusted using a screwdriver, showing the handle and angle (no text or symbols)

Pure technical line drawing of a mechanical component with no text or symbols

Technical line drawing of a mechanical assembly with a screwdriver inserted, showing no text or symbols

1. Sett hengseldekslet og skruedekslet tilbake.

Line drawing of a flat-panel object with two downward arrows indicating force or movement (no text or symbols)

Simple line drawing of a rectangular refrigerator with lid (no text or symbols)

Rengjøring før bruk

Technical line drawing of a mechanical component with no visible text or symbols

Spesifikasjoner

NO

Line drawing of a simple rectangular refrigerator with lid and frontrest (no text or symbols)

Huvudenhet

Technical line drawing of a cabinet and a mechanical component with rotational motion indicator (no text or symbols)

Luftcirkulationsbehov

Pure mechanical diagram showing a rectangular block with a curved cutout and dimension lines, no text or symbols present.

INSTALLATION

Diagram of a tool being adjusted to a bracket, showing a black-and-white tool and a downward arrow (no text or symbols)

INSTALLATION

Line drawing of a tool being adjusted to a bracket, showing a screwdriver and handle (no text or symbols)

Pure technical line drawing of a mechanical component with no text or symbols

INSTALLATION

Technical line drawing of a mechanical assembly with a screwdriver inserted, showing a rotating component (no text or symbols)

INSTALLATION

Line drawing of a flat panel with two downward arrows indicating force or adjustment (no text or symbols)

Simple line drawing of a rectangular refrigerator (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a simple rectangular refrigerator with lid and frontrest (no text or symbols)

Laite

Technical line drawing of a cabinet with a magnified inset showing rotational motion around a cylindrical component (no text or symbols)

Pure mechanical diagram showing a rectangular block with a curved cutout and dimension lines, no text or symbols present.

ASENNUS

Diagram of a tool interacting with a mechanical component, showing a lever and a screwdriver (no text or symbols)

ASENNUS

1. Irrota ruuvit. Poista sitten saranansuojus.

Diagram of a tool being adjusted to a bracket, showing a screwdriver and handle (no text or symbols)

Pure technical line drawing of a mechanical component with no text or symbols

Technical line drawing of a mechanical assembly with a tool and bracket (no text or symbols)

ASENNUS

Line drawing of a flat-panel object with two downward arrows indicating force or alignment (no text or symbols)

Simple line drawing of a rectangular box with a lid (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a rectangular refrigerator with lid and frontrest (no text or symbols)

Hovedenheden

Justerbar glashylde x2

Technical line drawing of a cabinet and a mechanical component with rotational motion indicator (no text or symbols)

Krav til fri plads

Pure mechanical diagram showing a rectangular block with two blocks and dimension lines, no text or symbols present.

INSTALLATION

Diagram of a tool being adjusted to a bracket, with a screwdriver and downward arrow indicating motion (no text or symbols)

INSTALLATION

Diagram of a tool being adjusted using a screwdriver, showing the handle and angle (no text or symbols)

Pure technical line drawing of a mechanical component with no text or symbols

Technical line drawing of a mechanical assembly with a screwdriver inserted, showing no text or symbols

INSTALLATION

Line drawing of a flat panel or shelf with two downward arrows indicating measurement or alignment (no text or symbols)

Simple line drawing of a rectangular box with a lid (no text or symbols)

Rengøring før brug

Technical line drawing of a mechanical component with no visible text or symbols

The symbol on the product or its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment.

For more information about where you can drop off your waste for recycling, please contact your local authority, or where you purchased your product.

NO
