NW-8L - Waffle Maker Clas Ohlson - Free user manual and instructions

Product Type	Single Waffle Maker
Brand	Clas Ohlson
Model	NW-8L (also NW-8L-UK)
Article Numbers	18-4499, 44-1013
Power Supply	220–240 V, 50 Hz
Power Consumption	850–1000 W
Dimensions (approx.)	25 x 20 x 10 cm
Weight (approx.)	1.5 kg
Non-stick Coating	Yes, on griddle plates
Indicator Lights	Red (power on), Green (ready to cook)
Thermostat	Yes, automatic temperature control
Cool-touch Handle	Yes
Non-slip Feet	Yes
Cord Length (approx.)	1 m
Material	Plastic housing, non-stick metal plates
Cleaning	Wipe with damp cloth; no metal utensils
Safety Features	Auto shut-off (after use unplug), cool-touch handle, non-slip feet
Intended Use	Household indoor use only
Repair	Only by qualified service personnel

Frequently Asked Questions - NW-8L Clas Ohlson

How does the indicator light work?

The red indicator light turns on when the waffle maker is plugged in. The green temperature light turns on when it reaches the correct cooking temperature.

What should I do before first use?

Remove all packaging, uncoil the cord. Wipe the griddle plates with a moistened cloth, then dry. The first use may emit a slight odor, which is normal.

Can I use metal utensils on the non-stick surface?

No, metal utensils can scratch the non-stick coating. Use wooden or heat-resistant plastic spatulas.

How long should I cook the waffle?

Typically about 3 minutes, depending on batter consistency and temperature. Do not lift the lid during the first minute.

What if the waffle maker smokes during first use?

A slight smoke or odor during first use is normal and will disappear after a few uses. Ensure proper ventilation.

How do I clean the waffle maker?

Always unplug and let it cool completely. Clean the outside and plates with a soft brush or damp cloth. Never immerse in water.

Is the waffle maker safe to use near children?

Supervise children. The waffle maker gets very hot; only touch handles. Keep out of reach of children under 8.

What voltage does it require?

220–240 V, 50 Hz. Only connect to an earthed outlet.

Can I use a timer or remote switch?

No. The waffle maker must not be used with an external timer or remote control system.

What is the warranty and where to get it repaired?

Contact the manufacturer or authorized service facility for repairs. Do not attempt to open or modify the device.

USER MANUAL NW-8L Clas Ohlson

Illustration of a robotic device with a circular sensor and handle (no text or symbols)

Art.no

18-4499

44-1013

Model

NW-8L-UK

NW-8L

Ver. 20140211

Single Waffle Maker

Art.no 18-4499 Model NW-8L-UK

44-1013 NW-8L

Please read the entire instruction manual before using the product and then save it for future reference. We reserve the right for any errors in text or images and any necessary changes made to technical data. In the event of technical problems or other queries, please contact our customer services (see address details on the back).

Safety

• The waffle maker should only be used as described in this instruction manual.
• The waffle maker should be placed on a dry, flat and heat-resistant surface. Make sure that there is ample space above and below the waffle maker for air to circulate. Make sure that the mains lead does not drape over the edge of the counter top or tabletop where it can be pulled on by children or animals.
• Bear in mind that the waffle maker will become very hot during use. To prevent burns, only touch the handles when using the waffle maker.
• Bear in mind that hot steam will escape when the lid is lifted.
• Keep an eye on the waffle maker if you are using it in the vicinity of children.
• Do not touch the waffle maker or the lead if your hands are wet.
• The waffle maker is designed exclusively for domestic indoor use.
• Do not touch the hot surfaces of the waffle maker, to prevent the risk of burns.
• Do not expose the waffle maker to moisture, knocks or blows. Never use the waffle maker if you have dropped it on the floor, left it outdoors or dropped it in water.
• The waffle maker must only be connected to a 220–240 V, 50 Hz earthed outlet.

- Do not pull or tug the mains lead when unplugging the waffle maker, grip and pull the plug itself.

- Do not pull or carry the waffle maker by the lead. Do not use the lead as a handle and do not let it fasten in door jambs. Do not pull it around sharp corners and edges or over warm surfaces, such as a warm hob.

- Do not open the housing. Certain uninsulated components inside the housing of the waffle maker conduct dangerous currents. Contact with these components could result in electric shock.

- The waffle maker should not be taken apart or modified. The waffle maker should only be repaired by qualified service personnel.

- The waffle maker must not be used with a timer switch or other means of remote control.

- The mains lead should be checked regularly. Never use the waffle maker if the mains lead or plug is damaged.

- Never immerse the waffle maker in water or other liquids.

- The mains lead must be changed if damaged. This is to prevent the risk of electric shock or fire and should only be carried out by the manufacturer, authorised service facility or qualified tradesman.

- The waffle maker may be used by children aged 8 or over provided they have been instructed in the safe use of the product and that they understand the hazards or risks involved. Cleaning and maintenance may be carried out by children aged 8 or over, but only under adult supervision. Keep the waffle maker and its mains lead out of reach of children under the age of 8.

- The waffle maker may be used by persons with reduced physical, sensory or mental capability, lack of experience or knowledge which could jeopardise their safety, provided they have been instructed in the safe use of the product and understand the hazards involved. Never let children play with the waffle maker.

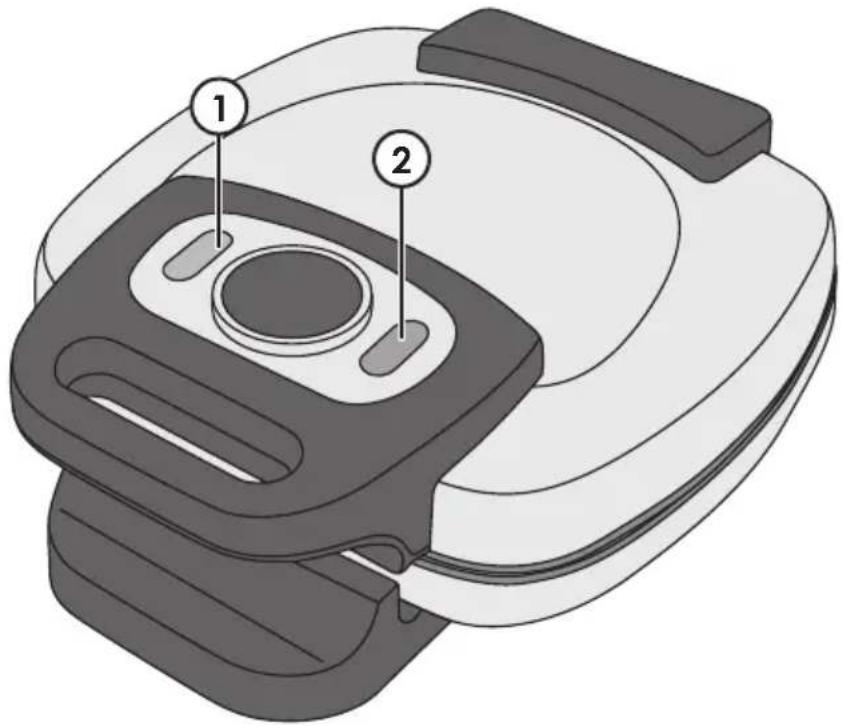

Buttons and functions

1. Temperature light (green): Light up when the waffle maker reaches the correct temperature.

2. Indicator light (red): Lights up when the waffle maker is connected to the power supply.

Operating instructions

Before initial use

1. Remove all wrapping from the waffle maker and completely uncoil the power lead.

2. Open the waffle maker and wipe the griddle plates using a moistened cloth. Dry with a dry cloth.

3. When the waffle maker is used for the first time it may emit a strange odour. This is completely normal and will disappear after the waffle maker has been used a few times.

Making waffles

1. Plug the waffle iron into a wall socket, the indicator lamp will come on.
2. Apply a little cooking fat/oil to the plates.
3. When the waffle maker has reached a suitable temperature for making waffles the temperature light will come on and you may start cooking.
4. Lift the lid all the way up using the handle and pour the prepared waffle batter onto the lower griddle plate. Make sure that the batter is evenly spread and doesn't run out over the edges of the griddle plate.
5. Close the lid to start making the waffle. The indicator lamp will come on and go off during use to let you know that the thermostat is working, this is completely normal.
6. Cook the batter for about 3 minutes depending on the consistency of the batter and the temperature of the waffle maker. Do not lift the lid during the first minute of making the waffle.
7. Open the waffle maker and remove the cooked waffle using a wooden or heat-resistant plastic spatula. Do not use metal utensils such as knives, forks, etc. This is to avoid scratching and damaging the non-stick coating on the griddle plate.
8. Pour in more batter to make more waffles.
9. After use, leave the lid open and unplug the waffle maker from the power socket.
10. Let the waffle maker cool before cleaning it.

Care and maintenance

• Always unplug the waffle maker from the power point before cleaning it or when it is not to be used for a long time.
• Let the waffle maker cool properly before cleaning it.
• Clean the outside and inside of the waffle maker using a brush or soft cloth.
• Never clean the product using metal utensils. This is to avoid scratching and damaging the non-stick coating on the griddle plates.
• Store the waffle maker in a dry, dust-free place out of children's reach.

Disposal

This product should be disposed of in accordance with local regulations. If you are unsure how to proceed, contact your local council.

Specifications

Supply voltage 220–240 V, 50 Hz

Power 850–1000 W

Enkelt våffeljärn

Art.nr 18-4499 Modell NW-8L-UK

44-1013 NW-8L

1. Temperaturlampe (grønn): tennes når vaffeljernet har kommet opp i riktig temperatur.
2. Indikatorlampe (rød): lyser når vaffeljernet er koblet til strømnettet.

Bruk
