Product Type	Refrigerator-Freezer (Fridge Freezer)
Model	M50TW12E
Brand	Matsui
Overall Dimensions (W x D x H)	480 x 530 x 1160 mm
Fresh Food Storage Volume	89 L
Frozen Food Storage Volume	29 L
Total Capacity	118 L
Climate Class	N (16°C to 32°C)
Energy Efficiency Class	A+
Energy Consumption	0.483 kWh/24h, 176 kWh/year
Noise Level	42 dB
Defrost Type	Manual
Freezing Capacity	2 kg/24h
Temperature Rise Time	15 h
Rated Voltage	220-240 V ~
Rated Current	0.48 A
Refrigerant	R600a (isobutane)
Door Reversible	Yes (user reversible)
Shelves	2 glass shelves, 1 wire freezer shelf, 1 salad bin cover, 3 door shelves
Salad Bin	Yes (1 included)
Internal Light	Yes (10W SES bulb)
Thermostat Control	Yes (8 positions, 0-7)
Levelling Feet	Yes (2 front adjustable feet)
Spacers Included	Yes (2 rear spacers)
Installation Clearance Required	60 mm sides, 70 mm rear, 40 mm top
Door Opening Angle	160°

Frequently Asked Questions - M50TW12E MATSUI

How do I adjust the temperature inside the fridge freezer?

Use the thermostat control dial inside the fridge compartment. Turn it to a higher number for a colder temperature (7 is coldest) and a lower number for warmer (0 turns off). Position 4 is recommended for normal room temperature (16°C to 32°C). Wait 24 hours after first use for the temperature to stabilize.

Can I reverse the door swing on this Matsui fridge freezer?

Yes, the door is reversible. However, the manual recommends contacting a qualified technician for this procedure. If you choose to do it yourself, follow the detailed steps in the manual, which involve tilting the unit, removing hinges, and transferring parts. Ensure the unit is unplugged and empty before starting.

Why is my fridge making unusual noises?

Most noises are normal. You may hear the compressor motor working or the circulation of refrigerant liquid. Since the introduction of CFC-free gases, these sounds have become more noticeable. This is not a fault and will not affect performance.

How do I defrost the freezer compartment?

Defrost manually when frost reaches about 10 mm thick. Remove food, turn off and unplug the unit, and leave the door open. Use a plastic scraper to remove frost. To speed up, place a bowl of hot water inside and close the door. Do not use metal or sharp tools or electrical appliances. After defrosting, clean and dry the interior.

How should I clean the interior and exterior of the fridge?

First, remove all shelves and drawers. Wipe the inside with a weak solution of bicarbonate soda, then rinse with warm water using a wrung-out sponge. Dry completely before replacing shelves. Clean the exterior with a damp cloth and then apply standard furniture polish, avoiding the door seal. Vacuum the condenser grille at the back with a soft brush attachment.

What are the recommended storage temperatures for fridge and freezer compartments?

The fridge compartment should be at or below 4°C. The freezer compartment should be at or below -18°C. Use a special fridge/freezer thermometer to check if needed. The thermostat dial controls both compartments.

How much clearance space do I need around the fridge freezer for proper operation?

The manual recommends leaving at least 60 mm of free space on both sides, 70 mm at the rear, and 40 mm at the top of the unit. Also ensure the door can fully open to 160°.

Why is there condensation on the outside of my fridge?

Condensation on the exterior may occur due to a change in room temperature. Wipe off the moisture with a dry cloth. If the problem persists, contact a qualified technician for assistance.

What type of light bulb does the interior use and how do I replace it?

The interior uses a 10W SES (Small Edison Screw) bulb. To replace, turn the thermostat to 0 and unplug the unit. Gently pry off the light bulb cover with a flat-bladed screwdriver. Unscrew the old bulb anticlockwise and replace with a new one. Refit the cover and reconnect power.

How should I properly move or transport the fridge freezer?

Hold the unit around its sides or base when moving. Never lift it by holding the edges of the top surface. The unit should be manoeuvred by at least 2 persons. If transporting, keep it upright to avoid damaging the coolant system.

USER MANUAL M50TW12E MATSUI

White refrigerator with two doors, no visible text or symbols on the front panel

Safety Warnings....8

Unpacking....13

Installation....14

Location....14

Levelling the Unit....14

Installing the Spacers ....14

Free Space Requirements ....14

Reversing the Door Swing....15

Cleaning Before Use....18

Before Using Your Unit....18

Product Overview....19

Operation 20

Switching On Your Unit 20

Adjusting the Temperature 20

Noises Inside the Unit! 20

Tips for Keeping Food in the Unit 21

Preparations for Freezing....21

Defrosting Frozen Food 22

Cleaning 23

Defrosting....23

Cleaning the Interior and the Exterior of the Unit 23

Maintenance 24

Changing the Internal Light....24

Care When Handling / Moving the Unit 24

Servicing 24

Switching Off for Long Periods of Time 24

Condensation....24

Disposal 24

Specifications....25

Installing the Spacers 27

Free Space Requirements ....27

Installing the Spacers 40

Free Space Requirements 40

Installing the Spacers 53

Free Space Requirements ....53

Installing the Spacers ....66

Free Space Requirements ....66

For your continued safety and to reduce the risk of injury or electric shock, please follow all the safety precautions listed below.

• Read all instructions carefully before using the unit and keep them for future reference.
• Retain the manual. If you pass the unit onto a third party, make sure to include this manual.
• This appliance is intended for indoor household use and similar applications such as:
  – farm houses and by clients in hotels, motels and other residential type environments;
  – bed and breakfast type environments;
  – catering and similar non-retail applications.

- Ensure that the plug is easily accessible to enable disconnection from the mains supply.

- Keep ventilation openings in the unit enclosure clear of obstructions.

- Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

- Do not use electrical appliances inside the food storage compartments of the unit, unless they are of the type recommended by the manufacturer.

- If the mains cable is damaged, it must be replaced by the manufacturer, its service agent or a qualified technician in order to avoid a hazard.

- Choose a location for your unit away from heat sources such as radiators or fires as refrigerant and vesicant are burnable.

- Do not damage the refrigerant circuit (The refrigerant is a very environmentally friendly gas but is also combustible. Take care when transporting or moving the unit to ensure that the refrigeration circuit is not damaged. In the event of damage avoid naked flames or ignition sources and ventilate the room in which the unit is placed for a few minutes.)

- The unit must be manoeuvred by a minimum of 2 persons.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- Children should be supervised to ensure that they do not play with the unit.

- If your unit is fitted with a lock to prevent children being trapped inside, keep the key out of reach and not in the vicinity of the unit.

- Do not store volatile or flammable substances, such as aerosol cans with a flammable propellant, in the unit.

- Do not store bottles or glass containers in the freezer compartment. Contents can expand when frozen (fizzy drinks) which may break the bottle and damage your freezer compartment.

WARNING

IT IS HAZARDOUS FOR ANYONE OTHER THAN AUTHORISED SERVICE PERSONNEL TO CARRY OUT SERVICING OF REPAIRS WHICH INVOLVE THE REMOVAL OF COVERS.

TO AVOID THE RISK OF AN ELECTRICAL SHOCK DO NOT ATTEMPT REPAIRS YOURSELF.

Thank you for purchasing your new Matsui Fridge Freezer.

We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers.

Read all the safety instructions carefully before use and keep this instruction manual for future reference.

Unpacking

GB

Remove all items from the packaging. Retain the packaging. If you dispose of it please do so according to local regulations.

The following items are included:

Line drawing of a two-tier refrigerator with front and back panels (no text or symbols)

The Main Unit

Freezer Wire Shelf

Glass Shelf x 2

Salad Bin Cover Shelf

Simple line drawing of a rectangular container with an arched cutout on one side (no text or symbols)

Salad Bin

Upper Fridge Door Shelf x 2

Lower Fridge Door Shelf

Rear Spacer x 2

Instruction Manual

Location

When selecting a position for your unit you should make sure the floor is flat and firm, and the room is well ventilated with an average room temperature of between 16^ C and 32^ C. If the room temperature drops below 16^ C your freezer may start to defrost. Avoid locating your unit near a heat source, e.g. cooker, boiler or radiator. Also avoid direct sunlight as it may increase the electrical consumption. Extreme cold ambient temperatures may also cause the unit not to perform properly. This unit is not designed for use in a garage or outdoor installation. Do not drape the unit with any covering.

Levelling the Unit

To do this adjust the two levelling feet at the front of the unit. If the unit is not level, the doors and magnetic seal alignments will not be covered properly.

Installing the Spacers

Screw the spacers to the left and right side of the unit's rear part.

Technical line drawing of a cabinet and a mechanical component with rotational motion indicator (no text or symbols)

Free Space Requirements

When installing the unit, ensure that 60 mm of free space is left at both sides, 70 mm at the rear of the unit and 40 mm at the top of the unit. The door can be opened to the right or the left, depending on which best suits the location. Please ensure there is adequate space for the door to fully open to 160°.

Pure mechanical diagram showing a rectangular block with a curved cutout and dimension lines, no text or symbols present.

Reversing the Door Swing

Tools required: Phillips style screwdriver / Flat bladed screwdriver / Hexagonal spanner

• Ensure the unit is unplugged and empty.
  • To take the door off it is necessary to tilt the unit backwards. You should rest the unit on something solid, e.g. a chair just below the top panel.
• All parts removed must be saved to do the reinstallation of the door.
• Do not lay the unit flat as this may damage the coolant system.
  • We recommend that 2 people handle the unit during assembly.

• If you want to have the door swing reversed, we recommend that you contact a qualified technician. You should only try to reverse the door yourself if you believe that you are qualified to do so.

• Remove the 2 screw covers first, then undo the screws underneath.

Line drawing of a device with a screwdriver inserted into a tray (no text or symbols)

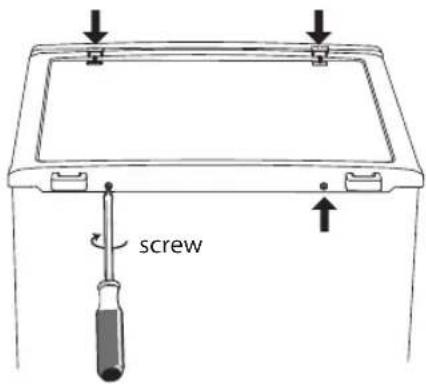

1. Remove the 2 screws on the back.

1. Lift the top cover away from the fridge.

Line drawing of a rectangular box with a lid and an arrow pointing upward (no text or symbols)

INSTALLATION

1. Remove the three screws, then remove the upper hinge that hold the door in place. Lift the door and place it on a padded surface to prevent it from scratching.

1. Remove the bolt with a screwdriver and flip the hinge bracket. Then reattach the bolt to the hinge bracket.

1. Take off the middle hinge by removing the screws. And then lift the lower door and place it on a padded surface to prevent it from scratching.

Technical line drawing of a mechanical clamp or bracket assembly with a magnified inset showing internal components (no text or symbols)

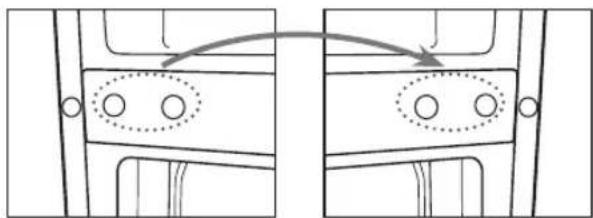

1. Move the hinge hole cover of lower door from left side to right side.

Diagram showing two identical mechanical components with circular features and directional arrows indicating motion (no text or symbols)

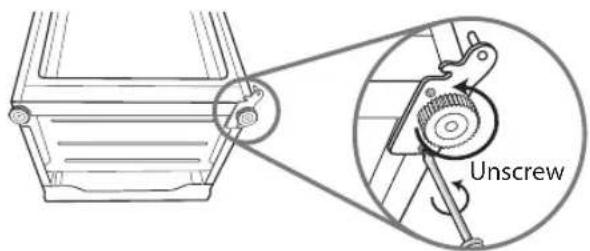

1. Remove the screws and bottom hinge. Then remove the adjustable feet from both side.

INSTALLATION

1. Unscrew and remove the bottom hinge pin, turn the bracket over and replace it.

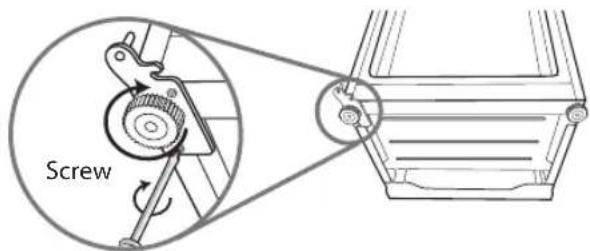

1. Refit the bracket fitting the bottom hinge pin. Replace both adjustable feet. Transfer the lower door to the property position.

1. Make the middle hinge reverse the direction 180^ , then transfer it to the left property position. Make the middle hinge pin in the upper hole of the lower door, then tight the bolts.

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Ensure the freezer door is aligned horizontally and vertically, so that the seals are closed on all sides before finally tightening the hinge.

INSTALLATION

1. Place the upper door back on. Ensure the fridge door is aligned horizontally and vertically so that the seals are closed on all sides before finally tightening the top hinge.
2. Insert the hinge bracket and screw it to the top of the unit.
3. Use a spanner to tighten it if necessary.
4. Put the top cover and then screw back.

1. With the doors closed, check that the doors are aligned horizontally and vertically and that the seals are closed on all sides before finally tightening the bottom hinge. Re-adjust the levelling feet as needed.

Cleaning Before Use

Wipe the inside of the unit with a weak solution of bicarbonate soda. Then rinse with warm water using a 'wrung-out' sponge or cloth. Wipe completely dry before replacing the shelves and salad bin. Clean the exterior of the unit with a damp cloth.

If you require more information refer to the Cleaning section.

• Before Plugging in YOU MUST

Check that you have a socket which is compatible with the plug supplied with the unit.

• Before Turning On!

Do not turn on until two hours after moving the unit. The coolant fluid needs time to settle.

Before Using Your Unit

Before placing any food in your unit, turn it on and wait for 24 hours, to make sure it is working properly and to allow it time to fall to the correct temperature. Your unit should not be overfilled.

GB

Switching On Your Unit

1. Connect the mains cable to the mains socket. The internal temperature of your unit is controlled by a thermostat. There are eight settings, of which position 7 is the coldest and position 0 turns the unit off.
2. Adjust the thermostat control dial to the desired position, bear in mind that the higher the number, the lower the temperature. Position 4 is the recommended setting when operating at normal room temperature (between 16°C and 32°C).
3. The unit may not operate at the correct temperature if it is in a particularly hot or a particularly cold room, or if you open the doors often.
4. To ensure that the unit is cool enough to sufficiently chill and freeze your food, wait 24 hours before filling it with food.
5. If you are concerned that your unit is not being kept cold enough and wish to check the temperature, you will need a special fridge/freezer thermometer. These are available from most supermarkets and hardware shops. Place the thermometer in either the fridge or freezer compartment and leave overnight. The correct temperature for the fridge compartment should be lower than 4°C. The correct temperature for the freezer compartment should be -18°C or lower.

Adjusting the Temperature

The internal temperature of the unit is controlled by a thermostat. The recommended position is between 1 to 2 for colder working environments (i.e. during winter) and between 6 to 7 for hotter ambient environments. Please adjust according to the environment.

Noises Inside the Unit!

You may notice that your unit makes some unusual noises. Most of these are perfectly normal, but you should be aware of them!

These noises are caused by the circulation of the refrigerant liquid in the cooling system. It has become more pronounced since the introduction of CFC free gases. This is not a fault and will not affect the performance of your unit. This is the compressor motor working, as it pumps the refrigerant around the system.

Tips for Keeping Food in the Unit

• Cooked meats/fishes should always be stored on a shelf above raw meats/fishes to avoid bacterial transfer. Keep raw meats/fishes in a container which is large enough to collect juices and cover it properly. Place the container on the lowest shelf.
• Leave space around your food, to allow air to circulate inside the compartments. Ensure all parts of the unit are kept cool.
• To prevent transfer of flavours and drying out, pack or cover the food separately. Fruit and vegetables do not need to be wrapped.
• Always let pre-cooked food cool down before you put in the unit. This will help to maintain the internal temperature of the unit.
• To prevent cold air escaping from the unit, try to limit the number of times you open the doors. We recommend that you only open the doors when you need to put food in or take food out.

Preparations for Freezing

- Use quality food and handle it as little as possible. Freeze food in small quantities as it freezes faster, takes less time to defrost and enables you to control the quantity you need better.

- Leave cooked food to cool completely. Chill food before freezing if possible.

- Consider how you will want to cook the food before freezing it.

- Don't freeze food in metal containers if you may want to microwave it straight from the freezer.

- Use special freezer bags, freezer film, polythene bags, plastic containers, and aluminium foil (heavy duty grade only). If in doubt, double wrap your food. Don't use aluminium foil for acidic foods, e.g. citrus fruits. Don't use thin cling film, glass, or uncleaned used food containers.

- Exclude as much air from the container as possible. You could buy a special vacuum pump which sucks excessive air out of the packaging.

- Leave a small amount of air space when freezing liquids to allow expansion.

- You can use the space in the freezer most efficiently if you freeze liquids (or solids with liquids, e.g. stew) in square blocks. This is known as "Preforming". Pour the liquid into a polythene bag which is inside a square sided container. Freeze it, and then remove it from the container and seal the bag.

- Label your frozen foods as they will look the same when in frozen state. Use special fridge freezer tapes, labels and pens with different colours. This allows you to easily organise and to effectively use the freezer. Write the contents and date; otherwise the frozen food might exceed the storage time and this could cause food poisoning. Please refer to your food packaging for the recommended storage time.

- You may also add the weight and cooking notes, e.g. "defrost first", "cook from frozen" and keep a separate log of what is in each drawer. This will save opening the door and searching around unnecessarily.

Illustration of a hand pouring liquid from a container into a bag (no text or symbols)

Defrosting Frozen Food

1. Take the frozen food out from the freezer compartment and uncover the frozen food. Let it defrost at room temperature. Don't forget that defrosting in a warm area encourages the growth of bacteria and low temperature cooking may not destroy dangerous bacteria.
2. Drain off and throw away any liquid lost during defrosting.
3. Always make sure there are no ice-crystals in the food before cooking, particularly with meat. These crystals indicate that the food has not fully defrosted.
4. Cook food as soon as possible after defrosting.
5. Many microwaves and ovens have a defrost setting. To avoid bacterial build up, only use these if you intend to cook the food immediately afterwards.

Never re-freeze anything that has been defrosted out unless you cook it again, to kill off harmful bacteria. Never re-freeze defrosted shellfish. Re-seal packs properly after removing items. This prevents drying or freezer-burn and a build up of frost on any remaining food.

Defrosting

Frost might build up in the freezer compartment after it has been used for a period of time. Scrape away the frost using a plastic scraper (not included).

- Do not use a metal or sharp instrument to scrape away the frost, nor should you use any electrical appliances to aid defrosting.

We recommend that defrosting should be carried out when the frost layer builds up to 10mm (\~0.39"). Choose a time when the stock of frozen food is low, follow these procedures:

1. Take out the food, turn the unit off at the mains supply and leave the door open. Ideally, the frozen food should be put into another freezer. If this is not possible, wrap the food in several sheets of newspaper or large towels and then a thick blanket to keep it cool.

2. Place a dry towel on the edge of the compartment shelf. Scrape away the frost using a plastic scraper. Defrosting the remaining frost can be speeded up by placing a bowl of hot water inside the freezer compartment and closing the door. As the solid frost loosens, scrape it away with the plastic scraper.

3. When defrosting is complete, clean your unit's interior and exterior.

Cleaning the Interior and the Exterior of the Unit

- Remove all the shelves and drawers.

- Wipe the inside of the unit with a weak solution of bicarbonate soda and then rinse with warm water using a sponge or cloth. Wipe completely dry before replacing the shelves and drawers.

- Use a damp cloth to clean the exterior, and then wipe with a standard furniture polish. Make sure that the door is closed to avoid the polish getting on the magnetic door seal or inside the unit.

- The grille of the condenser at the back of the unit and the adjacent components can be vacuumed using a soft brush attachment.

Changing the Internal Light

1. Before carrying out the bulb replacement always adjust the thermostat control dial to Position OFF, then disconnect the mains supply.
2. Use a flat bladed screwdriver and gently pry off the light bulb cover.
3. Remove the old bulb by unscrewing in an anticlockwise direction.
4. Replace with a new bulb (10W SES).
5. Refit the light bulb cover and reconnect the unit to the mains supply and switch on by adjusting the thermostat.

Technical line drawing of a mechanical component with no visible text or symbols

Care When Handling / Moving the Unit

Hold the unit around its sides or base when moving it. Under no circumstances should it be lifted by holding the edges of the top surface.

Servicing

The unit should be serviced by an authorised engineer and only genuine spare parts should be used. Under no circumstances should you attempt to repair the unit yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunction. Contact a qualified technician.

Switching Off for Long Periods of Time

When the unit is not in use for a long period of time, disconnect it from the mains supply, empty all food and clean the unit, leaving the door ajar to prevent unpleasant smells.

Condensation

Condensation may appear on the outside of the unit. This may be due to a change in room temperature. Wipe off any moisture residue. If the problem continues, please contact a qualified technician for assistance.

Disposal

Old units still have some residual value. An environmentally friendly method of disposal will ensure that valuable raw materials can be recovered and used again. The refrigerant used in the unit and insulation materials require special disposal procedures. Ensure that none of the pipes on the back of the unit are damaged prior to disposal.

Up to date information concerning options of disposing of your old unit and packaging from the new one can be obtained from your local council office.

When disposing of an old unit break off any old locks or latches and remove the doors as a safeguard.

Model M50TW12E
Appliance Category Category 7 (Refrigerator - Freezer)
Overall Dimension (W x D x H) 480 x 530 x 1160 mm
Fresh Food Storage Compartment Volume 89L
Frozen Food Storage Volume	29L ***
Defrosting Type Manual Defrost
Climate Class N
This appliance is intended to be used at an ambient temperature between 16°C and 32°C.
Storage Temperature	Freezer: ≤ -18°CFridge: 0-8°C, average ≤ 4°C
Energy Consumption 0.483kWh/24h
Energy consumption 176 kWh per year, based on standard test results for 24 hours. Actual energy consumption will depend on how the appliance is used and where it is located.
Airborne Acoustical Noise 42dB
Energy Grading A+
EU Ecolabel N/A
Temperature Rise Time 15 hrs
Freezing Capacity 2 kg / 24 h
Rated Voltage	220-240V~
Rated Current	0.48A

Features and specifications are subject to change without prior notice.

Takk for at du kjøpte ny Matsui kjøleskap/fryser.

Line drawing of a two-door refrigerator with front and back panels (no text or symbols)

Hovedenheten

Trådhylle i fryser

Glasshylle x 2

Hylle over salatskuff

Simple line drawing of a rectangular container with an arched cutout on one side (no text or symbols)

Salatskuff

Bruksanvisning

Plassering

Innstallering av avstandsstykker

Technical line drawing of a cabinet and a mechanical component with rotational motion indicator (no text or symbols)

Plassbehov

Pure mechanical diagram showing a rectangular block with a curved cutout and dimension lines, no text or symbols present.

Line drawing of a device with a screwdriver inserted into a tray (no text or symbols)

1. Fjern de to skruene på baksiden.

Line drawing of a rectangular box with a lid and an arrow pointing upward (no text or symbols)

INSTALLASJON

Technical line drawing of a mechanical clamp or bracket assembly with a magnified inset showing internal components (no text or symbols)

Diagram showing two identical mechanical components with circular features and directional arrows, no text or symbols present.

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Illustration of a hand pouring liquid from a container into a container with a lid (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a two-tier refrigerator with front and back panels (no text or symbols)

Huvudenhet

Trådhylla frys

Glashylla x 2

Lock salladslåda

Simple line drawing of a rectangular container with an arched cutout on one side (no text or symbols)

Salladslåda

Bruksanvisning

Plats

Technical line drawing of a cabinet and a mechanical component with rotational motion indicator (no text or symbols)

Luftcirkulationsbehov

Pure mechanical diagram showing a rectangular block with a curved cutout and dimension lines, no text or symbols present.

Line drawing of a mechanical device with a screwdriver inserted, showing no text or symbols

Line drawing of a rectangular box with a lid and a small inset showing a downward arrow and a small symbol (no text or labels)

INSTALLATION

Technical line drawing of a mechanical clamp or bracket assembly with a magnified inset showing internal components (no text or symbols)

Diagram showing two identical mechanical components with circular features and directional arrows, no text or symbols present.

INSTALLATION

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Illustration of a hand pouring liquid from a container into a bag (no text or symbols)

Tina upp fryst mat

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a two-door refrigerator with lid and front panel (no text or symbols)

Laite

Simple line drawing of a rectangular container with an arched cutout on one side (no text or symbols)

Salaattilokero

Käyttöopas

Paikka

Technical line drawing of a cabinet with a magnified inset showing rotational motion around a cylindrical component (no text or symbols)

Pure mechanical diagram showing a rectangular block with a curved cutout and dimension lines, no text or symbols present.

Line drawing of a device with a screwdriver inserted into a tray (no text or symbols)

Line drawing of a rectangular container with an upward arrow and a small inset component (no text or symbols)

ASENNUS

Technical line drawing of a mechanical clamp or bracket assembly with a magnified inset showing internal components (no text or symbols)

Diagram showing two identical mechanical components with circular features and an arrow indicating rotation or assembly (no text or symbols)

ASENNUS

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Illustration of a hand pouring liquid from a container into a container with a lid (no text or symbols)

Pakastetun ruoan sulatus

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a two-tier refrigerator with front and back panels (no text or symbols)

Hovedenheden

Simple line drawing of a rectangular container with an arched cutout on one side (no text or symbols)

Salatbeholder

∅verste lägehylde til fryser x 2

Brugervejledning

Placering

Technical line drawing of a cabinet and a mechanical component with rotational motion indicator (no text or symbols)

Krav til fri plads

Pure mechanical diagram showing a rectangular block with a curved cutout and dimension lines, no text or symbols present.

Line drawing of a device with a screwdriver inserted, showing no text or symbols

Line drawing of a rectangular box with an upward arrow and a small mark on the lid (no text or symbols)

INSTALLATION

Technical line drawing of a mechanical clamp or bracket assembly with a magnified inset showing internal components (no text or symbols)

Diagram showing two identical mechanical components with circular features, connected by an arrow indicating rotation or assembly (no text or symbols present)

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Illustration of a hand pouring liquid from a container into a container with a small container (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

The symbol on the product or its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment.

For more information about where you can drop off your waste for recycling, please contact your local authority, or where you purchased your product.

NO
