Brand	Exido
Model	245-076
Product Type	Coffee Maker (Drip Filter)
Dimensions (L x W x H)	Approx. 30 cm x 20 cm x 35 cm
Weight	Approx. 2.1 kg
Power Supply	220-240 V, 50/60 Hz, 1000 W
Capacity	Up to 10 cups (1.25 L)
Water Tank	Removable, transparent with level markings
Filter Type	Permanent filter (included) or paper filter (#4 size)
Keep Warm Function	Yes, automatic keep warm for 40 minutes
Auto Shut-off	Yes, after 1 hour of inactivity
Pause & Serve Function	Yes, allows pouring a cup mid-cycle
Anti-Drip System	Yes
Indicators	Power on/off light, water level window
Cord Length	Approx. 80 cm
Cleaning & Descaling	Descaling recommended every 2-3 months with vinegar or descaling solution; wipe exterior with damp cloth
Safety Features	Overheat protection, non-slip feet
Spare Parts Availability	Replacement carafe, filter basket (contact customer service)
Reparability	User-replaceable parts: carafe, filter; other repairs by authorized service center
Included Accessories	Glass carafe, permanent filter, scoop

Frequently Asked Questions - 245-076 Exido

How do I set up the coffee maker for first use?

Before first use, wash the carafe, filter basket, and lid with warm soapy water. Rinse thoroughly. Run a cycle with water only (no coffee) to remove any residues. Then your coffee maker is ready.

How many cups does the Exido 245-076 coffee maker brew?

It has a capacity of up to 10 cups (1.25 liters). A cup is measured as 125 ml (4.2 fl oz). Do not exceed the maximum fill line.

Can I use paper filters with this coffee maker?

Yes, the filter basket accommodates standard #4 paper cone filters. Alternatively, you can use the included permanent filter basket.

How do I clean and descale the coffee maker?

Descaling is recommended every 2-3 months. Fill the water tank with a mixture of equal parts water and white vinegar, run a brew cycle, then run 2-3 cycles with fresh water to rinse. Wipe the exterior with a damp cloth. Do not immerse the base in water.

Why is my coffee maker not brewing?

Check if the water tank is filled, the filter basket is correctly inserted, and the carafe is placed properly. Ensure the power cord is plugged in and the machine is turned on. If the indicator light is off, press the power switch. Also check if the auto shut-off hasn't activated during a pause.

Can I brew less than a full pot?

Yes, you can brew any amount up to the max line. For best results, use at least 2 cups (250 ml) of water to ensure proper extraction.

How do I use the Pause & Serve function?

To pour a cup mid-brew, simply remove the carafe for up to 30 seconds. The anti-drip valve stops the flow. Replace the carafe to continue brewing. Do not remove the carafe for longer to avoid overflow.

What should I do if the coffee tastes bitter?

Bitter coffee can be caused by over-extraction. Use a coarser grind, reduce the amount of coffee grounds, or run a cleaning/descaling cycle to remove mineral buildup. Also check that you're using fresh, quality coffee.

Is the carafe dishwasher safe?

The glass carafe is top-rack dishwasher safe. However, the lid, filter basket (both permanent and drip), and water tank are not dishwasher safe to prevent warping. Wash them by hand with mild detergent.

Where can I find replacement parts for this model?

Replacement carafes, filter baskets, and decanters are available through Exido customer service or selected retailers. Please contact Exido support with your model number 245-076 for exact part availability.

USER MANUAL 245-076 Exido

OVERSIGT OVER APPARATETS DELE

OFTE STILTE SP∅RSMÅL

To get the best out of your new appliance, please read this user guide carefully before using it for the first time. Take particular note of the safety precautions.

We also recommend that you keep the user guide for future reference, so that you can remind yourself of the functions of your appliance.

SAFETY MEASURES

General

• Incorrect use of this appliance may cause personal injury and damage.
• Use for its intended purpose only. The manufacturer is not responsible for any injury or damage resulting from incorrect use or handling (see also Guarantee Terms).
• For domestic use only. Not for outdoor or commercial use.
• For connection to 230 V, 50 Hz only. The appliance must be earthed.
• The appliance, cord or plug must not be placed in water or any other liquid.
• Never touch the appliance, cord or plug with wet or damp hands.
• Keep the appliance under constant supervision while in use. keep an eye on children.
• Only use accessories manufactured or recommended by the manufacturer.

Use

• Always place the appliance on a dry, level, firm and heat resistant surface well away from any edges.
• Always place the appliance at a safe distance from flammable objects such as curtains, tablecloths or similar.
• Do not cover.
• The glass and metal parts get very hot during use. Do not touch them due to the danger of burns.
• Freshly brewed coffee and the steam it generates are very hot. Take care to avoid scalding yourself or others.
• Never switch appliance on unless there is water in the reservoir or coffee in the coffee pot.
• Never put hot or boiling water in the reservoir. Use cold water only. Ensure the appliance is switched off when filling with water.
• The water level in the reservoir must not exceed the top mark on the water level gauge.
• Never put the glass pot on a cooking ring or in an oven/microwave oven. Do not place it on the hotplate when it is empty or almost empty and the appliance is switched on.
• Do not use the glass pot if it has a loose or defective handle, or if it is broken in any other way.
• Please note that the appliance will remain hot for a while after you switch it off. Always allow it to cool completely before you put it away or clean it.

Cord and plug

• Do not let the cord hang out over the edge of the work surface.
• Check that it is not possible to pull or trip over the cord or any extension cord.
• Keep the cord and appliance away from heat sources, hot objects, naked flames and the hot parts of the appliance.
• Turn off the appliance and remove the plug from the socket when cleaning, or when not in use. Avoid pulling the cord when removing the plug from the socket. Instead, hold the plug.
• Ensure that the cord is fully extended.
• The cord must not be twisted or wound around the appliance.
• Check regularly that neither cord nor plug is damaged and do not use if they are, or if the appliance has been dropped or damaged in any other way.
• If the appliance, cord or plug have been damaged, have them inspected and if necessary repaired by an authorised repair engineer. Never try to repair the appliance yourself. Please contact the store where you bought the appliance for repairs under guarantee. Unauthorised repairs or modifications to the appliance will invalidate the guarantee.

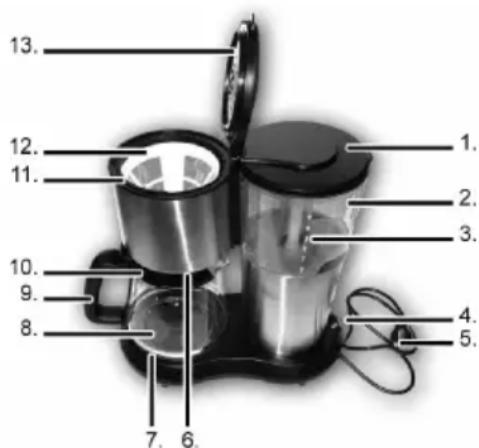

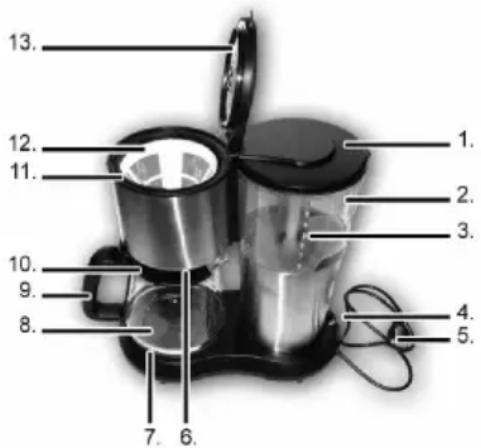

KEY TO MAIN COMPONENTS OF THE APPLIANCE

1. Lid for water reservoir
2. Water reservoir
3. Water level gauge
4. On/off button with control light
5. Cord with plug
6. Anti-drip device (not visible on picture)
7. Hotplate
8. Glass pot
9. Handle
10. Lid for glass pot
11. Filter funnel
12. Permanent filter
13. Lid for filter funnel

PRIOR TO FIRST USE

• Unroll the cord (5) fully before use.
• To rinse out the inside, fill the reservoir (2) with water, switch on and allow the water to run through the appliance, before using it to make coffee.

USING THE APPLIANCE

1. Plug in and switch on the power.
2. Flip open the cover for the water reservoir (1) and carefully pour the required amount of water into the water reservoir. Close the lid again.
   o Do not fill above the top mark on the level gauge (3).
3. Open the lid for the filter funnel (13), and flip it all the way back. Place a filter (size 1 x 4) in the filter funnel (11), and put coffee into it. Alternatively, use the permanent filter (12) instead of disposable filters. Close the lid again.

4. Ensure that the lid (10) for the glass pot is down and then place the pot (8) on the hotplate (7) beneath the filter funnel.

5. Switch on the appliance by switching the on/off button (4) to "I". The control light in the switch is lit and the appliance starts working.

- You can remove the glass pot during brewing to pour a cup. The automatic anti-drip device (6) ensures that coffee does not drip from the filter onto the hotplate. As soon as you replace the glass pot, brewing will resume. Make sure you put the pot back within 30 seconds or less, as otherwise the filter funnel could overflow.

o Always make sure the lid on the glass pot is closed, otherwise the anti-drip device does not work correctly.

1. Once the coffee is ready, the hotplate under the glass pot will keep it hot.

2. Switch off by pushing the on/off button to the "0" position.

o The appliance is fitted with an overheating cut-out which automatically switches it off if you forget.

CLEANING

• Remove plug from the mains socket, and allow the appliance to cool down before cleaning it.
• The appliance must not be submerged in any form of liquid.
• Clean the appliance by wiping it with a damp cloth. A little detergent can be added if the appliance is heavily soiled.
• Never use a scouring pad or any form of strong solvents or abrasive cleaning agents to clean the appliance, as those may damage the outside surfaces of the appliance.
• The filter funnel, the permanent filter and the glass pot can be washed by hand or in a dishwasher.

DESCALING

The lime content of ordinary tap water means limescale may gradually be deposited inside the appliance. This limescale may be loosened using acetic acid (NOT ordinary vinegar) or descaler, available in supermarkets, etc.

1. Mix 100 ml acetic acid with 300 ml cold water, or follow the instructions on the descaler packaging.
2. Pour the solution into the reservoir and switch on the appliance using the on/off button.
3. Allow half of the solution to run through, and then switch off using the on/off button.
4. Switch off for approx. 10 minutes, and then switch on again, and allow the rest of the solution to run through.
5. To remove the final residues of limescale and acetic acid, pour a pot of cold water into the water reservoir, switch on and allow the water to run through.
6. Run fresh water through the appliance 3 times (as described in point 5). The appliance is now ready for use.

INFORMATION ON DISPOSAL AND RECYCLING OF THIS PRODUCT

Please note that this Adexi product is marked with this

This means that this product must not be disposed of together with ordinary household waste, as electrical and electronic waste must be disposed of separately.

In accordance with the WEEE directive, every member state must ensure correct collection, recovery, handling and recycling of electrical and electronic waste. Private households in the EU can take used equipment to special recycling stations free of charge. In some member states you can, in certain cases, return the used equipment to the retailer from whom you purchased it, if you are purchasing new equipment.

Contact your retailer, distributor or the municipal authorities for further information on what to do with electrical and electronic waste.

GUARANTEE TERMS

The guarantee does not apply:

• if the above instructions are not followed
• if the apparatus has been interfered with
• if the appliance has been mishandled, subjected to rough treatment, or has suffered any other form of damage
• If faults have arisen because of faults in your electricity supply.

Due to the constant development of our products in terms of function and design, we reserve the right to make changes to the product without warning.

FREQUENTLY ASKED QUESTIONS

If you have any questions regarding use of the appliance and cannot find the answer in this user guide, please try our website at www.adexi.eu.

Go to the "Consumer Service" menu, click on "Question & Answer" to see the most frequently asked questions.

You can also see contact details if you need to contact us for technical issues, repairs, accessories and spare parts.

IMPORTER

Adexi Group

www.adexi.eu

We cannot be held responsible for any printing errors.
