245-089 - Coffee maker Exido - Free user manual and instructions

Product Type	Coffee Maker
Model	245-089
Brand	Exido
Power Supply	230 V, 50 Hz, 13 A
Capacity	Up to 12 cups
Water Reservoir	Removable, max fill line at 12 cup mark
Filter Type	Size 1x4 paper filters or included permanent filter
Anti-Drip Device	Yes, automatic
Hotplate	Keeps coffee warm after brewing
Overheating Protection	Automatic cut-out
Material	Plastic housing, glass carafe
Cord Length	Approximately 0.8 m
Weight	Approximately 1.2 kg
Dimensions (L x W x H)	Approximately 25 x 20 x 30 cm
Cleaning	Wipe exterior with damp cloth; removable parts dishwasher safe
Descaling	Use acetic acid or commercial descaler every few months
Safety Features	Auto shut-off when overheating; cool-touch handle
Plug Type	BS 1363 13-amp (UK)
Intended Use	Domestic indoor use only

Frequently Asked Questions - 245-089 Exido

Can I use paper filters with this coffee maker?

Yes, you can use standard size 1x4 paper filters or the included permanent filter.

What is the maximum amount of water I can put in the reservoir?

Do not exceed the 12 cup mark on the water level indicator (approximately 1.5 liters).

How do I descale the coffee maker?

Mix 100 ml acetic acid with 300 ml cold water (or use a commercial descaler). Run half through, let sit for 10 minutes, then run the rest. Follow with 3 cycles of fresh water.

Can I wash the glass carafe and filter in the dishwasher?

Yes, the filter funnel, permanent filter, and glass pot are dishwasher safe. Allow to dry fully before next use.

What should I do if the coffee maker stops working?

Check if it has overheated and triggered the automatic cut-out. Unplug, let it cool, then try again. If it persists, contact support.

Is the coffee maker suitable for making espresso or pods?

No, this is a standard drip coffee maker for ground coffee only. It does not support pods or espresso.

How long does the hotplate keep the coffee warm?

The hotplate stays on as long as the machine is switched on. For safety, it has an overheating cut-out if left on too long.

Can I remove the carafe while brewing?

Yes, the anti-drip device stops coffee from dripping. Replace the carafe within 30 seconds to avoid overflow.

What type of plug does it have?

It comes with a BS 1363 13-amp plug (UK standard). The wires are color-coded: blue (neutral), brown (live), green/yellow (earth).

How should I clean the exterior?

Wipe with a damp cloth and mild detergent if needed. Never immerse in water or use abrasive cleaners.

USER MANUAL 245-089 Exido

OVERSIGT OVER APPARATETS DELE

F∅R APPARATET TAS I BRUK F∅RSTE GANG

ENNEN ENSIMMÄISTÄ KÄYTTÖKERTAA

To get the best out of your new appliance, please read this user guide carefully before using it for the first time. Take particular note of the safety precautions.

We also recommend that you keep the instructions for future reference, so that you can remind yourself of the functions of your appliance.

SAFETY MEASURES

General

• Incorrect use of this appliance may cause personal injury and damage to the appliance.
• Use for its intended purpose only. The manufacturer is not responsible for any injury or damage resulting from incorrect use or handling (see also Guarantee Terms).
• For domestic use only. Not for outdoor or commercial use.
  • For connection to 230 V, 50 Hz only.
• Do not immerse the appliance, cord or plug in water and make sure no water enters the appliance.
• Never touch the appliance, cord or plug with wet or damp hands.
• Do not expose to direct sunlight, high temperatures, humidity, dust or corrosive substances.
• Never leave unattended when in use, and Keep an eye on children when the grill is in use.
• The appliance is not to be used by persons with reduced sensitivity, physical or mental disabilities or persons who are unable to use the appliance unless supervised or instructed by a person responsible for their safety.
• Only use accessories manufactured or recommended by the manufacturer.

Use

• Always place the appliance on a dry, level, firm and heat-resistant surface well away from any edges.
- The appliance must not be placed or stored near other sources of heat.
- Do not cover.
- The glass and metal parts get very hot during use. Do not touch them due to the danger of burns.
- Freshly-brewed coffee and the steam it generates are very hot. Take care to avoid scalding yourself or others.
- Never switch appliance on unless there is water in the reservoir or coffee in the coffee pot.
- Never put hot or boiling water in the reservoir. Use cold water only. Ensure the apparatus is switched off when filling with water.
- The water level in the reservoir must not exceed the top mark on the water level gauge.
- Never put the glass pot on a cooking ring or in an oven/microwave oven. Do not place it on the hotplate when it is empty or almost empty and the apparatus is switched on.
- Do not use the glass pot if it has a loose or defective handle, or if it is broken in any other way.

- Please note that the appliance will remain hot for a while after you switch it off. Always allow it to cool completely before you put it away or clean it.

Cord and plug

• Do not let the cord hang out over the edge of the work surface.
• Keep the cord away from heat sources, hot objects, naked flames and the hot parts of the appliance.
• Turn off the appliance and remove the plug from the socket when cleaning or when not in use. Avoid pulling the cord when removing the plug from the socket. Instead, hold the plug.
• Ensure that the cord is fully extended.
• Check regularly that neither cord nor plug is damaged and do not use if they are, or if the appliance has been dropped or damaged in any other way.
• If the appliance, cord or plug have been damaged, have them inspected and if necessary repaired by an authorised repair engineer. Never try to repair the appliance yourself. Please contact the store where you bought the appliance for repairs under the guarantee. Unauthorised repairs or modifications to the appliance will invalidate the guarantee.

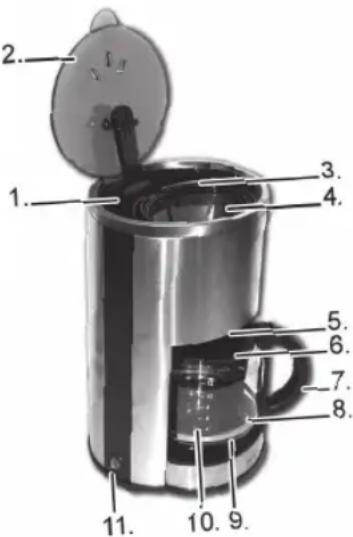

KEY TO MAIN COMPONENTS OF THE APPLIANCE

1. Water reservoir

2. Lid for water reservoir and filter funnel

3. Filter funnel

4. Permanent filter

5. Anti-drip device (not visible on picture)

6. Lid for glass pot

7. Handle

8. Glass pot

9. Hotplate

10. Water level indicator

11. On/off button with control light

There is also a measuring spoon.

PRIOR TO FIRST USE

• Unroll the cord fully before use.
- To rinse out the inside, fill the reservoir (1) with water, switch on and allow the water to run through the appliance, before using it to make coffee.

USING THE APPARATUS

1. Flip open the cover for the water reservoir and the filter (2) and carefully pour the required amount of water into the water reservoir. Close the lid again.

o Fill the water reservoir using the glass pot. Do not pour more than the equivalent of 12 cups of coffee (marked 12 on the water level indicator on the glass pot (10)).

1. Place a filter (size 1 x 4) in the filter funnel (3), and put coffee into it. Alternatively, use the permanent filter (4) instead of disposable filters. Close the lid again.
2. Ensure that the lid (6) for the glass pot is down and then place the pot (8) on the hotplate (9) beneath the filter funnel.
3. Switch on the appliance by switching the on/off button (11) to "I". The control light in the switch is lit and the appliance starts working.

- You can remove the glass pot during brewing to pour a cup. The automatic anti-drip device (5) ensures that coffee does not drip from the filter onto the hotplate. As soon as you replace the glass pot brewing will resume. Make sure you put the pot back within 30 seconds or less, as otherwise the filter funnel could overflow.

o Always make sure the lid on the glass pot is closed, otherwise the anti-drip device does not work correctly.

1. Once the coffee is ready, the hotplate under the glass pot will keep it hot.
2. Switch off by pushing the on/off button to the "0" position.
   The apparatus is fitted with an overheating cut-out which automatically switches it off if you forget.

CLEANING

When cleaning the appliance, you should pay attention to the following points:

• Remove plug from the mains socket, and allow the appliance to cool down before cleaning it.
• Do not immerse the appliance in water and make sure no water enters the appliance.
• Clean the appliance by wiping it with a damp cloth. A little detergent can be added if the appliance is heavily soiled.
• Never use a scouring pad or any form of strong solvents or abrasive cleaning agents to clean the appliance, as those may damage the outside surfaces of the appliance.
• The filter funnel, the permanent filter and the glass pot can be washed by hand or in a dishwasher.
• IMPORTANT! Allow to dry fully after cleaning before using again. Do not use the appliance if damp.

DESCALING

The lime content of ordinary tap water means limescale may gradually be deposited inside. This limescale may be loosened using acetic acid (NOT ordinary vinegar) or descaler, available in supermarkets, etc.

1. Mix 100 ml acetic acid with 300 ml cold water, or follow the instructions on the descaler packaging.
2. Pour the solution into the reservoir and switch on the apparatus using the on/off button.
3. Allow half of the solution to run through, and then switch off using the on/off button.
4. Switch off for around 10 minutes, and then switch on again, and allow the rest of the solution to run through.
5. To remove the final residues of limescale and acetic acid, pour a potful of cold water into the water reservoir, switch on and allow the water to pass through.
6. Run fresh water through the appliance 3 times (as described in point 5). The apparatus now ready for use.

FOR UNITED KINGDOM ONLY

Plug wiring:

This product is fitted with a BS 1363 13-amp plug. If you have to replace the fuse, only those that are ASTA or BSI approved to BS1362 and with a rated current of 13 amps should be used. If there is a fuse cover fitted, this cover must be refitted after changing the fuse. If the fuse cover is lost or damaged, the plug must not be used. You must also check if the socket outlets in your home fit with the plug of the appliance. If the socket outlet in your home does not fit with the plug, the plug must be removed and disposed of safely as insertion of the plug into the socket is likely to cause electric hazard. A replacement plug should be wired according to following description.

Important

This appliance must be earthed. The wires in the cord set are coloured thus:

BLUE- Neutral, Brown-Live, Green& Yellow-earth (For detachable plug only)

As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

The wire that is coloured Green& Yellow must be connected to the terminal in the plug that is marked with the letter E or by the earth symbol, or coloured green& yellow.

The wire that is coloured blue must be connected to the terminal that is marked with the letter N or coloured black.

The wire that is couloured brown must be connected to the terminal that is marked with the letter L or coloured red.

INFORMATION ON DISPOSAL AND RECYCLING OF THIS PRODUCT

Please note that this Adexi product is marked with this symbol:

This means that this product must not be disposed of together with ordinary household waste, as electrical and electronic waste must be disposed of separately. In accordance with the WEEE directive, every member state must ensure correct collection, recovery, handling and recycling of electrical and electronic waste. Private households in the EU can take used equipment to special recycling stations free of charge. In some member states you can, in certain cases, return the used equipment to the retailer from whom you purchased it, if you are purchasing new equipment. Contact your retailer, distributor or the municipal authorities for further information on what you should do with electrical and electronic waste.

GUARANTEE TERMS

The guarantee does not apply:

• if the above instructions have not been followed
• if the appliance has been interfered with
- if the appliance has been mishandled, subjected to rough treatment, or has suffered any other form of damage
- if faults have arisen as a result of faults in your electricity supply.

Due to the constant development of our products in terms of function and design, we reserve the right to make changes to the product without prior warning.

FREQUENTLY ASKED QUESTIONS

If you have any questions regarding use of the appliance and cannot find the answer in this user guide, please try our website at www.adexi.eu.

Go to the "Consumer Services" menu, click on "Frequently asked questions" to see the most frequently asked questions.

You can also see contact details if you need to contact us for technical issues, repairs, accessories and spare parts.

IMPORTER

Adexi Group

www.adexi.eu

We cannot be held responsible for any printing errors.
