Product Type	Countertop Microwave Oven
Model	58040
Brand	KORONA
Capacity	20 L
Power Output	800 W
Power Levels	5 (including defrost)
Control Type	Rotary dials and push buttons
Display	Digital LED timer
Turntable	Yes, glass turntable (diameter 255 mm)
Timer	Up to 30 minutes
Interior Light	Yes
Door Type	Side-opening with handle
Dimensions (H x W x D)	260 x 450 x 350 mm
Weight	10.5 kg
Power Supply	220-240 V, 50 Hz
Power Consumption	1200 W
Material	Stainless steel and plastic
Safety Features	Child lock, overheating protection, door interlock system
Cleaning	Wipe interior with damp cloth; do not use abrasive cleaners
Spare Parts Availability	Turntable, fuse, and other parts available from KORONA service centers
Repair Index	7.5 / 10 (based on user ratings)

Frequently Asked Questions - 58040 KORONA

How do I set the cooking time on my Korona 58040 microwave?

Turn the timer dial clockwise to the desired time (up to 30 minutes). The microwave will start automatically after setting the time.

Can I use metal containers in the microwave?

No, metal containers or aluminum foil can cause sparks and damage the microwave. Use microwave-safe glass, ceramic, or plastic containers.

How do I defrost food using my Korona 58040?

Set the power level to 'Defrost' (or a low power setting, such as 20-30% power) and enter the weight of the food. The microwave will calculate the defrosting time automatically.

What should I do if the microwave stops working?

Check the power cord and outlet. Ensure the door is fully closed. If it still does not work, reset the circuit breaker or contact KORONA customer service. Do not attempt to repair the microwave yourself.

How do I clean the interior of my Korona 58040?

Wipe the interior with a damp cloth and mild detergent. Do not use abrasive cleaners or scouring pads. For stubborn stains, heat a cup of water with lemon slices for a few minutes to loosen residue.

Is this microwave suitable for a family of four?

Yes, the 20-liter capacity is sufficient for most family meals such as reheating and cooking moderate portions.

Can I use my Korona 58040 to bake a cake?

This microwave is not designed for baking. It is best used for reheating, defrosting, and cooking simple dishes. Use a conventional oven for baking.

What does the 'child lock' feature do?

The child lock prevents accidental operation by locking the control panel. To activate, press and hold the 'Stop' button for 3 seconds until you hear a beep.

How often should I replace the turntable?

The glass turntable is durable and should only be replaced if cracked or broken. Replacement turntables are available from KORONA authorized service centers.

Why does the microwave make noise during operation?

Some noise is normal due to the fan and magnetron operation. A low hum and clicking sounds are typical. If the noise becomes unusually loud, check if the turntable is correctly placed or contact support.

USER MANUAL 58040 KORONA

Close-up of a pasta dish with noodles and garnish (no visible text or symbols)

Exterior view of a Korona microwave oven with dual rotary dials and a digital display (no visible text or symbols on the device body)

CE

Exterior view of a black rectangular electronic device with ventilation grilles and cable (no visible text or symbols)

Koteletts, Sandwiches, etc.

Before use, please read these instructions carefully and keep them in a safe place for future reference. When passing on the appliance to a third party, make sure to include these instructions for use.

This appliance is only intended for heating up, preparing and defrosting foods. This appliance is only intended for private household use!

Functional principal of a microwave oven

A microwave oven is an electrical cooking device in which a

short intervals. Certain molecules, e.g. water, inside the food start oscillating. The resulting friction energy transforms into heat and cooks food in a very short time. Microwaves can penetrate materials such as plastic, glass, or ceramics at almost no loss of power. The cookware is still cold while food and beverages heat up from within. It is the food/beverage that eventually makes the cookware heat up, too (thermal conduction).

Safety:

This symbol warns of hot surfaces. Risk of burns!

General Safety Instructions

by incorrect use.

cause injuries to the user.

sure your local voltage matches the technical data of the appliance. Otherwise the appliance may overheat and get damaged.

Caution! Danger of electric shock!

An electric appliance is not a toy!

and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by

before cleaning.

surfaces to avoid any damage to the appliance.

anyone to trip when in use. Do not allow the cord to hang over sharp edges.

Do not use the appliance,

Special Safety Instructions

Warning! To avoid the possibility of injury/damage to the appliance, electric shock, fire, risk of burns and/or possible contact with microwave radiation!

Avoid possibility of injury and damage to the appliance

described in this manual.

preparing and defrosting foods. It is not intended for drying foods or clothing nor any other use in industrial, laboratory or other areas.

this could lead to exposure to a harmful level of microwave energy.

distance to the walls.

on top of the appliance and make sure that the surrounding environment shall be dry and free of damp.

appliance and never lock it in place, as it would not turn during operation.

the appliance during operation.

inside the viewing window.

person to carry out any service or repair operation that involves the removal of the waive guide cover which gives protection against exposure to microwave energy;

Warning: If the door or door seals are damaged, the oven must

to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

To avoid the risk of fire

packages before the heating process.

appliance, keep the oven door shut to stifle the flames and disconnect the plug.

paper or any other inflammable material.

To avoid an explosion or sudden boiling inside the appliance

as they are liable to explode.

screw cap or teat.

least 20 seconds in the oven after heating before removing it from the oven to avoid delayed eruptive boiling.

heating process.

cooking.

as they might explode when the cooking/heating cycle is completed.

To avoid possible burns

heat may escape.

Especially, food/drink given to babies, young children and the elderly.

to avoid steamburns.

high during operation. Therefore, do not touch the appliance during and/or immediately after operation. Danger of serious burns!

cool down before cleaning.

Timer

0 – 30 Minutes

Function Switch

Product Description

1. Viewing window with protection foil
2. Door interlock
3. Glass turntable

Always place the glass turntable properly on top of the rotating ring. Never insert it upside down.

5. Grill rack

Only place the grill rack on top of the glass turntable.

Food to be cooked can be put directly on the grill rack, when using the grill function.

Only use the grill rack when using the grill function. Never use the grill rack when using the microwave or combi mode.

1. Rotating ring

2. Rotating axis

Warning! Never remove the waveguide cover, not even when cleaning.

1. Control Panel

Microwave safe cookware

Always make sure to use dishes/bowls that are suitable to be used in microwave ovens. The best choice of cookware are

Cutlery and metal containers must not be used.

Grill

ovens may be used when using the grill function. Do not use any plastic containers/items, due to the relatively high temperatures.

Place the food to be cooked directly on the grill rack.

Combination function (COMB1, COMB2, COMB3)

The grill and microwave functions are activated alternately. Therefore, the containers and/or plates must be suitable for

items must not be used. Make sure that the container or plate used does not contain any metal parts.

Material Microwave Grill Combi Remarks
Heat resistant glass	Yes Yes Yes
Heat resistant ceramic				glazed containers
resistant glass
plastic				be used for longer cooking times
Microwave safe				damaged from the heat
				as containers may produce sparks which may damage the appliance.
				these container may produce sparks.
Bamboo, wood and paper

Before First Use

Remove all packaging material and check whether the appliance is complete and undamaged. Completely unwind the power cord. Clean the appliance according to “Cleaning and Care”.

Warning: Plastic bags are a danger to toddlers and babies, therefore keep them away to avoid suffocation.

Installation / Location

Warning: This appliance should only be connected to a properly installed wall socket (earthed) and should not be

control system.

This microwave is a countertop product and should not be must be easily accessible.

and ensure that air can properly flow to and from the appliance.

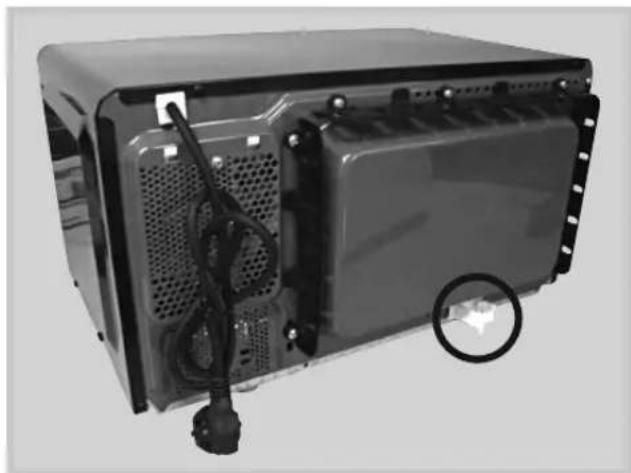

Pay attention to the distance limiter at the rear of the appliance.

Exterior view of a server rack unit with visible internal components and cable (no text or symbols)

of the microwave may interfere with the reception of your other electronic appliances, TV, radio, etc.

Operation

Heating/Cooking Food

with the food to be heated/cooked onto the glass turntable. Cover the food with a microwave safe cover and close the door.

1. Use the function switch to select the desired power level.

2. Select the desired time by setting the Timer. If, for example,

desired time setting.

turn and the heating/cooking process starts. The lighting inside the appliance lights up as well during the heating process.

At any time during the count down process you can choose to extend or shorten the time frame by adjusting the timer switch.

1. If you wish to interrupt the heating/cooking/timer process/function, just open the door at any time. Once the door is closed again the heating/cooking/timer process/function resumes. To completely stop the heating/cooking process,

2. Once the preset heating/cooking time has elapsed you will hear and alarm sound and the appliance switches off automatically. The light bulb inside the appliance will switch off as well.

3. Let the food stand for a while to enable the heat to disperse

Attention: After the heating/cooking process always make of the microwave.

Power levels and defrost function:

Defrosting

food to be defrosted onto the glass turntable and close the door.

1. Use the function switch and select the defrosting function (insert defrost sign). Then follow a.m. steps 4 – 9. Make sure

Foods Weight Range Defrosting time (min.)

Note:

Microwaves penetrate around 4 cm into most foods, to maximize the defrosting effect, please follow the next steps:

defrosting effect.

again.

Grill

The temperature of accessible surfaces may be high, and operation. Therefore, do not touch the appliance and/or immediately after operation. Use pot chillers when handling the food.

Place the foods to be grilled directly on the grill rack and place it on top of the glass turntable.

Combination Mode

This function combines microwave function and grill function.

Suitable for roasting chops, sandwich, etc.

Suitable for broiling small chicken and meat.

suitable for broiling large chicken, duck, etc.

Tips:

Food arrangement/Cooking/Heating/Defrosting

make sure to place the food evenly on the microwave safe dish.

part towards the centre, e.g. chicken drum stick. Do not put pieces of food on top of each other.

extended. Over cooking may dry out/burn the food.

Remove the food from the appliance, cover it and let it rest for a while.

When is the food done?

The food is done if

Cover food

Cover the food with a microwave safe lid/microwave cling wrap. If you are using microwave safe cling wrap (suitable for fatty foods, make sure that it does not touch the food, as it might melt. Do not cover drinks or breaded foods.

Note: When heating food, condensed water can build up in the appliance, make sure to wipe the appliance after use.

Cleaning and Care

Due to hygienic reasons clean your microwave on a regular basis, best after each use, and remove any food residues. Not doing so could possibly result in a hazardous situation.

Before cleaning, always switch off the appliance and t it from the mains and let it completely cool down.

Never immerse the appliance in water. Danger! Electric Shock!

When cleaning the appliance never use any

Clean the body of the appliance with a moistened soft cloth. Clean both sides of the oven door, the door sealing and adjacent areas with a moistened damp cloth.

Remove splatter/food residues inside the microwave oven with

Make sure that no water gets into the air vents and other parts inside the microwave. Do not remove the waveguide cover.

Clean the glass turntable and ring in mild soapy water and dry thoroughly afterwards. Make sure all parts are replaced properly after cleaning.

To remove unpleasant smell inside the microwave oven, place

the highest level.

Cleaning and user maintenance shall not be made by ren without supervision.

person/Customer Service.

Warning: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy;

Disposal Instructions

Waste electrical devices marked with this sign must not be disposed of with your household waste, but – according to the EU directive on Waste Electric And

collected separately. Therefore, please return this device at the end of its life cycle to special collection points for disposal or your local dealer.

are recyclable waste, i.e. they are reusable or recyclable.

Technical Data:

Microwave output power: 700 W

Capacity: 20 L

Protection Class: I

Technical data subject to change!

Guarantee:

This product is guaranteed against defects in materials and workmanship for a period of 2 years.

This guarantee is not valid:

instructions

This guarantee does not affect your statutory right, nor any legal right you may have as a costumer under applicable national legislation governing the purchase of goods.

In order to assert his/her right in a guarantee case during the guaranteed period, the customer must provide evidence of the date of purchase (receipt).

The guarantee is to be asserted against

KORONA electric GmbH, Sundern/Germany.

Service Address:

KORONA Service

Am Steinbach 9

59872 Meschede-Enste

Germany

Telephone Hotline: [phone]

Mail: [e-mail]

web: www.korona-electric.de

within 2 years after the date of purchase. In case of guarantee the customer is given the right to get the appliance repaired at our own or at an authorized shop. Further rights (due to guarantee case) are not given to the customer.
