Product Type	Countertop Microwave Oven
Brand	Korona
Model	58000
Capacity	20 Liters
Power Output	700 Watts
Control Type	Mechanical Dial & Timer
Display	Analog Timer
Defrost Function	Yes, by weight
Timer	Up to 35 minutes
Interior Light	Yes
Turntable	Glass turntable, 24.5 cm diameter
Door Opening	Side hinge, push-button release
Dimensions (W x D x H)	45 x 35 x 26 cm
Cavity Dimensions (W x D x H)	30 x 28 x 20 cm
Weight	10.5 kg
Power Supply	230 V, 50 Hz, 1050 W
Frequency	2.45 GHz
Material	Stainless steel cavity, plastic exterior
Cleaning	Wipe interior with damp cloth; mild detergent
Safety Features	Child lock, automatic shut-off, door interlock
Spare Parts Available	Yes: turntable, glass plate, fuse, door latch
Repairability	Modular design; user-replaceable fuse and bulb
Manual Languages	PDF available in multiple languages

Frequently Asked Questions - 58000 KORONA

Can I use metal containers in the microwave?

No, metal can cause sparks and damage the microwave. Use only microwave-safe containers such as glass, ceramic, or plastic labeled for microwave use.

How do I clean the microwave interior?

Wipe the interior with a damp cloth and mild soap. For stubborn stains, heat a bowl of water with lemon slices for 2 minutes, then wipe. Do not use abrasive cleaners.

Why does the turntable not rotate?

Ensure the glass plate is properly seated on the turntable hub. If it still doesn't rotate, check if the drive coupling is aligned. If the motor fails, contact service.

How can I defrost food quickly?

Use the defrost by weight function. Enter the weight of the food, and the microwave will automatically set the time and power level. For best results, place food on a microwave-safe plate.

What does the 'child lock' feature do?

The child lock prevents accidental operation by disabling the control panel. Activate it by pressing and holding the Stop button for 3 seconds. To deactivate, repeat.

How do I set the timer?

Turn the timer dial clockwise to the desired minutes (up to 35). The microwave will start immediately. To stop, turn the dial back to 0 or press the Stop button.

My microwave seems noisy. Is that normal?

Some noise is normal: the turntable motor and cooling fan produce sound. If you hear grinding or loud buzzing, check the turntable support or contact service.

Can I microwave food in plastic containers?

Only if the plastic is labeled microwave-safe. Avoid thin plastic containers like margarine tubs, as they may warp or melt. Always remove lids to allow steam to escape.

How do I replace the interior light bulb?

Unplug the microwave. Remove the vent grill or cover (screws may be inside). Replace the 25W/240V incandescent bulb. Use a bulb specified for microwave ovens. Reassemble and test.

Why does the microwave shut off before time is up?

This may be due to a safety feature like overheating or a door interlock issue. Ensure the door is fully closed and vents are clear. If persistent, the unit may need service.

USER MANUAL 58000 KORONA

Close-up of a plated dish featuring noodles and meat (no visible text or symbols)

Exterior view of a Korona microwave oven with control knobs and a blank display (no text or symbols on the main body)

CE

Exterior view of a microwave oven with visible cooling fins and ventilation slots (no text or symbols)

Before use, please read these instructions carefully and keep them in a safe place for future reference. When passing on the appliance to a third party, make sure to include these instructions for use.

This appliance is only intended for heating up, preparing and defrosting foods. This appliance is only intended for private household use!

Functional principal of a microwave oven

A microwave oven is an electrical cooking device in which a

short intervals. Certain molecules, e.g. water, inside the food start oscillating. The resulting friction energy transforms into heat and cooks food in a very short time. Microwaves can penetrate materials such as plastic, glass, or ceramics at almost no loss of power. The cookware is still cold while food and beverages heat up from within. It is the food/beverage that eventually makes the cookware heat up, too (thermal conduction).

Safety:

This symbol warns of hot surfaces. Risk of burns!

General Safety Instructions

by incorrect use.

cause injuries to the user.

sure your local voltage matches the technical data of the appliance. Otherwise the appliance may overheat and get damaged.

Caution! Danger of electric shock!

An electric appliance is not a toy!

and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by

before cleaning.

surfaces to avoid any damage to the appliance.

anyone to trip when in use. Do not allow the cord to hang over sharp edges.

Do not use the appliance,

Special Safety Instructions

Warning! To avoid the possibility of injury/damage to the appliance, electric shock, fire, risk of burns and/or possible contact with microwave radiation!

Avoid possibility of injury and damage to the appliance

described in this manual.

preparing and defrosting foods. It is not intended for drying foods or clothing nor any other use in industrial, laboratory or other areas.

this could lead to exposure to a harmful level of microwave energy.

distance to the walls.

on top of the appliance and make sure that the surrounding environment shall be dry and free of damp.

appliance and never lock it in place, as it would not turn during operation.

the appliance during operation.

inside the viewing window.

person to carry out any service or repair operation that involves the removal of the waive guide cover which gives protection against exposure to microwave energy;

Warning: If the door or door seals are damaged, the oven

person;

to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

To avoid the risk of fire

packages before the heating process.

appliance, keep the oven door shut to stifle the flames and disconnect the plug.

paper or any other inflammable material.

To avoid an explosion or sudden boiling inside the appliance

as they are liable to explode.

screw cap or teat.

20 seconds in the oven after heating before removing it from the oven to avoid delayed eruptive boiling.

heating process.

cooking.

as they might explode when the cooking/heating cycle is completed.

To avoid possible burns

heat may escape.

Especially, food/drink given to babies, young children and the elderly.

to avoid steam burns.

high during operation. Therefore, do not touch the appliance during and/or immediately after operation. Danger of serious burns!

cool down before cleaning.

Product Description

1. Oven door with handle
2. Viewing window with protection foil
3. Door interlock
4. Glass turntable

Always place the glass turntable properly on top of the rotating ring.

Never insert it upside down.

1. Rotating ring
2. Rotating axis
3. Waveguide cover

Warning! Never remove the waveguide cover, not even when cleaning.

1. Power cord and plug

Microwave safe cookware

Always make sure to use dishes/bowls that are suitable to be used in microwave ovens. The best choice of cookware are

Cutlery and metal containers must not be used.

Material Microwave Remarks
ceramic
plastic	Yes	But, should not be used for longer cooking times
glass	Yes
Microwave safe	Yes
		container may produce sparks.
Bamboo, wood and paper container

Before First Use

Remove all packaging material and check whether the appliance is complete and undamaged. Completely unwind the power cord. Clean the appliance according to “Cleaning and Care”.

Warning: Plastic bags are a danger to toddlers and babies, therefore keep them away to avoid suffocation.

Installation / Location

Warning: This appliance should only be connected to a properly installed wall socket (earthed) and should not be

control system.

This microwave is a countertop product and should not be must be easily accessible.

and ensure that air can properly flow to and from the appliance.

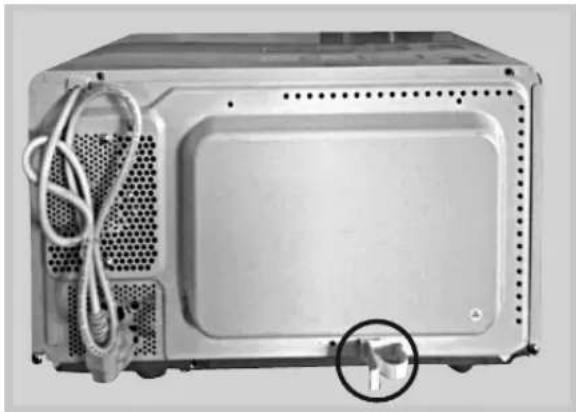

Pay attention to the distance limiter at the rear of the appliance.

Interior view of a microwave oven with visible wiring and ventilation slots (no text or symbols)

of the microwave may interfere with the reception of your other electronic appliances, TV, radio, etc.

Operation

Heating/Cooking Food

with the food to be heated/cooked onto the glass turntable. Cover the food with a microwave safe cover and close the door.

1. Use the function switch to select the desired power level.

2. Select the desired time by setting the Timer. If, for example, the selected time is less than 10 minutes, turn the timer knob over the 10 minutes position and back again to the desired time setting.

turn and the heating/cooking process starts. The lighting inside the appliance lights up as well during the heating process.

At any time during the count down process you can choose to extend or shorten the time frame by adjusting the timer switch.

1. If you wish to interrupt the heating/cooking/timer process/function, just open the door at any time. Once the door is closed again the heating/cooking/timer process/function resumes. To completely stop the heating/cooking process,

2. Once the preset heating/cooking time has elapsed you will hear an alarm sound and the appliance switches off automatically. The light bulb inside the appliance will switch off as well.

3. Let the food stand for a while to enable the heat to disperse

Attention: After the heating/cooking process always make of the microwave.

Power levels and defrost function:

IV 100% power output Quick cooking
II 66% power output Slow cooking
[Boxd] I 40% power output Drinks or soup
[Boxd] Defrost 37% power output Defrost
[Boxd] Low 17% power output Keep warm

Defrosting

1. Open the door and place the microwave dish containing the food to be defrosted onto the glass turntable and close the door.
2. Use the function switch and select the defrosting function (✿). Then follow a.m. steps 4 – 9. Make sure that the timer

Foods	Weight Range	Defrosting time (min.)
Meat	0.1 – 1 kg	1.30 – 26
Poultry	0.2 – 1 kg	2.30 – 22
Seafood	0.1 – 0.9 kg	1.30 – 14

Note:

Microwaves penetrate around 4cm into most foods, to maximize the defrosting effect, please follow the next steps:

defrosting effect.

again.

Tips:

Food arrangement / Cooking/Heating/Defrosting

make sure to place the food evenly on the microwave safe dish.

part towards the centre, e.g. chicken drum stick. Do not put pieces of food on top of each other.

extended. Over cooking may dry out/burn the food.

Remove the food from the appliance, cover it and let it rest for a while.

When is the food done?

The food is done if

Cover food

Cover the food with a microwave safe lid/microwave cling wrap. If you are using microwave safe cling wrap (suitable for fatty foods, make sure that it does not touch the food, as it might melt.

Do not cover drinks or breaded foods.

Note: When heating food, condensed water can build up in the appliance, make sure to wipe the appliance after use.

Cleaning and Care

Due to hygienic reasons clean your microwave on a regular basis, best after each use, and remove any food residues. Not doing so could possibly result in a hazardous situation.

Before cleaning, always switch off the appliance and let it from the mains and let it completely cool down.

Never immerse the appliance in water. Danger! Electric Shock!

When cleaning the appliance never use any

Clean the body of the appliance with a moistened soft cloth. Clean both sides of the oven door, the door sealing and adjacent areas with a moistened damp cloth.

Remove splatter/food residues inside the microwave oven with

Make sure that no water gets into the air vents and other parts inside the microwave. Do not remove the waveguide cover.

Clean the glass turntable in mild soapy water, rinse and dry it thoroughly afterwards. Make sure all parts are replaced properly after cleaning.

To remove unpleasant smell inside the microwave oven, place

highest level.

Cleaning and user maintenance shall not be made by ren without supervision.

person/Customer Service.

Warning: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy;

Disposal Instructions

Waste electrical devices marked with this sign must not be disposed of with your household waste, but – according to the EU directive on Waste Electric And

collected separately. Therefore, please return this device at the end of its life cycle to special collection points for disposal or your local dealer.

are recyclable waste, i.e. they are reusable or recyclable.

Technical Data:

Microwave input power: 1150 W

Microwave output power: 700 W

Capacity: 20 L

Protection Class: I

Technical data subject to change!

Guarantee:

This product is guaranteed against defects in materials and workmanship for a period of 2 years.

This guarantee is not valid:

instructions

This guarantee does not affect your statutory right, nor any legal right you may have as a costumer under applicable national legislation governing the purchase of goods.

In order to assert his/her right in a guarantee case during the guaranteed period, the customer must provide evidence of the date of purchase (receipt).

The guarantee is to be asserted against

KORONA electric GmbH, Sundern/Germany.

Service Address:

KORONA Service

Am Steinbach 9

59872 Meschede-Enste

Germany

Telephone Hotline: [phone]

Mail: [e-mail]

web: www.korona-electric.de

within 2 years after the date of purchase. In case of guarantee the customer is given the right to get the appliance repaired at our own or at an authorized shop. Further rights (due to guarantee case) are not given to the customer.
