Product type	Microwave with grill
Model	58050
Brand	KORONA
Capacity	20 liters
Microwave power	700 W
Input power	1150 W
Timer	0–30 minutes
Power levels	4 levels (IV, Defrost, II, I) plus defrost level
Grill function	Yes, separate grill operation
Combination operation	COMB1, COMB2, COMB3 (Microwave + Grill)
Turntable	Glass turntable, diameter approx. 25 cm
Grill rack	Included in delivery, only for grill function
Defrost function	Yes, with Defrost power level (36%)
Safety features	Child lock not specified, door lock, overheating protection
Cleaning and care	Wipe casing with a damp cloth, clean oven cavity with a soft cloth, do not remove waveguide cover
Warranty	2 years from date of purchase
Service address	KORONA Service, Am Steinbach 9, 59872 Meschede-Enste, [e-mail]
Protection class	I (protective conductor)
Dimensions (approx.)	approx. 440 x 360 x 260 mm (W x D x H) – typical for 20 L
Weight (approx.)	approx. 10.5 kg

Frequently Asked Questions - 58050 KORONA

Which dishes are suitable for the microwave?

Use only heat-resistant glass, porcelain, or plastic. No metal or dishes with metal decoration. Do not use plastic in grill mode.

How do I clean the appliance properly?

Unplug the appliance and let it cool down. Wipe the casing and oven cavity with a damp cloth. Remove splashes regularly. Never immerse the appliance in water.

What do the combination levels COMB1, COMB2, COMB3 mean?

COMB1: 30% microwave, 70% grill – for chops. COMB2: 49% MW, 51% grill – for chicken. COMB3: 67% MW, 33% grill – for duck.

Can I use the grill rack in microwave mode?

No, the grill rack is only for the grill function. Never use it in microwave or combination mode.

How do I set the cooking time?

Turn the timer (0-30 min.) to the desired time. For less than 10 minutes, turn past the 10-minute mark and then back. The appliance starts automatically.

Why does condensation form in the oven cavity?

This is normal when heating food. Simply wipe the oven cavity dry after use.

What safety instructions must I follow?

Read the manual before use. Avoid empty operation, no metal objects, no sealed containers. If smoke develops, keep the door closed and turn off the appliance.

How do I defrost food?

Set the power control to Defrost (36%). The defrosting time depends on weight (e.g., meat 0.1-1 kg: 1.5-26 min.). Turn occasionally.

Can I install the appliance in a cabinet?

No, the appliance requires ventilation and the socket must be easily accessible. Place it on a heat-resistant, level surface.

What do I do in case of a warranty claim?

Contact KORONA service: Phone [phone] or email [e-mail]. The warranty is 2 years from the date of purchase.

USER MANUAL 58050 KORONA

Close-up of a plated dish featuring a bun and noodles (no visible text or symbols)

Exterior view of a KORONA microwave oven with dual control knobs (no visible text or symbols on the main body)

CE

Close-up of a kitchen microwave oven with two circular dials (no visible text or labels)

Before use, please read these instructions carefully and keep them in a safe place for future reference. When passing on the appliance to a third party, make sure to include these instructions for use.

This appliance is only intended for heating up, preparing and defrosting foods. This appliance is only intended for private household use and not for commercial use!

Functional principal of a microwave oven

A microwave oven is an electrical cooking device in which a

short intervals. Certain molecules, e.g. water, inside the food start oscillating. The resulting friction energy transforms into heat and cooks food in a very short time. Microwaves can penetrate materials such as plastic, glass, or ceramics at almost no loss of power. The cookware is still cold while food and beverages heat up from within. It is the food/beverage that eventually makes the cookware heat up, too (thermal conduction).

Safety:

This symbol warns of hot surfaces. Risk of burns!

General Safety Instructions

by incorrect use.

cause injuries to the user.

sure your local voltage matches the technical data of the appliance. Otherwise the appliance may overheat and get damaged.

Caution! Danger of electric shock!

An electric appliance is not a toy!

and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by

before cleaning.

surfaces to avoid any damage to the appliance.

anyone to trip when in use. Do not allow the cord to hang over sharp edges.

Do not use the appliance,

Special Safety Instructions

To avoid the possibility of injury/damage to the appliance, electric shock, fire, risk of burns and/or possible contact with microwave radiation!

Avoid possibility of injury and damage to the appliance

described in this manual.

this could lead to exposure to a harmful level of microwave energy.

distance to the walls.

on top of the appliance and make sure that the surrounding environment shall be dry and free of damp.

appliance and never lock it in place, as it would not turn during operation.

the appliance during operation.

inside the viewing window.

person to carry out any service or repair operation that involves the removal of the waive guide cover which gives protection against exposure to microwave energy;

Warning: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a

to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

To avoid the risk of fire

packages before the heating process.

appliance, keep the oven door shut to stifle the flames and disconnect the plug.

paper or any other inflammable material.

To avoid an explosion or sudden boiling inside the appliance

as they are liable to explode.

screw cap or teat.

20 seconds in the oven after heating before removing it from the oven to avoid delayed eruptive boiling.

heating process.

cooking.

as they might explode when the cooking/heating cycle is completed.

To avoid possible burns

heat may escape.

to avoid steam burns.

Especially, food/drink given to babies, young children and the elderly.

high during operation. Therefore, do not touch the appliance during and/or immediately after operation. Danger of serious burns!

cool down before cleaning.

Product Description

1. Oven door

Never remove the protection foil from inside the oven door.

1. Rotating axis
2. Rotating ring
3. Glass turntable

Always place the glass turntable properly on top of the rotating ring. Never insert it upside down.

1. Grill rack

Only place the grill rack on top of the glass turntable.

Food to be cooked can be put directly on the grill rack, when using the grill function.

Only use the grill rack when using the grill function. Never use the grill rack when using the microwave or combi mode.

1. Waveguide cover

Warning! Never remove the waveguide cover, not even when cleaning.

1. Control Panel

2. Power cord and plug

CONTROL PANEL Timer (Zeit)

Close-up of a kitchen appliance front panel with two circular dials (no visible text or symbols)

Only the grill heat element is activated. Suitable for broiling sausages, chicken wings, chops, sandwich, etc.

Combination Mode: COMB1 - COMB2 - COMB3

When using combination mode, the grill and microwave functions are activated alternately.

Microwave safe cookware

Microwave

Always make sure to use dishes/bowls that are suitable to be used in microwave ovens. The best choice of cookware are

The dishes should not be bigger than the glass turntable (4). Cutlery and metal containers must not be used.

Grill

ovens may be used when using the grill function. Do not use any plastic containers/items, due to the relatively high temperatures. Place the food to be cooked directly on the grill rack.

Combination function (COMB1, COMB2, COMB3)

The grill and microwave functions are activated alternately. Therefore, the containers and/or plates must be suitable for

items must not be used. Make sure that the container or plate used does not contain any metal parts.

Material Microwave Grill Combi Remarks
Heat resistant glass	Yes Yes Yes
Heat resistant ceramic				glazed containers
resistant glass
plastic				be used for longer cooking times
Microwave safe				damaged from the heat
				as containers may produce sparks which may damage the appliance.
				these container may produce sparks.

Before First Use

Remove all packaging material and check whether the appliance is complete and undamaged. Completely unwind the power cord (9). Clean the appliance according to “Cleaning and Care”.

Only for Grill use:

The heating element of the grill has a protective coating. To remove the protective layers on the heating element, heat up the appliance (without the

microwave function activated and without food) for about 10 minutes. This process seals the heating element. This could

cause any harm nor does it mean that your appliance does not work properly. Make sure that the room is well ventilated! Let the appliance completely cool down.

Warning: Plastic bags are a danger to toddlers and babies, therefore keep them away to avoid suffocation.

Installation / Location

Warning: This appliance should only be connected to a properly installed wall socket (earthed) and should not be operated by any means of an

system. This microwave is a countertop product

case of emergency, the socket must be easily accessible.

ensure that air can properly flow to and from the appliance.

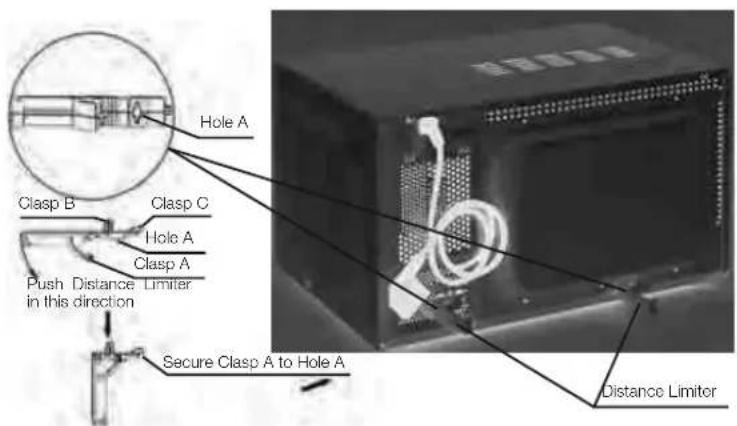

1) Push Distance Limiter in the given direction;
2) Make sure Clasp A is secured Hole A;

Therefore, fold out the distance limiter at the rear of the appliance.

the microwave may interfere with the reception of your other electronic appliances, TV, radio, etc.

Operation

Warning: Only use the grill rack when using the grill function. Never use the grill rack when using the microwave or combination mode.

Heating/Cooking Food

with the food to be heated/cooked onto the glass turntable(4) and close the door (1).

1. Use the function switch (Leistung) to select the desired power level.

2. Select the desired time (Zeit) by setting the Timer. If, for example, the selected time is less than 10 minutes, turn the timer knob over the 10 minutes position and back again to the desired time setting.

to turn and the heating/cooking process starts. The lighting inside the appliance lights up as well during the heating process. At any time during the count down process you can choose to extend or shorten the time frame by adjusting the timer switch (Zeit).

1. If you wish to interrupt the heating/cooking/timer process/function, just open the door (1) at any time. Once the door (1) is closed again the heating/cooking/timer process/function resumes. To completely stop the heating/cooking process,

2. Once the preset heating/cooking time has elapsed you will hear and alarm sound and the appliance switches off automatically. The light bulb inside the appliance will switch off as well.

food.

1. Let the food stand for a while to enable the heat to disperse

Attention: After the heating/cooking process always make empty operation of the microwave.

Power levels and defrost function:

IV 100% power output (Quick cooking)
III
Defrost 36% power output (Defrost)
I

Defrosting

1. Open the door (1) and place the microwave dish containing

close the door (1).

1. Use the function switch (Leistung) and select the defrosting function. Then follow a.m. steps 4 – 6. Make sure that the

Foods	Weight Range	Defrosting time (min.)
Meat	0.1 – 1 kg	1.30 – 26
Poultry	0.2 – 1 kg	2.30 – 22
Seafood	0.1 – 0.9 kg	1.30 – 14

Note:

Microwaves penetrate around 4 cm into most foods, to maximize the defrosting effect, please follow the next steps:

defrosting effect.

again.

Grill

The temperature of accessible surfaces may be high during operation. Therefore, do not touch the appliance during and/or immediately after operation. Use pot handlers when handling the food.

Place the foods to be grilled directly on the grill rack (5) and place it on top of the glass turntable (4).

Combination Mode

This function combines microwave function and grill function.

Comb1: 30% microwave operation and 70% grill operation. Suitable for roasting chops, sandwich, etc.

Comb2: 49% microwave operation and 51% grill operation. Suitable for broiling small chicken and meat.

Comb3: 67% microwave operation and 33% grill operation Suitable for broiling large chicken, duck, etc.

Tips:

Food arrangement / Cooking/Heating/Defrosting

make sure to place the food evenly on the microwave safe dish.

part towards the centre, e.g. chicken drum stick. Do not put pieces of food on top of each other.

extended. Over cooking may dry out/burn the food.

Remove the food from the appliance, cover it and let it rest for a while.

When is the food done?

The food is done if

Cover food

Cover the food with a microwave safe lid/microwave cling wrap. If you are using microwave safe cling wrap (suitable for fatty foods, make sure that it does not touch the food, as it might melt.

Note: When heating food, condensed water can build up in the appliance, make sure to wipe the appliance after use.

Microwave safe cookware

Only use microwave safe cookware. Some microwave safe plastic cookware might not be suitable for cooking foods with

heating time.

Cleaning and Care

Due to hygienic reasons clean your microwave on a regular basis, best after each use, and remove any food residues. Not doing so could possibly result in a hazardous situation.

Before cleaning, always switch off the appliance and disconnect it from the mains and let it completely cool down. Never immerse the appliance in water. Danger! Electric Shock!

When cleaning the appliance never use any

Clean the body of the appliance with a moistened soft cloth. Clean both sides of the oven door, the door sealing and adjacent areas with a moistened damp cloth.

Remove splatter/food residues inside the microwave oven with

Make sure that no water gets into the air vents and other parts inside the microwave.

Warning! Do not remove the waveguide cover.

Clean the glass turntable (4), ring (3) and grill rack (5) in mild soapy water and dry thoroughly afterwards. Make sure all parts are replaced properly after cleaning.

To remove unpleasant smell inside the microwave oven, place

highest level.

Warning! Do not exchange the light bulb yourself, always

Warning: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of the waveguide cover (6) which gives protection against exposure to microwave energy;

Disposal Instructions

Waste electrical devices marked with this sign must not be disposed of with your household waste, but – according to the EU directive on Waste Electric And

collected separately. Therefore, please return this device at the end of its life cycle to special collection points for disposal or your local dealer.

are recyclable waste, i.e. they are reusable or recyclable.

Technical Data:

Microwave input power: 1150 W

Microwave output power: 700 W

Capacity: 20 L

Protection Class: I

Technical data subject to change!

Guarantee:

This product is guaranteed against defects in materials and workmanship for a period of 2 years.

This guarantee is not valid:

instructions

This guarantee does not affect your statutory right, nor any legal right you may have as a costumer under applicable national legislation governing the purchase of goods.

In order to assert his/her right in a guarantee case during the guaranteed period, the customer must provide evidence of the date of purchase (receipt).

The guarantee is to be asserted against

KORONA electric GmbH, Sundern/Germany.

Service Address:

KORONA Service, Am Steinbach 9, 59872 Meschede, Germany

Telephone Hotline: [phone]

Mail: [e-mail]

web: www.korona-electric.de

within 2 years after the date of purchase. In case of guarantee the customer is given the right to get the appliance repaired at our own or at an authorized shop. Further rights (due to guarantee case) are not given to the customer.
