Product Type	Microwave oven
Brand	Etna
Model	ESM220ZIL
Capacity	20 L
Microwave Power	800 W
Power Supply	230 V, 50 Hz
Connected Load	1150 W
Dimensions (W x H x D)	440 x 258 x 345 mm
Weight	11 kg
Control Type	Knob and buttons
Display	LED digital clock
Microwave Power Levels	10%, 30%, 50%, 80%, 100%
Defrost Modes	By weight (100-2000 g) or by time
Auto Menu Programmes	8 (reheat, vegetable, fish, meat, pasta, potato, pizza, soup)
Multistage Cooking	Up to 2 stages
Pre-set Function	Yes (delayed start with clock)
Child Lock	Yes (press Stop for 3 seconds)
Turntable	Included with roller stay
Maximum Cooking Time	95 minutes
Interior Light	Not specified
Door Safety Interlocks	Yes
Cleaning	Damp cloth, mild detergent; dishwasher-safe accessories
Ventilation Clearance	Top: 30 cm, sides/rear: 7.5 cm

Frequently Asked Questions - ESM220ZIL ETNA

How do I set the clock on the Etna ESM220ZIL microwave?

Press the 'Klok' button. The hours flash. Turn the 'Tijd/Gewicht/Auto Menu' knob to set hours (0-23). Press 'Klok' again, then set minutes (0-59) with the knob. Press 'Klok' to confirm.

How can I defrost food using this microwave?

There are two methods: by weight (press 'Ontdooien' once, display shows 'dEF1', set weight 100-2000 g) or by time (press 'Ontdooien' twice, display shows 'dEF2', set time up to 95 min). Press 'Start/OK' to begin.

What are the available microwave power levels?

Press the 'Magnetron' button repeatedly to cycle through levels: P100 (100%, 1 press), P80 (80%, 2 presses), P50 (50%, 3 presses), P30 (30%, 4 presses), P10 (10%, 5 presses).

Can I cook in multiple stages (multistage cooking)?

Yes, you can set up to 2 cooking stages. For example, set defrost first, then microwave. The auto menu cannot be used in multistage mode. Each stage can have different power and time.

How do I use the auto menu programmes?

Turn the 'Tijd/Gewicht/Auto Menu' knob to select a programme (A-1 to A-8). Press 'Start/OK', then set the weight or quantity. Press 'Start/OK' again to start. Refer to the cooking table in the manual for details.

How do I set a delayed start (pre-set function)?

First set the clock. Then set a cooking function (max 2 stages except defrost). Press 'Klok', set the desired start time (hours then minutes). Press 'Start/OK' to confirm. The oven will start automatically at that time.

How do I activate the child lock?

Press the 'Stop' button for 3 seconds. A long beep sounds. To deactivate, press 'Stop' again for 3 seconds. The lock prevents the oven from being operated.

What materials are safe to use in this microwave?

Safe: paper, aluminium foil (for covering thin parts), cling film, heatproof plastic, ovenproof glass and ceramics. Unsafe: metal, aluminium trays, unglazed earthenware, metallic decorations, and narrow-necked bottles.

How should I clean the microwave?

Clean the interior immediately after use with a damp cloth. Use soapy water for regular cleaning. The microwave distributor cover must be clean to avoid sparking. Accessories can be washed in a dishwasher. To remove odours, heat a glass of water with lemon juice for 2 minutes on full power.

What should I do if the microwave does not work?

Check if the plug is in the socket, the door is closed properly, the fuse in the meter cupboard is not blown, power level and time are set correctly, there are no inappropriate utensils, and ventilation openings are not blocked. If problems persist, contact service.

USER MANUAL ESM220ZIL ETNA

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

What you should pay attention to .....7

Operation 9 - 17

Bringing the oven into operation ..... 9

Setting the clock....10

Cooking using the microwave....11

Defrosting 12

Multistage cooking 13

Pre-set function....14

Auto menu 15

Cooking table auto menu....16

Checking the settings 17

Childproof lock....17

■ Maintenance....18

Cleaning 18

■ Faults.... 19

What should I do if.... 19

General 19

■ Environmental aspects ..... 20

Disposal of packaging and appliance ..... 20

■ General....21

Technical information 21

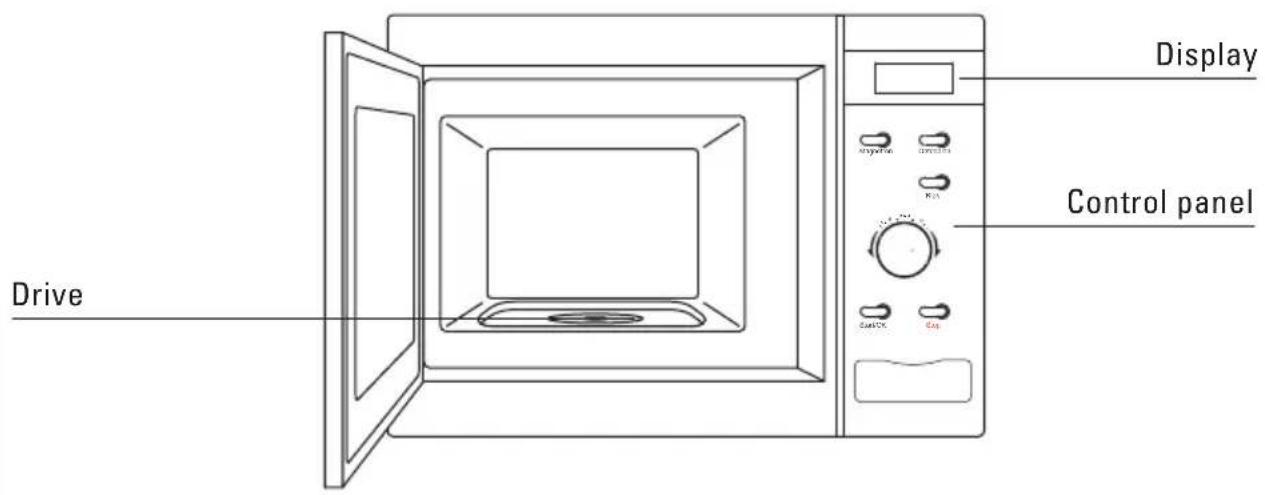

Description

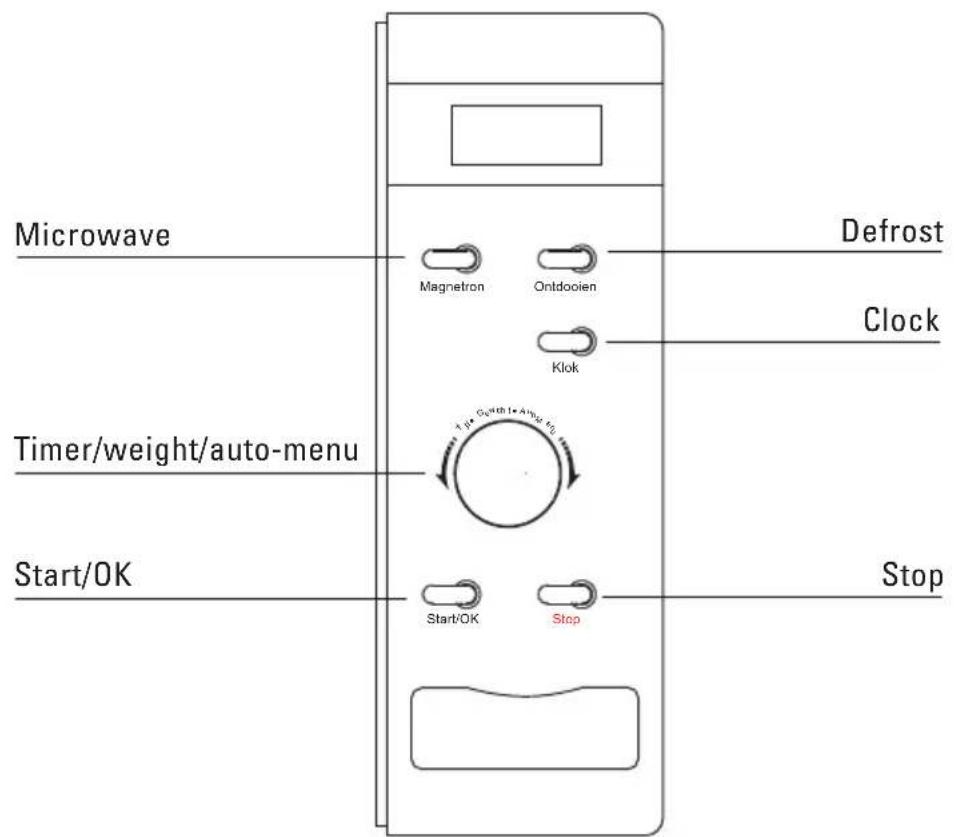

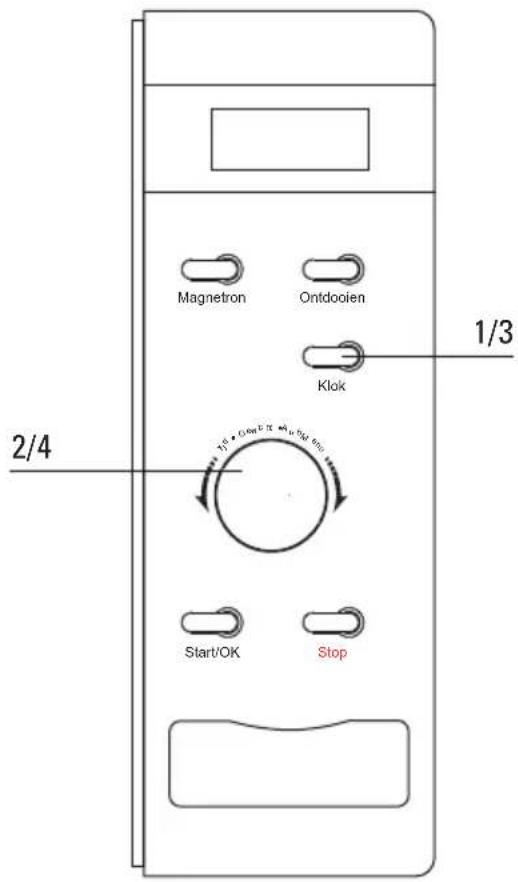

Control panel

Accessories

Turntable Roller stay

Cam for turntable

Introduction

You have chosen an Etna microwave oven.

Optimum ease of use and simple operation were the most important factors in the development of this product.

The extensive range of settings available enables you to select the exact method of cooking that you have in mind. The design ensures easy to use, controls.

The functions are arranged conveniently on the control panel. Every function has its own button. The display provides information and helps you choose the settings.

The controls for this oven are very easy. What we particularly want to do in this manual is give you an idea of all the possibilities this appliance offers.

The various functions are arranged for easy-reference in the operation section. You will also find some useful tips.

Please keep this manual carefully, since any subsequent user will also find it very useful.

We wish you much pleasure with your combimicrowave oven!

General

This microwave oven is extremely safe. As with all products, however, there are a number of things you need to bear in mind.

Repairs must only be carried out by an authorised service engineer.

It is hazardous for anyone other than a trained person to carry out any service or repair operation which involves the removal of any cover which gives protection against exposure to microwave energy.

Do not use the appliance if it is damaged. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similar qualified person in order to avoid a hazard.

The appliance should be disconnected from the mains before being repaired or cleaned. Remove the plug from the socket or turn the switch in the meter cupboard to zero.

For electrical safety reasons, the appliance must not be cleaned using high-pressure cleaners or steam cleaners.

This combi-microwave oven has been designed for domestic use. Use the appliance only for cooking food.

When cooking dishes that contain alcohol, the alcohol may evaporate due to the high temperature.

Do not use the microwave oven for storing flammable or easily deformable materials.

Make sure that the food is always heated sufficiently. The time required for this depends on various factors, such as the quantity and type of food. Any bacteria in the food will only be killed if the food is heated to a temperature greater than 70 °C for at least 10 minutes. Allow the food to cook for a bit longer if you are not sure whether the food has been heated sufficiently.

Never heat food in sealed containers. Pressure will build up inside the container and may cause it to explode.

Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use.

What you should pay attention to

Place a plastic spoon in the cup if you want to boil a liquid (water, for example). The liquid may boil without you seeing any bubbles. As soon as you take the cup out of the oven, the liquid may suddenly start to boil violently and splash out of the cup, with the risk of you getting scalded.

The content of feeding bottles and baby food jars are to be stirred or shaken and the temperature is to be checked before consumption, in order to avoid burns.

Your microwave oven is safe only if the door is closing properly!.

Never put anything between the oven door and make sure that the door and seal are always clean.

If the door or door seals are damaged, the oven must not be operated until it has been repaired by a trained person.

You should only use the microwave oven for defrosting and cooking food and not, for example, for drying clothes or paper. Clothes or paper could catch fire.

If you heat small quantities of dry or powdery products in the microwave oven (when drying herbs, for example), there is a chance that they will spontaneously combust.

If something in the combi-oven catches fire, switch the microwave oven off and take the plug out of the socket. Keep the oven door closed.

A microwave oven is not suitable for:

preserving

■ cooking eggs in their shells, because they will burst due to the increase in pressure;

■ heating oil for deep frying.

Remove metal twists from plastic bags and use dishes and plates that are suitable for the microwave oven.

You should only heat liquids in airtight packaging after first pricking a few holes in the packaging. This is because of the increase in pressure during heating.

Do not heat food for longer than is necessary; allow for the 'continued cooking'.

What you should pay attention to

Prick the skin of meat, chicken and fish with a fork or other pointed object. This prevents these foods spattering.

You can open the door when the microwave function is switched on; the microwave function then switches off automatically and the time set is stopped.

Not all materials can be used in the combimicrowave oven. The table below shows which materials can be used and which materials cannot be used.

Material Microwave

paper yes*
aluminium foil yes**
cling film yes
aluminium trays no
freezer/microwave oven dishes yes
heatproof plastic yes
unglazed earthenware no
metal cooking utensils no
normal glass yes
ovenproof glass and ceramics yes
metallic decoration no
metallic twists no
mercury thermometer no
bottle with narrow neck no
roasting bags yes

* Use undecorated kitchen paper to cover a dish or to place under bread when defrosting.

** By covering thinner parts of foods (such as chicken legs), you prevent them from cooking too quickly.

Bringing the oven into operation

positioning

Place the microwave oven on a firm, flat surface.

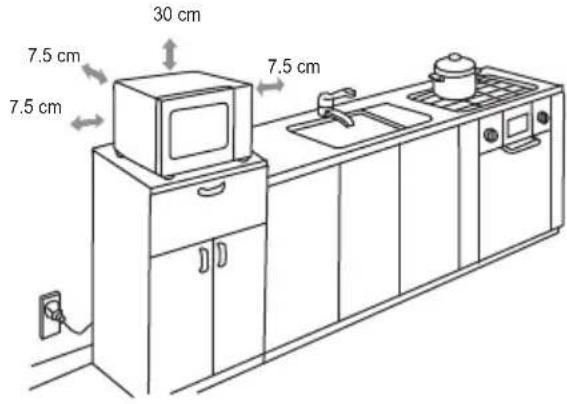

Make sure that there is sufficient ventilation around the microwave oven. Keep a 30 cm space free at the top. At the rear and sides keep at least 7.5 cm free.

Do not cover the air vents.

The adjustable feet should not be removed.

Do not place the microwave oven near a heat source.

Transmitting and receiving equipment such as radios and televisions can affect the operation of the microwave oven.

cleaning the microwave oven and accessories

Remove the accessories from the combi-microwave oven and clean the oven with a mild cleaning agent.

remark

When the oven is heated strongly for the first time, it will have a 'new' smell. This is normal. Switch the extractor hood on if necessary or open a window.

After the oven has cooled down, clean it with warm water.

• Press the 'Start/OK' button to restart the cooking programme after the door has been opened.
  If the 'Start/OK' button is not pressed within 5 minutes of selecting a cooking programme the programme will not start.
  A beep sounds when a button is pressed. If no beep is heard then the button has not been pressed firmly enough.
  ■ Five beeps will sound when a cooking programme finishes.

Setting the clock

1 Press the 'Klok' button. The hours-display starts to flash.
2 Turn the 'Tijd/Gewicht/Auto Menu' control knob. Set the hours (between 0 and 23 hour).
3 Press the 'Klok' button. The minutes-display starts to flash.
4 Turn the 'Tijd/Gewicht/Auto Menu' control knob. Set the minutes (from 0-59).
5 Press the 'Klok' button. The time that you have set is displayed (":" flashes). If you press 'Stop' while setting the clock the previous clock setting will be displayed.

remarks

When the microwave is connected to the electricity supply the display will show "0:00".

Cooking using the microwave

1 Press the 'Magnetron' button to select the microwave function. The display shows "P100".
2 Press the 'Magnetron' button repeatedly or turn the 'Tijd/Gewicht/Auto Menu' control knob to adjust the microwave power.
3 Press the 'Start/OK' button to confirm the microwave power.
4 Turn the 'Tijd/Gewicht/Auto Menu' control knob. Set the cooking time (the maximum cooking time is 95 minutes).
5 Press the 'Start/OK' button to start the set programme.

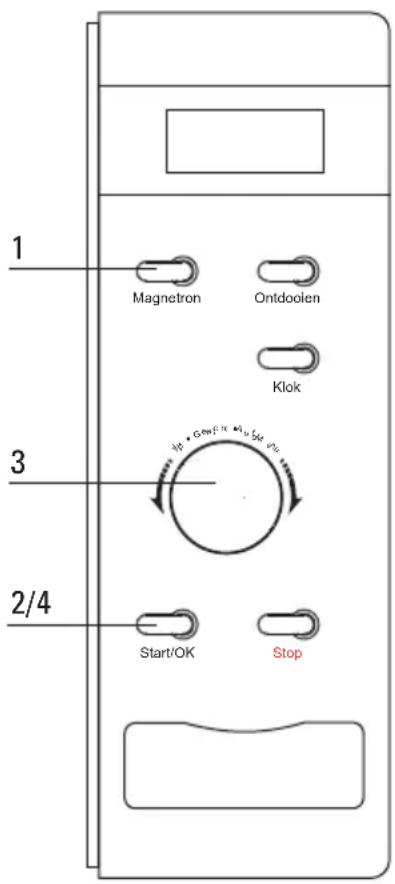

example:

You want to cook the dish at 80% of the microwave power level for 20 minutes.

1 Press the 'Magnetron' button once. The display shows "P100". Press the 'Magnetron' button again to set the power level to 80%. The display shows "P80".
2 Press the 'Start/OK' button.
3 Turn the 'Tijd/Gewicht/Auto Menu' control knob until the display shows "20:00" (the maximum cooking time is 95 minutes).
4 Press the 'Start/OK' button to start the set programme.

microwave power level table

Power level Press the 'Magnetron' button

100% (P100) 1x
80% (P80) 2x
50% (P50) 3x
30% (P30) 4x
10% (P10) 5x

Instant cooking

1 Press the 'Start/OK' button. Cooking will now be for 30 seconds at a microwave power level of 100%.

Each subsequent time you press the 'Start/OK' button the cooking process is extended by 30 seconds. The maximum cooking time is 95 minutes.

Defrosting

by setting the weight

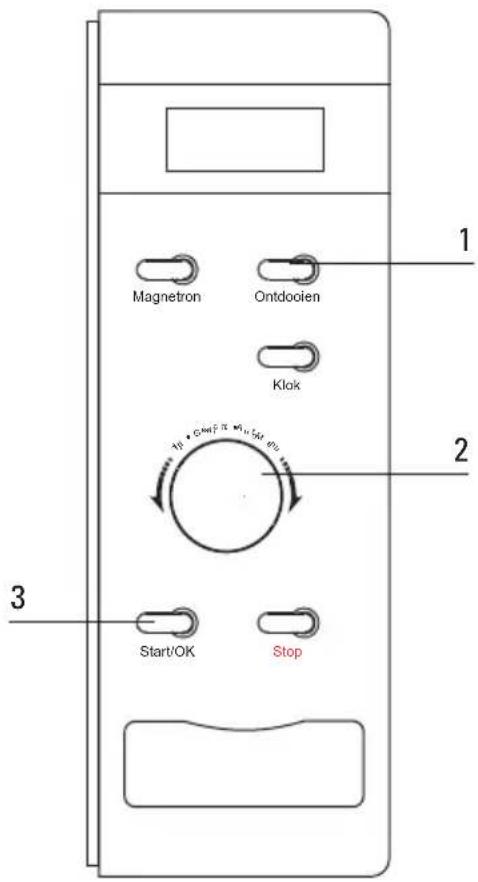

1 Press the 'Ontdooien' button once. The display shows "dEF1".
2 Turn the 'Tijd/Gewicht/Auto Menu' control knob. Set the desired weight (between 100 and 2,000 grams).
3 Press the 'Start/OK' button to start the set programme.

by setting a time

1 Press the 'Ontdooien' button twice. The display shows "dEF2".
2 Turn the 'Tijd/Gewicht/Auto Menu' control knob. Set the desired cooking time (the max. time that you can set is 95 minutes).
3 Press the 'Start/OK' button to start the set programme.

Multistage cooking

You can set a maximum of 2 cooking stages. Set the defrost function (if applicable) as the first stage. A beep sounds after the end of each stage and the next stage will start.

The Auto-menu cannot be used with this mode.

example

You want to cook for 10 minutes at a microwave power level of 100% and 5 minutes at a microwave power level of 80% .

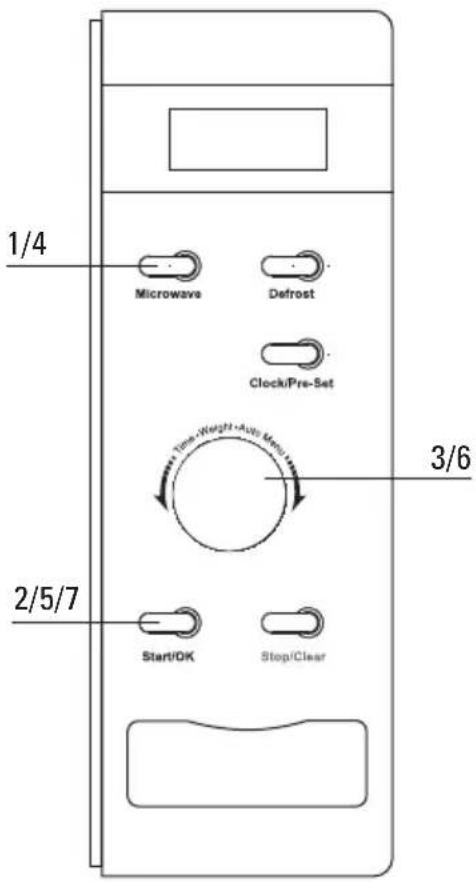

1 Press the 'Magnetron' button once for a microwave power level of 100%. The display shows "P100".
2 Press the 'Start/OK' button to confirm the microwave power.
3 Turn the 'Tijd/Gewicht/Auto Menu' control knob. Set the cooking time to 10 minutes.
4 Press the 'Magnetron' button twice for a microwave power level of 80%.
5 Press the 'Start/OK' button to confirm the microwave power.
6 Turn the 'Tijd/Gewicht/Auto Menu' control knob. Set the cooking time to 5 minutes.
7 Press the 'Start/OK' button to start the set programme.

Pre-set function

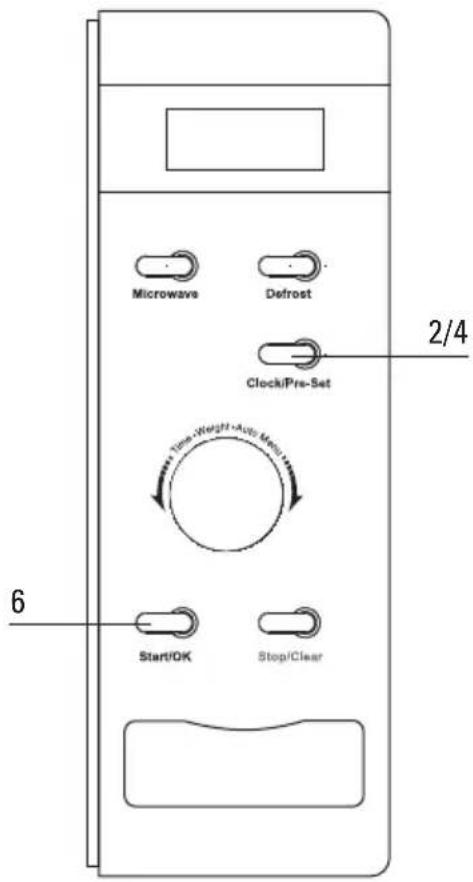

first set the clock (see the chapter entitled "Setting the clock")

1 Set a cooking function. A maximum of 2 functions can be set (apart from the defrost function). When using the "Auto menu", only one function can be set.
2 Press the 'Klok' button. The current time is shown in the display. The hours flash.
3 Turn the 'Tijd/Gewicht/Auto Menu' control knob. Set the desired hours.
4 Press the 'Klok' button. The minutes flash.
5 Turn the 'Tijd/Gewicht/Auto Menu' control knob. Set the desired minutes.
6 Press the 'Start/OK' button to confirm the set programme. When the set time arrives two beeps will sound and the cooking programme will start.

Auto menu

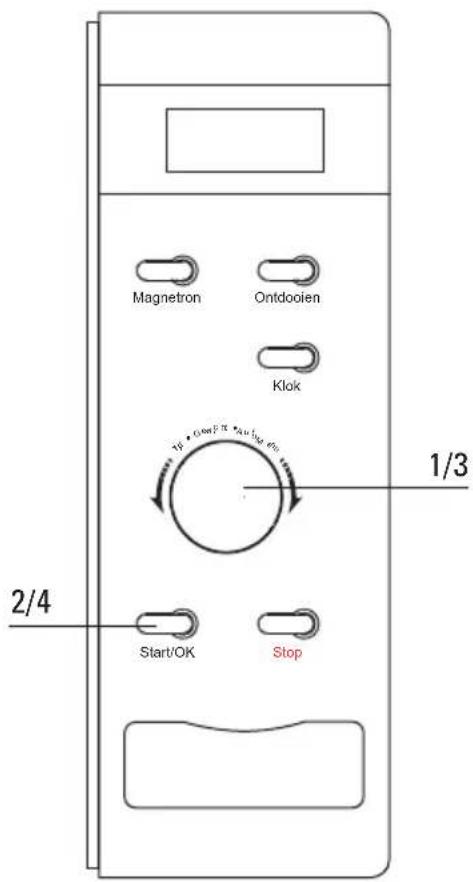

1 Turn the 'Tijd/Gewicht/Auto Menu' control knob to the right. Set the desired programme (A-1, A-2...A-8).
2 Press the 'Start/OK' button to confirm the set programme.
3 Turn the 'Tijd/Gewicht/Auto Menu' control knob. Set the desired weight or quantity.
4 Press the 'Start/OK' button to start the set programme.

Cooking table auto menu

Menu Weight/quantity Display			Power
A-1 REHEAT	200 g 200		100%
	400 g 400
	600 g 600
A-2 VEGETABLE	200 g 200		100%
	300 g 300
	400 g 400
A-3 FISH	250 g 250		80%
	350 g 350
	450 g 450
A-4 MEAT	250 g 250		100%
	350 g 350
	450 g 450
A-5 PASTA	50 g (with cold water 450 g) 50		80%
	100 g (with cold water 800 g) 100
A-6 POTATO	200 g 200		100%
	400 g 400
	600 g 600
A-7 PIZZA	200 g 200		100%
	400 g 400
A-8 SOUP	200 ml 200		80%
	400 ml 400

Checking the settings

• Press the "Magnetron" button during cooking. The set power level is shown on the display for 2-3 sec.
• Press the 'Klok' button while using the pre-set function. The current auto-start time is shown on the display for 2-3 sec.
• Press the 'Klok' button during cooking. The time is shown on the display for 2-3 sec.

Childproof lock

turn the childproof lock on

• Press the 'Stop' button for 3 seconds. A "long" beep will sound.

turn the childproof lock off

- Press the 'Stop' button for 3 seconds. A "long" beep will sound.

Cleaning

• Clean the inside immediately after use. Use a damp cloth to remove any condensation, liquid that has boiled over and food remains. Crumbs and liquid that remain behind absorb microwave energy and lengthen cooking times.
  ■ Clean the inside and outside of the oven regularly using soapy water and dry it thoroughly with a dry cloth.
  ■ Make sure that the microwave distributor cover is clean. A cover which is not clean may cause sparking.

• Clean the accessories regularly; use soapy water and a brush and dry the accessories thoroughly with a dry cloth. The accessories may also be washed in a dishwasher.

• Odours will disappear if you put a glass of vinegar or water with lemon juice added in the oven space. Switch the microwave on for two minutes on full power. Then wipe with a damp cloth.

• Check the door catch and the door seal regularly for damage.
• Do not use the combi-microwave oven if the door or door catch are damaged.

What should I do if...

If the appliance does not work properly, this does not always mean that it is defective. Try to deal with the problem yourself first. Phone the service department if the advice given below does not help.

Is the plug in the socket?
Is the door closed properly?
- Is the fuse in the meter cupboard defective?
■ Have the power level and cooking time been set properly?
- Is there anything in the microwave oven that should not be there?
■ Have you used the correct utensils?
Are the ventilation openings blocked?
- Is the food sufficiently defrosted?
- Did you turn or stir the food during cooking?

General

In case of faults phone the service department. See the guarantee certificate or consult the internet site www.hps.nl. This site also contains tips on how to use and clean your microwave. You can also purchase various cleaning products on this site.

Disposal of packaging and appliance

The appliance packaging is recyclable.

The following may have been used:

cardboard;
■ polythene film (PE);
■ CFC-free polystyrene (PS hard foam).

Dispose of these materials responsibly and in accordance with government regulations.

As a reminder of the need to dispose of household appliances separately, the product is marked with a crossed-out wheeled dustbin.

On the data plate is put the symbol of a crossed-out wheeled dustbin:

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

This means that at the end of its working life, the product must not be disposed of as urban waste. It must be taken to a special local authority differentiated waste collection centre or to a dealer providing this service.

Disposing of a household appliance separately avoids possible negative consequences for the environment and health deriving from inappropriate disposal and enables the constituent materials to be recovered to obtain significant savings in energy and resources.

Technical information

Power supply 230 V 50 Hz

Connected load 1150 W

Power microwave 800 W

Volume oven 20 L

Weight 11 kg

Dimensions (wxhxd) 440 x 258 x 345 mm

Blank gray image with no visible content, text, or symbols
