USER MANUAL WIT 51 INDESIT

Technical line drawing of a device rear panel with internal components and directional arrows indicating assembly or alignment (no text or symbols present)

Line drawing of a car door corner with a circular vent and directional arrow (no text or symbols)

Diagram of a mechanical device with a pipe and valve, showing rotational motion (no text or symbols)

Diagram of a pipe connection with a magnified inset showing a connector (no text or symbols)

Line drawing of a refrigerator with an air conditioner unit and directional arrow indicating rotation (no text or symbols)

рис. 1

Line drawing of hands installing or adjusting a component inside a container (no text or symbols visible)

рис. 2

Line drawing of a hand cleaning a microwave oven with a plastic lid (no text or symbols)

рис. 3

Diagram showing hands installing or adjusting a device into a container with numbered labels 1 and 2

рис. 4

Pure diagram of a structural beam with two downward arrows indicating load or force direction (no text or symbols)

Pure technical line drawing of a mechanical component with a circular feature and arrow symbol (no text or labels)

Line drawing of a hand placing a fan into a shared appliance into a sink (no text or symbols)

Рис. 1

Line drawing of a hand using a tool to clean or install a device (no text or symbols visible)

Рис. 2

Line drawing of a hand washing a small appliance with a faucet (no text or symbols)

Рис. 3

Line drawing of a car dashboard with handlebars and vent slots (no text or symbols)

Рис. 4

Unpacking and levelling, 14

Electric and water connections, 14-15

The first wash cycle, 15

Technical details, 15

Washing machine description, 16

Control panel, 16

How to open and shut the drum, 16

Starting and Programmes, 17

Briefly: how to start a programme, 17

Programme table, 17

Personalisations, 18

Setting the temperature, 18

Functions, 18

WIT 51

Detergents and laundry, 19

Detergent dispenser, 19

Preparing your laundry, 19

Special items, 19

Precautions and advice, 20

General safety, 20

Disposal, 20

Saving energy and respecting the environment, 20

Care and maintenance, 21

Cutting off the water or electricity supply, 21

Cleaning your appliance, 21

Caring for your appliance door and drum, 21

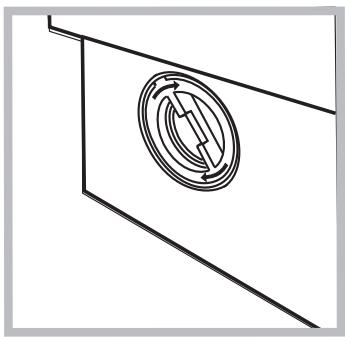

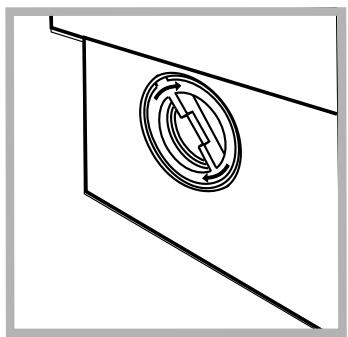

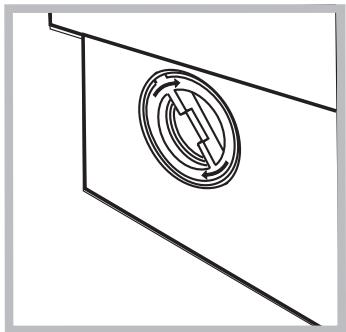

Cleaning the pump, 21

Checking the water inlet hose, 21

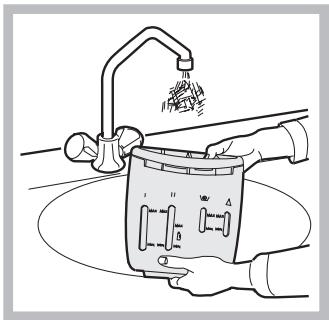

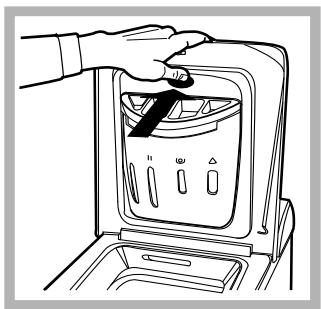

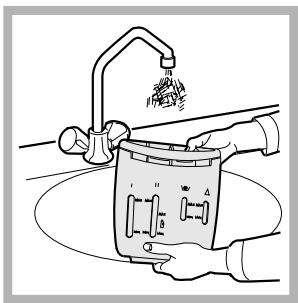

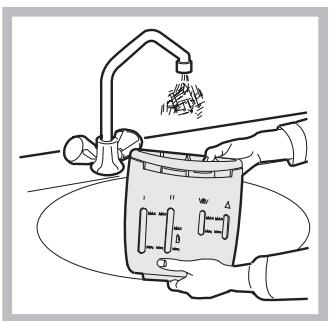

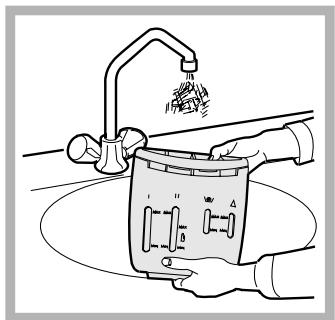

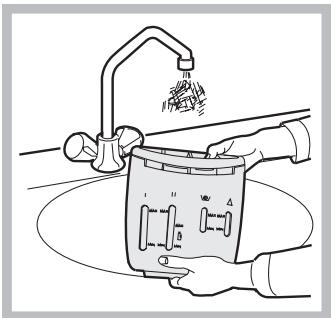

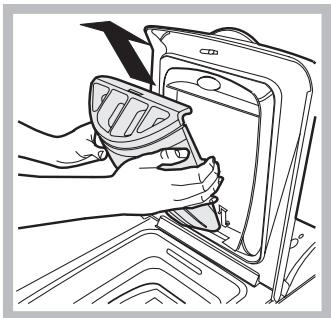

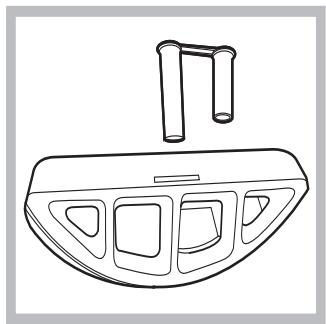

Cleaning the detergent dispenser, 21

Troubleshooting, 22

Service, 23

Before calling for Assistance, 23

INDESIT

GB

! Keep this instruction manual in a safe place for future reference. Should the appliance be sold, transferred or moved, make sure the instruction manual accompanies the washing machine to inform the new owner as to its operation and features.

! Read these instructions carefully: they contain vital information on installation, use and safety.

Unpacking and levelling

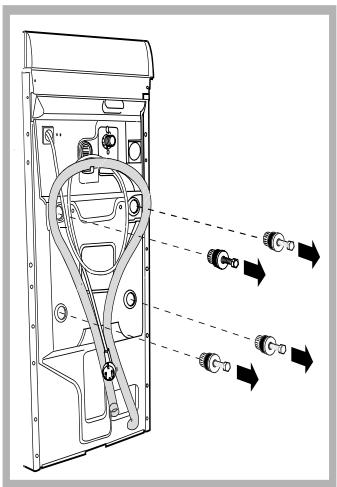

Unpacking

Technical line drawing of a device rear panel with internal components and directional arrows indicating assembly or connection (no text or symbols present)

1. Unpack the washing machine.
2. Check whether the washing machine has been damaged during transport. If this is the case, do not install it and contact your retailer.

3. Remove the four protective screws and the rubber washer with the respective spacer, situated on the rear of the appliance (see figure).

4. Seal the gaps using the plastic plugs provided.

5. Keep all the parts: you will need them again if the washing machine needs to be moved to another location.

Warning: should the screws be re-used, make sure you fasten the shorter ones at the top.

! Packaging materials are not children's toys.

Levelling

Your machine may make a considerable amount of noise if the two front feet have not been adjusted correctly.

Line drawing of a car door corner with a circular vent and directional arrow (no text or symbols)

1. Install the washing machine on a flat sturdy floor, without resting it up against walls, furniture cabinets or other.
2. If the floor is not perfectly level, compensate for any unevenness by tightening or loosening

the adjustable front feet (see figure); the angle of inclination, measured according to the worktop, must not exceed 2^ .

Levelling your appliance correctly will provide it with stability and avoid any vibrations, noise and shifting during operation. If it is placed on a fitted or loose carpet, adjust the feet in such a way as to allow enough room for ventilation beneath the washing machine.

Electric and water connections

Connecting the water inlet hose

A

1. Insert seal A into the end of the inlet hose and screw the latter onto a cold water tap with a 3/4 gas threaded mouth (see figure).

Before making the connection, allow the water to run freely until it is perfectly clear.

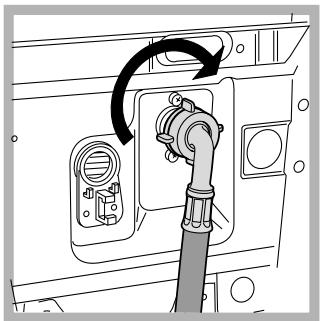

1. Connect the other end of the water inlet hose to the washing machine, screwing it onto the appliance's cold water inlet, situated on the top right-hand side on the rear of the appliance (see figure).

Diagram of a mechanical device with a lever and rotating arrow (no text or symbols)

1. Make sure there are no kinks or bends in the hose.

! The water pressure at the tap must be within the values indicated in the Technical details table (on the next page).
! If the water inlet hose is not long enough, contact a specialist store or an authorised serviceman.

Connecting the drain hose

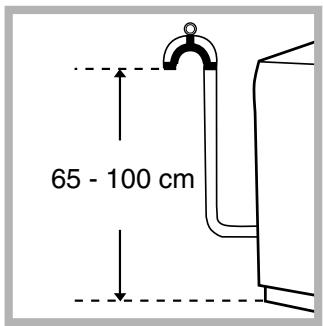

65 - 100 cm

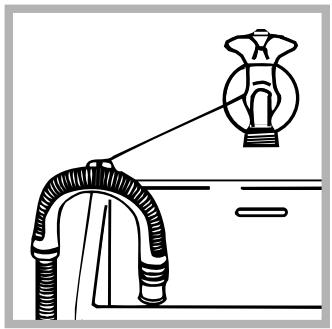

Connect the drain hose, without bending it, to a draining duct or a wall drain situated between 65 and 100 cm from the floor;

Diagram of a pipe connection with a bulb and connector, no text or symbols present

alternatively, place it over the edge of a basin, sink or tub, fastening the duct supplied to the tap (see figure). The free end of the hose should not be underwater.

! We advise against the use of hose extensions; in case of absolute need, the extension must have the same diameter as the original hose and must not exceed 150 cm in length.

Electric connection

Before plugging the appliance into the mains socket, make sure that:

- the socket is earthed and in compliance with the applicable law;

- the socket is able to sustain the appliance's maximum power load indicated in the Technical details table (on the right);

- the supply voltage is included within the values indicated on the Technical details table (on the right);

- the socket is compatible with the washing machine's plug. If this is not the case, replace the socket or the plug.

! The washing machine should not be installed in an outdoor environment, not even when the area is sheltered, because it may be very dangerous to leave it exposed to rain and thunderstorms.

! When the washing machine is installed, the mains socket must be within easy reach.

! Do not use extensions or multiple sockets.
! The power supply cable must never be bent or dangerously compressed.
! The power supply cable must only be replaced by an authorised serviceman.

Warning! The company denies all liability if and when these norms are not respected.

The first wash cycle

Once the appliance has been installed, and before you use it for the first time, run a wash cycle with detergent and no laundry, setting the 90^ C programme without a pre-wash cycle.

Technical details
Model	WIT 51
Dimensions	40 cm wide85 cm high60 cm deep
Capacity	from 1 to 5 kg
Electric connections	voltage 220/230 Volts 50 Hzmaximum absorbed power 1850 W
Water connections	maximum pressure 1 MPa (10 bar)minimum pressure 0.05 MPa (0.5 bar)drum capacity 42 litres
Spin speed	up to 500 rpm
Control programmes according to IEC456 directive	programme 3; temperature 60°C;run with a load of 5 kg.
	This appliance is compliant with the following European Community Directives:- 73/23/CEE of 19/02/73 (Low Voltage) and subsequent amendments- 89/336/CEE of 03/05/89(Electromagnetic Compatibility) and subsequent amendments-2002/96/CE

Washing machine description

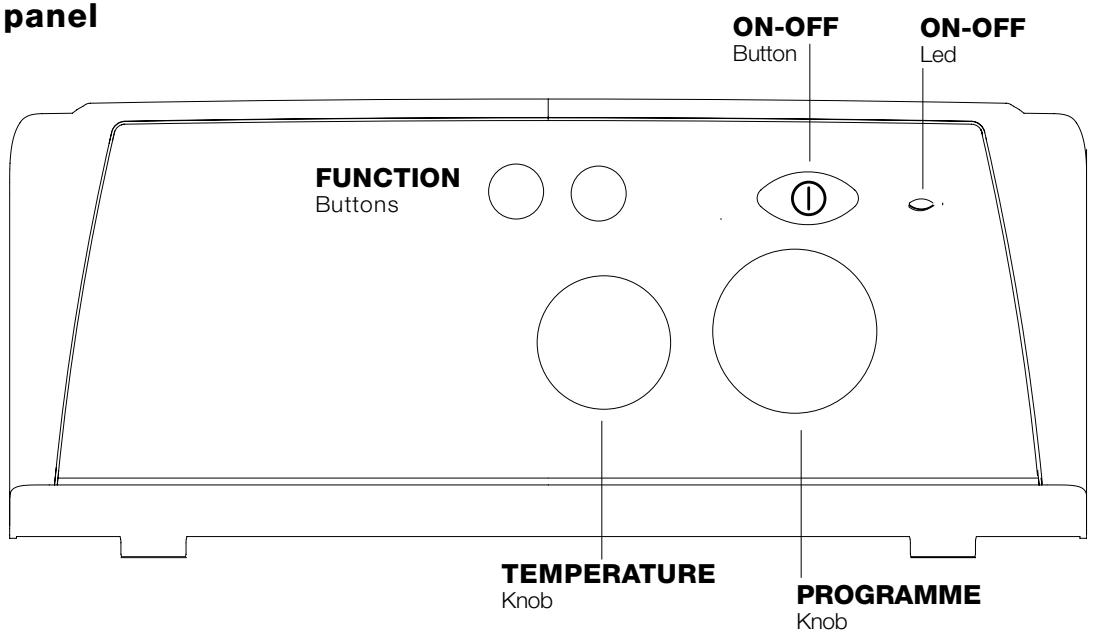

Control panel

panel ON-OFF Button ON-OFF Led FUNCTION Buttons ① TEMPERATURE Knob PROGRAMME Knob

Detergent dispenser: to add detergent and fabric softener (see page 19).

FUNCTION buttons: to select the functions available (see page 18).

TEMPERATURE knob: to set the temperature or the cold wash cycle (see page 18).

ON/OFF button, to turn the washing machine on and off.

ON/OFF led, to find out whether the washing machine is on.

PROGRAMME knob:

to select the wash programmes.

Remember that this dial should be turned in a clockwise direction and only when the machine is off.

How to open and to shut the drum

Line drawing of a refrigerator interior with a directional arrow indicating rotation (no text or symbols)

Fig. 1

Illustration of hands installing or adjusting a mechanical component inside a storage unit (no text or symbols visible)

Fig. 2

Line drawing of a hand placing a plastic bag into a multi-compartment refrigerator (no text or symbols)

Fig. 3

Diagram showing hands installing or adjusting a device into a container with numbered labels ① and ②

Fig. 4

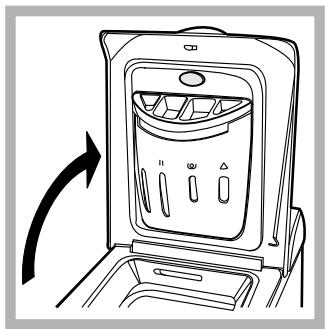

A) Opening (Fig. 1).

Lift the external lid and open it completely.

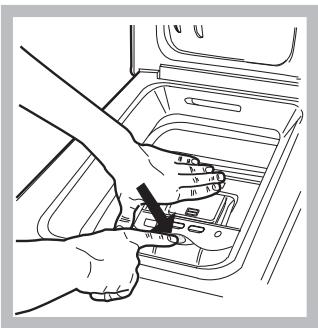

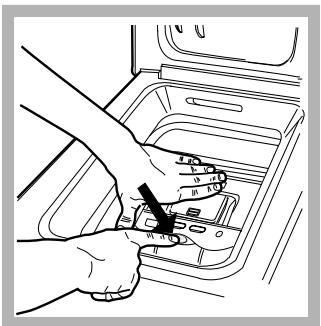

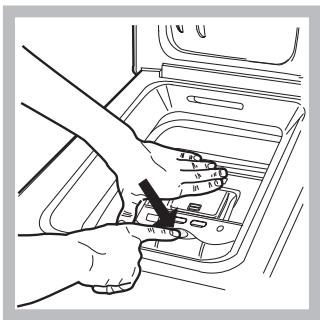

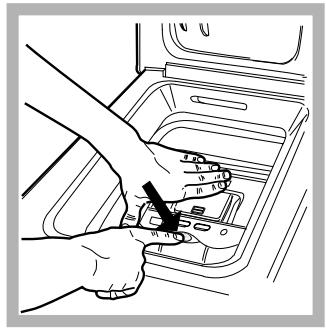

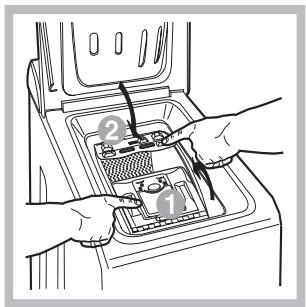

B) Then open the drum using both hands as shown in Fig. 2:

• press the button indicated by the arrow in Fig. 2 lightly downwards, with one hand firmly resting on the doors to prevent them from suddenly opening and hurting your fingers;
• therefore follow the appliance doors along as these unhook and open easily.

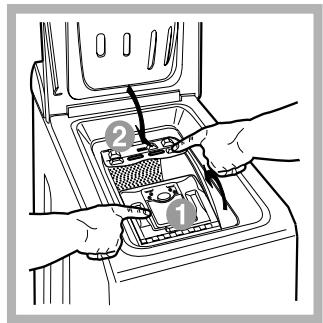

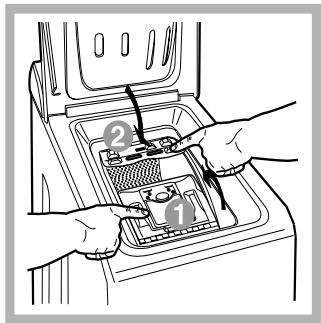

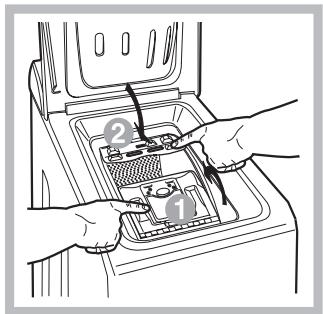

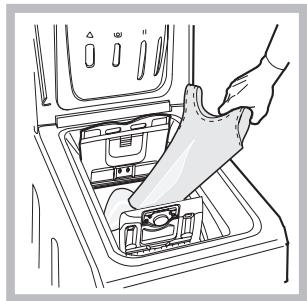

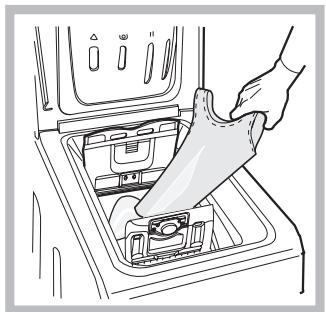

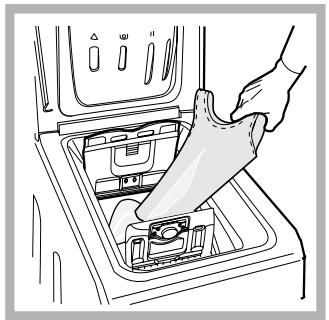

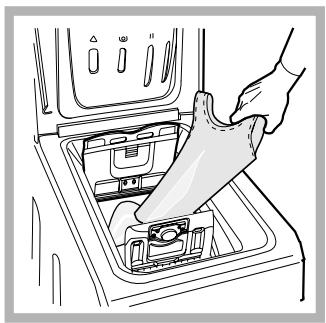

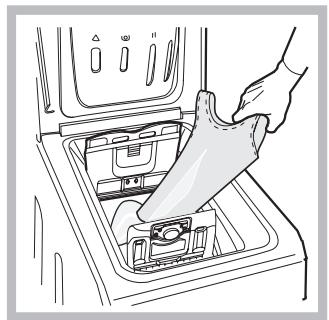

C) Loading the washing machine. (Fig. 3).

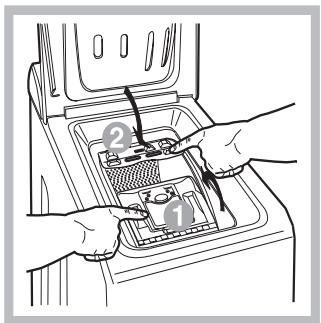

• close the drum fully by first shutting the front door followed by the rear one;
• then ensure the hooks on the front door are perfectly housed within the seat of the rear door;
• after the hooks have clicked into position, press both doors lightly downwards to make sure they do not come loose;
• finally shut the external lid.

Briefly: starting a programme

1. Set the desired programme using the Programme knob.
2. Set the wash temperature (see page 18).
3. Load your laundry into the washing machine, add the detergent and any fabric softener (see page 19) and shut the appliance door.
4. Turn the appliance on by pressing button Ⓘ.

Programme table

1. At the end of the wash cycle wait approximately 3 minutes.
   Then turn the washing machine off by pressing Ⓐ button.
2. You can now open the washing machine door safely. After having removed the freshly cleaned washing, leave the door open to allow air circulation inside the drum.
   Always disconnect electricity at the socket and turn off the water supply.

Type of fabric and degree of soil	Program-mes	Tempe-rature	Detergent		Fabric softener	Cycle length (min.)	Description of wash cycle
			pre-wash	wash

Cotton

Extremely-soiled whites (sheets, tablecloths, etc.)	1	90°C	•	•	•	155	Pre-wash, wash cycle, rinse cycles, intermediate and final spin cycles
Heavily-soiled whites (sheets, tablecloths, etc.)	2	90°C		•	•	145	Wash cycle, rinse cycles, intermediate and final spin cycles
Heavily-soiled whites and resistant colours	2	60°C		•	•	145	Wash cycle, rinse cycles, intermediate and final spin cycles
Heavily soiled whites and resistant colours	2	40°C		•	•	145	Wash cycle, rinse cycles, intermediate and final spin cycles
Soiled whites and resistant colours (coloured linen, dressing gowns, jumpers, etc.)	3	60°C		•	•	115	Wash cycle, rinse cycles, intermediate and final spin cycles
Slightly-soiled whites and colours	3	40°C		•	•	115	Wash cycle, rinse cycles, intermediate and final spin cycles
Slightly-soiled whites and delicate colours (shirts, jumpers, etc.)	4	40°C		•	•	100	Wash cycle, rinse cycles, intermediate and final spin cycles
Rinse					•		Rinse cycles, intermediate and final spin cycles
Treatment with softeners					•		Rinse cycles with automatic softener intake, intermediate and final spin cycles
Spin cycle							Draining and final spin cycle

Synthetics

Heavily-soiled resistant colours (baby linen, etc.)	5	60°C		•	•	90	Wash cycle, rinse cycles, anti-crease or delicate spin cycle
Heavily-soiled colour synthetics	5	50°C		•	•	80	Wash cycle, rinse cycles, anti-crease or delicate spin cycle
Heavily-soiled delicate colour synthetics	5	40°C		•	•	70	Wash cycle, rinse cycles, anti-crease or delicate spin cycle
Soiled colour synthetics	6	50°C		•	•	80	Wash cycle, rinse cycles, anti-crease or delicate spin cycle
Delicate colour synthetics (all types of slightly soiled garments)	7	40°C		•	•	70	Wash cycle, rinse cycles, anti-crease or delicate spin cycle
Delicates Wool (machine-washable)	8	40°C		•	•	55	Wash cycle, rinse cycles, anti-crease or delicate spin cycle
Rinse					•		Rinse cycles, anti-crease or delicate spin cycle
Treatment with softeners					•		Rinse cycles with automatic introduction of softener, anti-crease or delicate spin cycle
Anti-crease - Rinse hold	•						Rinse hold anti-crease for especially delicate garments (synthetics). Spin cycle or draining cycle
Spin cycle							Draining and delicate spin cycle
Draining							Draining without spin cycle

Notes

for the description of the Anti-crease function, please see page 18. The information contained in the table is purely indicative.

Setting the temperature

Turn the TEMPERATURE knob to set the wash temperature (see Programme table on page 17).

The temperature can be lowered, or even set to a cold wash (✗).

Functions

To enable the functions, press the button corresponding to the desired function, according to the table below.

Function	Effect	Comments
Half load	Reduces water consumption during the rinse cycles.	We recommend that you use this function only with small laundry loads, dosing the detergent proportionally.
No Spin	Use this button to exclude the spin cycle.	We recommend that you use it when washing garments which are difficult to iron.

Anti-crease

This feature interrupts the wash cycle (position ●), letting the laundry soak in the water before the spin cycle. It is activated only during the wash cycles for synthetic materials and wool.

This feature is very useful because it prevents delicate and synthetic clothing from wrinkling (for example, when you are unable to remove the laundry at the end of the wash cycle and it must remain in the machine for several hours).

The wash program can be completed with either a spin cycle or by draining the water without wringing. In the first case, simply turn the knob PROGRAMME clockwise one click.

In the second, turn the knob PROGRAMME to the drain setting 🐎.

In both cases, the knob PROGRAMME must be turned when the machine is off.

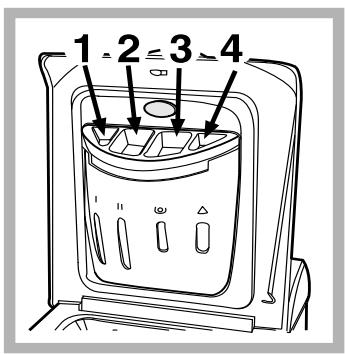

Detergent dispenser

Good washing results also depend on the correct dose of detergent: adding too much detergent won't necessarily make for a more efficient wash, and may in fact cause build up on the interior of your appliance and even pollute the environment.

1 2 3 4

Open up the detergent dispenser and pour in the detergent and fabric softener, as follows.

compartment 1: Detergent for pre-wash (powder)

compartment 2: Detergent for the wash cycle (powder or liquid)

Liquid detergent should only be poured in immediately prior to the wash cycle start.

! Do not use hand wash detergent because it may form too much foam.

compartment 3: Additives (fabric softeners, etc.)

When pouring the softener in compartment 3, avoid exceeding the "max" level indicated.

The softener is added automatically into the machine during the last wash. At the end of the wash programme, some water will be left in compartment 3. This is used for the inlet of denser fabric softeners into the machine, i.e. to dilute the more concentrated softeners. Should more than a normal amount of water remain in compartment 3, this means the emptying device is blocked. For cleaning instructions, see page 21.

The fabric softener should not overflow from the grid.

compartment 4: Bleach

Bleach cycle

Traditional bleach should be used on sturdy white fabrics, and delicate bleach for coloured fabrics, synthetics and for wool.

When pouring in the bleach, be careful not to exceed the "max" level indicated on compartment 4 (see figure).

Preparing your laundry

• Divide your laundry according to:
• the type of fabric/the symbol on the label.
• the colours: separate coloured garments from whites.
• Empty all pockets and check for loose buttons.
• Do not exceed the weight limits stated below, which refer to the weight when dry:
  Sturdy fabrics: max 5 kg
  Synthetic fabrics: max 2.5 kg
  Delicate fabrics: max 2 kg
  Wool: max 1 kg

How much does your laundry weigh?

1 sheet 400-500 g
1 pillow case 150-200 g
1 tablecloth 400-500 g
1 bathrobe 900-1,200 g
1 towel 150-250 g

Special items

Curtains: fold curtains and place them in a pillow case or mesh bag. Wash them separately without exceeding half the appliance load. Use programme 7 which excludes the spin cycle automatically.

Quilted coats and windbreakers: if they are padded with goose or duck down, they can be machine-washed. Turn the garments inside out and load a maximum of 2-3 kg, repeating the rinse cycle once or twice and using the delicate spin cycle.

Wool: for best results, use a specific detergent, taking care not to exceed a load of 1 kg.

! The washing machine was designed and built in compliance with the applicable international safety regulations. The following information is provided for your safety and should consequently be read carefully.

General safety

• This appliance has been designed for non-professional, household use and its functions must not be changed.
• This washing machine should only be used by adults and in accordance with the instructions provided in this manual.
• Never touch the washing machine when barefoot or with wet or damp hands or feet.
• Do not pull on the power supply cable to unplug the appliance from the electricity socket. Pull the plug out yourself.
• Do not open the detergent dispenser while the appliance is in operation.
• Do not touch the drain water as it could reach very high temperatures.
• Never force the washing machine door: this could damage the safety lock mechanism designed to prevent any accidental openings.
• In the event of a malfunction, do not under any circumstances touch internal parts in order to attempt repairs.
• Always keep children well away from the appliance while in operation.
• The appliance door tends to get quite hot during the wash cycle.
• Should it have to be moved, proceed with the help of two or three people and handle it with the utmost care. Never try to do this alone, because the appliance is very heavy.
• Before loading your laundry into the washing machine, make sure the drum is empty.

Disposal

- Disposal of old electrical appliances The European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment.

The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected.

Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

• Disposing of an old washing machine: before scrapping your appliance, cut the power supply cable and remove the appliance door.

Saving energy and respecting the environment

Environmentally-friendly technology

If you only see a little water through your appliance door, this is because thanks to the latest technology, your washing machine only needs less than half the amount of water to get the best results: an objective reached to respect the environment.

Saving on detergent, water, energy and time

• To avoid wasting resources, the washing machine should be used with a full load. A full load instead of two half loads allows you to save up to 50% on energy.
• The pre-wash cycle is only necessary on extremely soiled garments. Avoiding it will save on detergent, time, water and between 5 and 15% energy.
• Treating stains with a stain remover or leaving them to soak before washing will cut down the need to wash them at high temperatures. A programme at 60^ C instead of 90^ C or one at 40^ C instead of 60^ C will save up to 50% on energy.
• Use the correct quantity of detergent depending on the water hardness, how soiled the garments are and the amount of laundry you have, to avoid wastage and to protect the environment: despite being biodegradable, detergents do contain ingredients that alter the natural balance of the environment. In addition, avoid using fabric softener as much as possible.
• If you use your washing machine from late in the afternoon until the early hours of the morning, you will help reduce the electricity board's peak load.
• If your laundry has to be dried in a tumble dryer, select a high spin speed. Having the least water possible in your laundry will save you time and energy in the drying process.

Cutting off the water or electricity supply

• Turn off the water tap after every wash. This will limit the wear of your appliance's water system and also prevent leaks.
• Unplug your appliance when cleaning it and during all maintenance operations.

Cleaning your appliance

The exterior and rubber parts of your appliance can be cleaned with a soft cloth soaked in lukewarm soapy water. Do not use solvents or abrasives.

Cleaning the detergent dispenser

Remove the dispenser by raising it and pulling it out (see figure).

Wash it under running water; this operation should be repeated frequently.

Caring for your appliance door and drum

- Always leave the appliance door ajar to prevent unpleasant odours from forming.

Cleaning the pump

The washing machine is fitted with a self-cleaning pump that does not require any maintenance. Sometimes, small items (such as coins or buttons) may fall into the pre-chamber that protects the pump, situated in the lower part of the same.

! Make sure the wash cycle has ended and unplug the appliance.

To recover any objects that have fallen into the pre-chamber:

Pure mechanical diagram showing a curved structural element with two directional arrows indicating force or motion (no text or symbols)

1. remove the plinth at the bottom on the front side of the washing machine by pulling from the side with your hands (see figure);
2. unscrew the lid rotating it anticlockwise (see figure): a little water may trickle out. This is perfectly normal;
3. clean the interior thoroughly;
4. screw the lid back on;
5. reposition the panel, making sure the hooks are securely in place before you push it onto the appliance.

Pure technical line drawing of a mechanical component with a circular feature and arrow symbol (no text or labels)

Checking the water inlet hose

Check the water inlet hose at least once a year. If you see any cracks, replace it immediately: during the wash cycles, water pressure is very strong and a cracked hose could easily split open.

! Never use hoses that have already been used.

How to clean the detergent dispenser

Disassembly:

Press lightly on the large button on the front of the detergent dispenser and pull it upwards (fig. 1).

Cleaning:

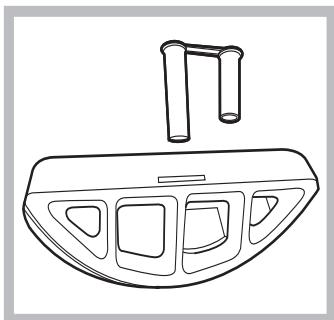

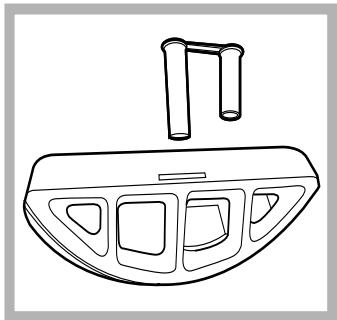

Then clean the dispenser under a tap (fig. 3) using an old toothbrush and, once the pair of siphons inserted in the top of compartments 1 and 2 (fig. 4) have been pulled out, check whether the same are not clogged and then rinse them.

Reassembly:

Do not forget to reinsert the pair of siphons into the special housings and then to replace the dispenser into its seat, clicking it into place (fig. 4, 2 and 1).

Line drawing of a hand placing a black object into a refrigerator with control panel (no text or symbols)

Fig. 1

Line drawing of a hand holding a helmet inside a vehicle intake tray (no text or symbols)

Fig. 2

Illustration of hands cleaning a kitchen sink with a water dispenser (no text or symbols)

Fig. 3

Line drawing of a car dashboard with handlebars and vent slots (no text or symbols)

Fig. 4

Your washing machine could fail to work. Before calling for Assistance (see page 23), make sure the problem can't easily be solved by consulting the following list.

Problem	Possible causes/Solution:
The washing machine won't start.	The appliance is not plugged into the socket, or not enough to make contact.There has been a power failure.
The wash cycle won't start.	The appliance door is not shut properly.The 1 button has not been pressed.The water tap is not turned on.
The washing machine fails to load water.	The water inlet hose is not connected to the tap.The hose is bent.The water tap is not turned on.There is a water shortage.The water pressure is insufficient.
The washing machine continuously loads and unloads water.	The drain hose is not fitted between 65 and 100 cm from the floor (see page 15).The free end of the hose is underwater (see page 15).The wall drainage system doesn't have a breather pipe.If the problem persists even after these checks, turn off the water tap, switch the appliance off and call for Assistance. If the dwelling is on one of the upper floors of a building, there may be drain trap problems causing the washing machine to load and unload water continuously. In order to avoid such an inconvenience, special anti-drain trap valves are available in shops.
The washing machine does not drain or spin.	The programme does not foresee the draining: some programmes require enabling the draining manually (see page 17).The Anti-crease function is enabled (where available): This function requires enabling the draining manually.The drain hose is bent (see page 15).The drain duct is clogged.
The washing machine vibrates too much during the spin cycle.	When the machine is installed, the locking screws for the oscillating assembly are still in place. Remove the screws (see page 14).The washing machine is not level (see page 14).The washing machine is closed in between furniture cabinets and the wall (see page 14).
The washing machine leaks.	The water inlet hose is not screwed on correctly (see page 14).The detergent dispenser is obstructed (to clean it, see page 21).The drain hose is not secured properly (see page 15).
There is too much foam.	The detergent is not suitable for machine washing (it should bear the definition "for washing machines" or "hand and machine wash", or the like).You used too much detergent.

Before calling for Assistance:

• Check whether you can solve the problem on your own (see page 22);
• Restart the programme to check whether the problem has been solved;
• If this is not the case, contact an authorised Technical Service Centre on the telephone number provided on the guarantee certificate.

! If the machine has been installed or used incorrectly, you may be charged for the maintenance callout service
! Always request the assistance of authorised servicemen.

Notify the operator of:

• the type of problem;
  • the appliance model (Mod.);
  • the serial number (S/N).

This information can be found on the data plate situated on the rear of the washing machine.

Français

Sommaire

Installation, 26-27

Technical diagram of a device rear panel with labeled components and directional arrows indicating assembly or connection.

Line drawing of a car door corner with a circular vent and directional arrow (no text or symbols)

Diagram of a mechanical device with a pipe and valve, showing rotational motion (no text or symbols)

Diagram of a pipe connection with a connector, showing a bulb and tubing (no text or symbols)

Line drawing of a refrigerator with a door and side panel, showing an arrow indicating rotation (no text or symbols)

Fig. 1

Line drawing of hands inserting a component into a storage unit (no text or symbols visible)

Fig. 2

Line drawing of a hand placing a component into a shared drawer (no text or symbols)

Fig. 3

Diagram showing hands installing or adjusting a device into a container with numbered parts labeled 1 and 2

Fig. 4

Pure geometric diagram showing a 3D object with two arrows indicating direction (no text or symbols)

Pure technical line drawing of a mechanical component with no text or symbols

Line drawing of a hand placing a bag into a microwave oven (no text or symbols)

Fig. 1

Line drawing of a hand inserting a device into a device compartment (no text or symbols)

Fig. 2

Diagram showing hands cleaning a water tank with labeled components and a faucet, likely illustrating a procedure or inspection.

Fig. 3

Line drawing of a mechanical component with no text or symbols

Fig. 4

Causes / Solutions possibles:

Technical diagram of a device rear panel with labeled components and directional arrows indicating assembly or connection.

Line drawing of a car door corner with a circular vent and directional arrow (no text or symbols)

Diagram of a mechanical device with a lever and valve, showing rotational motion (no text or symbols)

Diagram of a hairpin with attached tubing and a connector (no text or symbols)

Line drawing of a washing machine interior with directional arrow indicating rotation (no text or symbols)

Fig. 1

Line drawing of hands installing or adjusting a device inside a container (no text or symbols visible)

Fig. 2

Line drawing of a hand cleaning a microwave oven with a lid (no text or symbols)

Fig. 3

Diagram showing hands installing components on a device with numbered labels 1 and 2

Fig. 4

Pure geometric diagram showing a 3D structural element with two arrows indicating direction (no text or symbols)

Pure technical line drawing of a mechanical component with no text or symbols

Line drawing of a hand placing a small object into a washing machine (no text or symbols)

Fig. 1

Line drawing of a hand inserting a device into a device panel (no text or symbols)

Fig. 2

Illustration of hands using a water level meter to clean or install a surface, with no visible text or symbols.

Fig. 3

Line drawing of a mechanical component with a bracket and internal compartments (no text or symbols)

Fig. 4

Technical line drawing of a mechanical device with internal components and directional arrows indicating assembly or flow (no text or symbols present)

Line drawing of a car door corner with a circular vent and directional arrow (no text or symbols)

Diagram of a mechanical device with a pipe and valve, showing rotational motion (no text or symbols)

Diagram of a pipe connection with a magnified inset showing a connector (no text or symbols)

Line drawing of a kitchen appliance with a door and side panel, showing a curved arrow indicating rotation (no text or symbols)

Euk. 1

Line drawing of hands installing or adjusting a component inside a container (no text or symbols visible)

Euk. 2

Line drawing of a hand inserting a plastic bag into an open appliance (no text or symbols)

Eik.3

Illustration of hands inserting a component into a device (no text or symbols visible)

Euk.4

Pure geometric diagram showing a 3D structural element with two arrows indicating direction (no text or symbols)

Pure technical line drawing of a mechanical component with a circular feature and diagonal line (no text or symbols)

Line drawing of a hand placing a button into a washing machine (no text or symbols)

Euk. 1

Line drawing of a hand cleaning a door panel with a tool (no text or symbols)

Euk. 2

Line drawing of hands cleaning a water tap with a hand holding a device (no text or symbols)

Euk. 3

Line drawing of a car dashboard with handlebars and vent slots (no text or symbols)

Euk. 4
