CI3608 - Coffee maker TEFAL - Free user manual and instructions

Product Type	Coffee Maker
Brand	Tefal
Model	CI3608
Water Tank Capacity	Approx. 1.2 L
Power	1000 W
Dimensions (approx.)	25 x 20 x 35 cm
Weight (approx.)	2 kg
Material	Plastic, Stainless Steel
Drip Stop	Yes, allows serving coffee before cycle ends
Aroma Selector	Yes, adjustable coffee intensity
Automatic Shut-off	Yes, after approx. 30 min (glass jug) or few min (thermal pot)
Heating Plate	Yes (on glass jug models)
Thermal Pot Option	Yes (depending on model)
Filter Type	Paper filter No. 2 or 4, or permanent filter (depending on model)
Descaling Frequency	Every 40 uses
Cleaning	Wipe with damp cloth; removable filter holder dishwasher safe
Safety Features	Overheat protection, auto shut-off, cool-touch handle
Accessories Included	Glass jug or thermal pot, dosing spoon, filter holder
Warranty	Standard manufacturer warranty

Frequently Asked Questions - CI3608 TEFAL

How do I descale my Tefal CI3608 coffee maker?

Descale every 40 uses. Use a descaling agent or white vinegar: dilute in two large cups of water, pour into the tank, and run the coffee maker without coffee. Let it sit for one hour after one cup flows, then finish the cycle. Rinse with 2-3 cycles of fresh water.

Can I use a thermal pot with this coffee maker?

Yes, depending on the model. If you have the thermal pot version, it keeps coffee warm for up to 4 hours. Do not put the thermal pot in the microwave or dishwasher.

How do I clean the coffee maker?

Unplug and let cool. Wipe with a damp cloth. Do not immerse in water. The removable filter holder is dishwasher safe. Glass jugs without metal bands can go in the dishwasher (lid removed).

What is the aroma selector and how do I use it?

The aroma selector (fig.7) adjusts coffee intensity. Turn towards the black cup or large coffee grain symbol for stronger coffee.

Why is my coffee weak?

Ensure you use the correct coffee-to-water ratio: one measuring spoon per large cup. Also check the aroma selector setting. If the coffee maker needs descaling, that can affect strength.

Can I use ground coffee with this machine?

Yes, use one measuring spoon of ground coffee per large cup. Place a paper filter (No. 2 or 4) or permanent filter in the filter holder.

How do I prevent overflowing when serving coffee mid-cycle?

The drip stop allows you to serve coffee before the cycle ends. After serving, replace the jug or thermal pot quickly to avoid overflow.

How long does the automatic shut-off take?

For glass jug models: about 30 minutes after the brewing cycle ends. For thermal pot models: a few minutes after the cycle ends. The on/off button light turns off.

Can I put the glass jug in the microwave?

Only if the jug has no metal parts. If it has a metal band, do not microwave. The thermal pot should never be microwaved.

What should I do before first use?

Run the coffee maker once with only water (no coffee) to rinse the system. Follow the instructions in the manual.

USER MANUAL CI3608 TEFAL

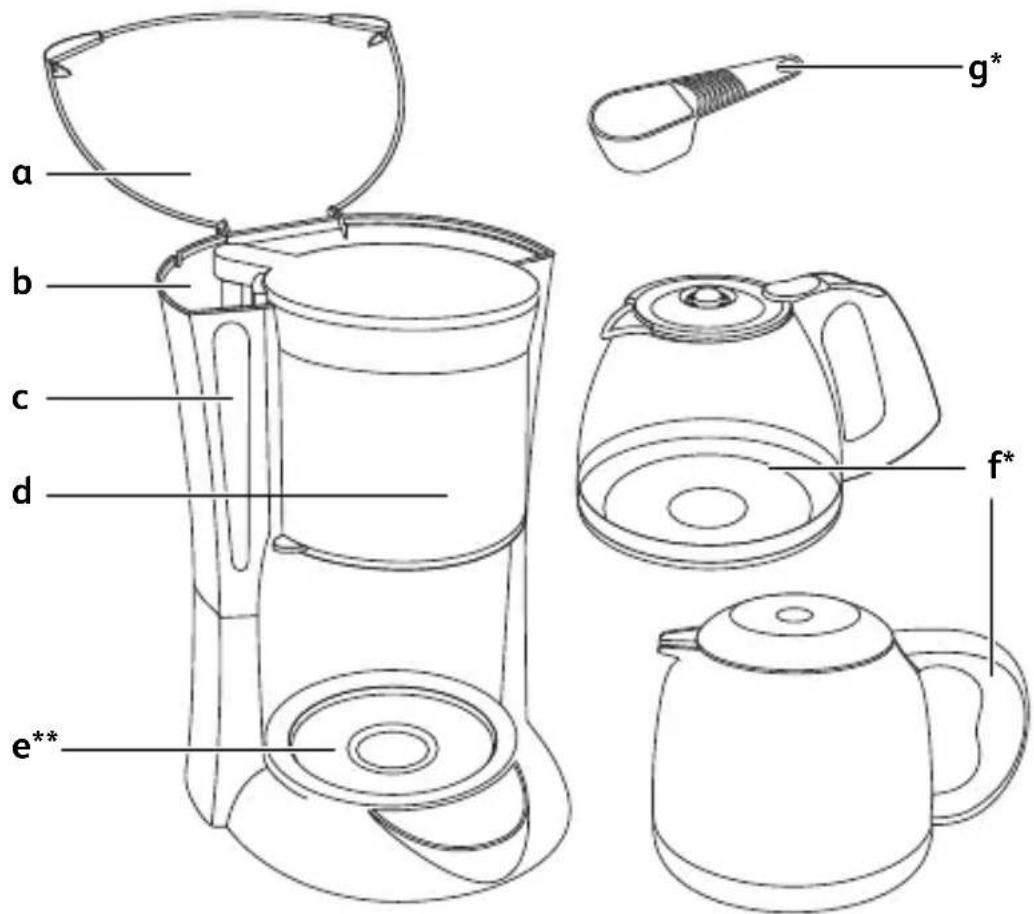

Line drawing of a coffee maker with handle and lid (no text or symbols)

a Lid - Deksel - Låg - Lokk - Lock - Kansi - Kapak - Tapa - Deckel - Kapak - Poklopac - Poklop - Fedő - Capac - Vrchnák - Pokrov - Poklopac - Poklopac - Kaas - Pärsegs - Dangtelis - Pokrywka.
b Tank - Reservoir - Vandtank - Tank - Behållare - Vesisäiliö - Hazne - Depósito - Wassertank - Pezepboap - Spremnik za vodu - Nádržka na vodu - Víztartály - Rezervor - Nádržka - Posoda za vodo - Rezervoar - Spremnik - Veepaa Tvertne - Rezervuaras - Zbiornik
c Water level - Waterpeil - Vandniveau - Vannivå - Vattennivå - Vedentason näyttö - Su seviyesi - Nivel de agua - Wasserstandanzeige - Ниво на водата - Indikator nivoa vode - Hladina vody - Vízszintjelző - Nivelul apei - Hladina vody - Kontrolno okence za nivo vode - Indikator nivoa vode - Pokazivač razine vode - Veetaseme näidik - Üclīmenis - Vandens lygis - Poziom wody.
d Filter holder - Filterhouder - Filterholder - Filterholder - Filterhållare - Suodatinkotelo - Filtre destegi - Portafiltros - Filterträger - Отделение за филтъра - Nosač filtera - Držák filtru - Filterartó - Suport pentru filtru - Držiak na filter - Držalo filtra - Nosač filtera - Nosač filtra - Filtrihoidik - Filtra turētājs - Filtro déklas - Pojemnik na filtr.
e Warming plate** - Opwarmplaat** - Varmeplade** - Varmeplate** - Värmeplatta** - Lämpölevy** - Isinan levha** - Placa calefactora** - Heizplatte** - Hargряваща плоча** - Grijaća ploča** - Ohřivací ploténka** - Melegítő lap** - Suprafață de încălzire** - Výhrevná platňa** - Grelna plošča** - Grejna ploča** - Grijača ploč - Kuumutusplaat** - Sildvirsma** - Kaitvietė** - Płyta grzewcza**
f Jug* - Koffiekan* - Kande* - Kanne* - Kanna* - Kannu* - Sürahi* - Jarra* - Kanne* - Kana* - Posuda* - Konvice* - Kiöntő* - Cană* - Kanvica na kávu* - Vrč za kavo* - Posuda* - Posuda* - Kann* - Krüze* - Piltuvélis* - Dzbanek*
g Dosing spoon - Maatlepel - Måleske - Doseringsskje - Kaffemätt - Mittalusikka - Ölçme kaşığı - Cuchara dosificadora - Dosierlöffel - Лъжица за дозиране - Kašikica za doziranje - Dávkovacílžička - Adagolókanál - Lingurită de dozare - Dávkovacia lyžica - Merilna žlička - Žlica za doziranje - Žlica za doziranje - Doseerimislusikas - Dozēšanas kausiņš - Dozavimo šaukštelis - Łyžka dozująca

1

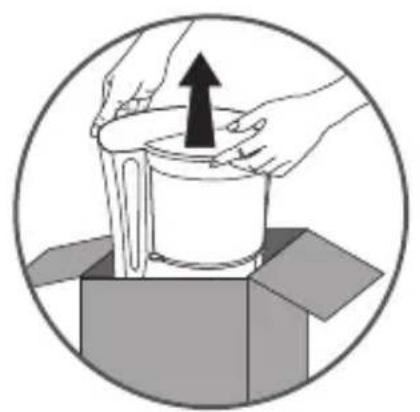

Illustration of hands holding a cup and an open box with an upward arrow, enclosed in a circle (no text or symbols)

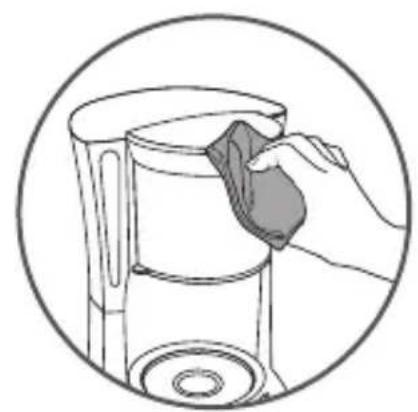

Illustration of a hand cleaning a cylindrical container with a cloth (no text or symbols)

fig.1
2

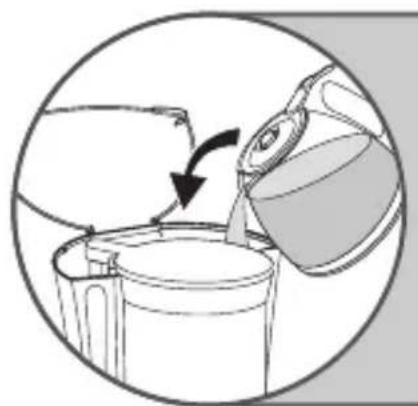

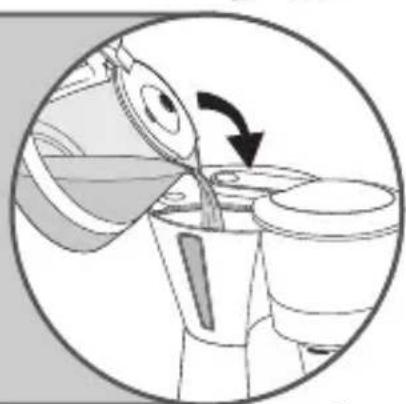

Illustration of a hand pouring liquid from a container into a bottle, enclosed in a circular frame (no text or symbols)

Diagram of a kitchen appliance with a lid, fan, and water dispenser inside a circular frame (no text or symbols)

Illustration of a hand pouring liquid into a container with a curved arrow indicating flow direction (no text or symbols)

fig.2
3

fig.3
* Depending on model - Afhankelijk van de model - Afhængigt af modellen - Avhengig av modell - Beroende på modell - Riippuu mallista - Modeline göre - Según modelo - Je nach Modell - В зависимости от модела - Ovisno o modelu - Podle modelu - Modell szerint - În funcție de model - V závislosti od modelu - Glede na model - U zavisnosti od modela - Ovisno o modelu - Olenevalt mudelist - Atkaribă no modela - Pagal modelj - W zależności od modelu.

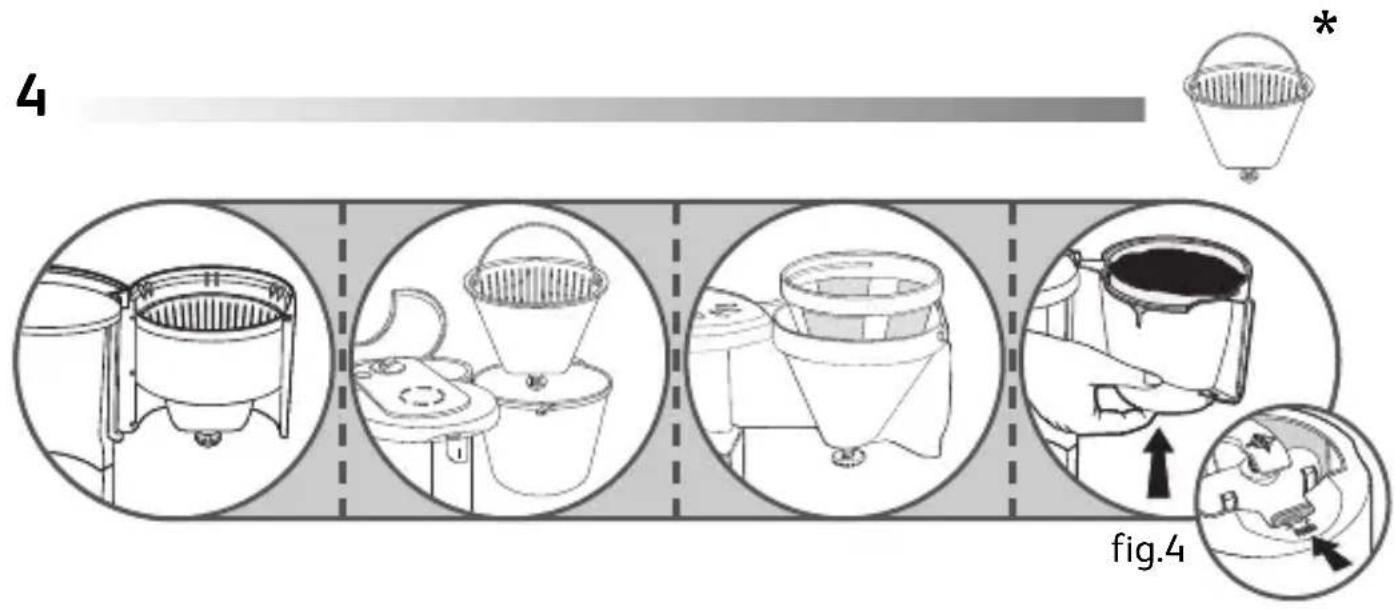


7

fig.7
8

*

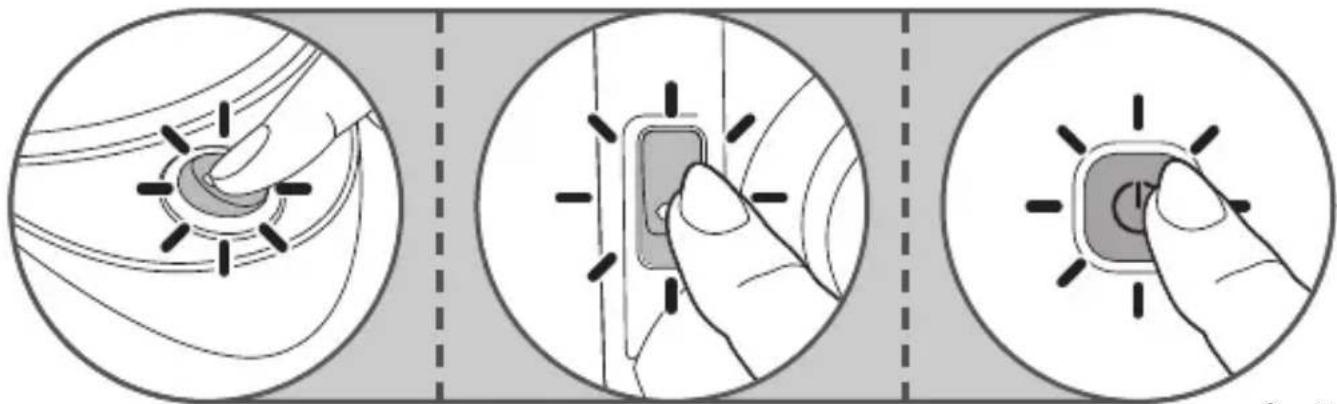

Three-step diagram showing hand press application on a device, with no visible text or symbols

fig.8
9

Illustration of a hand pouring dark liquid into a cup (no text or symbols)

Illustration of a person using a cup to lift another cup, showing mechanical components and motion arrows (no text or symbols)

fig.9
* Depending on model - Afhankelijk van de model- Afhængigt af modellen- Avhengig av modell - Beroende på modell - Riippuu mallista- Modeline göre - Según modelo - Je nach Modell - В зависимостот модела - Ovisno o modelu - Podle modelu - Modell szerint - În funcție de model - V zavislosti od modelu - Glede na model - U zavisnosti od modela - Ovisno o modelu - Olenevalt mudelist - Atkaribă no modela - Pagal modelj - W zależności od modelu.

10

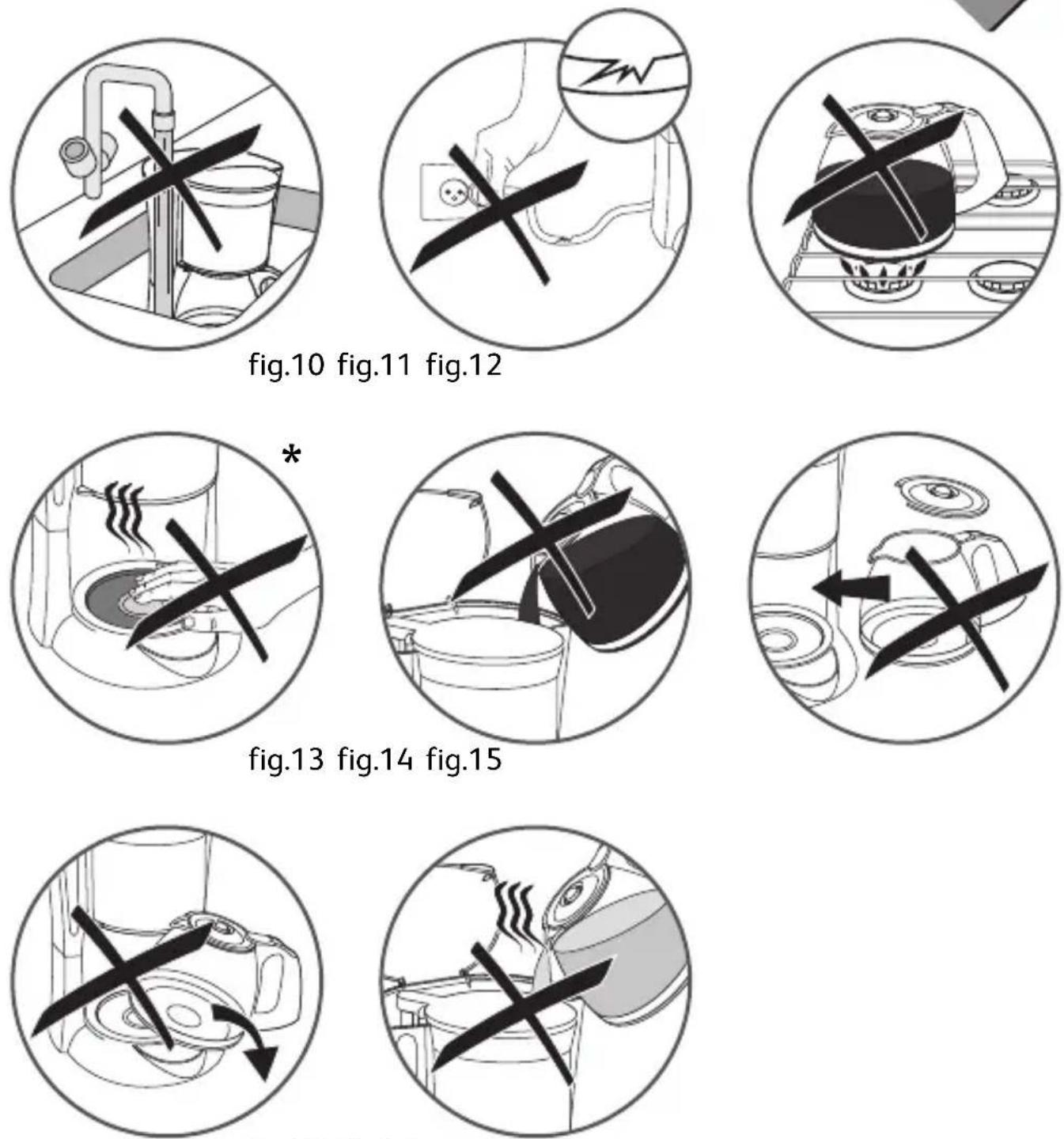

fig.16 fig.17

- Please read the instructions carefully before using your appliance for the first time and keep them in a safe place for future reference: the manufacturer shall accept no liability in the event of any use that does not comply with the instructions.

Safety Instructions

• This appliance is not designed to be used by persons (including children) with reduced physical, sensory or mental capacities, or lacking experience or knowledge, unless they are supervised, or given prior instructions relating to the use of the appliance, by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• If the power supply cable is damaged, do not use the appliance. To avoid any danger, immediately return the appliance to the manufacturer, after-sales service or other qualified persons to replace the cable.
• This appliance is designed for indoor household use only and at an altitude below 2000 m.

• Do not put the appliance, the power supply cable or the plug into water or other liquids.

• Your machine is designed for household use only.

• It is not intended to be used in the following environments, which are not covered by the guarantee:

- In kitchen areas reserved for staff in shops, offices and other professional environments; on farms; by clients of hotels, motels and other residential environments; in guest houses and other similar accommodation.

- When cleaning the appliance, always follow the instructions;

• Unplug the appliance.
• Do not clean when hot.
• Clean with a damp cloth or sponge.

• Do not put the appliance in water or under a running tap.

• WARNING: Risk of injury if the appliance is not used properly.

• WARNING: After use, do not touch the heating plate, as it may still be hot.

• Only touch the handle of the glass pot during heating and until it has cooled down completely.

• This appliance can be used by children over 8 years old, provided that they are properly supervised or as long as they have been given instructions on how to use the appliance safely and are full aware of the dangers involved. The appliance should not be cleaned and maintained by children, unless they are over 8 years of age and supervised by an adult.

• Keep the appliance and its cord out of reach of children under 8 years of age.
• This appliance may be used by persons with reduced physical, sensory or mental capabilities, or whose experience or knowledge is not sufficient, provided they are supervised or have received instructions to use the appliance safely and understand the dangers.

• Children must not use the appliance as a toy.
  • *The temperature of the accessible surfaces may be high when the appliance is in operation. Do not touch the hot surfaces of the appliance.

• Before plugging in the appliance, ensure that the power supply corresponds to that of the appliance. Also check that the current includes an earthed socket.

• The guarantee will not apply in the event of faulty connection to a power supply.
• When using the appliance, always place it on a flat, stable, heat resistant work surface away from water splashes and any sources of heat.
• Unplug the appliance if you do not intend to use it for a prolonged period and during cleaning.
• Do not use the appliance if it is not working correctly or if it is damaged. In this case, contact an approved service centre.
• Do not leave the appliance unattended whilst in operation.
• Cleaning and standard maintenance may be carried out by the customer; any other servicing must be carried out by an approved service centre.
• The power cable must never be in proximity to or in close contact with the heated elements of your appliance, close to a source of heat or a sharp edge.
• For your safety, only use accessories and spare parts designed for your appliance.
• Do not remove the plug from the socket by pulling on the cord.
• Do not use the pot in a microwave oven, on a flame or on electric cooking plates.
• Do not fill the appliance with water if it is still hot.
• All appliances are subject to strict quality controls. Practical performance tests are conducted on appliances picked out by chance, which explains any possible signs of use.
• When the coffee machine is in use, always close the lid.
• Do not use the coffee pot without the lid.
• Do not pour hot water into the tank.

Using the machine for the first time

Before making coffee you should use the coffee maker once with water only (without coffee).

Preparing the coffee

(Follow figures 1 to 9)

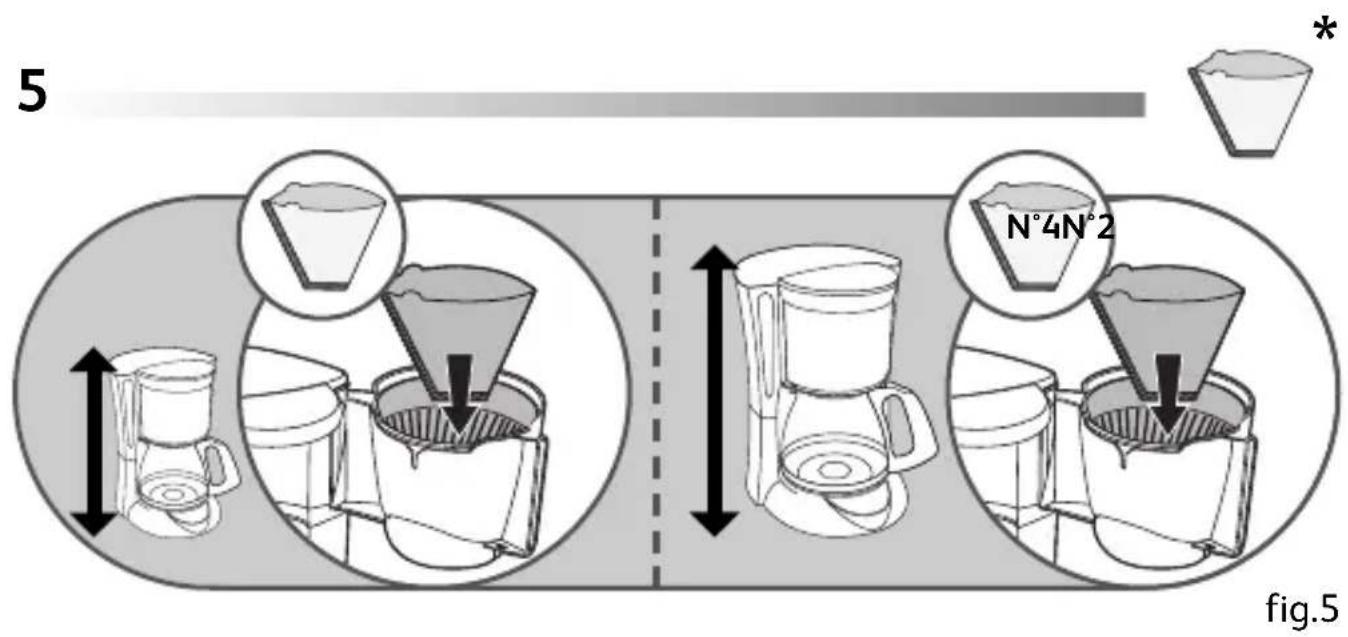

• Use only cold water and filter paper n°2 or 4 (fig.5) or the permanent filter* (fig.4).
• Do not exceed the maximum quantity of water indicated by the water level on the tank.
• This coffee maker has a drip stop so that you can serve coffee before the end of the cycle. Once your coffee is served, replace the jug or thermal pot* to prevent overflowing.

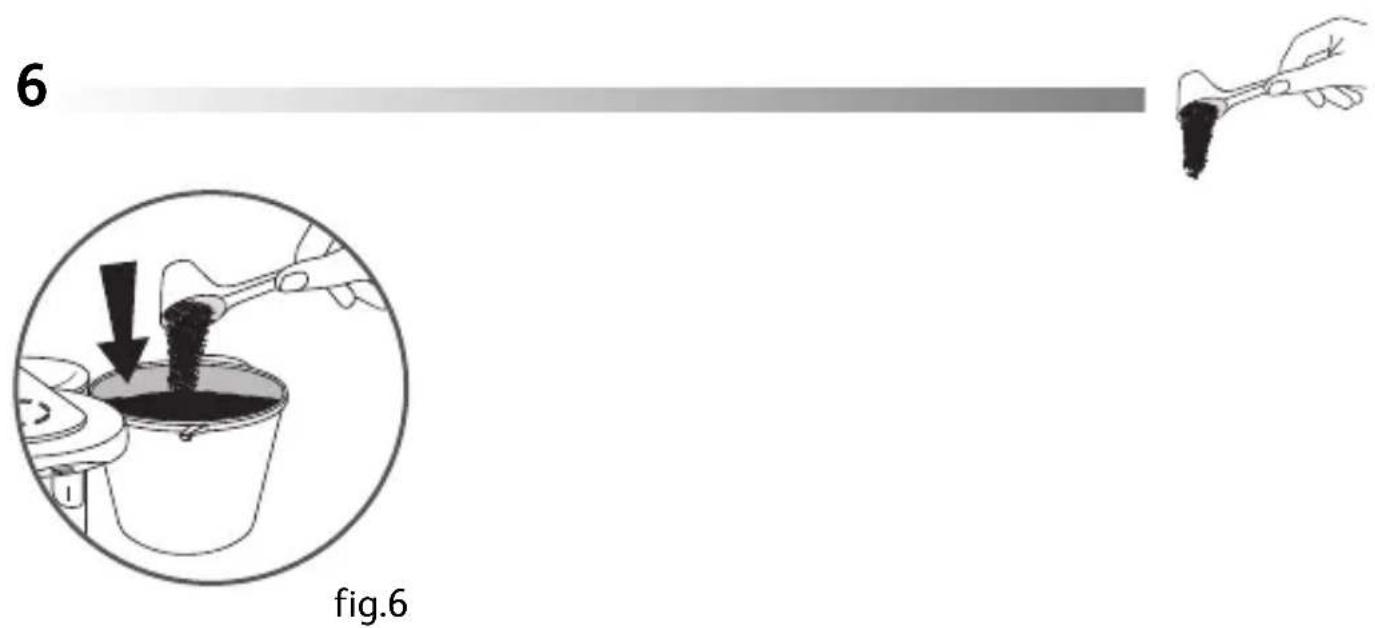

• Ground Coffee: Use one measuring spoon of ground coffee per large cup.
• Wait a few minutes before making a second pot of coffee.
• Do not make another pot of coffee if the jug already contains coffee.

Thermal pot\*

• Do not use the thermal pot without its lid.
• The lid of the isothermal pot must be closed properly when preparing coffee and to keep it warm.
• To serve coffee, press the lever on the lid of the isothermal pot downwards or unscrew the lid half way*.
• Do not put your thermal pot in the microwave or dishwasher.
• Rinse the thermal pot in hot water before using so that it retains heat better and do not put it back inside the coffee maker after you have prepared the coffee.
• The thermal pot keeps your coffee warm for a maximum of four hours.

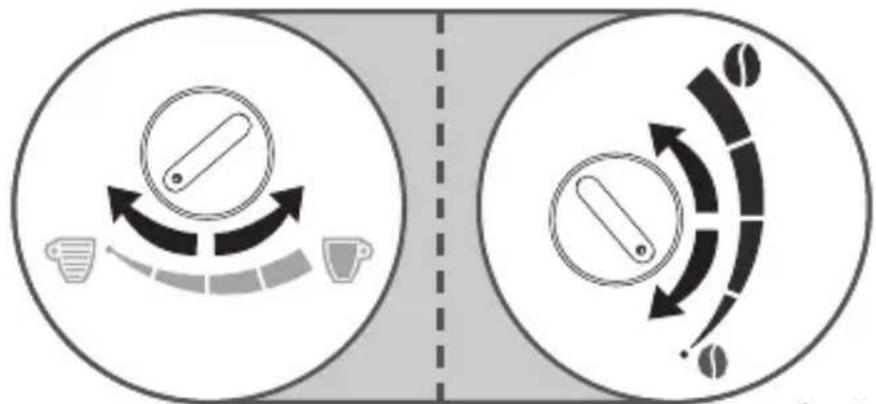

Aroma selector\* (see figure n°7)

• The aroma selector (fig.7) allows you to adjust the intensity of the coffee.
• For a stronger cup of coffee, turn the aroma setting either towards the black cup or the large coffee grain*.

Automatic stop

- In order to save energy, your coffee machine will turn off automatically.

- Models with glass pot:

About 30 minutes after the end of the coffee brewing cycle (i.e. about 30 minutes after there is no more water in the tank), your coffee machine will turn off automatically. The light on the on/off button will turn off.

During these 30 minutes, your coffee will be kept warm at a suitable temperature.

- Models with thermo pot:

A few minutes after the end of the brewing cycle (i.e. a few minutes after there is no more water in the tank), your coffee machine will turn off automatically. The light on the on/off button will turn off.

Reheating the coffee

- Do not put the glass jug into the microwave if it has a metallic part (e.g.: metal band).

Cleaning

• To dispose of the used coffee grounds, remove the filter paper (fig.5) or permanent filter* (fig.4).
• Unplug the appliance from the wall socket outlet, and allow the coffee maker to completely cool down.
• Clean with a cloth or damp sponge.
• Do not clean the appliance when it is still hot.
• Never immerse the appliance, the power cord or plug in water or any other liquid.

Dishwasher:

• The removable filter holder is dishwasher safe.
• Only glass jugs without a metal band can be placed in the dishwasher (without lid).

Thermal jug\*

• Do not clean with abrasive cleaning products.
• Do not put your hand inside to clean (risk of breaks).
• To clean your Thermal jug, fill it with soapy water and then rinse out thoroughly.
• In cases where the jug becomes very stained by the coffee, fill it with lukewarm water, add a dishwasher detergent tablet and let it soak. Afterwards, rinse out thoroughly.

Descaling

- Descale your coffee maker every 40 uses.

You can use:

- a sachet of descaling agent diluted in two large cups of water; - or two large cups of commercially available white vinegar.

• Pour into the tank (b) and turn on the coffee maker (without coffee).
• Allow the equivalent of one cup flow into the jug or thermal pot (f) then stop your

coffee maker (you will have to turn off the coffee maker on some automatic models).

• Allow to act for one hour.
• Restart the coffee maker to stop the flow.
• Run the coffee maker two or three times with the equivalent of one jug of water to rinse.

The guarantee excludes coffee makers that are not working or are not working properly due to lack of descaling.

N.B.: as soon as the coffee brewing cycle takes longer or becomes noisier, de-scale your machine.

Accessories\*

• Glass jug
• Thermal pot
• Permanent filter

Think of the environment!

①Your appliance contains valuable materials which can be recovered or recycled.
Leave it at a local civic waste collection point or at an approved service centre, where it will be disposed of properly.

- European Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), stipulates that used household appliances must not be disposed of in normal unsorted municipal waste. Old appliances must be collected separately to optimise the sorting and recycling of their parts and to reduce the impact on human health and the environment.
