Product Type	1U Rack Mount Server System
Model	Intel R1208WT2GS
Server Board	Intel Server Board S2600WT2 (Dual 1GbE LOM)
Chassis Form Factor	1U Rack Mount
Dimensions (L x W x H)	712 mm x 439 mm x 43.2 mm
Net Weight	12.9 kg (28.4 lbs)
Processor Support	Dual Intel Xeon E5-2600 v3 (max TDP 145W)
Memory	24 DDR4 DIMM slots (RDIMM/LRDIMM, 1600-2133 MHz)
Onboard LAN	2 x 1GbE RJ45 (Intel I350)

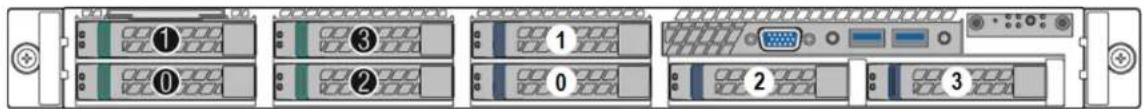

Front Drive Bays	8 x 2.5" Hot-Swap (SAS/SATA)
Backplane	12 Gb SAS capable (F1U8X25S3HSBP)
Power Supply	1x 750W AC (FXX750PCRPS), optional redundant
System Fans	6 dual-rotor hot-swap fans (FR1UFAN10PW)
PCIe Slots	2 riser card slots (x16 PCIe 3.0 each)
Front I/O	1 x VGA, 2 x USB 2.0/3.0, control panel
Management	Integrated BMC with IPMI 2.0, dedicated 1Gb management port
Optical Drive Bay	Slim SATA (shared with front I/O bay)
RAID Support	Onboard SATA SW RAID (ESRT2) via RKSATA4R5 key; optional SAS RAID module
Rack Mount Kit	Sold separately (AXXPRAIL or AXXELVRAIL)
Operating Temperature	10°C to 35°C (typical)
Warranty	Standard Intel warranty; extended available

Frequently Asked Questions - R1208WT2GS INTEL

What processors are compatible with the Intel R1208WT2GS?

The server supports dual Intel Xeon E5-2600 v3 processors. Ensure CPUs are from the v3 family; previous generations are not supported.

What type of memory does this server use?

It uses DDR4 ECC RDIMM or LRDIMM at speeds of 1600, 1866, or 2133 MHz. There are 24 DIMM slots, 12 per CPU.

How many drives can I install?

The front supports 8 x 2.5-inch SAS/SATA hot-swap drives. The drive bays are 12 Gb/s capable. An optional rear drive kit is not available for this 1U model.

Can I add a second power supply for redundancy?

Yes, you can install a second 750W AC power supply (FXX750PCRPS) in the empty bay for redundant operation.

What RAID options are available?

The onboard SATA controller supports ESRT2 software RAID 5 with the optional RKSATA4R5 key. For high-performance SAS RAID, you can add an Intel Integrated RAID Module or a PCIe RAID card.

Does the server include remote management?

Yes, it has an integrated BMC with IPMI 2.0 and a dedicated 1Gb management port. For advanced features like KVM and media redirection, purchase the Intel Remote Management Module 4 Lite (AXXRMM4LITE) key.

What are the dimensions and weight of the server?

The chassis measures 712 mm deep x 439 mm wide x 43.2 mm high (1U). Net weight is approximately 12.9 kg (28.4 lbs) without processors, memory, or drives.

Is the server compatible with 10GbE networking?

This model (R1208WT2GS) includes dual 1GbE ports. For 10GbE, consider the R1208WTTGS variant. Alternatively, you can add a 10GbE PCIe card or an Intel I/O Module.

How many PCIe expansion slots are available?

The server includes two riser card slots, each supporting one x16 PCIe 3.0 slot (via F1UL16RISER2). No additional slots are available in the 1U form factor.

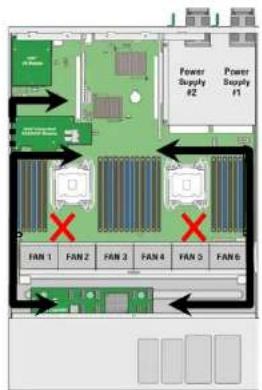

What cooling does the system use?

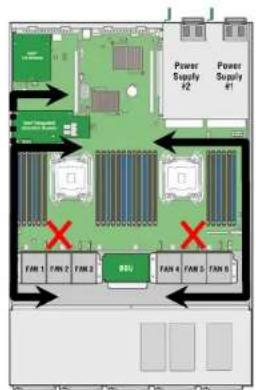

It uses six dual-rotor hot-swap fans (FR1UFAN10PW) arranged in a 1U fan module. The air duct directs airflow over CPUs, memory, and drives.

USER MANUAL R1208WT2GS INTEL

Intel® Server Board S2600WT Family

Intel ^® Server Chassis R1000WT & R2000WT Family

Intel® Server System R1000WT & R2000WT Family

Product Family Configuration Guide

A Reference document used to assist with ordering parts and accessories available to configure an Intel server system based on the Intel® Server S2600WT product family.

Revision 2.01

May 2015

Intel ^® Server Boards and Systems

Document Revision History

Date Published	Revision	Revision Change Description
September 2014	1.0	First Public Release
November 2014	1.16	Updates to product illustrations and MM# for Intel®RAID Modules
March 2015 1.17		Content updates:DC Power Supply option target availability dateNew Rail kit options target availability dateRemoved I/O Module AXX10GBTWLIOM – Not supportedAdded I/O Module AXX10GBTWLIOM3 with target availability date
April 2015	2.0	Document UpgradeNew document formatNew product definition/data tablesNew graphicsImproved guidance for configuration requirementsImproved descriptions for product family definitionUpdated SAS/SATA data cable guideUpdated Disclaimer Statements
May 2015	2.01	Document changes:Added “Server” reference to product family namingCorrected 1U riser part number in 1U L6 BOM ListsUpdated Server Board, Chassis only and L6 product weight information

Disclaimer

Intel technologies' features and benefits depend on system configuration and may require enabled hardware, software or service activation. Learn more at Intel.com, or from the OEM or retailer.

You may not use or facilitate the use of this document in connection with any infringement or other legal analysis concerning Intel products described herein. You agree to grant Intel a non-exclusive, royalty-free license to any patent claim thereafter drafted which includes subject matter disclosed herein.

No license (express or implied, by estoppel or otherwise) to any intellectual property rights is granted by this document.

The products described may contain design defects or errors known as errata which may cause the product to deviate from published specifications. Current characterized errata are available on request.

Intel disclaims all express and implied warranties, including without limitation, the implied warranties of merchantability, fitness for a particular purpose, and non-infringement, as well as any warranty arising from course of performance, course of dealing, or usage in trade.

Intel, the Intel logo, Xeon, and Xeon Phi are trademarks of Intel Corporation in the U.S. and/or other countries.

*Other names and brands may be claimed as the property of others.

Copyright © 2015 Intel Corporation. All Rights Reserved.

Table of Contents

1. INTEL SERVER FAMILY OVERVIEW....1

1.1 INTEL® S2600WT PRODUCT FAMILY NAMING CONVENTION....3
1.2 PRODUCT FAMILY SUMMARY CHART 6
1.3 INTEL® S2600GZ/GL PRODUCT FAMILY TO INTEL® S2600WT PRODUCT FAMILY TRANSITION GUIDE....8

2. SERVER BUILDING BLOCK CONFIGURATION....9

2.1 BUILDING BLOCK RECIPE SUMMARY 10
2.2 INTEL® SERVER BOARD S2600WT PRODUCT FAMILY SKUs 11

iPC - S2600WT2....11

iPC-S2600WTT 11

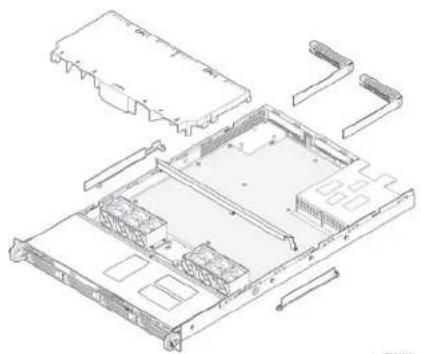

2.3 INTEL® SERVER CHASSIS R1000WT PRODUCT FAMILY SKUs – (1U RACK MOUNT CHASSIS)....12

R1304WTXXX 13

R1208WTXXX 14

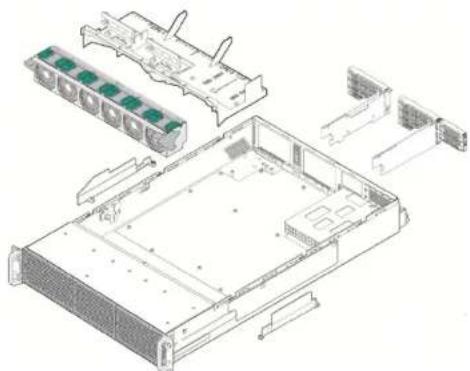

2.4 INTEL® SERVER CHASSIS R2000WT PRODUCT FAMILY SKUs – (2U RACK MOUNT CHASSIS)....15

R2312WTXXX 16
R2000WTXXX 17

3. SERVER SYSTEM CONFIGURATION ....18

3.1 INTEL® SERVER SYSTEM R1000WT PRODUCT FAMILY SKUs - (1U RACK MOUNT SYSTEM)....19

R1304WTTGS....20
R1304WT2GS....21
R1208WTTGS....22
R1208WT2GS....23

3.2 INTEL® SERVER SYSTEM R2000WT PRODUCT FAMILY SKUs – (2U RACK MOUNT SYSTEM)....24

R2208WT2YS 25
R2208WTTYS 26
R2208WTTYC1 27
R2308WTTYS....28
R2312WTTYS....29
R2224WTTYS....30

4. SAS / SATA DATA CABLE GUIDE ...... 31

4.1 SAS / SATA DATA CABLE CONNECTOR TYPES....31
4.2 1U / 2U SERVER SYSTEM SAS / SATA CABLE GUIDE....32

4.2.1 1U 4 x 3.5" - R1304WTxxx SAS / SATA Data Cable Guide....34

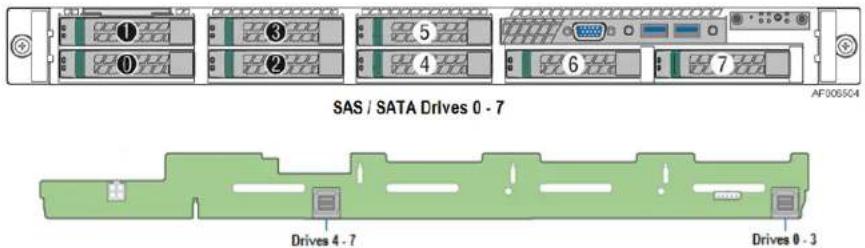

4.2.2 1U 8 x 2.5" - R1208WTxxx SAS / SATA Data Cable Guide....35

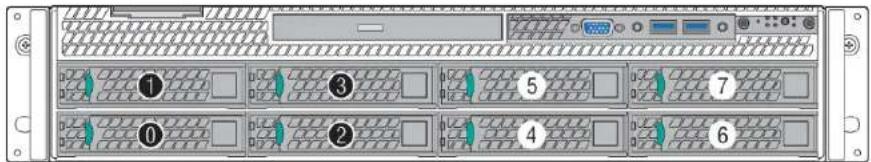

4.2.3 2U 8 x 3.5" - R2308WTxxx Cable Guide....36

Intel® Server S2600WT Product Family Configuration Guide and Spares/Accessories List

4.2.4 2U 12 x 3.5 - R2312WTxxx Cable Guide....37

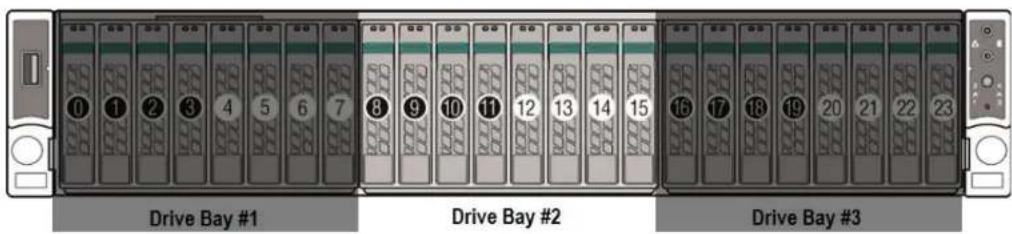

4.2.5 2U 2.5" Front Mount Drive Bay Cable Guide....41

4.3 INTEL SAS / SATA DATA CABLE KITS....48

1. INTEL 1U / 2U SYSTEM CONFIGURATION OPTIONS....52

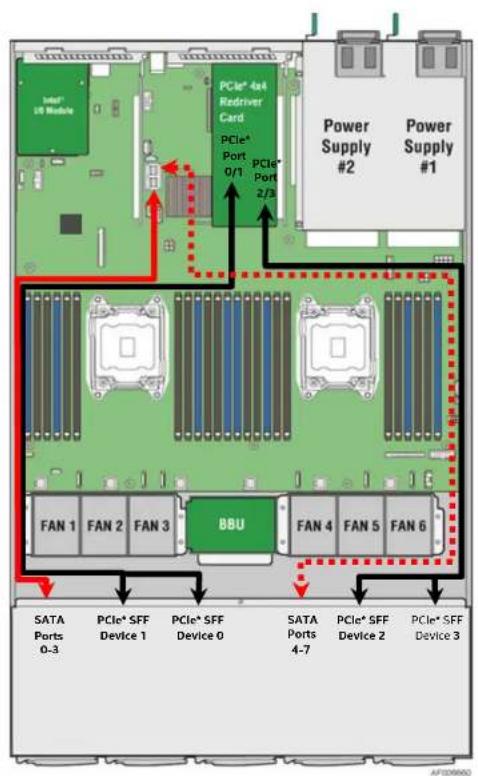

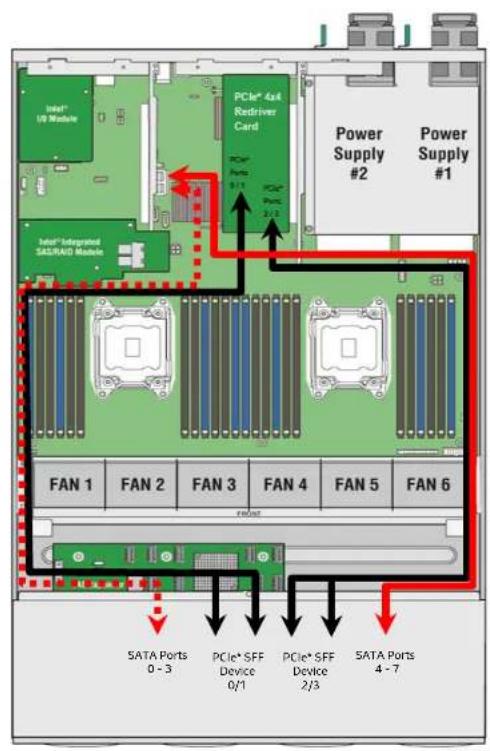

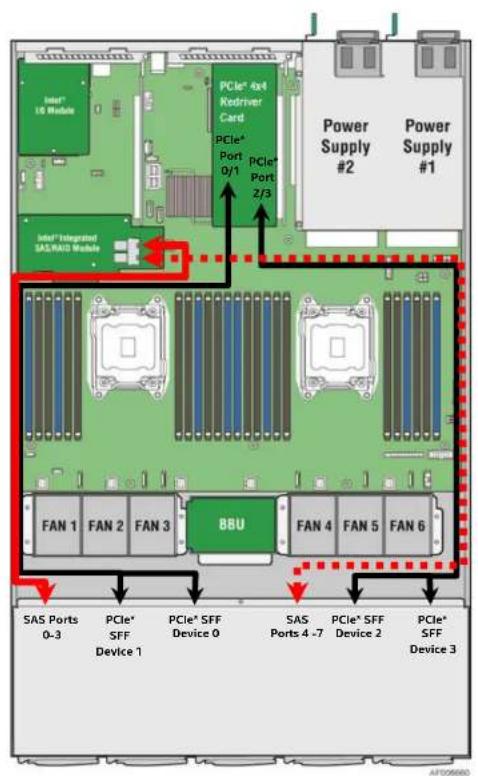

5.1 1U 8x2.5" COMBO PCIE* SFF (NVME) SSD / SAS BACKPLANE – INTEL® ACCESSORY KIT A1U44X25NVMEDK....52

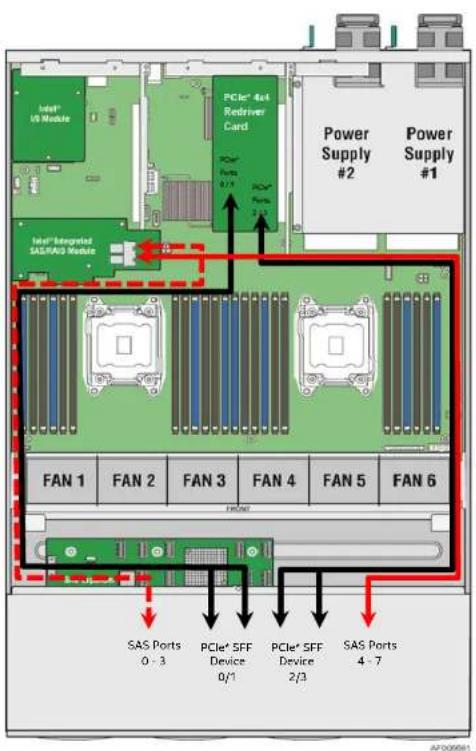

5.1.1 1U 8x2.5" – Intel® Accessory Kit A1U44X25NVMEDK Cable Guide....53

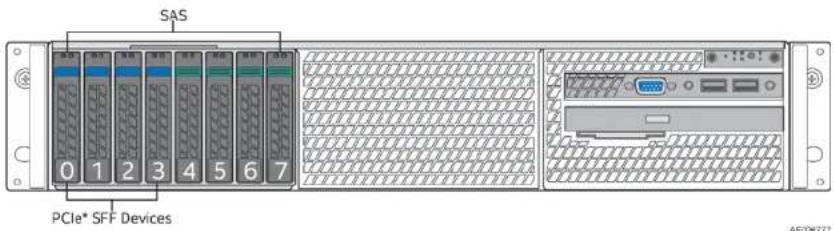

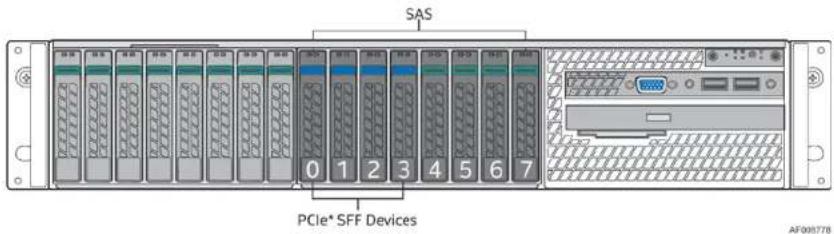

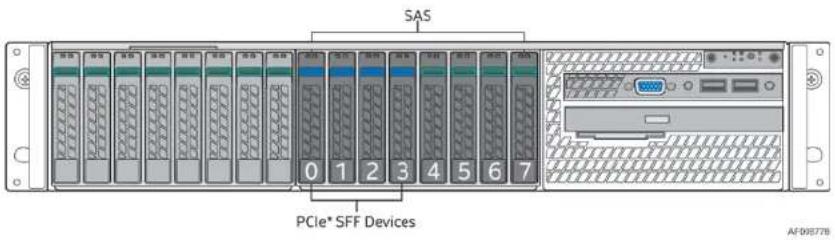

5.2 2U 8x2.5" COMBO PCIe* SFF (NVME) SSD / SAS BACKPLANE - INTEL® ACCESSORY KIT A2U44X25NVMEDK ....55

5.2.1 2U 8x2.5" – Intel® Accessory Kit A2U44X25NVMEDK SAS/SATA Cable Guide....57

5.2.2 2U 16x2.5" / 24x2.5" — Intel® Accessory Kit A2U44X25NVMEDK SAS / SATA Cable Guide ....58

5.3 2U REAR MOUNT HOT SWAP DRIVE BAY ACCESSORY KIT – IPC A2UREARHSDK....59

IPC - A2UCBLSSD 59

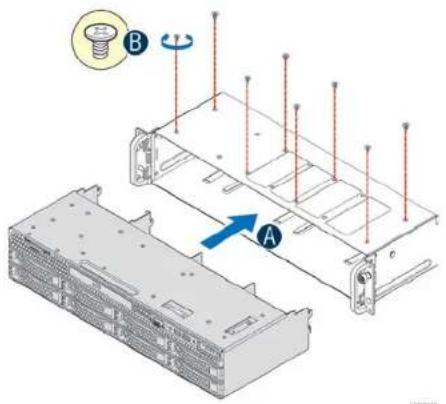

5.4 2U 8x3.5" FRONT MOUNT HOT SWAP BACKPLANE ASSEMBLY - IPC A2U8X35S3HSDK 60

iPC-A2U8X35S3HSDK 60

5.5 2U 8x2.5" DRIVE BAY MODULE OPTIONS....61

iPC - A2U8X25S3HSDK 62

iPC-A2U8X25S3DPDK 62

iPC-A2UHANDLKIT 63

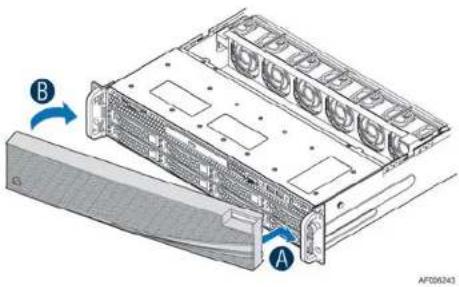

5.6 LOCKING FRONT BEZEL ACCESSORY KITS 64

5.6.1 2U Front Bezel Accessory Kit – iPC A2UBEZEL 64

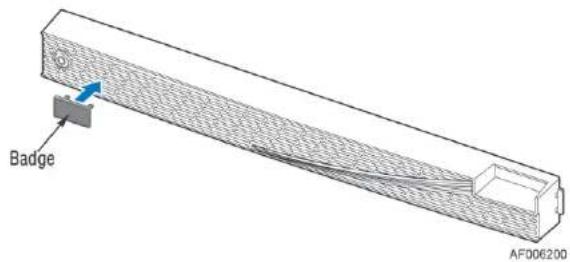

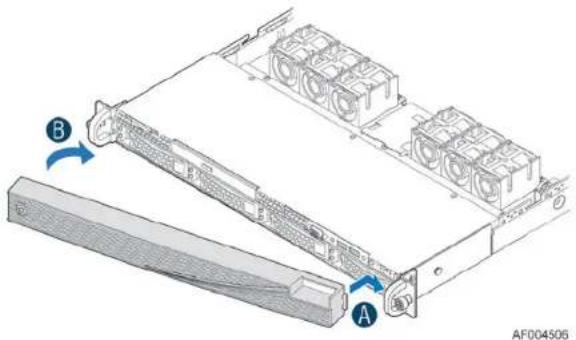

5.6.2 1U Front Bezel Accessory Kit – iPC A1UBEZEL 65

5.7 1U / 2U PCIe* RISER CARD ACCESSORY/SPARE FRU OPTIONS 66

5.7.1 1U Riser Card Options....66

5.7.2 2U Riser Card Options....67

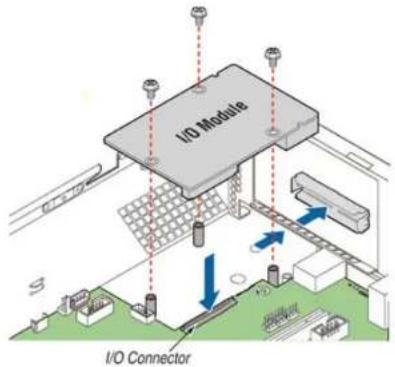

5.8 INTEL® I/O EXPANSION MODULES 69

Intel Product Code 70

iPC-AXX1P40FRTIOM 70

IPC-AXX2P40FRTIOM 70

iPC-AXX10GBNIAIOM....70

iPC-AXX10GBTWLIOM3....71

iPC-AXX1FDRIBIOM 71

iPC - AXX2FDRIBIOM....71

iPC-AXX4P1GBPWLIOM....72

5.9 INTEL® SAS RAID ADD-IN CARDS, MODULES, AND ACCESSORIES....73

5.9.1 Intel ^® Integrated RAID Module RMS3 Product Family – SAS 3.0 (12 Gb/s)....73

5.9.2 Intel ^® RAID Controller Add-in Cards - SAS 3.0 (12Gb/s)....75

5.9.3 Intel ^® RAID Accessory Options....78

5.10 INTEL POWER SUPPLY MODULES AND POWER CORDS 81

5.11 1U/2U RACK MOUNT KITS....82

iPC - AXXPRAIL 82

iPC - AXXELVRAIL 82

Intel® Server S2600WT Product Family Configuration Guide and Spares/Accessories List

iPC-AXX1U2UCMA 82
iPC - AXX2POSTBRCKT 83

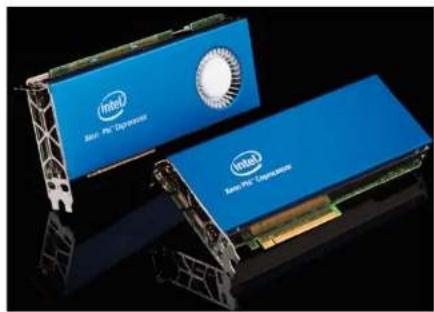

5.12 INTEL® XEON PHI™ COPROCESSOR CARD AND NON-INTEL GPGPU SUPPORT....84

iPC-AWTCOPRODUCT 85
iPC-A2UL16RISER2 86

1. 1U / 2U MISCELLANEOUS ACCESSORY OPTIONS....87

iPC-A1U2ULCP 87
iPC - AXXSATADVDROM 87
iPC - AXXSATADVDRWROM 87
iPC - AXXSSDODDKIT 88
iPC - AXXRJ45DB93 88
iPC - AXXRMM4LITE 89
iPC - AXXTPME5....89

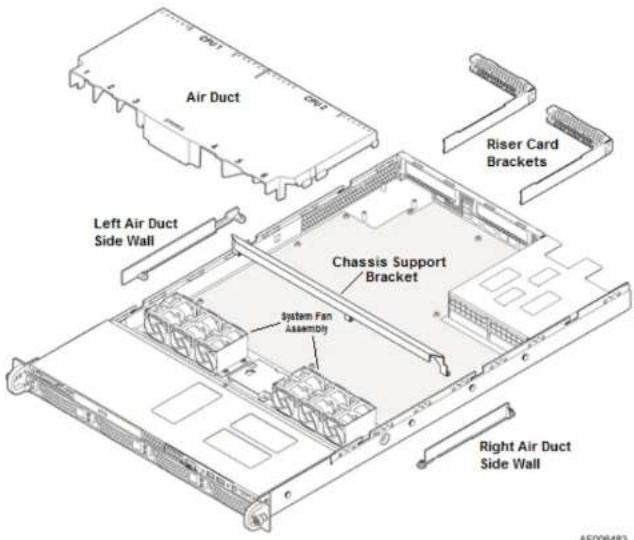

1. 1U / 2U SPARE AND REPLACEMENT PARTS (FRUS)....90
2. EXTENDED WARRANTY 94

List of Tables

Table 1. Product Family Reference Collaterals....2

Table 2. Server Board Product Family Summary ......6

Table 3. Server Chassis & Server System Product Family Summary....6

Table 4. 1U / 2U Server System Product Family Generation to Generation Transition Guide ....8

Table 5. 1U / 2U Building Block to Integrated System Recipe Guide....10

Table 6. 2U 12 x 3.5" – R2312WTxxx SAS / SATA Data Cable Guide (with SAS Expander)....39

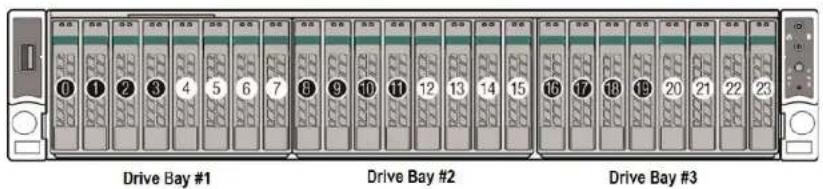

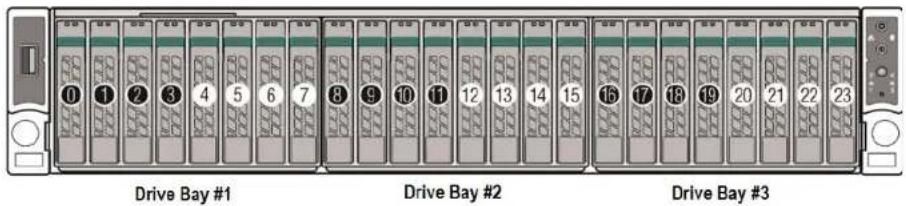

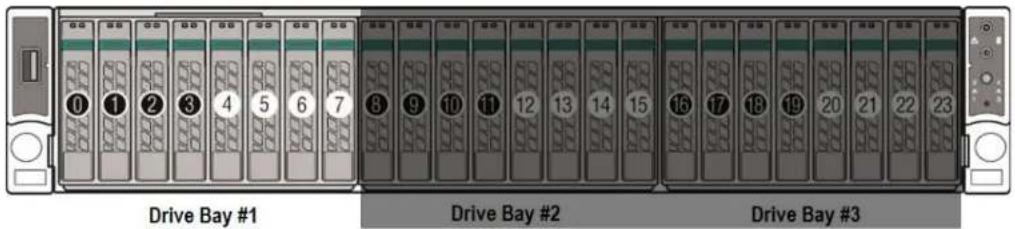

Table 7. 2U 8 x 2.5" (Drive Bay #1) - SAS/SATA Data Cable Guid (with no SAS Expander)....42

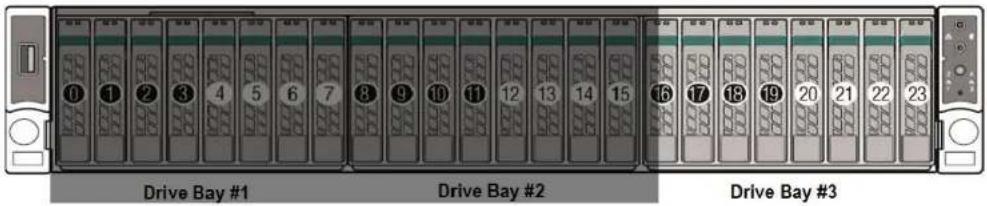

Table 8.2U 8 x 2.5" (Drive Bay #2) – SAS / SATA Data Cable Guide (with no SAS Expander)....43

Table 9.2U 8 x 2.5" (Drive Bay #3) – SAS / SATA Data Cable Guide (with no SAS Expander)....44

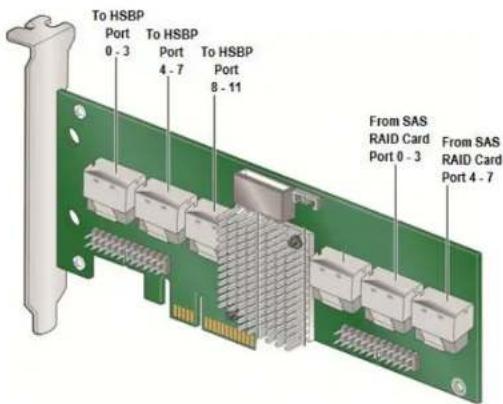

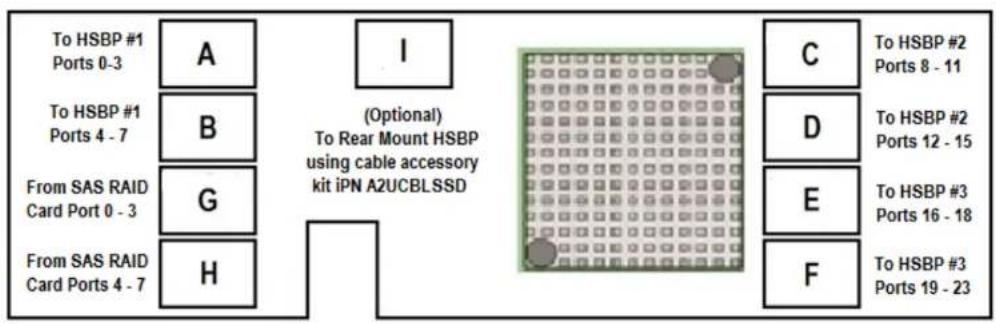

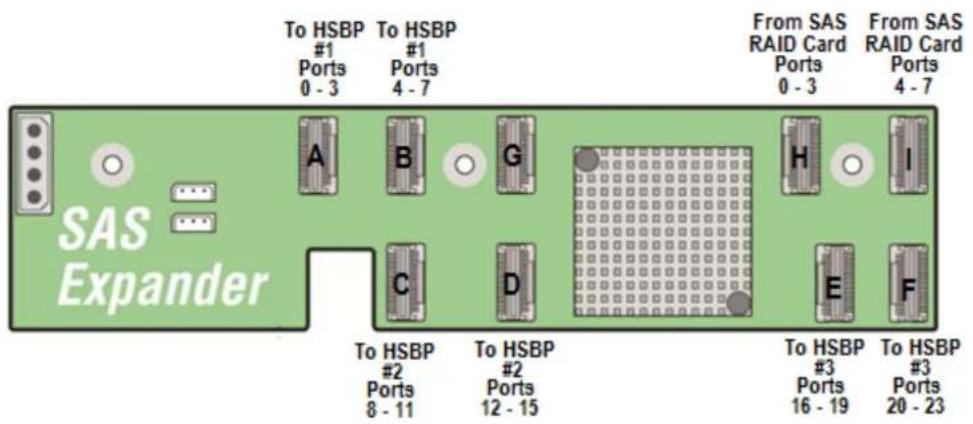

Table 10.2U 2.5" Front Mount Drive Configurations with SAS Expander – SAS Data Cable Guide......46

Table 11. Storage Data Cable Kit Description and Order Information ....49

Table 12. 1U 8x2.5" Combo Backplane SAS/SATA Cable Guide....54

1. Intel Server Family Overview

This document is provided to assist Intel customers with identifying the right Intel server system and available accessories to create a unique server platform that meet their unique server requirements.

The Intel® S2600WT product family is offered as both building block options and integrated systems. The product family consists of the following:

Intel® Server S2600WT Product Family

Intel ^® Server Board S2600WT

Intel® Server Chassis R1000WT Product Family

Intel® Server Chassis R2000WT Product Family

Intel® Server System R1000WT Product Family

Intel® Server System R2000WT Product Family

Server Building Blocks:

• Intel® Server Board S2600WT – Server Board only (Building block option and spare FRU)
• Intel® Server Chassis R1000WT product family – 1U Rack Mount Server Chassis only
• Intel® Server Chassis R2000WT product family – 2U Rack Mount Server Chassis only

Integrated Server Systems:

Intel® Server System R1000WT product family – 1U Rack Mount Server System integrated with an Intel® Server Board S2600WT
- Intel® Server System R2000WT product family – 2U Rack Mount Server System integrated with an Intel® Server Board S2600WT

The Intel ^® S2600WT product family supports the following processors and memory:

• Intel® Xeon® processor E5-2600 v3 product family
  Note: Previous generation Intel® Xeon® processors are not supported.
  • DDR4 ECC RDIMM 1600, 1866, 2133
  • DDR4 ECC LRDIMM 1600, 1866, 2133

Additional Information and Software

For additional information about this family of products or any of their supported accessories, refer to the following resources available at http://www.intel.com/support.

Table 1. Product Family Reference Collaterals

For this information or software Use this Document or Software
For in-depth technical information about this product family	Intel* Server Board S2600WT Technical Product SpecificationIntel^Server System R1000WT Product Family Technical Product SpecificationIntel^Server System R2000WT Product Family Technical Product SpecificationIntel* Remote Management Module 4 (Intel*RMM4) and Integrated BMC User GuideIntel* Remote Management Module 4 Technical Product SpecificationIntel* I/O Expansion Modules Hardware SpecificationIntel* Server System BIOS Setup Utility GuideIntel* Server Platform Firmware Specification UpdateProduct Safety and Regulatory Compliance - Intel® Xeon® Processor E5-2600 v3http://www.intel.com/p/en_US/support/highlights/server/s2600wt?wapkw=s2600wt+family
For system integration instructions and service guidance	Intel® Server System R1000WT product family System Integration and Service GuideIntel® Server System R2000WT product family System Integration and Service Guidehttp://www.intel.com/p/en_US/support/highlights/server/s2600wt?wapkw=s2600wt+family
For server configuration guidance and compatibility	Intel* Server Configurator toolhttp://serverconfigurator.intel.com
For system power budget guidance	Intel* Server Board S2600WT Product Family Power Budget Tool and Thermal Configuration Guidehttps://downloadcenter.intel.com/product/78562/Intel-Server-Board-S2600WT-Family
For system firmware updates, onboard device drivers, and software to manage your Intel* Server System.	https://downloadcenter.intel.com/product/78562/Intel-Server-Board-S2600WT-Family
For a complete list of supported processors, memory, add-in cards, and peripherals:	http://www.intel.com/p/en_US/support/category/server/s2600wt/doc_guide#

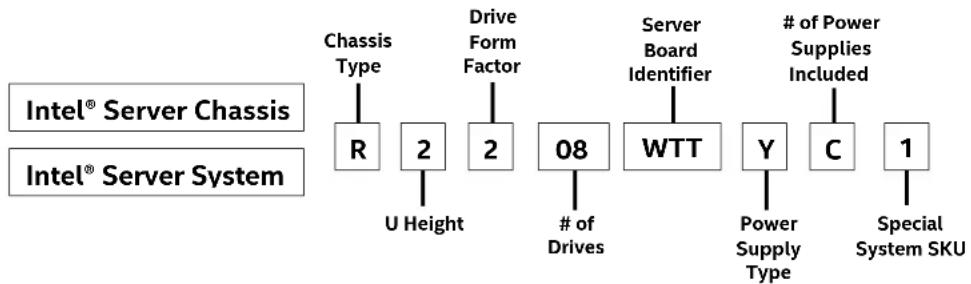

1.1 Intel® Server S2600WT Product Family Naming Convention

Chassis TypeR = RACK MOUNT		Server Board IdentifierWT = Intel® Server Board S2600WT product family supportedWT2 = Intel® Server Board S2600WT w/1 GbE LOM - iPC S2600WT2WTT = Intel® Server Board S2600WT w/10 GbE LOM - iPC S2600WTT
U Height1 = 1U2 = 2U		Power Supply Type IncludedX = None IncludedG = 750WY = 1100W
Drive Form Factor(Specific to front drive bays)0 = No drives supported2 = 2.5"3 = 3.5"		# of Power Supplies IncludedX = NoneS = 1 (Non-redundant)C = 2 (Redundant)
# of Drives Supported(Specific to front drive bays)00 1204 1608 24Note: 00 product codes have no front mount drive bays. Hot swap drive support can be added with the addition of available drive bay accessory options.		Special System SKU# = a sequential number starting with 1 within the product family, identifying a special system SKU that adds a non-standard feature from other offered system SKUs. This last digit may or may not be present on all offered system SKUs.

Figure 1. Intel® Server System R1000WT Feature Set Identification

Figure 2. Intel® Server System R2000WT Feature Set Identification

1.2 Product Family Summary Chart

The Intel ^® S2600WT product family is built around either of two Intel ^® Server Board S2600WT options: S2600WTT and S2600WT2. The feature set of each server board option is identical except for the onboard LAN controller.

The S2600WTT SKU offers a LAN on Motherboard (LOM) option supporting dual RJ45 10Gb Base-T LAN ports.

The S2600WT2 SKU offers a LAN on Motherboard (LOM) option supporting dual RJ45 1Gb Base-T LAN ports.

The following tables provides an overview of available Intel product codes for building blocks and systems within the Intel® S2600WT product family. Each line item identifies key features supported in the shipping Intel SKU. Additional order code information and full product descriptions for each option are provided in later sections.

Table 2. Server Board Product Family Summary

Intel Product Code	# of CPU sockets	# of DIMM Slots	# of Riser Slots	Onboard RJ45 LAN ports	# of SATA ports (6 Gb)	SATA SW RAID Support	Intel ^ I/O Module Support	Intel ^ SAS RAID Module support
Server Board only
S2600WT2	2	24	3	2 (1 Gb)	10	Yes	Yes	Yes
S2600WTT	2	24	3	2 (10 Gb)	10	Yes	Yes	Yes

Table 3. Server Chassis & Server System Product Family Summary

Intel Product Code	Chassis Form Factor	Drive Form Factor	# of Drives (front)1	# of Drives (rear)	# of PCIe* Add-in Card Slots	3rdRiser	Power Supply Modules	Rails	SAS RAID	SAS Expander
Chassis Only (KDK)
R1304WTXXX	1U	3.5"	4	na	opt	na	opt	opt	opt	na
R1208WTXXX	1U	2.5"	8	na	opt	na	opt	opt	opt	na
R2312WTXXX	2U	3.5"	12	opt	opt	opt	opt	opt	opt	opt
R2000WTXXX^2	2U	opt	opt	opt	opt	opt	opt	opt	opt	opt
2x 10G LOM System (L6 BIK)
R1304WTTGS	1U	3.5"	4	na	2	na	1x 750W AC	opt	opt	na
R1208WTTGS	1U	2.5"	8	na	2	na	1x 750W AC	opt	opt	na
R2208WTTYS	2U	2.5"	8	opt	8	yes	1x 1100W AC	opt	opt	na
R2308WTTYS	2U	3.5"	8	opt	8	yes	1x 1100W AC	opt	opt	na
R2312WTTYS	2U	3.5"	12	2	6	opt	1x 1100W AC	opt	opt	opt
R2224WTTYS	2U	2.5"	24	2	6	opt	1x 1100W AC	opt	opt	opt
R2208WTTYC1^3	2U	2.5"	8	opt	6	yes	2x 1100W AC	opt	opt	na

Intel® Server S2600WT Product Family Configuration Guide and Spares/Accessories List

Intel Product Code	Chassis Form Factor	Drive Form Factor	# of Drives (front)1	# of Drives (rear)	# of PCIe* Add-in Card Slots	3rdRiser	Power Supply Modules	Rails	SAS RAID	SAS Expander
2x 1G LOM System (L6 BIK)
R1304WT2GS	1U	3.5"	4	na	2	na	1x 750W AC	opt	opt	na
R1208WT2GS	1U	2.5"	8	na	2	na	1x 750W AC	opt	opt	na
R2208WT2YS	2U	2.5"	8	opt	8	yes	1x 1100W AC	opt	opt	na

Table Notes:
1 – All front drive bays are 12Gb SAS capable
2 - R2000WTXXX Chassis can support all 8x2.5" drive bay accessory options or 8x3.5" drive bay accessory option
3 – System SKU with included system features to support Intel ^® Xeon Phi ^™ Coprocessor cards with passive (no fan) heat sink solutions. High power add-in cards with active cooling solutions are NOT supported in this SKU.
Terms used in the table:
na – Not Applicable
opt – Accessory option sold separately
yes - Option included
KDK – Knock Down Kit – Intel PCSD term for chassis only product
BIK – Server Board in KDK – Intel PCSD term for integrated (L6) system product
L6 - Integrated system with no processors, memory, or storage devices

1.3 Intel® S2600GZ/GL Product Family to Intel® Server S2600WT Product Family Transition Guide

If transitioning from the previous generation Intel® S2600GZ/GL product family, the following table can be used to identify an equivalent system within the Intel® S2600WT product family.

Table 4. 1U / 2U Server System Product Family Generation to Generation Transition Guide

Prior Generation Product Code	New Generation 1G LOM SKU Product Code	New Generation 10G LOM SKU Product Code	Required accessories to match configuration			Advantages included in current generation
R1208GL4DS	R1208WT2GS	R1208WTTGS	AXXELVRAIL	AXXRMM4LITE		750 vs460 PSU, 24 vs16DIMM
R1208GZ4GC	R1208WT2GS	R1208WTTGS	AXXELVRAIL	AXXRMM4LITE	FXX750PCRPS
R1208GZ4GS9	R1208WT2GS	R1208WTTGS
R1304GL4DS9	R1304WT2GS	R1304WTTGS				750 vs460 PSU, 24vs16DIMM
R1304GZ4GC	R1304WT2GS	R1304WTTGS	AXXELVRAIL	AXXRMM4LITE	FXX750PCRPS
R1304GZ4GS9	R1304WT2GS	R1304WTTGS
R2208GL4DS9	R2208WT2YS	R2208WTTYS				Rear drives option, 1100W vs 460W PSU, 3rd riser, 24vs16 dimms
R2208GL4GS	R2208WT2YS	R2208WTTYS	AXXELVRAIL	AXXRMM4LITE		Rear drives option, 1100W vs 750W PSU, 3rd riser, 24vs16 dimms
R2208GZ4GC	R2208WT2YS	R2208WTTYS	AXXELVRAIL	AXXRMM4LITE	AXX1100PCRPS	Rear drives option, 1100W vs 750W PSU, 3rd riser
R2208GZ4GS9	R2208WT2YS	R2208WTTYS				Rear drives option, 1100W vs 750W PSU, 3rd riser
R2224GZ4GC4		R2224WTTYS	AXXELVRAIL	AXXRMM4LITE		Rear drives included, 1100W vs 750W PSU, 3rd riser optional
R2308GL4GS		R2308WTTYS	AXXELVRAIL	AXXRMM4LITE		Rear drives option, 1100W vs 750W PSU, 3rd riser, 24vs16 dimms
R2308GZ4GC		R2308WTTYS	AXXELVRAIL	AXXRMM4LITE	AXX1100PCRPS	Rear drives option, 1100W vs 750W PSU, 3rd riser
R2308GZ4GS9		R2308WTTYS				Rear drives option, 1100W vs 750W PSU, 3rd riser
R2312GL4GS		R2312WTTYS	AXXELVRAIL	AXXRMM4LITE		Rear drives included, 1100W vs 750W PSU, 3rd riser optional, 24vs16 dimms
R2312GZ4GC4		R2312WTTYS	AXXELVRAIL	AXXRMM4LITE	AXX1100PCRPS	Rear drives included, 1100W vs 750W PSU, 3rd riser optional
R2312GZ4GS9		R2312WTTYS				Rear drives included, 1100W vs 750W PSU, 3rd riser optional

2. Server Building Block Configuration

Server building blocks are offered to give Intel customers the option to configure and assemble a unique server system from the bare chassis up. Each building block component and optional accessory is purchased separately. At a minimum, building up a functional server system using building blocks will require the following:

• 1U or 2U Intel Server Chassis – Intel® Server Chassis R1000WT or R2000WT
Intel® Server Board S2600WT-S2600WT2 or S2600WTT
• SAS / SATA Data cables
• Power Supply module(s)
- Power cord(s)
- Rack mount kit – Rails or fixed mount
- Processor
- Memory
- Storage Drives

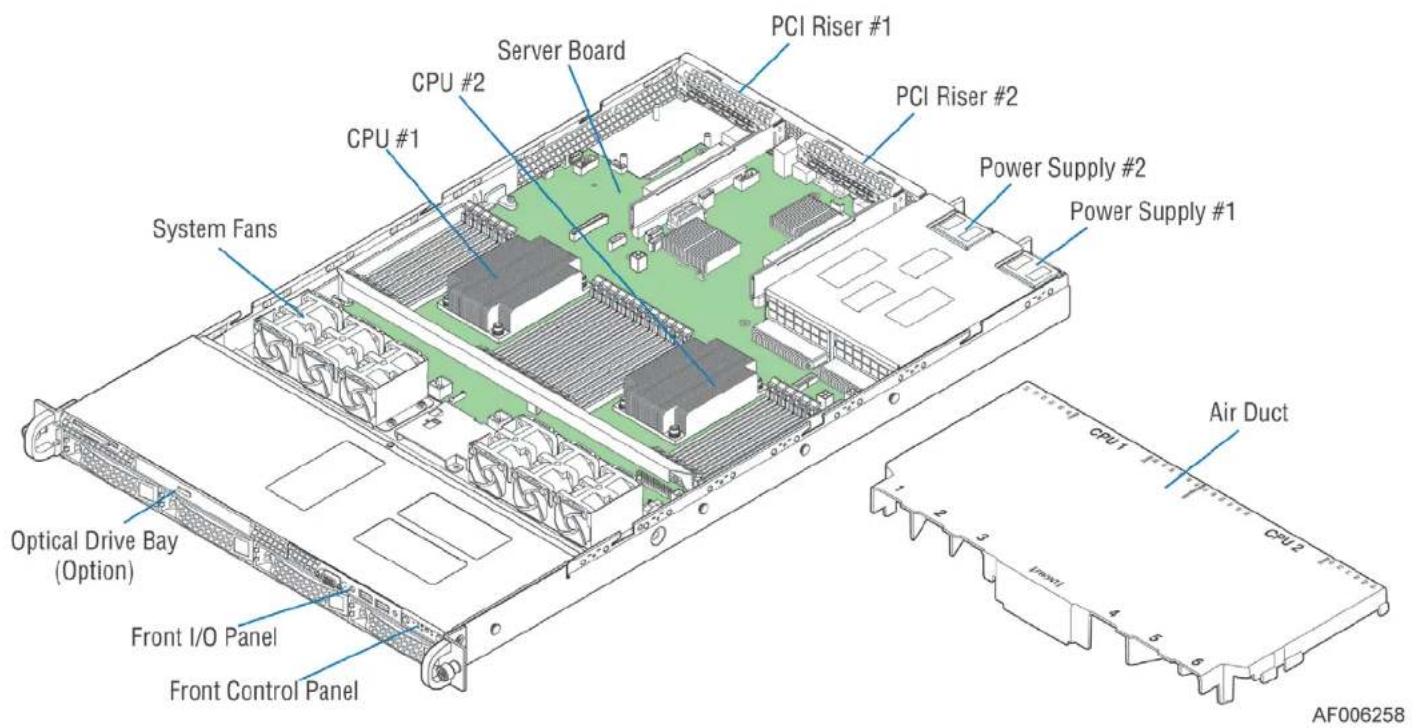

Isometric technical drawing of a server rack with internal components and mounting brackets (no text or labels)

1U - Intel® Server Chassis R1000WT

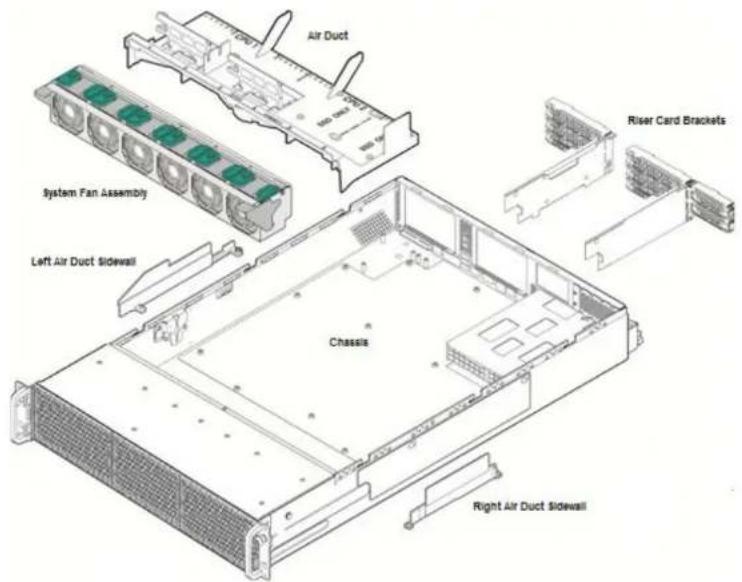

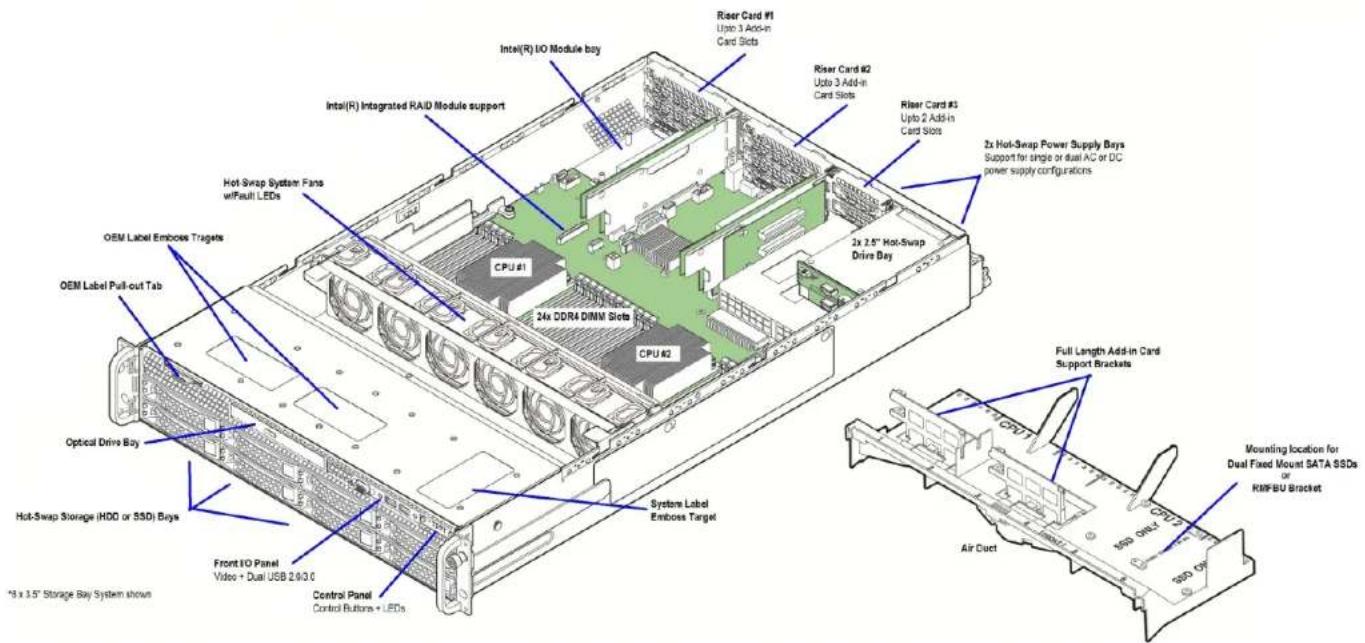

Exploded view diagram of a server rack with internal components and mounting brackets (no text or labels)

2U - Intel® Server Chassis R2000WT

Green printed circuit board with multiple connectors and components (no visible text or symbols)

Intel ^® Server Board S2600WT

750W or 1100W Power Supply Module

Optional Intel accessories that can be added include the following: See chapter 5 for available options.

• Riser cards options
- SAS / SAS RAID support – PCIe* add-in card or module + Appropriate SAS Data cable(s)
- Intel® I/O Module
- Intel® Remote Management Module 4 Lite

2.1 Building Block Recipe Summary

The following table is used to identify the building block options required to assemble an equivalent server system SKU offered within the Intel ^® Server System R1000WT or R2000WT product families.

The first column in the table identifies the available integrated system SKUs. The columns to the right of a specified system SKU identify the Intel building block kits required to assemble the equivalent system.

Table 5. 1U / 2U Building Block to Integrated System Recipe Guide

Intel L6 System Product Code	Building blocks needed to assemble an equivalent system
	Intel Chassis Product Code	Server Board	Front Drive Bay assembly	Power Supply Modules	Riser Slot 1 and 2 Riser Cards	Riser Slot 3 Riser Card	Rear Drive Bay Assembly	SAS cables for 12Gb
R1304WTTGS	R1304WTXXX	S2600WTT	included	(1x) FXX750PCRPS	(2x) F1UL16RISER2	NA	NA	800mm cableAXCBL1UHRHD
R1304WT2GS	R1304WTXXX	S2600WT2	included	(1x) FXX750PCRPS	(2x) F1UL16RISER2	NA	NA	800mm cableAXCBL1UHRHD
R1208WTTGS	R1208WTXXX	S2600WTT	included	(1x) FXX750PCRPS	(2x) F1UL16RISER2	NA	NA	AXCBL1UHRHD
R1208WT2GS	R1208WTXXX	S2600WT2	included	(1x) FXX750PCRPS	(2x) F1UL16RISER2	NA	NA	AXCBL1UHRHD

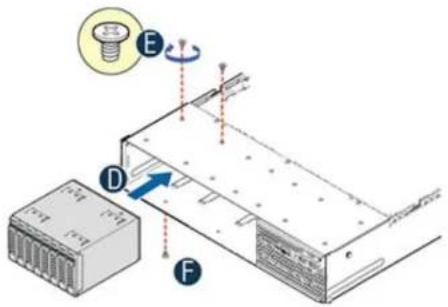

R2208WTTYS	R2000WTXXX	S2600WTT	A2U8X25S3HSDK	(1x) AXX1100PCRPS	(2x) A2UL8RISER2	A2UX8X4RISER	optional	AXCBL730HDHD
R2208WTTYC1	R2000WTXXX + AWTCOPRODUCT	S2600WTT	A2U8X25S3HSDK	(2x) AXX1100PCRPS	(2x) A2UL16RISER2	A2UX8X4RISER	optional	AXCBL730HDHD
R2208WT2YS	R2000WTXXX	S2600WT2	A2U8X25S3HSDK	(1x) AXX1100PCRPS	(2x) A2UL8RISER2	A2UX8X4RISER	optional	AXCBL730HDHD
R2224WTTYS	R2000WTXXX + A2UHANDLKIT	S2600WTT	(3x) A2U8X25S3HSDK	(1x) AXX1100PCRPS	(2x) A2UL8RISER2	optional	A2UREARHSDK	AXCBL730HDHD + (2) AXCBL875HDHD
R2308WTTYS	R2000WTXXX	S2600WTT	A2U8X35S3HSDK	(1x) AXX1100PCRPS	(2x) A2UL8RISER2	A2UX8X4RISER	optional	1/2 kit of:AXCBL800HDHD &AXCBL950HDHD
R2312WTTYS	R2312WTXXX	S2600WTT	included	(1x) AXX1100PCRPS	(2x) A2UL8RISER2	optional	A2UREARHSDK	AXCBL800HDHDAXCBL875HDHDAXCBL950HDHD

2.2 Intel® Server Board S2600WT Product Family SKUs

Intel Product Code (iPC)	Order Information	Product Description	Product Type
iPC - S2600WT2	MM# - 934880UPC - 00735858288859EAN - 5032037068130MOQ - 1Packaged Gross Weight3.1 Kgs, 6.8 LbsUn-packaged Net Weight1.7 Kgs, 3.8 Lbs	Intel® Server Board S2600WT2Support for dual Intel * Xeon E5-2600 v3 processor familyMaximum supported TDP for board 145W (not available in all chassis configurations)Intel ° C612 chipset24 DDR4 DIMM Slots8 AHCI SATA 6Gb ports thru two 4-port SFF-8643 connectors2 AHCI SATA 6Gb ports for ODD, DOM, SSD thru two 7-pin SATA connectors2 Integrated 1Gb ports (Intel ° Ethernet Controller I350)Integrated Baseboard Management controller with IPMI 2.0 supportOptional advanced management features activated byAXXRMM4LITEkeyDedicated 1Gb management port onboardSupport for up to 3 riser cards with multiple Intel riser card optionsNOTE - 2 CPUs required for riser #2 and riser #3 supportSupport for Intel °I/O expansion module optionSupport for Intel °SAS module optionBox includes: one server boardNote: All necessary mounting hardware, cabling, and shielding will ship with the Intel chassis and optional accessory kits.	Server Board onlyBuilding block optionSpare FRU
iPC - S2600WTT	MM# - 934882UPC - 00735858288842EAN - 5032037068123MOQ - 1Packaged Gross Weight3.1 Kgs, 6.8 LbsUn-packaged Net Weight1.7 Kgs, 3.8 Lbs	Intel® Server Board S2600WTTSupport for dual Intel ° Xeon E5-2600 v3 processor familyMaximum supported TDP for board 145W (not available in all chassis configurations)Intel ° C612 chipset24 DDR4 DIMM Slots8 AHCI SATA 6Gb ports thru two 4-port SFF-8643 connectors2 AHCI SATA 6Gb ports for ODD, DOM, SSD thru two 7-pin SATA connectors2 Integrated 10Gb ports (Intel° Ethernet Controller X-540)Integrated Baseboard Management controller with IPMI 2.0 supportOptional advanced management features activated byAXXRMM4LITE keyDedicated 1Gb management portSupport for up to 3 riser cards with multiple Intel riser card optionsNOTE - 2 CPUs required for riser #2 and riser #3 supportSupport for Intel °I/O expansion module optionSupport for Intel °SAS module optionBox includes: one server boardNote: All necessary mounting hardware, cabling, and shielding will ship with the Intel chassis and optional accessory kits.	Server Board OnlyBuilding block optionSpare FRU

2.3 Intel® Server Chassis R1000WT Product Family SKUs – (1U Rack Mount Chassis)

The product tables found in this section provide order code information and detailed descriptions for each available 1U Intel server chassis building block option. The lower sections of each table identify:

• The ship along components of the specified chassis product code – (product BOM)
• Required Items – Hardware required to be installed to the base system to achieve basic functionality using the default system feature set
• Optional Accessories – Some of the available accessories which can be installed to enhance the basic feature set of the server board / chassis. Additional accessories can be found in Chapter 5

NOTES:

• Each required item and optional accessory is sold separately from the specified Intel server building block
- Items identified as iPC (Intel Product Code), are an orderable building block option, accessory or spare FRU
- In an effort to provide the complete product bill of materials, the ship along components list in each product table will include items identified by description and by IPN (Intel Part Number). The iPN information is provided for reference only. These components are not orderable as a spare or accessory.

Figure 3. Intel ^® Server Chassis R1000WT – 1U Chassis only Building Block (KDK)

Intel® Server S2600WT Product Family Configuration Guide and Spares/Accessories List

Intel Product Code (iPC):R1304WTXXX1U - 4 x 3.5" HDD or 4 x 2.5" SSD front mount drives	Order Code Information:MM# - 936121UPC - 00735858287944EAN - 5032037067492MOQ - 1	Product Type: Chassis OnlyChassis Form Factor: 1U rack mountChassis dimensions: L=712mm, W=439mm, H=43.2mmPackaged Gross Weight: 19 Kgs, 41.9 LbsUn-packaged Net Weight: 10.3 Kgs, 22.7 LbsOuter Box Dimensions: L=983mm, W=577mm, H=260mm
Product Definition and Configuration Requirements
Intel product code R1304WTXXX includes the following components:(1) - 1U Chassis with Quick Reference Label affixed to top cover(1) - Air duct(6) - Dual rotor system fans - iPC FR1UFAN10PW(1) - Pre-installed Standard Control Panel assembly (board only - iPC FXXFPANEL)(1) - Pre-installed Front I/O Panel assembly (1 x VGA and 2 x USB) (w/internal attach cables)(1) - SATA Optical drive bay with filler panelIncludes optical drive mounting latch kit - iPN H19168-00xIncludes optical drive power cable - iPN G95880-00x(4) - 3.5" Hot-swap drive bays with drive carriers and drive blanksincludes (1) 12 Gb SAS backplane - iPC FR1304S3HSBPincludes (4) 3.5" hot swap drive carriers - iPC FXX35HSCAR(1) - Server board to backplane power cable - iPN H38458-00x(1) - Server board to backplane I2C cable - iPN H39941-00x(2) - CPU heatsinks - iPC FXXCA84X106HS(2) - CPU heat sink Mylar Spacer inserts - iPN H28618-00x(2) - Riser card mounting brackets - (riser cards sold separately. See chapter 5.7.1)(1) - Power Supply Bay blank insert(8) - DIMM slot blanks - iPN H43597-00x(2) - Chassis handles (1 set) installed - iPN H19171-00x(2) - AC Power Cord retention strap assembly - iPN H23961-00xServer board and riser card mounting screwsSpares for each screw type included	Required Items - Sold Separately:Intel® Server Board S2600WT (choose one)iPC S2600WT2 - with 1G LOMiPC S2600WTT - with 10G LOMPower supply module(s) - (Choose one type) two common modules required for redundancyiPC FXX750PCRPS - 750 W AC Power Supply ModuleiPC AXX750DCCRPS - 750 W DC Power Supply Module (Available Late Q2 2015)Power Cord(s) - See chapter 5.10Rack Mount Kit - See chapter 5.111 or 2 Intel® Xeon® Processor E5-2600 v3 product familyECC DDR4 memory (RDIMM or LRDIMM)	Optional Intel Accessories - Sold Separately:iPC F1UL16RISER2 - One x16 PCIe* 3.0 slot Riser Card - (1 for each riser slot)Intel® I/O Module - See chapter 5.8 for optionsIntel® SAS RAID Card / Module - See section 5.9 for optionsSAS/SATA Data cables - Cable selection is dependant on desired storage option. See Chapter 4.2.1 for available cable optionsiPC A1UBEZEL - Lockable front system bezeliPC AXXRMM4LITE - Intel® Remote Management Module Lite key. For advanced management featuresStorage DrivesSee Chapter 5 for all available accessory options.
Intel Product Code (iPC):R1208WTXXX1U - 8 x 2.5" front mount drives	Order Code Information:MM# - 936187UPC - 00735858287951EAN - 5032037067508MOQ - 1	Product Type: Chassis OnlyChassis Form Factor: 1U rack mountChassis dimensions: L=712mm, W=439mm, H=43.2mmPackaged Gross Weight: 19 Kgs, 41.9 LbsUn-packaged Net Weight: 10.3 Kgs, 22.7 LbsOuter Box Dimensions: L=983mm, W=577mm, H=260mm
Product Definition and Configuration Requirements
Intel product code R1208WTXXX includes the following components:(1) - 1U Chassis with Quick Reference Label affixed to top cover(1) - Air duct(6) - Dual rotor system fans - iPC FR1UFAN10PW(1) - Pre-installed Standard control panel assembly (board only iPC FXXFPANEL)(1) - Pre-installed Front I/O Panel assembly (1 x VGA and 2 x USB) (w/internal attach cables)If removed, can be used as an optical drive bay.Includes optical drive mounting latch kit - iPN H19168-00xIncludes optical drive power cable - iPN H23851-00x(8) - 2.5" Hot-swap drive bays with drive carriers and drive blanksIncludes (1) 12 Gb SAS backplane - iPC F1U8X25S3HSBPIncludes (8) 2.5" hot swap drive carriers - iPC FXX25HSCAR2(1) - Server board to backplane power cable - iPN H38457-00x(1) - Server board to backplane I2C cable - iPN H39941-00x(2) - CPU heatsinks - iPC FXXCA84X106HS(2) - CPU heat sink Mylar Spacer inserts - iPN H28618-00x(2) - Riser card mounting brackets - (riser cards sold separately. See chapter 5.7.1)(1) - Power Supply Bay blank insert(8) - DIMM slot blanks - iPN H43597-00x(2) - Chassis handles (1 set) installed - iPN H19171-00x(2) - AC Power Cord retention strap assembly - iPN H23961-00xServer board and riser card mounting screwsSpares for each screw type included	Required Items - Sold Separately:Intel® Server Board S2600WT (choose one)o iPC S2600WT2 - with 1G LOMo iPC S2600WTT - with 10G LOMPower supply module(s) - (Choose one type) two common modules required for redundancyo iPC FXX750PCRPS - 750 W AC Power Supply Moduleo iPC AXX750DCCRPS - 750 W DC Power Supply Module (Available Late Q2 2015)Power Cord(s) - See chapter 5.10Rack Mount Kit - See chapter 5.111 or 2 Intel® Xeon® Processor E5-2600 v3 product familyECC DDR4 memory (RDIMM or LRDIMM)	Optional Intel Accessories - Sold Separately:iPC F1UL16RISER2 - One x16 PCIe* 3.0 slotRiser Card - (1 for each riser slot)Intel® I/O Module - See chapter 5.8 for optionsIntel® SAS RAID Card / Module - See section 5.9 for optionsSAS/SATA Data cables - Cable selection is dependant on desired storage option. See Chapter 4.2.2 for available cable optionsiPC A1UBEZEL - Lockable front system bezeliPC AXXRMM4LITE - Intel® Remote Management Module Lite key. For advanced management featuresiPC A1U44X25NVMEDK - (4) PCIe* SSD SFF (NVMe*) + (4) SAS support - replaces existing backplane and requires use of one PCIe* slot. See system accessories table or System TPS for detailsStorage DrivesSee Chapter 5 for all available accessory options.

2.4 Intel® Server Chassis R2000WT Product Family SKUs – (2U Rack Mount Chassis)

The product tables found in this section provide order code information and detailed descriptions for each available 2U Intel server chassis building block option. The lower sections of each table identify:

• The ship along components of the specified chassis product code – (product BOM)
- Required Items – Hardware required to be installed to the base system to achieve basic functionality using the default system feature set
- Optional Accessories – Some of the available accessories which can be installed to enhance the basic feature set of the server board / chassis. Additional accessories can be found in Chapter 5

NOTES:

• Each required item and optional accessory is sold separately from the specified Intel server building block
- Items identified as iPC (Intel Product Code), are an orderable building block option, accessory or spare FRU
- In an effort to provide the complete product bill of materials, the ship along components list in each product table will include items identified by description and by iPN (Intel Part Number). The iPN information is provided for reference only. These components are not orderable as a spare or accessory.

Figure 4. Intel® Server Chassis R2000WT – 2U Chassis only Building Block (KDK)

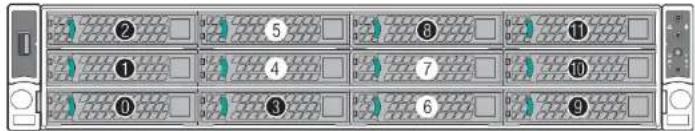

Intel Product Code (iPC):R2312WTXXX2U - 12 x 3.5" HDD or 12 x 2.5" SSD front mount drives	Order Code Information:MM# - 936022UPC - 00735858288729EAN - 5032037068000MOQ - 1	Product Type: Chassis onlyChassis Form Factor: 2U rack mountChassis dimensions: L=712mm, W=439mm, H=89mmPackaged Gross Weight: 21.2 Kgs, 46.7 LbsUn-packaged Net Weight: 14.4 Kgs, 32.0 LbsOuter Box Dimensions: L=983mm, W=577mm, H=260mm
Product Definition and Configuration Requirements
Intel product code R2312WTXXX includes the following components:(1) - 2U Chassis with Quick Reference Label affixed to top cover(1) - Air duct(6) - Hot swap system fans - iPC FR2UFAN60HSW(2) - Chassis Handles (1 set) installed, with Integrated control panel & USB Port - iPC A2UHANDLKIT(12) - 3.5" Hot-swap drive bays with drive carriers and drive blanks• Includes (1) 12 Gb SAS backplane - iPC F2U12X35S3HSBP - (SAS Data cables sold separately)• Includes (12) 3.5" hot swap drive carriers - iPC FXX35HSCAR(1) - Backplane I2C cable - iPN G92510-00x(1) - Backplane power cable - iPN G92685-00x(1) - Internal fixed mount SSD power cable - iPN H23901-00x(2) - CPU heatsinks - iPC FXXCA84X106HS(2) - CPU heat sink Mylar Spacer inserts - iPN H28618-00x(2) - Riser Card mouting brackets supporting up to 3 riser cards - (risers cards sold separately - See chapter 5.7.2)(1) - Power Supply Bay blank insert(16) - DIMM slot blanks - iPN H43597-00x(1) - 3x RMFBU Mounting Bracket - iPN H18238-00x(2) - AC Power Cord retention strap assembly - iPN H23961-00xServer Board and Riser Card mounting screwsSpares for each screw type included	Required Items - Sold Separately:Intel® Server Board S2600WT (choose one)○ iPC S2600WT2 - with 1G LOM○ iPC S2600WTT - with 10G LOMPower supply module(s) - (Choose one type) two common modules required for redundancy○ iPC AXX1100PCRPS - 1100W AC Power Supply Module○ iPC FXX750PCRPS - 750 W AC Power Supply Module○ iPC AXX750DCCRPS - 750 W DC Power Supply Module (Available Late Q2 2015)Power Cord(s) - See chapter 5.10Rack Mount Kit - See chapter 5.111 or 2 Intel® Xeon® Processor E5-2600 v3 product familyECC DDR4 memory (RDIMM or LRDIMM)	Optional Intel Accessories - Sold Separately:Riser Cards - Up to three riser cards can be installed concurrently - See chapter 5.7Risers Slots #1 and #2 - Available riser cards include:- iPC A2UL8RISER2 - (3) x8 PCIe* 3.0 slots- iPC A2UL16RISER2 - (1) x16 PCIe* 3.0 slot + (1) x8 PCIe* 3.0 slotRiser Slot #3 - Available riser cards include:- iPC A2UX8X4RISER - (1) Low profile x8 PCIe* 3.0 slot + (1) LP x8 PCIe* 2.0 slotRear Storage Bay Option - See chapter 5.3iPC A2UREARHSDK - Up to (2) hot swap SATA SSDsIntel® I/O Module - See chapter 5.8 for optionsIntel® SAS RAID Card / Module - See section 5.9 for optionsSAS/SATA Data cables - Cable selection is dependant on desired storage option. See Chapter 4.2.4 for available cable optionsiPC A2UBEZEL - Lockable front system bezeliPC AXXRMM4LITE - Intel® Remote Management Module Lite key. For advanced management featuresStorage DrivesSee Chapter 5 for all available accessory options.

Intel® Server S2600WT Product Family Configuration Guide and Spares/Accessories List

Intel Product Code (iPC):R2000WTXXX2U - No front mount drives	Order Code Information:MM# - 936021UPC - 00735858287968EAN - 5032037067515MOQ - 1	Product Type: Chassis onlyChassis Form Factor: 2U rack mountChassis dimensions: L=712mm, W=439mm, H=89mmPackaged Gross Weight: 19 Kgs, 41.9 LbsUn-packaged Net Weight: 13.3 Kgs, 29.3 LbsOuter Box Dimensions: L=983mm, W=577mm, H=260mm
Product Definition and Configuration Requirements
Intel product code R2000WTXXX includes the following components:(1) - 2U Chassis with Quick Reference Label affixed to top cover(1) - Air duct(6) - Hot swap system fans - iPC FR2UFAN60HSW(1) - Pre-installed Standard control panel assembly - (board only iPC FXXFPANEL(1) - Pre-installed Front I/O Panel assembly (1 x VGA and 2 x USB) (w/internal attach cables)(1) - SATA Optical drive bay with filler panel and optical drive mounting latch(1) - I2C cable - server board to backplane - iPN G41809-00x (backplane sold separately)(1) - Internal fixed mount SSD / optical drive power cable - iPN H23901-xxx(2) - Riser Card mounting brackets supporting up to 3 riser cards (riser cards sold separately - see chapter 5.7.2)(2) - CPU heatsinks - iPC FXXCA84X106HS(2) - CPU heat sink Mylar Spacer inserts - iPN H28618-00x(1) - Power supply bay blank insert(16) - DIMM slot blanks - iPN H43597-00x(2) - Rack chassis handles (1 set) installed - iPN H18229-xxx(1) - 3x RMFBU Mounting Bracket - iPN H18238-00x(2) - AC Power Cord retention strap assembly - iPN H23961-00xServer Board and Riser Card mounting screwsSpares for each screw type included	Required Items - Sold Separately:Intel® Server Board S2600WT (choose one)o iPC S2600WT2 - with 1G LOMo iPC S2600WTT - with 10G LOMPower supply module(s) - (Choose one type) two common modules required for redundancyo iPC AXX1100PCRPS - 1100W AC Power Supply Moduleo iPC FXX750PCRPS - 750 W AC Power Supply Moduleo iPC AXX750DCCRPS - 750 W DC Power Supply Module (Available Late Q2 2015)Power Cord(s) - See chapter 5.10Rack Mount Kit - See chapter 5.111 or 2 Intel® Xeon® Processor E5-2600 v3 product familyECC DDR4 memory (RDIMM or LRDIMM)	Optional Intel Accessories - Sold SeparatelyFront storage bay optionUpto (3) 8 x 2.5" drive bay modules can be installed:iPC A2U8X25S3HSDK - SAS/SATAiPC A2U8X25S3DPDK - Dual port SASiPC A2U44X25NVMEDK - PCIe* SSD SFF (NVMe) + SAS(Note) for a 24 x 2.5" drive configuration, system will lose front video and optical drive support, and system must include the 2U storage front panel in Storage handle kit iPC A2UHANDLKITiPC A2U8X35S3HSDK - 8 x 3.5" drive + Optical drive bayRe -uses control panel and front I/O panel. Includes SAS/SATA data cables and peripheral power cableRear Storage Bay OptioniPC A2UREARHSDK - Up to (2) hot swap SATA SSDsRiser Cards - Up to three riser cards can be installed concurrentlyRisers Slots #1 and #2 - Available riser cards include:- iPC A2UL8RISER2 - (3) x8 PCIe* 3.0 slots-iPC A2UL16RISER2 - (1) x16 PCIe* slot + (1) x8 PCIe* slotRiser Slot #3 - Available riser cards include:- iPC A2UX8X4RISER - (1) Low profile x8 PCIe* 3.0 slot + (1) LP x8 PCIe* 2.0 slotSAS/SATA Data cables - Cable selection is dependant on desired storage option. See Chapter 4 for available cable optionsIntel® SAS RAID Card / Module - See section 5.9 for optionsIntel® I/O Module - See chapter 5.8 for optionsiPC A2UBEZEL - Lockable front system bezeliPC AXXRMM4LITE - Intel® Remote Management Module Lite key. For advanced management featuresSee Chapter 5 for all available accessory options.

3. Server System Configuration

Intel makes available L6 integrated server systems that include a specific server board, power supply module, and hot swap drive bays options. At a minimum, building up a functional L6 server system will require the following:

• Rack mount kit option – Rails or fixed mount
• Power Cord(s)
• Processor(s)
• Memory
• Storage Drives

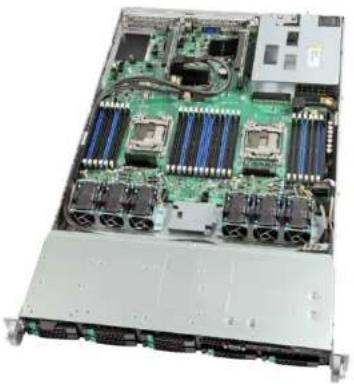

Interior view of a server rack with multiple drive bays and heat sinks (no visible text or labels)

Intel®Server System R1000WT Product Family
*R1208WT configuration shown

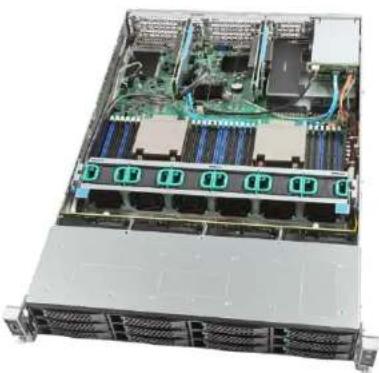

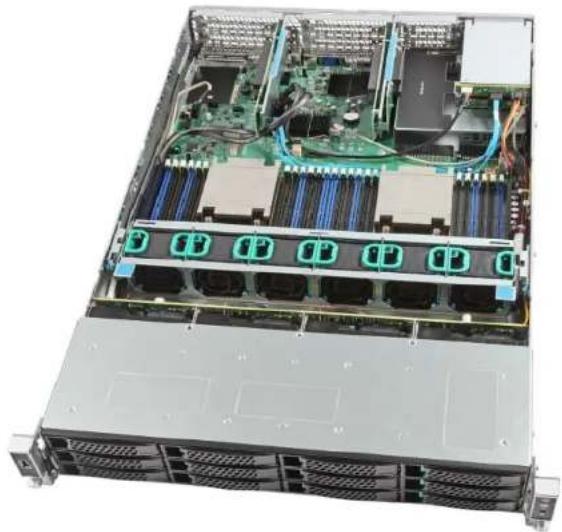

Interior view of a server rack with multiple drive bays and ventilation fans (no visible text or labels)

Intel ^v Server System R2000WT Product Family
*R2312WT configuration shown

Optional Intel accessories that can be added include the following: See chapter 5 for available options.

• 2 ^nd power supply module to add power redundancy
• SAS / SAS RAID support – PCIe* add-in card or module + Appropriate SAS Data cable(s)
• Intel® I/O Module
• Intel® Remote Management Module Lite

3.1 Intel® Server System R1000WT Product Family SKUs – (1U Rack Mount System)

The product tables found in this section provide order code information and detailed descriptions for the specified L6 integrated 1U Intel server system. The lower sections of each table identify:

• The ship along components of the specified chassis product code – (product BOM)
• Required Items – Hardware required to be installed to the base system to achieve basic functionality using the default system feature set
• Optional Accessories – Some of the available accessories which can be installed to enhance the basic feature set of the server board / chassis. Additional accessories can be found in Chapter 5

NOTES:

• Each required item and optional accessory is sold separately from the specified Intel L6 server system
- Items identified as iPC (Intel Product Code), are an orderable building block option, accessory or spare FRU
- In an effort to provide the complete product bill of materials, the ship along components list in each product table will include items identified by description and by iPN (Intel Part Number). The iPN information is provided for reference only. These components are not orderable as a spare or accessory.

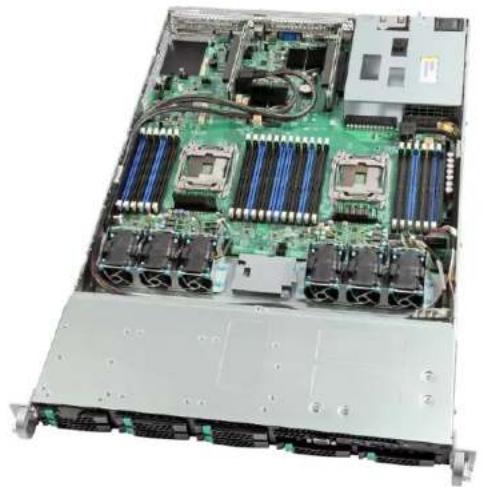

Internal view of a server rack with multiple drive bays and central processor (no visible text or labels)

Figure 5. Intel® Server System R1000WT – L6 Integrated 1U System *R1208WTxxx shown

Intel Product Code (iPC):R1304WTTGS1U-4x3.5" HDD or 4x2.5" SSD front mount drives	Order Code Information:MM#-934967UPC-00735858288736EAN-5032037068017MOQ-1	Product Type:L6 Integrated SystemChassis Form Factor:1U rack mountChassis dimensions:L=712mm,W=439mm,H=43.2mmPackaged Gross Weight:21.3 Kgs,47.0 LbsUn-packaged Net Weight:12.3 Kgs,27.1 LbsOuter Box Dimensions:L=983mm,W=577mm,H=260mm
Product Definition and Configuration Requirements/Options
Intel product code R1304WTTGS includes the following components:(1)-1U Chassis with Quick Reference Label affixed to top cover(1)-Intel® Server Board S2600WT w/Dual 10GbE-iPC S2600WTT(2)-Riser card assembly with single x16 PCIe* slot riser card-iPC F1UL16RISER2(1)-750W power supply module -iPC FXX750PCRPS(1)-Power supply bay blank insert(2)-AC Power Cord retention strap assembly-iPN H23961-00x(4)-3.5" Hot-swap drive bays with drive carriers and drive blanksIncludes (1) 12 Gb SAS backplane-iPC FR1304S3HSBPIncludes (4) 3.5" hot swap drive trays-iPC FXX35HSCAR(1)-800mm SAS/SATA Multiport data cable-iPC AXXCBL1UHRHD(1)-350mm Backplane power cable-iPN H38458-00x(1)-150mm Backplane I2C cable-iPN H39941-00x(1)-Air duct(6)-Dual rotor system fans-iPC FR1UFAN10PW(1)-Standard control panel assembly (board only-iPC FXXFPANEL)(1)-Front I/O Panel assembly (1x VGA and 2x USB)(1)-SATA Optical drive bay with filler panel-(optical drive sold separately)Includes optical drive mounting latch kit-iPN H19168-00xIncludes 550mm optical drive power cable-iPN G95880-00x(2)-CPU heatsinks-iPC FXXCA84X106HS(2)-CPU heat sink Mylar Spacer inserts-iPN H28618-00x(8)-DIMM slot blanks-iPN G75158-00x(2)-Chassis handle (1 set) installed-iPN H19171-00xSpares for each screw type included	Required Items-Sold Separately:Rack Mount Kit-See chapter 5.11 for available options1 or 2 Intel® Xeon® Processor E5-2600 v3 product familyECC DDR4 memory (RDIMM or LRDIMM)Power Cord(s)-See chapter 5.10NOTE:L6 Systems shipping from Intel to North America will include (1) AC power cord	Optional Intel Accessories-Sold SeparatelyIPC FXX750PCRPS-2nd 750W AC Power supply module-to support power redundancyIntel® 12G SAS RAID module + RMFBU - See chapter 5.9 for available optionsSAS Data cable-Depending on the location of the SAS Data controller, a new data cable may be necessary.See chapter 4.2.1Intel® I/O Module-See chapter 5.8 for available optionsiPC A1UBEZEL-Lockable front system bezeliPC AXXRMM4LITE-Intel® Remote Management Module 4 Lite key-For advanced management featuresiPC RKSATA4R5-Embedded SATA ESRT2 SW RAID 5 support keyStorage DrivesSee Chapter 5 for all available accessory options.
Product Code (iPC):R1304WT2GS1U-4x3.5" HDD or 4x2.5" SSD front mount drives	Order Code Information:MM#-935059UPC-00735858288743EAN-5032037068024MOQ-1	Product Type:L6 Integrated SystemChassis Form Factor:1U rack mountChassis dimensions:L=712mm,W=439mm,H=43.2mmPackaged Gross Weight:21.3 Kgs,47.0 LbsUn-packaged Net Weight:12.3 Kgs,27.1 LbsOuter Box Dimensions:L=983mm,W=577mm,H=260mm
Product Definition and Configuration Requirements/Options
Intel product code R1304WT2GS includes the following components:(1)-1U Chassis with Quick Reference Label affixed to top cover(1)-Intel® Server Board S2600WT w/ Dual 1GbE-iPC S2600WT2(2)-Riser card assembly with single x16 PCIe* slot riser card-iPC F1UL16RISER2(1)-750W power supply module - iPC FXX750PCRPS(1)-Power supply bay blank insert(2)-AC Power Cord retention strap assembly-iPN H23961-00x(4)-3.5" Hot-swap drive bays with drive carriers and drive blanks• Includes (1) 12 Gb SAS backplane-iPC FR1304S3HSBP• Includes (4) 3.5" hot swap drive trays-iPC FXX35HSCAR(1)-800mm SAS/SATA Multiport data cable-iPC AXXCBL1UHRHD(1)-350mm Backplane power cable-iPN H38458-00x(1)-150mm Backplane I2C cable-iPN H39941-00x(1)-Air duct(6)-Dual rotor system fans-iPC FR1UFAN10PW(1)-Standard control panel assembly (board only-iPC FXXFPANEL)(1)-Front I/O Panel assembly (1 x VGA and 2 x USB)(1)-SATA Optical drive bay with filler panel-(optical drive sold separately)• Includes optical drive mounting latch kit-iPN H19168-00x• Includes 550mm optical drive power cable-iPN G95880-00x(2)-CPU heatsinks-iPC FXXCA84X106HS(2)-CPU heat sink Mylar Spacer inserts-iPN H28618-00x(8)-DIMM slot blanks-iPN G75158-00x(2)-Chassis handle installed (1 set)-iPN H19171-00xSpares for each screw type includedProduct Code (IPC):R1208WTTGS1U - 8 x 2.5" front mount drives	Required Items-Sold Separately:Rack Mount Kit-See chapter 5.11 for available options1 or 2 Intel® Xeon* Processor E5-2600 v3 product familyECC DDR4 memory (RDIMM or LRDIMM)Power Cord(s)-See chapter 5.10NOTE:L6 Systems shipping from Intel to North America will include (1) AC power cordOrder Code Information:MM# - 934968UPC - 00735858289429EAN - 5032037068406MOQ - 1	Optional Intel Accessories-Sold SeparatelyIPC FXX750PCRPS-2nd 750W AC Power supply module-to support power redundancyIntel® 12G SAS RAID module+RMFBU-See chapter 5.9 for available optionsSAS Data cable-Depending on the location of the SAS Data controller, a new data cable may be necessary. See chapter 4.2.1Intel® I/O Module-See chapter 5.8 for available optionsiPC A1UBEZEL-Lockable front system bezeliPC AXXRMM4LITE-Intel® Remote Management Module 4 Lite key-For advanced management featuresiPC RKSATA4R5-Embedded SATA ESRT2 SW RAID 5 support keyStorage DrivesSee Chapter 5 for all available accessory options.Product Type: L6 Integrated SystemChassis Form Factor: 1U rack mountChassis dimensions: L=712mm, W=439mm, H=43.2mmPackaged Gross Weight: 21.1 Kgs, 46.5 LbsUn-packaged Net Weight: 12.9 Kgs, 28.4 LbsOuter Box Dimensions: L=983mm, W=577mm, H=260mm
Product Definition and Configuration Requirements/Options
Intel product code R1208WTTGS includes the following components:(1) -1U Chassis with Quick Reference Label affixed to top cover(1) - Intel® Server Board S2600WT w/ Dual 10GbE - iPC S2600WTT(2) - Riser card assembly with single x16 PCIe® 3.0 slot riser card - F1UL16RISER2(1) - 750W power supply module - iPC FXX750PCRPS(1) - Power supply bay blank insert(2) - AC Power Cord retention strap assembly - iPN H23961-00x(1) - Air duct(6) - Dual rotor system fans - iPC FR1UFAN10PW(1) - Standard control panel assembly (board only - iPC FXXFPANEL)(1) - Front I/O Panel assembly (1 x VGA and 2 x USB)If removed, can be used as an optical drive bay.Includes optical drive mounting latch kit - iPN H19168-00xIncludes optical drive power cable - iPN H23851-00x(8) - 2.5" Hot-swap drive bays with drive carriers and drive blanksIncludes (1) 12 Gb SAS backplane - iPC F1U8X25S3HSBPIncludes (8) 2.5" hot swap drive trays - iPC FXX25HSCAR2(1) - 730mm SAS/SATA Multiport data cable - iPC AXXCBL730HRHD(1) - 800mm SAS/SATA Multiport data cable - iPC AXXCBL800HRHD(1) - Backplane power cable - iPN H38458-00x(1) - 200mm Backplane I2C cable - iPN H23846-00x(2) - CPU heatsink - iPC FXXCA84X106HS(8) - DIMM slot blanks - iPN G75158-00x(2) - Chassis handle (1 set) installed - iPN H19171-00xSpares for each screw type included	Required Items - Sold Separately:Rack Mount Kit - See chapter 5.11 for available options1 or 2 Intel® Xeon® Processor E5-2600 v3 product familyECC DDR4 memory (RDIMM or LRDIMM)Power Cord(s) - See chapter 5.10NOTE: L6 Systems shipping from Intel to North America will include (1) AC power cord	Optional Intel Accessories - Sold SeparatelyiPC FXX750PCRPS - 2nd 750W AC Power supply module - to support power redundancyIntel® 12G SAS RAID module + RMFBU - See chapter 5.9 for available optionsSAS Data cables - Depending on the location of the SAS Data controller, new data cables may be necessary. See chapter 4.2.2Intel® I/O Module - See chapter 5.8 for available optionsiPC A1U44X25NVMEDK - (4) PCIe® SSD SFF (NVMe*) + (4) SAS support - replaces existing backplane and requires use of one PCIe® slot. See chapter 5.1 and/or System TPS for detailsiPC A1UBEZEL - Lockable front system bezeliPC AXXRMM4LITE - Intel® Remote Management Module Lite key - For advanced management featuresiPC RKSATA4R5 - Embedded SATA ESRT2 SW RAID 5 support keyStorage DrivesSee Chapter 5 for all available accessory options.
Product Code (iPC):R1208WT2GS1U - 8 x 2.5" front mount drives	Order Code Information:MM# - 935060UPC - 00735858288897EAN - 5032037068178MOQ - 1	Product Type: L6 Integrated SystemChassis Form Factor: 1U rack mountChassis dimensions: L=712mm, W=439mm, H=43.2mmPackaged Gross Weight: 21.1 Kgs, 46.5 LbsUn-packaged Net Weight: 12.9 Kgs, 28.4 LbsOuter Box Dimensions: L=983mm, W=577mm, H=260
Product Definition and Configuration Requirements/Options
Intel product code R1208WT2GS includes the following components:(1) - 1U Chassis with Quick Reference Label affixed to top cover(1) - Intel* Server Board S2600WT w/ Dual 1GbE - iPC S2600WT2(2) - Riser card assembly with single x16 PCIe* 3.0 slot riser card - F1UL16RISER2(1) - 750W power supply module - iPC FXX750PCRPS(1) - Power supply bay blank insert(2) - AC Power Cord retention strap assembly - iPN H23961-00x(1) - Air duct(6) - Dual rotor system fan - iPC FR1UFAN10PW(1) - Standard control panel assembly (board only - iPC FXXFPANEL)(1) - Front I/O Panel assembly (1 x VGA and 2 x USB)If removed, can be used as an optical drive bay.Includes optical drive mounting latch kit - iPN H19168-00xIncludes optical drive power cable - iPN H23851-00x(8) - 2.5" Hot-swap drive bays with drive carriers and drive blanksIncludes (1) 12 Gb SAS backplane - iPC F1U8X25S3HSBPIncludes (8) 2.5" hot swap drive trays - iPC FXX25HSCAR2(1) - 730mm SAS/SATA Multiport data cable - iPC AXXCBL730HRHD(1) - 800mm SAS/SATA Multiport data cable - iPC AXXCBL800HRHD(1) - Server board to backplane power cable - iPN H38458-00x(1) - Server board to backplane i2C cable - iPN H39941-00x(2) - CPU heatsink - iPC FXXCA84X106HS(8) - DIMM slot blanks - iPN G75158-00x(2) - Chassis handle (1 set) installed - iPN H19171-00xSpares for each screw type included	Required Items - Sold Separately:Rack Mount Kit - See chapter 5.11 for available options1 or 2 Intel* Xeon® Processor E5-2600 v3 product familyECC DDR4 memory (RDIMM or LRDIMM)Power Cord(s) - See chapter 5.10NOTE: L6 Systems shipping from Intel to North America will include (1) AC power cord	Optional Intel Accessories - Sold SeparatelyIPC FXX750PCRPS - 2nd 750W AC Power supply module - to support power redundancyIntel® 12G SAS RAID module + RMFBU - See chapter 5.9 for available optionsSAS Data cables - Depending on the location of the SAS Data controller, new data cables may be necessary. See chapter 4.2.2Intel® I/O Module - See chapter 5.8 for available optionsIPC A1U44X25NVMEDK - (4) PCIe* SSD SFF (NVMe*) + (4) SAS support - replaces existing backplane and requires use of one PCIe* slot. See chapter 5.1 and/or System TPS for detailsIPC A1UBEZEL - Lockable front system bezelIPC AXXRMM4LITE - Intel® Remote Management Module Lite key - For advanced management featuresiPC RKSATA4R5 - Embedded SATA ESRT2 SW RAID 5 support keyStorage DrivesSee Chapter 5 for all available accessory options.

3.2 Intel® Server System R2000WT Product Family SKUs – (2U Rack Mount System)

The product tables found in this section provide order code information and detailed descriptions for the specified L6 integrated 2U Intel server system. The lower sections of each table identify:

• The ship along components of the specified chassis product code – (product BOM)
• Required Items – The options required to be installed to the base system to achieve basic functionality using the default system feature set
• Optional Accessories – Some of the available accessories which can be installed to enhance the basic feature set of the server board / chassis. Additional accessories can be found in Chapter 5

NOTES:

• Each required item and optional accessory is sold separately from the specified Intel L6 server system
- Items identified as iPC (Intel Product Code), are an orderable building block option, accessory or spare FRU
- In an effort to provide the complete product bill of materials, the ship along components list in each product table will include items identified by description and by iPN (Intel Part Number). The iPN information is provided for reference only. These components are not orderable as a spare or accessory.

Interior view of a server rack with multiple drive bays and internal components (no visible text or labels)

Figure 6. Intel® Server System R2000WT – L6 Integrated 2U System *R2312WTxxx shown

Product Code (iPC):R2208WT2YS2U - 8 x 2.5" front mount drives	Order Code Information:MM# - 936032UPC - 00735858289436EAN - 5032037068413MOQ - 1	Product Type: L6 Integrated SystemChassis Form Factor: 2U rack mountChassis dimensions: L=712mm, W=439mm, H=89mmPackaged Gross Weight: 22.9 Kgs, 50.5 LbsUn-packaged Net Weight: 16.2 Kgs, 35.7 LbsOuter Box Dimensions: L=983mm, W=577mm, H=260mm
Product Definition and Configuration Requirements/Options
Intel product code R2208WT2YS includes the following:(1) - 2U Chassis with Quick Reference Label affixed to top cover(1) - Intel® Server Board S2600WT w/ Dual 1GbE - iPC S2600WT2(1) - 1100W AC Power Supply Module - iPC AXX1100PCRPS(1) - Power supply bay blank insert(2) - AC Power Cord retention strap assembly - iPN H23961-00x(2) - PCIe Riser card brackets○ Includes (2) 3-slot PCIe* riser cards - iPC A2UL8RISER2○ Includes (1) 2-slot low profile PCIe* riser card - iPC A2UX8X4RISER(1) - Air duct(6) - Hot swap system fans - iPC FR2UFAN60HSW(1) - Standard control panel assembly (board only - iPC FXXFPANEL)(1) - Front I/O Panel assembly (1 x VGA and 2 x USB)(1) - SATA Optical drive bay with filler panel - (optical drive sold separately)● Includes optical drive mounting latch kit - iPN H19168-00x● Includes 300mm optical drive / internal mount SSD power cable - iPN H23901-00x(8) - 2.5" Hot-swap drive bays with drive carriers and drive blanks● Includes (1) 12Gb SAS backplane - iPC A2U8X25S3HSDK● Includes (8) 2.5" hot swap drive trays - iPC FXX25HSCAR2(2) - Multiport 730mm SAS/SATA data cables - iPC AXXCBL730HDHD(1) - Backplane 250mm I2C cable - iPN G41809-00x(1) - Backplane power cable - iPN H23927-00x(2) - CPU heatsinks - iPC FXXCA84X106HS(2) - CPU heat sink Mylar Spacer inserts - iPN H28618-00x(8) - DIMM slot blanks - iPN G75158-00x(2) - Chassis handle (1 set) installed - iPN H18229-xxx(1) - 3x RMFBU Mounting Bracket - iPN H18238-00xSpares for each screw type includedProduct Code (IPC):R2208WTTYS[IMAGE]2U – 8 x 2.5" front mount drives	Required Items - Sold Separately:Rack Mount Kit - See chapter 5.11 for available options1 or 2 Intel® Xeon® Processor E5-2600 v3 product familyECC DDR4 memory (RDIMM or LRDIMM)Power Cord(s) - See chapter 5.10NOTE: L6 Systems shipping from Intel to North America will include (1) AC power cordOrder Code Information:MM# – 936023UPC – 00735858289450EAN – 5032037068437MOQ – 1	Optional Intel Accessories - Sold SeparatelyIPC AXX1100PCRPS - 1100W AC Power Supply Module - to support power redundancyIntel® I/O Module - See chapter 5.8 for available optionsIntel® 12G SAS RAID module + RMFBU - See chapter 5.9 for available optionsSAS Data cables - Depending on the location of the SAS Data controller, new data cables may be necessary. See chapter 4.2.5iPC A2U44X25NVMEDK - (4) PCIe® SSD SFF (NVMe®) + (4) SAS support - requires use of one PCIe® slot. See chapter 5.2 and/or System TPS for details8x2.5" Drive Bay Module upgrade kit. See chapter 5.5 for available options.iPC A2UBEZEL - Lockable front system bezeliPC AXXRMM4LITE - Intel® Remote Management Module Lite key - For advanced management featuresiPC RKSATA4R5 - Embedded SATA ESRT2 SW RAID-5 support keyStorage DrivesSee Chapter 5 for all available accessory options.Product Type: L6 Integrated SystemChassis Form Factor: 2U rack mountChassis dimensions: L=712mm, W=439mm, H=89mmPackaged Gross Weight: 22.9 Kgs, 50.5 LbsUn-packaged Net Weight: 16.2 Kgs, 35.7 LbsOuter Box Dimensions: L=983mm, W=577mm, H=260mm
Product Definition and Configuration Requirements/Options
Intel product code R2208WTTYS includes the following:(1) – 2U Chassis with Quick Reference Label affixed to top cover(1) – Intel® Server Board S2600WT w/ Dual 10GbE – iPC S2600WTT(1) – 1100W AC Power Supply Module – iPC AXX1100PCRPS(1) – Power supply bay blank insert(2) – AC Power Cord retention strap assembly – iPN H23961-00x(2) – PCIe Riser card brackets○ Includes (2) 3-slot PCIe* riser cards – iPC A2UL8RISER2○ Includes (1) 2-slot low profile PCIe* riser card – iPC A2UX8X4RISER(1) – Air duct(6) – Hot swap system fans – iPC FR2UFAN60HSW(1) – Standard control panel assembly (board only – iPC FXXFPANEL)(1) – Front I/O Panel assembly (1 x VGA and 2 x USB)(1) – SATA Optical drive bay with filler panel – (optical drive sold separately)• Includes optical drive mounting latch kit – iPN H19168-00x• Includes 300mm optical drive / internal mount SSD power cable – iPN H23901-00x(8) – 2.5" Hot-swap drive bays with drive carriers and drive blanks• Includes (1) 12Gb SAS backplane – iPC A2U8X25S3HSDK• Includes (8) 2.5" hot swap drive trays – iPC FXX25HSCAR2(2) – Multiport 730mm SAS/SATA data cables – iPC AXXCBL730HDHD(1) – Backplane 250mm I2C cable – iPN G41809-00x(1) – Backplane power cable – iPN H23927-00x(2) – CPU heatsinks – iPC FXXCA84X106HS(2) – CPU heat sink Mylar Spacer inserts – iPN H28618-00x(8) – DIMM slot blanks – iPN G75158-00x(2) – Chassis handle (1 set) installed – iPN H18229-xxx(1) – 3x RMFBU Mounting Bracket – iPN H18238-00xSpares for each screw type included	Required Items – Sold Separately:Rack Mount Kit – See chapter 5.11 for available options1 or 2 Intel® Xeon® Processor E5-2600 v3 product familyECC DDR4 memory (RDIMM or LRDIMM)Power Cord(s) – See chapter 5.10NOTE: L6 Systems shipping from Intel to North America will include (1) AC power cord	Optional Intel Accessories – Sold SeparatelyiPC AXX1100PCRPS – 1100W AC Power Supply Module – to support power redundancyIntel® I/O Module - See chapter 5.8 for available optionsIntel® 12G SAS RAID module + RMFBU - See chapter 5.9 for available optionsSAS Data cables – Depending on the location of the SAS Data controller, new data cables may be necessary. See chapter 4.2.5iPC A2U44X25NVMEDK – (4) PCIe® SSD SFF (NVMe*) + (4) SAS support – requires use of one PCIe® slot. See chapter 5.2 and/or System TPS for details8x2.5" Drive Bay Module upgrade kit. See chapter 5.5 for available options.iPC A2UBEZEL – Lockable front system bezeliPC AXXRMM4LITE - Intel® Remote Management Module Lite key – For advanced management featuresiPC RKSATA4R5 – Embedded SATA ESRT2 SW RAID-5 support keyStorage DrivesSee Chapter 5 for all available accessory options.
Product Code (IPC):R2208WTTYC12U - 8 x 2.5" front mount drives	Order Code Information:MM# - 936033UPC - 00735858289443EAN - 5032037068420MOQ - 1	Product Type: L6 Integrated SystemSpecial - Features to support passive Intel® Xeon PhiTM coprocessorNOTE: Intel® Xeon PhiTM cards with Active heat sinks are NOT supported in this SKU.Chassis Form Factor: 2UChassis dimensions: L=712mm, W=439mm, H=89mmPackaged Gross Weight: 22.9 Kgs, 50.5 LbsUn-packaged Net Weight: 16.2 Kgs, 35.7 LbsOuter Box Dimensions: L=983mm, W=577mm, H=260mm
Product Definition and Configuration Requirements/Options
Intel product code R2208WTTYC1 includes the following:(1) - 2U Chassis with Quick Reference Label affixed to top cover(1) - Intel® Server Board S2600WT w/ Dual 10GbE - iPC S2600WTT(2) - 1100W AC Power Supply Module - iPC AXX1100PCRPS(2) - AC Power Cord retention strap assembly - iPN H23961-00x(2) - PCIe Riser card brackets○ Includes (2) 2-slot PCIe* riser cards - iPC A2UL16RISER2○ Includes (1) 2-slot low profile PCIe* riser card - iPC A2UX8X4RISER(1) - High air flow air duct (iPC AWTCOPRODUCT)(1) - Intel® Xeon PhiTM / GPGPU Secure Mount Adapter Bracket kit(2) - 12V-Auxiliary Power Cables - iPC AXXGPGPUCABLE(6) - Hot swap system fans - iPC FR2UFAN60HSW(1) - Standard control panel assembly (board only - iPC FXXFPANEL)(1) - Front I/O Panel assembly (1 x VGA and 2 x USB)(1) - SATA Optical drive bay with filler panel - (optical drive sold separately)○ Includes optical drive mounting latch kit - iPN H19168-00x○ Includes 300mm optical drive / internal mount SSD power cable - iPN H23901-00x(8) - 2.5" Hot-swap drive bays with drive carriers and drive blanks○ Includes (1) 12 Gb SAS backplane - iPC A2U8X25S3HSDK○ Includes (8) 2.5" hot swap drive trays - iPC FXX25HSCAR2(2) - Multiport 730mm SAS/SATA data cables - iPC AXXCBL730HDHD(1) - Backplane 250mm I2C cable - iPN G41809-00x(1) - Backplane power cable - iPN H23927-00x(2) - CPU heatsinks - iPC FXXCA84X106HS(2) - CPU heat sink Mylar Spacer inserts - iPN H28618-00x(8) - DIMM slot blanks - iPN G75158-00x(2) - Chassis handle (1 set) installed - iPN H18229-xxx(1) - 3x RMFBU Mounting Bracket - iPN H18238-00xSpares for each screw type includedProduct Code (IPC):R2308WTTYS1 6 71 2 4 62U - 8 x 3.5" HDD or 8 x 2.5" SSD front mount drives	Required Items - Sold Separately:Rack Mount Kit - See chapter 5.11 for available options1 or 2 Intel® Xeon® Processor E5-2600 v3 product familyECC DDR4 memory (RDIMM or LRDIMM)Power Cord(s) - See chapter 5.10NOTE: L6 Systems shipping from Intel to North America will include (2) AC power cordsOrder Code Information:MM# - 936035UPC - 00735858283854EAN - 5032037064866MOQ - 1	Optional Intel Accessories - Sold SeparatelyIntel® I/O Module - See chapter 5.8 for available optionsIntel® 12G SAS RAID module + RMFBU - See chapter 5.9 for available optionsSAS Data cables - Depending on the location of the SAS Data controller, new data cables may be necessary. See chapter 4.2.5iPC A2U44X25NVMEDK - (4) PCIe* SSD SFF (NVMe*) + (4) SAS support - requires use of one PCIe* slot. See chapter 5.2 and/or System TPS for details8x2.5" Drive Bay Module upgrade kit. See chapter 5.5 for available options.iPC A2UBEZEL - Lockable front system bezeliPC AXXRMM4LITE - Intel® Remote Management Module Lite key - For advanced management featuresiPC RKSATA4R5 - Embedded SATA ESRT2 SW RAID-5 support keyStorage DrivesSee Chapter 5 for all available accessory options.Product Type: L6 Integrated SystemChassis Form Factor: 2U rack mountChassis dimensions: L=712mm, W=439mm, H=89mmPackaged Gross Weight: 23.5 Kgs, 51.8 LbsUn-packaged Net Weight: 16.1 Kgs, 35.5 LbsOuter Box Dimensions: L=983mm, W=577mm, H=260mm
Product Definition and Configuration Requirements/Options
Intel product code R2308WTTYS includes the following:(1) - 2U Chassis with Quick Reference Label affixed to top cover(1) - Intel® Server Board S2600WT w/ Dual 10GbE - iPC S2600WTT(1) - 1100W AC Power Supply Module - iPC AXX1100PCRPS(1) - Power supply bay blank insert(2) - AC Power Cord retention strap assembly - iPN H23961-00x(2) - PCIe Riser card brackets○ Includes (2) 3-slot PCIe* riser cards - iPC A2UL8RISER2○ Includes (1) 2-slot low profile PCIe* riser card - iPC A2UX8X4RISER(1) - Air duct(6) - Hot swap system fans - iPC FR2UFAN60HSW(1) - Standard control panel assembly (board only - iPC FXXFPANEL)(1) - Front I/O Panel assembly (1 x VGA and 2 x USB)(1) - SATA Optical drive bay with filler panel - (optical drive sold separately)● Includes optical drive mounting latch kit - iPN H19168-00x● Includes 500mm optical drive / internal mount SSD power cable -iPN G95878-00x(8) - 3.5" Hot-swap drive bays with drive carriers and drive blanks● Includes (1) 12 Gb SAS backplane - iPC F2U8X35S3HSBP● Includes (8) 3.5" hot swap drive carriers - iPC FXX35HSCAR(1) - Backplane power cable - iPN H38457-00x(1) - Multiport 800mm SAS/SATA data cables - iPC AXXCBL800HDHD(1) - Multiport 950mm SAS/SATA data cables - iPC AXXCBL950HDHD(1) - Backplane I2C cable - iPN G92510-00x(2) - CPU heatsinks - iPC FXXCA84X106HS(2) - CPU heat sink Mylar Spacer inserts - iPN H28618-00x(8) - DIMM slot blanks - iPN G75158-00x(2) - Chassis handle (1 set) installed - iPN H18229-xxx(1) - 3x RMFBU Mounting Bracket - iPN H18238-00xSpares for each screw type included	Required Items - Sold Separately:Rack Mount Kit - See chapter 5.11 foravailable options1 or 2 Intel® Xeon® Processor E5-2600v3 product familyECC DDR4 memory (RDIMM orLRDIMM)Power Cord(s) - See chapter 5.10NOTE: L6 Systems shipping from Intel toNorth America will include (1) AC powercord	Optional Intel Accessories - Sold SeparatelyiPC AXX1100PCRPS - 1100W AC Power SupplyModule - to support power redundancyIntel® I/O Module - See chapter 5.8 for availableoptionsIntel® 12G SAS RAID module + RMFBU - See chapter5.9 for available optionsSAS Data cables - Depending on the location of theSAS Data controller, new data cables may benecessary. See chapter 4.2.3iPC A2UBEZEL - Lockable front system bezeliPC AXXRMM4LITE - Intel® Remote ManagementModule Lite key - For advanced managementfeaturesiPC RKSATA4R5 - Embedded SATA ESRT2 SWRAID-5 support keyStorage DrivesSee Chapter 5 for all available accessory options.
Product Code (iPC):R2312WTTYS2U - 12 x 3.5" HDD or 12 x 2.5" SSD front mount drives	Order Code Information:MM# - 936036UPC - 00735858289474EAN - 5032037068451MOQ - 1	Product Type: L6 Integrated SystemChassis Form Factor: 2U rack mountChassis dimensions: L=712mm, W=439mm, H=89mmPackaged Gross Weight: 24.4 Kgs, 53.8 LbsUn-packaged Net Weight: 17.0 Kgs, 37.5 LbsOuter Box Dimensions: L=983mm, W=577mm, H=260mm
Product Definition and Configuration Requirements/Options
Intel product code R2312WTTYS includes the following:(1) - 2U Chassis with Quick Reference Label affixed to top cover(1) - Intel* Server Board S2600WT w/ Dual 10GbE - iPC S2600WTT(1) - 1100W AC Power Supply Module - iPC AXX1100PCRPS(1) - Power supply bay blank insert(2) - AC Power Cord retention strap assembly - iPN H23961-00x(2) - PCIe Riser card brackets○ Includes (2) 3-slot PCIe* riser cards - iPC A2UL8RISER2(1) - Air duct(6) - Hot swap system fans - iPC FR2UFAN60HSW(2) - Chassis Handles (1 set) installed - includes Integrated control panel & USB Port - iPC A2UHANDLKIT(1) - 500mm internal mount SSD power cable - iPN G95878-00x(12) - 3.5" Hot-swap drive bays with drive carriers and drive blanks• Includes (1) 12 Gb SAS backplane - iPC F2U12X35S3HSBP• Includes (12) 3.5" hot swap drive carriers - iPC FXX35HSCAR(1) - Multiport 800mm SAS/SATA data cable - iPC AXXCBL800HDHD(1) - Multiport 875mm SAS/SATA data cable - iPC AXXCBL875HDHD(1) - Multiport 950mm SAS/SATA data cable - iPC AXXCBL950HDHD(1) - Backplane I2C cable - iPN G92510-00x(1) - Backplane power cable - iPN G92685-00x(2) - 2.5" Rear Mount Hot Swap Drive Bays with drive carriers, drive blanks,SATA data/SGPIO cable harness, and I2C cable (Intel Accessory Kit - iPC A2UREARHSDK)(2) - CPU heatsinks - iPC FXXCA84X106HS(2) - CPU heat sink Mylar Spacer inserts - iPN H28618-00x(16) - DIMM slot blanks - iPN G75158-00x(1) - 3x RMFBU Mounting Bracket - iPN H18238-00xSpares for each screw type included	Required Items - Sold Separately:Rack Mount Kit - See chapter 5.11 for available options1 or 2 Intel® Xeon® Processor E5-2600 v3 product familyECC DDR4 memory (RDIMM or LRDIMM)Power Cord(s) - See chapter 5.10NOTE: L6 Systems shipping from Intel to North America will include (1) AC power cord	Optional Intel Accessories - Sold SeparatelyiPC AXX1100PCRPS - 1100W AC Power Supply Module - to support power redundancyIntel® I/O Module - See chapter 5.8 for available optionsIntel® 12G SAS RAID module + RMFBU - See chapter 5.9 for available optionsIntel® SAS Expander - See Chapter 4.6.2 for available optionsSAS Data cables - Depending on the location of the SAS Data controller, new data cables may be necessary. See chapter 4.2.4iPC A2UBEZEL - Lockable front system bezeliPC AXXRMM4LITE - Intel® Remote Management Module Lite key - For advanced management featuresStorage DrivesSee Chapter 5 for all available accessory options.

Intel® Server S2600WT Product Family Configuration Guide and Spares/Accessories List

Product Code (iPC):R2224WTTYS[IMAGE]2U – 24 x 2.5" front mount drives	Order Code Information:MM# – 936037UPC – 00735858289467EAN – 5032037068444MOQ – 1	Product Type: L6 Integrated SystemChassis Form Factor: 2UCHassis dimensions: L=712mm, W=439mm, H=89mmPackaged Gross Weight: 25.0 Kgs, 55.1 LbsUn-packaged Net Weight: 18.3 Kgs, 40.3 LbsOuter Box Dimensions: L=983mm, W=577mm, H=260mm
Product Definition and Configuration Requirements/Options
Intel product code R2224WTTYS includes the following:(1) – 2U Chassis with Quick Reference Label affixed to top cover(1) – Intel® Server Board S2600WT w/ Dual 10GbE – iPC S2600WTT(1) – 1100W AC Power Supply Module – iPC AXX1100PCRPS(1) – Power supply bay blank insert(2) – AC Power Cord retention strap assembly – iPN H23961-00x(2) – PCIe Riser card brackets○ Includes (2) 3-slot PCIe* riser cards – iPC A2UL8RISER2(1) – Air duct(6) – Hot swap system fans – iPC FR2UFAN60HSW(2) – Chassis Handles (1 set) installed – includes Integrated control panel & USB Port - iPC A2UHANDLKIT(24) – 2.5" Hot-swap drive bays with drive carriers and drive blanks• Includes (3) 12 Gb SAS backplanes – iPC A2U8X25S3HSDK• Includes (24) 2.5" hot swap drive trays – iPC FXX25HSCAR2• Includes (2) backplane to backplane I2C jumper cables – iPN G17347-00x(1) – Backplane power cable – iPN H23927-00x(2) – 2.5" Rear Mount Hot Swap Drive Bays with drive carriers, drive blanks, SATA data/SGPIO cable harness, and I2C cable (Intel Accessory Kit – iPC A2UREARHSDK)(2) – Multiport 730mm SAS/SATA data cables – iPC AXXCBL730HDHD(4) – Multiport 875mm SAS/SATA data cables – iPC AXXCBL875HDHD(1) – Backplane 250mm I2C cable – iPN G41809-00x(1) – Rear Backplane power cable – iPN H24615-00x(2) – CPU heatsinks – iPC FXXCA84X106HS(2) – CPU heat sink Mylar Spacer inserts – iPN H28618-00x(16) – DIMM slot blanks – iPN G75158-00x(2) – Chassis handle (1 set) – iPN H18229-xxx(1) – 3x RMFBU Mounting Bracket – iPN H18238-00xSpares for each screw type included	Required Items – Sold Separately:Rack Mount Kit – See chapter 5.11 for available options1 or 2 Intel® Xeon® Processor E5-2600 v3 product familyECC DDR4 memory (RDIMM or LRDIMM)Power Cord(s) – See chapter 5.10NOTE: L6 Systems shipping from Intel to North America will include (1) AC power cord	Optional Intel Accessories – Sold SeparatelyiPC AXX1100PCRPS – 1100W AC Power Supply Module – to support power redundancyIntel® I/O Module - See chapter 5.8 for available optionsIntel® 12G SAS RAID module + RMFBU - See chapter 5.9 for available optionsIntel® SAS Expander – See Chapter 4.7.4 for available optionsSAS Data cables – Depending on the location of the SAS Data controller, new data cables may be necessary. See chapter 4.2.5iPC A2UBEZEL – Lockable front system bezeliPC AXXRMM4LITE - Intel® Remote Management Module Lite key – For advanced management featuresStorage DrivesSee Chapter 5 for all available accessory options.

4. SAS / SATA Data Cable Guide

By default, all L6 integrated system will include SAS / SATA data cables routed from the front hot swap backplane to the on-board SATA controller connectors. SAS data cables may need to be ordered separately when adding a SAS RAID module or SAS RAID PCIe* add-in card to an integrated system SKU.

SAS / SATA data cables are NOT included with any of the chassis only building block SKUs. They must be ordered separately to match the desired system configuration.

4.1 SAS / SATA Data Cable Connector Types

There are three storage interface connector types used within this product family:

Single Port SATA Connector

Image	Description
	7-pin Single Port SATASupport for up to 6 GB/sec SATA devicesWhere used:- On the server board – (2) single port SATA connectors (SATA 4, SATA 5)- 2U Rear Mount Hot-Swap Backplane (iPC A2UREARHSDK)- SATA Optical Drive – CD/DVD- SATA DOM

Multiport MiniSAS HD Connectors

Image	Description
	SFF-8643Support for up to 12 Gb/Sec SAS and 6 Gb/sec SATA devicesPCIe* (NVMe) SFF support associated with Intel Accessory Kits A1U44X25NVMEDK & A2U44X25NVMEDKWhere used:- On the server board – (2) 4-port SATA connectors (SATA 0-3, sSATA 0-3)- All 12 Gb/sec SAS capable hot swap backplanes- All 12 Gb/sec SAS RAID Controllers- All 12 Gb/sec SAS Expander Cards

Multiport MiniSAS Connector

Image	Description
	SFF-8087Support for up to 6 Gb/Sec SAS / SATA devicesWhere used:- All 6 Gb/sec SAS RAID Controllers- All 6 Gb/sec SAS Expander Cards

When connecting a 6Gb/sec SAS Controller or SAS Expander to a 12 Gb/sec capable hot swap backplane, the data cables used will need a SFF-8643 connector on one end of the cable and a SFF-8087 connector on the other. See Table 11. Storage Data Cable Kit Description and Order Information for appropriate cable kits.

4.2 1U / 2U Server System SAS / SATA Cable Guide

Product tables in this section will reference SAS/SATA cables using different connector types to meet the connection and routing requirements for the specified system configuration. Each cable reference and product code will identify the connector type at each end of the cable using the following identifiers: HR, HD, and MS. The following table identifies the three cable connector types and their identifiers.

	HR = Right Angle SFF-8643 Mini SAS HD Connector
	HD = Straight SFF-8643 Mini SAS HD Connector
	MS = Straight SFF-8087 Mini SAS Connector (compatible with 6Gb/sec SAS controllers and expanders)

Cable Kit Product Code Example - AXXCBL950HDMS

AXXCBL – Identifies an accessory cable kit

950 - identifies the length of the cable

HD - identifies that one end of cable connector supports SFF-8643 connector

System illustrations in each of the following sections will denote drive numbering as shown below:

Drive numbering in the system illustrations is for general reference only. Actual drive numbering will be dependant on SAS / SATA controller configuration and how they are cabled to the backplane. Each installed backplane will include a multi-port data connector for each set of four drives. Example) for an 8 drive configuration (as shown above), the backplane will include 2 four port data connectors. In the illustration, drives showing a common color for the Drive ID label will share a common data connector on the backside of the backplane.

Each table in the following sections identify the cable connections and recommended cable lengths for each supported storage controller option in the specified system. Each "recommended" cable length for a given connector pair provides enough cable to attach the two devices and provides the least amount of access cable, providing the cleanest cable routing.

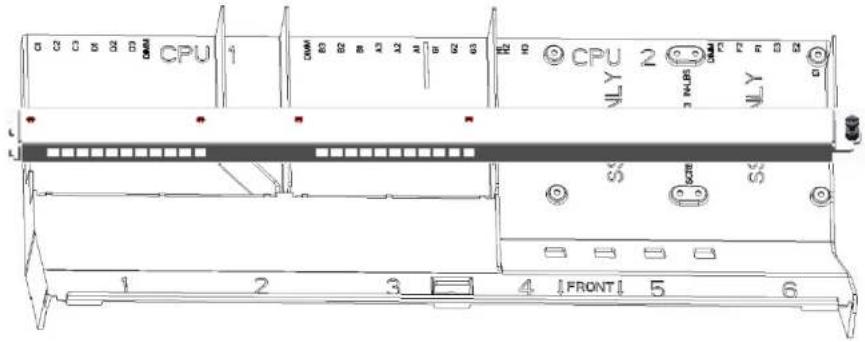

In the given server system, no cables should be routed in front of the system fans or in between the processors and memory slots. All cables that require routing from the front of the system to the back, are routed within the cable channels along the chassis sidewalls.

Intel® Server System R1000WT product family cable routing

Intel® Server System R2000WT product family cable routing

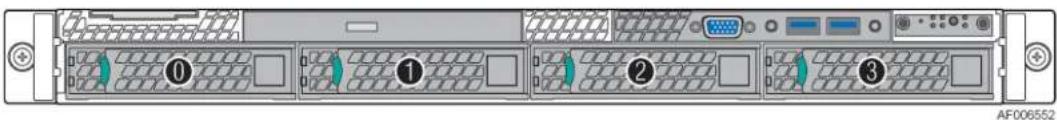

4.2.1 1U 4 x 3.5" - R1304WTxxx SAS / SATA Data Cable Guide

System Configuration	Drive Support	Cables for On-board Multi-port SATA Ports to Baclpane	Cables for Mezzanine 12 Gb SAS ROC Module to Backplane	Cables for Mezzanine 6 Gb SAS RAID module to Backplane	Cables for 12 Gb SAS RAID PCIe* add-in card to Backplane	Cables for 6 Gb SAS RAID PCIe* add-in card to Backplane
R1304WTxxx R1304WTTGS R1304WT2GS	4 x 3.5" 12 Gb SAS capable	Cable Connections:SATA -> BP 0-3800 mm HR --- HDFrom data above, select appropriate cable kit from list below:AXXCBL1UHRHDCable included with L6 Integrated systems	Cable Connections:SAS Mezz -> BP 0-3800 mm HD --- HDFrom data above, select appropriate cable kit from list below:AXXCBL800HDHD	Cable Connections:SAS Mezz -> BP 0-3800 mm HD --- MSFrom data above, select appropriate cable kit from list below:AXXCBL800HDMS	From Riser #1Cable Connections:SAS PCIe -> BP 0-3 **875 or 950 mm HD --- HDFrom Riser #2Cable Connections:SAS PCIe -> BP 0-3 **730 or 875 mm HD --- HDFrom data above, select appropriate cable kits from list below:See ** note belowAXXCBL730HDHDAXXCBL875HDHDAXXCBL950HDHD	From Riser #1Cable Connections:SAS PCIe -> BP 0-3 **875 or 950 mm HD --- MSFrom Riser #2Cable Connections:SAS PCIe -> BP 0-3 **730 or 875 mm HD --- MSFrom data above, select appropriate cable kits from list below:See ** note belowAXXCBL730HDMSAXXCBL875HDMSAXXCBL950HDMS

** 1 or 2 cable lengths may be specified for a PCIe add-in card. Generally, if the cable connector of the add-in card is located on the back edge of the card, a shorter cable is specified. Cable connectors on the top edge or near the front of the add-in card will require the longer cable length.

4.2.2 1U 8 x 2.5" - R1208WTxxx SAS / SATA Data Cable Guide

SAS / SATA Drives 0 - 7

Note: For data cable information associated with Intel® Accessory Kit A2U44X25NVMEDK, see section 5.1.1

System Configuration	Drive Support	Cables for On-board Multi-port SATA Ports to Backplane	Cables for Mezzanine 12 Gb SAS ROC Module to Backplane	Cables for Mezzanine 6 Gb SAS RAID module to Backplane	Cables for 12 Gb SAS RAID PCIe* add-in card to Backplane	Cables for 6 Gb SAS RAID PCIe* add-in card to Backplane
R1208WTxxx R1208WTTGS R1208WT2GS	8 x 2.5"12 Gb SAS capable	Cable Connections:SATA -> BP 0-3730 mm HR --- HDssSATA -> BP 4-7800 mm HR --- HDFrom data above, select appropriate cable kits from list below:AXXCBL1UHRHD1 of each cable included with L6 Integrated systems	Cable Connections:SAS Mezz -> BP 0-3650 mm HD --- HDSAS Mezz -> BP 4-7800 mm HD --- HDFrom data above, select appropriate cable kits from list below:AXXCBL650HDHDAXXCBL800HDHD	Cable Connections:SAS Mezz -> BP 0-3650 mm HD --- MSSAS Mezz -> BP 4-7800 mm HD --- MSFrom data above, select appropriate cable kits from list below:AXXCBL650HDMSAXXCBL800HDMS	From Riser #1Cable Connections:SAS PCIe -> BP 0-3650 mm HD --- HDSAS PCIe -> BP 4-7 **730 or 800 mm HD --- HDFrom Riser #2Cable Connections:SAS PCIe -> BP 0-3 **650 or 730mm HD --- HDSAS PCIe - BP 4-7 **800 or 875 mm HD --- HDFrom data above, select appropriate cable kits from list below:See ** notes belowAXXCBL650HDHDAXXCBL730HDHDAXXCBL800HDHDAXXCBL875HDHD	From Riser #1Cable Connections:SAS PCIe -> BP 0-3650 mm HD --- MSSAS PCIe -> BP 4-7 **730 or 800 mm HD --- MSFrom Riser #2Cable Connections:SAS PCIe -> BP 0-3 **650 or 730mm HD --- MSSAS PCIe - BP 4-7 **800 or 875 mm HD --- MSFrom data above, select appropriate cable kits from list below:See ** notes belowAXXCBL650HDMSAXXCBL730HDMSAXXCBL800HDMSAXXCBL875HDMS

** 1 or 2 cable lengths may be specified for a PCIe add-in card. Generally, if the cable connector of the add-in card is located on the back edge of the card, a shorter cable is specified. Cable connectors on the top edge or near the front of the add-in card will require the longer cable length.

4.2.3 2U 8 x 3.5" - R2308WTxxx Cable Guide

AF006485

System Configuration	Drive Support	Cables for On-board Multi-port SATA Ports to Backplane	Cables for Mezzanine 12 Gb SAS ROC Module to Backplane	Cables for Mezzanine 6 Gb SAS RAID module to Backplane	Cables for 12 Gb SAS RAID PCIe* add-in card to Backplane	Cables for 6 Gb SAS RAID PCIe* add-in card to Backplane

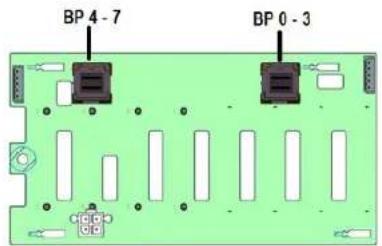

R2308WTTYS	8 x 3.5"12 Gb SAS Capable	Cable Connections:SATA -> BP 0-3800 mm HD --- HDSATA -> BP 4-7950 mm HD --- HDFrom data above, select appropriate cable kits from list below:AXXCBL800HDHDAXXCBL950HDHD1 of each cable included with L6 Integrated systems	Cable Connections:SAS Mezz -> BP 0-3800 mm HD --- HDSAS Mezz -> BP 4-7950 mm HD --- HDFrom data above, select appropriate cable kits from list below:AXXCBL800HDHDAXXCBL950HDHD1 of each cable included with L6 Integrated systems	Cable Connections:SAS Mezz -> BP 0-3800 mm HD --- MSSAS Mezz -> BP 4-7950 mm HD --- MSFrom data above, select appropriate cable kits from list below:AXXCBL800HDMSAXXCBL950HDMS	From Riser #1:Cable Connections:SAS PCIe -> BP 0-3 **650 or 730 mm HD --- HDSAS PCIe -> BP 4-7 **800 or 950 mm HD --- HDFrom Riser #2:Cable Connections:SAS PCIe -> BP 0-3 **730 or 800 mm HD --- HDSAS PCIe -> BP 4-7 **730 or 800 mm HD --- HDFrom data above, select appropriate cable kits from list below:See ** Notes belowAXXCBL650HDHDAXXCBL730HDHDAXXCBL800HDHD(1) 800mm Included in L6AXXCBL950HDHD(1) 950mm Included in L6	From Riser #1Cable Connections:SAS PCIe -> BP 0-3 **650 or 730 mm HD --- MSSAS PCIe -> BP 4-7 **800 or 950 mm HD --- MSFrom Riser #2:Cable Connections:SAS PCIe -> BP 0-3 **730 or 800 mm HD --- MSSAS PCIe -> BP 4-7 **730 or 800 mm HD --- MSFrom data above, select appropriate cable kits from list below:See ** Notes belowAXXCBL650HDMSAXXCBL730HDMSAXXCBL800HDMSAXXCBL950HDMS

** 1 or 2 cable lengths may be specified for a PCIe add-in card. Generally, if the cable connector of the add-in card is located on the back edge of the card, a shorter cable is specified. Cable connectors on the top edge or near the front of the add-in card will require the longer cable length.

4.2.4 2U 12 x 3.5 - R2312WTxxx Cable Guide

R2312WTxxx SAS / SATA Data Cable Guide (with No SAS Expander)

System Configuration	Drive Support	Cables for On-board Multi-port SATA Ports to Backplane	Cables for Onboard SATA controller + Mezzanine 12 Gb SAS ROC Module to Backplane	Cables for Onboard SATA Controller + Mezzanine 6 Gb SAS RAID module to Backplane	Cables for Onboard SATA controller + 12 Gb SAS RAID PCIe* add-in card to Backplane	Cables for Onboard SATA controller + 6 Gb SAS RAID PCIe* add-in card to Backplane
R2312WTxxx R2312WTTYS With no SAS Expander installed	12 x 3.5" 12 Gb SAS Capable	Cable Connections: SATA -> BP 0-3800mm HD --- HDSATA Cntrl -> BP 4-7875 mm HD --- HDFrom data above, select appropriate cable kits from list below:AXXCBL800HDHDAXXCBL875HDHD1 of each cable included with L6 Integrated systems	Cable Connections: SATA -> BP 0-3800mm HD --- HDSAS Mezz -> BP 4-7875 mm HD --- HDSAS Mezz -> BP 8-11950 mm HD ---HDFrom data above, select appropriate cable kits from list below:AXXCBL800HDHDAXXCBL875HDHDAXXCBL950HDHD1 of each cable included with L6 Integrated systems	Cable Connections: SATA -> BP 0-3800mm HD --- HDSAS Mezz -> BP 4-7875 mm HD --- MSSAS Mezz -> BP 8-11950 mm HD ---MSFrom data above, select appropriate cable kits from list below:AXXCBL800HDHD(1) 800mm Included in L6AXXCBL875HDMSAXXCBL950HDMS	Cable Connections: SATA -> BP 0-3800mm HD --- HDFrom Riser #1SAS PCIe -> BP 4-7 **800 or 875 mm HD --- HDSAS PCIe -> BP 8-11875 mm HD ---HDFrom Riser #2SAS PCIe -> BP 4-7 **730 or 875 mm HD --- HDSAS PCIe -> BP 8-11 **650 or 800 mm HD --- HDFrom data above, select appropriate cable kits: See ** Notes belowAXXCBL650HDHDAXXCBL730HDHDAXXCBL800HDHD(1) 800mm Included in L6AXXCBL875HDHD(1) 875mm Included in L6AXXCBL950HDHD(1) 950mm included in L6)	Cable Connections: SATA -> BP 0-3800mm HD --- HDFrom Riser #1SAS PCIe -> BP 4-7 **800 or 875 mm HD --- HDSAS PCIe -> BP 8-11875 mm HD ---HDFrom Riser #2SAS PCIe -> BP 4-7 **730 or 875 mm HD --- HDSAS PCIe -> BP 8-1 1 **650 or 800 mm HD --- HDFrom data above, select appropriate cable kits from list below:See ** Notes belowAXXCBL650HDMSAXXCBL730HDMSAXXCBL800HDMSAXXCBL875HDMSAXXCBL950HDMS

** 1 or 2 cable lengths may be specified for a PCIe add-in card. Generally, if the cable connector of the add-in card is located on the back edge of the card, a shorter cable is specified. Cable connectors on the top edge or near the front of the add-in card will require the longer cable length.

2U 12 x 3.5" – R2312WTxxx SAS / SATA Data Cable Guide (with SAS Expander)

SAS drive configurations consisting of more than 8 drives may require the addition of a SAS Expander card. In the 2U 12x3.5" system configuration, the SAS expander must be installed in any available PCIe add-in slot. Intel provides two SAS expander options to support this drive configuration:

Intel Product Code	Order Information	Product Description Product Type
iPC - RES3FV288Intel* RAID ExpanderRES3FV288	MM# - 932895UPC - 00735858287548EAN - 5032037067287MOQ = 5	SAS 3.0 12 Gb/s expanderFeaturing 6Gbps data aggregation for 12Gbps data transfer with 6Gb/s devicesLow Profile MD2 PCIe* add-in card form factor28 internal ports and 8 external portsRedundant dual-port capable for HA and high performance systemsPower from PCIe x1HD Mini-SAS 8643 ConnectorsKit includes: (1) SAS Expander card, (2) HD-HD 250mm Expander-to-RAID card cables, PCI brackets for Low profile and Full heightRequired (sold separately): HD-HD SAS DATA Cables - Expander to backplane - See Table 6	• 2U Accessory Kit
iPC - RES2SV240Intel* RAID ExpanderRES2SV240	MM# - 908137UPC - 00735858216289EAN - 5032037017053MOQ - 5	SAS 2.0 6 Gb/s expanderLow Profile MD2 PCIe* add-in card form factor24 Port 6Gb expander card with ports configurable for input or outputPower from PCIe x1 or 4-pin connectorMini-SAS 8087 connectorsKit includes: (1) 6 Gb/s SAS Expander card, (2) MS-MS 300mm Expander-to-6Gb/s RAID card cables, PCI brackets for Low profile and Full height , (4) MS-MS 650mm Expander-to-Backplane cables (cables not compatible in R2312WTxxx system)Required (sold separately): MS-HD SAS Data Cables - See Table 6	• 2U Accessory Kit
iPC - RES2SV240NCIntel* RAID ExpanderRES2SV240NC	MM# - 915431UPC - 00735858221375MOQ - 5	SAS 2.0 6 Gb/s expanderLow Profile MD2 PCIe* add-in card form factor24 Port 6Gb expander card with ports configurable for input or outputPower from PCIe x1 or 4-pin connectorMini-SAS 8087 connectorsKit includes: (1) 6 Gb/s SAS Expander card (with no cables), PCI brackets for Low profile and Full heightRequired (sold separately): MS-HD SAS Data Cables - See Table 6	• 2U Accessory Kit

Note: The onboard SATA ports are not compatible with SAS Expander cards. The onboard SATA ports can only be cabled directly to a specified backplane.

Table 6. 2U 12 x 3.5" – R2312WTxxx SAS / SATA Data Cable Guide (with SAS Expander)

System Configuration	Drive Support	On-board Multi-port SATA Ports	Mezzanine 12Gb SAS ROC Module + 12 Gb SAS Expander to Backplane	Mezzanine 6 Gb SAS ROC module + 6 Gb SAS Expander to Backplane	12Gb SAS RAID PCIe* add-in card + 12 Gb SAS Expander to Backplane	6Gb SAS RAID PCIe* add-in card + 6 Gb SAS Expander to Backplane
R2312WTxxx R2312WTTYS With SAS Expander installed	12 x 3.5" 12 Gb SAS Capable	Onboard SATA controllers do not support SAS expanders.If attaching the onboard SATA controller to the Backplane, then use cables that are included in the System SKUs.For building block integration use cable kits:AXXCBL800HDHDAXXCBL875HDHD	With 12 Gb SAS Expander RES3FV288 installed in Riser #1:- Use cables in Expander Kit to attach SAS ROC to Expander Card- Use the following cables to attach Expander to Backplane:Expander -> BP 0-3 800 mm HD --- HDExpander -> BP 4-7 875 mm HD --- HDExpander -> BP 8-11 950 mm HD ---HD1 of each cable included with L6 Integrated systemsFrom data above, select appropriate cable kits from list below:AXXCBL800HDHDAXXCBL875HDHDAXXCBL950HDHD	With 6 Gb SAS Expander RES2SV240 installed in Riser #1:- Use cables in Expander Kit to attach SAS ROC to Expander Card- Use the following cables to attach Expander to Backplane:Expander -> BP 0-3 800 mm HD --- MSExpander -> BP 4-7 875 mm HD --- MSExpander -> BP 8-11 950 mm HD ---MSFrom data above, select appropriate cable kits from list below:AXXCBL800HDMSAXXCBL875HDMSAXXCBL950HDMS	With 12 Gb PCIe RAID and 12 Gb SAS Expander RES3FV288 installed in riser #1:- Use cables in Expander Kit to attach PCIe SAS card to Expander Card- Use the following cables to attach Expander to Backplane:Expander -> BP 0-3 800 mm HD --- HDExpander -> BP 4-7 875 mm HD --- HDExpander -> BP 8-11 950 mm HD ---HDFrom data above, select appropriate cable kits from list below:AXXCBL800HDHDAXXCBL875HDHDAXXCBL950HDHD	With 6 Gb PCIe RAID and 6 Gb SAS Expander RES2SV240 installed in riser #1:- Use cables in Expander Kit to attach PCIe SAS card to Expander Card- Use the following cables to attach Expander to Backplane:Expander -> BP 0-3 800 mm HD --- MSExpander -> BP 4-7 875 mm HD --- MSExpander -> BP 8-11 950 mm HD ---MSFrom data above, select appropriate cable kits from list below:AXXCBL800HDMSAXXCBL875HDMSAXXCBL95OHDMS

Figure 7. Intel® RAID Expander RES3FV288 Connector Identification

Figure 8. Intel® RAID Expander RES2SV240 Connector Identification

4.2.5 2U 2.5" Front Mount Drive Bay Cable Guide

The front drive bay of the 2U system can support up to three 8x2.5" drive bay modules capable of supporting system configurations of 8 (R2208), 16 (R2216), or 24 (R2224) drives. Each 8x2.5" drive bay is numbered in sequence from 1 to 3, as shown below. Each installed 8x2.5" backplane will include at least two multi-port 8643 data connectors, each supporting a set of four drives. Note that some 8x2.5" backplane options include more than two 8643 connectors in order to support features available to the specific backplane.

Intel makes available several different 8x2.5" drive bay module options, each supporting a different feature set (see chapter 5). The system tables in this section define the SAS/SATA data cables required to support the specified drive bay location regardless of the backplane option installed.

Reference each table as appropriate to determine the cable requirements relevant to your specific drive bay configuration.

Note: For data cable information associated with Intel® Accessory Kit A2U44X25NVMEDK, see sections 5.2.1 and 5.2.2

2U 2.5" Front Mount Drive Configurations – SAS Data Cable Guide (with no SAS Expander)

Table 7. 2U 8 x 2.5" (Drive Bay #1) - SAS/SATA Data Cable Guid (with no SAS Expander)

System Configuration	Drive Support	Cables for On-board Multi-port SATA Ports to Drive Bay #1	Cables for Mezzanine 12 Gb SAS ROC Module to Drive Bay #1	Cables for Mezzanine 6 Gb SAS RAID module to Drive Bay #1	Cables for 12 Gb SAS RAID PCIe* add-in card to Drive Bay #1	Cables for 6 Gb SAS RAID PCIe* add-in card to Drive Bay #1
Drive Bay #1R2208...R2216...R2224...	8 x 2.5"	Cable Connections:SATA Cntrl -> BP 0-3730mm HD --- HDSATA Cntrl -> BP 4-7730 mm HD --- HDFrom data above, select appropriate cable kits from list below:AXXCBL730HDHD(2) 730mm Cables included with all 2.5" L6 Integrated systems	Cable Connections:SAS Mezz -> BP 0-3730 mm HD --- HDSAS Mezz -> BP 4-7730 mm HD --- HDFrom data above, select appropriate cable kits from list below:AXXCBL730HDHD(2) 730mm Cables included with all 2.5" L6 Integrated systems	Cable Connections:SAS Mezz -> BP 0-3730 mm HD --- MSSAS Mezz -> BP 4-7730 mm HD --- MSFrom data above, select appropriate cable kits from list below:AXXCBL730HDMS	From Riser #1:Cable Connections:SAS PCIe -> BP 0-3730 mm HD --- HDSAS PCIe -> BP 4-7730 mm HD --- HDFrom Riser #2SAS PCIe -> BP 0-3730 mm HD --- HDSAS PCIe -> BP 4-7730 mm HD --- HDFrom data above, select appropriate cable kits from list below:AXXCBL730HDHD(2) 730mm Cables included with all 2.5" L6 Integrated systems	From Riser #1:Cable Connections:SAS PCIe -> BP 0-3730 mm HD --- MSSAS PCIe -> BP 4-7730 mm HD --- MSFrom data above, select appropriate cable kits from list below:AXXCBL730HDMS

** 1 or 2 cable lengths may be specified for a PCIe add-in card. Generally, if the cable connector of the add-in card is located on the back edge of the card, a shorter cable is specified. Cable connectors on the top edge or near the front of the add-in card will require the longer cable length.

For R2216WTxxx System configurations with no SAS Expander, reference Tables 7 and 8 for cabling guidance

Table 8. 2U 8 x 2.5" (Drive Bay #2) – SAS / SATA Data Cable Guide (with no SAS Expander)

System Configuration	Drive Support	Cables for On-board Multi-port SATA Ports to Drive Bay #2	Cables for Mezzanine 12 Gb SAS ROC Module to Drive Bay #2	Cables for Mezzanine 6 Gb SAS ROC module to Drive Bay #2	Cables for 12 Gb SAS RAID PCIe* add-in card to Drive Bay #2	Cables for 6 Gb SAS RAID PCIe* add-in card to Drive Bay #2
Drive Bay #2(no SAS Expander)R2216...R2224...	8 x 2.5"	Cable Connections:SATA Cntlr -> BP 0-3730mm HD -- HDSATA Cntrl -> BP 4-7875mm HD -- HDFrom data above, select appropriate cable kits fromlist below:AXXCBL730HDHD(730mm Included in all 2.5" L6)AXXCBL875HDHD(875mm Included in R2224 L6)	Cable Connections:SAS Mezz -> BP 0-3730mm HD -- HDSAS Mezz -> BP 4-7875mm HD -- HDFrom data above, select appropriate cable kits fromlist below:AXXCBL730HDHD(730mm Included in all 2.5" L6)AXXCBL875HDHD(875mm Included in R2224 L6)	Cable Connections:SAS Mezz -> BP 0-3730mm HD -- MSSAS Mezz -> BP 4-7875mm HD -- MSFrom data above, select appropriate cable kits fromlist below:AXXCBL730HDMSAXXCBL875HDMS	From Riser #1:SAS PCIe -> BP 0-3 **650 or 730mm HD -- HDSAS PCIe -> BP 4-7 **730 or 800mm HD -- HDFrom Riser #2:SAS PCIe -> BP 0-3 **800 or 875mm HD -- HDSAS PCIe -> BP 4-7 **730 or 875mm HD -- HDFrom data above, select appropriate cable kits fromlist below:AXXCBL650HDHDAXXCBL730HDHD(2) 730mm Included in all 2.5" L6AXXCBL800HDHDAXXCBL875HDHD(4) 875mm Included in R2224 L6)	From Riser #1:SAS PCIe -> BP 0-3 **650 or 730mm HD -- MSSAS PCIe -> BP 4-7 **730 or 800mm HD -- MSFrom Riser #2:SAS PCIe -> BP 0-3 **800 or 875mm HD -- MSSAS PCIe -> BP 4-7 **730 or 875mm HD -- MSFrom data above, select appropriate cable kits from list below:AXXCBL650HDMSAXXCBL730HDMSAXXCBL800HDMSAXXCBL875HDMS

** 1 or 2 cable lengths may be specified for a PCIe add-in card. Generally, if the cable connector of the add-in card is located on the back edge of the card, a shorter cable is specified. Cable connectors on the top edge or near the front of the add-in card will require the longer cable length.

For R2224WTxxx System configurations with no SAS Expander, reference Tables 7, 8, and 9 for cable guidance for all three drive bay modules.

Table 9. 2U 8 x 2.5" (Drive Bay #3) – SAS / SATA Data Cable Guide (with no SAS Expander)

System Configuration	Drive Support	Cables for On-board Multi-port SATA Ports to Drive Bay #3	Cables for Mezzanine 12 Gb SAS ROC Module to Drive Bay #3	Cables for Mezzanine 6 Gb SAS ROC module to Drive Bay #3	Cables for 12 Gb SAS RAID PCIe* add-in card to Drive Bay #3	Cables for 6 Gb SAS RAID PCIe* add-in card to Drive Bay #3
Drive Bay #3(no SAS Expander)R2224...	8 x 2.5"	Cable Connections:SATA Cntlr -> BP 0-3800mm HD -- HDSATA Cntrl -> BP 4-7730mm HD -- HDFrom data above, select appropriate cable kits from list below:AXXCBL730HDHD(2) 730mm cables Included in all 2.5" L6)AXXCBL800HDHD	Cable Connections:SAS Mezz -> BP 0-3730mm HD -- HDSAS Mezz -> BP 4-7730mm HD -- HDFrom data above, select appropriate cable kits from list below:AXXCBL730HDHD(2) 730mm cables Included in all 2.5" L6)	Cable Connections:SAS Mezz -> BP 0-3730mm HD -- MSSAS Mezz -> BP 4-7730mm HD -- MSFrom data above, select appropriate cable kits from list below:AXXCBL730HDMS	From Riser #1:SAS PCIe -> BP 0-3 **730 or 875mm HD -- HDSAS PCIe -> BP 4-7 **800 or 950mm HD -- HDFrom Riser #2:SAS PCIe -> BP 0-3 **730 or 875mm HD -- HDSAS PCIe -> BP 4-7 **650 or 800mm HD -- HDFrom data above, select appropriate cable kits from list below:AXXCBL650HDHDAXXCBL730HDHD(2) 730mm Included in all 2.5" L6AXXCBL800HDHDAXXCBL875HDHD(4) 875mm Included in R2224 L6AXXCBL950HDHD	From Riser #1:SAS PCIe -> BP 0-3 **730 or 875mm HD -- MSSAS PCIe -> BP 4-7 **800 or 950mm HD -- MSFrom Riser #2:SAS PCIe -> BP 0-3 **800 or 875mm HD -- MSSAS PCIe -> BP 4-7 **650 or 800mm HD -- MSFrom data above, select appropriate cable kits from list below:AXXCBL650HDMSAXXCBL730HDMSAXXCBL800HDMSAXXCBL875HDMSAXXCBL950HDMS

** 1 or 2 cable lengths may be specified for a PCIe add-in card. Generally, if the cable connector of the add-in card is located on the back edge of the card, a shorter cable is specified. Cable connectors on the top edge or near the front of the add-in card will require the longer cable length.

2U 2.5" Front Mount Drive Configurations – SAS Data Cable Guide (with SAS Expander)

SAS drive configurations consisting of more than 8 drives may require the addition of a SAS Expander card. In the 2U 16x2.5" or 24x2.5" system configurations, a SAS expander can be mounted in the area directly behind the drive bays. Intel provides two SAS expander options to support these drive configurations:

Intel Product Code	Order Information	Product Description Product Type
iPC - RES3TV360	MM# - 932894UPC - 00735858287364EAN - 5032037067102MOQ - 5	SAS 3.0 12 Gb/s expander featuring 6Gbps data aggregation for 12Gbps data transferwith 6Gb/s devicesInternal mount mid-plane form factor36 internal ports supporting point-to-pont 12, 6, and 3 Gb/s data transfer ratesRA 4-pin power connectorHD Mini-SAS 8643 ConnectorsKit includes:(1) SAS expander card; (1) 130mm Power cable; (1 set) Expander-to-backplane cables: (4) HD-HD 165mm, (1) HD-HD 300mm, (1) HD-HD 250mm; (3) Rubber Pads; mounting screwsRequired (sold separately)HD-HD 12 Gb/sec Raid Controller-to-Expander cables - See table section 4.7.3HD-MS 6 Gb/s RAID Controller-to-Expander cables - See table section 4.7.3	2U Accessory Kit
[Intel® RAID Expander RES3TV360	MM# - 918935UPC - 00735858241168EAN - 5032037035897MOQ - 1	SAS 2.0 6 Gb/s expanderInternal mount mid-plane form factor36 Port 6Gb expander card with ports configurable for input or outputPower from 4-pin connectorMini-SAS 8087 connectorsKit includes:(1) 6 Gb/s SAS Expander card; (1) 130mm power cable; (3) rubber mounting pads; (1 set) 6 Gb Expander to 6 Gb bacplane cables: (3) MS-MS 165mm, (2) MS-MS 185mm, (1) MS-MS 245mm (NOTE: included data cables not compatible in R2312WT... system)Required (sold separately):IPC - AXXCBLEXPHDMS - MS-HD 6Gb Expander to 12 Gb Backplane Data Cable kit, SAS Data Cables from 6 Gb SAS RAID PCIe/Mezz Card to expander. See Table 10.	2U Accessory Kit

Note: The onboard SATA ports are not compatible with SAS Expander cards. The onboard SATA ports can only be cabled directly to a specified backplane.

Table 10.2U 2.5" Front Mount Drive Configurations with SAS Expander – SAS Data Cable Guide

Mezzanine 12Gb SAS ROC Module to 12 Gb SAS Expander	12Gb SAS RAID PCIe* add-in card to 12 Gb SAS Expander	Mezzanine 6 Gb SAS ROC Module to 12 Gb SAS Expander	6Gb SAS RAID PCIe* add-in card to 12 Gb SAS Expander	Mezzanine 6 Gb SAS ROC Module to 6 Gb SAS Expander	6Gb SAS RAID PCIe* add-in card to 6 Gb SAS Expander
12 Gb SAS Expander RES3TV360 installed:	12 Gb SAS Expander RES3TV360 installed:From Riser #1:SAS PCIe -> Exp 0-3 (G)650mm HD -- HDSAS PCIe -> Exp 4-7 (H)650mm HD -- HD	12 Gb SAS Expander RES3TV360 installed:SAS Mezz -> Exp 0-3 (G)730mm HD -- MSSAS Mezz -> Exp 4-7 (H)730mm HD -- MS	12 Gb SAS Expander RES3TV360 installed:From Riser #1:SAS PCIe -> Exp 0-3 (G)650mm HD -- MSSAS PCIe -> Exp 4-7 (H)650mm HD --MS	6 Gb SAS Expander RES2CV360 installed:SAS Mezz -> Exp 0-3 (A)730mm MS -- MSSAS Mezz -> Exp 4-7 (B)730mm MS -- MS	6 Gb SAS Expander RES2CV360 installed:From Riser #1:SAS PCIe -> Exp 0-3 (G)650mm MS -- MSSAS PCIe -> Exp 4-7 (H)650mm MS --MS
SAS Mezz -> Exp 4-7 (H)730mm HD -- HDFrom data above, select appropriate cable kits from list below:AXXCBL730HDHD(2) 730mm cables Included in all 2.5" L6)	From Riser #2:SAS PCIe -> Exp 0-3 (G)730mm HD -- HDSAS PCIe -> Exp 4-7 (H)730mm HD -- HDFrom data above, select appropriate cable kits from list below:AXXCBL650HDHDAXXCBL730HDHD(2) 730mm cables Included in all 2.5" L6)	From data above, select appropriate cable kits from list below:AXXCBL730HDMS	From Riser #2:SAS PCIe -> Exp 0-3 (G)730mm HD -- MSSAS PCIe -> Exp 4-7 (H)730mm HD -- MSFrom data above, select appropriate cable kits from list below:AXXCBL650HDMSAXXCBL730HDMS	From data above, select appropriate cable kits from list below:AXXCBL730MSMS	From Riser #2:SAS PCIe -> Exp 0-3 (G)730mm MS -- MSSAS PCIe -> Exp 4-7 (H)730mm MS -- MSFrom data above, select appropriate cable kits from list below:AXXCBL650MSMSAXXCBL730MSMS
12 Gb SAS Expander to drive bays	12 Gb SAS Expander to drive bays	12 Gb SAS Expander to drive bays	12 Gb SAS Expander to drive bays	6 Gb SAS Expander to drive bays	6 Gb SAS Expander to drive bays
Use cables included in SAS Expander Kit	Use cables included in SAS Expander Kit	Use cables included in SAS Expander Kit	Use cables included in SAS Expander Kit	Cable Kit Required:iPC - AXXCBLEXPHDMS	Cable Kit Required:iPC - AXXCBLEXPHDMS


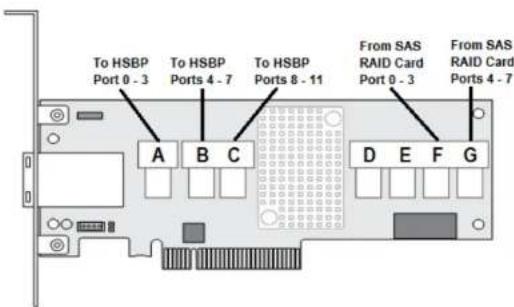

Figure 9. – 12Gb Internal 36-Port Intel® RAID Expander Card RES3TV360 - Connector Identification Block Diagram

Figure 10. – 6 Gb Internal 36-Port Intel® RAIDExpander Card RES2CV360 - Connector Identification Block Diagram

4.3 Intel SAS / SATA Data Cable Kits

Each cable accessory kit referenced in the this section will identify the connector type at each end of the cable using the following identifiers: HR, HD, and MS. The following table identifies the three cable connector types and their identifiers.

	HR = Right Angle SFF-8643 Mini SAS HD Connector
	HD = Straight SFF-8643 Mini SAS HD Connector
	MS = Straight SFF-8087 Mini SAS Connector (compatible with 6Gb/sec SAS controllers and expanders)

Cable Kit Product Code Decoder

Example – iPC AXXCBL950HDMS

AXXCBL – Identifies an accessory cable kit

950 - identifies the length of the cable

HD - identifies that one cable connector supports an SFF-8643 type connector

MS - identifies that one cable connector supports an SFF-8087 type connector

Table 11. Storage Data Cable Kit Description and Order Information

Image		Order Information	Description
		iPC -AXXCBL950HDHDMM - 936122UPC - 00735858286596EAN - 5032037066495MOQ - 1	950 mm long, cable kit (2 cables included) straight SFF8643 to straight SFF8643Used in multiple systems as spare and/or accessory (1304, 2308, 2312)
		iPC -AXXCBL875HDHDMM - 936123UPC - 00735858284769EAN - 5032037065054MOQ - 1	875 mm long, cable kit (2 cables included) straight SFF8643 to straight SFF8643Used in multiple systems as spare and/or accessory (1304, 1208 2208, 2312)
		iPC -AXXCBL800HDHDMM - 937312UPC - 00735858286015EAN - 5032037066006MOQ - 1	800 mm long, cable kit (2 cables included) straight SFF8643 to straight SFF8643Used in multiple systems as spare and/or accessory (1203, 1208, 2308, 2312)
		iPC -AXXCBL730HDHDMM - 936178UPC - 00735858284745EAN - 5032037065030MOQ - 1	730 mm long, cable kit (2 cables included) straight SFF8643 to straight SFF8643Used in multiple systems as spare and/or accessory (1208, 2208)
		iPC -AXXCBL650HDHDMM - 937129UPC - 00735858284752EAN - 5032037065047MOQ - 1	650 mm long, cable kit (2 cables included) straight SFF8643 to straight SFF8643Used as accessory when installing 12G ROC module in 1208 for optimal cabling. (longer cable may be used)
		iPC -AXXCBL1UHRHDMM - 937311UPC - 00735858287401EAN - 5032037067140MOQ - 1	Combo cable kit, contains 2 cables. One of each of the following:730mm (AXXCBL800HRHD),800mm right angle SFF8643 to straight SFF8643,Spare cables used in 1U WT systems to connect to onboard SATA ports.

Intel® Server S2600WT Product Family Configuration Guide and Spares/Accessories List

Image	Order Information	Description
	iPC - AXXCBL950HDMSMM - 937131UPC - 00735858286633EAN - 5032037066532MOQ - 1	950 mm long, cable kit (2 cables included) straight SFF8643 to straight SFF8087Required in WT 2U systems with 6G SAS ROC module or 6G SAS RAID cards. (1304 with HBA, 2308 and 2312 HBA/module)
	iPC - AXXCBL875HDMSMM - 937130UPC - 00735858286626EAN - 5032037066525MOQ - 1	875 mm long, cable kit (2 cables included) straight SFF8643 to straight SFF8087Required in WT 2U systems with 6G SAS ROC module or 6G SAS RAID cards. (1304 and 1208 with HBA, 2216,2224,2312 with HBA/module)
	iPC - AXXCBL800HDMSMM - 937309UPC - 00735858286084EAN - 5032037066075MOQ - 1	800 mm long, cable kit (2 cables included) straight SFF8643 to straight SFF8087Required in WT 2U systems with 6G SAS ROC module or 6G SAS RAID cards. (1304 and 1208 with module, 2308 and 2312 HBA/module)
	iPC - AXXCBL730HDMSMM - 927238UPC - 00735858266970EAN - 5032037053648MOQ - 5	730 mm long, cable kit (2 cables included) straight SFF8643 to straight SFF8087Required in WT 2U systems with 6G SAS ROC module or 6G SAS HBA cards. (1208 with HBA, 2208 with HBA/module)
	iPC - AXXCBL650HDMSMM - 927237UPC - 00735858266963EAN - 5032037053631MOQ - 5	650 mm long, cable kit (2 cables included) straight SFF8643 to straight SFF8087Used as accessory when installing 6Gb ROC module in 1208 for optimal cabling. (longer cable may be used)

Intel® Server S2600WT Product Family Configuration Guide and Spares/Accessories List

Image		Order Information	Description
		iPC - AXXCBLEXPHDMSMM-937127UPC-00735858284776EAN-5032037065061MOQ-1	6 Gb Expander to 12 Gb Backplane cable kit6Gb MS-to-12Gb HD(3) 165 mm, (1) 185 mm, (1) 245 mm, (1) 300 mm straight SFF8643 to straight SFF8087
		iPC - AXXCBL650MSMSMM-918376UPC-00735858224444EAN-5032037019910MOQ-5	650 mm long, cable kit (2 cables included) straight SFF8087 to straight SFF8087Required in WT 2U systems with 6Gb SAS ROC module or 6Gb SAS HBA cards. (1208 with HBA, 2208 with HBA/module) and 6 Gb Expander card
		iPC - AXXCBL730MSMSMM-921049UPC-00735858245340EAN-5032037039864MOQ-1	730 mm long, cable kit (2 cables included) straight SFF8087 to straight SFF8087Required in WT 2U systems with 6Gb SAS ROC module or 6Gb SAS HBA cards. (1208 with HBA, 2208 with HBA/module) and 6 Gb Expander card
		iPC - AXXCBL880SATAMM-922988UPC-00735858250290EAN-5032037044806MOQ-10	Spare SATA ODD Data cable for rack chassis family - 880mm long Included with ODD accessories
		iPC - A2UCBLSSDMM#-937328UPC-00735858287005EAN-5032037066747MOQ-1	2U Cable kit accessoryThis kit includes cables necessary to provide simultaneous support for up to two internal air duct mounted SATA SSDs + rear drive bay (iPC - A2UREARHSDK)Kit includes:(1) Power Cable - Connectors to support rear drive bay and 2 internal mount SSDs (No CD/DVD Drive support)(1) fan out multiport SATA Data cabe - Cable connectors include (1) HD mini-SAS SFF8643 + (4) 7-pin SATA + (1) SGPIO

5. Intel 1U / 2U System Configuration Options

The following sections identify available accessory kits supported within the Intel ^® S2600WT product family.

5.1 1U 8x2.5" Combo PCIe\* SFF (NVMe) SSD / SAS Backplane – Intel® Accessory Kit A1U44X25NVMEDK

• The 8x2.5" combo backplane kit is capable of supporting a combination of both SAS devices and up to four PCIe* SFF (Small Form Factor) (NVMe) SSD drives
  • All eight drive connectors are capable of supporting a SAS device, but only four include SFF8639 connectors that can support PCIe* SFF (NVMe) SSDs
  • This kit is only supported in dual processor configurations

SAS / SATA Drives 0 - 3
PCIe* SSD SFF (NVMe) Drives 0 - 3

Intel Product Code	Order Information	Product Description Product Type
iPC – A1U44X25NVMEDK	MM# – 936251UPC – 00735858288873EAN – 5032037068154MOQ – 1	1U 8x2.5" Combo PCIe* SFF (NVMe) SSD / SAS Backplane KitKit IncludesL(1) Combo Hot Swap Backplane PCBA(4) SAS / SATA Hot Swap Drive Carriers (Green Latch)(4) PCIe* SFF SSD (NVMe) Hot Swap Drive Carriers (Blue Latch)(2) Dual PCIe* Port Cables(1) PCIe x16 Add-in card(1) Installation GuideRequired (Sold Separately):SAS / SATA Data cables - See section 5.1.1	• 1U Accessory Kit

See the Intel® Server System R1000WT Technical Product Specification for additional information

5.1.1 1U 8x2.5" - Intel® Accessory Kit A1U44X25NVMEDK Cable Guide

Figure 11. 1U Combo Backplane (iPC - A1U44X25NVMEDK) Cable Routing

Table 12. 1U 8x2.5" Combo Backplane SAS/SATA Cable Guide

System Configuration Drive Support		Cables for On-board Multi-port SATA Ports to Backplane	Cables for Mezzanine 12 Gb SAS ROC Module to Backplane	Cables for Mezzanine 6 Gb SAS RAID module to Backplane	Cables for 12 Gb SAS RAID PCIe* add-in card to Backplane	Cables for 6 Gb SAS RAID PCIe* add-in card to Backplane
R1208WTxxxR1208WTTGSR1208WT2GSwithA1U44X25NVMEDK	A1U44X25NVMEDKAccessory kit Option8 x 2.5" Combo SAS / SATA + PCIe* SSD SFF (NVMe)12 Gb SAS capablePCIe* cables included in accessory kit. For SAS/SATA support see the following options	730 mm HR --- HD Connect cable to: SATA -> BP 0-3and / or800 mm HR --- HD Connect cable to: sSATA -> BP 4-7Cables Included with system SKUs.Cable kit required for building block integration:AXXCBL1UHRHDUse PCIe* cables included with Combo backplane kit for PCIe* SSD / NVMe drive support	650 mm HD --- HD Connect cable to: SAS Mezz -> BP 0-3and/or800 mm HD --- HD Connect cable to: SAS Mezz -> BP 4-7Cable Kits Required:AXXCBL650HDHD and / orAXXCBL800HDHDUse PCIe* cables included with Combo backplane kit for PCIe* SSD / NVMe drive support	650 mm HD --- MS Connect cable to: SAS Mezz -> BP 0-3and/or800 mm HD --- MS Connect cable to: SAS Mezz -> BP 4-7Cable Kits Required:AXXCBL650HDMS and / orAXXCBL800HDMSUse PCIe* cables included with Combo backplane kit for PCIe* SSD / NVMe drive support	From Riser #1730 mm HD --- HD Connect cable to: SAS PCIe -> BP 0-3and/or875 mm HD --- HD Connect cable to: SAS PCIe -> BP 4-7Cable Kits Required:AXXCBL730HDHD and / orAXXCBL875HDHDUse PCIe* cables included with Combo backplane kit for PCIe* SSD / NVMe drive support	From Riser #1730 mm HD --- MS Connect cable to: SAS PCIe -> BP 0-3and/or875 mm HD --- MS Connect cable to: SAS PCIe -> BP 4-7Cable Kits Required:AXXCBL730HDMS and / orAXXCBL875HDMSUse PCIe* cables included with Combo backplane kit for PCIe* SSD / NVMe drive support

5.2 2U 8x2.5" Combo PCIe\* SFF (NVMe) SSD / SAS Backplane – Intel® Accessory Kit A2U44X25NVMEDK

• The 8x2.5" combo backplane kit is capable of supporting a combination of both SAS devices and up to four PCIe* SFF (Small Form Factor) (NVMe) SSD drives
• All eight drive connectors are capable of supporting a SAS device, but only four include SFF8639 connectors that can support PCIe* SFF (NVMe) SSDs
• The PCIe* x16 interface add-in card MUST be installed in a x16 riser card (included), and is only supported in the Riser #2 slot of the server board.
  • This kit is only supported in dual processor configurations
  • The 2U system is limited to supporting only one combo backplane kit in addition to one or two other backplane options
  • The combo backplane module can only be supported in the first (left) drive bay when no other backplane module is installed
• Due to thermal and power limits associated with 16 x 2.5" and 24 x 2.5" front drive configurations, the combo backplane module can only be supported in the second (middle) drive bay

Intel Product Code	Order Information	Product Description Product Type
iPC – A2U44X25NVMEDK	MM# – 936253UPC – 00735858288880EAN – 5032037068161MOQ – 1	2U 8x2.5" Combo PCIe* SFF (NVMe) SSD / SAS Backplane KitKit Includes:(1) 8x2.5" Drive Bay Assembly with backplane(4) SAS / SATA Hot Swap Drive Carriers (Green Latch)(4) PCIe* SFF SSD (NVMe) Hot Swap Drive Carriers (Blue Latch)(2) Dual PCIe* Port Cables(1) PCIe x16 Add-in card(1) 2-slot PCIe Riser card PCBA and mounting screws(1) I2C jumper cable (used in dual backplane configurations)(1) Installation GuideRequired (Sold Separately):SAS / SATA Data cables - See sections 5.2.1& 5.2.2	• 2U Accessory Kit

See the Intel ^® Server System R2000WT Technical Product Specification for additional information.

Figure 12. 2U Combo Backplane (iPC - A2U44X25NVMEDK) Cable Routing

5.2.1 2U 8x2.5" – Intel® Accessory Kit A2U44X25NVMEDK SAS/SATA Cable Guide

Figure 13. Combo Backplane Module Placement - 8 x 2.5" front drive configurations

System Configuration	Drive Bay #1	Cables for On-board Multi-port SATA Ports to Backplane	Cables for Mezzanine 12 Gb SAS ROC Module to Backplane	Cables for Mezzanine 6 Gb SAS RAID module to Backplane	Cables for 12 Gb SAS RAID PCIe* add-in card to Backplane	Cables for 6 Gb SAS RAID PCIe* add-in card to Backplane
R2208WT...	8 x 2.5" Combo SAS / SATA + PCIe* SSD SFF (NVMe) iPC A2U44X25NVMEDK	730 mm HD --- HD Connect cable to: SATA -> BP 0-3 Included w/system SKUs and / or	730 mm HD --- HD Connect cable to: SAS Mezz -> BP 0-3 Included w/system SKUs and/or	730 mm HD --- MS Connect cable to: SAS Mezz -> BP 0-3 and/or	From Riser #1730 mm HD --- HD Connect cable to: SAS PCIe -> BP 0-3 and/or	From Riser #1730 mm HD --- MS Connect cable to: SAS PCIe -> BP 0-3 and/or
		730 mm HR --- HD Connect cable to: sSATA -> BP 4-7 Included w/system SKUs	730 mm HD --- HD Connect cable to: SAS Mezz -> BP 4-7 Included w/system SKUs	730 mm HD --- MS Connect cable to: SAS Mezz -> BP 4-7 Cable Kits Required: (1 or 2)AXXCBL730HDMS	730 mm HD --- HD Connect cable to: SAS PCIe -> BP 4-7 Cable Kits Required: (1 or 2)AXXCBL730HDHD	730 mm HD --- MS Connect cable to: SAS PCIe -> BP 4-7 Cable Kits Required: (1 or 2)AXXCBL730HDMS
Drive Bay #1 populated	PCIe* cables included in accessory kit. For SAS/SATA support see the following options	Cable kit required for building block integration: (2)AXXCBL730HDHD Use PCIe* cables included with Combo backplane kit for PCIe* SSD SFF / NVMe drive support	Cable kit required for building block integration: (2)AXXCBL730HDHD Use PCIe* cables included with Combo backplane kit for PCIe* SSD SFF / NVMe drive support	Use PCIe* cables included with Combo backplane kit for PCIe* SSD SFF / NVMe drive support	Use PCIe* cables included with Combo backplane kit for PCIe* SSD SFF / NVMe drive support	Use PCIe* cables included with Combo backplane kit for PCIe* SSD SFF / NVMe drive support

5.2.2 2U 16x2.5" / 24x2.5" — Intel® Accessory Kit A2U44X25NVMEDK SAS / SATA Cable Guide

Figure 14. Combo Backplane Module Placement - 16 x 2.5" and 24 x 2.5" front drive configurations

System Configuration	Cables for Drive Bay #1	Drive Bay #2Backplane Type	Cables for Mezzanine 12 Gb SAS ROC Module to Drive Bay #2	Cables for Mezzanine 6 Gb SAS RAID module to Drive Bay #2	Cables for 12 Gb SAS RAID PCIe* add-in card to Drive Bay #2	Cables for 6 Gb SAS RAID PCIe* add-in card to Drive Bay #2
R2216WT...R2224WT...	See section 4.7.1	8 x 2.5" Combo SAS / SATA + PCIe* SSD SFF (NVMe) iPC A2U44X25NVMEDKPCIe* cables included in accessory kit.For SAS/SATA support see the following options	730mm HD --- HD Connect cable to: SAS Mezz -> BP 0-3and/or800mm HD --- HD Connect cable to: SAS Mezz -> BP 4-7One or both cable kits for building block integration:(1)AXXCBL730HDHD(1)AXXCBL800HDHDUse PCIe* cables included with Combo backplane kit for PCIe* SSD / NVMe drive support	730mm HD --- MS Connect cable to: SAS Mezz -> BP 0-3and/or800mm HD --- MS Connect cable to: SAS Mezz -> BP 4-7One or both cable kits for building block integration:(1)AXXCBL730HDMS(1)AXXCBL800HDMSUse PCIe* cables included with Combo backplane kit for PCIe* SSD / NVMe drive support	From Riser #1730 mm HD --- HD Connect cable to: SAS PCIe -> BP 0-3and/or800 mm HD --- HD Connect cable to: SAS PCIe -> BP 4-7One or both cable kits for building block integration:(1)AXXCBL730HDHD(1)AXXCBL800HDHUse PCIe* cables included with Combo backplane kit for PCIe* SSD SFF / NVMe drive support	From Riser #1730 mm HD --- MS Connect cable to: SAS PCIe -> BP 0-3and/or800 mm HD --- MS Connect cable to: SAS PCIe -> BP 4-7One or both cable kits for building block integration:(1)AXXCBL730HDMS(1)AXXCBL800HDMSUse PCIe* cables included with Combo backplane kit for PCIe* SSD SFF / NVMe drive support

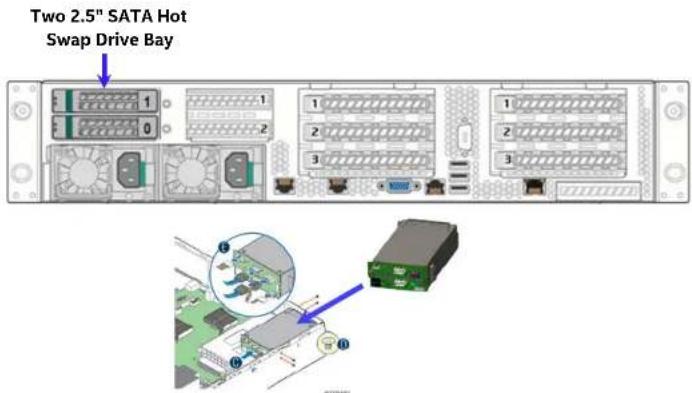

5.3 2U Rear Mount Hot Swap Drive Bay Accessory Kit – iPC A2UREARHSDK

The 2U product family provides the option to support two 2.5" 6 Gb/sec hot swap SSDs installed to a modular drive bay mounted in the back of the system

Intel Product Code	Order Information	Product Description Product Type
iPC - A2UREARHSDK	MM - 934976UPC - 735858283298EAN - 5032037064354MOQ - 1	2U Rear Mount Hot Swap Drive Bay Accessory KitKit Includes:(1) Drive Bay Assembly and mounting hardware(2) 2.5" Hot Swap Drive Carriers(2) SATA Data Cables(1) Power Cable(1) I2C Cable(1) SGPIO cable	• 2U Accessory KitSystem and Building Block
iPC - A2UCBLSSD	MM# - 937328UPC - 735858287005EAN - 5032037066747MOQ - 1	2U Fixed Mount SSD + Rear Drive Bay Cable KitThis kit includes cables to provide simultaneous support for up to two internal fixed mount SATA SSDs + rear drive bayKit includes:(1) Power Cable – Connectors to support rear drive bay and 2 internal mount SSDs (No CD/DVD Drive support)(1) Fan out multiport SATA Data cabe – Cable connectors include (1) HD mini-SAS SFF8643 + (4) 7-pin SATA + (1) SGPIO	• 2U Cable kitaccessory

5.4 2U 8x3.5" Front Mount Hot Swap Backplane Assembly - iPC A2U8X35S3HSDK

8x3.5" SAS/SATA Front Mount Hot-Swap Drive Bay Module option for 2U Building Block Chassis iPC - R2000WTxxx.

Intel Product Code	Order Information	Product Description Product Type
iPC – A2U8X35S3HSDK	MM# – 936191UPC – 00735858288781EAN – 5032037068062MOQ – 5	2U 8x3.5" Front Mount Hot Swap Backplane AssemblyKit Includes:(1) Drive Bay Assembly Module(1) 8x3.5" hot swap backplane(8) 3.5" drive carriers + drive blanks(1) 175mm I2C Cable(1) 500mm ODD/SSD Power Cable(1) Chassis mounting clip(1 set) mounting hardwareRequired (Sold Separately):SAS / SATA Data Cables. See section 4.2.3	• 2U Building Block Accessory Kit

See the Intel ^* Server System R2000WT product family System Integration and Service Guide for complete kit installation instructions.

5.5 2U 8x2.5" Drive Bay Module Options

2U system configurations that include support for 2.5" front mount storage devices can support up to three 8x2.5" drive bay modules. Intel makes available different types of 8x2.5" drive bay modules and can support from 1 to 3 of the same module or a mix of different modules. Only the PCIe* SSD (NVMe) compatible module (IPC - A2U44X25NVMEDK) has the limitation of only supporting one of these modules in combination with other backplane modules in the system.

Figure 15. R2208WT and R2216WT based system with Front I/O Module Bay Assembly

Figure 16. 2U 2.5" Drive Bay Numbering

Drive numbering in the illustrations above is for general reference only. Actual drive numbering will be dependant on SAS / SATA controller configuration and how they are cabled to the backplane. Each drive bay will include a single backplane. Each backplane will include a multi-port data connector for each set of four drives. Ex) for an 8 drive configuration, the backplane will include 2 four port data connectors. In the illustration above, drives showing a common Drive ID label color share a common data connector on the backside of the given backplane.

R2208WT (8x2.5" – 1 drive bay) and R2216WT (16x2.5" – 2 drive bays) system configurations utilize the same front I/O module bay assembly containing the System Control Panel and Front I/O Panel (as shown in Figure 9). When upgrading a R2208WT based system to an R2216WT based system, all that is needed is the removal of the Bay #2 face plate to insert the new drive bay, and adding the required data cables. No other chassis changes or additions are required.

Available SAS / SATA 8x25" accessory kits include the following.

Intel Product Code	Order Information	Product Description Product Type
iPC - A2U8X25S3HSDK	MM# - 935066UPC - 00735858288767EAN - 5032037068048MOQ - 1	8x2.5" SAS/SATA Front Mount Hot Swap Drive Bay Module for all 2U 2.5" systemsKit Includes:(1) Drive Bay Assembly Module(1) 8x2.5" hot swap backplane(8) 2.5" drive carriers + drive blanks(1) 75mm I2C Backplane-to-Backplane jumper cable(1 set) mounting hardwareRequired (Sold Separately):SAS / SATA Data Cables. See section 4.2.5	• 2U 2.5" Drive Upgrade Kit• 2U Building Block Accessory Kit

Intel Product Code		Order Information	Product Description Product Type
iPC – A2U8X25S3DPDK		MM# – 935067UPC – 00735858288774EAN – 5032037068055MOQ – 1	8x2.5" Dual Port SAS Front Mount Hot Swap Drive Bay Module for all 2U 2.5" systemsKit Includes:(1) Drive Bay Assembly Module(1) 8x2.5" hot swap backplane(8) 2.5" drive carriers + drive blanks(1) 75mm I2C Backplane-to-Backplane jumper cable(1 set) mounting hardwareRequired (Sold Separately):SAS / SATA Data Cables. See section 4.2.5	• 2U 2.5" Drive Upgrade Kit• 2U Building Block Accessory Kit

For a 2U building block configuration consisting of 24x2.5" drives (3 drive bays – See Figure 10) or when upgrading a R2208WT or R2216WT system to a 24 drive R2224WT system, the 2U storage front panel option of Intel Accessory Kit A2UHANDLKIT must be installed.

Intel Product Code	Order Information	Product Description Product Type
iPC - A2UHANDLKIT	MM# - 936038UPC - 00735858288866EAN - 5032037068147MOQ - 1	1U / 2U Rack Handle KitThis kit includes 3 different rack handles, including:(1) Set of 2U storage rack handles with control panel and USB support(R2312WT & R2224WT)(1) Set of 2U non -storage rack handles(R2208WT & R2216WT)(1) Set of 1U rack handles(R1304WT & R1208WT	• 2U - 24 2.5" Drive Upgrade Kit• 1U / 2U Spares Kit

See the Intel Server System R2000WT Product Family System Integration and Service Guide for complete system integration and upgrade instructions.

5.6 Locking Front Bezel Accessory Kits

The optional front bezel is made of Black molded plastic and uses a snap-on design. When installed, its design allows for maximum airflow to maintain system cooling requirements. The front bezel includes a keyed locking mechanism which can be used to prevent unauthorized access to installed storage devices and front I/O ports.

5.6.1 2U Front Bezel Accessory Kit – iPC A2UBEZEL

Intel Product Code	Order Information	Product Description Product Type
iPC - A2UBEZEL	MM# - 918086UPC - 735858241137EAN - 5032037035880MOQ - 1	2U Front Bezel Accesory KitKit Includes:(1) 2U locking bezel(1) Front Panel Window Insert(1 Set) Bezel branding inserts - two ID badges, one wave(1 Set) Keys	• 2U Accessory Kit

The face of the bezel assembly includes snap-in identification badge options and a wave feature option to allow for customization.

5.6.2 1U Front Bezel Accessory Kit – iPC A1UBEZEL

Intel Product Code	Order Information	Product Description Product Type
iPC - A1UBEZEL	MM# - 917983UPC - 735858241120EAN - 5032037035873MOQ - 1	1U Front Bezel Accessory KitKit Includes:(1) 1U locking bezel(1) Front Panel Window Insert(1 Set) Bezel branding inserts - two ID badges, one wave(1 Set) Keys	• 1U Accessory Kit

The face of the bezel assembly includes snap-in identification badge options and a wave feature option to allow for customization.

5.7 1U / 2U PCIe\* Riser Card Accessory/Spare FRU Options

The Intel ^® Server Board S2600WT provides three riser slots. Riser slots 1 and 2 are capable of supporting different riser card options to meet needs of specific system configurations. Riser card options for riser slots 1 and 2 are common. Riser slot 3 is only supported in 2U system configurations and can only support a riser capable of supporting low profile PCIe ^* add-in cards.

All PCIe* bus lanes to the riser slots are routed from the processors. Riser slot 1 has a total of 24 PCIe* 3.0 bus lanes routed from both processors; 16 lanes from processor #1 and 8 lanes from processor #2. Riser slot 2 has a total of 24 PCIe* 3.0 bus lanes routed from CPU 2. For riser slot 3, all PCIe* bus lanes are routed from CPU 2; 8 PCIe* bus lanes are PCIe* 3.0 compatible and 4 PCIe* lanes are PCIe* 2.0 compatible. See the product Technical Product Specification (TPS) for additional information.

Riser slots 1 and 2 are capable of supporting up to 100W maximum power each. Available power to each add-in card slot on a given riser card is defined by the PCIe* specification. The server board provides two Auxiliary 12V power connectors that when cabled (iPC AXXGPGPUCABLE), can provide additional power to high power PCIe* add-in cards.

5.7.1 1U Riser Card Options

Intel Product Code	Order Information	Product Description Product Type
iPC - F1UL16RISER2	MM# - 934884UPC - 00735858288682EAN - 5032037067966MOQ - 1	1U 1-slot PCIe riser card optionOne PCIe* add-in card slot - PCIe* x16, x16 mechanicalKit includes:(1) Riser card PCBA	• 1U Building Block Accessory Kit• 1U Spare FRU

Each riser card assembly has support for a single full height, 12 length PCIe* add-in card. However, riser card #2 may be limited to 12 length, 12 height add-in cards if either of the two mini-SAS HD connectors on the server board are used.

Note: Add-in cards that exceed the PCI specification for 12 length PCI add-in cards (167.65mm or 6.6in) may interfere with other installed devices on the server board.

5.7.2 2U Riser Card Options

Intel Product Code	Order Information	Product Description Product Type
iPC - A2UL8RISER2	MM# - 934885UPC - 00735858288675EAN - 5032037067959MOQ - 1	2U 3-slot PCIe* riser card optionRiser Slots #1 & #2 Riser Card Option
		Slot #	Description
		Slot-1 (Top)	PCIe* x8 elec, x16 mechanical
		Slot-2 (Middle)	PCIe* x8 elec, x16 mechanical
		Slot-3 (Bottom)	PCIe* x8 elec, x8 mechanical
		Kit includes:(1) riser card PCBA

Each 3-slot riser card assembly has support for up to two full height full length add-in cards (top and middle slots) and one full height 12 length add-in card (bottom slot).

Intel Product Code	Order Information	Product Description Product Type
iPC - A2UL16RISER2	MM# - 934886UPC - 00735858288668EAN - 5032037067942MOQ - 1	2U 2-slot PCIe* Riser card optionRiser Slots #1 & #2 Riser Card Option
		Slot #	Description
		Slot-1 (Top)	PCIe* x16 elec, x16 mechanical
		Slot-2 (Bottom)	PCIe* x8 elec, x8 mechanical
		Kit includes:(1) Riser card PCBA(1) 12V-AUX Power Cable

Each 2-slot riser card assembly has support for one full height full length add-in card (top slot) and one full height 12 length add-in card (bottom slot).
Note: The A2UL16RISER2 accessory kit includes a 12V Auxiliary Power cable which can be used to provide additional 12V power for high power PCIe* add-in cards that require it.
Note: The x16 2-slot riser card is included in Intel Accessory Kit A2U44X25NVMEDK. Systems configured with the A2U44X25NVMEDK accessory kit cannot support dual Intel® Xeon Phi™ coprocessor cards or dual non-Intel GPGPU cards.

Intel® Server S2600WT Product Family Configuration Guide and Spares/Accessories List

Intel Product Code	Order Information	Product Description Product Type
iPC - A2UX8X4RISER	MM# - 934883UPC - 00735858283311EAN - 5032037064378MOQ - 1	2U 2-slot riser card optionRiser Slot #3 (only) Riser Card Option
		Slot # Description
		Slot-1(Top)	PCIe* x4 elec, x8 mechanical (PCIe* 2.0 support only)
		Slot-2(Bottom)	PCIe* x8 elec, x8 mechanical
		Kit includes:(1) Riser card PCBA

Riser Slot #3 is provided to support up to two additional PCIe* add-in card slots for 2U server configurations. The available riser card option is designed to support low profile add-in cards only.

5.8 Intel ^® I/O Expansion Modules

The Intel* S2600WT product family includes support for a number of optional Intel* I/O modules that install onto proprietary connectors on the server board leaving all available PCIe* add-in cards slots available for other add-in card options. The onboard high density interface connector has x8 PCIe* 3.0 bus lanes routed to it from CPU 1.

Figure 17. Intel® I/O Module Installation

Intel® Server S2600WT Product Family Configuration Guide and Spares/Accessories List

Intel Product Code	Order Information	Product Description	Product Type
iPC - AXX1P40FRTIOM	MM# - 933742UPC - 00735858282291EAN - 5032037063623MOQ - 1	Intel® I/O Modules AXX1P40FRTIOM & AXX2P40FRTIOMIntel® Single and Dual-Port 40G QSFP+ Ethernet I/O Moduless based on XL710-AM2 10 Gigabit Ethernet ControllerOn the dual port module, the 4x10GbE SFP+ break out is supported on Port 0 onlyAvailable Optics Accessories:Intel® Ethernet QSFP+ SR4 Optics, E40GQSFPSRIntel® Ethernet 40G DCO Optics, E40GDCOQSFPConnector and cables:40GBASE-CR4, QSFP+ Direct Attached Copper CableIntel® Ethernet QSFP+ SR4 Optics also supportedIntel® Ethernet 40G DCO Optics, E40GDCOQSFP	• 1U / 2UAccessory Kit
iPC - AXX2P40FRTIOM	MM# - 933743UPC - 00735858282314EAN - 5032037063647MOQ - 1	Cabling type:10GBASE-CR4: Copper Direct Attach passive cable (1-7m);10GBASE-SR4: MMF (OM3) up to 100mIntel® Ethernet 40G DCO Optics up to 50mKits Include:(1) I/O module(1) EMI shield(1) Port Labeling Sticker (2 Port only model)(1 set) Mounting screws
iPC - AXX10GBNIAIOM	MM# - 917905UPC - 00735858241090EAN - 5032037035842MOQ - 1	Intel® I/O Module AXX10GBNIAIOMDual SFP+ port 10GbE IO module based on Intel® 82599ES 10 Gigabit Ethernet ControllerKit Includes:(1) I/O module(1) EMI shield(1) Port Labeling Sticker(1 set) Mounting screws	• 1U / 2UAccessory Kit

Intel® Server S2600WT Product Family Configuration Guide and Spares/Accessories List

Intel Product Code	Order Information	Product Description	Product Type
iPC - AXX10GBTWLIOM3	MM - 941869UPC - 00735858296656EAN - 5032037072472MOQ - 1	Intel® I/O Module AXX10GBTWLIOM3Dual RJ-45 port 10GBASE-T IO module, based on Intel® Ethernet Controller X540Kit Includes:(1) I/O module(1) EMI shield(1) Port Labeling Sticker(1 set) Mounting screws	• 1U / 2UAccessory Kit
iPC - AXX1FDRIBIOM	MM - 918607UPC - 00735858241106EAN - 5032037035859MOQ - 1	Intel® I/O Module AXX1FDRIBIOMSingle port, FDR 56GT/S speed Intel® I/O Expansion Infiniband* moduleKit Includes:(1) I/O module(1) EMI shield(1) Port Labeling Sticker(1 set) Mounting screws	• 1U / 2UAccessory Kit
iPC - AXX2FDRIBIOM	MM - 920627UPC - 00735858245722EAN - 5032037040235MOQ - 1	Intel® I/O Module AXX2FDRIBIOMDual port, FDR 56GT/S (per port capable) speed Infiniband* moduleKit Includes:(1) I/O module(1) EMI shield(1) Port Labeling Sticker(1 set) Mounting screws	• 1U / 2UAccessory Kit

Intel® Server S2600WT Product Family Configuration Guide and Spares/Accessories List

Intel Product Code	Order Information	Product Description	Product Type
iPC - AXX4P1GBPWLIOM	MM - 917911UPC - 00735858241083EAN - 5032037035835MOQ - 1	Intel® I/O Module AXX4P1GBPWLIOMQuad port 1GbE IO Module based on Intel® Ethernet Controller I350Kit Includes:(1) I/O module(1) EMI shield(1) Port Labeling Sticker(1 set) Mounting screws	• 1U / 2UAccessory Kit

5.9 Intel® SAS RAID Add-in Cards, Modules, and Accessories

Intel ^® RAID offers a broad portfolio of RAID solutions designed to address the storage-related challenges of the modern day datacenter as well as the small business. The Intel ^® S2600WT product family includes support for the latest generation of 12 Gb/s SAS Intel ^® RAID add-in cards, modules, expanders, and accessories. Previous generation 6Gb/s Intel RAID cards can also be supported. See the published Tested Hardware and OS List for a full list of validated Intel RAID cards.

Additional information for Intel RAID products can be found at the following Intel web sites:

http://www.intelraid.com/files/Intel_RMS3_Brief_Final.pdf
http://www.intelraid.com/files/Intel-1106-RAID-Brochure_New2014102.pdf
http://www.intelraid.com/files/RAID_Matrix_20142.pdf

5.9.1 Intel® Integrated RAID Module RMS3 Product Family – SAS 3.0 (12 Gb/s)

Intel Product Code	Order Information	Product Description	Product Type
iPC - RMS3CC080	MM# - 932474UPC - 00735858276832EAN - 5032037060448MOQ - 5	Intel® Integrated RAID Module RMS3CC080Mezzanine Form Factor HW RAID Module8 internal SAS / SATA portsMini-SAS HD SFF8643 connectorsLSI* SAS3108 ROC with 1GB DDR3RAID Levels 0, 1, 5, 6, 10, 50, 60Embedded 1GB DDR3 Cache MemorySupports Maintenance Free Backup Unit - iPC AXXRMFBU5SAS Data cables not included . Must be purchased separately	• 1U / 2U Accessory Kit
iPC - RMS3CC040	MM# -932473UPC - 00735858276849EAN - 5032037060455MOQ - 5	Intel® Integrated RAID Module RMS3CC040Mezzanine Form Factor HW RAID Module4 internal SAS / SATA portsMini-SAS HD SFF8643 connectorsLSI* SAS3108 ROC with 1GB DDR3RAID Levels 0, 1, 5, 6, 10, 50, 60Embedded 1GB DDR3 Cache MemorySupports Maintenance Free Backup Unit - iPC AXXRMFBU5SAS Data cables not included . Must be purchased separately	• 1U / 2 U Accessory Kit

Intel® Server S2600WT Product Family Configuration Guide and Spares/Accessories List

Intel Product Code	Order Information	Product Description	Product Type
iPC - RMS3HC080	MM - 932469UPC - 00735858276818EAN - 5032037060424MOQ - 5	Intel® Integrated RAID Module RMS3HC080Mezzanine Form Factor Entry-RAID Module8 internal SAS / SATA portsMini-SAS HD SFF8643 connectorsLSI* SAS3008 SAS IOC with Advanced ManagementEntry HW RAID levels - JBOD, RAID 0,1,10 & Hybrid 5,50128MB server board memory utilized as cache memory for RAID 5/50SAS Data cables not included. Must be purchased separately	• 1U / 2U Accessory Kit
iPC - RMS3JC080	MM - 932472UPC - 00735858276825EAN - 5032037060431MOQ - 5	Intel® Integrated RAID Module RMS3JC080Mezzanine Form Factor Entry-RAID Module8 internal SAS / SATA portsMini-SAS HD SFF8643 connectorsLSI* SAS3008 IOC with Basic FirmwareEntry HW RAID levels - JBOD, RAID 0, 1, 1E, 10SAS Data cables not included. Must be purchased separately	• 1U / 2U Accessory Kit
iPC - AXXRMFBU5	MM# - 933907UPC - 00735858276801EAN - 5032037060417MOQ - 5	Intel® RAID Maintenance Free Backup Unit AXXRFMBU5A super-capacitor module and flash memory card designed to help protect data in dynamic memory during a power failure or system crash event.The AXXRMFBU5 kit is used with the 12 Gb/s Intel® Integrated RAID ModulesCompatible with:• Intel* Integrated RAID Module RMS3CC080• Intel® Integrated RAID Module RMS3CC040	• 1U / 2U Accessory Kit

5.9.2 Intel® RAID Controller Add-in Cards - SAS 3.0 (12Gb/s)

Intel Product Code	Order Information	Product Description Product Type
iPC - RS3DC080	MM# - 934643UPC - 00735858265355MOQ - 5	Intel^® RAID Controller RS3DC080Low Profile, half length, (MD2 Compliant) PCIe* add-in card8 internal SAS / SATA portsLSI* SAS3108 ROCRAID Levels - 0, 1, 5, 6, 10, 50, and 60Embedded 1GB DDR3 Cache MemorySupports Maintenance Free Backup Unit - iPC AXXRMFBU4SAS Data cables not included. Must be purchased separately	• 1U / 2U Accessory Kit
iPC - RS3DC040	MM# - 934644UPC - 00735858265362MOQ - 5	Intel^® RAID Controller RS3DC040Low Profile, half length, (MD2 Compliant) PCIe* add-in card4 internal SAS / SATA portsLSI* SAS3108 ROCRAID Levels - 0, 1, 5, 6, 10, 50, and 60Embedded 1GB DDR3 Cache MemorySupports Maintenance Free Backup Unit - iPC AXXRMFBU4SAS Data cables not included. Must be purchased separately	• 1U / 2U Accessory Kit
iPC - RS3SC008	MM# - 928223UPC - 00735858266956EAN - 5032037068567MOQ - 5	Intel^® RAID Controller RS3SC008Low Profile, half length, (MD2 Compliant) PCIe* add-in card8 external SAS / SATA portsLSI* SAS3108 ROCRAID Levels - 0, 1, 5, 6, 10, 50, and 60Embedded 1GB DDR3 Cache MemorySupports Maintenance Free Backup Unit - iPC AXXRMFBU4SAS Data cables not included. Must be purchased separately	• 1U / 2U Accessory Kit

Intel® Server S2600WT Product Family Configuration Guide and Spares/Accessories List

Intel Product Code	Order Information	Product Description Product Type
iPC - RS3MC044	MM# - 928244UPC - 00735858266987EAN - 5032037068574MOQ - 5	Intel ^ RAID Controller RS3MC044Low Profile, half length, (MD2 Compliant) PCIe* add-in card4 internal SAS / SATA ports + 4 external SAS / SATA portsLSI* SAS3108 ROCRAID Levels - 0, 1, 5, 6, 10, 50, and 60Embedded 1GB DDR3 Cache MemorySupports Maintenance Free Backup Unit - iPC AXXRMFBU4SAS Data cables not included. Must be purchased separately	• 1U / 2U Accessory Kit
iPC - RS3GC008	MM# - 928220UPC - 00735858267175EAN - 5032037053839MOQ - 5	Intel ^ RAID Controller RS3GC008Low Profile, half length, (MD2 Compliant) PCIe* add-in cardEntry Level SAS Card8 external SAS / SATA portsLSI* SAS3008 IOCRAID Levels - JBOD (SAS Connectivity)SAS Data cables not included. Must be purchased separately	• 1U / 2U Accessory Kit
iPC - RS3UC080	MM# - 928218UPC - 00735858267649EAN - 5032037053938MOQ - 5	Intel ^ RAID Controller RS3UC080Low Profile, half length, (MD2 Compliant) PCIe* add-in cardEntry Level SAS RAID Card8 internal SAS / SATA portsLSI* SAS3008 IOCRAID Levels - 0, 1, 1E, 10, and JBODSAS Data cables not included. Must be purchased separately	• 1U / 2U Accessory Kit

Intel® Server S2600WT Product Family Configuration Guide and Spares/Accessories List

Intel Product Code	Order Information	Product Description Product Type
iPC - RS3FC044	MM# - 928219UPC - 00735858267267EAN - 5032037053921MOQ - 5	Intel^ RAID Controller RS3FC044Low Profile, half length, (MD2 Compliant) PCIe* add-in cardEntry Level SAS RAID Card4 internal + 4 external SAS / SATA portsLSI* SAS3008 IOCRAID Levels - 0, 1, 1E, 10, and JBODSAS Data cables not included. Must be purchased separately	• 1U / 2U Accessory Kit
iPC - AXXRMFBU4	MM# - 937318UPC - 00735858273787EAN - 5032037058544MOQ - 5	Intel^ RAID Maintenance Free Backup Unit AXXRFMBU4A super-capacitor module and flash memory card designed to help protect data in dynamic memory during a power failure or system crash event.The AXXRMFBU4 kit is used with the 12 Gb/s Intel^ RAID Controller PCIe* Add-in CardsCompatible with:• Intel* RAID Controller RS3DC080• Intel® RAID Controller RS3DC040• Intel* RAID Controller RS3SC008• Intel® RAID Controller RS3MC044	• 1U / 2U Accessory Kit

5.9.3 Intel® RAID Accessory Options

Intel Product Code	Order Information	Product Description	Product Type
iPC - AXXRPFKSSD2	MM# - 919499UPC - 735858221467EAN - 5032037051699MOQ - 5	Intel^ RAID SSD Cache with Fast Path I/OUpgrade Key to enable SSD Cache with Fastpath I/O for Intel ^ s RAID RS25 and RS3 (based on LSI 3108) families of ROC products.	• 1U / 2U Accessory Kit
iPC - AXXRPFKDE2	MM# - 915317UPC - 735858221474EAN - 5032037051705MOQ - 5	Intel^ RAID Drive Encryption ManagementUpgrade Key to enable Drive Encryption Management for Intel ^ s RAID RS25 and RS3 (based on LSI 3108) families of ROC products.	• 1U / 2U Accessory Kit
iPC - AXXRPFKSNSH2	MM# - 915318UPC - 735858221481EAN - 5032037051712MOQ - 5	Intel^ RAID Rapid RecoverySnapshotUpgrade Key to enable Rapid Recovery Snapshot for Intel ^ s RAID RS25 and RS3 (based on LSI 3108) families of ROC products.	• 1U / 2U Accessory Kit
iPC - RKSATA4R5	MM# - 916346UPC - 00735858238861EAN - 5032037033640MOQ - 5	ESRT2 SATA SW RAID activation keyUsed to enable onboard SATA controllers to support embedded ESRT2 SW RAID 5	• 1U / 2U Accessory Kit
			•

Intel® Server S2600WT Product Family Configuration Guide and Spares/Accessories List

Intel Product Code	Order Information	Product Description	Product Type
iPC - AXXRMFBU5	MM# - 933907UPC - 00735858276801EAN - 5032037060417MOQ - 5	Intel^ RAID Maintenance Free Backup Unit AXXRFMBU5A super-capacitor module and flash memory card designed to help protect data in dynamic memory during a power failure or system crash event.The AXXRMFBU5 kit is used with the 12 Gb/s Intel^ Integrated RAID ModulesCompatible with:Intel* Integrated RAID Module RMS3CC080Intel* Integrated RAID Module RMS3CC040	1U / 2U Accessory Kit
iPC - AXXRMFBU4	MM# - 937318UPC - 00735858273787EAN - 5032037058544MOQ - 5	Intel^ RAID Maintenance Free Backup Unit AXXRFMBU4A super-capacitor module and flash memory card designed to help protect data in dynamic memory during a power failure or system crash event.The AXXRMFBU4 kit is used with the 12 Gb/s Intel^ RAID Controller PCIe* Add-in CardsCompatible with:Intel* RAID Controller RS3DC080Intel* RAID Controller RS3DC040Intel* RAID Controller RS3SC008Intel* RAID Controller RS3MC044	1U / 2U Accessory Kit

Intel® Server S2600WT Product Family Configuration Guide and Spares/Accessories List

Intel Product Code	Order Information	Product Description	Product Type
iPC - AWTAUXBBUBKT	MM# – 937082UPC – 00735858289344EAN – 5032037068321MOQ – 1	1U / 2U RMFBU Mounting Option KitKit includes:(1) – 2U RMFBU Mounting plate. The mounting plate installs in one of two possible mounting locations in front of either riser slot on the 2U air duct and can support up to two AXXRMFBU5 or AXXRSBBU9 units. Full length PCIe cards cannot be supported when this mounting plate is installed behind the given riser slot.(1) – RMFBU plastic housing bracket to support two stacked AXXRMFBU5 units in a 1U chassis	• 1U / 2U Accessory Kit

5.10 Intel Power Supply Modules and Power Cords

Intel Product Code	Order Information	Product Description	Product Type
iPC - AXX1100PCRPS	MM# - 936183UPC - 00735858287920EAN - 5032037067478MOQ - 1	1100W AC CRPS 80+ Platinum efficiency power supply modulePower cord sold separately	2U Building Block Option2U Accessory Kit2U Spare FRU
iPC - FXX750PCRPS	MM# - 915604UPC - 00735858234979EAN - 5032037030601MOQ - 1	750W AC CRPS 80+ Platinum efficiency power supply modulePower cord sold separately	1U / 2U Building Block Option1U / 2U Accessory Kit1U / 2U Spare FRU
iPC - AXX750DCCRPS	*Supported in Late Q2 2015	750W -48v DC (Direct current) CRPS 80+ Gold efficiency power supply moduleKit Includes:(1) power supply(1) O-ring terminal adapter.Power cable sold separately	1U / 2U Building Block Option1U / 2U Accessory Kit1U / 2U Spare FRU
iPC - AXXDCCRPSCBL	MM - 922062UPC - 00735858247993EAN - 5032037042871MOQ - 1	4000mm (13ft)DC power cable. Connects directly to power supply instead of O-ring terminals adapter	1U / 2U Accessory Kit1U /2U Spare FRU
iPC - FPWRCABLENA	MM# - 879287UPC - 00735858181129EAN - 5032037015738MOQ - 1	1500mm (59in) North American Power Cord	1U / 2U Accessory Kit1U / 2U Spare FRU

5.11 1U / 2U Rack Mount Kits

Caution: Exceeding the rail kit's specified maximum weight limit or misalignment of the server in the rack may result in failure of the rack rails, resulting in damage to the system or personal injury. Using two people or the use of a mechanical assist tool to install and align the server into the rack is highly recommended.

Intel Product Code	Order Information	Product Description	Product Type
iPC - AXXPRAIL	MM# – 924417UPC – 00735858219686EAN – 5032037014823MOQ – 1	1U / 2U Premium Rail Kit1U and 2U compatibleAdjustment within 609.6mm~762mm to fit difference depth rack800mm maximum travel lengthFull extension from rack54 lbs (24 kgs) max support weightTool-less installationDrop in system installFor Cable Management arm support – order IPCAXX1U2UCMA	1U / 2U Accessory Kit
iPC - AXXELVRAIL	MM# – 920970UPC – 00735858244367EAN – 5032037038980MOQ - 1	1U / 2U Enhanced Value Rail KitWorks for all 438mm wide Intel ' Rack Chassis 1U, 2U, 4UAdjustment within 609.6mm~765mm to fit difference depth rack424.2mm maximum travel length2/3 extension from rack130 lbs (59 kgs) max support weightTool-less chassis attachTools required to attach to rails to rackNote: No Cable Management Arm support.	1U / 2U Accessory Kit
iPC - AXX1U2UCMA	MM# – 913117UPC – 00735858224604EAN – 5032037019972MOQ – 1	1U / 2U Cable Management Arm (CMA)1U / 2U compatibleSupport for Premium 1U/2U AXXPRAIL and 1U A1UFULLRAIL rail kit options only	1U / 2U Accessory Kit

Intel® Server S2600WT Product Family Configuration Guide and Spares/Accessories List

Intel Product Code	Order Information	Product Description	Product Type
iPC - AXX2POSTBRCKT	MM# – 918808UPC – 00735858245319EAN – 5032037039833MOQ – 1	1U / 2U 2-Post fixed mount bracket kit1U and 2U compatibleTools required to attach components to rackNOTE: Not compatible with 24x2.5" drive or 12x3.5" drive system configurations	1U / 2U Accessory Kit
iPC - A1USHRTRAILNEW - COMING Q2 2015		1U Premium quality rails with no CMA supportTravel distance 780mmFull extension from rackKit includes: Rails, screws, installation manual	1U Accessory Kit
iPC - A1UFULLRAILNEW - COMING Q2 2015		1U Premium quality rails with CMA support.Travel distance 780mmFull extension from rackKit includes: Rails, screws, installation manualFor Cable Management arm support – order iPCAXX1U2UCMA	1U Accessory Kit
iPC - AXXFULLRAILNEW - COMING Q2 2015		2U+ Premium quality rails with CMA support.Travel distance 780mmFull extension from rackKit includes: Rails, screws, installation manualFor Cable Management arm – order iPC AXXCMA2	2U Accessory Kit
iPC - AXXCMA2NEW - COMING Q2 2015		Cable management armCompatible with AXXFULLRAIL only	2U Accessory Kit

5.12 Intel® Xeon Phi™ Coprocessor Card and Non-Intel GPGPU Support

Intel® Xeon Phi™ Coprocessor cards and non-Intel GPGPU cards are supported in the following 2U system configurations only: R2208WT, R2308WT, and R2216WT. Because of mechanical and thermal limits, the 1U product family and the R2312WT... and R2224WT... system configurations do NOT have support for Intel® Xeon Phi™ coprocessor cards or non-Intel GPGPU cards.

Two Intel i38 PC drives with blue memory chips, displayed against a black background (no text or symbols visible on the modules themselves)

Figure 18. Intel ^® Xeon Phi ^™ Coprosensor Cards With Active and Passive Cooling

• Supported 2U systems configured with the standard (default) air duct, can only support high power add-in cards (>75W) with active (with fan) heat sinks.
- In supported 2U system, high power add-in cards (>75W) with passive (no fan) heat sinks can only be supported in systems configured with a high air flow air duct available in Intel Accessory Kit – iPC AWTCOPRODUCT
NOTE: Intel® Server System R2208WTTYC1 is a special system SKU that includes the necessary components to support passive high power (>75W) add-in cards like the Intel® Xeon Phi™ coprocessor card or non-Intel GPGPU cards.

See the Intel ^* Server System R2000WT product family Technical Product Specification for more information.

Non-Intel GPGPU Support Disclaimer:

Intel incorporates necessary features and conducts appropriate thermal testing of its server systems to ensure the thermal requirements of Intel ^1 Xeon Phi ^™ coprocessor cards can be supported when the documented support criteria are met.

Intel can make support recommendations for non-Intel GPGPU cards listed on its Tested Hardware and Support List, based on the same support criteria. However, Intel cannot guarantee its server systems can meet the thermal requirements of these non-Intel high power add-in cards. System integrators should verify non-Intel GPGPU add-in card air flow and thermal requirements from vendor specifications before integrating them into the system. It is the responsibility of the system integrator to conduct appropriate system testing on server systems configured with a non-Intel GPGPU card to ensure reliable operation.

For non-Intel GPGPU cards listed on Intel's tested hardware and OS list, Intel will provide best internal support efforts to duplicate and understand reported issues. However, Intel cannot guarantee an issue will be root caused nor that a fix can be made available to correct it.

Intel Product Code	Order Information	Product Description	Product Type
iPC - AWTCOPRODUCT	MM# - 934988UPC - 00735858283328EAN - 5032037064385MOQ - 1	2U High Air flow Air Duct KitRequired 2U accessory kit when installing an Intel® Xeon PhiTM coprocessor card with passive heat sink (heat sink only, no fan)Kit Includes:(1) High air flow air duct(1) Metal shipping bracket(2) Non-intel GPGPU secure mounting adaptersNote: Intel Xeon Phi cards with active heat sinks are NOT supported in systems configured with the high air flow air duct.Note: Systems configured with any type of Intel® Xeon PhiTM card and/or non-Intel GPGPU card must have the shipping bracket installed before the system is exposed to any level of shock or vibration or is shipped to the end user location. Failure to install the shipping bracket has the potential to cause serious damage to various components within the system.	• 2U Accessory Kit

• Each Intel ^® Xeon Phi™ coprocessor card and non-Intel GPGPU card must be installed into the top x16 slot of a 2-Slot PCIe* Riser card. With a 2-slot riser card installed, the embedded fan speed control will operate system fans at a higher speed. 3-slot riser cards (as shipped in the standard platform configuration) cannot be used due to air flow and thermal limitations.

Intel® Server S2600WT Product Family Configuration Guide and Spares/Accessories List

Intel Product Code	Order Information	Product Description Product Type
iPC - A2UL16RISER2	MM# - 934886UPC - 00735858288668EAN - 5032037067942MOQ - 1	2U 2-slot riser cardRequired 2U accessory kit when installing an Intel® Xeon PhiTM coprocessor or other Non-Intel GPGPU card		• 2U Building Block Accessory Kit• 2U Spare FRU
		Slot #	Description
		Slot-1 (Top)	PCIe* x16 elec, x16 mechanical
		Slot-2 (Bottom)	PCIe* x8 elec, x8 mechanical
		Kit includes:(1) Riser card PCBA(1) 12V-AUX Power Cable

1. 1U / 2U Miscellaneous Accessory Options

Intel Product Code	Order Information	Product Description Product Type
iPC - A1U2ULCP	MM# - 921028UPC - 00735858245302EAN - 5032037039826MOQ - 1	Intel® Local Control PanelA 1U / 2U front panel module which supports the following features:2 line LCD screenCustomized messagingAble to display critical system errorsWhen installed this module replaces the front I/O port module on R1304, R1208, R2308, R2208, and R2216 based systems. The LCP module re-uses the existing front USB port assembly from these systems. It does NOT support a front video connector.This Kit is NOT compatible with R2224 and R2312 based systems.See the Intel® Local Control Panel Technical Product Specification for more information	1U / 2U Accessory Kit
iPC - AXXSATADVDROM	MM# - 937569UPC - 00735858197663EAN - 5032037015127MOQ - 1	Slimline SATA DVDROM DriveIncludes 880mm SATA cableA peripheral power cable is included with the systems that have support for optical drivesOptical drives are not supported in R2312WT & R2224WT based systems	1U / 2U Accessory Kit
iPC - AXXSATADVDRWROM	MM# - 937575UPC - 00735858197670EAN - 5032037015134MOQ - 1	Slimline SATA DVD+/-RW ROM DriveIncludes 880mm SATA cableA peripheral power cable is included with the systems that have support for optical drivesOptical drives are not supported in R2312WT & R2224WT based systems	1U / 2U Accessory Kit

Intel® Server S2600WT Product Family Configuration Guide and Spares/Accessories List

Intel Product Code	Order Information	Product Description Product Type
iPC - AXXSSDODDKIT	MM# – 935065UPC – 00735858288750EAN – 5032037068031MOQ – 1	1U fixed mount SSD mounting KitTray is installed in the optical drive bay of 1U systems.Kit includes:(1) – Metal SSD mounting tray accomodates one 2.5" SATA SSD(1) – 800mm SATA data cable(1) – SSD peripheral power cableNote: Maximum SSD thickness supported = 7mmNote: Systems configured with this kit cannot support an additional optical drive	• 1U Accessory Kit
iPC - AXXRJ45DB93	MM# – 920430UPC – 00735858242820EAN – 5032037037525MOQ – 1	Serial Port Cable KitThis kit provides serial port cables for use with systems that include a back panel cut out to support a DB9 Serial 'B' port as routed from the server board and for systems that include an external RJ45 Serial 'A' port that need to convert the connector to a DB9 style connector.Kit includes:(1) - 1040mm Internal Serial 'B' port cable – Onboard DH10 header- to- External Mount DB9 – for 2U systems(1) - 520mm Internal Serial 'B' port cable – Onboard DH10 header- to- External mount DB9 – for 2U systems(1) – 100mm DCD RJ45 to DB9 Dongle(1) – 100mm DSR RJ45 to DB9 Dongle	• 1U / 2U Accessory Kit

Intel® Server S2600WT Product Family Configuration Guide and Spares/Accessories List

Intel Product Code	Order Information	Product Description Product Type
iPC - AXXRMM4LITE	MM# – 911660UPC – 00735858219297EAN – 5032037014946MOQ – 1	Intel^ Remote Management Module 4 Lite Activation keyInstallation of this activation key on to the server board enables support for the following advanced server management features:• Integrated KVM• Media RedirectionSee the Intel Remote Management Module 4 and Integrated Web Console Users Guide for more information.	• 1U / 2U Accessory Kit
iPC - AXXTPME5	MM# – 919737UPC – 00735858240352EAN – 5032037035088MOQ – 1	Intel^ Trusted Platform Module (TPM)A TPM is a hardware-based security device that addresses the growing concern on boot process integrity and offers better data protection. TPM protects the system start-up process by ensuring it is tamper-free before releasing system control to the operating system. A TPM device provides secured storage to store data, such as security keys and passwords. In addition, a TPM device has encryption and hash functions.AXXTPME5 implements TPM as per TPM PC Client specifications revision 1.2 by the Trusted Computing Group (TCG)	• 1U / 2U Accessory Kit

7. 1U / 2U Spare and Replacement Parts (FRUs)

System integrators and distributors may choose to hold additional stock of individual system components. Intel makes available the following Spare and Replacement Parts (FRUs) compatible with the specified Intel server family.

Intel Product Code	Order Information	Product Description Product Type
iPC - FXXFPANEL2	MM# - 937543UPC - 00735858288712EAN - 5032037067997MOQ - 1	Front Panel board spare for use on 1U/2U rack systems (R1000, R2000 except R2224 and R2312) Rack chassis and P4000 Pedestal Chassis. Different from FXXFPANEL by 0.6mm offset of reset and power buttons.	• 1U / 2U Spare FRU
iPC - FXXCA84X106HS	MM# - 918318UPC - 00735858236676EAN - 5032037031448MOQ - 2	1U Heat Sink FXXCA84X106HS (Cu/Al 84mmx106mm)	• 1U / 2U Spare FRU
iPC - FR1UFAN10PW	MM# - 935064UPC - 00735858283342EAN - 5032037064408MOQ - 1	Three spare fans for 1U R1000WT system. 40x56mm dual rotor with 10p connector.Includes 3 fans in the bracket, with grommets preinstalled.	• 1U Spare FRU

Intel® Server S2600WT Product Family Configuration Guide and Spares/Accessories List

Intel Product Code	Order Information	Product Description Product Type
iPC - FR2UFAN60HSW	MM# - 934990UPC - 00735858283359EAN - 5032037064415MOQ - 1	Two spare fans for 2U R2000WT system. 60x38mm, with hot swap connector.Includes 2 fans with finger guards and housing.	• 2U Spare FRU
iPC - FR1304S3HSBP	MM# - 934887UPC - 00735858288835EAN - 5032037068116MOQ - 1	Hot swap backplane board spare for 1U 4x3.5" chassis (R1304 family).	• 1U Spare FRU
iPC - F1U8X25S3HSBP	MM# - 934888UPC - 00735858288798EAN - 5032037068079MOQ - 1	Hot swap backplane board spare for 1U 8x2.5" chassis (R1208 family).	• 1U Spare FRU
iPC - FXX8X25S3HSBP	MM# - 934890UPC - 00735858288804EAN - 5032037068086MOQ - 1	Single port hot swap backplane board spare for 2U 8x2.5" cage (R2200 and P4000 families).Includes one backplane board.	• 2U Spare FRU

Intel® Server S2600WT Product Family Configuration Guide and Spares/Accessories List

Intel Product Code	Order Information	Product Description Product Type
iPC - F2U8X35S3HSBP	MM# - 934892UPC - 00735858288811EAN - 5032037068093MOQ - 1	Hot swap backplane board spare for 2U 8x3.5" chassis (R2308 family).Includes one backplane board.	• 2U Spare FRU
iPC - F2U12X35S3HSBP	MM# - 934893UPC - 00735858288828EAN - 5032037068109MOQ - 1	Hot swap backplane board spare for 2U 12x3.5" chassis (R2312 family).Includes one backplane board.	• 2U Spare FRU
iPC - A2UHANDLKIT	MM# - 936038UPC - 00735858288866EAN - 5032037068147MOQ - 1	1U / 2U Rack Handle KitThis kit includes 3 different rack handles, including:(1) Set of 2U storage rack handles with control panel and USB support(R2312WT & R2224WT)(1) Set of 2U non -storage rack handles(R2208WT & R2216WT)(1) Set of 1U rack handles(R1304WT & R1208WT	• 2U - 24 2.5" Drive Upgrade Kit• 1U / 2U Spares Kit

Intel® Server S2600WT Product Family Configuration Guide and Spares/Accessories List

Intel Product Code	Order Information	Product Description Product Type
iPC - FXX25HSCAR2	MM# - 937542UPC -00735858289405EAN - 5032037068383MOQ - 8	Spare 2.5" HDD hot swap carriers.	• 1U / 2U Spare FRU
iPC - FXX35HSCAR	MM# - 936192UPC - 00735858289412EAN - 5032037068390MOQ - 8	Spare 3.5" hot swap drive carriers.Includes mounting screws for mounting 2.5" SSDs.	• 1U / 2U Spare FRU

1. Extended Warranty

Image	Order Information	Description
	iPC - SVCEWDPSYMM# - 911295MOQ - 1	Two year extended warranty for Intel® Server Systems or Intel® Server Knock Down Kits + Intel® Server Boards that support two processors. Intel® RAID controller extended warranty is purchased separately.
	iPC - SVCEWDPBDMM# - 911294MOQ - 1	Two year extended warranty for Intel® Server Boards that support two processors.
	iPC - SVCEWRAIDMM# - 911298MOQ - 1	Two year extended warranty for Intel® RAID controllers. Batteries are not included in the Extended Warranty. RAID expanders are included as part of the system SKU

Glossary of Terms

A list of Acronyms and Terms used throughout this document

Acronym or Term	Definition	Acronym or Term	Definition
BIK	Baseboard In Knock-Down-Kit – Integrated System	QSFP	Quad Small Form factor Pluggable
CRPS	Common Redundant Power Supply	RAID	Redundant Array of Independent Drives
EAN	International Article Number (Barcode)	Required Option	Hardware that must be added to the shipping configuration for the system to operate
EMI	Electromagnetic Interference	RMFBU	RAID Maintenance Free Backup Unit
ESRT2	Intel® Embedded Server RAID Technology 2	RMM4 Lite	Intel® Remote Management Module 4 Lite Activation key
FDR Infiniband	Fourteen Data Rate Infiniband	ROC	RAID on Chip
FRU	Field Replaceable Unit	RSTe	Intel® Rapid Stroage Technology
GPGPU General	Purpose computing on Graphics Processing Unit	SAS Serial Attached SCSI
iPC	Intel Product Code	SATA	Serial ATA
iPN	Intel Product Number	SFP	Small Form factor Pluggable
LCP	Intel® Local Control Panel
JBOD	Just a bunch of drives
KDK	Knock-Down-Kit – (Chassis only product)	SKU	Stock Keeping Unit
KVM	Keyboard / Video / Mouse	SSD	Solid State Drive
MM#	Master Material order number	UPC	Universal Product Code (Barcode)
MOQ	Mimimum Order Quantity
NVMe	NVM Express – based on Non-Volatile Memory Host Controller Interface Specification (NVMHCI)
Optional Accessory	Hardware that can be added to the system to enhance the default feature set of the shipping configuration
PCBA	Printed Cricuit Board Assembly

Intel® Server S2600WT Product Family Configuration Guide and Spares/Accessories List
