Product Type	Server System
Model	SR2600URLX
Motherboard	Intel Server Board S5520UR
Chassis	Intel Server Chassis SR2600
Form Factor	2U Rack Mount
Supported Processors	Dual Intel Xeon 5500 series (not included)
Memory	7 DIMM blanks; supports DDR3 (not included)
Drive Bays	5 x 3.5" hot-swap SAS/SATA (6th optional via ASR2500SIXDRV)
Expansion Slots	1 active butterfly riser: 5 PCI Express 2.0 x8 slots (1 x16, 2 x8 full-height, 2 x8 low-profile)
Storage Controller	Active Midplane2 with 8-port LSI 1078 SAS controller, upgradeable to HW RAID
Power Supply	1 x 750W hot-swap redundant capable (second optional for redundancy)
Cooling Fans	6 redundant hot-swap fans (included)
Control Panel	Standard control panel (included)
Management	Optional Remote Management Module 3 (AXXRMM3); Intel System Management Software
Included Accessories	2 processor heatsinks, 7 DIMM blanks, tape drive bay filler, chassis front handles
Optional RAID Upgrade	Requires AXXRAKSAS2 key and AXXMINIDIMM512; optional battery backup AXXRSBBU3
Dimensions (Approx.)	2U rack: 17.2" x 27.75" x 3.5" (WxDxH)
Weight (Approx.)	~30 lbs (13.6 kg) without drives/CPUs
Power Cord	Standard (NA cord for SR2600URLXNA variant)
Compliance	Intel terms and conditions; not for medical/life-saving applications

Frequently Asked Questions - SR2600URLX INTEL

What processors does the SR2600URLX support?

The Intel Server Board S5520UR supports dual Intel Xeon 5500 series processors. CPUs are not included with the system.

How many hard drives can be installed?

The system comes with 5 hot-swap 3.5" drive carriers. A 6th drive can be added using the optional ASR2500SIXDRV kit. All drives must be SAS or SATA.

Does the system include a RAID controller?

Yes, it includes an Active Midplane2 with an 8-port LSI 1078 SAS controller that supports basic RAID. For full hardware RAID (0,1,5,6), you need the AXXRAKSAS2 key and AXXMINIDIMM512 cache module.

What is the power supply specification?

The system includes one 750W hot-swap power supply. A second unit can be added (order AXX750WPS) for redundancy. The power supply is high-efficiency.

How many expansion slots are available?

The included active butterfly riser provides 5 PCI Express 2.0 x8 slots: 1 full-height x16, 2 full-height x8, and 2 low-profile x8. Alternate risers are available for different configurations.

Is the system hot-swap capable?

Yes, the SR2600URLX includes 6 redundant hot-swap fans and a hot-swap power supply. Drives are also hot-swappable via the backplane.

What management software is available?

Intel offers Intel System Management Software upgrades (Microsoft System Center Essentials) and optional Remote Management Module 3 (AXXRMM3) for out-of-band management.

Can I use SAS drives with the system?

Yes, the system supports both SAS and SATA drives. The included Active Midplane2 has an integrated SAS controller for direct SAS support. For passive configurations, a discrete SAS controller is needed.

What optional accessories can I order?

Key optional accessories include: second power supply (AXX750WPS), RAID upgrade key (AXXRAKSAS2), mini DIMM (AXXMINIDIMM512), battery backup (AXXRSBBU3), PCI-X riser (ASR26XXFHXR), 6th drive kit (ASR2500SIXDRV), and tape drive mounting kit (ASR2500SATAPE).

Does the system come with processors and memory?

No, processors, DDR3 memory, and hard drives are not included. The system includes heatsinks, DIMM blanks, and drive carriers, but you must install your own CPUs, RAM, and storage.

USER MANUAL SR2600URLX INTEL

Intel® Server Board S5520UR
Intel® Server System SR1600UR
Intel® Server System SR1600URHS
Intel® Server System SR1625UR
Intel® Server System SR1625URSAS
Intel® Server System SR2600URBRP
Intel® Server System SR2600URLX
Intel® Server System SR2600URSATA
Intel® Server System SR2625URBRP
Intel ^® Server System SR2625URLX

Spares/Accessories List and Configuration Guide

A reference guide to assist customers in ordering the necessary components to configure the Intel® Server Board S5520UR and the appropriate 1U and 2U Intel Rack Mount Server Systems

November 1.6

November 2009

Enterprise Platforms and Services Marketing

Revision History

November'08 – Rev0.9 – Updated for production board and systems.

February`09 - Rev 1.0 – Ready for open books .

March'09 – Rev 1.01 – Updated with images of Spares and Accessories.

March'09 – Rev 1.02 – SR1600URNA MM# updated.

April'09 – Rev 1.03 – Pictures updated, MM# for ASR2600LXFANS corrected.

April'09 – Rev 1.1 – Management SW section added.

April'09 – Rev 1.2 – LCP SKU added

June'09 – Rev 1.3 – Riser and 10G module added. Pictures added

September'09 – Rev 1.4 – SR2600URSATA added. Pictures added

October'09 – Rev 1.5 – VMware vSphere* Virtualization Software added.

November'09 – Rev 1.6 – Update the MM# of AXXIBQDRIOMOD.

INFORMATION IN THIS DOCUMENT IS PROVIDED IN CONNECTION WITH INTEL® PRODUCTS. NO LICENSE, EXPRESS OR IMPLIED, BY ESTOPPEL OR OTHERWISE, TO ANY INTELLECTUAL PROPERTY RIGHTS IS GRANTED BY THIS DOCUMENT. EXCEPT AS PROVIDED IN INTEL'S TERMS AND CONDITIONS OF SALE FOR SUCH PRODUCTS, INTEL ASSUMES NO LIABILITY WHATSOEVER, AND INTEL DISCLAIMS ANY EXPRESS OR IMPLIED WARRANTY, RELATING TO SALE AND/OR USE OF INTEL PRODUCTS INCLUDING LIABILITY OR WARRANTIES RELATING TO FITNESS FOR A PARTICULAR PURPOSE, MERCHANTABILITY, OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT.

Intel products are not intended for use in medical, life saving, life sustaining applications. Intel may make changes to specifications and product descriptions at any time, without notice.

Intel server boards, server chassis, and processors may contain design defects or errors known as errata, which may cause the product to deviate from published specifications. Current characterized errata are available on request.

Intel, Intel Xeon, Pentium, and the Intel logo are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the United States and other countries.

*Other names and brands may be claimed as the property of others.

Copyright © 2009, Intel Corporation

Table of Contents:

1. SYSTEM PRODUCT ORDER CODES....4

1.1 PRODUCT DESCRIPTIONS – OVERVIEW 4
1.2 BOARD AND SYSTEM PRODUCT ORDER CODES 4

2. SPARES AND ACCESSORIES ORDER CODES....11

2.1 I/O MODULES....11
2.2 SR2600 AND/OR SR2625 FLEX BAY KITS....12
2.3 BEZELS 13
2.4 SYSTEM SPARES AND ACCESSORIES 13
2.5 POWER SUB-SYSTEM SPARES AND ACCESSORIES....17
2.6 CONTROL PANEL SPARES AND ACCESSORIES....18
2.7 RISER SPARES AND ACCESSORIES....19
2.8 RAILS AND MOUNTING OPTIONS 20
2.9 CHASSIS AND ELECTRICAL SPARES KITS 20

3. INTEL® SYSTEM MANAGEMENT SOFTWARE....23

3.1 PRODUCT DESCRIPTIONS – OVERVIEW 23
3.2 INTEL® SYSTEM MANAGEMENT SOFTWARE – (UPGRADE SKUS) 23

4. VMWARE VSPHERE\* VIRTUALIZATION SOFTWARE CONFIGURATION GUIDE FOR VSPHERE\* SKUS 25

4.1 PRODUCT DESCRIPTIONS – OVERVIEW 25
4.2 VMware vSphere* AND vCENTER* SERVER SKUs 25

1. System Product Order Codes

1.1 Product Descriptions – Overview

Product based on the Intel® Server Board S5520UR will be offered in two methods at production:

1. Intel® Server Systems (Integrated SKUs). Customer orders an integrated system. All systems – except SR1600URHS – are complete and ready to use with installation of CPUs and memory. Except SR1600URHS – systems do not require additional components.

All systems do not include Processors, DDR3 main memory, hard drives, and other customer configuration items

1. 10 Pack Server Board SS5520UR. Intended for customers utilizing 3^rd party chassis or for customers requiring spare boards.

* Chassis will not be offered separately.

1.2 Board and System Product Order Codes

Not included in systems: Processors, DDR3 main memory, hard drives, and other customer configuration items are not included in below SKUs.

Image	Product CodeMMUPCDescription		Minimum Order Quantity
	BB5520UR901085735858206587	Intel Server Board S5520UR (shipped in bulk pack of 10) 10
	SR1600UR900983735858206723SR1600URNA901125NA	Intel Server System SR1600UR fixed configuration.Includes:Intel Server Board S5520URIntel Server Chassis SR1600Cabled front panel (no video port)3 3.5" fixed HDD sleds, pre routed sata cables.5 non-redundant non-hotswap dual-rotor fans1 full height riser with PCI Express 2.0 x16 slot1 fixed high-efficient 600W power supplyFan-boardSATA and power cables to connect 3 HDDs7 DIMM blanks2 processor heatsinks2 chassis front handles in the box (ears)For complete list of accessories – please reference section 2.Same as SR1600UR but with North American power cord. 1	1
	SR1600URHS900985735858206730	Intel Server System SR1600URHS Hot-Swap configuration.Includes:Intel Server Board S5520URIntel Server Chassis SR1600Standard control panel3 3.5" HDD carriersNO backplaneBridge board5 non-redundant non-hotswap dual-rotor fans1 full height riser with PCI Express 2.0 x16 slot1 fixed high-efficient 600W power supply7 DIMM blanks2 processor heatsinks2 chassis front handles in the box (ears)Does not include backplane.*NOTE: System Backplane must be ordered separately to complete system.Required accessory (choose one of two options):To obtain SAS/SATA HotSwap functionality – order Active Backplane – ASR1500SASBP (offers onboard SAS controller with SW RAID support).To obtain SATA HotSwap functionality – order ASR1500PASBP, which allows cabled pass-through connection from motherboard or add-in controller.For complete list of accessories – please reference section 2.	1
	SR1600URHSNA901126NA	Same as SR1600URHS but with North American power cord. 1
	SR1625UR900986735858206747	Intel Server System SR1625UR passive configuration.Includes:Intel Server Board S5520URIntel Server Chassis SR1625Mini control panel6 of 2.5" HDD carriers (and filler in bays 7&8)5 redundant non-hotswap fans1 full height full length riser with PCI Express 2.0 x16 slotPassive (pass-through, no SAS controller) SATA Midplane, cabled to SATA ports on motherboard . SAS drives can be supported by adding discreet SAS controller.Backplane with proprietary cable-less connection to Midplane, supporting 8 hot-swap SAS/SATA drives.Discrete SAS controller must be added to system to support SAS drives.Bridge board7 DIMM blanks2 processor heatsinks1 hot-swap and redundant capable high-efficient 650W power supply.2 chassis front handles in the box (ears)Key Optional accessories:To enable redundant power supply feature – order additional power supply ASR1625PSTo add SW Raid5 support – order AXXRAKSW5 keyTo add HW raid functionality: need to install add-in PCI HW Raid controller, which must be cabled to Passive Midplane Alternatively, Passive Midplane may be replaced with Active (FALSASMP2)To add support for 8 SAS/SATA drives by add-in controller – order additional 2.5" HDD drive carriers (available in 10 pack FXX25HDDCAR).To add Standard Control Panel - order ASR1625FP*Note: Only one control panel (Mini, Standard, or Local) can be used in a system at a time*Note: Standard CP, LCP and two additional drives are installed in the same bay, and can not be installed at the same timeFor complete list of accessories – please reference section 2	1
	SR1625URNA901132NA	Same as above but with North American power cord 1
	SR1625URSAS900987735858206754	Intel Server System SR1625UR active configuration.Includes:Intel Server Board S5520URIntel Server Chassis SR1625Mini control panel6 2.5" HDD carriers (and filler in slots 7&8)5 redundant non-hotswap fans1 full height full length riser with PCI Express 2.0 x16 slot,Active cable-less Midplane2 board with 8-port LSI 1078 SAS controller upgradeable to HW RAID modeBackplane with proprietary cable-less connection to Midplane, supporting 8 hot-swap SAS/SATA drives.Bridge board7 DIMM blanks2 processor heatsinks1 hot-swap and redundant capable high-efficient 650W power supply2 chassis front handles in the box (ears)Key Optional Accessories:To enable redundant power supply feature – order additional power supply (ASR1625PS)To upgrade to full-reatured HW RAID on Active Midplane2: order Raid key (AXXRAKSAS2), minidimm (AXXMINIDIMM512). RAID cache battery backup is optional (AXXRSBBU3).To add support for 8 drives by SAS controller on Active	1
		Midplane2– order two additional 2.5" HDD drive carriers (FXX25HDDCAR).To add Standard Control Panel - order ASR1625FP.*Note: Only one control panel (Mini or Standard) can be used in a system at a time.*Note: Standard CP, LCP and the two right most drives (7&8) are installed in the same bay, and can not be installed at the same time.For complete list of accessories – please reference section 2.
	SR1625URSASNA901136NA	Same as above but with North American power cord
	SR2600URBRP901093735858206761SR2600URBRPNA901187NA	Intel Server System SR2600UR system in base-passive configuration. Includes:Intel Server Board S5520URIntel Server Chassis SR2600Standard control panel5 3.5" HDD carriers3 fixed, non redundant fansTape drive bay filler1 riser with three full-height PCI Express 2.0 x8 wired slots (one x16 and two x8 connectors),Passive (pass-through, no SAS controller) SATA Midplane, cabled to SATA ports on motherboard . SAS drives can be supported by adding discreet SAS controller.Backplane with proprietary cable-less connection to Midplane, supporting up to 6 hot-swap SAS/SATA drives. Discrete SAS controller must be added to system to support SAS drives.Bridge board7 DIMM blanks2 processor heatsinks1 hot-swap and redundant capable high-efficient 750W power supply2 chassis front handles in the box (ears)Note(1): To enable SAS drives - add-in SAS adapter is required. SATA drives can be used in out of the box system.Key Optional accessories:To enable power supply redundancy – order AXX750WPSTo upgrade cooling system to redundant– order ASR2600LXFANS.To add support for 6^th hot-swap 3.5 inch drive – order ASR2500SIXDRVTo change PCI expansion slots – included riser must be replaced with ASR26XXFHLPR or ASR26XXFHXRTo add support for SATA Tape Drive – order ASR2500SATAPE*NOTE: ASR2500SIXDRV and ASR2500SATAPE are installed in the same bay and can not be installed at the same time.For complete list of accessories – please reference section 2.Same as above but with North American power cord 1	1
	SR2600URLX900988735858206778	Intel Server System SR2600UR in active-SAS configuration. Includes:Intel Server Board S5520URIntel Server Chassis SR2600Standard control panel5 3.5" HDD carriers6 redundant and hot-swap fansTape drive bay filler1 active butterfly riser with 5 PCI Express 2.0 x8 wired slots (1 full-height x16 connectors, 2 full-height x8 connector and 2 low-profile x8 connectors)Active cable-less Midplane2 board with 8-port LSI 1078 SAS controller upgradeable to HW RAID modeBackplane with proprietary cable-less connection to Midplane, supporting up to 6 hot-swap SAS/SATA drives.Bridge board7 DIMM blanks2 processor heatsinks1 hot-swap and redundant capable high-efficient 750W power supply2 chassis front handles in the box (ears)Key Optional Accessories:To enable power supply redundancy – order AXX750WPSTo upgrade to full-reatured HW RAID on Active Midplane2: order Raid key (AXXRAKSAS2), minidimm (AXXMINIDIMM512). RAID cache battery backup is optional (AXXRSBBU3).To add PCI-X support – included riser must be replaced with ASR26XXFHXRTo add support for 6^th hot-swap 3.5 inch drive – order ASR2500SIXDRVTo add support for SATA Tape Drive – order ASR2500SATAPE*NOTE: ASR2500SIXDRV and ASR2500SATAPE are installed in the same bay and can not be installed at the same time.For complete list of accessories – please reference section 2.	1
	SR2600URLXNA901131NA	Same as above but with North American power cord
	SR2600URSATA904560735858 212649	Integrated Intel Server System SR2600URSATA Includes:Intel Server Board S5520URIntel Server Chassis SR2600Standard control panel5 3.5" HDD carriers6 redundant and hot-swap fansTape drive bay filler1 active butterfly riser with 5 PCI Express 2.0 x8 wired slots (1 full-height x16 connectors, 2 full-height x8connector and 2 low-profile x8 connectors)Passive (pass-through, no SAS controller) SATA Midplane, cabled to SATA ports on motherboard . SAS drives can be supported by adding discreet SAS controller.Backplane with proprietary cable-less connection to Midplane, supporting up to 6 hot-swap SAS/SATA drives.Bridge board7 DIMM blanks2 processor heatsinks2 hot-swap and redundant capable high-efficient 750W power supply2 chassis front handles in the box (ears)Key Optional Accessories:To enable power supply redundancy – order AXX750WPSTo add PCI-X support – included riser must be replaced with ASR26XXFHXRTo add support for 6^th hot-swap 3.5 inch drive – order ASR2500SIXDRVTo add support for SATA Tape Drive – order ASR2500SATAPE*NOTE:ASR2500SIXDRV and ASR2500SATAPE are installed in the same bay and can not be installed at the same time.For complete list of accessories – please reference section 2.
	SR2600URSATANA903802NA	Same as above but with North American power cord 1
	SR2625URBRP900989735858206785	Intel Server System SR2625UR in base-passive configuration. Includes:Intel Server Board S5520URIntel Server Chassis SR2625Standard control panel6 2.5" HDD carriers (and filler in slots 7&8)3 fixed, non redundant fansTape drive bay filler1 full-height riser with three PCI Express 2.0 x8 wired slots (one x16 connector and two x8 connectors)Passive (pass-through, no SAS controller) SATA Midplane, cabled to SATA ports on motherboard . SAS drives can be supported by adding discreet SAS controller.Backplane with proprietary cable-less connection to Midplane, supporting 8 hot-swap SAS/SATA drives.Discrete SAS controller must be added to system to support SAS drives.Bridge board7 DIMM blanks2 processor heatsinks1 hot-swap and redundant capable high-efficient 750W power supply2 chassis front handles in the box (ears)Note(1): To enable SAS drives - add-in SAS adapter isrequired. SATA drives can be used in out of the box system.Key Optional Accessories:To enable power supply redundancy – order AXX750WPSTo add or change PCI expansion slots – included riser must be replaced with ASR26XXFHLPR or ASR26XXFHXRTo add support for SATA Tape Drive – order ASR2500SATAPEFor complete list of accessories – please reference section 2.	1
	SR2625URBRPNA901141NA	Same as above but with North American power cord 1
	SR2625URLX900990735858206792	Intel Server System SR2625UR system in SAS configuration. Includes:Intel Server Board S5520URIntel Server Chassis SR2625Standard control panel8 2.5" HDD carriers6 redundant and hot-swap fansTape drive bay filler1 active butterfly riser with five PCI Express 2.0 x8 wired slots (1 full-height x16 connectors, 2 full-height x8 connector and 2 low-profile x8 connectors)Active cable-less Midplane2 board with 8-port LSI 1078 SAS controller, upgradeable to HW RAID modeBridge boardBackplane with proprietary cable-less connection to Midplane, supporting 8 hot-swap SAS/SATA drives.7 DIMM blanks2 processor heatsinks1 hot-swap and redundant capable high-efficient 750W power supply2 chassis front handles in the box (ears)Key Optional Accessories:To enable power supply redundancy – order AXX750WPSTo upgrade to full-reatured HW RAID on Active Midplane2: order Raid key (AXXRAKSAS2), minidimm (AXXMINIDIMM512). RAID cache battery backup is optional (AXXRSBBU3).To add PCI-X support – included riser must be replaced with ASR26XXFHXRTo add support for SATA Tape Drive – order ASR2500SATAPEFor complete list of accessories – please reference section 2.	1
	SR2625URLXNA901129NA	Same as above but with North American power cord 1

2. Spares and Accessories Order Codes

2.1 I/O Modules

Image	Product CodeMMUPC	Description	Minimum Order Quantity

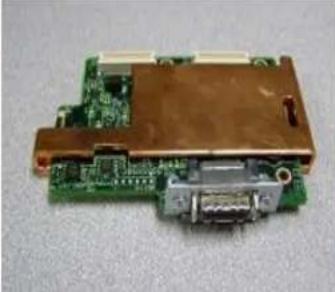

	AXX10GBIOMOD900962735858206525	10GbE I/O module Dual port CX4 connector, based on Intel 82598 EB controller.Compatible with S5520UR and S5500WB boards only.	1
	AXX4GBIOMOD2901359735858206532	Quad port GbE I/O module, based on Intel 82576 controller. RJ-45 connectors. Compatible with S5520UR and S5500WB boards only.	1
	AXXIBQDRIOMOD902559735858212601	Single port QDR speed InfiniBand I/O Module.CX4 powered connector. MT25408A0-FCC-QIS Controller.Compatible with S5520UR boards only.	1
	AXX4SASMOD900946735858206372	Internal 4-port SAS module, based on LSI* 1064e controller, with Embedded RAID support.(primarily targeted at non-lintel chassis)Compatible with S5520UR, S5500WB, S5520HC, S5520SC boards only. Not compatible with Intel rack server chassis.	1
	AXXROMBSASMR901641735858208017	Internal 4-port SAS module, based on LSI* 1078e controller. Provides 4 port full featured SAS/SATA RAID 0,1,5, 6 and striping capability for spans 10, 50, 60. (primarily targeted at non-Intel chassis)Compatible with S5520UR, S5500WB, S5520HC, S5520SC boards only. Not compatible with Intel rack server chassis.	1
	AXXSASIOMOD90230000735858184786	External 4-port SAS expansion module.Compatible with Intel Server Boards S5520UR,S5000PALR and S5400SF.
	AXXIBIOMOD881891735858185219	InfiniBand I/O Expansion Module, SDR speed.Compatible with Intel Server Boards S5520UR,S5000PALR and S5400SF.	1
	AXXGBIOMOD880518735858184779	Dual Port Gigabit Ethernet I/O Expansion Module. Based on Intel 82571EB GbE controller.Compatible with Intel Server Boards S5520UR,S5500WB, S5000PALR and S5400SF.	1

2.2 SR2600 and/or SR2625 Flex Bay Kits

Image	Product CodeMMUPC	Description	Minimum Order Quantity
	ASR2500SATAPE881260735858184069	SR2625/SR2600SATA Tape Drive Mounting Kit, includes short & long SATA cables, power cable, screws, tray.(also compatible with SR2500 system)	1
	ASR26XXFXDRV903534735858210287	SR2600/2625 Fixed drive kitKit is installed in tape drive bay sled and holds two cabled 2.5” drives. SSD and SATA drives will be validated. No SAS drives will be validated as they need special cabling.	1
	ASR2500SIXDRV902045735858184076	SR2600 only6th SAS/SATA HDD Kit (also compatible with SR2500 system, updated with filler panel not shown in picture)	1

2.3 Bezels

Image	Product CodeMMUPC	Description	Minimum Order Quantity
* ADRBEZBLACK shown.	ADWBEZBLACK86506400735858169110	SR1600/1500/1400 Black Bezel for standard control panel.	1
	ADRBEZBLACK85767500735858165129	SR2600/2625/2500 Black Bezel for standard control panel.	1
	ASR1550MINBEZ87921100735858183895	SR1625/1550 Black Bezel for use with Mini Control Panel.	1
	ADWLCDBEZEL88243500735858164993	SR1600/1400/1500 Black Bezel with cutout for Intel Local Control Panel (LCD).Note: requires Intel Local Control Panel.	1
	ADRLCDBEZEL85758600735858165082	SR2600/2625/2500/2400 Black Bezel with cutout for Intel Local Control Panel (LCD).Note: requires Intel Local Control Panel.	1
	ASR1550LCDBEZ87920900735858183901	SR1625/1550 Black Bezel for use with Local Control Panel.Note: requires Intel Local Control Panel.	1
	ASR1550BEZ87940600735858183888	SR1625/1550 Black Bezel for use with Standard control panel.Note: requires Standard Control Panel.	1

2.4 System Spares and Accessories

Image	Product CodeMMUPC	Description	Minimum Order Quantity
	AXXRMM3900961735858206570	Remote management module 3 kit (includes module, standard and Intel chassis specific mounting brackets, long and short cables)	1
	AXXRAKSAS2891290735858194730	Intel® RAID Activation Key for FALSASMP2Note: enabling RAID capability also requires mini DIMM (AXXMINIDIMM512) (Reused from SR1500/SR2500 system)	5
	AXXRAKSW587895800735858181860	Intel® RAID Activation KeyAXXRAKSW5 enables SATA Host-based RAID 5	5
	AXXMINIDIMM512897046735858202015	512 MB Mini DIMM registered DDR-2 for use with FALSASMP2	5
	AXXRSBBU3900954735858181853	Intel® RAID Smart Battery Backup module for use with Intel® Integrated Server RAID	5
	AXXRJ45DB92903041735858155212	RJ45 To DB9 Cable (Also compatible with SR1500/2500 system) (Old MM# 881944)	1
	AXXSATADVDROM893637735858197663	Slimline SATA DVDROM Device 1
	AXXSATADVDRWROM 898051(pending update to 898292)735858197670	Slim SATA DVD+/-RW ROM Accessory	1
	AXXUSBFLOPPY 881267735858183260	SR1600/2600 USB Floppy Device Accessory (not compatible with SR1625/2625))	1
	FPWRCABLENA 879287735858181129	North American Power Cord Spare 1
	ASR1500PASBP 902485735858183758	SR1600/SR1500 (1U) Hotswap Passive SAS/SATA Backplane Kit . Compatible with either SAS or SATA 3.5" hard drives. Kit contents include the following: Hot swap backplane with pass-through capabilities for either onboard SATA ports or a SAS/SATA add-in card, Enclosure management cable, 3 SAS/SATA cables (pre-kitted and length matched to the SATA ports on the server board)	1
	ASR1500SASBP 903510735858183741	SR1600/SR1500 (1U) Hotswap SAS Backplane Kit. Compatible with either SAS or SATA 3.5" hard drives. Kit includes:Backplane with SAS controller, USB cable (to front panel).	1
	FSR2600LXFAN901087735858206679	SR2600/2625URLX hot swap redundant fan spare kit.Contains 3 fans (1 x 60mm, 2 x 80mm).Notes: Not compatible with BRP SKU fans.	1
	ASR2600LXFANS901078735858206464	SR2600BRP/SR2625BRP Redundant fan upgrade kit. Contains 6 fans, fan structure, cable set.	1
	FXX1UFAN881101735858184243	SR1600/SR1625/SR1500/SR1550 Fan spare kit. Contains one 56mm fan with short cable, and one 56mm fan with long cable.	1
	FURBRIDGE901088735858206709	Bridge Board Spare 30
	FALSASMP2892611735858198110	SR1625/2600/2625UR SAS Midplane-2 with optional Intel® Integrated Server RAID (support RAID 6).8 port SAS controller with optional HW RAID upgrade. Note RAID requires new RAID activation key (MM# 891290) and new RAID mini DIMM (cache) each sold separately (MM# 897046).	1
	FALPASMP90168700735858183826	SR1625/2600/2625UR Passive MidplaneCompatible with either SAS or SATA hard drives. Kit contents include the following:Passive mid-plane with pass-through capabilities for either onboard SATA ports or a SAS/SATA add-in card,Enclosure management cable, Note:SATA drive cables are not included.	1
	FXX10DVCARBLK880265735858181938	3.5" Hot Swap HDD Carrier Spare(compatible with prior generations)	10
	FXX25HDDCAR881681735858183932	SR1625/2625UR 2.5" HDD carrier sparekit	10
	AXX25DRVADPTR90408300735858211567	2.5" Hard Disk Drive Carrier Kit, includeten 2.5" drive carriers and installationguide.The 2.5" HDD carrier is forinstalling 2.5"SAS, SATA, or SSD into 3.5" hot-saphard disk drive bay.See compatible Intel® chassis andsystems at:http://www.intel.com/support/motherboards/server/sb/CS-030726.htm	10
	BXSTS100P900492735858205146	Spare passive thermal solution for 1U,2U rack servers and compute modules.	1

2.5 Power Sub-system Spares and Accessories

Image	Product CodeMMUPC	Description	Minimum Order Quantity
	ASR1625PS901016735858206433	SR1625UR 650W Hot-Swap power supply module	1
	AXX750WPS901681735858206501	SR2600/2625UR 750W Hot-Swap Power Supply Module	1
	FSR1600PS901086735858206617	SR1600UR 600W fixed power supply spare module	1

2.6 Control Panel Spares and Accessories

Image	Product CodeMMUPC	Description	Minimum Order Quantity
	ASR1625LCP901013735858206426	SR1625 LCP Accessory Kit 1
	ASR2600LCP901014735858206457	SR2600 LCP Accessory Kit 1
	AXLCPRACK2901015735858206518	SR1600 and SR2625 LCP Accy Kit 1
	ASR1625FP900991735858206419	SR1625UR Standard front panel accessory kit 1

2.7 Riser Spares and Accessories

Image		Product CodeMMUPC	Description	Minimum Order Quantity
		ASR26XXFHLPR901077735858206471	SR2600/2625 5 slot PCI-e active Riser. Bridges are placed on riser to multiply provided 24 PCI Express 2.0 lanes into 40 for on-the-fly load balance. Riser provides:1 full-size x16 physical x8 electrical slots2 full-size x8 physical x8 electrical slot2 low-profile x8 physical x8 electrical slots.	5
		ASR26XXFHR901079735858206488	SR2600/2625 3 slot passive PCI-e Riser.Provides:1 full-size x16 physical x8 electrical slot2 full-size x8 physical x8 electrical slots	5
		ASR26XXFHXR901080735858206495	SR2600/2625 5 slot PCI-e / PCI-X active riser.PCIe to PCI-X bridge is placed on riser.Riser Provides:2 Full-size PCI-X 133 slots1 full-size x8 physical x8 electrical slot2 low-profile x8 physical x8 electrical slots	5
		ASR26XXFH3XR902279735858208437	SR2600/2625 3 slot PCI-X riser assembly.Comes with modified bracket.	1
		FSR16XXRISER901186735858206648	SR1600/1625 1 slot PCI-e passive riser.Provides:1 full-size x16 physical x16 electrical slot.	10

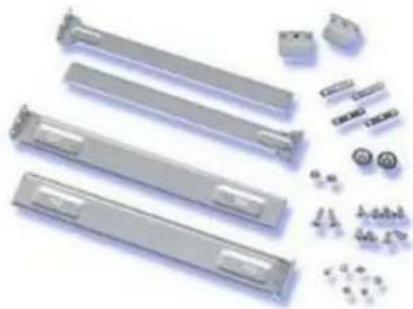

2.8 Rails and Mounting Options

Image	Product CodeMMUPC	Description	Minimum Order Quantity
	AXXHERAIL2901082735858206549	Full extending Rail Kit, also compatible with SR1500/2500 chassis (new and improved design replacing AXXHERAIL. Existing AXXHERAIL may still be used with 16xx/26xx chassis)	1
	AXXRACKARM2901084735858206563	Cable Management Arm (Must be used with AXXHERAIL2, not compatible with AXXHERAIL)	1
	AXXBASRAIL13899080735858194969	Basic rail kit. Does not support Cable Management Arm.	1
	AXXBRACKETS863262735858168618	Fixed Mount Brackets. Set of brackets to hard mount chassis to rack. Supports 4 post mounting and 2 post center mounting. (Reused from SR1500/SR2500 system)	1

2.9 Chassis and Electrical Spares Kits

Image	Product Code MM	Description	Minimum Order
	UPC Quantity
	FSRTCHSPR901994735858208086	Combined chassis mechanical spare kit for SR16xx and SR26xx systems. Includes:• Baffle for power supply-backplane area for SR2600• Baffle for power supply-backplane area for SR2625• 1U and 2U CPU Ducts• PS Blank Filler• RMM3 Filler Panel• IO Module Filler Panel• Hard Drive Carriers (3.5” & 2.5”)• SR26XX Non-redundant Fan Structure• Tape Drive Filler• CD tray w/Standoffs• Plastic Optical Drive guide + 2 screws• Optical Drive Filler Panel (3.5”)• Die cast metal rack handles (set)• Seven Dimm Blanks• Misc Hardware (screws, thumbscrews, etc)• Processor Fan Bracket• SR1615 PS Air Baffle (/w Thumbscrew)• CD Tray w/o Standoffs• SR 1600 PS baffle	1
	FSR1600EESPR901005735858206600	SR1600 Electrical spare kit. Includes:• Bridge Board• HS SKU Front panel board• Fixed SKU front panel board• Fan distribution board• 1U riser (FSR16XXRISER)• HS SKU50 pin front panel cable• HS SKU USB front panel cable• Fixed SKU front panel cable• Fixed SKU USB front panel cable• 2 SATA cabled for fixed HDDs• Fixed SKU fan control cable• Two backplane thumb skrews• One 56mm non-redundant fan	1
	FSR1625EESPR901007735858206631	SR1625 Electrical spare kit. Includes• Bridge Board• 2.5” HSBP• Mini front panel board• 1U PCIe riser (FSR16XXRISER)• Front panel cable• USB front panel cable• I2C cable• SATA cable harness (6 cables)• One 56mm fan with short cable• One 56mm fan with long cable• Power distribution board	1
	FSR26XXEESPR901995735858208093	SR2600 and SR2625 Electrical Spare Kit.Includes following system components:• Bridge Board• 2.5” HSBP for SR2625• 3.5: HSBP for SR2600	1

• Docking front panel board (for SR2600)
  • Cabled front panel board (for SR2625)
  • Optical drive interposer
• Front panel cable
• Front panel USB cable
• Two 115mm+130mm redundant fan bracket cable assembly
• One 140mm+140mm redundant fan bracket cable assembly
• SATA I2C cable
• SATA cables harness
  • One 80mm non-redundant fan
  • One 80mm redundant fan
  • One 60mm non-redundant fan
  • One 60mm redundant fan.
  • Power distribution module.

3. Intel® System Management Software

3.1 Product Descriptions – Overview

Intel System Management Software provides upgrades SKUs. Customers may order an upgrade that will give them the ability to manage additional servers and clients.

3.2 Intel® System Management Software – (Upgrade SKUs)

The following Intel® System Management Software Upgrade SKUs are offered. Each SKU includes a Certificate of Authenticity (COA) that contains a product key for user to enter to upgrade:

Upgrades available to Microsoft* System Center Essentials 2007

- Small Network Edition

This upgrade gives the user the ability to manage up to 5 Windows-based servers OSEs and 15 Windows-based client OSEs.

- Standard Edition

This upgrade gives the user the ability to manage up to 10 Windows-based servers OSEs and 50 Windows-based client OSEs.

- Upgrade to add 1 or 5 Server Management license

This upgrade gives the user the ability to manage 1 or 5 additional Windows-based server OSE.

- Upgrade to add 5 or 20 Client Management licenses

This upgrade gives the user the ability to manage 5 or 20 additional Windows-based client OSEs.

Intel® System Management Software – Upgrade Order Codes:

Product Code	UPC MM Description		Picture		MOQ
SMS2SSE2SNE 7 35858 19670 3 893177	Upgrade from 90 day trialEdition to Small Network EditionNot included: Software CDs are not included with upgrade.				1
SMS2SNE2STD 7 35858 19671 0 893221	Upgrade from Small Network Edition to Standard EditionNot included: Software CDs are not included with upgrade.				1
SMS2SSE2STD 7 358	858 19672 7 893170	Upgrade from 90 day trialEdition to Standard EditionNot included: Software CDs are not included with upgrade.			1
SMS2CAL1S 7 35858	19675 8 893217	Microsoft® System CenterEssentials 2007 Server Management License (1 Pack)Not included: Software CDs are not included with upgrade.			1
SMS2CAL5S 7 35858	19676 5 893218	Microsoft® System CenterEssentials 2007 Server Management License (5 Pack)Not included: Software CDs are not included with upgrade.			1
SMS2CAL5C 7 35858	19673 4 893220	Microsoft® System CenterEssentials 2007 Client Management License (5 Pack)Not included: Software CDs are not included with upgrade.			1
SMS2CAL20C 7 35858	19674 1 893219	Microsoft® System CenterEssentials 2007 Client Management License (20 Pack)Not included: Software CDs are not included with upgrade.			1

4. VMware vSphere\* Virtualization Software Configuration Guide for vSphere\* SKUs

4.1 Product Descriptions – Overview

VMware vSphere* software is now available when ordering an Intel® Server Board or Intel® Server System. Customers can only order these SKUs at the time they are ordering an Intel® Server Board or Intel® Server System. These SKUs cannot be ordered individually. The number of VMware vSphere SKU purchase has to coincide with number of system or boards purchased. Example: Order 10 boards – you can order 10 VMware SKUs. Customers will need to join VMware System Builder Program to get sales support from VMware. For support information please visit: http://www.vmware.com/partners/partners.html

4.2 VMware vSphere\* and vCenter\* Server SKUs

The following VMware vSphere SKUs are offered when purchasing a qualifying Intel® Server Board or Intel® Server System. Each SKU contains a software product activation code for user to enter to download software and install. As directed on the certificate, the end user must register the product activation code with VMware at http://www.vmware.com/code/intel within 30 days to access VMware Software, Support and Subscription Services.

VMware vSphere* and vCenter* Server SKUs

- Essentials

This license activation code gives the user VMware vSphere* 4 Essentials Bundle for 3 hosts (Max 2 processors per host and 6 cores per processor), with 1 year VMware Subscription.

- Essentials Plus

This license activation code gives the user VMware vSphere* 4 Essentials Plus Bundle for 3 hosts (Max 2 processors per host and 6 cores per processor), with 1 year VMware Gold Support and Subscription.

- Standard

This license activation code gives the user VMware vSphere* 4 Standard for 1 Processor (Max 6 cores per CPU), with 1 year VMware Gold Support and Subscription.

- Advanced

This license activation code gives the user VMware vSphere* 4 Advanced for 1 Processor (Max 12 cores per CPU), with 1 year VMware Gold Support and Subscription.

- Enterprise Plus

This license activation code gives the user VMware vSphere* 4 Enterprise Plus for 1 Processor (Max 12 cores per CPU), with 1 year VMware Gold Support and Subscription.

- VMware vCenter* Server Standard for vSphere*

This license activation code gives the user VMware vCenter* Server 4 Standard for vSphere* (Includes Orchestrator and Linked Mode), with 1 year VMware Gold Support and Subscription.

VMware vSphere* and VMware vCenter* Standard – Order Codes:

Product Code	UPC MM Description	MOQ
VMW4ESS	7 35858 21272 4	904791	Software license activation code certificate for VMware vSphere* 4 Essentials Bundle for 3 hosts (Max 2 CPUs per host and 6 cores per CPU) with 1 year VMware Subscription.
VMW4ESSPLUS	7 35858 21273 1	904792	Software license activation code certificate for VMware vSphere* 4 Essentials Plus Bundle for 3 hosts (Max 2 CPUs per host and 6 cores per CPU) with 1 year VMware Gold Support and Subscription.
VMW4STD	7 35858 21274 8	904793	Software license activation code certificate for VMware vSphere* 4 Standard for 1 Processor (Max 6 cores per CPU) with 1 year VMware Gold Support and Subscription.
VMW4ADV	7 35858 21275 5	904797	Software license activation code certificate for VMware vSphere* 4 Advanced for 1 Processor (Max 12 cores per CPU) with 1 year VMware Gold Support and Subscription.
VMW4ENTPLUS	7 35858 21276 2	904800	Software license activation code certificate for VMware vSphere* 4 Enterprise Plus for 1 Processor (Max 12 cores per CPU) with 1 year VMware Gold Support and Subscription.
VMWVCSTD	7 35858 21277 9	904801	Software license activation code certificate for VMware vCenter* Server 4 Standard (includes Orchestrator and Linked Mode) with 1 year VMware Gold Support and Subscription.

End of Configuration Guide
