Product type	2U rack server
Form factor	Rackable
Height	2U (8.9 cm)
Dimensions (W x D x H)	48.3 x 73.7 x 8.9 cm
Weight	Approximately 20 kg (depending on configuration)
Power supply	Dual redundant power supply 800 W (80+ Platinum)
Supported processors	Intel Xeon Scalable (compatible generations)
Memory type	DDR4 ECC RDIMM/LRDIMM
Maximum memory capacity	Up to 512 GB (depending on configuration)
Internal storage	8 hot swap 3.5" bays or 24 2.5" bays
RAID controller	Integrated Intel RAID (hardware options)
Network connectivity	2 x 1 GbE (built-in ports)
Expansion slots	6 PCIe Gen3 x8/x16 slots
Remote management	IPMI 2.0 with BMC
Noise level	~35 dB (normal operation)
Operating temperature	5°C to 35°C
Maintenance and cleaning	Regular dusting with compressed air; avoid moisture
Security	Front panel lock; integrated TPM 2.0
Spare parts and repairability	Disks, memory, power supplies, fans hot-swappable

Frequently Asked Questions - SC5400 INTEL

How to mount the SC5400 server in a rack?

Use the provided mounting rails. First attach the rails to the rack, then insert the server and lock it with the appropriate screws. Refer to the manual for detailed diagrams.

What is the procedure to install hard drives?

Open the front panel, insert the disks into the hot-swap bays until they click. The server detects them automatically. Check the activity LED.

How to configure RAID on the SC5400?

At startup, press Ctrl+I to enter the Intel RAID utility. Create a volume by selecting disks and RAID level (0,1,5,10). Save and restart.

The server does not start, what should I do?

Check power (LEDs), cables, and front panel. Reset CMOS via jumper on motherboard. If the problem persists, test with a single memory module.

How to access the remote management interface (BMC)?

Connect a network cable to the dedicated management port. By default, the IP address is DHCP. Use a browser or IPMItool. The default login is 'admin'/'admin' (change it).

What type of RAM memory is compatible?

The SC5400 accepts DDR4 ECC RDIMM or LRDIMM. Check the Intel compatibility list for speeds (2666/2933 MHz). Use modules of same capacity and speed for best performance.

How to update the BIOS/EFI?

Download the latest BIOS from Intel's website. Use the update utility via EFI Shell or Windows tool. Ensure you have a backup of the configuration.

Can we use AMD processors in this server?

No, the SC5400 is designed exclusively for Intel Xeon processors. Any attempt may damage the motherboard.

The orange light is flashing on the front panel, what does it mean?

An orange light indicates a non-critical hardware issue (e.g., failing fan, high temperature). Check the BMC interface for the precise error message.

Where can I find spare parts for this server?

Parts such as power supplies, fans, disks are available from authorized Intel resellers. Check the serial number for exact compatibility.

USER MANUAL SC5400 INTEL

Intel® Server Chassis SC5400 User's Guide

A Guide for Technically Qualified Assemblers of Intel® Identified Subassemblies/Products

Intel Order Number D38435-005

Disclaimer

Information in this document is provided in connection with Intel® products. No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document. Except as provided in Intel's Terms and Conditions of Sale for such products, Intel assumes no liability whatsoever, and Intel disclaims any express or implied warranty, relating to sale and/or use of Intel products including liability or warranties relating to fitness for a particular purpose, merchantability, or infringement of any patent, copyright or other intellectual property right. Intel products are not designed, intended or authorized for use in any medical, life saving, or life sustaining applications or for any other application in which the failure of the Intel product could create a situation where personal injury or death may occur. Intel may make changes to specifications and product descriptions at any time, without notice.

Intel server boards contain a number of high-density VLSI and power delivery components that need adequate airflow for cooling. Intel's own chassis are designed and tested to meet the intended thermal requirements of these components when the fully integrated system is used together. It is the responsibility of the system integrator that chooses not to use Intel developed server building blocks to consult vendor datasheets and operating parameters to determine the amount of airflow required for their specific application and environmental conditions. Intel Corporation can not be held responsible if components fail or the server board does not operate correctly when used outside any of their published operating or non-operating limits.

Intel, Intel Pentium, and Intel Xeon are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the United States and other countries.

* Other names and brands may be claimed as the property of others.

Copyright © 2006 - 2007, Intel Corporation. All Rights Reserved

Important Safety Instructions

Read all caution and safety statements in this document before performing any of the instructions. See also Intel Server Boards and Server Chassis Safety Information on the Intel ^® Server Deployment Toolkit CD and/or at http://support.intel.com/support/motherboards/server/sb/cs-010770.htm.

Heed safety instructions: Before working with your server product, whether you are using this guide or any other resource as a reference, pay close attention to the safety instructions. You must adhere to the assembly instructions in this guide to ensure and maintain compliance with existing product certifications and approvals. Use only the described, regulated components specified in this guide. Use of other products / components will void the UL listing and other regulatory approvals of the product and will most likely result in non-compliance with product regulations in the region(s) in which the product is sold.

System power on/off: The power button DOES NOT turn off the system AC power. To remove power from system, you must unplug the AC power cord from the wall outlet. Make sure the AC power cord is unplugged before you open the chassis, add, or remove any components.

Hazardous conditions, devices and cables: Hazardous electrical conditions may be present on power, telephone, and communication cables. Turn off the server and disconnect the power cord, telecommunications systems, networks, and modems attached to the server before opening it. Otherwise, personal injury or equipment damage can result.

Electrostatic discharge (ESD) and ESD protection: ESD can damage disk drives, boards, and other parts. We recommend that you perform all procedures in this chapter only at an ESD workstation. If one is not available, provide some ESD protection by wearing an anti-static wrist strap attached to chassis ground any unpainted metal surface on your server when handling parts.

ESD and handling boards: Always handle boards carefully. They can be extremely sensitive to ESD. Hold boards only by their edges. After removing a board from its protective wrapper or from the server, place the board component side up on a grounded, static free surface. Use a conductive foam pad if available but not the board wrapper. Do not slide board over any surface.

Installing or removing jumpers: A jumper is a small plastic encased conductor that slips over two jumper pins. Some jumpers have a small tab on top that you can grip with your fingertips or with a pair of fine needle nosed pliers. If your jumpers do not have such a tab, take care when using needle nosed pliers to remove or install a jumper; grip the narrow sides of the jumper with the pliers, never the wide sides. Gripping the wide sides can damage the contacts inside the jumper, causing intermittent problems with the function controlled by that jumper. Take care to grip with, but not squeeze, the pliers or other tool you use to remove a jumper, or you may bend or break the pins on the board.

About this Manual

Thank you for purchasing and using the Intel ^® Server Chassis SC5400.

This manual is written for system technicians who are responsible for troubleshooting, upgrading, and repairing this server chassis. This document provides a brief overview of the features of the chassis, a list of accessories or other components you may need, troubleshooting information, and instructions on how to add and replace components on the Intel ^® Server Chassis SC5400. For the latest version of this manual, see http://support.intel.com/support/motherboards/server/chassis/SC5400/.

Manual Organization

Chapter 1 provides a brief overview of the Intel ^® Server Chassis SC5400. In this chapter, you will find a list of the server chassis features, photos of the product, and product diagrams to help you identify components and their locations.

Chapter 2 provides instructions on adding and replacing components. Use this chapter for step-by-step instructions and diagrams for installing or replacing components such as the fans, power supply, drives, and other components.

Chapter 3 provides technical reference information on cable routing, power supply specifications, and system environment requirements.

At the back of this document, you will find appendices on safety, regulatory, "getting help", and warranty information.

Product Contents, Order Options, and Accessories

This server chassis is compatible with the following Intel ^® Server Boards:

• Intel ^ Server Board S5000PSL
• Intel ^ Server Board S5000XVN

Your Intel ^® Server Chassis SC5400 ships with the following items:

• 670W or 830W power supply, installed in the chassis
• A box of hardware components, referred to below as the "chassis hardware box"
• Fan cables, installed in the Intel ^ Server Chassis SC5400 with product code SC5400LX or SC5400LXi
• Chassis intrusion switch, installed in the chassis
• Attention document, in the chassis product box
• Intel ^ Server Chassis SC5400 Quick Start User's Guide, in the chassis hardware box
• Six 32-6mm flat screws for installing drive component, in the chassis hardware box
• Seven screws for mounting the server board into the chassis, in the chassis hardware box
• USB cable, in the chassis hardware box
  • COM2 cable, in the hardware box

In addition, you may need or want to purchase one or more of the following accessory items for your server: Processor, memory DIMMs, hard drive, floppy drive, CD-ROM or DVD-ROM drive, RAID controller, operating system.

For information about which accessories, memory, processors, and third-party hardware have been tested and can be used with your board, and for ordering information for Intel products, see http://support.intel.com/support/motherboards/server/chassis/SC5400/ compat.htm.

Additional Information and Software

If you need more information about this product or information about the accessories that can be used with this server chassis, use the following resources. These files are available at http://support.intel.com/support/motherboards/server/chassis/SC5400/.

Unless otherwise indicated in the table below, once on this Web page, type the document or software name in the search field at the left side of the screen and select the option to search "This Product."

For this information or software	Use this Document or Software
For in-depth technical information about this product, including BIOS settings and chipset information	Intel^ Server Chassis SC5400 Technical Product Specification
If you just received this product and need to install it	Intel^ Server Chassis SC5400 Quick Start User's Guide in the product box
For virtual system tours and interactive repair information	A link to the SMaRT Tool is available under "Other Resources" at the right side of the screen at: http://support.intel.com/support/motherboards/server/chassis/SC5400/
Accessories or other Intel server products	Spares and Configuration Guide
Hardware (peripheral boards, adapter cards) and operating systems that have been tested with this product	Tested Hardware Operating Systems List
For software to manage your Intel® server	Intel^ System Management Software
For diagnostics test software	Diagnostics

Contents

Safety Information ....iii

Important Safety Instructions .... iii

Product Contents, Order Options, and Accessories ......viii

Additional Information and Software ix

Chapter 1: Server Chassis Features .... 1

Component Identification 6

Internal Components ......6

Front Control Panel 7

Intel ^® Local Control Panel 9

Back Panel Features ....10

Peripheral Devices 11

Standard and Optional Hot-swap Drive Bays 12

Floppy / CD-ROM / DVD-ROM Slimline Carriers ....12

Intel ^® Remote Management Module 13

Rack-mounted Systems 13

Chapter 2: Hardware Installations and Upgrades ....15

Before You Begin 15

Tools and Supplies Needed ....15

System References ....15

Removing and Installing the Chassis Cover 16

Removing the Chassis Cover ....16

Installing the Chassis Cover ....17

Removing and Installing the Front Bezel 18

Removing the Bezel Assembly (Pedestal Only) 18

Installing the Front Bezel (Pedestal Only) 19

Removing and Installing the Processor and Memory Air Ducts ....20

Removing the Processor and Memory Air Ducts ....20

Installing the Processor and Memory Air Ducts ....21

Replacing a Fixed Fan (Intel® Server Chassis SC5400Base SC5400BRP only) ......23

Removing and Installing Hot Swap Fans (Intel® Server Chassis SC5400LX or

SC5400LXi Only) 24

Removing Hot Swap Fans 24

Installing Hot Swap Fans 25

Installing and Removing a Slimline USB Floppy/CD/DVD Combo Kit 26

Installing a Slimline USB Floppy/CD/DVD Slimline Kit 26

Removing a Slimline USB Floppy/CD/DVD Combo 26

Removing and Installing a DVD or CD-ROM Drive 27

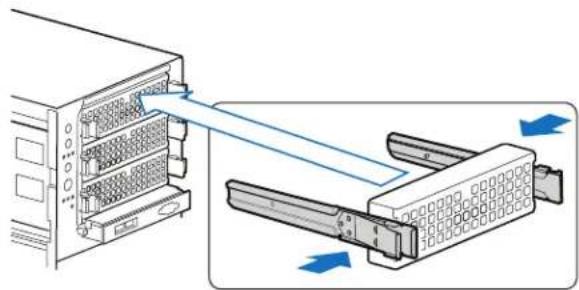

Removing a DVD or CD-ROM Drive 27

Installing a DVD or CD-ROM Drive 29

Removing and Installing Fixed Hard Drive(s) 30

Removing Fixed Hard Drive(s) 30

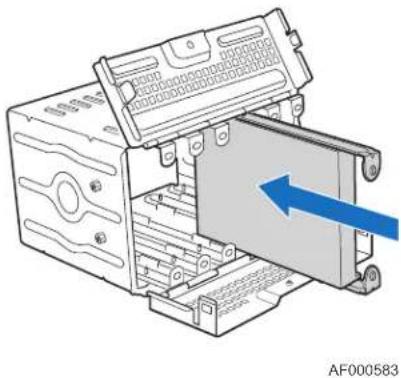

Installing Fixed Hard Drive(s) 35

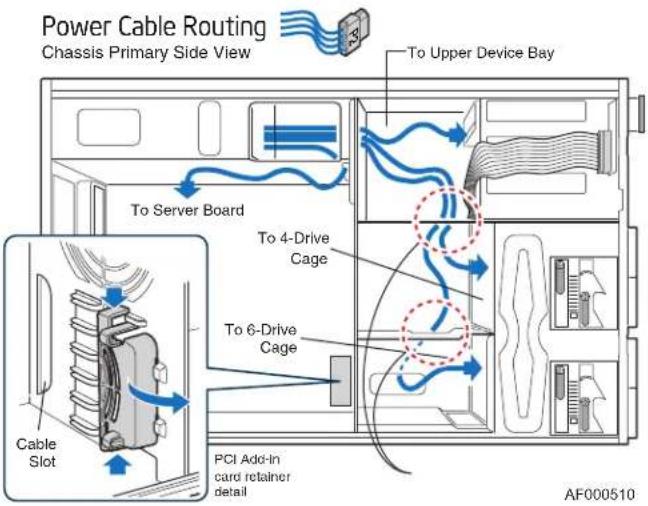

Routing Power Cables to Fixed Drives 40

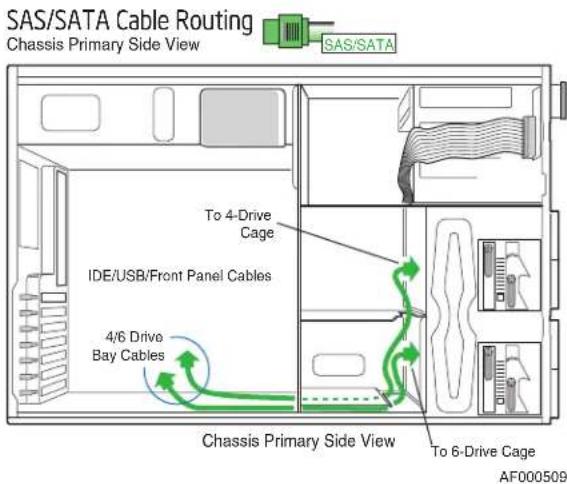

Routing Data Cables to Fixed Drives 41

Removing and Installing Hot Swap Drive(s) 42

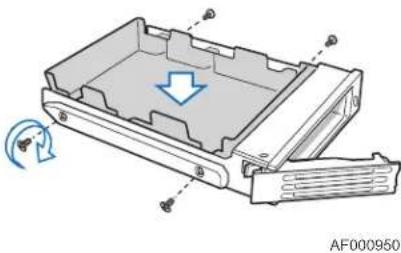

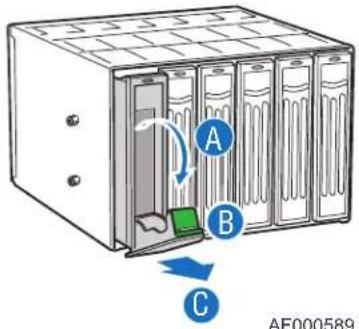

Removing Hot Swap Drive(s) 42

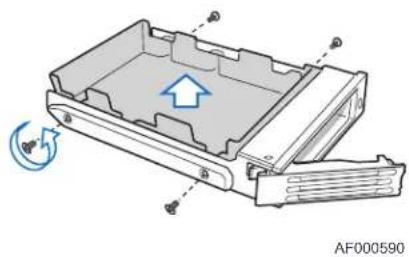

Installing Hot Swap Drive(s) 44

Removing and Installing PCI Add-in Board(s) 45

Removing PCI Add-in Board(s) 45

Installing PCI Add-in Board(s) 47

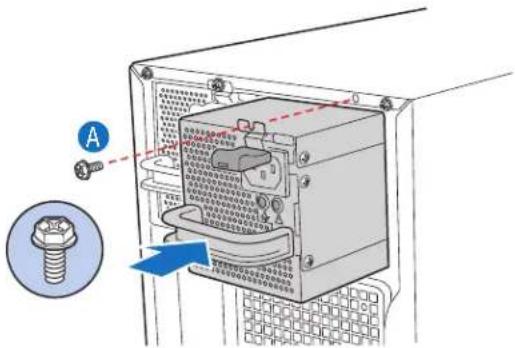

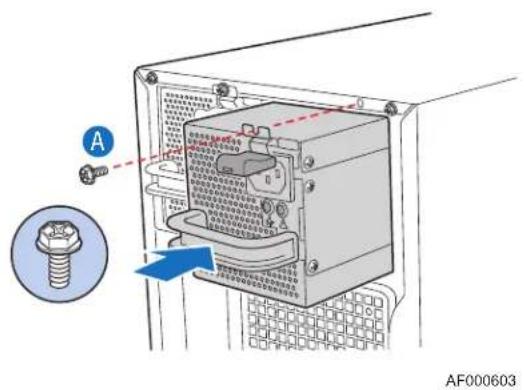

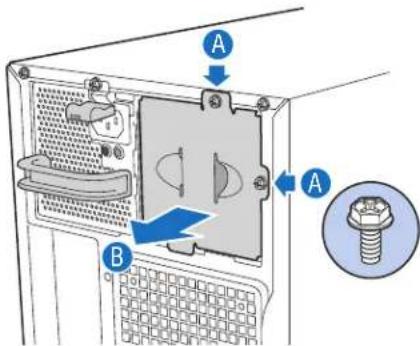

Installing Additional Hot Swap Power Supply Module 51

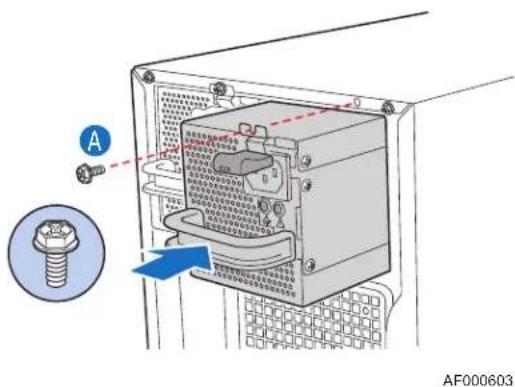

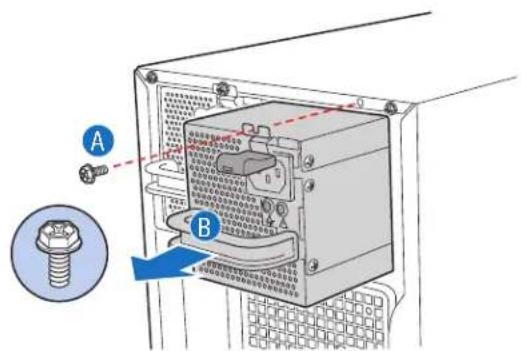

Replacing a Hot Swap Power Supply 52

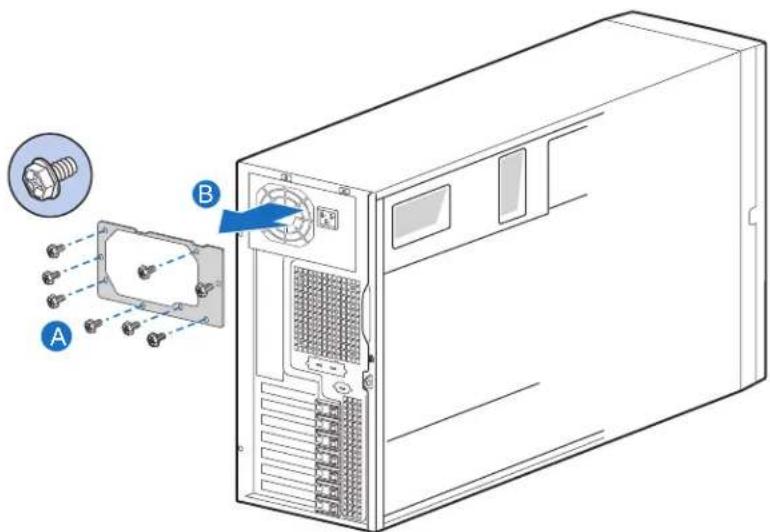

Replacing a Fixed Power Supply 53

Replacing the Power Distribution Board 54

Replacing the Control Panel 59

Installing and/or Removing a Server Board 60

Connecting and Disconnecting Cables to or from Server Board 61

Connecting Cables to Server Board 61

Removing Cables from Server Board(s) 61

Chapter 3: Technical Reference ....63

Power Supply Specifications 63

670-W Single Power Supply Input Voltages 63

670-W Single Power Supply Output Voltages 63

830-W Single Power Input Voltages 63

830-W Single Power Supply Output Voltages 64

System Environmental Specifications 64

Current Usage 65

Calculating Power Usage 65

Appendix A: Getting Help 67

World Wide Web 67

Telephone 67

Appendix B: Regulatory and Compliance Information ....71

Product Regulatory Compliance ....71

Product Safety Compliance 71

Product Regulatory Compliance References 72

Electromagnetic Compatibility Notices 75

FCC Verification Statement (USA) 75

Industry Canada (ICES-003) 76

Europe (CE Declaration of Conformity) 76

VCCI (Japan) 76

BSMI (Taiwan) 76

Korean Compliance (RRL) 77

CNCA (CCC-China) 77

Product Ecology Compliance ....77

Other Markings 80

Regulated Specified Components 81

End-of-Life / Product Recycling 82

Appendix C: Warranty 83

Limited Warranty for Intel ^® Chassis Subassembly Products ....83

Extent of Limited Warranty 84

Warranty Limitations and Exclusions 84

Limitations of Liability 84

How to Obtain Warranty Service 85

Telephone Support 85

Returning a Defective Product 85

Appendix D: Safety Information 87

English 87

Server Safety Information 87

Safety Warnings and Cautions 87

Intended Application Uses 88

Site Selection 88

Equipment Handling Practices 88

Power and Electrical Warnings ....89

System AccessWarnings 90

Rack Mount Warnings 90

Electrostatic Discharge (ESD) 91

Other Hazards 91

Appendix E: Installation/Assembly Safety Instructions ....117

English 117

Deutsch 119

Français 122

Español 124

Italiano 126

List of Figures

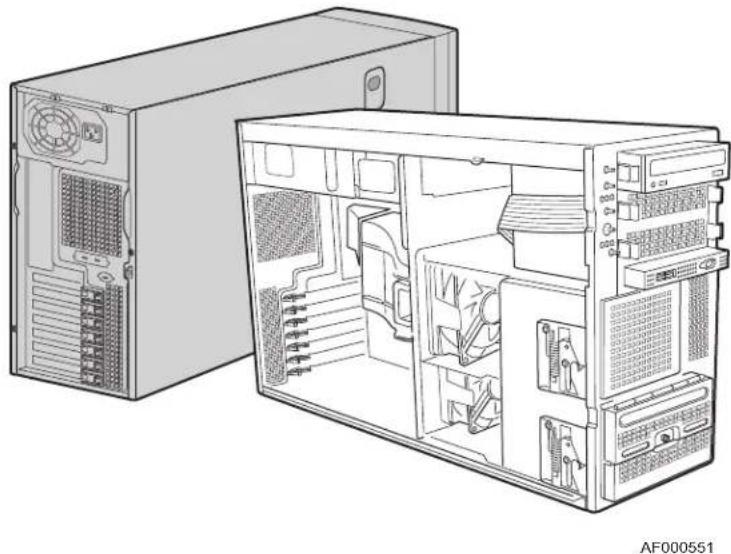

Figure 1. Intel ^® Server Chassis SC5400....1

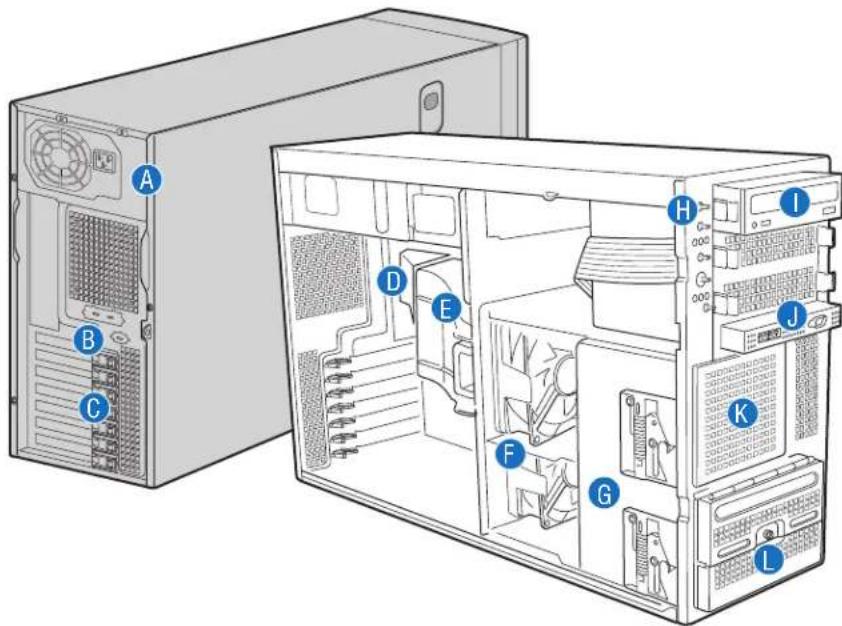

Figure 2. Internal Component Locations 6

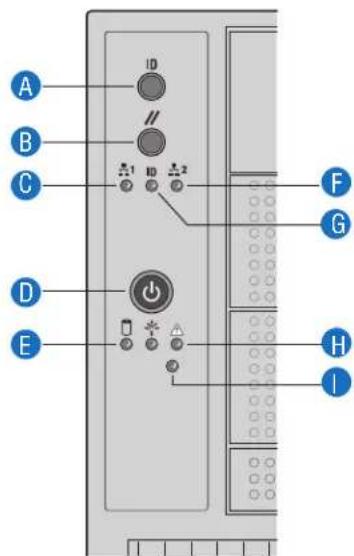

Figure 3. Front Control Panel....7
Figure 4. Intel ^® Local Control Panel Features....9

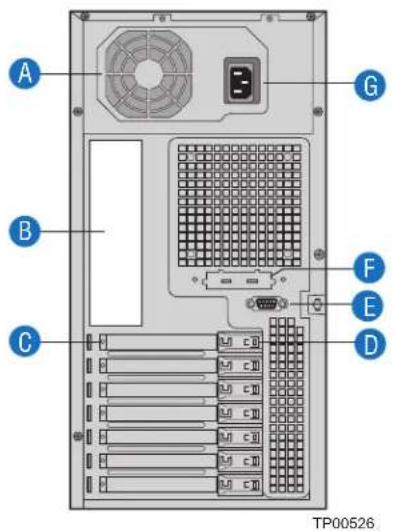

Figure 5. Server Chassis Back.... 10

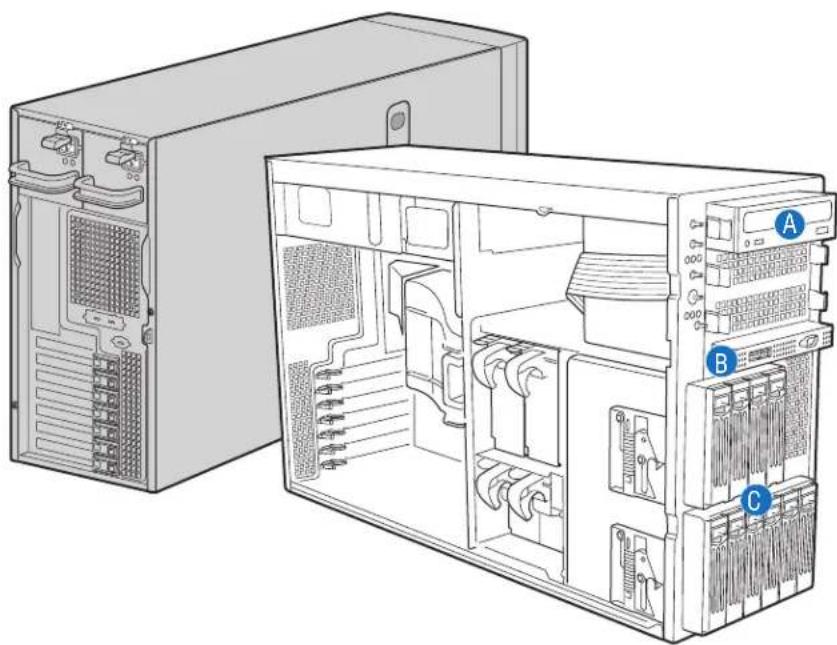

Figure 6. Optional Peripherals.... 11

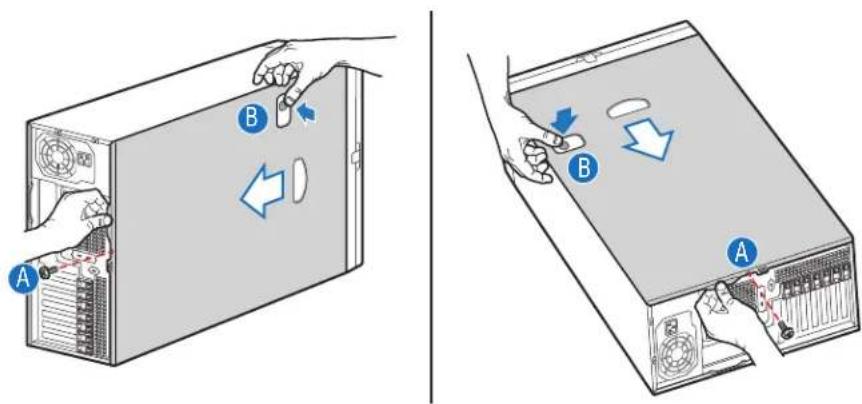

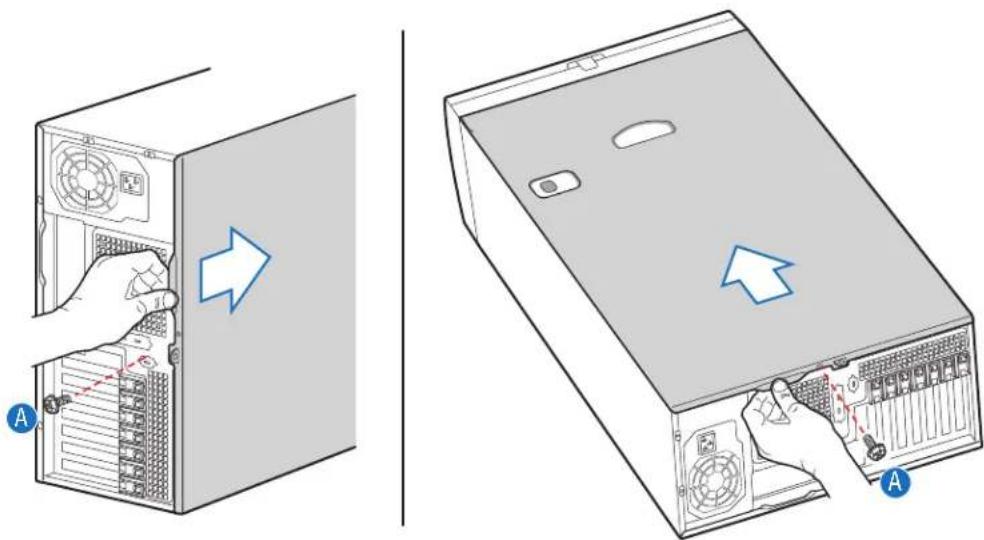

Figure 7. Removing the Chassis Cover.... 16
Figure 8. Installing the Chassis Cover.... 17

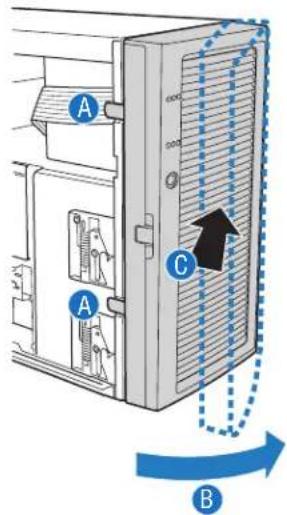

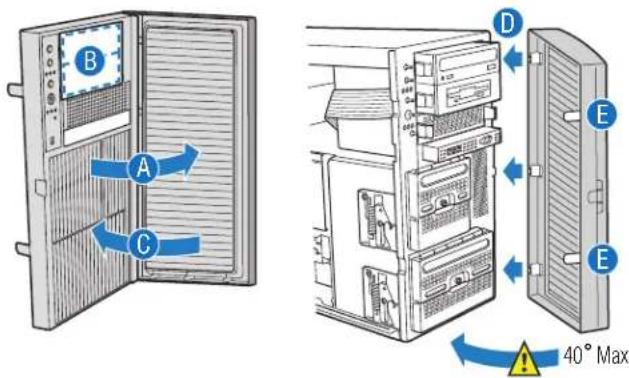

Figure 9. Removing the Front Bezel.... 18
Figure 10. Installing the Front Bezel.... 19

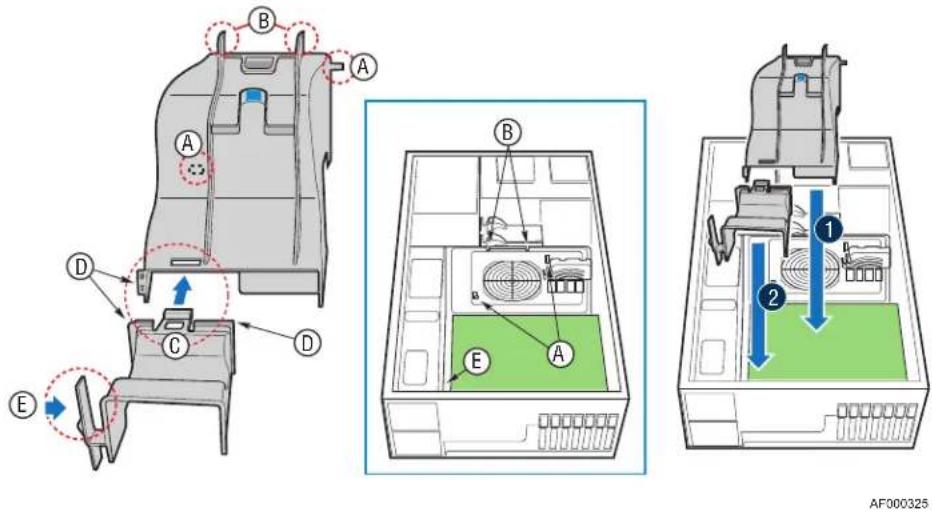

Figure 11. Removing the Processor and Memory Air Ducts 20

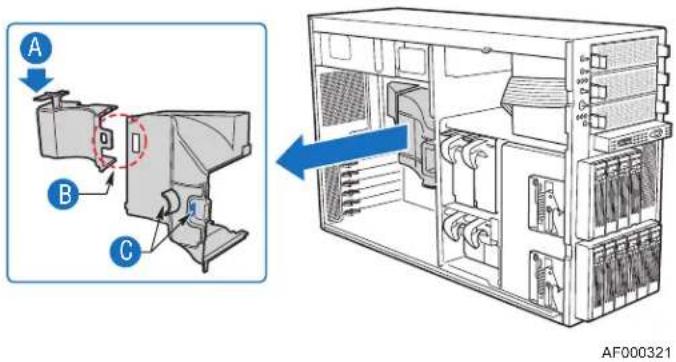

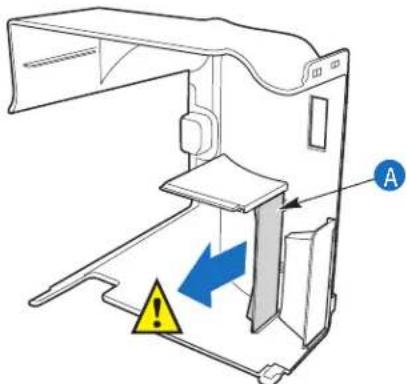

Figure 12. Removing Inner Plastic Air Baffle from Processor Air Duct 21
Figure 13. Installing the Processor and Memory Air Ducts 22

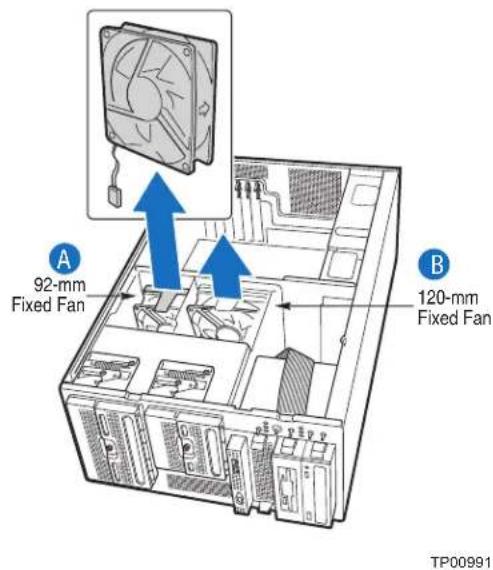

Figure 14. Removing a Fixed Fan.... 23

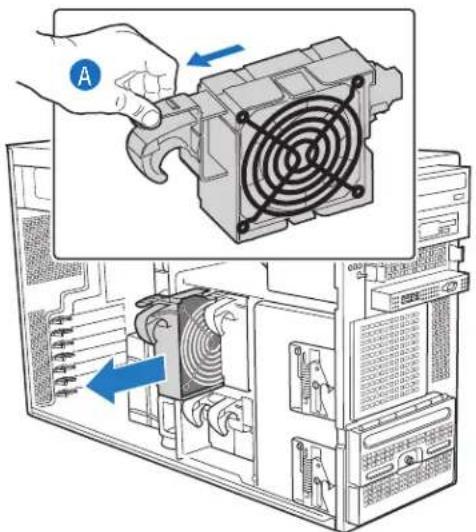

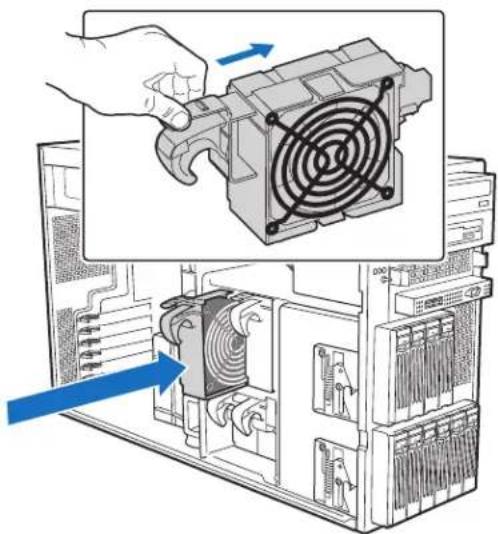

Figure 15. Removing Hot Swap Fan 24
Figure 16. Installing Hot Swap Fan 25

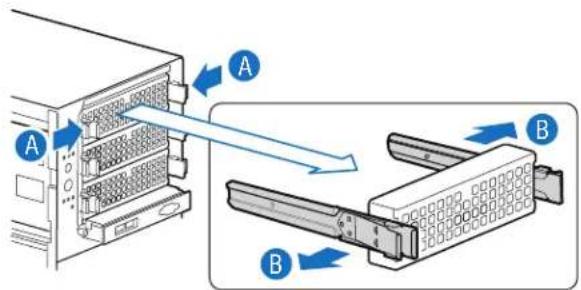

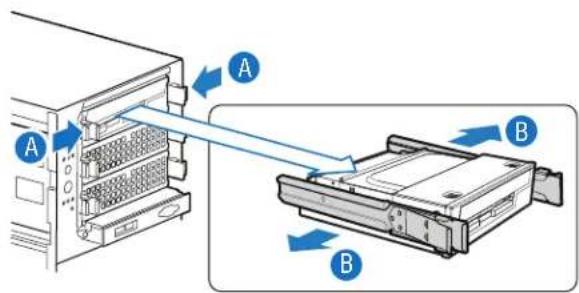

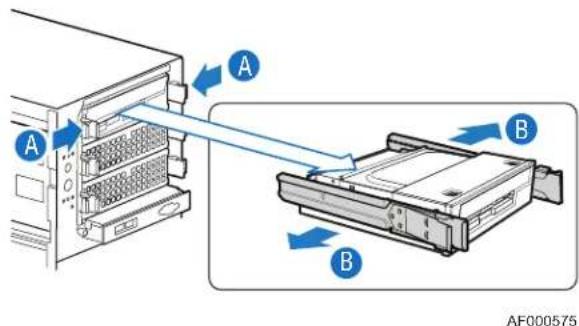

Figure 17. Removing Slide/Drive Assembly from Upper Device Bay.... 26

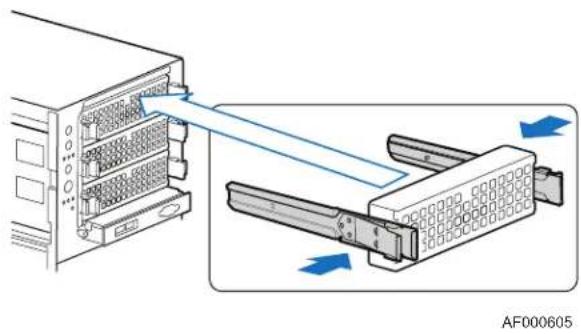

Figure 18. Re-inserting Empty EMI Shield/Slide Assembly into Chassis....27

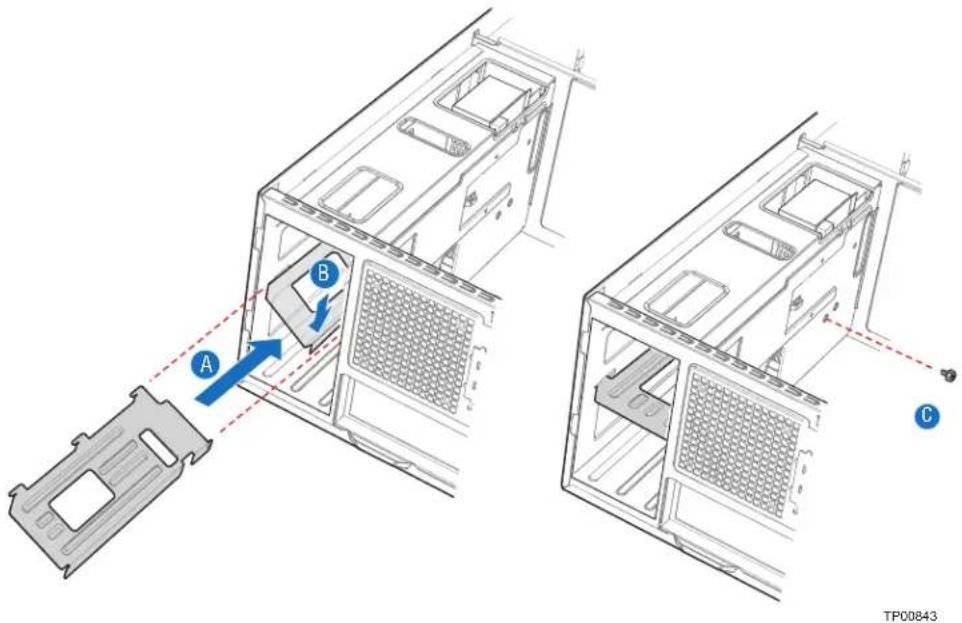

Figure 19. Re-inserting Empty EMI Shield/Slide Assembly into Chassis.... 28

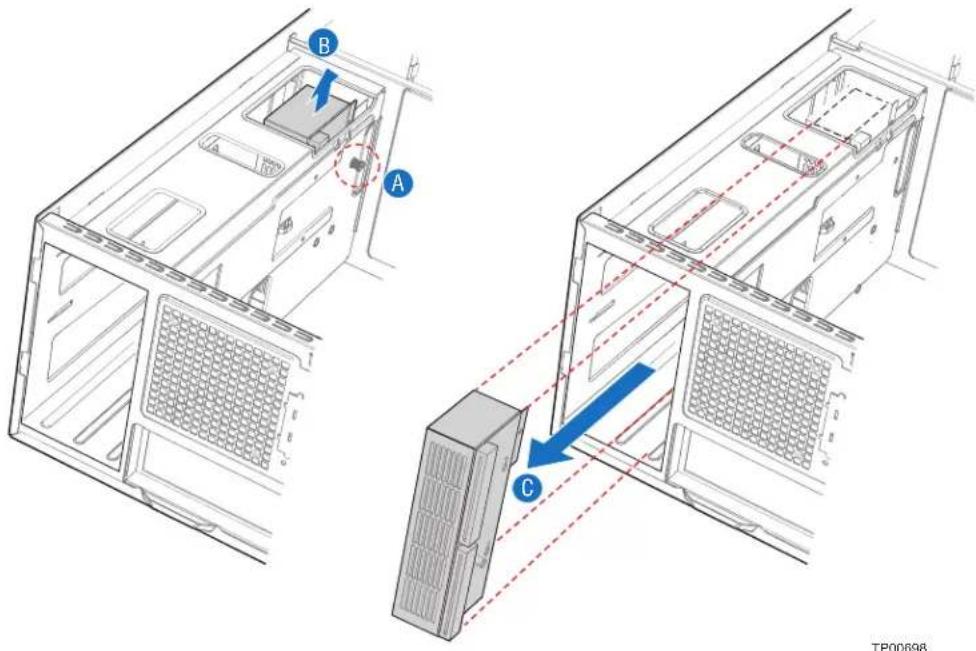

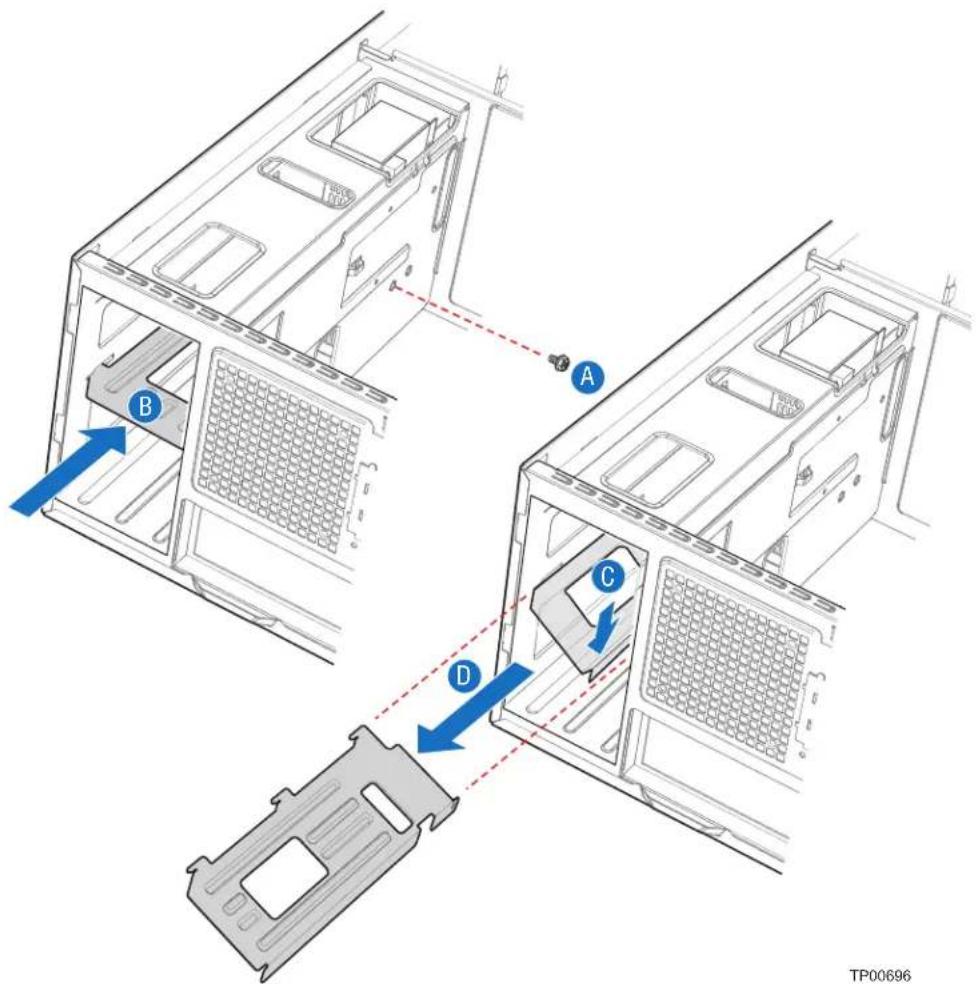

Figure 20. Removing EMI Shield/Slide Assembly from Upper Device Bay.... 29

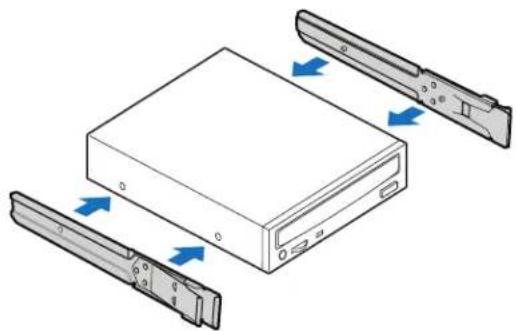

Figure 21. Attaching Slides to a DVD or CD-ROM Drive 29

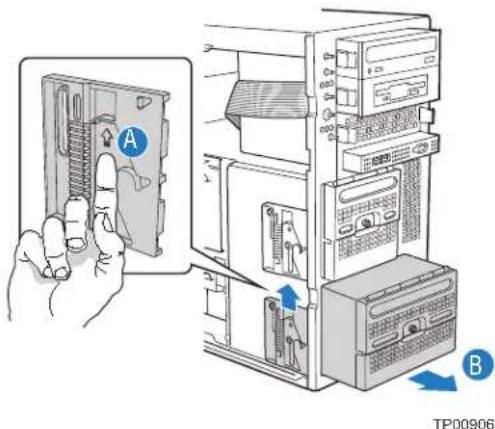

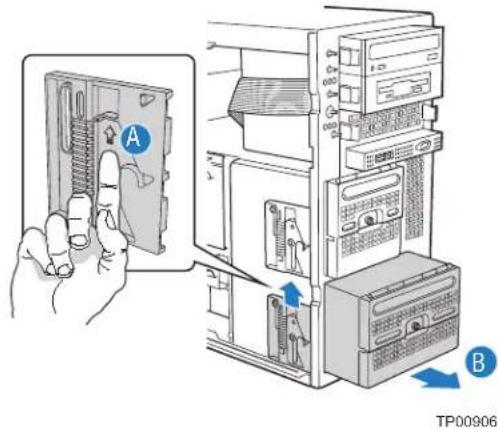

Figure 22. Removing Six-drive Fixed Drive Cage from Chassis 31

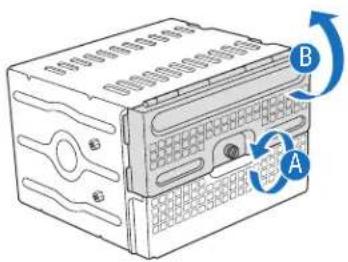

Figure 23. Unlocking and Opening Upper Door of Fixed Drive Cage 31

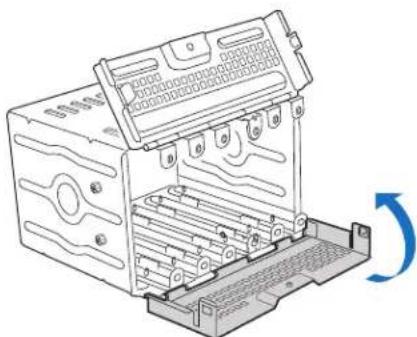

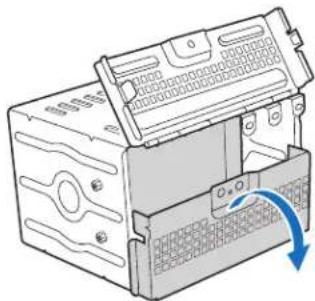

Figure 24. Opening Lower Door of Fixed Drive Cage 32

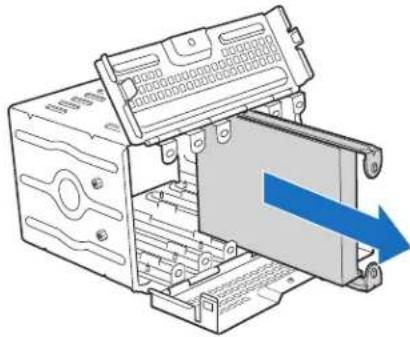

Figure 25. Removing Drive/Slide Assembly from Drive Cage.... 32

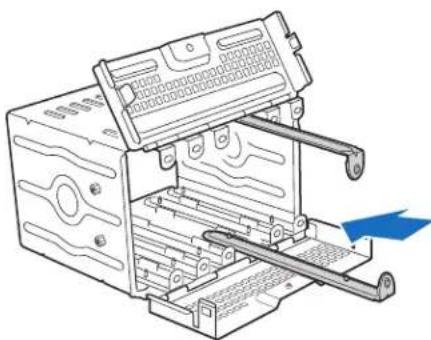

Figure 26. Inserting Empty Device Slides into Drive Cage.... 33

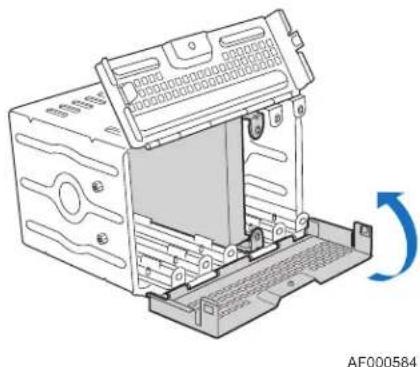

Figure 27. Closing Lower Door of Fixed Drive Cage.... 33

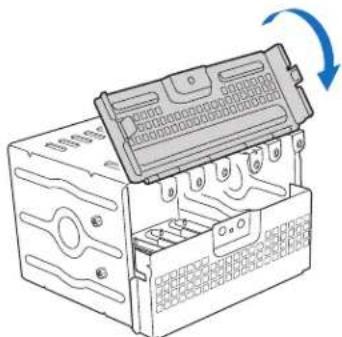

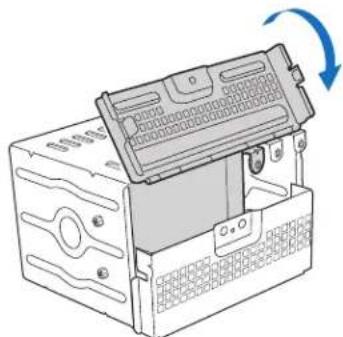

Figure 28. Closing Upper Door of Fixed Drive Cage.... 34

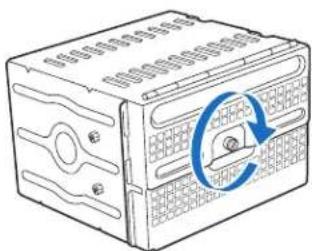

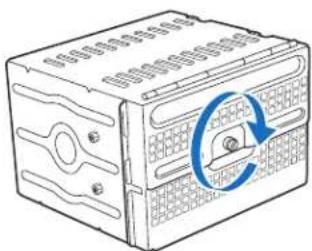

Figure 29. Tightening Thumb Screw 34
Figure 30. Removing Six-drive Fixed Drive Cage from Chassis 35

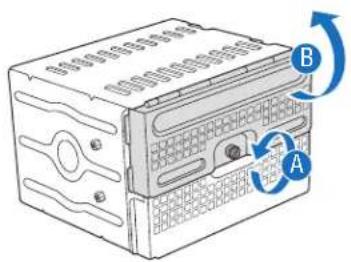

Figure 31. Unlocking and Opening Upper Door of Fixed Drive Cage 36

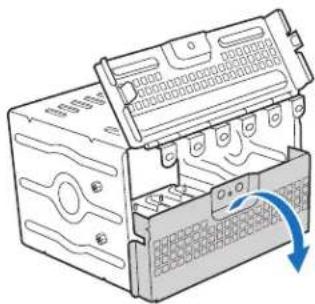

Figure 32. Opening Lower Door of Fixed Drive Cage 36

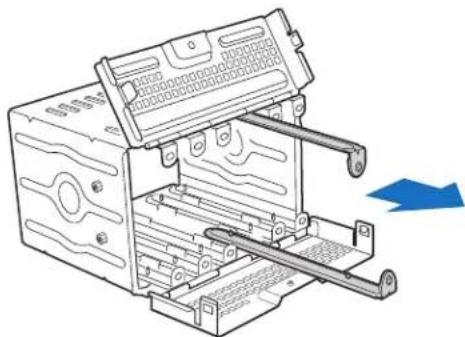

Figure 33. Removing Slides from Drive Cage.... 37

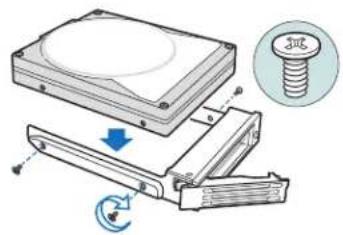

Figure 34. Attaching Device Slides to Hard Drive 37
Figure 35. Inserting Drive/Slide Assembly into Drive Cage.... 38
Figure 36. Closing Lower Door of Fixed Drive Cage.... 38
Figure 37. Closing Upper Door of Fixed Drive Cage.... 39
Figure 38. Tightening Captive Screw 39
Figure 39. Routing Power Cables to Fixed Drives 40
Figure 40. Routing SAS/SATA Data Cables 41
Figure 41. Releasing Drive Carrier from Hot Swap Cage 42

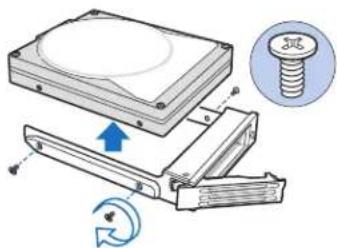

Figure 42. Removing Hard Drive from Drive Carrier 42

Figure 43. Installing Plastic Air Baffle in Drive Carrier 43
Figure 44. Inserting Drive Carrier into Hot Swap Cage.... 43
Figure 45. Removing Drive Carrier from Hot Swap Cage.... 44
Figure 46. Removing Plastic Air Baffle .... 44
Figure 47. Securing Hard Drive to Drive Carrier.... 45
Figure 48. Inserting Drive Carrier into Hot Swap Cage.... 45

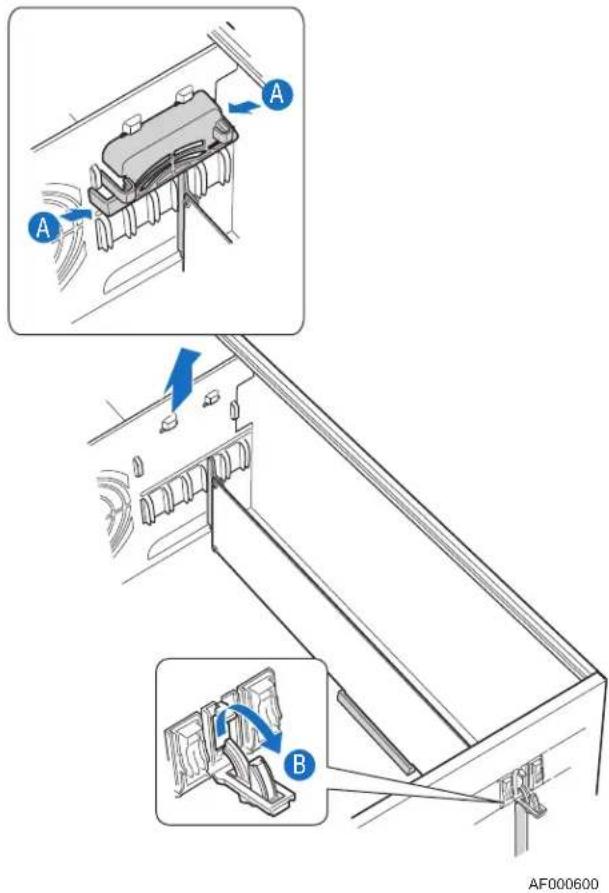

Figure 49. Preparing Chassis for Removal of PCI Add-in Board.... 46

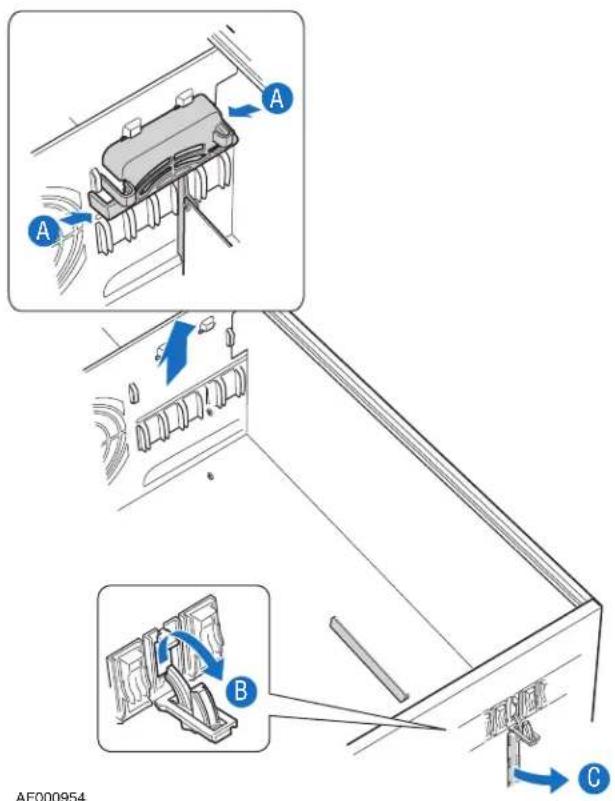

Figure 50. Preparing Chassis for Addition of PCI Add-in Board 48

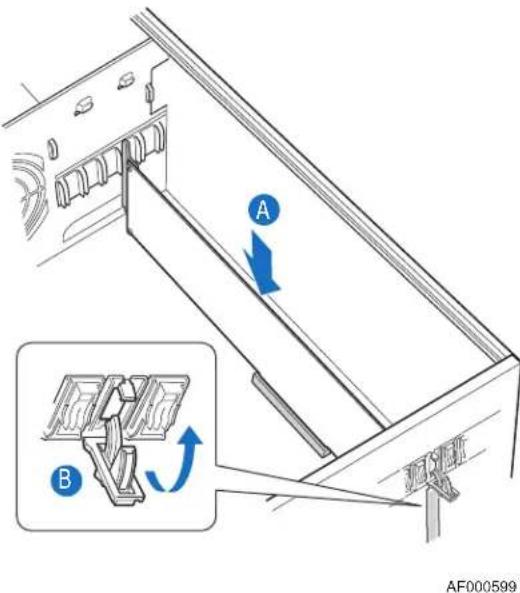

Figure 51. Installing Add-in Board.... 49

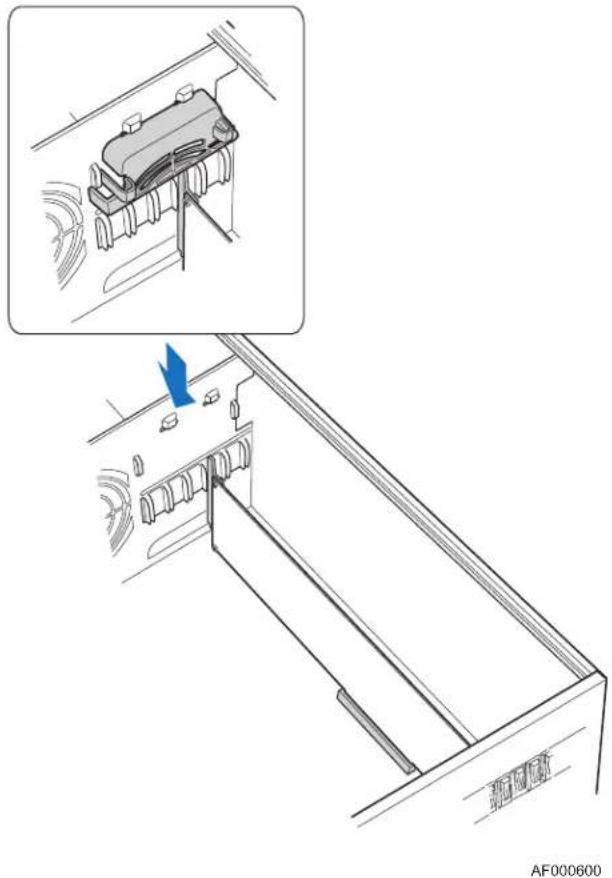

Figure 52. Reinstalling PCI Add-in Card Retainer 50
Figure 53. Removing Power Supply Filler Panel 51
Figure 54. Installing Additional Hot Swap Power Supply Module 51
Figure 55. Removing Hot Swap Power Supply from Chassis.... 52
Figure 56. Installing Hot Swap Power Supply into Chassis 52
Figure 57. Removing Fixed Power Supply.... 53
Figure 58. Removing Hot Swap Power Supply from Chassis.... 54
Figure 59. Removing Center Divider.... 55
Figure 60. Removing Power Distribution Board.... 56
Figure 61. Securing Power Distribution Board to Power Supply Cage.... 57
Figure 62. Re-installing Center Divider.... 58
Figure 63. Installing Hot Swap Power Supply into Chassis 58

List of Tables

Table 1. Server Chassis Features (BASE SKU) ......2
Table 2. Server Chassis Features (BRP SKU) ......3
Table 3. Server Chassis Features (LX SKU) ......4
Table 4. Server Chassis Features (LXi SKU) ....5
Table 5. Front Control Panel LED Descriptions 8
Table 6. 670-W Power Supply Output Capability ......63
Table 7. 830-W Power Supply Output Capability ....64
Table 8. Environmental Specifications ......64
Table 9. Power Usage Worksheet 65
Table 10. Power Usage Worksheet 2 ......66
Table 11. Product Regulatory Compliance Markings ......72
Table 12. Product Ecology Compliance Markings ......78
Table 13. Other Markings ....80

1 Server Chassis Features

This chapter briefly describes the main features of the Intel ^® Server Chassis SC5400. This chapter provides a list of the server chassis features, as well as diagrams showing the location of important components and connections on the server chassis.

Technical line drawing of a desktop computer tower showing internal components and ventilation ducts (no text or labels)

Figure 1. Intel® Server Chassis SC5400

Table 1 summarizes the features of the Intel ^ Server Chassis SC5400 Base SKU
Table 1. Server Chassis Features (BASE SKU)

Feature Description
Dimensions • 16.6 inches high (Pedestal: 17 inches)8.6 inches wide27.4 inches deep (Pedestal: 28.4 inches)34.6 kilograms
Hard Drives One fixed drive bay for up to six fixed SAS or SATA drives.Optional hot-swap drive bays:Six-drive SAS/SATAFour-drive SAS/SATAAn optional four-drive fixed drive bay is also available.Supports up to six drives, depending on peripheral choices.
Peripherals	Three multi-mount 5.25 peripheral bays
Control Panel (dependent on option selected)	Front Control PanelIntel®Local Control Panel (optional)
LEDs and displays (dependent on option selected)	With Front Control Panel:NIC1 ActivityNIC2 ActivityPower / SleepSystem StatusSystem IdentificationHard Drive Activity
Power Supply One fixed 670-W power supply with an integrated cooling fan.Upgradable to 830-W redundant power supplies.
Fans Two fixed, non-redundant chassis fans:One 120-mm fanOne 92-mm fanUpgradable to redundant.
USB 2.0	Two front panel USB ports with Front Control PanelFour back panel USB ports (depending on server board)
Video	One rear panel video portNOTE:The 12V 6-pin power connector is for the 150-W PCIe video cards, which require an external 75-W power connector.

Table 2 summarizes the features of the BRP SKU.
Table 2. Server Chassis Features (BRP SKU)

Feature Description
Dimensions • 16.6 inches high (Pedestal: 17 inches)• 8.6 inches wide• 27.4 inches deep (Pedestal: 28.4 inches)• 36.2 kilograms
Hard Drives One fixed drive bay for up to six fixed SAS or SATA drives.Optional hot swap drive bays:• Six-drive SAS/SATA• Four-drive SAS/SATAAn optional four-drive fixed drive bay is also available.• Supports up to ten drives
Peripherals • Three multi-mount 5.25-inch peripheral bays
Control Panel (dependent on option selected)	• Front Control Panel• Intel ® Local Control Panel (optional)
LEDs and displays (dependent on option selected)	With Front Control Panel:• NIC1 Activity• NIC2 Activity• Power / Sleep• System Status• System Identification• Hard Drive Activity
Power Supply One 830-W power supply is standard. Upgradable to 830-W redundant power supplies
Fans Two fixed, non-redundant chassis fans:• One 120-mm fan• One 92-mm fanUpgradable to redundant.
USB 2.0	• Two front panel USB ports with Front Control Panel• Four back panel USB ports
Video	• One front panel video port (available only with Front Control Panel)• One rear panel video port

Table 3 summarizes the features of the LX SKU.
Table 3. Server Chassis Features (LX SKU)

Feature Description
Dimensions • 16.6 inches high (Pedestal: 17 inches)8.6 inches wide27.4 inches deep (Pedestal: 28.4 inches)36.2 kilograms
Hard Drives One fixed drive bay for up to six fixed SAS or SATA drives.Optional hot-swap drive bays:Six-drive SAS/SATAFour-drive SAS/SATAAn optional four-drive fixed drive bay is also available.Supports up to ten drives
Peripherals	Three multi-mount 5.25-inch peripheral bays
Control Panel (dependent on option selected)	Front Control PanelIntel®Local Control Panel (optional)
LEDs and displays (dependent on option selected)	With Front Control Panel:NIC1 ActivityNIC2 ActivityPower / SleepSystem StatusSystem IdentificationHard Drive Activity
Power Supply One redundant capable 830-W power supply module with an integrated cooling fan. Optional second redundant power supply module is available.
Fans Four hot-swap, redundant chassis fans:Two 120-mm fansTwo 92-mm fans
USB 2.0	Two front panel USB ports with Front Control PanelFour back panel USB ports
Video	One front panel video port (available only with Standard Control Panel)One rear panel video port

Table 3 summarizes the features of the SC5400LXi SKU
Table 4. Server Chassis Features (LXi SKU)

Feature Description
Dimensions • 16.6 inches high (Pedestal: 17 inches)• 8.6 inches wide• 27.4 inches deep (Pedestal: 28.4 inches)• 36.2 kilograms
Hard Drives One fixed drive bay for up to six fixed SAS or SATA drives.Optional expanded or non-expanded hot-swap drive bays:• Six-drive SAS/SATA• Four-drive SAS/SATAAn optional four-drive fixed drive bay is available.• Supports up to ten drives
Peripherals • Three multi-mount 5.25-inch peripheral bays
Control Panel (dependent on option selected)	• Front Control Panel• Intel ® Local Control Panel (optional)
LEDs and displays (dependent on option selected)	With Front Control Panel:• NIC1 Activity• NIC2 Activity• Power / Sleep• System Status• System Identification• Hard Drive Activity
Power Supply One redundant capable 830-W power supply module with an integrated cooling fan. Optional second redundant power supply module is available.
Fans Four hot-swap, redundant chassis fans:• Two 120-mm fans• Two 92-mm fans
USB 2.0	• Two front panel USB ports with Front Control Panel• Four back panel USB ports
Video	• One front panel video port (available only with Standard Control Panel)• One rear panel video port

Component Identification

Internal Components

AF000511

A. Fixed Power Supply G. Hard Disk Drive Cage Release Mechanisms (2)
B. Rear Serial B Connector H. Front Panel Controls
C. PCI Add-in Card Panel I. 5.25-inch Device Bays
D. Memory Air Duct J. Front Panel USB/Serial B
E. Processor Air Duct K. Fixed Drive Cage 4-Drive (accessory)
F. Fixed Fans (2) L. Fixed Drive Cage 6-Drive

Figure 2. Internal Component Locations

Front Control Panel

The following figure shows the features available on the Front Control Panel. The Intel ^® Local Control Panel is optional.

TP00701

A. ID Toggle Switch F. NIC2 Activity LED (green)
B. Reset Button G. ID LED (blue)
C. NIC 1 Activity LED (green) H. Status LED (bi-color)
D. Power Button I. NMI Button
E. Hard Drive Activity LED (green)

Figure 3. Front Control Panel

Descriptions of the front control panel LEDs are listed in the following table. See your server documentation for functionality of buttons.

Table 5. Front Control Panel LED Descriptions

LED Name Color Condition Description
Power LED Green	On Power on
		Off Power off
Status Green On	System ready
		Blink System	ready, but degraded: some CPU fault, DIMM killed
	Green/Blink Amber	Blink Condition during BMC reset.
	Amber On Critical alarm: critical power module failure, critical fan failure, voltage (power supply), voltage and thermal fault
Hard drive activity	Green Blink Hard drive activity
NIC1 activity Green On Linked
NIC2 activity Green On Linked
ID LED (rack only)	Blue Blink Server identification; toggled by ID button or software

Intel® Local Control Panel

The following figure shows the features available on the Intel ^® Local Control Panel. The Intel ^® Local Control Panel is optional.

Note: The Intel® Local Control Panel requires the installation of the Intel® Remote Management Module. See your server board documentation to determine if this control panel is compatible with your server board.

Callout Function

A. LCD display (variable content)

B. LCD up navigation button

C. LCD down navigation button

D. LCD backup level navigation button

E. LCD command enter button

Figure 4. Intel® Local Control Panel Features

Back Panel Features

A. Fixed Power Supply B. I/O Ports
C. PCI Add-in Card Slots D. PCI Card Latch
E. Rear Serial B Connector (optional) F. Knockout
G. AC Power Connector

Note: I/O connectors vary, depending on the server board installed. See your server board documentation for port identification.

Figure 5. Server Chassis Back

Peripheral Devices

The chassis provides locations and hardware for installing hard drives, a floppy drive, a CD-ROM drive, or a DVD-ROM drive. The drives must be purchased separately. The following figure shows the available options.

Technical line drawing of a server rack with two internal components (no text or symbols)

AF000552

A. Slimline floppy drive / DVD-ROM drive / CD-ROM drive
B. USB ports (2)
C. Hard drive bays

Figure 6. Optional Peripherals

Standard and Optional Hot-swap Drive Bays

One bay supporting six cabled drives ships with the standard chassis. Optional hot swap drive bays may replace the six-drive fixed drive bay. An optional four-drive fixed drive bay (for cabled drives) is available. No tools are required to replace the fixed drive bays.

Optional four-drive and six-drive SAS/SATA and SCSI hot-swap drive bays are available.

For instructions on installing hard drives, see “Removing and Installing Hot Swap Drive(s)” on page 42.

Note: Drives can consume up to 17 watts of power each. Drives must be specified to run at a maximum ambient temperature of 45C.

The Intel ^® Server Chassis SC5400 does not support all SAS, SATA, or SCSI hard drives. See “Additional Information and Software” on page ix for an Internet link to a list of supported hardware.

Floppy / CD-ROM / DVD-ROM Slimline Carriers

For installation instructions on installing a floppy drive see “Installing and Removing a Slimline USB Floppy/CD/DVD Combo Kit” on page 26. For installation instructions on installing a CD-ROM drive or DVD-ROM drive, see “Removing and Installing a DVD or CD-ROM Drive” on page 27.

To use one of the drives provided by Intel, use the following order codes:

• Slimline CD-ROM Drive: AXXSCD
• Slimline DVD/CDR Drive: AXXDVDCDR
• Slimline Floppy Drive: AXXCDUSBFDBRK

Note: The Intel ^ Server Chassis SC5400 does not support all slimline floppy, CD-ROM or DVD-ROM hard drives. See “Additional Information and Software” on page ix for an Internet link to a list of supported hardware. Intel provides accessory kits for these drives.

Intel ^® Remote Management Module

The Intel ^® Remote Management Module is available to provide advanced system management features.

For installation instructions on installing the Intel ^® Remote Management Module, see the instructions provided with the module.

Note: Some server boards may not support the Intel ^ Remote Management Module. See your server board documentation to determine if this feature is compatible with your server board.

Rack-mounted Systems

Your Intel ^® Server Chassis SC5400 can be mounted into a rack. Intel provides a tool-less rail kit and a cable management arm to mount this server chassis into a rack. When installing the chassis into a rack, Intel recommends you install systems from the bottom of the rack to the top. In other words, install the first system in the rack into the bottom position of the rack, the second system in the second position from the bottom, and so on. Instructions for installing your chassis into a rack are included in the rail kit.

The order numbers are as follows:

• Tool-less Rail Kit: ARIGRACK
• Cable Management Arm: AXXRACKCARM (requires the tool-less rail kit)

2 Hardware Installations and Upgrades

Before You Begin

Before working with your server product, pay close attention to the “Safety Information” on page iii.

This document provides instructions for adding and replacing chassis components. For instructions on replacing components on the server board, such as the processor and memory DIMMs, see the instructions provided with the server board.

Tools and Supplies Needed

• Phillips* (cross head) screwdriver (#1 bit and #2 bit)
• Needle nosed pliers
  • Anti-static wrist strap and conductive foam pad (recommended)

System References

All references to left, right, front, top, and bottom assume the reader is facing the front of the chassis as it would be positioned for normal operation.

Removing and Installing the Chassis Cover

Removing the Chassis Cover

The Intel ^® Server Chassis SC5400 must be operated with the top cover in place to ensure proper cooling. You will need to remove the top cover to add or replace components inside of the platform. Before removing the top cover, power down the server and unplug all peripheral devices and the AC power cable.

Note: A non-skid surface or a stop behind the chassis may be needed to prevent the chassis from sliding on your work surface.

1. Observe the safety and ESD precautions at the beginning of this book. See "Safety Information" on page iii.

2. Turn off all peripheral devices connected to the server. Turn off the server.

3. Disconnect the AC power cord.

4. Remove the access cover screw if it is installed (see letter "A" in the following figure). While holding in the blue button at the top of the chassis (see letter "B"), slide the top cover back until it stops. Lift the cover outward to remove it.

AF000555

Figure 7. Removing the Chassis Cover

Installing the Chassis Cover

1. Slide the chassis cover on the chassis.

2. Latch the cover securely to the chassis.

3. If the chassis will be re-shipped, secure the chassis cover to the chassis with the access cover screw (see letter "A" in the following figure).

AF000572

Figure 8. Installing the Chassis Cover

Removing and Installing the Front Bezel

Removing the Bezel Assembly (Pedestal Only)

Caution: Do not rotate the bezel assembly more than 40 degrees or you will damage the bezel assembly.

Note: The bezel assembly consists of two components, a front door and a sub-bezel.

1. Observe the safety and ESD precautions at the beginning of this book.
2. Power down the server and unplug all peripheral devices and the AC power cable.
3. Remove the chassis cover. For instructions, see "Removing the Chassis Cover" on page 16.

4. Release the two plastic tabs (see letter "A" in the following figure) on the left side of the bezel assembly to disengage the tabs.

5. Rotate the bezel assembly (see letter "B") no more than 40 degrees outward.

6. At a 40-degree angle, push the bezel assembly away from the chassis (see letter "C").

7. If the bezel assembly does not immediately disconnect from the chassis, tap the left-hand side of the bezel assembly to disengage the bezel hooks on the right-hand side of the chassis.

AF000557
Figure 9. Removing the Front Bezel

Installing the Front Bezel (Pedestal Only)

Caution: This step applies to a pedestal configuration chassis only. For instructions on installing a bezel in a rack-mount configuration, refer to the Rack Conversion kit Installation Guide: Intel® Server Chassis SC5400.

1. Open the outer bezel door of the bezel assembly (see letter "A" in the following figure).

2. Remove the filler panels that correspond to installed devices (see letter "B").

3. Close the outer bezel door (see letter "C").

4. Fit the right edge of the bezel assembly against the right side of the chassis.

5. Engage the plastic bezel hooks (see letter "D") into the raised metal slots at the chassis edge.

6. Rotate the bezel assembly toward the chassis.

7. Latch the two plastic tabs (see letter "E") on the left side of the bezel assembly to the chassis.

AF000558

Figure 10. Installing the Front Bezel

Removing and Installing the Processor and Memory Air Ducts

Always operate your server chassis with the processor and memory air ducts in place. The air ducts are required for proper airflow within the chassis.

For instructions on adding or replacing a processor, first remove the processor and memory air ducts, and then see your server board user guide for instructions on processor installations and removals. Return to these instructions to reinstall the processor and memory air ducts after installing your processor and heat sink.

Removing the Processor and Memory Air Ducts

1. Observe the safety and ESD precautions at the beginning of this book. See "Safety Information" on page iii.

2. Power down the server and unplug all peripheral devices and the AC power cable.

3. Remove the chassis cover. For instructions, see "Removing the Chassis Cover" on page 16.

4. Press the latch on the memory air duct to disengage it from the server board (see letter "A" in the following figure).

5. Detach the memory air duct from the processor air duct (see letter "B").

6. Remove the processor air duct (see letter "C").

Figure 11. Removing the Processor and Memory Air Ducts

Installing the Processor and Memory Air Ducts

1. If your system has two processors, remove the inner plastic air baffle from the inside of the processor air duct (see letter "A" in the following figure).

Caution: This step only applies to systems with two processors. If your server board has only one processor installed, leave the inner air baffle in place and proceed to step two.

AF000323
Figure 12. Removing Inner Plastic Air Baffle from Processor Air Duct

1. Install the processor air duct. Make sure the tabs on the processor air duct (see letters "A" and "B" in the following figure) engage their matching slots on the chassis before inserting tabs into the chassis slots.

2. Install the memory air duct next by holding the large tab-end of the memory air duct at a downward angle and then inserting the large tab (see letter "C") from the underside into the matching slot on the processor air duct.

3. Rotate the memory air duct downward until the two small tabs (see letter "D") engage and the memory air duct latch (see letter "E") snaps into place.

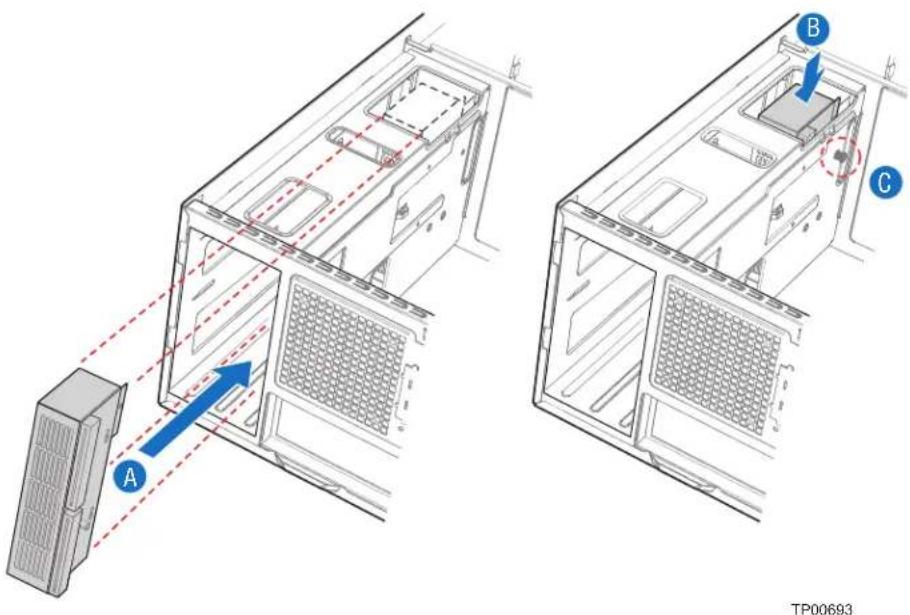

Figure 13. Installing the Processor and Memory Air Ducts

Caution: The processor air duct interlocks with the memory air duct in two places before latching into place.

Note: Use care to avoid pinching the cables.

Replacing a Fixed Fan (Intel® Server Chassis SC5400Base SC5400BRP only)

Note: This procedure applies only to the Intel ^ Server Chassis SC5400 BASE and Intel ^ Server Chassis SC5400BRP configurations. The Intel ^ Server Chassis SC5400LX and SC5400LXi ship with hot-swap fans.

1. Observe the safety and ESD precautions at the beginning of this book.
2. Power down the server and unplug all peripheral devices and the AC power cable.
3. Remove the chassis cover. For instructions, see "Removing the Chassis Cover" on page 16.
4. Disconnect the appropriate fan power cable from the server board.
5. Remove the 92-mm (see letter "A" in the following figure) or 120-mm (see letter "B") fixed fan from its snap-in bracket.

Figure 14. Removing a Fixed Fan

1. Install new 92-mm or 120-mm fixed fan.
2. Connect fan power cable to the server board. See the Intel ^® server board Quick Start User's Guide or User Guide for appropriate connection location.
3. Re-install the chassis cover. For instructions, see "Installing the Chassis Cover" on page 17.
4. Plug all peripheral devices and the AC power cable into the server and then power up the server.

Removing and Installing Hot Swap Fans (Intel® Server Chassis SC5400LX or SC5400LXi Only)

Removing Hot Swap Fans

Note: This procedure applies only to the Intel ^ Server Chassis SC5400LX and SC5400LXi configurations. The Intel ^ Server Chassis SC5400 BASE and Intel ^ Server Chassis SC5400BRP configurations ship with fixed fans.

The hot-swap fans from the Intel ^® Server Chassis SC5300LX cannot be used in the Intel ^® Server Chassis SC5400LX or SC5400LXi.

1. Observe the safety and ESD precautions at the beginning of this book.
2. Remove the chassis cover. For instructions, see "Removing the Chassis Cover" on page 16.
3. Press latch on fan (see letter "A" in the following figure) and pull on handle to remove hot swap fan from chassis.
4. Repeat previous step for removal of remaining hot swap fans.

AF000573

Figure 15. Removing Hot Swap Fan

Installing Hot Swap Fans

Note: This procedure applies only to the Intel ^ Server Chassis SC5400LX or SC5400LXi configurations. The Intel ^ Server Chassis SC5400 BASE and Intel ^ Server Chassis SC5400BRP configurations ship with fixed fans.

The hot-swap fans from the Intel ^® Server Chassis SC5300 LX cannot be used in the Intel ^® Server Chassis SC5400LX or SC5400LXi.

1. Observe the safety and ESD precautions at the beginning of this book.

2. Remove the chassis cover if not removed in a previous step. For instructions, see "Removing the Chassis Cover" on page 16.

3. Insert the hot swap fan into the chassis until it latches into place.

4. Repeat previous step for insertion of remaining hot swap fans.

AF000574

Figure 16. Installing Hot Swap Fan

Installing and Removing a Slimline USB Floppy/CD/DVD Combo Kit

Installing a Slimline USB Floppy/CD/DVD Slimline Kit

Refer to the Slimline USB Floppy/CD-ROM/DVD-ROM Drive Kit Install Guide that shipped with your slimline combo kit for installation instructions.

Removing a Slimline USB Floppy/CD/DVD Combo

1. Observe the safety and ESD precautions at the beginning of this book.

2. Power down the server and unplug all peripheral devices and the AC power cable.

3. Remove the chassis cover. For instructions, see "Removing the Chassis Cover" on page 16.

4. Remove the front bezel if it is installed. For instructions, see "Removing and Installing the Front Bezel" on page 18.

5. Disconnect the power and data cables to the slimline combo drive assembly.

6. Remove the combo drive/slide assembly from the chassis by pressing in on the slide release latches (see letter "A" in the following figure). Remove the slides from the slimline combo drive tray by pulling the slides away from the tray (see letter "B"). A gentle pull should release the slide from the side dimple on the drive tray.

Figure 17. Removing Slide/Drive Assembly from Upper Device Bay

1. If not replacing with another drive, re-attach pair of slides to an EMI shield and re-insert EMI shield/slide assembly into chassis for proper airflow.

Diagram showing a server rack with internal components and a device housing connected by arrows (no text or symbols)

Figure 18. Re-inserting Empty EMI Shield/Slide Assembly into Chassis

1. Install the front bezel. For instructions, see "Removing and Installing the Front Bezel" on page 18.

2. Install the chassis cover. For instructions, see "Installing the Chassis Cover" on page 17.

3. Plug all peripheral devices and the AC power cable into the server.

4. Power up the server.

Removing and Installing a DVD or CD-ROM Drive

Removing a DVD or CD-ROM Drive

1. Observe the safety and ESD precautions at the beginning of this book.
2. Power down the server and unplug all peripheral devices and the AC power cable.
3. Remove the chassis cover. For instructions, see "Removing the Chassis Cover" on page 16.
4. Remove the front bezel if it is installed. For instructions, see "Removing and Installing the Front Bezel" on page 18.

5. Disconnect the power and data cables to the DVD/CD-ROM drive.

6. Remove the DVD/CD-ROM drive/slide assembly from the chassis by pressing in on the slide release latches (see letter "A" in the following figure). Remove the slides from the DVD or CD-ROM drive by pulling the slides away from the drive (see letter "B"). A gentle pull should release the slide from the side dimple on the drive.

AF000575

1. If not replacing with another drive, re-attach pair of slides to an EMI shield and re-insert EMI shield/slide assembly into chassis for proper airflow.

Diagram showing server rack and drive mechanism with blue arrows indicating direction (no text or symbols)

AF000605
Figure 19. Re-inserting Empty EMI Shield/Slide Assembly into Chassis

1. Install the front bezel. For instructions, see "Removing and Installing the Front Bezel" on page 18.
2. Install the chassis cover. For instructions, see "Installing the Chassis Cover" on page 17.
3. Plug all peripheral devices and the AC power cable into the server.
4. Power up the server.

Installing a DVD or CD-ROM Drive

1. Observe the safety and ESD precautions at the beginning of this book.
2. Power down the server and unplug all peripheral devices and the AC power cable.
3. Remove the chassis cover. For instructions, see "Removing the Chassis Cover" on page 16.
4. Remove the front bezel if it is installed. For instructions, see "Removing and Installing the Front Bezel" on page 18.
5. Remove an EMI shield/slide assembly from the upper device bay by pressing the two slide assembly latches inward (see letter "A" in the following figure). Remove the slides from the EMI shield by pulling the slides away from the EMI shield to release them from the EMI shield (see letter "B").

AF000945
Figure 20. Removing EMI Shield/Slide Assembly from Upper Device Bay

1. Attach slides to the DVD or CD-ROM drive by pressing the slides firmly into the side dimples on the DVD or CD-ROM drive.

Diagram of an open physical drive with multiple ports and arrows indicating motion (no text or symbols)

AF000576
Figure 21. Attaching Slides to a DVD or CD-ROM Drive

1. Insert the drive/slide assembly into the upper device bay until the slides lock into place.
2. Connect power and data cables.
3. Install the front bezel. For instructions, see “Removing and Installing the Front Bezel” on page 18.
4. Install the chassis cover. For instructions, see “Installing the Chassis Cover” on page 17.
5. Plug all peripheral devices and the AC power cable into the server.
6. Power up the server.

Removing and Installing Fixed Hard Drive(s)

Removing Fixed Hard Drive(s)

1. Observe the safety and ESD precautions at the beginning of this book.
2. Power down the server and unplug all peripheral devices and the AC power cable.
3. Remove the chassis cover. For instructions, see “Removing the Chassis Cover” on page 16.
4. Remove the front bezel if it is installed. For instructions, see “Removing and Installing the Front Bezel” on page 18.
5. Push the blue plastic release mechanism upward to release the fixed drive cage (see letter "A" in the following figure).
6. Remove power and data cables from the hard drive connectors.
7. Pull the drive cage out about two inches (see letter "B") so that it is partially exposed from the drive bay slot in the chassis. Partially exposing the drive cage will make it easier to open the upper door of the drive cage.

Note: As an alternative, you may also fully remove the drive cage from its drive bay slot in the chassis. Take care, however, to position the drive cage horizontally before opening the drive cage doors or the drive rails will spill out.

Figure 22. Removing Six-drive Fixed Drive Cage from Chassis

1. Loosen the thumb screw (see letter "A" in the following figure). Open the upper door of the drive cage (see letter "B").

AF000579

Figure 23. Unlocking and Opening Upper Door of Fixed Drive Cage

1. Open the lower door.

Diagram of a computer chassis with an open panel and a blue arrow indicating rotation (no text or symbols present)

AF000946
Figure 24. Opening Lower Door of Fixed Drive Cage

1. Remove the drive/slide assembly from the drive cage.

Diagram of an electronic device showing internal components and a blue directional arrow (no text or symbols)

AF000588
Figure 25. Removing Drive/Slide Assembly from Drive Cage

1. Remove the device slides from hard drive. If not replacing hard drive, insert empty device slides into drive cage.

Technical line drawing of a mechanical device with a handle and internal components (no text or symbols)

AF000947
Figure 26. Inserting Empty Device Slides into Drive Cage

1. Close the lower door of drive cage.

Technical line drawing of an electronic device with internal components and a blue circular arrow indicating rotation (no text or symbols)

AF000948
Figure 27. Closing Lower Door of Fixed Drive Cage

1. Close the upper door.

Diagram of an electronic device housing with a rotating button, showing internal components and mounting holes (no text or symbols)

AF000949
Figure 28. Closing Upper Door of Fixed Drive Cage

1. Tighten the captive screw.

Line drawing of a computer case with a blue circular arrow indicating rotation (no text or symbols)

AF000586
Figure 29. Tightening Thumb Screw

1. Reinstall fixed hard drive into chassis.
2. If other hard drives remain in the drive cage, reconnect power and data cables.
3. Install the front bezel. For instructions, see "Removing and Installing the Front Bezel" on page 18.
4. Install the chassis cover. For instructions, see "Installing the Chassis Cover" on page 17.
5. Plug all peripheral devices and the AC power cable into the server.
6. Power up the server.

Installing Fixed Hard Drive(s)

1. Observe the safety and ESD precautions at the beginning of this book.
2. Power down the server and unplug all peripheral devices and the AC power cable.
3. Remove the chassis cover. For instructions, see "Removing the Chassis Cover" on page 16.

4. Remove the front bezel if it is installed. For instructions, see "Removing and Installing the Front Bezel" on page 18.

5. Push the blue plastic release mechanism upward to release the fixed drive cage (see letter "A" in the following figure). Pull the drive cage out about two inches (see letter "B") so that it is partially exposed from the drive bay slot in the chassis. Partially exposing the drive cage will make it easier to open the upper door of the drive cage.

Note: As an alternative, you may also fully remove the drive cage from its drive bay slot in the chassis. Take care, however, to position the drive cage horizontally before opening the drive cage doors or the drive rails will spill out.

Figure 30. Removing Six-drive Fixed Drive Cage from Chassis

1. Loosen the captive screw (see letter "A" in the following figure). Open the upper door (see letter "B").

AF000579
Figure 31. Unlocking and Opening Upper Door of Fixed Drive Cage

1. Open the lower door.

Technical line drawing of a computer chassis with an arrow indicating a loading or rotation process (no text or symbols present)

AF000580
Figure 32. Opening Lower Door of Fixed Drive Cage

1. Remove a pair of device slides from the drive cage.

Technical line drawing of a mechanical device with internal components and a blue arrow indicating motion (no text or symbols)

AF000581
Figure 33. Removing Slides from Drive Cage

1. Attach the device slides to the hard drive. This is a tool-less operation. Insert pins on device slides into mounting holes on hard drive. Press firmly to secure device slides to hard drive. Ensure that the metal tabs on the device slides are facing the front of the hard drive and facing towards each other.

Diagram of a rectangular panel with two roller rollers and directional arrows indicating force or movement (no text or symbols)

AF000582
Figure 34. Attaching Device Slides to Hard Drive

1. Insert the drive/slide assembly into the drive cage. Make sure the cable connector end of the hard drive faces towards the rear of the drive cage.

Diagram of a computer motherboard showing an open drive and internal components (no text or symbols)

Figure 35. Inserting Drive/Slide Assembly into Drive Cage

1. Repeat above steps for installation of additional hard drives into the drive cage.
2. Close the lower door of drive cage.

Technical illustration of an electronic device with a scroll wheel and mounting bracket (no text or symbols)

Figure 36. Closing Lower Door of Fixed Drive Cage

1. Close the upper door of drive cage.

Diagram of a computer chassis with an open panel and a scroll wheel, showing no text or symbols.

AF000585
Figure 37. Closing Upper Door of Fixed Drive Cage

1. Tighten the captive screw.

Line drawing of a computer case with a blue circular arrow indicating rotation (no text or symbols)

AF000586
Figure 38. Tightening Captive Screw

1. Re-install fixed drive cage into chassis.
2. Connect power and data cables to connectors on hard drive(s).
3. Install the front bezel. For instructions, see "Removing and Installing the Front Bezel" on page 18.
4. Install the chassis cover. For instructions, see "Installing the Chassis Cover" on page 17.
5. Plug all peripheral devices and the AC power cable into the server.
6. Power up the server.

Routing Power Cables to Fixed Drives

Figure 39. Routing Power Cables to Fixed Drives

Route longest power cables to the 6-drive bay and shorter cables to the 4-drive bay and upper device bay.

Power Cable Routing Guidelines:

• P3, P4 and P5 power cables route to removable drives.
• P6, P7, P8, P9, P10 and P11 power cables (standard SAS/SATA); route as appropriate.
• P12 and P13 power cables (SATA); route as appropriate.

Routing Data Cables to Fixed Drives

Note: Front panel, USB and one IDE cable are pre-routed by the factory. SAS or SATA cables are supplied with the server board and hot-swap drive accessory kits. No cables are supplied with the fixed drive bay kit.

- Route SAS/SATA data cables through the chassis openings located near the bottom of the drive cage.

- Connect data cables to the respective fixed drive and to the appropriate connector on the server board.

Figure 40. Routing SAS/SATA Data Cables

Removing and Installing Hot Swap Drive(s)

Removing Hot Swap Drive(s)

1. Rotate the black lever downwards to unlatch the drive carrier. With the black lever open, remove the drive carrier from the drive cage.

Diagram of a rectangular electronic device with internal compartments and a green component, showing no text or symbols.

Figure 41. Releasing Drive Carrier from Hot Swap Cage

1. Remove the four screws securing the hard drive to the drive carrier. Remove the hard drive from the drive carrier.

AF000595

Figure 42. Removing Hard Drive from Drive Carrier

1. If not replacing with another hard drive, re-install the plastic air baffle into the empty drive carrier. Secure the plastic air baffle to the drive carrier using the four screws that were formerly attached to the hard drive.

Note: Plastic air baffles are necessary in all empty drive carriers to ensure proper airflow within the chassis.

Diagram of a device chassis with labeled components and a blue arrow indicating direction (no text or symbols present)

Figure 43. Installing Plastic Air Baffle in Drive Carrier

1. With the black lever open, insert the drive carrier into the drive cage. Once inserted, rotate the black lever upwards to latch the drive carrier into position.

Diagram of a multi-compartment electronic device with internal compartments and a green component, no text or symbols present.

Figure 44. Inserting Drive Carrier into Hot Swap Cage

Installing Hot Swap Drive(s)

1. Press in on the green latch (see letter "A" in the following figure) at the end of the drive carrier to disengage it from the hot swap drive cage.

2. Pull out on the black lever (see letter "B") to fully open the drive carrier. When the lever reaches a fully opened position, it will push the drive carrier out from the hot swap drive cage. Slide the drive carrier out of the drive cage (see letter "C").

Figure 45. Removing Drive Carrier from Hot Swap Cage

1. Remove the four screws that secure the plastic air baffle to the drive carrier. Remove the plastic air baffle.

Technical diagram of a mechanical device with labeled components and directional arrows (no readable text or symbols)

Figure 46. Removing Plastic Air Baffle

1. Secure the hard drive to the drive carrier using the four screws that were formerly attached to the plastic air baffle. Ensure that the connector end of the hard drive is facing the back of the drive carrier. The label side of the hard drive should be facing up in the drive carrier.

AF000591
Figure 47. Securing Hard Drive to Drive Carrier

1. With the black lever open, insert the drive carrier into the drive cage. Once inserted, rotate the black lever upwards to latch the drive carrier into position.

Diagram of a multi-chamber electronic device with a green component inserted, showing no text or symbols.

AF000592
Figure 48. Inserting Drive Carrier into Hot Swap Cage

Removing and Installing PCI Add-in Board(s)

Removing PCI Add-in Board(s)

Caution: When removing a full-length add-in card, you must pull back the latch on the plastic card guide at the front of the chassis to release the card from the card guide.

1. Observe the safety and ESD precautions at the beginning of this book.
2. Power down the server and unplug all peripheral devices and the AC power cable.
3. Remove the chassis cover. For instructions, see "Removing the Chassis Cover" on page 16.

4. Remove the front bezel if it is installed. For instructions, see "Removing and Installing the Front Bezel" on page 18.

5. Remove any cables attached to the add-in card, if necessary.

6. Remove the PCI add-in card retainer. Press in on the two plastic tabs (see letter "A" in the following figure) to release the PCI add-in card retainer from the chassis.

Open the back panel PCI add-in card retention device (see letter "B") by pressing open from the inside of the chassis.

Figure 49. Preparing Chassis for Removal of PCI Add-in Board

1. Firmly grab the PCI add-in board by its top edge or outer corners and remove from the expansion slot on the server board. Place the removed PCI add-in board in an anti-static protective wrapper. Close the back panel PCI add-in card retention device.
2. Remove additional PCI add-in boards as necessary. When done, reinstall the PCI add-in card retainer and close the PCI add-in card retention device(s).
3. Install the front bezel. For instructions, see “Removing and Installing the Front Bezel” on page 18.
4. Install the chassis cover. For instructions, see “Installing the Chassis Cover” on page 17.
5. Plug all peripheral devices and the AC power cable into the server.
6. Power up the server.

Installing PCI Add-in Board(s)

Caution: You may want to install an operating system before installing any add-in boards.

Do not overload the server board by installing add-in boards that draw excessive current.

Add-in boards can be extremely sensitive to ESD and always require careful handling. After removing the board from its protective wrapper, place it component side up on a grounded, static-free surface. Do not slide the board over any surface.

When removing a full-length add-in card, you must pull back on the latch on the plastic card guide at the front of the chassis to release the card from the card guide.

1. Observe the safety and ESD precautions at the beginning of this book.
2. Power down the server and unplug all peripheral devices and the AC power cable.
3. Remove the chassis cover. For instructions, see “Removing the Chassis Cover” on page 16.

4. Remove the front bezel if it is installed. For instructions, see “Removing and Installing the Front Bezel” on page 18.

5. Press in on the two plastic tabs (see letter “A” in the following figure) and remove the PCI add-in card retainer. Open the back panel PCI add-in card retention device (see letter “B”) by pressing open from the inside of the chassis. Remove the PCI slot shield (see letter “C”), if it has not already been removed, by pushing the shield out from the inside of the chassis

Figure 50. Preparing Chassis for Addition of PCI Add-in Board

1. Remove the PCI add-in board from its protective wrapper. Be careful not to touch the components or gold edge connectors. Place the add-in board on an anti-static surface. Record the type and serial number of the add-in board in your equipment log. Set the jumpers or switches on the board according to the manufacturer's instructions.

2. Hold the PCI add-in board by its top edge or upper corners. Firmly press the add-in board into an expansion slot on the server board (see letter "A" in the following figure). Close the back panel PCI add-in card retention device (see letter "B").

Figure 51. Installing Add-in Board

1. Repeat steps 2-10 until all the PCI add-in cards are installed.

2. Reinstall the PCI Add-in Card Retainer.

Figure 52. Reinstalling PCI Add-in Card Retainer

1. Attach cables if necessary.
2. Install the front bezel. For instructions, see "Removing and Installing the Front Bezel" on page 18.
3. Install the chassis cover. For instructions, see "Installing the Chassis Cover" on page 17.
4. Plug all peripheral devices and the AC power cable into the server.
5. Power up the server.

Installing Additional Hot Swap Power Supply Module

Caution: This step only applies to a chassis with redundant power supply capability. Do not perform this step if your chassis has a fixed power supply.

1. Remove screws (see letter "A" in the following figure). Remove the power supply filler panel (see letter "B").

AF000602
Figure 53. Removing Power Supply Filler Panel

1. Insert the power supply module until it clicks into place. Secure with screw (see letter "A" in the following figure) if shipping chassis to another location.

AF000603
Figure 54. Installing Additional Hot Swap Power Supply Module

Replacing a Hot Swap Power Supply

Warning: Hazardous voltage, current, and energy levels are present inside the power supply. There are no user-serviceable parts inside it; servicing should be done by technically qualified personnel.

1. Remove the power cable from the defective hot swap power supply.
2. If present, remove shipping screw securing defective hot swap power supply to chassis (see letter "A" in the following figure). Press on green latch (see letter "B") while pulling on handle to remove power supply from chassis.

Figure 55. Removing Hot Swap Power Supply from Chassis

1. Insert new hot swap power supply into chassis. Replace shipping screw (see letter "A" in the following figure) if shipping chassis to another location.

Figure 56. Installing Hot Swap Power Supply into Chassis

1. Connect power cable to replaced power supply.

Replacing a Fixed Power Supply

Warning: Hazardous voltage, current, and energy levels are present inside the power supply. There are no user-serviceable parts inside it; servicing should be done by technically qualified personnel.

1. Observe the safety and ESD precautions at the beginning of this book.
2. Power down the server and unplug all peripheral devices and the AC power cable.
3. Remove the chassis cover. For instructions, see "Removing the Chassis Cover" on page 16.
4. Disconnect all internal power cables from chassis components and server board.
5. Remove the eight screws securing the fixed power supply shield to the chassis (see letter "A" in the following figure). Remove the fixed power supply (see letter "B").

AF000957

Figure 57. Removing Fixed Power Supply

1. Insert new fixed power supply.
2. Secure the fixed power supply shield to the chassis with the eight screws.
3. Connect the P1, P14, and P16 cables to the server board. See the Intel ^® server board Quick Start User's Guide or User Guide for connection locations.
4. Reconnect power cables to other chassis components as appropriate.
5. Install the chassis cover. For instructions, see "Installing the Chassis Cover" on page 17.
6. Plug all peripheral devices and the AC power cable into the server.
7. Power up the server.

Replacing the Power Distribution Board

Warning: Hazardous voltage, current, and energy levels are present inside the power supply. There are no user-serviceable parts inside it; servicing should be done by technically qualified personnel.

1. Observe the safety and ESD precautions at the beginning of this book.

2. Power down the server and unplug all peripheral devices and the AC power cable.

3. Remove the chassis cover. For instructions, see "Removing the Chassis Cover" on page 16.

4. Remove the memory and processor air ducts. For instructions, see "Removing the Processor and Memory Air Ducts" on page 20.

5. If present, remove shipping screw securing hot swap power supply to chassis (see letter "A" in the following figure). Press on green latch (see letter "B") while pulling on handle to remove power supply from chassis. Repeat this step for the second hot swap power supply if one is installed.

AF000956

Figure 58. Removing Hot Swap Power Supply from Chassis

1. Disconnect all internal power cables from chassis components and server board.

2. Remove screw (see letter "A" in the following figure) securing center divider to the power supply cage. Push center divider straight back (see letter "B") to release tabs from chassis slots. Then, while holding the right edge of the center divider at a downward angle, disengage tabs from chassis wall by pushing center divider up and sideways (see letter "C"). Remove center divider from power supply cage (see letter "D").

Figure 59. Removing Center Divider

1. Loosen thumb screw (see letter "A" in the following figure) securing the power distribution board to the chassis. Lift the power distribution board off of the standoffs (see letter "B") and then remove it through the back of the power supply cage (see letter "C"). You may have to feed the power cables through the power supply cage while removing the power distribution board.

Note: Cables on back of power distribution board not shown to clarify insertion process.

Figure 60. Removing Power Distribution Board

1. Insert new power distribution board into power supply cage (see letter "A" in the following figure). Try to route the power cables to the appropriate area at the time of insertion (see Steps 9 and 10 below). Position the power distribution board on the four standoffs inside the power supply cage. Push down on the power distribution board to securely attach it to the standoffs (see letter "B"). Tighten thumb screw (see letter "C").

Note: Cables on back of power distribution board not shown to clarify insertion process.

Figure 61. Securing Power Distribution Board to Power Supply Cage

1. Connect the P1, P14, and P16 cables to the server board. See the Intel ^® server board Quick Start User's Guide or User Guide for appropriate connection locations.

2. Reconnect power cables to other chassis components as appropriate.

3. Reinstall center divider (see letter "A" in the following figure) and secure to chassis with one screw (see letter "B").

Figure 62. Re-installing Center Divider

1. Insert hot swap power supply(ies) into chassis. Replace shipping screw(s) (see letter "A" in the following figure) if shipping chassis to another location.

Figure 63. Installing Hot Swap Power Supply into Chassis

1. Re-install the memory and processor air ducts. For instructions, see “Installing the Processor and Memory Air Ducts” on page 21.
2. Re-install the chassis cover. For instructions, see “Installing the Chassis Cover” on page 17.
3. Plug all peripheral devices and the AC power cable into the server.
4. Power up the server.

Replacing the Control Panel

The steps for replacing the front control panel and the Intel ^® Local Control Panel are nearly identical. Use the following steps for both varieties of the control panel. Where necessary, differences between the two control panels are noted.

Your server must be operated with a control panel installed.

Caution: The control panel is NOT hot swappable. Before removing or replacing the control panel, you must first take the server out of service, turn off all peripheral devices connected to the system, turn off the system by pressing the power button, and unplug the AC power cord from the system or wall outlet.

1. Observe the safety and ESD precautions at the beginning of this book.
2. Power down the server and unplug all peripheral devices and the AC power cable.
3. Remove the chassis cover. For instructions, see “Removing the Chassis Cover” on page 16.
4. Remove the front bezel if it is installed. For instructions, see “Removing and Installing the Front Bezel” on page 18.
5. Press the latch at the back of the control panel.
6. Slide the control panel out through the front of the chassis far enough so that you can reach the front panel and USB cable connectors at the rear of the control panel.
7. Disconnect cables.
8. Install the control panel module into the chassis.
9. Reconnect cables.
10. (Optional) Install the front bezel. For instructions, see “Removing and Installing the Front Bezel” on page 18.
11. Install the chassis cover. For instructions, see “Installing the Chassis Cover” on page 17.
12. Plug all peripheral devices and the AC power cable into the server.
13. Power up the server.

Installing and/or Removing a Server Board

Note: The server board you can install in your chassis depends upon the chassis model.

To install or remove a server board, do the following:

1. Observe the safety and ESD precautions at the beginning of this book.
2. Power down the server and unplug all peripheral devices and the AC power cable.
3. Remove the chassis cover. For instructions, see “Removing the Chassis Cover” on page 16.
4. Remove the front bezel assembly if it is installed. For instructions, see “Removing the Bezel Assembly (Pedestal Only)” on page 18.
5. Remove any PCI add-in boards that are present. For instructions, see “Removing PCI Add-in Board(s)” on page 45.
6. Remove the processor and memory air ducts. For instructions, see “Removing the Processor and Memory Air Ducts” on page 20.
7. If installing a server board, refer to the User Guide and/or Quick Start User's Guide that shipped with your Intel® server board for installation instructions. Use the mounting screws, bumpers and standoffs (if necessary) that came with your chassis to secure the server board to the chassis. Make sure the server board is properly seated and then tighten the screws firmly, starting with the screws at the center of the server board. Make cable connections per instructions in the Intel® server board User Guide and/or Quick Start User's Guide.
8. If removing a server board, disconnect all cables connected to the server board. Remove the mounting screws, starting with the screws at the center of the server board. Remove the server board.
9. Re-install the processor and memory air ducts. For instructions, see “Installing the Processor and Memory Air Ducts” on page 21.
10. If desired, install any PCI Add-in boards. For instructions, see “Installing PCI Add-in Board(s)” on page 47.
11. Re-install the front bezel assembly. For instructions, see “Installing the Front Bezel (Pedestal Only)” on page 19.
12. Re-install the chassis cover. For instructions, see “Installing the Chassis Cover” on page 17.
13. Plug all peripheral devices and the AC power cable into the server.
14. Power up the server.

Connecting and Disconnecting Cables to or from Server Board

Caution: Use caution when routing cables to ensure that cables do not obstruct fan airflow.

1. See your Intel ^ Server Board User Guide or Quick Start User's Guide for cable connection locations.
2. If your server has a hot swap power supply, secure the cables (that route toward the server board) to the chassis.

Connecting Cables to Server Board

1. If your server has a hot swap power supply, connect the cables (that route toward the server board) to the chassis.
2. See your Intel ^® Server Board User Guide or Quick Start User's Guide for cable connection locations.

Removing Cables from Server Board(s)

1. If your server has a hot swap power supply, remove the cables (that route toward the server board) to the chassis.
2. See your Intel ^® Server Board User Guide or Quick Start User's Guide for cable connection locations.

3 Technical Reference

Power Supply Specifications

670-W Single Power Supply Input Voltages

• 100-127V at 50/60 Hz; 12A max.
• 200-240V at 50/60 Hz; 7A max.

670-W Single Power Supply Output Voltages

The following table lists the total wattage available from the power subsystem for each voltage. Ensure that your loads do not exceed the combined total wattage of 670 Watts. For information about calculating the power usage for your configuration, see "Calculating Power Usage" on page 65.

Table 6. 670-W Power Supply Output Capability

Voltage Maximum	Current
+3.3 V 24 A
+5.0 V 30 A
+5 V Standby 3 A
+12.0	48 A
-12.0 V 0.5 A

Warning: Do not exceed a combined power output of 170 Watts for the +5 V and +3.3 V outputs. Exceeding a combined 170 Watts will overload the power subsystem and may cause the power supplies to overheat and malfunction.

The expansion slots on the server board are rated for no more than 25 Watts for any one slot. The average current usage per slot should not exceed 13 Watts.

830-W Single Power Input Voltages

• 100-127 V\~at 50/60 Hz; 14 A max.
• 200-240 V\~at 50/60 Hz; 8 A max.

830-W Single Power Supply Output Voltages

The following table lists the total wattage available from the power subsystem for each voltage. If you configure your system heavily, ensure that your loads do not exceed the combined total wattage of 800 Watts. For information about calculating the power usage for your configuration, see “Calculating Power Usage” on page 65.

Table 7. 830-W Power Supply Output Capability

Voltage Maximum	Current
+3.3 V 25 A
+5.0 V 33 A
+5 V Standby 3 A
+12.0	51 A
-12.0 V 0.5 A

Warning: Do not exceed a combined power output of 170 Watts for the +5 V and +3.3 V outputs. Exceeding a combined 170 Watts will overload the power subsystem and may cause the power supplies to overheat and malfunction.

The expansion slots on the server board are rated for no more than 25 Watts for any one slot. The average current usage per slot should not exceed 13 Watts.

System Environmental Specifications

Table 8. Environmental Specifications

Temperature	Non-operating: -40 ° to 70 °C.Operating: 10 ° to 35 °C; derated 0.5 °C for every 1000 ft. (305 m) to a maximum of 10,000 ft.
Humidity	Non-operating: 90% relative humidity (non-condensing) at 30 °C.
Shock	Operating: 2.0 g, 11 msec, 1/2 sinePackaged: Operational after an 18" free fall.
Acoustic noise	UP, DP, BRP configurations - 5.5 BA LWA idle; 6.0 BA LWA typical operating
Electrostatic discharge (ESD)	Tested to 15 kilovolts (kV); no component damage.

Current Usage

Calculating Power Usage

The total combined wattage for your configuration must be less than the wattage rating for your power supply. Use the two worksheets in this section to calculate the total used by your configuration. For current and voltage requirements of add-in boards and peripherals, see your vendor documents.

Worksheet, Calculating DC Power Usage

Table 9. Power Usage Worksheet

	Current (maximum) at voltage level:
Device	+3.3 V	+5 V	-5 V	+12 V	-12 V	5 V Standby
Baseboard, Front Panel Board and Fans
Processor(s)
Memory
3.5-inch Diskette Drive
CD-ROM Drive
Second 5.25-inch Device
Third 5.25-inch Device
1st Hard Drive
2nd Hard Drive
3rd Hard Drive
4th Hard Drive
5th Hard Drive
6th Hard Drive
Expansion Board 1
Expansion Board 2
Expansion Board 3
Expansion Board 4
Expansion Board 5
Expansion Board 6
Intel® Remote Management ModuleControl Panel
Total Current

Worksheet, Total Combined Power Used by the Server

1. From the previous worksheet, enter the total current for each column.
2. Multiply the voltage by the total current to get the total wattage for each voltage level.

Add the total wattage for each voltage level to arrive at the total combined power usage for the power subsystem.

Table 10. Power Usage Worksheet 2

Voltage level and total current(V X A = W)	Total Wattsfor each voltage level
(+3.3 V) X (____ A) ____ W
(+5 V) X (____ A) ____ W
(+12 V) X (____ A) ____ W
(-12 V) X (____ A) ____ W
(5 V standby) X (____ A) ____ W
Total Combined Wattage ____ W

Caution: Do not exceed a combined power output of 170 Watts for the +5 V and +3.3 V outputs. Exceeding a combined 170 Watts will overload the power subsystem and may cause the power supplies to overheat and malfunction.

Appendix B: Regulatory and Compliance Information

Product Regulatory Compliance

Warning: To ensure regulatory compliance, you must adhere to the assembly instructions in this guide to ensure and maintain compliance with existing product certifications and approvals. Use only the described, regulated components specified in this guide. Use of other products/components will void the UL listing and other regulatory approvals of the product and will most likely result in noncompliance with product regulations in the region(s) in which the product is sold.

To help ensure EMC compliance with your local regional rules and regulations, before computer integration, make sure that the server system, power supply, and other modules have passed EMC testing using a server board with a microprocessor from the same family (or higher) and operating at the same (or higher) speed as the microprocessor used on this server board. The final configuration of your end system product may require additional EMC compliance testing. For more information, please contact your local Intel representative.

This is an FCC Class A device. Integration of it into a Class B system does not result in a Class B device.

Product Safety Compliance

This server chassis product, when correctly integrated per this guide, complies with the following safety and electromagnetic compatibility (EMC) regulations.

Intended Application

This product was evaluated as Information Technology Equipment (ITE), which may be installed in offices, schools, computer rooms, and similar commercial type locations. The suitability of this product for other product categories and environments (such as: medical, industrial, telecommunications, NEBS, residential, alarm systems, test equipment, etc.), other than an ITE application, may require further evaluation.

Product Regulatory Compliance References

The following table references Server Chassis Compliance and markings that may appear on the product. Markings below are typical markings however, may vary or be different based on how certification is obtained.

Note: Certifications Emissions requirements are to Class A.

Table 11. Product Regulatory Compliance Markings

Compliance Regional Description	Compliance Reference	Compliance Reference Marking Example
Australia / New Zealand AS	/NZS 3548 (Emissions)	N232
Argentina	IRAM Certification (Safety)
Belarus	Belarus Certification	None Required
Canada / USA CSA 60950	- UL 60950 (Safety)
Canada / USA Industry Canada	ICES-003 (Emissions)	CANADA ICES-003 CLASS ACANADA NMB-003 CLASSE A
	FCCCFR 47, Part 15 (Emissions)	This device complies with Part 15 of the FCC Rules. Operation of this device is subject to the following two conditions:(1) This device may not cause harmful interference, and(2) This device must accept any interference received, including interference that may cause undesired operation. Manufactured by Intel Corporation
China CNCA - CB4943	(Safety)GB 9254 (Emissions)GB17625 (Harmonics)

Table 11. Product Regulatory Compliance Markings

Table 11. Product Regulatory Compliance Markings

Compliance Regional Description	Compliance Reference	Compliance Reference Marking Example
Russia GOST-R	CertificationGOST R 29216-91 (Emissions)GOST R 50628-95 (Immunity)
Ukraine Ukraine	Certification	None Required
Taiwan BSMI CNS13438		R33025警告使用者:這是甲類的資訊產品,在居住的環境中使用時,可能會造成射頻干擾,在這種情況下,使用者會被要求採取某些適當的對策

FCC Verification Statement (USA)

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

For questions related to the EMC performance of this product, contact:

Intel Corporation

5200 N.E. Elam Young Parkway

Hillsboro, OR 97124-6497

1-800-628-8686

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment to an outlet on a circuit other than the one to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to operate the equipment. The customer is responsible for ensuring compliance of the modified product.

Only peripherals (computer input/output devices, terminals, printers, etc.) that comply with FCC Class A or B limits may be attached to this computer product. Operation with noncompliant peripherals is likely to result in interference to radio and TV reception.

All cables used to connect to peripherals must be shielded and grounded. Operation with cables, connected to peripherals, that are not shielded and grounded may result in interference to radio and TV reception.

Industry Canada (ICES-003)

English translation of the notice above:

This digital apparatus does not exceed the Class A limits for radio noise emissions from digital apparatus set out in the interference-causing equipment standard entitled: "Digital Apparatus," ICES-003 of the Canadian Department of Communications.

Europe (CE Declaration of Conformity)

This product has been tested in accordance to, and complies with the Low Voltage Directive (73/23/EEC) and EMC Directive (89/336/EEC). The product has been marked with the CE Mark to illustrate its compliance.

VCCI (Japan)

English translation of the preceding notice:

This is a Class A product based on the standard of the Voluntary Control Council for Interference (VCCI) from Information Technology Equipment. If this is used near a radio or television receiver in a domestic environment, it may cause radio interference. Install and use the equipment according to the instruction manual.

BSMI (Taiwan)

The BSMI Certification Marking and EMC warning is located on the outside rear area of the product.

Korean Compliance (RRL)

Following is the RRL certification information for Korea.

English translation of the notice above:

1. Type of Equipment (Model Name): On License and Product
2. Certification No.: On RRL certificate. Obtain certificate from local Intel representative
3. Name of Certification Recipient: Intel Corporation
4. Date of Manufacturer: Refer to date code on product
5. Manufacturer/Nation: Intel Corporation/Refer to country of origin marked on product

CNCA (CCC-China)

The CCC Certification Marking and EMC warning is located on the outside rear area of the product.

声明

Product Ecology Compliance

Intel has a system in place to restrict the use of banned substances in accordance with world wide product ecology regulatory requirements. The following is Intel's product ecology compliance criteria.

Table 12. Product Ecology Compliance Markings

Compliance Regional Description	Compliance Reference	Compliance Reference Marking Example
California California	Code of Regulations, Title 22, Division 4.5; Chapter 33: Best Management Practices for Perchlorate Materials.	Special handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate.This notice is required by California Code of Regulations, Title 22, Division 4.5; Chapter 33: Best Management Practices for Perchlorate Materials. This product / part includes a battery which contains Perchlorate material.
China China RoHS	Administrative Measures on the Control of Pollution Caused by Electronic Information Products" (EIP) #39. Referred to as China RoHS.Mark requires to be applied to retail products only. Mark used is the Environmental Friendly Use Period (EFUP). Number represents years.
	China Recycling (GB18455-2001)Mark requires to be applied to be retail product only. Marking applied to bulk packaging and single packages. Not applied to internal packaging such as plastics, foams, etc.
Intel Internal Specification	All materials, parts and subassemblies must not contain restricted materials as defined in Intel's Environmental Product Content Specification of Suppliers and Outsourced Manufacturers - http://supplier.intel.com/ehs/environmental.htm	None Required
Europe Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/EC - Mark applied to system level products only.
Europe European Directive 2002/95/EC - Restriction of Hazardous Substances (RoHS). Threshold limits and banned substances are noted below. Quantity limit of 0.1% by mass (1000 PPM) for: Lead, Mercury, Hexavalent Chromium, Polybrominated Biphenyls Diphenyl Ethers (PBB/PBDE) Quantity limit of 0.01% by mass (100 PPM) for: Cadmium	None Required.
Germany German Green Dot Applied to Retail Packaging Only for Boxed Boards
Intel Internal Specification	All materials, parts and subassemblies must not contain restricted materials as defined in Intel's Environmental Product Content Specification of Suppliers and Outsourced Manufacturers - http:// supplier.intel.com/ehs/environmental.htm.	None Required
International ISO 11469 - Plastic parts weighing >25gm are intended to be marked with per ISO11469.	>PC/ABS<
	Recycling Markings - Fiberboard (FB) and Cardboard (CB) are marked with international recycling marks. Applied to outer bulk packaging and single package.	Corrugated Recycles
Japan Japan Recycling Applied to Retail Packaging Only for Boxed Boards

Other Markings

Table 13. Other Markings

Compliance Description	Compliance Reference	Compliance Reference Marking Example
Stand-by Power	Stand-by Power WarningsApplied to product if stand-by power switch is used.
Multiple Power Cords	Multiple Power Cords WarningsApplied to product if more than one power cord is used.	English:This unit has more than one power supply cord. To reduce the risk of electrical shock, disconnect (2) two power supply cords before servicing.
		Simplified Chinese注意:本设备包括多条电源系统电缆。为避免遭受电击,在进行维修之前应断开两(2)条电源系统电缆Traditional Chinese注意:本設備包括多條電源系統電纜。為避免遭受電擊,在進行維修之前應斷開兩(2)條電源系統電纜
		German:Dieses Geräte hat mehr als ein Stromkabel. Um eine Gefahr des elektrischen Schlages zu verringern trennen sie beide (2) Stromkabeln bevor Instandhaltung
Ground Connection	Ground Connection Warnings Line1 :	"WARNING:"Swedish on line2:"Apparaten skall anslutas till jordat uttag, när den ansluts till ett nätverk."Finnish on line 3:"Laite on liitettävä suojamaadoituskoskettimilla varustettuun pistorasiaan."English on line 4:"Connect only to a properly earth grounded outlet."

Regulated Specified Components

To maintain the UL listing and compliance to other regulatory certifications and/or declarations, the following regulated components must be used and conditions adhered to. Interchanging or use of other components will void the UL listing and other product certifications and approvals.

Updated product information for configurations can be found on the Intel Server Builder Web site at the following URL: http://channel.intel.com/go/serverbuilder

If you do not have access to Intel's Web address, please contact your local Intel representative.

• Server Chassis: (base chassis is provided with power supply and fans) - UL listed.
• Server board: you must use an Intel server board - UL recognized.
• Add-in boards: must have a printed wiring board flammability rating of minimum UL94V-1. Add-in boards containing external power connectors and/or lithium batteries must be UL recognized or UL listed. Any add-in board containing modem telecommunication circuitry must be UL listed. In addition, the modem must have the appropriate telecommunications, safety, and EMC approvals for the region in which it is sold.
• Peripheral Storage Devices: must be a UL recognized or UL listed accessory and TUV or VDE licensed. Total server configuration is not to exceed the maximum loading conditions of the power supply.

End-of-Life / Product Recycling

Product recycling and end-of-life take-back systems and requirements vary by country. Contact the retailer or distributor of this product for information about product recycling and / or take-back.

Appendix E: Installation/Assembly Safety Instructions

English

The power supply in this product contains no user-serviceable parts. Refer servicing only to qualified personnel.

Do not attempt to modify or use the supplied AC power cord if it is not the exact type required. A product with more than one power supply will have a separate AC power cord for each supply.

The power button on the system does not turn off system AC power. To remove AC power from the system, you must unplug each AC power cord from the wall outlet or power supply.

The power cord(s) is considered the disconnect device to the main (AC) power. The socket outlet that the system plugs into shall be installed near the equipment and shall be easily accessible.

SAFETY STEPS: Whenever you remove the chassis covers to access the inside of the system, follow these steps:

1. Turn off all peripheral devices connected to the system.

2. Turn off the system by pressing the power button.

3. Unplug all AC power cords from the system or from wall outlets.

4. Label and disconnect all cables connected to I/O connectors or ports on the back of the system.

5. Provide some electrostatic discharge (ESD) protection by wearing an antistatic wrist strap attached to chassis ground of the system-any unpainted metal surface-when handling components.

6. Do not operate the system with the chassis covers removed.

	After you have completed the six SAFETY steps above, you can remove the system covers. To do this:1. Unlock and remove the padlock from the back of the system if a padlock has been installed.2. Remove and save all screws from the covers.3. Remove the cover(s).
	For proper cooling and airflow, always reinstall the chassis covers before turning on the system. Operating the system without the covers in place can damage system parts. To install the covers:1. Check first to make sure you have not left loose tools or parts inside the system.2. Check that cables, add-in boards, and other components are properly installed.3. Attach the covers to the chassis with the screws removed earlier, and tighten them firmly.4. Insert and lock the padlock to the system to prevent unauthorized access inside the system.5. Connect all external cables and the AC power cord(s) to the system.
	A microprocessor and heat sink may be hot if the system has been running. Also, there may be sharp pins and edges on some board and chassis parts. Contact should be made with care. Consider wearing protective gloves.
	Danger of explosion if the battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the equipment manufacturer. Dispose of used batteries according to manufacturer's instructions.
	The system is designed to operate in a typical office environment. Choose a site that is:Clean and free of airborne particles (other than normal room dust).Well ventilated and away from sources of heat including direct sunlight.Away from sources of vibration or physical shock.Isolated from strong electromagnetic fields produced by electrical devices.In regions that are susceptible to electrical storms, we recommend you plug your system into a surge suppresser and disconnect telecommunication lines to your modem during an electrical storm.Provided with a properly grounded wall outlet.Provided with sufficient space to access the power supply cord(s), because they serve as the product's main power disconnect.

Deutsch

Appendix D: Safety Information

English

Server Safety Information

This document applies to Intel ^® server boards, Intel ^® server chassis (pedestal and rack-mount) and installed peripherals. To reduce the risk of bodily injury, electrical shock, fire, and equipment damage, read this document and observe all warnings and precautions in this guide before installing or maintaining your Intel ^® server product.

In the event of a conflict between the information in this document and information provided with the product or on the website for a particular product, the product documentation takes precedence.

Your server should be integrated and serviced only by technically qualified persons.

You must adhere to the guidelines in this guide and the assembly instructions in your server manuals to ensure and maintain compliance with existing product certifications and approvals. Use only the described, regulated components specified in this guide. Use of other products / components will void the UL Listing and other regulatory approvals of the product, and may result in noncompliance with product regulations in the region(s) in which the product is sold.

Safety Warnings and Cautions

To avoid personal injury or property damage, before you begin installing the product, read, observe, and adhere to all of the following safety instructions and information. The following safety symbols may be used throughout the documentation and may be marked on the product and / or the product packaging.

CAUTION Indicates the presence of a hazard that may cause minor personal injury or property damage if the CAUTION is ignored.
WARNING	Indicates the presence of a hazard that may result in serious personal injury if the WARNING is ignored.
	Indicates potential hazard if indicated information is ignored.
	Indicates shock hazards that result in serious injury or death if safety instructions are not followed.
	Indicates hot components or surfaces.
	Indicates do not touch fan blades, may result in injury.
	Indicates to unplug all AC power cord(s) to disconnect AC power
	Please recycle battery

Intended Application Uses

This product was evaluated as Information Technology Equipment (ITE), which may be installed in offices, schools, computer rooms, and similar commercial type locations. The suitability of this product for other product categories and environments (such as medical, industrial, residential, alarm systems, and test equipment), other than an ITE application, may require further evaluation.

Site Selection

The system is designed to operate in a typical office environment. Choose a site that is:

• Clean, dry, and free of airborne particles (other than normal room dust).
• Well-ventilated and away from sources of heat including direct sunlight and radiators.
• Away from sources of vibration or physical shock.
• Isolated from strong electromagnetic fields produced by electrical devices.
• In regions that are susceptible to electrical storms, we recommend you plug your system into a surge suppressor and disconnect telecommunication lines to your modem during an electrical storm.
  • Provided with a properly grounded wall outlet.
• Provided with sufficient space to access the power supply cord(s), because they serve as the product's main power disconnect.

Equipment Handling Practices

Reduce the risk of personal injury or equipment damage:

• Conform to local occupational health and safety requirements when moving and lifting equipment.
• Use mechanical assistance or other suitable assistance when moving and lifting equipment.

- To reduce the weight for easier handling, remove any easily detachable components.

Power and Electrical Warnings

Caution: The power button, indicated by the stand-by power marking, DOES NOT completely turn off the system AC power, 5V standby power is active whenever the system is plugged in. To remove power from system, you must unplug the AC power cord from the wall outlet. Your system may use more than one AC power cord. Make sure all AC power cords are unplugged. Make sure the AC power cord(s) is/are unplugged before you open the chassis, or add or remove any non hot-plug components.

Do not attempt to modify or use an AC power cord if it is not the exact type required. A separate AC cord is required for each system power supply.

Some power supplies in Intel ^® servers use Neutral Pole Fusing. To avoid risk of shock use caution when working with power supplies that use Neutral Pole Fusing.

The power supply in this product contains no user-serviceable parts. Do not open the power supply. Hazardous voltage, current and energy levels are present inside the power supply. Return to manufacturer for servicing.

When replacing a hot-plug power supply, unplug the power cord to the power supply being replaced before removing it from the server.

To avoid risk of electric shock, turn off the server and disconnect the power cord, telecommunications systems, networks, and modems attached to the server before opening it.

Power Cord Warnings

If an AC power cord was not provided with your product, purchase one that is approved for use in your country.

Caution: To avoid electrical shock or fire, check the power cord(s) that will be used with the product as follows:

- Do not attempt to modify or use the AC power cord(s) if they are not the exact type required to fit into the grounded electrical outlets

- The power cord(s) must meet the following criteria:

- The power cord must have an electrical rating that is greater than that of the electrical current rating marked on the product.

- The power cord must have safety ground pin or contact that is suitable for the electrical outlet.

- The power supply cord(s) is/are the main disconnect device to AC power. The socket outlet(s) must be near the equipment and readily accessible for disconnection.

- The power supply cord(s) must be plugged into socket-outlet(s) that is /are provided with a suitable earth ground.

System Access Warnings

Caution: To avoid personal injury or property damage, the following safety instructions apply whenever accessing the inside of the product:

• Turn off all peripheral devices connected to this product.
- Turn off the system by pressing the power button to off.
- Disconnect the AC power by unplugging all AC power cords from the system or wall outlet.
- Disconnect all cables and telecommunication lines that are connected to the system.
- Retain all screws or other fasteners when removing access cover(s). Upon completion of accessing inside the product, refasten access cover with original screws or fasteners.
- Do not access the inside of the power supply. There are no serviceable parts in the power supply. Return to manufacturer for servicing.
- Power down the server and disconnect all power cords before adding or replacing any non hot-plug component.
- When replacing a hot-plug power supply, unplug the power cord to the power supply being replaced before removing the power supply from the server.

Caution: If the server has been running, any installed processor(s) and heat sink(s) may be hot. Unless you are adding or removing a hot-plug component, allow the system to cool before opening the covers. To avoid the possibility of coming into contact with hot component(s) during a hot-plug installation, be careful when removing or installing the hot-plug component(s).

Caution: To avoid injury do not contact moving fan blades. If your system is supplied with a guard over the fan, do not operate the system without the fan guard in place.

Rack Mount Warnings

The equipment rack must be anchored to an unmovable support to prevent it from tipping when a server or piece of equipment is extended from it. The equipment rack must be installed according to the rack manufacturer's instructions.

Install equipment in the rack from the bottom up, with the heaviest equipment at the bottom of the rack.

Extend only one piece of equipment from the rack at a time.

You are responsible for installing a main power disconnect for the entire rack unit. This main disconnect must be readily accessible, and it must be labeled as controlling power to the entire unit, not just to the server(s).

To avoid risk of potential electric shock, a proper safety ground must be implemented for the rack and each piece of equipment installed in it.

Electrostatic Discharge (ESD)

Caution: ESD can damage disk drives, boards, and other parts. We recommend that you perform all procedures at an ESD workstation. If one is not available, provide some ESD protection by wearing an antistatic wrist strap attached to chassis ground -- any unpainted metal surface -- on your server when handling parts.

Always handle boards carefully. They can be extremely sensitive to ESD. Hold boards only by their edges. After removing a board from its protective wrapper or from the server, place the board component side up on a grounded, static free surface. Use a conductive foam pad if available but not the board wrapper. Do not slide board over any surface.

Other Hazards

Battery Replacement

Caution: There is the danger of explosion if the battery is incorrectly replaced. When replacing the battery, use only the battery recommended by the equipment manufacturer.

Dispose of batteries according to local ordinances and regulations.

Do not attempt to recharge a battery.

Do not attempt to disassemble, puncture, or otherwise damage a battery.

Cooling and Airflow

Caution: Carefully route cables as directed to minimize airflow blockage and cooling problems.

For proper cooling and airflow, operate the system only with the chassis covers installed. Operating the system without the covers in place can damage system parts. To install the covers:

• Check first to make sure you have not left loose tools or parts inside the system.
• Check that cables, add-in boards, and other components are properly installed.
• Attach the covers to the chassis according to the product instructions.

Laser Peripherals or Devices

Caution: To avoid risk of radiation exposure and/or personal injury:

• Do not open the enclosure of any laser peripheral or device
• Laser peripherals or devices have are not user serviceable
• Return to manufacturer for servicing

Deutsch

Limited Warranty for Intel ^® Chassis Subassembly Products

Intel warrants that the Products (defined herein as the Intel ^® chassis subassembly and all of its various components and software delivered with or as part of the Products) to be delivered hereunder, if properly used and installed, will be free from defects in material and workmanship and will substantially conform to Intel's publicly available specifications for a period of three (3) years after the date the Product was purchased from an Intel authorized distributor. Software of any kind delivered with or as part of products is expressly provided "as is" unless specifically provided for otherwise in any software license accompanying the software.

If any Product furnished by Intel which is the subject of this Limited Warranty fails during the warranty period for reasons covered by this Limited Warranty, Intel, at its option, will:

• REPAIR the Product by means of hardware and/or software; OR
• REPLACE the Product with another Product; OR
• REFUND the then-current value of the Product if Intel is unable to repair or replace the Product.

If such Product is defective, transportation charges for the return of Product to buyer within the USA will be paid by Intel. For all other locations, the warranty excludes all costs of shipping, customs clearance, and other related charges. Intel will have a reasonable time to make repairs or to replace Product or to refund the then-current value of the Product.

In no event will Intel be liable for any other costs associated with the replacement or repair of Product, including labor, installation or other costs incurred by buyer and in particular, any costs relating to the removal or replacement of any product soldered or otherwise permanently affixed to any printed circuit board.

This Limited Warranty, and any implied warranties that may exist under state law, apply only to the original purchaser of the Product.

Extent of Limited Warranty

Intel does not warrant that Products to be delivered hereunder, whether delivered standalone or integrated with other Products, including without limitation semiconductor components, will be free from design defects or errors known as "errata." Current characterized errata are available upon request.

This Limited Warranty does not cover damages due to external causes, including accident, problems with electrical power, usage not in accordance with product instructions, misuse, neglect, alteration, repair, improper installation, or improper testing.

Warranty Limitations and Exclusions

These warranties replace all other warranties, expressed or implied including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose. Intel makes no expressed warranties beyond those stated here. Intel disclaims all other warranties, expressed or implied including, without limitation, implied warranties of merchantability and fitness for a particular purpose. Some jurisdictions do not allow the exclusion of implied warranties, so this limitation may not apply.

All expressed and implied warranties are limited in duration to the limited warranty period. No warranties apply after that period. Some jurisdictions do not allow limitations on how long an implied warranty lasts, so this limitation may not apply to you.

Limitations of Liability

Intel's responsibility under this, or any other warranty, implied or expressed, is limited to repair, replacement, or refund, as set forth above. These remedies are the sole and exclusive remedies for any breach of warranty. Intel is not responsible for direct, special, incidental, or consequential damages resulting from any breach of warranty under another legal theory including, but not limited to, lost profits, downtime, goodwill, damage to or replacement of equipment and property, and any costs of recovering, reprogramming, or reproducing any program or data stored in or used with a system containing this product. Some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you.

This limited warranty gives you specific legal rights, and you may also have other rights that vary from jurisdiction to jurisdiction.

Any and all disputes arising under or related to this Limited Warranty shall be adjudicated in the following forums and governed by the following laws: for the United States of America, Canada, North America, and South America, the forum shall be Santa Clara, California, USA, and the applicable law shall be that of the State of California, USA; for the Asia Pacific region, the forum shall be Singapore and the applicable law shall be that of Singapore; for Europe and the rest of the world, the forum shall be London and the applicable law shall be that of the United Kingdom.

In the event of any conflict between the English language version and any other translated version(s) of this Limited Warranty, the English language version shall control.

How to Obtain Warranty Service

To obtain warranty service for this Product, you may contact Intel or your authorized distributor.

• North America and Latin America To obtain warranty repair for the product, please go to the following Web site to obtain instructions: http://support.intel.com/support/motherboards/draform.htm
• In Europe and in Asia Contact your original authorized distributor for warranty service.

Any replacement Product is warranted under this written warranty and is subject to the same limitations and exclusions for the remainder of the original warranty period.

Telephone Support

If you cannot find the information you need on Intel's World Wide Web site (http://www.intel.com/), call your local distributor or an Intel Customer Support representative. See “Getting Help” for telephone numbers.

Returning a Defective Product

Before returning any product, call your authorized dealer/distribution authority.

World Wide Web

http://support.intel.com/support/motherboards/server/SC5400.

Telephone

All calls are billed US \$25.00 per incident, levied in local currency at the applicable credit card exchange rate plus applicable taxes. (Intel reserves the right to change the pricing for telephone support at any time without notice).

Before calling, fill out an Intel ^® Server Issue Report Form, available from the Web at http://support.intel.com/support/motherboards/server/SC5400. For the fastest service, submit your form via the Internet.

For an updated support contact list, see http://www.intel.com/support/9089.htm/

U.S. and Canada

1-800-404-2284

Europe

Belgium ..... 02 714 3182

Denmark ... 38 487077

Finland ..... 9 693 79297

France...... 01 41 918529

Germany ... 069 9509 6099

Holland..... 020 487 4562

Italy...... 02 696 33276

Norway ..... 23 1620 50

Spain ...... 91 377 8166

Sweden..... 08 445 1251

UK...... 870 6072439

In Asia-Pacific Region

Australia.... 1800 649931

Cambodia.. 63 2 636 9797 (via Philippines)

China ..... 800 820 1100 (toll-free)

8 621 33104691 (not toll-free)

Hong Kong 852 2 844 4456

India...... 0006517 2 68303634 (manual toll-free. You need an IDD-equipped telephone)

Indonesia... 803 65 7249

Korea ...... 822 767 2595

Malaysia .... 1 800 80 1390

Myanmar... 63 2 636 9796 (via Philippines)

New Zealand 0800 444 365

Pakistan..... 632 63684 15 (IDD via Philippines)

Philippines 1 800 1 651 0117

Singapore .. 65 6213-1311

Taiwan..... 2 2545-1640

Thailand .... 1 800 631 0003

Vietnam ..... 632 6368416 (IDD via Philippines)

Japan

Domestic.... 0120 868686

Outside country 81 298 47 0800

Latin America

Argentina .. Contact AT&T USA at 0-800 222 1288. Once connected, dial 800 843 4481

Brazil ..... 001-916 377 0180

Chile

Easter Island. ..... Contact AT&T USA at 800 800 311. Once connected, dial 800 843 4481

Mainland and Juan .. Contact AT&T USA at 800 225 288. Once connected, dial 800 843 4481

Colombia ... Contact AT&T USA at 01 800 911 0010. Once connected, dial 800 843 4481

Costa Rica. Contact AT&T USA at 0 800 0 114 114. Once connected, dial 800 843 4481

Ecuador

(Andimate) .... Contact AT&T USA at 1 999 119. Once connected, dial 800 843 4481

(Pacifictel) ..... Contact AT&T USA at 1 800 225 528. Once connected, dial 800 843 4481

Guatemala. Contact AT&T USA at 99 99 190. Once connected, dial 800 843 4481

Mexico ..... Contact AT&T USA at 001 800 462 628 4240. Once connected, dial 800 843 4481

Miami ..... 1 800 621 8423

Panama.....Contact AT&T USA at 00 800 001 0109. Once connected, dial 800 843 4481

Paraguay ... 001 916 377 0114

Peru ...... 001 916 377 0114

Uruguay..... 001 916 377 0114

Venezuela... Contact AT&T USA at 0 800 2255 288. Once connected, dial 800 843 4481
