USER MANUAL Cruzer 6 Heard&Beard BRAUN

Illustration of a BruZer-branded hairbrush with blue and gray casing (no text or symbols on body)

取扱説明書

保証書付

Illustration of a hand using a hairbrush to lift teeth, with blue arrows indicating force direction (no text or symbols)

ヒゲトリミング・アタッチメントの使い方

Illustration of a hairpin being adjusted to a button, showing blue arrows indicating motion (no text or symbols)

Illustration of a person applying a facial mask to their face, showing the product being applied (no text or symbols present)

ヒゲのスタイリング方法

Illustration of a hand holding a blue-handled tool with blue arrows indicating motion or force (no text or symbols)

Illustration of a person applying a medical or surgical tool to their face, showing hand positioning and no text or symbols.

Illustration of a person using a hairbrush to cut the face (no text or symbols visible)

ナロートリマーの使い方

Illustration of a hand pressing down on a curved surface with blue arrows indicating motion (no text or symbols)

Illustration of a man's face with a beard and mustache, holding a small object (no text or symbols)

Illustration of a hand pressing down on a mechanical component with blue arrows indicating motion (no text or symbols)

Illustration of a hand using a hairpin to trim a person's neck (no text or symbols visible)

Illustration of a device with a blue arrow indicating flow or direction (no text or symbols)

Illustration of a hand using a tool to remove or clean a small object (no text or symbols visible)

Illustration of a hand using a tool to cut or mark a small object on a curved surface (no text or symbols visible)

水洗いの方法

Illustration of a mechanical component with a blue arrow indicating direction (no text or symbols)

Illustration of a cleaning or cleaning device with liquid flowing through it (no text or symbols visible)

専用オイルの使用方法

Diagram illustrating battery assembly steps with numbered instructions and battery symbols like Ni-MH

9:30\~12:30/13:30\~17:30

(祝日を除く月\~会)

Illustration showing a person using a hairdryer to trim a face, with no text or symbols present.

c d click!

e f g

h i blue

English

Our products are designed to meet the highest standards of quality, functionality and design. We hope you entirely enjoy your new Braun product.

Warning

• The appliance is provided with a special cord set with an integrated Safety Extra Low Voltage power supply. Do not exchange or manipulate any part of it. Otherwise there is risk of electric shock.
• Never use the appliance with damaged trimmers or special cord set.
• This appliance is not intended for use by children or persons with reduced physical, sensory or mental capabilities, unless they are given supervision by a person responsible for their safety. In general, we recommend that you keep the appliance out of reach of children. Children should be supervised to ensure that they do not play with the appliance.

Oil bottle

Keep out of reach of children. Do not swallow. Do not apply to eyes. Dispose of properly when empty.

Description

1a Beard comb for trimming beard and short hair
1b Hair comb for cutting hair
1c Release buttons for comb
2 Wide trimmer (32 mm)
3 Precision trimmer (16 mm)
4 Release button precision trimmer
5 Charge Indicator
6 Length selector
7 On/off switch
8 Special cord set
9 Pouch

Charging

The best environmental temperature for charging is between 15 °C and

35 °C. Do not expose the appliance to temperatures higher than 50 °C for extended periods of time.

• Using the special cord set (8), connect the appliance to an electrical outlet with the motor switched off.

• When charging for the first time or when the appliance is not used for a few months, leave the appliance to charge continuously for 4 hours.

• Once the appliance is completely charged, discharge it through normal use. Then recharge to full capacity. Subsequent charges will take about 1 hour.

• A full charge provides up to 40 minutes of cordless operating time. This may vary according to your beard growth.
• Maximum battery capacity will only be reached after several charging/discharging cycles.

Charge Indicator (5)

• The charge indicator shows the status of the batteries.
• The charge indicator blinks green when the appliance is being charged. When the battery is fully charged, the charge indicator shines permanently green provided the appliance is connected to an electrical outlet.
• During cordless use the charge indicator blinks green.
• The charge indicator flashes red when the battery is running low. You should be able to finish your current trimming sequence.

Comb attachments (1a, 1b)

- The combs can be taken off by pressing the release buttons (1c) with your thumb and forefinger.

Beard trimming

• Place the beard comb (1a) on the appliance with the appliance turned off (a).
• Press length selector (6) and slide the beard comb up to your desired beard length (possible length settings: 1, 3, 5, 7, 9, 11 mm).
• It is advisable to begin with the highest setting and then reduce the setting until you reach the desired beard length.
• Press the on/off switch (7). Hold the beard comb with the angled edge against your beard and guide the trimmer against the direction of the hair growth (a).
• To avoid clogging the beard comb with hair, clean it from time to time with the brush.

Contour Trimming / Styling

- The wide trimmer (2) evenly cuts and trims large areas. It is ideal for shaping sideburns, moustaches and partial short beards. Take off the comb. While stretching the skin, guide the wide trimmer against the direction of hair growth (b).

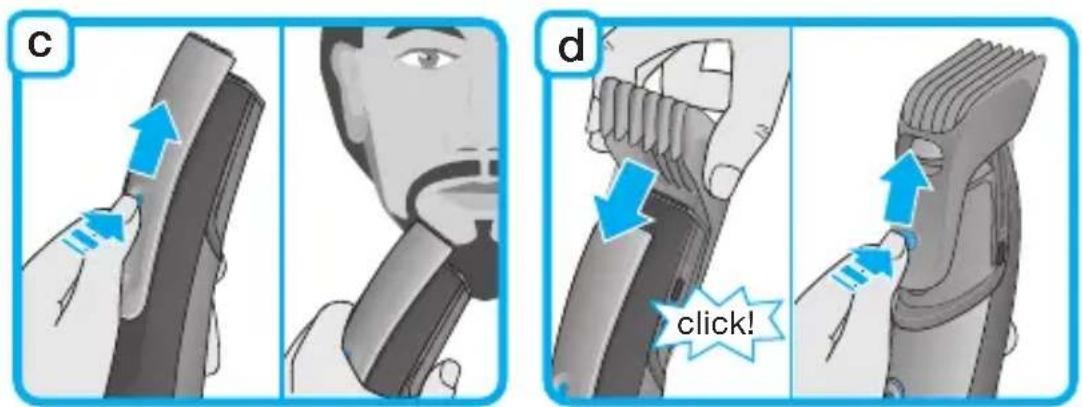

- The precision trimmer (3) precisely defines lines and edges and is ideal for precise contouring. To use the precision trimmer, press the release button (4) and slide it up (c).

Hair cutting

The hair should be clean, well combed, tangle-free and dry.

• Place the hair comb (1b) on the appliance with the appliance turned off (d).
• Press the length selector (6) and slide the hair comb up to your desired hair length (possible length settings: 10, 12, 14, 16, 18, 20 mm). If you are not used to clipping hair, begin with a highest setting and then reduce the setting to avoid cutting more hair than desired. If you want to cut your hair shorter than 10 mm, we advise to first cut it with the hair comb (1b) down to 10 mm and then use the beard comb for the desired length.
• Use a slow and controlled movement. Do not force the appliance through the hair faster than it can be cut.
• In between, shake or blow off the hair. If too much hair is caught in the comb, remove and clean it.

Cleaning

The appliance is suitable for cleaning under running tap water. Warning: Detach the appliance from the power supply before cleaning it with water.

Regular cleaning ensures better trimming performance.

Cleaning with the brush

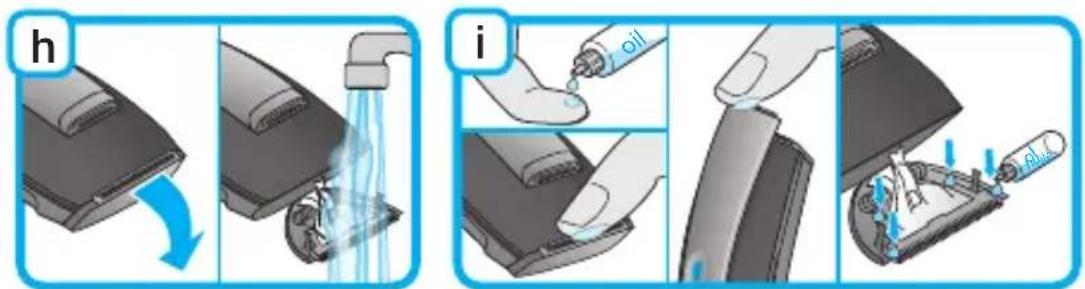

• Switch off the appliance. Open the wide trimmer by pressing with the thumb against the trimmer from the front side. It opens by ca. 45° and can also be taken off (h).
• Using the brush clean the trimmers and the space behind the wide trimmer (inside the housing).

Cleaning with water

• Switch off the appliance and rinse the head and trimmers under warm running water. You can also rinse the opened wide trimmer.
• Leave the appliance with opened wide trimmer to dry.

Keeping your appliance in top shape

To keep the cutting system working properly, oil it with light machine oil after each use (i).

Preserving the batteries

In order to maintain the optimum capacity of the rechargeable batteries, the appliance has to be fully discharged (by trimming/cutting) every 6 months approximately. Then recharge the appliance to full capacity.

Environmental notice

This product contains rechargeable batteries. In the interest of protecting the environment, please do not dispose of the product in the household waste at the end of its useful life. Disposal can take place at a Braun Service Centre or at appropriate collection points provided in your country.

Subject to change without notice.

For electric specifications, see printing on the special cord set.
