BT3342 - Beard trimmer BRAUN - Free user manual and instructions

USER MANUAL BT3342 BRAUN

Line drawing of a Bruh's hairbrush with black outline and circular buttons, no text or symbols present

Deutsch 6

English 10

Français 15

Español 19

Português 23

Italiano 27

Nederlands 31

Dansk 35

Norsk 38

Svenska 41

Suomi 44

Ελληνικά 47

DE / AT 00 800 27 28 64 63

00 800 BRAUNINFOLINE

CH 08 44 - 88 40 10

UK 0800 783 7010

IE 1 800 509 448

FR 0 800 944 802

(service & appel gratuits)

BE 0 800 14 592

ES 900 814 208

PT 808 20 00 33

IT 800 440 017

NL 0 800-445 53 88

DK 70 15 00 13

NO 22 63 00 93

SE 020 - 21 33 21

FI 020 377 877

GR 800 801 3458

Type 5517

Braun GmbH

Two mechanical components with textured surfaces, one showing a threaded end and the other a grooved handle (no text or symbols visible)

Diagram showing how to adjust the main button of a digital device, with arrows indicating action steps.

Medical illustration showing a person applying a toothbrush to a nail, with a magnified inset highlighting the no-smoking symbol.

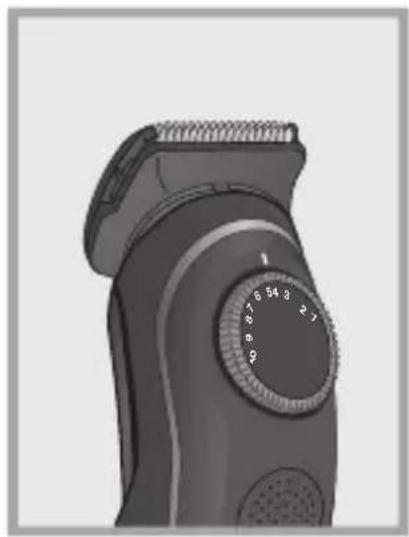

Close-up of a hairbrush with a circular dial and textured handle (no visible text or symbols)

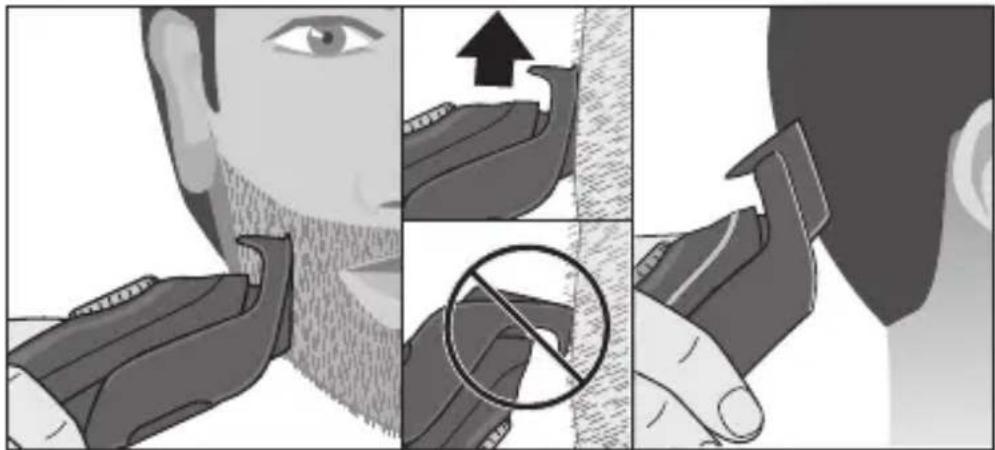

Illustration showing a hairbrush being brushed down on a person's face, with no text or symbols present.

off

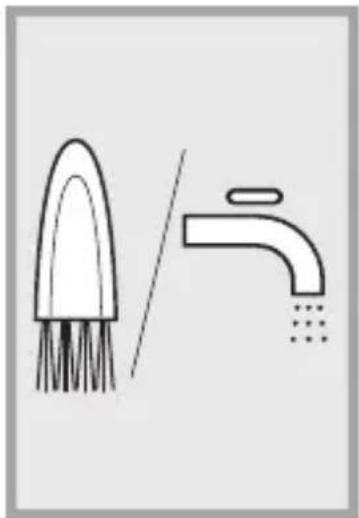

Simple line drawing of a rocket and a faucet (no text or symbols)

off

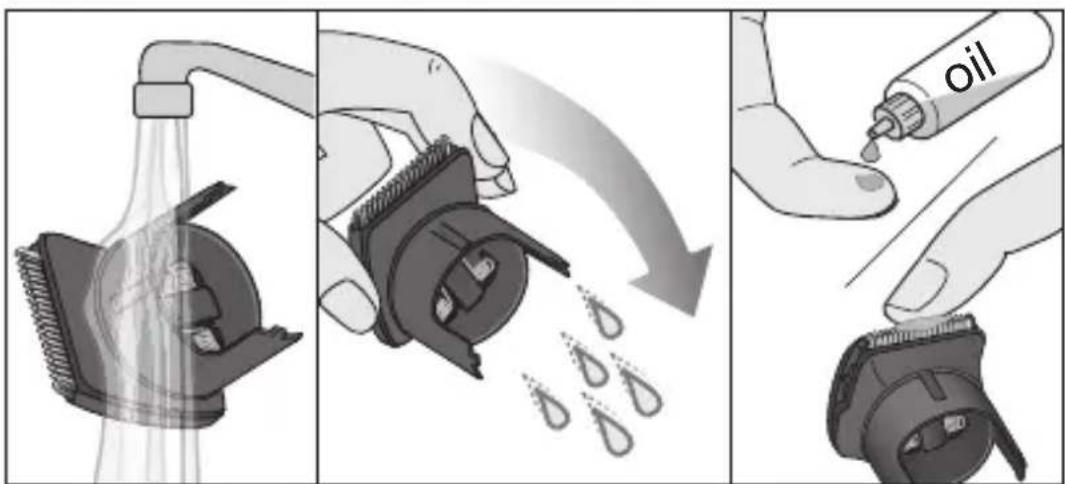

Diagram illustrating three-step cleaning process: hair shaking, oil drop, and oil application steps

oil

Three-step illustration of a hairdryer tool: opening, spraying water, and releasing liquid (no text or symbols)

Deutsch

Read these instructions completely, they contain safety information. Keep them for future reference.

Warnings

The appliance is suitable for cleaning under running tap water. Detach the appliance from the power supply before cleaning it with water.

The appliance is provided with a special cord set with integrated Safety Extra Low Voltage power supply. Do not exchange or manipulate any part of it. Otherwise there is a risk of electric shock.

Only use the special cord set provided with your appliance.

If the appliance is marked D-491-C, you can use it with any Braun power supply coded 491-XXXX.

Never use the appliance with any damaged accessory like trimmers, combs or special cord set.

Do not open the appliance!

This appliance can be used by children aged from 8 years and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

If the appliance is provided with a hair clipping attachment, it can be used for hair clipping purpose by children aged from 3 years under supervision.

Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Description

1a Precision beard comb (1–10 mm)
1b Precision hair comb (11–20 mm) ^*
2 Trimmer head
3 Length selector
4 On/off button
5 Charging indicator
6 Power socket
7 Special cord set (design can differ)

* not with all models

For electric specifications, see printing on the special cord set.

Charging

Recommended ambient temperature for charging is 5 °C to 35 °C.

The battery may not charge properly or at all under extreme low or high temperatures. Recommended ambient temperature for trimming is 15 °C to 35 °C . Do not expose the appliance to temperatures higher than 50 °C for extended periods of time.

• Connect the appliance via the special cord set (7) to an electrical outlet.
• A full charge takes approx. 8 hours and provides up to 80 minutes of cordless operation time.
• The charging indicator (5) shows that the appliance is being charged. When the battery is fully charged, the charging indicator turns off.
• Once the appliance is completely charged, discharge it through normal use. Then recharge again to full capacity.

Usage

• Exchange the attachments only when the appliance is switched off.
• Place one of the precision combs (1a, 1b) over the trimmer head (2).

Beard Trimming / Hair Clipping

• Turn the length selector (3) to your desired cutting length. The comb slides automatically up or down.
• Length settings precision beard comb (1a): 1 to 10 mm in 0,5 mm steps.
• Length settings precision hair comb (1b): 11 to 20 mm in 0,5 mm steps.
• Push the on/off button (4) to turn the appliance on.
• Trim against hair growth by guiding the flat comb part over the skin.
• Avoid clogging the comb with hair. Remove and clean it from time to time.

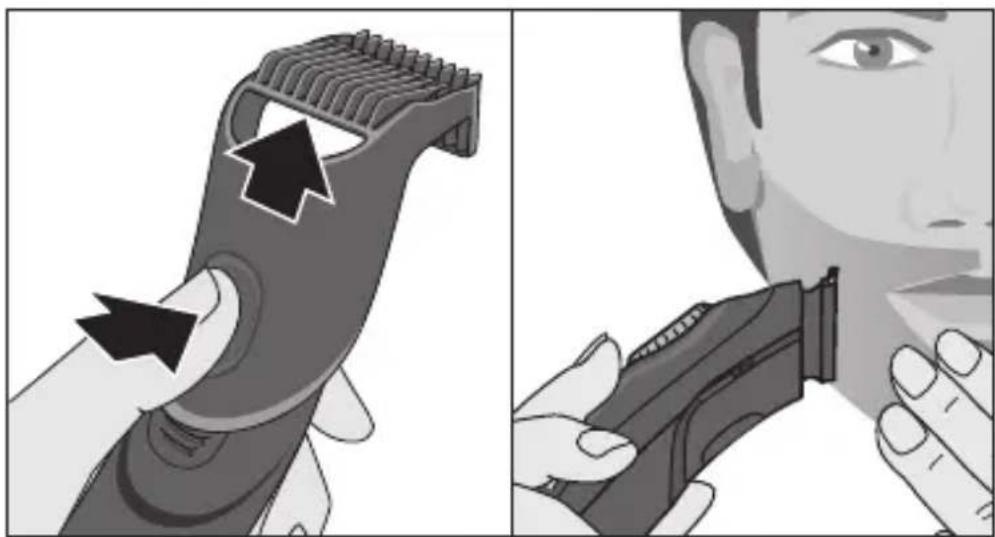

Precision and Contour Trimming

- For shaping sideburns, moustaches and partial short beards, use the trimmer head (2) without precision comb.

Cleaning and maintenance

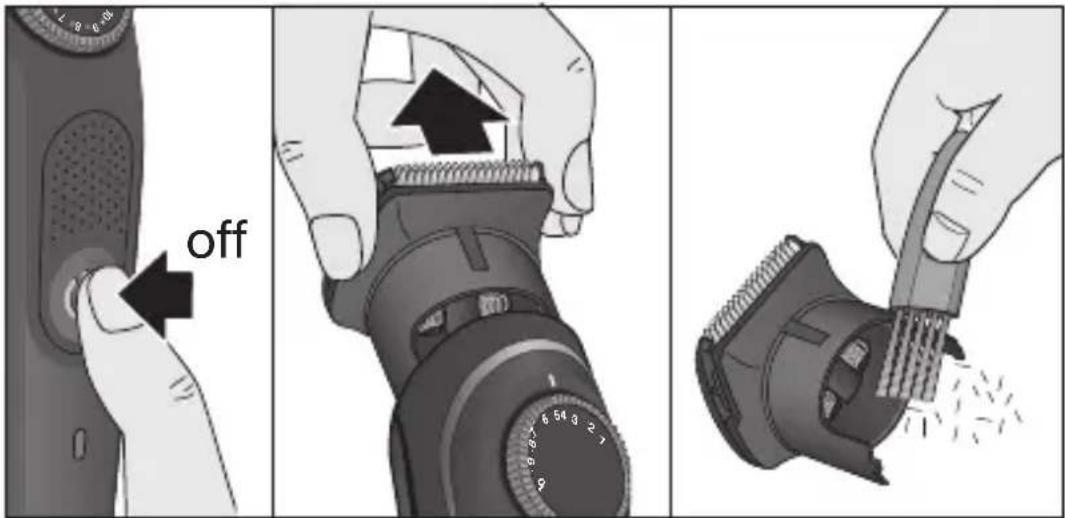

• Switch off the appliance.
  • Take off the head and combs.
• Use the brush to clean the head, combs and the appliance.
• The handle, head and combs can be cleaned under running water.
  Rinse until all residues have been removed. Let dry completely before reassembling them.

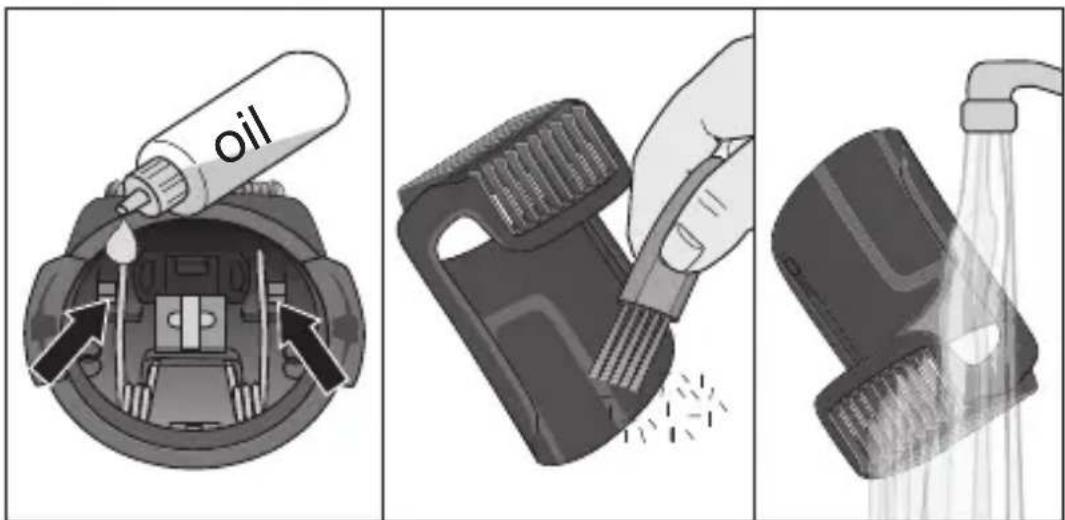

• To keep the trimmer working properly, oil it with light machine oil (not included) regularly.

Environmental notice

Product contains a battery and/or recyclable electric waste.

For environment protection do not dispose of in household waste, but for recycling take to electric waste collection points provided in your country.

Subject to change without notice.

Guarantee

We grant a 2-year guarantee on the product commencing on the date of purchase. Within the guarantee period we will eliminate any defects in the appliance resulting from faults in materials or workmanship, free of charge either by repairing or replacing the complete appliance at our discretion. Depending on availability replacement might result in a different color or an equivalent model.

This guarantee extends to every country where this appliance is supplied by Braun or its appointed distributor.

This guarantee does not cover: damage due to improper use, normal wear and tear (e.g. shaver foil or cutter block) as well as defects that have a negligible effect on the value or operation of the appliance. The guarantee becomes void if repairs are undertaken by unauthorised persons and if original Braun parts are not used.

To obtain service within the guarantee period, hand in or send the complete appliance with your sales receipt to an authorised Braun Customer Service Centre (address information available online at www.service.braun.com).

For UK only:

This guarantee in no way affects your rights under statutory law.

For Australia & New Zealand only:

In Australia, our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

The benefits given by this warranty are in addition to other rights and remedies of the consumer law.

For warranty claims please contact:

Procter & Gamble Australia Pty Ltd

Level 4, 1 Innovation Road

Macquarie Park, NSW 2113

Telephone (AU): 1 800 641 820

Telephone (NZ): 0 800 108 909

Email (AU and NZ): Visit link

https://pgconsumersupport.secure.force.com/ContactUs/emailus

Our Warranty

This appliance is also covered by a 24 Month Replacement Warranty commencing on the date of purchase (Our Warranty).

Our Warranty applies in all States and Territories of Australia and in New Zealand and is in addition to any mandatory statutory obligations imposed on Procter & Gamble Australia Pty. Ltd., its distributors and its manufacturer. Our Warranty does not purport to exclude, restrict or modify any such mandatory statutory obligations.

Our Warranty only covers defects in the appliance resulting from faults in workmanship or materials. Therefore, if your appliance becomes faulty as a result of faults in workmanship or materials, it will be exchanged by your retailer, on presentation of proof of purchase.

Our Warranty only applies to domestic or household use of this appliance and the warranty will only apply if the correct operating instructions included with

this product have been followed. For any appliance replaced under this warranty, Our Warranty ends on the expiry of the warranty period that applied to the original appliance.

Our Warranty does not cover:

A. Damage arising from improper use or operation on incorrect voltages.
B. Breakages to shaver foils, glass jars, etc.
C. Normal wear due to moving parts.
D. Repairs undertaken by unauthorised service personnel or use of non-genuine parts.
E. Appliances that are outside the warranty period or are not faulty.

This appliance is not intended for use by young children or infirm persons without supervision. Young children should be supervised to ensure that they do not play with the appliance.

If the appliance is powered by a cord extension set or electrical portable outlet device these should be positioned so they are not subject to splashing or ingress of moisture.

To the extent permitted by the laws of the Commonwealth of Australia and New Zealand and applicable laws of a State or Territory of Australia, and without affecting any mandatory statutory obligations imposed by law, Our Warranty is given in exchange for any other rights you may have against Procter & Gamble Australia Pty. Ltd. or its distributors or manufacturer, whether at law, in tort (including negligence), in equity or under statute.

Please retain proof of purchase of this appliance. If you have any questions in relation to Our Warranty, please call our Consumer Service line (see below for numbers).

If you intend to make a claim please telephone our Customer Service line on the numbers set out below to obtain information about your claim and any costs associated with claiming under Our Warranty. You will bear the cost of returning your product to us.

Repairs and service

If you are sending your appliance for repair under Our Warranty, please pack the appliance adequately and send it to your nearest Service Agent, at your expense. Should your Braun product require service, please call (free call) for

Australia 1800 641 820 or New Zealand 0800 108 909 to be referred to the Authorized Braun Service Center closest to you or visit www.service.braun.com.

Français
