BT3410 - Beard trimmer BRAUN - Free user manual and instructions

Product type	Beard trimmer
Brand	Braun
Model	BT3410
Dimensions (L x W x H)	Approx. 15 x 4 x 4 cm
Weight	Approx. 200 g
Power supply	Rechargeable battery, special TBTS cable
Runtime	Approx. 50 minutes
Charging time	Approx. 8 hours
Cutting heads	Trimmer head, precision trimmer head, mini foil shaver head
Length adjustment	Dial with beard comb (0.5–10 mm) and hair comb (10.5–20 mm)
Charge indicator	Yes
Waterproof	No, keep dry
Maintenance	Regularly oil blades and foils
Safety	TBTS cable, do not open, non-replaceable batteries
Warranty	2 years
Included accessories	Beard comb, hair comb, power cable
Use	Household use only
Recycling	Contains batteries, recycle at a collection point

Frequently Asked Questions - BT3410 BRAUN

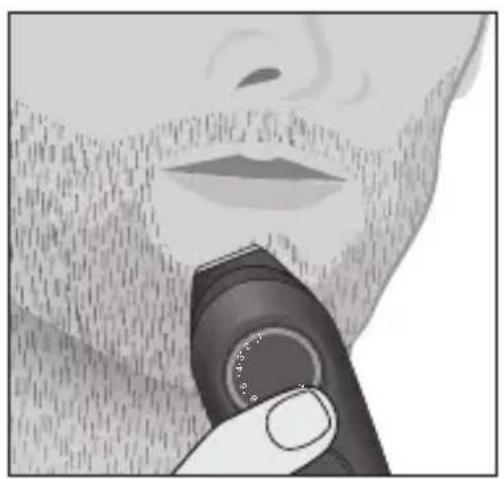

How to use the Braun BT3410 trimmer?

Turn on the device with the on/off button. Select the desired length using the adjustment dial. Use the appropriate comb (beard or hair). For contours, you can use the precision trimmer head or the mini shaver. Make sure the device is charged before first use.

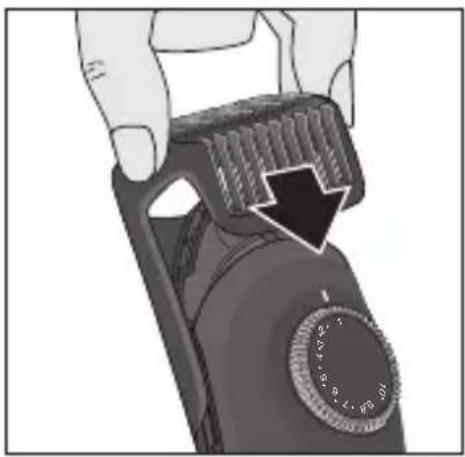

How to adjust the cutting length?

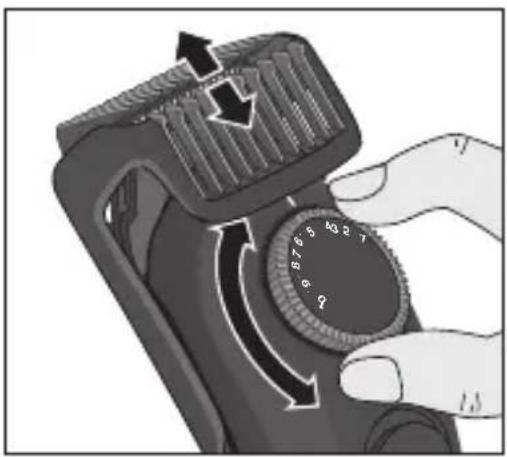

Turn the length adjustment dial (marking 2) to adjust the cutting height. The precision combs offer ranges from 0.5 to 10 mm for the beard and 10.5 to 20 mm for the hair.

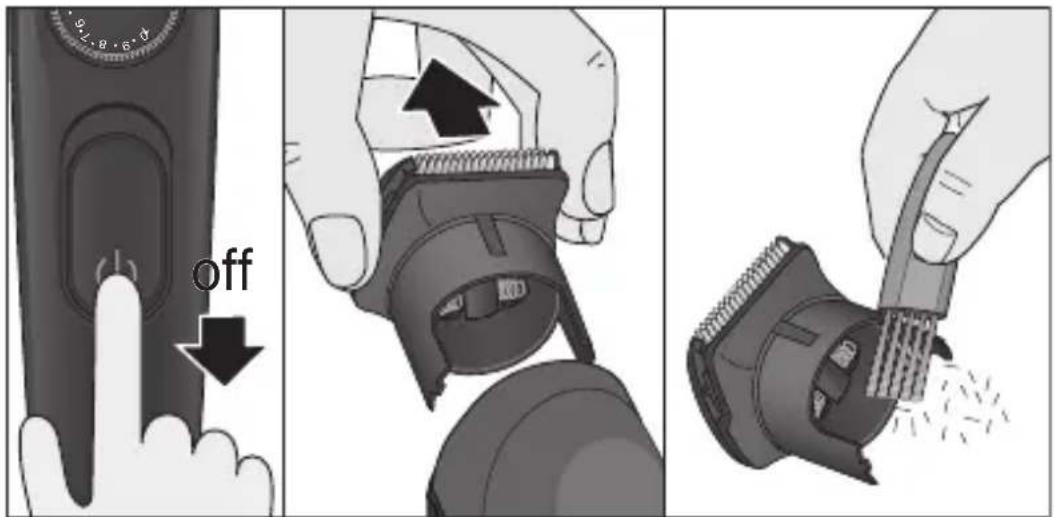

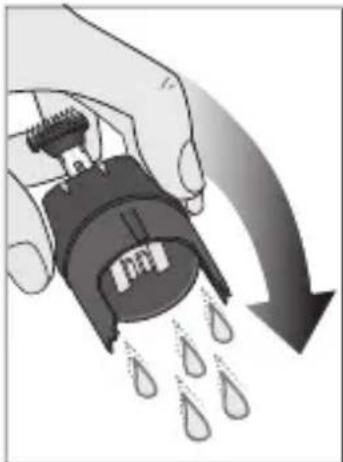

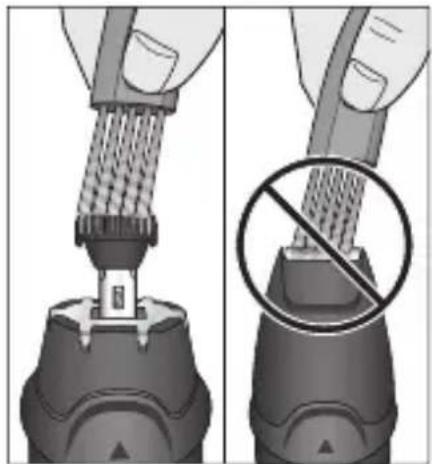

How to clean and maintain the trimmer?

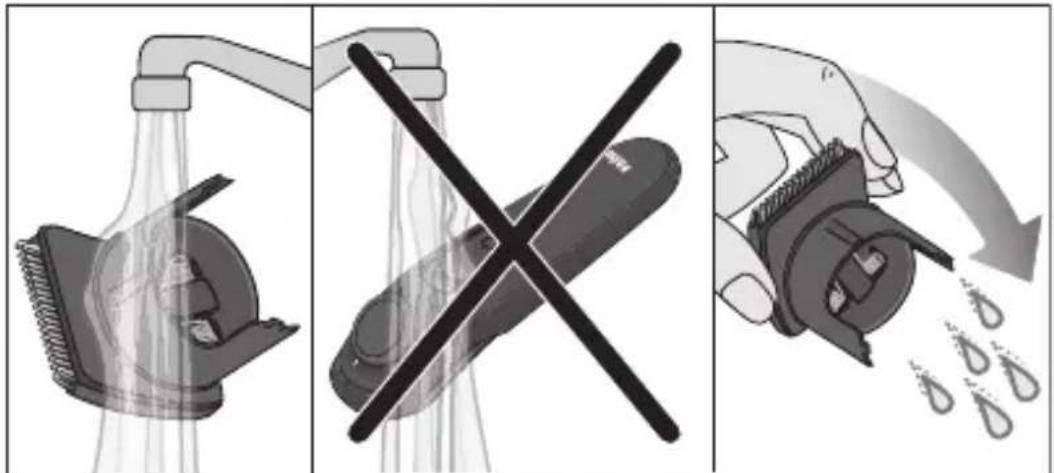

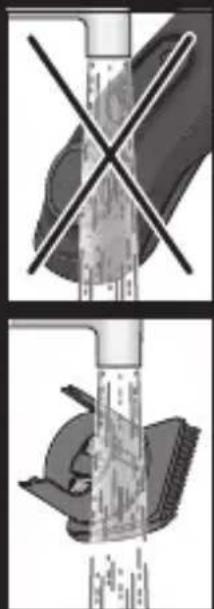

Turn off and unplug the device. Remove the heads and combs, brush away hair residues. Apply a drop of light oil (not supplied) to the blades and foils for lubrication. Do not rinse with water; keep the device dry.

How long does the battery last?

The runtime is approximately 50 minutes after a full charge. Charging time is approximately 8 hours. The charge indicator (marking 6) shows the level.

How to charge the device?

Make sure the device is off. Plug the special power cable provided into the socket (marking 4) and the charger. The recommended ambient temperature for charging is between 5 and 35 °C. Do not charge at extreme temperatures.

Can I use the device in the shower?

No, the device is not waterproof. It must be used dry and stored dry. Do not use under running water or in a humid environment.

What to do if the trimmer does not turn on?

Check that the battery is charged. Make sure the device is turned on (on/off button). If the problem persists, consult an authorized Braun service center. Do not open the device yourself.

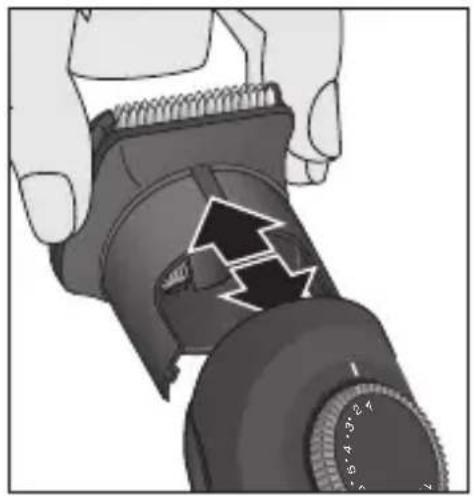

How to change the cutting head?

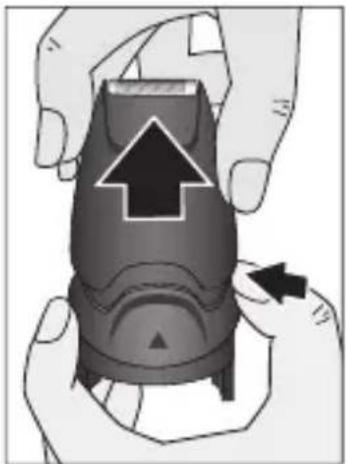

The trimmer heads (1a, 1b, 1c) can be clipped or unscrewed depending on the model. Refer to the manual for details. Only use original Braun accessories.

Where to find spare parts?

Contact an authorized Braun service center or visit www.service.braun.com. Only use original parts to maintain the warranty.

What is the warranty of the device?

The warranty is 2 years from the date of purchase. It covers manufacturing and material defects. It does not cover normal wear (foil, cutter block) nor damage due to improper use. For any claim, return the device with the warranty certificate to a dealer or authorized center.

USER MANUAL BT3410 BRAUN

Line drawing of a Bruh smartphone with a power button and 'BRAUN' label (no additional text or symbols)

Scan Me!

Two-panel illustration showing a hand holding a tool and a close-up of the tool inside a container (no text or symbols)

Braun Infolines

English 10

Français 13

Polski 16

Český 20

Slovenský 23

Magyar 26

Hrvatski 29

Slovenščina 32

Türkçe 35

Română 40

Български 43

Русский 46

Українська 51

UK 0800 783 7010

IE 1 800 509 448

FR 0 800 944 802

(service & appel gratuits)

BE 0 800 14 592

PL 801 127 286

801 1 BRAUN

CZ 221 804 335

SK 02/5710 1135

HU (06-1) 451-1256

HR 01/6690330

SI 080 2822

TR 0850 220 0911

RO 021.224.30.35

BG 0800 11 003

RU 8 800 200 20 20

UA 0 800 505 000

HK (852)2986 9886

(Customer Service Center)

Type 5516

Braun GmbH

Illustration of a black electrical plug with a terminal connector, shown in 3D style (no text or symbols)

6 Charging indicator
* not with all models
** design can differ

Illustration of a black mechanical component with ribbed texture and three legs (no text or symbols)

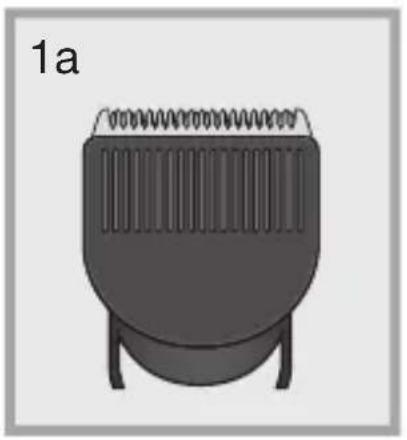

1a Trimmer head*/**

3D rendered image of a gray ergonomic device with a handle and base (no text or symbols)

1b Detail trimmer head*/**

Top-down grayscale illustration of a stylized object resembling a container or container with a handle and base (no text or symbols)

1c Mini foil shaver head*

Close-up of a black hairpin with serrated edge and circular handle, labeled '0.5-10' (no other text or symbols)

7 Precision beard comb ^ ^* (0.5-10 mm)

Close-up of a black mechanical component with multiple blades and a curved base, labeled '10.5-20' (no other text or symbols)

8 Precision hair comb ^* /** (10.5-20 mm)

Illustration of a hairbrush with ribbed texture and three legs (no text or symbols)

Close-up of a hand using a hairpin to cut a button, showing the blade and handle mechanism (no text or symbols visible)

Two black hairbrushes with spines, labeled 0.5-10 and 10.5-20 (no additional text or symbols)

Close-up of a hand holding a device with a circular dial and a downward arrow, no visible text or symbols

Close-up of a hand holding a device with a knob and handle, showing internal components (no text or symbols visible)

Illustration of a hairdryer with mesh head and side legs (no text or symbols)

Illustration of a person holding two different types of flashlights (no text or symbols present)

Two black plastic filter devices labeled 0.5-10 and 10.5-20, shown side by side with no visible text or symbols on the devices themselves.

Illustration showing a person applying a toothbrush to another person's ear, with arrows indicating the technique (no text or symbols present)

Two identical grayscale views of a device or device with no visible text, numbers, or symbols.

Close-up illustration of a person's face with a camera lens, no visible text or symbols

Simple line drawing of a showerhead and a faucet (no text or symbols)

Three-step illustration showing a hand using a tool to clean or wash a device, with no visible text or symbols.

Illustration of hands holding a device with an upward arrow and a black arrow indicating rotation (no text or symbols)

Illustration of a hand using a tool to remove or displace a device, showing no text or symbols on the device itself.

Diagram of a medical procedure showing a surgical instrument inserted into a patient's mouth (no text or labels present)

Illustration of a hand holding a water dispenser with downward arrow indicating water release (no text or symbols)

English

Read these instructions completely, they contain safety information. Keep them for future reference.

WARNINGS

The appliance is provided with a special cord set with integrated Safety Extra Low Voltage power supply. Do not exchange or manipulate any part of it. Otherwise there is a risk of electric shock.

Only use the special cord set provided with your appliance.

The digits in/near this symbol D-□-C on the hand part need to match the digits on the power supply.

Never use the appliance with any damaged accessory like trimmers, combs or special cord set.

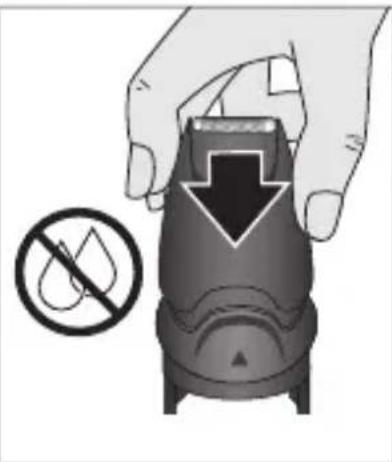

Keep the appliance dry.

Do not open the appliance!

This appliance contains batteries that are non-replaceable.

This appliance can be used by children aged from 8 years and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

If the appliance is provided with a hair clipping attachment, it can be used for hair clipping purpose by children aged from 3 years under supervision.

Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

For household use only.

Caution

When charging, make sure that the appliance is switched off.

Important

Recommended ambient temperature for charging is 5 °C to 35 °C.

The battery may not charge properly or at all under extreme low or high temperatures.

Recommended ambient temperature for trimming is 15 °C to 35 °C . Do not expose the appliance to temperatures higher than 50 °C for extended periods of time.

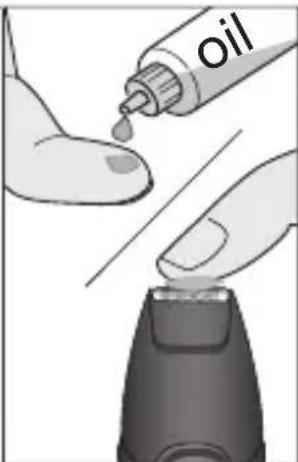

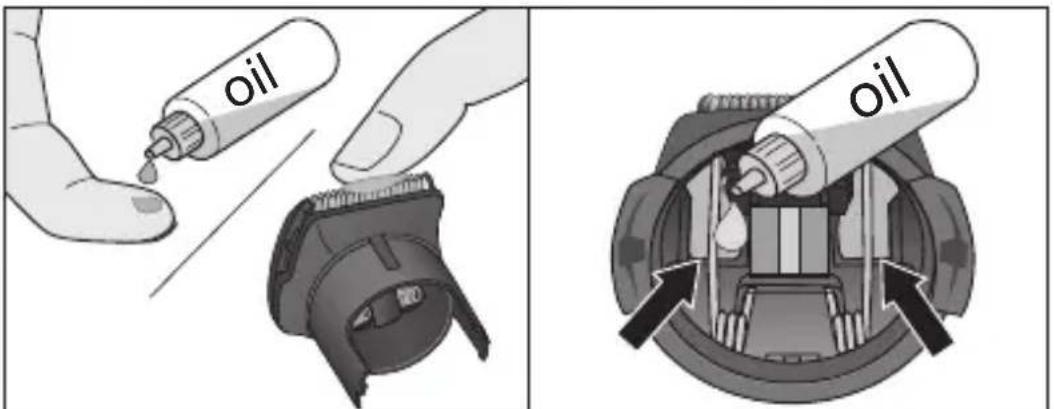

To keep the attachments working properly, oil the trimmer and the foils with a drop of light machine oil (not included) regularly.

Description

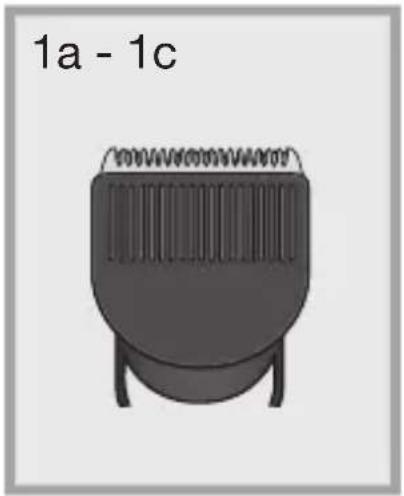

1a Trimmer head*/**

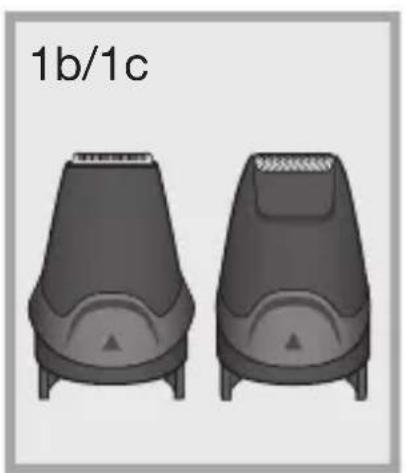

1b Detailed trimmer head*/**
1c Minifoil shaver head*
2 Length selector
3 On/off button
4 Power socket
5 Power supply**
6 Charging indicator

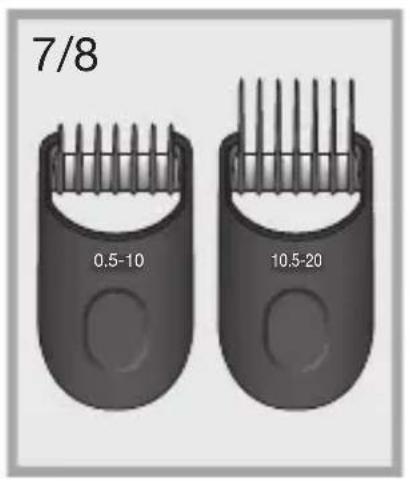

7 Precision beard comb (0.5-10 mm)*/**
8 Precision hair comb (10.5-20 mm)*/**

* not with all models

** design can differ

For electric specifications, see printing on the special cord set.

Environmental notice

Product contains batteries and/or recyclable electric waste. For environment protection do not dispose of in household waste, but for recycling take to electric waste collection points provided in your country.

Subject to change without notice.

Guarantee

We grant a 2-year guarantee on the product commencing on the date of purchase. Within the guarantee period we will eliminate any defects in the appliance resulting from faults in materials or workmanship, free of charge either by repairing or replacing the complete appliance at our discretion.

Depending on availability replacement might result in a different color or an equivalent model.

This guarantee extends to every country where this appliance is supplied by Braun or its appointed distributor.

This guarantee does not cover: damage due to improper use, normal wear and tear (e.g. shaver foil or cutter block) as well as defects that have a negligible effect on the value or operation of the appliance. The guarantee becomes void if repairs are undertaken by unauthorised persons and if original Braun parts are not used.

To obtain service within the guarantee period, hand in or send the complete appliance with your sales receipt to an authorised Braun Customer Service Centre (address information available online at www.service.braun.com).

For UK only:

This guarantee in no way affects your rights under statutory law.

Français

ELMIN, Đurđevac 48 350,

R. Boškovića 20, Tel. [phone], [e-mail]

BKS d.o.o., Slavonski Brod 35 000,

J. J. Strossmayera 29, Tel. [phone], [e-mail]

FRUK d.o.o., Virovitica 33 000,

J. J. Strossmayera 23, Tel. [phone], [e-mail]

MARKOVIĆ OBRT ZA EL.USLUGE, Varaždin 42 000,

Krešimira Filića 9, Tel. [phone], [e-mail]

RADAN ELEKTRONIK CENTAR d.o.o., Dubrovnik 20 000,

Ob. Pape I. Pavlall. 17, Tel. [phone], [e-mail]

Tehno -Jelčić d.o.o., Šibenik 22 000,

VIII Dalmatinske Udarne Brigade 71, Tel. [phone]

SINGULI D.O.O., 21000 SPLIT-KAMEN

UL. 4. Gardijske brigade 43, Tel. [phone] (u sklopu poslovnog prostora ROBOT COMMERCE d.o.o. (TTTS)), [e-mail], ili nazovite Call centar singuli: 072 700 707

Slovenščina

Country of origin: China

To determine the year of manufacture, remove the head and find the 3-digit production code located inside the housing. The first digit of the production code refers to the last digit of the year of manufacture. The next two digits refer to the calendar week in the year of manufacture. Example: “527” –

The product was manufactured in week 27 of 2015.

بلد المنشأ: الصين

www.service.braun.com
