Brand	UPO
Model	Maxi 523 D
Product Type	Washing Machine
Dimensions (W x H x D)	59.5 x 85.0 x 53.0 cm
Maximum Load	5.0 kg
Maximum Spin Speed	1300 rpm
Water Pressure Range	0.05 - 1 MPa
Power Supply	230 V / 50 Hz
Programs	Cotton, Synthetics, Delicates, Wool, Quick Wash, Daily Wash, Rinses, Drain and Spin
Temperature Range	Cold to 90°C
Display	Digital with cycle phase and time indication
Easy Logic Technology	Yes (auto load sensing)
Variable Spin	Yes (adjustable)
Delayed Start	Up to 16 hours
Prewash Function	Yes
Extra Rinse Function	Yes
Anti-Crease Function	Yes
Energetic Wash Function	Yes
Door Lock	Automatic during cycle
Detergent Dispenser	3 compartments (prewash, main wash, softener)

Frequently Asked Questions - Maxi 523 D UPO

How do I start a wash cycle?

Press the On/Off button, select a program with the programmer knob, press the Start button. The cycle will begin after a few seconds.

How can I change the spin speed?

Press the Spin selector button (H) repeatedly until the desired spin speed appears on the display. You can also exclude spin by selecting '00'.

Can I delay the start of the washing machine?

Yes, press the Delayed Start button (I) to set a delay from 1 to 16 hours. Then press Start to confirm.

What does the Easy Logic feature do?

Easy Logic automatically senses the load size and adjusts water consumption and cycle time accordingly, saving water and energy. It works only for cotton programs.

How do I add laundry after the cycle has started?

Turn the programmer knob to STOP position, wait until the display shows three flashing lines. After about 2 minutes, the door lock releases. Add laundry, then select a program and press Start.

What optional functions are available?

Optional functions include Prewash, Energetic Wash, Extra Rinse, and Anti-Crease. Each is selected by pressing the corresponding button (C).

Which wash programs does the Maxi 523 D offer?

It offers programs for Cotton, Synthetics, Delicates, Wool, Quick Wash, Daily Wash, Rinses, and Drain and Spin.

How do I use the prewash function?

Press the Prewash button (C) before starting the cycle. It adds a short prewash at max 40°C. It is only available for cotton, synthetic, and daily programs.

What is the maximum load for this washing machine?

The maximum recommended load is 5.0 kg for cotton. Lower loads apply for other fabric types (e.g., 2.5 kg for delicates, 1.0 kg for wool).

What do the display symbols mean?

During the cycle, the display shows symbols for prewash/main wash, rinse, and spin. At the end, it shows END. The time remaining is also displayed.

USER MANUAL Maxi 523 D UPO

A PÅ/AV-knapp

B Display

C Tillvalsknappar

▼ STOPP PÅ PROGRAMVREDET:

PESUKONEEN TÄRKEIMMÄT TOIMINNOT

MALLIT: MAXI 422 D • MAXI 623 D • WF 6042 D • MAXI 524 D • MAXI 523 D

A Virtapainike

B Näyttö

A Tast PÅ/AV

B Display

H Tast for sentrifugering

L Tast KJ∅R

I Tast for forsinket start

▼ "STOPP" PÅ PROGRAMVELGEREN:

A Start/Stop-knap

B Display

▼ FORKLARING AF SYMBOLER PÅ DISPLAY:

▼ "STOP" PÅ PROGRAMKNAP:

"EASY LOGIC" TEKNOLOGI

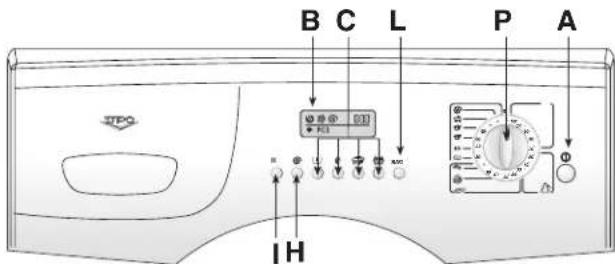

MAIN FUNCTIONS OF THE WASHING MACHINE

MODEL: MAXI 422 D • MAXI 623 D • WF 6042 D • MAXI 524 D • MAXI 523 D

A On/Off button
B Display
C Optional function buttons
H Spin selector button
L Start button
I Delayed start button
P Programme and temperature knob

USING THE WASHING MACHINE

WASH CYCLE:

(follow these instructions and the washing machine will run the selected wash cycle)

1. Open the door (see paragraph "Using the washing machine").
2. Load the washing in the drum and close the door securely.

Warning: Do not overload the washing machine. It is not advisable to wash items that absorb large quantities of water such as carpets.

1. Add a low-suds detergent and softener designed for automatic washing machines in the respective compartments of the detergent dispenser (see chapter "USE OF DETERGENTS").
2. Close the detergent drawer. Do not open the drawer while the machine is working as this may cause water to spill out.
3. Press the On/Off button (A).
4. Rotate the programmer knob (P) to select the required program and temperature according to the type of fabric to wash (see: "PROGRAM TABLES"), then press the start button (L) and the cycle will start.

N.B. Once the programmer knob has been set, the display will automatically show the duration of the selected cycle in minutes, together with the symbol corresponding to the phase at which the wash cycle will start.

As the program is being executed, this symbol will change to indicate the current wash phase. On completion of the wash program, the word END will be displayed.

1. Select the required spin speed by pressing button (H) (see "VARIABLE SPIN").
2. Select the (C) buttons with the functions required (see "OPTIONAL FUNCTIONS"). The buttons pressed will light-up, and the time indicated on the display will vary according to the functions selected.

3. Press button (I) if required (see "DELAYED START").

4. Press button (L) to start the wash cycle.

5. At the end of the wash, press the On/Off button (A) to switch off the washing machine.

6. Open the door and remove the washing.
7. With dry hands, unplug the washing machine from the mains supply.
8. Close the water feed valve.

DISPLAY SYMBOLS:

The display can be used to monitor the progress of the selected wash program. At the end of the wash cycle, all the symbols will disappear and the word "END" will appear.

The washing machine is effecting the pre-wash or main wash.

The washing machine is effecting the rinse cycle.

The washing machine is effecting the spin cycle.

TEKNISKE DATA

MODELLER →		MAXI 422 D	MAXI 623 D	WF 6042 D MAXI 524 D MAXI 523 D
Dimensioner:	Bredde cm.	59.5	59.5	59.5	59.5	59.5
	Højde cm.	85.0	85.0	85.0	85.0	85.0
	Dybde cm.	39.5	55.0	55.0	53.0	53.0
Max. læs anbefalet:		5,0 Kg	6,0 Kg	6,0 Kg	5,0 Kg	5,0 Kg
		3,3 Kg	4,0 Kg	4,0 Kg	3,3 Kg	3,3 Kg
		2,5 Kg	3,0 Kg	3,0 Kg	2,5 Kg	2,5 Kg
		1,0 Kg	1,5 Kg	1,5 Kg	1,0 Kg	1,0 Kg
Max. centrifugering: (omdrej./min)		1200	1300	1400	1400	1300
Vandtryk:		min. 0.05 MPa - max. 1 MPa
Max. strømforbrug/Elektrisk tilslutning		se mærkeplade

NOTE

USING THE WASHING MACHINE

ON/OFF BUTTON:

Press the button to switch on the washing machine. The display will light up and three flashing lines will appear if the programmer knob is in position "0" (otherwise, the duration of the selected program and functions will appear).

VARIABLE SPIN:

The machine offers a wide selection of spin speeds that can be selected before starting the wash program. To change the spin speed, simply press button (H) until the value required is displayed; (fig. 1). If the spin is to be excluded, press the button until the spin symbol itself appears on the display together with "00" (fig. 2).

NB. the maximum spin speed will vary according to the model and is indicated on the washing machine display. The maximum spin speed that can be selected for each program is that indicated automatically when the wash program is selected.

▼ DISPLAY AND DURATION OF THE WASH CYCLE:

At each program position selected with knob (P), the display will indicate the corresponding spin speed, the wash phase and the cycle duration time. The time display will reduce as the cycle progresses to arrive at zero on completion of the program. At this point, the word "END" will appear on the display. The washing can now be removed from the machine.

N.B. In the "Cotton" programs, the duration of the wash cycle initially displayed is purely indicative, in that it can be influenced by a number of factors such as: temperature and pressure of the feed water and the quantity of washing in the drum. During the wash, the machine's electronics will automatically modify the time necessary to complete the selected wash on the basis on these factors. This will produce the best wash performance in the shortest time period.

▼ DELAYED START:

The washing machine is equipped with a function that allows the start of the wash to be delayed for up to a maximum of 16 hours. Each time button (I) is pressed, the number of hours from 1 to 16 that the washing machine will wait until starting the wash cycle is displayed (e.g. H.3 indicates that the wash cycle will start in three hours time). Once button (L) has been pressed, the washing machine will automatically start the wash cycle after the number of hours set.

▼ START BUTTON:

After all the operations described in points 1 to 10 of paragraph "WASH CYCLE" have been carried out, pressing this button will start the wash cycle. When the button is pressed, it will light up after approximately 2 -3 seconds to indicate that the wash program has started.

PROGRAMMER KNOB "STOP":

The stop function resets the washing machine. If, for any reason, you want to change the wash program or add more washing to the load during the wash cycle, simply place the programmer knob in position "STOP" (3 lines will flash on the display and the "START" button light will go out). Then re-position the knob on the new program and press the "START" button.

Warning!! only use this function if strictly necessary and then only if the program to reset has not been running for more than 3 minutes. Before opening the door after a reset, wait 2 minutes for the locking mechanism to release.

OPTIONAL FUNCTIONS

If one of the following buttons is selected, it will light up. If a function button has been pressed by mistake or is no longer required, the option can be cancelled by simply re-pressing the button.

PREWASH:

Press this button to obtain a short prewash of maximum temperature 40^ C and approximately 10 minutes duration

This function can only be used with "COTTON, SYNTHETIC and DAILY" programs. Button 3 will light up.

ENERGETIC WASH:

When this button is pressed, the washing machine will run a wash cycle at the set temperature, though with a longer duration. The button is enabled for the "COTTON," and "SYNTHETIC" programs.

EXTRA RINSE:

The washing machine has been designed to reduce water consumption to a minimum. In very soft water areas, or in the case where detergent residues are noticed at the end of the wash cycle, pressing this button will add one more rinse to the program.

ANTI-CREASE:

When this button is pressed, at the end of the wash cycle, the items loaded in the washing machine will continue to rotate for a further thirty minutes to reduce creasing. This function automatically reduces the spin. The function cannot be activated for the "WOOL" programme.

NB. The use of this function depends on the type of program selected. Consequently, if the wash program does not include this function, the button cannot be enabled (see PROGRAM TABLE).

PROGRAMME TABLES

PROGRAMMER KNOB	WASH TEMPE-RATURE	SYMBOL	FABRIC TYPE	DISPENSER COMPARTMENTS	SPINN SPEED	BUTTONS ENABLED				AUTOMATIC
COTTON	90°		Heavily soiled white cotton fabrics with organic stains.		Max (or lower)			3 (+3)
COTTON	75°		Sheets, shirts, tablecloths, towels that are resistant and heavily soiled		Max (or lower)			3 (+3)
COTTON *	60°		For shirts, tablecloths, towels that are resistant and normally soiled		Max (or lower)			3 (+3)
COTTON	40°		White and coloured fabrics that are resistant and heavily soiled		Max (or lower)			3 (+3)
COTTON	30°		Delicate coloured fabrics that are lightly soiled		Max (or lower)			3 (+3)

FUNCTION ENABLED ○ FUNCTION DISABLED

* Reference programme for energy classification purposes according to standard EN 60456
** Press start to continue the program **** Reference program for pure new wool.

PROGRAMME TABLES

PROGRAMMER KNOB	WASH TEMPERATURE	SYMBOL	FABRIC TYPE	DISPENSER COMPARTMENTS	SPINN SPEED	BUTTONS ENABLED				AUTOMATIC
SYNTHETICS	60°		Colourfast synthetic fabrics that are heavily soiled		800 (or lower)			3 (+3)
SYNTHETICS	40°		Delicate coloured synthetic fabrics that are lightly soiled		800 (or lower)			3 (+3)
SYNTHETICS	30°		Delicate coloured synthetic fabrics that are lightly soiled		800 (or lower)			3 (+3)
DELICATES	40°		Delicate cotton, viscous and mixed delicate fabrics		500 (or lower)			3
DELICATES	30°		Delicate cotton, viscous and mixed delicate fabrics		500 (or lower)			3
WOOL****	40°		Machine washable wool		800 (or lower)			3
WOOL	30°		Machine washable wool		800 (or lower)			3
DELICATES	COLD		Machine washable wool, silk and delicate mixed fabrics		800 (or lower)			3
WOOL
HAND WASH	30°		Hand washable fabrics		800 (or lower)			3
QUICK WASH	35°		Quick wash of approximate duration 35-40 minutes for lightly soiled fabrics.		Max (or lower)			2
DAILY WASH	60°		Short wash for cotton and resistant fabrics requiring frequent washing		Max (or lower)			4 (+3)
DAILY WASH	40°		Short wash for cotton and resistant fabrics requiring frequent washing		Max (or lower)			4 (+3)
RINSES	—		To rinse and refresh the washing		Max (or lower)			3 (+3)
DRAIN AND SPIN	—		Drain and final spin		Max (or lower)			○

FUNCTION ENABLED ○ FUNCTION DISABLED

* Reference programme for energy classification purposes according to standard EN 60456

**Press start to continue the program **** Reference program for pure new wool.

"EASY LOGIC" TECHNOLOGY

The electronic washing machine is fitted with an "EASY LOGIC" system that automatically recognises the quantity of washing loaded. The machine can thus regulate the amount of water to use for the wash and proportion the wash time accordingly, thus saving water, time and energy. In the case where the amount of washing is less than the maximum recommended load (see technical characteristics table), the quantity of water used for the wash will be reduced by 2 litres for each kg less of washing. In the case of a half-load or less, the machine will automatically carry out one rinse less than programmed. N.B. The "EASY LOGIC" function is only active for cotton programmes.

TECHNICAL CHARACTERISTICS

MODEL →		MAXI 422 D	MAXI 623 D	WF 6042 D	MAXI 524 D	MAXI 523 D
Dimensions:	Width cm.:	59.5	59.5	59.5	59.5	59.5
	Height cm.:	85.0	85.0	85.0	85.0	85.0
	Depth cm.:	39.5	55.0	55.0	53.0	53.0
Maximum recommended load:		5,0 Kg	6,0 Kg	6,0 Kg	5,0 Kg	5,0 Kg
		3,3 Kg	4,0 Kg	4,0 Kg	3,3 Kg	3,3 Kg
		2,5 Kg	3,0 Kg	3,0 Kg	2,5 Kg	2,5 Kg
		1,0 Kg	1,5 Kg	1,5 Kg	1,0 Kg	1,0 Kg
Max. spin: (rpm)		1200	1300	1400	1400	1300
Water pressure:		min. 0.05 MPa - max. 1 MPa
Max. absorbed power/Electrical connection		see rating plate
