Product Type	2U Rackmount Server
Model	Intel Server System R2224GZ4GC4
Motherboard	Intel Server Board S2600GZ4
Processor Support	Dual Intel Xeon E5-2600 and E5-2600 v2, max TDP 135W
Chipset	Intel C600
Memory	24 DDR3/DDR3L DIMM slots
Drive Bays	24 x 2.5" hot-swap SATA/SAS (carriers included)
Storage Controller	Integrated SATA with software RAID (optional HW RAID)
Power Supply	2 x 750W AC 80+ Platinum redundant (installed)
Cooling	5 redundant hot-swap fans
Expansion Slots	2 risers with 3 x8 PCIe Gen3 slots each (total 6 slots)
Network	4 x 1GbE Intel I350, plus optional dedicated management port
Management	Integrated BMC with IPMI 2.0, optional RMM4 (preinstalled)
Form Factor	2U rack (height 3.5 in / 88.9 mm, width 17.2 in / 437 mm, depth 30 in / 762 mm typical)
Weight	Approximately 35 kg (fully loaded)
Operating Temperature	10°C to 35°C (50°F to 95°F)
Rail Kit	AXXVRAIL value rail kit included
Front Panel	Control panel on rack handle (A2USTOPANEL), no ODD
USB Ports	2 front USB, 2 rear USB (typically 2.0)
Video	Integrated VGA on motherboard
Compliance	RoHS, ENERGY STAR compliant

Frequently Asked Questions - R2224GZ4GC4 INTEL

How many hard drives does the R2224GZ4GC4 support?

The server supports 24 x 2.5-inch hot-swap hard drives (SATA or SAS) using three backplanes (FXX8X25HSBP).

What processors are compatible with this server?

It supports dual Intel Xeon E5-2600 and E5-2600 v2 processors, with a maximum TDP of 135W (some chassis limitations apply).

How much memory can I install?

There are 24 DDR3/DDR3L DIMM slots. The maximum memory depends on the CPU and DIMM size (up to 768GB with 32GB RDIMMs).

Is the power supply redundant?

Yes, it comes with two 750W AC 80+ Platinum power supplies for full redundancy.

What RAID options are available?

By default, it uses software RAID (Intel RSTe/LSI SW). A hardware RAID module (e.g., RMS25CB080) can be installed via the onboard SAS module connector or PCIe slots.

Does the server include remote management?

Yes, it includes a full RMM4 (Remote Management Module) with dedicated NIC for KVM-over-IP and out-of-band management.

What expansion slots are available?

The system has two risers each providing three PCIe Gen3 x8 slots (two mechanical x16, one x8). Total six slots.

Can I add an optical drive?

No, this model does not have an ODD bay. The control panel is on the rack handle. You can use an external USB DVD drive if needed.

What is the warranty length?

Intel typically offers a 3-year limited warranty. Extended warranty options (e.g., SVCEWDPSY for two additional years) are available.

Where can I find the user manual or configuration guide?

The Intel Server System R2000GZ/GL product family Spares/Accessories List and Configuration Guide (Revision 1.91, April 2014) is available for free download on the Intel support website or on notice-facile.com.

USER MANUAL R2224GZ4GC4 INTEL

Intel® Server Board S2600GZ/GL

Intel® Server System R1000GZ/GL product family

Intel® Server System R2000GZ/GL product family

Spares/Accessories List and Configuration Guide

A Reference Guide to assist customers in ordering the necessary components to configure the Intel® Server Board S2600GZ/GL and the appropriate 1U and 2U Intel® Rack Mount server systems.

Revision 1.91

April 2014

Intel® Server Boards and Systems

Revision History

Jan 2012 – rev 1.0 – Final scrub before open books.

March 2012 – rev 1.2 – Web post.

March 2012 - rev 1.21 - Corrected fan spares to call out 1 fan each.

April 2012 – rev 1.23 – Added new SKUs to be launched, defined SKUs to be removed and delayed minor edits

May 2012 – rev 1.24 – Formatting, pictures, and descriptions edited to be more descriptive. VMware* skus updated. R2216GZ4GCIOC, R1208GZ4GCIOC, R2308GZ4GCIOC R2208GZ4GC10G deleted. Some RAID controllers added. Added AXXPRAIL755.

August 2012 - rev 1.26 – Descriptions improved, cable name typo corrected in system description to match available spares. Added Server Continuity.

October 2012 - rev 1.27 - Updated due to launch of delayed systems.

October 2012 – rev 1.3 – Pictures and format updated

January 2013 - rev 1.31 - Updated the AGZCOPRODUCT description

January 2013 – rev 1.32 – Updated 750W DC product code & MM# and updated the Air Duct image

April 2013 – rev 1.33 – Updated Intel® Integrated RAID Module RMS25PB080, RMS25PB040, RMT3PB080, RMS25CB080, RMS25CB040, and RMT3CB080 MM#s

April 2013 – rev 1.34 – updated Dual Port HSBP

April 2013 – rev 1.4 – Updated FR1304HSBP MM#, added notes for R1208GZ4GCSAS, R2208GL4DS9, R2216GZ4GCLX, R2224GZ4GCSAS, R2308GL4DS9 and R2312GZ4GCSAS.

June 2013 – rev 1.5 – Updated the MM#s of AXXCBL165MSMS, AXXCBL185MSMS, AXXCBL245MSMS, AXXCBL550MRMR and AXXCBL730MRMR, removed R2208GZ4IS.

June 2013 – rev 1.6 – Added notes for AXXVRAIL, AXXELVRAIL, AXXPRAIL, AXXPRAIL755 and AXX2POSTBRCKT. Updated Intel® Integrated RAID Module RMS25JB040, RMS25JB080, RMS25KB040 and RMS25KB080 MM#s.

September 30, 2013 – rev 1.7

- Removed 750W DC Power Supply AXX750DCCRPS and DC Cable AXXDCCRPSCBL.

- Added RS25DB080, RS25GB008, RS2SG244, RS2WC080, RS2WC040, RS2WG160, RS25AB080, RS25DB080, RS25NB008, RS25SB008, RS25DB080, RCS25ZB040 and RCS25ZB040LX.

- Added note for AXX2POSTBRCKT.

- Added ODD power cable and ODD/SSD power cable in all system description.

- Updated R1208GZ4GS9 description: change AXXCBL730MRMR to AXXCBL770MSMR and AXXCBL550MRMR to AXXCBL585MSMR.

November 20, 2013 – rev 1.8 -- Added note for AXXRMFBU3.

January 27, 2014 – rev1.9

- Updated FR1304HSBP product code to FXX1304HSBP.

- Added 750W DC Power Supply AXX750DCCRPS and DC power cable AXXDCCRPSCBL.

April 8, 2014 - rev1.91

- Added note for 750W DC Power Supply AXX750DCCRPS and DC power cable AXXDCCRPSCBL.

- Added note for S2600GZ4 and S2600GL4.

Disclaimer

INFORMATION IN THIS DOCUMENT IS PROVIDED IN CONNECTION WITH INTEL® PRODUCTS. NO LICENSE, EXPRESS OR IMPLIED, BY ESTOPPEL OR OTHERWISE, TO ANY INTELLECTUAL PROPERTY RIGHTS IS GRANTED BY THIS DOCUMENT. EXCEPT AS PROVIDED IN I INTEL®S TERMS AND CONDITIONS OF SALE FOR SUCH PRODUCTS, INTEL® ASSUMES NO LIABILITY WHATSOEVER, AND INTEL® DISCLAIMS ANY EXPRESS OR IMPLIED WARRANTY, RELATING TO SALE AND/OR USE OF INTEL® PRODUCTS INCLUDING LIABILITY OR WARRANTIES RELATING TO FITNESS FOR A PARTICULAR PURPOSE, MERCHANTABILITY, OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT.

Intel ^® products are not intended for use in medical, life saving, life sustaining applications. Intel ^® may make changes to specifications and product descriptions at any time, without notice.

Intel ^® server boards, server chassis, and processors may contain design defects or errors known as errata, which may cause the product to deviate from published specifications. Current characterized errata are available on request.

Intel, Intel Xeon, Pentium, and the Intel logo are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the United States and other countries.

*Other names and brands may be claimed as the property of others.

Copyright © 2014, Intel Corporation

CONTENTS

Revision HISTORY 2

DISCLAIMER....2

CONTENTS 4

SYSTEM PRODUCT ORDER CODES....5

PRODUCT DESCRIPTIONS – OVERVIEW....5

SUMMARY CHART 5

RISERS AND IO OPTIONS....6

AVAILABLE BOARD SPARES FOR GZ FAMILY....6

AVAILABLE PRODUCTION SYSTEM ORDER CODES FOR INTEL ^® SERVER SYSTEM R1000GZ/GL PRODUCT FAMILY (1U RACK)......7

AVAILABLE PRODUCTION SYSTEM ORDER CODES FOR INTEL® SERVER SYSTEM R2000GZ/GL PRODUCT FAMILY (2U RACK)...... 11

SPARES AND ACCESSORIES....19

GENERAL SPARES AND ACCESSORIES....19

DRIVE/STORAGE SUBSYSTEM SPARES AND ACCESSORIES 22

EXPANSION MODULES: IO MODULE, SAS MODULE, RMM4, TPM 26

SAS CABLE KITS (FOR UPGRADE TO SAS MODULES, HBA CARDS AND SPARES)....30

THIRD PARTY DEVICES COMPLETED FIT-CHECK....31

EXTENDED WARRANTY....32

SYSTEM PRODUCT ORDER CODES

Product Descriptions - Overview

Product based on the Intel ^® Server Board S2600GZ/GL will be offered as integrated system at production. Two main groups will be described below: 1U and 2U. Each group has a variety of options to order from, including drive configurations, power supplies type and quantity, additional components.

Board will be offered as a 1-pack spare at launch. The chassis will not be offered separately.

The Systems shipped to the US and Canada will contain North American power cords. North American customers no longer need to order skus ending in “NA” to receive power cords on products.

Summary chart

For a quick overview, all configuration options are summarized on below chart. Please refer the details below in this document for MM numbers, configuration details and product order codes.

Product Code

HDD

Number of HDD

Power Supply

Rails

Storage Upgrade Included

Ports Available

RAID

Expander

RMM4

R1208GL4DS

2.5

8

1x460W

Value

RKSATA8 key

8 SATA

SW

None

yes

R1208GZ4GC

2.5

8

2x750W

Value

RKSATA8 key

8 SATA

SW

None

yes

R1208GZ4GCSAS*

2.5

8

2x750W

Value

RMS25CB080

8 SAS

HW

None

yes

R1208GZ4GS9

2.5

8

1x750W

None

None

4 SATA

SW

None

No

R1304GL4DS9

3.5

4

1x460W

None

None

4 SATA

SW

None

No

R1304GZ4GC

3.5

4

2x750W

Value

None

4 SATA

SW

None

yes

R1304GZ4GS9

3.5

4

1x750W

None

None

4 SATA

SW

None

No

R2208GL4DS9*

2.5

8

1x460W

None

None

4 SATA

SW

None

No

R2208GL4GS

2.5

8

1x750W

Value

RKSATA8 key

8 SATA

SW

None

yes

R2208GZ4GC

2.5

8

2x750W

Value

RKSATA8 key

8 SATA

SW

None

yes

R2208GZ4GS9

2.5

8

1x750W

None

None

4 SATA

SW

None

No

R2216GZ4GC

2.5

16

2x750W

Value

RKSAS8 key

16 SAS

SW

RES2CV240

yes

R2216GZ4GCLX*

2.5

16

2x750W

Value

RMS25CB080

16 SAS

HW

RES2CV240

yes

R2224GZ4GC4

2.5

24

2x750W

Value

None

4 SATA

SW

None

yes

R2224GZ4GCSAS*

2.5

24

2x750W

Value

RMS25CB080

24 SAS

HW

RES2CV360

yes

R2308GL4DS9*

3.5

8

1x460W

None

None

4 SATA

SW

None

No

R2308GL4GS

3.5

8

1x750W

Value

8SATA

8 SATA

SW

None

yes

R2308GZ4GC

3.5

8

2x750W

Value

RKSATA8 key

8 SATA

SW

None

yes

R2308GZ4GS9

3.5

8

1x750W

None

None

4 SATA

SW

None

No

R2312GL4GS

3.5

12

1x750W

Value

None

4 SATA

SW

None

yes

R2312GZ4GC4

3.5

12

2x750W

Value

None

4 SATA

SW

None

yes

R2312GZ4GCSAS*

3.5

12

2x750W

Value

RKSAS4+RMS25CB080

12 SAS

HW

None

yes

R2312GZ4GS9

3.5

12

1x750W

None

None

4 SATA

SW

None

No

*Note: See PCN112152 for the latest ordering information.

Risers and IO options

S2600GZ/GL boards have two identical super-slots, with 24 lanes of PCI Express 3.0 routed from CPUs.

Riser 1 has 16 lanes from CPU1 and 8 lanes from CPU2. Riser 2 has 24 lanes solely from CPU2. This implies that in single CPU operation – only first 16 lanes on Riser 1 are available.

1U system has only 1 riser option available, that works for both slots: single slot PCIe3 x16.

2U system has 3 options: 3x8 PCIe3; 1x16 + 1x8; and 2xPCI-X 133 + 1x8 PCIe3.

Other IO options include: SAS module and Intel ^® IO module, with x8 PCIe3 lanes available to each from CPU1. SAS module and IO module slots are not interchangeable.

Available board spares for GZ family

Image	Product CodeMMUPCEAN	Description
	S2600GZ49179687358582395095032037034289MOQ:1	Intel®Server Board S2600GZ4Supports dual Intel Xeon E5-2600 and Intel®Xeon E5-2600 v2 processorsMaximum supported TDP for board 135W (not available in all chassis)Intel®C-600 chipset24 DDR3/DDR3L DIMMs8 SCU ports (4 SATA ports only functional w/NO storage keys)2 SATA 6G ports4 Integrated 1Gb ports (Intel®Ethernet Controller I350)Integrated Baseboard Management controller with IPMI 2.0 supportOptional advanced management features activated by AXXRMM4LITE keyOptional dedicated 1Gbe management portSupport for Intel®IO expansion module optionSupport for Intel®SAS module optionBox contains: one spare motherboard
	S2600GL49179697358582395165032037034296MOQ:1	Intel®Server Board S2600GL4Same as above, but only 16 DIMMsSupports dual Intel Xeon E5-2600 and Intel®Xeon E5-2600 v2 processorsMaximum supported TDP for board 135W (not available in all chassis)Intel®C-600 chipset16 DDR3/DDR3L DIMMs8 SCU ports (4 SATA ports only functional w/NO storage keys)2 SATA 6G ports4 Integrated 1Gb ports (Intel®Ethernet Controller I350)Integrated Baseboard Management controller with IPMI 2.0 supportOptional advanced management features activated by AXXRMM4LITE keyOptional dedicated 1Gbe management portSupport for Intel®IO expansion module optionSupport for Intel®SAS module optionBox contains:one spare motherboard

Available production system order codes for Intel® Server System R1000GZ/GL product family (1U Rack)

Image	Product CodeMMUPCEANMOQ	Description

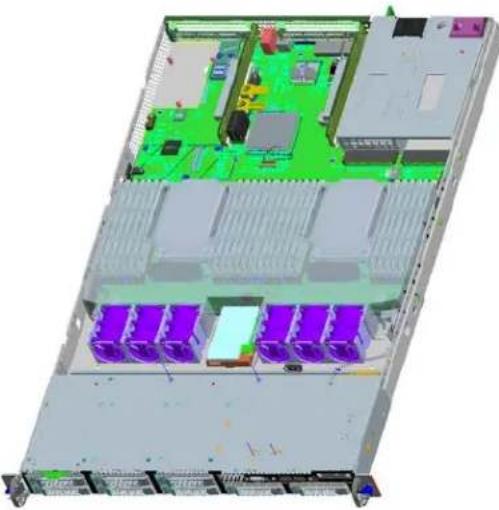

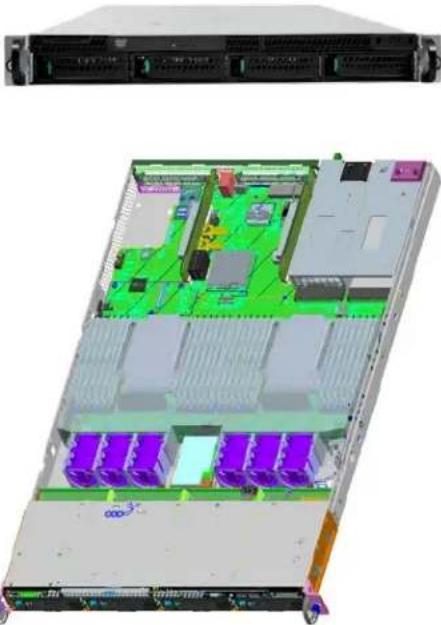

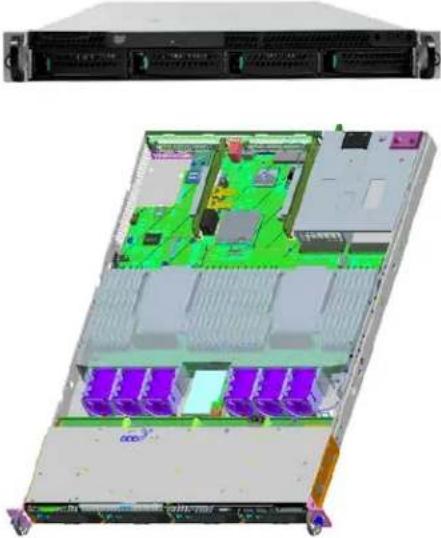

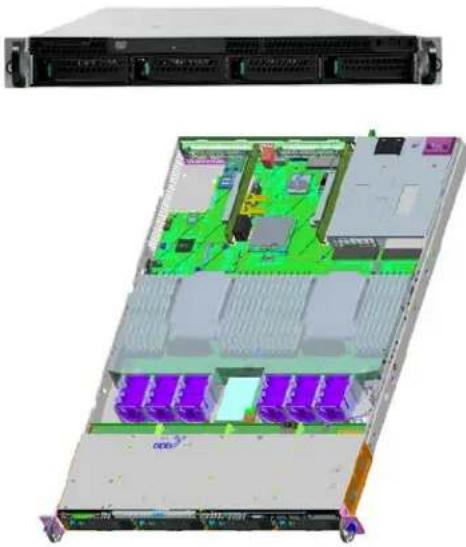

	R1304GZ4GC9169947358582282825032037023139MOQ: 1	Intel®Server System R1304GZ4GCIntegrated server system with 4 SATA ports standard, 24 DIMMsS2600GZ4 board in 1U chassis (S2600GZ4)Max CPU TDP supported – 135W with configuration limitations, please reference Technical Product SpecificationStandard control panel (board FXXFPANEL)Front 1xVGA and 2xUSB in dedicated trayODD bay for CD/DVD drive support4x3.5" (and 2.5") HS HDD support (4 carriers FXX35HSADPB included, backplane FR1304HSBP)One AXXCBL1030MR7R cable installed.(AXXCBL850MS7R straight cable required if HBA or SAS I/O module installed)Two CPU heatsinksTwo risers: 1x16 PCIe FHHL slot on each (F1UL16RISER)Two 750W AC PSU (FXX750PCRPS)Full RMM4 (key and NIC) preinstalled (AXXRMM4R)Value rail kit (AXXVRAIL)One ODD power cableThere are no required EPSD components to make this system functional.
	R1304GZ4GS99227597358582494785032037044134MOQ: 1	Intel®Server System R1304GZ4GS9Integrated Server System with basic configuration, 24 DIMMsS2600GZ4 board in 1U chassis (S2600GZ4)Max CPU TDP supported – 135W with configuration limitations, please reference Technical Product SpecificationStandard control panel (board FXXFPANEL)Front 1xVGA and 2xUSB in dedicated trayODD bay for CD/DVD drive support4x3.5" (and 2.5") HS HDD support(4 carriers FXX35HSADPB included, backplane FR1304HSBP)One AXXCBL1030MR7R cable installed.(AXXCBL850MS7R straight cable required if HBA or SAS I/O module installed)Two CPU heatsinksTwo risers: 1x16 PCIe FHHL slot on each (F1UL16RISER)One 750W AC PSU second unit must be added for redundancy (FXX750PCRPS)One ODD power cableThere are no required EPSD components to make this system functional.
	R1304GL4DS99227907358582494305032037044097MOQ: 1	Intel®Server System R1304GL4DS9Integrated server system with 4 SATA ports standard, 16 DIMMsS2600GL4 board in 1U chassis (S2600GL4)Max CPU TDP supported – 135W with configuration limitations, please reference Technical Product SpecificationStandard control panel (board FXXFPANEL)Front 1xVGA and 2xUSB in dedicated trayODD bay for CD/DVD drive support4x3.5" (and 2.5") HS HDD support (4 carriers FXX35HSADPB included, backplane FR1304HSBP)One AXXCBL1030MR7R cable installed.(AXXCBL850MS7R straight cable required if HBA or SAS I/O module installed)Two CPU heatsinksTwo risers: 1x16 PCIe FHHL slot on each (F1UL16RISER)One 460W AC PSU second unit must be added for redundancy (FXX460GCRPS)One ODD power cableThere are no required EPSD components to make this system functional.

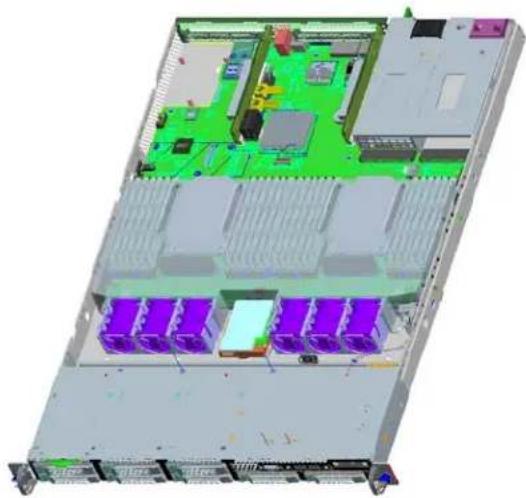

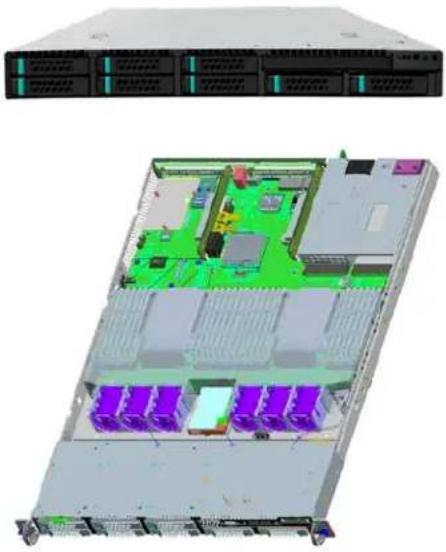

	R1208GZ4GC9169957358582283055032037023153MOQ: 1R1208GZ4GCSAS9169997358582283295032037023177MOQ: 1	Intel®Server System R1208GZ4GCIntegrated Server System with 8 SATA ports standard, 24 DIMMsS2600GZ4 board (S2600GZ4) in 1U chassisMax CPU TDP supported – 135W with configuration limitations, please reference Technical Product SpecificationStandard control panel (board FXXFPANEL)ODD bay for CD/DVD drive supportFront 1xVGA and 2xUSB in ODD bay8x2.5" HS HDD support (8 carriers FXX25HSCAR included, F1U8X25HSBP backplane )Two cables: AXXCBL730MRMR and AXXCBL550MRMR included. (8 ports)Two CPU heatsinksTwo risers: 1x16 PCIe FHHL slot on each (F1UL16RISER)RKSATA8 storage activation key installed – to enable 8 ports SATATwo 750W AC PSU (FXX750PCRPS)Full RMM4 (key and NIC) preinstalled (AXXRMM4R)Value rail kit (AXXVRAIL)One ODD power cableThere are no required EPSD components to make this system functional.Intel®Server System R1208GZ4GCSASIntegrated Server System with 8 HW SAS ports standard, 24 DIMMsS2600GZ4 board (S2600GZ4) in 1U chassisMax CPU TDP supported – 135W with configuration limitations, please reference Technical Product SpecificationStandard control panel (board FXXFPANEL)ODD bay for CD/DVD drive supportFront 1xVGA and 2xUSB in ODD bay8x2.5" HS HDD support (8 carriers FXX25HSCAR included, backplane F1U8X25HSBP)Two AXXCBL585MSMR right angle cables (8 ports)Two CPU heatsinksTwo risers: 1x16 PCIe FHHL slot on each (F1UL16RISER)Two 750W AC PSU (FXX750PCRPS)Full RMM4 (key and NIC) preinstalled (AXXRMM4R)Value rail kit (AXXVRAIL)RMS25CB080 8-port HW RAID SAS module preinstalled and cabledOne ODD power cableThere are no required EPSD components to make this system functional.Note: See PCN112152 for the latest ordering information
	R1208GZ4GS99227607358582494615032037044127MOQ: 1R1208GL4DS9169977358582395545032037034333MOQ: 1	Intel®Server System R1208GZ4GS9Integrated Server System with basic configuration, 24 DIMMsS2600GZ4 board (S2600GZ4) in 1U chassisMax CPU TDP supported – 135W with configuration limitations, please reference Technical Product SpecificationStandard control panel (board FXXFPANEL)ODD bay for CD/DVD drive supportFront 1xVGA and 2xUSB in ODD bay8x2.5" HS HDD support (8 carriers FXX26HSCAR included, F1U8X25HSBP backplane )Two cables: AXXCBL770MSMR and AXXCBL585MSMR.Two CPU heatsinksTwo risers: 1x16 PCIe FHHL slot on each (F1UL16RISER)One 750W AC PSU second unit must be added for redundancy (FXX750PCRPS)One ODD power cableThere are no required EPSD components to make this system functional.Intel® Server System R1208GL4DSIntegrated Server System with 16 DIMM board and 8 SATA ports, 16 DIMMsS2600GL4 board (S2600GL4) in 1U chassis (16 DIMM)Max CPU TDP supported – 135W with configuration limitations, please reference Technical Product SpecificationStandard control panel (board FXXFPANEL)ODD bay for CD/DVD drive supportFront 1xVGA and 2xUSB in ODD bay8x2.5" HS HDD support (8 carriers FXX25HSCAR included, backplane F1U8X25HSBP)Two cables: AXXCBL730MRMR and AXXCBL550MRMR included. (8 ports)Two CPU heatsinksTwo risers: 1x16 PCIe FHHL slot on each (F1UL16RISER)RKSATA8 storage activation key installed – to enable 8 ports SATAOne 460W AC PSU second unit must be added for redundancy (FXX460GCRPS)Full RMM4 (key and NIC) preinstalled (AXXRMM4R)Value rail kit (AXXVRAIL)One ODD power cableThere are no required EPSD components to make this system functional.

Available production system order codes for Intel® Server System R2000GZ/GL product family (2U Rack)

Image	Product CodeMMUPCEAN	Description

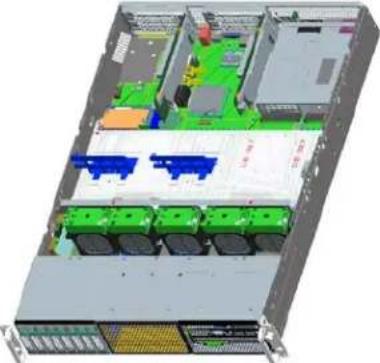

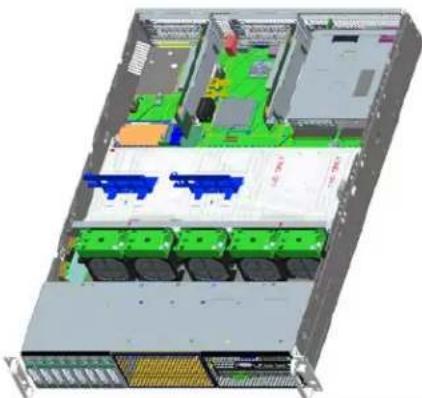

	R2208GZ4GC9170017358582282515032037023108MOQ: 1	Intel®Server System R2208GZ4GCIntegrated Intel®Server System 8SATA ports, 24DIMMsS2600GZ4 board (S2600GZ4) in 2U chassisMax CPU TDP supported – 135W with configuration limitations, please reference Technical Product SpecificationAir ductStandard control panel (board FXXFPANEL)ODD bay for CD/DVD drive supportFront 1xVGA and 2xUSB on dedicated trayProvision for 2 SSD mount on air duct8x2.5" HS HDD support (8 0carriers FXX25HSCAR included, backplane FXX8X25HSBP)Two AXXCBL730MSMS SAS cables (8 ports)Two CPU heatsinksRedundant and hot swap cooling fansTwo risers with 3 x8 slots (2xFHFL+1xFHHL)(A2UL8RISER)RKSATA8 storage activation key installed – to enable 8 ports SATATwo 750W AC PSU (FXX750PCRPS)Full RMM4 (key and NIC) preinstalled (AXXRMM4R)Value rails (AXXVRAIL)One ODD/SSD power cableThere are no required EPSD components to make this system functional.
	R2208GZ4GS99227627358582494855032037044141MOQ: 1R2208GL4GS9170087358582395615032037034340MOQ: 1	Intel®Server System R2208GZ4GS9Integrated Server System with basic configuration, 24 DIMMsS2600GZ4 board (S2600GZ4) in 2U chassisMax CPU TDP supported – 135W with configuration limitations, please reference Technical Product SpecificationAir ductStandard control panel (board FXXFPANEL)ODD bay for CD/DVD drive supportFront 1xVGA and 2xUSB on dedicated trayProvision for 2 SSD mount on air duct8x2.5" HS HDD support(8 carriers FXX25HSCAR included, backplane FXX8X25HSBP)Two AXXCBL730MSMS SAS cables(8 ports)Two CPU heatsinksRedundant and hot swap cooling fansTwo risers with 3 x8 slots (2xFHFL+1xFHHL)(A2UL8RISER)One 750W AC PSU second unit must be added for redundancy (FXX750PCRPS)One ODD/SSD power cableThere are no required EPSD components to make this system functional.Intel®Server System R2208GL4GSIntegrated Server System with 8 SATA 2.5" drives and 16DIMM motherboardS2600GL4 board (S2600GL4) in 2U chassisMax CPU TDP supported – 135W with configuration limitations, please reference Technical Product SpecificationAir ductStandard control panel (board FXXFPANEL)ODD bay for CD/DVD drive supportFront 1xVGA and 2xUSB on dedicated trayProvision for 2 SSD mount on air duct8x2.5" HS HDD support (8 carriers FXX25HSCAR, backplane FXX8X25HSBP)2 SFF8087 to SFF8087 cables (8 ports)Two CPU heatsinksRedundant and hot swap cooling fansTwo risers with 3 x8 slots (2xFHFL+1xFHHL)(A2UL8RISER)RKSATA8 storage activation key installed – to enable 8 ports SATAOne 750W AC PSU, second unit must be added for redundancy (FXX750PCRPS)Full RMM4 (key and NIC) preinstalled (AXXRMM4R)Value rails (AXXVRAIL)One ODD/SSD power cableThere are no required EPSD components to make this system functional.

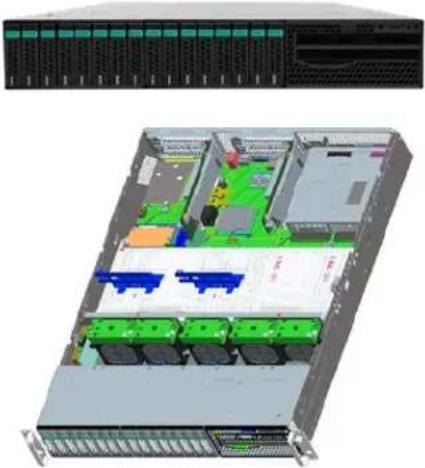

	R2208GL4DS99227897358582494545032037044110MOQ: 1R2216GZ4GC9170027358582355635032037030311MOQ: 1	Intel®Server System R2208GL4DS9Integrated Server System with 4 SATA ports and 16DIMM motherboardS2600GL4 board (S2600GL4) in 2U chassisMax CPU TDP supported – 135W with configuration limitations, please reference Technical Product SpecificationAir ductStandard control panel (board FXXFPANEL)ODD bay for CD/DVD drive supportFront 1xVGA and 2xUSB on dedicated trayProvision for 2 SSD mount on air duct8x2.5” HS HDD support (8 carriers FXX25HSCAR, backplane FXX8X25HSBP)2 SFF8087 to SFF8087 cables(8 ports)Two CPU heatsinksRedundant and hot swap cooling fansTwo risers with 3 x8 slots (2xFHFL+1xFHHL)(A2UL8RISER)One 460W AC PSU second unit must be added for redundancy (FXX460GCRPS)One ODD/SSD power cableThere are no required EPSD components to make this system functional.Note: See PCN112152 for the latest ordering information.Intel®Server System R2216GZ4GCIntegrated Intel®Server System 16SAS ports, 24DIMMsS2600GZ4 board (S2600GZ4) in 2U chassisMax CPU TDP supported – 135W with configuration limitations, please reference Technical Product SpecificationAir ductStandard control panel (board FXXFPANEL)ODD bay for CD/DVD drive supportFront 1xVGA and 2xUSB on dedicated trayProvision for 2x2.5” SSD mount on air duct16x2.5” HS HDD support (16 carriers FXX25HSCAR included, 2x backplane FXX8X25HSBP)One AXXCBL600MSMS, One AXXCBL730MSMS, Two AXXCBL185MSMS and Two AXXCBL165MSMS SAS cables (16 ports)Two CPU heatsinksRedundant and hot swap cooling fansTwo 2U riser with 3 x8 slots (2xFHFL + 1xFHHL)(A2UL8RISER)RES2CV240 Integrated 24 port expanderRKSAS8 storage activation key installed – to enable 8 ports SASTwo 750W AC PSU (FXX750PCRPS)Full RMM4 (key and NIC) preinstalled (AXXRMM4R)Value rails (AXXVRAIL)One ODD/SSD power cableThere are no required EPSD components to make this system functional.
	R2216GZ4GCLX9185377358582396395032037034418MOQ: 1R2308GZ4GC9170047358582396465032037034425MOQ: 1	Intel®Server System R2216GZ4GCLXIntegrated Server System with pre-installed 10G, 8 SAS HW Raid module and expander, 24 DIMMsS2600GZ4 board (S2600GZ4) in 2U chassisMax CPU TDP supported – 135W with configuration limitations, please reference Technical Product SpecificationAir ductStandard control panel (board FXXFPANEL)Front 1xVGA and 2xUSB on dedicated trayODD bay for CD/DVD drive supportProvision for 2x2.5” SSD mount on air duct16x2.5” HS HDD support (16 carriers FXX25HSCAR, 2x backplanes FXX8X25HSBP)6 SFF8087 to SFF8087 cables (5 installed and 1 in accessory box) (all drives connected)Two CPU heatsinksRedundant and hot swap cooling fansTwo 2U riser with 3 x8 slots (2xFHFL + 1xFHHL)(A2UL8RISER)RES2CV240 Integrated 24 port expanderTwo 750W AC PSU (FXX750PCRPS)Full RMM4 (key and NIC) preinstalled (AXXRMM4R)Value rails (AXXVRAIL)RMS25CB080 8-port HW RAID SAS module preinstalled and cabled to expanderAXX10GBNIAIOM 2-port SFP+ 10GB IO Module pre-installed, no optical modulesOne ODD/SSD power cableThere are no required EPSD components to make this system functional.Note: See PCN112152 for the latest ordering informationIntel®Server System R2308GZ4GCIntegrated Server System 8 SATA ports, 24 DIMMsS2600GZ4 board (S2600GZ4) in 2U chassisMax CPU TDP supported – 135W with configuration limitations, please reference Technical Product SpecificationAir ductStandard control panel (board FXXFPANEL)ODD bay for CD/DVD drive supportFront 1xVGA and 2xUSB in dedicated trayProvision for 2 SSD mount on air duct8x3.5" (and 2.5") HS HDD support (8 carriers FXX35HSADPB, backplane F2U8X35HSBP)Two AXXCBL730MSMS SAS cables (8 ports)Two CPU heatsinksRedundant and hot swap cooling fansTwo risers: 3x8 PCIe slots on each(2xFHFL+1xFHHL) (A2UL8RISE)RKSATA8 storage activation key installed – to enable 8 ports SATATwo 750W AC PSU (FXX750PCRPS)Full RMM4 (key and NIC) preinstalled (AXXRMM4R)Value Rails (AXXVRAIL)One ODD/SSD power cableThere are no required EPSD components to make this system functional.

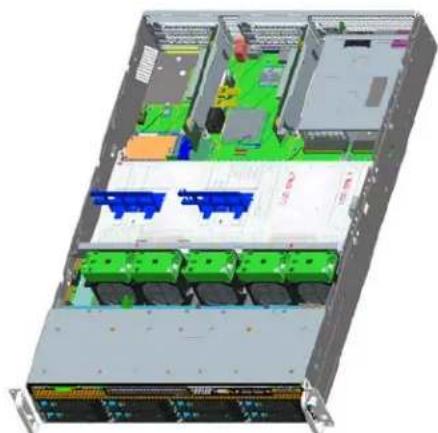

	R2308GZ4GS97358582494925032037044158922775MOQ: 1R2308GL4GS9170117358582395925032037034371MOQ:1	Intel®Server System R2308GZ4GS9Integrated Server System with basic configuration, 24 DIMMsS2600GZ4 board (S2600GZ4) in 2U chassisMax CPU TDP supported – 135W with configuration limitations, please refer the Technical Product SpecificationAir ductStandard control panel (board FXXFPANEL)ODD bay for CD/DVD drive supportFront 1xVGA and 2xUSB in dedicated trayProvision for 2 SSD mount on air duct8x3.5" (and 2.5") HS HDD support (8 carriers FXX35HSADPB, backplane F2U8X35HSBP)Two AXXCBL730MSMS SAS cables(8 ports)Two CPU heatsinksRedundant and hot swap cooling fansTwo risers: 3x8 PCIe slots on each(2xFHFL+1xFHHL) (A2UL8RISE)One 750W AC PSU second unit must be added for redundancy (FXX750PCRPS)One ODD/SSD power cableThere are no required EPSD components to make this system functional.Intel®Server System R2308GL4GSIntegrated Server System, 8 SATA ports, 16 DIMMsS2600GL4 board (S2600GL4) in 2U chassisMax CPU TDP supported – 135W with configuration limitations, please reference Technical Product SpecificationAir ductStandard control panel (board FXXFPANEL)ODD bay for CD/DVD drive supportFront 1xVGA and 2xUSB in dedicated trayProvision for 2 SSD mount on air duct8x3.5" (and 2.5") HS HDD support (8 carriers FXX35HSADPB, backplane F2U8X35HSBP)Two AXXCBL730MSMS SAS cables (8 ports)Two CPU heatsinksRedundant and hot swap cooling fansTwo risers: 3x8 PCIe slots on each(2xFHFL+1xFHHL) (A2UL8RISER)RKSATA8 storage activation key installed – to enable 8 ports SATAOne 750W AC PSU second unit must be added for redundancy (FXX750PCRPS)Full RMM4 (key and NIC) preinstalled (AXXRMM4R)Value Rails (AXXVRAIL)One ODD/SSD power cableThere are no required EPSD components to make this system functional.
	R2308GL4DS99227837358582494475032037044103MOQ:1R2312GZ4GC49219727358582486935032037043403MOQ: 1	Intel®Server System R2308GL4DS9Integrated Server System with 4 SATA ports standard, 16 DIMMsS2600GL4 board (S2600GL4) in 2U chassisMax CPU TDP supported – 135W with configuration limitations, please reference Technical Product SpecificationAir ductStandard control panel (board FXXFPANEL)ODD bay for CD/DVD drive supportFront 1xVGA and 2xUSB in dedicated trayProvision for 2 SSD mount on air duct8x3.5"(and 2.5") HS HDD support (8 carriers FXX35HSADPB, backplane F2U8X35HSBP)Two AXXCBL730MSMS SAS cables (8 ports)Two CPU heatsinksRedundant and hot swap cooling fansTwo risers: 3x8 PCIe slots on each(2xFHFL+1xFHHL) (A2UL8RISER)One 460W AC PSU second unit must be added for redundancy (FXX460GCRPS)One ODD/SSD power cableNote: See PCN112152 for the latest ordering informationIntel®Server System R2312GZ4GC4Integrated Intel®Server System with no extrasS2600GZ4 board (S2600GZ4) in 2U chassisMax CPU TDP supported – 135W with configuration limitations, please reference Technical Product SpecificationAir ductControl panel on rack handle (A2USTOPANEL)No ODD support. Provision for 2 SSD mount on air duct12x3.5" (and 2.5") HS HDD support (12 carriers FXX35HSADPB included, backplane F2U12X35HSBP)3 AXXCBL730MSMS data cables (12 ports)Two CPU heatsinksRedundant and hot swap cooling fansTwo risers with 3 x8 slots (2xFHFL+ 1xFHHL) (A2UL8RISER)Full RMM4 (key and NIC) preinstalled (AXXRMM4R)Two 750W AC PSU (FXX750PCRPS)Value rails (AXXVRAIL)One ODD/SSD power cableThere are no required EPSD components to make this system functional.

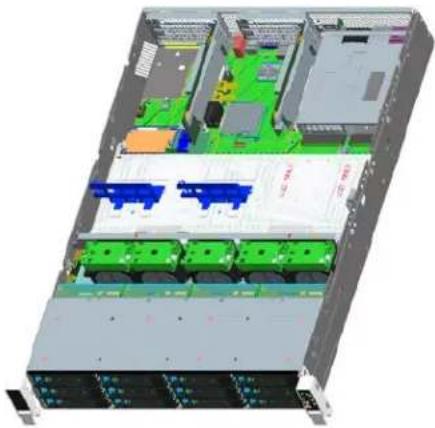

	R2312GZ4GCSAS9170187358582396535032037034432MOQ: 1R2312GZ4GS99227847358582495085032037044165MOQ: 1	Intel®Server System R2312GZ4GCSASIntegrated Intel®Server System 12SAS ports, 24DIMMsS2600GZ4 board (S2600GZ4) in 2U chassisMax CPU TDP supported – 135W with configuration limitations, please reference Technical Product SpecificationAir ductControl panel on rack handle (A2USTOPANEL)No ODD support.Provision for 2 SSD mount on air duct12x3.5" (and 2.5") HS HDD support (12 carriers FXX35HSADPB included, backplane F2U12X35HSBP)One AXXCBL730MSMS and two AXXCBL650MSMS SAS cables (8 ports)Two CPU heatsinksRedundant and hot swap cooling fansTwo risers with 3 x8 slots (2xFHFL+ 1xFHHL) (A2UL8RISER)RKSAS4 storage activation key installed – to enable 4 ports SASOnboard ports cabled to drives 8 thru 11Two 750W AC PSU (FXX750PCRPS)Full RMM4 (key and NIC) preinstalled (AXXRMM4R)Value rails (AXXVRAIL)RMS25CB080 8-port HW RAID SAS module preinstalled and cabled to drives 0 thru 7One ODD/SSD power cableThere are no required EPSD components to make this system functional.Note: See PCN112152 for the latest ordering informationIntel®Server System R2312GZ4GS9Integrated Server System with basic configuration, 24 DIMMsS2600GZ4 board (S2600GZ4) in 2U chassisMax CPU TDP supported – 135W with configuration limitations, please reference Technical Product SpecificationAir ductControl panel on rack handle (A2USTOPANEL)No ODD support. Provision for 2 SSD mount on air duct12x3.5" (and 2.5") HS HDD support (12 carriers FXX35HSADPB included, backplane F2U12X35HSBP)3 AXXCBL730MSMS data cables (12 ports)Two CPU heatsinksRedundant and hot swap cooling fansTwo risers with 3 x8 slots (2xFHFL+ 1xFHHL) (A2UL8RISER)One 750W AC PSU second unit must be added for redundancy (FXX750PCRPS)One ODD/SSD power cableThere are no required EPSD components to make this system functional.
	R2312GL4GS9170127358582396155032037034395MOQ: 1	Intel®Server System R2312GL4GSIntegrated Server System with 16 DIMM board and open storage configuration, 16 DIMMsS2600GL4 board (S2600GL4) in 2U chassisMax CPU TDP supported – 135W with configuration limitations, please reference Technical Product SpecificationAir ductControl panel on rack handle (A2USTOPANEL)No ODD support.Provision for 2 SSD mount on air duct12x3.5" (and 2.5") HS HDD support (12 carriers FXX35HSADPB, backplane F2U12X35HSBP)3 SFF8087 to SFF8087 cables (12 ports)Two CPU heatsinksRedundant and hot swap cooling fansTwo risers with 3 x8 slots (2xFHFL+ 1xFHHL) (A2UL8RISER)One 750W AC PSU second unit must be added for redundancy (FXX750PCRPS)Full RMM4 (key and NIC) preinstalled (AXXRMM4R)Value rails (AXXVRAIL)One ODD/SSD power cableNote: No activation keys or expander – only 4 SATA ports supported standard.There are no required EPSD components to make this system functional.

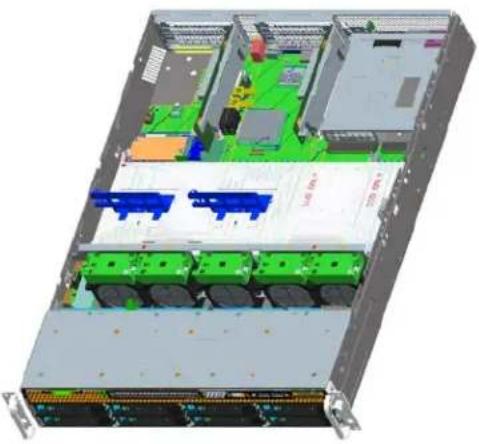

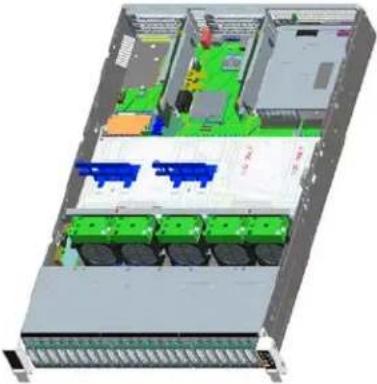

	R2224GZ4GC49219717358582495155032037044172MOQ: 1	Intel®Server System R2224GZ4GC4Integrated Server System with no extrasS2600GZ4 board (S2600GZ4) in 2U chassisMax CPU TDP supported - 135W with configuration limitations, please reference Technical Product SpecificationAir ductControl panel on rack handle (A2USTOPANEL) No ODD support Provision for 2x2.5" SSD mount on air duct 24x2.5" HS HDD support (24 carriers FXX25HSCAR included, 3x backplane FXX8X25HSBP)Six SFF8087 to SFF8087 cables AXXCBL730MRMRTwo risers with 3 x8 slots (2xFHFL + 1xFHHL) (A2UL8RISER)5 Redundant and hot swap cooling fansTwo 750W AC PSU (FXX750PCRPS)Full RMM4 (key and NIC) preinstalled (AXXRMM4R)Value rails (AXXVRAIL)One ODD/SSD power cableNeed additional expander/controller to connect all 24 drives.
	R2224GZ4GCSAS9170137358582396225032037034401MOQ: 1	Intel®Server System R2224GZ4GCSASIntegrated Server System with 24 SAS ports standard, 24 DIMMsS2600GZ4 board (S2600GZ4) in 2U chassisMax CPU TDP supported - 135W with configuration limitations, please reference Technical Product SpecificationAir ductControl panel on rack handle (A2USTOPANEL)No ODD supportProvision for 2x2.5" SSD mount on air duct24x2.5" HS HDD support (24 carriers FXX25HSCAR included, 3x backplane FXX8X25HSBP)Two CPU heatsinksEight SFF8087 to SFF8087 cables (two AXXCBL550MRMR, two AXXCBL185MSMS, one AXXCBL245MSMS and three AXXCBL165MSMS)Two risers with 3 x8 slots (2xFHFL + 1xFHHL) (A2UL8RISER)Redundant and hot swap cooling fansRES2CV360 Integrated 36 port expanderTwo 750W AC PSU (FXX750PCRPS)Full RMM4 (key and NIC) preinstalled (AXXRMM4R)Value rails (AXXVRAIL)RMS25CB080 8-port HW RAID SAS module preinstalled and cabled to 36 port expander for 24 drive supportOne ODD/SSD power cableThere are no required EPSD components to make this system functional.Note: See PCN112152 for the latest ordering information

General spares and accessories

Image	Product CodeMMUPCEAN	Description MOQ
	A2USTOPANEL9182487358582410385032037035781	Storage control panel kit. Includes cable and adapter board, screws, second matching (empty) rack handle, can be used for upgrade. Compatible with R2000 family.	1
	AGZCOPRODUCT926348735858 2568655032037048958	Accessory airduct - enables support of 2 dual wide PCI cards (such as Xeon PHI or GPU). Directs air to enable sufficient cooling of up to 300W per card.Includes: Airduct and two A2UL16RISER (2 aux power cables, 2 risers with PCIe x16)Only supported with 24 DIMMs and validated with 8 HDD systems: R2x08GZ family.	1
	A2UBKTMFBUSSD9217477358582501465032037044707	Auxiliary bracket to be mounted over power supply area of R2000GZ/GL/BB families. Can support 3 MFBU (Maintenance-free battery backup) units.Two2 2.5" SSDs can also be mounted, but not thermally validated.When installed - sysem no longer supports serial cable DB9 connector in the back of chassis.(SSD and BBU shown not included)	1
	FXX750PCRPS9156047358582349795032037030601	750W AC CRPS 80+ Platinum efficiency power supply spare/accessory.	1
	FXX460GCRPS9156037358582358465032037030595	460W CRPS 80+ Gold efficiency power supply spare/accessory.	1
	AXX750DCCRPS927253	750W -48v DC (Direct current) CRPS 80+ Gold efficiency power supply spare/accessory.Includes 1 power supply and 1 O-ring terminal adapter.Does not include cable.Expected availability Q2'2014.	1
	AXXDCCRPSCBL922062	Spare 8 foot DC power cable. Connects directly to power supply instead of O-ring terminals adapterExpected availability Q2'2014.	1
	A1U2ULCP9210287358582453025032037039826	LCP Module (local control panel).Enables system to display critical errors from SEL for instant diagnostic. Also allows custom message for branding. When installed – replaces ODD on 1208 family, and replaces IO ports tray on 1304,2208,2216,2308 families. Not compatible with 2224 and 2312 families.Module has 2 USB ports. No front video connector.	1
	FXXFPANEL915982007358582224195032037018968	Front Panel board spare for use on 1U/2U rack systems (R1000, R2000 except R2224 and R2312) Rack chassis and P4300 Pedestal Chassis.	1
	FXXEA91X91HS91825173585823666932037031431	Spare standard 91.5x91.5 Heatsink Extruded Aluminum for S2600GL (16 DIMM) board.	2
	BXSTS200PNRW9159717358582218015032037014489	Spare narrow copper heatsink, for S2600GZ (24-DIMM) board.	1
	F1UL16RISER9179897358582404825032037035217	Spare 1U riser for R1000GZ/GL family. PCIe x16 FHHL.Includes 2 mounting screws.	1
	A2UL8RISER9179797358582404995032037035224	Spare 2U 3 slot riser for GZ/GL/BB boards: Three PCIe x8 Gen3 ports electrical. Top two connectors are x16 mechanical. Lower connector is x8 mechanical.Includes 1 mounting screw.	1
	A2UL16RISER9179817358582405125032037035248	Accessory 2U 2 slot riser for GZ/GL/BB boards:Top connector: PCIe x16 electrical with x16.mechanical.Bottom connector: one PCIe x8 electrical with x8 mechanical connector.Middle location is empty.Includes 1 mounting screw and power cable for graphic cards.	1
	A2ULPCIXRISER9179807358582405055032037035231	Accessory 2U PCI-X riser for GZ/GL/BB boards:Top two PCI-X 133 MHZ connectors (separate buses) in upper two locations.Bottom connector: PCIe x8 electrical/mechanical.Includes 1 mounting screw.	1
	FR1000FAN10P9178717358582409185032037035668	One spare fan for 1U R1000GZ/GL/BB system. 40x56mm dual rotor with 10p connector.	1
	FR2000FAN60HS9211177358582462795032037040761replacedFR2000FAN10P	One spare fan for 2U R2000GZ/GL/BB system. 60x38mm, with hot swap connector.Includes 1 fan and two cables.	1
	A1UBEZEL9179837358582411205032037035873	1U locking bezel with two branding clip-on inserts for logo, and one snap-on swoosh.	1
	A2UBEZEL9180867358582411375032037035880	2U locking bezel with two branding clip-on inserts for logo, and one snap-on swoosh.	1
	AXXVRAIL9127967358582196935032037015202	Value Rail Kit.Works for all 438mm wide Intel® Rack Chassis 1U, 2U, 4U. Rail allows adjustment within 609.6mm~765mm to fit difference depth rack. Maximum extension when installed (travel distance) 424.2mm.Note: It will only support specific rack type with 3/8" square and 7.1mm round holes.	1
	AXXELVRAIL9209707358582443675032037038980	Enhanced Value Rail Kit.Works for all 438mm wide Intel® Rack Chassis 1U, 2U, 4U. Rail allows adjustment within 609.6mm~765mm to fit difference depth rack. Maximum extension when installed (travel distance) 424.2mm.Improved robustness over AXXVRAIL, same mechanical spec.Note: It will only support specific rack type with 3/8" square and 7.1mm round holes	1
	AXXPRAIL9244177358582196865032037014823	1U/2U Premium Rail Kit.Full extension and toolless rail kit. Supports cable management arm. Rail allows adjustment within 609.6mm~762mm to fit difference depth rack. Maximum extension when installed (travel distance) 800 mm.Note: It will only support specific rack type with 3/8" square and 7.1mm round holes	1
	AXXPRAIL755924418	Short 1U/2U Premium Rail Kit, no CMA support.Full extension and toolless rail kit.	1
	7358582490655032037043724	Rail allows adjustment within 609.6mm~762mm to fit difference depth rack. Maximum extension when installed (travel distance) 755 mm.Note: It will only support specific rack type with 3/8" square and 7.1mm round holes
	AXX1U2UCMA9131177358582246045032037019972	Cable management arm for Premium 1U/2U rail kit (works only with AXXPRAIL)	1
	AXX2POSTBRCKT9188087358582453195032037039833	Fixed mount bracket kit for 2-post racksNote: It will only support specific rack type with 3/8" square and 7.1mm round holesNot compatible with 2U 24 x 2.5" HDD or 2U 12 x 3.5" HDD systems	1
	AXXSATADVDROM9068727358581976635032037015127	Slimline SATA DVDROM Device 1
	AXXSATADVDRWROM9068737358581976705032037015134	Slim SATA DVD+/-RW ROM Accessory 1
	FPWRCABLENA8792877358581811295032037015738	North American Power Cord Spare 1
	AXXRJ45DB939204307358582428205032037037525	Kit of the following cables:1040mm Serial 10pin header to DB9 Cable520mm Serial 10pin header to DB9 Cable100mm DCD RJ45 to DB9 Cable100mm DSR RJ45 to DB9 Cable	1

Drive/storage subsystem spares and accessories

Image	Product CodeMMUPCEAN	Description	MOQ
	FXX1304HSBP9174207358582193345032037015783	Hot swap backplane board spare for 1U 4x3.5" chassis (R1304 family).	1
	FXX8X25HSBP9179737358582409875032037035736	Single port hot swap backplane board spare for 2U 8x2.5" cage (R2200 and P4000 families).	1
	FXX8X25DPBP9179747358582409945032037035743	Dual Port hot swap backplane board spare for 2U 8x2.5" cage (R2200 and P4000 families).	1
	F2U8X35HSBP9179757358582410075032037035750	Hot swap backplane board spare for 2U 8x3.5" chassis (R2308 family).	1
	F1U8X25HSBP9179777358582410145032037035767	Hot swap backplane board spare for 1U 8x2.5" chassis (R1208 family).	1
	F2U12X35HSBP9179767358582410215032037035774	Hot swap backplane board spare for 2U 12x3.5" chassis (R2312 family).	1
	RS25DB0809195707358582198845032037019149	6G SAS RAID Controller with 8 internal ports. PCIe Gen 3 capable, and dual core ROC.No cables included.	1
	RS25GB008919566675901143356735858219877	6G SAS HBA Controller (no raid) with 8 external ports. LSI2308 IO Controller. No cables included.	1
	RS2SG2449049557358582130425032037017169	Scalable Performance 6G SAS/SATA RAID controller with 24 internal and 4 external ports.Retail SKU includes cables.	1
	RS2WC0809034957358582112155032037017183	Entry-level 6G SAS RAID controller with 8 internal ports for SAS/SATA drives.Retail SKU includes cables.	1
	RS2WC0409034967358582112535032037017176	Entry-level 6G SAS RAID controller with 4 internal ports for SAS/SATA drives.Retail SKU includes cable.	1
	RS2WG1609049947358582130355032037017190	Scalable Performance 6G SAS RAID controller with 16 internal SAS/SATA ports.Retail SKU includes cables.	1
	RCS25ZB0409246597358582546255032037047555	6G SAS RAID with 256GB of onboard Flash, dual-core ROC & 4 internal ports.No cables included.
	RCS25ZB040LX9246647358582546325032037047562	6G SAS RAID with 1TB of onboard Flash, dual-core ROC & 4 internal ports.No cables included.
	RS25AB0809195687358582286265032037023436	6G 8 Internal Port SAS RAID controller with dual core ROC, PCIe Gen 3 capable, and includes Maintenance Free Backup Unit.No cables included.	1
	RS25NB0089195677358582225945032037019026	6G SAS RAID Controller with 8 external ports and dual core ROC.No cables included. Optional Battery Backup Unit AXXRSBBU9.	1
	RS25SB0089195697358582286335032037023443	6G 8 External Port SAS RAID controller with dual core ROC, PCIe Gen 3 capable, and includes Maintenance Free Backup Unit.No cables included.	1
	RES2CV3609189357358582411685032037035897	Integrated 36 port 6G SAS expander, compatible with R2200, P4000M/L families of chassis (2U/4U 2.5" chassis). Based on LSI* LSISAS2x36 chip.Includes 3 screws and bumpers, power cable, 6 Mini-SAS cables (3x165mm, 2x185mm, 1x245mm).	1
	RES2CV2409189347358582411755032037035903	Integrated 24 port 6G SAS expander, compatible with R2200, P4000M/L families of chassis (2U/4U 2.5" chassis). Based on LSI* LSISAS2x36 chip.Includes 3 screws and bumpers, power cable, 4 Mini-SAS cables (3x165mm, 1x185mm).	1
	RES2SV2409081377358582162895032037017053	24 Port SAS 6Gb expander card with ports configurable for input or output. Retail SKU includes cables. Straight 8087, 4x650mm and 2x180mm.Requires empty PCIe slot. Compatible with every system, including R2312 family.	5
	FXX25HSCAR9188077358582411825032037035910	Spare 2.5" HDD hot swap carriers. 8
	FXX35HSADPB9127717358582194955032037016391	Spare 3.5" HDD hot swap carriers.Includes mounting screws for mounting 2.5" drives.	8
	When no key installed:	4 SATA channels active with SW RAID 'basic' which includes RSTe SW RAID 0/1/10/5 + LSI SW RAID 0/1/10 .	-
	RKSATA4R59163467358582388615032037033640	Enables LSI SATA SW RAID 5, Black.	5
	RKSATA89163477358582388785032037033657	Activates 8 SATA ports and includes RSTe SW RAID 0/1/10/5 and LSI SW RAID 0/1/10 , Blue.	5
	RKSATA8R59163487358582388855032037033664	Activates 8 SATA ports and includes RSTe SW RAID 0/1/10/5 and LSI SW RAID 0/1/10/5 (enables LSI SWR5), White.	5
	RKSAS49163497358582388925032037033671	Activates 4 SAS ports and includes RSTe SW RAID 0/1/10 (no RAID 5) and LSI SW RAID 0/1/10 , Green.	5
	RKSAS4R59163507358582389085032037033688	Activates 4 SAS ports and includes RSTe SW RAID 0/1/10 (no RAID 5) and LSI SW RAID 0/1/10/5 (enables LSI SWR5), Yellow.	5
	RKSAS89163517358582389225032037033701	Activates 8 SAS ports and includes RSTe SW RAID 0/1/10 (no RAID 5) and LSI SW RAID 0/1/10 , Orange.	5
	RKSAS8R59163527358582389155032037033695	Activates 8 SAS ports and includes RSTe SW RAID 0/1/10 (no RAID 5) and LSI SW RAID 0/1/10/5 (enables LSI SWR5), Purple.	5
	A2U8X25HSDK9179147358582410765032037035828	Spare/accessory 8x2.5" HDD drive kit for 2Usystem. (R2200 family).R2208 can take 1 additional bay with no other upgrades.For upgrading up to 24 drives (R2208 +2 bays, or R2216 + 1 bay)- standard control panel and ODD bay has to be replaced with storage panel (A2USTOPANEL).Includes cage, backplane board, 8 drive carriers, power Y-cable and I2C jumper cable.	1
	A2U8X25DPDK9179667358582410695032037035811	Spare/accessory Dual Ported 8x2.5" HDD drive upgrade kit for 2Usystem. (R2200 family).R2208 can take 1 additional bay with no other upgrades.For upgrading up to 24 drives (R2208 +2 bays, or R2216 + 1 bay)– standard control panel and ODD bay has to be replaced with rack ear panel (A2USTOPANEL).Includes cage, backplane board, 8 drive carriers, power jumper Y-cable and I2C jumper cable.	1

Expansion modules: IO Module, SAS Module, RMM4, TPM

Image	Product CodeMMUPCEAN	Description	MOQ
	AXXRMM4LITE9116607358582192975032037014946	Activation key for advanced management features	1
	AXXRMM4R9208587358582452965032037039819	Intel® Remote Management Module RMM4 for rack systems – Remote KVM upgrade key and Dedicated NIC Module	1
	AXXTPME59197377358582403525032037035088	TPM Module for server systems supporting S2600 and S2400 board families.	1
	AXX10GBNIAIOM9179057358582410905032037035842	Dual SFP+ port 10GbE IO module based on Intel® 82599 10 Gigabit Ethernet ControllerSupports direct connect or transceiver. Cables/transceivers not included.Includes three screws, port label sticker	1
	AXX10GBTWLIOM9179077358582411135032037035866	Dual RJ-45 port 10GBASE-T IO module, based on Intel® Ethernet Controller X540Includes three screws, port label sticker.	1
	AXX1FDRIBIOM9186077358582411065032037035859	Single port, FDR 56GT/S speed Intel® I/O Expansion Infiniband* module, with QSFP connector, based on Mellanox* CX3 MT27504A1-FCCR-FV chip.Includes three screws, port label sticker	1
	AXX2FDRIBIOM920627UPC/EAN to be udpated	Dual port, FDR 56GT/S (per port capable) speed Infiniband* module, with QSFP connector, based on Mellanox* CX3 MT27508A1-FCCR-FV chip. Note, due to PCIe3 x8 bandwidth limitation, both ports can't simultaneously function at full speed.Includes three screws, port label sticker	1
	AXX4P1GBPWLIOM9179117358582410835032037035835	Quad port 1GbE IO Module based on Intel® Ethernet Controller I350Includes three screws, port label sticker	1
	RMS25PB080924868(Obsolete MM# 923072)00735858238946	Intel® Integrated RAID Module RMS25PB080LSI* SAS2208 ROC6Gb/s SAS/SATAx8 PCIe 3.08 internal ports1GB embedded memoryMD2 Low Profile, half length form factorSupport RAID 0,1,10,5,6,50,60RAID Premium Feature Key supportedCables are not included	5
	RMS25PB040924869(Obsolete MM# 923083)00735858238953	Intel® Integrated RAID Module RMS25PB040LSI* SAS2208 ROC6Gb/s SAS/SATAx8 PCIe 3.04 internal ports1GB embedded memoryMD2 Low Profile, half length form factorSupport RAID 0,1,10,5,6,50,60RAID Premium Feature Key supportedCables are not included	5
	RMT3PB080924870(Obsolete MM# 923084)00735858238960	Intel® Integrated RAID Module RMT3PB080LSI* SAS2208 ROC6Gb/s SATAx8 PCIe 3.08 internal ports512MB embedded memoryMD2 Low Profile, half length form factorSupport RAID 0,1,10,5,6,50,60RAID Premium Feature Key supportedCables are not included	5
	RMS25CB080924871(Obsolete MM# 923085)00735858238977	Intel® Integrated RAID Module RMS25CB080LSI* SAS2208 ROC6Gb/s SAS/SATAx8 PCIe 3.08 internal ports1GB embedded memoryRequire one 80-pins on-board module connectorSupport RAID 0,1,10,5,6,50,60RAID Premium Feature Key supportedCables are not included	5
	RMS25CB040924872(Obsolete MM# 923086)00735858238984	Intel® Integrated RAID Module RMS25CB040LSI* SAS2208 ROC6Gb/s SAS/SATAx8 PCIe 3.04 internal ports1GB embedded memoryRequire one 80-pins on-board module connectorSupport RAID 0,1,10,5,6,50,60RAID Premium Feature Key supportedCables are not included	5
	RMT3CB080924873(Obsolete MM# 923087)00735858238991	Intel® Integrated RAID Module RMT3CB080LSI* SAS2208 ROC6Gb/s SAS/SATAx8 PCIe 3.04 internal ports512MB embedded memoryRequire one 80-pins on-board module connectorSupport RAID 0,1,10,5,6,50,60RAID Premium Feature Key supportedCables are not included	5
	RMS25KB080924454(Obsolete MM# 917089)73585823902850320370338005	SAS Module: 8 Port SAS-2.1 version, Entry-level HW RAID/straight SASPCIe form factor	5
	RMS25KB040924455(Obsolete MM# 917090)73585823903550320370338175	SAS Module: 4 Port SAS-2.1 version, Entry-level HW RAID/straight SASPCIe form factor	5
		RMS25JB080924452(Obsolete MM# 917087)73585823900450320370337875	Mezzanine SAS IO module: 8 Port SAS-2.1 version, Entry-level HW RAID/straight SAS	5
		RMS25JB040924453(Obsolete MM# 917088)73585823901150320370337945	Mezzanine SAS IO module: 4 Port SAS-2.1 version, Entry-level HW RAID/straight SAS	5
		AXXRSBBU991973800735858220286	Intel® RAID Smart Battery Backup module for use with Intel® Integrated Server RAID	5
		AXXRMFBU2926341007358582445415	Intel® RAID Maintenance Free Backup Unit AXXRMFBU2 for use with Intel® Integrated RAID Module.	5
		AXXRMFBU392467400735858254649	Intel® RAID Maintenance Free Backup Unit AXXRMFBU3 for use with Intel® RAID SSD Cache Controller RCS25ZB040 and RCS25ZB040LX。	5
		AXXRPFKSSD2915316735858221467	Upgrade Key to enable SSD Cache with Fastpath I/O for Intel®'s RAID RS25 family of ROC products.	5
		AXXRPFKDE2915317735858221474	Upgrade Key to enable Drive Encryption Management for Intel®'s RAID RS25 family of ROC products	5
		AXXRPFKSNSH2915318735858221481	Upgrade Key to enable Rapid Recovery Snapshot for Intel®'s RAID RS25 family of ROC products.	5

SAS cable kits (for upgrade to SAS modules, HBA cards and spares)

Image	Product CodeMMUPCEAN	Description	MOQ
	AXXCBL500MSMS9218587358582452895032037039802	Kit of 2 cables, 500mm length, straight SFF-8087 to SFF-8087 connectors.	1
x5	AXXCBL650MSMS9183767358582244445032037019910	Kit of 2 cables, 650mm length, straight SFF-8087 to SFF-8087 connectors.	10
	AXXCBL730MSMS9210497358582453405032037039864	Kit of 2 cables, 730mm length, straight SFF-8087 to SFF-8087 connectors.Spare for R2308	1
	AXXCBL600MSMS9210487358582452725032037039796	Kit of 2 cables, 600mm length, straight SFF-8087 to SFF-8087 connectors.	1
	AXXCBL585MSMR9210477358582452655032037039789	Kit of 2 cables, 585mm length, straight SFF-8087 to right angle SFF-8087 connectors.	1
	AXXCBL850MS7R9211147358582453715032037039895	Kit of 2 cables, 850mm length, straight SFF-8087 to right angle 7-pin SATA connectors.	1
	AXXCBL730MRMR930836(Obsolete MM# 921045)7358582452345032037039758	Kit of 2 cables, 730mm length, right angle SFF-8087 to right angle SFF-8087 connectors.	1
	AXXCBL550MRMR930837(Obsolete MM# 921043)7358582452275032037039741	Kit of 2 cables, 550mm length, right angle SFF-8087 to right angle SFF-8087 connectors.	1
	AXXCBL1030MR7R9210797358582452585032037039772	Kit of 2 cables, 1030mm length, right-angle SFF-8087 to right angle 7-pin SATA connectors.	1
	AXXCBL770MSMR9210447358582452415032037039765	Kit of 2 cables, 770mm length, straight SFF-8087 to right angle SFF-8087 connectors.	1
	AXXCBL165MSMS930838(Obsolete MM# 921284)7358582456925032037040204	Kit of 2 cables, 165mm length, straight SFF-8087 to right angle SFF-8087 connectors. Works for: : integrated expander RES2CV240 and RES2CV240 connection, chassis R2200 family.	1
	AXXCBL185MSMS930840(Obsolete MM# 921285)7358582457085032037040211	Kit of 2 cables, 185mm length, straight SFF-8087 to straight SFF-8087 connectors. Used with expanders RES2CV240 and RES2CV240 in R2200 family.	1
	AXXCBL245MSMS930841(Obsolete MM# 921286)7358582457155032037040228	Kit of 2 cables, 245mm length, straight SFF-8087 to straight SFF-8087 connectors. Used with expanders RES2CV240 and RES2CV240 in R2200 family.	1
	AXXCBL880SATA9229887358582502905032037044806	SATA ODD cable for rack chassis family – 880mm long	10

Third party devices completed fit-check.

Follow complete THOL for list of validated devices.

Image Description
	Cableless SATA DOM from Innodisk*.EPSD enabled selected boards with VCC thru pin 7 to support cableless Innodisk* DOMs.Below models have passed basic fit-check. Please refer to manufacturer's web site for ordering information.Part is not manufactured or supplied by Intel®.SATADOM D150SVSATADOM D150QVinnoLite SATADOM D150QV
	2.5in SATA Removable Hard Drive Bay for PC Expansion SlotUtilize a free expansion card slot to add a removable 2.5" SATA hard drive bayVented aluminum/steel design and a 50,000+ insertion rating ensures reliability of the drive and drive rackBacked by a StarTech.com 2-year warranty and free lifetime technical supportBelow models have passed basic fit-check. Please refer to manufacturer's web site for ordering information.Part is not manufactured or supplied by Intel®.
	Manufacturer order code: S25SLOTR
	Industrial Grade Embedded USB SSD Z-U130 DOM / eUSB Horizontal2.00 Low Profile pitch standard 10-pin female USB connectorMultiple vendors have this item available to purchase.

EXTENDED WARRANTY

Image	Product CodeMMMOQ	Description
	SVCEWDPSY9112951	Two year extended warranty for Intel® Server Systems or Intel® Server Knock Down Kits + Intel® Server Boards that support two processors. Intel® RAID controller extended warranty is purchased separately.
[GHA4][GYS3][T06H][472][VTYW][T02G][4BXG]	SVCEWDPBD9112941	Two year extended warranty for Intel® Server Boards that support two processors.
