DVT-6100K - Home Theater KENWOOD - Free user manual and instructions
Find the device manual for free DVT-6100K KENWOOD in PDF.
| Product Type | Home Theater System |
| Brand | Kenwood |
| Model | DVT-6100K |
| Dimensions (Main Unit) | 440 mm (W) x 93 mm (H) x 410 mm (D) |
| Weight (Main Unit, net) | 8.5 kg |
| Power Consumption | 130 W (for USA, Canada, UK, other countries) |
| Power Supply | AC 120V (USA/Canada), AC 230V (Europe/UK), 110-120/220-240V switchable (other countries) |
| Speaker System | 5.1 channel: Front, Center, Surround, Subwoofer (models KSW-6100 or KS-306DV/SW-06DV depending on region) |
| Amplifier Output (STEREO) | 40 W + 40 W (1 kHz, 10% THD, 6 Ω) |
| Amplifier Output (Surround) | Front: 40 W+40 W, Center: 40 W, Subwoofer: 80 W, Surround: 40 W+40 W (1 kHz/100 Hz, 10% THD, 6 Ω) |
| Tuner | FM/AM with RDS (Europe/UK only), presets for 30 stations |
| Disc Playback | DVD, CD, VCD, MP3 (ISO 9660 Level 1) |
| Video Output | Composite, S-Video, Component (some areas); Progressive Scan (USA/Canada) |
| Audio Decoders | Dolby Digital, DTS, Dolby Pro Logic II |
| Karaoke Features (DVT-6100K only) | Microphone input, Key Control, Echo, Hit Master |
| Maintenance & Cleaning | Wipe with soft dry cloth; do not use thinner, alcohol, or contact cleaners |
| Safety Features | Polarized plug, ventilation requirements (10 cm clearance), fuse protection, auto shutdown on overheating |
| User-Serviceable Parts | No user-serviceable parts inside; refer servicing to qualified personnel |
| Spare Parts & Repairability | Fuse replacement (13A ASTA approved) only for UK plug; other repairs by qualified service |
| General Information | Region code on rear panel; supports NTSC and PAL; memory backup for settings |
Frequently Asked Questions - DVT-6100K KENWOOD
User questions about DVT-6100K KENWOOD
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Home Theater in PDF format for free! Find your manual DVT-6100K - KENWOOD and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. DVT-6100K by KENWOOD.
USER MANUAL DVT-6100K KENWOOD
This instruction manual is for some models. Model availability and features (functions) may differ depending on the country and sales area.
Before applying power
Caution : Read this page carefully to ensure safe operation.
Units are designed for operation as follows.
U.S.A. and Canada AC 120V only
Australia AC 240 V only
For the United Kingdom
Factory fitted moulded mains plug
- The mains plug contains a fuse. For replacement, use only a 13-Amp ASTA-approved (BS 1362) fuse.
- The fuse cover must be refitted when replacing the fuse in the moulded plug.
- Do not cut off the mains plug from this equipment. If the plug fitted is not suitable for the power points in your home or the cable is too short to reach, a power point, then obtain an appropriate safety approved extension lead or adapter, or consult your dealer. If nonetheless the mains plug is cut off, remove the fuse and dispose of the plug immediately, to avoid a possible shock hazard by inadvertent connection to the mains supply.
IMPORTANT :
The wires in the mains lead are coloured in accordance with the following code:
Blue : Neutral
Brown : Live
Do not connect those leads to the earth terminal of a three-pin plug.
Europe and U.K. AC 230V only
*Other countries ...... AC 110-120 / 220-240 V switchable
\*For other countries
AC voltage selection
The AC voltage selector switch on the rear panel is set to the voltage that prevails in the area to which the unit is shipped. Before connecting the power cord to your AC outlet, make sure that the setting position of this switch matches your line voltage. If not, it must be set to your voltage in accordance with the following direction.
AC voltage selector switch
Move switch lever to match your line voltage with a small screwdriver or other pointed tool.
Note:
Our warranty does not cover damage caused by excessive line voltage due to improper setting of the AC voltage selector switch.
Safety precautions
Caution : Read this page carefully to ensure safe operation.
WARNING : TO PREVENT FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
 | CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE, REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. |
 | THE LIGHTNING FLASH WITH ARROWHEAD SYMBOL, WITHIN AN EQUILATERAL TRIANGLE, IS INTENDED TO ALERT THE USER TO THE PRESENCE OF UNINSULATED “DANGEROUS VOLTAGE” WITHIN THE PRODUCT’S ENCLOSURE THAT MAY BE OF SUFFICIENT MAGNITUDE TO CONSTITUTE A RISK OF ELECTRIC SHOCK TO PERSONS. |
 | THE EXCLAMATION POINT WITHIN AN EQUILATERAL TRIANGLE IS INTENDED TO ALERT THE USER TO THE PRESENCE OF IMPORTANT OPERATING AND MAINTENANCE (SERVICING) INSTRUCTIONS IN THE LITERATURE ACCOMPANYING THE APPLIANCE. |
The marking of products using lasers (Except for some areas)
The marking this product has been classified as Class 1. It means that there is no danger of hazardous radiation outside the product.
Location: Back panel
Caution : Read the pages marked carefully to ensure safe operation.
Preparations
Introduction 2
Before applying power 2
⚠ Safety precautions ...... 2
Accessories 4
CHANNEL SPACE setting (Except for the U.S.A., Canada, U.K., Europe and Australia).... 4
IMPORTANT SAFEGUARDS .... 5
Special features 7
Reference 7
Maintenance 8
Discs information 9
Types of playable discs 9
Unplayable discs 9
Icons on the DVD discs 9
Region codes 10

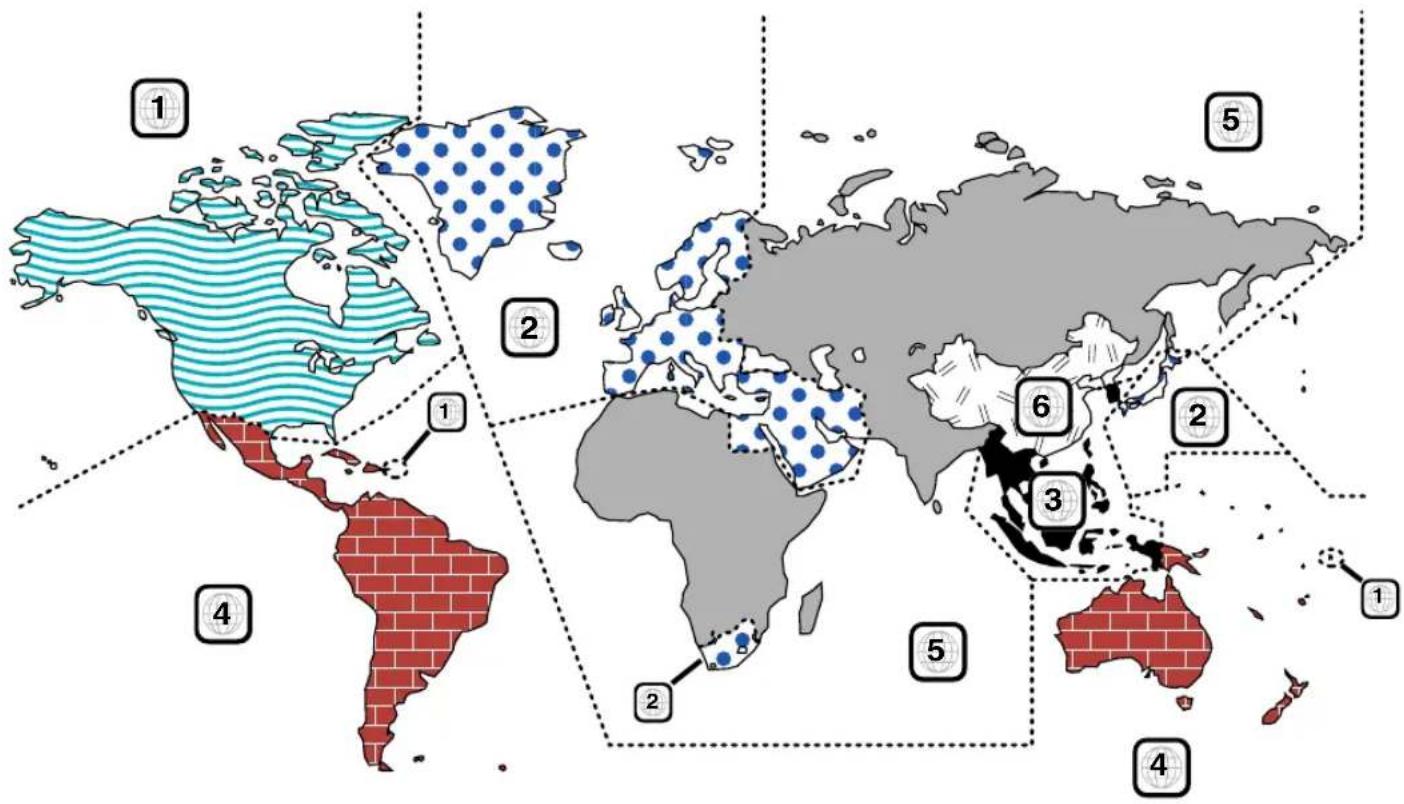

Region codes in the world 10
Examples of TV screen display of each video format..... 10
Video formats 11
Video formats of DVD discs that can be played on this unit..... 11
System Connections 12

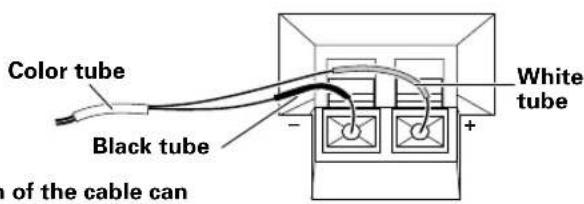

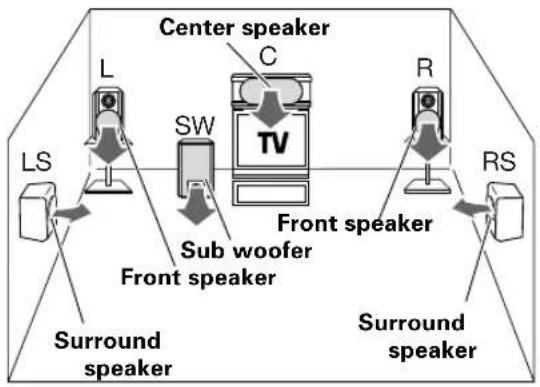

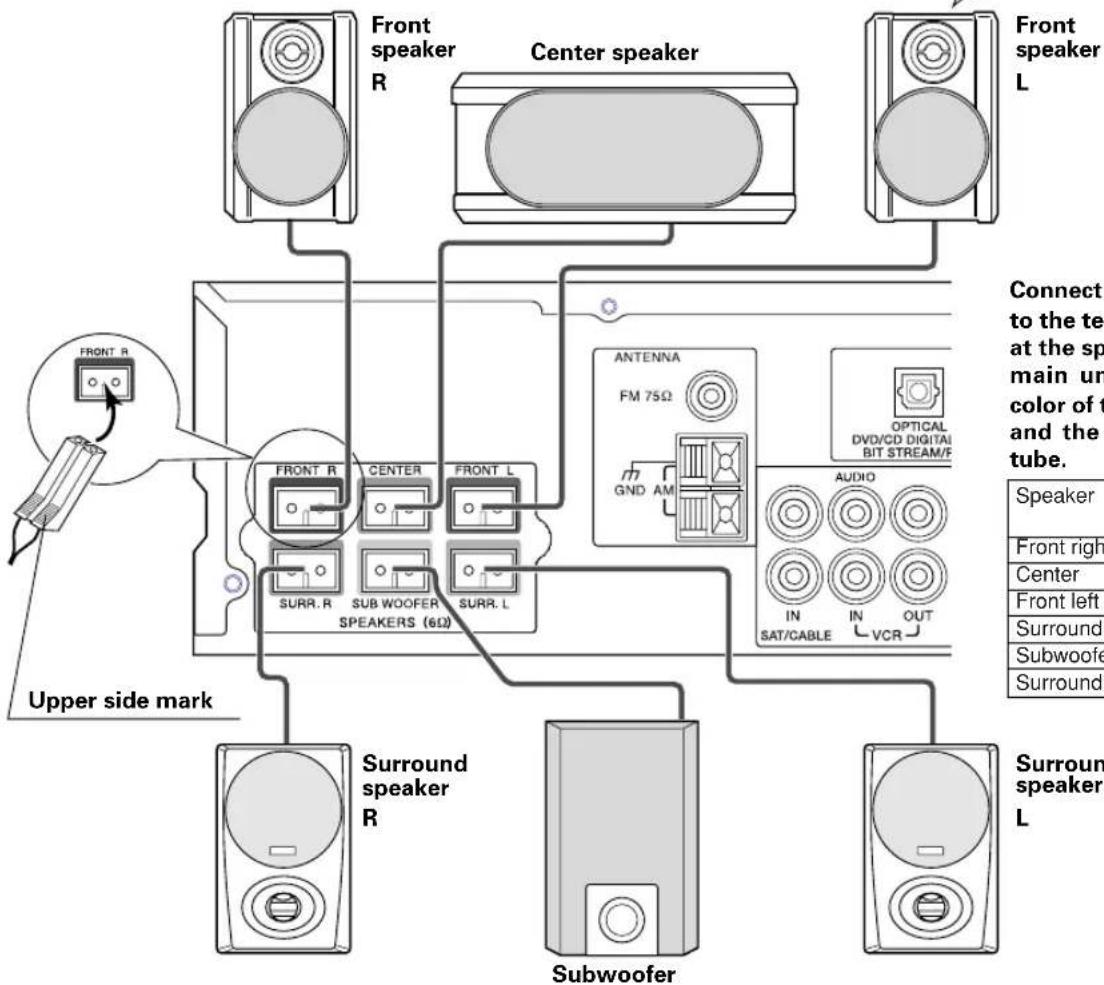

Loudspeakers 12

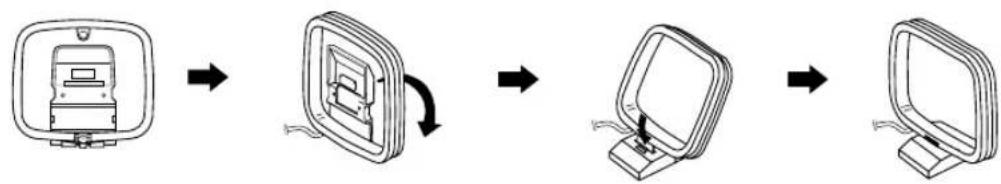

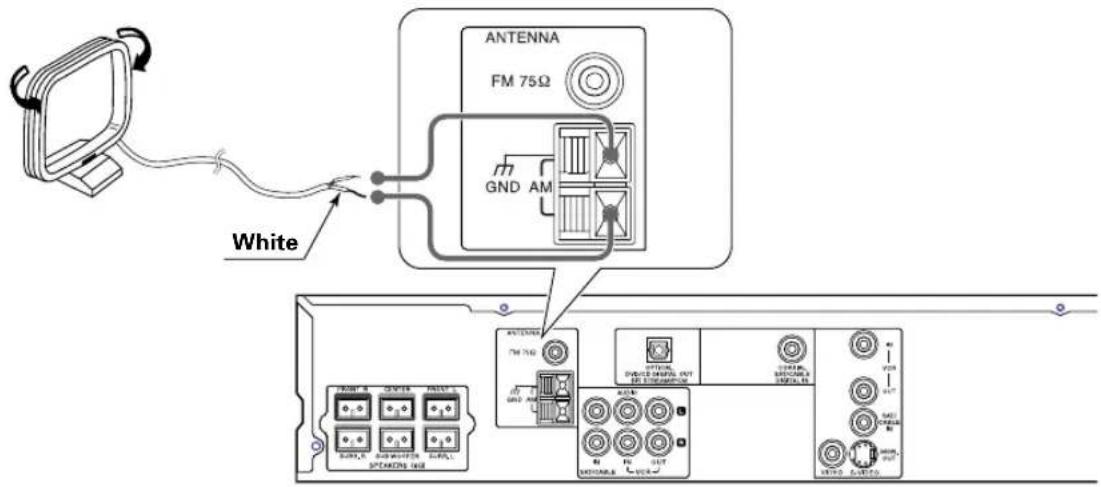

AM loop antenna 13

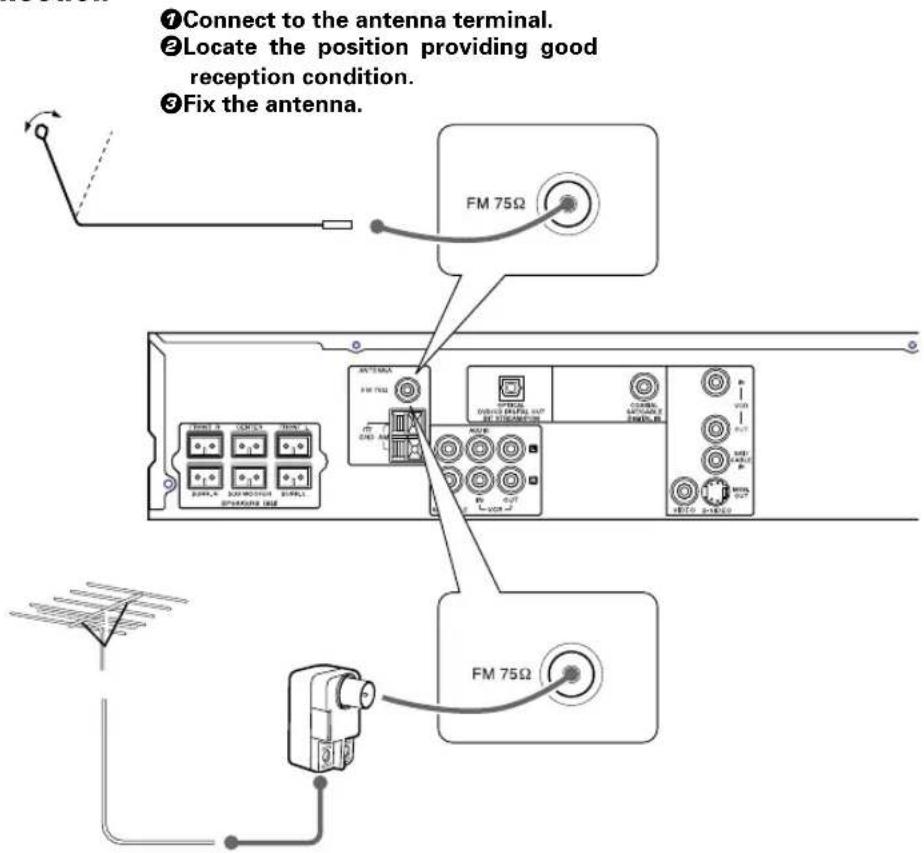

FM antenna 13

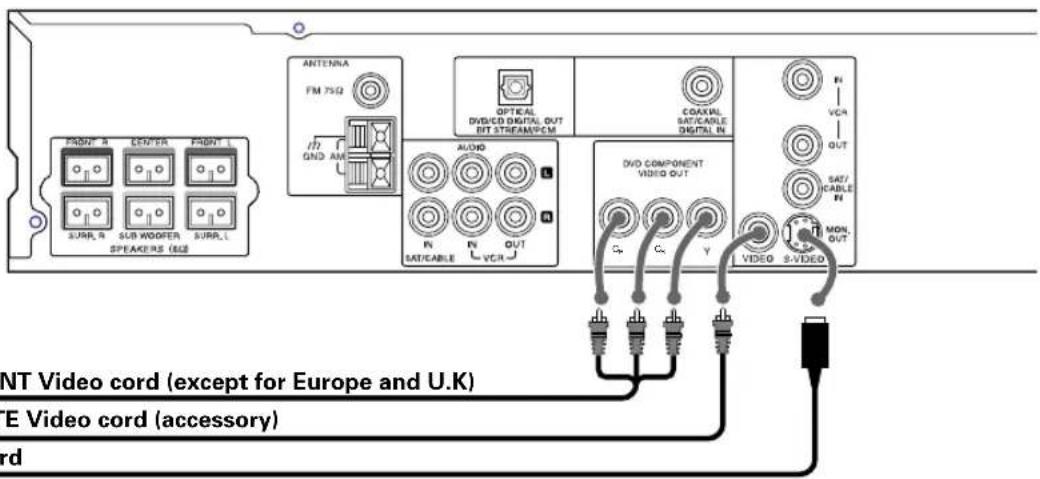

Connecting to a TV 14

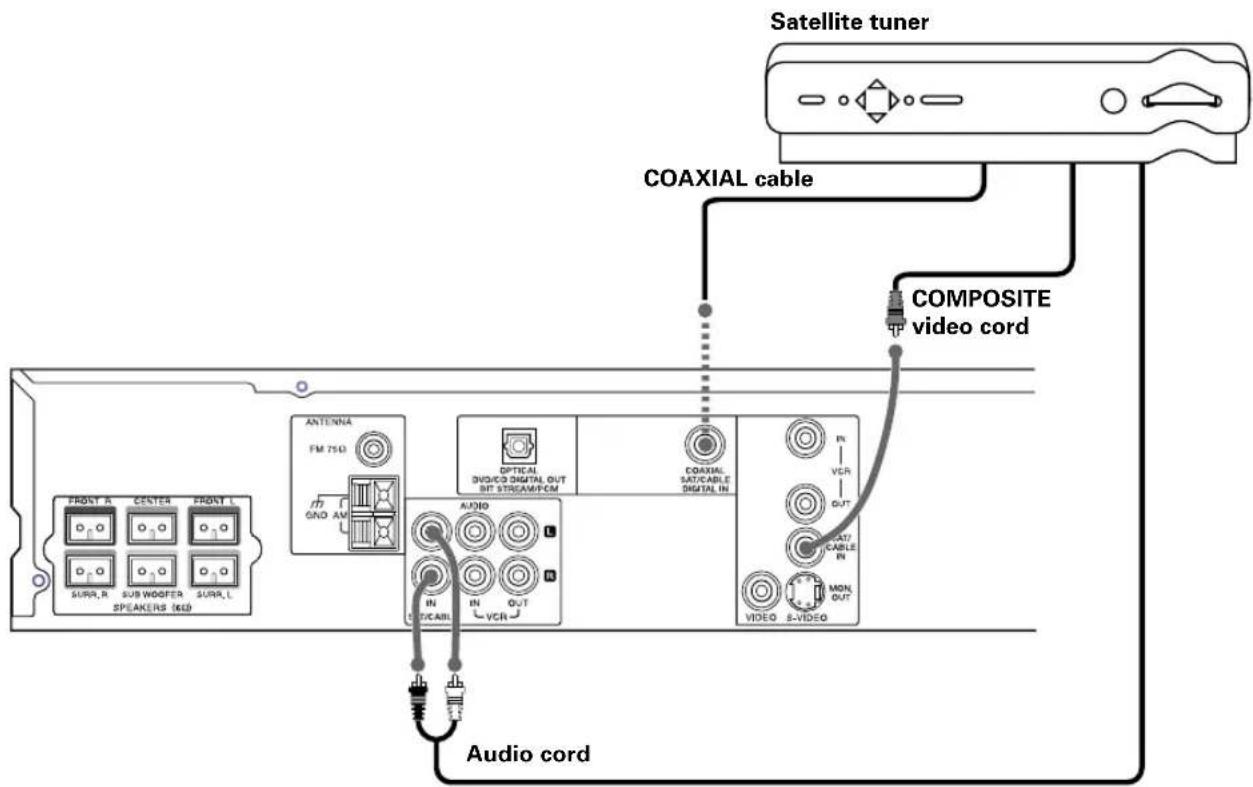

Connecting to a Satellite Tuner 14

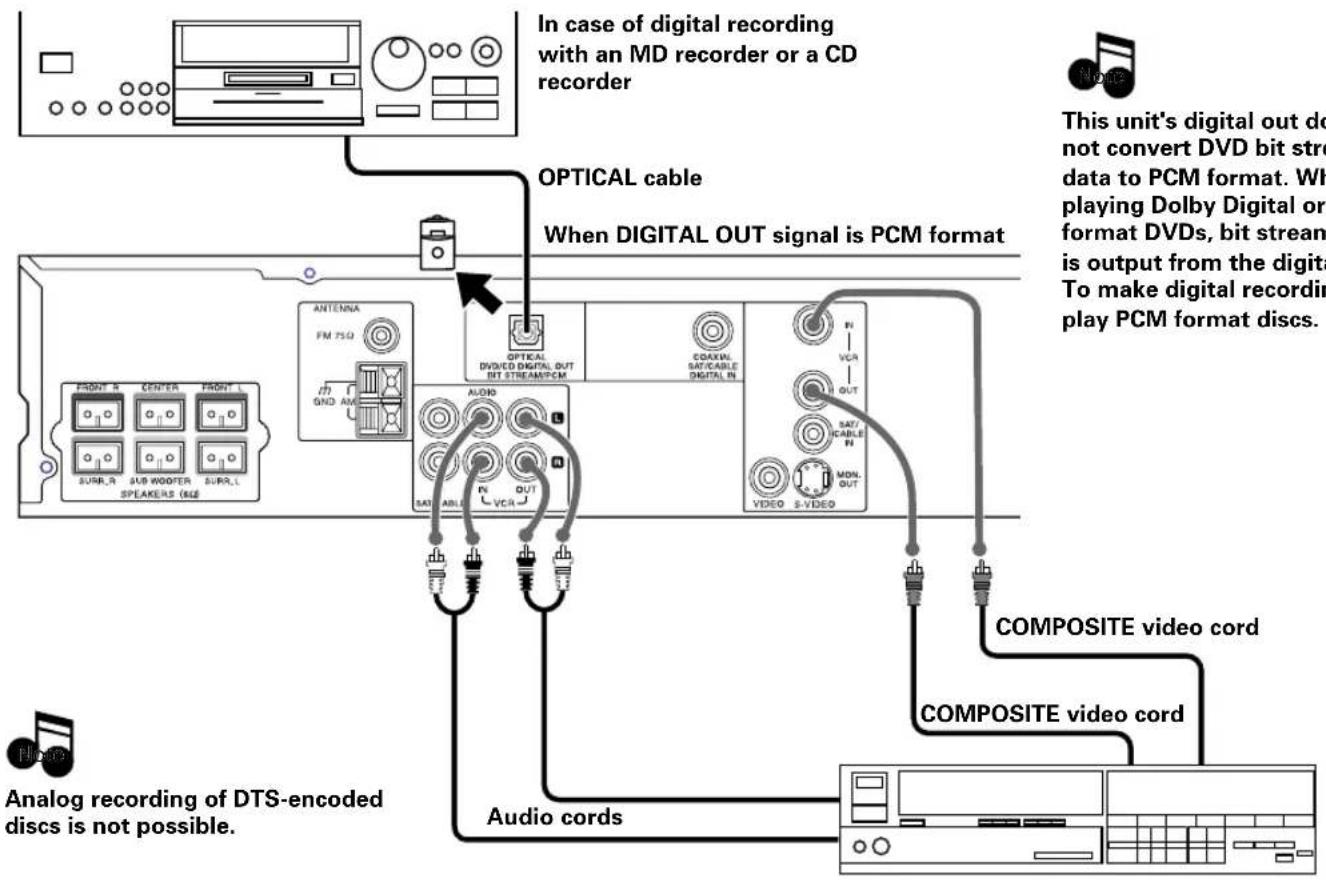

Connecting to Audio video equipments 15

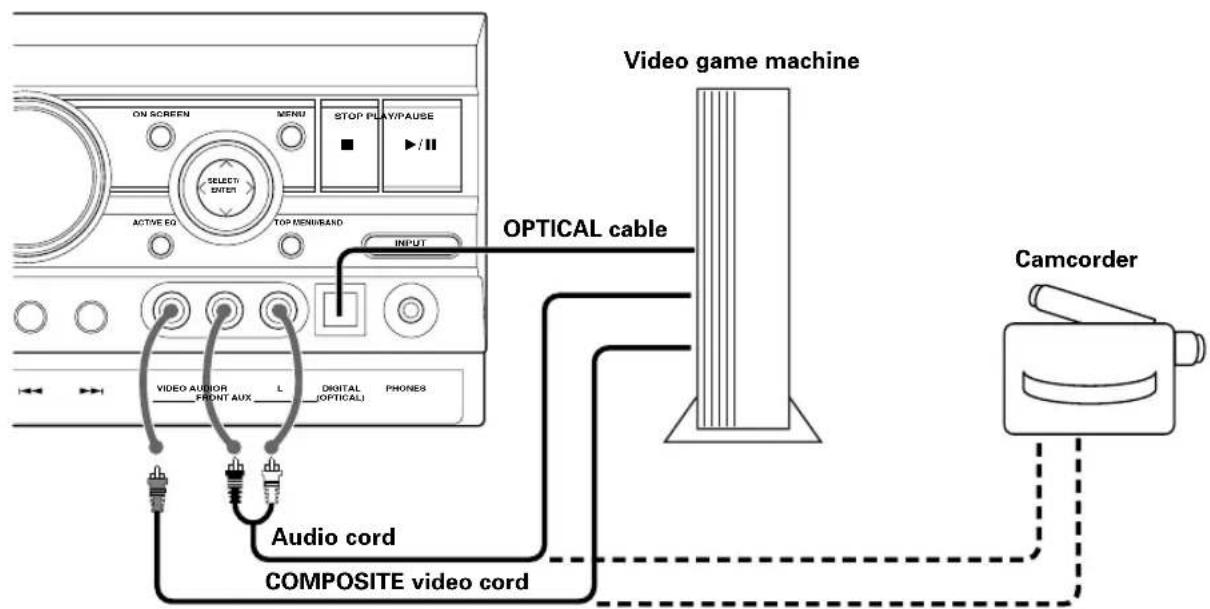

Connecting a Camcorder or Video game machine...... 15

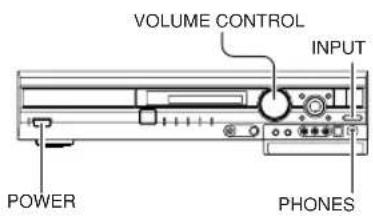

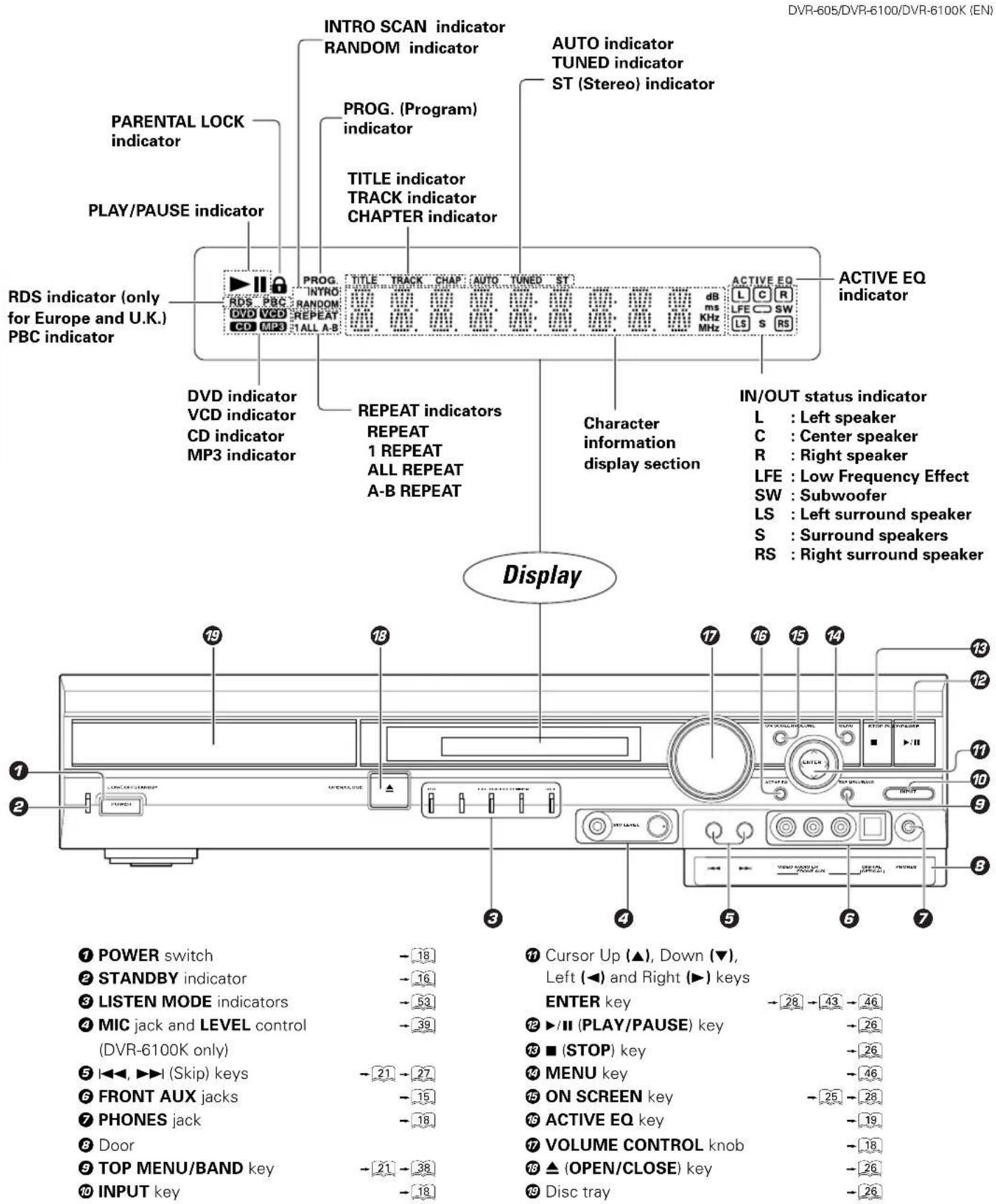

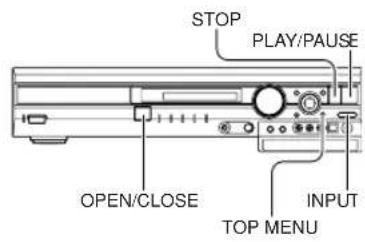

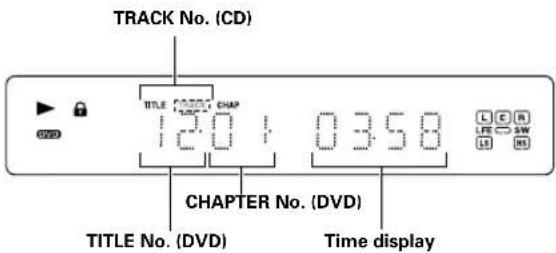

Controls and indicators.... 16

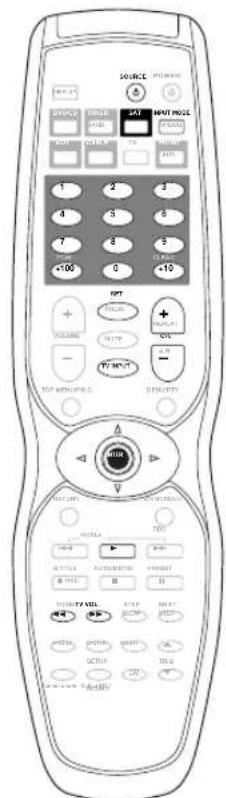

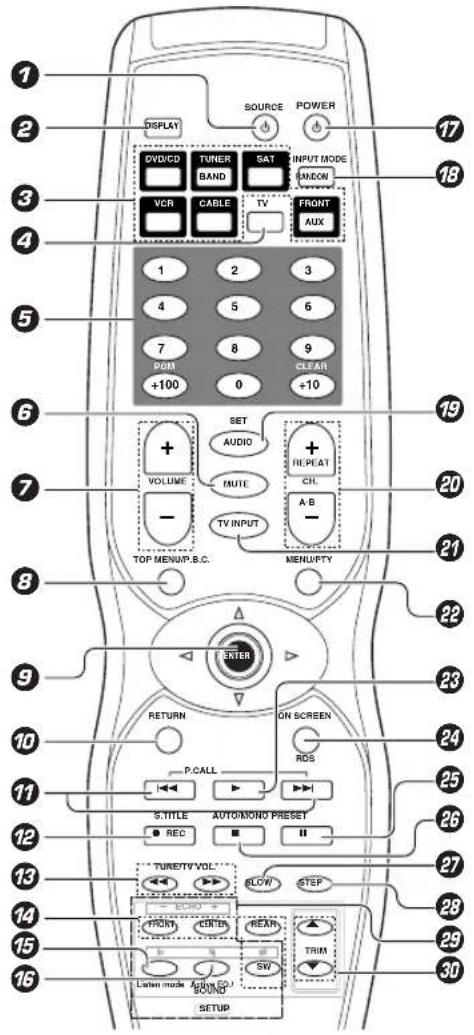

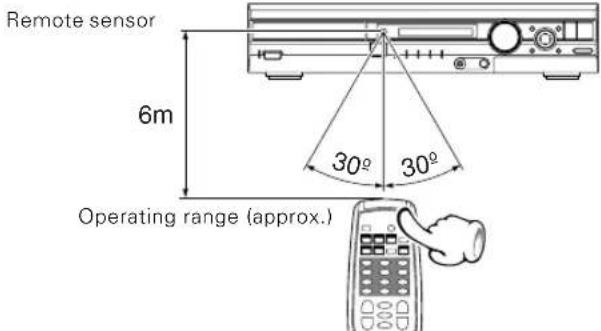

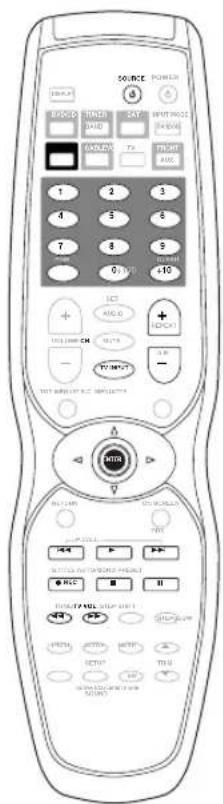

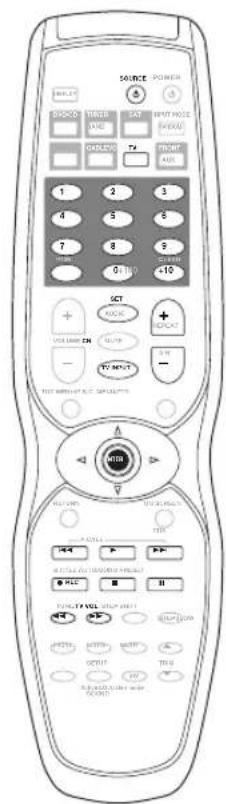

Operation of remote control unit 17
Operations
Let's put out some sound 18

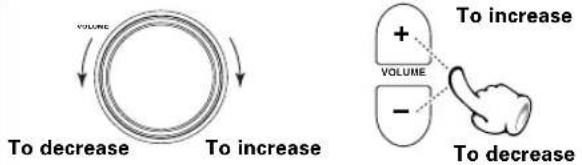

Basic use method 18

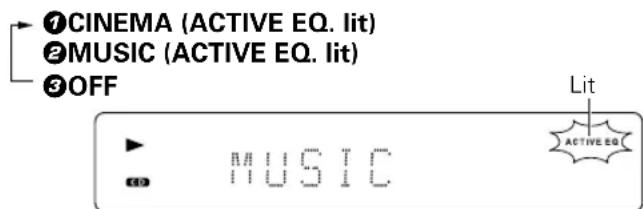

Changing the Tone 19
Dimmer 20
Receiving broadcast station 21

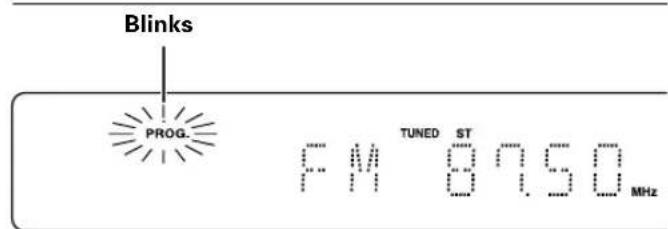

Storing the broadcast stations (one-by-one presetting) . 22
Using RDS function (for Europe and U.K. only) 23
PTY function (for Europe and U.K. only) 24
Progressive Scan (for US and Canada only) 25
Playback of disc 26
Basic play 26
Disc playback features 27

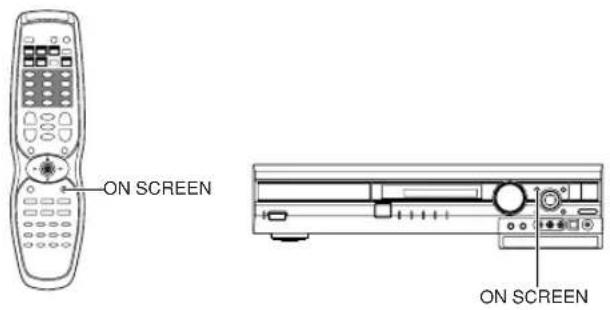

Using the On-screen banner display 28
Selecting a Title 29
Selecting a Chapter or Track 29
Changing the Audio Language 30
Changing the Subtitle Language.... 30
Changing the Camera angle 31
Using IntroScan function 31
Using Bookmarks 32
Repeat play 33
A-B Repeat play 33
Random play 34

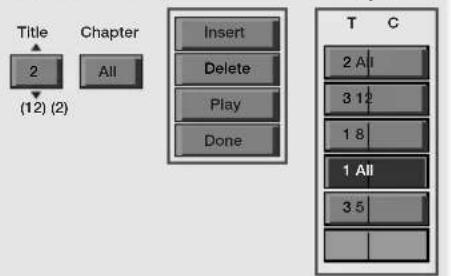

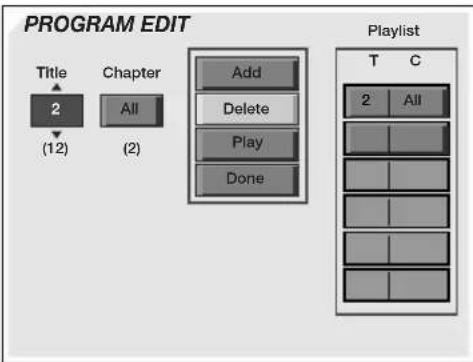

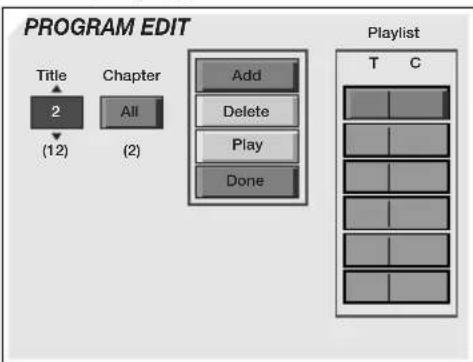

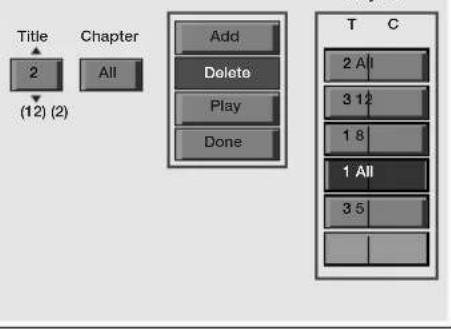

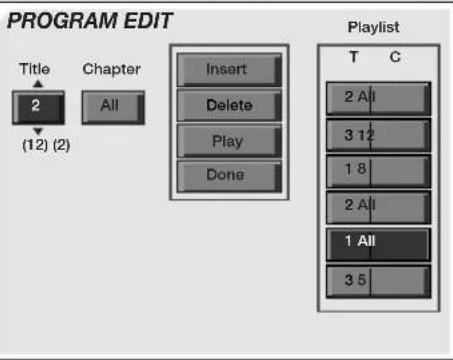

Program play 35
Menu playback 37

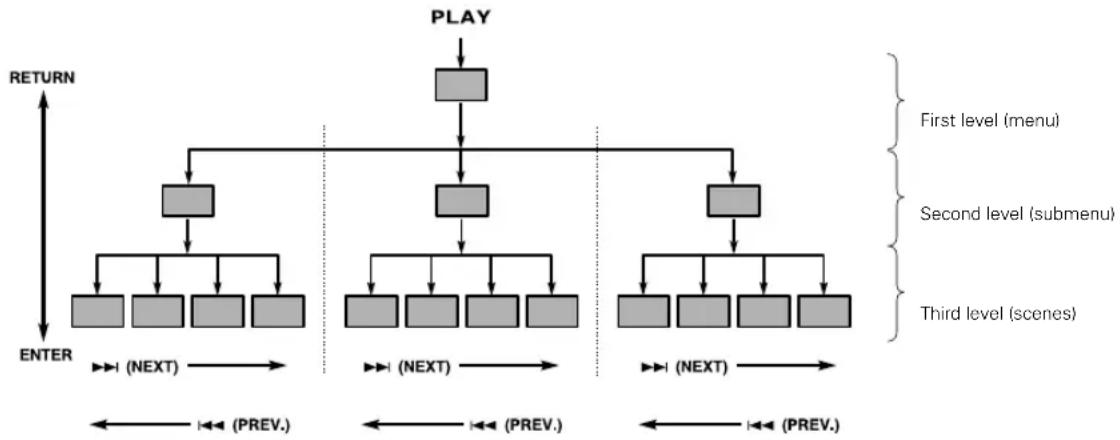

Hierarchical structure of VCD menus 37
Examples of operation keys and indications used during VCD playback 37
Playback without using the menu playback function (In case of a P.B.C.-compatible VCD) (To P.B.C. On or Off) ....38

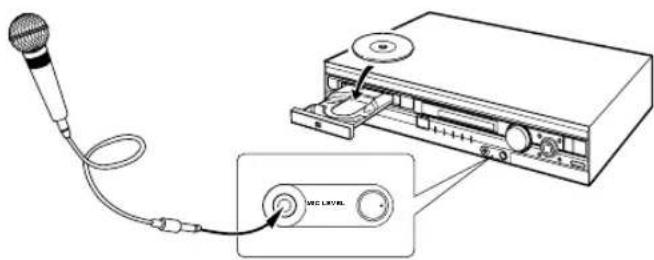

Enjoying karaoke singing (DVR-6100K only) 39
Selecting the Audio channel 39

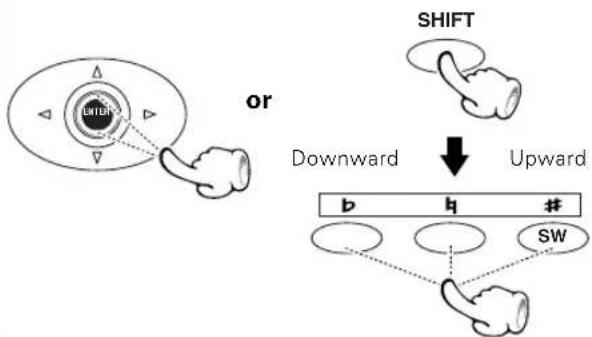

Controlling the key of the music (KEY CONTROL) .... 39

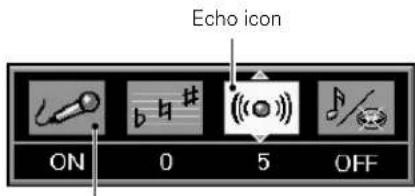

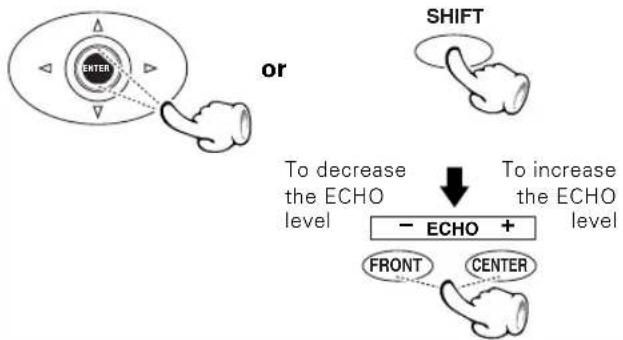

Adjust the ECHO level 40

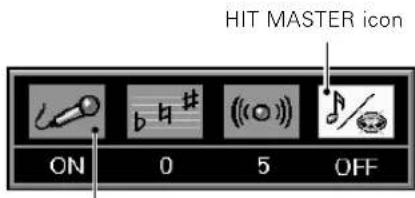

HIT MASTER function 40
MP3 function 41

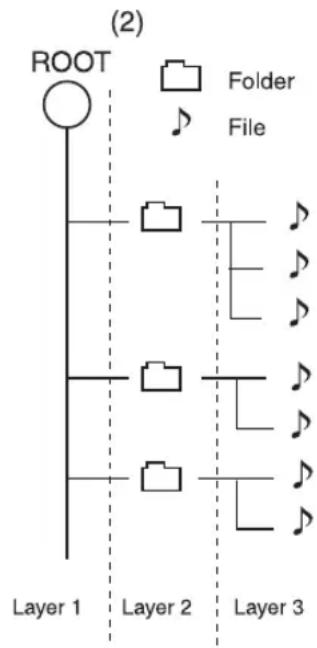

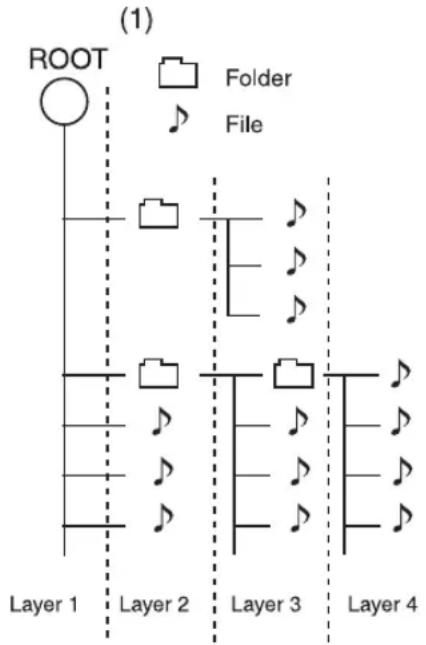

Guidance of MP3 41

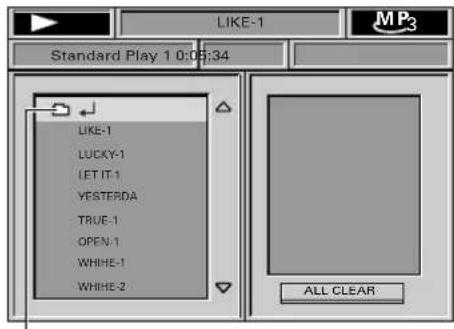

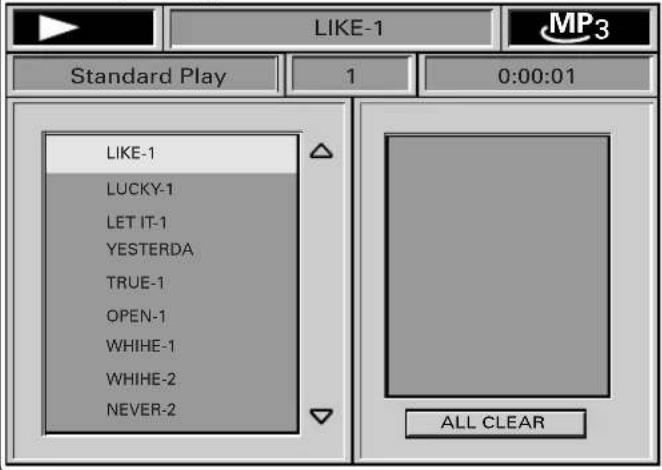

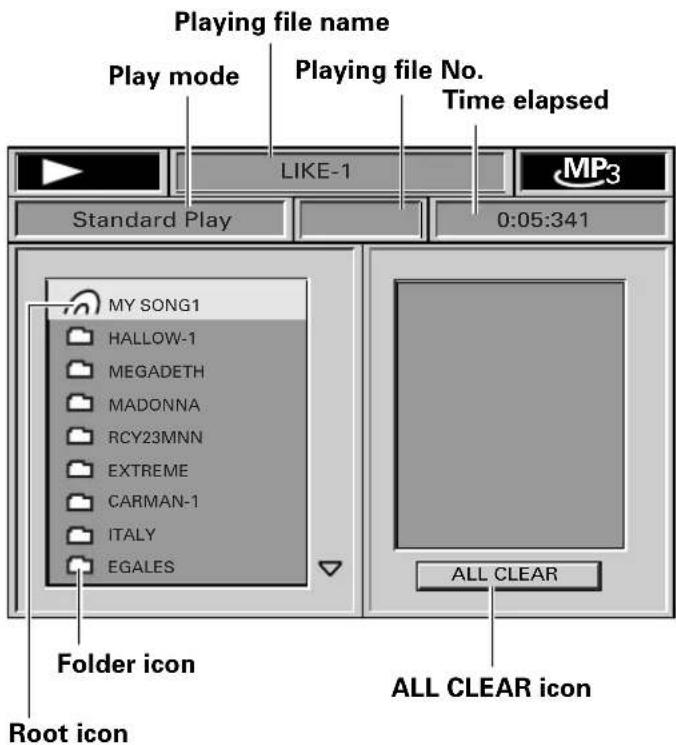

Playing back MP3 42

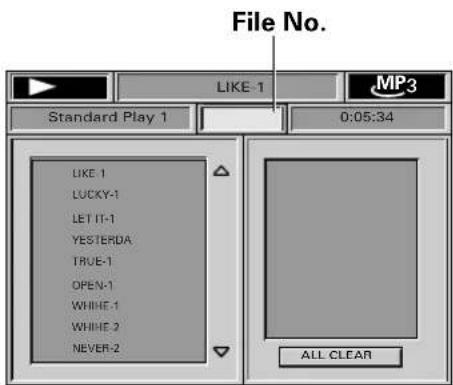

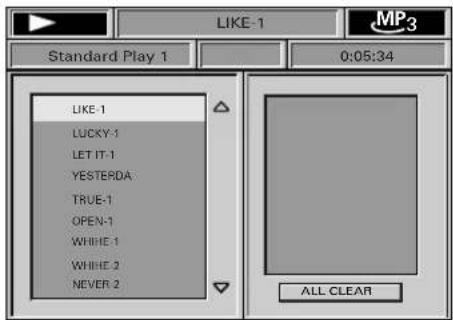

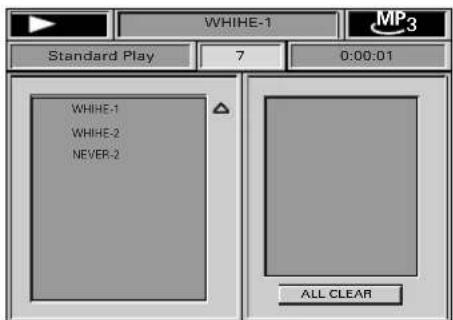

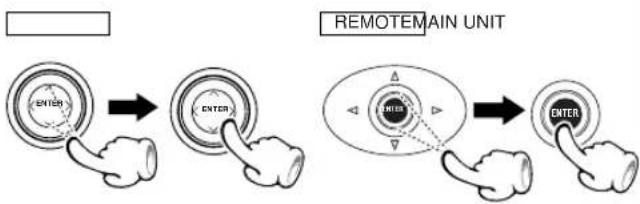

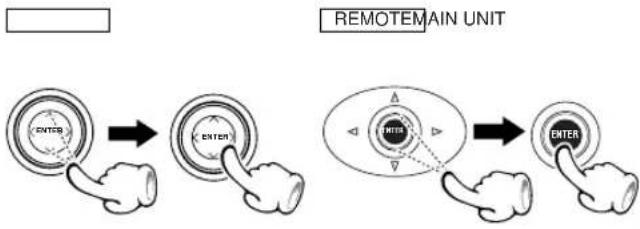

Selecting MP3 files 43

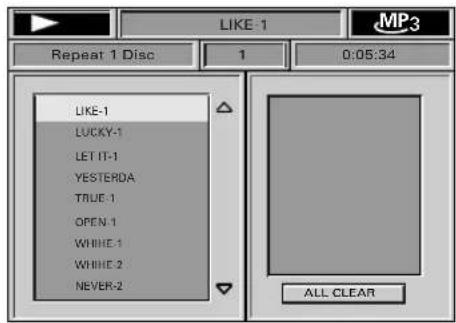

MP3 Repeat play 44

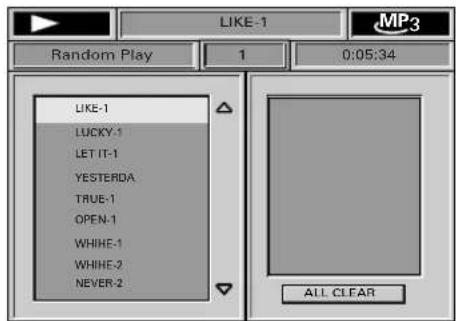

MP3 Random play 44

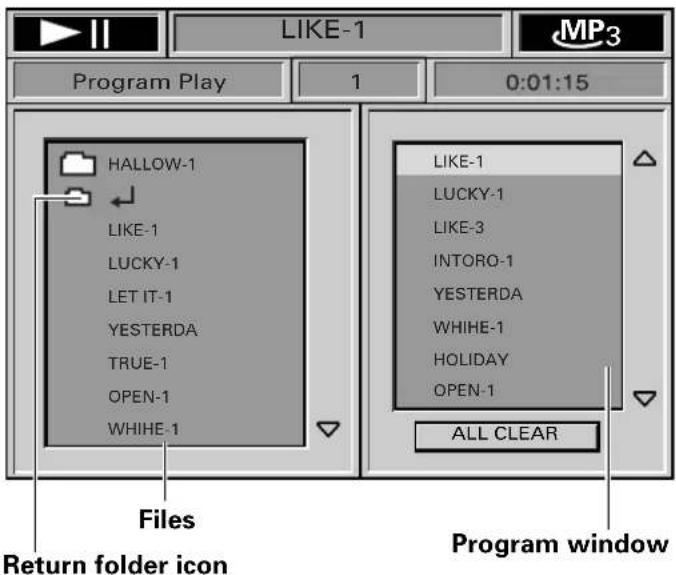

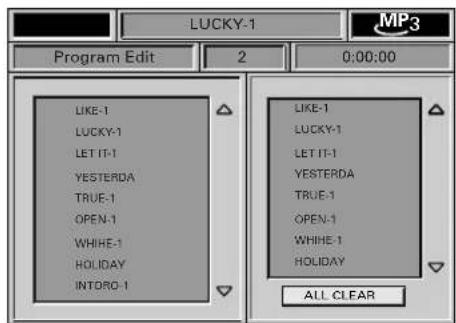

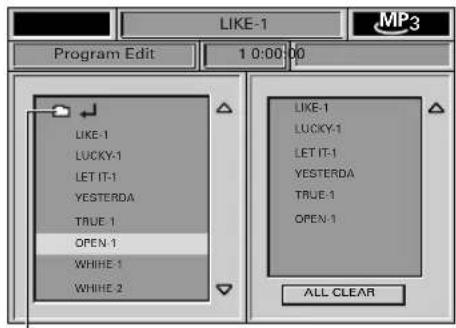

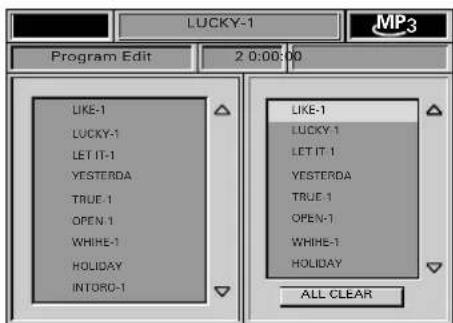

MP3 Program play 45
Set Up functions 46

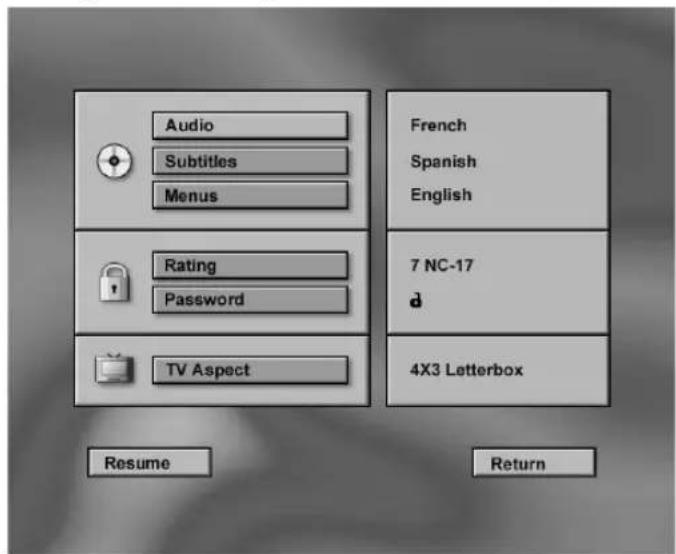

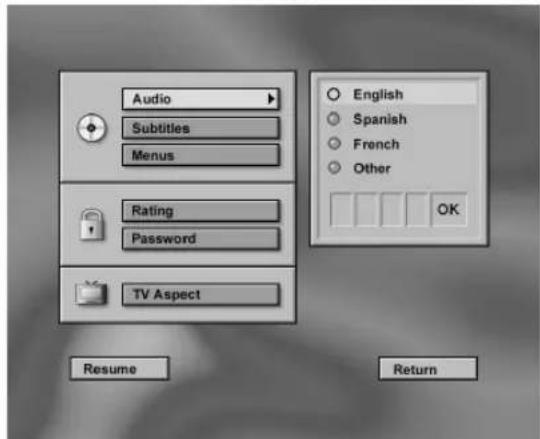

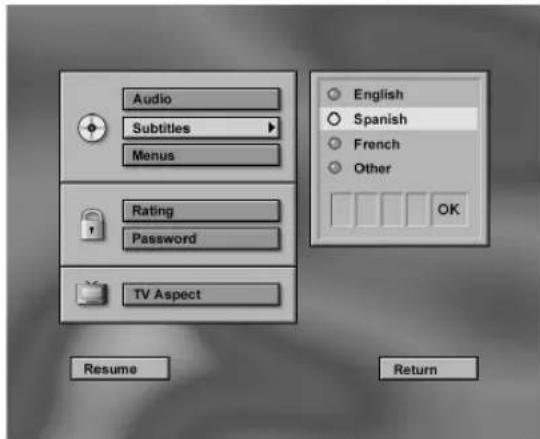

Set up menu 46

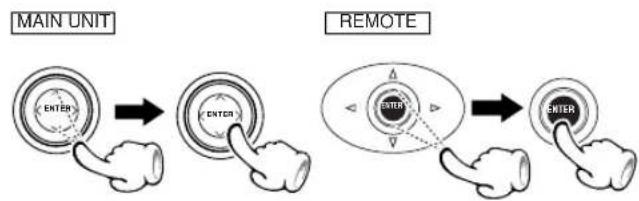

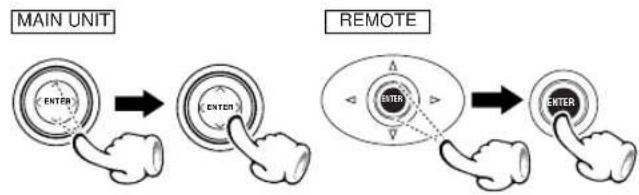

Select Audio Language 47
Select Subtitle Language 47

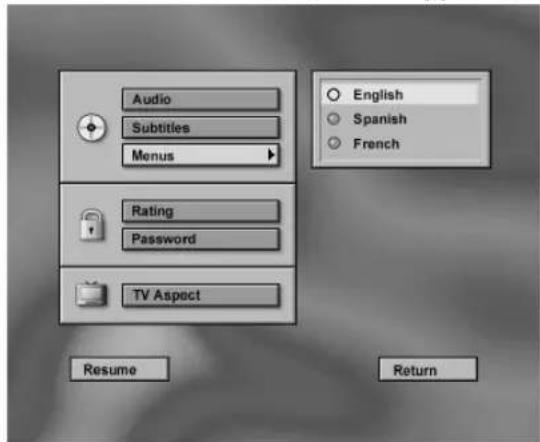

Select Menu Language 48

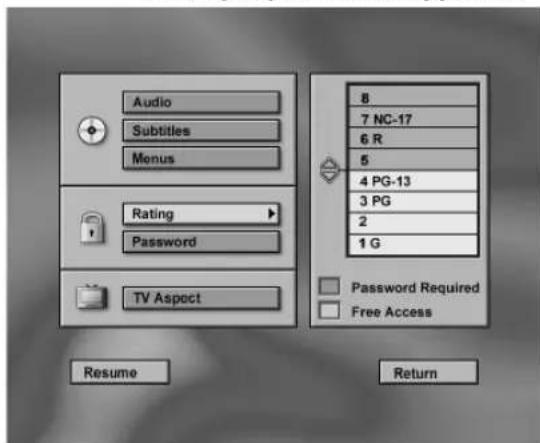

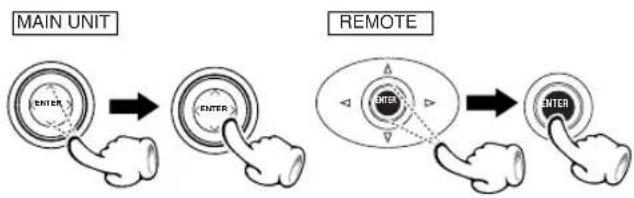

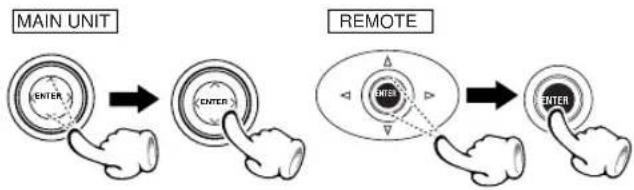

Select Rating 48

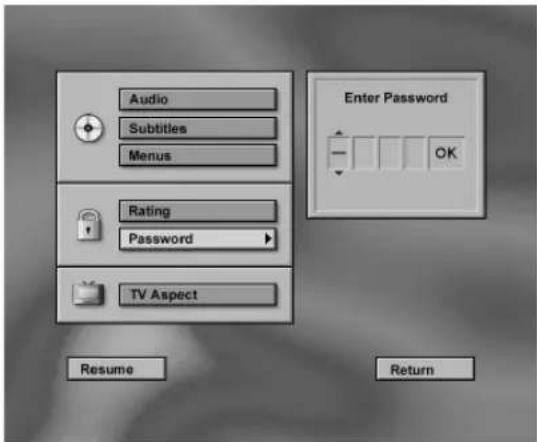

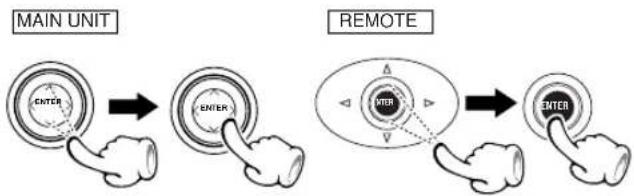

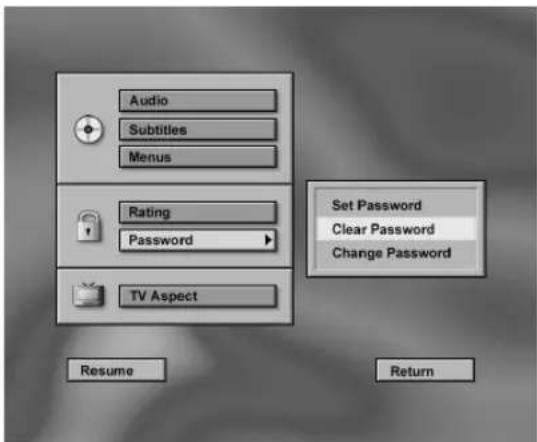

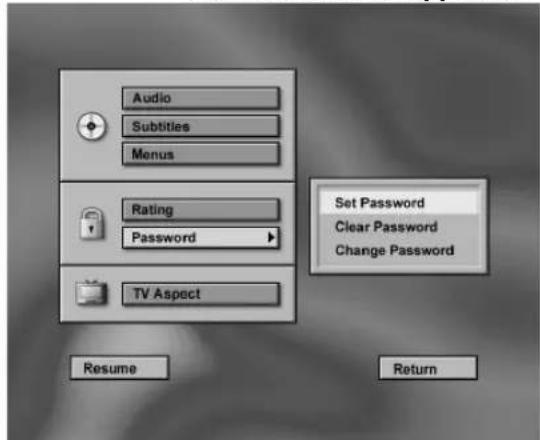

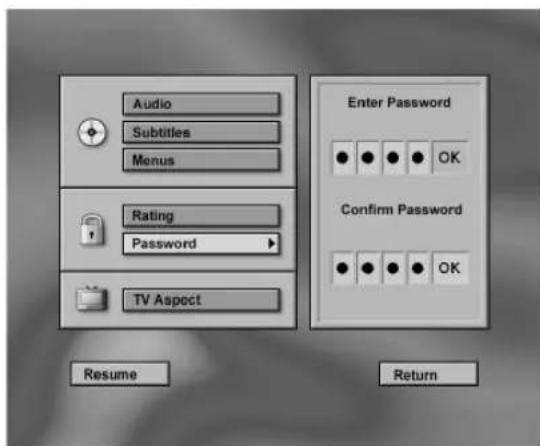

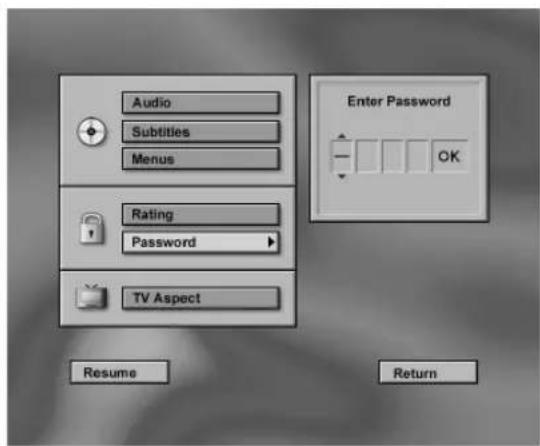

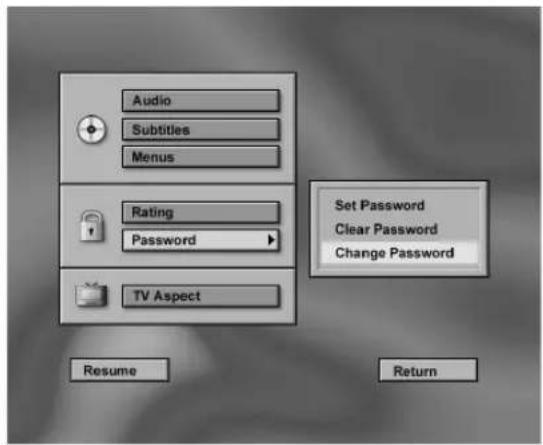

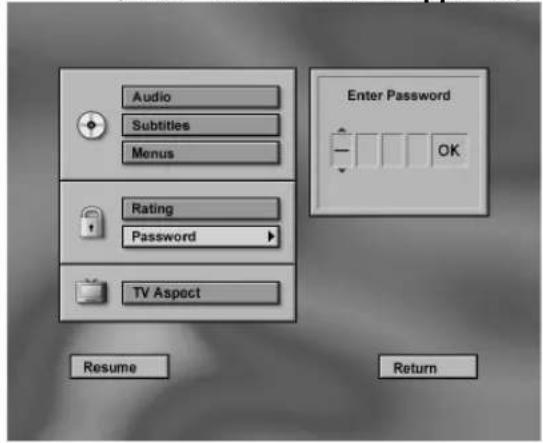

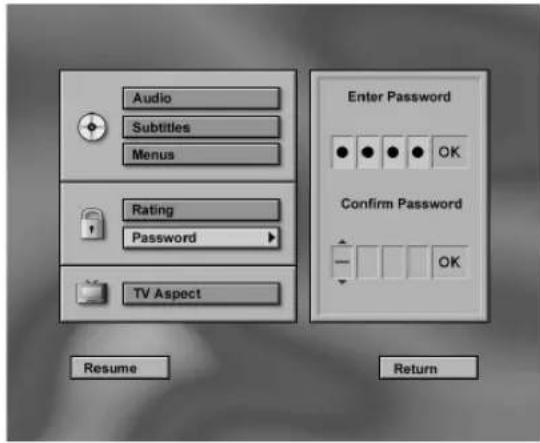

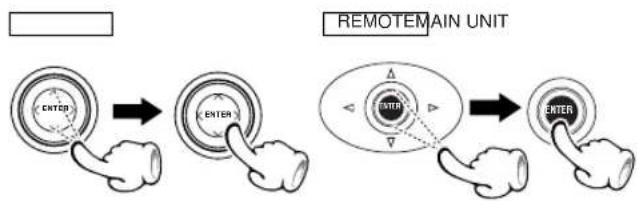

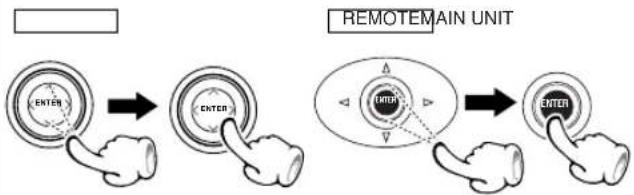

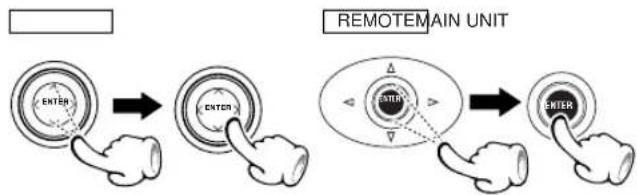

Password 49

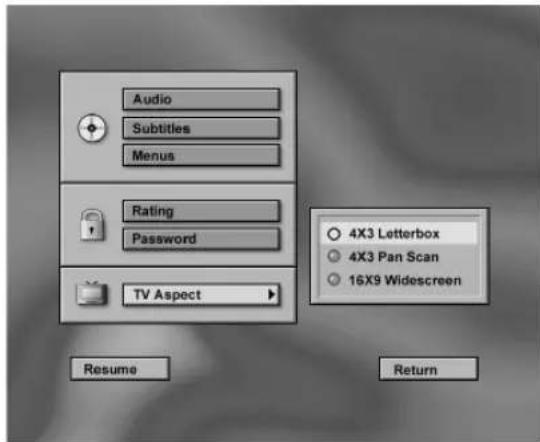

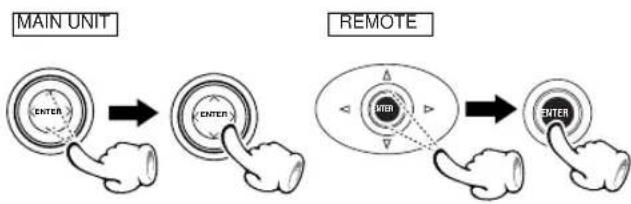

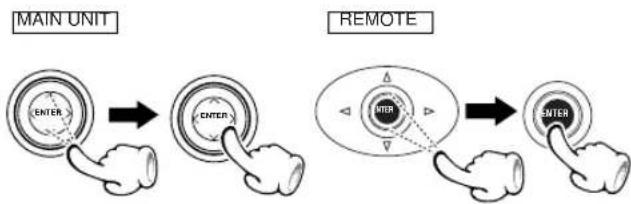

TV aspect 51
Setting up Listen mode.... 52

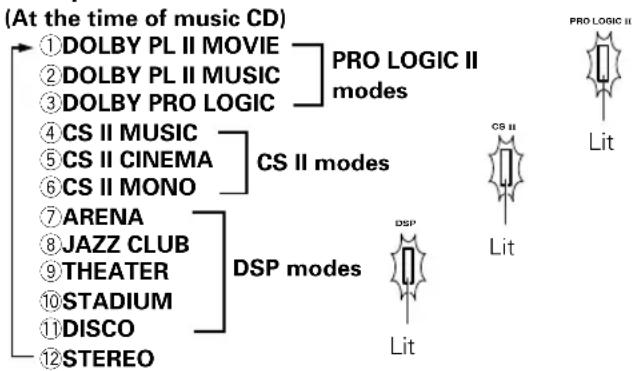

What are Listen modes? 52
To set the LISTEN mode manually .... 53

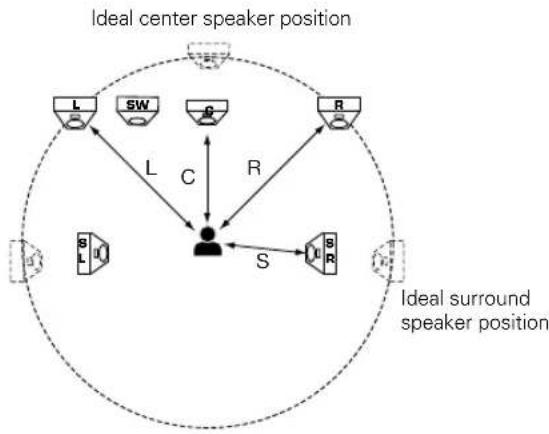

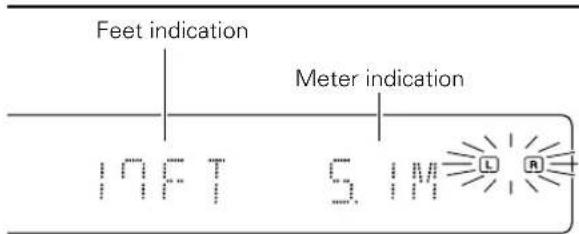

Speaker setting 54
Level setting using a music source.... 56
Changing the INPUT MODE 56
Control of a different device with the accessory remote controller 57
Register the setup codes for your audio and video...... 57
Operating other devices 57
Setup code table (except for U.S.A. and Canada) 58
Setup code table (for U.S.A. and Canada only) 59
Keys which can be used to operate connected devices 63
Knowledge
Knowledge 64
DVD menu language code list 64
In case of difficulty 65
Specifications.... 68
Unpacking
Unpack the unit carefully and make sure that all the accessories are present.
If any accessories are missing, or if the unit is damaged or fails to operate, notify your dealer immediately. If your unit was shipped to you directly, notify the shipper immediately.
KENWOOD recommends that you retain the original carton and packing materials in case you need to move or ship the unit in the future.
Keep this manual handy for future reference.
Accessories
Please confirm that the following accessories are present.
Accessories packed with the main unit
FM indoor antenna (1) Loop antenna (1)

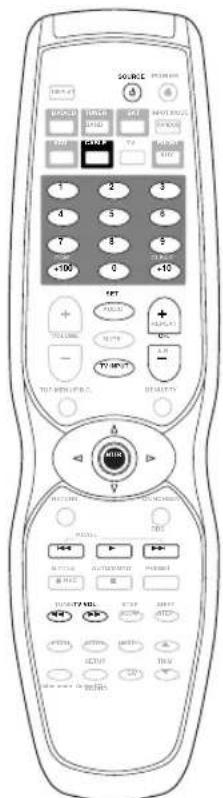

Remote control unit (1) Batteries (R6/AA) (2)
Speaker cords (6)
Video cord (1)
SCART plug adaptor (1) (Europe and U.K. only)
*AC plug adaptor (1)
* Use to adapt the plug on the power cord to the shape of the wall outlet. (Accessory only for regions where use is necessary.)
Speaker model names
| System Front, | center and surround speakers Subwoofer | |
| DVR-605 KS-30 | 06DV (Left speaker, right speaker, SW-06DV center speaker and surround speakers) | |
| DVR-6100 KSW | W-6100 (Left speaker, right speaker, center speaker, surround speakers and subwoofer) | |
| DVR-6100K | ||
CHANNEL SPACE setting (Except for the U.S.A., Canada, U.K., Europe and Australia)
The space between radio channels has been set to the one that prevails in the area to which the system is shipped. However, if the current channel space setting does not match the setting in the area where the system is to be used, for instance when you move from area 1 or area 2 shown in the following table or vice versa, proper reception of AM/FM broadcasts cannot be expected. In this case, change the channel space setting in accordance with your area by referring to the following table.
| Area | CHANNELSPACE frequency | |
| 1 | USA, Canada and South American countries | FM : 100 kHzAM : 10 kHz |
| 2 | Other countries | FM : 50 kHzAM : 9 kHz |
Setting the CHANNEL SPACE
⑦ Set the POWER key to standby (power off) mode.
② press the STOP key, the ▶▶I key and the ◀◀◀ key on main unit in this order.
Each operate step 2, switches the modes as follows.
①"FM100/AM10 kHz" STEP ②"FM 50/AM 9 kHz" STEP
DVR-605/DVR-6100/DVR-6100K (EN)
Please read all of the safety and operating instructions before operating this appliance. Adhere to all warnings on the appliance and in the instruction manual. Follow all the safety and operating instructions. These safety and operating instructions should be retained for future reference.
-
Power sources – The appliance should be connected to a power supply only of the type described in the instruction manual or as marked on the appliance. If you are not sure of the type of power supply to your home, consult your appliance dealer or local power company. For appliances intended to operate from battery power, or other sources, refer to the instruction manual.
-
Power-cord protection – Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, pay particular attention to cords at plugs, convenience receptacles, and the point where they exit from the appliance.
Never pull or stretch the cord.
CAUTION - Polarization - This appliance may be equipped with a polarized alternating-current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.
-
Ventilation – Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the appliance and to protect it from overheating, and these openings must not be blocked or covered. The appliance should be situated so that its location or position does not interfere with its proper ventilation.
To maintain good ventilation, do not put records or a table-cloth on the appliance. Place the appliance at least 10 cm away from the walls.
Do not use the appliance on a bed, sofa, rug or similar surface that may block the ventilation openings. This appliance should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer's instructions have been adhered to.
Water and moisture – The appliance shall not be exposed to dripping and splashing-for example, near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool, etc. Do not place an object containing liquid, such as a flower vase, on the appliance.
-
Temperature - The appliance may not function properly if used at extremely low, or freezing temperatures. The ideal ambient temperature is above +5^ (41°F).
-
Heat - The appliance should be situated away from heat sources such as radiators, heat registers, stoves, or other appliances (including amplifiers) that produce heat. Do not place a flaming object, such as a candle or lantern, on or near the appliance.
-
Electric shock – Care should be taken so that objects do not fall and liquid is not spilled into the enclosure through openings. If a metal objects, such as a hair pin or a needle, comes into contact with the inside of this appliance, a dangerous electric shock may result. For families with children, never permit children to put anything, especially metal, inside this appliance.
- Enclosure removal – Never remove the enclosure. If the internal parts are touched accidentally, a serious electric shock might occur.
-
Magnetic fields – Keep the appliance away from sources of magnetic fields such as TV sets, speaker systems, radios, motorized toys or magnetized objects.
-
Cleaning – Unplug this appliance from the wall outlet before cleaning. Do not use volatile solvents such as alcohol, paint thinner, gasoline, or benzine, etc. to clean the cabinet. Use a clean dry cloth.
-
Accessories – Do not place this appliance on an unstable cart, stand, tripod, bracket, or table. The appliance may fall, causing serious injury to a child or adult, and serious damage to the appliance. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the appliance. Any mounting of the appliance should follow the manufacturer's instructions, and should use a mounting accessory recommended by the manufacturer. An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.
- Lightning – For added protection for this appliance during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the appliance due to lightning and power-line surges.
- Abnormal smell – If an abnormal smell or smoke is detected, immediately turn the power OFF and unplug the appliance from the wall outlet. Contact your dealer or nearest service center.
- Damage requiring service – The appliance should be serviced by qualified service personnel when:
A. The power-supply cord or the plug has been damaged.
B. Objects have fallen, or liquid has been spilled into the appliance.
C. The appliance has been exposed to rain or water.
D. The appliance does not appear to operate normally by following the instruction manual. Adjust only those controls that are covered by the instruction manual as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the appliance to its normal operation.
E. The appliance has been dropped, or the enclosure damaged.
F. The appliance exhibits a marked change in performance.
- Servicing – The user should not attempt to service the appliance beyond that described in the instruction manual. All other servicing should be referred to qualified service personnel.

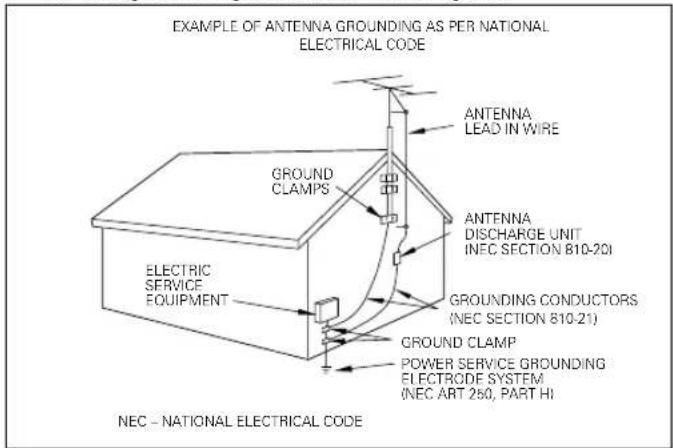

- Outdoor antenna grounding – If an outside antenna is connected to the appliance, be sure the antenna system is grounded so as to provide some protection against voltage surges and built up static charges. Article 810 of the National Electrical Code ANSI/NFPA 70, provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes, and requirements for the grounding electrode. See Figure.
- Power lines - An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

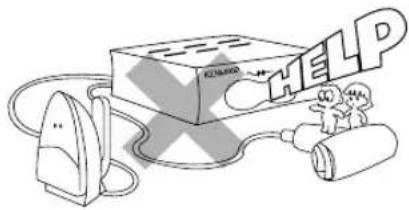

- AC outlets - Do not connect other audio equipment with a power consumption larger than that specified to the AC outlet on the rear panel. Never connect other electrical appliances, such as an iron or toaster, to it to prevent fire or electric shock.
- Overloading – Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.
- Attachment – Do not use attachments not recommended by the appliance manufacturer as they may cause hazards.
- Replacement parts – When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original parts. Unauthorized substitutions may result in fire, electric shock, or other hazards.
- Safety check – Upon completion of any service or repairs to this appliance, ask the service technician to perform safety checks to determine that the appliance is in proper operating condition.
Notes:
- Item 3 is not required except for grounded or polarized equipment.
- Item 17 and 18 are not required except for units provided with antenna terminals.
- Item 17 complies with UL in the U.S.A.
Special features
DVR-605/DVR-6100/DVR-6100K (EN)
This document classifies the applications of each feature using the following marks
DVD : Description of a feature that can be used with DVD.
CD : Description of a feature that can be used with CD.
VCD : Description of a feature that can be used with VCD.
DVD
Higher video quality than S-VHS video and LaserDisc
DVD
Higher audio quality than music CD
DVD
CD
VCD
Graphical user interface (GUI) compatibility
DVD
Versatile DVD playback features
DVD
CD
The DVR-605/DVR-6100/6100K offers DTS decoder.
DVD
CD
VCD
Dolby Pro Logic II decoder.
Reference
Caution on condensation
Condensation (of dew) may occur inside the unit when there is a great difference in temperature between this unit and the outside.
This unit may not function properly if condensation occurs. In this case, leave the unit for a few hours, and restart the operation after the condensation has dried up.
Be specially cautious against condensation in a following circumstances:
When this unit is carried from one place to another across a large difference in temperature, when the humidity in the room where this unit is installed increases, etc.
Note related to transportation and movement
Before transporting or moving this unit, carry out the following operations.
① Remove the disc from the unit.
② Press the ▶/II key.
NO BISC
③ Wait a few seconds and turn the unit OFF.
Memory backup function
| Stored contents which are cleared in at least a week after power plug is unplugged from power outlet. |
Amplifier section
| Last input selection |
| Volume control value |
| Surround setting |
| ACTIVE EQ |
Tuner section
| Receiving band |
| Frequency |
| Preset stations |
| Tuning mode setting |
| DVD section |
| Menu setup |
| Power status |
WARNING NOTICE:
IN MOST CASES IT IS AN INFRINGEMENT OF COPYRIGHT TO MAKE COPIES OF TAPES OR DISCS WITHOUT THE PERMISSION OF THE COPYRIGHT OWNERS. ANYONE WISHING TO COPY COMMERCIALLY AVAILABLE TAPES OR DISC SHOULD CONTACT THE MECHANICAL COPYRIGHT PROTECTION SOCIETY LIMITED OR THE PERFORMING RIGHTS SOCIETY LIMITED.
Maintenance of the Set
When the front panel, the case, etc. becomes dirty, wipe with a soft, dry cloth. Do not use thinner, alcohol, etc., as these can cause discoloration.
In regard to contact cleaners
Do not use contact cleaners because it could cause a malfunction. Be specially careful not to use contact cleaners containing oil, for they may deform the plastic component.
Disc handling precautions
Handling
Hold the discs so that you do not touch the playing surface.
Sticky paste
Do not attach paper or tape to either the playing side or the label side of the discs.
Cleaning
If there are fingerprint marks or foreign matter found on the disc, lightly wipe the disc with a soft cotton cloth (or similar) from the center of the disc outwards in a radial manner.
Storage
When a disc is not to be played for a long period of time, remove it from the player and store it in its case.
Never play a cracked or warped disc
During playback, the disc rotates at high speed in the player. Therefore, to avoid danger, never use a cracked or deformed disc or a disc repaired with tape or adhesive agent. Please do not use discs which are not round because they may cause a malfunction.
Disc accessories
The disc accessories (stabilizer, protection sheet, protection ring, etc.) which are marketed for improving the sound quality or protecting discs as well as the disc cleaner should not be used with this system because they may cause malfunction.
For the U.S.A.
CAUTION:
Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. In compliance with Federal Regulations, following are reproductions of labels on, or inside the product relating to laser product safety.
KENWOOD CORPORATION
2967-3, ISHIKAWA-CHO,
HACHIOJI-SHI,
TOKYO, JAPAN
KENWOOD CORP. CERTIFIES THIS EQUIPMENT CONFORMS TO DHHS REGULATIONS NO. 21 CFR
1040.10, CHAPTER 1, SUBCHAPTER J.
Location: Back Panel
Note to CATV sysem inataller
This reminder is provided to call the CATV system installer's attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.
For the U.S.A.
FCC WARNING
This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made.
NOTE:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment may cause harmful interference to radio communications, if it is not installed and used in accordance with the instructions. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-- Consult the dealer or an experienced radio / TV technician for help.
Types of playable discs
The system using this unit does not only play music from CD but can also play the discs listed below to offer you high-quality entertainment of video of movies and live concerts.
| Playable Disc | DVD | CD (CD-DA) | VCD | |||
| Logo mark on disc |  |  |  | |||
| Disc size |  8cm |  12cm |  8cm |  12cm |  12cm | |
| Played sides | One or both | One or both | One side only | One side only | One side only | |
| Contents | Video + Audio | Approx. 41 min.(1 side, 1 layer)Approx. 75 min.(1 side, 2 layers)Approx. 82 min.(2 sides, 1 layer)Approx. 150 min.(2 sides, 2 layers) | Approx. 133 min.(1 side, 1 layer)Approx. 242 min.(1 side, 2 layers)Approx. 266 min.(2 sides, 1 layer)Approx. 484 min.(2 sides, 2 layers) | Max. 74 min. | ||
| Audio | Max. 20 min., digital | Max. 74 min., digital | ||||
Unplayable discs
This player cannot play back any of the following discs.
| ●DVD-ROM discs●DVD-R/DVD-RAM/DVD-RW discs●VSD discs●CDV discs (only the audio part can be reproduced.)●CD-ROM discs (except MP3 (ISO 9660 level 1 format) disc.) | ●CD-G/CD-EG/CD-EXTRA discs (only the audio can be reproduced.)●Photo CD discs (never attempt to play them.)●S-VCD discs●CD discs without the CD-DA logo mark may be unplayable |
Icons on the DVD discs
| Icon | Description |
 | Indicates the region code where the disc can be played. |
 | Number of voice languages recorded with the audio function. The number in the icon indicates the number of voice languages. (Max. 8 languages) |
 | Number of subtitle languages recorded with the subtitle function. The number in the icon indicates the number of subtitle languages. (Max. 32 languages) |
 | Number of angles provided by the angle function. The number in the icon indicates the number of angles. (Max. 9 angles) |
 | Aspect ratios that can be selected. “LB” stands for Letter Box and “PS” for Pan/Scan. In the example on the left, the 16:9 video can be converted into letter box video. |
Every player of this model has a certain region code assigned to it based on the country where the player is used. When the player is used to play back DVD discs, it can only play the DVD discs carrying the region codes matching the region code of the player.
The region code for this player is described on the rear panel of the player.
Region codes in the world
The DVD players are given a region code according to the country or area it is marketed, as shown in the following map.
Examples of TV screen display of each video format
When your TV is switchable between PAL/NTSC
Try play a disc. If the picture is black and white or as shown on the right, stop playback and switch the screen display formats of this unit and the TV to another format. This will improve the played picture quality.
When your TV is compatible only with the PAL format
With certain discs, the playback picture may have black spaces above and below it (as shown on the right). This is because the disc has been recorded in the NTSC format. The screen may be somewhat hard to see but this is not malfunction.
With certain discs, the playback picture may be cut above and below it (as shown on the right). This is because the disc has been recorded in the PAL format. The screen may be somewhat hard to see but this is not malfunction.
The video signals used to display TV pictures and video disc pictures are mainly based on two types of signal formats (PAL and NTSC), which are assigned to each country or area as shown on the right. As a result, it is required to select discs according to the video format used with your TV monitor (in your country or area).
DVR-605/DVR-6100/DVR-6100K (EN)
TV formats of major countries
| TV Format | Major Countries & Areas |
| NTSC | Japan, Taiwan, Korea, U.S.A., Canada, Mexico, Philippines, Chile, etc. |
| PAL | China, U.K., Germany, Australia, New Zealand, Kuwait, Singapore, etc. |
Video formats of DVD discs that can be played on this unit
Region code table
| District 1 | District 2-1 | District 3-2 | District 4-3 | District 5 | District 6-1 | District 7-2 | District 8 | |
| Area or Country Name, Region Code | North America | Europe | Japan | Middle East | Southeast Asia | Oceania | South America | Russia |
Set the video formats of the DVD discs to be played on this unit as described below.
1 Check the video format(s) used by your TV monitor.
●Refer to the operating instructions of your TV monitor for details.
2 Select DVD discs recorded with the playable video format by referring to the following table.
- See the region code table on this page for details on districts ① to ⑥.
| Your TV format | Playable Disc Formats | ||||||||
| District 1 | District 2-1 | District 3-2 | District 4-3 | District 5 | District 6-1 | District 7-2 | District 8-3 | District 9-4 | |
| NTSC only | NTSC | NTSCPAL* | NTSC | NTSCPAL* | NTSCPAL* | NTSCPAL* | NTSC | NTSCPAL* | NTSCPAL* |
| PAL only | NTSC* | NTSC*PAL | NTSC* | NTSC*PAL | NTSC*PAL | NTSC*PAL | NTSC* | NTSC*PAL | NTSC*PAL |
| NTSC/PAL switchable | NTSC | NTSCPAL | NTSC | NTSCPAL | NTSCPAL | NTSCPAL | NTSC | NTSCPAL | NTSCPAL |
Normal video may not be reproduced when a disc recorded with the video format marked * in the above table is played. See "Examples of TV screen display of each video format" for details.
3 When your TV is switchable between NTSC and PAL,
- Districts ①, ②-2 and ④-2: Set the TV to NTSC.
- Districts 2-1, 4-1 and 5: Set the TV to PAL.
- Districts 2-3, 3 and 6: Set the TV according to each disc to be played.
Restrictions due to difference between discs
Some DVD discs can be played only in certain playback modes according to the intentions of the software producers. As this player plays discs according to their intentions, some functions may not work as intended by you. Please be sure to read the instructions provided with each disc. When an inhibition icon is displayed on the TV screen connected to the player, it indicates that the disc being played is under the restriction as described above.
Inhibition icon
Make connections as shown below.
When connecting the related system components, refer also to the instruction manuals of the related components.
DVR-605/DVR-6100/DVR-6100K (EN)
Caution:
Do not plug in the power lead until all connections are completed.
Caution
Be sure to adhere followings. Or proper ventilation will be blocked causing damage or fire hazard.
- Do not place any objects impairing heat radiation onto the top of unit.
- Leave a space around the unit (from the largest outside dimension including projection) equal or greater than, shown below.
Top panel : 50 cm
Side panel : 10 cm
Back panel : 10 cm
Malfunction of microcomputer
If operation is not possible or erroneous display appears even though all connections have been made properly, reset the microcomputer referring to "In case of difficulty".
Loudspeakers
Speaker terminal
2
Excessive insertion of the cable can cause defective contact.
The figure shows an example for the speakers for DVR-605.
Connect the speaker cable terminals to the terminals with the same color at the speaker terminal panel on the main unit. Connect matching the color of the speaker terminal (+ side) and the color of the speaker cable tube.
| Speaker | Color of the speaker terminal panel on the main unit |
| Front right | Red |
| Center | Green |
| Front left | White |
| Surround right | Gray |
| Subwoofer | Purple |
| Surround left | Blue |
Speakers for DVR-6100/6100K
Caution : Read this page carefully to ensure safe operation.
DVR-605/DVR-6100/DVR-6100K (EN)
AM loop antenna
AM loop antenna connection
The supplied antenna is for indoor use. Place it as far as possible from the main system, TV set, speaker cords and power cord, and set it to a direction which provides the best reception.
FM antenna
FM indoor antenna connection
The accessory antenna is for temporary indoor use only. For stable signal reception we recommend using an outdoor antenna. Remove the indoor antenna if you connect one outdoors.
FM outdoor antenna (commercially available)
Lead the 75 Ω coaxial cable connected to the FM outdoor antenna into the room and connect it to the FM 75 Ω terminal.
Connecting to a TV
Depending on the input switching, the output from the MONITOR OUT terminal will be one of the following signals. Please note that a different signal type will not be put out.
S-VIDEO terminal : S-video signals from the internal DVD player.
VIDEO terminal : Composite video signal connected to the (VIDEO) VCR IN, the (VIDEO) SAT/CABLE IN, or the FRONT AUX VIDEO terminal.
TV
COMPONENT Video cord (except for Europe and U.K)
*COMPOSITE Video cord (accessory)
S-Video cord
COMPONENT connection corresponds only to some areas.
When the TV has a COMPONENT terminal, the DVD image will be played back with higher picture quality in case of COMPONENT connection.
Connect the S-video or the COMPOSITE video cable also in this case.
If your TV has a progressive scan feature - 25
* For Europe and U.K. only
If your TV set has a SCART terminal, connect the accessory SCART plug to the SCART terminal of the TV and connect the COMPOSITE video cord.
Connecting to a Satellite Tuner
Connecting to Audio video equipments
Connecting a Camcorder or Video game machine
STANDBY
The STANDBY indicator lights when the power cable is plugged into an outlet and the POWER switch is set to ON. While the standby indicator is lit, a small amount of power is supplied to the system to back up the memory. When the POWER key on the remote control unit is pressed in STANDBY status, the STANDBY indicator goes out and the main unit reaches operation status. When the POWER switch is set to OFF in operation status, the unit will return to operation status when the POWER switch is set to ON again. When the POWER switch is set to OFF in STANDBY status, the unit will return to STANDBY status when the POWER switch is set to ON again.
DVR-605/DVR-6100/DVR-6100K (EN)
The keys on the remote control unit with the same names as on the main unit have the same function as the keys on the main unit.
⑦SOURCE key → 57 → 63
②DISPLAY key → 20
③INPUT SELECTOR keys → 18
④TV key → 63
5 Numeric keys (0 - 9, +10, +100)
$$ - \boxed {2 2} - \boxed {2 7} - \boxed {6 3} $$
$$ \mathbf {P G M} \text { key } \rightarrow 3 5 $$
$$ \text { CLEAR key } \rightarrow 4 5 $$
⑥MUTE key → 18
⑦VOLUME keys → [18]
⑧TOP MENU key → 26
$$ / \mathrm{P.B.C.key} \rightarrow 3 8 $$
⑨ Cursor Up (▲), Down (▼),
$$ \text { Left } (\blacktriangleleft) \text { and Right } (\blacktriangleright) \text { keys } $$

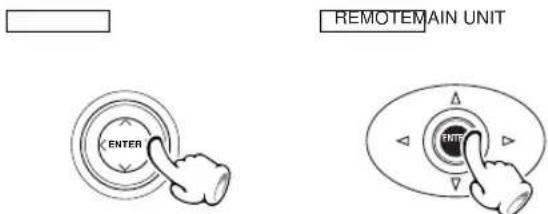

$$ \text { ENTER key } \rightarrow \boxed {2 8} \rightarrow \boxed {4 3} \rightarrow \boxed {4 6} $$
10RETURN key - 46
11◀◀/▶▶(Skip) keys
$$ \mathbf {P . C A L L k e y s} $$
$$ \rightarrow \boxed {2 1} \rightarrow \boxed {2 7} $$
$$ ⑫ \bullet R E C (r e c o r d) k e y $$
$$ \mathrm{S.TITLEkey} $$
13 ◀◀ / ▶▶ (Search) keys
$$ / \text { TUNE keys } $$
$$ / \text { TV.VOL.keys } $$
14Speaker select keys
15 Listen mode key
$$ \rightarrow \boxed {1 9} \rightarrow \boxed {2 0} \rightarrow \boxed {5 3} $$
$$ ⑯ \text { Active EQ. / SOUND key } $$
$$ \text { SETUP key } $$
17 POWER ⏻ key
18 INPUT MODE / RANDOM key
$$ \rightarrow \boxed {5 6} \rightarrow \boxed {3 4} $$
⑲ SET / AUDIO key → 63 → 39
20 CH. UP / DOWN keys → 63
$$ / \text { REPEAT A - B keys } \rightarrow 3 3 $$
27 TV INPUT key -63
22 MENU key - 46
$$ \text { PTY key (Europe and U.K. only) } $$
$$ - \boxed {2 4} $$
23 ▶ (play) key → 26
24 ON SCREEN key → 28
$$ \text { RDS key (Europe and U.K. only) } $$
$$ \rightarrow \boxed {2 3} $$
25 II (pause) key → 26
$$ \text { PRESET key } \quad - 2 2 $$
26 ■ (stop) key - 26
$$ \text { AUTO / MONO key } \rightarrow 2 1 $$

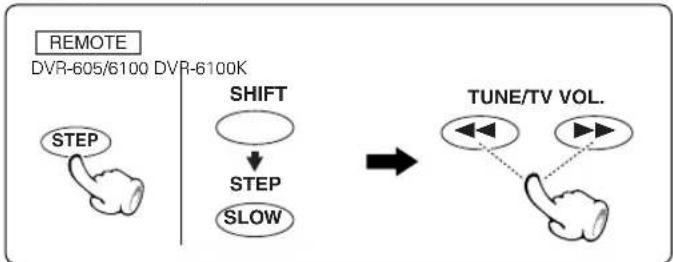

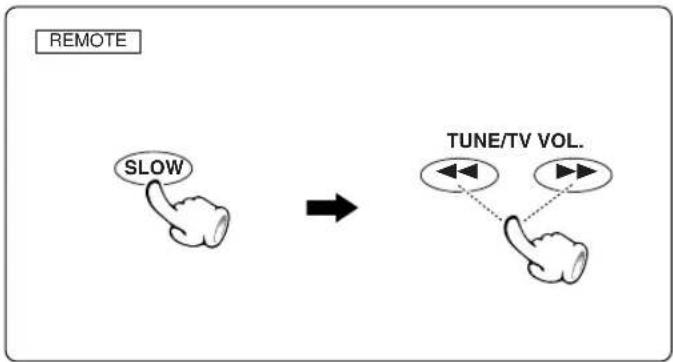

27SLOW key
$$ (D V R - 6 0 5 / 6 1 0 0) \quad - \boxed {2 7} $$
$$ \text { SLOW / STEP key } $$
$$ (D V R - 6 1 0 0 K) \rightarrow \boxed {2 7} $$
28 STEP key
$$ (D V R - 6 0 5 / 6 1 0 0) \quad - \boxed {2 7} $$
$$ \mathbf {S H I F T k e y} $$
$$ (D V R - 6 1 0 0 K) \quad - \boxed {2 7} \rightarrow \boxed {3 9} $$
Karaoke keys (DVR-6100K only)
$$ \text { ECHO keys } \rightarrow 4 0 $$
$$ \text { Key Control keys } \rightarrow 3 9 $$
30 TRIM / Up (▲), Down (▼) keys
$$ \rightarrow \boxed {1 9} \rightarrow \boxed {2 0} \rightarrow \boxed {5 4} $$
Model : RC-R0624 (for USA and Canada), RC-R0624E (for Europe and U.K.), RC-R0624K (for other countries) Infrared ray system
Loading batteries
① Remove the cover.
③ Close the cover.
- Insert two R6 ("AA") batteries following the polarity indications.
Operation
Insert the power plug into a power outlet, press the POWER switch of the main unit to ON, then press the POWER key on the remote control.
- When pressing more than one remote control keys successively, press the keys securely by leaving an interval of 1 second or more between pressing of keys.
- The provided batteries are intended for use in operation checking, and their service life may be short.
- When the remote controllable distance becomes short, replace both of the batteries with new ones.
- If direct sunlight or the light of a high-frequency fluorescent lamp (inverter type, etc.) is incident to the remote sensor, malfunction may occur. In such a case, change the installation position to avoid malfunction.
Preparation
MAIN UNIT
- set the POWER switch to the ON ( ) position.
Basic use method
Selecting the desired input
MAIN UNIT
REMOTE
Switching is done as follows when the INPUT key of the main unit is pressed. (The parenthesized part shows an operating example.)
① Tuner (frequency display)
② VCR (VCR → ANALOG → VCR)
③ SAT/CABLE (SAT/CABLE → AUTO → SAT/CABLE)
④ FRONT AUX (FRONT → OPTICAL → FRONT)
⑤ DVD/CD
Volume adjustment
MAIN UNIT
- When one of the keys on the left is pressed while STANDBY mode, the power will be switched on automatically and the input will be selected.
- The power will be switched on and the respective operation will be performed also when the OPEN/CLOSE key, the PLAY/PAUSE key or the BAND key on the main unit is pressed during STANDBY mode.
- When a disc is set in the disc tray and the DVD CD key is pressed, disc playback will start automatically.
In case of operation with the remote control unit, first select the input or device to be operated with the INPUT SELECTOR keys then perform the desired operation. The present mode of the remote control unit may not coincide with the equipment to be operated.
- When using the remote to select SAT or CABLE; SAT (SAT → AUTO → SAT) CABLE (CABLE → AUTO → CABLE)
The input mode can be switched with SAT/CABLE and FRONT AUX.
Refer to "Changing the INPUT MODE"
→56
Normally "MAX" is displayed when the volume settings set to the maximum value.
If you have adjusted the speaker level above 0db with the TRIM key (→54), "MAX" will not be displayed.
Muting the sound temporarily
Remote control unit only
Listening through headphone
Insert the headphone plug into the PHONES jack.
- Press the MUTE key.
- Press again to resume the original volume.
- The sound muting is also cancelled when the volume is controlled.
This unit offers various surround modes, but it switches automatically to stereo mode when headphones are connected.
To open the door, pull the lower part on the right side of the main unit.
●The sounds from all speakers are cut off.
Changing the Tone
This unit is equipped with various preset equalizers, so that various sounds can be enjoyed. In addition, it has an ACTIVE EQ. function for one-touch equalization.
Selecting the DSP mode
Five different sounds are preset in DSP mode. Please select the type you like.
DSP mode can be selected only at the time of a PCM source (normal music CD, MP3 file, etc.).
REMOTE
Press the Listen mode key repeatedly
Listen mode
Each press switches the mode
ACTIVE EQ.
Press the ACTIVE EQ key repeatedly
MAIN UNIT
ACTIVE EQ
REMOTE
Each press switches the ACTIVE EQ.
- In some cases, the unit may not enter the ACTIVE EQ mode by pressing the ACTIVE EQ key once. In this case, press the key one more time.
Selecting the NIGHT (MID NIGHT) mode. (Dolby Digital only)
Any time you don't want to experience the loud and soft volume extremes of recorded sound (for example, late at night), use NIGHT function to reduce volume extremes.
REMOTE
1 Press the SOUND key.
Active EQ./SOUND
2 Press the TRIM (▲/▼) key.
Displayed NIGHT OFF (or NIGHT ON).
Each press switches the mode
TREBLE CONTROL (Normal music CD, VCD and tuner only)
REMOTE
1 Press the Listen mode key
2 Press the SOUND key
3 Select treble level
Set to STEREO mode. (The TREBLE CONTROL can be adjusted only STEREO mode)
TRBL is displayed.
Operation is not possible with DOLBY DIGITAL and DTS source.
Each press switch the TRBL level
●The treble level can be adjusted between +10 and -10.
Dimmer
The brightness of the display can be changed in 3 levels. Adjust the brightness as you like by pressing the DISPLAY key.
Press the DISPLAY key for more than 2 seconds
REMOTE
DVR-605/DVR-6100/DVR-6100K (EN)
It is also possible to receive them by one-touch operations by storing up to 30 stations in the preset memory. (-22)
1 Select the TUNER input
REMOTEMAIN UNIT
2 Select the broadcast band
REMOTEMAIN UNIT
3 Select a tuning mode
When using the main unit, press INPUT repeatedly to select the tuner. When the BAND key on the remote is pressed, this unit will be switched on automatically.
Each press changes the band.
Each press switches the mode
When the TUNE keys are pressed in AUTO mode, a station will be tuned in automatically and tuning will stop. Stereo reception will be made automatically when a stereo broadcast with sufficient signal strength is received.
4 Select a station
P.CALL (preset call) AUTO (auto tuning) MANUAL (manual tuning)
MAIN UNIT REMOTE REMOTE
Press the ◀◀◀, ▶▶▶ keys to select a preset station.
Press the TUNE key to receive the next tuned station automatically
REMOTE
Each time a key is pressed, the frequency is changed by one step.
When a key is pressed continuously, the frequency changes continuously.
Use the manual tuning mode when reception is noisy due to weak reception. (In the manual mode, stereo broadcasts are received in monaural.)
DVR-605/DVR-6100/DVR-6100K (EN)
You can store up to 30 stations in the memory and recall with a single touch of the key.
Storing the broadcast stations (one-by-one presetting)
1 Select a station (auto tuning or manual tuning) → 21
2 Press the PRESET key
REMOTE
3 Select the desired preset number
REMOTE
4 Press the PRESET key
REMOTE
Repeat steps 1 to 4 to preset other stations.
Presetting can be done with mixing of FM and AM stations. (Example)
01: FM 90.00
02: AM 810
03: FM 88.00
Please perform the next operation while the indicator is blinking.
In case of input with the number keys, a preset number will be decided simply by input of a 2-digit number without pressing the ENTER key.
RDS is a system which transmits useful information (digital data) for FM broadcasts together with the broadcast signal. Tuners and receivers designed for RDS reception can extract the information from the broadcast signal for use with various functions such as automatic display of the station name.
Using RDS function (for Europe and U.K. only)
Functions made possible with RDS
PS (Program Service Name) Display :
When an RDS broadcast is received, the station name is automatically displayed.
PTY (Program Type Identification) Search :
The tuner automatically searches for a station which is currently broadcasting a specified program type (genre).
CT (Clock Time) :
Decodes the real time clock from the FM frequency.
RT (Radio text) :
Displays the radio text data transmitted by some RDS stations when you select the RT mode.
Using the RDS Display function
1 Select the FM broadcast station
2 Press the RDS key
Each press switches the display mode as follows.
PS NAME
- If the PS information is being received, the PS name (BBC, AFO, NDR, etc.) is shown on the display.
- If the PS information is not received, the original FM frequency is shown.
●Even though no RDS key is pressed, the reception of PS information ensues the PS name is displayed.
CT display
- If the CT information will take up to 2 minutes to be decoded therefore the clock is not displayed immediately.
- If the CT information is not received, the "NO CT" is shown on the display.
●The CT clock does not update the system clock.
RT display
●Text data accompanying the RDS broadcast scrolls across the display (64 characters can be displayed).
←Scrolled display
- If the RT information is not received, the "NO RT" is shown on the display.
PTY function (for Europe and U.K. only)
The PTY information is composed of an identification symbol, which helps the FM radio to recognize the program type of each FM station.
The 29 PTY modes are shown in the display by pressing the PTY key.
Using the PTY search function
1 Select the FM band
2 Press the PTY key
- The PTY MODE (POP M, ROCK M etc.) appears on the display.
3 Press the P.CALL (◄◄◄/►►) keys to select the desired program type.
4 When the program type is selected, press the PTY key.
Auto-search the station sequentially
- Press again during search to cancel.
PTY not found
After display of NO PTY, return is made to the normal display.
DVR-605/DVR-6100/DVR-6100K (EN)
RDS Program types
| Program Type Name | Receiver Display |
| News NEWS | |
| Current Affairs AFFAIRS | |
| Information INFO | |
| Sport SPORT | |
| Education EDUCATE | |
| Drama DRAMA | |
| Culture CULTURE | |
| Science SCIENCE | |
| Varied VARIED | |
| Pop Music POP M | |
| Rock Music ROCK M | |
| Easy Listening Music EASY M | |
| Light Classical Music LIGHT M | |
| Serious Classical Music CLASSICS | |
| Other Music | OTHER M |
| Weather | WEATHER |
| Finance FINANCE | |
| Children's programs | CHILDREN |
| Social affairs | SOCIAL |
| Religion | RELIGION |
| Phone in | PHONE IN |
| Travel | TRAVEL |
| Leisure | LEISURE |
| Jazz Music | JAZZ |
| Country Music COUNTRY | |
| National Music | NATION M |
| Oldies Music | OLDIES |
| Folk Music | FOLK M |
| Documentary | DOCUMENT |
DVR-605/DVR-6100/DVR-6100K (EN)
If your TV has a progressive scan feature, the progressive scan function allows you to enjoy higher quality video signals when you play back DVD (etc.) software from this unit.
Press and hold the ON SCREEN key for more than 5 seconds
MAIN UNIT REMOTE
PROGRESSIVE ON scrolls in the display.
PROGRESSI
Each time you switch to the DVD/CD input "PROGRESSIVE ON" scrolls in the display.
To turn off the progressive scan Repeat this operation.
●PROGRESSIVE OFF scrolls in the display.
●There is no display when you switch to the DVD/CD input.
Basic play
1 Load a disc
MAIN UNIT
①Open the tray. ②Place a disc. ③Close the tray.
Label side
2 Select the DVD CD
MAIN UNIT
REMOTE
- When a disc is set on the tray and DVD/CD is selected, playback of the disc will be started automatically.
When a Disc Menu appears on the screen
In case of interactive DVDs, a Disc Menu appears on the screen. Then press ENTER to select specific menu you want to play by using Cursor keys.
When a menu screen is recorded on the disc, the menu screen will be displayed when the TOP MENU key is pressed. At the menu screen, the menu can be selected by pressing the Cursor keys.
3 Start playback
MAIN UNIT
REMOTE
●Each press PLAY/PAUSE key on the main unit pauses and plays the disc alternately.
- Press II key on the remote control unit to pause the disc.
PRESET
- When the PLAY/PAUSE key on the main unit is pressed while an input other than disc is selected, the unit will be switched to DVD/CD and playback will start.
To stop playback
MAIN UNIT
REMOTE
AUTO/MONO
RESUME playback
When the STOP key has been pressed once during playback to stop the playback, and then playback is started again, play will start from the point where the playback had been stopped. This is called the RESUME function. When the STOP key is pressed again during stop, the RESUME function is cancelled.
RESUME is cancelled when 5 minutes have passed in RESUME status.
Disc playback features
- You won't hear the sound (audio) on the DVD when you're using the Skip, Search, Step or Slow motion features.
●Playback features are not available during the opening credits of a movie.
DVD CD VCD Skipping chapters or tracks
MAIN UNIT
To skip backward
To skip forward
To skip backward
To skip forward
●The chapter (or track) in the direction of the key pressed is skipped, and the selected chapter (or track) will be played from the beginning.
- When the I◀◀ key is pressed once during playback, the chapter (or track) being played will be played from the beginning.
CD Playback from desired track
REMOTE
DVD VCD STEP (freeze frame and frame advance)
DVD VCD Slow motion playback
DVR-605/DVR-6100/DVR-6100K (EN)
REMOTE
To search backward
To search forward
- During playback, press the ◀◀ or ▶▶ key - Each press switches the searching speed.
①×2 (F.SEARCH 1)/(R.SEARCH 1) ②×4 (F.SEARCH 2)/(R.SEARCH 2) ③×8 (F.SEARCH 3)/(R.SEARCH 3) ④×16 (F.SEARCH 4)/(R.SEARCH 4) (At the time of DVD playback only)
-
Press the PLAY key at any time to resume normal playback.
●Audio is not output during F.SEARCH or R.SEARCH playback. -
Select the desired track No.
- Press the numeric keys as shown below (Example)
To select track No. 23 : 2 3 - When a number exceeding the largest track No. on the CD being played is specified, a question mark "Tr?" will be displayed.
● Each time you press the ◀◀, ▶▶ keys, the picture advances one frame.
- At the time of VCD playback, backward STEP is not possible.
- Press the PLAY key to resume normal playback.
●DVR-6100K only
Press the SHIFT key before pressing the STEP key.
- During playback, press the SLOW keys, then press the ◀◀, ▶▶ keys.
- Each press ◀◀, ▶▶ keys switches the motion speed.
(At the time of DVD playback)
①F.SLOW 1/16 (R.SLOW 1/16) ②F.SLOW 1/8 (R.SLOW 1/8) ③F.SLOW 1/4 (R.SLOW 1/4) ④F.SLOW 1/2 (R.SLOW 1/2)
(At the time of VCD playback)
①F.SLOW 1/8 (R.SLOW is not possible) ②F.SLOW 1/4 (R.SLOW is not possible) ③F.SLOW 1/2 (R.SLOW is not possible)
- Press the PLAY key to resume normal playback.

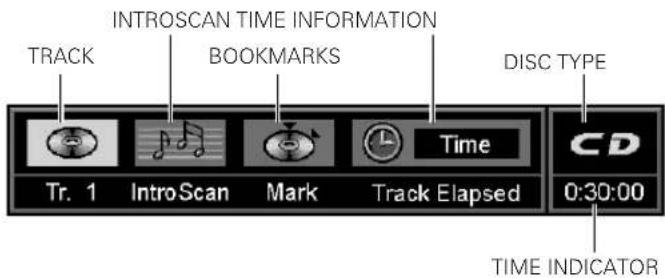

The on-screen Banner Display contains many playback features. To see the Banner Display, press ON SCREEN (OSD) while a disc is playing. Use the Cursor (Up/Down/Left/Right) keys to move through the different features in the Banner Display. Each feature is illustrated with an icon.
⑦During playback, press the ON SCREEN key.
MAIN UNIT
REMOTE
② Press the Cursor left/right (◄/►) keys to highlight a banner display icon.
MAIN UNIT
REMOTE

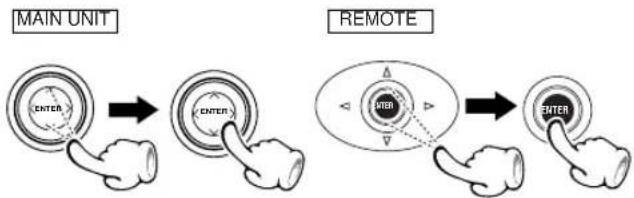

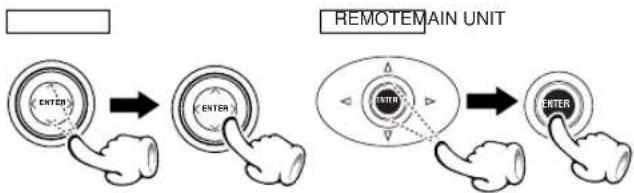

③Press the ENTER key.
MAIN UNIT
REMOTE
To display disappear from the screen
Press the ON SCREEN (OSD).
MAIN UNIT
REMOTE
When playing a DVD
When playing a CD/VCD
Switch the CD time indicator as follows.
①Select the time information with the cursor key. ②Each time the ENTER key is pressed, the time indicator changes as follows.
①Track Elapsed (elapsed time of the track being played)
② Track Remain (remaining time of the track being played)
③ Disc Elapsed (elapsed time of the disc being played)
④ Disc Remain (remaining time of the disc being played)
- You can only access the banner display when you're playing a disc.
- The banner display feature are only available if the disc was created with that particular feature (i.e., if you select the Subtitle icon, you won't be able to change the subtitle language unless the author of the disc created the disc with subtitles).
- The invalid symbol appears on the screen when you press a key that doesn't have any function. If one of the icons is "grayed out," the banner display feature isn't available for the disc you're playing.
DVD Selecting a Title
Some discs contain more than one title. For example, there might be four movies on one disc (each movie might be considered a title).
⑦During playback, press the ON SCREEN key.
MAIN UNIT
REMOTE
② Press the Cursor left/right (◄/►) keys until the TITLE icon is highlighted.
MAIN UNIT
REMOTE
③Press the ENTER key. ("T\_" appears)
MAIN UNIT
REMOTE
④Use the numeric keys on the remote or the cursor keys on the main unit to enter the title number.
MAIN UNIT
REMOTE
When you enter a one-digit Title number, you may have to press ENTER on the remote after pressing the numeric key (1\~9) on the remote. Otherwise press 0 first and the other value. Then play starts. This varies depending on number of Title within the disc you're playing.
Some discs only have one title.
DVD CD VCD Selecting a Chapter or Track
Because DVD discs use digital technology, a title can be divided into individual chapters (similar to tracks on a CD). You can skip a specific chapter by using the Chapter section in the Banner Display.
⑦During playback, press the ON SCREEN key.
MAIN UNIT
REMOTE
② Press the Cursor left/right (◄/►) keys until the CHAPTER or TRACK icon is highlighted.
MAIN UNIT
REMOTE
③Press the ENTER key. ("C\_" or "Tr\_" appears)
MAIN UNIT
REMOTE
④Use the numeric keys on the remote, or the skip keys on the main unit to enter the chapter or track.
MAIN UNIT REMOTE
The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it and output nothing or only meaningful text. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated placeholder underscores where none should exist. Hence, the result is inconsistent with the Ground Truth.
When you enter a one-digit chapter or track number, you may have to press ENTER on the remote after pressing the numeric key (1\~9) on the remote. Otherwise press 0 first and the other value. Then play starts. This varies depending on number of chapter or track within the disc you're playing.
- The Chapter feature won't work if the disc isn't formatted with separate chapters.
- P.B.C. on mode of VCD, the Selecting a Track function may not work.
DVD Changing the Audio Language
If the disc was created with different language tracks, you can use the Banner Display to temporarily change the DVD player's Audio setting.
Using the on-screen banner display
⑦During playback, press the ON SCREEN key.
MAIN UNIT
ON SCREEN
REMOTE
ON SCREEN ON SCREEN
② Press the Cursor left/right (◄/►) keys until the AUDIO icon is highlighted.
MAIN UNIT
REMOTE
③Press the ENTER key.
MAIN UNIT
REMOTE
The audio menu appears
1: English 6ch. Dolby Digital
④ Press the ENTER key repeatedly to select the audio language.
MAIN UNIT
REMOTE
●The menu is switched off when no operation is performed for about 5 seconds.
- The language feature only works if the disc was created with multiple audio tracks.
- When you chose an audio language from the Banner Display, you only override the audio language setting in the DVD Player's main menu (in the Language Preferences menu within Setup menu) temporarily.
DVD Changing the Subtitle Language
You can change the Subtitle language while you're watching a disc (but only if the disc was created with subtitles).
Using the on-screen banner display
⑦During playback, press the ON SCREEN key.
MAIN UNIT REMOTE
[Empty]
②Press the Cursor left/right (◄/►) keys until the SUBTITLE icon is highlighted.
MAIN UNIT REMOTE
[NO TEXT]
③Press the ENTER key.
MAIN UNIT REMOTE
[Empty]
Displayed when SUBTITLE is ON
The subtitle menu appears
1: English
④ Select the subtitle language with press the ENTER key.
MAIN UNIT REMOTE
[Empty]
⑤ Press the S. TITLE key to turn subtitles ON or OFF.
Remote control unit only
S.TITLE
● REC
●The menu is switched off when no operation is performed for about 5 seconds.
- The subtitle feature only works if the disc was created with multiple subtitle tracks.
- The subtitle menu of the disc appears in some discs.
DVD Changing the Camera angle
Some disc contains multiple angles in particular scene or sequence. If the disc only has one angle, this feature won't work.
Using the on-screen banner display
⑦During playback, press the ON SCREEN key.
MAIN UNIT
ON SCREEN
REMOTE
ON SCREEN ON SCREEN
② Press the Cursor left/right (◄/►) keys until the ANGLE icon is highlighted.
MAIN UNIT
REMOTE
③Press the ENTER key.
MAIN UNIT
REMOTE
The ANGLE menu appears
Angle:1
④Press the ENTER key repeatedly to select the angle.
MAIN UNIT
REMOTE
●The menu is switched off when no operation is performed for about 5 seconds.
CD VCD Using IntroScan function
IntroScan plays the first few seconds of each track on only one disc similar to the scan feature that's on many car radios.
Using the on-screen banner display
⑦During playback, press the ON SCREEN key.
MAIN UNIT
REMOTE
ON SCREEN
② Press the Cursor left/right (◄/►) keys until the IntroScan icon is highlighted.
MAIN UNIT REMOTE
The image contains no text or content.
③Press the ENTER key.
MAIN UNIT
REMOTE
●The first 10 seconds of each track play.
●After Intro Scan goes through all of the tracks, it stops.
- If you want to stop IntroScan while it's in progress, just press ENTER key on the remote (the current track starts playing in its entirety).
(When the On-screen display has gone out, press the ON SCREEN key, select Intro Scan, and press the ENTER key.)
P.B.C. on mode of VCD, the IntroScan function may not work.
DVD CD VCD Using Bookmarks
The bookmark feature lets you mark a point on the disc that you can go to quickly. You can store up to 9 bookmarks.
Create the bookmark Recalling a bookmarked scene
⑦During playback, press the ON SCREEN key.
MAIN UNIT
REMOTE
ON SCREEN ON SCREEN
② Press the Cursor left/right (◄/►) keys until the BOOKMARK icon is highlighted.
MAIN UNIT REMOTE
[NO TEXT]
③Press the ENTER key.
MAIN UNIT REMOTE
[NO TEXT]
Return to the previous banner display
④ Move cursor to the MARK row, and press ENTER when you reach the point you want to mark.
MAIN UNIT
REMOTE
- You can also make a bookmark by pressing a numeric key (1\~9) when the cursor is in the MARK row.
●Press the ON SCREEN key to switch the menu off.
Clearing a bookmark
● The bookmark is cleared each time the disc changes or when the power is turned off.
- If all 9 bookmarks are in use, you can still mark new scenes, but the previous bookmarks will be erased.
- Depending on the disc, the Bookmark function may not work
● P.B.C. on mode of VCD, the Bookmark function may not work.
⑦During playback, press the ON SCREEN key.
MAIN UNIT REMOTE
ON SCREEN
[NO TEXT]
② Press the Cursor left/right (◄/►) keys until the BOOKMARK icon is highlighted.
MAIN UNIT REMOTE
[Empty]
③Press the ENTER key.
MAIN UNIT REMOTE
[Empty]
The bookmark appears
④ Move the cursor to the GO TO row and select the bookmark scene you want to activate.
MAIN UNIT
REMOTE
GO TO row
- You can also go to a bookmark by pressing a numeric key (1\~9) when the cursor is in the GO TO row.
⑤Press the ENTER key to active the bookmark.
MAIN UNIT
REMOTE
●Press the ON SCREEN key to switch the menu off.
DVD CD VCD Repeat play
Desired titles or discs can be played back repeatedly.
- Repeat Disc – Repeat the disc that is playing.
- Repeat Title – Repeat the title that is playing.
- Repeat Chapter – Repeat the chapter that is playing.
- Repeat Track – Repeat the track that is playing.
During playback, press REPEAT on the remote.
The Repeat display appears
Each press switches the REPEAT mode.
At the time of DVD playback
At the time of CD/VCD playback
●To cancel repeat playback, press the REPEAT key and select "Repeat off".
●The menu is switched off when no operation is performed for about 5 seconds.
P.B.C. on mode of VCD, the Repeat play function may not work.
DVD CD VCD A-B Repeat play
The A-B repeat function lets you mark a segment to repeat between the beginning "A" and the end "B" of the segment you want to replay.
⑦ Press the A-B key on the remote when you want to choose a scene (sound) as the beginning point.
The Repeat A- display appears
② Press the A-B key again to choose a scene (sound) as the end point.
The Repeat A-B display appears
●To cancel A-B Repeat playback, press the A-B key and select "Repeat off".
●The menu is switched off when no operation is performed for about 5 seconds.
P.B.C. on mode of VCD, the A-B Repeat play function may not work.
CD VCD Random play
The tracks of disc are played in random order.
During playback or stop mode, press RANDOM key on the remote.
INPUT MODE
The Random Play display appears
Each time you press RANDOM key on the remote, random play would be on and off.
The Standard Play display appears when random is off.
●The menu is switched off when no operation is performed for about 5 seconds.
-
When playing a DVD, the Random function may not work.
●P.B.C. on mode of VCD, the Random play function may not work. -
When the RANDOM key is pressed during playback, the tracks of the disc being played will be selected in random order for playback.
●After all tracks of a disc have been played in random order, playback will stop. (Random mode will be cancelled.)
You can listen to the desired tracks or chapters of the current disc in any desired order.
DVR-605/DVR-6100/DVR-6100K (EN)
Registering and playing the program
Insert the disc to be used in programming in the tray, close it and press the PLAY key so that the player reads the disc information by playing disc until display "READING" disappears. (If the tray is opened after this, the above procedure should be repeated so that the player reads disc information again.)
Program Edit
⑦ During stop mode, press the PGM key on the remote.
②Select a specific title/chapter or track by pressing Cursor up/down (▲/▼) keys or numeric keys (0-9).
③Press the ENTER key.
④Select Add icon on the screen to register selected value onto Playlist, then press the ENTER key.
⑤You can select maximum 32 values by repeating step ② - ④.
⑥Press the PLAY key to start play-back.
Program edit display appears.
(An example of DVD program edit menu)
: Selected icon
: An icon which can be selected
: An icon which presently can not be selected
- When you don't add values onto "Playlist" and return to play mode, select Done icon and press ENTER key on the remote.
●While a disc is playing, press PGM key on the remote to start Program play
●To return to standard play, press the PGM key again. - MP3 discs can not be programmed with this program mode. (MP3 program play - 45)
Add / Insert icon --- Add / Insert value to "Playlist"
Delete icon --- Delete value from "Playlist"
Play icon --- Play program play
Done icon --- Return to stop or resume mode
Insert chapter or track
During stop mode, press the PGM key on the remote
⑦Select a specific title/chapter or track to insert by pressing Cursor up/down (▲/▼) keys or numeric keys (0-9).
2 Move the cursor with the Cursor right (▶) key to the "Playlist" and select the column to be added with the Cursor up/down (▲/▼) keys.
(The color of the column where the Cursor is located will change.)
③ Move the cursor with the Cursor left (◀) key to the Insert icon and press the ENTER key.
The new chapter or track will be inserted before (above) the selected column.
Delete Program
During stop mode, press the PGM key on the remote
⑦ Use the Cursor up/down (▲/▼) keys to select the column to be deleted from the "Playlist". (The color of the column where the Cursor is located will change.)
② Press the Cursor left (◀) key, use the Cursor up/down keys to move the Cursor to the Delete icon, and press the ENTER key. Or press the clear key.
Selected value deletes
P.B.C. on mode of VCD, the Program play function may not work.
PROGRAM EDIT
(An example of DVD program edit menu)
PROGRAM EDIT
Release Program play
In following case, Program play would be released.
- When you open and close tray.
- When you turn power off and on.
VCD Hierarchical structure of VCD menus
When an item is selected on the menu screen during playback of a P.B.C.-compatible VCD, another menu with more details items may be displayed. When a number of menus are connected in multiple layers in this way, it is said that the menus have a hierarchical structure. In this structure, the desired scene can be reached by repeating item selections on the menu screens.
Example for a hierarchical structure
Advancing
When an item is selected on the menu screen with the ▶ key or the numeric keys, advance is made to the next lower menu level. When the advance destination is the "scene" to be played, the contents will be played.
Returning
Each time the RETURN key is pressed, return is made to the next higher menu.
- When several menus (scenes) can be selected in each level, screen switching is possible with the keys ▶▶▶ (NEXT) and ◀◀◀ (PREV.).
Examples of operation keys and indications used during VCD playback
| Soft jacket indication | LWWD | DWDH | DACTI | TTDDI | ENTER or SELECT |
| KENWOOD operation key | DATA | RETURN | DATA | DATA | ENTER |
- Depending on the software, the jacket indication may differ from the above.
VCD Playback without using the menu playback function (In case of a P.B.C.-compatible VCD) (To P.B.C. On or Off)
Press the TOP MENU key on the remote control unit.
- For the track numbers, refer to the disc jacket or other material.
●P.B.C. off mode : Without using menu playback function.
P.B.C. off mode
To return to menu playback
Press the TOP MENU key again.
P.B.C. on mode
To return to the previous screen
Press RETURN on the remote control unit.
●The VCD returns to the previous scene.
Preparation
⑦Load a disc and Connect a microphone.
①Open the tray.
②Place a disc.
②Start playback.
- When the ▶/Ⅱ key is pressed while a tray is open, the tray closes automatically, and then playback begins.
- Adjust volume level of the microphone.
- Karaoke mode operation is possible only when a microphone is connected.
- When this unit is connected with an amplifier or receiver with only the digital connection, the microphone audio cannot be output. Use the AUDIO OUTPUT jacks to output the microphone audio from this unit.
- Karaoke operation is not available for DTS and MP3 format disc. In case of DTS CD, you may hear a loud noise.
VCD Selecting the Audio channel
You can choose to play back only the right or the left channel of audio recorded on the disc, or you can select stereo playback. This function is used for purposes such as selecting the vocal track on a Karaoke disc.
During VCD playback, press AUDIO key on the remote.
Each press switches the mode.
- When playing a Karaoke DVD, please refer to the instructions included with the disc.
DVD CD VCD Controlling the key of the music (KEY CONTROL)
This feature allows to transpose the key of the music according to the key of the singer's voice.
⑦During playback, press the Key Control keys, the OSD appear on the TV display.
Press within 5 seconds after pressing the SHIFT key.
②Press the Cursor up/down (▲/▼) keys or Key Control keys to adjust the KEY level.
Press within 5 seconds after pressing the SHIFT key.
KEY CONTROL icon
KARAOKE mode icon
- Press the next key within 5 seconds of pressing the SHIFT key.
●KEY CONTROL can be varied from -3 to +3.
- Press the Cursor left or right (◀/▶) key while the OSD is displayed to select another icon.
● To turn off the OSD, press the ON SCREEN key.
●To exit from the KARAOKE mode, select the KARAOKE mode ion while the OSD is displayed and press the ENTER key.
Adjust the ECHO level
⑦During playback, press the ECHO keys, the OSD appear on the TV display.
Press within 5 seconds after pressing the SHIFT key.
② Press the Cursor up/down (▲/▼) keys or ECHO keys to adjust the ECHO level.
Press within 5 seconds after pressing the SHIFT key.
KARAOKE mode icon
- Press the next key within 5 seconds of pressing the SHIFT key.
●The echo effect can be varied from 0 to 9.
- Press the Cursor left or right (◀/▶) key while the OSD is displayed to select another icon.
- To turn off the OSD, press the ON SCREEN key.
●To exit from the KARAOKE mode, select the KARAOKE mode ion while the OSD is displayed and press the ENTER key.
An echo effect can be applied to the microphone voice to make karaoke singing sound better.
DVD CD VCD HIT MASTER function
The sound level of the vocal part of the disc is suppressed, so that it can be used in the same way as a KARAOKE disc.
⑦During playback, press the ECHO keys, the OSD appear on the TV display.
Press within 5 seconds after pressing the SHIFT key.
② Press the cursor left/right (◄/►) keys to select HIT MASTER.
③Press the ENTER key to switch HIT MASTER on/off.
This operation displays the KARAOKE display.
KARAOKE mode icon
Each press switches the mode.
- Press the Cursor left or right (◀/▶) key while the OSD is displayed to select another icon.
- To turn off the OSD, press the ON SCREEN key.
●To exit from the KARAOKE mode, select the KARAOKE mode icon while the OSD is displayed and press the ENTER key.
Depending on the disc, the suppression amount may be smaller.
Guidance of MP3
Media that can be played back with this equipment
Usable media : CD-ROM, CD-R, CD-RW
Usable format : ISO9660 level 1.
Files that can be played back : MP3 files
Creating media for playing back on this equipment
Compressing MP3
Please set up the transfer bit rate setting for the compression software when compressing MP3 files as follow.
MP3 Files : 128kbps recommended (32kbps-320kbps)
- This unit is compatible with 32 kHz, 44.1 kHz (recommended) and 48 kHz sampling frequencies.
Naming folders and files
Single-byte characters between A and Z, single-byte numerals between 0 and 9, and the single-byte underscore(_) can be displayed. Ensure that the “.MP3”(MP3 files) extension log is attached to all file names.
- Never add the MP3 extension log to any files other than MP3 files. If the MP3 extension log is added to any files other than MP3 files, the equipment will assume that they can be played back, and this will produce loud noises in the speakers, resulting in damage of adverse effects.
Confirming media and files
Check to ascertain that MP3 files can be played back correctly on the personal computer in use prior to saving them onto the media.
Check to ensure that the saved file can be played back normally.
- It is not possible to confirm that files can be played back correctly while they are being saved onto the media.
When saving files onto media
Ensure that the session is closed or finalized when data has been written on media. There are cases where media on which the session has not be closed or finalized will not be played back correctly with this equipment.
- There are cases were the folder names and file names will not be displayed correctly depending on the software used to save them.
- Do not store files or folders other than MP3 on media to be played back with this equipment.
- It is recommended that ten or less sessions are stored when recording MP3 files onto a media.
- Some time may be required until the playback of multi-session discs starts.
- There are cases where playback is not possible when MP3 files (CD-ROM) and music CD information (CD-DA) are saved on the same media.
Example for a hierarchical structure
Playing back MP3
- It is not possible to play back folders and files (up to 223) that exceed the maximum limitations of the media.
●A certain amount of time is required for the player to confirm the media on which MP3 files have been recorded before playback will commence.
●The files will be played back in the sequence in which they were recorded (written).
Playback
Each press pauses and plays the disc alternately. (When you insert the MP3 media, playback will start automatically.)
(When you insert MP3 media, MP3 On-screen display appears.)
To stop playback
Press ■ (STOP) key.
MAIN UNIT REMOTE
Skipping files
During playback, press ◀◀◀ or ▶▶▶ key.
MAIN UNIT REMOTE
To skip backward To skip forward
To skip backward
To skip forward
MP3 On-screen display
Folder names and file names are displayed up to 8 characters. When folder names and file names are recorded with more than 8 characters, the names will be displayed in abbreviated form.
Selecting MP3 files
DVR-605/DVR-6100/DVR-6100K (EN)
⑦ Press Cursor up/down (▲/▼) keys to select the folder, then press the ENTER key.
② Press Cursor up/down (▲/▼) keys to select the file, then press the ENTER key.
●Playback will start from selected file.
Selects the files to be played back directly
⑦ Press the Cursor right (▶) key to invert the file numbers.
②Press the numeric keys on the remote to enter the desired file number.
- If “--” is displayed after completion of the file number entry, press the ENTER key before “--” disappears.
●Playback will start from selected file.
●The files and folders in the selected folder appear.
Press ENTER key on RETURN folder icon to move to the upper layer.
MP3 Repeat play
Desired folders or discs can be played back repeatedly.
- "Repeat 1 Disc": Repeat the disc that is playing.
- "Repeat 1 Folder": Repeat the folder that is playing.
- "Repeat Track": Repeat the file that is playing.
During playback, press the REPEAT key on the remote.
REMOTE
●To cancel repeat playback, press the REPEAT key and select "Standard Play".
When the folder played by repeat play contains subfolders, the files in the subfolders cannot be played back.
MP3 Random play
The files of the disc are played in random order.
During playback or stop mode, press RANDOM key on the remote.
REMOTE
INPUT MODE
- When the RANDOM key is pressed during playback, the tracks of the disc being played will be selected in random order for playback.
●After all tracks of a disc have been played in random order, playback will stop. (Random mode will be cancelled.)
To repeat random play
During random playback, press the REPEAT key on the remote.
REMOTE
Each press the key switches the mode.
①Display lit "REPEAT ALL"
②Repeat canceled
Each press the key switches the REPEAT mode.
① "Repeat 1 Disc": Display lit "REPEAT ALL"
② "Repeat 1 Folder": Display lit "REPEAT ALL"
③ "Repeat Track": Display lit "REPEAT 1"
④"Standard Play"
Display
Each time you press RANDOM key on the remote, random play would be on and off.
①"Random Play"
②"Standard Play"
Display
It is not possible to perform random play by specifying a folder name.
MP3 Program play
You can listen to the desired files of the current MP3 disc in any desired order.
Program Edit
⑦ During stop mode, press the PGM key on the remote
② Press Cursor up/down (▲/▼) keys on the remote to select the file, then press the ENTER key.
●The selected file go to program window.
- You can select maximum of about 100 files by repeating step ②. However, note that the maximum number of programmable files depending on the number of files and folders in the MP3 disc and on the total number of characters used in the file and folder names.
③ Press▶/II key to start program play-back.
●To return to standard play, press the PGM key again.
- If a file number is entered during editing or playing a MP3 program, the program mode will be canceled.
Display
Press ENTER key on RETURN folder icon to move to the upper layer.
Delete Program
During stop mode, press Cursor left/right (◀/▶) keys on the remote to select the "ALL CLEAR" icon, then press the ENTER key.
●The program deletes.
- You can delete file one by one by selecting in Program window and pressing CLEAR key on the remote.
Set up menu
The initial setup of the player, which has been made at the factory, can be changed to the desired setup.
⑦During stop mode or resume mode, press the MENU key.
MAIN UNIT
REMOTE
Current setup menu display appears on the screen.
② Press Cursor up/down (▲/▼) keys to select the item, then press the ENTER key to access the sub features
MAIN UNIT
REMOTE
(Menu display example)
Audio / Subtitle(disc languages) : This sets the language to be used when playing a disc. (If a disc does not contain the recording the selected language, it is played in the priority language set for each disc.)
Menus : This sets the initial setup of language as well as the language used in on-screen messages such as "PLAY".
Rating : This can restrict playback of adult-oriented DVD discs that you do not want to be seen by children.
However, even when a DVD disc is marked "Adult-oriented" or so on the label, its viewing cannot be restricted unless the restriction level is recorded in the disc itself.
Password : The password for rating setting, change, cancellation, etc. is set.
TV Aspect : This sets the screen size (4:3 or 16:9 aspect ratio) according to the connected TV.
- 4 x 3 letterbox : Choose this setting if you would prefer to see movies in their original aspect ratio. You will see the entire frame of the movie, but it will occupy a smaller portion of the screen. This setting may result in the movie appearing with black bars at the top and bottom of the screen.
- 4x3 Pan Scan: Choose this setting if you want the movie to fill the entire screen of your TV. You won't see part of the picture (particularly the right and left edge). Some disc produced in a wide screen format can't be cropped in this fashion, which means the black bars would appear at the top and the bottom of the screen.
- 16 x 9 Widescreen : Choose this setting if your DVD player is connected to a widescreen TV.
How to use the RETURN key
When the RETURN key is pressed, the display returns to the previous screen (STOP mode).
RETURN
DVD Select Audio Language
7 Press Cursor up/down (▲/▼) keys to select Audio on the set up menu display, then press the ENTER key.
(Audio menu appears.)
(The display shows an example for some areas)
② Press Cursor up/down (▲/▼) keys to select specific Audio language, then press the ENTER key.
To select other language
①Select "Other" and press ENTER key
②Input code in the first digit by pressing Cursor up/down (▲/▼) keys or numeric keys on the remote and repeat other 3 code with same way.
③Press the ENTER key on "OK" icon. (DVD menu language code list → 64)
- Press PLAY key to resume normal playback.
DVD Select Subtitle Language
⑦ Press Cursor up/down (▲/▼) keys to select Subtitle on the set up menu display, then press the ENTER key.
(Subtitle menu appears.)
(The display shows an example for some areas)
② Press Cursor up/down (▲/▼) keys to select specific Subtitle language, then press the ENTER key.
To select other language
①Select "Other" and press ENTER key
② Input code in the first digit by pressing Cursor up/down (▲/▼) keys or numeric keys on the remote and repeat other 3 code with same way.
③Press the ENTER key on "OK" icon. (DVD menu language code list - 64)
- Press PLAY key to resume normal playback.
DVD Select Menu Language
7 Press Cursor up/down (▲/▼) keys to select Menus on the set up menu display, then press the ENTER key.
(Menus appears.)
(The display shows an example for some areas)
2 Press Cursor up/down (▲/▼) keys to select specific Menu language, then press the ENTER key.
●Press PLAY key to resume normal playback.
DVD Select Rating
This part of DVD rating lets you determine how your player will react discs that contain movies that are rated (in the U.S.A. the Motion Pictures Association of America rates movies as G, PG, PG-13, etc.).
⑦ Press Cursor up/down (▲/▼) keys to select Rating on the set up menu display, then press the ENTER key.
When a password already has been set, the screen for change of the entered password will be displayed. In that case, enter the password. ( -49 )
(Rating aspect menu appears.)
(The display shows an example for some areas)
② Press Cursor up/down (▲/▼) keys to highlight rated titles, then press the ENTER key.
●Press PLAY key to resume normal playback.
Playback of a disc
When the settings for Rating (Parental Lock) and Password (→49) have been made, the input screen for the password will be displayed when playback of a disc corresponding to parental lock is started. Playback of that disc will be possible when the correct password has been entered.
Parental lock level
Level 8: All DVDs can be played back. (Factory preset) Level 7 to 2: DVDs for general audiences/children can be played back. (DVDs for adults are prohibited.) Level 1: DVDs for children can be played back. (DVDs for adults/general audiences are prohibited.)
Password
Input password
⑦ Press Cursor up/down (▲/▼) keys to select Password on the set up menu display, then press the ENTER key.
(Password menu appears.)
②After select "Set Password", press the ENTER key.
③ Press Cursor up/down (▲/▼) keys (or numeric keys on the remote) to enter password.
④Press ENTER key to finish password input (Confirm Password display appears below Enter Password display).
⑤ Press Cursor up/down (▲/▼) keys (or numeric keys on the remote) to enter again password that you entered.
⑥Press the ENTER key on "OK" icon.
- Press PLAY key to resume normal playback.
DVD Password (continued)
Change password
7 Press Cursor up/down (▲/▼) keys to select Password on the set up menu display, then press the ENTER key.
(Enter Password menu appears.)
② Press Cursor up/down (▲/▼) keys (or numeric keys on the remote) to enter password. Press the ENTER key on "OK" icon.
③ Press Cursor up/down (▲/▼) keys to select Change Password, then press ENTER key.
④ Press Cursor up/down (▲/▼) keys (or numeric keys on the remote) to enter password.
⑤Press ENTER key to finish password input (Confirm Password display appears below Enter Password display).
⑤ Press Cursor up/down (▲/▼) keys (or numeric keys on the remote) to enter again password that you entered.
⑦Press the ENTER key on "OK" icon.
- Press PLAY key to resume normal playback.
Password (continued)
Clear password
⑦ Press Cursor up/down (▲/▼) keys to select Password on the set up menu display, then press the ENTER key.
(Enter Password menu appears.)
② Press Cursor up/down (▲/▼) keys (or numeric keys on the remote) to enter password. Press the ENTER key on "OK" icon.
③ Press Cursor up/down (▲/▼) keys to select Clear Password, then press ENTER key.
- Press PLAY key to resume normal playback.
TV aspect
⑦ Press Cursor up/down (▲/▼) keys to select TV Aspect on the set up menu display, then press the ENTER key.
(TV Aspect menu appears.)
② Press Cursor up/down (▲/▼) keys to select TV Aspect menu, then press the ENTER key.
- Press PLAY key to resume normal playback.
What are LISTEN modes?
You can experience true home-theater sound with your new system. This system incorporates several listen modes to let you enjoy surround sound with a wide variety of program sources. Each produces multiple channels of surround-sound, but each does it differently.
- Dolby Digital: Dolby Digital uses an encode/decode process based on its theatrical digital surround sound technology. The five main channels are full-frequency and independent, so sound can completely envelop you or soar anywhere in the room, just like at the movies. Compared with Dolby Pro Logic, Dolby Digital has more clarity, greater surround envelopment, and more realistic sound movement between channels.
- Dolby Pro Logic/Dolby Pro Logic II: Dolby Pro Logic reproduces a surround sound like in a movie theater from Dolby Surround-encoded program source (videotape or LaserDisc software carrying the Dolby Surround logo), and features excellent sound movement on the front and a surrounding atmosphere of movie theaters. Meanwhile, Dolby Pro Logic II decodes a signal encoded in 2 channels into 5-channel signals composed of the left/right front signals, center signal and surround left/right signals. Dolby Pro Logic II is an advanced version of the decoding technology used with Dolby Pro Logic. It inputs 2-channel signals from a Dolby Surround-encoded source and reproduces 5-channel signals in which the surround channel is divided into independent channels for the left and right. Dolby Pro Logic II has the MOVIE mode and MUSIC mode, and the MUSIC mode enables independent adjustment of three parameters including Panorama mode, Dimension and Center Width.
● DTS: DTS has five full-frequency channels that create effects nearly identical to those in a theater. Sounds seem to zoom from one place to another or entirely surround you. Like Dolby Digital, DTS has much-improved clarity, surround and sound movement capability compared with Dolby Pro Logic. This listen mode is available on CD, LD, and DVD media. DTS is a strictly digital format that can be supplied only by a CD, LD, or DVD player that supports DTS sound. - DSP (Digital Signal Processing): DSP allows you to create your own custom surround sound environments and use them with any source (except Dolby Digital and DTS). You can select the ambience of an ARENA, JAZZ CLUB, THEATER, STADIUM or DISCO to your taste.
- SRS CS II (Circle Sound II): Circle Surround IITM improves on its predecessor Circle Surround (CS-5.1) by enabling you to experience powerful multi-channel surround sound playback from mono, stereo or Dolby Surround encoded audio and video sources. You already enjoy listening to Dolby Digital and DTS multi-channel sound through your multiple speakers. Now, with CS II you can also listen to audio CDs, MDs, television and radio broadcasts in full surround sound. You will discover a new type of sound experience through SRS Circle Surround II.
The CS system dramatically reduces storage space requirements for multi-channel content. It creates a listening environment that places the listener “inside” music performances, and dramatically improves both hi-fi audio and conventional surround encoded video material. In addition, the CS II decoder includes patented SRS Dialog Clarity Enhancement ^™ and TruBass ^™ technologies. When translated over home theater, dialog mixed for the cinema may become difficult to understand and SRS Dialog Clarity solves this problem by improving dialog clarity, even when playing back Dolby Digital or DTS sources. TruBass creates rich, deep bass in small speaker systems without the need for a subwoofer.
- Stereo: Stereo listen mode provides standard stereo sound to the front left and right speakers.
Description of Dolby Pro Logic II: Music mode
Panorama mode : Expands the image of front-channel stereo to the surround speakers to create a sound environment that fills your surroundings. (To change the Panorama mode, press SOUND key at the time of Dolby Pro Logic II Music mode. Display the PANO R OFF or ON, then press the TRIM (▲/▼) keys to select ON or OFF.)
Dimension : This controls the balance between the Front and Rear in 2 steps on the front and 2 steps on the rear. Set this parameter to one of the Front steps if the surround effect is too strong, or to one of the Back steps if it is too weak. (To change the Dimension, press SOUND key twice at the time of Dolby Pro Logic II Music mode. Display the DIMEN 0 (or other value), then press the TRIM (▲/▼) keys to select F-2, F-3, R-2 or R-3.)
Center Width : The center channel signal can be divided and distributed to the Front L/R channels. The adjustment for distributing the center channel signal to the front channels can be applied in eight steps from 0 to 7. Use this adjustment when the center image seems to be too strong. (To change the Center Width, press SOUND key 3 times at the time of Dolby Pro Logic II Music mode. Display the C WIDTH 3 (or other value), then press the TRIM (▲/▼) keys to select 0 \~7.)
The INPUT/OUTPUT status indicator becomes an input indicator at the time of DOLBY DIGITAL and DTS source and an output indicator at all other times.
To set the LISTEN mode manually
According to the contents of the disc played in this unit, the LISTEN MODE (selected by the Listen mode key) can be found in the following table
*Selectable Listen modes by SAT / CABLE / FRONT Digital input differs according to the input source.
Press the Listen mode key.
REMOTE
Listen mode
Each press switches the modes as shown below.
(At the time of PCM source)
①DOLBY PL II MOVIE
②DOLBY PL II MUSIC
③DOLBY PRO LOGIC
④CS II MUSIC
⑤CS II CINEMA
⑥CS II MONO
⑦ARENA
⑧JAZZ CLUB
⑨THEATER
⑩STADIUM
⑪DISCO
⑫STEREO
(At the time of DTS source)
①DTS
②DTS STEREO
(At the time of DOLBY
DIGITAL source)
①DOLBY DIGITAL
②STEREO
Manufactured under license from Dolby Laboratories. "Dolby", "Pro Logic" and the double-D symbol are trademarks of Dolby Laboratories.
"DTS" and "DTS Digital Surround" are trademarks of Digital Theater Systems, Inc.
"Circle Surround II" and (●) symbol are trademarks of SRS Labs, Inc. "Circle Surround II" technology is incorporated under license from SRS Labs, Inc.
Positioning the speakers
To achieve the optimum effects obtainable with this SURROUND SOUND system, it is important to position the speakers properly. Refer to the following illustration to find the best location in your room.
Preparation
① Play a disc marked "Dolby Digital".
②Stop the playback.
AUTO/MONO
For this unit, the speaker levels have been set in advance so that the best volume balance is obtained with standard use.
Initial set values for the speaker level
Left Front channel (Lch)(L) : 0dB
Center channel (Cch)(C) : 0dB
Right Front channel (Rch)(R) : 0dB
Right Surround channel (RSch)(RS) : 0dB
Left Surround channel (LSch)(LS) : 0dB
Subwoofer(SW) : 0dB
Reset as follows to match your listening environment.
Speaker level setting
①Press SETUP key for more than 2 seconds
② Press the TRIM (▲/▼) keys to control the speaker level.
●After all speakers have been adjusted, operate the Delay time setting (→55).
- If you want to quit at this time, press the ENTER key.
The test tone is played back from the Left Front speaker. Adjust the VOLUME CONTROL so that it is slightly loud and fix it there.
The speakers will be switched as follows in intervals of about 2 seconds.
Adjust the volume with the TRIM (▲/▼) keys while the indicator is flashing so that the volume from all speakers except the subwoofer (SW) appears the same. Level adjustment is possible in the range from -10 dB to +10 dB.
As the subwoofer (SW) has a special playback band, normal adjustment is not possible with the test tone. Please adjust the subwoofer while listening to actual music. (-56)
The ideal listening position for 6-channel surround playback is the point at equal distance from all speakers. By setting the delay time for the center and surround speakers, this item realizes the ideal listening position virtually. (The center and surround speakers can be set as if they are laid out on the dotted line circle shown below.)
How to set the delay time
Delay time setting sets the delay time converted to the distance from the speaker to the listening position.
The front speakers (L/R) can be adjusted between 40 feet (12 m) and 3 feet (0.9 m).
The range which can be set for the center speaker (C) and the surround speakers (LS/RS) differs according to the setting for the front speakers. A longer distance than for the front speakers can not be set.
Delay time setting
This operation must be performed following the adjustment of the speaker level setting on page 54.
①Press SETUP key.
② Press the TRIM (▲/▼) keys to select the speaker distance.
③Press SETUP key.
④ Press the TRIM (▲/▼) keys to select the speaker distance.
Return to the original display is made when no operation is performed for about 5 seconds.
The process advances to center speaker adjustment when the SETUP key is pressed.
IFT SIM
16FT 4.8M
Repeat ③ and ④ in the same way to adjust the surround speakers.
Level setting using a music source
A music source can be used for speaker level setting and subwoofer level setting.
⑦ Play a disc marked "Dolby Digital".
②Select the speaker.
③ Press the TRIM (▲/▼) key to setting the speaker level.
Changing the INPUT MODE
The input mode can be switched with SAT/CABLE and FRONT. For better sound quality, connect the digital output of your component with a coaxial or optical cable and change the input mode as follows.
⑦Select the SAT, CABLE or FRONT key.
or
or
②Press the INPUT MODE key.
INPUT MODE
Speaker level adjustment can be performed by pressing the keys FRONT, CENTER, REAR, and SW.
F: Front speakers
Switching is done as follows each time the switch is pressed.
①L ch : Left speaker
L②R ch : Right speaker
C: Center speaker
R: Rear (Surround) speakers
Switching is done as follows each time the switch is pressed.
①LS ch : Left surround speaker
L ②RS ch : Right surround speaker
SW: Subwoofer
The speaker level can be changed in the range from -10 dB to +10 dB.
When the video is displayed, but no sound is put out, the source may not contain digital audio. In such a case, please switch to ANALOG.
●AUTO input mode only checks the input signal when the INPUT is changed. The input does not automatically switch from digital (optical/coaxial) to ANALOG when the digital signal from the source component stops. In this case, use the remote to select ANALOG input mode.
Each press switches the mode.
SAT/CABLE input
FRONT input
Register the setup codes for your audio and video
The devices which can be set up are TV, VCR, SAT (satellite tuner), and CABLE.
⑦Press and hold the SOURCE ( )key. You must hold down the SOURCE ( Ⓤ ) key until you reach step ④.
SOURCE
②Use the numeric keys to enter the setup code.
③Press the device key to assign the setup code.
④Release the SOURCE ( )key.
⑤Press the SOURCE ( ⏻ ) key, CH +/- keys, etc. to test the code.
- You can assign VCR, CABLE, or SAT preset codes to the FRONT device key.
- If you input a setup code that cannot be assigned to the selected device key, the key's original setting is retained.
Operating other devices
①Press one of device keys for operation.
②Press SOURCE key to turn the device on.
SOURCE
③Press device operate key.
(Keys which can be used to operate connected devices
→63)
Setup code table (except for U.S.A. and Canada)
TV
| BRAND Setup codes | |
| AIWA 100 101 | |
| AKAI 102 103 | |
| AUDIO SONIC 104 | |
| BLAUPUNKT 105 | |
| BRIONVEGA 106 107 | |
| COLTINA 108 109 110 | |
| CROWN 111 112 | |
| DAEWOO 113 114 | |
| DUAL 115 | |
| FENNER 116 117 | |
| FERGUSON 118 119 | |
| FUNAI 120 121 122 | |
| FUJITSU GENERAL | 123 124 125 |
| GOODMANS | 127 |
| GRUNDIG 128 129 | |
| HITACHI 130 131 | |
| HYPER | 132 |
| INNO-HIT | 133 |
| IRRADIO | 102 |
| JVC | 134 135 136 137 |
| KENDO | 138 |
| LOEWE | 139 140 |
| LUXOR | 141 |
| MARK | 142 |
| MATSUI | 143 144 145 146 |
| MITSUBISHI | 147 148 149 150 |
| MIVAR | 151 152 |
| NEC | 153 154 |
| NOKIA | 155 156 157 158 |
| NOKIA OCEANIC | 158 |
| NORDMENDE 159 160 | |
| OKANO | 133 |
| ORION | 161 162 163 |
| PANASONIC | 126 164 165 166 167 |
| PHILIPS | 168 133 |
| PIONEER | 169 170 |
| SABA | 159 160 171 |
| SAMSUNG | 172 173 174 175 176 |
| SANYO | 177 178 179 180 |
| SCHNEIDER | 102 |
| SELECO 181 182 | |
| SHARP | 183 184 |
| SONY | 185 186 187 188 189 190 |
| TELEFUNKEN | 171 191 192 |
| THOMSON | 193 |
| TOSHIBA | 194 195 |
| UNIVERSUM | 196 |
VCR
| BRAND Setup codes BRAND Setup codes | |
| AIWA 400 401 402 | |
| AKAI 403 404 | |
| BAIRD | 405 |
| BLAUPUNKT 406 | |
| CGM | 407 408 409 |
| COLTINA | 410 |
| DAEWOO 411 | |
| DIGITAL | 412 |
| FENER | 413 |
| FUJITSU GENERAL | 414 |
| FUNAI 415 | |
| GOLDSTAR | 416 |
| GOODMANS | 417 |
| GRUNDIG 418 | |
| HITACHI 419 420 421 | |
| JVC | 422 423 424 425426 427 428 |
| LOEWE | 429 430 |
| MITSUBISHI | 433 434 435 436437 438 |
| NEC | 439 440 441 |
| NOKIA | 409 |
| NORDMENDE 442 443 | |
| OKANO | 444 445 |
| ORION | 446 |
| PANASONIC | 431 432 447 448449 450 451 |
| PHILIPS | 452 453 |
| PHONOLA | 407 |
| PIONEER | 454 |
| SABA | 455 |
| SAMSUNG | 456 457 458 459 |
| SANYO | 460 461 462 488 |
| SCOTT | 463 |
| SELECO 464 | |
| SHARP | 465 466 467 |
| SIEMENS | 468 |
| SONY | 469 470 471 472473 474 475 476477 478 479 480481 482 |
| TELEFUNKEN | 483 484 |
| TOSHIBA | 485 486 |
| W.W.HOUSE | 416 |
| WATSON 487 | |
CABLE or SAT
| AMSTRAD | 600 601 602 603632 |
| GRUNDIG 604 605 | |
| PHILIPS | 606 624 |
| PACE | 607 626 |
| ITT 608 | |
| SKYMASTER | 609 637 |
| KATHREIN | 610 611 635 |
| JVC/BT | 612 |
| JVC | 613 |
| PANASONIC | 614 |
| JERROLD | 615 |
| VIDEOWAY | 616 617 |
| ECHOSTAR | 618 619 620 622 |
| CANAL+ | 621 |
| TPS/SAGEM | 623 |
| D-BOX | 625 |
| NOKIA | 627 634 |
| GALAXIS | 628 |
| FORCE | 629 |
| SELECTOR | 630 |
| TRIAX | 631 |
| MASCOM 633 | |
| THOMSON | 636 |
| HIRSCHMANN | 638 |
Setup code table (for U.S.A. and Canada only)
TV
| BRAND Setup codes | |
| AKAI 100 | |
| ABEX 101 | |
| ADMIRAL 102 103 | |
| ALARON 106 | |
| A-MARK 108 | |
| AMBASSADOR 109 | |
| AMERICA ACTION 110 | |
| AMPRO 111 | |
| ANAM 110 112 113 | |
| ANAM NATIONAL 114 | |
| AOC 108 115 116 117 | |
| 118 119 | |
| ARCHER 108 | |
| AUDIOVOX 108 110 120 121 | |
| BAYSONIC | 110 |
| BELCOR | 115 |
| BELL&HOWELL | 123 124 |
| BRADFORD | 110 |
| BROCKWOOD | 115 |
| BROOKSONIC | 102 108 125 |
| CANDLE | 116 126 127 |
| CARNIVAL | 116 |
| CARVER | 128 |
| CELEBRITY | 131 |
| CENTURION | 132 |
| CINERAL | 120 |
| CITIZEN 116 126 127 133 | |
| 134 135 | |
| CLAIRTONE | 117 |
| CONCERTO | 126 |
| CONTEC 110 117 136 137 | |
| GRAIG | 110 |
| CROSLEY 128 | |
| CROWN 110 135 | |
| CURTIS MATHES | 103 116 120 123 |
| 124 126 128 133 | |
| 135 139 140 141 | |
| 142 143 | |
| CROWN 110 135 | |
| CXC | 110 |
| DAEWOO | 145 146 147 148 |
| 149 | |
| DAYTRON | 115 |
| DENON | 142 |
| DUMONT | 115 |
| DWIN | 144 151 |
| ELECTROBAND | 117 131 |
| ELECTROHOME | 152 153 154 |
| EMERSON | 102 106 109 110 |
| 115 117 121 123 | |
| 125 134 135 136 | |
| 148 155 156 157 | |
| 158 159 160 161 | |
| 162 163 | |
| ENVISION | 116 |
| FISHER | 164 165 |
| FUNAI | 106 110 166 |
| FUJITSU | 106 167 |
| FUTURETECH | 110 |
| BRAND Setup codes BRAND Setup codes | |
| GE | 103 114 120 139 |
| 143 144 161 162 | |
| 168 169 170 171 | |
| 172 173 174 175 | |
| 176 | |
| GIBRALTER | 115 116 150 |
| GOLD STAR | 101 115 116 126 |
| 152 161 177 178 | |
| 179 180 181 | |
| GRADIENTE | 126 182 183 |
| GRUNPY 106 110 | |
| HALLMARK | 161 |
| HARLEY DAVIDSON | 106 |
| HARMAN/KARDON | 128 184 |
| HARVARD | 110 112 |
| HITACHI 101 124 126 | 142 |
| 152 160 173 185 | |
| 186 187 188 | |
| INFINITY 128 | |
| JBL | 128 |
| JCB | 131 |
| JVC | 163 182 189 190 |
| KAWASHO | 136 |
| KAYPANI 118 | |
| KEC 110 | |
| KENWOOD | 115 116 |
| KLOSS | 191 |
| KMC 179 | |
| KTV | 110 116 117 134 |
| 135 | |
| KONKA | 192 193 194 195 |
| 196 | |
| LG | 126 |
| LXI 123 128 139 144 | |
| 161 197 | |
| LOGIK | 124 |
| LUXMAN | 126 |
| MAGNAVOX | 106 116 128 191 |
| 198 199 200 201 | |
| 202 203 204 | |
| MAJESTIC | 124 205 |
| MARANTZ | 116 128 206 |
| MATSUSHITA | 207 |
| MGA | 115 116 151 208 |
| MEGATRON | 108 142 161 |
| MEI | 117 |
| MEMOREX 102 106 | 123 124 |
| 126 161 179 207 | |
| 208 | |
| MIDLAND | 101 135 139 143 |
| 144 175 | |
| MINUTZ | 171 |
| MITSUBISHI | 103 115 161 206 |
| 208 | |
| MOTOROLA | 103 114 |
| MTC | 115 116 117 126 |
| 133 149 | |
| MULTITECH | 110 |
| NAD | 141 161 197 |
| NEC | 115 116 | 126 209 |
| NIKKO 116 161 | ||
| NOBLEX | 210 | |
| NOSHI | 211 | |
| ONWA | 110 | |
| OPTIMUS 123 141 207 | ||
| OPTONICA | 103 212 | |
| ORION | 102 | 106 125 |
| PANASONIC | 114 143 207 213214 215 | |
| PENNY | 101 108 | 115 116 |
| 126 133 | 135 139 | |
| 143 144 | 161 171 | |
| 172 175 | 181 197 | |
| 211 | ||
| PHILCO | 102 | 115 116 128 |
| 142 200 | 201 203 | |
| PHILIPS 128 198 216 217 | ||
| PILOT | 115 | 116 135 |
| PIONEER | 141 | 160 218 219 |
| PORTLAND | 115 | 135 |
| PRINCETON | 220 | |
| PRISM | 143 | |
| PROSCAN | 139 144 | 221 |
| PROTON 108 | 118 140 161 | |
| PULSAR 115 | ||
| QUASAR 114 | 143 207 212213 222 | |
| RADIO SHARK | 101 110 115 116123 126 | 135 139 |
| 144 152 | 161 212 | |
| 223 | ||
| RCA | 103 | 115 139 143 |
| 144 160 | 174 175 | |
| 176 211 | 219 224 | |
| 225 226 | 227 | |
| REALISTIC | 101 | 110 115 116 |
| 123 126 | 135 161 | |
| 212 | ||
| RHAPSODY | 117 | |
| RUNCO | 116 209 228 | |
| SAMPO | 101 | 116 118 135 |
| SAMSUNG | 101 115 | 116 126 |
| 133 161 | 229 230 | |
| 231 | ||
| SAMSUX | 135 | |
| SANSEI | 120 | |
| SANSUI | 102 | |
| SANYO | 123 165 232 233 | |
| SCIMITSU | 115 | |
| SCOTCH 161 | ||
| SCOTT | 106 110 115 161125 | |
| SEARS | 106 123 126 128139 144 | 161 165 |
| 166 197 | 205 232 | |
| 234 | ||
| SEMIVOX | 110 | |
| SEMP | 197 | |
Setup code table (for U.S.A. and Canada only) (continued)
TV
| BRAND Setup codes | |
| SHARP 103 135 137 202212 235 236 | |
| SHOGUN 115 | |
| SIGNATURE 124 | |
| SIMPSON 127 204 | |
| SONY 131 237 238 239240 | |
| SOUNDESIGN 106 110 127 161 | |
| SPECTRICON 108 119 | |
| SQUAREVIEW 166 | |
| SSS 110 115 | |
| STARLITE 110 | |
| SUPREME 131 | |
| SYLVANIA 116 128 153 200201 203 | |
| SYMPHONIC | 166 241 242 |
| TANDY | 103 |
| TATUNG | 108 114 |
| TECHNICS | 143 207 |
| TECHNOL ACE | 106 |
| TECHWOOD | 108 126 143 |
| TEKNIKA | 106 110 115 124126 127 128 133135 208 243 |
| TELEFUNKEN | 126 |
| TMK | 109 126 161 |
| TNCI | 150 |
| TOSHIBA 123 133 197 234244 | |
| TOSONIC 117 | |
| TOTEVISION | 135 |
| TRICAL | 137 |
| UNIVERSAL 172 | |
| VECTOR RESEARCH | 116 |
| VIDIKRON | 245 |
| VICTOR | 182 |
| VIDIKRON | 128 245 |
| VIDTECH | 115 161 |
| VIKING | 243 |
| WARDS | 106 115 116 124126 128 161 171172 176 200 201203 212 238 240 |
| WHITEWESTINGHOUSE | 102 121 148 |
| YAMAHA | 115 116 |
| ZENITH | 102 124 148 150246 247 |
| ZONDA | 108 |
VCR
| BRAND Setup codes | |
| AIWA | 403 404 405 |
| AKAI | 406 407 408 409 |
| 410 | |
| AMERICANHIGH | 411 |
| ASHA | 412 |
| AUDIOVOX | 405 |
| BEAUMARK | 412 |
| BELL&HOWELL | 413 |
| BROCKSONIC | 414 415 416 417 |
| CALIX | 405 |
| CANON | 411 |
| CARVER | 418 |
| CCE | 419 |
| CITIZEN | 405 |
| COLT | 419 |
| CRAIG | 405 412 419 420 |
| CURTIS-MAHES | 409 411 421 422 |
| CYBERNEX | 412 423 |
| DAEWOO 424 | |
| DENON | 425 |
| DYNATECH | 404 |
| ELECTROHOME | 405 |
| ELECTROPHONIC | 405 |
| EMEREX | 426 |
| EMERSON | 404 405 414 415 |
| 416 417 427 428 | |
| 429 430 431 432 | |
| 433 | |
| FISHER | 413 420 434 435 |
| 436 437 | |
| FUJI | 411 438 |
| FUNAI | 404 |
| GARRARD 404 | |
| G.E. | 411 412 421 439 |
| GO VIDEO 440 441 442 | |
| GOLDSTAR | 405 |
| GRADIENTE | 404 443 |
| HARLEY DAVIDSON | 404 |
| HARMANKARDON | 418 444 |
| HARWOOD | 419 432 |
| HEADQUARTER | 434 |
| HI Q | 420 |
| HITACHI | 404 409 425 439 |
| 445 446 | |
| HUGHES | 425 |
| NETWORK SYSTEMS | |
| JENSEN | 409 |
| JVC | 409 443 447 448 |
| 449 450 451 | |
| KEC | 405 |
| KENWOOD | 409 444 451 |
| KLH | 419 |
| KODAK | 405 411 |
| LG | 405 444 |
| LLYOD'S | 404 |
| LOGIK | 419 |
| LXI 405 | |
| MAGGIN | 412 |
| BRAND Setup codes | |
| MAGNAVOX | 404 411 418 452 |
| 453 | |
| MARANTZ 411 418 | |
| MARTA | 405 |
| MATSUSHITA 411 422 | |
| MEI 411 | |
| MEMOREX | 404 405 411 412 |
| 413 420 422 434 | |
| 453 454 | |
| MGA | 412 431 |
| MGN TECHNOLOGY | 412 |
| MINOLTA | 425 |
| MITSUBISHI | 431 451 455 456 |
| 457 458 459 | |
| MOTOROLA | 411 |
| MTC | 404 412 |
| MULTITECH 404 419 | |
| NAD | 460 |
| NEC | 412 413 421 446 |
| 451 461 462 | |
| NIKKO | 405 |
| NIKON | 463 |
| NOBLEX | 412 |
| OLYMPUS | 411 |
| OPTIMUS 405 413 422 460 | |
| ORION | 414 416 |
| PANASONIC | 411 422 464 465 |
| PENNEY | 405 411 412 421 |
| 425 437 444 | |
| PENTAX | 425 |
| PHILCO | 411 |
| PHILIPS | 411 418 466 |
| PILOT | 405 |
| PIONEER 451 460 | |
| PROFITRONIC 412 | |
| PROSCAN | 421 |
| PROTEC | 419 |
| PULSAR | 423 453 |
| QUARTER | 434 |
| QUARTZ | 434 |
| QUASAR | 422 464 465 |
| RADIO SHACK | 404 454 |
| RADIX | 405 |
| RANDEX | 405 |
| RCA | 411 412 421 425 |
| PEALISTIC | 404 405 411 413 |
| 420 434 | |
| REPLAYTV 465 467 | |
| RICOH | 463 |
| RUNCO | 453 |
| SAMSUNG | 410 412 423 424 |
| 468 | |
| SANKY | 453 |
| SANSUI | 404 409 451 446 |
| SANYO | 412 413 420 434 |
| 469 | |
| SCOTT | 415 416 424 431 |
Setup code table (for U.S.A. and Canada only) (continued)
VCR
| BRAND Setup codes | |
| SEARS | 404 405 411 413 |
| 420 425 434 437 | |
| SEMP | 424 |
| SHARP | 401 470 |
| SHINTOM | 419 471 |
| SHOGUN | 412 423 |
| SINGER | 419 |
| SONY | 404 411 426 438 |
| 463 472 473 474 | |
| STS | 425 |
| SYLVANIA | 404 411 418 431 |
| SYMPHONIC | 404 |
| TATUNG | 409 |
| TEAC | 404 409 |
| TECHINICS | 411 422 |
| TEKNIKA | 404 405 411 475 |
| THOMAS | 404 |
| TIVO | 466 |
| TMK | 412 430 |
| TOSHIBA | 424 431 476 |
| TOTEVISION | 405 412 |
| UNITECH | 412 |
| VECTOR | 424 |
| VECTOR RESEARCH | 421 444 |
| VIDEO CONCEPTS | 421 424 |
| VIDEOSONIC 412 | |
| WARDS | 404 411 412 418 |
| 419 420 421 425 | |
| XR-1000 | 404 411 419 |
| YAMAHA | 444 |
| ZENITH | 404 438 453 463 |
| 477 | |
CABLE
| BRAND Setup codes | |
| ABC 600 601 602 603 | |
| 604 605 606 607 | |
| 689 | |
| ALLEGRO 608 609 | |
| AMERICAST 610 | |
| ANTRONIX 611 612 | |
| ARCHER 609 611 612 613 | |
| 614 | |
| BELCOR 616 | |
| BELL&HOWELL 601 | |
| BELL SOUTH 610 | |
| CABLE STAR 616 | |
| CABLETENNA 612 | |
| CABLEVIEW 612 | |
| CENTURY 609 | |
| CITIZEN 608 609 | |
| COLOUR VOICE 617 618 | |
| COMTRONICS 621 | |
| CONTEC 622 | |
| DIGI 623 | |
| EASTERN | 624 |
| EMERSON | 613 |
| EVERQUEST | 620 625 |
| FOCUS | 626 |
| GARRARD | 609 |
| GC ELECTRONICS | 611 616 627 |
| GEMINI | 613 625 628 629 |
| 630 | |
| GENERAL INSTRUMENT | 602 631 632 |
| GOLD STAR | 633 |
| GOODMIND 613 634 | |
| HAMLIN | 635 636 637 638 |
| 639 640 | |
| HITACHI | 602 |
| HYTEX | 604 |
| JASCO | 608 609 625 |
| JERROLD | 601 602 603 625 |
| 631 642 643 644 | |
| 645 646 647 648 | |
| 695 | |
| LINSAY | 649 |
| MACOM 600 650 651 652 | |
| MAGNAVOX 653 654 | |
| MEMOREX | 655 |
| MOTOROLA | 656 |
| MOVIE TIME 657 658 | |
| NEXUS | 634 |
| NOVAPLEX | 659 |
| NSC 629 657 658 | |
| OAK | 604 622 660 661 |
| 662 | |
| OPTIMUS | 663 |
| PANASONIC 655 663 664 665 | |
| PANTHER | 623 |
| PARAGON | 655 |
| PHILIPS 609 617 618 621 | |
| 628 654 666 667 | |
| 668 669 670 671 | |
| 672 673 | |
| BRAND Setup codes | |
| PIONEER | 633 674 675 676 |
| 677 678 679 | |
| POPULAR | 626 |
| MECHANICS | |
| PRELUDE | 634 |
| PULSAR | 655 |
| QUASAR | 655 |
| RCA 663 | |
| RADIO SHACK 608 613 625 680 | |
| REALISTIC | 611 |
| RECOTON | 626 |
| REGAL | 636 640 |
| REGENCY | 624 |
| REMMBRANDT | 602 629 |
| RUNCO | 655 |
| SCIENTIFIC | 681 682 |
| SCIENTIFIC | 606 607 678 681 |
| ATLANTA | 682 683 684 685 |
| SAMSUNG 633 | |
| SEAM | 686 |
| SIGNAL | 620 625 |
| SIGNATURE | 602 |
| SPRUCER 663 | |
| STAR SIGHT 687 688 | |
| STARCOM | 602 625 |
| STARGATE | 613 620 625 634 |
| STARQUEST | 625 |
| SYLVANIA 689 | |
| TFC | 692 |
| TV86 | 657 |
| TANDY | 690 |
| TELECAPTION | 691 |
| TELEVIEW | 620 |
| TEXSCAN | 689 |
| TIMELESS | 693 |
| TOCOM 605 694 695 | |
| TOSHIBA | 655 |
| TUSA | 625 |
| UNIKA | 609 611 612 |
| UNIVERSAL | 609 611 612 614 |
| 616 696 697 | |
| UNITED ARTISTS | 604 |
| VIEWSTAR | 621 654 657 690 |
| ZENITH | 610 655 698 699 |
| 700 | |
| ZENTEK 626 | |
Setup code table (for U.S.A. and Canada only) (continued)
SATELLITE
| BRAND Setup codes | |
| ATPHASTAR 800 | |
| CHAPARRAL 804 805 | |
| ECHOSTAR 806 807 808 809810 | |
| EXPRESSVU 806 | |
| GENERAL 801 802 803 811INSTRUMENT | |
| HTS 806 | |
| HITACHI 812 813 | |
| HOMECABLE 814 | |
| HUGHES 815NETWORK SYSTEMS | |
| JANEIL 817 | |
| JERROLD 801 802 | |
| JVC 806 | |
| LEGEND | 808 |
| MAGNAVOX 818 819 | |
| MEMOREX | 808 819 |
| NEXT LEVEL | 803 |
| PANASONIC 817 820 821 | |
| PHILIPS | 818 819 822 |
| PRIMESTAR | 801 802 823 |
| PROSCAN | 824 |
| RADIO SHACK | 803 |
| RCA | 824 825 826 827828 |
| REALISTIC | 829 |
| SAMSUNG | 830 |
| SONY | 831 |
| STAR CHOICE | 803 |
| TOSHIBA | 815 833 834 |
| UNIDEN | 814 818 819 829835 836 |
| ZENITH | 837 |
Keys which can be used to operate connected devices
Operation of the dark-colored keys in the figure is possible.
VCR
(Operation keys differing from the indication)
|◀◀▶▶| : VCR REW/FF
▶ : VCR PLAY
● : VCR REC
■ : VCR STOP
◀◀▶▶ : TV VOL.
DOWN/UP
TV
(Operation keys differing from the indication)
SET : ENTER
|◀◀▶▶|: VCR REW/FF
▶: VCR PLAY
● : VCR REC
■: VCR STOP
◀◀▶▶ : TV VOL.
DOWN/UP
CABLE
(Operation keys differing from the indication)
SET : ENTER
SAT
(Operation keys differing from the indication)
SET : ENTER
DVD menu language code list
| Cord No. Language | |
| 6565 | Afar |
| 6566 | Abkhazian |
| 6570 | Afrikaans |
| 6577 | Amharic |
| 6582 | Arabic |
| 6583 | Assamese |
| 6588 | Aymara |
| 6590 | Azerbaijani |
| 6665 | Bashkir |
| 6669 | Byelorussian |
| 6671 | Bulgarian |
| 6672 | Bihari |
| 6678 | Bengali; Bangla |
| 6679 | Tibetan |
| 6682 | Breton |
| 6765 | Catalan |
| 6779 | Corsican |
| 6783 | Czech |
| 6789 | Welsh |
| 6865 | Danish |
| 6869 | German |
| 6890 | Bhutani |
| 6976 | Greek |
| 6978 | English |
| 6979 | Esperanto |
| 6983 | Spanish |
| 6984 | Estonian |
| 6985 | Basque |
| 7065 | Persian |
| 7073 | Finnish |
| 7074 | Fiji |
| 7079 | Faroese |
| 7082 | French |
| 7089 | Frisian |
| 7165 | Irish |
| 7168 | Scots Gaelic |
| 7176 | Galician |
| 7178 | Guarani |
| 7185 | Gujarati |
| 7265 | Hausa |
| 7273 | Hindi |
| Cord No. Language | |
| 7282 | Croatian |
| 7285 | Hungarian |
| 7289 | Armenian |
| 7365 | Interlingua |
| 7378 | Indonesian |
| 7383 | Icelandic |
| 7384 | Italian |
| 7387 | Hebrew |
| 7465 | Japanese |
| 7473 | Yiddish |
| 7487 | Javanese |
| 7565 | Geogian |
| 7575 | Kazakh |
| 7576 | Greenlandic |
| 7577 | Cambodian |
| 7578 | Kannada |
| 7579 | Korean |
| 7583 | Kashmiri |
| 7585 | Kurdish |
| 7589 | Kirghiz |
| 7665 | Latin |
| 7678 | Lingala |
| 7679 | Laothian |
| 7684 | Lithuanian |
| 7686 | Latvian; Lettish |
| 7771 | Malagasy |
| 7773 | Maori |
| 7775 | Macedonian |
| 7776 | Malayalam |
| 7778 | Mongolian |
| 7779 | Moldavian |
| 7782 | Marathi |
| 7783 | Malay |
| 7784 | Maltese |
| 7789 | Burmese |
| 7865 | Nauru |
| 7869 | Nepali |
| 7876 | Dutch |
| 7879 | Nowegian |
| 7982 | Oriya |
| 8065 | Punjabi |
| Cord No. | Language |
| 8076 | Polish |
| 8083 | Pashto; Pushto |
| 8084 | Portuguese |
| 8185 | Quechua |
| 8277 | Rhaeto-Romance |
| 8279 | Romanian |
| 8285 | Russian |
| 8365 | Sanskrit |
| 8368 | Sindhi |
| 8372 | Serbo-Croatian |
| 8373 | Singhalese |
| 8375 | Slovak |
| 8376 | Slovenian |
| 8377 | Samoan |
| 8378 | Shona |
| 8379 | Somali |
| 8381 | Albanian |
| 8382 | Serbian |
| 8385 | Sundanese |
| 8386 | Swedish |
| 8387 | Swahili |
| 8465 | Tamil |
| 8469 | Telugu |
| 8471 | Tajik |
| 8472 | Thai |
| 8473 | Tigrinya |
| 8475 | Turkmen |
| 8476 | Tagalog |
| 8479 | Tonga |
| 8482 | Turkish |
| 8484 | Tatar |
| 8487 | Twi |
| 8575 | Ukrainian |
| 8582 | Urdu |
| 8590 | Uzbek |
| 8673 | Vietnamese |
| 8679 | Volapük |
| 8779 | Wolof |
| 8872 | Xhosa |
| 8979 | Yoruda |
| 9072 | Chinese |
| 9085 | Zulu |
What seems to be a malfunction is not always so. Before calling for service, check the following table according to the symptom of your trouble.
Operation to reset
The microcomputer may fall into malfunction (impossibility to operate, erroneous display, etc.) when the power cord is unplugged while power is ON or due to an external factor. In this case, execute the following procedure to reset the microcomputer and return it to normal condition.
Set the POWER switch to ON (set to Standby mode). Then press the ▶▶|key, ◀◀◀ key and STOP key in this order.
- Please note that resetting the microcomputer clears the contents stored in and returns and to condition when it left the factory.
Receiver, speakers
| RemedyCauseSymptom | ||
| Sound is not produced. | ●The speaker cords are disconnected.●The MUTE switch of remote control unit is switched ON.●The headphone plug is inserted into the jack. | ●Connect properly referring to “System connection”.→12●Switch MUTE OFF.→18●Unplug the headphone plug.→18 |
| Sound is not produced from the left or right speakers. | ●The speaker cords are disconnected. | ●Connect properly referring to “System connection”.→12 |
| Radio stations cannot be received. | ●The antennas have not been connected.●A proper broadcasting band has not been selected.●The frequency of the station to be received is not tuned. | ●Connect antennas.→13●Select a band.→21●Tune to the frequency of the desired station.→21 |
| Noise interferes. | ●Car ignition noise.●Influence of an electric appliance.●A TV set is installed near the system. | ●Install the outdoor antenna in an apart position from the road.→13●Switch the suspected electric appliance OFF.●Install the TV or the system at an increased distance between them. |
| A station has been preset but it cannot be received by pressing the P.CALL key. | ●The frequency of the preset station is not tunable.●The preset memory has been cleared because the power cord has been unplugged for a long period. | ●Preset stations with tunable frequencies.●Preset stations again.→22 |
| The STANDBY indicator flashes red rapidly. | ●The temperature protection inside the unit has operated because of an excessive volume. | ●Leave the unit with the powe off for about 15 minutes, and then turn the power on. If this does not help, contact your dealer for service. |
| No sound from the surround speakers | ●The Listen mode is STEREO. | ● Select Surround with the Listen mode key.→53 |
Remote control unit
| Symptom | Cause Remedy | |
| Remote control operation is not possible. | ●Batteries are exhausted.●The remote control is too far away from the system, the controlling angle is deviated or there is an obstacle in between.●There is no disc set in the component to be played. | ●Replace with new batteries.→17●Operate the unit inside the remote controllable range.→17●Set a disc in the component to be played.→26 |
| ●Operation has been performed with the keys of the main unit.●A nonfunctional key has been pressed. | ●Perform operation after once pressing the key for the input or device to be operated.→18 |
DVD / CD player unit
| RemedyCauseSymptom | ||
| Playback does not start when the play (▶/II) key is pressed. | ●There is no disc in the player.●There are no signals recorded on the side of the disc being played. | ●Load a disc and press the play (▶/II) key. →26●Turn the disc over and properly place it on the disc tray. →26 |
| Playback starts but no image/sound is seen/heard. | ●The TV is not turned on.●The connection cords are not properly connected. | ●Turn on the TV.→14●Properly reconnect the connection cords. →14 |
| The picture is disrupted when the image is fast forwarded or fast reversed. | ●The picture is slightly disrupted during fast forward and fast reverse operations. | ●This is not a malfunction. |
| No sound is heard. | ●The volume control of this set is not adjusted properly.●The player is in a special playback mode. | ●Set the sound volume to an appropriate level.→18●Press the play (▶/II) key to resume normal playback mode. →26 |
| The picture does not look good or the picture/sound quality is poor. | ●A nearby device is generating noise.●The disc is dirty.●The disc is damaged.●There is condensation on the optical lens. | ●Separate this unit as far as possible from the device you think is generating the noise.→8●Refer to the “Disc handling precautions” section and wipe dirt from the disc.●Use a new disc.●Refer to the “Caution on condensation” section and evaporate the condensation. →7 |
| It takes a while for the disc to start playing. | ●Time is required for the unit to detect the disc type and size and for the rotation of the motor to stabilize. This is not a malfunction. | ●Approximately 10 to 20 seconds are required for a disc to start playing, although the time differs depending on the disc. |
| The top and bottom of the screen cannot be seen. | ●The video format of the disc being played does not match that of the connected TV monitor. | ●Refer to the “Video format” section ,and use a disc with the appropriate video format for your TV or a TV with the appropriate video format for the disc. →11 |
| A VCD cannot be played using menus. | ●The VCD disc being played is not compatible with P.B.C. | ●Menu playback is available only with VCD discs recorded with P.B.C. →37 |
| The subtitle is not displayed. | ●The DVD disc being played does not contain the recording of subtitles.●The subtitle mode is set to off. | ●The subtitle cannot be displayed when the DVD disc being played does not contain the recording of subtitles.→30●Press the S.TITLE key to switch on the subtitle mode. |
| The voice (or subtitle) language cannot be changed. | ●The DVD disc being played does not contain the recording of more than one audio (or subtitle) language. | ●The voice (or subtitle) language cannot be changed when the DVD disc being played does not contain the recording of more than one voice (or subtitle) language. |
DVD / CD player unit
| RemedyCauseSymptom | ||
| The viewing angle cannot be changed. | ●The DVD disc being played does not contain the recording of more than one angle.●You are attempting to switch the angle in a DVD section where more than one angle is not recorded. | ●The viewing angle cannot be changed when the DVD disc being played does not contain the recording of more than one angle.→31●More than one viewing angle may be recorded only in limited sections in a disc. |
| A disc can not be played although the region code is displayed as [ALL]. | ●Some discs can not be played in all regions even when [ALL] is displayed. | ●Play a different disc. |
| Playback will not start even after a title is selected. | ●A viewing restriction (Parental level) has been set for the disc. | ●Check the viewing restriction level (Parental level) setting.→48 |
| The viewing restriction level (RATING) cannot be changed. | ●You have forgotten the viewing restriction (Parental) password. | ●Set the initial setup to the factory setup with the following procedure.With no disc in the unit, press the PLAY/PAUSE (▶/II)key. After "NO DISC" is displayed, press the DVD CD key, cursor ▶key,◀key,▼key,▲key on the remote and ◀◀key on the main unit in this order.Press the POWER switch to OFF and press the POWER switch again to ON. |
| The voice or subtitle language selected in the initial setting is not played. | ●The DVD disc being played does not contain the recording of the selected voice or subtitle language. | ●Use a DVD disc containing the recording of the selected voice or subtitle language.→47 |
| No message appears on the TV screen after a key is pressed. | ●The function for displaying message on the TV screen is set to off. | ●Set On-screen function to on.→28 |
| Menu screen messages are not shown in the desired language. | ●The menu language function (MENU) is not set. | ●Set the disc menu language function (MENU) as required.→48 |
Inhibition icon
| Symptom Cause Remedy | |||
 | The inhibition icon is displayed and remote control is not possible. | ●Playback is restricted intentionally by the software producer. | ●The operation is inhibited. Please try another operation. |
Apparatus Claims of U.S. Patent Nos. 4,631,603, 4,577,216, 4,819,098 and 4,907,093 licensed for limited viewing uses only.
This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.
Consumers should note that not all high definition television sets are fully compatible with this product and may cause artifacts to be displayed in the picture. In case of 525 progressive scan picture problems, it is recommended that the user switch the connection to the "STANDARD DEFINITION" output. If there are questions regarding our TV set compatibility with this model 525p DVD player, please contact our customer service center.
Main unit
[Amplifier section]
Effective output power during STEREO operation 1 kHz, 10 % T.H.D. at 6 Ω .... 40 W + 40 W
Effective output power during SURROUND operation Front (1 kHz, 10 % T.H.D. at 6 Ω) ....40 W + 40 W Center (1 kHz, 10 % T.H.D. at 6 Ω) ....40 W Subwoofer (100 Hz, 10 % T.H.D. at 6 Ω) ....80 W Surround (1 kHz, 10 % T.H.D. at 6 Ω) ....40 W + 40 W
Input sensitivity / impedance VCR / SAT / CABLE / FRONT 600 mV / 68 kΩ
Output level / impedance VCR 600 mV / 470 Ω
[ Tuner section ]
FM tuner section Tuning frequency range 87.5 MHz \~ 108 MHz
AM Tuner section Tuning frequency range (for U.K., Europe and Australia) 531 kHz \~ 1,602 kHz
Tuning frequency range (for U.S.A. and Canada) 530 kHz \~ 1,700 kHz
Tuning frequency range (for other countries) 531 kHz \~ 1,602 kHz / 530 kHz \~ 1,610 kHz
[ DVD/CD/VIDEO CD player section ]
Laser ...... Semiconductor laser Wow & Flutter .... Less than unmeasurable Limit Video output format (for U.S.A. and Canada) .... NTSC Video output format (for other countries).... NTSC/PAL
VIDEO OUTPUT Composite video output level/impedance .... 1 Vp-p (75 Ω) S-video output Y output level/impedance .... 1 Vp-p (75 Ω) C output level/impedance NTSC .... 0.286 Vp-p (75 Ω) PAL .... 0.3 Vp-p (75 Ω)
Component video output (only for some areas) Y output level/impedance .... 1 Vp-p (75 Ω) C/b output level/impedance .... 0.7 Vp-p (75 Ω) C/r output level/impedance .... 0.7 Vp-p (75 Ω)
Compression format ...... MPEG1/MPEG2
[ DIGITAL AUDIO section ]
Sampling frequency 32 kHz, 44.1 kHz, 48 kHz
Input level/impedance/wave length Optical ....-15 dBm \~ 21 dBm (660 nm ±30 nm) Coaxial ....... 0.6 Vp-p (75 Ω)
Digital output ...... -15 dBm \~ 21 dBm (Wave length 660 nm)
[General]
Power consumption .... 130 W (for U.S.A. and Canada) 130 W (for U.K.) 130 W (for other countries)
Dimensions ....W: 440 mm (17-5/16") H: 93 mm (3-11/16") D: 410 mm (16-1/8")
Weight (net) 8.5 kg
KS-306DV Speakers (Front/Surround) (for U.S.A and Canada)
Enclosure ...... Bass-Reflex type (Front Speaker Magnetically shielded)
Speaker configuration Woofer .... 80 mm (3"), cone type Tweeter .... 25 mm (1"), balanced dome type
Impedance 6 Ω Maximum input power 40 W
Dimensions ....W: 111 mm (4-3/8") H: 156 mm (6-1/8") D: 129 mm (5-1/16")
Weight (net) Front speakers .... 0.9 kg (2.0 lb) (1 piece) Surround speaker .... 0.8 kg (1.8 lb) (1 piece)
KS-306DV Speakers (Center) (for U.S.A and Canada)
Enclosure .... Acoustic Air Suspension type (Magnetically shielded)
Speaker configuration Woofer .... 80 mm (3"), cone type Tweeter .... 25 mm (1"), balanced dome type
Impedance 6 Ω Maximum input power 40 W
Dimensions....W: 252 mm (9-15/16") H: 111 mm (4-3/8") D: 129 mm (5-1/16")
Weight (net) 1.1 kg (2.4lb)
SW-06DV Speaker (Subwoofer) (for U.S.A and Canada)
Enclosure ...... Bass-reflex type (Magnetically shielded)
Speaker configuration Woofer 160 mm (6-1/2"), cone type
Impedance 6 Ω Maximum input power 80 W
Dimensions ....W: 120 mm (8-11/16") H: 350 mm (13-3/4") D: 355 mm (14")
Weight (net) 5.9 kg
KSW-6100 Speakers
(Front/Center/Rear) (for other countries)
Enclosure .... Acoustic Air Suspension type (Magnetically shielded) Speaker configuration
Fullrange 50 mm, cone type Impedance 6 Ω
Maximum input power 40 W
Dimensions....W: 70 mm H: 125 mm D: 110 mm
Weight (net) Front and Center speakers .... 0.48 kg (1 piece) Surround speakers .... 0.36 kg (1 piece)
KSW-6100 Speaker (Subwoofer) (for other countries)
Enclosure .... Bass-reflex type Speaker configuration
Woofer 160 mm, cone type
Impedance 6 Ω Maximum input power 80 W
Dimensions .... W: 190 mm H: 400 mm D: 355 mm
Weight (net) 5.7 kg
- KENWOOD follows a policy of continuous advancements in development. For this reason specifications may be changed without notice.
- Sufficient performance may not be possible at very low temperatures (0°C or less).
KENWOOD
For your records
Record the serial number, found on the back of the unit, in the spaces designated on the warranty card, and in the space provided below. Refer to the model and serial numbers whenever you call upon your dealer for information or service on this product.
Model ____ Serial Number ____
- Before applying power
- For the United Kingdom
- Factory fitted moulded mains plug
- \*For other countries
- AC voltage selection
- Note:
- Safety precautions
- The marking of products using lasers (Except for some areas)
- Caution : Read the pages marked carefully to ensure safe operation.
- Preparations
- Operations
- Knowledge
- Unpacking
- Accessories
- Accessories packed with the main unit
- CHANNEL SPACE setting (Except for the U.S.A., Canada, U.K., Europe and Australia)
- Setting the CHANNEL SPACE
- Special features
- Reference
- Caution on condensation
- Be specially cautious against condensation in a following circumstances:
- Note related to transportation and movement
- WARNING NOTICE:
- Maintenance of the Set
- In regard to contact cleaners
- Handling
- Cleaning
- Storage
- Never play a cracked or warped disc
- Disc accessories
- For the U.S.A.
- CAUTION:
- Note to CATV sysem inataller
- FCC WARNING
- Types of playable discs
- Unplayable discs
- Icons on the DVD discs
- Region codes in the world
- Examples of TV screen display of each video format
- When your TV is switchable between PAL/NTSC
- When your TV is compatible only with the PAL format
- When your TV is compatible only with the NTSC format
- Video formats of DVD discs that can be played on this unit
- Check the video format(s) used by your TV monitor.
- Select DVD discs recorded with the playable video format by referring to the following table.
- When your TV is switchable between NTSC and PAL,
- Restrictions due to difference between discs
- Caution
- Malfunction of microcomputer
- Loudspeakers
- of the cable can
- AM loop antenna
- AM loop antenna connection
- FM antenna
- FM indoor antenna connection
- FM outdoor antenna (commercially available)
- Connecting to a TV
- Connecting to a Satellite Tuner
- Connecting to Audio video equipments
- Connecting a Camcorder or Video game machine
- STANDBY
- Loading batteries
- Operation
- Basic use method
- Selecting the desired input
- Volume adjustment
- Muting the sound temporarily
- Listening through headphone
- Changing the Tone
- Selecting the DSP mode
- ACTIVE EQ.
- Selecting the NIGHT (MID NIGHT) mode. (Dolby Digital only)
- TREBLE CONTROL (Normal music CD, VCD and tuner only)
- REMOTE
- Press the Listen mode key
- Press the SOUND key
- Select treble level
- Dimmer
- Press the DISPLAY key for more than 2 seconds
- Select the TUNER input
- Select the broadcast band
- Select a tuning mode
- Select a station
- P.CALL (preset call) AUTO (auto tuning) MANUAL (manual tuning)
- Storing the broadcast stations (one-by-one presetting)
- Using RDS function (for Europe and U.K. only)
- Functions made possible with RDS
- PS (Program Service Name) Display :
- PTY (Program Type Identification) Search :
- CT (Clock Time) :
- RT (Radio text) :
- Using the RDS Display function
- Select the FM broadcast station
- Press the RDS key
- PS NAME
- CT display
- RT display
- PTY function (for Europe and U.K. only)
- Using the PTY search function
- Select the FM band
- Press the PTY key
- Press the P.CALL (◄◄◄/►►) keys to select the desired program type.
- When the program type is selected, press the PTY key.
- Press and hold the ON SCREEN key for more than 5 seconds
- PROGRESSIVE ON scrolls in the display.
- To turn off the progressive scan Repeat this operation.
- Basic play
- Load a disc
- Select the DVD CD
- When a Disc Menu appears on the screen
- Start playback
- To stop playback
- RESUME playback
- Disc playback features
- DVD CD VCD Skipping chapters or tracks
- MAIN UNIT
- CD Playback from desired track
- DVD VCD STEP (freeze frame and frame advance)
- DVD VCD Slow motion playback
- DVD CD VCD Searching
- (At the time of DVD playback)
- (At the time of VCD playback)
- ⑦During playback, press the ON SCREEN key.
- ② Press the Cursor left/right (◄/►) keys to highlight a banner display icon.
- ③Press the ENTER key.
- To display disappear from the screen
- Press the ON SCREEN (OSD).
- When playing a DVD
- When playing a CD/VCD
- Switch the CD time indicator as follows.
- ①Select the time information with the cursor key. ②Each time the ENTER key is pressed, the time indicator changes as follows.
- DVD Selecting a Title
- ② Press the Cursor left/right (◄/►) keys until the TITLE icon is highlighted.
- ③Press the ENTER key. ("T\_" appears)
- ④Use the numeric keys on the remote or the cursor keys on the main unit to enter the title number.
- DVD CD VCD Selecting a Chapter or Track
- ② Press the Cursor left/right (◄/►) keys until the CHAPTER or TRACK icon is highlighted.
- ③Press the ENTER key. ("C\_" or "Tr\_" appears)
- ④Use the numeric keys on the remote, or the skip keys on the main unit to enter the chapter or track.
- DVD Changing the Audio Language
- Using the on-screen banner display
- DVD Changing the Subtitle Language
- DVD Changing the Camera angle
- ② Press the Cursor left/right (◄/►) keys until the ANGLE icon is highlighted.
- ④Press the ENTER key repeatedly to select the angle.
- ●The menu is switched off when no operation is performed for about 5 seconds.
- CD VCD Using IntroScan function
- ② Press the Cursor left/right (◄/►) keys until the IntroScan icon is highlighted.
- DVD CD VCD Using Bookmarks
- Create the bookmark Recalling a bookmarked scene
- Clearing a bookmark
- DVD CD VCD Repeat play
- DVD CD VCD A-B Repeat play
- CD VCD Random play
- Registering and playing the program
- Program Edit
- Program edit display appears.
- Insert chapter or track
- Delete Program
- Release Program play
- VCD Hierarchical structure of VCD menus
- Advancing
- Returning
- Examples of operation keys and indications used during VCD playback
- VCD Playback without using the menu playback function (In case of a P.B.C.-compatible VCD) (To P.B.C. On or Off)
- To return to menu playback
- To return to the previous screen
- Preparation
- VCD Selecting the Audio channel
- DVD CD VCD Controlling the key of the music (KEY CONTROL)
- Adjust the ECHO level
- ⑦During playback, press the ECHO keys, the OSD appear on the TV display.
- ② Press the Cursor up/down (▲/▼) keys or ECHO keys to adjust the ECHO level.
- DVD CD VCD HIT MASTER function
- ② Press the cursor left/right (◄/►) keys to select HIT MASTER.
- ③Press the ENTER key to switch HIT MASTER on/off.
- Each press switches the mode.
- Guidance of MP3
- Media that can be played back with this equipment
- Creating media for playing back on this equipment
- Compressing MP3
- Naming folders and files
- Confirming media and files
- When saving files onto media
- Playing back MP3
- Playback
- Skipping files
- MP3 On-screen display
- Selecting MP3 files
- Selects the files to be played back directly
- MP3 Repeat play
- MP3 Random play
- To repeat random play
- MP3 Program play
- Set up menu
- How to use the RETURN key
- DVD Select Audio Language
- To select other language
- DVD Select Subtitle Language
- DVD Select Menu Language
- DVD Select Rating
- Playback of a disc
- Parental lock level
- Password
- Input password
- DVD Password (continued)
- Change password
- Password (continued)
- Clear password
- TV aspect
- What are LISTEN modes?
- Description of Dolby Pro Logic II: Music mode
- To set the LISTEN mode manually
- Positioning the speakers
- Initial set values for the speaker level
- Speaker level setting
- How to set the delay time
- Delay time setting sets the delay time converted to the distance from the speaker to the listening position.
- Delay time setting
- Level setting using a music source
- Changing the INPUT MODE
- Speaker level adjustment can be performed by pressing the keys FRONT, CENTER, REAR, and SW.
- Register the setup codes for your audio and video
- Operating other devices
- Setup code table (except for U.S.A. and Canada)
- Setup code table (for U.S.A. and Canada only)
- Setup code table (for U.S.A. and Canada only) (continued)
- Keys which can be used to operate connected devices
- Operation to reset
- [Amplifier section]
- [ Tuner section ]
- [ DVD/CD/VIDEO CD player section ]
- [ DIGITAL AUDIO section ]
- [General]
- KS-306DV Speakers (Front/Surround) (for U.S.A and Canada)
- KS-306DV Speakers (Center) (for U.S.A and Canada)
- SW-06DV Speaker (Subwoofer) (for U.S.A and Canada)
- KSW-6100 Speakers
- KSW-6100 Speaker (Subwoofer) (for other countries)
- For your records
Brand : KENWOOD
Model : DVT-6100K
Category : Home Theater
