Product Type	Portable Bluetooth Speaker
Brand	JVC
Model	XS-E114B
Dimensions (W x H x D)	98 x 75 x 49 mm
Weight	195 ± 10 g
Power Input	5 V / 1 A (via USB-C)
Battery Type	Lithium-ion 3.7 V / 2000 mAh
Charging Time	Approx. 3.5 hours
Playback Time	12 hours (at 50% volume)
Bluetooth Version	5.3
Bluetooth Range	10 meters
Bluetooth Frequency	2402 - 2480 MHz
EIRP	1.2 dBm
FM Frequency Range	87.5 - 108 MHz
Rated Power	5 W (RMS)
Frequency Response	140 Hz - 18 kHz
IP Code	IPX6 (water resistant)
USB Support	USB drives up to 32 GB (FAT32), MP3 format
Other Features	TWS (True Wireless Stereo), Hands-free calling, FM radio, LED light modes
Package Contents	Portable Bluetooth speaker, Charging cable (USB-C), User manual
Cleaning	Use a soft, dry cloth; no harsh abrasives or chemicals
Safety	Keep away from heat, do not expose to water while charging, supervise children

Frequently Asked Questions - XS-E114B JVC

How do I charge the speaker?

Use a standard 5 V / 1 A charger or a PC’s USB port. Connect the USB-C cable to the speaker. The LED flashes red during charging and glows red when fully charged. Charging takes about 3.5 hours.

How do I pair the speaker with my phone via Bluetooth?

Long press the ⏻ button to turn on the speaker. The LED will flash blue, indicating pairing mode. On your phone, enable Bluetooth and select XS-E114B from the list. A voice prompt says 'connected' and the LED becomes solid blue.

How do I use the FM radio?

Press the ⏻ button to switch to FM mode. Then long press the ▶ button to automatically search and save radio stations. The LED flashes during search and becomes solid blue when done. Use the + and - buttons to skip stations.

Can I connect two speakers for stereo sound?

Yes, via TWS (True Wireless Stereo). Turn on both speakers with no Bluetooth connection. On one speaker, long press the + and - buttons together until you hear 'TWS paired'. Then pair your phone with the first speaker. The first speaker LED blinks blue, the second stays solid red.

Is the speaker waterproof?

The speaker has an IPX6 rating, meaning it is protected against powerful water jets. However, you must ensure all cables are disconnected and the cap is tightly closed before exposing it to water. Never charge the speaker when it is wet.

How long does the battery last?

At 50% volume, the battery provides up to 12 hours of playback. Charging time is approximately 3.5 hours. To prolong battery life, fully charge it every three months.

Can I play music from a USB drive?

Yes, insert a USB drive (FAT32, up to 32 GB) with MP3 files into the USB port. The speaker will automatically play the saved music. Do not use a USB extension cable. Note: The USB port does not support charging.

Why does the speaker beep when I increase the volume?

A 'beep' voice prompt indicates that the volume has reached the maximum level. This is a normal alert to let you know you cannot increase the volume further.

Why does the speaker turn off automatically?

If no device is paired within 20 minutes while in Bluetooth pairing mode, the speaker will automatically shut down to save battery. Simply turn it back on to search again.

How should I clean the speaker?

Use a soft, dry cloth to wipe the speaker. Do not use harsh abrasives or chemicals as they may damage the surface. Avoid getting moisture into openings.

USER MANUAL XS-E114B JVC

Black JVC portable electronic device with textured body and charging button (no visible text or symbols on body)

BLUETOOTH SPEAKER

XS-E114B

INTRODUCTION

Thank you for buying our product. Please read through these operating instructions, so you will know how to operate your equipment properly. After you finished reading the instructions manual, put it away in a safe place for future reference.

IMPORTANT SAFETY PRECAUTIONS

When using your Speaker, basic safety precautions should always be followed, including the following:

• Children should be supervised to ensure that they do not play with the device.
• Keep this Speaker and its accessories away from excessive heat.
• No sharp object should be subjected to the speaker/speaker-drivers as it may damage the speakers.
• Only use a soft cloth, no harsh abrasives or chemicals to clean, as it may damage the surface finishing.
• Keep away from dripping or splashed fluids.
• Ensure the speaker is waterproof by removing all the connected cables and the cap is tightly closed before exposing the speaker to liquid.
• NEVER expose the speaker to water while charging, as doing so may result in damage to the speaker or the power source.
• NEVER operate this speaker with a damaged cable or after it has malfunctioned or has been damaged in any manner.
• NEVER leave the speaker unattended while charging. If the speaker becomes hot, smokes, or gives off an odor during charging, terminate charging immediately.

Two circular symbols: one with a person holding a tool, the other with a crossed-out rifle (no text or numbers present)

TO AVOID DANGER OF SUFFOCATION, KEEP THE PLASTIC BAG AWAY FROM BABIES AND CHILDREN. DO NOT USE THIS BAG IN CRIBS, BEDS, CARRIAGES OR PLAYPENS. THIS BAG IS NOT A TOY.

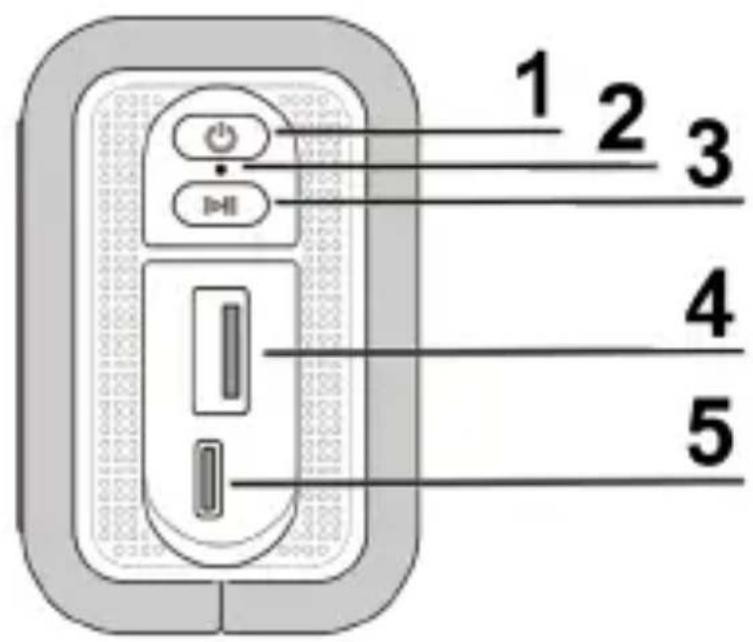

PRODUCT OVERVIEW AND CONTROL BUTTONS

1. button

Long press to turn on/off the speaker. Press to switch mode (BT / FM / USB).

2. LED indicator

3. ▶ button

BT/USB: Press to start/pause playback.

FM: Press to mute/unmute listening. Long press to search and save the radio stations automatically. Press twice to switch LED light mode.

4. USB port

5. USB-C™ charging port

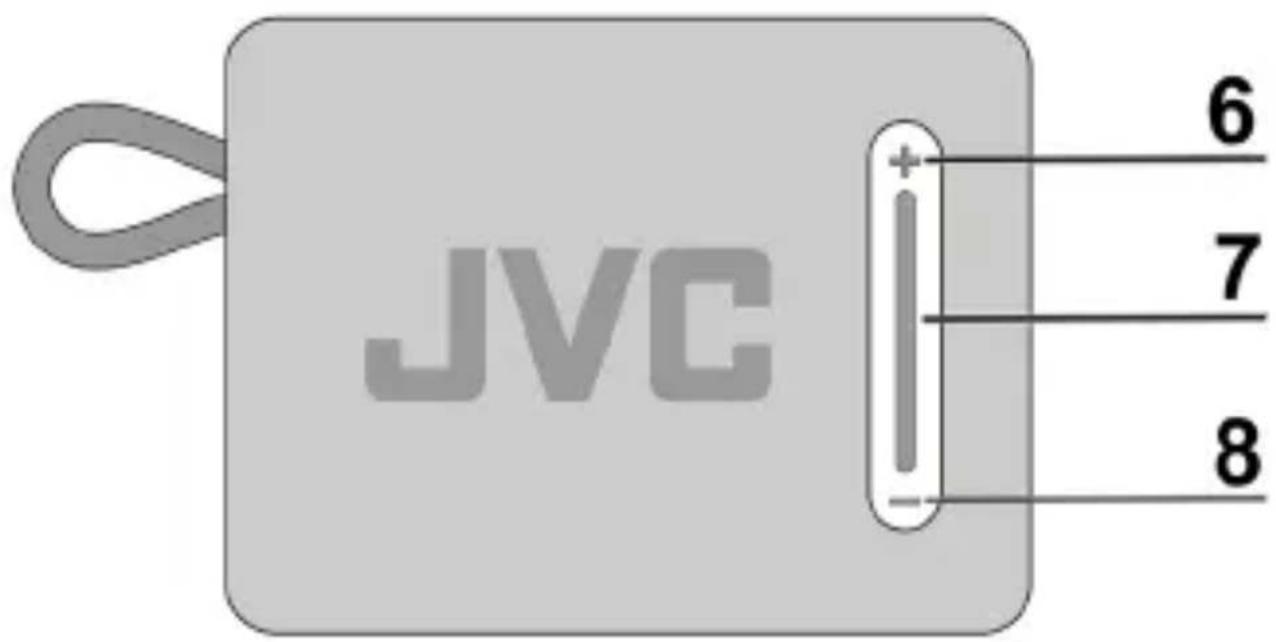

6. +button

Press to increase the volume. BT/USB: Long press to skip to the next track. FM: Long press to skip to the next saved station.

7. LED light

8. button

Press to decrease the volume. BT/USB: Long press to skip to the previous track. FM: Long press to skip to the previous saved station.

USB Type- C^TM and USB- C^TM are trademarks of USB Implementers Forum.

CHARGING

Before first-time use, fully charge the built-in battery. The charger is not included in the package, please charge the speaker via a standard 5 V / 1 A charger or via a PC. The LED light will flash red during charging. The LED light will glow red when the speaker is fully charged.

NOTE: The speaker will notify "battery low" when the battery is low.

IMPORTANT: Please make a complete charge every three months to avoid shortening the battery lifespan.

BLUETOOTH

• Long press the button to turn on the speaker. The LED indicator will flash blue. The speaker is in pairing mode.
• Activate Bluetooth of mobile phone and search for device name "XS-E114B", then connect it. If the pairing is successful, you will hear the voice prompt "connected", and the LED indicator will be solid blue.

NOTE: The speaker will automatically shut down after 20 minutes in pairing mode if no devices are paired. When the volume reaches the maximum level, you will hear a “beep” voice prompt.

Disconnecting the paired mobile phone

Long press the button to disconnect the current device.

The LED indicator will flash blue and the speaker will be in pairing mode.

FM

Long press the ▶ button to search and save the radio stations automatically. The LED indicator will flash during the search. When the search is complete, the LED indicator will be solid blue.

NOTE: LED light modes are not available in FM mode.

USB

Insert the USB drive into the speaker. The speaker will start playing the saved music automatically.

NOTE: The speaker supports USB drives (FAT32) with up to 32 GB.

The speaker supports MP3 audio format.

Do not use any USB extension cable for connecting the USB drive.

The USB port does not support charging.

TWS (TRUE WIRELESS STEREO)

The TWS technology enables you to use two speakers pairing via Bluetooth to create a wireless dual-channel system to deliver true stereo sound effect.

• Turn on both speakers. Make sure both speakers are without any Bluetooth connection.
• Long press the and buttons together on one of the speakers, the second speaker will connect automatically. You will hear the voice prompt “TWS paired”.
• The first speaker LED indicator flashes blue and the LED indicator of the second one keeps solid red.
• Pair your mobile phone with the first speaker, the LED indicator will be solid blue.

Disconnect the TWS connection

Long press the + and buttons together on one of the speakers to disconnect the TWS pairing.

NOTE: TWS function only works in Bluetooth mode.

HANDS-FREE FUNCTION

When phone or other smartphone is connected to your speaker, follow the steps below to take calls hands-free.

• Press the button to pick up the call.
• Long press the button to reject the call.
• During a call, press the button to hang up the call.

SPECIFICATION

BT Version 5.3

BT connecting range 10 meters

BT Frequency 2402 - 2480 MHz

EIRP 1,2 dBm

FM Frequency 87,5 - 108 MHz

DC input voltage/current 5 V / 1 A

Battery type Lithium-ion (3,7 V / 2000 mAh)

Battery Charging Time approx. 3,5 hours

Battery Playback Time 12 hours (50 % Volume)

Frequency response 140 Hz - 18 kHz

Rated Power 5 W (RMS)

IP code IPX6

Dimensions 98 x 75 x 49 mm

Weight 195 ± 10 g

Package Contents: Portable Bluetooth speaker, Charging cable, User manual

We reserve the right to change technical specifications

WARRANTY

The capacity of the product battery decreases over time. Decreasing of battery capacity occurs during normal use of the appliance and is considered usual wear and tear of the appliance. Decreasing battery capacity is not a defect of the appliance.

Disposal of old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems)

This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.

Hereby, ETA a.s. declares that the radio equipment type XS-E114B is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.JVCAUDIO.cz/doc

The Bluetooth ^® word mark and logo are registered trademark owned by Bluetooth SIG, Inc. and any use of such marks Shenzhen Royqueen Audio Technology Co., Ltd., is under license. Other trademarks and trade names are those of their respective owners.

ÚVOD

Two circular symbols: one with a person holding a tool, the other with a crossed-out tool (no text or numbers present)

NEBEZPEČÍ UDUŠENÍ. SÁČEK ODKLÁDEJTE MIMO DOSAH DĚTÍ. SÁČEK NENÍ NA HRANÍ. NEPOUŽÍVEJTE TENTO SÁČEK V KOLÉBKÁCH, POSTÝLKÁCH, KOČÁRCÍCH NEBO DĚTSKÝCH OHRÁDKÁCH.

VYOBRAZENÍ VÝROBKU A OVLÁDACÍ TLAČÍTKA

1. Tlačítko ⏻

Dlouhým stisknutím zapnete/vypnete reproduktor.

Two circular symbols: one with a person holding a tool, the other with a crossed-out object (no text or numbers present)

ABY UNIKNAĆ NIEBEZPIECZEŃSTWA UDUSZENIA, PLASTIKOWĄ TORBĘ NALEŻY PRZECHOWYWAĆ Z DALA OD NIEMOWLĄT I DZIECI. NIE UŻYWAJ TEJ TORBY

W ŁÓŻECZKACH, KOŁYSKACH, WÓZKACH LUB KOJCACH. TEN WOREK NIE JEST ZABAWKA.

PRZEGLĄD PRODUKTU I PRZYCISKI STERUJĄCE

1. Przycisk ⏻

DÔLEŽITÉ BEZPEČNOSTNÉ POKYNY

Two circular symbols: one with a person holding a tool, the other with a crossed-out tool (no text or numbers present)

NEBEZPEČENSTVO UDUSENIA. VRECKO ODKLADAJTE MIMO DOSAHU DETÍ. VRECKO NIE JE NA HRANIE. NEPOUŽÍVAJTE TOTO VRECÚŠKO V KOLÍSKACH, POSTIEL'KACH, KOČÍKOCH ALEBO DETSKÝCH OHRÁDKACH.

VYOBRAZENIE VÝROBKU A OVLÁDACIE TLAČIDLÁ

1. Tlačidlo

Two circular symbols: one with a person holding a tool, the other with a crossed-out rifle (no text or numbers present)

FULLADÁSVESZÉLY. TARTSA A PE ZACSKÓT GYERMEKEKTÖL ELZÁRT HELYEN. A ZACSKÓ NEM JÁTÉKSZER. NE HASZNÁLJA EZT A ZACSKÓT BÖLCSÖKBEN, KISÁGYAKBAN,

BABAKOCSIKBAN, VAGY GYEREK JÁRÓKÁKBAN.

Two circular symbols: one with a person holding a tool, the other with a crossed-out tool (no text or numbers present)

PENTRU A EVITA PERICOLUL DE SUFOCARE, NU LĂSAȚI PUNGA DIN PLASTIC LA ÎNDEMÂNA BEBELUȘILOR ȘI A COPIILOR. NU UTILIZAȚI ACEASTĂ PUNGĂ ÎN PATURI PENTRU COPII, PATURI, CĂRUCIOARE PENTRU COPII ȘI ȚARCURI PENTRU COPII. ACEASTĂ PUNGĂ NU ESTE O JUCĂRIE.

PREZENTARE GENERALĂ A PRODUSULUI ȘI BUTOANELE DE COMANDĂ

1. Butonul ⏻

Two circular symbols: one with a person holding a tool, the other with a crossed-out tool (no text or numbers present)

ЗА ДА ИЗБЕГНЕТЕ ОПАСНОСТ ОТ ЗАДУШАВАНЕ, ДРЪЖТЕ ПЛАСТМАСОВИТЕ ОПАКОВКИ ДАЛЕЧ ОТ БЕБЕТА И ДЕЦА. НЕ ПОЛЗВАЙТЕ ЛАСТМАСОВИТЕ ОПАКОВЪЧНИ

ПЛИКОВЕ ЗА ДЕТСКИ КРЕВАТЧЕТА, ЛЕГЛА, ДЕТСКИ КОЛИЧКИ ИЛИ ИГРАЛНИ МЕБЕЛИ. ОПАКОВЪЧНИТЕ ПЛИКОВЕ И МАТЕРИАЛИ НЕ СА ИГРАЧКИ.

ПРЕГЛЕД НА УСТРОЙСТВОТО И ЕЛЕМЕНТИТЕ ЗА УПРАВЛЕНИЕ

1. Бутон Ⓧ

This product is manufactured and distributed exclusively by ETA a.s., serviced and warranted by its designated partner.

“JVC” is the trademark of JVCKENWOOD Corporation, used by such company under license.
