CL600R - Light COLBOR - Free user manual and instructions

Product Type	RGBWW COB Video Light
Model	CL600R
Color Temperature Range	2700K - 6500K (±200K)
CRI / TLCI	97+
TM-30-18	Rf 93+, Rg 100+
SSI	D32: 85, D56: 75
COB Output Power	600W
Power Supply (AC)	100-240V, 50/60Hz
Power Supply (DC)	48V 12.5A
Battery Support	V-Mount (14.8V, 16.8V, 26V, 28.8V)
Beam Angle (No Reflector)	≈120°
Light Body Dimensions (L×W×H)	Without base: 25 × 14 × 13 cm (8.2 × 4.5 × 4.2 in); With base: 25 × 23 × 36 cm (8.2 × 7.5 × 11.8 in)
Light Body Weight	4.2 kg (9 lbs)
Control Box Dimensions (L×W×H)	19 × 11 × 25.5 cm (6.2 × 3.6 × 7.3 in)
Control Box Weight	4 kg (8.8 lbs)
IP Rating	IP54
Operating Temperature	-10°C to 40°C
Mount Type	Bowens Mount
Lighting Modes	CCT, HSI, RGB, GEL, EFF
Effects (EFF)	Fire, Fireworks, CCT Chase, Pulsing, Alert, Television, Party, Explosion, Faulty Bulb, Welding, Strobe, Lightning
Control Interface	Touchscreen, Buttons, Dial, 2.4GHz Remote, DMX, App (COLBOR STUDIO), NFC
Fan Modes	Smart, Quiet, Performance
Dimming Resolution	0.1% or 1% steps
Warranty	12 months limited warranty

Frequently Asked Questions - CL600R COLBOR

How do I install the reflector on the CL600R?

Align the reflector with the groove around the lamp head and clip it in, then rotate it in the direction of the arrow until the top rod rebounds. To remove, follow the same steps as removing the COB protective cover.

Can I power the CL600R with batteries?

Yes, the CL600R supports V-Mount batteries (14.8V, 16.8V, 26V, 28.8V). With two 26V/28.8V batteries, you can achieve up to 80% power. The control box can also charge batteries while connected to AC power.

What is the maximum power output when using a single 14.4V battery?

When powered by a single 14.4V or 16.8V battery, the maximum power is limited to 20%.

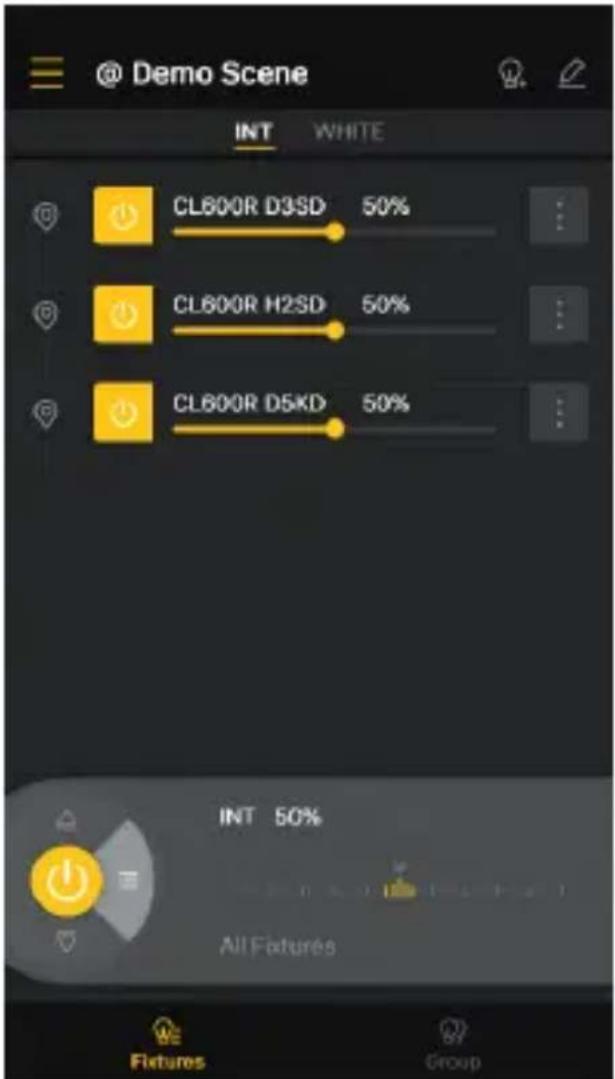

How do I connect the CL600R to the COLBOR STUDIO app?

Activate the 'Remote Control - APP' setting on the light, then open the COLBOR STUDIO app, tap 'Add Fixture', and follow the on-screen instructions. You can also use NFC by tapping your phone near the NFC logo on the control box.

What are the available dimming curves?

The CL600R offers four dimming curves: Linear, Exponential (more change late), Logarithmic (more change early), and S-curve (more change in the middle). These can be adjusted in the Professional Mode settings.

How do I activate the strobe effect?

In EFF Mode, select the 'Strobe' effect. Note that strobe, welding, and lightning effects do not play automatically; you must manually trigger them using the EFF Trigger option.

What is the maximum charging current for V-Mount batteries?

For 14.8V, 16.8V, and 26V batteries, the maximum charging current is 1.5A per battery when charging two simultaneously. For 28.8V batteries, the CL600R does not support activation and charges up to approximately 80% capacity.

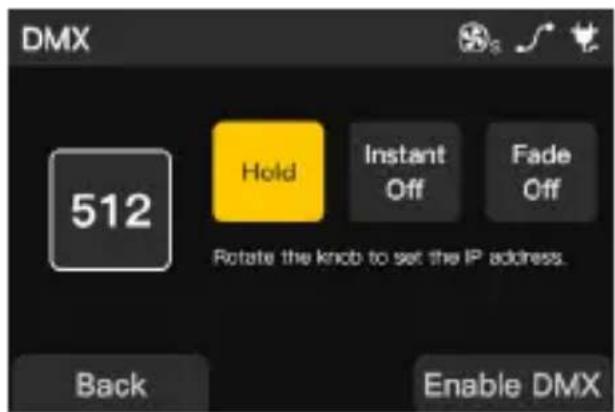

Can I use DMX control with the CL600R?

Yes, the CL600R has DMX input and output ports. You can set a DMX address (1-512) and choose hold, instant off, or fade off behavior when the DMX signal is lost.

How do I clean and maintain the CL600R?

Keep the product away from corrosive chemicals, liquids, and heat sources. Do not submerge in water. Use a dry cloth to clean the exterior. Ensure vents are not blocked. Do not disassemble; contact authorized technicians for repairs.

What is the warranty period for the CL600R?

The CL600R comes with a 12-month limited warranty from the date of purchase by the first end-user. Within 30 days, you can get a free replacement or repair for quality defects under normal use.

USER MANUAL CL600R COLBOR

Line drawing of a vintage camera setup with a vertical stand and attached control unit (no text or symbols)

CL600R Video Light User Manual

Thank you for choosing COLBOR product. Please read this manual carefully before use and follow all instructions mentioned herein.

Contents

Caring For Your COLBOR Product 01

Product Instructions 02

1. Light Body 02
2. Control Box 03

Light Installation 04

1. Removal of COB Cover 04
2. Installation and Removal of Reflector 04
3. Lamp Body Installation and Fixation 05
4. Control Box Installation and Fixation 05
5. Connecting Lamp Body and Control Box 06
6. Power Connection 07
7. 48V DC Powering 10

Operating Instructions 11

1. Power On/Off 11
2. Icon Descriptions 11
3. Button/ Dial Operation Logic 13
4. CCT Mode (Default Mode: CCT Mode) 14
5. HSI Mode 15
6. RGB Mode 16
7. GEL Mode 17
   8.EFF Mode 18
8. Settings 22

Specifications 27

Packing List 28

APP Connection 29

1. Connecting the COLBOR STUDIO APP 29
2. APP User Manual 32

2. APP User Manual 32

Form 1 33

WARRANTY 34

Caring For Your COLBOR Product

• Keep corrosive chemicals, liquids, and heat sources away from the product to prevent mechanical damage.
• Please do not place the product into the water.
• Do not leave the product unattended while in use. Keep out of reach of children.
• Do not touch the hot COB surface.
• Please do not block the ventilation and do not look at the light directly when it is on.
• Do not attempt to disassemble or modify the product. Doing so voids warranty.
• Please have the product checked or repaired by authorized technicians if any malfunctions happen.
• Disconnect from the power supply when it is not in use.
• Do not cover, inverted COB and radiator for high temperature, do not cover, inverted, do not touch the lamp holder and radiator vent with your hands when the product in use.
• Malfunction may be caused by dropping, impact of external force.
• Failure to follow all the instructions may result in mechanical damage.
• Please use light accessories(Softbox, Diffusers etc.) that size is over 65cm to prevent overheating during full-power operation and leading to overheat protection.
• Our company reserves the right of final interpretation of the product.
• Product design and specifications are subject to change without prior notice.

Product Instructions

1. Light Body

① COB Light Source + Optical Glass
② Bowens Mount + Mount Lock
③ Heat Dissipation Vent
④ Lamp Body Handle
⑤ Control Cable Socket
⑥ Lamp Body Angle Adjustment Handle
⑦ Air Inlet
⑧ U-Shaped Bracket
⑨ 16mm(5/8")/28mm(1-1/8") Universal Light Stand Base

2. Control Box

① Control Box Carrying Handle
② Control Line Socket
③ Touchscreen
④ Control Box Heat Dissipation Vent
⑤ Buttons
⑥ Dial
⑦ EFF Button
⑧ Wireless Connection Pairing Button
⑨ Power Button

⑩ DMX Input Port
⑪ DMX Output Port
⑫ DC48V Input Port
⑬ AC100-240V Input Port
⑭ NFC Touchpoint Area
⑮ Control Box Lamp Stand Locking Mount
⑯ RJ45 Port
⑰ USB Port
⑱ V-Mount Battery Mount *2

Light Installation

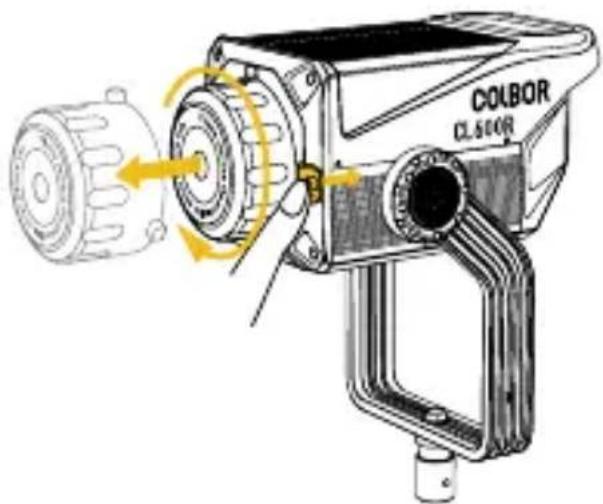

1. Removal of COB Cover

Press the Bowens Mount safety lock and hold COB protective cover. Rotate it as the direction of the arrow.

Note: Be sure to remove COB protective cover and COB protective film before use.

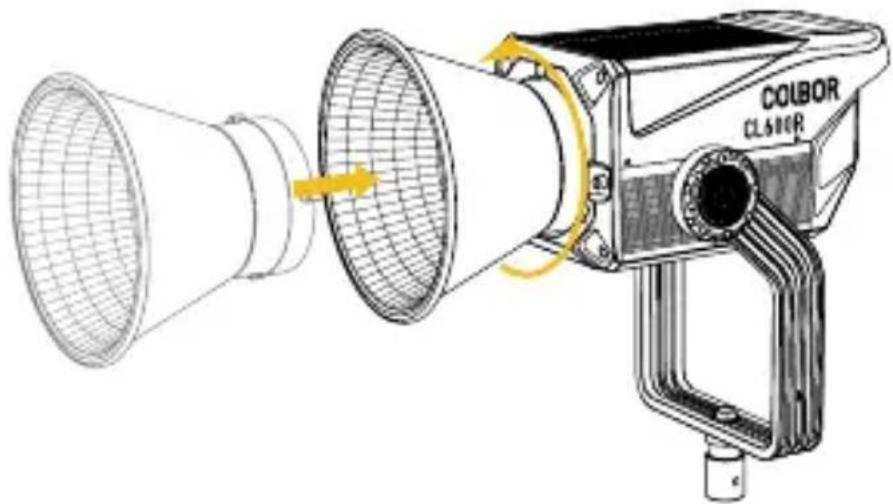

2. Installation and Removal of Reflector

Installation of reflector: Align the reflector with the groove around the lamp head and clip it in, turn the reflector as the direction of the arrow, and the reflector installation will be completed after the top rod rebounds. Removal of reflector: Follow the instructions of “COB Protection Cover Removal”.

3. Lamp Body Installation and Fixation

Adjust the lamp body to a suitable angle then rotate the handle to install it on the stand.

Use the angle adjustment handle to secure it.

4. Control Box Installation and Fixation

Lock the control box clamp to the stand, align the locking mount of the control box with the clamp's and lock it securely to fix it in place.

5. Connecting Lamp Body and Control Box

Use the control cable to connect the lamp body and the control box.

6. Power Connection

(1) Via AC Powering (Supports 100V–240V)

Connect the lamp body to the control box with the control cable, align the plug with the control box's power input, then rotate and secure the cable. Power it on Once the cables are in place.

(2) Power Cable Storage

Plug the power cable after the light is turned off. Press the safety lock and rotate the cable for plugging. Please do not forcefully pull out the power cable without unlocking it.

Technical line drawing of a vertical industrial device with attached control panel and cable (no text or symbols)

(3) Powering with V-Mount Batteries (Supports 14.8V, 16.8V, 26V, 28.8V)

Mount the batteries on both sides of the control box, then connect them to the light. Please secure the cables before powering the CL600R on.

The MAX. load current for the battery panel is 15A, and please note:

1) For 14.4V, 16.8V batteries:

The maximum power of the light is 20% when powered by one battery.

The maximum power of the light is 40% when powered by two batteries.

2) For 26V, 28.8V batteries:

The maximum power of the light is 40% when powered by one battery.

The maximum power of the light is 80% when powered by two batteries.

3) Powering by two batteries of different SPEC. is available, and the maximum power of the light is 40%.

Technical line drawing of a handheld device with a coiled cable and attached control panel (no text or symbols)

(4) Charging V-Mount Batteries

The CL600R can charge two V-mount batteries (14.8V, 16.8V, 26V, 28.8V) simultaneously, even if they are of different SPEC.

Please note:

1) When the control box is connected to an AC 100V–240V power source, batteries can be charged without turning on the control box. If turning the CL600R on, the brightness must be below 50% to enable charging mode.

2) For 14.8V, 16.8V, and 26V batteries: Supports simultaneous charging of two batteries, with a maximum charging current of 1.5A per battery.

For 28.8V batteries: The CL600R does not support the activation of 28.8V batteries, and the maximum charging capacity is approximately 80%.

7. 48V DC Powering

Use the three-core DC 48V power input interface to connect outdoor power sources or devices with 48V DC output for power supply.

Technical line drawing of a three-tiered scientific instrument setup with no visible text or symbols

Operating Instructions

1. Power On/Off

(1). Remove the COB protective cover before powering on.
(2). Power On: After the power connection, short press the power button on the control box. The display screen will show the brand and product name (Default Mode: CCT).
(3). Power Off: Short press the power button on the control box to turn it off.

2. Icon Descriptions

1 Connection Status Icon
	After selecting wireless connection pairing, the APP connection status icon will dynamically display. The constant staying of the icon indicates a successful pairing with the APP.
	Successfully pairing with remote.
	DMX control mode.
	Group Control Mode. “T” for TX, “R” for Rx, “TR” for TX&RX. “A” for Group A–15 groups (A~O) in total. “NULL” for ungrouping( default), and is not affected by other groups.
2 Fan Cooling Mode Icon
	Smart Mode. The product will adjust the fan speed according to the internal detected temperature to ensure that it is in optimal working condition.
	Quiet Mode. The fan keeps running at low speed for minimum noise, and overheating protection will be activated if the product temperature is higher than the alarm value.
	Performance Mode. Fan runs at the highest speed to ensure heat dissipation.
3 Curve Adjustment Icon
	Even Increment
	Gradual Increase Initially, Subsequent Acceleration
	Initial Significant Change, Gradual Deceleration Later
	Gradual Increase Initially, Moderate Change in the Middle, Gradual Decrease Later
4 Power Icon
	AC Powering
	DC Battery Powering. Dynamically display the current battery output voltage

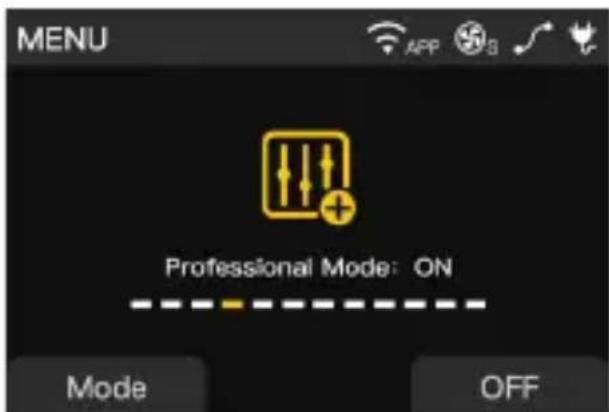

3. Button/ Dial Operation Logic

(1). Available to operate both via touchscreen and buttons simultaneously. Touchscreen is enabled by default and can be disabled via settings.
(2). The three buttons below the screen correspond to the top options on each page. Short press to confirm the option, and long press to open the overall menu for each option.
(3). Rotate the dial to switch between each option (the selected option is highlighted in white). Short press the dial to activate the option (activated option is highlighted in yellow).

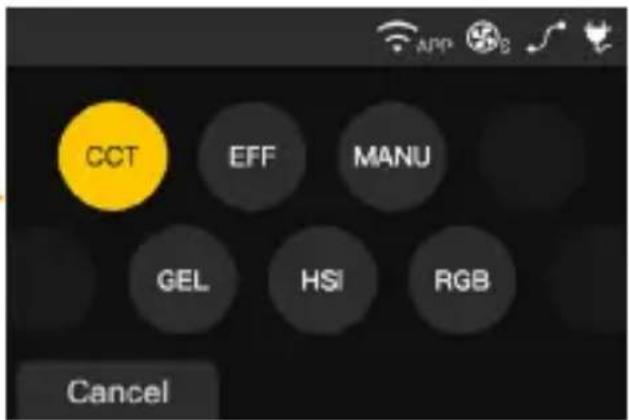

Long press to open the overall menu

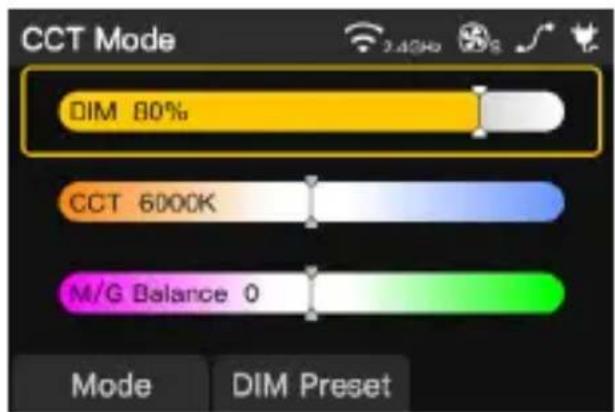

4. CCT Mode (Default Mode: CCT Mode)

Activate CCT/Brightness/“M/G Balance” Bar then slide it or rotate the dial for value adjustment.

DIM-Brightness: 0%-100%

CCT-Color Temperature: 2700K-6500K

M/G Balance: M+0.10-G+0.10

Mode: Short press to switch between each page (CCT-HSI-RGB-GEL-EFF-settings), long press to enter the overall menu.

DIM Presets: Short press to set the brightness -0%、25%、50%、75%、100%

CCT Presets: Short press to set the CCT -2700K、3200K、4300K、5600K、6500K

GM Reset: Short press to set the value to 0.

5. HSI Mode

Activate INT/HUE/SAT Bar then slide it or rotate the dial for value adjustment.

INT-Brightness: 0%-100%

HUE: 0^ - 359^

SAT: 0%-100%

Mode: Short press to switch between each page (HSI-RGB-GEL-EFF-Settings-CCT), long press to enter the overall menu.

INT Preset: Short press to set the brightness-0%、25%、50%、75%、100%

Saved: Short press to enter the color database for saving the current color, set to or delete the saved color.

6. RGB Mode

Activate the White/R/G/B Bar then slide it or rotate the dial for value adjustment.

White: 0%-100%

R: 0-255

G: 0-255

B: 0-255

Mode: Short press to switch between each page (RGB-GEL-EFF-Settings-CCT-HSI), long press to enter the overall menu.

DIM Preset: Short press to set the brightness-0%、25%、50%、75%、100%

Saved: Short press to enter the color database for saving the current color, set to or delete the saved color.

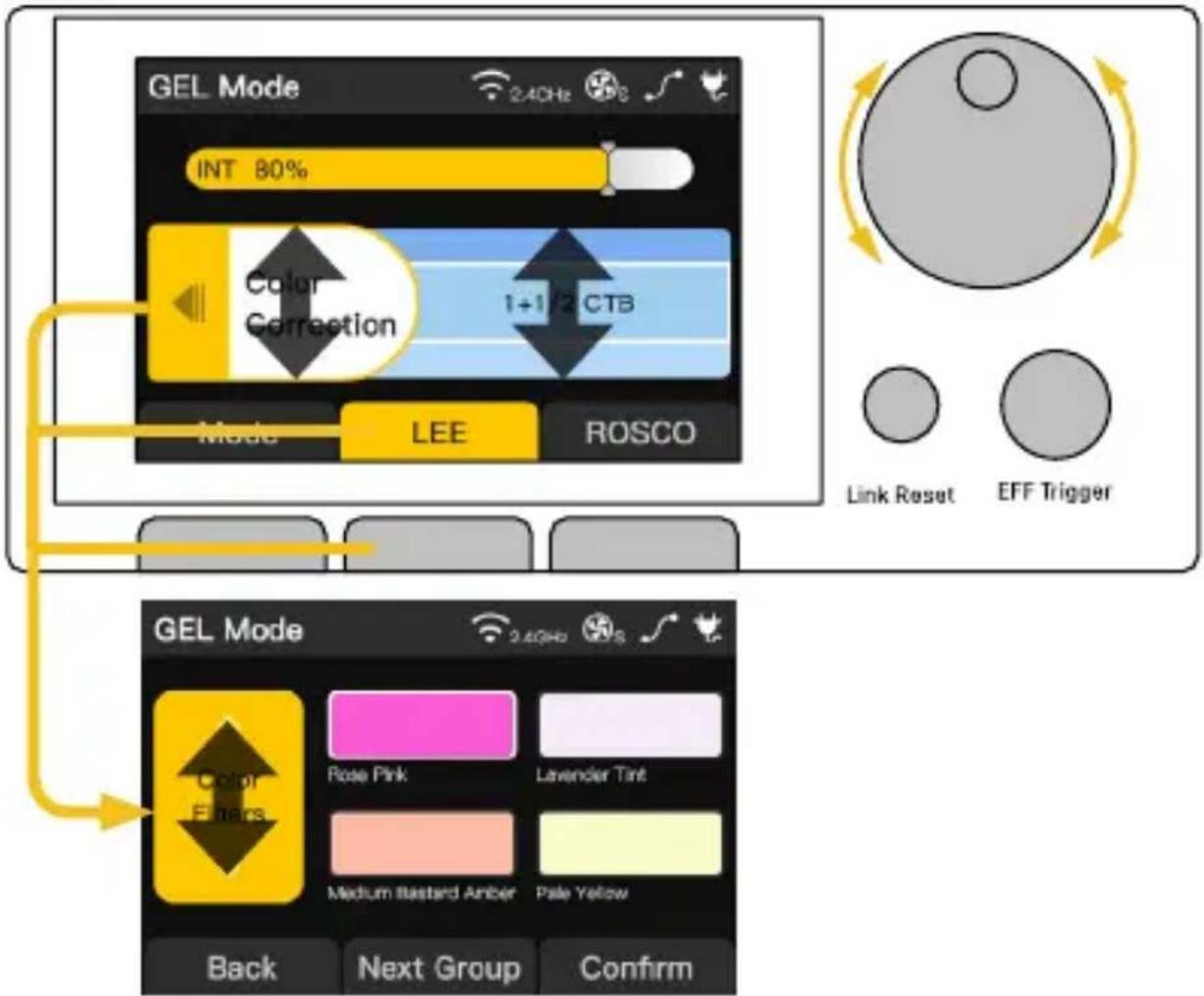

7. GEL Mode

INT Control: Activate the INT bar, slide it or rotate the dial for adjustment(0%–100%).

Enter the Filter/Correction Menu: Long press the LEE/ROSCO to enter the LEE/ROSCO filter menu. Or short press the LEE/ROSCO then click “◀” to enter.

Change the Filter/Correction Group: Slide the Group Bar up/down, or short press “▲ / ▼”.

Filter/Correction Selection:

1. Short press LEE/ROSCO then slide the Filter/Correction up/down
   2.Enter the Filter/Correction menu, select the Filter/Correction then click confirm(*The light color will change only after clicking Confirm.)

Mode: Short press to switch between each page (GEL-EFF-Settings-CCT-HSI-RGB), long press to enter the overall menu.

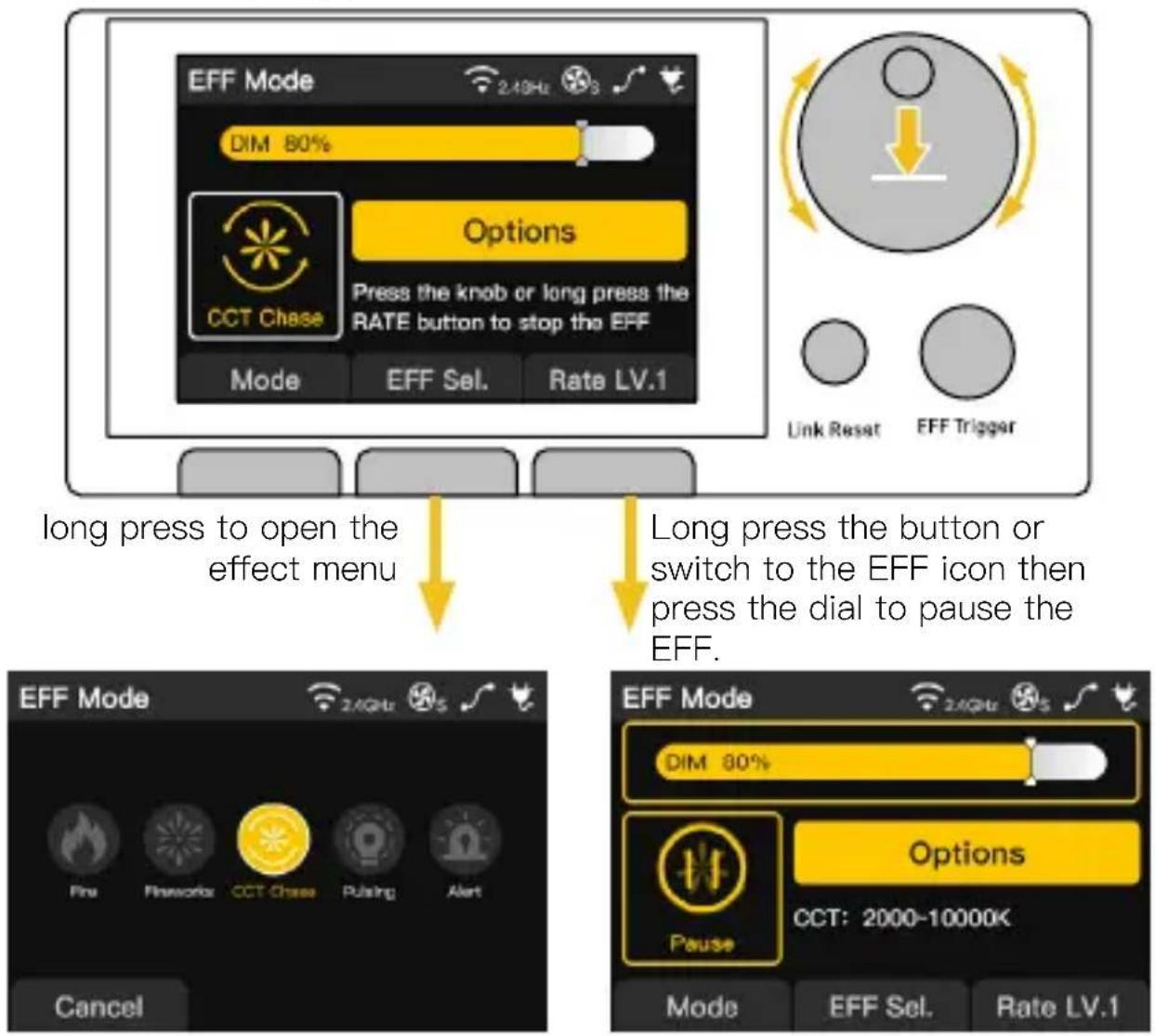

8. EFF Mode

Activate the Brightness Bar, or select the EFF/EFF Settings option, then slide it or rotate the dial for value adjustment.

DIM-Brightness: 0%-100%

EFF Sel: Short press to select the EFF, long press to open the effect menu for quick selection.

12 effects in total – Fire /Fireworks /CCT Chase/ Pulsing /Alert /Television /Party /Explosion/ Faulty Bulb /Welding /Strobe /Lightning. The options of the effect menu will vary depending on each effect.

*When switching to welding, strobe light, and lightning effects, the effects will not play automatically and must be activated manually.

Frequency: Short press to switch between frequency levels (Lv.1–Lv.5), long press to pause the effect.

Mode: Short press to switch between each page (EFF-Settings-CCT-HSI-RGB-GEL), long press to enter the overall menu.

long press to open the effect menu

Long press the button or switch to the EFF icon then press the dial to pause the EFF.

Warning:

The EFF with strong strobe effects (Welding, Strobe, Lightning) may cause discomfort and trigger symptoms like muscle spasms and epilepsy in some individuals.

If you feel unwell, immediately stop using the light effects and seek medical attention.

Fire	DIM: 0%-100%CCT: Warm/Natural/CoolFrequency (Rate): Lv.1 – Lv.5
Fireworks	DIM: 0%-100%CCT ModeCCT (Point/Range/Random): 2700K-6500KGM Balance: M+0.10-G+0.10HSI ModeHUE (Point/Range/Random):0° -359°SAT (Point/Range/Random): 0%-100%Frequency (Rate): Lv.1 - Lv.5/Random
CCTChase	DIM: 0%-100%CCT ModeCCT (Point/Range/Random): 2700K-6500KGM Balance: M+0.10-G+0.10HSI ModeHUE (Point/Range/Random):0° -359°SAT (Point/Range/Random): 0%-100%Frequency (Rate): Lv.1 - Lv.5
Pulsing	DIM: 0%-100%CCT ModeCCT (Point/Range/Random): 2700K-6500KGM Balance: M+0.10-G+0.10HSI ModeHUE (Point/Range/Random):0° -359°SAT (Point/Range/Random): 0%-100%Frequency (Rate): Lv.1 - Lv.5
Alert	DIM: 0%-100%Color: Red&White/Blue&White/Red&BlueFrequency (Rate): Lv.1 - Lv.5
Television	DIM: 0%-100%CCT ModeCCT (Point/Range/Random): 2700K-6500KGM Balance: M+0.10-G+0.10HSI ModeHUE (Point/Range/Random):0° -359°SAT (Point/Range/Random): 0%-100%Frequency (Rate): Lv.1 - Lv.5/Random
Party	DIM: 0%-100%CCT ModeCCT (Point/Range/Random): 2700K-6500KGMBalance: M+0.10-G+0.10HSI ModeHUE (Point/Range/Random):0° -359°SAT (Point/Range/Random): 0%-100%Frequency (Rate): Lv.1 - Lv.5
Explosion	DIM: 0%-100%CCT ModeCCT (Point/Range/Random): 2700K-6500KGMBalance: M+0.10-G+0.10HSI ModeHUE (Point/Range/Random):0° -359°SAT (Point/Range/Random): 0%-100%Frequency (Rate): Lv.1 - Lv.5
Faulty Bulb	DIM: 0%-100%CCT ModeCCT (Point/Range/Random): 2700K-6500KGMBalance: M+0.10-G+0.10HSI ModeHUE (Point/Range/Random): 0° -359°SAT (Point/Range/Random): 0%-100%Frequency (Rate): Lv.1 - Lv.5
Welding	DIM: 0%-100%CCT ModeCCT (Point/Range/Random): 2700K-6500KGMBalance: M+0.10-G+0.10HSI ModeHUE (Point/Range/Random): 0° -359°SAT (Point/Range/Random): 0%-100%Frequency (Rate): Lv.1 - Lv.5
Strobe	DIM: 0%-100%CCT: Warm/Natural/CoolFrequency (Rate): Lv.1 - Lv.5
Lighting	DIM: 0%-100%CCT: Warm/Natural/CoolFrequency (Rate): Lv.1 – Lv.5

9. Settings

① Click or short press the lighting mode button to enter the settings menu.
② Slide left or right on the screen or rotate the dial clockwise or counterclockwise to select the setting options.
③ Click or press the dial to enter the corresponding option settings menu.

Click or short press the lighting mode button to enter

(1) Wireless Control

① APP/Remote Control

Once successfully paired, the connection remains even when switching to other control modes. but simultaneous use with other control methods is not possible. When switching to the respective control mode, operations must be performed using the corresponding method.

All operations prioritize signals from the APP or 2.4GHz as the highest priority.

② Group Control

Signal Logic:

TX – Available for controlling other lights and it can not be controlled by others.

RX – Being controlled by TX and can not control others.

TXRX – Available for both controlling and being controlled.

Group No. Settings - NULL (A-O) (Default is NULL)

Options: TX/RX/TXRX

③ DMX Control

Control is handed over to the console. The control box is only available for exiting DMX mode operation. Press and hold the dial thenturn clockwise to exit.

DMX Address Setting: 1\~512

DMX Signal Setting:

Hold: After disconnection, brightness becomes 50% and color temperature becomes 5600K.

Instant Off: After disconnection, the light immediately turns off.

Gradual Off: After disconnection, the light remains on for 1 minute before gradually dimming.

(2) Studio Mode

Clicking the screen or pressing the dial to activate Studio Mode.

Studio Mode On: The control box is on once the power is connected, without pressing the power button.

Studio Mode Off: It requires the manual pressing of the power button to power the control box on.

(3) Screen Settings

① Touchscreen Settings

Click the screen or press the dial to enable the touch function.

② Screen Brightness

Screen Brightness: 0 to 100%.

Automatic Screen Brightness: The screen will automatically adjust brightness based on ambient light.

Manual Screen Brightness: Available to custom brightness by dragging the brightness slider or rotating the dial.

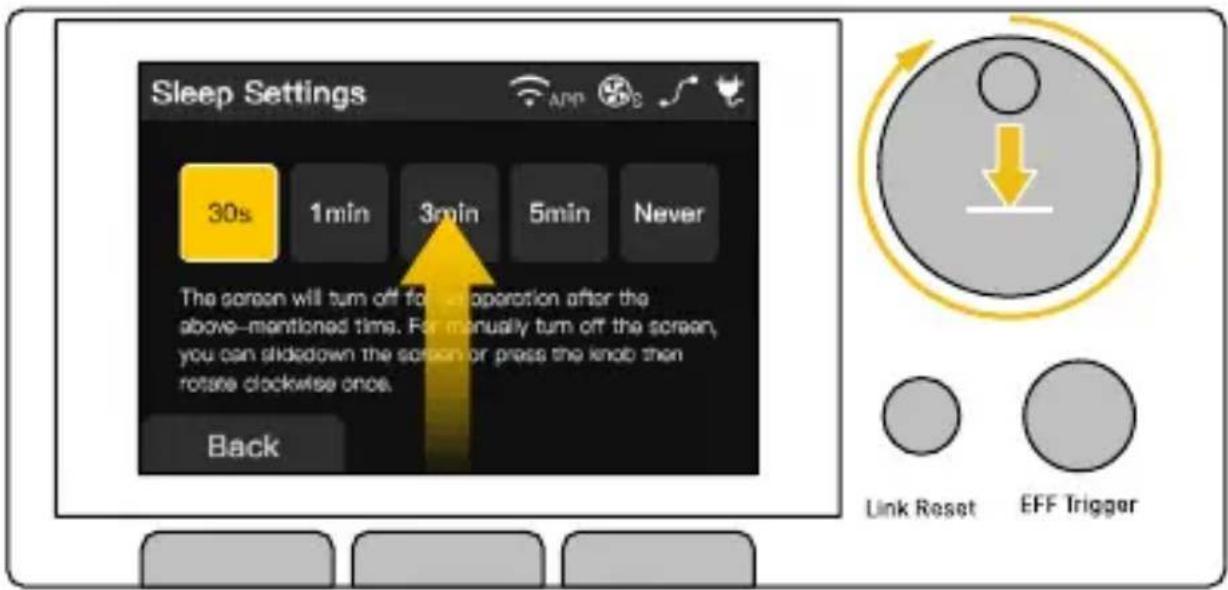

③ Sleep Settings

The screen will automatically turn off when no operation after a set period. Options:30 seconds, 1 minute, 3 minutes, 5 minutes, and never.

To manually turn off the screen, slider from the top to the bottom of the screen or press the dial and rotate it clockwise.

Short press any button (except the power button) or touch the screen will exit sleep mode.

Manually turn off the screen

(4) Professional Mode

Click the screen or press the dial to activate/disable the Professional Mode.

Once activated, the settings will include the following 4 options:

① Fan

Smart / Quiet / Performance

Smart: Will automatically adjust the fan speed based on the current internal temperature.

Quiet: May limit the brightness to reduce the noise.

Performance: The fan operates at maximum speed, prioritizing optimal cooling.

② Initial Brightness

Available to set the initial brightness, with options including Default, Preset Brightness, and Custom Brightness.

Default: The brightness of the last shutdown.

Preset Brightness: 0、25%、50%、75%、100%

Custom Brightness: Drag the brightness slider or rotate the dial to adjust brightness from 0 to 100%.

③ Frequency Selection

Adjust the frequency to match the shooting requirements of different frame rates.

Range: 200Hz\~1800Hz

④ Dimming Settings

Adjust Dimming Curve Settings

Linear - Uniformly increases brightness from 0% to 100%.

Exponential – More noticeable change in brightness in the later part of the 0% to 100% range.

Logarithmic – More noticeable change in brightness in the earlier part of the 0% to 100% range.

S-curve – More noticeable change in brightness in the middle part of the 0% to 100% range.

Adjust Response Settings (Default: Soft):

Fast – Brightness changes instantly.

Soft - Brightness changes gradually in a smooth transition.

Adjust Range Settings

Thousandth Level - Adjusts with a precision of 0.1% .

Percentage Level - Adjusts with a precision of 1%.

(5) Battery Management

If the battery is over discharge, please open “Settings – Battery Management.” and choose the corresponding battery voltage specification then click “Activate” to wake up the battery.

(6) Language

Click to change the language.: English(Default) / Chinese

(7) Product Information

For checking product information.

① Hardware Version / ② Firmware Version / ③ Protocol Version /
④ MAC Address

(8) Factory Reset

Confirm to restore the factory settings.

Specifications

Type	RGBCW
Color Temperature Range	2700K~6500K (±200K)
Beam Angle	No Reflector ≈∠ 120°
CRI/TLCI	97+
TM-30-18	Rf:93+ Rg:100+
SSI	D32: 85 D56:75
COB Output Power	600W
Power	600W (Max)
IP Rating	IP54
Input	DC 48V 12.5A
Body Material	Aluminum Alloy+ABS
Size(Light):(L*W*H)	Light Base Not Included:25*14*13cm (8.2'*4.5'*4.2')Light Base Included:25*23*36cm (8.2'*7.5'*11.8')
Weight (Light)	4.2kg(9lbs)
Size(Control Box) (L*W*H)	19*11*25.5cm (6.2'*3.6'*7.3')
Weight (Control Box)	4kg (8.8lbs)
Op. Temp.	-10~40°C

Packing List

Illustration of a handheld device labeled 'COUBOR CLEAR' with a handle and textured grip (no readable text beyond label)

CL600R Video Light x1

CL600R Control Box x1

Trolley Case x1

Pure mechanical component diagram without any text, numbers, or symbols

Control Box Clamp x1

Pure electrical circuit lines without any symbols

Control Cable x1

Pure electrical circuit lines without any symbols

Power Cable x1

COB Protective Cover x1

Reflector x1

Warranty Card x1

Power adapters may vary according to sales region.

APP Connection

Scan or search in the app store to download the COLBOR STUDIO for further functions.

1. Connecting the COLBOR STUDIO APP

(1) Search and Connect

① Activate the "Remote Control-APP" settings on CL600R.

② Open the COLBOR STUDIO APP, click "Add Fixture".

③ Choose “Add Fixture” (add the light directly to the scene) or “Add Group” (group lights into a group and add to the scene).

④ Add the light and return to the menu.

(2) NFC Connection

Tag your phone's NFC sensing area close to the light's NFC logo. A prompt will automatically appear on your phone to open the APP. Click the prompt to open the APP.

Illustration of a hand holding a smartphone next to a portable electronic device with buttons and a paper (no text or symbols visible)

* If the app has not been installed, a prompt to install will appear. Click the prompt to enter the app download page on the official site or the APP store.

* Devices before IOS13 (iPhone XS/iPhone XR) are not available for this function.

* If the light has never connected to a device via NFC, please enable the Bluetooth connection option and activate the light's NFC function first:

① Connect the light via the APP connection method (refer to the APP connection operation).

② Click on the “Edit Icon” of the light, then click “Activate NFC.” Tag your phone’s NFC area close to the light’s NFC logo to activate NFC. When reconnecting the light, tag your phone’s NFC sensing area close to the light’s NFC logo area to complete the pairing.

2. APP User Manual

Click to open the page to check for more information.

Graphic: https://www.colborlight.com/pages/cb-studio-help-center

Video: https://youtu.be/SYEqPTvuy3M

Connecting and Operating the Remote

① Activate the “Remote Control-2.4GHz” on CL600R.

② Setting the remote.

(EX. COLBOR CTRL1 wireless remote control)

Short press the dial then long press and hold for 3–4 seconds to start

pairing until the screen displays the icon “ 2.4GHz ”

Form 1
Illumination (Lux)

CCT			1m 3m 5m
2700K	Light Base		11,800	1,490	618
	BHR45		54,700	5,170	1,910
	CF-200G	12°	40,300	3,640	1,310
		40°	36,200	5,180	1,350
3200K	Light Base		13,200	1,660	687
	BHR45		59,800	5,670	2,100
	CF-200G	12°	43,800	3,930	1,420
		40°	39,100	5,690	1,470
4300K	Light Base		14,800	1,840	763
	BHR45		65,500	6,200	2,300
	CF-200G	12°	47,100	4,240	1,550
		40°	42,200	6,210	1,590
5600K	Light Base		15,600	1,950	806
	BHR45		68,500	6,500	2,420
	CF-200G	12°	49,100	4,400	1,630
		40°	43,800	6,520	1,660
6500K	Light Base		15,900	1,990	822
	BHR45		69,200	6,620	2,480
	CF-200G	12°	50,000	4,440	1,660
		40°	44,300	6,620	1,720
R	Light Base		2,420	286	118
	BHR45		10,200	958	351
	CF-200G	12°	7,610	399	243
		40°	6,740	959	248
G	Light Base		5,270	644	271
	BHR45		23,200	2,150	802
	CF-200G	12°	17,200	1,540	564
		40°	14,900	2,150	551
B	Light Base		1,310	162	66
	BHR45		6,020	564	207
	CF-200G	12°	4,430	683	143
		40°	3,980	562	145

The data is given from testing in a laboratory.

WARRANTY

Warranty Period

Thank you for purchasing COLBOR products.

1. Customers are entitled to free replacement or repair service in case of quality defect(s) found in the product under normal use within 30 days upon receipt of the product.
2. Original COLBOR products are entitled to 12-month limited warranty service.
   The warranty period begins on the date of purchase of brand new, unused products by the first end-user.

Within the warranty period, if product defect or failure is attributable to material defection or technological problem, the defective product or defective part will be repaired or replaced without charge (service and materials fee).

Warranty Exclusions and Limitations

1. Faults resulted from inappropriate use of a product without following its operation specification
2. Artificial damage, e.g. crash, squeeze, scratch, soaking, exposing to rain or damp
3. Modifications to a product by its user or a third party without prior written consent of COLBOR, e.g. replacement of element or circuit, label alteration
4. The code on product is inconsistent with that of warranty certificate, or the code on the product or warranty certificate is altered or torn off
5. All consumable accessory attached to a product, like cable, cover
6. Faults as a result of force majeure, such as fire, flood, lightning, etc.

Warranty Claim Procedure

1. If failure or any problem occurs to your product after purchase, please contact a local agent for assistance, or you can always contact COLBOR's customer service through email.
2. Please retain your sales receipt and warranty certificate as proof of purchase. If any of these documents is missing, only sales return or chargeable service will be provided.
3. If the COLBOR product is out of the warranty coverage, the service and the parts cost will be charged.

Guangzhou Zhiying Technology Co., Ltd

Room 2401, 24 / F, South Tower, Lisheng Plaza, No. 68 Huadi Avenue, Liwan District, Guangzhou, China, 510000
[e-mail]
www.colborlight.com
