BSO45 - Light COLBOR - Free user manual and instructions

Product Type	LED Video Light
Brand	COLBOR
Model	BSO45
Dimensions (approx.)	200 x 150 x 100 mm
Weight (approx.)	1.2 kg
Power Source	AC 100-240V, 50/60Hz
Power Consumption	45W
Light Output	Adjustable brightness (10-100%)
Color Temperature	3200K - 5600K (±200K)
Main Functions	Video/photo lighting, dimmable, bi-color
Mounting	Standard light stand mount (5/8" receiver)
Accessories Included	Power cable, diffuser dome, carrying bag
Remote Control	Not included
Safety	Use in dry environment; avoid water contact
Maintenance	Wipe with dry soft cloth; do not use solvents
Spare Parts / Repairability	Contact COLBOR support for replacement power cords
Certifications	CE, RoHS

Frequently Asked Questions - BSO45 COLBOR

How do I adjust the brightness?

Use the brightness dial on the back of the light. Rotate it clockwise to increase brightness and counterclockwise to decrease.

Can I change the color temperature?

Yes, toggle the color temperature switch between 3200K (warm) and 5600K (daylight). Some models allow fine adjustment with a separate knob.

What power source does the BSO45 use?

It uses an AC 100-240V power adapter (included). The light consumes 45W.

Can I use this light outdoors?

The BSO45 is designed for indoor use only. Avoid exposure to rain or moisture to prevent damage.

Does it come with a diffuser?

Yes, a diffuser dome is included to soften the light and reduce harsh shadows.

How do I mount this light on a stand?

The light has a standard 5/8-inch receiver. Slide it onto the stand's pin and tighten the locking screw.

What is the weight of the BSO45?

It weighs approximately 1.2 kg, making it portable but sturdy.

How to clean the light?

Use a dry, soft cloth to gently wipe the surface. Do not use liquid cleaners or abrasive materials.

Is the bulb replaceable?

The BSO45 uses non-replaceable LEDs. If the light fails, contact COLBOR support for repair or replacement.

Can I control it remotely?

No, the BSO45 does not have remote control functionality. All adjustments are made manually on the device.

USER MANUAL BSO45 COLBOR

Thank you for choosing COLBOR product. Please read this manual carefully before use and follow all instructions mentioned herein.

Caring For Your COLBOR Product

• Keep corrosive chemicals, liquids and heat source away from the product to prevent mechanical damage.
• Do not leave the product unattended while in use. Keep out of reach of children.
• The product is not waterproof. Do not handle it with wet hands.
• Do not attempt to disassemble or modify the product. Doing so voids the warranty.
• Please have the product checked or repaired by authorized technicians if any malfunctions happen.
• Malfunction may be caused by dropping, the impact of external force.
• Failure to follow all the instructions may result in mechanical damage.
• Warranty does not apply to human errors.

Assembly Instructions

1. Take out the product.
2. Install the soft cloth and grid.

3. Assembly and Disassembly

Assembly

Secure the Bowen mount ring with your hands, buckle the moveable handle on one side, lift it and press the softbox down until the lock toggles rebound.

Technical diagram showing a mechanical assembly with a flanged component and a close-up view of a circular component (no text or symbols present)

Technical line drawing of a mechanical component with a yellow downward arrow indicating direction (no text or symbols)

Disassembly

Push the lock toggles to unlock the softbox.

Line drawing of a hand holding a mechanical component with a yellow indicator light (no text or symbols)

Package List

Diagram of a fan blade with multiple blades radiating outward from a central hub (no text or symbols)

BSO45 Softbox x1

Circular diagram with a grid pattern inside, no text or symbols present

Grid x1

Simple geometric diagram of two concentric circles (no text or symbols)

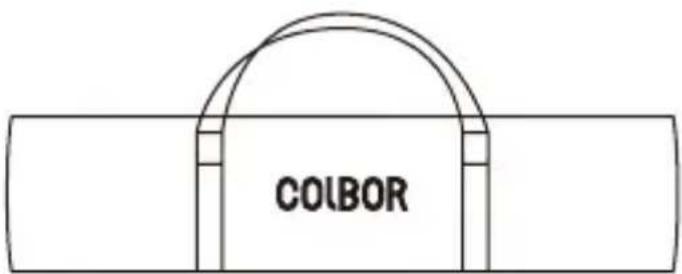

Soft Cloth x2Carrying bag x1

WARRANTY

Warranty Period

Thank you for purchasing COLBOR products.

1. Customers are entitled to free replacement or repair service in case of quality defect(s) found in the product under normal use within 30 days upon receipt of the product.
2. Original COLBOR products are entitled to a 12-month limited warranty service. The warranty period begins on the date of purchase of brand-new, unused products by the first end-user.

Within the warranty period, if the product defect or failure is attributable to material defection or technological problem, the defective product or defective part will be repaired or replaced without charge (service and materials fee).

Warranty Exclusions and Limitations

1. Faults resulted from inappropriate use of a product without following its operation specification
2. Artificial damage, e.g. crash, squeeze, scratch, soaking, exposure to rain or damp
3. Modifications to a product by its user or a third party without the prior written consent of COLBOR, e.g. replacement of element or circuit, label alteration
4. The code on the product is inconsistent with that of the warranty certificate, or the code on the product or warranty certificate is altered or torn off
5. All consumable accessories attached to a product, like cable, cover
6. Faults result from force majeure, such as fire, flood, lightning, etc.

Warranty Claim Procedure

1. If failure or any problem occurs with your product after purchase, please contact a local agent for assistance, or you can always contact COLBOR's customer service through email.

2. Please retain your sales receipt and warranty certificate as proof of purchase. If any of these documents is missing, only sales return or chargeable service will be provided.

3. If the COLBOR product is out of warranty coverage, the service and the parts cost will be charged.

Guangzhou Zhiying Technology Co., Ltd

Room 2401, 24 / F, South Tower, Lisheng Plaza, No. 68 Huadi Avenue, Liwan District, Guangzhou, China, 510000
