Product Type	Upright Freezer
Brand	Nabo
Model	GN 3840
Total Gross Capacity	250 L
Energy Class	E (EU 2019)
Annual Energy Consumption	200 kWh
Noise Level	42 dB(A)
Climate Class	SN-ST
Freezing Capacity	10 kg/24h
Storage Time in Power Failure	15 h
Dimensions (H x W x D)	1850 x 595 x 630 mm
Net Weight	62 kg
Power Supply	220-240 V, 50 Hz
Defrost Type	Manual / Automatic (depending on model)
Control Type	Mechanical Thermostat
Interior Light	Yes (LED)
Door Hinge	Reversible
Refrigerant	R600a
Shelves Material	Tempered Glass
Spare Parts Availability	At least 7 years

Frequently Asked Questions - GN 3840 Nabo

How do I install the freezer properly?

Place the freezer on a level, sturdy surface away from direct sunlight and heat sources. Allow at least 5 cm clearance on sides and back for ventilation. Let the appliance stand upright for 2 hours before plugging in.

What is the ideal temperature setting?

For optimal freezing, set the thermostat to -18°C or lower. Use the dial from 1 (warmest) to 7 (coldest); usually position 3-4 is suitable.

How do I defrost the freezer?

Unplug the freezer, remove all food, and leave the door open. Place towels to absorb water. Do not use sharp tools to remove ice; let it melt naturally. Clean and dry before restarting.

How often should I clean the freezer?

Clean the interior every few months with mild soap and warm water. Avoid abrasive cleaners. Wipe the door seals regularly to maintain a tight seal.

Can I change the door opening direction?

Yes, the door is reversible. Refer to the manual for step-by-step instructions; typically you need to unscrew hinges and relocate them to the opposite side.

Why is my freezer making unusual noises?

Common sounds include humming (compressor), clicking (thermostat), or gurgling (refrigerant). If noises are loud or persistent, ensure the freezer is level and not touching walls or cabinets.

How can I save energy with my freezer?

Keep the freezer full (but not overstuffed), open the door briefly, defrost regularly, and ensure door seals are clean. Place in a cool, ventilated room.

What should I do if the freezer does not cool?

Check if it's plugged in and the thermostat is set correctly. Ensure the door is closed properly. If still not cooling, the compressor or refrigerant may need professional service.

Is there a warranty for the Nabo GN 3840?

Typically, Nabo offers a 2-year warranty. Register your product on the Nabo website and keep the purchase receipt for claims. Warranty conditions may vary by region.

Where can I find spare parts?

Contact Nabo customer service or authorized dealers. Spare parts like shelves, door bins, and thermostats are available for at least 7 years after purchase.

USER MANUAL GN 3840 Nabo

Hinweis:

Simple line drawing of a mechanical component inside a container, labeled with number ② (no text or symbols on the diagram itself)

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

Hinweis!

Line drawing of a white cabinet with an upward arrow indicating direction (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with two circular insets highlighting specific components (no text or labels)

Line drawing of a refrigerator interior showing the door, shelves, and drawer (no text or symbols)

Im Gefriermodus

Illustration of a hand pressing down on a metal shelf with a black arrow indicating the process (no text or symbols present)

Safety and warning information......2

Installing your new appliance....7

Description of the appliance....10

Display controls 11

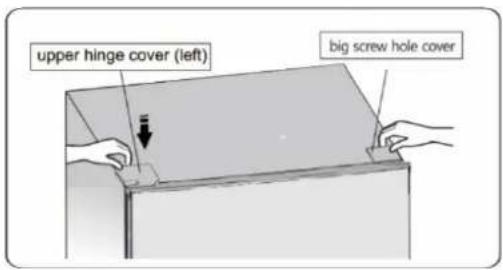

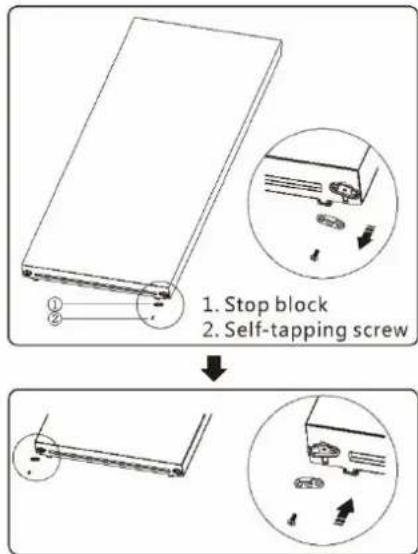

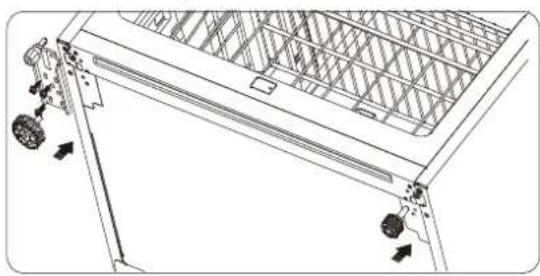

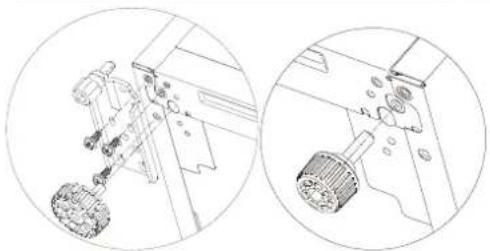

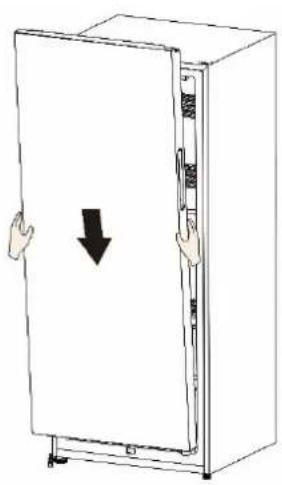

Reversing the door....14

Using your appliance....16

Cleaning and care.... 17

Helpful hints and tips....18

Troubleshooting....20

Disposal of the appliance.... 22

Safety and warning information

For your safety and correct usage, before installing and first using the appliance, read this user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is important to make sure that all people using the appliance are thoroughly familiar with its operation and safety features. Save these instructions and be sure that they remain with the appliance if it is moved or sold, so that anyone using it throughout its life, will be properly informed on its usage and safety notices.

For the safety of life and property, keep the precautions of these user's instructions as the manufacturer is not responsible for damages caused by omission.

Safety for children and others who are vulnerable people

- According to EN standard

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

To avoid contamination of food, please respect the following instructions:
- Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
– Clean regularly surfaces that can come in contact with food and accessible drainage systems.
- Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
- Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice cream and making ice cubes.
- One-, two- and three-star compartments are not suitable for the freezing of fresh food.
- If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

Note: Children aged from 3 to 8 years are allowed to load and unload

refrigerating appliances.

- According to IEC standard

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person being responsible for their safety. Children should be supervised to ensure that they do not play with the appliance

• Keep all packaging away from children as there is risk of suffocation.
• If you are discarding the appliance, pull the plug out of the socket, cut the connection cable (as close to the appliance as you can) and remove the door to prevent children playing from suffering an electric shock or from closing themselves inside it.
• If this appliance, featuring a magnetic door seals, is to replace an older appliance having a spring lock (latch) on the door or lid, be sure to make the spring lock unusable before you discard the old appliance. This will prevent it from becoming a death trap for a child.

General safety

● WARNING - This appliance is intended to be used in household and similar applications such as

-staff kitchen areas in shops, offices and other working environments;

-farm houses and hotels, motels and other residential type environments;

-bed and breakfast type environments;

-catering and similar non-retail applications.

- WARNING - Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

- WARNING - If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

- WARNING - Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

- WARNING - Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

● WARNING - Do not damage the refrigerant circuit.

- WARNING - Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

- WARNING - The refrigerant and insulation blowing gas are flammable. When disposing of the appliance, do so only at an authorized waste disposal center. Do not expose to flame.

- WARNING -When positioning the appliance, ensure the supply cord is not trapped or damaged.

- WARNING -Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

Replacing the illuminating lamps

- WARNING-The illuminating lamps must not be replaced by the user! If the illuminating lamps is damaged • contact the customer helpline for assistance. This warning is only for refrigerators that contain illuminating lamps.

Refrigerant

The refrigerant isobutene (R600a) is contained within the refrigerant circuit of the appliance● a natural gas with a high level of environmental compatibility● which is nevertheless flammable. During transportation and installation of the appliance● ensure that none of the components of the refrigerant circuit becomes damaged.

The refrigerant (R600a) is flammable.

WARNING — Refrigerators contain refrigerant and gases in the insulation.

Refrigerant and gases must be disposed of professionally as they may cause eye injuries or ignition. Ensure that tubing of the refrigerant circuit is not damage prior to proper disposal.

It is hazardous for anyone other than an Authorized Service Person to service this appliance. In Queensland the Authorized Service Person Must hold a Gas Work Authorized for hydrocarbon refrigerants to carry out servicing or repairs which involve removal of covers.

WARNING: Risk of fire / flammable materials

If the refrigerant circuit should be damaged:

-Avoid opening flames and sources of ignition.

-Thoroughly ventilate the room in which the appliance is situated.

It is dangerous to alter the specifications or modify this product in any way.

Any damage to the cord may cause a short circuit● fire● and/or electric shock.

Electrical safety

1. The power cord must not be lengthened.
2. Make sure that the power plug is not crushed or damaged. A crushed or damaged power plug may overheat and cause a fire.
3. Make sure that you can access the main plug of the appliance.
4. Do not pull the main cable.
5. If the power plug socket is loose● do not insert the power plug. There is a risk of electric shock or fire.
6. You must not operate the appliance without the interior lighting lamp cover.
7. The fridge is only applied with power supply of single phase alternating

current of 220\~240V/50Hz. If fluctuation of voltage in the district of user is so large that the voltage exceeds the above scope● for safety sake● be sure to apply A.C. Automatic voltage regulator of more than 350W to the fridge. The fridge must employ a special power socket instead of common one with other electric appliances. Its plug must match the socket with earth wire.

Daily use

• Do not store flammable gas or liquids in the appliance● there is a risk of an explosion.
• Do not operate any electrical appliances in the appliance (e.g. electric ice cream makers• mixers etc.).
• When unplugging always pull the plug from the mains socket• do not pull on the cable.
• Do not place hot items near the plastic components of this appliance.
• Do not place food products directly against the air outlet on the rear wall.
• Store pre-packed frozen food in accordance with the frozen food manufacturer's instructions.
• The appliances manufactures storage recommendations should be strictly adhered to. Refer to relevant instructions for storage.
• Do not place carbonated or fizzy drinks in the freezer compartment as it creates pressure on the container• which may cause it to explode• resulting in damage to the appliance.
• Frozen food can cause frost burns if consumed straight from the freezer compartment.
• Do not place the appliance in direct sunlight.
• Keep burning candles• lamps and other items with naked flames away from the appliance so that do not set the appliance on fire.
• The appliance is intended for keeping food stuff and/or beverages in normal household as explained in this instruction booklet. You should take care when move it as the appliance is heavy.
• Do not remove nor touch items from the freezer compartment if your hands are damp/wet• as this could cause skin abrasions or frost/freezer burns.
• Never use the base● drawers● doors etc. to stand on or as supports.
• Frozen food must not be refrozen once it has been thawed out.
• Do not consume ice popsicles or ice cubes straight from the freezer as this can cause freezer burn to the mouth and lips.
• To avoid items falling and causing injury or damage to the appliance• do not overload the door racks or put too much food in the crisper drawers.

caution!

Care and cleaning

- Before maintenance● switch off the appliance and disconnect the mains plug from the mains socket.

- Do not clean the appliance with metal objects• steam cleaner• ethereal oils• organic solvents or abrasive cleansers.

- Do use a plastic scraper instead of a sharp object to remove frost from the appliance.

● Installation Important!

• For electrical connection carefully● follow the instructions given in this manual. Unpack the appliance and check if there are damages on it.
• Do not connect the appliance if it is damaged. Report possible damages immediately to the place you bought it. In this case retain packing.
• It is advisable to wait at least four hours before connecting the appliance to allow the oil to flow back in the compressor.
• Adequate air circulation should be around the appliance● lacking this leads to overheating. To achieve sufficient ventilation● follow the instructions relevant to installation.
• Wherever possible the back of the product should not be too close to a wall to avoid touching or catching warm parts (compressor) to prevent the risk of a fire● follow the instructions relevant to installation.
  ● The appliance must not be locating close to radiators or cookers.
  ● Make sure that the mains plug is accessible after the installation of the appliance.

Service

• Any electrical work required to do the servicing of the appliance should be carried out by qualified electrician or competent person.
• This product must be serviced by an authorized Service Center• and only genuine spare parts must be used.

1) If the appliance is Frost Free.

2) If the appliance contains freezer compartment.

Installing your new appliance

Before using the appliance for the first time● you should be informed of the following tips.

Warning!

For proper installation● this refrigerator must be placed on a level surface of hard material that is the same height as the rest of the flooring. This surface should be strong enough to support a fully loaded refrigerator.

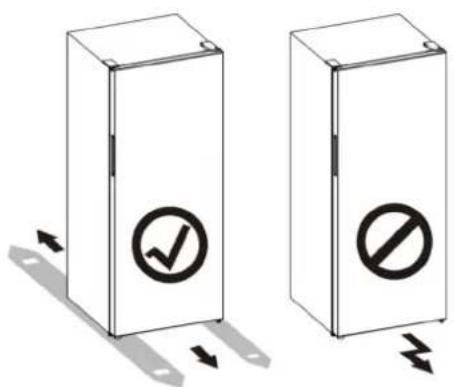

The rollers● which are not castors● should be only used for forward or backward movement. Moving the refrigerator sideways may damage your floor and the rollers.

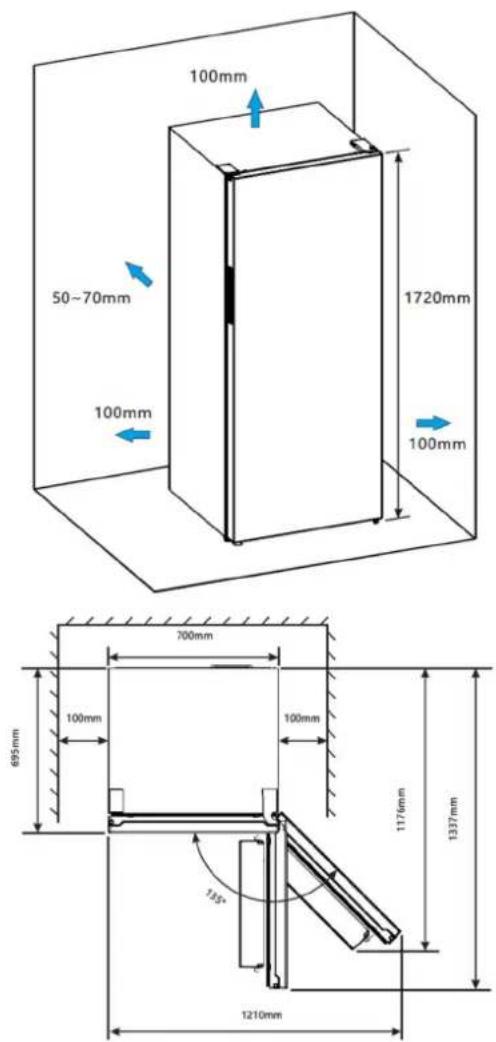

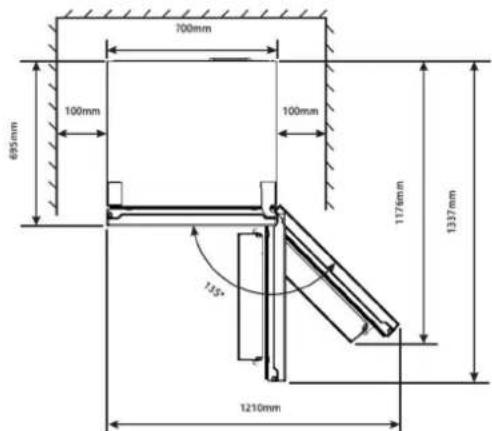

Ventilation of appliance

In order to improve efficiency of the cooling system and save energy• it is necessary to

maintain good ventilation around the appliance for the dissipation of heat. For this reason● sufficient clear space should be available around the refrigerator.

Suggest: It is advisable for there to be 50mm of space from the back to the wall● at least 100mm from its top● at least 100mm from its side to the wall and a clear space in front to allow the doors to open 135°. As shown in follow diagrams.

Note:

●This appliance performs well within the climate class from SN to T showed in the table below. It may not work properly if being left at a temperature above or below the indicated range for a long period.

Climate class	Ambient temperature
SN +10°C	to +32°C
N +16°C	to +32°C
ST +16°C	to +38°C
T +16°C	to +43°C

- Stand your appliance in a dry place to avoid high moisture.

- Keep the appliance out of direct sunlight - rain or frost. Stand the appliance away from heat sources such as stoves

fires or heaters.

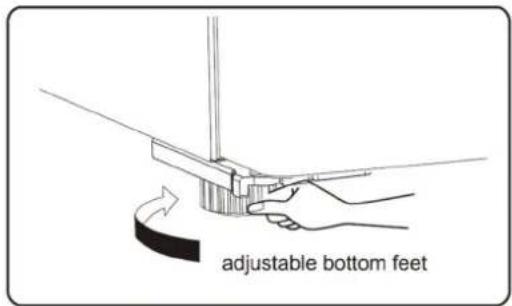

Leveling of appliance

- For sufficient leveling and air circulating in the lower rear section of the appliance - the bottom feet may need to be adjusted. You can adjust them manually by hand or by using a suitable spanner.

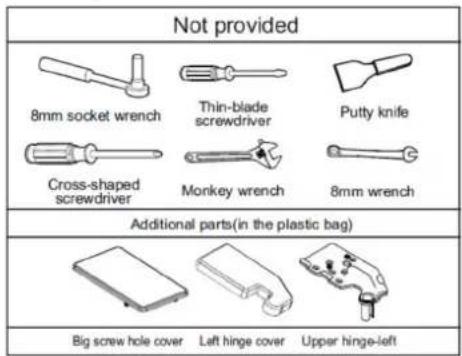

Tools you will need:

Not provided
	Philips Screwdriver & Slotted Screwdriver

- To allow the doors to self-close- tilt the top backwards by 10-15mm.

- You can adjust them manually by hand or using a suitable spanner.

Note:

• If required you may lay the refrigerator on its back in order to gain access to the base
• you should rest it on soft foam packaging or similar material to avoid damaging the backboard of the refrigerator.
• There is no need to install these accessories under normal usage.

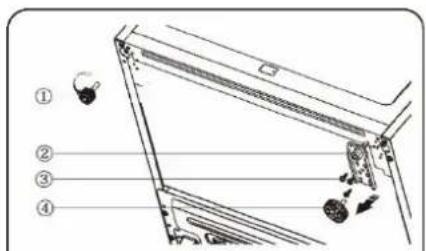

Only under the extreme circumstances that is opening the door about 90 degree this refrigerator may take risk of tipping. Then rubber supporting pad should be fastened to the lower base cover to steady this appliance.

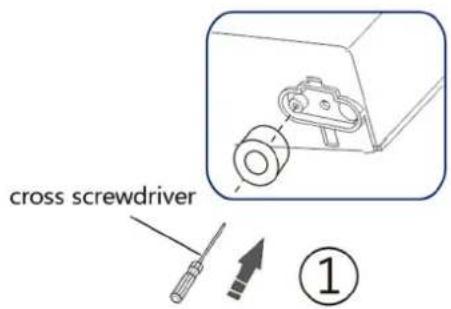

1. Tilt appliance to find screw hole on the left of lower base cover.

1. Put screw into the hole of rubber supporting pad.

1. Make screw in alignment with the hole on lower base cover. Fasten rubber supporting pad to the base cover firmly by a cross screwdriver (self-provided).

Line drawing of a mechanical component with a cylindrical housing and mounting bracket (no text or symbols)

②

Pure technical line drawing of a mechanical or architectural component without any text, numbers, or symbols

③

Description of the appliance

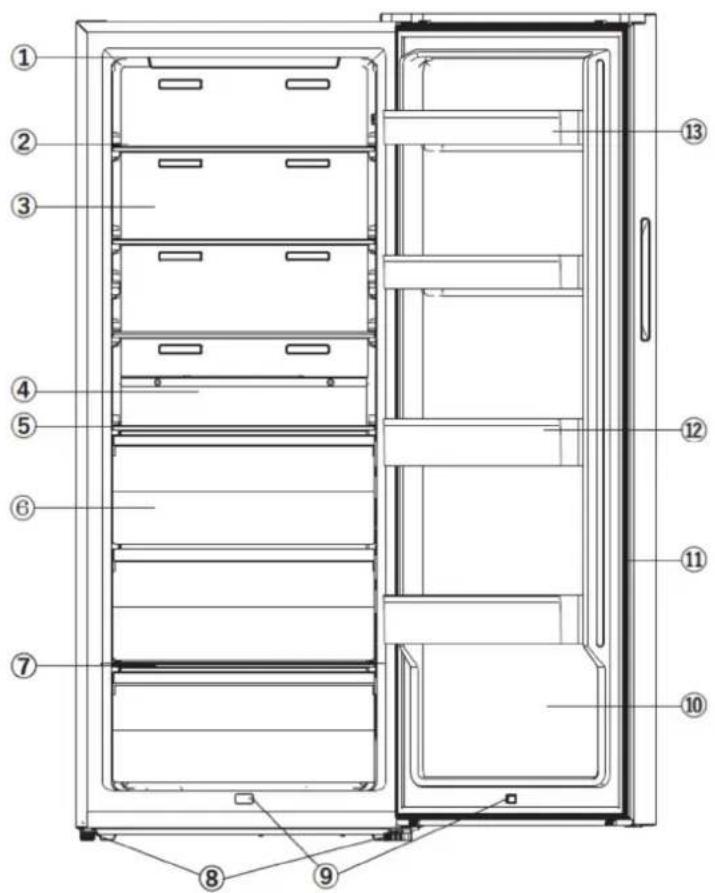

View of the appliance

1. Display panel
2. Shelf part (Upper)
3. Upper air duct
4. Lower air duct
5. Shelf part (Middle)
6. Drawer
7. Shelf part (Lower)
8. Adjustable bottom feet
9. Door switch
10. Door
11. Door gasket
12. Freezer shelf (Big)
13. Freezer shelf (Small)

Note!

• Due to unceasing modification of our products • your refrigerator may be slightly different from this instruction manual • but its functions and using methods remain the same.
• To get the best energy efficiency of this product • please place all shelves • drawers and baskets on their original position as the illustration above.
  • Under freezer mode, the whole space is a 4-star area;

Display controls

Use your appliance according to the following control regulations • your appliance has the corresponding functions as the control panels showed in the pictures below.

Controlling the temperature

Use your appliance according to the following control regulations• your appliance has the corresponding functions as the control panels showed in the pictures below.

Caution!

When you set a temperature● you set an average temperature for the whole refrigerator cabinet. Temperatures inside each compartment may vary from the temperatures displayed on the panel● depending on how much food you store and where you place it. High or low room temperature may also affect the actual temperature inside the appliance.

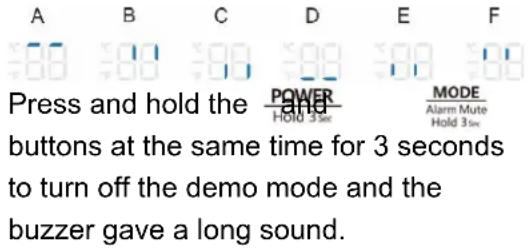

1. ⏻ Power Hold 3sec

Press and hold the ⏻ button at least 3 seconds to enter/exit standby mode. After entering the standby mode, the temperature area will display "OF", other icons will be extinguished, and other key functions will be invalid, until the original control state is restored after pressing the button again to exit the standby mode. again to exit the standby mode.

2. Freezer Fridge Hold 3sec Freezer/Fridge conversion

Press and hold Freezer-Fridge Hold 3 sec button for 3 seconds to convert between freezer compartment and fridge compartment. After that the light will go out first and then turn on or flash once which is a normal phenomenon that the control system has realized switching.

Caution!

• Before changing the compartment setting• make sure that the stored food is suitable for new setting mode. If not• please empty it first.
• When the freezer mode is changed to fridge mode• please open the door for 5 minutes before putting in the food that needs to be refrigerated.
• When the fridge mode is changed to freezer mode • please close the door and run for 200 minutes before putting in the food that needs to be frozen.
• When the fridge mode is changed to freezer mode●ensure there are no bottled or canned drinks (especially carbonated drinks) in the freezer compartment. Bottles and cans may explode.

3. .^/^ TEMP. Hold 3sec

Press the .SF/PC button to adjust the temperature to the desired setting. If you have set the Freezer compartment type to Fahrenheit the temperature will be set in the following sequence.

If you have set the Freezer compartment type to Celsius●the temperature will be set in the following sequence.

If you have set the Fridge compartment type to Fahrenheit●the temperature will be set in the following sequence.

If you have set the Fridge compartment type to Celsius●the temperature will be set in the following sequence.

4. .^/^ ^/^ Hold 3Sec

Press and hold the .510C button for 3 seconds to toggle between Celsius and Fahrenheit on the display.

5. Door Alarm

When the door has been opened for over 2 minutes● the door alarm will come on. In case of door alarm● the door alarm indicator will light up and blink● and "dr" is displayed in the temperature display area● meanwhile● the buzzer will sound 3 times every 1 minute and will stop alarming automatically after 8 minutes. The door alarm can be cleared by closing the door.

• In case of door alarm● it can be turned off by closing the door.
• In case of door alarm● you can press and hold the MODE Alarm Mute button for at least 3 seconds to clear the door alarm sound● and then the control panel will show "dr" and the ▲ icon will light.
• To save energy• please avoid keeping the door open for a long time when using the appliance.

6. Energy Saving

This function makes the refrigerator work in a power saving mode which is useful for reducing energy consumption when you are away.

Press the MODE Alarm Mute button to turn on the Energy saving function. The Energy Saving icon will be illuminated.

- When the Energy Saving function is on• in the fridge state• the temperature is set to 6°C (43°F); in the freezer state• the temperature is

set to -17^ ( 1^ ).

- When Energy Saving function is on you can turn it off by pressing the MODE or TEMP. or /CHold 3_rec button and the refrigerator temperature setting will revert back to the previous setting.

7. Super Freeze

The Super Freeze feature helps to keep the food stored in the freezer at the set temperature during periods of high usage• large grocery loads• or temporarily warm room temperatures. In the freezer state• press the MODE Alarm Mute Hold 3in button to turn on the Super Freeze function. The con will be illuminated.

• When the Super Freeze function is on• in the freezer state• the temperature is set to -24°C (-11°F).
• When Super Freeze function is on you can turn it off by pressing the MODE or TEMP. or 5^ 3_in button and the refrigerator temperature setting will revert back to the previous setting.
  ● Super Freeze will automatically turn off after 52 hours.

NOTE: Do not leave glass bottles or canned drinks (especially carbonated drinks) in the freezer compartment. Bottles and cans may explode.

8. Super Cool

The Super Cool feature helps to keep food stored in the refrigerator at the set temperature during periods of high usage• large grocery loads• or temporarily warm room temperatures. In the fridge state• press the MODE Alarm Mute button to turn on the Super Cool function. The icon will be illuminated.

• When the Super Cool function is on• in the fridge state• the temperature is set to 2°C (36°F).
• When Super Cool function is on you can turn it off by pressing the
  ● MODE or TEMP. °F/°C button and the Alarm Mute Hold 3s Hold 3s

refrigerator temperature setting will revert back to the previous setting.

● Super Cool will automatically turn off after 6 hours.

9. Demo mode

Demo mode is for store display and it prevents the refrigerator from generating cool air. In this of Cooling off Mode● the refrigerator may seem like it is working but it will not make cool air. The display panel will show special segments as follow.

Reversing the door

The side at which the door opens can be changed• from the right side (as supplied) to the left side• if the installation site requires.

Warning! When reversing the door● the appliance must not be connected to the mains. Ensure that the plug is removed from the mains socket.

Tools you will need:

Note: If required you may lay the refrigerator on its back in order to gain access to the base● you should rest it on soft foam packaging or similar material to avoid damaging the backboard of the refrigerator. To reverse the door● the following steps are generally recommended.

1. Use a putty knife or thin-blade screwdriver to prize the screw hole cover which is at the top left corner of the refrigerator● and the upper hinge cover which is at the top right corner of the refrigerator.

1. Unscrew the special flange self-tapping screws which are used for fixing the right upper hinge part by an 8mm socket driver or a spanner (please

support the upper door with your hand when doing it).

1. Remove the door from the lower hinge. NOTE: When removing the door● watch for washer(s) between the lower hinge and the bottom of the lower door that may stick to the door. Do not lose

Line drawing of a white cabinet with an upward arrow indicating direction (no text or symbols)

1. Place it on a smooth surface with its panel upwards. Loose screw 2 and part 1● then install them to the left side and tighten securely.

1. Lay the refrigerator on soft foam packaging or similar material. Remove

both adjustable bottom feet parts● and the lower hinge part by unscrewing the special flange self-tapping screws.

1. Adjustable bottom feet part(Left)
2. Lower hinge part(Right)
3. Self-tapping screw

4. Adjustable bottom feet part (Right)

5. Loose out the lower hinge pin change it to the reverse hole site then tighten it into position follow the picture below.

1. Replace the lower hinge part to the left side and fixing it with the special flange self-tapping screws. Replace the adjustable bottom feet parts to another side and fixing it.

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of mechanical components, showing assembly and disassembly views (no text or symbols)

1. Transfer the door to the property position• adjust the lower hinge part• and make the hinge axis into the lower hole of the door.

Illustration of a refrigerator with hands holding the door and a downward arrow indicating a change (no text or symbols present)

1. Transfer the upper hinge part and make the upper hinge axis into the upper hole of the door• and adjust the position of the door (please support the door with your hand when doing it)• fixing the upper hinge part with the special flange self-tapping screws.

1. Install the big screw hole cover (which is in the plastic bag) on the top right corner of the refrigerator. Install the upper hinge cover (which is in the plastic bag) on the left corner. Put the other upper hinge cover into the plastic bag.

Using your appliance

Your appliance has the accessories as the "Description of the appliance" showed in general, with this part of instruction you can have the right way to use them. We recommend that you read through them carefully before using the appliance.

Under fridge mode

Door rack

- It is suitable for the storage of eggs, canned liquid, bottled drinks and packed food, etc. Do not place too many heavy things in the racks.

Drawer

The drawer is suitable for storage of vegetables and fruit, etc.

Line drawing of a refrigerator drawer with a star-shaped handle and curved arm (no text or symbols)

under freezer mode

- It is suitable for the storage of foods

required to be frozen, such as meat, ice, etc.

Caution! Do not close refrigerator door when installing deep bracket, It may damage the unit.

Ensure that drink bottles are not left in the freezer for a longer time than needed as freezing liquid may cause the bottle to break.

Shelf in Refrigerator chamber

1. There are shelves in refrigerator chamber, and they can be taken out to be cleaned.

Illustration of a hand holding a tray with a black arrow pointing to the tray (no text or symbols)

Cleaning and care

For hygienic reasons the appliance (including exterior and interior accessories) should be cleaned at least every two months.

Warning!

To avoid electrical shock● the appliance must not be connected to the main power supply during cleaning. Before cleaning● switch the appliance off and remove the plug from the main socket.

Exterior cleaning

To maintain good appearance of your appliance● you should clean it regularly. ethereal oil● abrasive cleansers or organic solvent such as Benzene for cleaning. They may damage the surface of the appliance and may cause fire.

Interior cleaning

You should clean the appliance interior regularly. It will be easier to clean when food stocks are low. Wipe the inside of the fridge freezer with a weak solution of backing soda and water● and then rinse with warm water using a wrung-out sponge or cloth. Wipe completely dry before replacing the shelves and baskets. Thoroughly dry all surfaces and removable parts before putting them back into place.

Although this appliance automatically defrosts● a layer of frost may occur on the freezer compartment's interior walls if the freezer door is opened frequently or kept open too long. If the frost is too thick● choose a time when the freezer is nearly empty and proceed as follows:

1. Remove existing food and accessories baskets● unplug the appliance from the main power and leave the doors open. Ventilate the room thoroughly to accelerate the process.

2. When defrosting is completed • clean

3. Spray water onto a cleaning cloth instead of spraying directly on the surface of the appliance. This helps ensure an even distribution of moisture to the surface.

4. Clean the doors● handles and cabinet surfaces with a mild detergent and then wipe dry with a soft cloth.

Caution!

• Don't use sharp objects to clean with as they are likely to scratch the surface.
• Don't use Thinner
• Car detergent bleach

your freezer as described above.

Warning!

Do not use sharp objects to remove frost from the freezer compartment. Only after the interior is completely dry should the appliance be switched back on and plugged back into the main socket.

Door seals cleaning

Take care to keep door seals clean. Sticky food and drinks can cause seals to stick to the cabinet and tear when you open the door. Wash seal with a mild detergent and warm water. Rinse and dry it thoroughly after cleaning.

Caution! Only after the door seals are completely dry should the appliance be powered on.

Replacing the LED light

Warning: The LED light must be replaced by a competent person. If the LED light is damaged● follow the steps below:

1. Unplug your appliance.
2. Remove light cover by rising up and pulling out the LED light.
3. Hold the LED light with one hand and pull it with the other hand while pressing the connector latch.
4. Replace LED light and snap it correctly in place and recover the light cover.

Helpful hints and tips

Energy saving tips

We recommend that you follow the tips below to save energy.

• Try to avoid keeping the door open for long periods in order to conserve energy. Ensure the appliance is away from any sources of heat (Direct sunlight● electric oven or cooker etc.)
• Don't set the temperature colder than necessary.
• Don't store warm food or evaporating liquid in the appliance.
• Place the appliance in a well ventilated
• humidity free room. Please refer to Installing your new appliance chapter.
• If the diagram shows the correct combination for the drawers• crisper and shelves• do not adjust the combination as this is designed to be the most energy efficient configuration.

Hints for fresh food refrigeration

• Do not place hot food directly into the refrigerator or freezer; the internal temperature will increase resulting in the compressor having to work harder and will consume more energy.
• Do cover or wrap the food, particularly if it has a strong flavor.
• Place food properly so that air can circulate freely around it.

Hints for refrigeration

• Meat (All Types) Wrap in polythene food: wrap and place on the glass shelf above the vegetable drawer. Always follow food storage times and use by dates suggested by manufacturers.
• Cooked food ● cold dishes ● etc.: They should be covered and may be placed on any shelf.
• Fruit and vegetables: They should be stored in the special

drawer provided.

• Butter and cheese:
  Should be wrapped in airtight foil or plastic film wrap.
• Milk bottles:

Should have a lid and be stored in the door racks.

Hints for freezing

• When first starting-up or after a period out of use • let the appliance run at least 2 hours on the higher settings before putting food in the compartment.
• Prepare food in small portions to enable it to be rapidly and completely frozen and to make it possible to subsequently thaw only the quantity required.
• Wrap up the food in aluminum foil or polyethylene food wraps which are airtight
• Do not allow fresh, unfrozen food to touch the food which is already frozen to avoid temperature rise of the latter.
• Iced products, if consumed immediately after removal from the freezer compartment will probably cause frost burns to the skin.
• It is recommended to label and date each frozen package in order to keep track of the storage time.

Hints for the storage of frozen food

• Ensure that frozen food has been stored correctly by the food retailer
• Once defrosted, food will deteriorate rapidly and should not be re-frozen. Do not exceed the storage period indicated by the food manufacturer.

Switching off your appliance

If the appliance needs to be switched off for an extended period● the following steps should be taken to prevent mold on the appliance.

1. Remove all food.

2. Remove the power plug from the mains socket.

3. Clean and dry the interior thoroughly.

4. Ensure that all the doors are wedged open slightly to allow air to circulate.

Troubleshooting

If you experience a problem with your appliance or are concerned that the appliance is not functioning correctly• you can carry out some easy checks before calling for service• please see below.

Warning! Don't try to repair the appliance yourself. If the problem persists after you have made the checks mentioned below contact a qualified electrician authorized service engineer or the shop where you purchased the product.

Problem Possible cause & Solution
Appliance is not working correctly	Check whether the power cord is plugged into the power outlet properly.
	Check the fuse or circuit of your power supply● replace if necessary.
	It is normal that the freezer is not operating during the defrost cycle● or for a short time after the appliance is switched on to protect the compressor.
Odors from the compartments	The interior may need to be cleaned.
	Some food● containers or wrapping cause odors.
Noise from the appliance	The sounds below are quite normal:• Compressor running noises.• Air movement noise from the small fan motor in the freezer compartment or other compartments.• Gurgling sound similar to water boiling.• Popping noise during automatic defrosting.• Clicking noise before the compressor starts.
	Other unusual noises are due to the reasons below and may need you to check and take action:• The cabinet is not level.• The back of appliance touches the wall.• Bottles or containers fallen or rolling.
The motor runs continuously	It is normal to frequently hear the sound of the motor● it will need to run more when in following circumstances:• Temperature setting is set colder than necessary.• Large quantity of warm food has recently been stored within the appliance.• The temperature outside the appliance is too high.• Doors are kept open too long or too often.• After you installing the appliance or it has been switched off for a long time.
A layer of frost occurs in the compartment	Check that the air outlets are not blocked by food and ensure food is placed within the appliance to allow sufficientventilation. Ensure that door is fully closed. To remove the frost● please refer to the “Cleaning and care” chapter.
Temperature inside is too warm	You may have left the doors open too long or too frequently; or the doors are kept open by some obstacle; or the appliance is located with insufficient clearance at the sides● back and top.
Temperature inside is too cold	Increase the temperature by following the “controls panel” chapter.
Doors can’t be closed easily	Check whether the top of the refrigerator is tilted back by 10-15mm to allow the doors to self-close● or if something inside is preventing the doors from closing.

Disposal of the appliance

It is prohibited to dispose of this appliance as household waste.

Packaging materials

Packaging materials with the recycle symbol are recyclable. Dispose of the packaging into a suitable waste collection container to recycle it.

Before disposal of the appliance

1. Pull out the mains plug from the mains socket.
2. Cut off the power cord and discard with the mains plug

Warning! Refrigerators contain refrigerant and gases in the insulation. Refrigerant and gases must be disposed of professionally as they may cause eye injuries or ignition.

Ensure that tubing of the refrigerant circuit is not damage prior to proper disposal.

Correct Disposal of this product

This symbol on the product or in its packing indicates that this product may not be treated as household waste. Instead● it should be taken to the appropriate waste collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly● you will help prevent potential negative consequences for the environment and human health● which could otherwise be caused by the inappropriate waste handling of this product. For more detailed information about the recycling of this product● please contact your local council your household waste disposal service● or the shop where you purchased the product.

To avoid contamination of food● please respect the following instructions

• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
• Clean regularly surfaces that can come in contact with food and accessible drainage systems.
• Store raw meat and fish in suitable containers in the refrigerator● so that it is not in contact with or drip onto other food.
• Two-star frozen-food compartments are suitable for storing pre-frozen food● storing or making ice-cream and making ice cubes.
• One-● two- and three- star compartments are not suitable for the freezing of fresh food.

Order	Compartments TYPE	Target storage temp.[ °C]	Appropriate food
1 Fridge	+2~+8		Eggs● cooked food● packaged food● fruits and vegetables● dairy products● cakes● Drinks and other foods which are not suitable for freezing.
2 (***)*	Freezer ≤-18		Seafood(fish● shrimp● shellfish)● freshwater aquatic products and meat products(recommended time is 3 months –nutrition values and taste decrease with time)● suitable for frozen fresh food.
3 ***-Freezer ≤-18			Seafood(fish● shrimp● shellfish)● freshwater aquatic products and meat products(recommended time is 3 months – nutrition values and taste decrease with time). Not suitable for freezing fresh food.
4 **-Freezer ≤-12			Seafood(fish● shrimp● shellfish)● freshwater aquatic products and meat products(recommended time is 2 months – nutrition values and taste decrease with time). Not suitable for freezing fresh food.
5 *-Freezer ≤-6			Seafood(fish● shrimp● shellfish)● freshwater aquatic products and meat products(recommended time is 1 month – nutrition values and taste decrease with time). Not suitable for freezing fresh food.
6 0-star	-6~0		Fresh pork● beef● fish● chicken● some packaged processed foods● etc.(Recommended to eat within the same day● preferably not later than 3 days).
7 Chill	-2~+3		Fresh/frozen pork● beef● fish● chicken● freshwater aquatic products● etc. (7 days below 0°C and above 0°C is recommended for consumption within that day● preferably no more than 2 days). Seafood(less than 0 for 15 days● it is not recommended to store above 0°C).
8 Fresh	Food 0~+4		Fresh pork● beef● fish● chicken● cooked food● etc.(Recommended to eat within the same day● preferably no more than 3 days).
9 Wine	+5~+20 red wine● white wine● sparkling wine etc.

Note: please store different foods according to the compartments or target storage temperature of your purchased products.

- If the refrigerating appliance is left empty for long periods● switch off● defrost● clean● dry● and leave the door open to prevent mold developing within the appliance.

Water dispenser cleaning(special for water dispenser products):

- Clean water tanks if they have not been used for 48h; flush the water system connected to a water supply if water has not been drawn for 5 days.

WARNING! Food needs to be packed in bags before putting into the refrigerator● and liquids need to be packed in bottles or capped containers to avoid the problem that the product design structure is not easy to clean.
