SM 643C3 X - Dishwasher Mora - Free user manual and instructions

Product Type	Built-in Dishwasher
Model	SM 643C3 X
Brand	Mora
Dimensions (H x W x D)	81.5 x 59.8 x 57 cm
Weight	Approx. 45 kg
Place Settings	12 place settings
Energy Efficiency Class	A+
Annual Energy Consumption	268 kWh
Water Consumption per Cycle	9.5 L
Noise Level	44 dB(A)
Drying Efficiency Class	A
Number of Programs	6 (Eco, Auto, Intensive, Normal, Quick, Rinse)
Additional Functions	Half load, Delay start, Child lock
Power Supply	220-240 V, 50 Hz, 10 A
Power Consumption (Standby)	0.5 W
Water Connection	Cold water only
Door Type	Stainless steel, integrated handle
Control Type	Electronic push buttons
Display	LED indicators
Safety Features	Anti-flood system, Child lock, AquaStop
Maintenance	Clean filter monthly, use dishwasher cleaner every 3 months
Spare Parts Availability	7-10 years after production
Repair Index (France)	8.5 / 10

Frequently Asked Questions - SM 643C3 X Mora

How do I install the Mora SM 643C3 X dishwasher?

Installation must be done by a qualified technician. Ensure the appliance is level and connected to cold water supply (1/2 inch thread). The power cord should be plugged into a grounded socket. Refer to the manual for detailed steps.

What detergent should I use?

Use a high-quality dishwasher detergent (powder, gel, or tablets). For best results, use a rinse aid to improve drying and avoid spots.

Why is my dishwasher not draining?

Check if the drain hose is kinked or clogged. Clean the filter at the bottom of the machine. Ensure the sink drain is not blocked. If problem persists, call service.

How to clean the filter?

Remove the lower rack, turn the filter cylinder counterclockwise, lift it out. Rinse under running water with a soft brush. Replace and lock by turning clockwise.

What do the error codes mean?

Common codes: E1 (water supply issue), E3 (heating problem), E4 (overflow). See manual for full list. Reset by unplugging for 1 minute.

Can I open the dishwasher during a cycle?

Yes, but it will stop the cycle and pause. Close the door firmly, and the cycle will resume after a few seconds. Avoid opening during high-temperature phases.

How to use the delay start feature?

Press the Delay Start button repeatedly to set hours (1-12). Close the door, the countdown will start. The machine will begin automatically at the set time.

What items should not be washed in the dishwasher?

Avoid wooden items, aluminum, fine china with metallic trim, non-stick pans, and antiques. Also, do not wash items that are not dishwasher-safe.

Why are my dishes still wet after cycle?

Ensure rinse aid is filled and the setting is appropriate. Use a higher drying temperature if available. Also, load dishes so water can run off.

Where can I find spare parts?

Spare parts are available through authorized service centers or online retailers. Provide the model number SM 643C3 X. Typical parts: filters, racks, spray arms, seals.

USER MANUAL SM 643C3 X Mora

Simple line drawing of a cabinet or enclosure with no text, numbers, or symbols

Obsah

Vaše myčka 4

Diagram showing a salt container being placed on a funnel, with an arrow indicating rotation (no text or symbols present)

Illustration of a multi-tiered mechanical assembly with rollers, shafts, and housing (no text or symbols)

Structural diagram of a reinforced concrete beam with rebar framework and support columns (no text or labels)

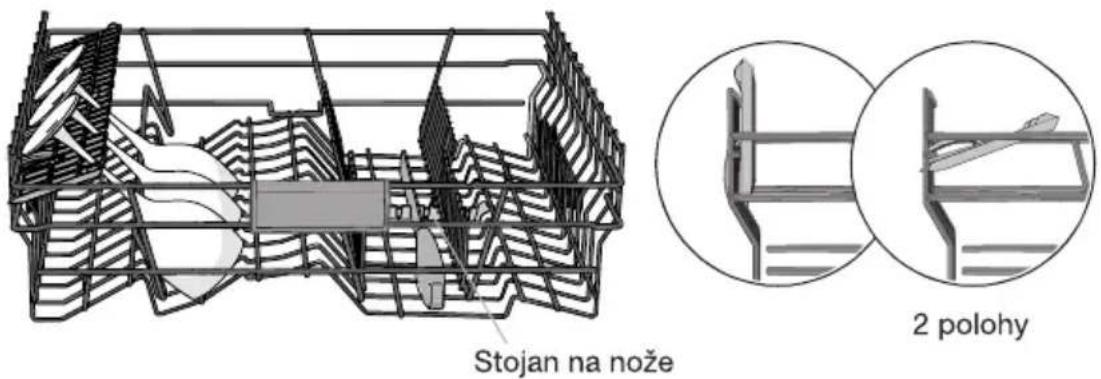

Dolní koš

Illustration of a multi-tiered kitchen appliance with plates, utensils, and a tray (no text or symbols)

Technical line drawing of a mechanical assembly with rotating components (no text or symbols)

Košík na příbory

Three diagrams showing a container with a handle, lifting a cylindrical object, and lifting a vertical rod (no text or symbols present)

Technical illustration of a mechanical assembly with two views: one showing a lifting mechanism and the other showing a structural frame (no text or symbols present)

Diagram showing a device with a circular component and a funnel-shaped container, both rotating (no text or symbols present)

Mechanical component with four arrows pointing to specific parts (no text or symbols visible)

Technical illustration of a mechanical assembly with a lever and rotating component (no text or symbols)

Mechanical assembly diagram showing a rotating fan with an upward arrow indicating motion (no text or symbols)

Volně stojící

Diagram showing a mechanical component with angular notations and an arrow indicating direction (no text or symbols)

Servis

Cross-sectional diagram of a multi-layered industrial or mechanical structure with circular components and a central vertical bar (no text or symbols)
