Product Type	Mini PC / Industrial Computer
Brand	AOpen
Model	DE35-HD
Processor	AMD Embedded G-Series T56N
Chipset	AMD A55E (Hudson E1)
Memory	2 x SO-DIMM DDR3, 800/1066 MHz, max 8 GB
Graphics	AMD Radeon HD 6310 (integrated)
Audio	Realtek ALC662 HD Audio Codec
LAN	Realtek Gigabit Ethernet (10/100/1000)
Storage Interface	1 x SATA port (internal)
Expansion Slot	1 x Full-Size Mini Card slot
Front I/O	2 x USB 2.0, Power button, HDD/Power LED
Rear I/O	2 x USB 2.0, 2 x USB 3.0, DVI-I, DisplayPort, RJ45 LAN, RS232 serial, Speaker out, Mic in, DC jack, Antenna hole, Kensington lock
Power Adapter	65 W (19 V, 3.42 A), AC input 100-240 V
Operating Temperature	0 to 45 °C
Mounting	L-type holder included (VESA compatible)
Regulatory	FCC Class B, ICES-003
Safety	Class 1 Laser product (DVD/CD drive), battery caution
Cleaning	Disconnect power, use dry cloth, no liquids
Package Contents	DE35 system, user guide, driver CD, power adapter, L-type holder, screws, cables

Frequently Asked Questions - DE35-HD AOPEN

How do I clean the AOpen DE35-HD?

Disconnect the device from the power source. Use a dry, soft cloth. Do not use liquid or aerosol cleaners.

What are the safety precautions for the DE35-HD?

Read the safety instructions carefully. Do not open the device; only qualified service personnel should open it. Keep away from liquids and high temperatures (0-45°C). If liquid penetrates or device is damaged, have it checked by a technician.

What kind of battery does the DE35-HD use?

The device may use a lithium battery (common on motherboards). Use only the type recommended by the manufacturer. Improper use may cause explosion or fire. Recycle batteries according to local regulations.

How do I properly dispose of the DE35-HD?

Do not throw it in the trash. Recycle it as Waste Electrical and Electronic Equipment (WEEE). Visit AOpen's website under 'Green Products' for more info.

What are the power requirements for the DE35-HD?

The device uses an external power adapter rated 65W (19V, 3.42A). Input voltage is AC 100-240V. Ensure correct voltage and frequency.

Does the DE35-HD support dual monitors?

Yes, it has both a DVI-I port and a DisplayPort, allowing connection of two monitors simultaneously.

Can I upgrade the memory in the DE35-HD?

Yes, it has two SO-DIMM slots supporting DDR3 memory up to 8GB total (800/1066 MHz). Remove the cover and install compatible modules.

What expansion slots are available?

It has one Full-Size Mini Card slot for adding peripherals like Wi-Fi, Bluetooth, or SSDs.

Is the DE35-HD compliant with FCC regulations?

Yes, it complies with FCC Part 15 for Class B digital devices. Use shielded cables with connected peripherals to maintain compliance.

What is the operating temperature range?

The ambient operating temperature is 0 to 45°C. Avoid extreme conditions.

USER MANUAL DE35-HD AOPEN

Personal Computer User Guide for DE35 series

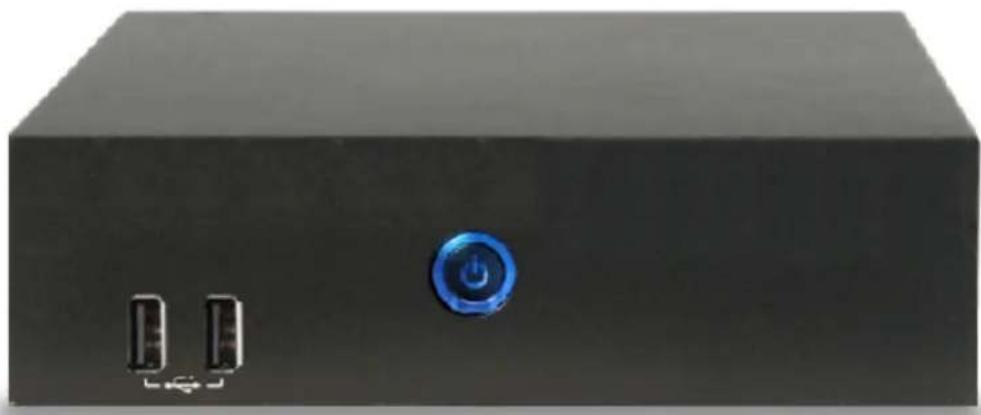

Black rectangular electronic device with two ports and a blue power button (no visible text or symbols)

Disposal Instruction (US)

For better protection of our earth, please don't throw this electronic device into municipal trash bin when discarding. To minimize pollution and ensure utmost protection of the global environment, please recycle the product. For more information about the collection and recycling of Waste Electrical and Electronic Equipment (WEEE), you are invited to visit our homepage at www.aopen.com under “Green Products”

廃棄上の指示

Instruction de Disposition (French)

Copyright of this publication belongs to AOpen Inc. AOpen reserves the right to change the content of this publication without obligation to notify any party of such changes or revisions. No part of this publication may be reproduced, transcribed, transmitted, translated into any language, stored in a retrieval system in any form or by any means electronically, mechanically, optically without the prior written permission of this company.

Disclaimer

AOpen makes no warranties or representations, either expressed or implied, with respect to the content herein and specifically disclaims any warranties, merchantability of fitness for any particular purpose.

AOpen and AOpen logos used herein are registered trademarks of AOpen Inc. All other brand names and trademarks are owned by their respective owners.

Copyright © 2010 by AOpen Inc. All rights reserved.

Safety Instructions

1. Please read these safety instructions carefully.
2. Please keep this User's Manual for later reference.

3. Please disconnect this equipment from connector before cleaning. Don't use liquid or prayed detergent for cleaning. Use moisture sheet or cloth for cleaning.

4. Make sure the equipment is connected to the power source with the correct voltage, frequency, and ampere.

5. All cautions and warnings on the equipment should be noted.

6. Never pour any liquid into opening; this could cause fire or electrical shock.

7. Never open the equipment. For safety reason, the equipment should only be opened by qualified service personnel.

8. If one of the following situations arises, get the equipment checked by a service personnel :

a. Liquid has penetrated into the equipment.
b. The equipment has been exposed to moisture.
c. The equipment has not work well or you can not get it work according to user's manual.
d. The equipment has dropped and damaged.
e. If the equipment has obvious sign of breakage.

1. Caution on use of battery: Use the battery recommended by the manufacturer or the same type of battery installed by the manufacturer. If incorrect battery is used, it may cause explosion or fire hazard. Recycle or discard used batteries according to the manufacturer's instruction or your local authority.

2. Safety caution concerning laser products:

DVD-ROM/CD-RW combo drive is “Class I Laser Product” This equipment, built with DVD and/or CD disc drives using laser beam to read or write data on optical discs, is classified as “Class 1 laser product”. While the laser optical drive is reading data from or writing data to an optical disc, do not force open the disc drive door. Press the Eject button to retrieve the optical disc only after the in-use indicator goes off.

1. Ambient operation temperature: 0 \~ 45 degrees C.

FCC notice

This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this device does cause harmful interference to radio or television reception, which can be determined by turning the device off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

■ □Reorient or relocate the receiving antenna.

□■ □□ Increase the separation between the device and receiver.

□■ □Connect the device into an outlet on a circuit different from that to which the receiver is connected.

□■ d radio/television technician for help

Notice: Shielded cables

All connections to other computing devices must be made using shielded cables to maintain compliance with FCC regulations.

Notice: Peripheral devices

Only peripherals (input/output devices, terminals, printers, etc.) certified to comply with Class B limits may be attached to this equipment. Operation with non-certified peripherals is likely to result in interference to radio and TV reception.

Caution

Changes or modifications not expressly approved by the manufacturer could void the user's authority, which is granted by the Federal Communications Commission, to operate this computer.

Operation conditions

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Notice: Canadian users

This Class B digital apparatus complies with Canadian ICES-003

Index

1. Outlook ......2
2. Product Specification....4
3. Internal Connectors ....5
4. Packing List....6
5. Chassis and Holder Dimension .....7

1.Outlook

Front IO

2. Product Specification

CPU	AMD Embedded G-Series CPU, T56N
Chipset	FCH Hudson E1(A55E)
Memory	SO-DIMM DDR III x 2, 800/1066 MHz Max memory size : 8GB
Graphics	AMD RadeonTM HD 6310
Expansion Slot	Full Size mini Card x 1
Audio	Realtek ALC662 HD Audio CODEC on-Board
LAN	Realtek Gigabit Ethernet x 1,10/100/1000
Front Panel IO	Power Button x 1, HDD/Power indicator (Blue) x 1, USB 2.0 Port x 2
Rear Panel IO	DC 19V Jack x 1, DVI-I Port x 1, RJ45 LAN Jack x 1, USB 2.0 Port x 2, RS232 Serial Port x 1, HD Audio ports (speaker out x 1, Mic in x 1), USB 3.0 Port x 2, Display Port x 1
Adapter	65W (19V, 3.42A) AC Power Adapter
Input Voltage	AC 100 ~ 240V

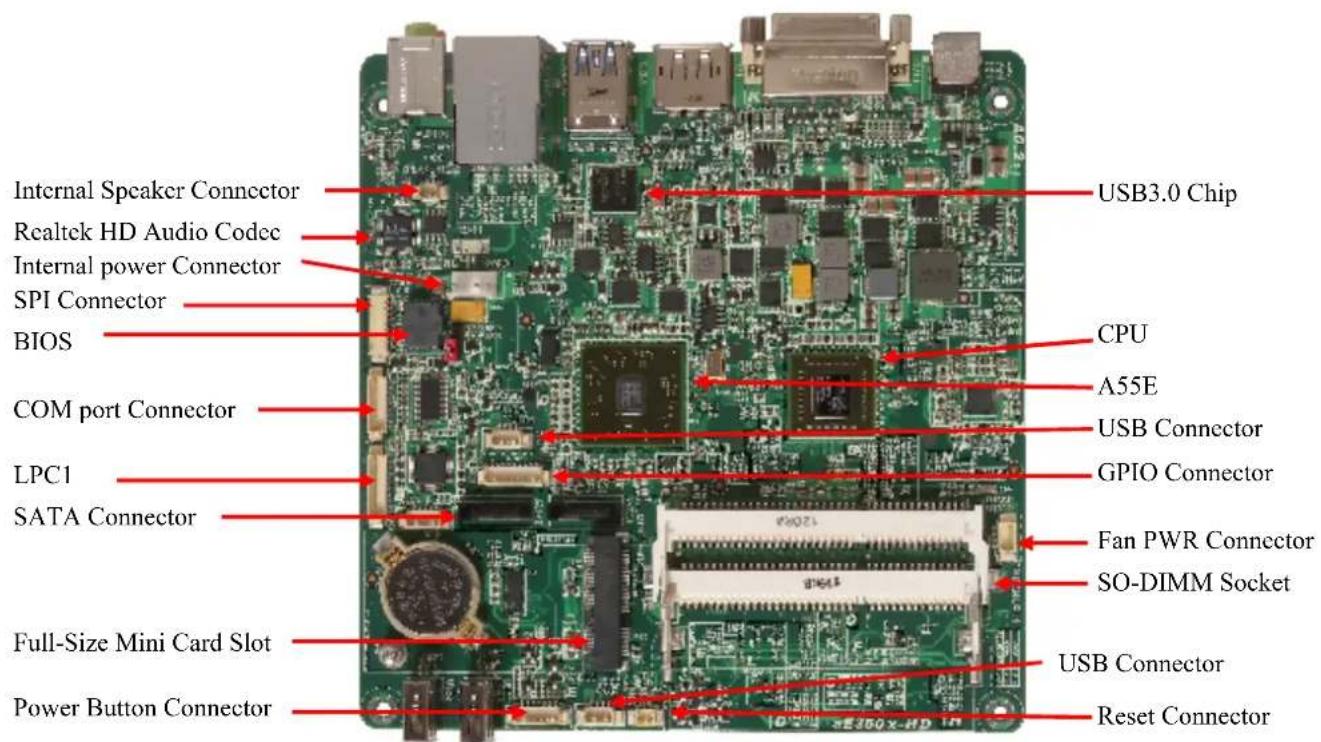

3. Internal Connectors

4. Packing List

1 x DE35 system
1 x User Guide
1 x Driver CD
1 x 65W Adapter and Power Cord
1 x L type Holder with 4 pcs of M3 screw
4 x M3 - L4 screws
4 x M2 - L2 screws
1 x cable clamp
1 x DVI to HDMI cable
1 x DVI to D-Sub adapter

5. Chassis and Holder Dimension

A. Dimension of DE35 (unit: mm)

B. LH02 L type Holder (Include 2 piece holder and 4 FPH M3 screws) Dimension of L type Holder. (unit: mm[inch])

P/N : 49.DE501.0010

S/N : 112-066-129
