Product Type	Deep well pump
Power Rating	1200 W
Max. Pumping Rate	6000 l/h
Max. Delivery Head	55 m
Max. Submersion Depth	19 m
Max. Water Temperature	35°C
Hose Connection	approx. 33.3 mm (1" IG)
Protection Type	IPX8
Power Cable Length	22 m
Mains Connection	220-240 V ~ 50 Hz
Automatic Mode	Yes (pressure switch)
Dry-run Protection	Yes
Non-return Valve	Yes (integrated)
Dirt Screen	Yes (cleanable)
Suspension Eyelets	2
Securing Cable	Included
Motor Circuit Breaker	Yes (overheating protection)
Maintenance	Clean dirt screen after use; no internal maintenance
Wear Parts	Impeller (subject to normal wear)

Frequently Asked Questions - GE-DW 1255 N-A EINHELL

What is the maximum depth for submersion?

The maximum submersion depth is 19 meters.

Does the pump have dry-run protection?

Yes, the pump automatically switches off if no water is available and attempts to restart after intervals.

Can I use this pump for continuous operation?

No, it is not designed for continuous operation (e.g., as a circulating pump). Continuous use may shorten its lifespan.

What is the maximum water temperature allowed?

The pump can handle water up to 35°C.

How do I clean the pump?

Unplug the pump, unscrew the dirt screen, clean it with clear water, and reattach.

Can I use this pump in a swimming pool?

No, it is prohibited to use the pump in swimming pools, paddling pools, or any water body where people or animals may be present.

What should I do if the pump doesn't start?

Check the power supply, ensure the socket is working, and verify the dirt screen is not clogged.

How does the automatic mode work?

The pump builds pressure and automatically switches off when a tap is closed. It restarts when pressure drops below 3 bar.

Can I replace the power cable myself?

No, if the power cable is damaged, it must be replaced by the manufacturer or a qualified technician.

What is the warranty period?

The warranty is 2 years from the date of purchase for private use. Commercial use voids the warranty.

USER MANUAL GE-DW 1255 N-A EINHELL

Exterior view of a cylindrical water pump with attached wire, shown alongside with a separate wire wrapped in coiled cable (no text or symbols visible)

Close-up of a hand using a screwdriver to adjust a cylindrical device with a curved arrow indicating rotation (no text or symbols visible)

Close-up of a mechanical component with labeled parts (1, 2, and 3), showing internal structure and wiring (no text or symbols beyond labels)

4

Simple line drawing of an open book with no text or symbols visible

1

D

Gefahr!

When using the equipment, a few safety precautions must be observed to avoid injuries and damage. Please read the complete operating instructions and safety regulations with due care. Keep this manual in a safe place, so that the information is available at all times. If you give the equipment to any other person, hand over these operating instructions and safety regulations as well. We cannot accept any liability for damage or accidents which arise due to a failure to follow these instructions and the safety instructions.

Explanation of the symbols used (see Fig. 4)

1. Danger! - Read the operating instructions to reduce the risk of injury.

1. Safety regulations

Danger!

Read all safety regulations and instructions. Any errors made in following the safety regulations and instructions may result in an electric shock, fi re and/or serious injury.

Keep all safety regulations and instructions in a safe place for future use.

Children are not allowed to use this equipment. Children are not allowed to carry out cleaning or maintenance. This equipment can be used by people with limited physical, sensory or mental capacities or those with no experience and knowledge if they are supervised or have received instruction in how to use the equipment safely and understand the dangers which result from such use. Children are not allowed to play with the machine.

Danger!

The pump must be powered via an earth-leakage circuit breaker (RCD) with a rated fault current of no more than 30 mA (according to VDE 0100 Part 702 and 738).

The equipment is not designed for use in swimming pools and paddling pools of any kind or other bodies of water in which people or animals may be present during operation. It is prohibited to operate the equipment if a person or animal is in the danger area. Ask your electrician!

• Before you put the equipment into operation, arrange for a specialist to check that the earthing, protective multiple earthing or residual-current operated circuit-breaker circuit comply with the safety regulations of the power supply company and work correctly.
• The electrical plug-in connections must be protected from wet conditions.
• If there is a risk of flooding, place the plug-in connections in an area which is safe from flooding.
• Strictly avoid pumping aggressive liquids and abrasive substances.
  • Protect the equipment from frost.
  • Protect the equipment from dry running.
  • Take suitable measures to keep the equipment out of the reach of children.

2. Layout and items supplied

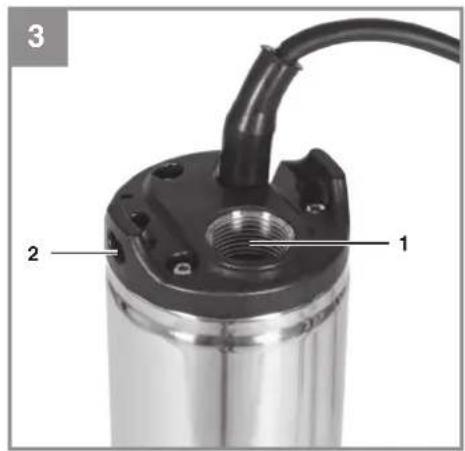

2.1 Layout (Fig. 1)

1. Pressureconnector
2. Suspension eyelets
3. Dirt screen
4. Securing cable

2.2 Items supplied

Please check that the article is complete as specified in the scope of delivery. If parts are missing, please contact our service center or the sales outlet where you made your purchase at the latest within 5 working days after purchasing the product and upon presentation of a valid bill of purchase. Also, refer to the warranty table in the service information at the end of the operating instructions.

• Open the packaging and take out the equipment with care.
• Remove the packaging material and any packaging and/or transportation braces (if available).
• Check to see if all items are supplied.
• Inspect the equipment and accessories for transport damage.
• If possible, please keep the packaging until the end of the guarantee period.

Danger!

The equipment and packaging material are not toys. Do not let children play with plastic bags, foils or small parts. There is a danger of swallowing or suffocating!

GB

• Deep well pump
• Securing cable
  • Original operating instructions

Max. size of foreign bodies: ....clear water

Protection type. IPX8

Power cable 22 m

3. Proper use

The equipment you have purchased is designed to pump water with a maximum temperature of 35^ C. This equipment must never be used for other liquids, especially not for engine fuels, cleaning agents and other chemically-based products!

The equipment can be used wherever you want to move water, e.g. in the house, in the garden, and for many other applications. It must not be used to operate swimming pools!

If you want to use the equipment in bodies of water with a natural, muddy bottom, place the equipment in a slightly elevated position, e.g. on bricks.

The equipment is not designed for continuous operation, e.g. as a circulating pump in a pond. In this case the equipment's anticipated life will be greatly shortened because the equipment was not designed for continuous loading.

The equipment is to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse. The user / operator and not the manufacturer will be liable for any damage or injuries of any kind caused as a result of this.

Please note that our equipment has not been designed for use in commercial, trade or industrial applications. Our warranty will be voided if the machine is used in commercial, trade or industrial businesses or for equivalent purposes.

The water may be contaminated by escaping lubricating oil/lubricant.

4. Technical data

Mains connection	220-240 V ~ 50 Hz
Power rating	1200 W
Max. pumping rate	6000 l/h
Max. delivery head	55 m
Max. submersion depth	19 m
Max. water temperature	35°C
Hose connection	approx. 33.3 mm (1") IG

5. Before starting the equipment

Before you connect the equipment to the mains supply make sure that the data on the rating plate are identical to the mains data.

5.1 Installation

The equipment can be installed either: • Stationary with a rigid pipe line

or
• Stationary with a flexible hose line

Connect the pressure hose or pipe to the pressure connector (1) using a suitable connector. Fasten the securing cable (4) to the suspension eyelet (Fig. 3/Item 2).

Notice!

Before you use the pump, clarify any possible special conditions which need to be fulfilled for the installation!

For example, additional safety measures may be needed if damage to property could result from a power failure, soiling or a defective gasket.

Examples of such safety measures:

Pumps running in parallel on a separately protected power circuit, moisture sensors for switching off the pumps, and similar safety arrangements. Be sure to consult a professional plumber if you have any doubt.

The maximum pumping rate is possible only with the largest possible line diameter; if smaller hoses or pipes are connected, the pumping rate will be reduced.

When installing, never hang the equipment by the discharge line or by the power cable. The device must be hung up by the provided suspension eyelets.

The pump shaft should be large enough.

5.2 Mains connection

Danger!

The equipment you have purchased comes with an earthing-pin plug. The equipment is designed for connection to a socket outlet with earthing contact for 220-240 V \~ 50 Hz. Make sure that the

GB

socket-outlet is sufficiently fused (at least 6 A) and in good working order. Insert the power plug in the socket-outlet and the equipment is ready for operation.

6. Operation

You can put the equipment into operation after you have thoroughly read the installation and operating instructions. Pay attention to the following points:

• Check that the discharge line is fitted correctly.
  • Make sure that the electrical connection is 220-240 V \~ 50 Hz.
• Check that the electrical socket-outlet is in good working order.
  • Make sure that no moisture or water can ever reach the power connection.
  • Make sure that the equipment does not run dry.
• To switch off the equipment, pull the power plug out of the socket outlet.

Important!

1. Lower the pump into the well or shaft using a securing cable.
2. Ensure that the pump is completely under the surface of the water and approx. 10 cm above the bottom.
3. Connect the mains plug to the socket.
   The pump starts approx. 3 seconds after the connection cable has been plugged in.

6.1 Automatic mode:

The pump is building up pressure (e.g. a water tap is closed) and then switches off automatically. The integrated non-return valve ensures that the pressure is maintained in the hose until water is drawn off again.

When the pressure drops below 3 bar, the pump switches on again automatically.

6.2 Dry-run safeguard:

The pump is switched off automatically is there is no longer any medium available.

After 5 seconds the pump switches on for 30 seconds. After that the pump runs in three cycles with 5 seconds OFF and 20 seconds ON. If there is still no output, the pump starts again after 1 hour, 5 hours and finally after 24 hours.

Important!

If you find that the pump is running dry, make sure that the discharge line is always closed.

7. Replacing the power cable

Danger!

If the power cable for this equipment is damaged, it must be replaced by the manufacturer or its after-sales service or similarly trained personnel to avoid danger.

8. Cleaning, maintenance and ordering of spare parts

Danger!

• Unplug the power plug prior to any maintenance work.
• For mobile applications, the equipment should be cleaned with clear water after every usage.

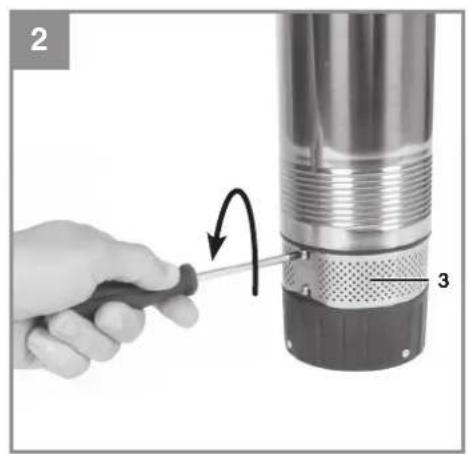

• Undo the fastening screws on the dirt screen (Figure 2/Item 3) and clean the dirt screen and intake section.
  • Insert the dirt screen again.

8.1 Maintenance

There are no parts inside the equipment which require additional maintenance.

8.2 Ordering replacement parts:

Please quote the following data when ordering replacement parts:

• Type of machine
• Article number of the machine
• Identification number of the machine
• Replacement part number of the part required

For our latest prices and information please go to www.Einhell-Service.com

9. Disposal and recycling

The equipment is supplied in packaging to prevent it from being damaged in transit. The raw materials in this packaging can be reused or recycled. The equipment and its accessories are made of various types of material, such as metal and plastic. Never place defective equipment in your household refuse. The equipment should be taken to a suitable collection center for proper disposal. If you do not know the whereabouts of

GB

such a collection point, you should ask in your local council offices.

10. Storage

Store the equipment and accessories in a dark and dry place at above freezing temperature. The ideal storage temperature is between 5 and 30^ . Store the electric tool in its original packaging.

11. Troubleshooting guide

Faults Cause	Remedy
Theequipment does not start	- Power supply not connected - Check power supply
Theequipment does not pump	- Intake sieve clogged- Discharge hose kinked	- Clean intake sieve with water jet- Unkink the hose
The equipment does not cut out	- Delivery side is leaking - Clean the delivery side
Insuffi cient pumping rate	- Intake sieve clogged- Performance reduced due to heavily contaminated and abrasive water impurities	- Clean intake sieve- Clean equipment and replace wear parts
The equipment switches off after briefly running	- Motor circuit-breaker switches the equipment off due to excessive water contamination- Water temperature too high; motor circuit-breaker switches the equipment off	- Unplug power plug and clean equipment and shaft- Ensure that maximum permissible water temperature (35 °C) is not exceeded

GB

Disposal

Power tools, rechargeable batteries, accessories and packaging should be sorted for environmental-friendly recycling.

Do not dispose of power tools and batteries/rechargeable batteries into household waste!

Only for EU countries:

According to the Directive 2012/19/EU on waste electrical and electronic equipment and its transposition into national law, power tools that are no longer usable, and, according to the Directive 2006/66/EC, defective or drained batteries must be collected separately and disposed of in an environmentally correct manner.

If disposed incorrectly, waste electrical and electronic equipment may have harmful effects on the environment and human health, due to the potential presence of hazardous substances.

Only for United Kingdom:

According to The Waste Electrical and Electronic Equipment Regulations 2013 (SI 2013/3113) (as amended) and the Waste Batteries and Accumulators Regulations 2009 (SI 2009/890) (as amended), products that are no longer usable must be collected separately and disposed of in an environmentally friendly manner.

The reprinting or reproduction by any other means, in whole or in part, of documentation and papers accompanying products is permitted only with the express consent of the Einhell Germany AG.

Subject to technical changes

GB

Service information

We have competent service partners in all countries named on the guarantee certificate whose contact details can also be found on the guarantee certificate. These partners will help you with all service requests such as repairs, spare and wearing part orders or the purchase of consumables.

Please note that the following parts of this product are subject to normal or natural wear and that the following parts are therefore also required for use as consumables.

Category Example
Wear parts* Impeller
Consumables*
Missing parts

* Not necessarily included in the scope of delivery!

In the effect of defects or faults, please register the problem on the internet at www.Einhell-Service.com. Please ensure that you provide a precise description of the problem and answer the following questions in all cases:

• Did the equipment work at all or was it defective from the beginning?
• Did you notice anything (symptom or defect) prior to the failure?
• What malfunction does the equipment have in your opinion (main symptom)?
Describe this malfunction.

GB

Warranty certifi cate

Dear Customer,

All of our products undergo strict quality checks to ensure that they reach you in perfect condition. In the unlikely event that this equipment develops a fault, please contact our service department at the address shown on this guarantee card. You can also contact us by telephone using the service number shown. Please note the following terms under which guarantee claims can be made:

1. These guarantee terms apply solely to consumers, i.e. natural persons, who do not want to use this product in connection with either their commercial or other self-employed activities. These guarantee terms regulate additional guarantee services which the undermentioned manufacturer promises to buyers of its new products in addition to their statutory rights of guarantee. Your statutory rights of guarantee are not affected by this guarantee. Our guarantee is free of charge to you.

2. The guarantee services cover only defects due to material or manufacturing faults on the new product which you have bought in the European Union from the undermentioned manufacturer and are limited to either the rectification of said defects or the replacement of the product, whichever we prefer. Please note that only equipment under the brand name "Professional" has been designed for use in commercial, trade or professional applications. For all other products the guarantee is invalidated if the equipment is used within the guarantee period in commercial, trade or industrial applications or for other equivalent activities.

3. Our guarantee does not cover:

4. Damage to the equipment caused by failure to comply with the installation/assembly instructions or by unprofessional installation; damage caused by failure to comply with the operating instructions (e.g. connection to the wrong mains voltage or current type); damage caused by failure to comply with the maintenance and safety regulations; damage caused by exposing the equipment to abnormal environmental conditions; damage resulting from poor care and maintenance.

5. Damage to the equipment caused by misuse or incorrect applications (e.g. overloading the equipment or using non-approved attachments or accessories); damage caused by foreign bodies (e.g. sand, stones, dust, ....) getting inside the equipment. Damage in transit; damage caused by force or external influences (e.g. by dropping the equipment).

6. Damage to the equipment or parts of the equipment which is owed to use-related, normal or otherwise natural wear. For example, batteries and battery packs are manufactured with a cycle limit for design-related reasons. Wear is negatively influenced in particular by load demands and charging speeds as well as exposure to heat, cold, vibration and impact.

7. The guarantee is valid for a period of 2 years starting from the purchase date of the equipment. Guarantee claims must be submitted before the end of the guarantee period and within two weeks of the defect being noticed. No guarantee claims will be accepted after the end of the guarantee period. The original guarantee period remains applicable to the equipment even if repairs are carried out or parts are replaced. In such cases, the work performed or parts fitted will not result in an extension of the guarantee period, and no new guarantee will become active for the work performed or for any replacement parts fitted. This also applies if on-site service is used.

8. To assert your guarantee claim, register the defective equipment at: www.Einhell-Service.com. You will need to provide proof of purchase of the new item of equipment. Equipment returned without such proof or without a rating plate are excluded from the guarantee services because of the lack of traceability. If the defect is covered by our guarantee, then either the item in question will be repaired immediately and returned to you or we will send you a new replacement.

9. If you have taken the equipment with you to a different EU country than where you bought it, we will arrange for a local service partner to provide the guarantee services. If you take the equipment outside the EU, the guarantee will not apply.

Of course, we are also happy to offer a chargeable repair service for any defects which are not covered or no longer covered by the scope of this guarantee. To take advantage of this service, please send the equipment to our service address. We draw attention to the restrictions of this guarantee concerning wear parts, consumables and missing parts as presented in the service information included in this operating manual.

Warrantor/ Service:

Einhell UK Ltd, Unit 10, 1st Floor, Champion's Business Park, Arrowe Brook Road, Upton, Wirral, CH49 0AB

Pericolo!

Subject to change without notice

Archive-File/Record: NAPR030097

Documents registrar: Thomas Fischer

Wiesenweg 22, D-94405 Landau/Isar

* GB Deep well pump. F PoRpa pour les puis provisions. f PoRpa per paza - OKN Dybrandzump. S Djubrundzump. CZ Cepadlo de hluokwych studi. SK Hilbove studiove berpadle. NC Diepwrump. E Bmba para pouze profintos - FIN Synakavouumpra - SLO Œrskla za vodniak - H Melyk skutlava - NO PoRpa pentru pujan adeno - GR Anla ofoatouso - P Bmba para paza - HVRHN Pmpa za duboke zidence - RS Pmpa za duboke bunte - PL PoRpa globlinov - TR Derin kuyu pompezi - RUS Atezanakohic nasco - EE PuRkaunupmu - LV Akas sūknis - LT Oliu sūliu sūtvis - EZ Dybluchonima ponka za kladanez - UKH Nasco da armazakons kondalaik - MK Puma za slabbok fuerei - NO Dybrandzumpra - IS Djub frunnalista

EH 04/2024 (01)
