Product Type	Vibratory Plate
Brand	HMS Premium
Model	SVP02
Rated Voltage	220-240 VAC / 100-120 VAC
Rated Frequency	50/60 Hz
Rated Power	200 W
Maximum User Weight	150 kg
Display	LED (alternates mode/speed and time)
Exercise Modes	Manual, Automatic P1, P2, P3
Time Range	1-20 minutes (default 10)
Speed Levels	1-20 (manual mode)
Remote Control	Infrared, range up to 2.5 m
Safety Features	Auto standby after 3 min, emergency stop, overload protection
Recommended Postures	Whole-body, squat, press-up, lower legs, waist bend, single-foot, sitting I and II
Moving Method	Two handles on middle cover, castor on one end
Cleaning	Dry cloth for controller; damp cloth with mild detergent for pedal and covers
Storage	Keep in dry place, use dust cover if not used for long
Warranty	24 months (electric parts 24 months, charger 6 months)
Construction	Rubber pedal, plastic covers
Intended Use	Home fitness exercise, not for rehabilitation or therapy
Importer	ABISAL Sp. z o.o., Poland

Frequently Asked Questions - SVP02 HMS Premium

How do I start the SVP02 vibratory plate?

Plug in the power cord, switch on the power switch, then press the START/STOP button on the console or the remote control. The device will start in the last selected mode. To stop, press the same button again.

What do the error codes on the display mean?

Error codes include: Er-3 (emergency stop), Er-4 (connection error), Er-5 (power tube damage), Er-6 (current overload), Er-7 (engine abnormality), Er-8 (blocked engine), and Er-9 (low voltage). Refer to the manual for detailed troubleshooting.

What is the maximum user weight for this vibratory plate?

The maximum user weight is 150 kg. Do not use the product if you exceed this limit to avoid damage or injury.

Can I use the vibratory plate on carpet?

It is recommended to use the plate on a flat, hard floor. Using on carpet may cause instability and affect performance. For safety, place it on a solid surface.

How should I clean the device?

Before cleaning, turn off the power and unplug. Use a dry cloth for the controller. For the rubber pedal and covers, use a cloth with mild detergent, then wipe dry. Avoid corrosive cleaners like benzene or thinner, and do not splash water inside.

What are the different exercise modes?

The plate has four modes: Manual (HA.00) lets you set time and adjust speed freely; Automatic P1 (P1.01), P2 (P2.03), and P3 (P2.05) run preset rhythms. In automatic modes, time and speed cannot be adjusted.

How do I use the remote control?

The remote uses infrared signals with an effective range of 2.5 meters. Point the remote's emitter toward the product's infrared receiving window. The remote buttons mirror the console functions: start/stop, speed +/-, time +/-, and mode selection.

Is it safe to use if I am pregnant?

No. The manual strongly advises against use by pregnant women or women in menstrual period. Consult your doctor before use if you have any medical conditions.

How do I move the vibratory plate?

The plate has two handles on the middle cover and a castor on one end. To move it, lift the end opposite the castor, grasp a handle, and roll it to the desired location.

What is the warranty period for this product?

The seller provides a 24-month warranty from the date of sale within Poland. The electric power assist is covered for 24 months, and the charger for 6 months. Keep the guarantee card and purchase proof.

USER MANUAL SVP02 HMS Premium

Red and black photo of a red SVP02 mini-floved exercise machine with black mesh back, connected by black straps and a remote control (no text or symbols visible on device body)

INSTRUKCJA UŻYTKOWANIA

MANUAL INSTRUCTION

NÁVOD K OBSLUZE

BEDIENUNGSANLEITUNG

The ensure proper operation of the Product, please read this USER MANUAL carefully before using, and pay special attention to the safety precautions.

Środki ostrożności

Environment for use..

Do not use the Product in humid or dusty environment to avoid electric shock or breakdown of the mechanical parts.

Do not use the Product when indor temperature is over 40 °C.

Do not use the Product in the open air or under the direct sunlight.

Please use the Product on flat floor.

Please wait for one hour before using the Product when it moved from low to hight temperature, so as to prevent water vapor from condensing on the machine and resulting in any failure.

People under these conditions below are not suggester to use the Product:

(It is strongly advised to consult your doctor before use)

Patients who are udner treatment or feel not good;

Pateints with malignant tomor;

Pregnant women or women in menstrual period;

People with heart disease;

Osteoporosis patients;

People with heart pacemaker or other medical electronic instrument implanted;

People with artificial limb;

People who are sensitive to vibration and strenuous exercise.

Notice during Operation

Before use, please undress watch, bangle, call phone or other valuable objects and keys, knife ora other incisive objects, soas to avoid damage or body injury.

Do not smoke while using the Product.

Please do not use the Product together with other medical equipments.

Please do not use the Product for medical treatment purpose.

Do not use the Product right after a meal or drink.

During use please keep child or a pet away from the Product. It is forbidden to put fingers or other foreign bodies into the gap between the middle cover and base cover.

Supervision is needed for child under 10 years and the aged over 60 years during using thr Product.

The load capability of thr Product is 150 kgs; people over this weight are not suggested to ude the Product.

This product is only limited for one-person use.

WARNING

Unauthorized dismantle, disassembly or renovation is not allowed to prevent electrical shock or rany malfunctions. Please contract manufacture or local dealer immediately if there is any service work needed.

Stop using the Product under the Product under below conditions then power off and remove the plug from power supply.

Water or other liquid is accidentally splashed onto the Product or controlle.

Any accessories is found damaged or internal component is exposed.

Feelabnormal or severe gain during use.

Power failure.

Thundering or lighting weather.

Plug and power cord

Check id the voltage complies with the one specified for the Product. Do not retract the power plug with wet hand to prevent electric shock. Hold the plug rather than the power cord to pull out the power cord. Turn off the power switch and remove the plug from the power supply in case of electrical failure of not in use for a long time. Stop usinf the Product if the power card ha sany damage, turn off the ower switch, pull out the plug and contact technicians for repair.

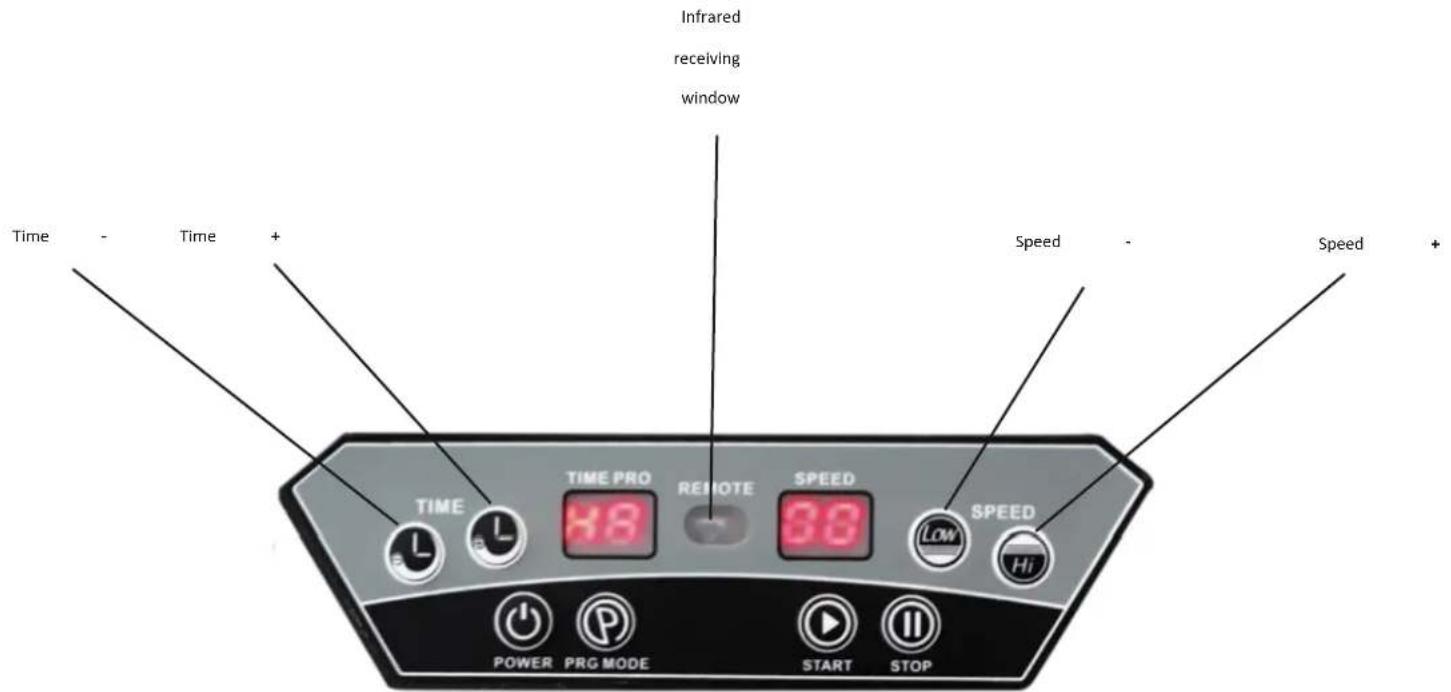

Function of the Product

Start: When machine stop, this button will start the engine as the preset model

Program: When machine stop, this button can preset four modes as below:

Manual: Led shows HA.00, this mode can set time between 0 and 20 minutes. When you press start button, you can adjust the speed as your needs. But time can not work.

Automatic P1: Led shows P1.01, this mode will run at a certain rhythm.

Time and speed. Cannot work.

Automatic P2: Led shows P2.03, this mode will run at a certain rhythm. Time and Speed Cannot work.

Automatic P3: Led shows P2.05, this mode will run at a certain rhythm. Time ans speed cannot work.

Power: You can make the machine standby after you turn on and press this button. Then led will show "____". While you press again it will resume to norm.

Also when you switch on and not use it for 3 minutes, it will go into standby.

Time/Speed+: When machine stop in manual mode, time can be increased between 1-20 minutes (Default time: 10 minutes).

While machine works in manual mode, speed can be raised by this button.

Time/Speed-: When machine stop in manual mode, time can be reduced between 1-20 minutes (Default time: 10 minutes).

While machine works in manual mode, speed can be down by this button.

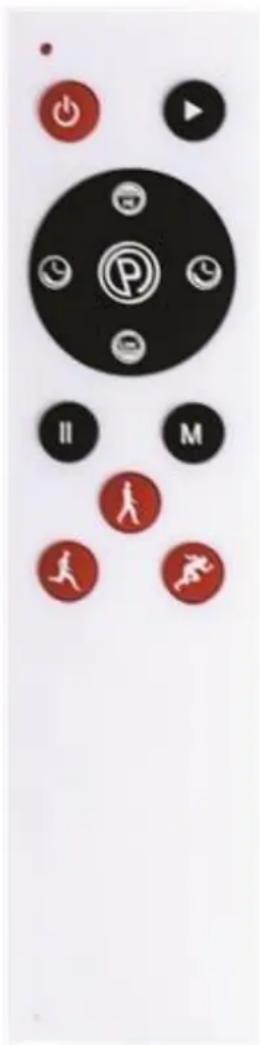

Start: See 1

START/STOP: Insert the power plug, switch on power, then press the button to staet the Product. In the operation of the machine, press this button to stop working.

TIME: Time decrease: the default working time is 10 minutes divided into 10 levels, press this button to decrease time.

Speed +: Speed increase: manual 1-20. Press this button to increase the speed when the machine is operating.

Time +: Time increase: the default working time is 10 minutes divided into 10 levels, press thid button to increase time.

Speed -: Speed decrease: manual 1-20. Press this button to decrease the speed when the machine is operating.

Note: the effective reception range of the remote control signal is 2,5 meters, the infrared emission indicator of the controller should be aligned the infrared receiving window on the product.

Program: See 2

Speed+/-: While machine works in manual mode, speed can be adjusted by this button.

Time+/-: When machine stop in manual mode, time can be adjusted between 1-20 minutes(Default time: 10 minutes).

Led displaying method:

Method 1: Mode. Speed

Method 2: Minutes: Second

Both method will alternate in 5 seconds.

Use method

WHOLE- BODY- EXERCISE POSTURE: Stand on the plate and stretch your feet like as wide as your shoulders. This will help improve overall circulation and muscle tone.	SQUAT POSTURE: Stretch your legs as wide as your shoulders when squatting and bend your knees down to 90 degrees if you can and hold the position. This is great for a thigh workout.	PRESS-UP POSTURE: Stretch your arms as wide as your shoulders. If you wish to exercise the muscles more, bend your elbows to 90 degrees and hold this position.	LOWER LEGS POSTURE: Put your lower legs as shows on the plate with your hands supporting behind you on the ground. For a deeper exercise, raise your seat off the floor and press down on your calves.
WAIST BEND POSTURE: Stretch your legs, bend at the waist and put your hands on the plate. Bend your elbows for a deeper exercise.	SINGLE-FOOT POSTURE: Put one foot on the pedal and relax yourself. For a deeper exercise, lunge forward, placing more body weight on the plate.	SITTING POSTURE I: Sit with your buttocks on the oscillating plate. Sit comfortably, keeping your back straight.	SITTING POSTURE II: Put your legs on the plate when sitting on a chair. This is a great way to ease tension and can help to improve circulation in the legs.

Function and features

Body beauty: by reposeful and high-frequency vibration and way combined with various exercise postures, this machine can deeply stimulate muscle tissue, lower fat accumulation, rehabilitate elasticity of muscle, sculpture beautiful body shape, then make users vitalized and feel confident.

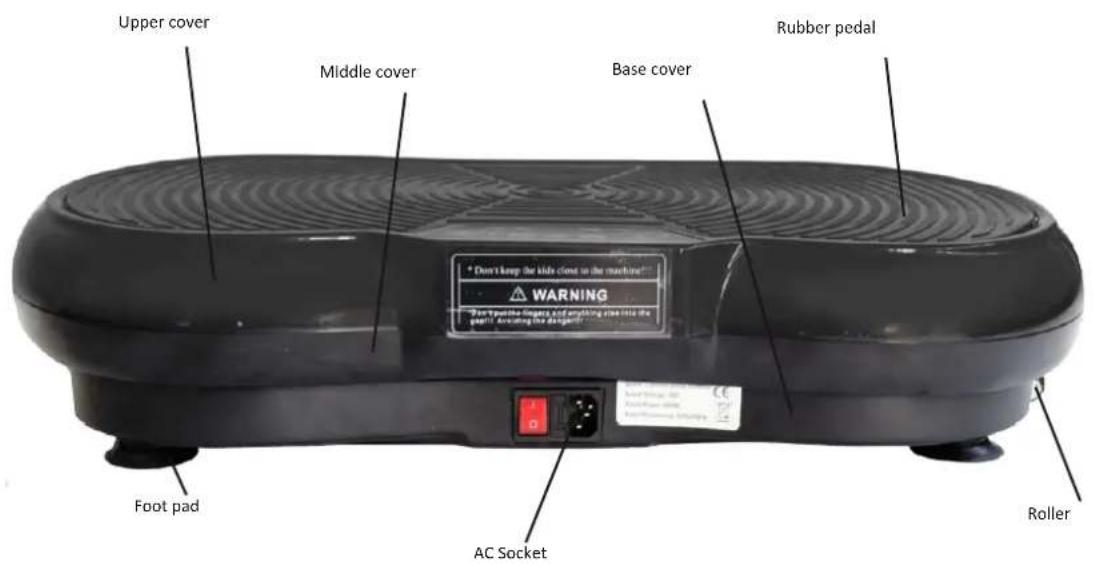

Moving method

Two handles designed on both ends of the middle cover. When moving the Product, lift the end opposite of the castor, graps the handle and move the Product to the desired place.

Storage and maintenance Surface cleaning

Before cleaning, ensure the power switch is turned off, and the attaching plug is pulled out of socket.

The rubber pedal and covers can be cleaned with cloth containing detergent, ant the detergent should be removed with a cloth.

NOTICE: Do not clean the Product with corrosive detergent such as benzene or thinner, as it may cause fading, corrosion or crack on the Product. Do not splash water into the product to avoid short circuit.

CONTROLLER: As wet cloth may cause malfunction of the controller, only dry cloth can be used.

off and the plug is removed from the power supply.

Clean off the dust and dirt on the Product and keep it clean and away from places with high temperatiree pr hogh humidity.

If the Product is not in use for a long period, a dustproof cover (but it yourself) should be applied on the Product to prevent the entry of dust.

Common problems and solutions

1. Emergency stop: Led on console shows "Er-3", Led on PCB flashes three Times.
2. Connection error: Led on console shows "ER-4", Led on PCB flashes four Times.
3. Electron power tube damage: Led on console shows "ER-5", Led on PCB flashes five Times.
4. Current Overload: Led on console shows "ER-6", Led on PCB flashes six Times.
5. Engineer abnormality: Led on console shows "ER-7", Led on PCB flashes seven Times.
6. Blocked Engineer: Led on console shows "ER-8", Led on PCB flashes eight Times.
7. Low voltage: Led on console shows „ER-9“, Led on PCB flashes nine Times.

Technical specyfication

Rated voltage: 220-240 VAC 100-120 VAC

Rated power: 200 W

Rated frequency: 50/60 Hz

Maximum user weight: 150 kg

1. The Seller provides guarantee on behalf of the Guarantor within the territory of the Republic of Poland for the period of 24 months from the date of sale: electric power assisted booster 24 months, charger 6 months.

2. The Guarantee will be recognised by the shop or service centre after the client provides:

3. clearly and correctly filled-in guarantee card with the sale stamp and the seller's signature

4. valid purchase confirmation for the equipment including the date of sale / bill, complained product.
5. Possible defects and damages revealed during the guarantee period shall be remedied free of charge within not more than 21 days from the delivery of the product to the shop or service.
6. Should it be necessary to import some components, the guarantee term can be extended by the period required to import such part, however such period shall not be longer than 90 days.

7. The guarantee does not cover:

8. mechanical damages and subsequent defects,

9. damages and defects resulting from incorrect storage and usage of the equipment against its purpose,
10. incorrect assembly and maintenance,

11. damages and consumption of such elements as: cables, straps, rubber parts, pedals, sponge grips, wheels, bearings, etc.

12. The guarantee expires in the event of:

13. expiry of the validity term,

14. self-repairs,

15. failure to follow the rules of correct operation.

16. The product handed over for repair should be complete and clean. If some parts are missing, the service is entitled to refuse to accept the product for repair. The service may refuse to accept a dirty product or clean in on the client's expense after the client's written permit.

17. The guarantee does not cover activities related to assembly, maintenance, which, according to the instruction, the user is obliged to perform themselves.
18. The Guarantor also informs that they offer post-guarantee service.
19. The product should be provided in its original packaging and should be secured for shipment.
20. To exercise the guarantee follow the procedure posted on the website: https://serwis.abisal.pl/

In case of non-conformity of the sold thing with the contract, the buyer is entitled by law to legal remedies from and at the expense of the seller. The guarantee does not affect such remedies.

THE EQUIPMENT IS NOT INTENDED FOR REHABILITATION AND THERAPY

NOTES ON THE COURSE OF REPAIRS

Item	Date of notificacion	Date of provision	Course of repairs	Signature of the recipient (shop, owner)

ZÁRUČNÍ LIST

EN: Marking the equipment with a symbol of a crossed-out waste container informs about prohibition of placing used electrical and electronic equipment with other household waste. According to the WEEE Directive on used electrical and electronic waste management, separate disposal methods must be applied for this type of equipment. A user, who intends to dispose this product, is required to deliver it to a collection point for used electrical and electronic equipment in order to contribute to reuse, recycling, or recovery and consequently, to protect the environment. To do this, contact the point where the device was purchased or local government officials. Hazardous components contained in the electronic equipment can cause long-lasting adverse changes in the environment, as well as have a harmful effect on human health.
