MA1020 - Massage device HMS Premium - Free user manual and instructions

Product Type	Massage Device
Model	MA1020
Brand	HMS Premium
Dimensions (L x W x H)	Approx. 30 x 15 x 10 cm
Weight	Approx. 1.5 kg
Power Supply	AC 100-240V, 50/60 Hz
Power Consumption	25 W
Massage Functions	Vibration, Kneading, Rolling, Heat
Intensity Levels	3
Heat Function	Yes, infrared
Timer	Auto shut-off after 15 minutes
Material	Silicone and ABS
Application Area	Neck, shoulders, back, waist, legs
Control Type	Button panel
Safety Certification	CE, RoHS
Cleaning Instructions	Wipe with a damp cloth, do not immerse
Storage	Store in a cool, dry place
Accessories Included	Power adapter, user manual
Warranty	2 years

Frequently Asked Questions - MA1020 HMS Premium

How do I clean the MA1020 massage device?

Use a soft, damp cloth to wipe the surface. Do not use abrasive cleaners or immerse the device in water.

Can I use the heat function continuously?

The heat function automatically turns off after 15 minutes. You can restart it manually after a cool-down period.

Is the device suitable for all body parts?

It is designed for neck, shoulders, back, waist, and legs. Avoid using on sensitive areas such as eyes or joints.

Does the device include a warranty?

Yes, it comes with a 2-year warranty covering manufacturing defects.

Can I use the device while charging?

The MA1020 is corded and operates only when plugged into a power outlet. It does not have a built-in battery.

How do I adjust the massage intensity?

Press the intensity button to cycle through 3 levels: low, medium, and high.

Is the device waterproof?

No, it is not waterproof. Keep away from water and moisture to prevent electrical shock.

What should I do if the device stops working?

Check the power connection and ensure the timer hasn't expired. If it still doesn't work, contact customer support.

Can I use the device if I have a medical condition?

Consult your doctor before use if you have heart conditions, pacemakers, or are pregnant.

How long is the power cord?

The power cord is approximately 2 meters long.

USER MANUAL MA1020 HMS Premium

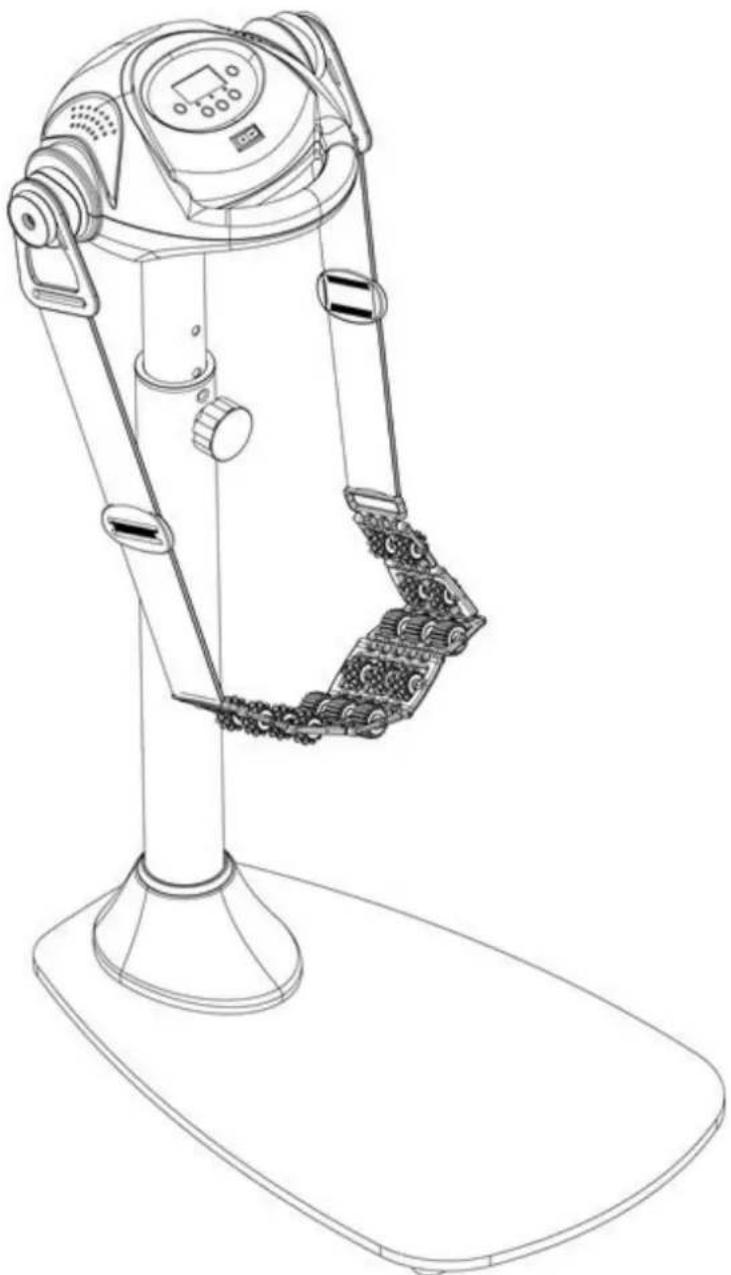

MASAŽER PROGRAMOWALNY FITNESS MASSAGER MASÁŽNÍ PŘÍSTROJ MA1020

Line drawing of a robotic device with articulated arms and a chain, no text or symbols present

UWAGI DOTYCZĄCE BEZPIECZEŃSTWA

LISTA CZEŚCI I NARZĘDZI

KROK 2.

KROK 3.

KOMPUTER

1. Wyświetlacz:

2. Klawisze:

Side-view line drawing of a person standing beside a walking exercise machine (no text or symbols)

Line drawing of a person using a horizontal exercise machine (no text or symbols)

PAS POJEDYNCZY

IMPORTANT SAFETY INFORMATION

This product has been designed for home use only and built for optimum safety. Please note the following safety precautions:

1. Before starting any exercise program you should consult your doctor to determine if you have any physical or health conditions that could create a risk to your health and safety, or prevent you from using the equipment properly. Your doctor's advice is essential if you are taking medication that affects your heart rate, blood pressure or cholesterol level. This is especially important for persons over the age of 35, pregnant women, or those with pre-existing health problems or balance impairments.

2 Before using this equipment to exercise, always do stretching exercises to properly warm up.

1. Be aware of your body's signals. Incorrect or excessive exercise can damage your health. Stop exercising if you experience any of the following symptoms: pain, tightness in your chest, irregular heartbeat, extreme shortness of breath, feeling light headed, dizzy or nauseous. If you do experience any of these conditions you should consult your doctor before continuing with exercise program. Injuries to health may result from incorrect or excessive training.

2. During exercises and after keep children and pets away from the equipment.

3. Use the equipment on a stable and levelled surface with a protective cover for your floor or carpet. Move all sharp objects.

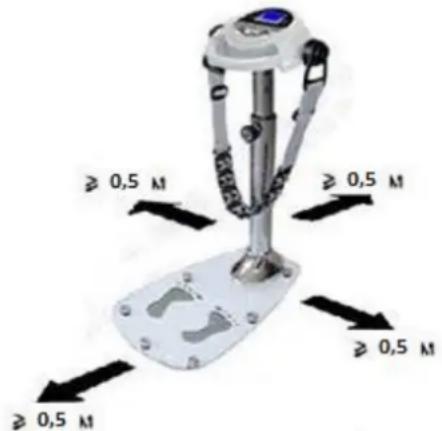

4. Free area shall be not less than 0,5 m greater than the training area in the directions from which the equipment is accessed. Free area must also include the area for emergency dismount. Where equipment is positioned adjacent to each other the value of the free area may be shared.

5. Before each use, visually inspect the unit including hardware and resistance bends.

6. Before using the equipment, check if the nuts, bolts and other bends are securely tightened.

7. Always use the equipment as indicated. If you find any defective components whilst assembling or checking the equipment, or if you hear any unusual noise coming from the equipment while using, stop. Do not use the equipment until the problem has been rectified.

8. Do not insert any object into any openings.

9. Be aware of all regulation and constructions parts which may disturb during exercises.

12 The safety level of the equipment can only be maintained if it is regularly examined for damage and/or wear and tear.

1. Wear suitable clothing whilst using the equipment. Avoid wearing loose clothing which may get caught in the equipment or that may restrict or prevent movement.

2. The equipment has been tested and certified according to EN ISO 20957-1 under class H. It is not suitable for therapeutic use.

3. Care must be taken when lifting or moving the equipment so as not to injure your back. Always use proper lifting techniques and/or use assistance.

4. The equipment is designed for adult use only. Keep unsupervised children away from the equipment.

5. Assemble this unit as described in this manual. Use only parts from the set. Check all parts with the part list.

WARNING: READ ALL INSTRUCTIONS BEFORE USING ANY FITNESS EQUIPMENT. WE ASSUME NO RESPONSIBILITY FOR PERSONAL INJURY OR PROPERTY DAMAGE CAUSED BY OR THROUGH THE USE OF THIS PRODUCT

SPECIFICATIONS

Weight - 20 kg

Dimensions - 100,5 x 72 x 44 cm

Maximum weight of user - 120 kg

MAINTENANCE

Your unit has been carefully designed to require minimum maintenance. To ensure this, we recommend that you do the following:

• Keep your unit clean by wiping sweat, dust or other residue off with a soft, clean cloth after each use
  • Always make sure that the bands are secure and show no signs of wear
• Regularly check the tightness of nuts and bolts

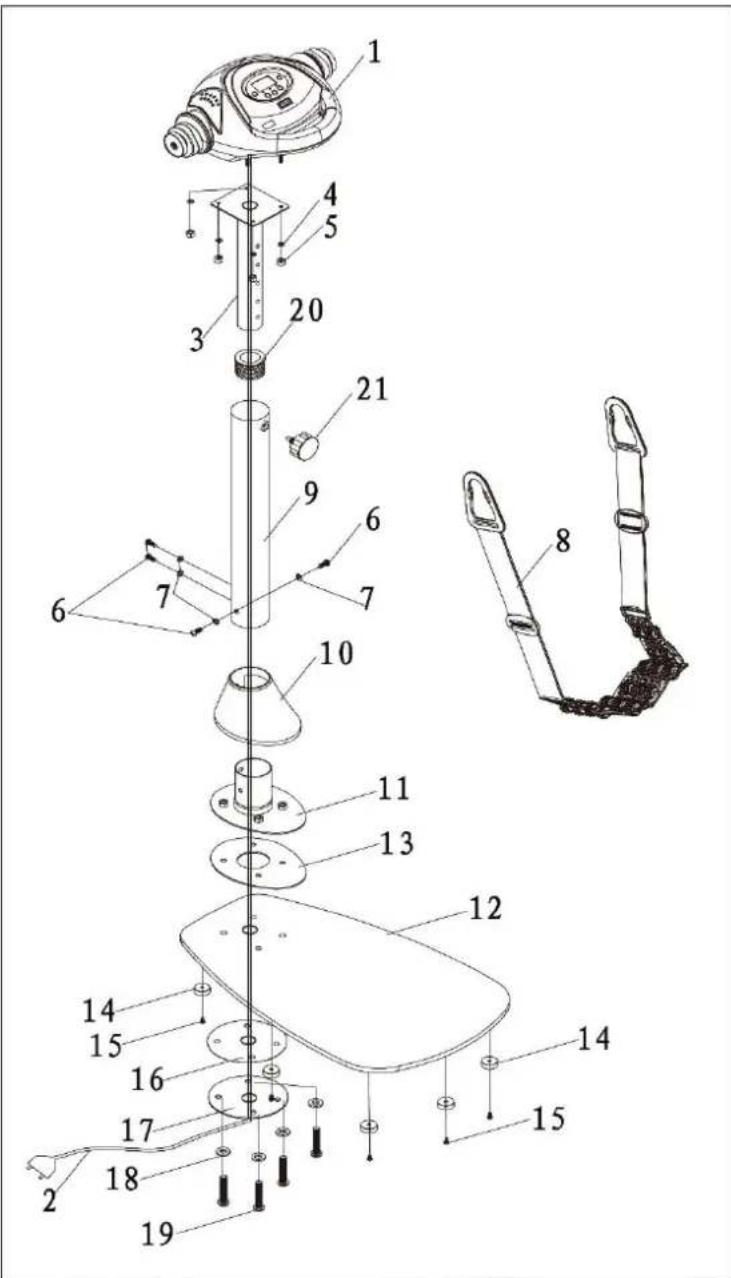

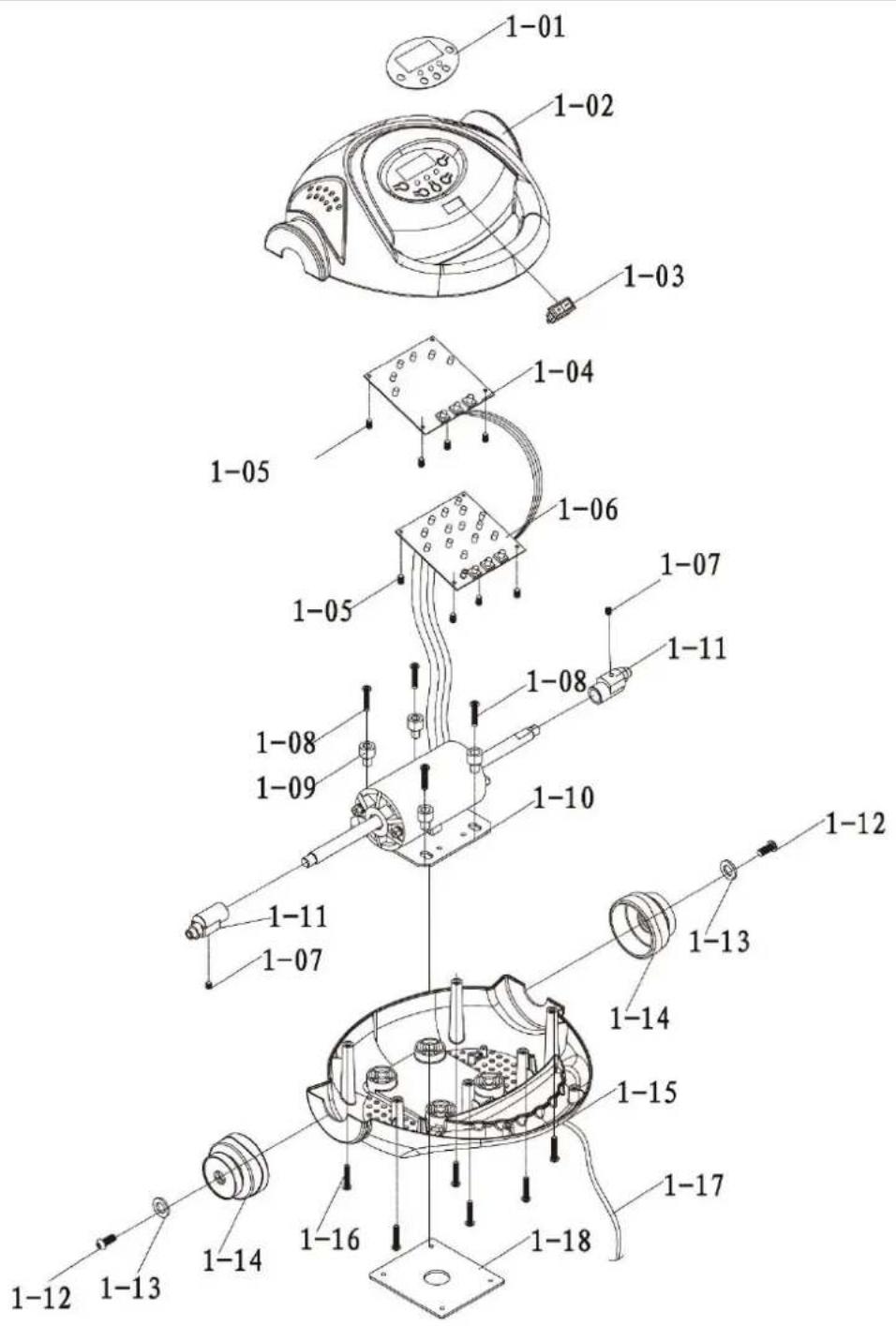

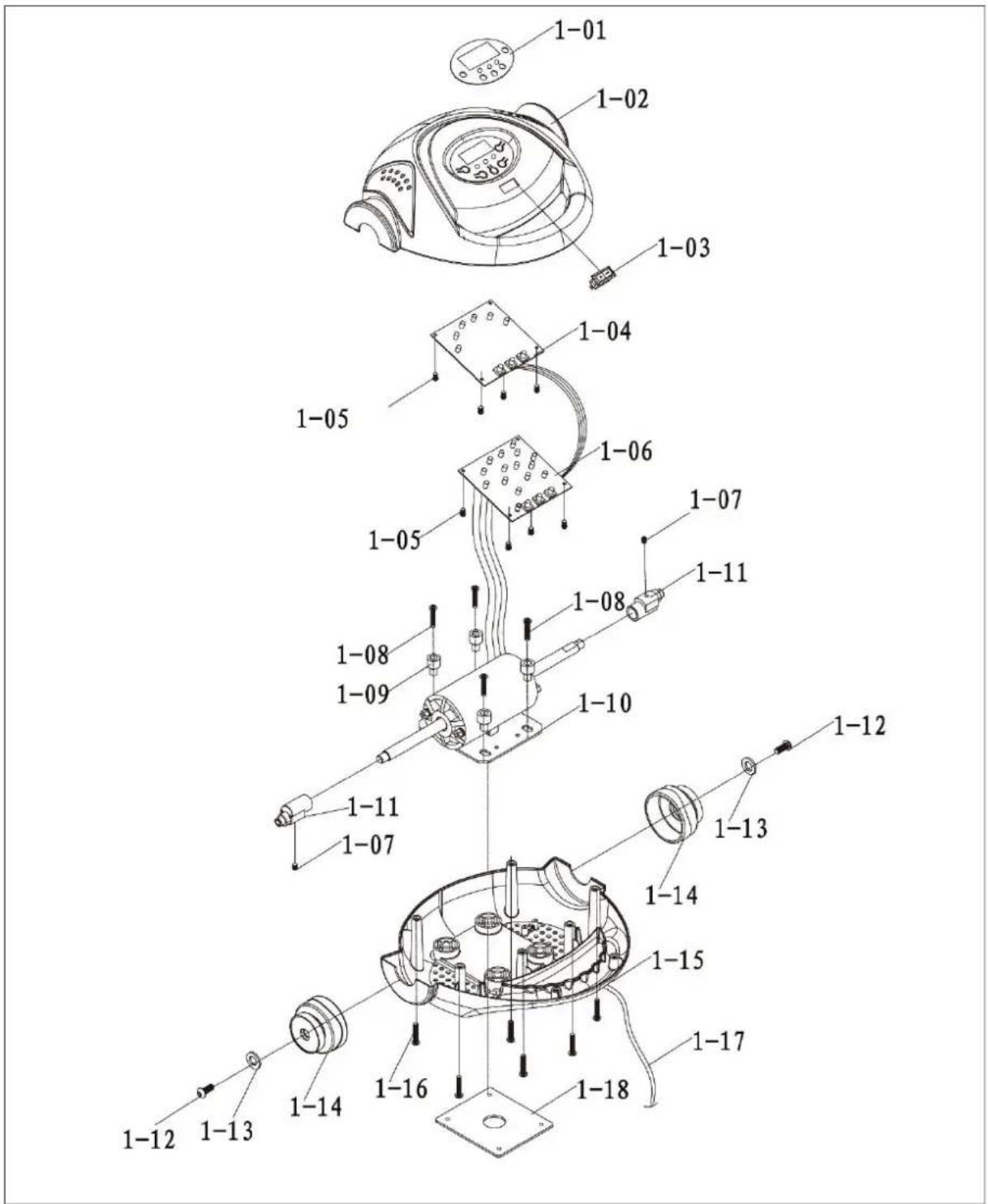

PART LIST

Nr	OPIS	Ilość	Nr	OPIS	Ilość
1	Massage head	1	1-01	Sticking	1
2	Power line	1	1-02	Massage head cover	1
3	Upright connection	1	1-03	Power switch	1
4	Flat washers #6	4	1-04	Key board	1
5	Locknut M6	4	1-05	Screw ST2.9*9.5	8
6	Screw M8*15	8	1-06	Motherboard	1
7	Curved washers #8	8	1-07	Screw M6*10	2
8	Massage belt components	1	1-08	Screw M6*35	4
9	Upright	1	1-09	Insulating sleeve	4
10	Decorative Cover	1	1-10	Motor	1
11	Upright under the connecting pipe	1	1-11	Eccentric shaft	2
12	Glass base	1	1-12	Screw M8*15	2
13	EVA pad 1	1	1-13	Flat washers 8	2
14	Foot pad	7	1-14	Wheel assembly	2
15	Screw M6*10	7	1-15	Massage bottom cover	1
16	EVA pad	1	1-16	Screw ST4.2*20	4
17	Connection Disc	1	1-17	Power line	1
18	Flat washers 10	4	1-18	Massage head fixed plate 1	1
19	Screw M10*30	4
20	hollow tubes	1
21	Elastic pine	1

ASSEMBLY STEPS

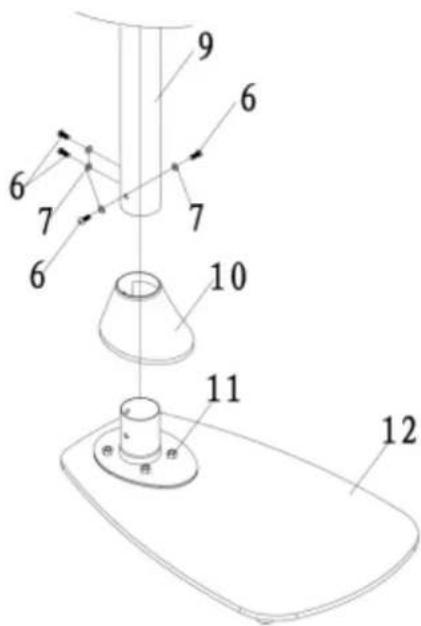

Step 1 :

First set the decorative cover(10) into the upright assembly (9), then insert the upright assembly into the glass base assembly (12), finally lock the upright by using the screw M8*15 (6) and arc washer φ8 (7), covered the decorative cover.

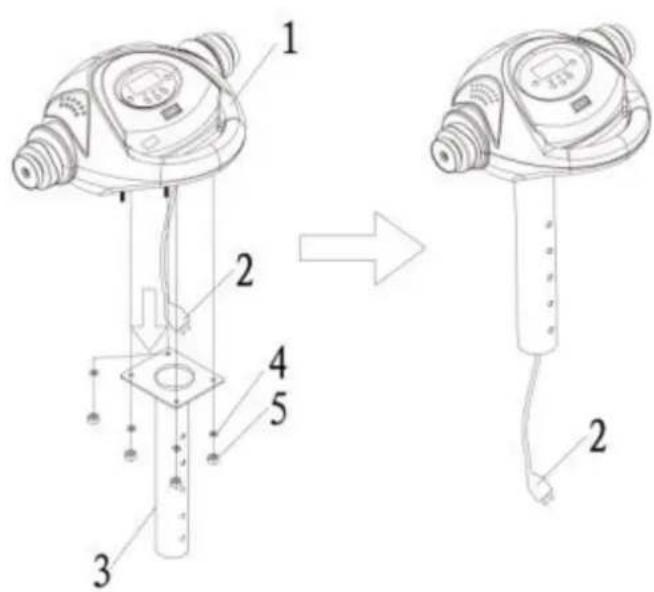

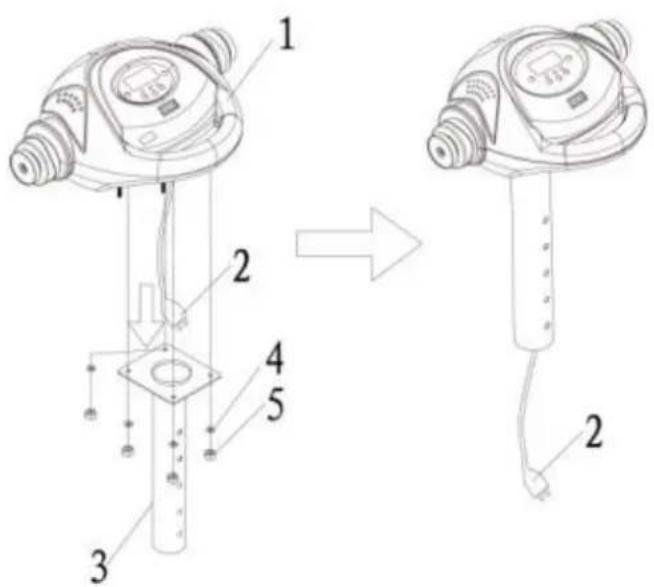

Step 2 :

First put the power line(2) from top to massage head fixed (3) and pull out the power line plug; then put the massage heads parts from top into holes on the fixed plate of massage head fixed, use M6 screw(5) and 6# flat washers to lock the massage head assembly(1) by using Z-shaped wrench.

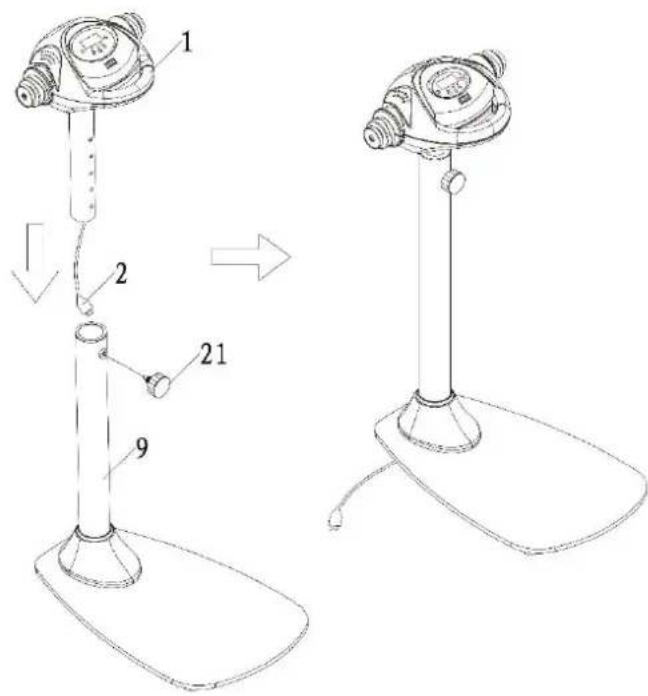

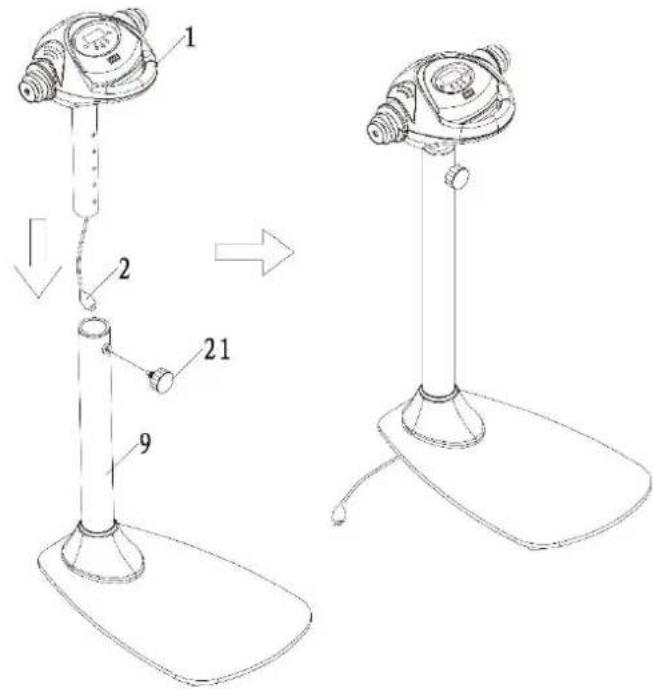

Step 3 :

First put the power line(2) from top to the uprights assembly(9) and the glass base assembly(12), pull out the power line plug from the glass base; then insert the assembled massage head assembly into upright(9), turn the elastic pin(21) to the upright assembly(9), only to spin into 3-5 teeth, then a hand pull out elastic pin(21), the other hand adjust the left and right and up and down position of massage head assembly(1) to make one of adjustment holes aim bolt hole, release the elastic(21) and spin tight.

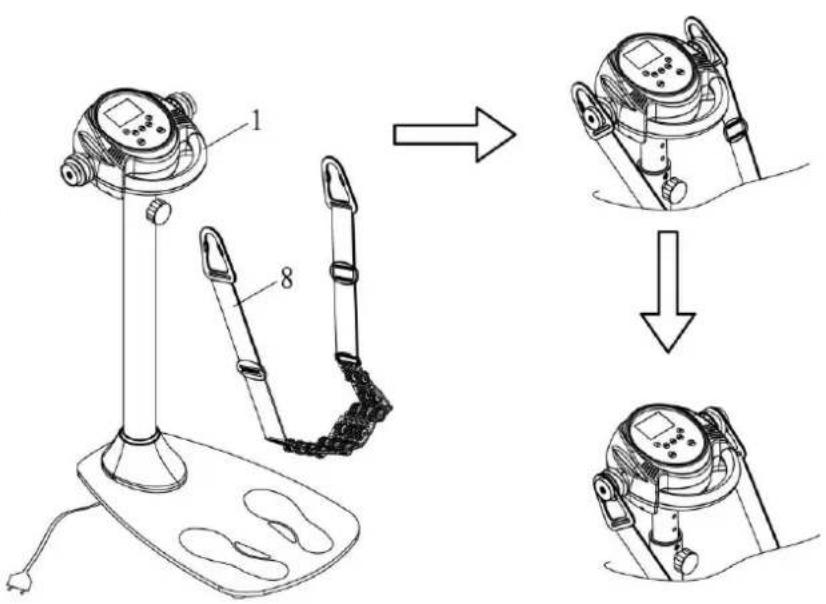

Step 4 :

Hang the massage belt(8) in the balanced wheel of massage head assembly. Be noticed that the massage belt must hang in the balanced wheel before using it.

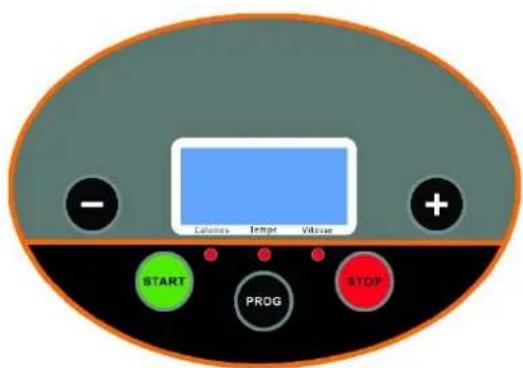

MASSAGE FUNCTION INSTRUCTION

1. Display:

(1) Program Display: „P-01“ — „P-05“
(2) Compound Display
Displays (Calories、Temps、Vitesse) on the left side of the screen, and switch the display every 3 seconds.
(3) Dot Matrix Display
If stop, the screen will display "OFF". When turn on or choose "P1—P5."
The screen will display the graph of the corresponding speed.

2. Buttons:

1) START/STOP : Press the "START" or "STOP" to turn on or turn off the massage
2) ROG.: Preset program button, press the button to choose "P-01"—"P-05"
3) SPEED - + : Press button to adjust the speed or parameter. With 20 sections adjustment.

3. Manual Mode

Running state: press "START" to begin as speed 1; press "+" - " to adjust the speed 1-15 files; press "STOP" to stop.

4. Preset Program

1. Please assembly massage according to the explosion 3.
2. Plugs, turn on the power switch. Press Speed key to adjust the speed when your massage.
3. Standing on the glass pane, put the massage belt at any place you want.
4. Press the "START" key to begin.

5. Parameter showing and setting range

P\czas	1	2	3	4	5	6	7	8	9	10	11	12	13	14	15	16	17
	V	V	V	V	V	V	V	V	V	V	V	V	V	V	V	V	V
P1	3	12	3	15	3	16	6	12	6	15	6	16	9	15	12	12	12
P2	3	3	12	12	3	3	12	12	6	6	15	15	6	6	15	15	15
P3	3	6	9	12	15	16	15	12	9	6	9	12	15	16	15	12	12
P4	2	6	8	10	12	14	16	16	3	15	3	15	3	3	15	15	12
P5	1	2	3	4	5	6	7	9	11	13	15	15	16	16	15	13	11

P - program, V - speed

TERMS OF REFERENCES

Fitness massager is designed to reduce muscle tension. It improves blood circulation and helps to relax the whole body. It is also helpful in reducing cellulite. Massager MA1020 HMS is H class item. Unit is not intended for commercial use therapy or rehabilitation.

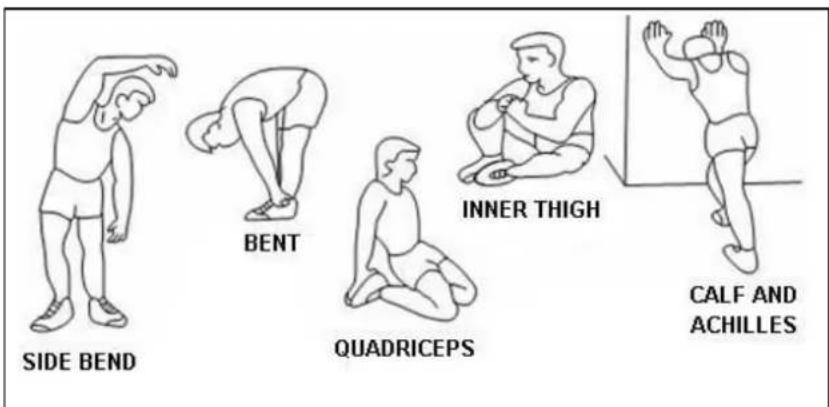

TRAINING INSTRUCTION

Warm-Up - to prevent injury and maximize performance we recommend that each workout period starts with a warm-up. We suggest you do the following exercise as the sketch map. Each exercise at least about 30 seconds.

BELTS USAGE

ATTENTION

A. Choose out of the following belts and do your exercise at least for 3 minutes. It is important often to change the position of belt during your exercise, in order to massage the complete area. We recommended on approx 20 minutes training 3-4 times per week.
B. It can happen that the massaged parts may turn a little bit red; this results from the increased blood circulation inside the tissue. This reddening will go away after a couple of minutes.
C. Further to the massage we recommend to take care of a low-calorie food and to drink sufficiently.
D. Hook on the respective belt easily with the eyes in the holders on the left and right side of the motor. Make sure that the belt is fixed properly. Hold the belt continuously on tension, so the belt can't slip out. Take care that you start your massage slowly. Start with the basic belt and afterwards increase intensity through changing the belts.
E. Put the plug into a socket and turn on the item at the switch. Your beauty belt massager offers you the possibility of 4 different
capacities. At capacity 1 the item works with slow rotations and at capacity 2\~4 with faster rotations.

FUNCTIONS

A. MASSAGE BELT

Use this belt on principle only with comfortable clothes; this belt should never have direct skin contact. This belt is a further special developed anti cellulite belt with many spools, which "iron" your skin, use this belt for all problematic parts. It is important to act a gainst cellulite before there will be hard parts, which are only hard to combat.

B. SINGLE BELT

This belt is used for thigh and bottom area. To reach a best possible result, you should do every exercise at least 3 minutes. For using this belt wear comfortable clinging clothes.

C. BELT THOUSAND OF POINTS

This belt is used for intensive and deep massage.

1. MASSAGE BELT

Pure diagram of a mechanical or electrical component with no text, numbers, or symbols

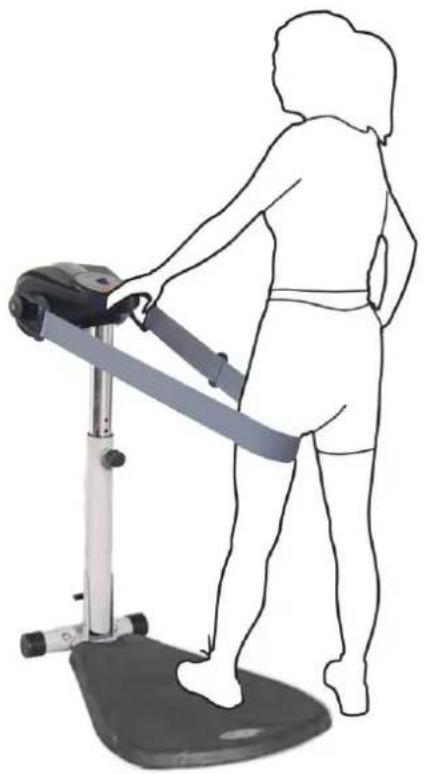

2. SINGLE BELT

Simple line drawing of a horizontal bar with two side handles (no text or symbols)

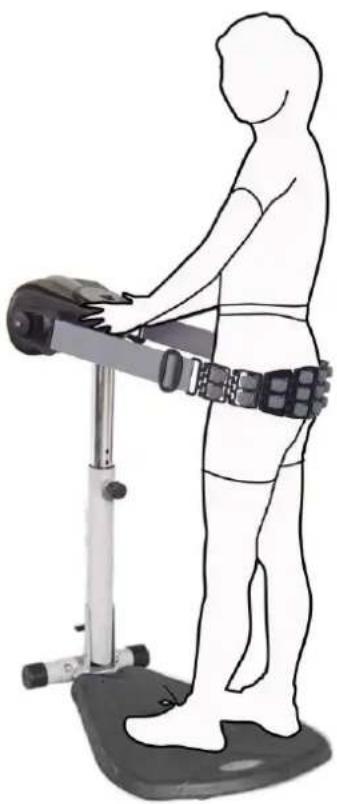

3. BELT THOUSAND OF POINTS

Pure diagram of a horizontal bar with four side handles and a central patterned bar (no text or symbols)

Line drawing of a person standing beside a horizontal barometer device (no text or symbols)

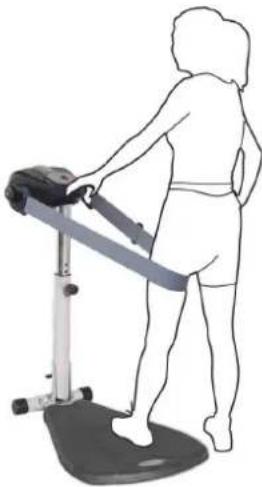

A. MASSAGE BELT

Use this belt at all "problematic" zones like belly, waist, hip bottom and thigh.

B. SINGLE BELT

Either you can step inside the anti cellulite belt completely and put it around your bottom or you can step inside the belt with only one leg, in order to exercise the thighs in succession. Make sure that the belt is always tight, but not too tight around the respective area, which you want to massage.

Line drawing of a person using a walking fitness device (no text or symbols)

Even though we go to great efforts to ensure the quality of each product we produce, occasional errors and/or omissions do occur. In any event should you find this product to has either a defective or a missing part, Please contact us for a replacement.

ABISAL

Consumer service department:

ABISAL Sp. z o.o.

ul. Św. Elżbiety 6

41–905 Bytom

[e-mail]

www.abisal.pl

www.hms-fitness.pl

The equipment label depicting a crossed-out wheeled bin symbol informs that it is forbidden to dispose of waste electrical and electronic equipment together with other types of waste. In accordance with the WEE directive on waste electrical and electronic equipment, separate waste management processes should be applied for this type of equipment. The user who intends to dispose of such a product is obliged to return it to an electronic equipment collection point thanks to which they can contribute to its re-use, recycling, and recovery and, in this way, protect the environment. To do this, contact the sales point where the equipment was purchased or a representative of the local authorities. Hazardous substances included in electronic equipment can have negative long-term influence on the natural environment and they can also have negative effect on human health.

BEZPEČNOSTNÍ POKYNY

SEZNAM ČÁSTÍ A NÁŘADÍ

KROK 2.

Pure diagram of a horizontal bar with rounded ends and evenly spaced circular segments (no text or symbols)

1. JEDNODUCHÝ PÁS

Simple line drawing of a horizontal bar with two side handles and a central oval shape (no text or symbols)

1. PÁS 1000-BODŮ

Pure diagram of a mechanical belt or buckle with no text, numbers, or symbols

MASÁŽNÍ PÁS / PÁS ANTICELULITIDOVÝ

Line drawing of a person standing beside a walking exercise machine (no text or symbols)

JEDNODUCHÝ PÁS

Line drawing of a person using a walking fitness device (no text or symbols)
