HHM17 - Massage device HMS Premium - Free user manual and instructions

Product Type	Smart Hula Hoop Massage Device
Brand	HMS Premium
Model	HHM17
Adjustable Length	Yes, via detachable sections; one section with counting sensor is fixed
Display	Digital counter showing laps (0-9999), calories (0-9999 kcal), time (00:00-99:59)
Functions	Lap counting, calorie tracking, exercise timer, adjustable length, massage head
Power Supply	Rechargeable battery (via USB? not specified but charging indicator present)
Charging Indicator	Flashing while charging, steady when fully charged
Weight	Approximately 1.2 kg (typical for smart hula hoop)
Material	Plastic body with metal connections
Usage	Aerobic exercise, waist slimming, core strengthening
Recommended Exercise Duration	15 minutes per session, starting from once every 4 days to twice daily
Safety	Do not use around neck; avoid if pregnant, menstruating, or feeling unwell; exercise in spacious area
Maintenance & Cleaning	Wipe with dry cloth; keep away from water; store in dry place
Spare Parts	Detachable connecting pieces available; replacement parts may be ordered via service
Repairability	Service center repair; warranty covers defects for 24 months (battery 6 months)
Guarantee	24 months from date of sale in Poland; excludes mechanical damage, misuse, self-repair
Box Contents	Hula hoop body, connecting pieces, gravity ball, massage head, counter unit, manual
Certifications	CE, RoHS?

Frequently Asked Questions - HHM17 HMS Premium

How do I adjust the length of the hula hoop?

Press and hold the adjustment button while pulling the two connecting bodies outward. Repeat until you achieve the desired circumference. Note: One section with a counting sensor is fixed and cannot be removed.

How does the counter work?

Press the Power button to turn on the display. Each click cycles through laps, calories, and time. Hold the Power button to reset all data to zero.

How long should I use the hula hoop per session?

It is recommended to exercise for about 15 minutes per session. Start with once every 4 days and gradually increase up to twice daily.

Can I use the hula hoop if I have back problems?

Avoid exercise if you have a disease, feel unwell, are pregnant, or menstruating. Do not place the hoop around your neck. Consult a doctor if unsure.

How do I clean and maintain the hula hoop?

Wipe the surface with a dry cloth. Keep away from water and humidity. Store in a cool, dry place. Do not disassemble the counting sensor section.

What does the charging indicator mean?

The battery icon flashes when charging and remains steady when fully charged. The device uses a rechargeable battery.

Can I replace the gravity ball or massage head?

Yes, the connecting pieces are detachable. Keep spare pieces for future adjustments. Replacement parts can be ordered through the service center.

What is covered under the warranty?

The warranty covers defects for 24 months (battery for 6 months) from the date of sale in Poland. It does not cover mechanical damage, misuse, or self-repair.

How do I reset the counter to zero?

In any display mode (laps, calories, or time), press and hold the Power button for a few seconds until the data resets to zero.

Is the hula hoop suitable for therapy or rehabilitation?

No, the device is not intended for rehabilitation or therapy. It is designed for general fitness and aerobic exercise only.

USER MANUAL HHM17 HMS Premium

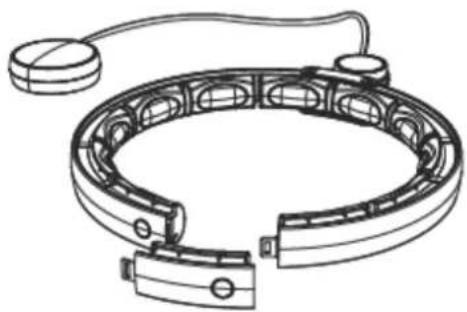

Technical line drawing of a mechanical assembly with circular components and a hanging component (no text or symbols)

Diagram of a circular mechanical component with three separate curved elements above it (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Circular icon with a black rectangle and a white power button symbol (no text or numbers)

Please read carefully before exercising

1. The hula hoop should not rotate too fast. It should be kept moving at a steady and even speed so that the body feels relaxed and can breathe evenly. You don't have to be too rigid under your feet and can move around a little to avoid local muscle and joint fatigue caused by repeated movements for a long time.
2. It is recommended to hula hoop for about 15 minutes, starting from once every 4 days to 2 times a day, step by step. Hula hoop is an aerobic exercise that consumes calories. To achieve the effect of slimming your waist, it is recommended to exercise for about 15 minutes.
3. Use force on your waist to tighten your waist and abdomen. Turning the hula hoop mainly relies on waist strength, which fully exercises the psoas muscles, abdominal muscles. For parts such as the lateral psoas muscles, consistent exercise can achieve the effect of tightening the waist and abdomen.
4. It is not advisable to exercise within half an hour before meals.
5. Do not put the hula hoop around your neck.
6. Special groups: If you have a disease, are feeling unwell, or if you are pregnant or menstruating, you should avoid exercise.
7. Please exercise in a spacious venue, and ensure that all links are firm and the locks are fixed. To prevent the ball from falling off and injuring people or objects around you, especially children, please keep away.

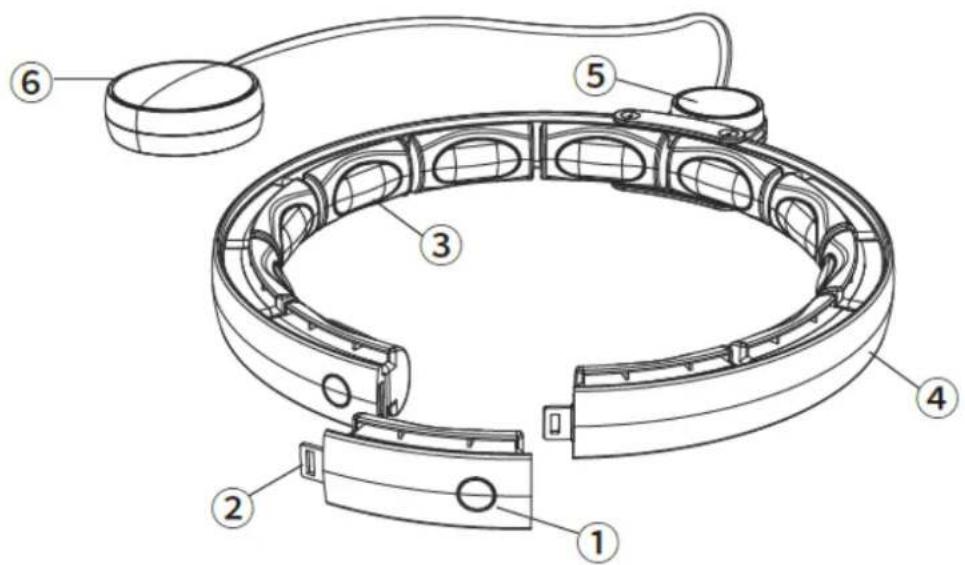

Product description

1. Adjustment / switch button
2. Connecting piece
3. Massage head
4. Connection body
5. Counter
6. Gravity ball

Instructions

Adjustment/switch buton

Press and hold the adjustment button and pull the two connected connecting bodies outward at the same time to open the product. Repeat this action, according to your waist Girth, can be adjusted to suit your own length.

Note: One section of the main body is equipped with a counting sensor and cannot be removed. When using, do not disassemble this section (marked on the product).

Connecting piece

The connecting pieces are designed to be detachable. Please keep the connecting pieces that are not in use for future use.

Counter

By adjusting the buttons on the counter, the counter can display: number of exercise laps, calories burned, exercise time and other related information. Related information is for reference only.

Installation

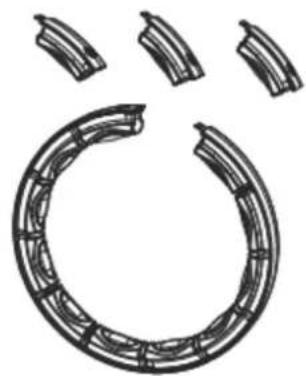

1. Adjust the length of the product body

The number of sections can be increased or decreased through the adjustment/switch button. The photo at the bottom is for reference only.

Diagram of a circular mechanical component with segmented parts, no text or symbols present

1. Insert the pulley

Open one section of the product body, insert the pulley from one side, and adjust the rope lenght.

Technical line drawing of a mechanical bearing assembly (no text or symbols)

Click the "Power" button to start the counter function. When the screen lights up, click the "Power" button, and the data will display "laps", "calories", and "time" in sequence. Press and hold the "Power" button in any mode to clear the shutdown data.

Circular icon with a black rectangle and a white power button symbol (no text or numbers)

Function	Description
Power display	Display: represents the power It will flash when charging, and the icon will stay on when fully charged.
Laps	0 ~ 9999
Calories	0 ~ 9999 kcal
Time	00:00 ~ 99:59

Diagram of a circular mechanical component with segmented parts and three separate curved arrows pointing outward (no text or symbols)

1. Vložte kotvu

Technical line drawing of a mechanical bearing assembly (no text or symbols)

Circular icon with a black rectangle and a white power button symbol (no text or numbers)

Simple line drawing of a circular mechanical component with three separate curved elements above it (no text or symbols)

Technical line drawing of a mechanical assembly with rollers and housing (no text or symbols)

Circular icon with a black rectangle and a white power button symbol (no text or numbers)

1. The Seller provides guarantee on behalf of the Guarantor within the territory of the Republic of Poland for the period of 24 months from the date of sale: electric power assisted booster 24 months, charger 6 months.

2. The Guarantee will be recognised by the shop or service centre after the client provides:

- clearly and correctly filled-in guarantee card with the sale stamp and the seller's signature

- valid purchase confirmation for the equipment including the date of sale / bill, complained product.

1. Possible defects and damages revealed during the guarantee period shall be remedied free of charge within not more than 21 days from the delivery of the product to the shop or service.

2. Should it be necessary to import some components, the guarantee term can be extended by the period required to import such part, however such period shall not be longer than 90 days.

3. The guarantee does not cover:

- mechanical damages and subsequent defects,

- damages and defects resulting from incorrect storage and usage of the equipment against its purpose,

- incorrect assembly and maintenance,

- damages and consumption of such elements as: cables, straps, rubber parts, pedals, sponge grips, wheels, bearings, etc.

1. The guarantee expires in the event of:

- expiry of the validity term,

- self-repairs,

- failure to follow the rules of correct operation.

1. The product handed over for repair should be complete and clean. If some parts are missing, the service is entitled to refuse to accept the product for repair. The service may refuse to accept a dirty product or clean in on the client's expense after the client's written permit.

2. The guarantee does not cover activities related to assembly, maintenance, which, according to the instruction, the user is obliged to perform themselves.

3. The Guarantor also informs that they offer post-guarantee service.

4. The product should be provided in its original packaging and should be secured for shipment.

5. To exercise the guarantee follow the procedure posted on the website: https://serwis.abisal.pl/

In case of non-conformity of the sold thing with the contract, the buyer is entitled by law to legal remedies from and at the expense of the seller. The guarantee does not affect such remedies.

THE EQUIPMENT IS NOT INTENDED FOR REHABILITATION AND THERAPY

NOTES ON THE COURSE OF REPAIRS

Item	Date of notificacion	Date of provision	Course of repairs	Signature of the recipient (shop, owner)

GARANTIEKARTE

Artikelname:

EAN-Code:

HMS-FITNESS.COM

IMPORTER: ABISAL SP. Z O.O., ul. Pyskowicka 17, 41-807 Zabrze, Polska

DISTRIBUTOR: ABISTORE SPORT S.R.O, U Cihelny 230/3, 74801 Hlučín, Česká Republika

[e-mail] www.abisal.pl
