Waver1 - Loudspeaker Lamax - Free user manual and instructions

Product Type	Portable Bluetooth Speaker
Brand	Lamax
Model	Waver1
Dimensions (approx.)	180 x 80 x 80 mm
Weight (approx.)	500 g
Power Source	Rechargeable lithium-ion battery
Battery Life (approx.)	10 hours at moderate volume
Charging Time (approx.)	3 hours via USB-C
Connectivity	Bluetooth 5.0, Aux-in (3.5 mm)
Speaker Output	20 W (peak)
Water Resistance	IPX7 (waterproof up to 1m for 30 min)
Controls	Power, Volume +/-, Play/Pause, Bluetooth pair, Microphone answer
Microphone	Built-in for hands-free calls
Compatible Devices	Smartphones, tablets, laptops with Bluetooth
Indicators	LED for power, Bluetooth pairing and battery status
Care and Cleaning	Wipe with a soft, dry cloth. Do not use solvents.
Safety Warnings	Do not expose to extreme heat or moisture beyond IP rating. Do not disassemble. Use only provided charger.
Spare Parts / Repairability	No user-serviceable parts. Contact Lamax support for battery replacement.
General Information	Designed for outdoor and indoor use. Pair with up to two devices simultaneously.

Frequently Asked Questions - Waver1 Lamax

How do I pair the Waver1 with my phone?

Turn on the speaker and press the Bluetooth button (or it enters pairing mode automatically). On your phone, go to Bluetooth settings and select 'Lamax Waver1'. If prompted, enter '0000'.

How long does the battery last?

The battery lasts up to 10 hours at moderate volume. Battery life may vary with volume level and audio content.

Is the speaker waterproof?

Yes, the Waver1 has an IPX7 rating, meaning it can be submerged in water up to 1 meter for 30 minutes. However, it is not designed for prolonged underwater use.

How do I reset the speaker?

Press and hold the power button and volume up (+) simultaneously for 5 seconds. The speaker will restart and clear previous pairings.

Can I use the speaker while charging?

Yes, you can use the speaker while it is connected to a USB power source. However, charging may be slower during use.

What if the speaker does not charge?

Ensure the charging cable is properly connected. Try a different USB port or charger. If the issue persists, the battery may need replacement.

How do I answer a call with the speaker?

When a call comes in, short press the play/pause button to answer. Press again to end. The built-in microphone allows hands-free conversation.

Can I connect two speakers together?

The Waver1 does not support TWS (True Wireless Stereo) pairing. Only one speaker can be connected at a time.

What is the range of Bluetooth?

The Bluetooth range is approximately 10 meters (33 feet) in open space. Walls and obstacles may reduce range.

How do I clean the speaker?

Wipe the speaker with a soft, dry cloth. If needed, slightly dampen the cloth with water. Avoid using harsh chemicals or abrasive materials.

USER MANUAL Waver1 Lamax

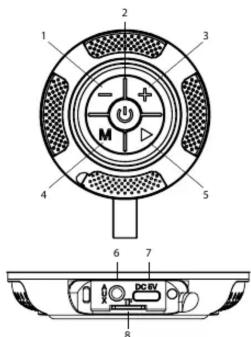

1 —	Volume down (hold for 2 seconds)Previous track (press)
2 POWER	On/Off (hold for 2 seconds)Switch light modes (press)
3 +	Volume up (hold for 2 seconds)Next track (press)
4 ▶	Play/pause (press) Answer/end call (press)Reject call (hold for 2 seconds)After a long hold, the LED will flash and pairingwill need to be performed again.
5 MODE (M)	Switch music sources – Bluetooth, micro SD card,AUX and FM radio (press)Turn TWS mode on/off (2 second hold)

Others

1. AUX port

6	AOX port
7	USB-C charging port
8	Micro SD card slot

SPEAKER CONTROL

Charging:

Fully charge the speaker battery before using it for the first time.

Charge the speaker with the original power cable provided.

When the speaker is charging, the LED is red. When the speaker is charged, the LED is green.

On / Off:

To turn on the speaker, hold down the POWER button. Press and hold the POWER button to turn the speaker off.

Pairing:

1. Turn on the speaker by holding down the POWER button. The speaker will automatically enter pairing mode.

2. Activate the Bluetooth function on your phone or other device. Select „LAMAX Waver1“ from the list of available devices.

TWS:

1. To pair two speakers with each other, turn on both speakers and make sure they are not paired with a multimedia device.

2. Press the M button on one of the speakers that you select as the main speaker to start pairing with the other speaker, and an audio notification will sound.

3. Wait for the speakers to pair, the audio notification sounds and the LED lights up.

4. Then pair the main speaker with the multimedia device as described in Pairing.

5. The main speaker will function as the left channel. Only through this main speaker can you control the functions for calls.

Switch music sources:

Press the M button to switch between sources:

- Bluetooth

- Micro SD card

- AUX

- FM radio

Note: Connecting a micro SD card or the included 3.5mm audio cable will automatically switch the speaker to the appropriate mode.

FM radio:

Plug the external antenna connector into the AUX input.

Use the POWER button to switch on the speaker and the M button to select the FM radio mode.

Press and hold the ▶ button to start the automatic search for available radio stations. Use the +/- buttons to switch to each radio station.

PARAMETERS

Maximum power	20 W
Wireless technology	Bluetooth 5.3
Number of bands	1
Maximum pairing distance	15 m
Supported formats	MP3, WAV, FLAC
Supported codecs	SBC
Inputs	Micro SD, AUX
Battery capacity	1200 mAh
Playback time (50% volume)	up to 10 h
Charging time	up to 1.5 h
Waterproof	IP65
Sensitivity	≥ 80 dB
Frequency range	150 Hz – 20 kHz
Features	LED backlight, TWS
Dimensions	82 × 115 mm
Weight	0,34 kg

Printing errors reserved.
