| Product Type | HDMI Switch |
| Model | AT-HDR-SW-51 |
| Brand | Atlona |
| Number of Inputs | 5 |
| Number of Outputs | 1 |
| Maximum Video Resolution | 4K@60Hz (4:4:4), 18Gbps bandwidth |
| HDCP Support | HDCP 2.2 |
| Audio Formats | Dolby Digital, DTS, LPCM up to 7.1 |
| Color Depth | 10-bit |
| Dimensions (W x D x H) | 200 x 75 x 25 mm |
| Weight | 0.5 kg |
| Power Supply | 5V DC, 1A |
| Power Consumption | 5W (max) |
| Operating Temperature | 0°C to 45°C |
| Storage Temperature | -20°C to 60°C |
| Housing Material | Metal |
| LED Indicators | Power, Input selection |
| Remote Control | IR remote (included) |

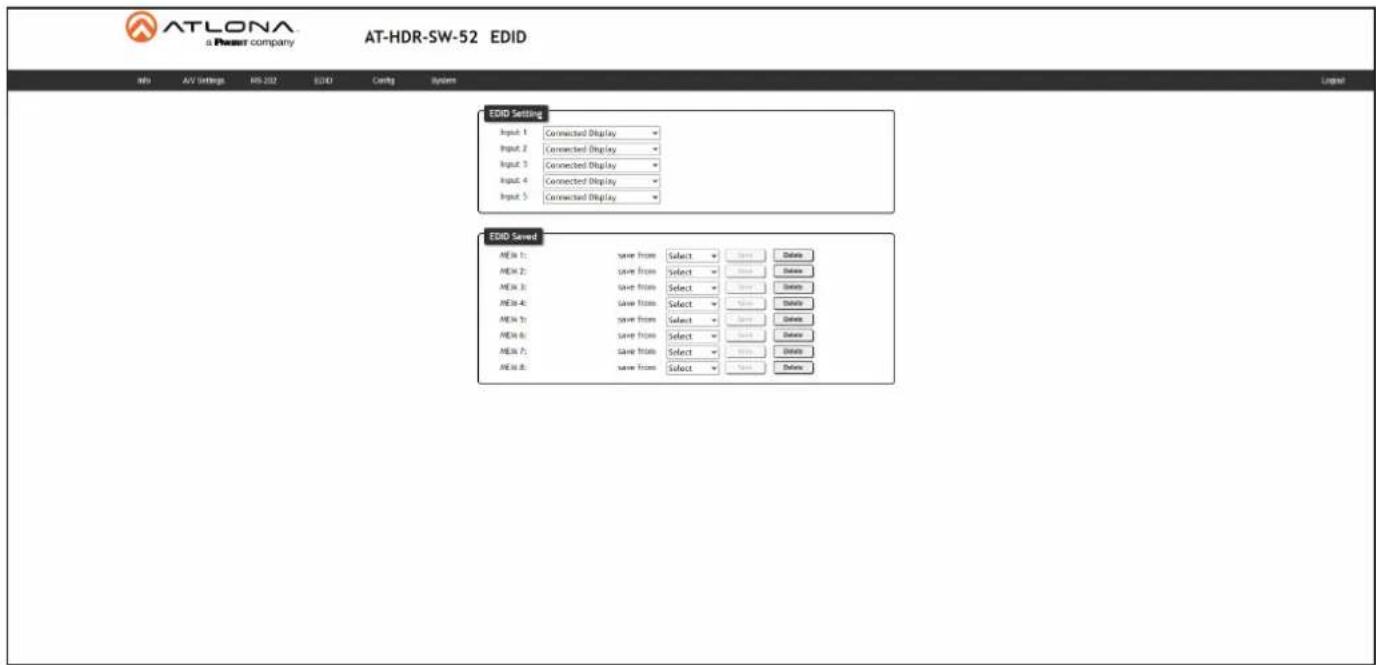

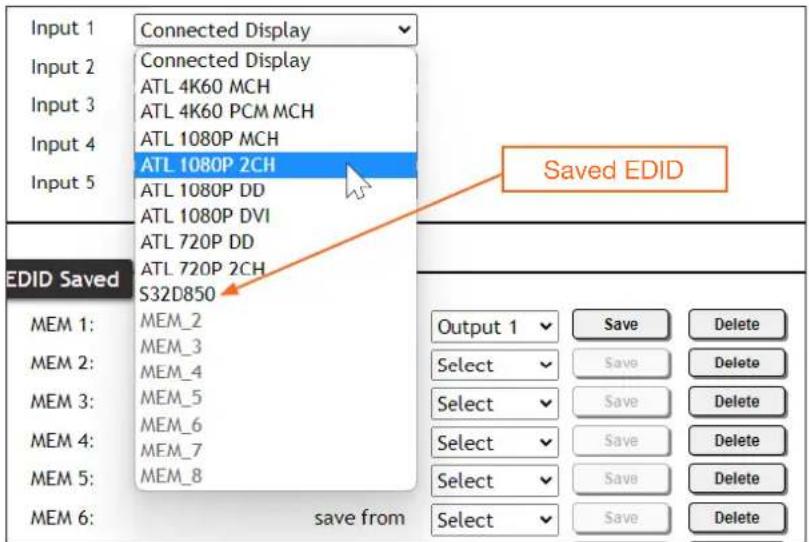

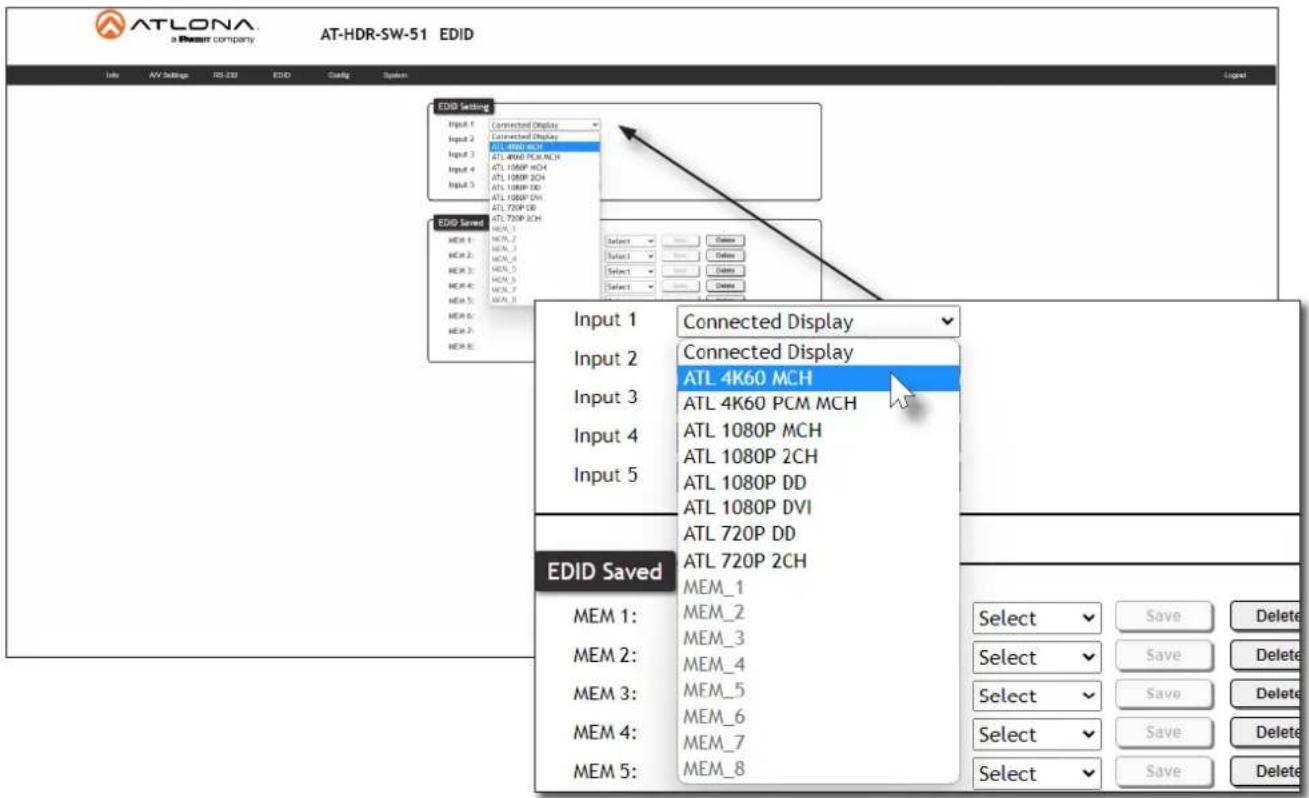

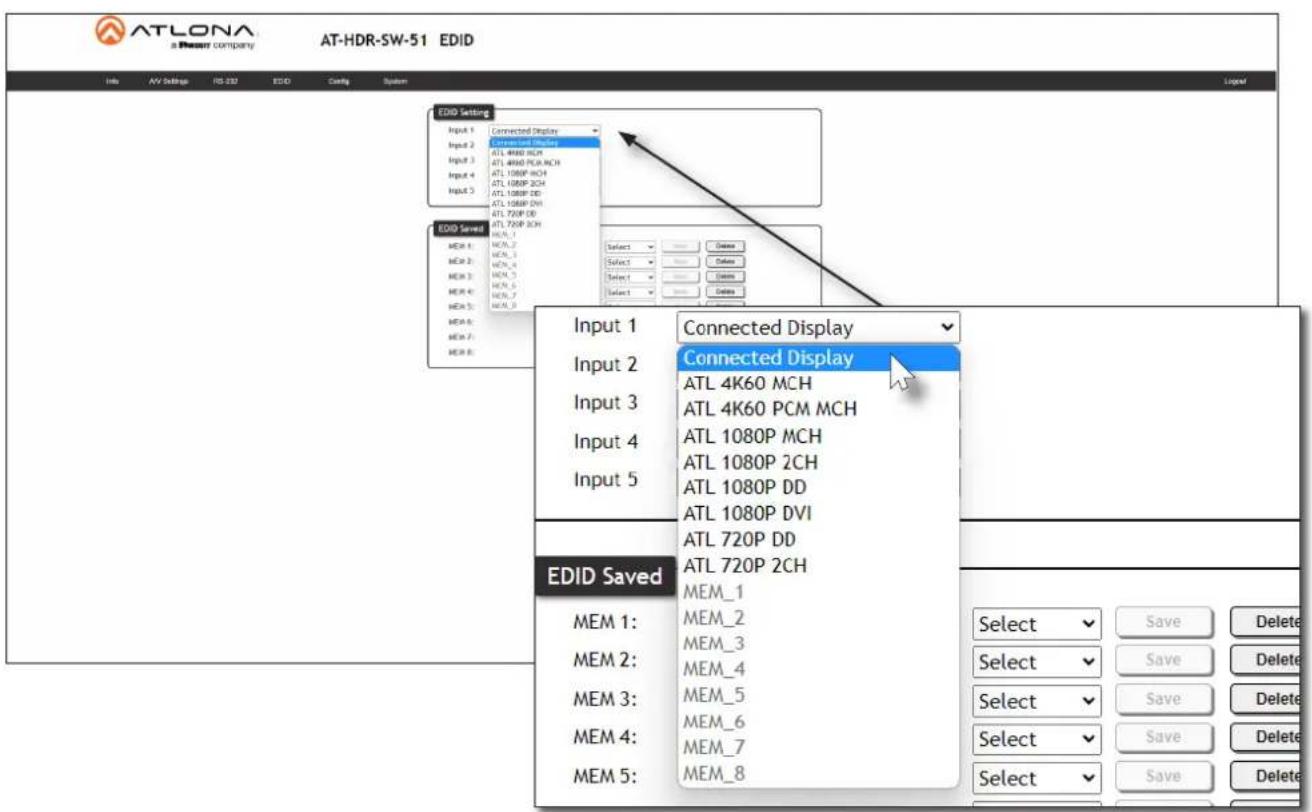

| Key Functions | Automatic input detection, EDID management, signal regeneration |
| Maintenance & Cleaning | Wipe with a soft dry cloth; do not use liquids or abrasives |
| Safety Precautions | For indoor use only; keep away from moisture and extreme temperatures |
| Spare Parts & Repairability | No user-serviceable parts; contact authorized service for repairs |
| General Information | HDMI 2.0b compliant, plug-and-play, supports HDR10 |
Frequently Asked Questions - AT-HDR-SW-51 Atlona
How many HDMI inputs does the AT-HDR-SW-51 have?
The AT-HDR-SW-51 has 5 HDMI inputs, allowing you to connect multiple sources like Blu-ray players, gaming consoles, and streaming devices.
Does it support 4K resolution?
Yes, it supports 4K@60Hz with 4:4:4 chroma subsampling and 18Gbps bandwidth, ensuring crisp and smooth video quality.

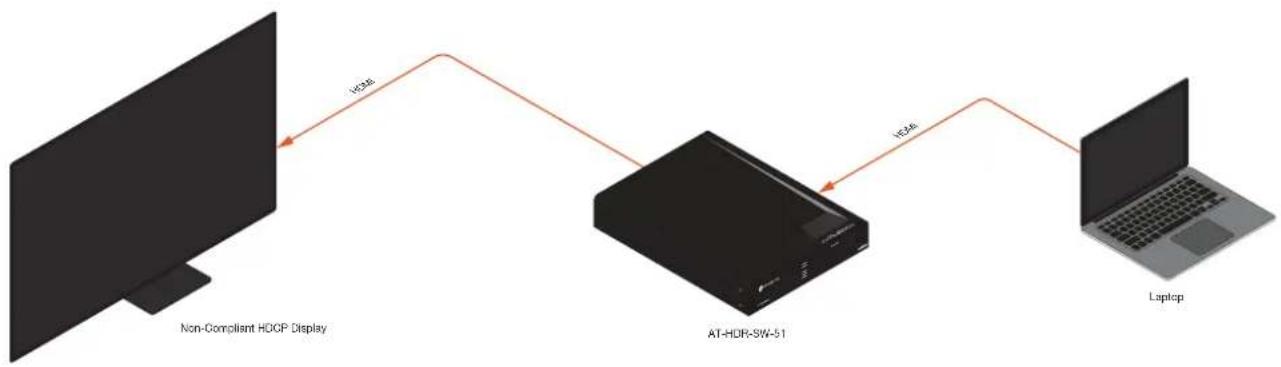

Is HDCP 2.2 supported?
Yes, the switch is HDCP 2.2 compliant, so it works seamlessly with protected content from services like Netflix and Ultra HD Blu-rays.
Does it support HDR (High Dynamic Range)?
Yes, it supports HDR10 for improved contrast and color depth, compatible with HDR-enabled sources and displays.
Can I use it with a soundbar or AV receiver?
Yes, the switch passes audio formats including Dolby Digital, DTS, and LPCM through the HDMI output to your TV, soundbar, or receiver.

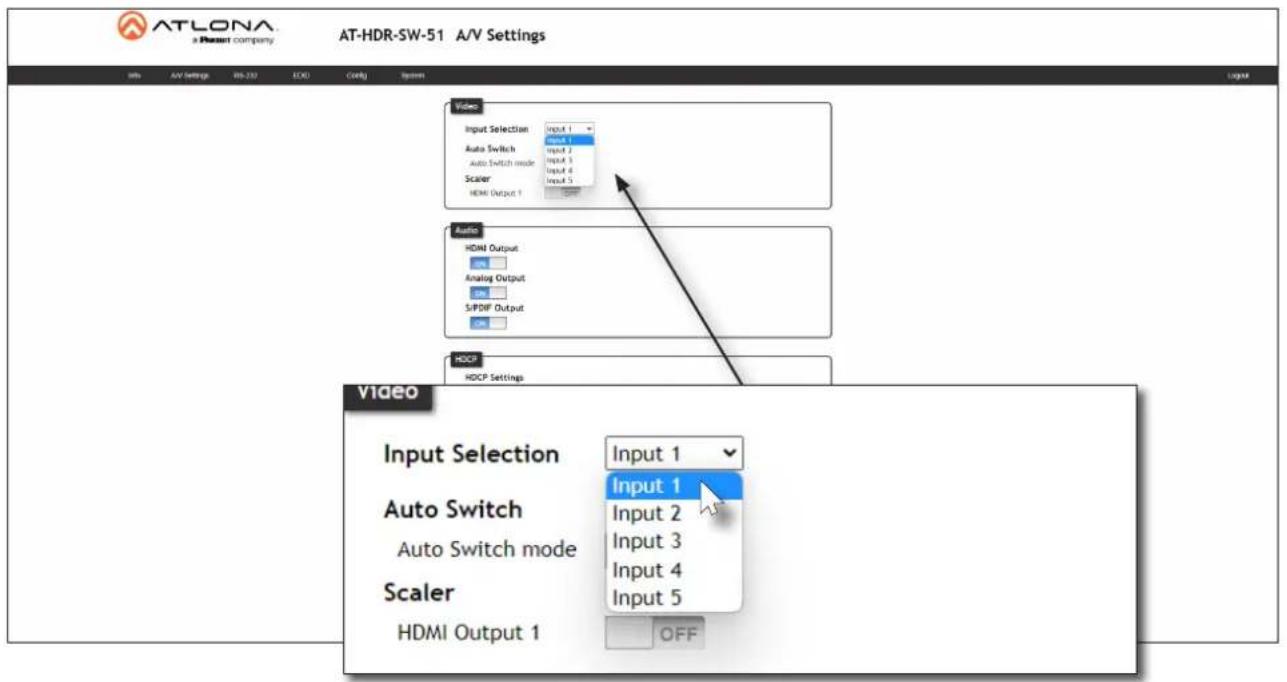

How do I switch between inputs?

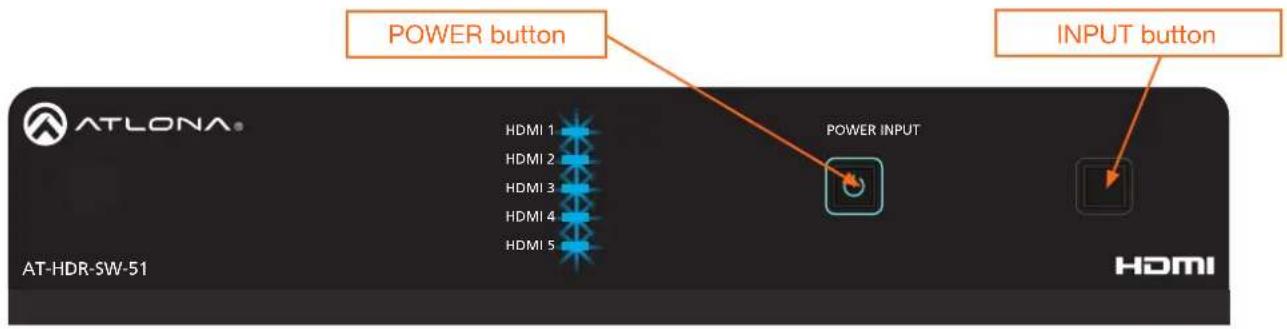

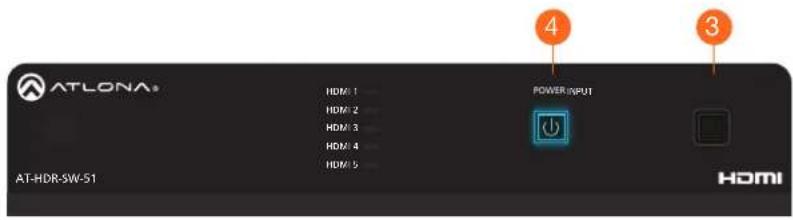

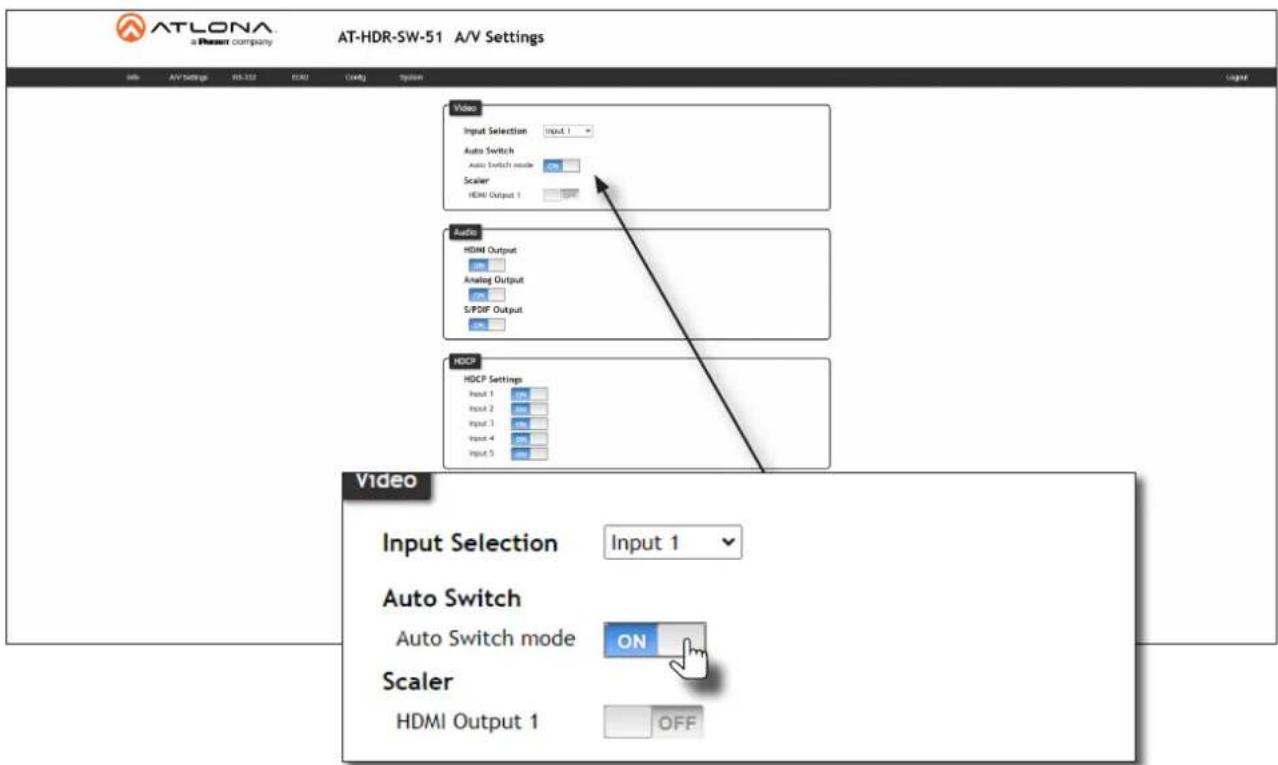

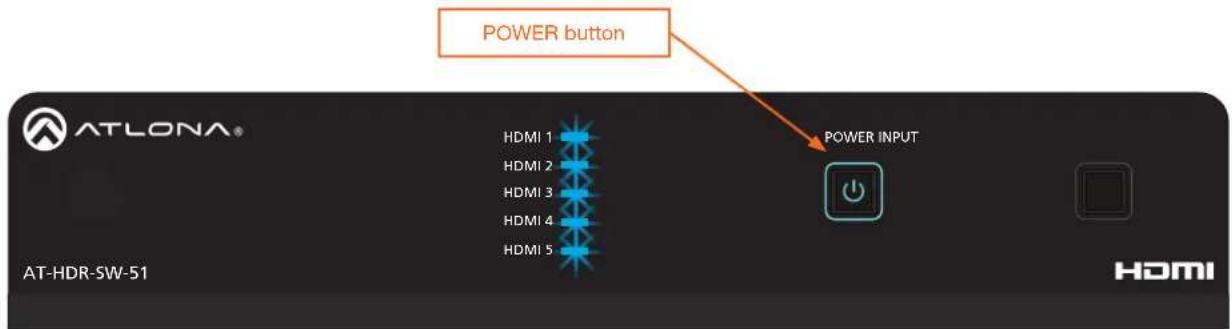

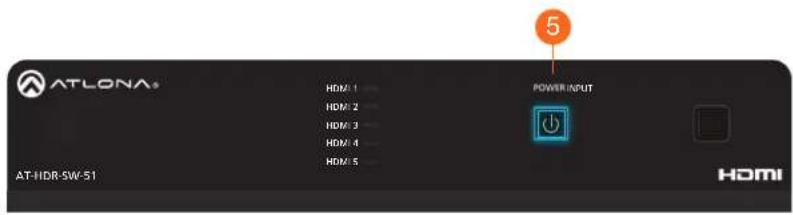

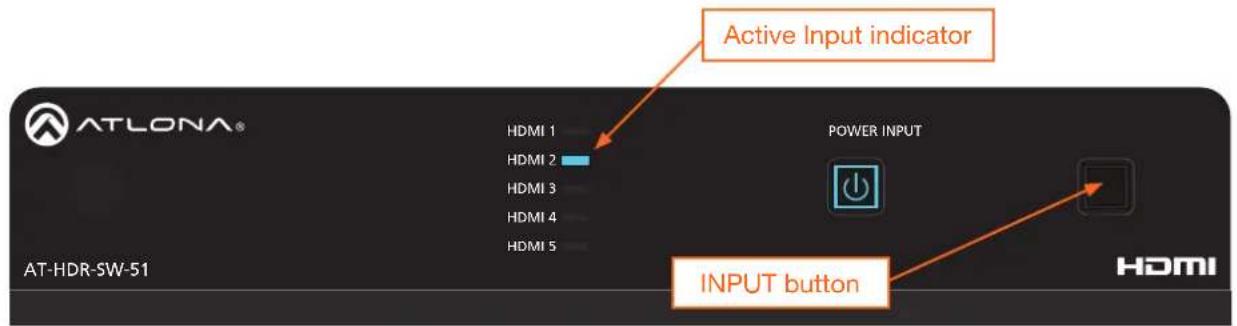

You can switch inputs using the front panel button or the included IR remote control. The switch also features automatic input detection.
Is a power adapter included?
Yes, a 5V DC 1A power adapter is included in the box.
What are the dimensions of the unit?
The dimensions are approximately 200 x 75 x 25 mm (width x depth x height), making it compact for desktop use.
What is the warranty period?
Atlona typically offers a 2-year limited warranty. Check with your retailer or Atlona for specific terms.
Does it require any software or drivers?
No, the switch is plug-and-play. Simply connect your sources and display, and it works without any software installation.
