Product Type	Built-in Combination Microwave Oven
Brand	Hoover
Model	HMG34C5DMM4
Rated Voltage	230 V ~ 50 Hz
Microwave Input Power	1450 W
Microwave Output Power	900 W
Grill Output Power	1100 W
Power Levels	5 (100%, 80%, 50%, 30%, 10%)
Control Type	Electronic with Slider, Touch Buttons, and Display
Display	Digital LED
Turntable	Yes, glass tray with ring assembly
Turntable Diameter	Approx. 315 mm (estimated)
Cavity Material	Stainless steel / enamel
Door Type	Drop-down with observation window
Child Lock	Yes, via 3-second press on Lock/Cancel
Clock & Timer	24-hour clock and kitchen timer (up to 95 min)
Auto Cook Menus	8 (Potato, Meat, Fish, Vegetable, Beverage, Pasta, Popcorn, Pizza)
Defrost	By weight (100-2000 g) and by time
Grill Function	Yes, with high and low wire racks
Combination Modes	4 (Microwave+Grill, different intensity levels)
Quick Start	Add 30 seconds at full power
Installation Type	Built-in (not for countertop)
Width	595 mm (typical, for 60 cm cabinet)
Height	390 mm (typical, min installation 850 mm)
Depth	400 mm (estimated)
Weight	Approx. 20 kg (estimated)
Accessories Included	Glass tray, turntable ring, lower wire rack, higher wire rack, instruction manual
Cleaning Method	Damp cloth; lemon water solution for stubborn stains
Safety Features	Door interlocks, grounding, automatic shut-off, child lock

Frequently Asked Questions - HMG34C5DMM4 HOOVER

How do I set the clock on my Hoover HMG34C5DMM4 microwave?

Press the Clock/Kitchen Timer button once. Use the slider or +/- buttons to set the hour (0-23), then press Clock/Kitchen Timer again. Set the minute (0-59) and confirm with Clock/Kitchen Timer.

What utensils are safe to use in this microwave?

Use microwave-safe materials: heat-resistant glass, ceramic, microwave-safe plastic, paper plates (short term). Avoid metal, aluminum foil (unless specified), and dishes with metallic trim. You can test a utensil by microwaving a cup of water beside it for 1 minute; if it feels warm, do not use.

How do I use the auto menu function?

Press Auto Menu repeatedly to select one of 8 menus (A-1 to A-8). Adjust the weight using the slider or +/- buttons, then press Start/+30Sec./Confirm to begin cooking. Refer to the auto menu chart for appropriate weights.

Can I cook with the grill and microwave together?

Yes, press Function repeatedly to select combination modes C-1 to C-4. C-1 uses microwave and grill, while C-2 to C-4 vary the intensity. Set cooking time and press Start.

How do I activate the child lock?

In waiting state, press and hold the Lock/Cancel button for 3 seconds until a long beep sounds and a lock icon appears. To deactivate, press and hold the same button for 3 seconds again.

Why is my microwave not heating food?

Check that the door is fully closed. Ensure the power cord is plugged in securely. If the problem persists, check the fuse or circuit breaker. Do not attempt internal repairs yourself; contact a qualified service agent.

How do I clean the microwave interior?

Unplug the appliance. Clean the cavity with a slightly damp cloth. For stubborn food deposits, place half a lemon in 300 ml water and microwave on full power for 10 minutes, then wipe clean. Do not use abrasive cleaners or metal scrapers on the glass door.

What does the 'E' in the display mean?

If an error code shows, it indicates a malfunction. The manual does not list specific error codes. Try disconnecting the power for 10 seconds, then reconnect. If the error persists, contact customer service.

Can I cook food in sealed containers?

No, never heat food or liquids in sealed containers as they may explode. Always remove lids or pierce plastic wrap to allow steam to escape.

How do I install this microwave as a built-in?

The microwave is designed for built-in installation in a 60 cm wide wall-mounted cupboard. Minimum installation height is 850 mm. Ensure the cabinet is heat-resistant up to 95°C. Push the microwave into the cabinet, center it, and fasten with supplied screws. Do not carry the appliance by the door handle.

USER MANUAL HMG34C5DMM4 HOOVER

Read these instructions carefully before using your microwave oven, and keep it carefully.

If you follow the instructions, your oven will provide you with many years of good service.

SAVE THESE INSTRUCTIONS CAREFULLY

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

(a) Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks.

(b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.

(c) WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

ADDENDUM

If the apparatus is not maintained in a good state of cleanliness, its surface could be degraded and affect the lifespan of the apparatus and lead to a dangerous situation.

SPECIFICATIONS

Model:	HMG34C5DS4 / HMG34C5DM4
Rated Voltage: 230V~ 50Hz
Rated Input Power (Microwave):	1450W
Rated Output Power (Microwave):	900W
Rated Output Power (Grill): 1100W

IMPORTANT SAFETY INSTRUCTIONS WARNING

To reduce the risk of fire, electric shock, injury to persons or exposure to excessive microwave oven energy when using your appliance, follow basic precautions, including the following:

1. Read and follow the specific: "PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY".

2. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

3. Keep the appliance and its cord out of reach of children less than 8 years.

4. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

5. WARNING: Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock.

6. WARNING: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

7. WARNING: Liquids and foods must not be heated in sealed containers since they are liable to explode.

8. When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.

9. Only use utensils that are suitable for use in microwave ovens.
10. If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle any flames.
11. Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container.
12. The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.
13. Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.
14. Details for cleaning door seals, cavities and adjacent parts.
15. The oven should be cleaned regularly and any food deposits removed.
16. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.
17. Only use the temperature probe recommended for this oven. (For ovens provided with a facility to use a temperature-sensing probe).
18. The microwave oven must be operated with the decorative door open. (For ovens with a decorative door).

19. This appliance is intended to be used in household and similar applications such as:

20. staff kitchen areas in shops, offices and other working environments;

21. by clients in hotels, motels and other residential type environments;
22. farm houses;

23. bed and breakfast type environments.

24. The microwave oven is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.

25. Metallic containers for food and beverages are not allowed during microwave cooking.

26. The appliance shall not be cleaned with a steam cleaner.

27. The appliance must not be installed behind a decorative door in order to avoid overheating. (This is not applicable for appliances with decorative door).

28. The microwave oven is intended to be used built-in.

29. The appliance must be operated with any cabinet door open.

30. Care should be taken not to displace the turntable when removing containers from the appliance. (For fixed appliances and built-in appliances being used equal or higher than 900 mm above the floor and having detachable turntables. But this is not applicable for appliances with horizontal bottom hinged door).

31. Surface of a storage drawer can get hot.

32. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.

33. WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised.

34. During and after use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven.
35. WARNING: Accessible parts may become hot during and after use. Young children should be kept away.
36. WARNING: When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated.

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

TO REDUCE THE RISK OF INJURY TO PERSONS GROUNDING INSTALLATION

DANGER

Electric Shock Hazard

Touching some of the internal components can cause serious personal injury or death. Do not disassemble this appliance.

WARNING

Electric Shock Hazard

Improper use of the grounding can result in electric shock.

Do not plug into an outlet until appliance is properly installed and grounded.

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current.

This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

Consult a qualified electrician or serviceman if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded.

If it is necessary to use an extension cord, use only a 3-wire extension cord.

1. A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.

2. If a long cord set or extension cord is used:

1) The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance.
2) The extension cord must be a grounding-type 3-wire cord.
3) The long cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over unintentionally.

CLEANING

Be sure to unplug the appliance from the power supply.

1. Clean the cavity of the oven after using with a slightly damp cloth.
2. Clean the accessories in the usual way in soapy water.
3. The door frame and seal and neighbouring parts must be cleaned carefully with a damp cloth when they are dirty.
4. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.
5. Cleaning Tip---For easier cleaning of the cavity walls that the food cooked can touch: Place half a lemon in a bowl, add 300ml (1/2 pint) water and heat on 100% microwave power for 10 minutes. Wipe the oven clean using a soft, dry cloth.

UTENSILS

CAUTION

Personal Injury Hazard

It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

See the instructions on “Materials you can use in microwave oven or to be avoided in microwave oven”. There may be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in question following the procedure below.

Utensil Test:

1. Fill a microwave-safe container with 1 cup of cold water (250ml) along with the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave cooking.
4. Do not exceed 1 minute cooking time.

Materials you can use in microwave oven

Utensils	Remarks
Browning dish	Follow manufacturer's instructions. The bottom of browning dish must be at least 3/16 inch (5 mm) above the turntable. Incorrect usage may cause the turntable to break.
Dinnerware	Microwave-safe only. Follow manufacturer's instructions. Do not use cracked or chipped dishes.
Glass jars	Always remove lid. Use only to heat food until just warm. Most glass jars are not heat resistant and may break.
Glassware	Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not use cracked or chipped dishes.
Oven cooking bags	Follow manufacturer's instructions. Do not close with metal tie. Make slits to allow steam to escape.
Paper plates and cups	Use for short-term cooking/warming only. Do not leave oven unattended while cooking.
Paper towels	Use to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only.
Parchment paper	Use as a cover to prevent splattering or a wrap for steaming.
Plastic	Microwave-safe only. Follow the manufacturer's instructions. Should be labeled "Microwave Safe". Some plastic containers soften, as the food inside gets hot. "Boiling bags" and tightly closed plastic bags should be slit, pierced or vented as directed by package.
Plastic wrap	Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food.
Thermometers	Microwave-safe only (meat and candy thermometers).
Wax paper	Use as a cover to prevent splattering and retain moisture.

Materials to be avoided in microwave oven

Utensils	Remarks
Aluminum tray	May cause arcing. Transfer food into microwave-safe dish.
Food carton with metal handle	May cause arcing. Transfer food into microwave-safe dish.
Metal or metal-trimmed utensils	Metal shields the food from microwave energy. Metal trim may cause arcing.
Metal twist ties	May cause arcing and could cause a fire in the oven.
Paper bags	May cause a fire in the oven.
Plastic foam	Plastic foam may melt or contaminate the liquid inside when exposed to high temperature.
Wood	Wood will dry out when used in the microwave oven and may split or crack.

NAMES OF OVEN PARTS AND ACCESSORIES

Remove the oven and all materials from the carton and oven cavity.

Your oven comes with the following accessories:

Simple line drawing of a circular tray with six small objects on the surface (no text or symbols)

Glass Tray

Turntable Ring Assembly

Instruction Manual

Simple line drawing of a circular object with diagonal hatching and two hanging ropes at the bottom (no text or symbols)

Higher Wire Rack (For grilling, e.g. steaks, sausages and for toasting bread. As a support for shallow dishes).

Turntable Shaft

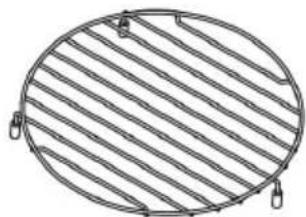

Circular metal grate with diagonal striped pattern and two hanging clips at the bottom (no text or symbols)

Lower Wire Rack (For baking and roasting in the oven).

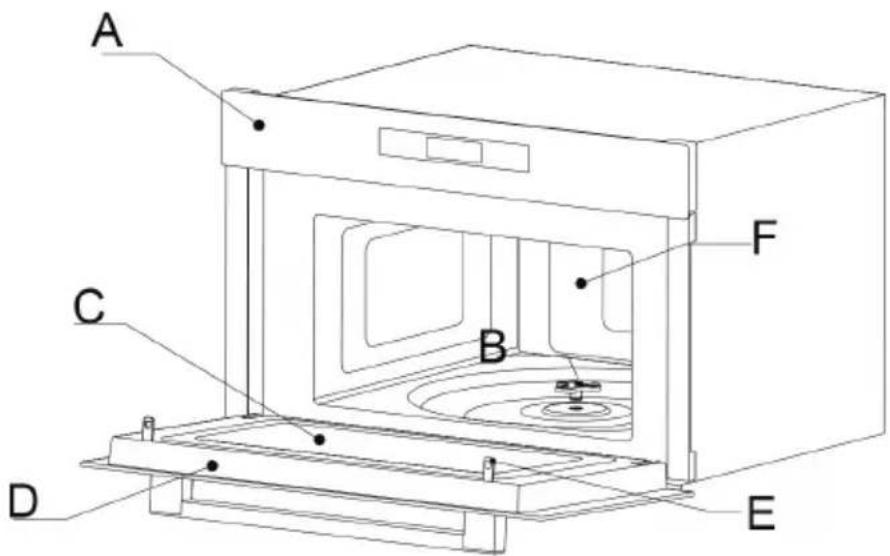

A) Control panel

B) Turntable shaft

C) Observation window

D) Door assembly

E) Safety interlock system

F) Oven cavity

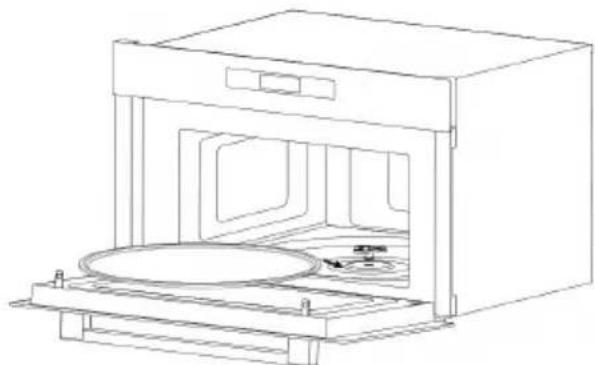

TURNTABLE INSTALLATION

Cleaning the cooking compartment and putting the turntable in place. For new installations, make sure all packaging and shipping tape has been removed from the turntable shaft. Before using the appliance to prepare food for the first time, you will need to put the turntable in place correctly. You must clean the cooking compartment and accessories.

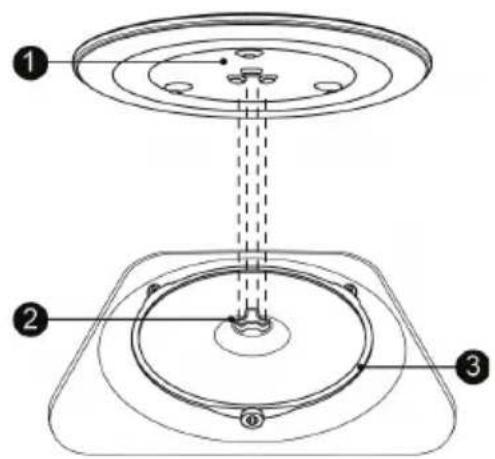

How to put the turntable in place:

1. Place the turntable ring assembly ③ into the recess in the cooking compartment.

2. Place the glass tray ① on the turntable ring assembly ③. Fit the raised, curved lines in the centre of the glass tray bottom between the three spokes of the shaft. Make sure that the glass tray ① engages in the turntable shaft ② in the centre of the cooking compartment floor. The rollers on the shaft should fit inside the turntable bottom ridge.

Line drawing of a simple kitchen oven with a circular vent and side grilles (no text or symbols)

Note:

1. Never use the appliance without the turntable. Make sure that it is properly engaged. The turntable can turn clockwise or anti-clockwise.

2. Never place the glass tray upside down. The glass tray should never be restricted.

3. Both glass tray and turntable ring assembly must always be used during cooking.

4. Some food and containers of food are always placed on the glass tray for cooking.

5. Never restrict the movement of the turntable.

6. If glass tray or turntable ring assembly cracks or breaks, contact your nearest authorized service center.

Installation and connection

1. This appliance is only intended for domestic use.
2. This oven is intended for built-in use only. It is not intended for counter-top use or for use inside a cupboard.
3. Please observe the special installation instructions.
4. The appliance can be installed in a 60cm wide wall-mounted cupboard.
5. The appliance is fitted with a plug and must only be connected to a properly installed earthed socket.
6. The mains voltage must correspond to the voltage specified on the rating plate.
7. The socket must be installed and connecting cable must only be replaced by a qualified electrician. If the plug is no longer to accessible following installation, an all-pole disconnecting device must be present on the installation side with a contact gap of at least 3 mm.
8. Adapters, multi-way strips and extension leads must not be used. Overloading can result in a risk of fire.

The accessible surface may be hot during and after operation.

BUILT-IN OVEN

Model: TC934E3CE-S0CE00

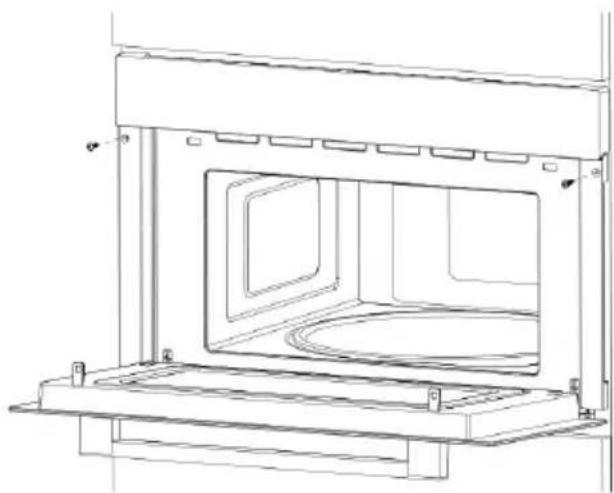

INSTALLATION

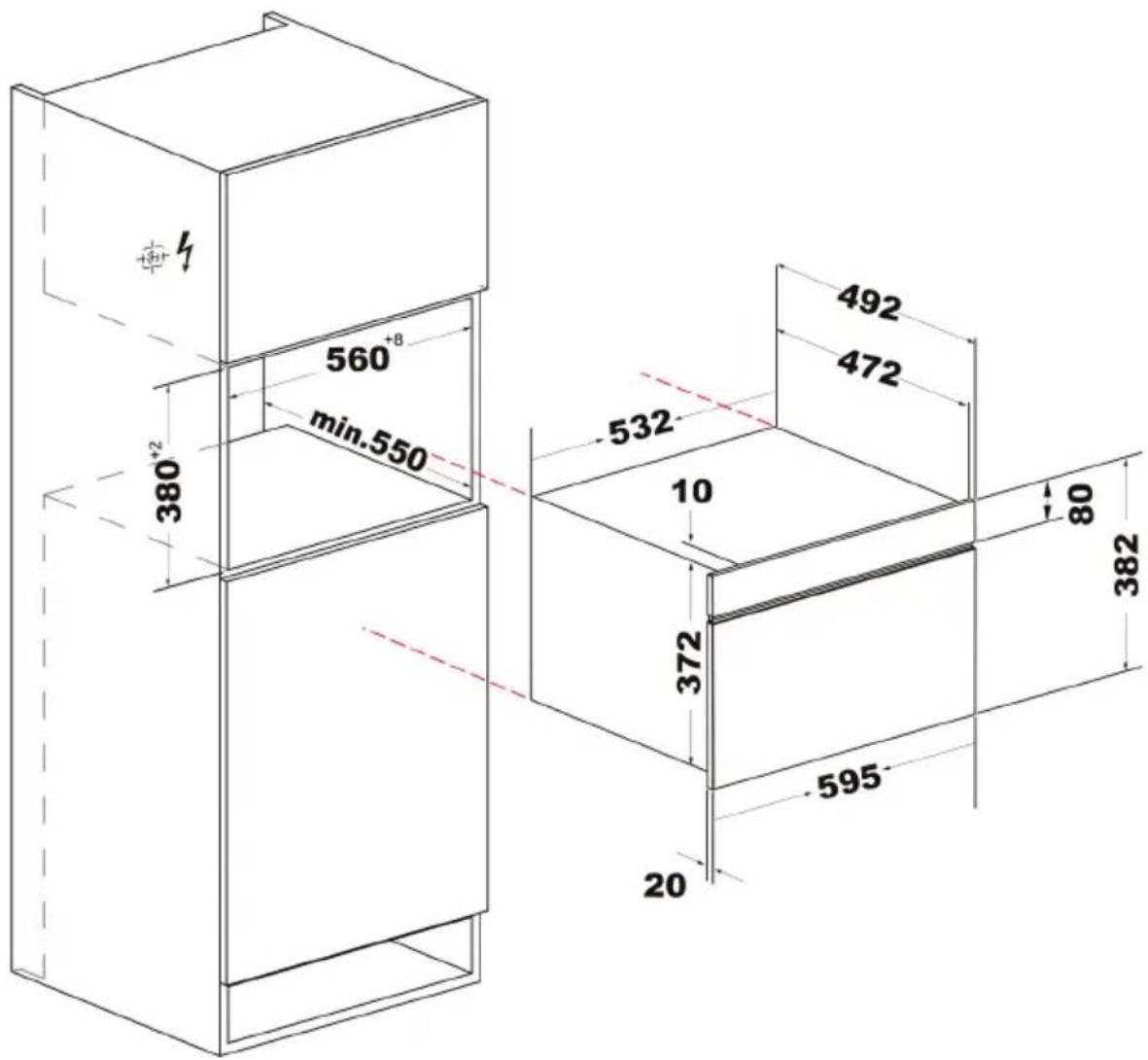

The dimensions attached are in mm.

The units into which the appliance is fitted must be heat - resistant up 95^ C .

The minimum installation height is 850 mm.

Building in

- Do not hold or carry the appliance by the door handle. The door handle cannot hold the weight of the appliance and may break off.

1. Carefully push the microwave into the box, making sure that it is in the centre.

2. Open the door and fasten the microwave with the screws that were supplied.

Technical line drawing of a microwave oven with internal compartments and mounting base (no text or symbols)

■ Fully insert the appliance and centre it.

Do not kink the connecting cable.

■ Screw the appliance into place.

Important information with plug

Electrical connection

The appliance is fitted with a plug and must only be connected to a properly installed earthed socket. Only a qualified electrician who takes the appropriate regulations into account may install the socket or replace the connecting cable. If the plug is no longer accessible following installation, an all-pole isolating switch must be present on the installation side with a contact gap of at least 3 mm.

Contact protection must be ensured by the installation.

Fuse protection: see instructions for use-technical data.

Important information without plug

The appliance is designed to be permanently installed with a three-pin power cord and may only be connected by a licensed expert in accordance with the connection diagram.

Only a qualified electrician who takes the relevant regulations into account may replace the power cord. Do not use multiple plugs, power strips or extensions. Overloading causes a risk of lire.

Il the connection is no longer accessible following installation, an all-pin isolating switch with a contact gap of at least 3 mm must be provided.

Connect the wires of the mains power cord in accordance with the following colour coding:

Green and yellow Earth wire < (E)

Blue Neutral wire (N)

Brown Live (L)

Great Britain and Australia:

Do not connect the appliance using a 13 A plug or protect it with a 13 A fuse. The appliance must be protected using a fuse that is rated 16 A or higher. The appliance must be disconnected from the power supply during all installation work. When the appliance is installed, protection must be provided against accidental contact in the future.

CONTROL PANEL

Microwave

Function

Clock/Kitchen Timer

Auto Menu

Lock/Cancel

Start/+30Sec./Confirm

OPERATION

1. Setting the Clock

(1) Press "Clock/Kitchen Timer" once and then "00:00" will display.
(2) Move the slider or press "+" or "-" to set the hour figures. The time should be within 0-23.
(3) Press "Clock/Kitchen Timer" to confirm.
(4) Move the slider or press "+" or "-" to set the minute figures. The time should be within 0-59.
(5) Press "Clock/Kitchen Timer" to confirm.

2. Kitchen Timer

(1) Press "Clock/Kitchen Timer" twice and then "00:00" will display.
(2) Move the slider or press "+" or "-" to set the time. The time should be within 0:05\~95:00.
(3) Press "Start/+30Sec./Confirm" to confirm.

3. Microwave

Power Level	100%	80%	50%	30%	10%
Display	P10	P8	P5	P3	P1

(1) In waiting state, Press "Microwave" and then "P10" will display.
(2) Press "Microwave" repeatedly to adjust the power level, 5 power levels are available.
(3) Move the slider or press "+" or "-" to set the cook time.
(4) Press "Start/+30Sec./Confirm" to start cooking.

4.Grill

(1) Press "Function" once and then "G-1" will display.
(2) Move the slider or press "+" or "-" to set the cook time.
(3) Press "Start/+30Sec./Confirm" to start cooking.

Note: When half of the time has passed, the buzzer will sound to remind you to turn the food over. If no operation, the oven will continue working.

5. Combination

(1) Press "Function" once and then "G-1" will display. Press "Function" repeatedly to choose the power you want, and "C-1", "C-2", "C-3" and "C-4" will display in order.
(2) Move the slider or press "+" or "-" to set the cook time.
(3) Press "Start/+30Sec./Confirm" to start cooking.

Note: Combination instructions

Instructions	Display	Microwave	Grill	Convection
1 C-1		●		●
2 C-2		●●
3 C-3			●●
4 C-4		●●●

Defrost by Weight 6.

(1) Press "Function" thrice and then the screen will display "0.1kg".

(2) Move the slider or press "+" or "-" to set the weight. it should be within 100-2000g.

(3) Press "Start/+30Sec./Confirm" to start defrosting.

Defrost by Time 7.

(1) Press "Function" four times and then the screen will display "1:00".
(2) Move the slider or press "+" or "-" to set the time.
(3) Press "Start/+30Sec./Confirm" to start defrosting.

Note: When the half time of defrost has elapsed, buzzer will sound, turn the food over. If no operation, the oven will continue working.

Speed cooking 8.

(1) In waiting state, press "Start/+30Sec./Confirm" to cook food with 100% power level for 30 seconds. Each press on the same key can increase 30 seconds and the maximum time value is 95 minutes.

Note: Speedy cooking cannot be set in defrost by weight, multi-stage and auto menu.

Lock Function for Children 9.

You can use this function to prevent children from accidentally turning the oven on. To activate the lock:

In waiting state, press and hold "Lock/Cancel" for three seconds. A long beep sounds and the locked icon will display.

To deactivate the lock:

In locked state, press and hold "Lock/Cancel" for three seconds. A long beep sounds.

10. Inquire function

(1) If the clock has been set, the current time will display for three seconds by pressing "Clock/Kitchen Timer" in the cooking state.

11. Auto Menu

(1) In waiting state, press "Auto Menu", the screen will display "A-1".
(2) Press "Auto Menu" repeatedly to choose the menu you need.8 auto menus are available.
(3) Move the slider or press "+" or "-" to set the weight of the food.
(4) Press "Start/+30Sec./Confirm" to start cooking.

Auto menu Chart

Menu Weight(g) Display Power

A-1 POTATO	1 (about 230g) 1		P100
	2 (about 460g) 2
	3 (about 690g) 3
A-2 MEAT	150g 150g		P80
	300g 300g
	450g 450g
	600g 600g
A-3 FISH	150g 150g		P80
	250g 250g
	350g 350g
	450g 450g
	650g 650g
A-4 VEGETABLE	150g 150g		P100
	350g 350g
	500g 500g
A-5 BEVERAGE	1 cup (240g) 1		P100
	2 cup (480g) 2
	3 cup (720g) 3
A-6 PASTA	50g (cold water 450g)	50g	P80
	100g (cold water 800g)	100g
	150g (cold water 1200g)	150g
A-7 POPCORN	100g	100g	P100
A-8 PIZZA	200g 200g		P100+G-1
	400g	400g

Trouble shooting

Normal
Microwave oven interfering TV reception	Radio and TV reception may be interfered when microwave oven operating. It is similar to the interference of small electrical appliances, like mixer, vacuum cleaner, and electric fan.It is normal.
Dim oven light	In low power microwave cooking, oven light may become dim. It is normal.
Steam accumulating on door, hot air out of vents	In cooking, steam may come out of food. Most will get out from vents. But some may accumulate on cool place like oven door. It is normal.
Oven started accidentally with no food in.	It is forbidden to run the unit without any food inside. It is very dangerous.

Trouble Possible Cause Remedy
Oven cannot be started.	(1) Power cord is not plugged in tightly.	Unplug. Then plug again after 10 seconds.
	(2) Fuse blowing or circuit breaker works.	Replace fuse or reset circuit breaker (repaired by professional personnel of our company)
	(3) Trouble with outlet.	Test outlet with other electrical appliances.
Oven does not heat.	(4) Door is not closed well.	Close door well.

According to Waste of Electrical and Electronic Equipment (WEEE) directive, WEEE should be separately collected and treated. If at any time in future you need to dispose of this product please do NOT dispose of this product with household waste. Please send this product to WEEE collecting points where available.

Mikrowellenofen

BEDIENUNGSHANDBUCH

Modell: HMG34C5DS4 HMG34C5DM4

Simple line drawing of a circular tray with six small objects on the surface (no text or symbols)

Glastablett

Simple line drawing of a circular object with diagonal hatching and two hanging ropes at the bottom (no text or symbols)

Circular metal grate with diagonal striped pattern and two hanging clips at the bottom (no text or symbols)

Line drawing of a microwave oven with open lid and base tray (no text or symbols)

Hinweis:

Technical line drawing of a microwave oven with mounting base and control panel (no text or symbols)

Mikrowelle

F Funktion

L Uhr/Küchentimer

Auto-Menü

Sperren/Abbrechen

Simple line drawing of concentric ovals with small circular elements inside (no text or symbols)

Bandeja de cristal

Circular diagram with diagonal hatching and hanging weights at the bottom (no text or symbols)

Circular metal grate with diagonal striped pattern and two hanging clips at the bottom (no text or symbols)

Line drawing of a microwave oven with lid and tray (no text or symbols)

Nota:

Technical line drawing of a microwave oven with mounting base and control panel (no text or symbols)

Azul Cable neutro (N)

Marrón Directo (L)

Microondas

Función

Simple line drawing of concentric ovals with small circular elements inside (no text or symbols)

Vassoio di vetro

Circular diagram with diagonal hatching and hanging weights at the bottom (no text or symbols)

Circular metal grate with diagonal striped pattern and two hanging clips at the bottom (no text or symbols)

Line drawing of a microwave oven with lid and base tray (no text or symbols)

Nota:

Technical line drawing of a microwave oven with internal compartments and mounting base (no text or symbols)

Microonde

F Funzione

Simple line drawing of concentric ovals with small circular elements at the center (no text or symbols)

Skleněný talíř

Simple line drawing of a circular object with diagonal stripes and two hanging ropes at the bottom (no text or symbols)

Circular metal grate with diagonal striped pattern and two hanging clips at the bottom (no text or symbols)

Line drawing of a simple kitchen oven with a circular vent and side grilles (no text or symbols)

Poznámka:

Technical line drawing of a microwave oven with mounting base and control panel (no text or symbols)

Mikrovlnná trouba

Funkce

Simple line drawing of concentric ovals with small circular elements at the center (no text or symbols)

Skleneny tanier

Simple line drawing of a circular object with diagonal hatching and two hanging ropes at the bottom (no text or symbols)

Vyšší drôtený rošt (na grilovanie, napr. steaky, klobásy a na opekanie chleba. Ako držiak na plytké taniere).

Otočný hriadel'

Circular metal grate with diagonal striped pattern and two hanging clips at the bottom (no text or symbols)

Line drawing of a simple kitchen oven with a circular vent and side-mounted base (no text or symbols)

Poznámka:

Technical line drawing of a microwave oven with mounting base and control panel (no text or symbols)

Mikrovlny

F Funkcia
