Product Type	Electric Kettle
Brand	Vivax
Model	WH-181CX
Capacity	1.8 L
Power Rating	1850 - 2200 W
Voltage / Frequency	220-240 V AC, 50/60 Hz
Temperature Settings	40°C, 70°C, 80°C, 90°C, 100°C
Keep Warm Function	Yes, up to 2 hours
Auto Shut-off	Yes, after boiling
Safety Cut-out	Automatic if insufficient water
Base Type	360° swivel base with cord storage
Water Level Indicator	Yes, graduated with MIN and MAX marks
Display Type	LCD showing temperature and warm indicator
Lid Type	Top lid with release button
Body Material	Plastic with stainless steel heating element
Net Weight	Approx. 1 kg
Dimensions (W x D x H)	Approx. 22 x 16 x 25 cm
Cleaning and Descaling	Use vinegar or citric acid; wipe exterior with damp cloth
Protection Class	I
Accessories Included	Kettle, base, user manual

Frequently Asked Questions - WH-181CX Vivax

How do I use the kettle for the first time?

Fill the kettle with clean water to the maximum level, boil it, then discard the water. Repeat this process once before using the kettle for drinking.

Can I open the lid while the kettle is boiling?

No, always keep the lid closed during operation. Opening the lid may cause hot water to splash and burn you.

What should I do if the kettle switches off automatically before boiling?

This indicates the safety cut-out has activated due to insufficient water. Unplug the kettle, let it cool for 5-10 minutes, then refill with water above the minimum mark.

How do I set a specific water temperature?

Press the temperature adjustment button repeatedly to cycle through 40°C, 70°C, 80°C, 90°C, and 100°C. The display will show the selected temperature.

How does the keep warm function work?

After boiling, press the keep warm button. The kettle maintains the water temperature for up to 2 hours. It reheats if the temperature drops by more than 5 degrees.

Can I overfill the kettle?

No, do not fill above the MAX mark (1.8 L). Overfilling can cause boiling water to spill out and cause burns.

How do I descale the kettle?

Fill the kettle with a mixture of 1 part vinegar and 2 parts water up to MAX, boil, let it sit overnight, then rinse thoroughly. Alternatively, use citric acid: add 1 tablespoon to water and boil.

Is the kettle safe to use on a metal surface?

No, place the kettle on a stable, flat, and heat-resistant surface. Avoid placing it near stoves or other heat sources.

What should I do if the power cord is damaged?

Stop using the kettle immediately. The cord must be replaced by the manufacturer, its service agent, or a qualified person to avoid hazard.

How do I clean the exterior of the kettle?

Unplug the kettle and let it cool. Wipe the outside with a soft, damp cloth. Do not immerse the kettle or base in water.

USER MANUAL WH-181CX Vivax

1. VAŽNA UPOZORENJA I SIGURNOSNE UPUTE

• Nakon uporabe, uređaj ostaje vruć određeno vrijeme. Nemojte dodirivati uređaj!
• Nemojte premještati ili pomicati uređaj za vrijeme rada.
• Vaš uređaj namijenjen je isključivo za kućnu uporabu. Nemojte ga koristiti u komercijalne ili industrijske svrhe.

• Ovaj je uređaj namijenjen uporabi u kućanstvu i sličnim prostorima, kao što su:

• Kuhinje osoblja u trgovinama, uredima i drugim radnim okruženjima;

• Uporaba od strane gostiju u hotelima, motelima i drugim stambenim prostorima;
• Upotreba u seoskim kućama za iznajmljivanje;

• Upotreba u prostorima koji nude „noćenje s doručkom“.

• Bilo koji kvar, pukotina ili ogrebotina nastale kao posljedica pada ili udarca proizvoda smatraju se korisničkom pogreškom. Vivax ne prihvaća odgovornost za takve kvarove i takvi kvarovi su isključeni iz jamstva.

• Kada odspajate uređaj sa napajanja, uvijek čvrsto primite za utikač, nemojte odspajati uređaj povlačeći za kabel napajanja.
• Izbjegavajte polijevanje tekućine po LCD zaslonu te podnožju kuhala s obzirom da voda može ući u podnožje i uzrokovati kvar.

Oprez

Ne dodirujte vruće površine na kućištu; koristite uređaj tako da ga držite samo za ručku.

1. Gornji poklopac / Tipka za otvaranje
2. Prikaz indikatora temperature i održavanja topline
3. Tipka za održavanje topline

4. Tipka za podešavanje temperature

5. Tipka za Uklj. / Isklj. (On/Off)

6. Ručka
7. 360° postolje sa spremištem kabela napajanja
8. Prikaz razine vode

Opis uređaja

Gornji opis i crtež je samo za informaciju. Vaš uređaj se može nešto razlikovati od gore prikazanog, ali namjena i funkcije uređaja su iste.

1. VAŽNA UPOZORENJA I SIGURNOSNA UPUTSTVA

Osnovnih mera opreza morate da se pridržavate tokom upotrebe ovog električnog uređaja.

Ovaj uređaj mogu da koriste deca starija od 8 godina jedino ako su pod nadzorom ili ako su im data uputstva za upotrebu i svesne su potencijalnih opasnosti.

Ovaj uređaj mogu da koriste osobe sa smanjenim fizičkim, senzornim ili mentalnim sposobnostima ili nedostatkom iskustva i znanja, jedino ako su pod nadzorom ili ako su im data uputstva za upotrebu i svesne su potencijalnih opasnosti.

1. Gornji poklopac / Dugme za otvaranje

2. Dugme za Uklj. / Isklj.

3. Pokazivač temperature i toplote

4. Ručka

5. Dugme za održavanje toplote

6. 360° Baza sa kablom

7. Dugme za podešavanje temperature

8. Pokazivač nivoa vode

Opis uređaja

Rm.1503A,15/F,Shun Kwong Commercial Bldg.,No.8 Des Voeux Road West,Sheu Wan, Hong Kong

member of M SAN Grupa

KOMPANI

Потпишано

Margareta Gnjatovic Spirov Управител

Rm.1503A,15/F,Shun Kwong Commercial Bldg.,No.8 Des Voeux Road West,Sheu Wan, Hong Kong

Subjekti i deklaratës:

Produkt: KAZAN

Margareta Gnjatovic Spirov Manager

PAKOM KOMPANI member of M SAN Grupa

Pakom Kompani dooel Skopje, Jadranska Magistrala no. 12,

P.Fah 829, 1000 Skopje, R.of North Macedonia

VAT: MK4030992148501, NLB Bank AD 210-0453086101-55

Phn.: [phone] Fax: [phone]

http://www.pakom.com.mk E-mail: [e-mail]

Hvala vam za izbiro in nakup Vivax grelca.

Ta naprava ustreza najvišjemu standardu, inovativni tehnologiji in visokemu udobju ter učinkovitosti uporabe.

- Naprave ne premikajte ali premikajte med uporabo.

Thank you for preferring Vivax Electric Kettle. We hope this appliance will make your life easy as all the other Vivax products.

Please read this manual thoroughly to get full performance from your appliance and keep it a safe place for further reference.

1. IMPORTANT WARNINGS

Basic safety precautions must be complied with while using an electrical appliance

This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

The appliance can be used by persons with reduced physical, sensory or mental capabilities, if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved

Children shall not play with the appliance.

Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

• The device must be used in accordance with the instructions given in the user's manual. Incorrect or faulty uses might cause injuries.
• Use this device only with provided stand.
• Children should be supervised to ensure that they do not play with the appliance.
• Do not leave your appliance as plugged in. Unplug it when not in use and when it requires servicing. While unplugging, use the head of the plug instead of its cord and allow your appliance to cool down.
• Before unplugging the appliance, turn the On/Off button to the position "0" (OFF).

• Do not insert or pull the plug with wet hands.

• Never leave the electric terminals of your appliance wet. If they get wet, unplug it and do not use it before until it is completely dry.

• In order to avoid electric shock, do not immerse the cable and the plug into water or other liquids.
• If the appliance accidentally drops into water unplug it immediately and contact the authorized service before re-using it.
• Do not keep any flammable materials like paper or plastics in or near the appliance.
• Place the appliance on a stable, at and cold surface. Do not put it on a corner of a table or a kitchen counter. Breeze or impact may cause your appliance to topple.
• Please do not touch the hot surface; use the appliance by holding the handle instead.
• Be careful about steam during use.
• Keep your appliance and its cord out of reach of children.
• Do not let children use the appliance.
• Keep children away from this product and do not allow them to pull the electrical cable or to touch the device.
• Never allow children to play with the device.
• Store the device and its cable in a place not accessible to children younger than 8 years old.
• Use only the accessories produced or recommended by the manufacturer.
• Make sure that the voltage indicated on device corresponds to the mains voltage of your location.
• To prevent any damage to your appliance, do not use extension cords that supply insufficient current. Connect the unit to an active grounded socket.

• Do not perform any operation on your appliance except for cleaning and maintenance. Do not attempt to repair, calibrate or replace the parts of your appliance. Please contact with a qualified personnel.

• Avoid any action that would damage the cord and the plug of the appliance.

• If the supply cord is damaged, it must be replaced by the manufacturer or his service agent or equally competent personnel to prevent any dangerous situation.
• Protect your appliance and its cable against heat, direct sunlight, moisture, sharp objects, etc.
• Do not let cord hang over edge of table or counter.
• Never move the appliance by pulling the cord and make sure the cord can not become entangled.
• The appliances must be placed on a stable, level surface.
• Do not place the appliance on and close to direct heat sources such as stoves, furnaces and ovens. Do not let the appliance contact with other devices.
• Do not use the kettle outdoors.
• WARNING: Do not fully fill the device as the boiled water that may flush.
• Do not use the appliance without water or as empty.
• Use of liquids other than water may damage the device.
• Do not immerse the appliance into water while cleaning.
• Avoid spilling any liquid on connection parts of the device.
• The base and exterior of the kettle are not water-resistant, keep it dry at all times.
• During the first use, a smell may arise from the heater of the appliance. This is normal.
• While using the kettle, use only by its handle.
• Make sure the appliance is stable.
• Pay attention to the surface of the device as it would be hot after use.
• Do not remove the appliance while using it.
• Your appliance is intended for household use only. Do not use it for commercial or industrial purposes.

- This appliance is intended for domestic use or similar applications like the followings:

• Staff kitchen areas in stores, offices and other working environments,
• Farmer houses,
• Areas used by customers in hotels, motels, hostels, similar residence areas
• Dormitories and Bad&Breakfast areas.

- Any malfunction, cracks or scratches caused as a result of dropping or hitting after the delivery of the product to the consumer are considered as user errors.

- Our company does not accept responsibility for the malfunctions caused by the above-mentioned reasons and therefore such malfunctions are excluded from the warranty.

- When you disconnect the power cord of the kettle, grasp and pull the plug, not the cord/cable.

- Please avoid the liquid sprinkling in the LCD board and the pressed key place in the operating process. Because the water possibly can plunge in the product, causes the function to be unusual

Caution!

Do not touch hot surface on the appliance! Use appliance handle only.

Never use the stretch bags in the package of the appliance as a toy. Please keep them away from children to prevent any accident.

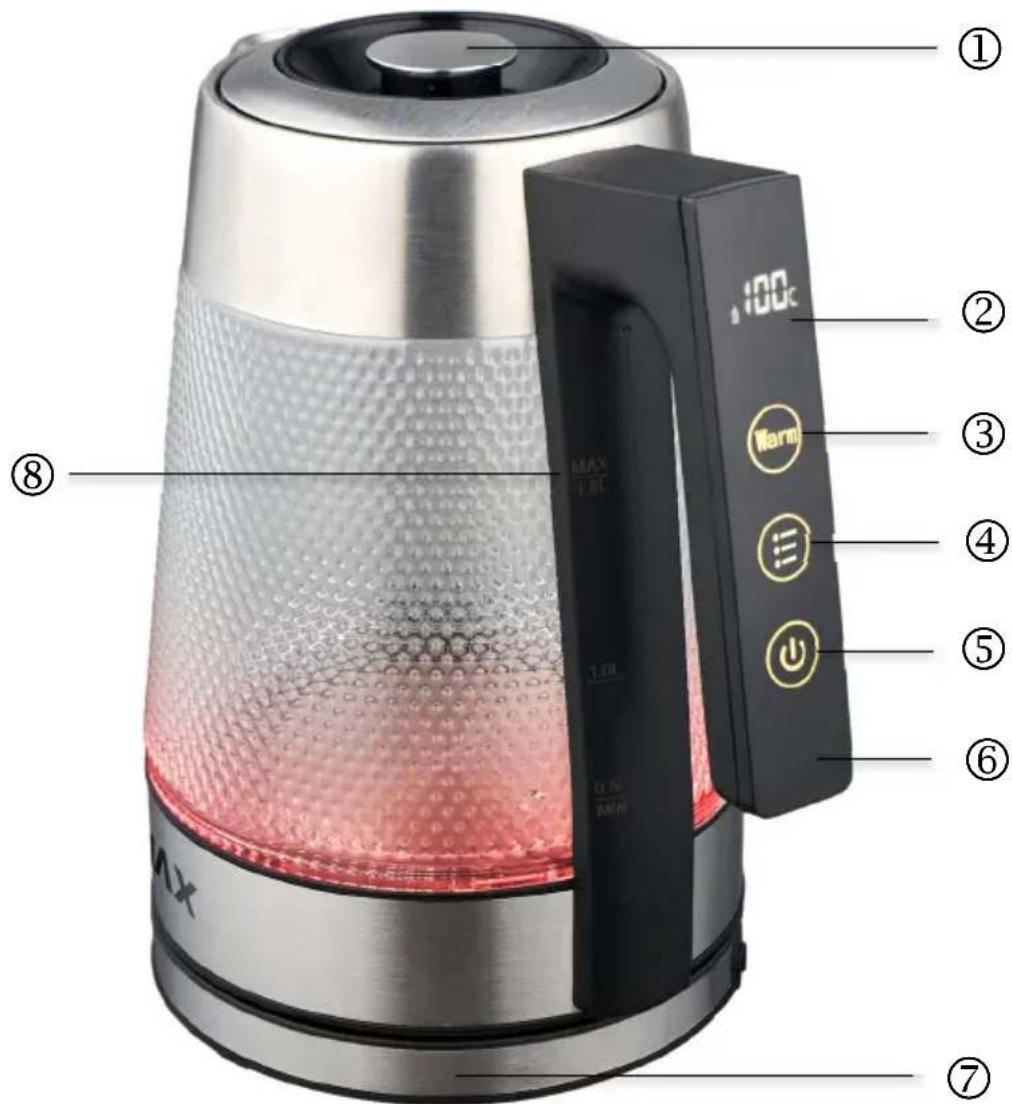

2. PART DESCRIPTION

1. Top Lid / Release button
2. Temperature and warm indicator display
3. Keep warm button

4. Temperature adjustment button

5. Power button (On/Off)

6. Handle
7. 360° Base with Cord storage
8. Water level indicator

Appliance Description

This description is for reference only.

Your Electric kettle can be different then above picture, but usage and functionality stay the same.

3. USE OF APPLIANCE

Special Safety Instructions for the Kettle

• Use only cold water when filling the device.
  • The water level must be between the MAX. and MIN. marks.
• Switch the kettle off before removing it from the base.
  • Always ensure that the lid is tightly closed.
• The base and exterior of the kettle must not become wet.
• Kettle body used must match with the kettle base.

First Use of the Kettle

Before first use, fill the kettle with clean water to maximum capacity and boil. discard the water and repeat the process.

The kettle should always be unplugged when filling or adding water.

1. Fill the kettle with water to desired level. Do not overfill or there will be a risk of spillage or spitting. The water level indicator will assist you to measure the correct amount. You can fill the kettle via the spout or after opening the lid. Do not forget to close the lid after filling, otherwise the kettle will not automatically switch off after use.
2. Do not fill with less than 0.5 liters of water (to "min" indication) to prevent the kettle running dry while operating. Do not fill with less than 1.8 liters of water (to "max" indication).
3. An automatic safety cut-out has been fitted for protection against overheating, it will operate if the kettle is switched on when containing insufficient water. Always ensure the water inside the kettle covers the minimum mark on the water level indicator gauge. If the automatic safety cut-out has operated, switch the kettle off, disconnect from the power outlet and allow the kettle to cool down for 5 to 10 minutes. The refill with and switch on, the kettle will work as normal.
4. After boiling, the kettle switches off automatically.
5. Disconnect the kettle from the mains electricity supply. Do not open the lid when pouring.
   If the kettle is overfilled, boiling water may be ejected.
   The kettle is only to be used with the stand provided.

OPERATION

1. Place the kettle on a horizontal surface for use.
2. Open the lid and pour water into the kettle.
3. Connect with power, enter the setting interface, and press the button for boiling water (you can select temperature you need by pressing on setting interface)
4. Take off the kettle for brewing.

Advanced opearation:

1. Temperature display 888 : Display of actual temperature and set temperature.

2. Keep warm indicator 🌐Displays keep warm mode.

3. Keep warm button : Short press warm button, the buzzer gives beep signal and the display shows 100°C, after two flashes, screen display real-time temperature, and LED light is in a blinking state. After selecting required temperature, it automatically enters in keep warm state. Heat preservation time is 2 hours, when the temperature is below 5 degrees, the water continues to be heated. This cycle continues until the keep-warm time expires

4. Temperature adjustment button ≡: Short press to select temperature 40^ C - 70^ C - 80^ C - 90^ C - 100^ C. LED light show relevant color Green, Blue, Yellow, Purple and Red.

5. Power button (On/Off) the power state, short press power button, the buzzer gives beep signal and the display shows 100^ C. After two flashes, the screen display current real-time temperature, and enters the state of boiling water. After the water has heated up, the device will beep twice. (If the kettle is powered on and no operation is performed within 1 minute, the kettle automatically enters the standby mode.)

Note: In the keep warm mode, after boiling the water to the set temperature, the memory function starts. Within ten times when the device is turned on again, the temperature must not be below 8 degrees. The keep warm function continues the operation that was set last time. If you want to stop the function, turn off keep warm mode.

4 MAINTENANCE, REPAIR AND USE

• Never try to open and repair your appliance when it does not work.
• Please do not operate the appliance in case of a break or crack when it falls or hits to a hard object. Contact the authorized service.
• Do not change the damaged cable or plug, contact the authorized service.
• Do not carry the appliance by holding its cable.
• Unplug the appliance by pulling out from the socket, not the power cord.
• Unplug the appliance when not in use.

5. CLEANING AND MAINTENANCE

• Before cleaning the appliance, turn the On/Off button to "O" (Off) position, unplug it and wait until your appliance cools down.
• Clean the inside of the water kettle with soft sponge and detergent, then rinse it with water. Do not use abrasive or similar objects to clean the heater of the kettle.
• Use a dry or damp towel to clean the outside of the kettle. Do not use chemical or abrasive cleaners to clean the outer surface of the appliance.
• Do not immerse the appliance into water.

Descaling:

Regular descaling will ensure efficiency as well as prolong the life of your product. It should be done at least every four weeks or earlier if the products is used heavily or in hard water areas.

Descaling with ordinary vinegar

Fill the kettle up to "max" with a mixture of one part ordinary vinegar and two parts water.

Switch on and wait for the appliance to switch off automatically.

1. Let the mixture remain inside the kettle overnight.
2. Discard the mixture the next morning.
3. Fill the kettle with clean water up to "max" mark and boil again.
4. Discard the boiled water to remove any remaining scale and vinegar.
5. Rinse the inside of the kettle with clean water.

Descaling with citric acid for domestic use:

1. Fill the kettle up to "max" with water. Put 1 tablespoon of citric acid inside and boil the water
2. Discard the mixture
3. Fill the kettle with clean water up to "max" mark and boil again.
4. Discard the boiled water to remove any remaining scale and citric acid.
5. Rinse the inside of the kettle with clean water.

Warning! Cleaning and maintenance operations should not be done by children without supervision.

6. RECOMMENDATIONS FOR EFFICIENT USE AND ENERGY SAVING

- Unplug your appliance when not in use.

- Limescale and residues in your appliance adversely affects efficiency of the appliance. This causes more electricity consumption. The limescale and residues in the appliance must be cleaned often.

7. HANDLING AND TRANSPORTATION

The appliance should be transported in its original box and partitions or as wrapped with a soft cloth.

Incorrect packaging may cause damage to the outer surface of the appliance.

NOTE:

ANY MALFUNCTION OR DAMAGE CAUSED DURING LOADING, UNLOADING OR TRANSPORT AFTER THE DELIVERY OF PRODUCT TO THE CUSTOMER IS NOT COVERED BY THE WARRANTY.

8. TECHNICAL SPECIFICATIONS

Model	WH-181CX
Voltage, Freq 220-240V AC, 50/60Hz
Power 1850 - 2200 W
Capacity	1,8L
Protective Class I

9. DISPOSAL OF ELECTRICAL AND ELECTRONIC EQUIPMENT

To protect our environment and to recycle the raw materials used as completely as possible, the consumer is asked to return unserviceable equipment to the public collection system for electrical and electronic.

The symbol of the crossed indicates that this product must be returned to the collection point for electronic waste to feed it by recycling the best possible raw material recycling.

By ensuring this product you will prevent possible negative effects on the environment and human health, which could otherwise be caused due to improper disposal of that product. The recycling of materials from this product, you will help to preserve a healthy environment and natural resources.

For detailed information about the collection of EE products contact M SAN Grupa d.o.o. or the dealer where you purchased the product.

10. EU DECLARATON OF CONFORMITY

This device is manufactured in accordance with the applicable European standards and in accordance with all applicable Directives and Regulations.

EU declaration of conformity can be downloaded from the following link: www.msan.hr/dokumentacijaartikala

JAMSTVENI LIST HR

VIVAX

MODEL UREĐAJA

SERIJSKI BROJ

DATUM PRODAJE

BROJ RAČUNA PRODAVATELJA

POTPIS I PEČAT PRODAVATELJA

POŠTOVANI!

Zahvaljujemo na kupnji Vivax uređaja i nadamo se da ćete biti zadovoljni odabirom. Ako u jamstvenom roku bude potreban popravak proizvoda, molimo savjetujte se sa ovlaštenim prodavačem koji Vam je proizvod prodao ili nas kontaktirajte na dolje navedene brojeve i adrese. MOLIMO VAS DA PRIJE UPORABE PROIZVODA PAŽLIVO PROČITATE UPUTE PRILOŽENE UZ PROIZVOD!

1. Ovim jamstvom M SAN Grupa kao davatelj jamstva u Republici Hrvatskoj jamči besplatan popravak istog u skladu s važećim propisima i u skladu s uvjetima opisanim u ovom jamstvenom listu.
   Ovim jamstvom jamčimo da će predmet ovog jamstva raditi bez pogreške uzrokovane eventualnom lošom izradom ili lošim materijalom izrade. Svi, eventualno nastali, kvarovi biti će besplatno otklonjeni u ovlaštenom servisu u jamstvenom roku.

2. UVJETI JAMSTVA Jamstveni rok počinje od dana kupnje proizvoda i traje 12 mjeseci.

3. U slučaju kvara na proizvodu koji je predmet ovog jamstva, obvezujemo se da ćemo isti popraviti u najkraćem mogućem roku, a najkasnije u roku od 45 dana. Ako se proizvod ne može popraviti ili se ne popravi u roku od 45 dana, biti će zamijenjen novim. Jamstvo će biti produženo za vrijeme trajanja popravka.

4. Jamstvo se priznaje samo uz račun o kupnji, te uz ovaj jamstveni list koji mora biti ispravno popunjen odnosno mora sadržavati datum prodaje, pečat i potpis prodavatelja.

5. JAMSTVO NE OBUHVAĆA

POTPIS I PEČAT PRODAVATELJA

POŠTOVANI!

Zahvaljujemo na kupnji Vivax uređaja i nadamo se da ćete biti zadovoljni odabirom. Ako u garantnom roku bude potreban popravak, molimo da sljedite donje upute!

GARANCIJSKA IZJAVA

1. Ovom garancijom garantira proizvođač proizvoda, preko KIM TEC d.o.o., kao uvoznika i davatelja garancije u Republici Bosni i Hercegovini besplatan popravak istog u skladu s važećim propisima i u skladu s uvjetima opisanim u ovom garantnom listu. Ovom garancijom garantiramo da će predmet ove garancije raditi bez greške uzrokovane eventualnom lošom izradom i lošim materijalom izrade. Svi eventualno nastali kvarovi biti će besplatno otklonjeni u ovlaštenom servisu u garantnom roku.

UVJETI GARANCIJE:
