| Product Type | Personal Breathalyzer |
| Brand | Sencor |
| Model | SCA BA40FC |
| Sensor Technology | Electrochemical Fuel Cell |
| Measuring Range | 0.000 – 4.000 ‰ BAC (0.000 – 0.400 %BAC) |
| Resolution | 0.001 ‰ BAC |
| Accuracy | ±0.08 ‰ BAC at 0.2 ‰ BAC |
| Memory Capacity | 20 test results |
| Preheat Time | Approx. 9 seconds (countdown from SH09) |
| Measurement Duration | 5 – 7 seconds continuous blow |
| Power Source | 1 × AAA 1.5 V alkaline battery (not included) |
| Battery Indicator | Flashing icon when battery low |
| Dimensions (H × W × D) | 110 × 47 × 18 mm |
| Weight | 88 g |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | 0°C to +55°C |
| Display Type | LCD with icons |
| Adjustable Alert Level | 0.10 – 1.00 %BAC (variable, factory set at 0.20) |
| Units of Measurement | %BAC, ‰BAC, mg/L (switchable) |
| Mouthpiece | Included (2 pieces) |
| Automatic Self-Cleaning | Yes |
| Replaceable Sensor Module | Yes (recommended every 1-2 years or 1-2k tests) |
| Warranty | 24 months |
| Package Contents | Breathalyzer, 2 mouthpieces, user manual |
| Certification | CE, not for legal use |
Frequently Asked Questions - SCA BA40FC SENCOR
User questions about SCA BA40FC SENCOR
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Alcotest in PDF format for free! Find your manual SCA BA40FC - SENCOR and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. SCA BA40FC by SENCOR.
USER MANUAL SCA BA40FC SENCOR
EN User Manual PROFESSIONAL BREATHALYSER
- Important safety instructions....3
- Measurement 3
- Inserting battery....4
- Description of the power tool....5
- Control 6
Turning the power on and off....6
Starting breath alcohol test 6
Memory function....7
Alcohol units and alert level settings ....7
Important notes....8 - Technical information....9
1. Important safety instructions
Carefully read the entire user's manual before using the device and understand the safety measures and detailed operating instructions for the device. Store the user's manual in a safe place for future reference. If you sell the device do not forget to provide the user's manual to the new owner together with the device and its accessories.
IMPORTANT SAFETY NOTICE!!!
Using the breathalyser immediately after or within 15 minutes of consuming alcohol may damage the detection sensor and there is a danger of future measurements being inaccurate. Unprofessional operation of this device is not covered by the warranty.
We recommend to store and use the device at room temperature. Using and storing at other temperatures may affect the measurement accuracy.
Do not perform tests in strong winds or in a closed room, which is filled with cigarette smoke or contains alcohol vapours.
- If the flat batteries symbol appears on the display, recharge the device.
- Do not blow smoke, food or liquids into the mouthpiece.
- Using in environment outside the specified limits may lead to damage to the device and inaccurate test results.
- The level of alcohol in the breath depends on many factors and changes with time. The level can change already several minutes after the initial test.
- The measurement results of this device cannot be used as evidence in legal proceedings.
- The information obtained using this device is only informative in nature. We recommend that it is not used for making decisions about the ability to perform any activity requiring responsibility. Several factors (e.g. natural gas remains, smoke and undesirable breath) may influence the level of the measured values.
- Do not allow yourself or anybody else to drive a vehicle after consuming alcohol. Do not transport a person under the influence of alcohol who may be actively involved in driving the vehicle (in particular by pedalling, braking, adversely affecting the balance of the vehicle or similar).
- Neither the vendor nor the manufacturer are responsible for damages caused by the use of this device.
NEVER DRINK ALCOHOL IF YOU ARE PLANNING TO DRIVE A MOTOR VEHICLE!!!
2. Measurement
- The SCA BA40FC Personal Breathalyser is a hand-held non-certified measuring device, the measured value may differ from that of a certified device. As the electrochemical sensor with a fuel cell utilises electrochemical reaction of the platinum with the ethanol molecules, the SCA BA40FC Personal Breathalyser represents a stable and reliable measurement technology.
• Refrain from drinking alcohol and smoking at least 15 minutes before measurement. - Wash your mouth with water before use.
Recommendation:
For the most accurate measurements, we recommend replacing the internal measuring module with a new pre-calibrated one after prolonged use of the instrument. This horizon is not precise, we recommend e.g. after 1–2 years of use or after 1–2 thousand measurements.
Please contact your dealer or directly the authorized service centre of SERVIS FAST, ČR, a.s. Technicka 1701, Ričany u Prahy, phone: +420 323 204 120, email: servis@fastcr.cz. This new module will be charged with the current rate.
3. Battery Installation
- Please insert one AAA (LRO3) 1.5 V alkaline battery into the new device.
Insert the battery according to the marked diagram in the battery compartment under the cover.
- If there is not enough energy in the battery to test for alcohol, the battery indicator will be flashing. Then, change the battery immediately please.

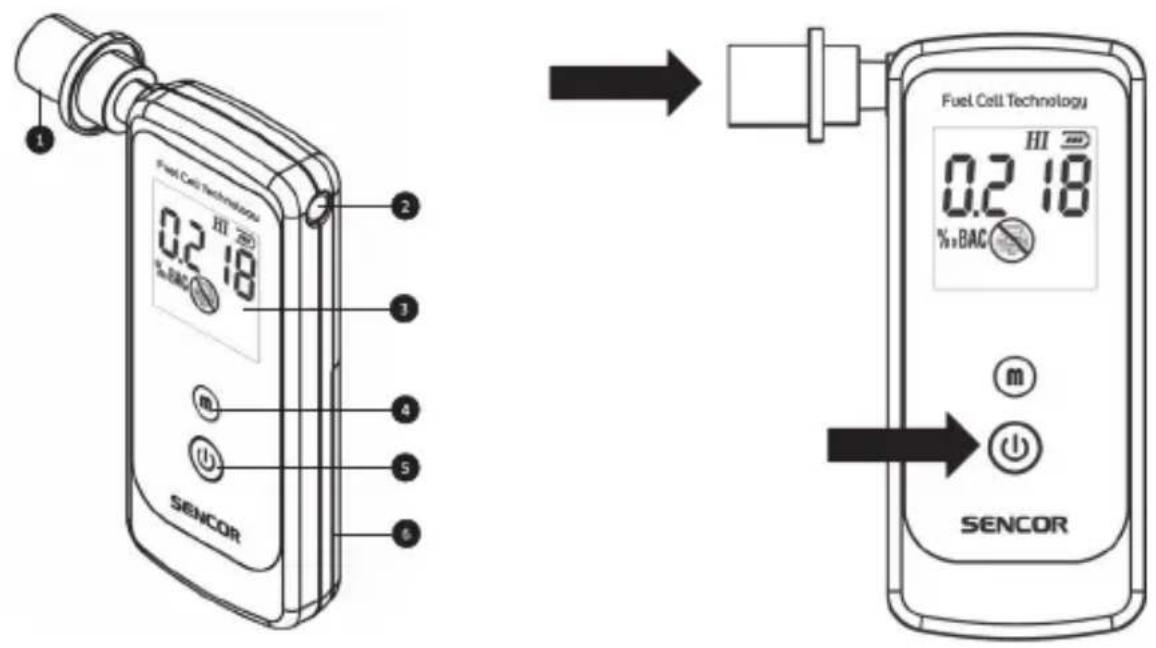

4. Device description
- Mouthpiece
- Output
- Display
- "M" button
- ON/OFF button
- Battery compartment cover

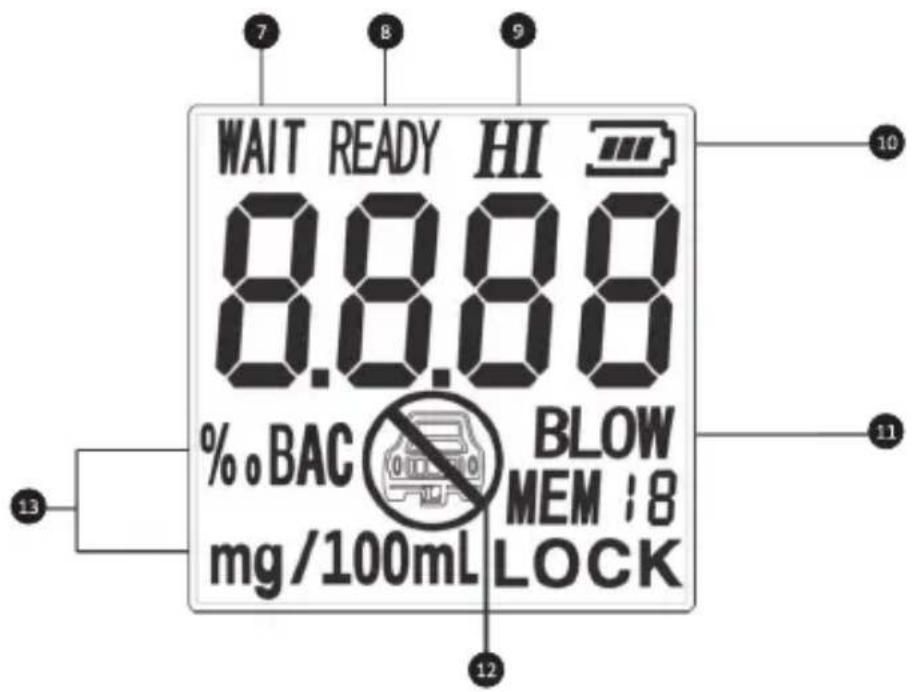

- Wait
- Ready
- Alcohol level in blood over the alert level
- Battery indicator
- Blow
- Do not drive
- Units
5. Controls

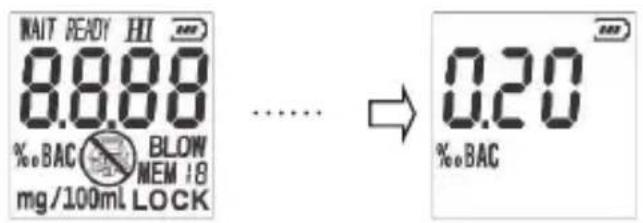

Turning the power on and off
- Press the ON/OFF button once to turn the device on.
- When the LCD display shows "ALCO", press and hold the ON/OFF button for about 2 seconds to turn the device off.

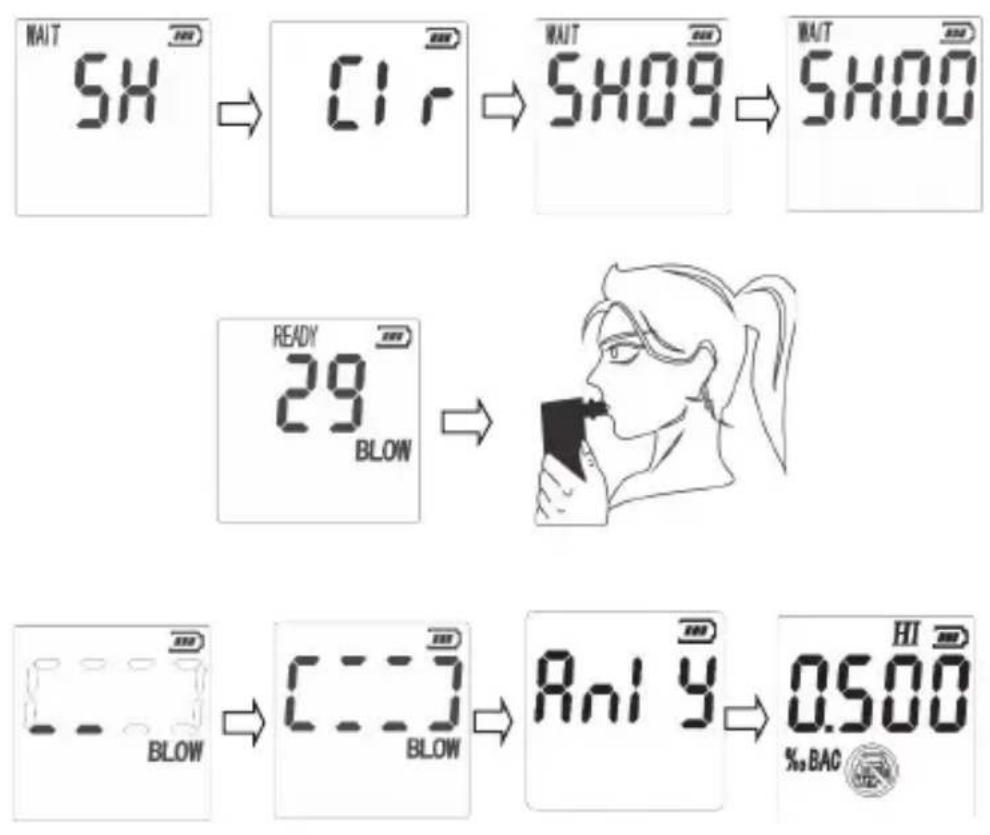

Starting breath alcohol test

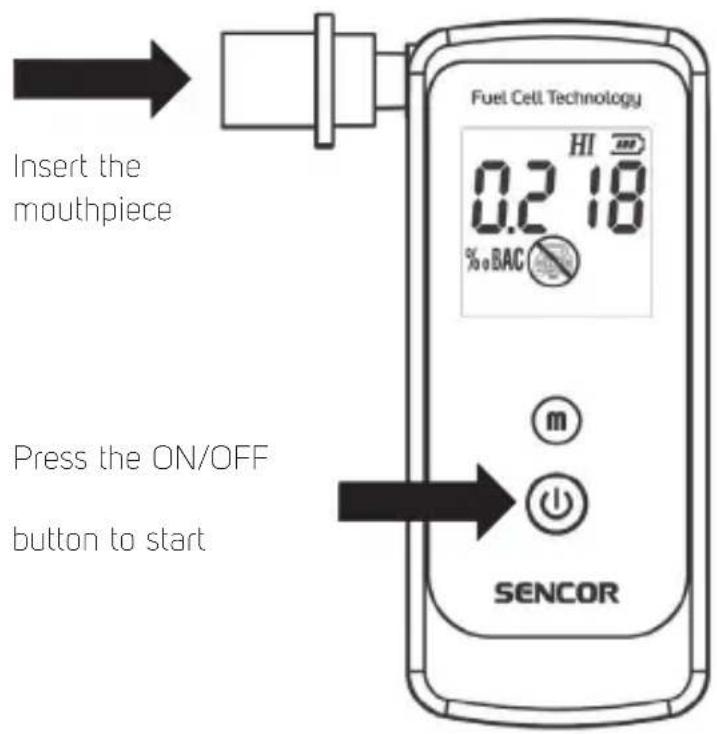

- Insert the mouthpiece
- If the device is on, the display will show "ALCO". Press the ON/OFF button once to enable the sensor heating. "WAIT" is displayed, "SH" flashes and the countdown starts ("SH09" counts down to "SH00"). As soon as the device is ready to take the sample, the display will alter between "READY" and "BLOW" flashing and a sound alert will sound; the unit will start the 30s countdown and during this time, please perform the test.
- When you are ready to blow, blow continuously using the mouthpiece for about 5-7 seconds. The sensor will detect a sample of your breath; stop blowing when you hear "beep! beep!". If the sample taking was successful, "Anly" will be flashing (analysis in progress) and then the relevant measured valued will be shown. If the blowing time was too short or if the air flow is too fine or intermittent, the LCD display will show "FLO".
- You can press the ON/OFF once for a new test.
- The test result will be shown on LCD for about 60 seconds.
Memory function
- 20 results can be stored in the memory of this device.
-
Memory retrieval: press the memory retrieve button "m" to activate memory mode, then press the "m" button again to retrieve and display the last 20 results.
-
In memory display mode, you can hold down the "m" button and the power button for 2 seconds to erase the memory. When the memory is cleared, the display will show "----".
Alcohol units and alert level settings
- Press the "POWER" button for 2 seconds to switch off the device. Hold down the "m" button and the "POWER" button to turn on the device; hold down the "m" button until the alert level and the unit are displayed. Example: 0.20 BAC or other.

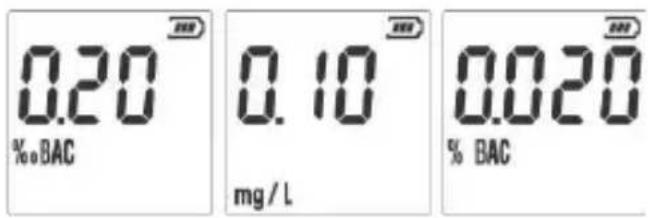

- Press the "POWER" button to switch units: %oBAC, %BAC, mg/L.

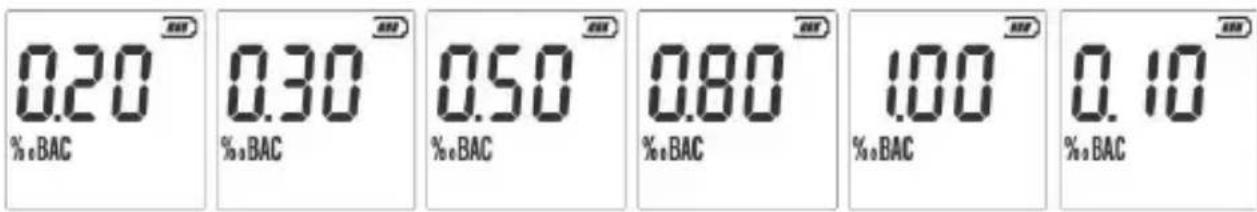

- Press the "m" button to change the alert level, e.g. 0.10, 0.20, 0.30, 0.50, 0.80, 1.00% BAC.
- Hold the "POWER" button for 2 seconds to save the settings ("SAVE"). The device will return to test mode and count to 40 for the test.
Important notes
- If you don't use the device for a long time or if you use it at low temperature, the warm-up time will be longer.
• After 5 successive tests, leave the device at rest for 5 minutes. - Store the product in dry environment at room temperature.
- Avoid extreme warmth or long-term exposure to sun.
If the indicator is blinking, change the battery.
- insert point: Do not use rechargeable batteries.
- If the difference between two successive measured values is >0.1% (0.01%), users should perform a new test.
• DO NOT BLOCK the output while taking the breath sample.
- If "FLO" is flashing on display, this is because of too low breath pressure or intermittent blowing. You can start the test again by pressing ON/OFF or the device will revert to the "ALCO" mode when "Flo" has been flashing for about 5 seconds.
6. Technical Data
SCA BA40FC
Breathalyser with electrochemical sensor (fuel cell)
Professional pre-calibrated sensor
Automatic self-cleaning
| Measuring range: 0.000-4.000‰ BAC (blood alcohol concentration) | |
| Units of measurement: %BAC or mg/L | |
| Resolution: 0.001‰ BAC | |
| Alarm at alcohol concentration: | ≥ 0.2‰ BAC (variable, see instructions) |
| Accuracy: better than ± 0.08‰ BAC at 0.2‰ BAC (+/- 0.04 mg/L at 0.10 mg/L) | |
| Memory: 20 measurements | |
| Measurement length: 5-7 s | |
| Power supply: 1 piece AAA 1.5V battery (not included) | |
| Operating temperature: 0°C to +55°C | |
| Storage temperature: 0°C to +55°C | |
| Device dimensions (H × W × D): | 110×47×18mm |
| Weight of the device: 88g | |
| Package contents: Breathalyser, 2 mouthpieces, instruction manual | |
The package includes:
Breathalyser
2 x mouthpiece
User's Manual
INSTRUCTIONS AND INFORMATION ON DISPOSING OF USED PACKAGING MATERIALS
Dispose of used packaging material at a site designated for waste in your municipality.
DISPOSING OF USED ELECTRICAL AND ELECTRONIC EQUIPMENT
This symbol on products or original documents means that used electric or electronic products must not be added to ordinary municipal waste. For proper disposal and recycling, take these products to designated collection points. Or in some European Union states or other European countries the products can be returned to the local retailer when buying an equivalent new product. Disposing of this product correctly helps save valuable natural resources and prevents damage to the environment by improper waste disposal. Ask your local authorities or collection facility for more details. In accordance with national regulations penalties may be imposed for the incorrect disposal of this type of waste.
For business entities in European Union states
If you want to dispose of electric or electronic devices, ask your retailer or supplier for the necessary information.
Disposal in other countries outside the European Union
This symbol is valid in the European Union. If you wish to dispose of this product, request the necessary information about the correct disposal method from the local council or from your retailer.
CE This product meets all the basic requirements of the applicable EU directives.
The text, design and technical specifications may be changed without prior notice and we reserve the right to make these changes.
The original version is in the Czech language.
Manufacturer's address:
FAST ČR, a.s., U Sanitasu 1621, Říčany CZ-251 01
SENCOR®
EN Warranty conditions
Warranty card is not a part of the device packaging.
This product is warranted for the period of 24 months from the date of purchase to the end-user. Warranty is limited to the following conditions. Warranty is referred only to the customer goods using for common domestic use. The claim for service can be applied either at dealer's shop where the product was bought, or at below mentioned authorized service shops. The end-user is obligated to set up a claim immediately when the defects appeared but only till the end of warranty period. The end-user is obligated to cooperate to certify the claiming defects. Only completed and clean (according to hygienic standards) product will be accepted. In case of eligible warranty claim the warranty period will be prolonged by the period from the date of claim application till the date of taking over the product by end-user, or the date the end-user is obligated to take it over. To obtain the service under this warranty, end-user is obligated to certify his claim with duly completed following documents: receipt, certificate of warranty, certificate of installation.
This warranty is void especially if apply as follows:
■ Defects which were put on sale.
■ Wear-out or damage caused by common use.
The product was damaged by unprofessional or wrong installation, used in contrary to the applicable instruction manual, used in contrary to legal enactment and common process of use or used for another purpose which has been designed for.
■ The product was damaged by uncared-for or insufficient maintenance.
The product was damaged by dirt, accident of force majeure (natural disaster, fire, and flood).
■ Defects on functionality caused by low duality of signal, electromagnetic field interference etc.
■ The product was mechanically damaged (e.g. broken button, fall).
■ Damage caused by use of unsuitable media, fillings, expendable supplies (batteries) or by unsuitable working conditions (e.g. high temperatures, high humidity, quakes).
■ Repair, modification or other failure action to the product by unauthorized person.
■ End-user did not prove enough his right to claim (time and place of purchase).
■ Data on presented documents differs from data on products.
Cases when the claiming product cannot be identified according to the presented documents (e.g. the serial number or the warranty seal has been damaged).
Authorized service centers
Visit www.sencor. for detailed information about authorized service centers.com
