SCALE TWO130B - Scale Eldom - Free user manual and instructions

Product Type	Bathroom Scale
Brand	Eldom
Model	SCALE TWO130B
Platform Material	Tempered Glass
Maximum Capacity	180 kg (397 lb)
Division	0.1 kg (0.2 lb)
Display Type	LCD
Power Supply	2 x AAA batteries (not included)
Auto-Off	Yes, after approx. 10 seconds of inactivity
Overload Indicator	Yes
Low Battery Indicator	Yes
Tare Function	Yes
Unit Switching	kg / lb / st
Dimensions (W x D x H)	30 x 30 x 2.5 cm
Weight	1.5 kg
Color	Black
Anti-Slip Feet	Yes
Cleaning Instructions	Wipe with a damp cloth; do not immerse in water
Safety	Use on a hard, flat surface; avoid dropping
Spare Parts	Batteries only (standard AAA)

Frequently Asked Questions - SCALE TWO130B Eldom

How do I change the battery in the Eldom SCALE TWO130B?

Open the battery compartment on the bottom of the scale, remove old batteries, and insert two new AAA batteries ensuring correct polarity.

Why does the scale show an error message?

If the display shows 'Err' or similar, the scale may be overloaded (exceeds 180 kg) or the batteries are low. Reduce weight or replace batteries.

How do I switch between kg and lb?

Press the unit button (usually on the bottom or side) to cycle through kg, lb, and st units. Some models require pressing and holding.

Why is the scale not turning on?

The scale may have dead batteries, or the battery contacts are dirty. Try replacing batteries and cleaning contacts with a dry cloth.

How to use the tare function?

Place an empty container on the scale, press the tare button to zero the display, then add items to weigh only the contents.

Can I use the scale on carpet?

For accurate results, use the scale on a hard, flat surface. Carpet can cause inaccurate readings and damage the sensors.

How do I clean the scale?

Wipe the glass platform and body with a soft, damp cloth. Do not use abrasive cleaners or submerge the scale in water.

What does 'Lo' mean on the display?

'Lo' indicates low battery. Replace the batteries as soon as possible to ensure accurate weighing.

Is the scale accurate?

The scale is designed for household use with an accuracy of ±0.1 kg. Calibrate by placing a known weight if needed, but it usually is pre-calibrated.

How to store the scale when not in use?

Store the scale in a dry place away from direct sunlight and extreme temperatures. Remove batteries if storing for a long period.

USER MANUAL SCALE TWO130B Eldom

Digital kitchen scale with digital display showing 26.3°F, no text or symbols on the device itself

Eldom Sp. z o.o.

SKALA OCENY MIĘŚNI I KOŚCI

- The device can be used by children aged 8 and older and by persons with limited physical, sensory or mental capabilities, or persons without sufficient experience and knowledge only under supervision or if previously instructed on the safe use of the appliance and the possible risks. Children shall not play with the appliance. Cleaning and maintenance that are the responsibility of the user shall not be carried out by children without supervision. Protect the appliance and the power cord against children under 8 years old.

• For home use only
• Keep the scale in dark and dry place
• While storing do not press with other objects
• The precision of the scales measurements depends on the way of its maintenance
• Repairs can be made only by authorized service center. All modifications or use of parts other than original is forbidden and may have adverse effects on the operational safety of the appliance

ENVIRONMENTAL PROTECTION

• the appliance is made of materials which can be recycled,
• it should be handed over to the applicable collection point for the recycling of electrical and electronic equipment

TECHNICAL DETAILS

• weight capacity 150kg (330lb)
• resolution 100g (0,2lb)
• accuracy of measurement: 1kg
• power: CR2032

This product is specially designed to test body fat/ hydration, help keep a close eye on the daily change of your body fat, hydration and weight, providing information for your reference. Base on the analysis of your height, weight and age etc., it tells your body fat status and gives you an idea of your body condition. Please read this instruction carefully before use.

During Measuring

1. Always remove your shoes and socks, wipe clean your feet before using.
2. It is advisable to take measurement at the same time of the day.
3. Measured result could be misleading after intensive exercise, excessive dieting or under extreme dehydration condition.
4. Always weigh/use the scale on a hard and flat surface. When you are measuring, please keep still.
5. The body fat/hydration measured data of the following people may have deviation:
6. Children under 10 or adult over 70 (can only use the device under normal weighing mode)
7. Body building athletes or other occupational athletes.
8. People with the following conditions should not use the device:
9. Pregnant women
10. Those on dialysis treatment
11. Those who use heart pacemaker or with other implanted medical device.

Safety Warning

The Fat% Hydration% Muscle% content evaluated by this device is only for reference (not for medical purpose). If your Fat% Hydration% content is over/below normal level, please consult your doctor for more advice.

BATTERY

Used batteries should be discarded in special collection bins.

Please remove the isolation sheet from the battery contact before use.

BATTERY REPLACEMENT:

1. Open the battery cover at the bottom of the device.
2. Carefully lever the battery and take it out.
3. Insert a new battery and press it gently until the retaining clip snaps in place.
   Please pay attention to the polarization.
4. Close the lid.

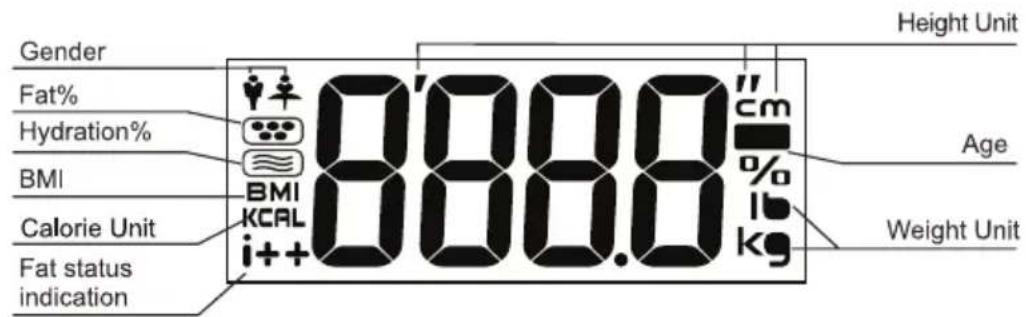

Key Illustration (Touch button)

SET Turn on the scale and prompt to next parameter. (Please refer to the Setting Personal Parameter overleaf)

Advance the value by one interval each press. Continuous pressing will speed up the advance of value.

Decrease the value by one interval each press. Continuous pressing will speed up the decrease of value.

TO SET WEIGHT UNIT

- press "SET" and it will get ready for use when screen shows

"0,0kg" after "8888" and you can press ▲ and ▼ to switch within different units (kg/lb)

FOR WEIGHT ONLY

• Press "SET"
• Step on the scale gently, position your feet evenly near the center and keep ypour body still until the scale stabilizes your weight.
• The scale will be auto off if no further using.

Press ▲ or ▼ key to select a number from P0 to P9 as your personal code.

Please press "SET" to confirm

Press ▲ or ▼ key to choose ▼ Male or ♀ Female.

Please press "SET" to confirm

Press ▲ or ▼ key to reach your target age (10-80).

Please press "SET" to confirm.

Press ▲ or ▼ key to reach your target height (100-240 cm).

Please press "SET" to confirm.

Body fat and hydration ranges table.

Age	Female Male				Display
	Fat %	Hydration %	Fat %	Hydration %
<=30	4.0-20.5	66.0-54.7	4.0-15.5	66.0-58.1	Underfat
	20.6-25.0	54.6-51.6	15.6-20.0	58.0-55.0	Healthy
	25.1-30.5	51.5-47.8	20.1-24.5	54.9-51.9	Overfat
	30.6-80.0	47.7-13.8	24.6-80.0	51.8-13.8	Obese
>30	4.0-25.0	66.0-51.6	4.0-19.5	66.0-55.4	Underfat
	25.1-30.0	51.5-48.1	19.6-24.0	55.3-52.3	Healthy
	30.1-35.0	48.0-44.7	24.1-28.5	52.2-49.2	Overfat
	35.1-80.0	44.6-13.8	28.6-80.0	49.1-13.8	Obese

Step on the scale gently and keep your bare feet in touch with the electrodes. Stand still and erect to get your weight measured and your body fat, hydration, muscle and bone percentage will be displayed respectively on the screen within seconds. Thes results will be repeated for two times and the scale will be auto off no further using.

The personal data will be stored once you set. Just confirm your code when you use scale again and your other information will be showed so there is no need to program them again.

Body muscle and bone ranges table

Age	Female		Male
	Muscle %	Bone %	Muscle %	Bone %
16-50	>31	>8	>38	>10

BMI parameter

Low Normal		Overweight	Fat
<18.5	18.5~25	25~30	>30

Warning Indications

Low Battery Indication.

The battery power is running low, please replace with a new battery.

Over-load Indication

The weighing subject on the platform exceeds the maximum

capability of scale. Please step off to avoid damage.

Rate too low level of fat.

Too high a level of fat.

Message redo the measurements.

If body percentage is less than 5%, then screen will show "FATL". If more than 50% it will display "FATH" and "ERR2" indicates that the measuring makes an error.

ENVIRONMENTAL PROTECTION

• the appliance is made of materials which can be recycled,
• it should be handed over to the applicable collection point for the recycling of electrical and electronic equipment

BEZPEČNOSTNÍ DOPORUČENÍ

STUPNICE HODNOCENÍ SVALŮ A KOSTÍ

Věk	Žena		Muž
	Svaly % Svaly Kosti %			Kosti %
16-50	>31	>8	>38	>10

PARAMETR BMI

SKALA OCENY MIĘŚNI I KOŚCI

vek	žena		muž
	Pohlavie %	Kosti %	Kosti %	Pohlavie %
16-50	>31	>8	>38	>10

PARAMETR BMI

The disposal of used electrical and electronic equipment (applies to European Union countries and other European countries with separate waste-collection systems).

This symbol on the product or its packaging indicates that it should not be classified as household waste. It should be handed over to an appropriate company dealing with the collection and recycling of electrical and electronic equipment. The correct disposal of the product will prevent potential negative consequences for the environment and human health resulting from hazardous substances present in the product. Electrical devices must be handed over to restrict their re-use and further treatment. If the device contains batteries, remove them, and hand them over to a storage point separately. DO NOT THROW EQUIPMENT INTO THE MUNICIPAL WASTE BIN. Material recycling helps to preserve natural resources. For detailed information on how to recycle this product, please contact your local authority, the recycling company, or the shop where you bought it.
