Product Type	Leaf Blower
Brand	Fieldmann
Model	FZF 70725-0
Power Source	Corded Electric
Motor Power	2800 W
Air Speed (Maximum)	270 km/h
Air Volume (Maximum)	14 m³/min
Speed Settings	Variable Speed Trigger
Weight	4.5 kg
Dimensions (L x W x H)	45 x 30 x 25 cm
Cable Length	10 m
Noise Level	96 dB(A)
Vibration Level	2.5 m/s²
Protection Class	IPX4 (Splash Proof)
Main Functions	Blowing, Vacuuming (if applicable), Mulching
Bag Capacity	45 L (if vacuum function)
Maintenance	Clean air vents, check power cord, lubricate motor bearings annually
Safety Features	Double insulation, trigger lock-off, overload protection
Spare Parts Availability	Replacement brushes, fan impeller, switch, power cord
Repairability	User-serviceable with basic tools; professional repair recommended for motor
Warranty	2 years

Frequently Asked Questions - FZF 70725-0 Fieldmann

How do I start the leaf blower?

Plug the blower into a power outlet, then press and hold the trigger lock-off button while squeezing the trigger.

Can I adjust the air speed?

Yes, the FZF 70725-0 has a variable speed trigger. The harder you squeeze, the faster the air speed.

Is it suitable for wet leaves?

It can handle damp leaves, but for best results use it on dry leaves. Wet leaves may clog the blower tube.

How do I clean the blower?

Unplug the blower, then wipe the exterior with a soft cloth. Clean the air intake vents with a brush. Do not use water.

What safety precautions should I take?

Always wear safety goggles and ear protection. Keep the power cord away from the blower tube. Never operate near children or pets.

Does it come with a vacuum function?

The FZF 70725-0 is primarily a blower. Check if your model includes a vacuum bag and conversion kit; some versions do.

What is the power cord length?

The blower comes with a 10-meter power cord for extended reach.

How do I store the blower?

Store in a dry, dust-free area. Coil the power cord loosely and hang the blower by its handle or place it on a shelf.

Where can I get spare parts?

Visit the Fieldmann website or contact authorized service centers for genuine spare parts.

What should I do if the blower suddenly stops?

It may have overheated or the overload protection triggered. Unplug it, wait 15 minutes, then try again. If it fails, check the power cord and fuse.

USER MANUAL FZF 70725-0 Fieldmann

Abstract black-and-white spiral pattern with no text or symbols

FIELDMANN®

Home & Garden Performance

20V _Li-H

FASTPOWER

Black Fieldmann Gas Freezer with green handle and black base (no visible text or symbols on device body)

FZF 70725-0

English 4-21

Čeština....22-40

Slovenčina 41-60

Magyarul 61-80

Polski 81-100

1

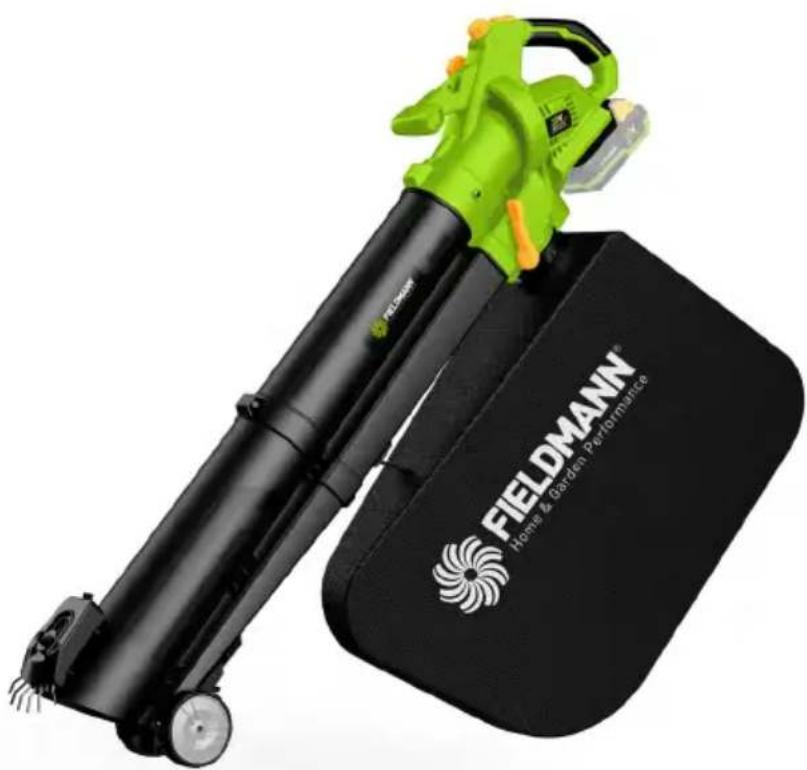

CORDLESS LEAF BLOWER USER'S MANUAL 20V FASTPower

Thank you for purchasing this CORDLESS LEAF BLOWER. Before you start using it, please carefully read this user's manual and save it for possible future use.

TABLE OF CONTENTS

1. General power tool safety warnings....5
2. Leaf blower safety warnings....8
3. Symbols....9
4. Description....10
5. Montage....10
6. Operation....16
7. Storing and transport 17
8. Trouble shooting 18
9. Disposal....19
10. Technical data....20
11. Declaration of conformity....21

1. GENERAL POWER TOOL SAFETY WARNINGS

This device is suited solely for the blowing of light and dry materials such as leaves, garden waste, grass, small branches, and small pieces of paper.
This appliance is intended for use on private properties only.
This product is not intended for commercial use. Generally acknowledged accident prevention regulations and enclosed safety Instructions must be observed.
* Only perform work described in these Instructions for use. Any other use Is Improper. The manufacturer will not assume responsibility for damage resulting from such use.

WARNING!

Read and understand all instructions. Failure to follow the warnings and Instructions may result in electric shock.fire and/or serious injury. Save all warnings and instructions for future reference. The term „power tool“ in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

Work area safety

Electrical safety

a. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b. Do not operate power tools In explosive atmospheres, such as In the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c. Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
a. Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools.

Unmodified plugs and matching outlets will reduce risk of electric shock.

b. Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock If your body is earthed or grounded.
c. Do not expose power tools to rain or wet conditions.

Water entering a power tool will increase the risk of electric shock.

d. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

Personal safety

a. Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of Inattention while operating power tools may result in serious personal injury.
b. Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

c. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on Invites accidents.
d. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e. Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g. If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

Power tool use and care

a. Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.

b. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

c. Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally

d. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

e. Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

f. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g. Use the power tool, and accessories In accordance with these Instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those Intended could result in a hazardous situation.

h. This appliance is not intended for use by persons (Including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or Instruction concerning use of the appliance by a person responsible for their safety.

I. Children should be supervised to ensure that they do not play with the appliance.

Battery tool use and care

a. Ensure the switch is in the off position before inserting battery pack. Inserting the battery pack into power tools that have the switch on invites accidents.
b. Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
c. Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
d. When battery pack is not in use, keep it away from other metal objects like paper clips, coins, keys, nails, screws, or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.

e. Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or bums.

Service

a. Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

ADDITIONAL SAFETY INSTRUCTIONS

Wear ear protectors.

Exposure to noise can cause hearing loss.

Loss of control can cause personal injury.

If possible, always use clamps or a vice to hold your work piece.
* Always switch off before you put the tool down.
* Ensure that the lighting is adequate.
Do not put pressure on the tool, such that it slows the motor down.
* Keep the area free of tripping hazards.
Do not let anyone under 18 years operate this tool.
* Only use accessories In good condition.
Do not touch the blade after operation. It will be very hot.
- Keep your hands away from under the workpiece.
* Never use your hands to remove sawdust, chips or waste close by the blade.
Rags, cloths, cord, string and the like should never be left around the work area.
* Support the work properly.
* Periodically check that all nuts, bolts and other fixings are properly tightened.
* Wear a dust mask if the cutting or sanding operation creates dust.

If you are Interrupted when operating the tool, complete the process and switch off before looking up.

When using the tool, use safety equipment Including safety glasses or shield, ear defenders, and protective clothing Including safety gloves.

If In doubt, do not plug in the tool. Using a power source with a voltage less than the nameplate rating is harmful to the motor.

The tool must be used only for its prescribed purpose. Any use other than those mentioned in this Manual will be considered a case of misuse. The user and not the manufacturer shall be liable for any damage or injury resulting from such cases of misuse.

To use this tool properly, you must observe the safety regulations, the assembly Instructions and the operating instructions to be found in this Manual. All persons who use and service the machine have to be acquainted with this Manual and must be informed about its potential hazards.

Children and frail people must not use this tool. Children should be supervised at all times If they are in the area in which the tool is being used, it is also Imperative that you observe the accident prevention regulations In force In your area. The same applies for general rules of occupational health and safety.

The manufacturer shall not be liable for any changes made to the tool nor for any damage resulting from such changes. Even when the tool is used as prescribed it is not possible to eliminate all residual risk factors. The following hazards may arise in connection with the tool's construction and design:

Damage to the lungs If an effective dust mask is not worn.

Damage to hearing If effective ear defenders are not worn.

WARNING!

To reduce the risk of Injury, the user must read and understand the operator's manual before using this product.

SAVE THIS MANUAL FOR FUTURE REFERENCE

2. LEAF BLOWER SAFETY WARNINGS

When working with the device, always maintain a safe distance and natural body position.
* Always hold the device firmly in hand.
Before starting to work, check the working area for animals and objects. Remove all objects that may be slung away or become jammed in the cutting tool.
* No other persons or animals may be present within an area of 5 m around the working area, as they may otherwise by Injured by objects being slung away.
* Only work in good light and vision conditions.
Do not work above head height! Do not lean forward or back!
The operator must wear tightly fitting clothing. Avoid wearing loose clothing. Wear sturdy shoes and long trousers.
Take care when walking backwards. Danger of stumbling!
Never work in the rain.
Blowing of heavy materials such as metal, stones, branches, fir cones or broken glass is expressly forbidden.
When working with the device, ensure that there is sufficient lighting.
* Always wear the required personal protective equipment.
* Be careful of the dust you have raised and flying objects. Especially dangerous is the rebound effect on walls or walls of houses.
Do not direct the device at people or animals when blowing.
Before starting to blow, loosen foreign bodies with a rake or broom.
The machine may only be operated during sensible hours - not too early in the morning or too late in the evening, as it may disturb other people.
The times listed by the local authorities must be adhered to.
The whole blower nozzle piece must be used so that the airstream can work close to the ground.
* Heed children, pets, open windows, and blow the foreign bodies safely away.

3. SYMBOLS

Danger of injury!

Beware of hurled-away objects.

Keep bystanders away.

Keep other persons in distance!

WARNING! When operating the device, take care that no other persons are nearby (safe distance: 5m). This is particularly valid for children and animals.

Read the Instruction Manual attentively prior to use.

Protect the tool from the damp and never expose it to rain!

Guaranteed sound power level L_wa 96 dB (A)

Use ears protectiove equipment

Use eyes protective equipment

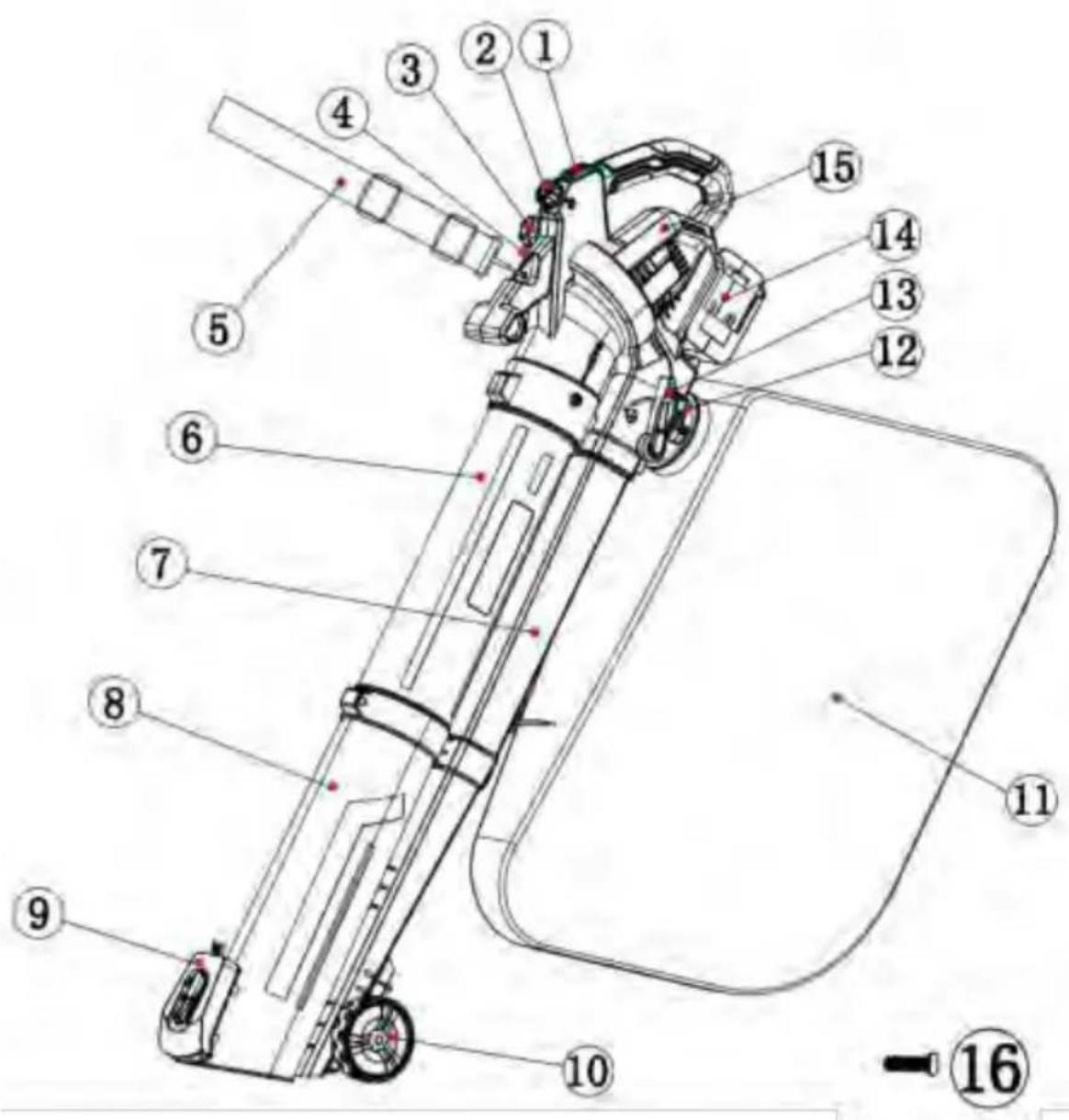

4. DESCRIPTION

1. Acceleration key
2. Speed control knob
3. Knob
4. Transparent cover
5. Shoulder strap
6. Upper duct
7. Blower duct
8. Downwind duct

9. Huck

10. Huck

11. Wheels
12. Vacuum cleaner bag
13. Vacuum cleaner bag support
    13 Functional lever
14. Battery pack bracket
15. Housing
16. Bolt

5. MONTAGE

Fig. 1

Fig. 2

Original operating instructions

Fig. 3

Fig. 4

Technical line drawing of a mechanical assembly with two wheels and a cylindrical component (no text or symbols)

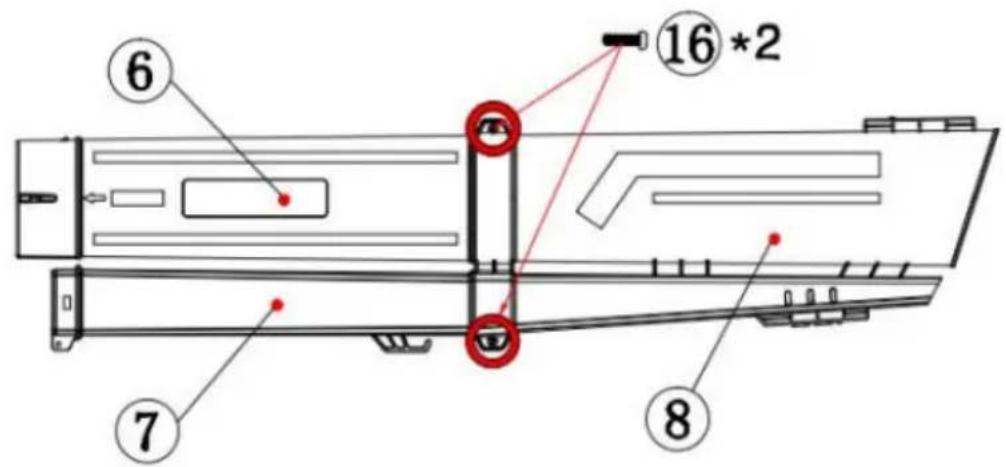

Assembly of the canal

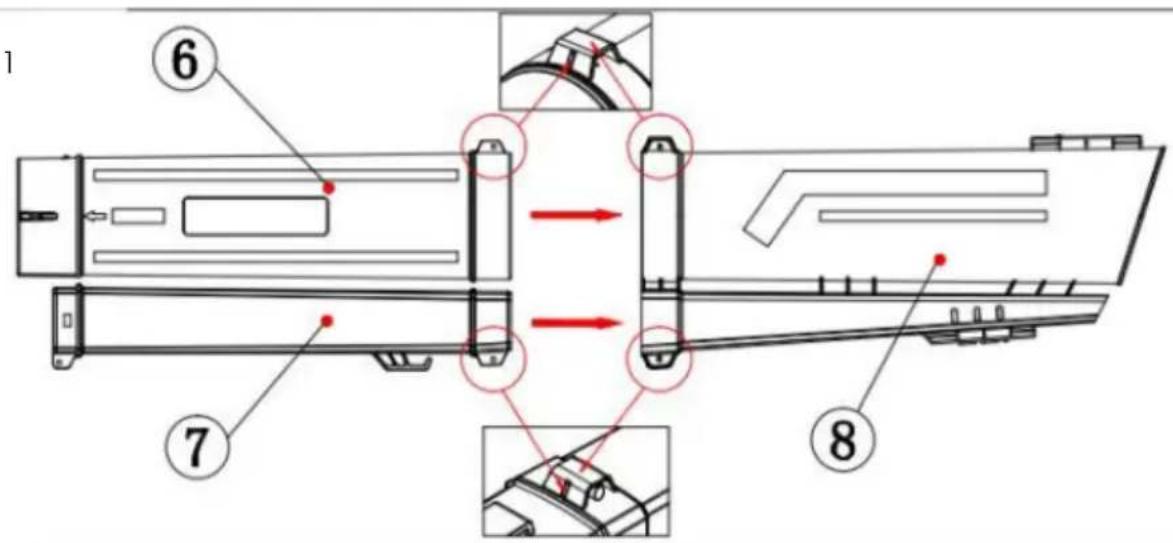

◆ Slide the downwind duct into the upwind duct (Figure 1).

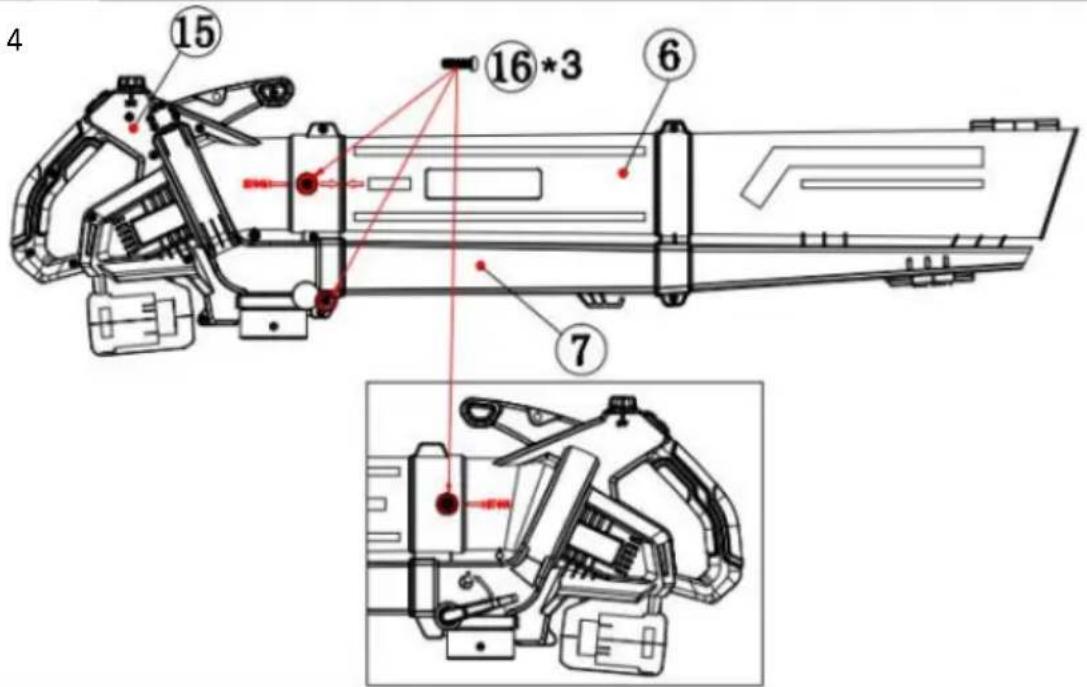

* Insert the provided fixing screws and fix with a Phillips screwdriver, securing the upper and lower air ducts together (Abb 2).

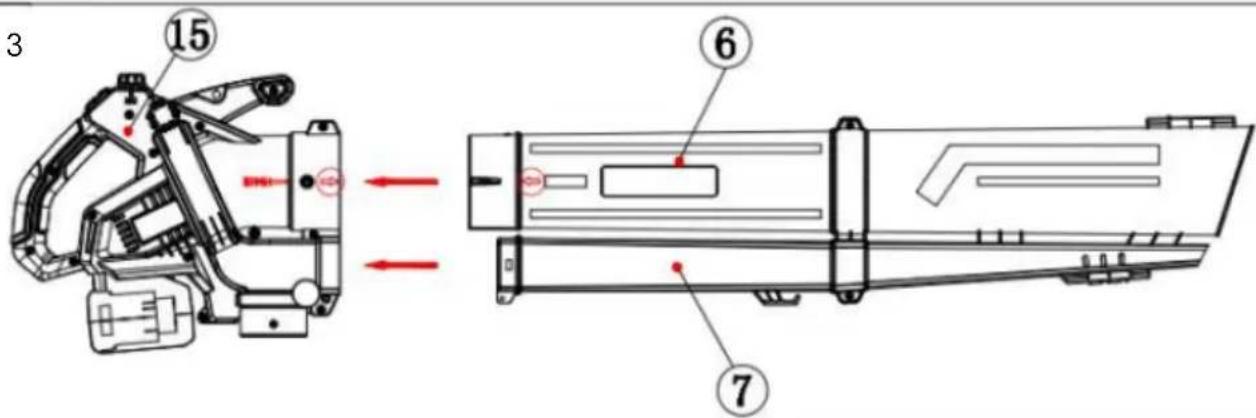

* Push pipe assembly into housing (Abb 4).

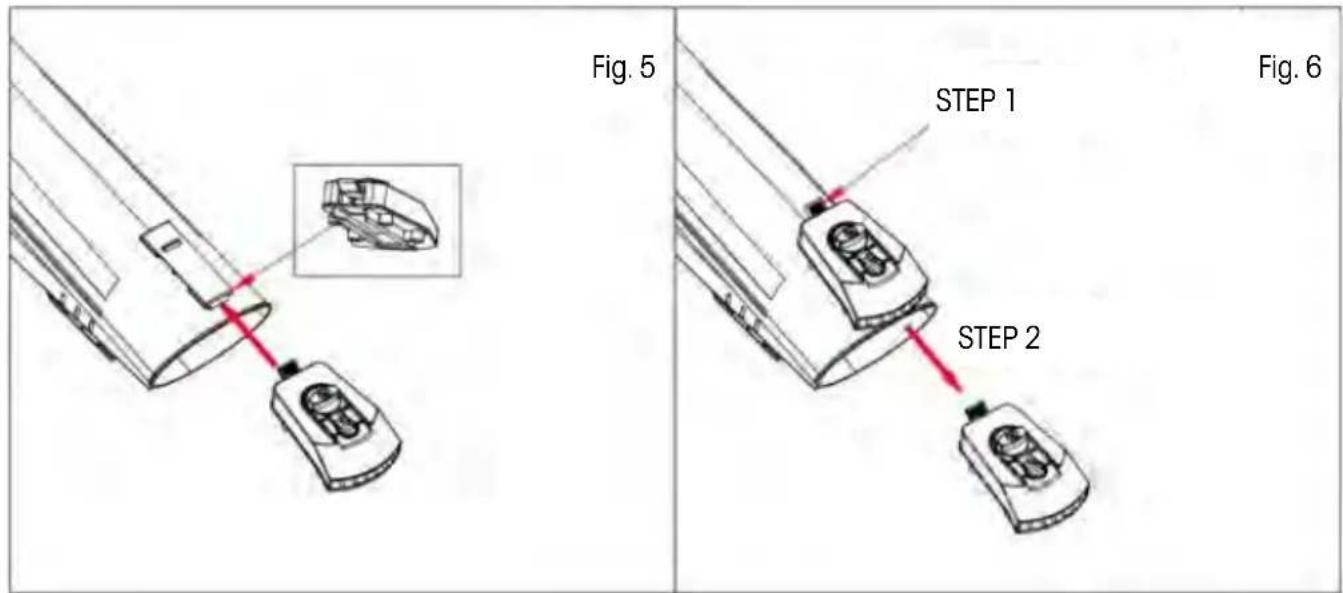

Locking Bolt (Fig. 5)

Assembling arm

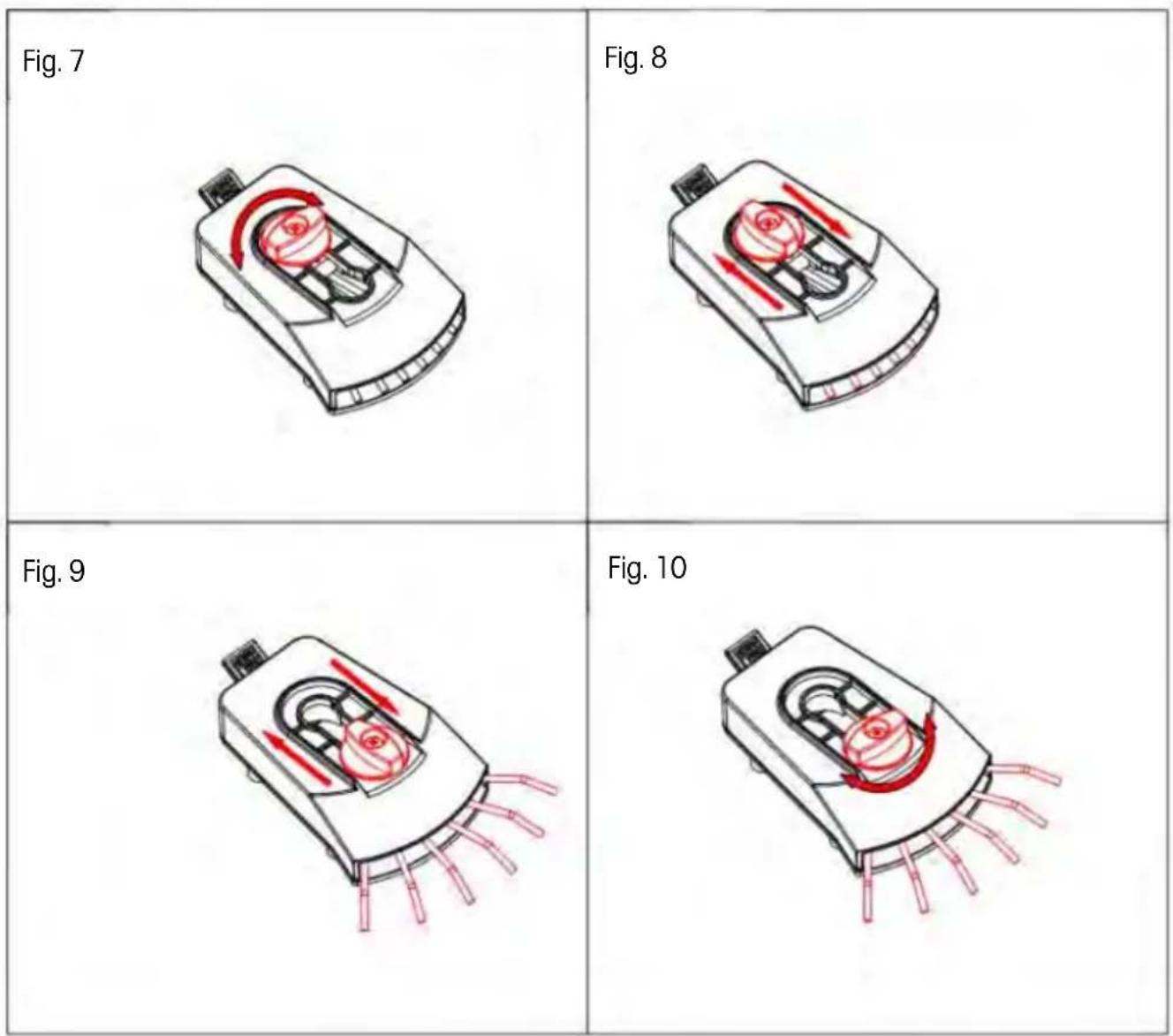

* Insert the rake (9) into the slot and press it up (Fig. 5) to remove the rake (9) by pressing the button of the rake (9) and pushing it down (Fig. 6).
* Turn the button on the rake and slide it up and down. Turn the button again to put the rake in place (Figure 7/8/9/10).

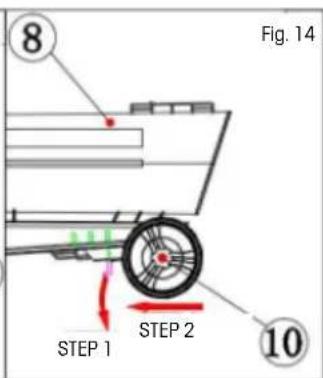

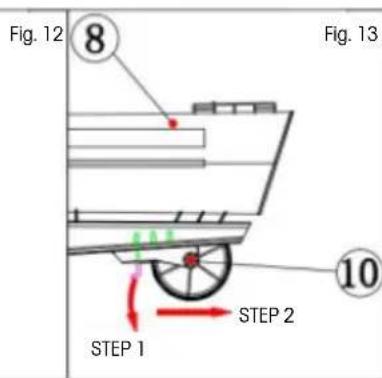

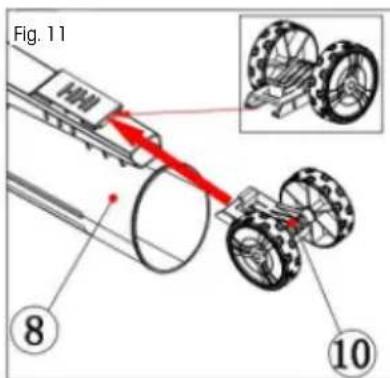

Installing wheel accessories

Clip the wheel (10) into the slot and press upward until the wheel is engaged. (Figure 11/12).

* Press the button on the wheel (10) to move the wheel (10) to the desired position, altogether 3 positions (Fig. 13/14)

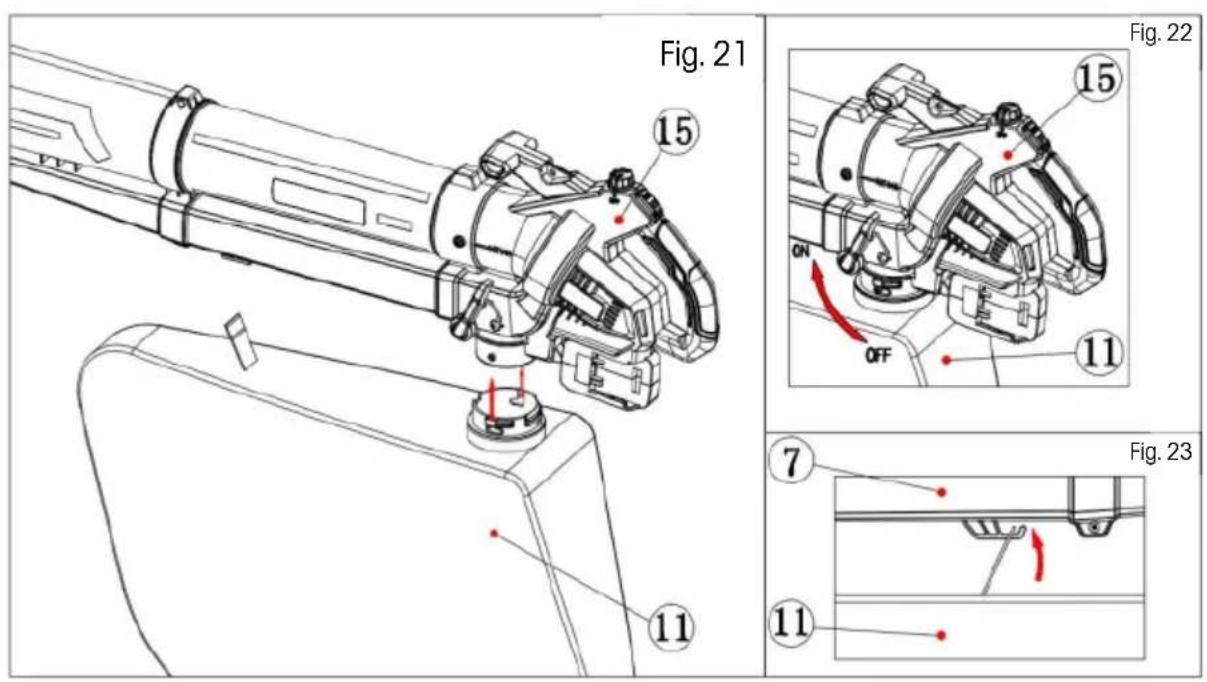

Assembly of vacuum bag

* F stirring the inlet connector on the vacuum bag (11) until it is locked in the lower part of the body. (Figure 1/22).
Secure the clip on the collection bag on the hook under the upper pipe. (Figure 23).

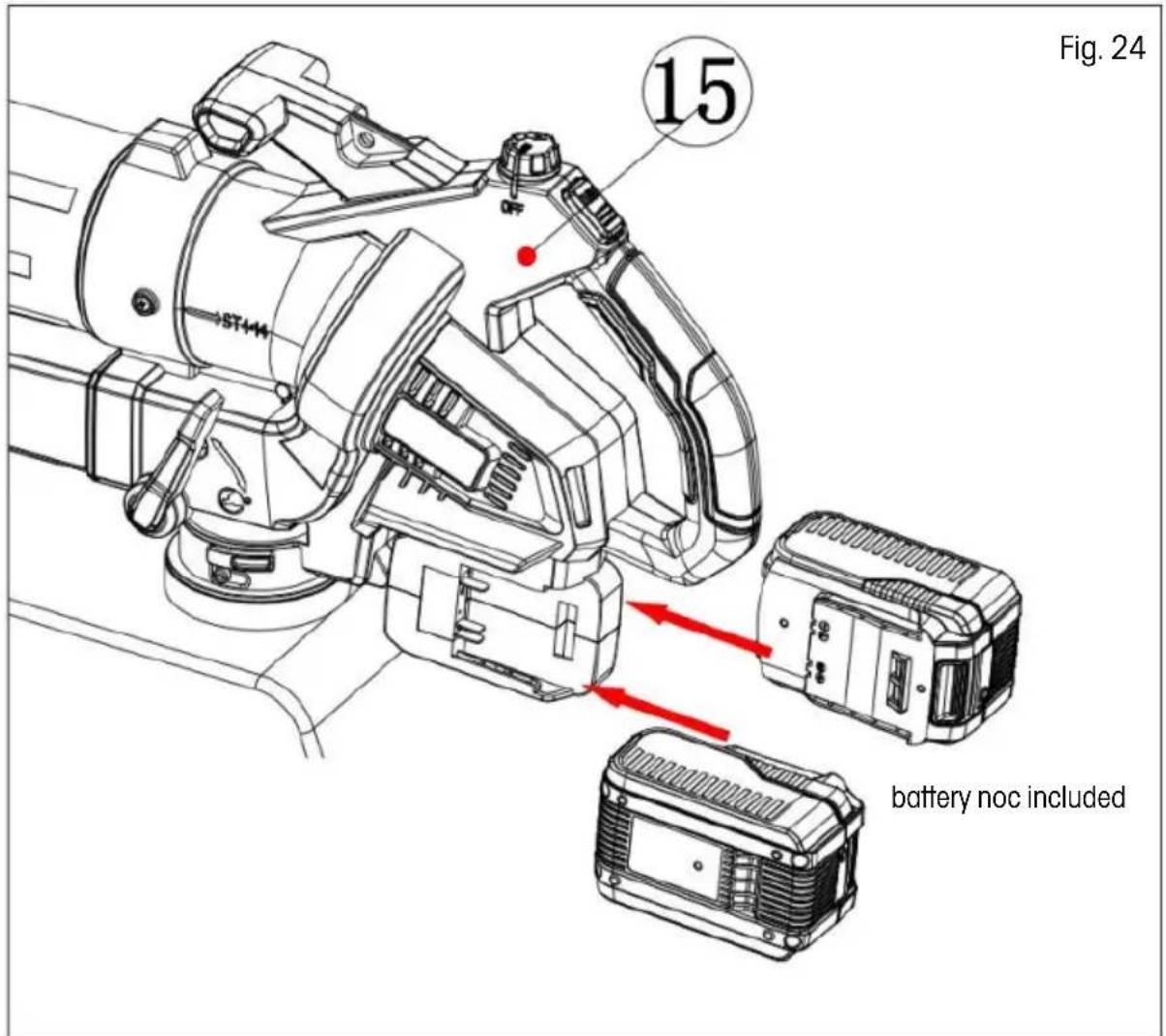

Assembly of batteries

Warning! Please check the battery pack on/off before checking the battery pack. The closing speed controller keeps the thumb wheel in the "closed" position to prevent accidental start. (See "Operations" for details.)

Original operating instructions

Hold the tools and battery pack when holding the battery pack. If you don't hold the battery pack, you may slip from your hand, damage the batteries and tools and cause injury.
* Always close the tool before opening and removing the battery pack. To remove the battery pack, press the release button and pull it out... To install the battery pack, align the tongue of the battery pack with the groove in the housing and insert the battery pack completely until you hear a click. If you don't hear, the battery pack could fall out of the tool, hurting you and others. (Figure 24)
Caution! Do not use force when installing the battery pack. If this is, if the battery pack is not easy to insert, it will be inserted incorrectly.
⚠ Warning! Check whether the switch is closed before inserting or unplugging the battery pack.
⚠ Warning! Read, understand and follow the instructions in the section "Charging Process".

6. OPERATION

On/off

The on/off speed control button (2) is located at the front of the rear handle, which is used to switch on and off the blower and is also a variable controller for motor speed.
To switch the blower to On, scroll On's speed control button (2).
Turn off the speed controller until the engine is running at the required speed.
* Press the acceleration button (1) and the machine reaches the maximum power (Figure 17/18).
To turn off the fan VAC, turn the speed control button (2) of the on/off speed control to the "off" position. (Figure 17/18)

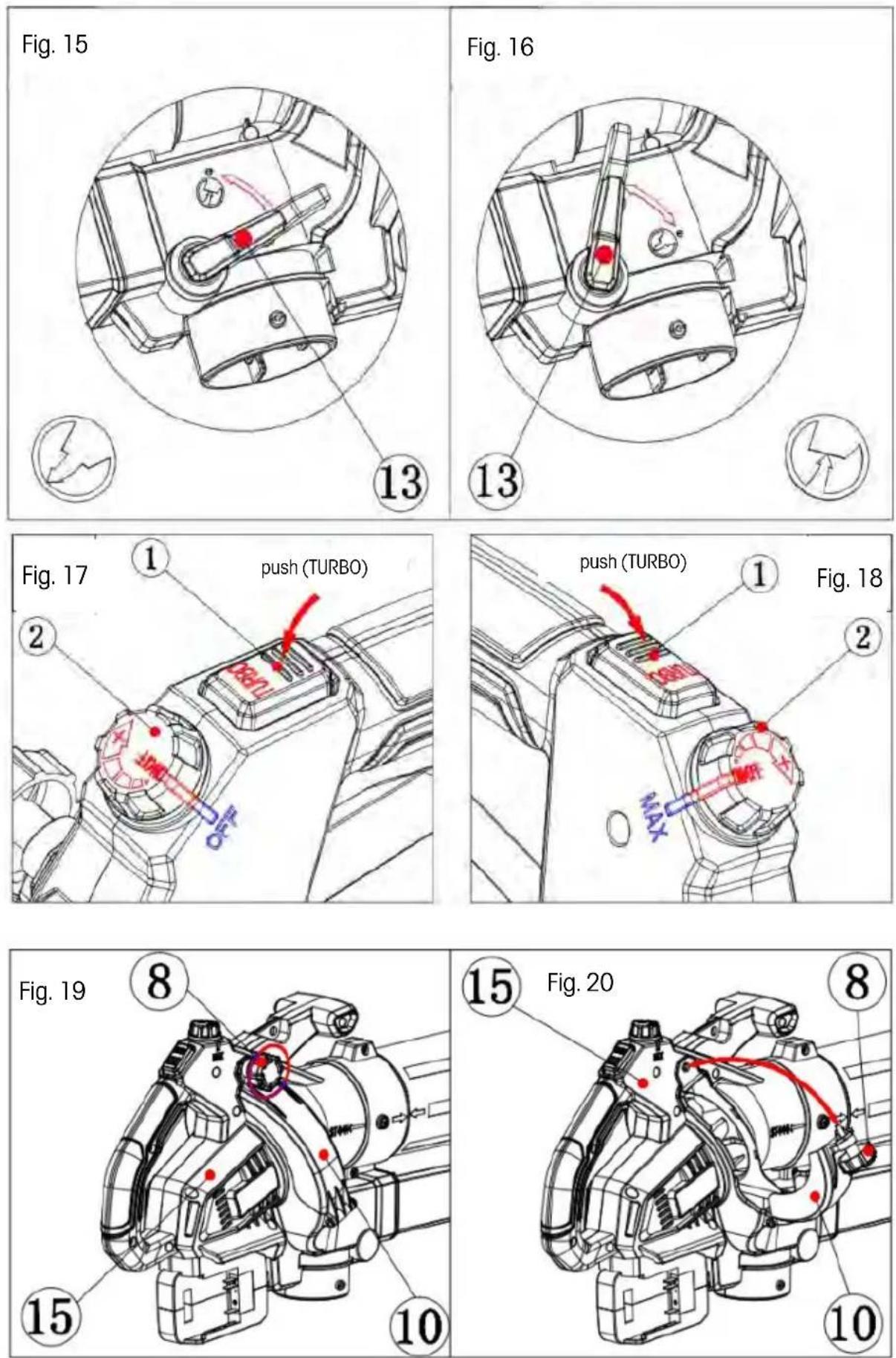

Functional lever (13)

Mode of functional rod controlling fan suction cup.
* Press the function lever into position to start the vacuum mode. (Fig. 15) Press the function lever into position to start the blower mode (Fig. 16)

Use of spray gun

⚠ Watch out! When using the blower suction cup, do not let the collection bag rub on the floor.

If the collection bag rubs against the ground, it will soon leave a hole in the collection bag Carry.

Blowing mode

Hold the blower on the back handle in one hand and the vacuum cleaner on the front handle in the other.
Sweep the floor with a bottom pipe 5-10 cm above the ground or from side to side.
Move the fan slider forward slowly to block the accumulated sundries in front.
Most dry blowers are suitable for low speed rather than high speed.
High-speed bubbles are most suitable for heavier objects, such as large fragments or gravel.

Note: The collection bag does not need to be installed in blower mode.

Vacuum/cover mode

⚠ Warning! Collection bag must be installed in vacuum/cover mode.

Once you blow the fragments/leaves into a pile, you can switch to vacuum/cover mode to collect the fragments. Hold the device firmly, reach the Sucton port at a distance of 5-10 cm from the ground of the device, and collect debris by sweeping Acton.
Debris flows into the collection bag. Objects like small leaves and twigs are covered as they pass through the fan housing. In order to prolong the service life of the bag and optimize its performance, the bag is often emptied.
Easily move from one pile of rubble to another by sliding on the wheels.
When the bag is full, the suction will decrease. When this happens, turn the blower off the vac by turning the thumb wheel on/off for speed control in the "off" position.
Remove the battery pack.
Remove the collector's bag and empty the debris.

7. CLEANING AND MAINTENANCE

DANGER!

Risk of injury! Before any maintenance or cleaning work:

Remove the battery.
Let the device cool down.

Dismantling the device

* Press the release button (3) and remove the blower tube (4) from the device.

Cleaning the machine

Remove any coarse dirt.
Wipe the appliance with a slightly damp cloth.

8. STORING AND TRANSPORT

Storing

DANGER!

Danger of injury! Make sure no unauthorised persons can gain access to the appliance!

Store the appliance where it is dry and well ventilated.

Transport

* Secure the appliance against slipping.
If shipping, use the original packaging wherever possible.

9. TROUBLE SHOOTING

DANGER!

Risk of injury! Improperly performed repairs can lead to the device not functioning safely. This endangers yourself and your environment.

Malfunctions are often caused by minor faults. You can easily remedy most of these yourself. Please consult the following table before contacting the vendor. You will save yourself a lot of trouble and possibly money too.

Fault/malfunction Cause Remedial measure
Device does not work.	Battery not slotted in correctly? Slot battery into place.
	Battery pack discharged? Charging the battery pack section.
	Battery pack defective? Is the device defective?	Contact your nearest service point.

If you can't fix the fault yourself, contact your nearest service point. Please be aware that any improper repairs will also invalidate the warranty and additional costs may be incurred.

10. DISPOSAL

The machine, rechargeable batteries, accessories and packaging should be sorted for environmentalfriendly recycling.

Do not dispose of power tools and batteries/rechargeable batteries into household waste!

Only for EC countries:

According to the European Guideline 2012/19/EU, power tools that are no longer usable, and according to the European Guideline 2006/66/EC, defective or used battery packs/batteries, must be collected separately and disposed of in an environmentally correct manner.

INSTRUCTIONS AND INFORMATION ON DISPOSING OF USED PACKAGING MATERIALS

Put any used package material to the place determined by the municipality for waste disposal.

DISPOSAL OF USED ELECTRIC AND ELECTRONIC EQUIPMENT

This symbol on products or accompanying documents means that used electric or electronic products must not be put to ordinary municipal waste. Hand over such products to determined collection points for proper disposal, restoration and recycling. Alternatively, in some countries of the European Union or other European countries you can return your products to your local dealer when you buy an equivalent new product. By dutiful disposal of this product you can preserve precious natural resources and you help prevent any potential adverse effects on the environment and human health which could be the results of wrong waste disposal. Ask your local authority or the nearest collection point for additional details. In case of improper disposal of this waste kind penalties can be imposed in accordance with national regulations.

For companies in the European Union countries

Should you want to dispose of electric and electronic devices, ask your dealer or vendor for necessary information.

Disposal in other countries outside the European Union

Should you want to dispose of this product, ask your local authorities or your dealer for necessary information about disposal method.

This product fulfils all basic requirements of the EU directives that apply to it.

Text, design and technical specifications can change without prior notice and we reserve the right for their change.

User manual in the original language.

11. TECHNICAL DATA

Mode- FZF 70725-0
Evaluation 2 x 20V
CapacityCollection bag:	45 litres
No loading speed: NO : 4700-14000min	^-1 Turbocharging: 17000min ^1

12. DECLARATION OF CONFORMITY

FAST®

FAST ČR, a.s.

U Sanitasu 1621, 251 01 Ríčany, Czech Republic

tel.: [phone], fax: [phone]

EU DECLARATION OF CONFORMITY

Product / brand: Cordless Leaf Blower/ Vacuum / FIELDMANN

Type / model: FZF 70725-0 as factory model GY 2284

DC 40,0V (battery), Class II, IPXO

L_PA=79,1 dB(A),L_WA=101 dB(A)

Manufacturer: FAST ČR, a.s.

U Sanitasu 1621, 251 01 Ríčany, Czech Republic

VAT no: CZ24777749

This declaration of conformity is issued under the sole responsibility of the manufacturer.

The object of the declaration described above is in conformity with the relevant Union harmonization legislation:

Directive MD 2006/42/EC Directive EMC 2014/30/EU

Directive NEOE 2000/14/EC Directive RoHS 2011/65/EU

The relevant harmonized standards and the other technical specifications:

EN 60335-1:2012+A15 EN IEC 55014-1:2021

EN 50636-2-100:2014 EN IEC 55014-2:2021

EN 62233:2008

EN ISO 12100:2010

Place of issuance: Prague

Date of issuance: 21.12.2023

Name: Miroslav Vácha - Responsible Person Signature:

Abstract black and white spiral pattern with no text or symbols

FIELDMANN®

Home & Garden Performance

Model /Modell /Modelis:

Conditions of guarantee

This product is warranted for the period of 24 months from the date of purchase to the end-user. Warranty is limited to the following conditions. Warranty is referred only to the customer goods using for common domestic use. The claim for service can be applied either at dealer's shop where the product was bought, or at below mentioned authorized service shops. The end-user is obligated to set up a claim immediately when the defects appeared but only till the end of warranty period. The end-user is obligated to cooperate to certify the claiming defects. Only completed and clean (according to hygienic standards) product will be accepted. In case of eligible warranty claim the warranty period will be prolonged by the period from the date of claim application till the date of taking overthe product by end-user, or the date the end-user is obligated to take it over. To obtain the service under this warranty, end-user is obligated to certify his claim with duly completed following documents: receipt, certificate of warranty, certificate of installation...

This warranty is void especially if apply as follows: ■ Defects which were put on sale. ■ Wear-out or damage caused by common use. ■ The product was damaged by unprofessional or wrong installation, used in contrary to the applicable instruction manual, used in contrary to legal enactment and common process of use or used for another purpose which has been designed for. ■ The product was damaged by uncared-for or insufficient maintenance. ■ The product was damaged by dirt, accident of force majeure (natural disaster, fire, flood, ...). ■ Defects on functionality caused by low duality of signal, electromagnetic field interference etc. ■ The product was mechanically damaged (e.g. broken button, fall...). ■ Damage caused by use of unsuitable media, fillings, expendable supplies (batteries) or by unsuitable working conditions (e.g. high temperatures, high humidity, quakes,...). ■ Repair, modification or other failure action to the product by unauthorized person. ■ End-user did not prove enough his right to claim (time and place of purchase). ■ Data on presented documents differs from data on products. ■ Cases when the claiming product can not be identified according to the presented documents (e.g. the serial number or the warranty seal has been damaged).

[e-mail]

www.fasthungary.hu

Black handheld electric shaver with green handle and 'FIELDAMM' branding, no visible text or symbols on device body
