Brand	Fieldmann
Model	FZF 6205-B
Product Type	Petrol vacuum / blower (2-in-1)
Power	0.8 kW (7000 rpm)
Engine Displacement	25.4 cc
Fuel Type	Mixed gasoline (90+ octane) and 2-cycle oil (25:1 ratio)
Fuel Tank Capacity	0.7 L
Starting System	Recoil starter
Air Speed	150 km/h
Shredder Function	Yes (vacuum mode)
Weight	4.5 kg
Noise Level	L_PA = 97 dB(A); L_WA = 113 dB(A)
Safety Features	Spark arrestor muffler, stop switch, eye and hearing protection required
Engine Type	2-cycle, air-cooled
Assembly Required	Yes (pipes, handles, dust bag)
Warranty	24 months

Frequently Asked Questions - FZF 6205-B Fieldmann

What is the correct fuel mixture for the FZF 6205-B?

Use a mixture of 90+ octane unleaded gasoline and premium 2-cycle engine oil at a ratio of 25:1. Mix only enough for immediate needs and do not store fuel longer than 30 days without stabilizer.

How do I start the leaf blower?

Prime the fuel bulb until no air bubbles appear, close the choke for cold engine, place the machine on the ground, hold the handle firmly, pull the starter cord slowly until resistance is felt, then pull rapidly. Once started, open the choke gradually and let the engine warm up for 2–3 minutes.

What should I do if the engine floods or does not start?

If the engine is flooded, disconnect the spark plug, remove and clean or replace it. For other starting issues, repeat the starting procedure for hot or cold engine. Ensure the choke is set correctly.

Can I use the blower as a vacuum?

Yes. The FZF 6205-B is a 2-in-1 blower and vacuum. For vacuum mode, attach the inhale pipes, fan cover, discharge pipe, and dust bag. The shredder function automatically mulches leaves.

What safety gear is required?

Always wear eye protection and hearing protection. Also wear sturdy shoes and long pants. Never operate the machine when tired, ill, or under the influence of alcohol or drugs.

How do I maintain the machine?

Keep the air filters clean, check the spark plug periodically, and use fresh fuel. Store in a dry place. Do not operate with damaged tubes or missing spark arrestor. Regularly inspect for wear and tighten screws.

What is the warranty period?

The product is warranted for 24 months from the date of purchase for domestic use. Claims must be made at the dealer or authorized service center with proof of purchase.

What are the noise and vibration levels?

Sound pressure level L_PA is 97 dB(A) and sound power level L_WA is 113 dB(A). Accurate vibration values are not specified but typical for this class of blower.

Can I use regular gasoline?

Use only fresh, clean gasoline with an octane rating of 90 or higher. Avoid fuel containing more than 10% alcohol. Never use fuel with alcohol content above 10% as it may damage the engine.

How do I assemble the blower pipes?

For blower mode, attach blow pipe B to the machine by twisting, then attach blow pipe A to B. Secure with the M5 × 10 screw provided. Ensure all connections are tight before use.

USER MANUAL FZF 6205-B Fieldmann

Abstract black-and-white spiral pattern with no text or symbols

FIELDMANN®

Home & Garden Performance

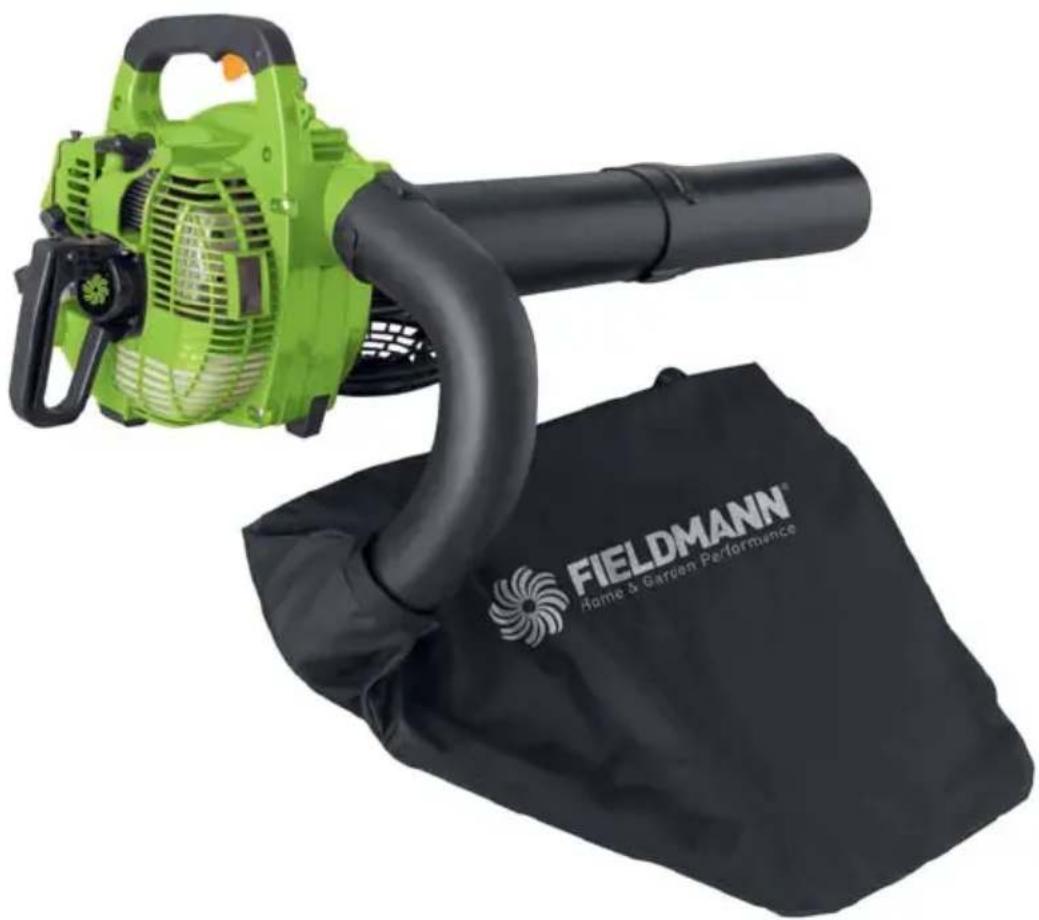

Green FELDMANN air blower with a black cover, displayed against a white background (no text or symbols on the device itself)

FZF 6205-B

English 3-13

Čeština 14-24

Slovenčina 25-35

Magyarul 36-46

Polski 47-57

Thank you for purchasing this petrol vacuum / blower. Before you start using it, please, carefully read this user's manual and save it for possible future use.

CONTENTS

1. GENERAL SAFETY INSTRUCTIONS 4
   Important safety notice....4
   Packaging 4
   User's manual....4
   Attention statements....5
2. PRODUCTION DESCRIPTION....6
3. Assembling the machine / vacuum....6
4. Assembling the machine (blower machine) 7
5. FUEL....9
   Mixing fuel....9
   Fuel requirements....9
   Filling the fuel tank....9
6. STARTING THE MACHINE 10
   Starting procedure....10
7. WHEN THE ENGINE STARTS....11
   If the engine dose not start....11
   Starting a flooded engine....11
8. SPECIFICATION....12
9. DISPOSAL....12
10. DECLARATION OF CONFORMITY....13

1. GENERAL SAFETY INSTRUCTIONS

Important safety notice

Carefully unpack the product and take care not to throw away any part of the packaging before you find all the parts of the product.
Store the product in a dry place out of reach of children.
Read all warnings and instructions. Not following warnings or instructions may lead to injury by electrical shock, a fire and/or serious injuries.

Packaging

The product is packed in a package that prevents damage during transport. This package is a resource and so can be handed over for recycling.

User's manual

Before you start working with the machine, read the following safety and usage instructions. Acquaint yourself with the operating elements and the correct use of the machine. Keep the user's manual in a safe place where it can be easily retrieved for future use. Save the original packaging, including the internal packing material, warranty card and proof of purchase receipt at least for the duration of the warranty.

If you need to ship this machine, pack it in the original cardboard box to ensure maximum protection during shipping or transport (e.g. when moving or when you need to send this product for repair).

NOTE: If you hand over the power tool to somebody else, do so together with this user's manual.

Following the instructions in the included user's manual is a prerequisite for the proper use of the power tool. The user's manual also contains operating, maintenance and repair instructions.

The manufacturer takes no responsibility for accidents or damages resulting from not following the instructions in this manual.

This petrol vacuum / blower is not designed for professional use.

EB260 engine blower has been designed and built to deliver superior performance and reliability without compromise to quality, comfort, safety, or durability. EBV260 high performance engines represent the leading edge of 2-cycle engine technology, delivering exceptionally high power at remarkably low displacement and weight. As a professional owner/operator, you will soon discover why EBV260 is simple in a class by itself!

IMPORTANT! The information contained in this manual describes available at the time of production. While every attempt has been made to give you the very latest information about your EBV260. There may be some differences between your machine and what is described here. We reserves the right to make changes in production without prior notice, and without obligation to make alterations to machines previously manufactured. Before using this product, consult local regulation noise restrictions and hours of operation.

CAUTION! This EBV260 engine machine is equipped with a speak-arresting muffler. Never operate this machine without both the muffler and spark arrestor installed and properly functioning!

ATTENTION STAEMENTS

This manual contains special "attention statements" surrounded by boxes and preceded by the triangular Attention Symbol.

WARNING! A statement preceded by WARNING contains Information that should be acted upon to prevent serious bodily injury.

CAUTION! A statement preceded by the word "CAUTION" contains information that should be acted upon to prevent machine damage.

Additional attention statements that are not preceded by the Attention Symbol are:

IMPORTANT!

A statement preceded by the word "IMPORTANT" is one that possesses special signifi cance.

NOTE:

A statement proceeded by word "NOTE" contains information that is handy to know and may make your job easier.

Read and follow this manual. Failure to do so could result in serious injury.

Wear eye and hearing protection at all times during the operation of this machine

Do not operate this machine if you are tired, ill or under the influences of alcohol, drugs, or medicine.

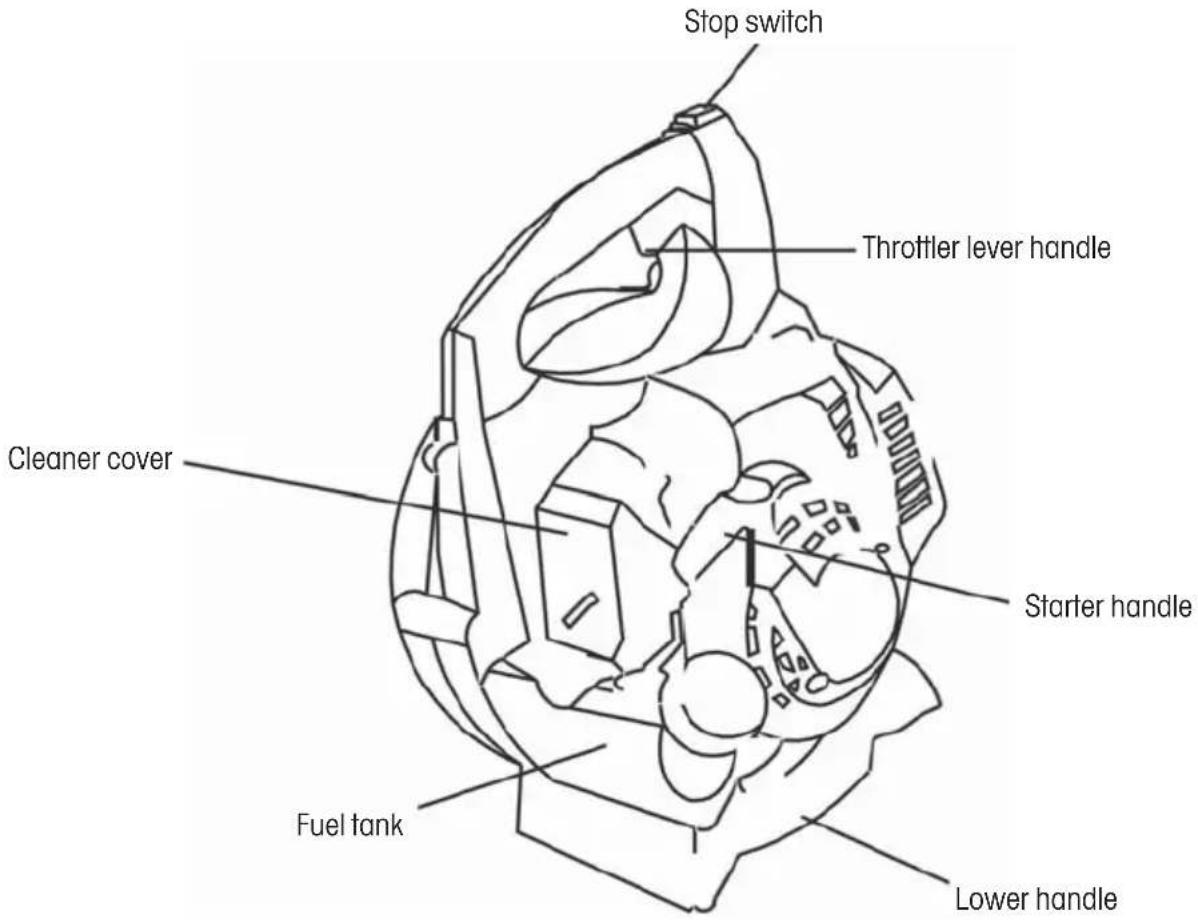

2. PRODUCTION DESCRIPTION

The operational procedures described in this manual are intended to help you get the most from your machine and to protect you and others from harm. These procedures are general guidelines only, and are not intended to replace any safety rules/laws that may be in force in your area. If you have any question regarding your EBV260 blower &vacuum, or if you do not understand something in this manual, your dealer will be glad to assist you.

⚠ WARNING! Do not make unauthorized modifications to this machine

1. ASSEMBLING THE MACHINE / VACUUM

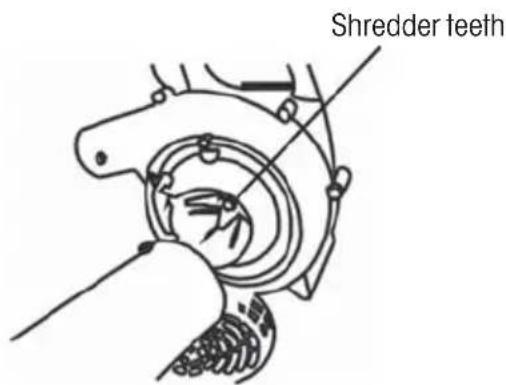

Assembling the vacuum with shredder function

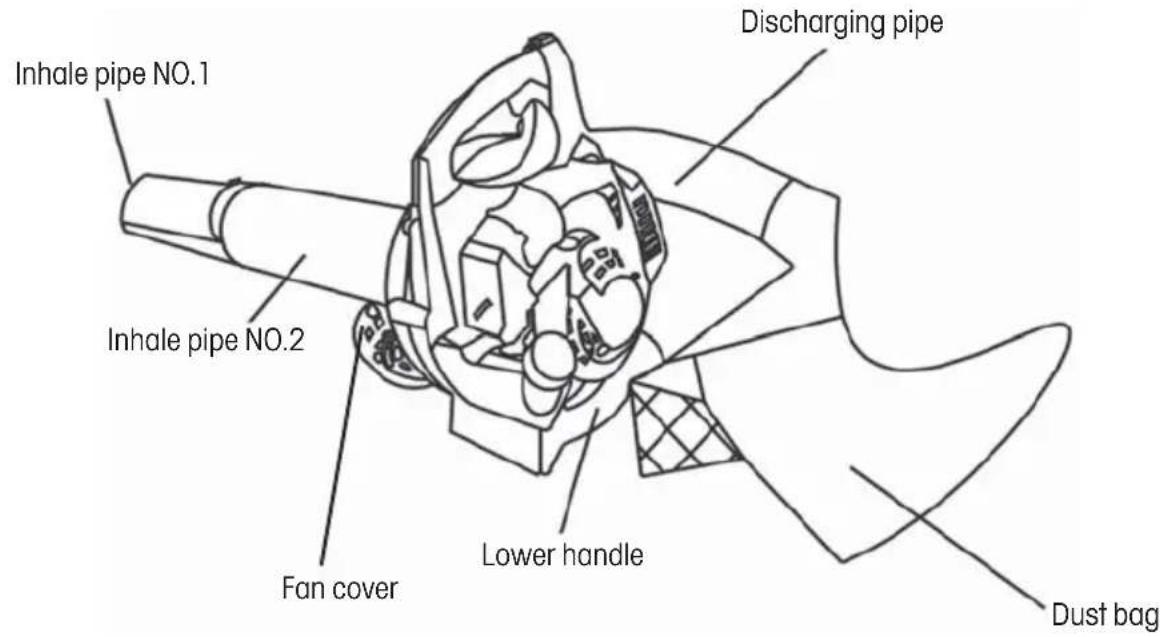

(1) Description

(2) Assembly

Open the fan cover, connect inhale pipe No.1 and No.2

Simple line drawing of a bottle with a cap and bulb (no text or symbols)

Insert discharging pipe into dust bag from the jaws of the slide fastener according to the picture discharging pipe.

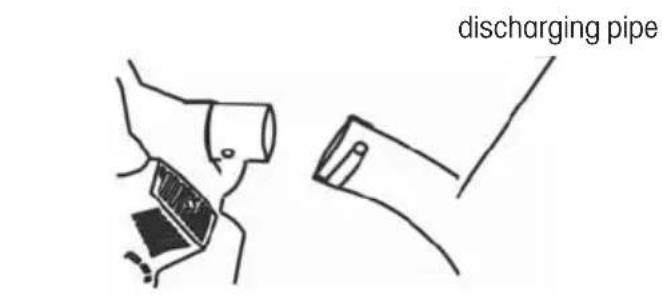

Put the discharging pipe to the machine.

2. ASSEMBLING THE MACHINE (BLOWER MACHINE)

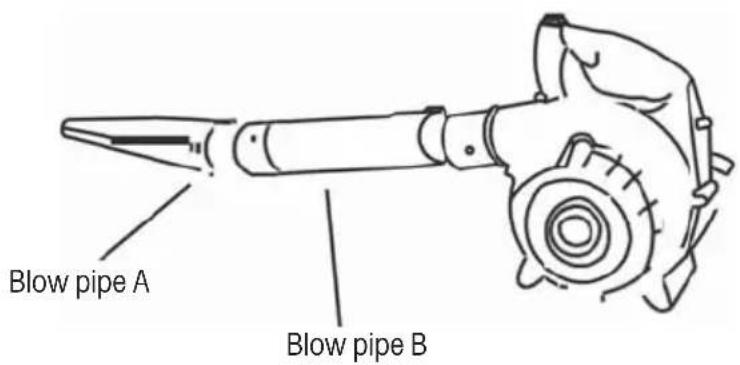

(1) Terms

(2) Install

Line drawing of a hand holding a handheld electric shaver (no text or symbols)

Simple line drawing of a hand holding a cylindrical object connected to a coiled cable (no text or symbols)

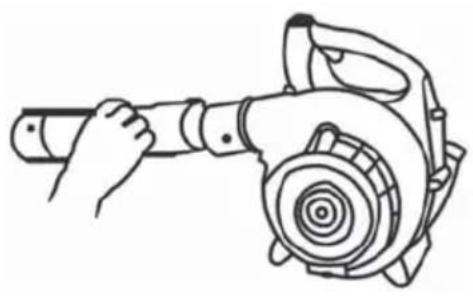

Put blow pipe B to the machine by rotating Put blow A to B by rotating

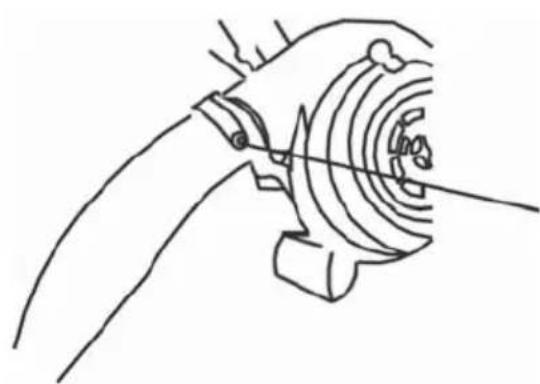

Line drawing of a mechanical component with a tool inserted, showing no text or symbols

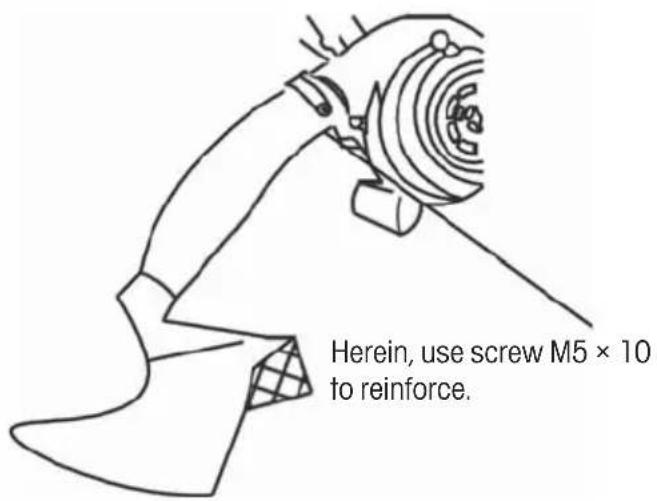

Use screw M5 × 10 to reinforce

IMPORTANT! Mix only enough fuel for your immediate needs! If fuel must be stored longer than 30-days, it should first be treated with a stabilizer or equivalent product!
WARNING! Danger form rotating impeller! Stop the engine before installing or removing the machine tubes! Never perform any maintenance or assembly procedures on this machine while the engine is running.

3. FUEL

MIXING FUEL

Fuel requirements

Use only fresh, clean fuel
Use only fuel with an octane rating of 90 or high
Mix all fuel with premium 2-cycles engine oil at a gasoline/oil ratio of 25:1

25:1

CAUTION! Never attempt to mix fuel in the machine fuel tank! Always mix all fuels in a clean, approved container!

Some gasoline contain alcohol as an oxy genated! Oxy genated fuels may cause increased engine operating temperatures! Under certain conditions, alcohol-based fuels may also reduce the lubricating qualities of some mixing oils! Never use any fuel containing more than 10% alcohol by volume! When an oxygenated fuel must be used fuel containing an ether-based oxygenates such as MTBE is to be preferred over alcohol! Whenever possible use 2-cycle oil or equivalent oil mixed at a 25:1 ratio. Be aware that generic oils and some outboard mixing oils may note intended for use in high-performance air cooled 2-cycle engines, and should never be used in your engine machine.

WARNING! Danger of fire! Never transfer or store fuels in the presence Of combustible materials! Before starting the engine, always move the machine to a clear area at least 10-feet (3-meters) away form fuels and other combustible materials!

IMPORTANT! Mix only enough fuel for your immediate needs! If fuel must be stored longer than 30-days, it should first be treated with a stabilizer or equivalent product!

FILLING THE FUEL TANK

WARNING!

Danger of fi re and burn injury!

* Always use extreme care when handling fuel! Fuel is highly fl ammable!
* Never operate this blower if fuel system components are damaged or are leaking!
* Never attempt to refuel the engine while it is running!
* Never attempt to refuel a hot engine! Always allow the blower engine to cool before fueling!

Never smoke or light any fi res near the blower or fuel!
* Always transport and store fuels in an approved container!
* Never place fl ammable maternal close to the engine muffl er!
Never operate the blower without a properly functioning muffler and spark arrestor installed!
* Never operate the blower unless it is properly assembled and in good working condition!

1. Place the machine on the ground or on a sturdy work surface, and wipe any debris from around the fuel cap.

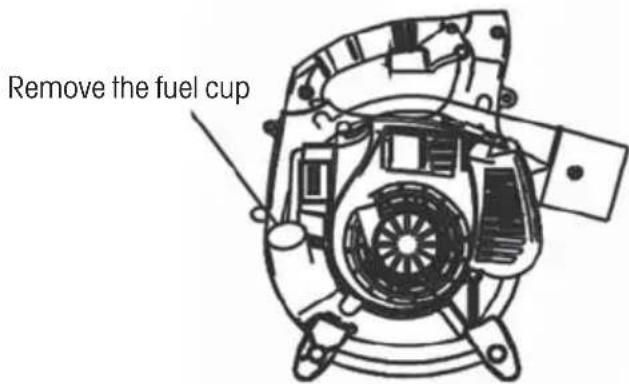

2. Remove the fuel cap.
3. Fill the tank with clean, fresh fuel.
4. Replace the cap, and wide away any spilled fuel before starting the machine.

4. STARTING THE MACHINE

WARNING!

Danger from rotating impeller! The impeller will rotate Whenever the machine is operated! Never operate this machine unless the intake cover and machine tubes are properly installed and in good working order!

Danger from thrown dust or debries! Always wear eye protection when operating this machine! Never direct the machine stream toward people or animals!

Never operate this machine unless all controls are properly installed and in good working order!

WARNING!

The recoil starter can be damaged by abuse!

* Never pull the starter cord to its full length!
Always engage the starter before cranking the engine!
* Always rewind the starter cord slowly!

Never operate the machine if the tubes are missing or damaged.

Starting procedure

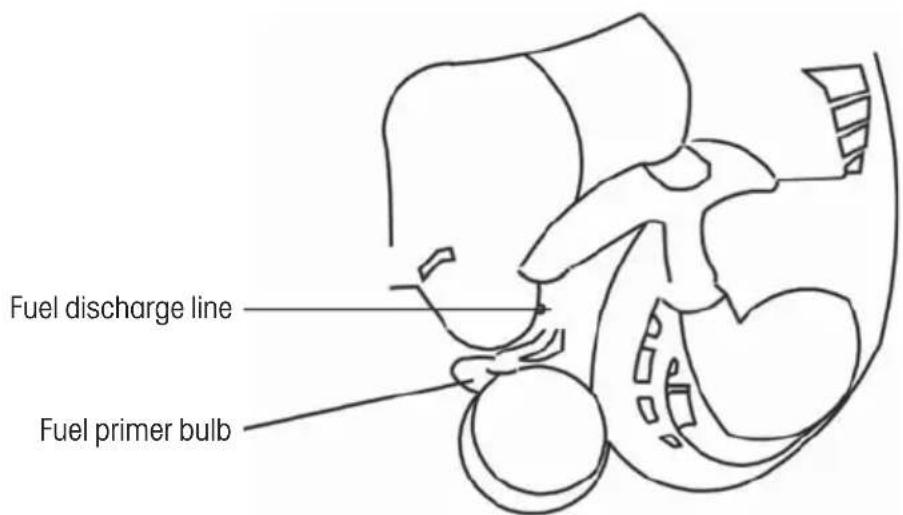

1. Prime the fuel system by repeatedly depressing the fuel primer bulb until no air bubbles are visible in the fuel discharge line.
2. Cold engine only. Choke the engine by pulling the choke control to the fully extended position (choke is closed)
3. Place the machine on the ground, and hold the machine handle firmly with your right hand.
4. Pull the starter cord slowly until you feel the engine.
5. Start the machine by pulling the starter cord upward rapidly.
   If necessary, repeat step 5 two or three times until the engine starts.

5. WHEN THE ENGINE STARTS

IMPORTANT

For maximum vacuum performance and operating life, allow the engine to warm before use.

1. Run the engine at idle speed until operating temperature is reached(2 to 3 minutes)
2. As the engine warms, open the choke gradually by slowly pushing the choke control in to the fully retracted position.
3. The machine should now be ready for use.

If the engine dose not start

Repeat the appropriate starting procedures for "hot" or "cold" engine. If the engine still will not start, follow the "Starting a Flooded Engine" procedure (below).

⚠ WARNING! Incorrect spark plug installation Can result in serious engine damage!

Starting a fl ooded engine

1. Disconnect the spark plug lead, and use the spark plug wrench to remove the plug in a counterclockwise direction

2. If the spark plug is fouled or is soaked with fuel, clean or replace the plug as required.

6. SPECIFICATION

Model FZF 6205-B
Power 0,8 kW / 7 000 rpm
Air speed 150 km/h
Displacement 25,4 cc
Gasoline/engine oil mixture 25:1
Shredder function yes, included
Starting recoil starter
Fuel tank capacity 0,7 l
Weight 4.5kg

7. DISPOSAL

INSTRUCTIONS AND INFORMATION REGARDING THE DISPOSAL OF USED PACKAGING MATERIALS

Dispose of used packaging material at a site designated for waste in your municipality.

The machine and its accessories are manufactured from various materials, e.g. metal and plastic.

Take damaged parts to a recycling centre. Inquire at the relevant government department.

This product meets all the basic requirements of EU directives that apply to it.

Changes in the text, design and technical specifications may be made without prior notice and we reserve the right to make these changes.

User s manual in the original language.

8. DECLARATION OF CONFORMITY

FAST®

FAST ČR, a.s.

Černokostelecká 2111,100 00 Praha 10, Czech Republic

tel.: [phone], fax: [phone]

EU DECLARATION OF CONFORMITY

Product / brand: Gasoline blowers/vaccums / FIELDMANN

Type / model: FZF 6205-B as factory model BL-260B

0,8kW; 7000/m ^-1 ; 25,4m ^3

L_PA=97dB(A),L_WA=113dB(A)

Manufacturer: FAST ČR, a.s.

Černokostelecká 2111, 100 00 Praha 10, Czech Republic

VAT no: CZ26726548

The product is inline with directives and regulations listed below:

Directive MD 2006/42/EC

Directive EMC 2014/30/EU

Directive Noise 2000/14/EC

Directive Emission of Gaseous 2012/46/EU

Directive RoHS 2011/65/EU

and norms:

EN 15503:2009+A2

EN ISO 14982:2009

Place of issuance: Prague

Name: Ing. Zdeněk Pech

Chairman of the Board

Date of issuance: 2.11.2021

Signature:

Abstract black and white spiral pattern with no text or symbols

FIELDMANN®

Home & Garden Performance

Model /Modell /Modelis:

Conditions of guarantee

This product is warranted for the period of 24 months from the adate aof purchase to the end-user. Warranty is limited to the following conditions. Warranty is referred only to the customer goods using for common domestic use. The claim forservice can be applied either at dealer's shop where the product was bought, or at below mentioned authorized service shops. The end-user is obligated to set up a claim immediately when the defects appeared but only till the end of warranty period. The end-user is obligated to cooperate to certify the claiming defects. Only completed and clean (according to hygienic standards) product will be accepted. In case of eligible warranty claim the warranty period will be prolonged by the period from the date of claim application till the date of taking overthe product by end-user, or the date the end-user is obligated to take it over. To obtain the service under this warranty, end-user is obligated to certify his claim with duly completed following documents: receipt, certificate of warranty, certificate of installation ...

This warranty is avoid aespecially if aapply as follows: ■ Defects which were put on sale. ■ Wear-out aor adamage caused by acommon use. ■ The aproduct awas adamaged aby aunprofessional aor wrong installation, used in contrary to the applicable instruction manual, used in contrary to legal enactment and common process of use or used for another purpose which has been designed for. ■ The product was damaged by uncared-for or insufficient maintenance. ■ The product was damaged by dirt, accident of force majeure (natural disaster, fire, flood, ...). ■ Defects on functionality caused by low duality of signal, electromagnetic field interference etc. ■ The product was mechanically damaged (e.g. broken button, fall...). ■ Damage caused by use of unsuitable media, fillings, expendable supplies (batteries) or by unsuitable working conditions (e.g. high temperatures, high humidity, quakes,...). ■ Repair, modification or other failure action to the product by unauthorized person ■ End-user did not prove enough his right to claim (time and place of purchase). ■ Data on presented documents differs from data on products. ■ Cases when the claiming product can not be identified according to the presented documents (e.g. the serial number or the warranty seal has been damaged).
