Product Type	Video Projector
Model	Leisure D70T (also Leisure 470, Leisure D70Q)
Display Technology	LCD
Light Source	LED
Native Resolution	1280 x 720
Aspect Ratio	4:3 / 16:9 / Auto
Focus	Manual
Keystone Correction	±15°
Installation Orientation	Front / Rear / Ceiling
Speaker Output	3W / 4Ω
Power Supply	AC 100-240V, 50/60Hz
Dimensions (W x D x H)	19.7 x 14.5 x 7.1 cm (7.8 x 5.7 x 2.8 in)
Net Weight	1 kg (2.2 lbs)
Supported Photo Formats	BMP, JPG, PNG, GIF, JPEG
Supported Audio Formats	MP3, WMA, MP2, AAC, FLAC, PCM
Supported Video Formats	AVI, MP4, MKV, FLV, MOV, RMVB, 3GP, MPEG, H.264, XVID
Input Ports	HDMI (HD-1, HD-2) x2, USB x1, AV In x1, Audio Out x1, TF Card Slot x1
Mounting Screw Size	1/4 inch (1 screw)
What's Included	Projector, Remote Control (batteries not included), HDMI Cable, Power Cable
Screen Mirroring	iOS and Android via wireless or USB cable

Frequently Asked Questions - Leisure D70T Vankyo

How do I connect my iPhone via screen mirroring?

For wireless: Select Screen Mirroring as input, connect your iPhone to the projector's WiFi (LEISURE470-XXXXXX, password 12345678), then activate Screen Mirroring on your iPhone and select the projector. For wired: Use the original Lightning cable to connect your iPhone to the USB port, then trust the computer when prompted.

How do I adjust the keystone and focus?

Turn the Keystone ring to correct trapezoidal distortion (±15°). Turn the Focus ring to sharpen the image.

Why is the image blurry?

Adjust the focus ring and ensure the projector is within the effective projection distance. Also check that the lens cover is removed.

The remote control is not working. What should I do?

Make sure the remote is pointing directly at the IR receiver on the projector. Do not cover the IR receiver. Replace the batteries with a new pair of AAA batteries.

How do I perform a factory reset?

Go to Menu > OPTION > Restore Factory Default to reset projector settings. To reset the screen mirroring module, long press the OK button for about 5 seconds on the screen mirroring interface.

Can I stream Netflix or Hulu via screen mirroring?

No, due to copyright restrictions, content from Netflix, Hulu, and similar services cannot be mirrored. Use a Fire TV stick, Roku, or Chromecast connected to the HDMI port, or connect a computer.

How do I connect my Android phone via USB screen mirroring?

Enable USB debugging in Developer options on your Android device. Connect using the original USB cable. On the projector, select Screen Mirroring and switch to Android interface. Then tap OK when prompted to allow USB debugging.

The image is upside down. How do I fix it?

Go to Menu > PICTURE > Projection Direction and select the appropriate orientation (front, rear, ceiling) to flip the image.

How do I update the screen mirroring firmware?

When a new version is available, 'Discover new firmware...' appears. Connect the projector to WiFi and the update will start automatically. Do not power off during the ~15 minute update.

What cables and accessories are included with the projector?

The package includes the projector, a remote control (batteries not included), an HDMI cable, and a power cable. A USB cable for screen mirroring is not included; use the original cable for your device.

USER MANUAL Leisure D70T Vankyo

Line drawing of a projector with a circular lens and VANKYO logo (no text or symbols on body)

Leisure 470/Leisure D70T/Leisure D70Q

USER MANUAL

Please read this manual thoroughly before using this product and keep it for future reference.

WHAT'S INCLUDED

Line drawing of a projector with a circular lens and ventilation slots (no text or symbols)

Projector

Remote (Batteries Not Included)

User Manual

HD Cable

Power Cable

NOTICE

Recommended

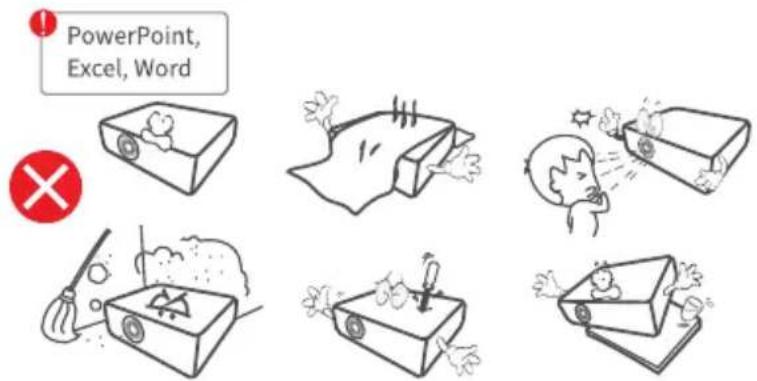

NOT Recommended

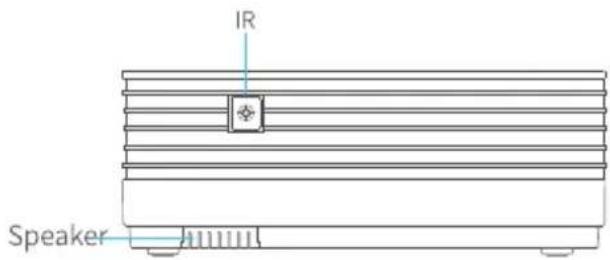

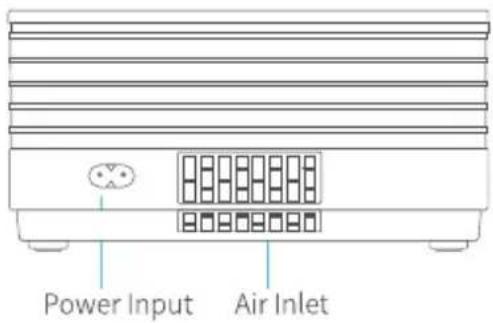

PRODUCT OVERVIEW

QUICK START

Line drawing of a wall-mounted air conditioner connected to a power outlet (no text or symbols)

Plug the power cord into an outlet.

Line drawing of a projector with a circular lens and a base dish, no text or symbols present

Take off the lens cover.

Connect your device to the projector correctly.

Press the Power Button to turn on the projector.

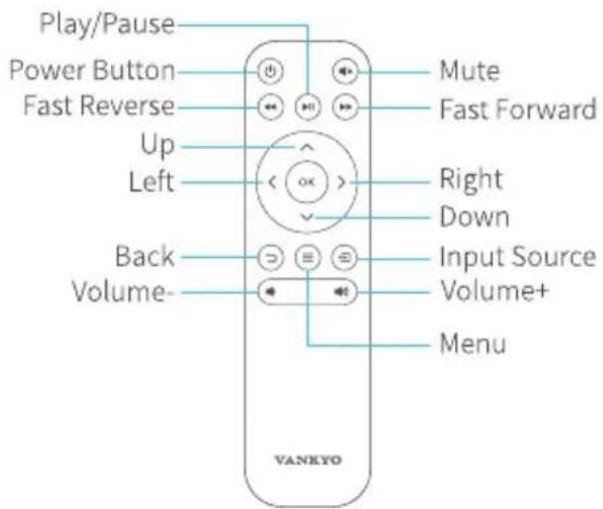

Select the correct input source by pressing the button Ⓢ / →.

Adjust the kickstand accordingly.

Adjust the keystone and focus ring to get the best image performance.

Press the Power Button twice to turn off the projector.

EN

INPUT SOURCE

Press ⬆ on the projector or press ➕ on the remote to enter the interface of Input Source.

A.Screen Mirroring
    classDef input fill:#66ECEFA,stroke:#333;
    classDef output fill:#66E6FF,stroke:#333;
    class A fill:#E6F5FF,stroke:#333;
    class B fill:#E6F5FF,stroke:#333;
    class C fill:#E6F5FF,stroke:#333;
    class D fill:#E6F5FF,stroke:#333;
    class E fill:#FFA500,stroke:#333;
    class A input
    class B output
    class C output
    class D output

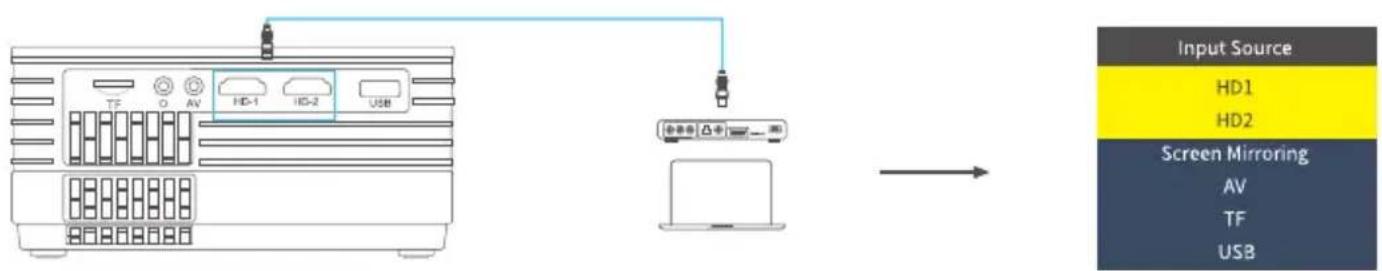

B.HD Connection

C. Multimedia Connection

04 [e-mail]

PROJECTOR CONNECTIONS

1

2

3

Line drawing of two electronic devices with ports and indicators (no text or symbols)

4

5

EN

SCREEN MIRRORING

Important:

Before screen mirroring, please press the ⓢ / → button on the projector/remote to enter the interface of Input Source and select Screen Mirroring.
2 Press OK and wait for several seconds for the projector to switch interfaces between Screen Mirroring for iOS System and Screen Mirroring for Android System.

Screen Mirroring through Wireless Connection

For iOS System

* Streaming with cellular data for iOS system

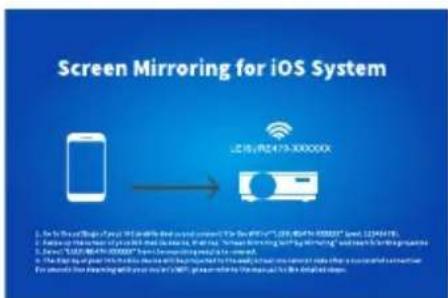

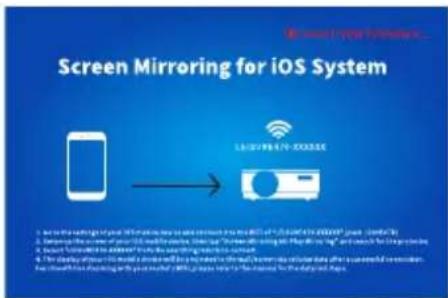

1 Turn on the projector, select Screen Mirroring as the input source to enter the interface of Screen Mirroring for iOS System.

2 Go to the settings of your iOS mobile device and connect it to the WiFi of LEISURE470-XXXXXX (password: 12345678). Please ignore the exclamation mark before it.

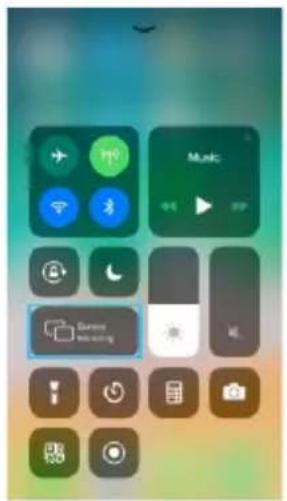

3 Activate Screen Mirroring/AirPlay Mirroring on your iOS mobile device and search for the projector.

06 [e-mail]

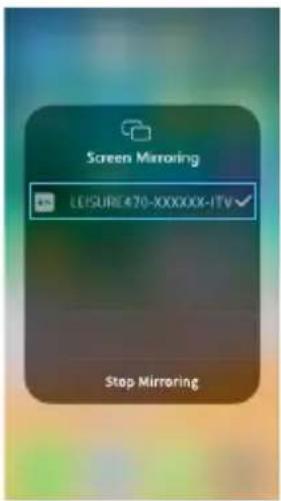

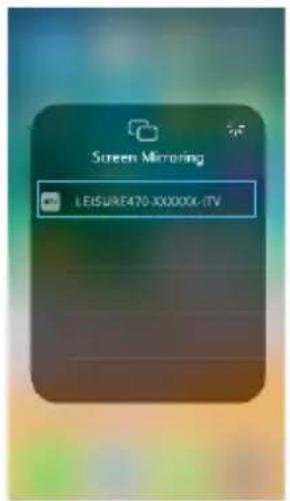

4 Select LEISURE470-XXXXXX-ITV from the searching results to connect.
5 The display of your iOS mobile device will be projected to the wall/screen via cellular data after a successful connection.

* Streaming with your router's WiFi for iOS system

1 Turn on the projector, select Screen Mirroring as the input source to enter the interface of Screen Mirroring for iOS System.

2 Go to the settings of your iOS mobile device and connect it to the WiFi of LEISURE470-XXXXXX (password: 12345678). Please ignore the exclamation mark on the WiFi icon.

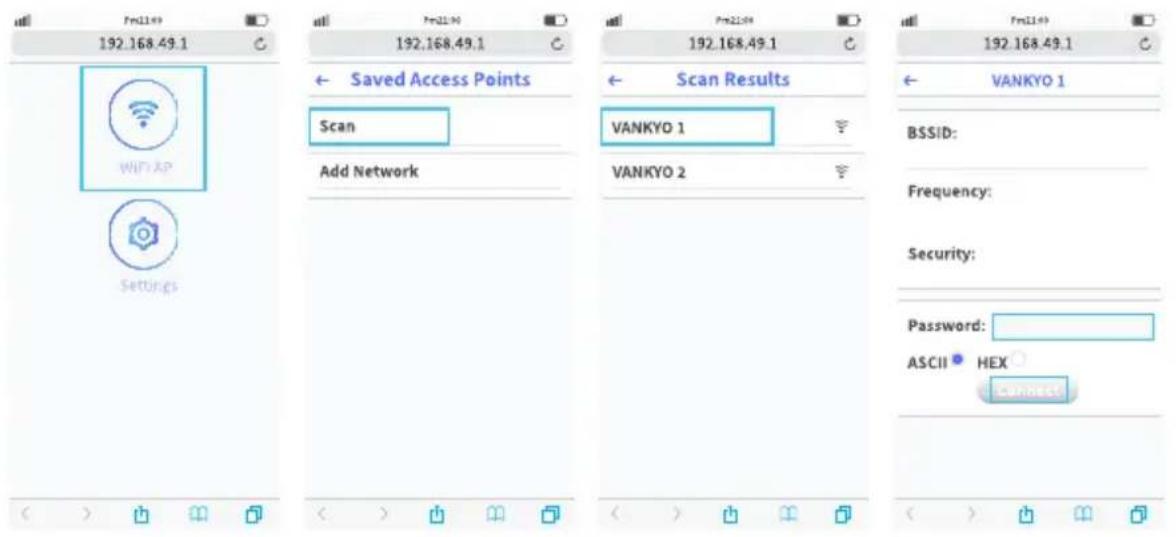

3 Visit http://192.168.49.1 from a browser on your mobile device, tap WiFi AP > Scan, select your router's WiFi and enter the right password, then tap Connect to continue.

EN

4 Your router's WiFi will be displayed on interface of Screen Mirroring for iOS System after a successful connection.

5 Get back to the WiFi setting of your iOS mobile device, then connect it to the same router's WiFi.
6 Activate Screen Mirroring on your iOS mobile device and search for the projector, then select LEISURE470-XXXXXX-ITV from the searching results to connect.
7 The live streaming content from your iOS mobile device will be projected to the wall/screen through WiFi connection.

08 [e-mail]

EN

Tip:

If you'd like to connect to another router's WiFi, please repeat the procedures mentioned in the section of Streaming with your router's WiFi for iOS system.

For Android System

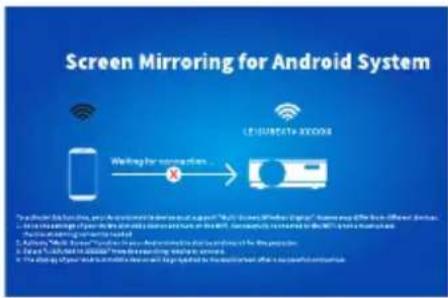

To activate this function, your Android device must support Multi-Screen/Wireless Display. Names may differ from different devices.

1 Turn on the projector, select Screen Mirroring as the Input Source, press OK to switch to the interface of Screen Mirroring for Android System.

2 Turn ON the WiFi Switch in your Android device. Successful WiFi connection is not a must, but please make sure the WiFi switch in your Android device is ON.
3 Activate Multi-Screen function on your Android device and search for the projector.
4 Select LEISURE470-XXXXXX from the searching results to connect.
5 Your Android device display will be projected to the wall/screen after a successful connection.

EN

Important Tips for Wireless Connection:

Due to the copyright restriction from Hulu, Netflix, and similar services, the contents CAN NOT be mirrored or cast.
2 If the projected image freezes when you switch the screen mirroring interfaces, please long press OK for 5s to do a reset, and the reset process will complete in 2 minutes, please wait patiently.
3 The fluency of screen mirroring with wireless connection will be affected by the network environment. A bandwidth of 100Mbit or more is recommended when using screen mirroring.
4 Make sure your mobile device is close to the projector when using wireless connection. A distance within 1 meter is recommended.
5 Some mobile devices may not support screen mirroring due to the compatibility.

Screen Mirroring with the Original USB Cable

For iOS System

1 Turn on the projector, select Screen Mirroring as the input source to enter the interface of Screen Mirroring for iOS System.

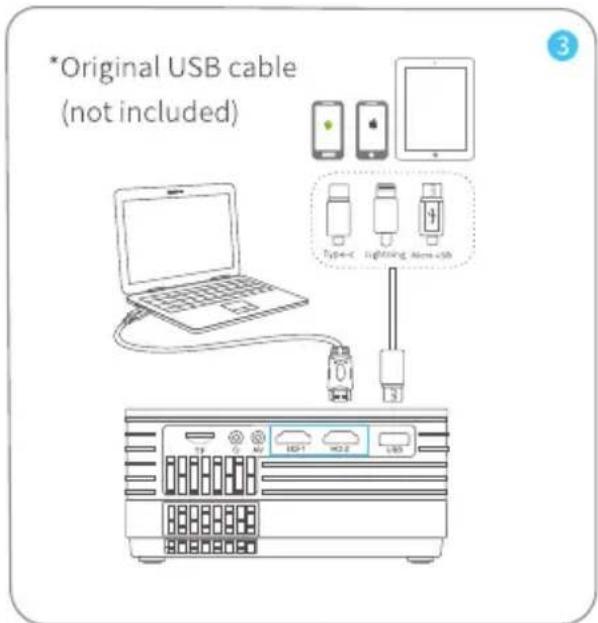

2 Connect your iOS mobile device to the USB port of the projector with the ORIGINAL lightning cable.
3 Select Trust in the pop-up window of Trust This Computer?

Trust This Computer?

Your settings and data will be accessible from this computer when connected wirelessly or using a cable.

Trust

Don't Trust

4 The display of your iOS mobile device will be projected to the wall/screen after a while.

10 [e-mail]

EN

Tip:

If the projection fails, please unplug the lightning cable from the projector or reboot the projector, then repeat the steps mentioned above.

For Android System

1 Turn on the projector, select Screen Mirroring as the input source, then press the OK button on the projector/remote to switch to the interface of Screen Mirroring for Android System if needed.

2 Go to the settings of your mobile device, find Developer options and turn on USB debugging.

Tip:

The steps to turn on Developer options vary from different models of Android device. You may check it from Internet or contact us for the detailed steps. We take Samsung Galaxy S8+ as an example.

* Go to settings of your Android device, then tap About phone > Software information > Build number.
* Continuously tap on Build number for several times until it shows Developer mode had been turned on.
* Get back to the settings of your mobile device, it will show Developer options.

3 Connect your Android mobile device to the USB port of the projector with the ORIGINAL USB cable.

4 Tap OK when your Android mobile device pops out the windows of Allow USB debugging?, then your Android device will be projected to the wall/screen.

Allow USB debugging?

USB debugging is intended for development purposes only. Use it to copy data between your computer and your device, install apps on your device without notification, and read log data.

Cancel

EN

Notes:

The USB cable MUST be the ORIGINAL cable or the cable which can transfer the data, otherwise screen mirroring may fail. You can plug the cable into your laptop to check the availability of transferring the data.
② Some mobile devices may not support screen mirroring due to the compatibility.
Some Android mobile devices may only transfer the display without audio due to the protocol restrictions.

Upgrade the Firmware Version of Screen Mirroring

When there is a newer version, you will see Discover new firmware... on the projected screen, then the projector will automatically upgrade its screen mirroring module when it is connected to WiFi.

Notes:

1 Make sure the projector is connected to WIFI and DO NOT power off during upgrading.
2 It takes around 15 minutes for the update to complete, please wait patiently.
3 The screen mirroring system will restart once the upgrade is completed.

12

[e-mail]

PROJECTION DISTANCE&SIZE

EN

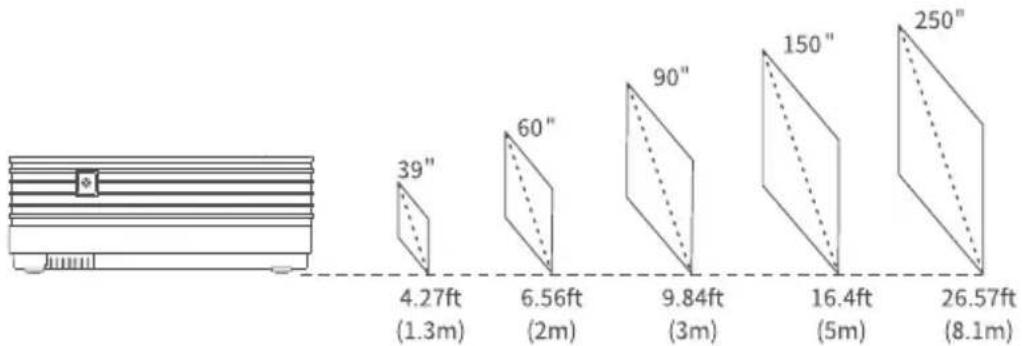

* The recommended projection distance varies with different projection contents. Please adjust the distance between the wall/screen and the projector properly as needed.
* Ambient darkness will improve the clarity of the projected images.

SPECIFICATION

Display Technology	LCD	Light Source	LED
Resolution	Native 1280 x 720	Input Signal	576i/720P/1080i/1080P
Aspect Ratio	4:3/16:9/Auto	Focus	Manual
Keystone	±15°	Installation Type	Front/Rear/Ceiling
Speaker	3W/4ohm	Power Supply	AC 100-240V, 50/60Hz
Unit Dimension	19.7 x 14.5 x 7.1cm(7.8 x 5.7 x 2.8inches)	Unit Net Weight	1kg (2.2lbs)
Photo Format Supported	BMP/JPG/PNG/GIF/JPEG	Audio Format Supported	MP3/WMA/MP2/AAC/FLAC/PCM
Video Format Supported	AVI/MP4/MKV/FLV/MOV/RMVB/3GP/MPEG/H.264/XVID	Ports	HD In x 2/USB Port x 1/Audio Out x 1/AV In x 1/Memory Card Slot x 1
Mounting Screws	1/4"	Screw Number	1

[e-mail]

TROUBLESHOOTING GUIDE

The content from Hulu, Netflix, and similar services can not be mirrored or cast. * Due to the copyright restriction from Hulu, Netflix, and similar services, the contents CAN NOT be mirrored or cast.
2 What should I do if I want to watch the content from Hulu, Netflix, and similar services via the projector? * Please prepare a Fire TV stick, Roku stick or Chromecast™ (not included), or just connect your computer/laptop to the HD port of the projector to watch the content.
3 Blurry Image

4 Remote Unresponsive

* Adjust focus ring/keystone.
* Projector and screen/wall must be in effective distance.

* Make sure the remote points at the IR receiver directly.
* Do not cover IR receiver.
* Try a new pair of AAA batteries.

5 Upside Down Images

* Go to Menu > PICTURE > Projection Direction to flip the projection image.

6 Factory Reset

* Reset the projector to default settings Go to Menu > OPTION > Restore Factory Default to restore the projector to default settings.
* Reset the screen mirroring module to default settings Press and hold the OK button for around 5s in the interface of Screen Mirroring for iOS System or Screen Mirroring for Android System to do a reset on the screen mirroring module.

EN

FCC Statement

Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator& your body.

This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

ISEDC Warning

This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions:

(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired operation of the device.

The device is compliance with RF exposure guidelines, users can obtain Canadian information on RF exposure and compliance.

The minimum distance from body to use the device is 20cm.

To avoid replacement of a battery with an incorrect type.

Don't dispose of a battery into fire or a hot oven, or mechanically crush or cut a Battery.

Don't leave a battery in an extremely high temperature surrounding environment.

To avoid battery subjected to extremely low air pressure.

The mains plug is used as the disconnect device, the disconnect device shall remain readily operable.

The symbol indicates for indoor use only

The symbol indicates DC voltage

The symbol indicates AC voltage

RECYCLING

This product bears the selective sorting symbol for Waste electrical and electronic equipment (WEEE).

This means that this product must be handled pursuant to European directive 2012/19/EU in order to be recycled or dismantled to minimize its impact on the environment.

User has the choice to give this product to a competent recycling organization or the retailer when he buys a new electrical or electronic equipment.

This product can be used across EU member states.

The device is low power device, it can meet the requirement of the RF exposure.

EU Compliance Statement: Shenzhen VanTop Technology & Innovation Co., Ltd. hereby declares that this device is in compliance with the essential requirements and other relevant provisions of the Directive 2014/53/EU.

A copy of the EU Declaration of Conformity is available online at https://doc.vantop.com/.

VANKYO SUPPORT

North America [e-mail]

United Kingdom [e-mail]

www.ivankyo.com

@VankyoOfficial

VANKYO
