Product Type	Laptop Cooling Pad
Brand	Evolveo
Model	Ania 14
Color	Black
Material	Plastic and Metal Mesh
Dimensions (W x D x H)	410 x 293 x 30 mm
Weight	1015 g
Number of Fans	5
Fan Size	140 x 140 mm each
Fan Speed	1000 - 1400 RPM ±10%
Rated Voltage	USB DC 5V
Current Draw	0.38 A
USB Ports	2 x USB 2.0
Speed Controllers	2 (separate control for fan groups)
Adjustable Angles	3 levels
Compatible Laptop Sizes	9 to 17.3 inches
Anti-Slip Plate	Removable, reversible
LED Lighting	Red (integrated in fans)
Power Supply	Via USB port (from laptop)
Maintenance	Clean with soft dry cloth; avoid liquids
Safety	Do not expose to water, fire, or excessive heat
Spare Parts Availability	Contact manufacturer for replacement fans or cables
Repairability	Limited; warranty void if disassembled by unauthorised person
Certification	CE compliant
Warranty	Standard manufacturer warranty; does not cover misuse or natural disasters
Disposal	Dispose as electronic waste (WEEE) per local regulations

Frequently Asked Questions - Ania 14 Evolveo

How many fans does the Evolveo Ania 14 have?

It has 5 high-speed fans (140x140 mm each) with red LED lighting.

Is the Evolveo Ania 14 compatible with a 17-inch laptop?

Yes, it supports laptops from 9 to 17.3 inches.

How do I control the fan speed?

There are 2 speed controllers on the cooling pad. Each controls a group of fans, allowing you to adjust airflow as needed.

Does it have USB ports?

Yes, it includes 2 USB 2.0 ports for connecting peripherals.

How do I clean the cooling pad?

Turn off and unplug the device. Use a soft dry cloth to wipe the surface and mesh. Avoid liquids to prevent damage.

Can I adjust the angle of the cooling pad?

Yes, it offers 3 adjustable angles for ergonomic typing and improved airflow.

Is the anti-slip plate removable?

Yes, the anti-slip plate is removable and reversible. You can use both sides depending on laptop size.

What is the power source?

It is powered via USB DC 5V from your laptop. No external power adapter is required.

Does the cooling pad make noise?

Fan noise is moderate (1000-1400 RPM). The actual level depends on the speed setting; lower speeds are quieter.

What is covered under warranty?

The warranty covers manufacturing defects. It does not cover damage from improper use, natural disasters, or unauthorised repairs.

USER MANUAL Ania 14 Evolveo

Black hexagonal device with red LED fans and grid pattern, no visible text or symbols

CZ

EN

Funkce

Copyright © Abacus Electric, s.r.o.

www.evolveo.com

www.facebook.com/EvolveoCZ

2x USB ports and 2 speed controllers

3 adjustable angles

5 high speed fans

Compatible for 9-17" laptops

Technical Information

• Black color
• Material: plastic and metal mesh
• Weight: 1015 g
• Overall size: 410 x 293 x 30 mm
• Fan size: 140x140 (5pcs)
• Fan speed: 1000-1400 + - 10%
• Rated voltage: USB DC 5V
• Current: 0.38A
• USB: USB2.0 (2pcs)
• Compatible for 17.3" laptop and below


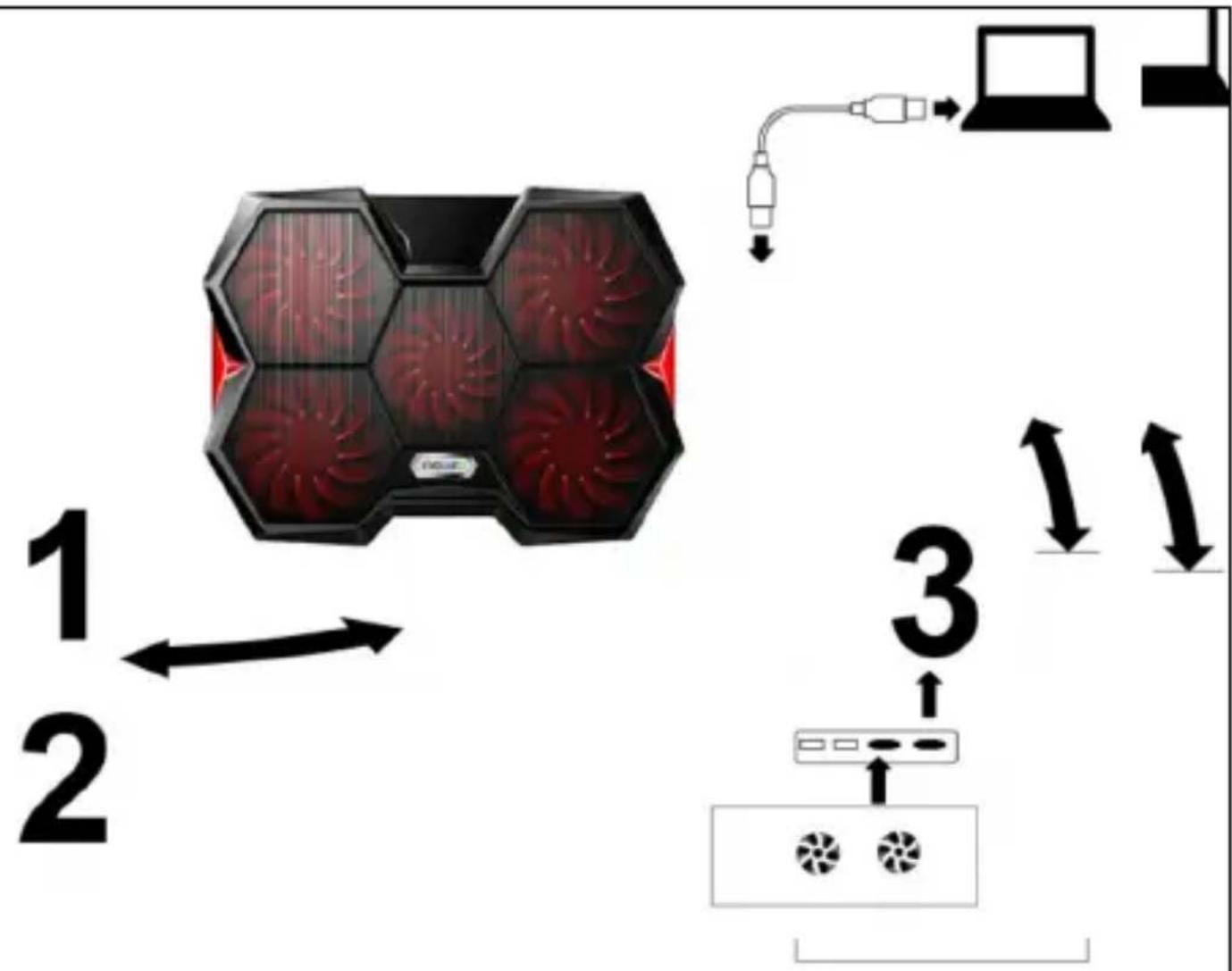

1) Removable anti-slip plate
2) Both sides of the board can be used according to the size of the laptop
3) Speed controller

The warranty does NOT cover:

• using the equipment for purposes other than those for which it is designed,
  • electrical or mechanical damage caused by improper use
• damage caused by natural elements such as water, fire, static electricity, power surges, etc.
• damage caused by repairs carried out by an unqualified person
• illegible serial number

Disposal

The crossed-out container symbol on the product, in the accompanying documentation or on the packaging reminds you that in EU countries, all electrical and electronic equipment, batteries and accumulators must be disposed of separately at the end of their useful life as part of sorted waste. Do not dispose of these products in unsorted municipal waste.

①CE DECLARATION OF CONFORMITY

Abacus Electric, s.r.o. hereby declares that the EVOLVEO Ania 14 product meets the requirements of the standards and regulations that are relevant for the type of equipment.

The full text of the Declaration of Conformity can be found at http://ftp.evolveo.com/ce/

Importer / Manufacturer

Abacus Electric, s.r.o.

Planá 2, 370 01, Czech Republic

Made in China

Copyright © Abacus Electric, s.r.o.

www.evolveo.com

www.facebook.com/EvolveoCZ

All rights reserved. The appearance and technical specifications of the product are subject to change without notice.
