Amp1 - TV amplifier Evolveo - Free user manual and instructions

Product Type	TV Signal Amplifier
Brand	Evolveo
Model	Amp1
Dimensions (approx.)	100 x 50 x 30 mm
Weight (approx.)	100 g
Power Supply	5 V DC via USB or included adapter
Power Consumption	< 2 W
Input Connector	F-type female (coaxial)
Output Connector	F-type female (coaxial)
Gain	Up to 15 dB (adjustable)
Frequency Range	47 – 862 MHz (VHF/UHF)
Noise Figure	< 3 dB
Main Functions	Signal amplification, noise reduction, adjustable gain
Installation	Plug-and-play, no additional software
Compatibility	Works with digital and analog TV signals
Maintenance & Cleaning	Wipe with a dry cloth; avoid liquids
Safety	CE certified; do not expose to moisture
Spare Parts	Power adapter and coaxial cables available
Repairability	Professional repair recommended; no user-serviceable parts inside
Package Contents	Amp1 unit, USB power cable, adapter, user manual

Frequently Asked Questions - Amp1 Evolveo

What is the purpose of the Evolveo Amp1 TV amplifier?

The Amp1 is designed to boost weak TV signals, improving reception quality and reducing pixelation or signal loss.

How do I connect the Amp1?

Connect the incoming coaxial cable from your antenna to the input of the Amp1, then connect the output to your TV or set-top box using another coaxial cable. Power the device via USB or the included adapter.

Does it work with digital TV (DVB-T/T2)?

Yes, the Amp1 supports digital TV signals in the 47–862 MHz range, including DVB-T and DVB-T2.

Can I adjust the amplification level?

Yes, the Amp1 features an adjustable gain control (usually a small knob) that lets you set the amplification from 0 to 15 dB as needed.

Why is the LED not turning on?

Check that the power adapter is properly connected and that the USB cable is securely plugged in. If the LED still doesn't light, try a different power source.

The picture hasn't improved after installation. What could be wrong?

Ensure that all coaxial connections are tight and that the gain is set appropriately. If the signal is already too strong, over-amplification can cause issues – try reducing the gain. Also check if your antenna is properly positioned.

Is the Amp1 weatherproof?

No, the Amp1 is designed for indoor use only. Do not expose it to rain or moisture.

Can I use this amplifier for satellite TV?

No, the Amp1 is intended for terrestrial TV signals (VHF/UHF), not for satellite L-band frequencies.

How do I clean the device?

Use a soft, dry cloth to clean the exterior. Do not use water, solvents, or abrasive cleaners.

Where can I find the user manual?

The manual is available for free download in PDF format from the product support page (notice-facile.com).

USER MANUAL Amp1 Evolveo

No. 5, 17/F, Strand 50, 50 Bonham Strand, Sheung Wan, Hong Kong

Vyrobeno v Číně

Copyright © ABACUS Electric, s.r.o.

www.evolveo.com

www.facebook.com/EvolveoCZ

Improving reception in weak signal area for all passive antennas.

Feature & specification:

Connector: IEC

Power-on indicator with ON/OFF switch for energy saving.

Frequency: VHF 47-230MHZ UHF 470-862MHZ

DC 5V

Switch adapter/ Digital Receiver/ TV powered available

Connection:

Powered via AC/DC adapter:

With Digital Receiver (Digital signals):

Or


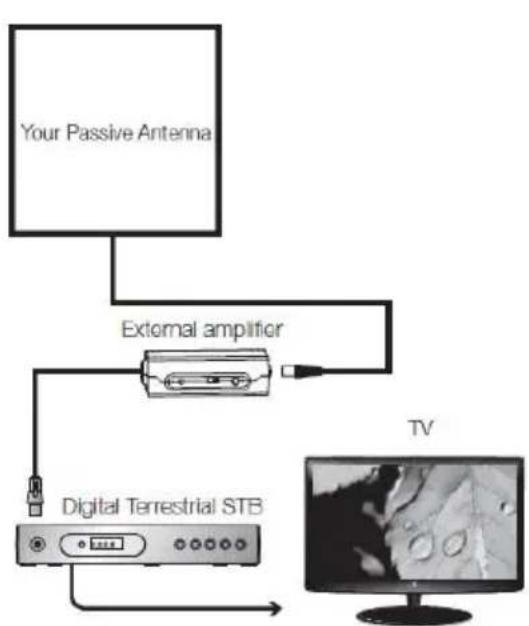

1. Plug the antenna's coaxial cable to the ANT jack of the external amplifier and plug the amplifier's coaxial cable to the ANT jack of your digital receiver, then set the receiver into powering model.

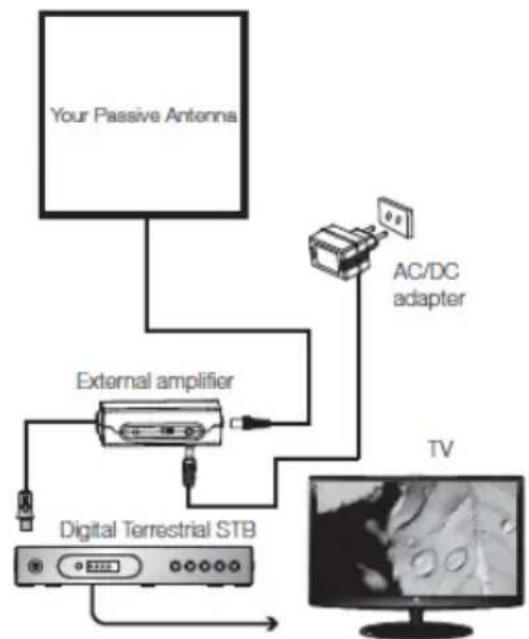

2. Plug the antenna's coaxial cable to the ANT jack of the external amplifier and plug the amplifier's coaxial cable to the ANT jack of your digital receiver. Plug the power adaptor's DC plug to the DC jack of the external amplifier and the power plug to the electrical outlet.

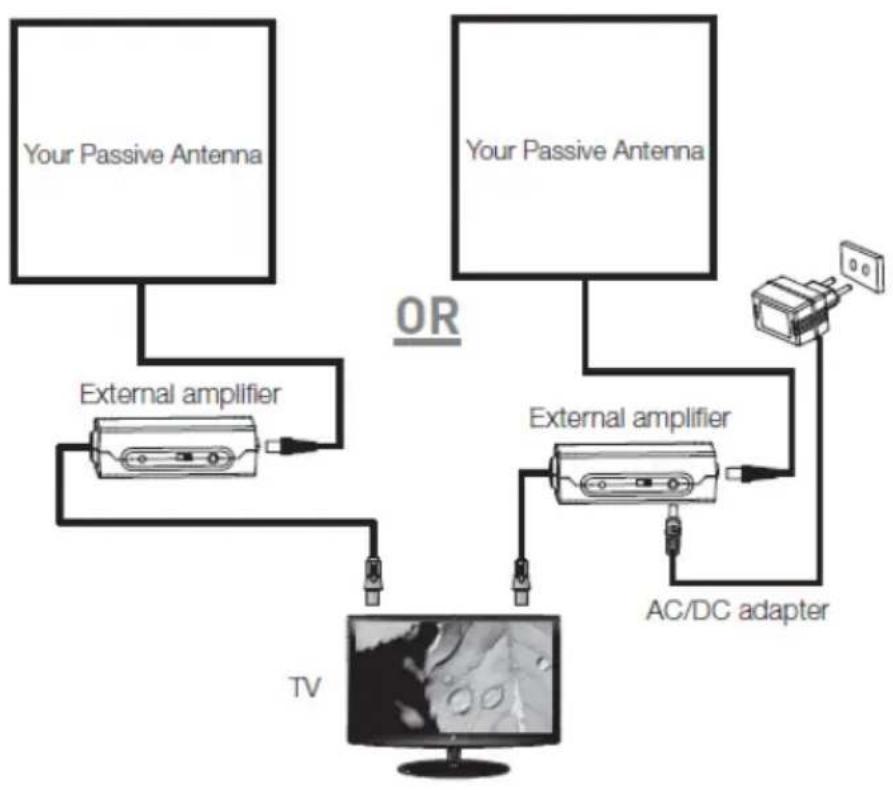

Connection to TV:

For TVs with built-in tuner (Digital signals):

1. Powered via built-in tuner.

2. Powered via AC/DC adaptor.

1: Plug the antenna's coaxial cable to the external amplifier and plug the amplifier's coaxial cable to the RF jack of your TV, then set the TV into powering model.

2: Plug the antenna's coaxial cable to the ANT jack of the external amplifier and plug the amplifier's coaxial cable to the RF jack of your TV. Plug the power adaptor's DC plug to the DC jack of external amplifier and the power plug to the electrical outlet.

Disposal: The symbol of crossed out container on the product, in the literature or on the wrapping means that in the European Union all the electric and electronic products, batteries and accumulators must be placed into the separate salvage after finishing their lifetime. Do not throw these products into the unsorted municipal waste

① C€ DECLARATION OF CONFORMITY

Hereby, the company Abacus Electric, s.r.o. declares that the EVOLVEO Amp 1 is in compliance with the requirements of the standards and regulations, relevant for the given type of device.

Find the complete text of Declaration of Conformity at ftp://ftp.evolveo.com/ce

Dovozce / Dovozca / Importer / Importör

Abacus Electric, s.r.o.

Planá 2, 370 01, Czech Republic

No.5, 17/F, Strand 50, 50 Bonham Strand, Sheung Wan, Hong Kong

Made in China

Copyright © Abacus Electric, s.r.o.

www.evolveo.com

www.facebook.com/EvolveoCZ

All rights reserved.

Design and specification may be changed without prior notice.
